Versa. Works Training WIEN Dr B Wac. Ko De Weirdt

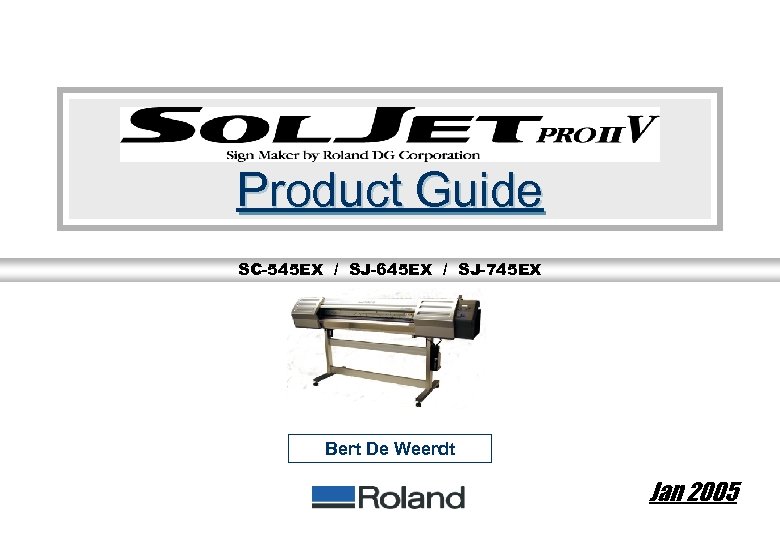

Product Guide SC-545 EX / SJ-645 EX / SJ-745 EX Bert De Weerdt Jan 2005

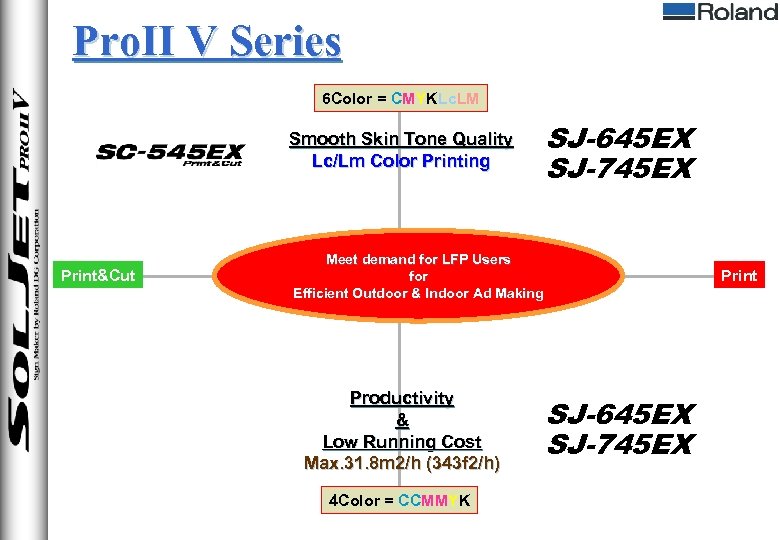

Pro. II V Series 6 Color = CMYKLc. LM Smooth Skin Tone Quality Lc/Lm Color Printing Print&Cut SJ-645 EX SJ-745 EX Meet demand for LFP Users for Efficient Outdoor & Indoor Ad Making Productivity & Low Running Cost Max. 31. 8 m 2/h (343 f 2/h) 4 Color = CCMMYK Print SJ-645 EX SJ-745 EX

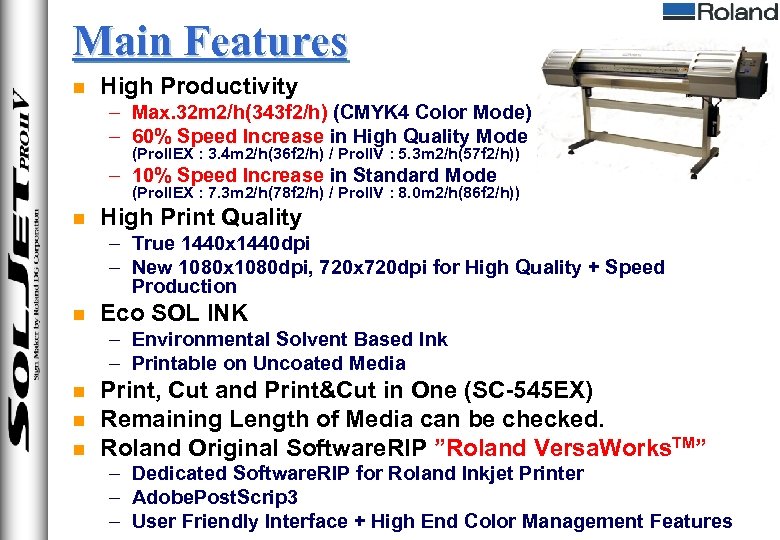

Main Features n High Productivity – Max. 32 m 2/h(343 f 2/h) (CMYK 4 Color Mode) – 60% Speed Increase in High Quality Mode (Pro. IIEX : 3. 4 m 2/h(36 f 2/h) / Pro. IIV : 5. 3 m 2/h(57 f 2/h)) – 10% Speed Increase in Standard Mode (Pro. IIEX : 7. 3 m 2/h(78 f 2/h) / Pro. IIV : 8. 0 m 2/h(86 f 2/h)) n High Print Quality – True 1440 x 1440 dpi – New 1080 x 1080 dpi, 720 x 720 dpi for High Quality + Speed Production n Eco SOL INK – Environmental Solvent Based Ink – Printable on Uncoated Media n n n Print, Cut and Print&Cut in One (SC-545 EX) Remaining Length of Media can be checked. Roland Original Software. RIP ”Roland Versa. Works. TM” – Dedicated Software. RIP for Roland Inkjet Printer – Adobe. Post. Scrip 3 – User Friendly Interface + High End Color Management Features
High Productivity n Speed Increase in All Print Modes – Max. 32 m 2/h (340 f 2/h) for Billboard Mode – 10% Speed Increase in Standard Mode – 60% Speed Increase in High Quality Mode Model Comparison

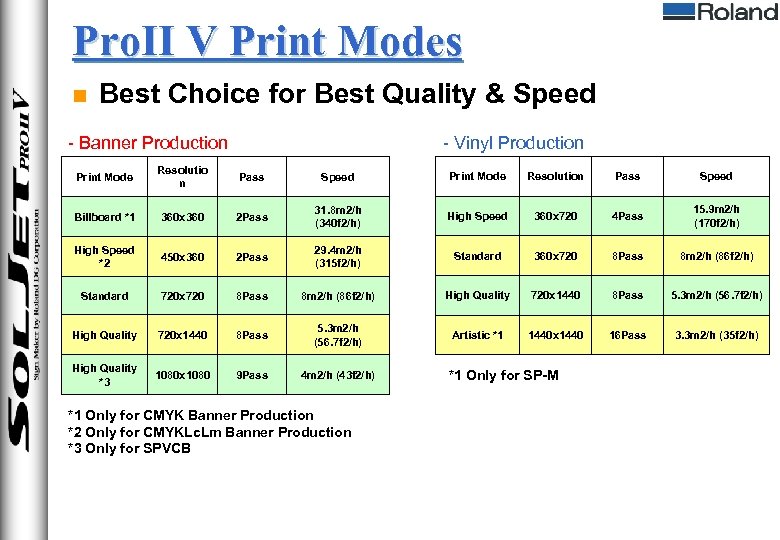

Pro. II V Print Modes n Best Choice for Best Quality & Speed - Banner Production - Vinyl Production Print Mode Resolutio n Pass Speed Print Mode Resolution Pass Speed Billboard *1 360 x 360 2 Pass 31. 8 m 2/h (340 f 2/h) High Speed 360 x 720 4 Pass 15. 9 m 2/h (170 f 2/h) High Speed *2 450 x 360 2 Pass 29. 4 m 2/h (315 f 2/h) Standard 360 x 720 8 Pass 8 m 2/h (86 f 2/h) Standard 720 x 720 8 Pass 8 m 2/h (86 f 2/h) High Quality 720 x 1440 8 Pass 5. 3 m 2/h (56. 7 f 2/h) Artistic *1 1440 x 1440 16 Pass 3. 3 m 2/h (35 f 2/h) High Quality *3 1080 x 1080 9 Pass 4 m 2/h (43 f 2/h) *1 Only for CMYK Banner Production *2 Only for CMYKLc. Lm Banner Production *3 Only for SPVCB *1 Only for SP-M
Pro. II V vs Competitors n Excellent Overall Performance m 2/h 107 f 2/h m 2/h 214 f 2/h m 2/h 321 f 2/h m 2/h 428 f 2/h

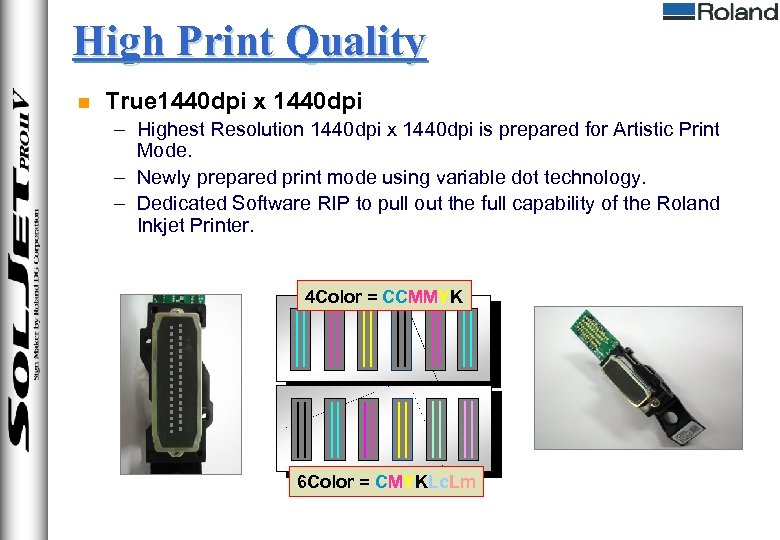

High Print Quality n True 1440 dpi x 1440 dpi – Highest Resolution 1440 dpi x 1440 dpi is prepared for Artistic Print Mode. – Newly prepared print mode using variable dot technology. – Dedicated Software RIP to pull out the full capability of the Roland Inkjet Printer. 4 Color = CCMMYK 6 Color = CMYKLc. Lm

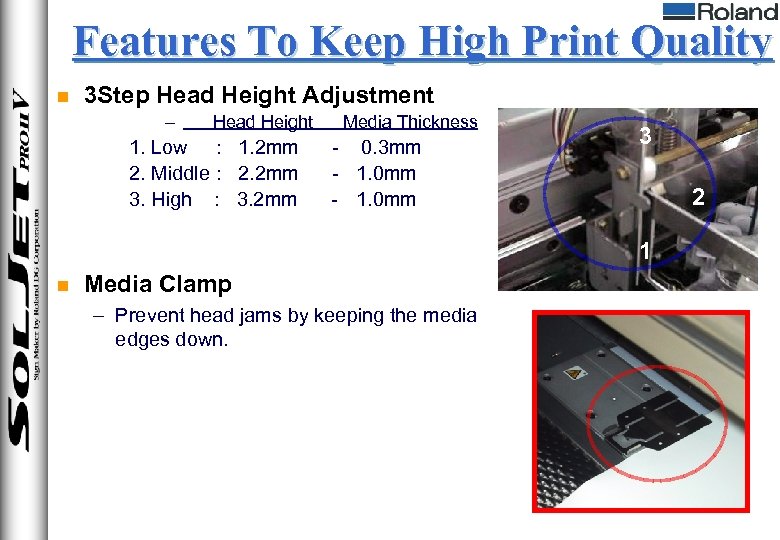

Features To Keep High Print Quality n 3 Step Head Height Adjustment – Head Height 1. Low : 1. 2 mm 2. Middle : 2. 2 mm 3. High : 3. 2 mm Media Thickness - 0. 3 mm - 1. 0 mm 3 2 1 n Media Clamp – Prevent head jams by keeping the media edges down.

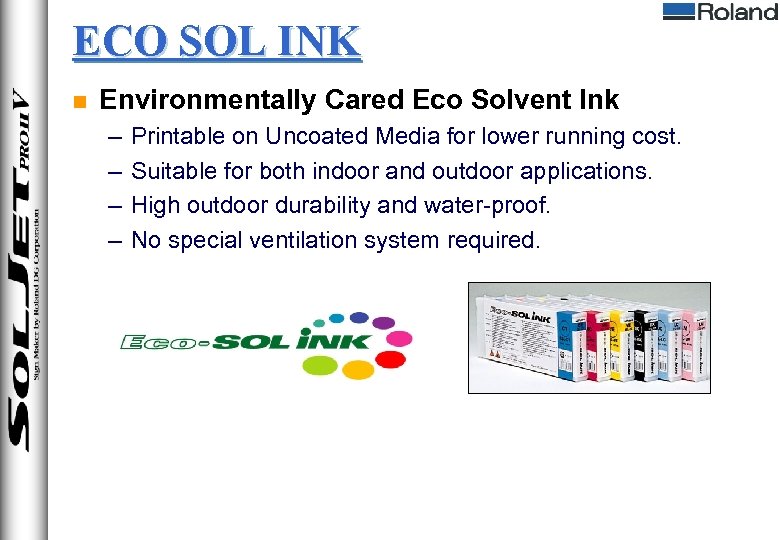

ECO SOL INK n Environmentally Cared Eco Solvent Ink – – Printable on Uncoated Media for lower running cost. Suitable for both indoor and outdoor applications. High outdoor durability and water-proof. No special ventilation system required.
Printable on Uncoated Media n Commercially Available Uncoated Media – Uncoated Vinyl and Banner materials can be used to reduce the running cost. +It is recommended to test the material before starting production. n Heating System – Print Heater Controller Heater

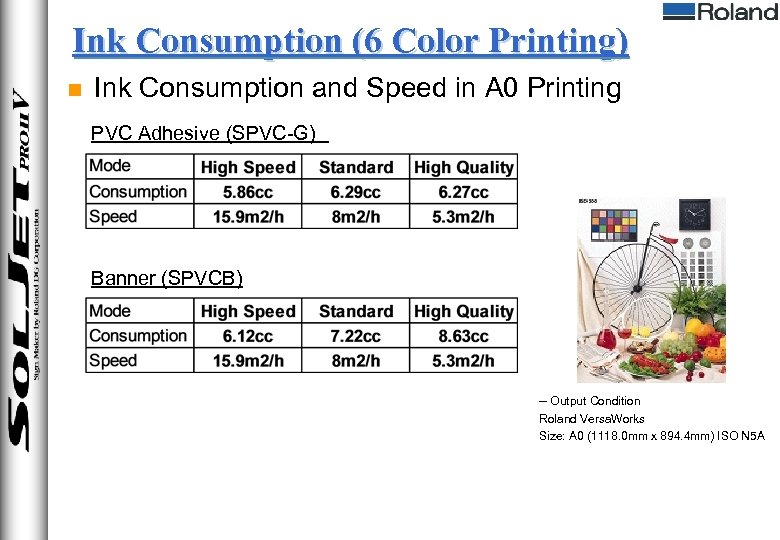

Ink Consumption (6 Color Printing) n Ink Consumption and Speed in A 0 Printing PVC Adhesive (SPVC-G) Banner (SPVCB) -- Output Condition Roland Versa. Works Size: A 0 (1118. 0 mm x 894. 4 mm) ISO N 5 A
Ink Consumption (4 Color Printing) n Ink Consumption and Speed in A 0 Printing PVC Adhesive (SPVC-G) Banner (SPVCB) -- Output Condition Roland Versa. Works Size: A 0 (1118. 0 mm x 894. 4 mm) ISO N 5 A
Hi. Fi. Calc 2. 1
Print, Cut and Print&Cut in One n Printing – From indoor posters to outdoor banner applications. n Cutting – No difference from the Professionally used Cutters. u. Cut Speed: 10 -300 mm/s u. Cut Pressure: 30 -300 gf u. Smoothing Function

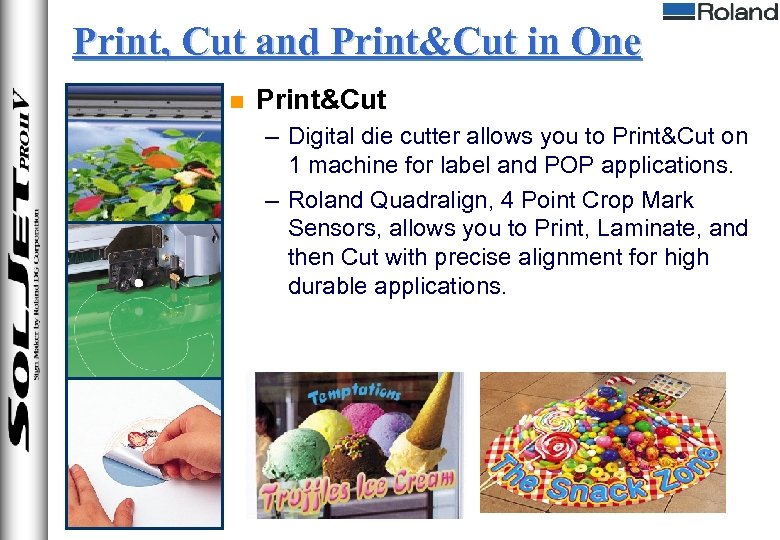

Print, Cut and Print&Cut in One n Print&Cut – Digital die cutter allows you to Print&Cut on 1 machine for label and POP applications. – Roland Quadralign, 4 Point Crop Mark Sensors, allows you to Print, Laminate, and then Cut with precise alignment for high durable applications.

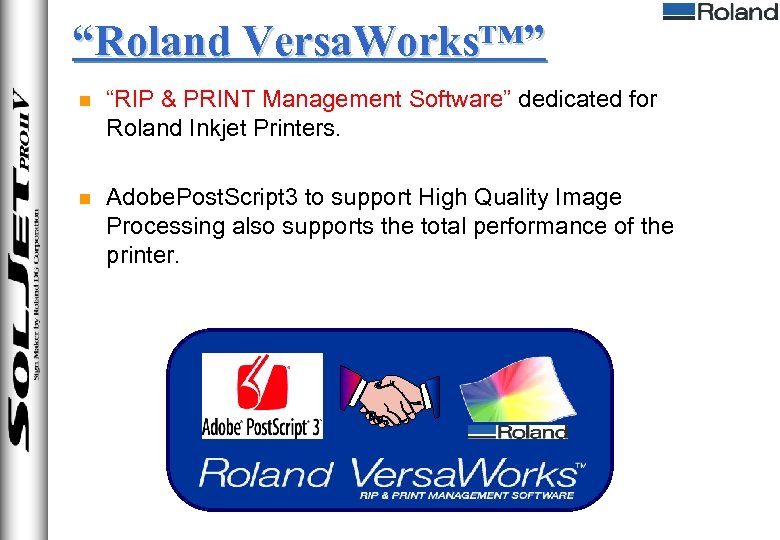

“Roland Versa. Works™” n “RIP & PRINT Management Software” dedicated for Roland Inkjet Printers. n Adobe. Post. Script 3 to support High Quality Image Processing also supports the total performance of the printer.
Features of “Roland Versa. Works” – Latest Adobe Post. Script Engine – 12 bit Halftone Processing for Fast Processing & High Quality – Friendly User Interface – Abundant Layout Features – Advanced Color Management Features – Network Support – Windows XP Professional Edition / Windows 2000 Professional Roland DG’s Original Print Management Engine Abundant Layout Features RIP & PRINT Management Software Adobe Original PS Interpreter Advanced Color Management

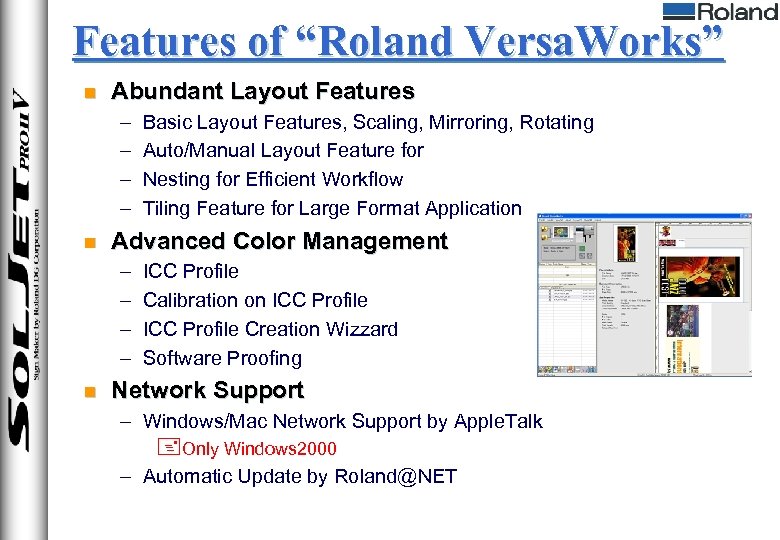

Features of “Roland Versa. Works” n Abundant Layout Features – – n Advanced Color Management – – n Basic Layout Features, Scaling, Mirroring, Rotating Auto/Manual Layout Feature for Nesting for Efficient Workflow Tiling Feature for Large Format Application ICC Profile Calibration on ICC Profile Creation Wizzard Software Proofing Network Support – Windows/Mac Network Support by Apple. Talk +Only Windows 2000 – Automatic Update by Roland@NET

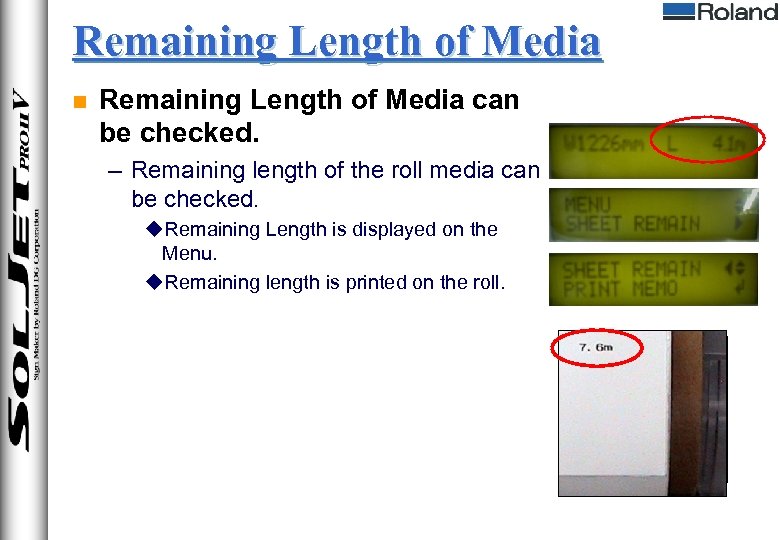

Remaining Length of Media n Remaining Length of Media can be checked. – Remaining length of the roll media can be checked. u. Remaining Length is displayed on the Menu. u. Remaining length is printed on the roll.
Others n Ethernet Interfance n Auto. Sheet Cut Feature – Printed Image can be cut off automatically after printing.
SC-545 EX / SJ-645 EX / SJ-745 EX Thank You
Eco-Solvent Inkjet printer for Entry Level SP-540 V SALES GUIDE Internal Use International Sales Department Roland DG Benelux
Sales Points n n n n n 54” wide Print&Cut ECO-SOL INK [CMYK 4 colors] Roland Original RIP “Versa. Works” Easy Operation Max. 10. 59 m²/h Ethernet Interface Media remaining detector Uncoated media printable Affordable Price Range

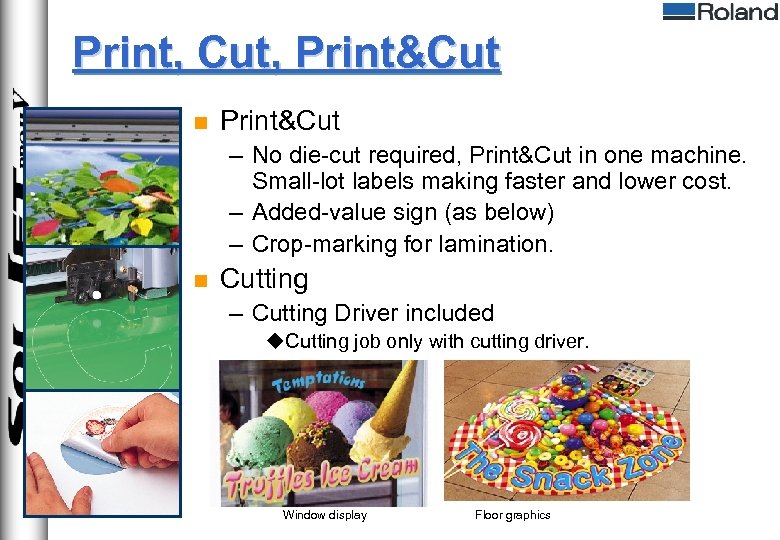

Print, Cut, Print&Cut n Print&Cut – No die-cut required, Print&Cut in one machine. Small-lot labels making faster and lower cost. – Added-value sign (as below) – Crop-marking for lamination. n Cutting – Cutting Driver included u. Cutting job only with cutting driver. Window display Floor graphics

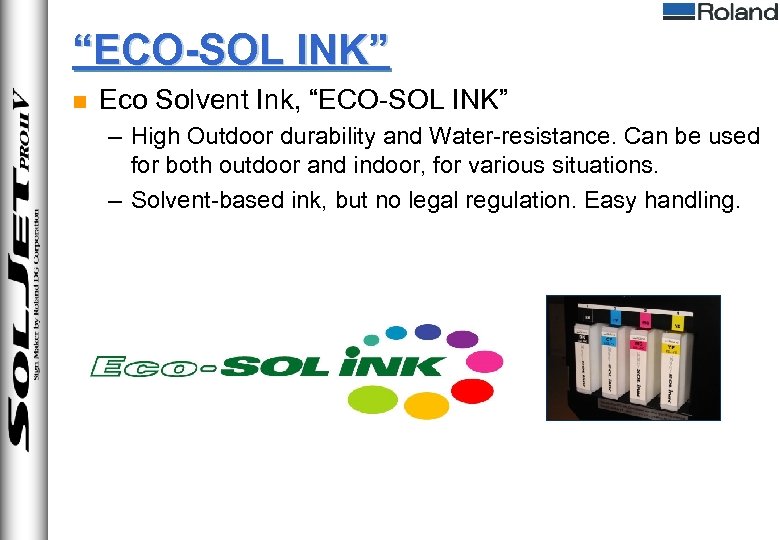

“ECO-SOL INK” n Eco Solvent Ink, “ECO-SOL INK” – High Outdoor durability and Water-resistance. Can be used for both outdoor and indoor, for various situations. – Solvent-based ink, but no legal regulation. Easy handling.

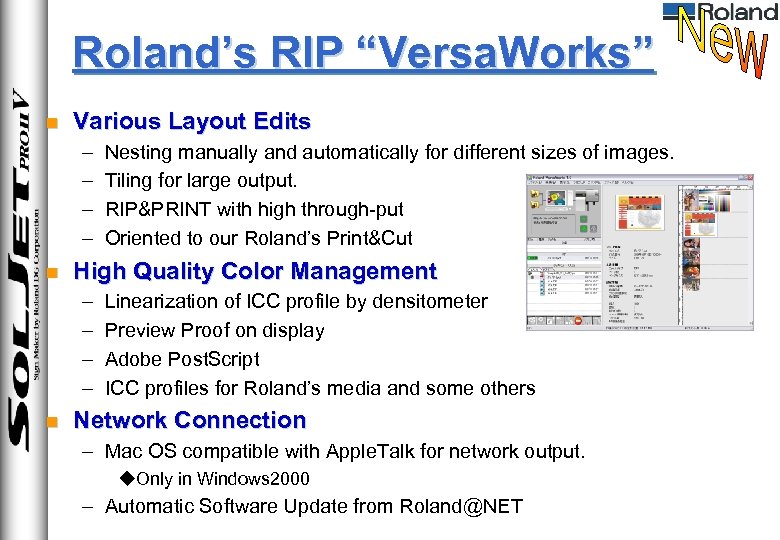

Roland’s RIP “Versa. Works” n Various Layout Edits – – n High Quality Color Management – – n Nesting manually and automatically for different sizes of images. Tiling for large output. RIP&PRINT with high through-put Oriented to our Roland’s Print&Cut Linearization of ICC profile by densitometer Preview Proof on display Adobe Post. Script ICC profiles for Roland’s media and some others Network Connection – Mac OS compatible with Apple. Talk for network output. u. Only in Windows 2000 – Automatic Software Update from Roland@NET
Easy Operation n Auto Sheet Cut – After print job, cuts automatically n Easy Cutting Output by Cutting Driver – Cutting job alone can be output. n TCP/IP Connection – RIP, Driver

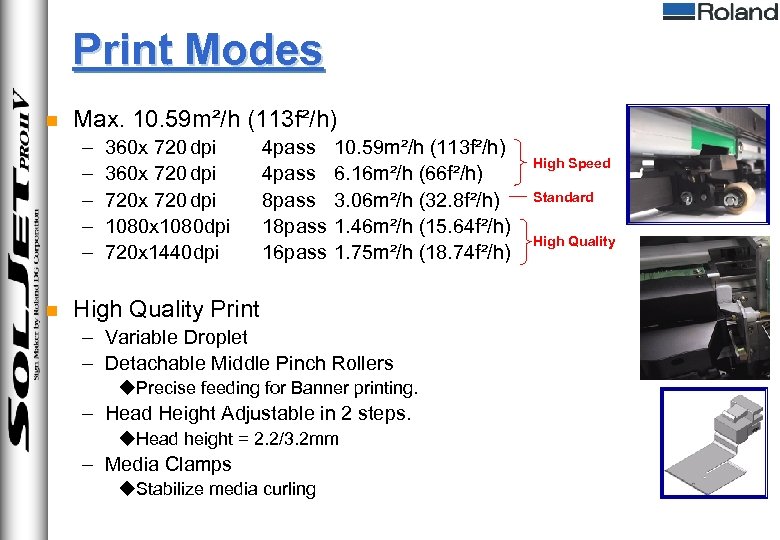

Print Modes n Max. 10. 59 m²/h (113 f²/h) – – – n 360 x 720 dpi 720 x 720 dpi 1080 x 1080 dpi 720 x 1440 dpi 4 pass 8 pass 16 pass 10. 59 m²/h (113 f²/h) 6. 16 m²/h (66 f²/h) 3. 06 m²/h (32. 8 f²/h) 1. 46 m²/h (15. 64 f²/h) 1. 75 m²/h (18. 74 f²/h) High Quality Print – Variable Droplet – Detachable Middle Pinch Rollers u. Precise feeding for Banner printing. – Head Height Adjustable in 2 steps. u. Head height = 2. 2/3. 2 mm – Media Clamps u. Stabilize media curling High Speed Standard High Quality

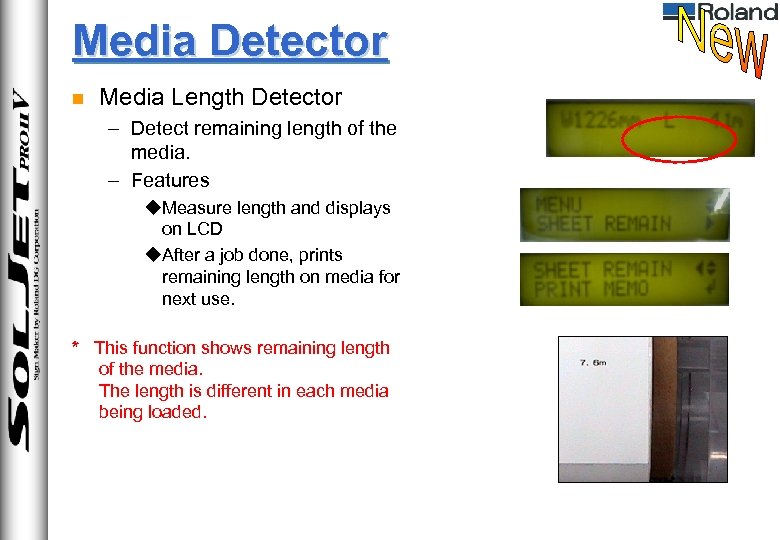

Media Detector n Media Length Detector – Detect remaining length of the media. – Features u. Measure length and displays on LCD u. After a job done, prints remaining length on media for next use. * This function shows remaining length of the media. The length is different in each media being loaded.

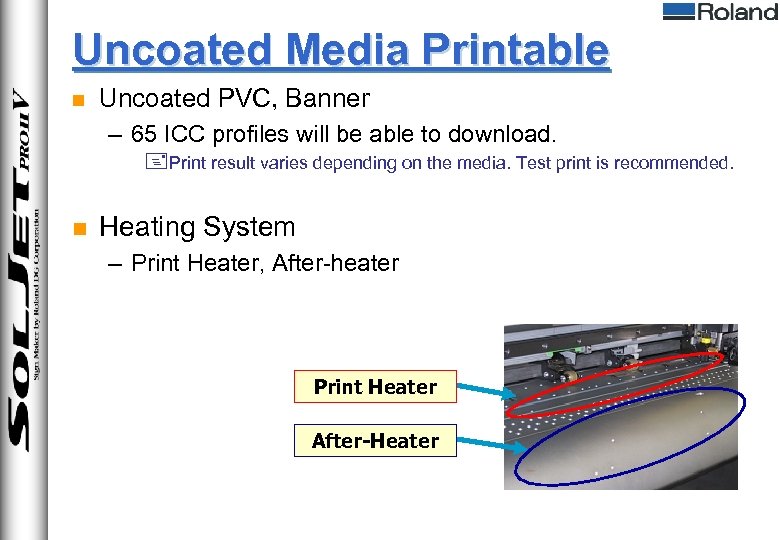

Uncoated Media Printable n Uncoated PVC, Banner – 65 ICC profiles will be able to download. +Print result varies depending on the media. Test print is recommended. n Heating System – Print Heater, After-heater Print Heater After-Heater

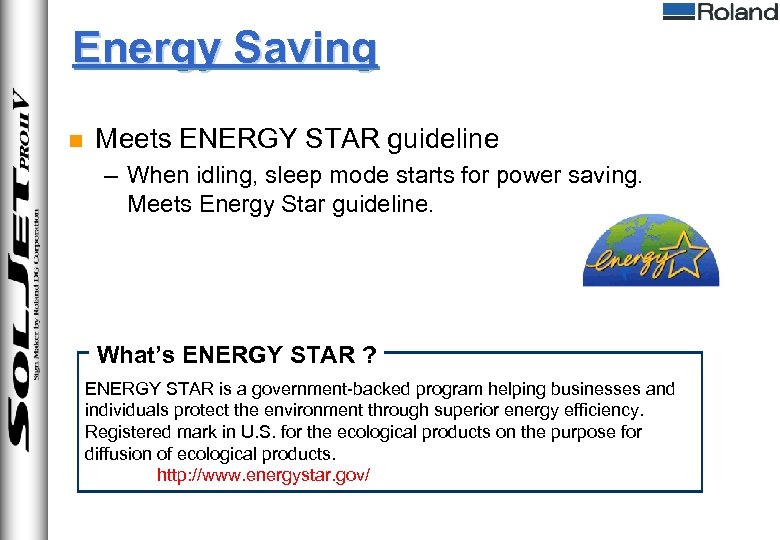

Energy Saving n Meets ENERGY STAR guideline – When idling, sleep mode starts for power saving. Meets Energy Star guideline. What’s ENERGY STAR ? ENERGY STAR is a government-backed program helping businesses and individuals protect the environment through superior energy efficiency. Registered mark in U. S. for the ecological products on the purpose for diffusion of ecological products. http: //www. energystar. gov/
Ink Consumption & Print Speed - Driver output n Ink Cost and Speed in A 0 Printing PVC Adhesive (SV-GG) Banner (SPVCB) -- Output Condition Roland Versa. Works Size: A 0 (1118. 0 mm x 894. 4 mm) ISO N 5 A

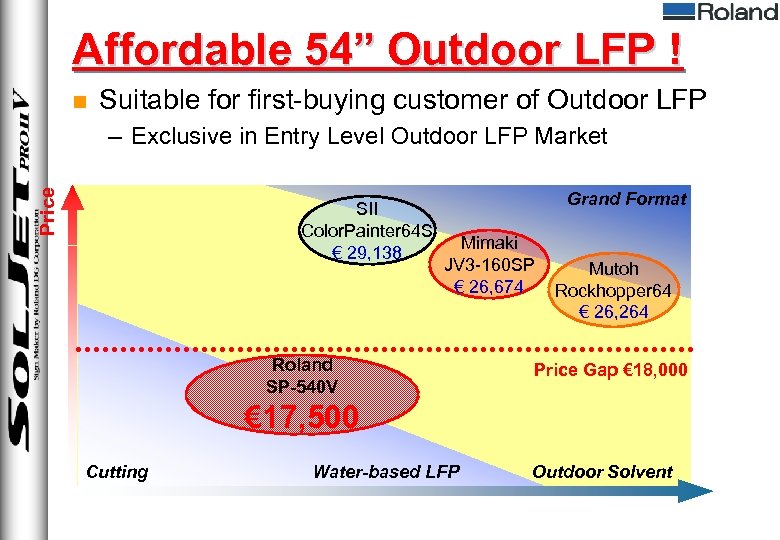

Affordable 54” Outdoor LFP ! n Suitable for first-buying customer of Outdoor LFP Price – Exclusive in Entry Level Outdoor LFP Market SII Color. Painter 64 S € 29, 138 Grand Format Mimaki JV 3 -160 SP € 26, 674 Roland SP-540 V Mutoh Rockhopper 64 € 26, 264 Price Gap € 18, 000 € 17, 500 Cutting Water-based LFP Outdoor Solvent
THANK YOU
New Feature · Update function Web Server Printer Program Internet Machine Firmware. Info. USER Firmware Profile Program Machine Info. 1. Latest programs and profiles can be downloaded from Web Server automatically. 2. It is possible to install the Firmware to the machine through the Versa. Works. 3. In the future, Service person can download user's machine information from the Web Server that this new function gathered from user's machines through the Internet, such as System report and History report.
