VC-A 50 S Full HD PTZ Camera The

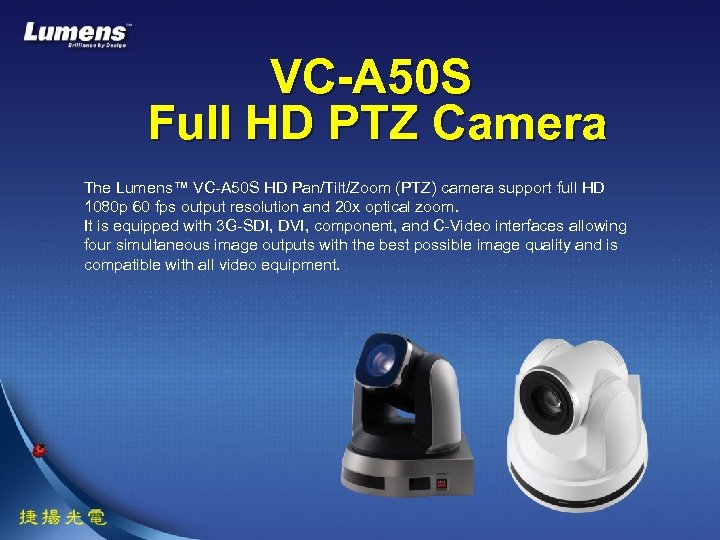

VC-A 50 S Full HD PTZ Camera The Lumens™ VC-A 50 S HD Pan/Tilt/Zoom (PTZ) camera support full HD 1080 p 60 fps output resolution and 20 x optical zoom. It is equipped with 3 G-SDI, DVI, component, and C-Video interfaces allowing four simultaneous image outputs with the best possible image quality and is compatible with all video equipment.

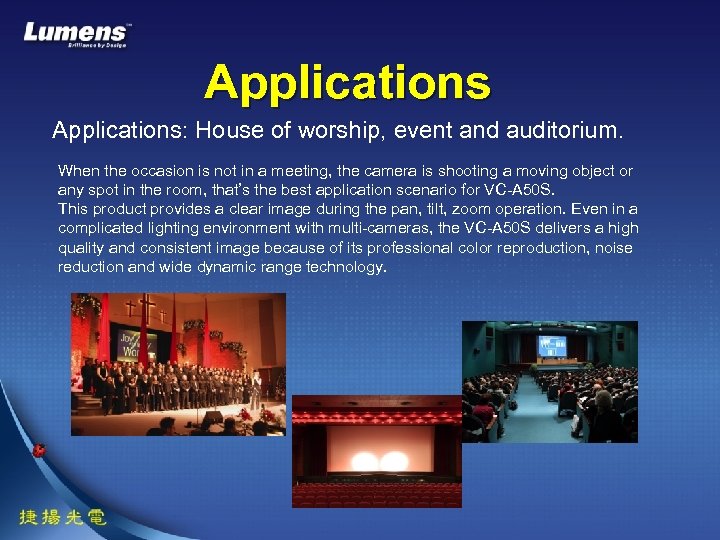

Applications: House of worship, event and auditorium. When the occasion is not in a meeting, the camera is shooting a moving object or any spot in the room, that’s the best application scenario for VC-A 50 S. This product provides a clear image during the pan, tilt, zoom operation. Even in a complicated lighting environment with multi-cameras, the VC-A 50 S delivers a high quality and consistent image because of its professional color reproduction, noise reduction and wide dynamic range technology.

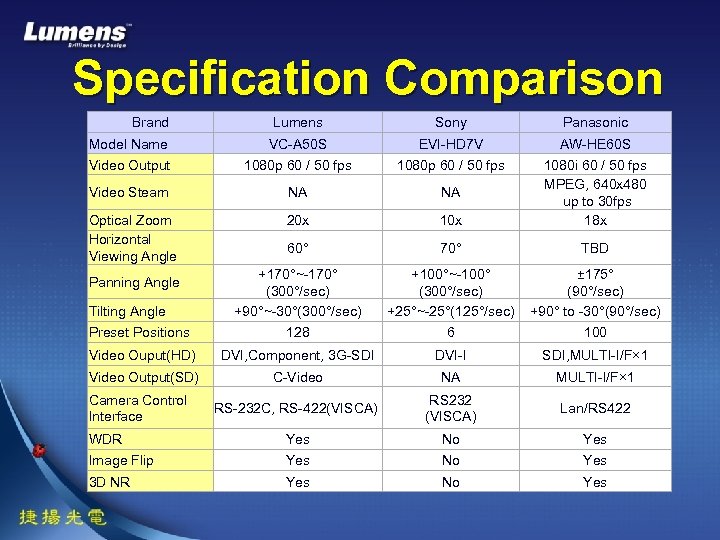

Specification Comparison Brand Lumens Sony Panasonic Model Name VC-A 50 S EVI-HD 7 V AW-HE 60 S Video Output 1080 p 60 / 50 fps Video Steam NA NA Optical Zoom Horizontal Viewing Angle 20 x 1080 i 60 / 50 fps MPEG, 640 x 480 up to 30 fps 18 x 60° 70° TBD +170°~-170° (300°/sec) +90°~-30°(300°/sec) +100°~-100° (300°/sec) +25°~-25°(125°/sec) ± 175° (90°/sec) +90° to -30°(90°/sec) Preset Positions 128 6 100 Video Ouput(HD) DVI, Component, 3 G-SDI DVI-I SDI, MULTI-I/F× 1 Video Output(SD) C-Video NA MULTI-I/F× 1 RS-232 C, RS-422(VISCA) RS 232 (VISCA) Lan/RS 422 WDR Yes No Yes Image Flip Yes No Yes 3 D NR Yes No Yes Panning Angle Tilting Angle Camera Control Interface

Advanced Image Processing The advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom & capture function.

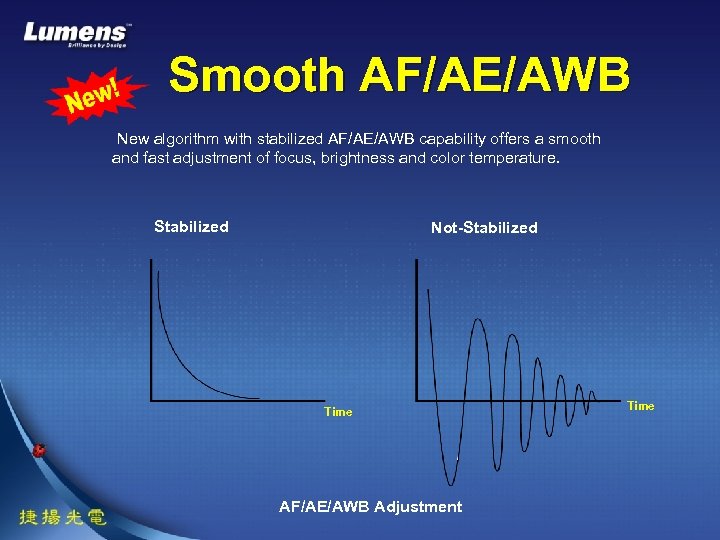

Smooth AF/AE/AWB New algorithm with stabilized AF/AE/AWB capability offers a smooth and fast adjustment of focus, brightness and color temperature. Stabilized Not-Stabilized Time AF/AE/AWB Adjustment Time

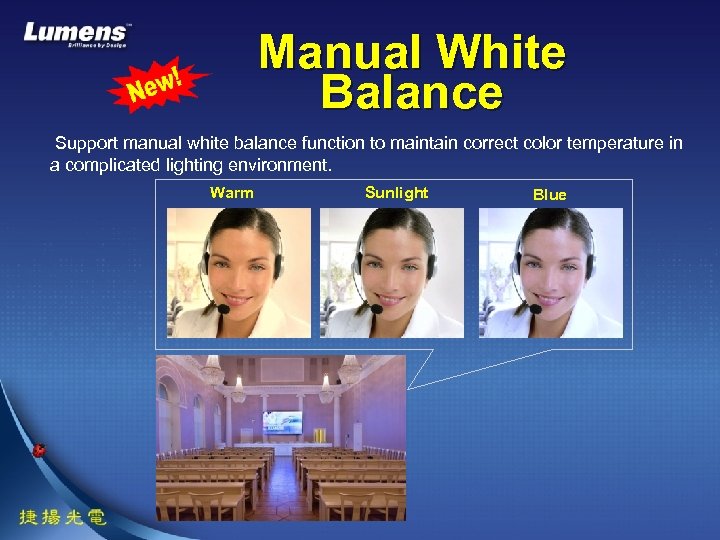

Manual White Balance Support manual white balance function to maintain correct color temperature in a complicated lighting environment. Warm Sunlight Blue

Fast Zoom Tracking New algorithm with fast zoom tracking function can keep the image stay clear and focused while zoom-in and zoom-out.

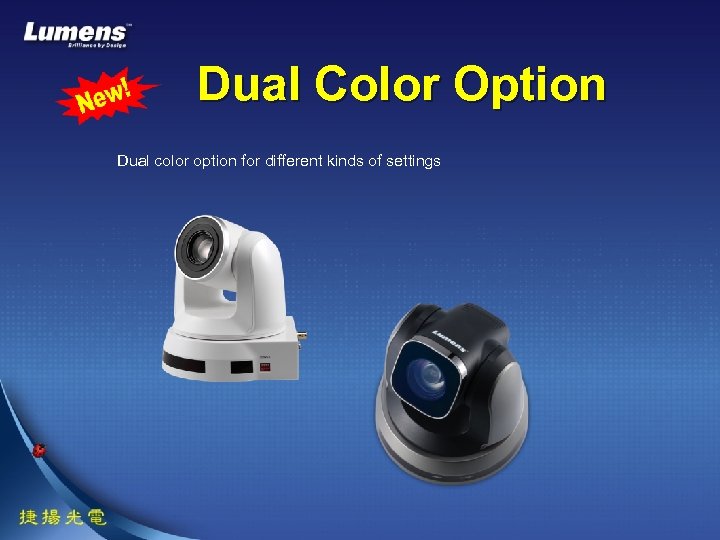

Dual Color Option Dual color option for different kinds of settings

20 x Optical Zoom Professional Zoom Lens 240 times zoom ratio (20 x optical zoom and 12 x digital zoom) to see all the details

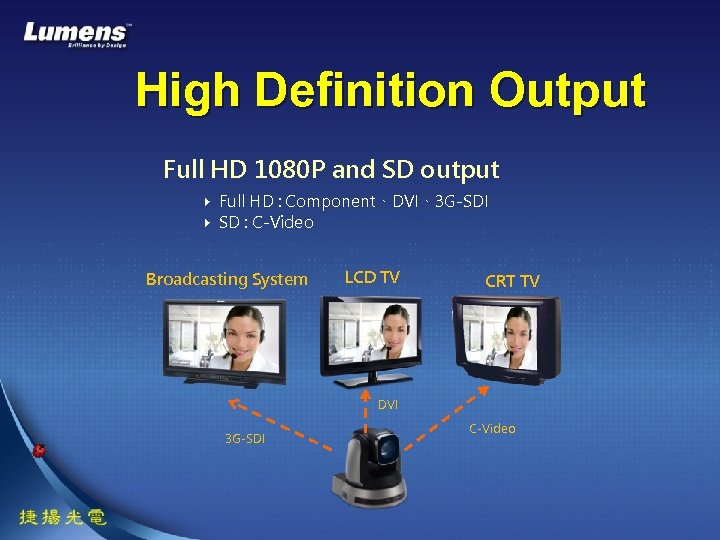

High Definition Output Full HD 1080 P and SD output Full HD : Component、DVI、3 G-SDI SD : C-Video Broadcasting System LCD TV CRT TV DVI 3 G-SDI C-Video

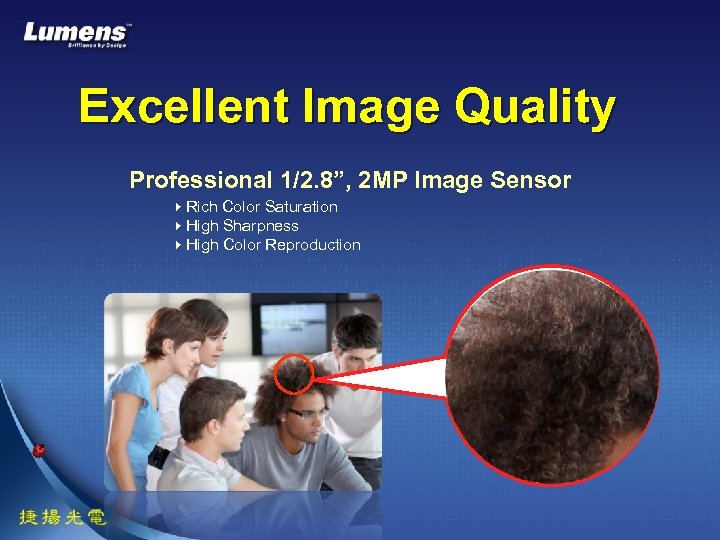

Excellent Image Quality Professional 1/2. 8”, 2 MP Image Sensor Rich Color Saturation High Sharpness High Color Reproduction

Low Noise Professional Digital Image Processing High sensitivity CMOS image sensor with superior 2 D/3 D noise reduction technology to deliver clear and vivid image without noise. w/o Low Noise With Low Noise

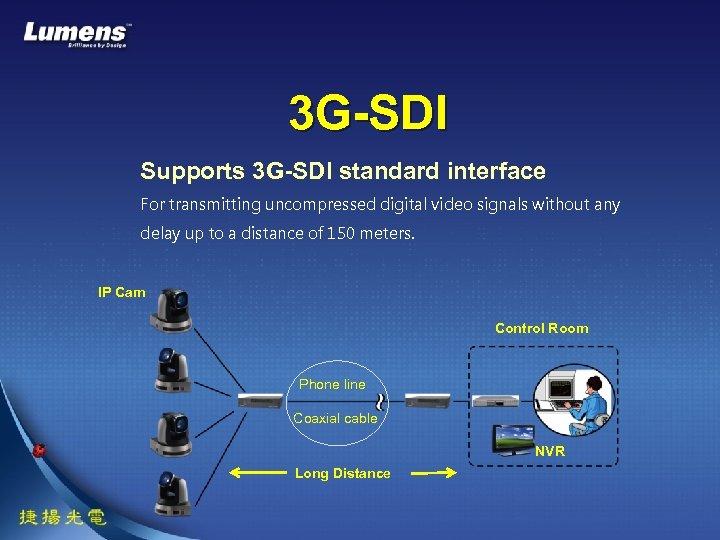

3 G-SDI Supports 3 G-SDI standard interface For transmitting uncompressed digital video signals without any delay up to a distance of 150 meters. IP Cam Control Room Phone line Coaxial cable NVR Long Distance

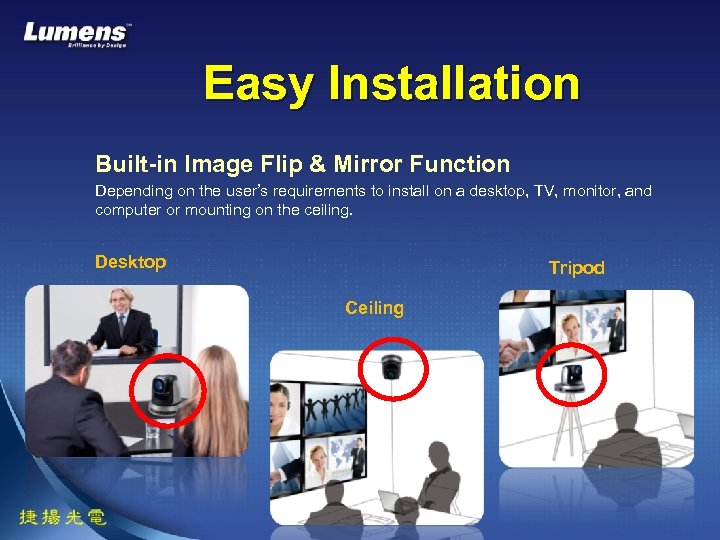

Easy Installation Built-in Image Flip & Mirror Function Depending on the user’s requirements to install on a desktop, TV, monitor, and computer or mounting on the ceiling. Desktop Tripod Ceiling

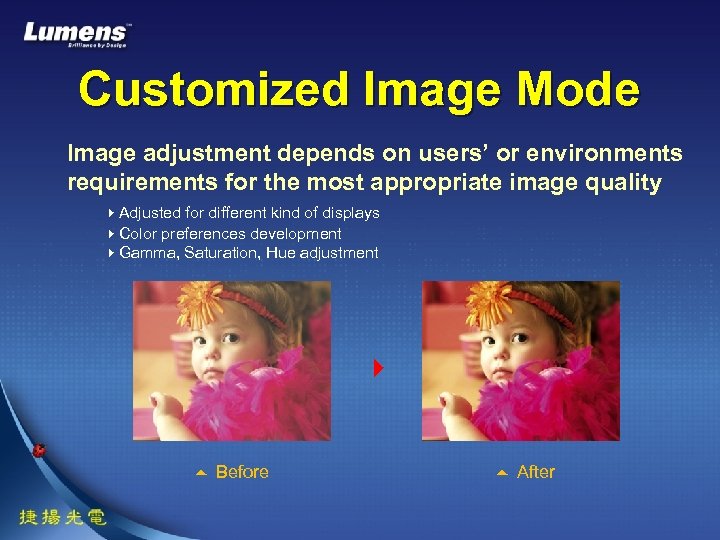

Customized Image Mode Image adjustment depends on users’ or environments requirements for the most appropriate image quality Adjusted for different kind of displays Color preferences development Gamma, Saturation, Hue adjustment Before After

PTZ Performance High Efficient Motor control Max. High Speed 300° / second Precise positioning

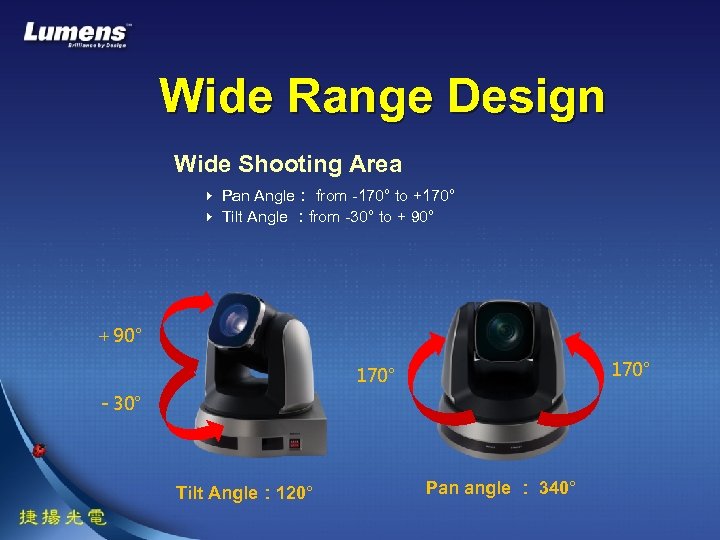

Wide Range Design Wide Shooting Area Pan Angle： from -170° to +170° Tilt Angle ：from -30° to + 90° ＋90° 170° - 30° Tilt Angle： 120° Pan angle ： 340°

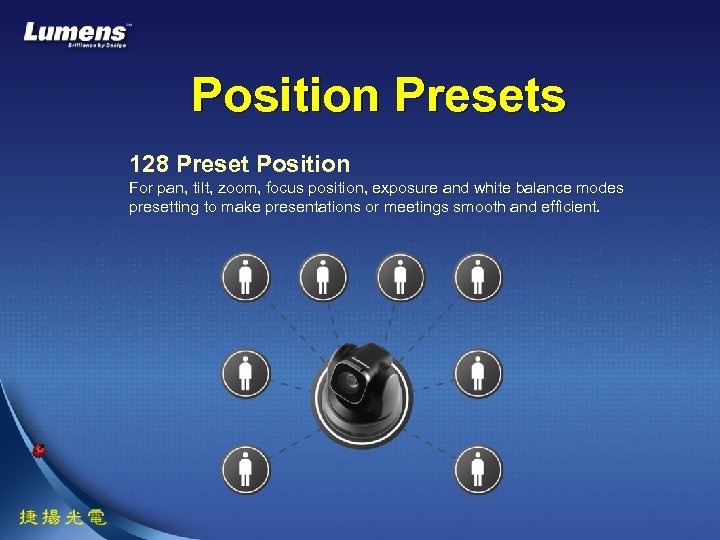

Position Presets 128 Preset Position For pan, tilt, zoom, focus position, exposure and white balance modes presetting to make presentations or meetings smooth and efficient.

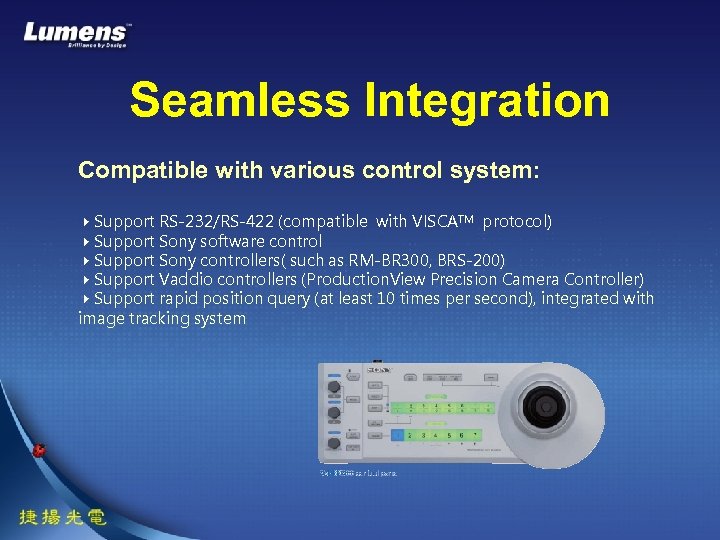

Seamless Integration Compatible with various control system: Support RS-232/RS-422 (compatible with VISCATM protocol) Support Sony software control Support Sony controllers( such as RM-BR 300, BRS-200) Support Vaddio controllers (Production. View Precision Camera Controller) Support rapid position query (at least 10 times per second), integrated with image tracking system

System Compatibility Compatible with major video conferencing and lecture capture codec: • • Polycom: HDX 7000/8000/9000 serious(HDCI convert cable) Tandberg: Codec C 40/60/90 and 75/95 MXP Sony: PCS-XG serious Rad. Vision: SCOPIA XT serious Life. Size: Life. Size 220 Series ZTE: T 700 S serious Lecture capture system, like REACH
