Vanilla TCP? Alasdair Allan IVOA Interop Meeting, May 2006

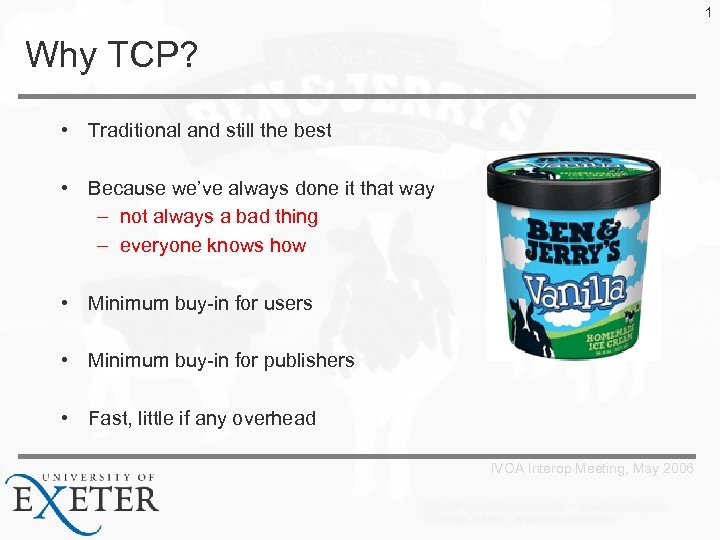

1 Why TCP? • Traditional and still the best • Because we’ve always done it that way – not always a bad thing – everyone knows how • Minimum buy-in for users • Minimum buy-in for publishers • Fast, little if any overhead IVOA Interop Meeting, May 2006

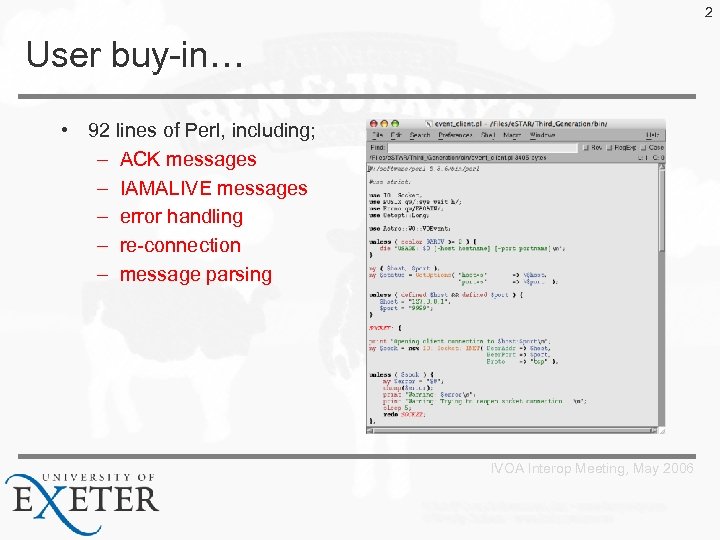

2 User buy-in… • 92 lines of Perl, including; – ACK messages – IAMALIVE messages – error handling – re-connection – message parsing IVOA Interop Meeting, May 2006

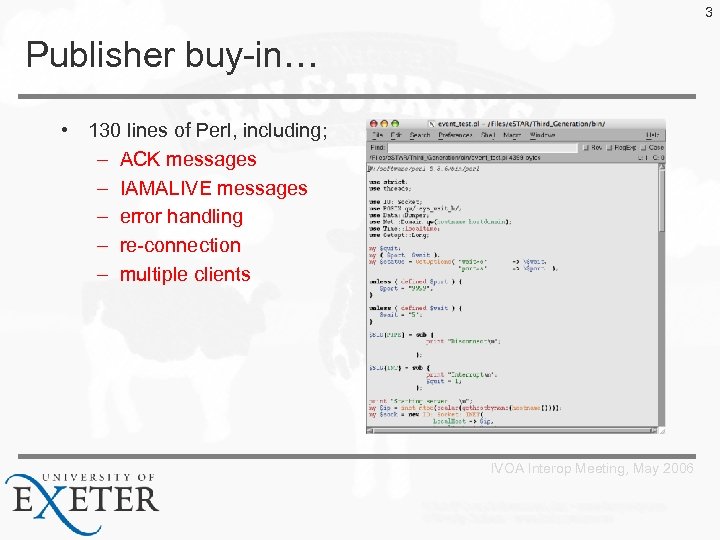

3 Publisher buy-in… • 130 lines of Perl, including; – ACK messages – IAMALIVE messages – error handling – re-connection – multiple clients IVOA Interop Meeting, May 2006

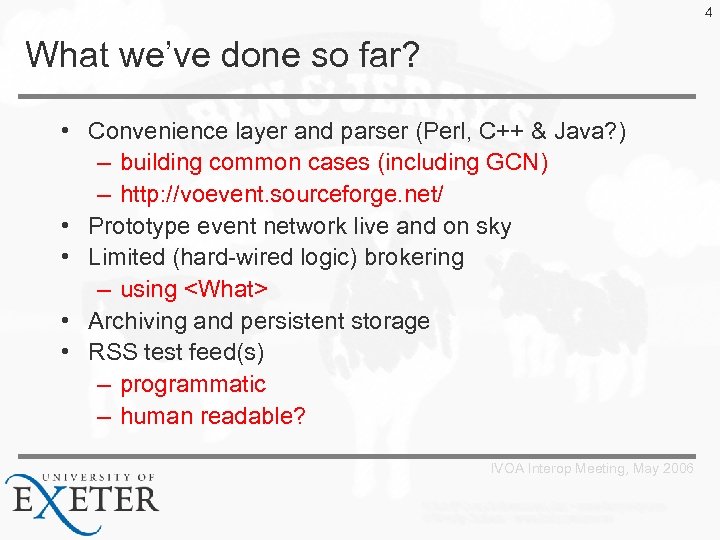

4 What we’ve done so far? • Convenience layer and parser (Perl, C++ & Java? ) – building common cases (including GCN) – http: //voevent. sourceforge. net/ • Prototype event network live and on sky • Limited (hard-wired logic) brokering – using

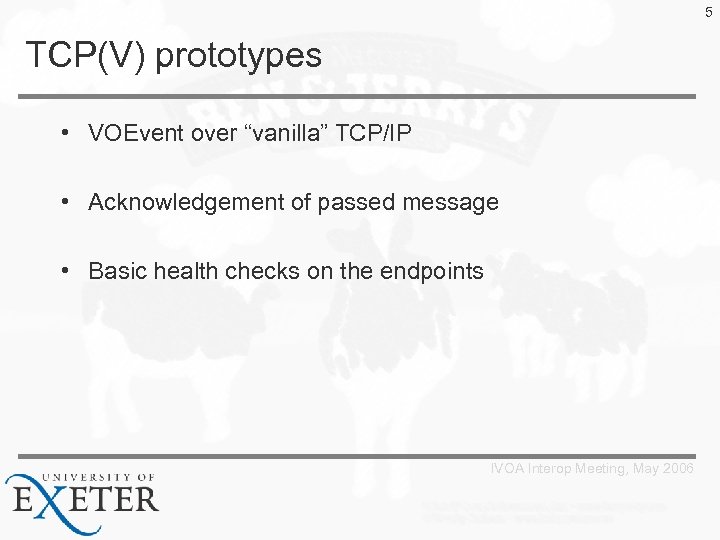

5 TCP(V) prototypes • VOEvent over “vanilla” TCP/IP • Acknowledgement of passed message • Basic health checks on the endpoints IVOA Interop Meeting, May 2006
6 “Atomic” services • • • Author Publisher Relay Repository Subscriber Listener An architecture diagram showing; publishers, subscribers, filters (e. g. relays) and repositories, along with the more complicated aggregators and brokers. IVOA Interop Meeting, May 2006

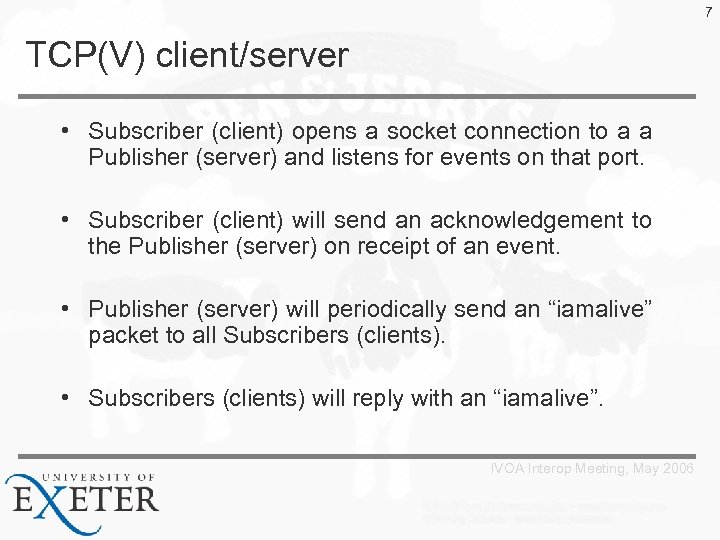

7 TCP(V) client/server • Subscriber (client) opens a socket connection to a a Publisher (server) and listens for events on that port. • Subscriber (client) will send an acknowledgement to the Publisher (server) on receipt of an event. • Publisher (server) will periodically send an “iamalive” packet to all Subscribers (clients). • Subscribers (clients) will reply with an “iamalive”. IVOA Interop Meeting, May 2006

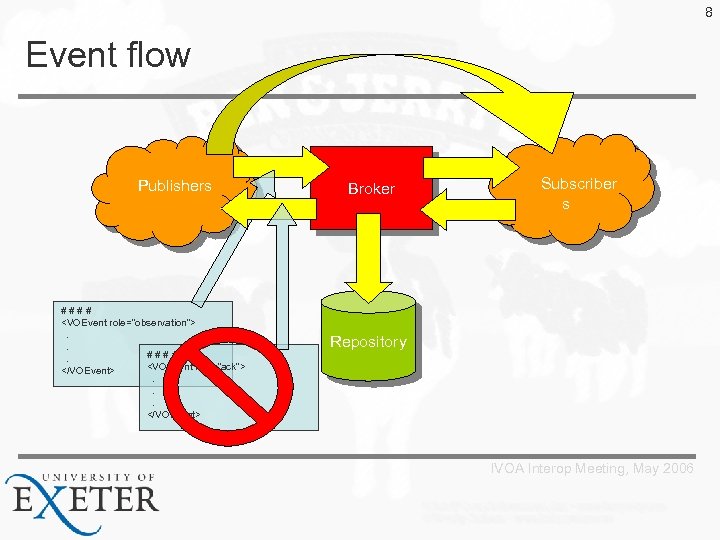

8 Event flow Publishers ####

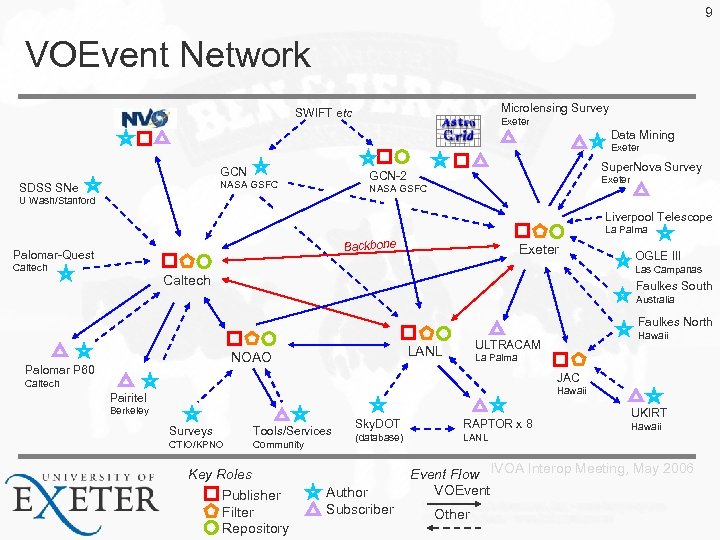

9 VOEvent Network Microlensing Survey SWIFT etc Exeter Data Mining Exeter GCN NASA GSFC SDSS SNe Super. Nova Survey GCN-2 Exeter NASA GSFC U Wash/Stanford Liverpool Telescope La Palma Backbone Palomar-Quest Caltech Exeter OGLE III Las Campanas Caltech Faulkes South Australia Faulkes North LANL NOAO Palomar P 60 Hawaii ULTRACAM La Palma JAC Caltech Hawaii Pairitel Berkeley Surveys Tools/Services CTIO/KPNO Community Key Roles Publisher Filter Repository Sky. DOT RAPTOR x 8 (database) LANL Author Subscriber UKIRT Hawaii Event Flow IVOA Interop Meeting, May 2006 VOEvent Other

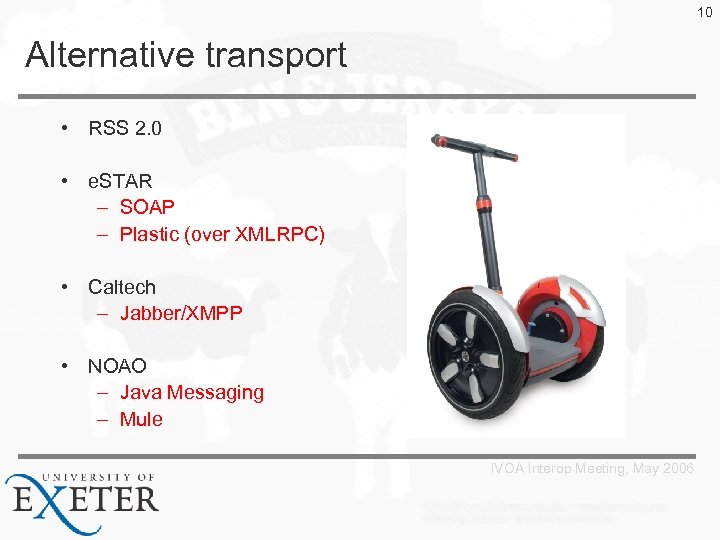

10 Alternative transport • RSS 2. 0 • e. STAR – SOAP – Plastic (over XMLRPC) • Caltech – Jabber/XMPP • NOAO – Java Messaging – Mule IVOA Interop Meeting, May 2006

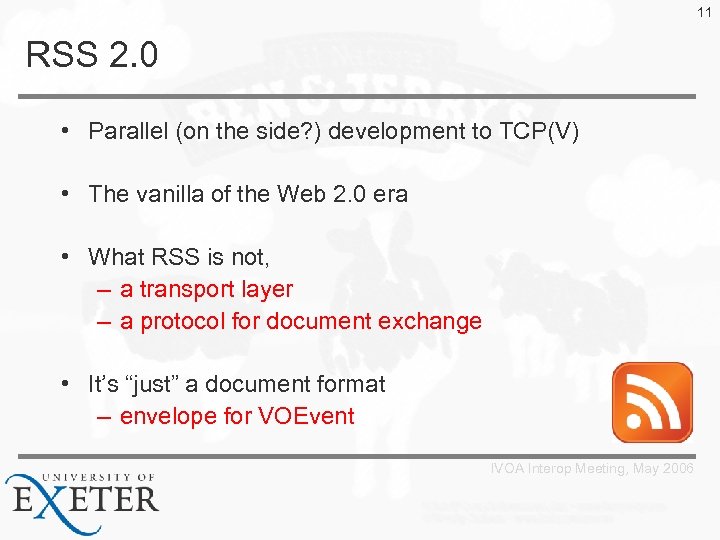

11 RSS 2. 0 • Parallel (on the side? ) development to TCP(V) • The vanilla of the Web 2. 0 era • What RSS is not, – a transport layer – a protocol for document exchange • It’s “just” a document format – envelope for VOEvent IVOA Interop Meeting, May 2006
Possible GRB The event time is 2005 -12 -01 T 16: 24: 15 UT. Location RA 232. 1248 Dec 62. 9797 (J 2000)
13 RSS feeds e. STAR native feed (includes OGLE III feed) http: //www. estar. org. uk/voevent/e. STAR. rdf RAPTOR/TALONS feed (includes GCN translation) http: //www. estar. org. uk/voevent/RAPTOR. rdf Caltech feed (re-published GCN translation) http: //www. estar. org. uk/voevent/Caltech. rdf See the e. STAR website http: //www. estar. org. uk/ for more information. IVOA Interop Meeting, May 2006

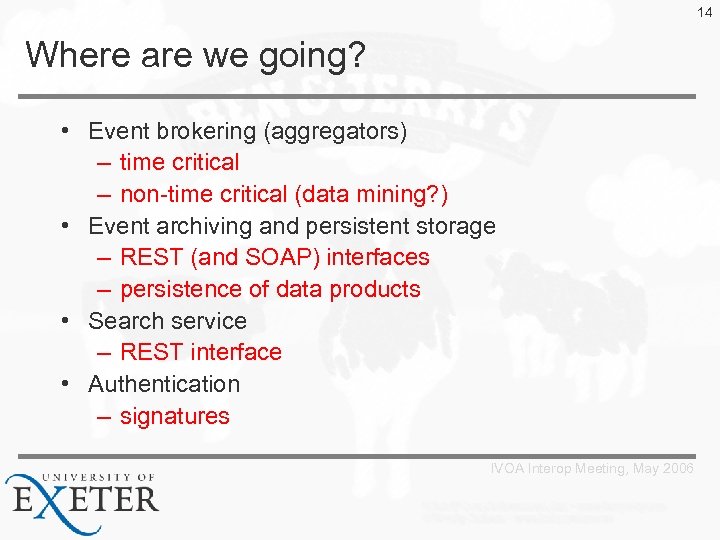

14 Where are we going? • Event brokering (aggregators) – time critical – non-time critical (data mining? ) • Event archiving and persistent storage – REST (and SOAP) interfaces – persistence of data products • Search service – REST interface • Authentication – signatures IVOA Interop Meeting, May 2006

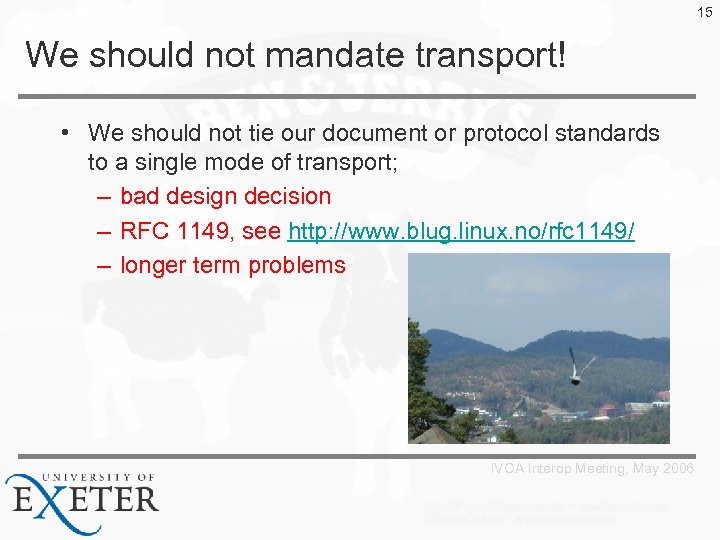

15 We should not mandate transport! • We should not tie our document or protocol standards to a single mode of transport; – bad design decision – RFC 1149, see http: //www. blug. linux. no/rfc 1149/ – longer term problems IVOA Interop Meeting, May 2006

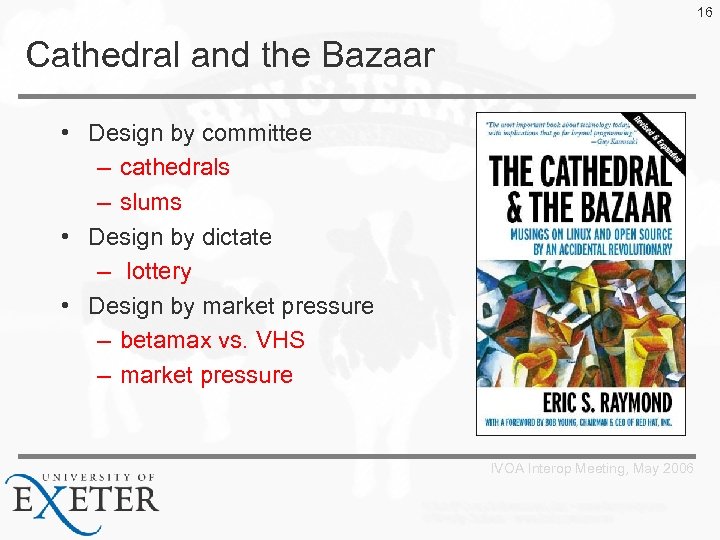

16 Cathedral and the Bazaar • Design by committee – cathedrals – slums • Design by dictate – lottery • Design by market pressure – betamax vs. VHS – market pressure IVOA Interop Meeting, May 2006

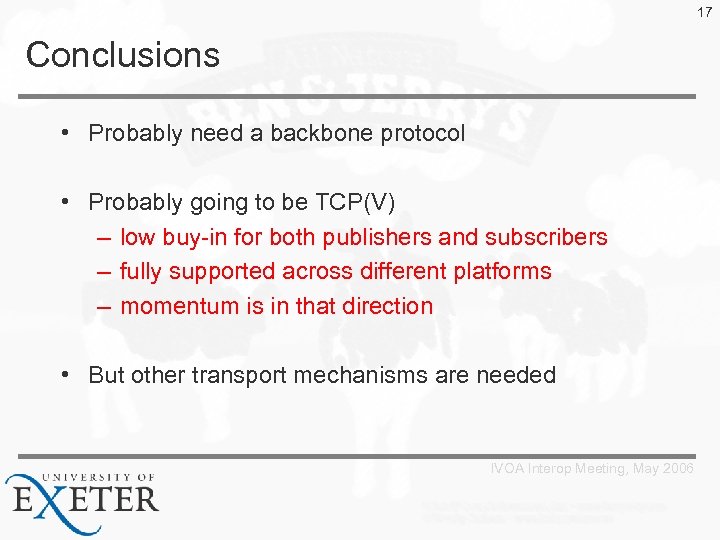

17 Conclusions • Probably need a backbone protocol • Probably going to be TCP(V) – low buy-in for both publishers and subscribers – fully supported across different platforms – momentum is in that direction • But other transport mechanisms are needed IVOA Interop Meeting, May 2006

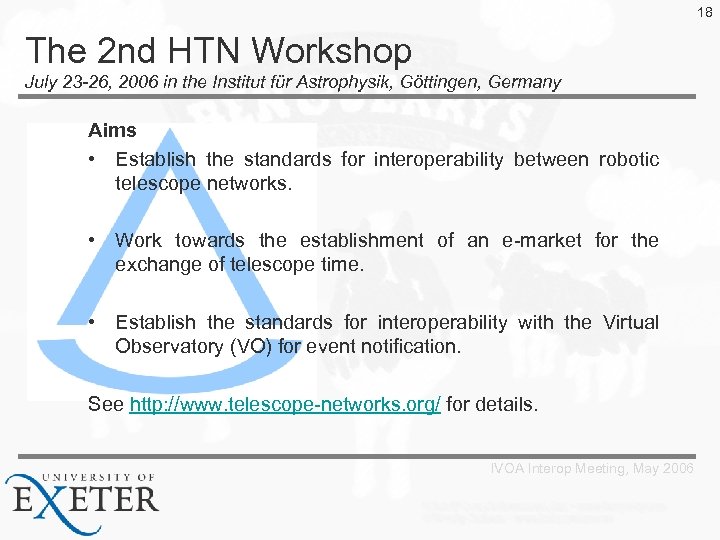

18 The 2 nd HTN Workshop July 23 -26, 2006 in the Institut für Astrophysik, Göttingen, Germany Aims • Establish the standards for interoperability between robotic telescope networks. • Work towards the establishment of an e-market for the exchange of telescope time. • Establish the standards for interoperability with the Virtual Observatory (VO) for event notification. See http: //www. telescope-networks. org/ for details. IVOA Interop Meeting, May 2006
