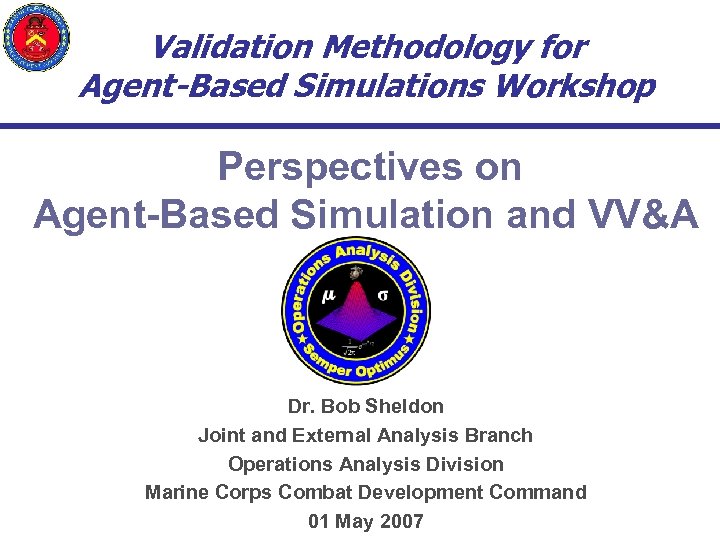

Validation Methodology for Agent-Based Simulations Workshop Perspectives on Agent-Based Simulation and VV&A Dr. Bob Sheldon Joint and External Analysis Branch Operations Analysis Division Marine Corps Combat Development Command 01 May 2007

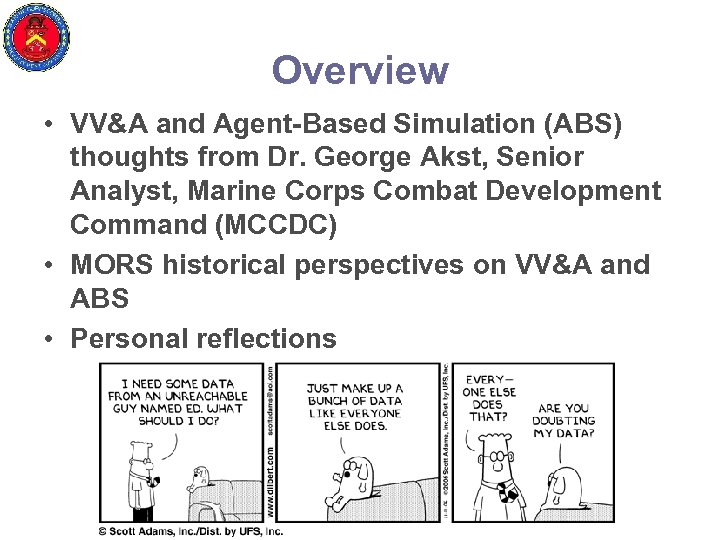

Overview • VV&A and Agent-Based Simulation (ABS) thoughts from Dr. George Akst, Senior Analyst, Marine Corps Combat Development Command (MCCDC) • MORS historical perspectives on VV&A and ABS • Personal reflections

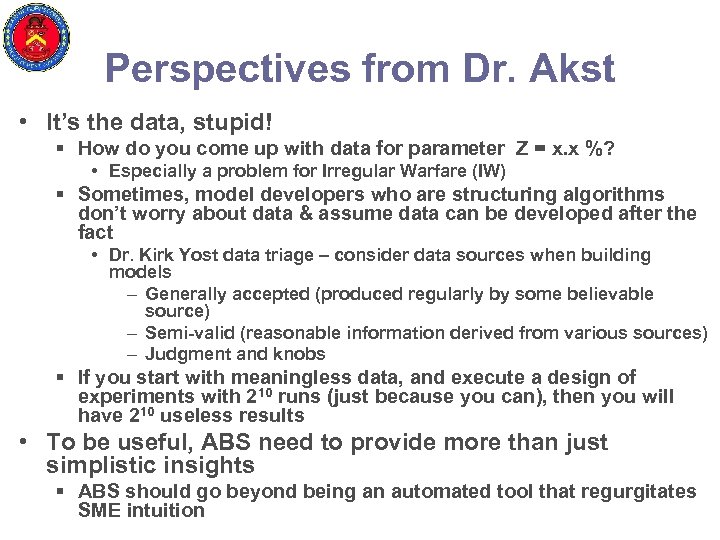

Perspectives from Dr. Akst • It’s the data, stupid! § How do you come up with data for parameter Z = x. x %? • Especially a problem for Irregular Warfare (IW) § Sometimes, model developers who are structuring algorithms don’t worry about data & assume data can be developed after the fact • Dr. Kirk Yost data triage – consider data sources when building models – Generally accepted (produced regularly by some believable source) – Semi-valid (reasonable information derived from various sources) – Judgment and knobs § If you start with meaningless data, and execute a design of experiments with 210 runs (just because you can), then you will have 210 useless results • To be useful, ABS need to provide more than just simplistic insights § ABS should go beyond being an automated tool that regurgitates SME intuition
More Dilbert Data

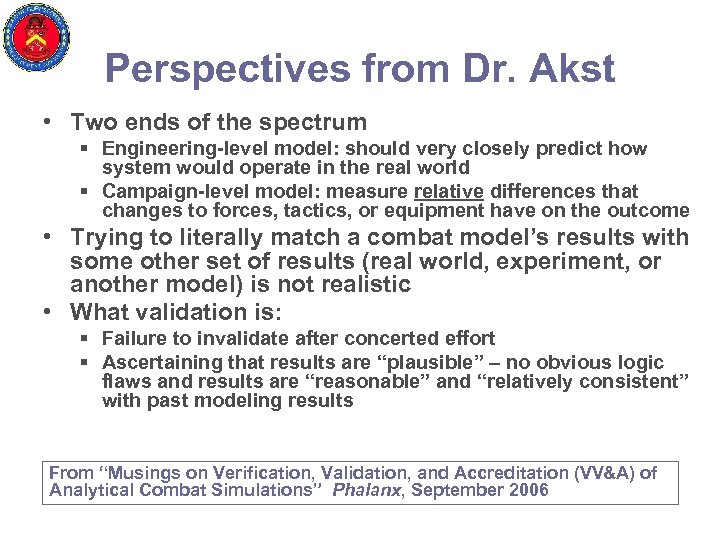

Perspectives from Dr. Akst • Two ends of the spectrum § Engineering-level model: should very closely predict how system would operate in the real world § Campaign-level model: measure relative differences that changes to forces, tactics, or equipment have on the outcome • Trying to literally match a combat model’s results with some other set of results (real world, experiment, or another model) is not realistic • What validation is: § Failure to invalidate after concerted effort § Ascertaining that results are “plausible” – no obvious logic flaws and results are “reasonable” and “relatively consistent” with past modeling results From “Musings on Verification, Validation, and Accreditation (VV&A) of Analytical Combat Simulations” Phalanx, September 2006

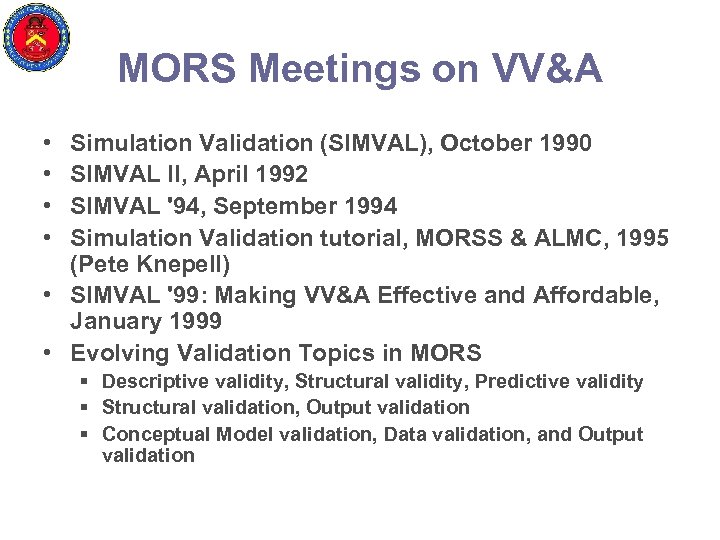

MORS Meetings on VV&A • • Simulation Validation (SIMVAL), October 1990 SIMVAL II, April 1992 SIMVAL '94, September 1994 Simulation Validation tutorial, MORSS & ALMC, 1995 (Pete Knepell) • SIMVAL '99: Making VV&A Effective and Affordable, January 1999 • Evolving Validation Topics in MORS § Descriptive validity, Structural validity, Predictive validity § Structural validation, Output validation § Conceptual Model validation, Data validation, and Output validation

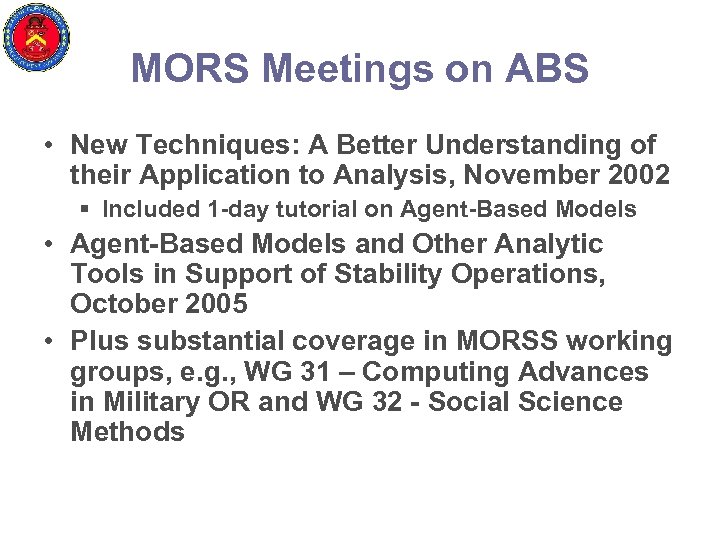

MORS Meetings on ABS • New Techniques: A Better Understanding of their Application to Analysis, November 2002 § Included 1 -day tutorial on Agent-Based Models • Agent-Based Models and Other Analytic Tools in Support of Stability Operations, October 2005 • Plus substantial coverage in MORSS working groups, e. g. , WG 31 – Computing Advances in Military OR and WG 32 - Social Science Methods

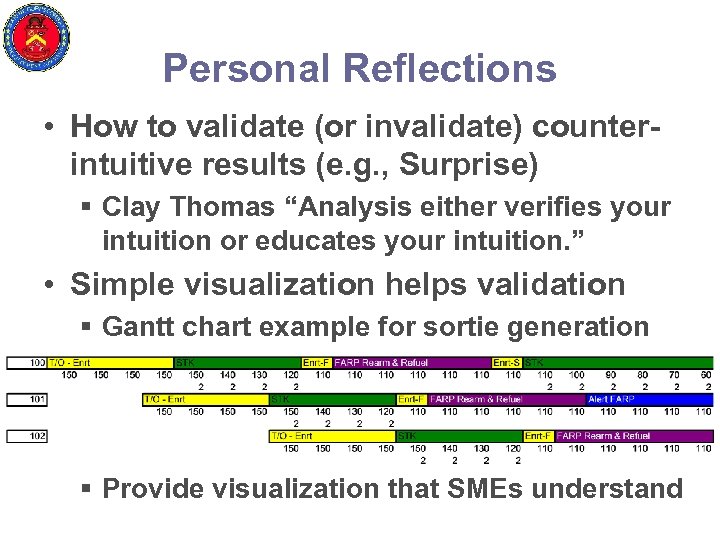

Personal Reflections • How to validate (or invalidate) counterintuitive results (e. g. , Surprise) § Clay Thomas “Analysis either verifies your intuition or educates your intuition. ” • Simple visualization helps validation § Gantt chart example for sortie generation § Provide visualization that SMEs understand

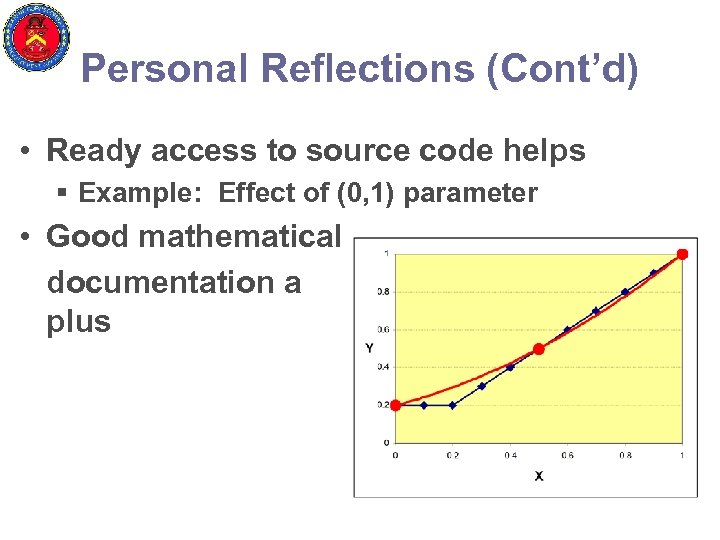

Personal Reflections (Cont’d) • Ready access to source code helps § Example: Effect of (0, 1) parameter • Good mathematical documentation a plus

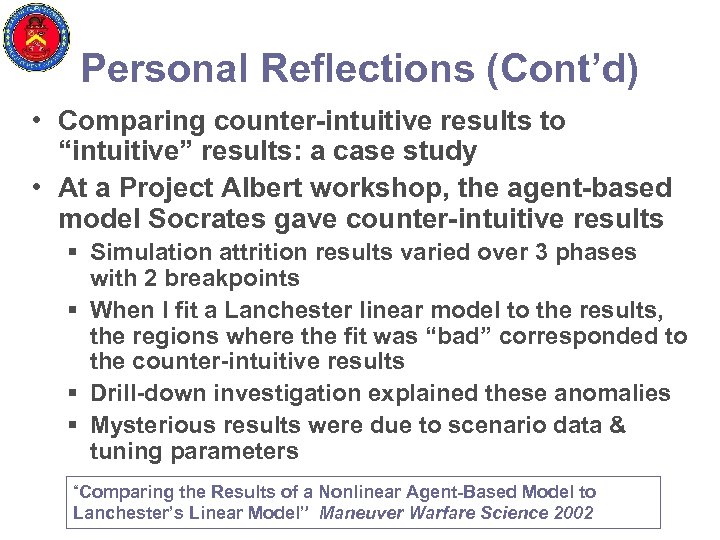

Personal Reflections (Cont’d) • Comparing counter-intuitive results to “intuitive” results: a case study • At a Project Albert workshop, the agent-based model Socrates gave counter-intuitive results § Simulation attrition results varied over 3 phases with 2 breakpoints § When I fit a Lanchester linear model to the results, the regions where the fit was “bad” corresponded to the counter-intuitive results § Drill-down investigation explained these anomalies § Mysterious results were due to scenario data & tuning parameters “Comparing the Results of a Nonlinear Agent-Based Model to Lanchester’s Linear Model” Maneuver Warfare Science 2002
Questions? Juan Muñoz, Five Seated Figures, 1996 Hirshhorn Museum and Sculpture Garden
