Validation in a box Generic procedure for all makes of equipment Contains all software, materials and consumables required for self-validation or for your service provider Traceability of all materials Range of kits available for HPLC and GC Calibrated v: tools Training
Developed by NLG Analytical Ltd Based upon years of validation experience Allow companies to control their own equipment qualification process Increase compliance - reduce costs Straightforward use Complete hplc test takes about four hours
For complete ease of use, all traceability information is provided with v: kits This provides an auditor with instant access to all trace information they might require, without needing to go to external sources
v: kit has been designed to achieve two key benefits : 1. to reduce your cost of compliance at the same time as 2. increasing your degree of compliance
the future of laboratory testing The ability to self-validate with reduced costs, reduced risk, and high integrity is the way forward for organisations of all sizes - from labs with a single piece of testing equipment, to multi-site, multi-nationals
Designed to integrate with the materials and protocols used within v: kits, v: tools are supplied with traceable calibration certificates and a re-calibration service is offered for all v: tools to ensure that you maintain your regulatory compliance. Keep your v: tools validated - return to NLG Analytical Ltd for re-calibration. For more information call: +44(0)1625 574 633 or Email: service@nlg-analytical. co. uk
VKIT - LFM The v: kit digital flowmeter is designed specifically for HPLC applications is supplied with a certificate traceable to NAMAS (the UK equivalent to NIST) Specifications Measuring Range: Resolution Calibration Display Accuracy Reproducibility Power Supply 0. 05 -25 ml/min 1µl/min Calibrated at 1. 0 ml/min with NAMAS traceable calibration certificate 4 -digit LCD display +/-1% of reading +/-0. 5% 9 V Part Number 3 pin UK 240 v 2 pin Europe 220 v 2 pin USA 120 v V: KIT-LFM-UK V: KIT-LFM-EU V: KIT-LFM-US
VKIT - GFM The v: kit Digital Gas Flowmeter is ideal for use in gas chromatography applications and can be used for any gas used in gc, eg Hydrogen, Helium, Air, Nitrogen and even mixtures such as Argon/Methane Specifications Measurement Range Measurement Principal Accuracy Traceability Part Number 0. 1 -1000 ml/min Volumetric flow measurements +/- 3% of reading Supplied with certificate traceable to NIST V: KIT-GFM
VKIT - TP A multi-purpose meter, the v: kit Digital Temperature Probe can be used for accurate and traceable temperature readings for HPLC and GC temperature controlled zones Specifications Measurement Range Resolution Accuracy Thermocouple Calibration Power Supply Part Number -50°C-1300°C 0. 1°C ± 0· 3% of reading @ -50°C ~ 200°C ± 0· 4% of reading @ 200°C ~ 1000°C Type K Supplied with certificate traceable to NAMAS/UKAS 9 V V: KIT-VTP
VKIT - SP Take the strain out of delivering detector accuracy and linearity solutions by using the v: kit Syringe Pump It also allows easier flushing of detector cells, permitting quicker detector OQ. Dispense volume is tracked and displayed continuously. When the preset volume has been dispensed, the pump shuts-off automatically Specifications Delivery volume Delivery speed up to 50 ml variable, 0. 01 l /min – 50 ml /min Power Supply 110 V-240 V with external adaptor Accuracy + / - 0. 1 mm or +/- 1% of total distance Display 2 line LCD 20 characters per line Drive Motor Pulse free DC motor with variable speed setting Part Number V: KIT-SYP`

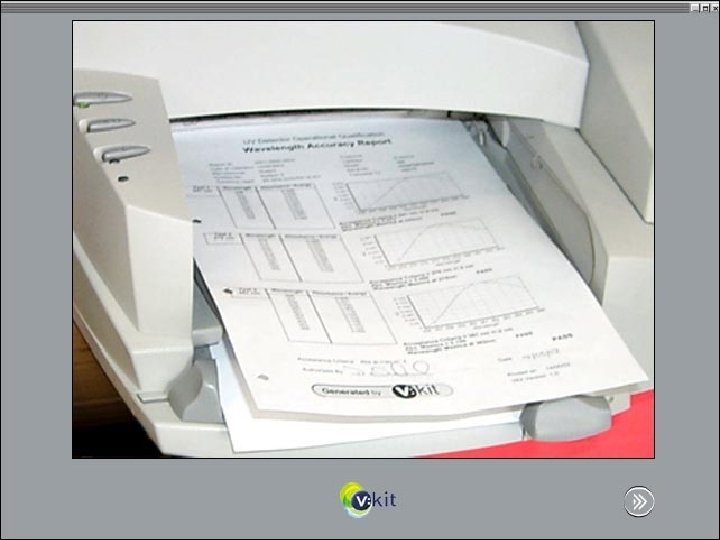

El software está diseñado para windows 95, 98, 2000, NT y XP y se adquiere inicialmente con 2 licencias. Proporciona automáticamente los informes normalizados incluyendo datos de desviación, incertidumbre, trazabilidad y criterios de pasa/fallo. Para posteriores validaciones se adquieren los repuestos que incluyen los patrones con su correspondiente certificado. ANÁLISIS VÍNICOS S. L. C/ Los Pastores, 38. 13700 Tomelloso – Ciudad Real. España. E-Mail: correo@analisisvinicos. com HOME: www. analisisvinicos. com
