USTORM Stock Code: 300232 The brand new outdoor series l 1. Completely sealed module design, All-weather & UV-resistant Outdoor LED display, guaranteed reliability under the toughest operation conditions l 2. High reliability, excellent circuit design, no fans, lower power consumption l 3. Easy to maintain, offering front and rear access for easy maintenance l 4. Comprehensive production line, offer varieties of pitch choices for customers. Furthermore, the cabinet can be used for varied pixel pitch products. l 5. Delicated image, wide horizon viewing angle at 140 degree to provide better viewing experience with optimal refresh rate (2000 Hz), high grey level (14 bits) and high contrast ratio (2000: 1) l 6. Lightweight design with cabinet thickness of 100 mm, weight of 31. 25 KG/SQM, these features help you save the cost of transportation as well as the cost of installation. www. unilumin. com

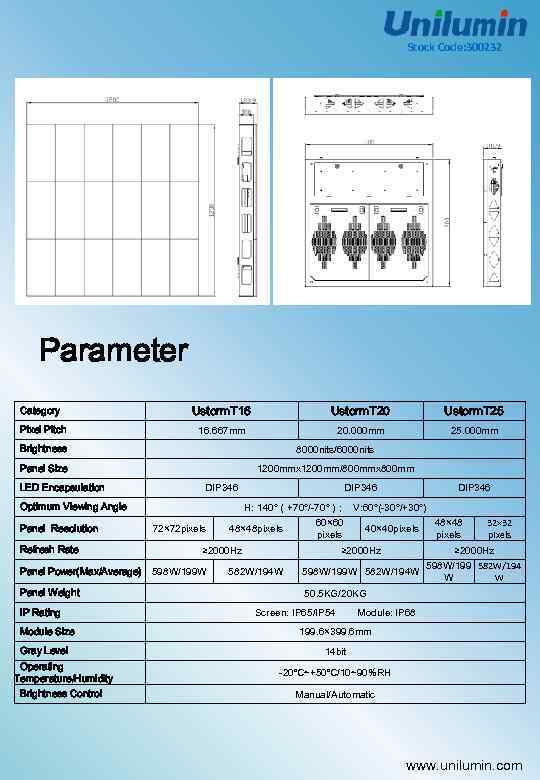

Stock Code: 300232 Parameter Category Pixel Pitch Ustorm. T 16 Ustorm. T 20 Ustorm. T 25 16. 667 mm 20. 000 mm 25. 000 mm Brightness 8000 nits/6000 nits Panel Size 1200 mmx 1200 mm/800 mmx 800 mm LED Encapsulation DIP 346 Optimum Viewing Angle Panel Resolution Refresh Rate H: 140°（+70°/-70°）; 72× 72 pixels IP Rating Module Size Gray Level 48× 48 pixels 60× 60 pixels ≥ 2000 Hz Panel Power(Max/Average) 598 W/199 W Panel Weight DIP 346 V: 60°(-30°/+30°) 40× 40 pixels 48× 48 pixels 32× 32 pixels ≥ 2000 Hz 582 W/194 W ≥ 2000 Hz 598 W/199 W 582 W/194 W 598 W/199 582 W/194 W W 50. 5 KG/20 KG Screen: IP 65/IP 54 Module: IP 68 199. 6× 399. 6 mm 14 bit Operating Temperature/Humidity -20℃~+50℃/10~90%RH Brightness Control Manual/Automatic www. unilumin. com
