Use of Public-Key Infrastructure (PKI) Erik Andersen Association for the Directory Information and Related Search Industry (EIDQ - http: //www. eidq. org ) Andersen's L-Service consultancy Rapporteur for Directory services, Directory systems, and publickey/attribute certificates era@x 500. eu Geneva, 6 -7 December 2010 Addressing security challenges on a global scale

Where it all starts Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 2

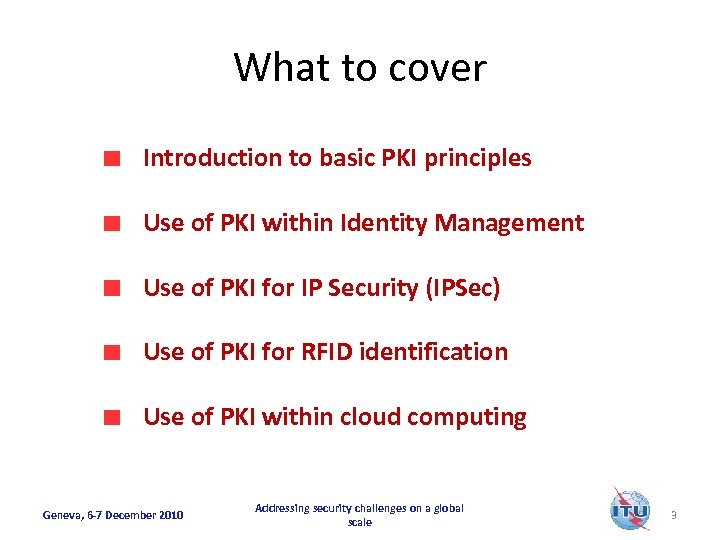

What to cover Introduction to basic PKI principles Use of PKI within Identity Management Use of PKI for IP Security (IPSec) Use of PKI for RFID identification Use of PKI within cloud computing Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 3

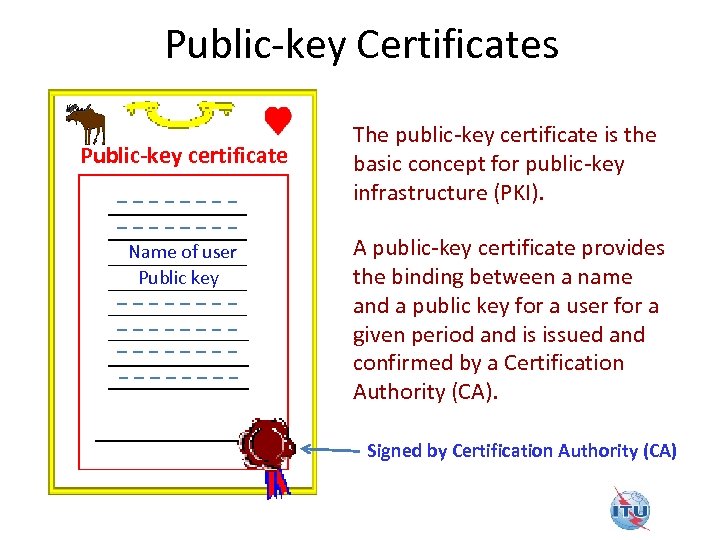

Public-key Certificates Public-key certificate Name of user Public key The public-key certificate is the basic concept for public-key infrastructure (PKI). A public-key certificate provides the binding between a name and a public key for a user for a given period and is issued and confirmed by a Certification Authority (CA). Signed by Certification Authority (CA)

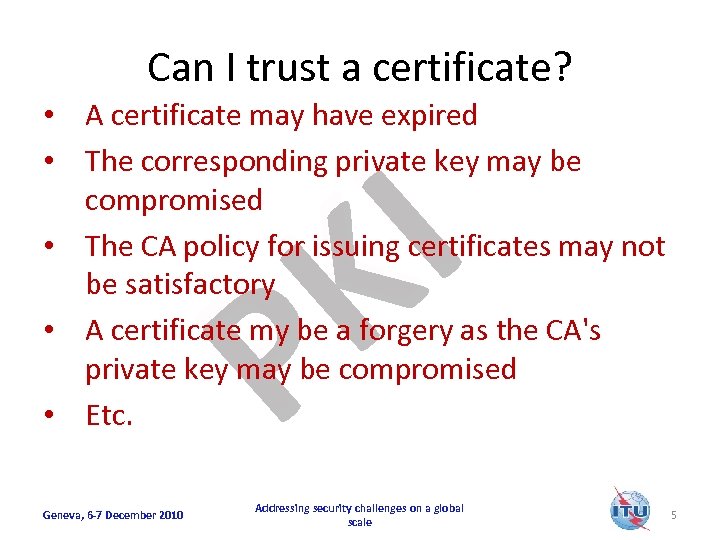

Can I trust a certificate? I K P • A certificate may have expired • The corresponding private key may be compromised • The CA policy for issuing certificates may not be satisfactory • A certificate my be a forgery as the CA's private key may be compromised • Etc. Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 5

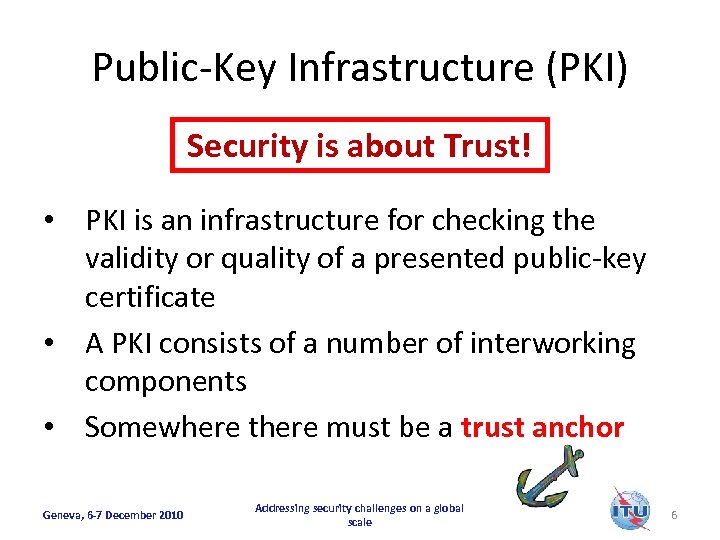

Public-Key Infrastructure (PKI) Security is about Trust! • PKI is an infrastructure for checking the validity or quality of a presented public-key certificate • A PKI consists of a number of interworking components • Somewhere there must be a trust anchor Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 6

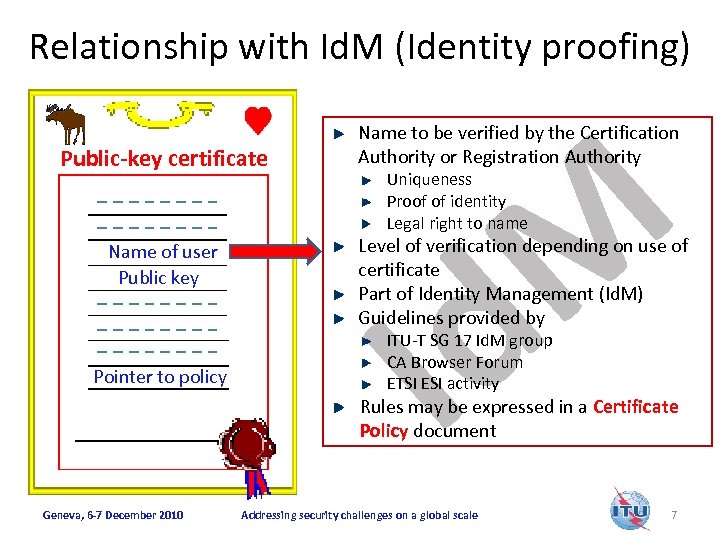

Relationship with Id. M (Identity proofing) Public-key certificate Name of user Public key Pointer to policy Name to be verified by the Certification Authority or Registration Authority M d I Uniqueness Proof of identity Legal right to name Level of verification depending on use of certificate Part of Identity Management (Id. M) Guidelines provided by ITU-T SG 17 Id. M group CA Browser Forum ETSI ESI activity Rules may be expressed in a Certificate Policy document Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 7

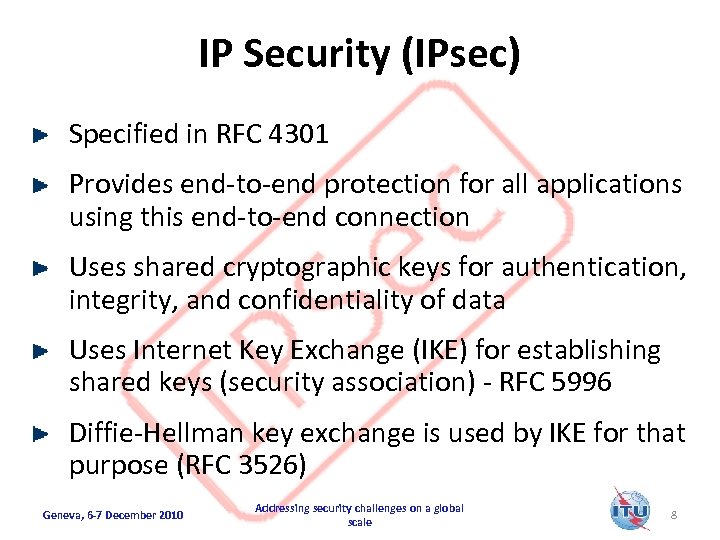

IP Security (IPsec) Specified in RFC 4301 Provides end-to-end protection for all applications using this end-to-end connection Uses shared cryptographic keys for authentication, integrity, and confidentiality of data Uses Internet Key Exchange (IKE) for establishing shared keys (security association) - RFC 5996 Diffie-Hellman key exchange is used by IKE for that purpose (RFC 3526) Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 8

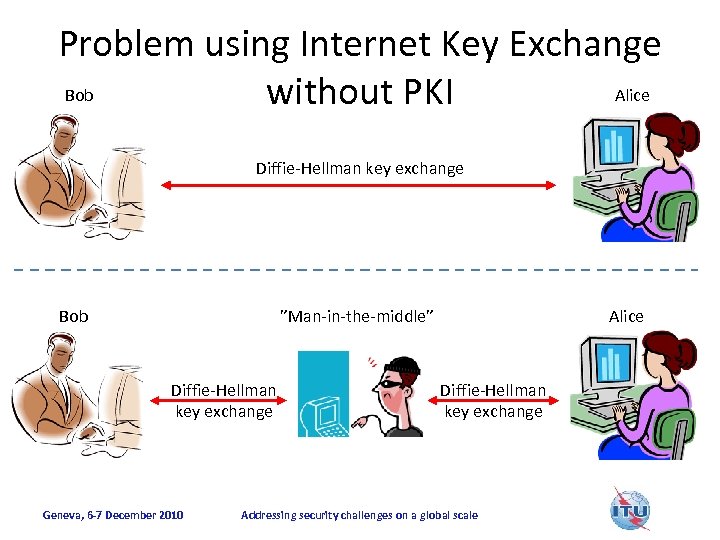

Problem using Internet Key Exchange Bob Alice without PKI Diffie-Hellman key exchange Bob ”Man-in-the-middle” Diffie-Hellman key exchange Geneva, 6 -7 December 2010 Alice Diffie-Hellman key exchange Addressing security challenges on a global scale

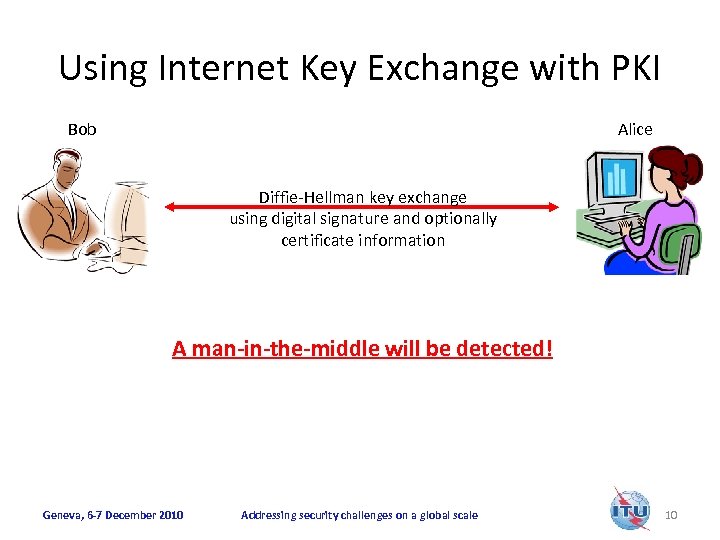

Using Internet Key Exchange with PKI Bob Alice Diffie-Hellman key exchange using digital signature and optionally certificate information A man-in-the-middle will be detected! Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 10

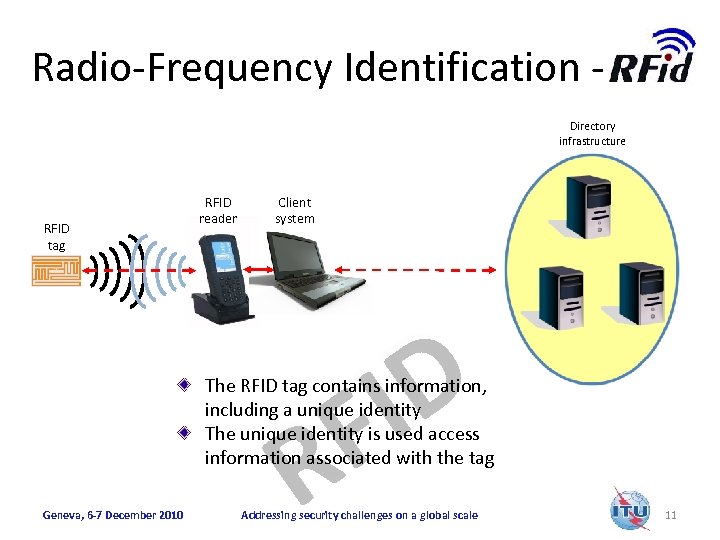

Radio-Frequency Identification Directory infrastructure RFID tag RFID reader Client system D I F R The RFID tag contains information, including a unique identity The unique identity is used access information associated with the tag Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 11

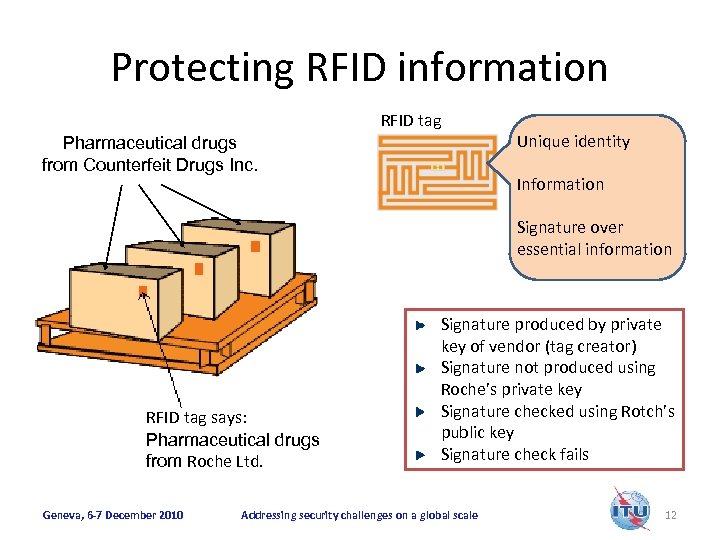

Protecting RFID information RFID tag Pharmaceutical drugs from Counterfeit Drugs Inc. Unique identity Information Signature over essential information RFID tag says: Pharmaceutical drugs from Roche Ltd. Geneva, 6 -7 December 2010 Signature produced by private key of vendor (tag creator) Signature not produced using Roche’s private key Signature checked using Rotch’s public key Signature check fails Addressing security challenges on a global scale 12

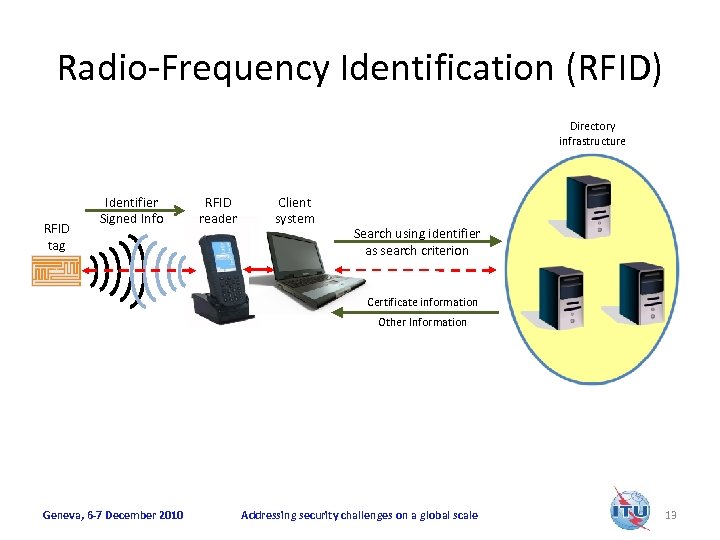

Radio-Frequency Identification (RFID) Directory infrastructure RFID tag Identifier Signed Info RFID reader Client system Search using identifier as search criterion Certificate information Other Information Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 13

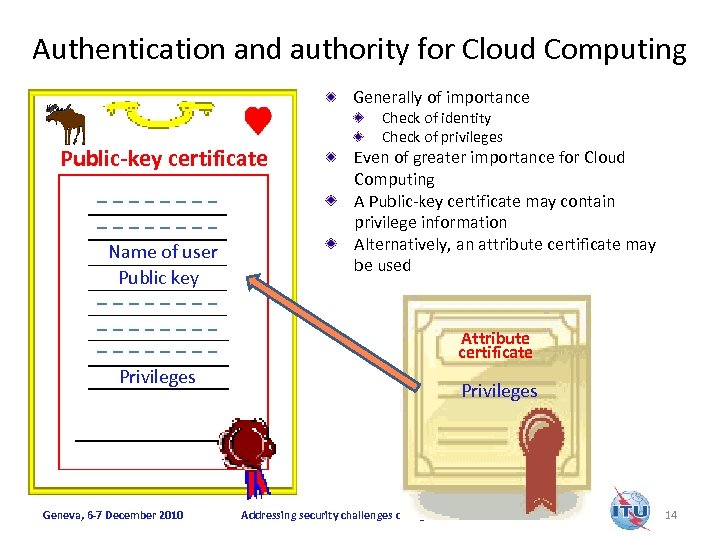

Authentication and authority for Cloud Computing Generally of importance Public-key certificate Name of user Public key Check of identity Check of privileges Even of greater importance for Cloud Computing A Public-key certificate may contain privilege information Alternatively, an attribute certificate may be used Attribute certificate Privileges Geneva, 6 -7 December 2010 Privileges Addressing security challenges on a global scale 14

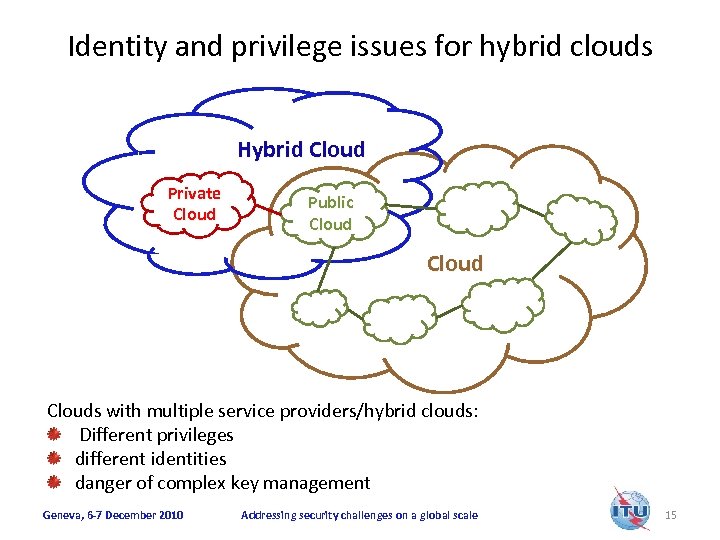

Identity and privilege issues for hybrid clouds Hybrid Cloud Private Cloud Public Clouds with multiple service providers/hybrid clouds: Different privileges different identities danger of complex key management Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 15

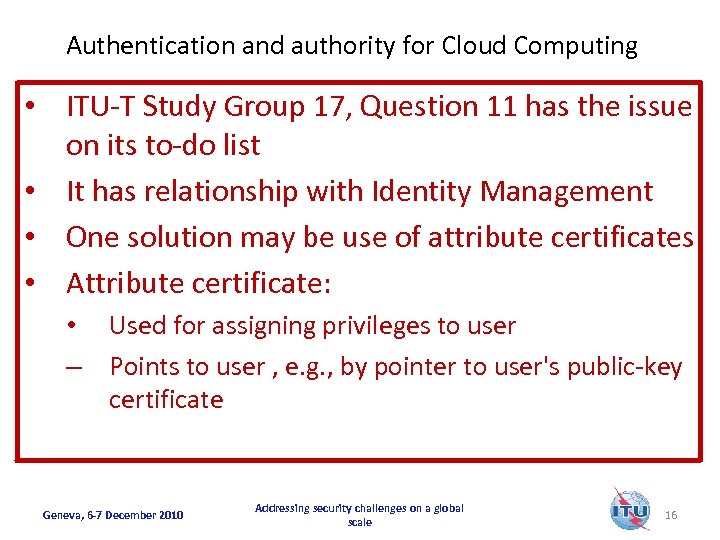

Authentication and authority for Cloud Computing • ITU-T Study Group 17, Question 11 has the issue on its to-do list • It has relationship with Identity Management • One solution may be use of attribute certificates • Attribute certificate: • Used for assigning privileges to user – Points to user , e. g. , by pointer to user's public-key certificate Geneva, 6 -7 December 2010 Addressing security challenges on a global scale 16
