US CMS – RP, FNAL CMS Research Program (FNAL) Dan Green US CMS RPM May 8, 2006 URA Review – May 8, 2006 1

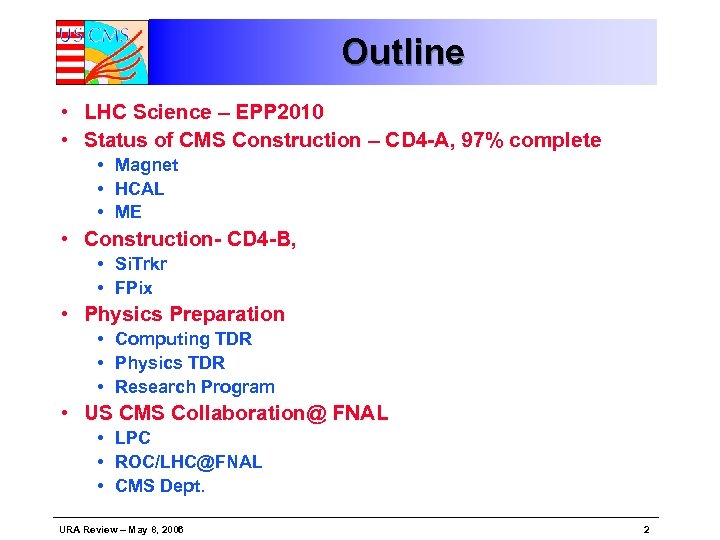

Outline • LHC Science – EPP 2010 • Status of CMS Construction – CD 4 -A, 97% complete • Magnet • HCAL • ME • Construction- CD 4 -B, • Si. Trkr • FPix • Physics Preparation • Computing TDR • Physics TDR • Research Program • US CMS Collaboration@ FNAL • LPC • ROC/LHC@FNAL • CMS Dept. URA Review – May 8, 2006 2

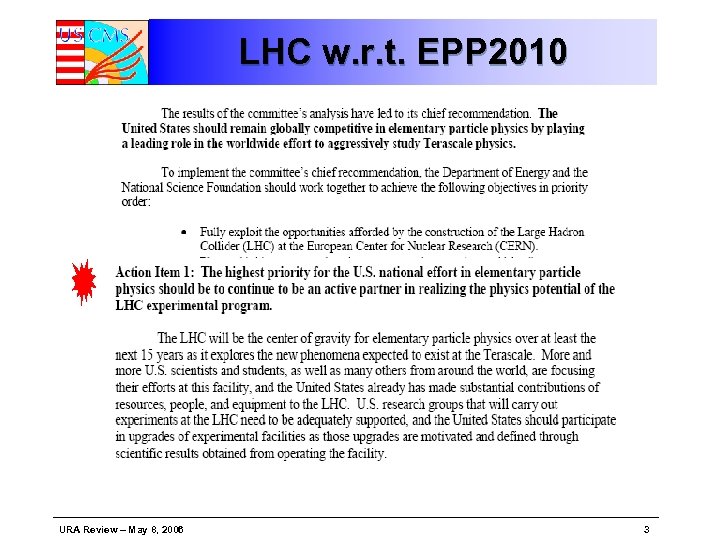

LHC w. r. t. EPP 2010 URA Review – May 8, 2006 3

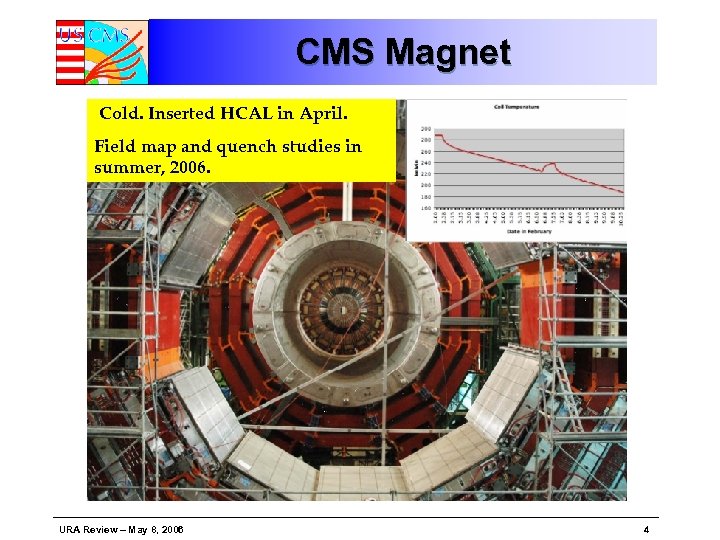

CMS Magnet Cold. Inserted HCAL in April. Field map and quench studies in summer, 2006. URA Review – May 8, 2006 4

HCAL Installation Progress An initial set of calibration constants for all HCAL – HB, HE, HF exists based on test beams in 2004 and radioactive sources to carry over energy taken in 2005. Good to ~ 5%. Check in test beam in 2006 (with ECAL). Expect ~ 15% “brightening” in 4 T magnet – to be tested and tracked. URA Review – May 8, 2006 5

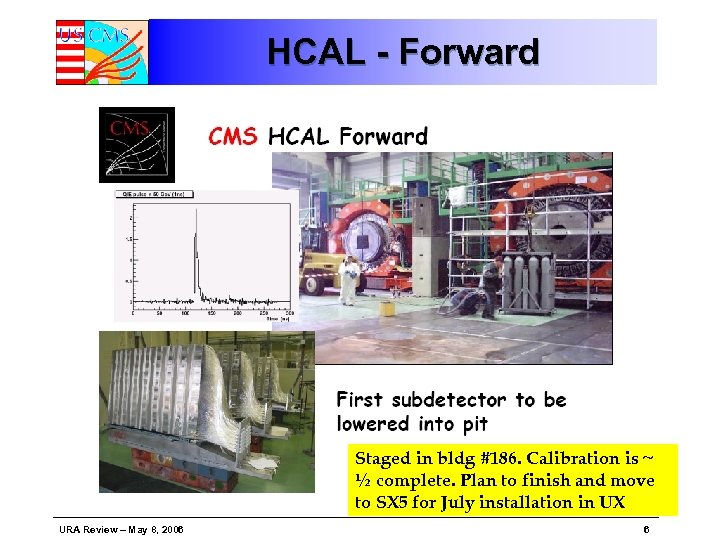

HCAL - Forward Staged in bldg #186. Calibration is ~ ½ complete. Plan to finish and move to SX 5 for July installation in UX URA Review – May 8, 2006 6

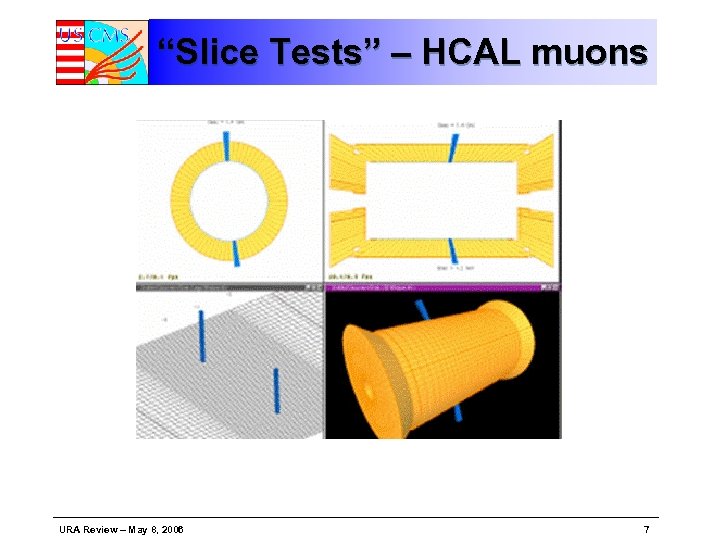

“Slice Tests” – HCAL muons URA Review – May 8, 2006 7

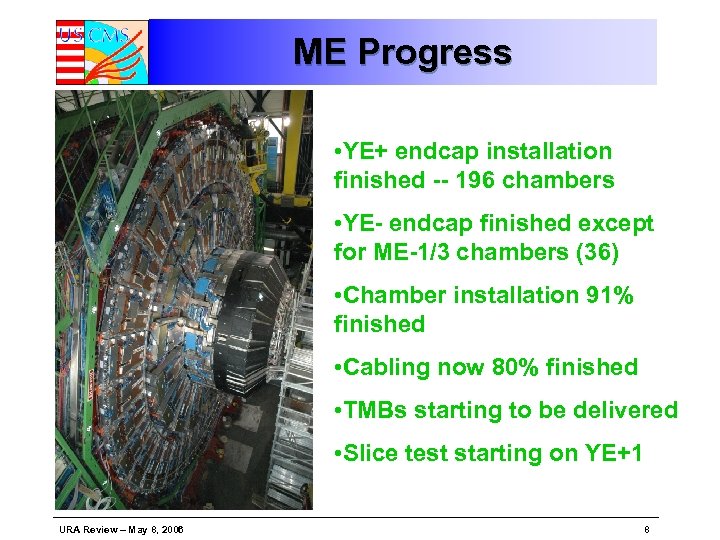

ME Progress • YE+ endcap installation finished -- 196 chambers • YE- endcap finished except for ME-1/3 chambers (36) • Chamber installation 91% finished • Cabling now 80% finished • TMBs starting to be delivered • Slice test starting on YE+1 URA Review – May 8, 2006 8

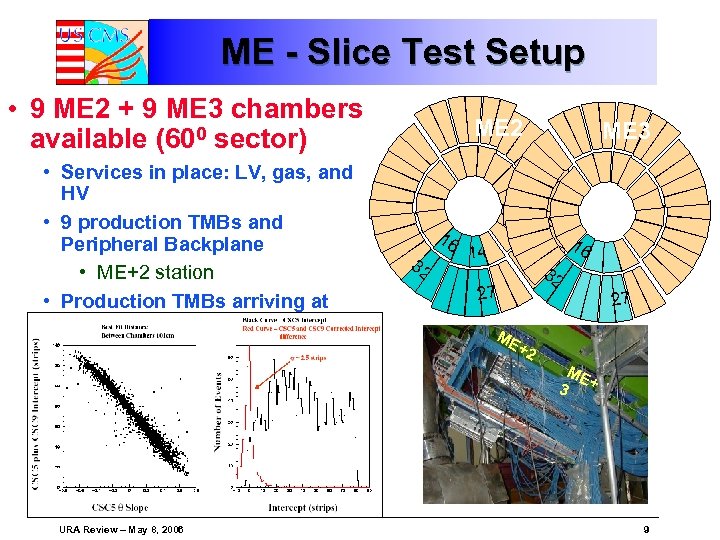

ME - Slice Test Setup • 9 ME 2 + 9 ME 3 chambers available (600 sector) • Services in place: LV, gas, and HV • 9 production TMBs and Peripheral Backplane • ME+2 station • Production TMBs arriving at CERN in February. ME 2 16 32 ME 3 16 14 32 27 27 ME +2 3 URA Review – May 8, 2006 ME + 9

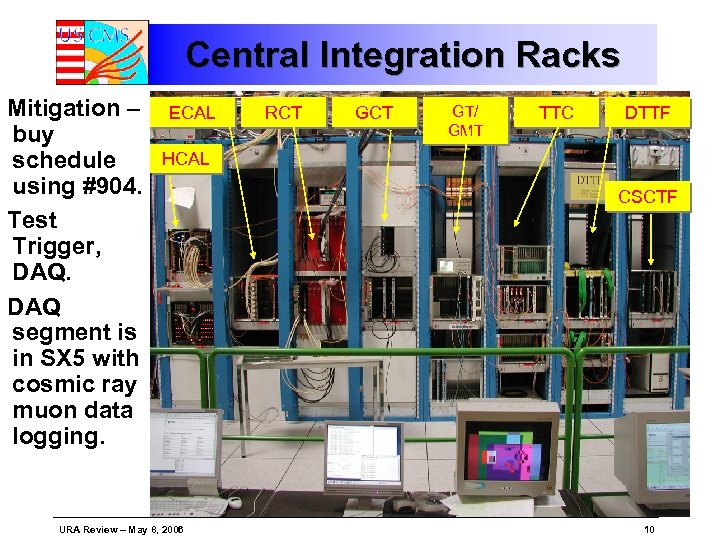

Central Integration Racks Mitigation – buy schedule using #904. Test Trigger, DAQ segment is in SX 5 with cosmic ray muon data logging. ECAL RCT GT/ GMT TTC DTTF HCAL URA Review – May 8, 2006 CSCTF 10

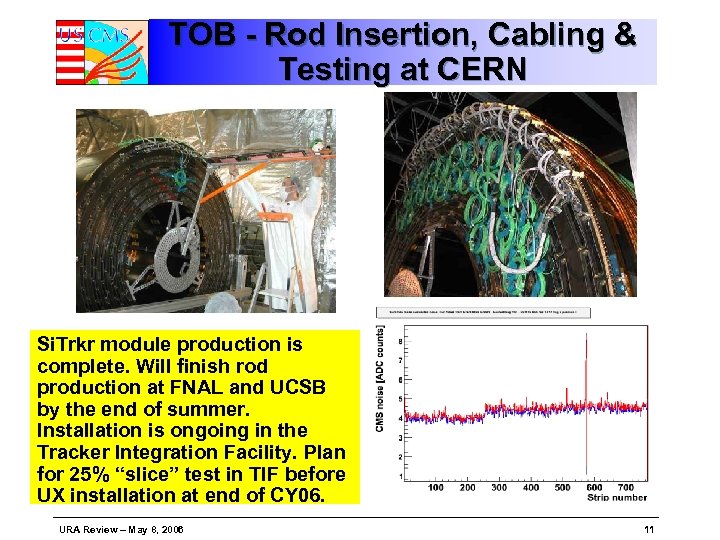

TOB - Rod Insertion, Cabling & Testing at CERN Si. Trkr module production is complete. Will finish rod production at FNAL and UCSB by the end of summer. Installation is ongoing in the Tracker Integration Facility. Plan for 25% “slice” test in TIF before UX installation at end of CY 06. URA Review – May 8, 2006 11

FPIX Status Blade: FPix (baseline): US delivers: 4 ‘disks’ 2 Panels ½-Disks: HDI, TBM 12 Blades ½-Service Cylinder Plaquette: Sensors, ROC, VHDI (picture later) TBM (for CMS Pixels) Full Size Model. Pigtail: Panels to • Mechanical support and Adapter Board cooling • Pixel Sensors • Assembled pixel detectors • The required electronics (adapter board, port card) except the: ROC, FED and OL URA Review – May 8, 2006 Fan-in/Fan-out FEC FED Extension Cable Power, Cooling CMS DAQ Port Card: AOH (2), DOH, ALT, Gate Keeper, TPLL, DCU O-fibers 12

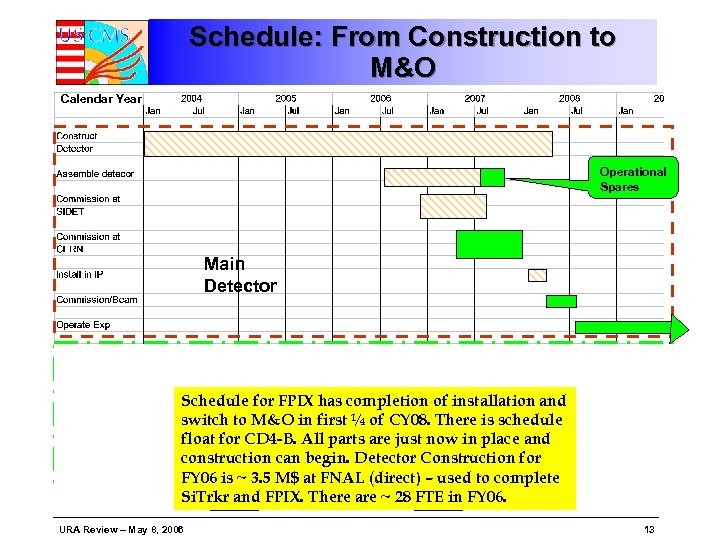

Schedule: From Construction to M&O Calendar Year Operational Spares Main Detector Schedule for FPIX has completion of installation and ’ 07 switch to M&O in first ¼ of CY 08. There is schedule float Detector All parts are just now in place and for CD 4 -B. construction can begin. Detector Construction for FY 06 is ~ 3. 5 M$ at FNAL (direct) – used to complete Si. Trkr and FPIX. There are ~ 28 FTE in FY 06. M&O Construction URA Review – May 8, 2006 13

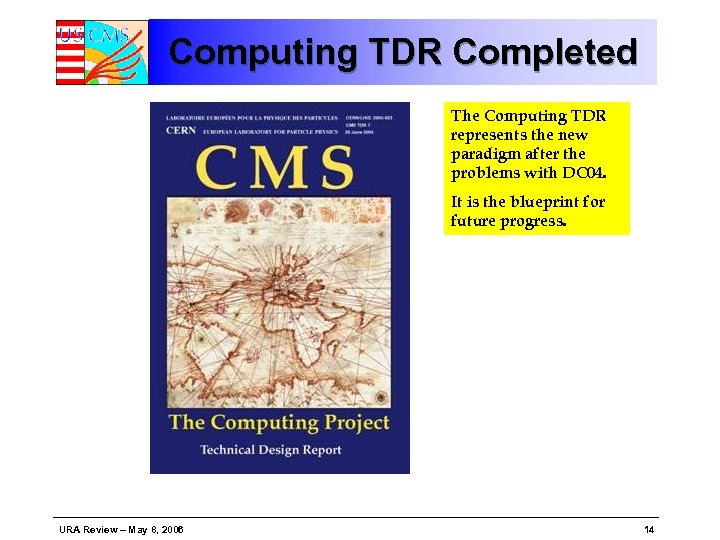

Computing TDR Completed The Computing TDR represents the new paradigm after the problems with DC 04. It is the blueprint for future progress. URA Review – May 8, 2006 14

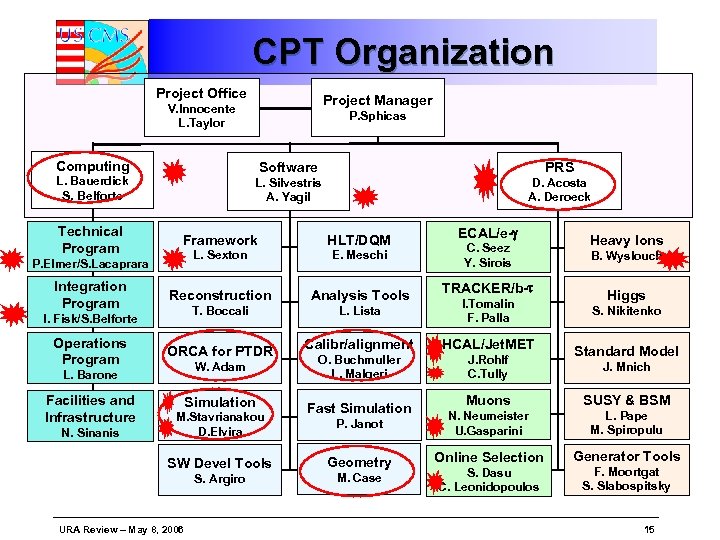

CPT Organization Project Office Project Manager V. Innocente L. Taylor P. Sphicas Computing Software L. Silvestris A. Yagil L. Bauerdick S. Belforte Technical Program ECAL/e-g HLT/DQM L. Sexton E. Meschi Reconstruction Analysis Tools T. Boccali L. Lista I. Tomalin F. Palla Calibr/alignment HCAL/Jet. MET O. Buchmuller L. Malgeri J. Rohlf C. Tully I. Fisk/S. Belforte Operations Program D. Acosta A. Deroeck Framework P. Elmer/S. Lacaprara Integration Program PRS ORCA for PTDR W. Adam L. Barone C. Seez Y. Sirois TRACKER/b-t Heavy Ions B. Wyslouch Higgs S. Nikitenko Standard Model J. Mnich SUSY & BSM P. Janot N. Neumeister U. Gasparini L. Pape M. Spiropulu Geometry Online Selection Generator Tools S. Argiro N. Sinanis Muons SW Devel Tools Facilities and Infrastructure M. Case Simulation M. Stavrianakou D. Elvira URA Review – May 8, 2006 Fast Simulation S. Dasu C. Leonidopoulos F. Moortgat S. Slabospitsky 15

Computing Model CMS CAF must be constructed. T 1 resources pledged to CMS not sufficient for CMS requirements. Also requirements themselves are 2 x below those of ATLAS. Much work remains. URA Review – May 8, 2006 16

Physics TDR Volume 1 Volume I concerns detector performance and models. These items are crucial to predicting Physics performance of the CMS detector. URA Review – May 8, 2006 17

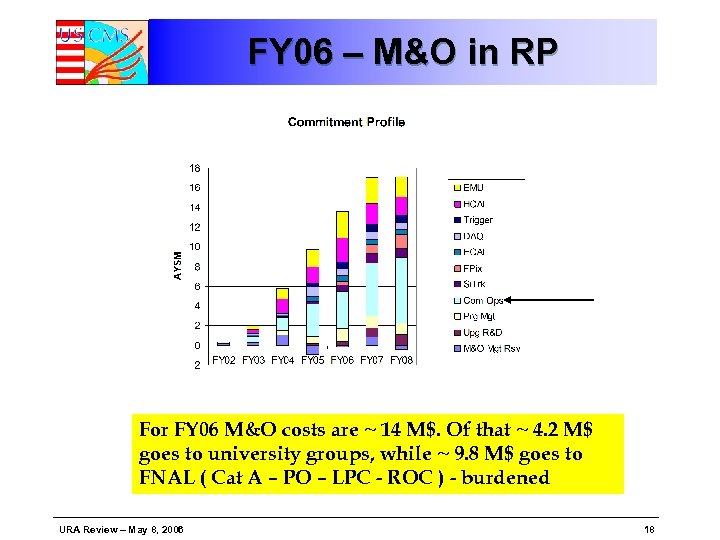

FY 06 – M&O in RP For FY 06 M&O costs are ~ 14 M$. Of that ~ 4. 2 M$ goes to university groups, while ~ 9. 8 M$ goes to FNAL ( Cat A – PO – LPC - ROC ) - burdened URA Review – May 8, 2006 18

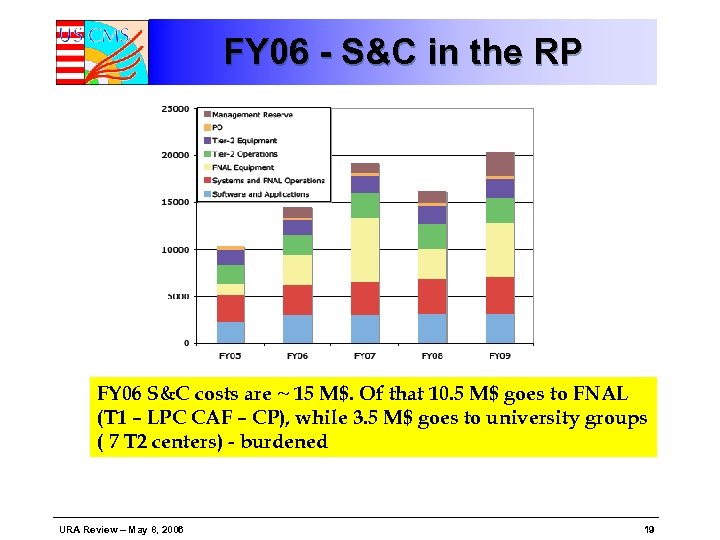

FY 06 - S&C in the RP FY 06 S&C costs are ~ 15 M$. Of that 10. 5 M$ goes to FNAL (T 1 – LPC CAF – CP), while 3. 5 M$ goes to university groups ( 7 T 2 centers) - burdened URA Review – May 8, 2006 19

US CMS Demographics Expect to grow to ~ 500 FTE physicists at ~ 49 institutions by first beam to CMS. March CMS Week – Rockefeller + Puerto Rico. URA Review – May 8, 2006 20

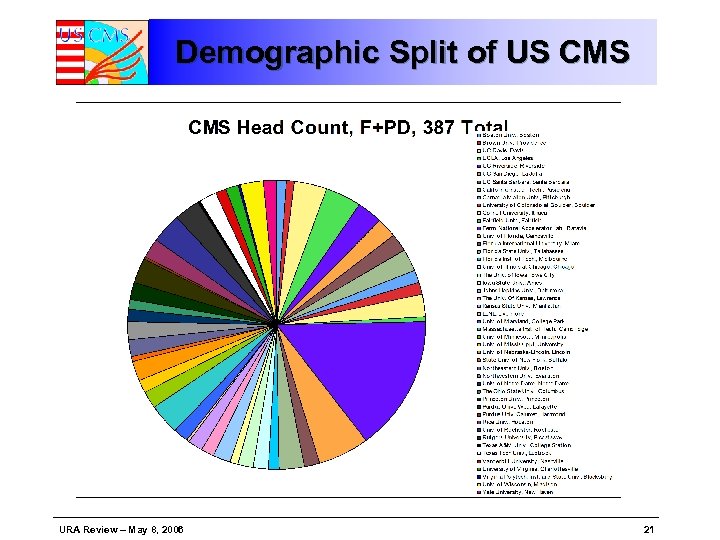

Demographic Split of US CMS URA Review – May 8, 2006 21

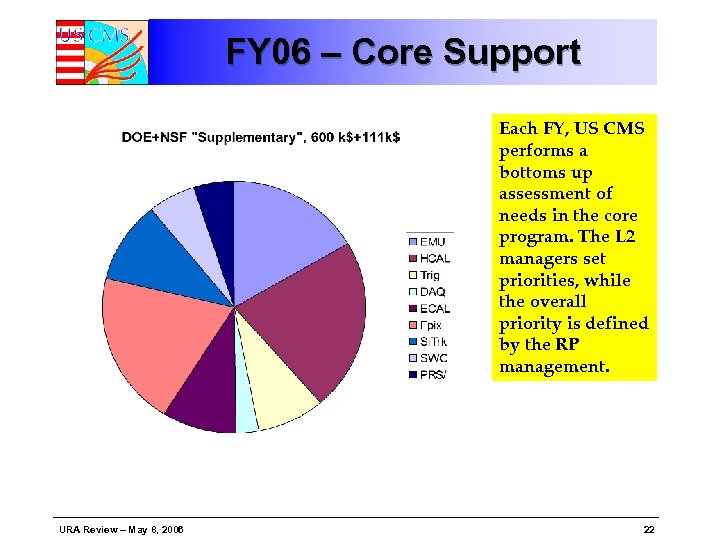

FY 06 – Core Support Each FY, US CMS performs a bottoms up assessment of needs in the core program. The L 2 managers set priorities, while the overall priority is defined by the RP management. URA Review – May 8, 2006 22

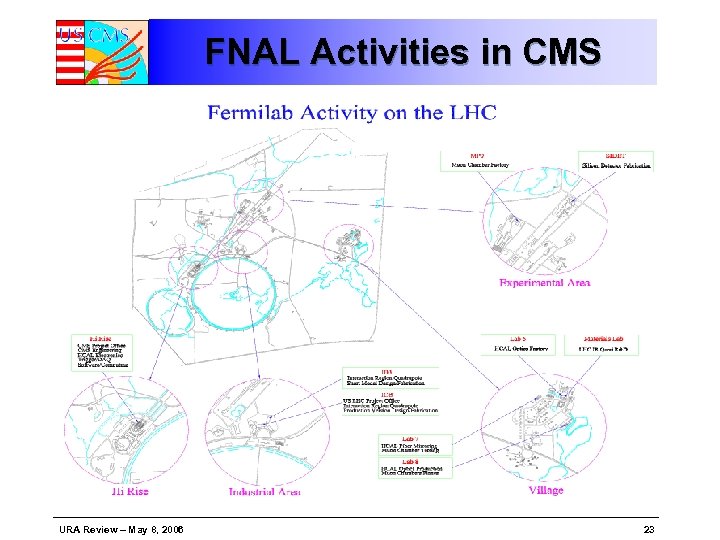

FNAL Activities in CMS URA Review – May 8, 2006 23

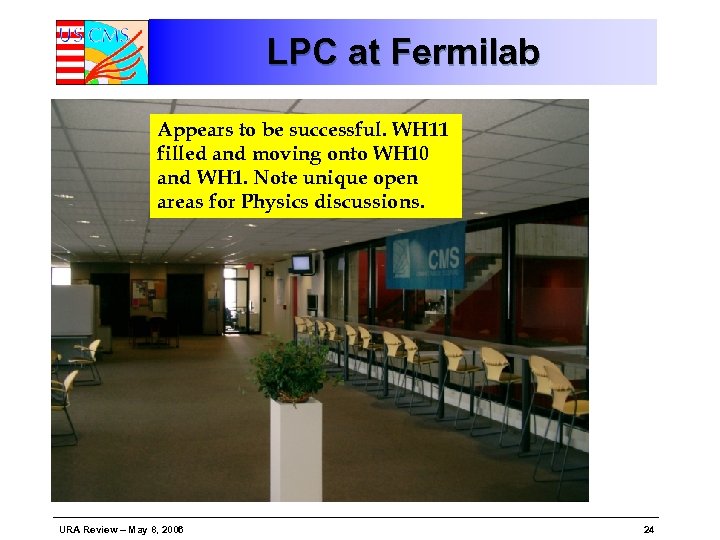

LPC at Fermilab Appears to be successful. WH 11 filled and moving onto WH 10 and WH 1. Note unique open areas for Physics discussions. URA Review – May 8, 2006 24

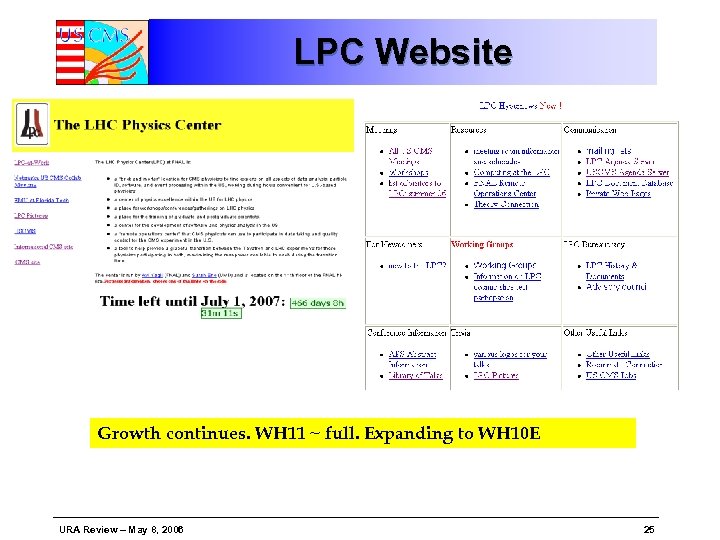

LPC Website Growth continues. WH 11 ~ full. Expanding to WH 10 E URA Review – May 8, 2006 25

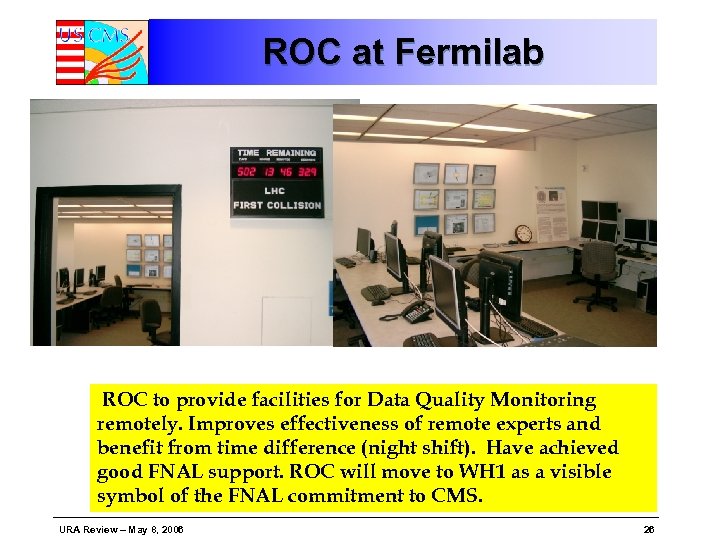

ROC at Fermilab ROC to provide facilities for Data Quality Monitoring remotely. Improves effectiveness of remote experts and benefit from time difference (night shift). Have achieved good FNAL support. ROC will move to WH 1 as a visible symbol of the FNAL commitment to CMS. URA Review – May 8, 2006 26

WH 1 E – LHC @ FNAL First phase has begun. By end of FY 06 have the control room and a teleconference center. Office space for shifters and data quality monitoring will come later. URA Review – May 8, 2006 27

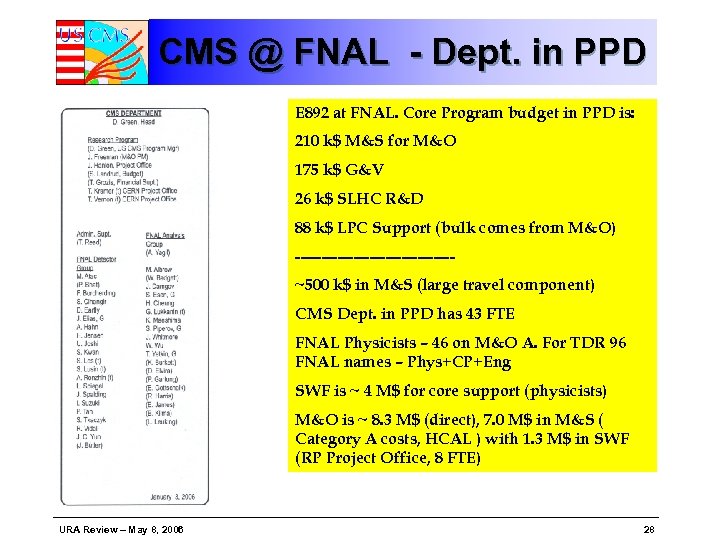

CMS @ FNAL - Dept. in PPD E 892 at FNAL. Core Program budget in PPD is: 210 k$ M&S for M&O 175 k$ G&V 26 k$ SLHC R&D 88 k$ LPC Support (bulk comes from M&O) ---------------~500 k$ in M&S (large travel component) CMS Dept. in PPD has 43 FTE FNAL Physicists – 46 on M&O A. For TDR 96 FNAL names – Phys+CP+Eng SWF is ~ 4 M$ for core support (physicists) M&O is ~ 8. 3 M$ (direct), 7. 0 M$ in M&S ( Category A costs, HCAL ) with 1. 3 M$ in SWF (RP Project Office, 8 FTE) URA Review – May 8, 2006 28

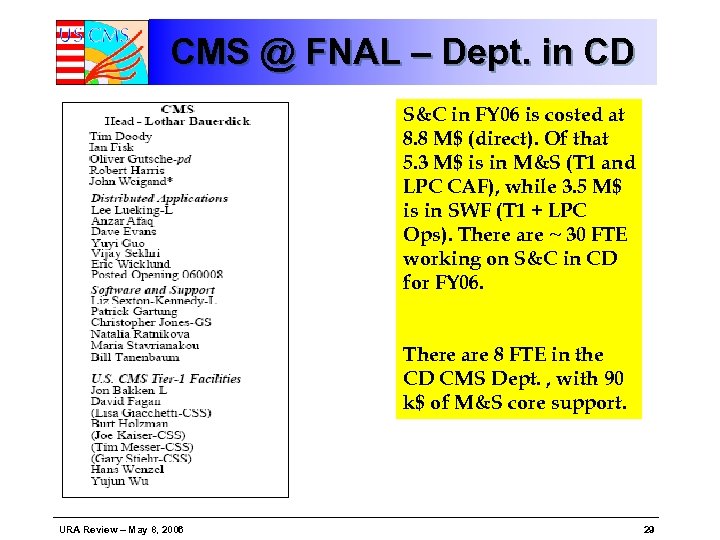

CMS @ FNAL – Dept. in CD S&C in FY 06 is costed at 8. 8 M$ (direct). Of that 5. 3 M$ is in M&S (T 1 and LPC CAF), while 3. 5 M$ is in SWF (T 1 + LPC Ops). There are ~ 30 FTE working on S&C in CD for FY 06. There are 8 FTE in the CD CMS Dept. , with 90 k$ of M&S core support. URA Review – May 8, 2006 29

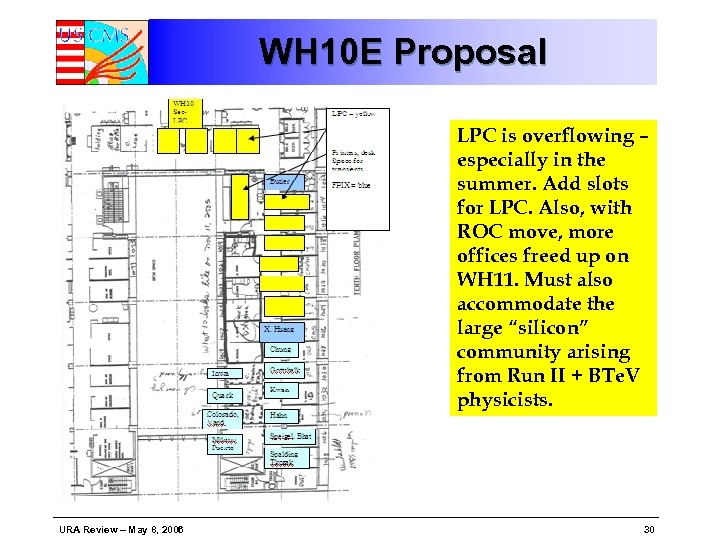

WH 10 E Proposal LPC is overflowing – especially in the summer. Add slots for LPC. Also, with ROC move, more offices freed up on WH 11. Must also accommodate the large “silicon” community arising from Run II + BTe. V physicists. URA Review – May 8, 2006 30

Summary • Construction is ~ on schedule – 97% complete at end of FY 05. • CD 4 -B – Si. Trkr is ballistic. FPIX finally has parts in hand. • Computing TDR and Physics TDR are done. RP is now the central management instrument of US CMS. • US CMS continues to grow. FNAL is the largest group. • LPC is forging ahead • ROC is analyzing cosmic ray data. LHC@FNAL will soon be complete (end FY 06). • PPD and CD CMS Dept. hosts the Project/Program office and supports FNAL physicists working on CMS. URA Review – May 8, 2006 31
