UPS Product Scope presented by Manfred Kracht

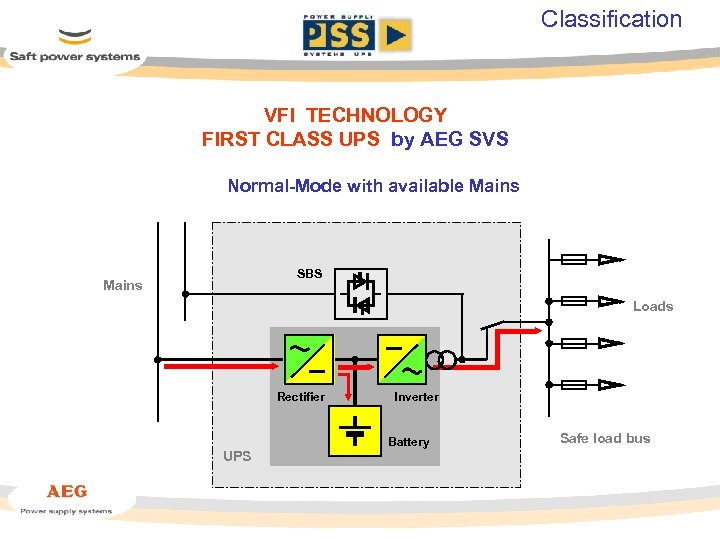

Classification VFI TECHNOLOGY FIRST CLASS UPS by AEG SVS Normal-Mode with available Mains SBS Mains Loads Rectifier UPS Inverter Battery Safe load bus

Classification UPS Operationsmodes / Classification according IEC 62040 -3 Off Line Operation THIRD CLASS Line Interactice Operation SECOND CLASS True Oneline / Double Conversion FIRST CLASS

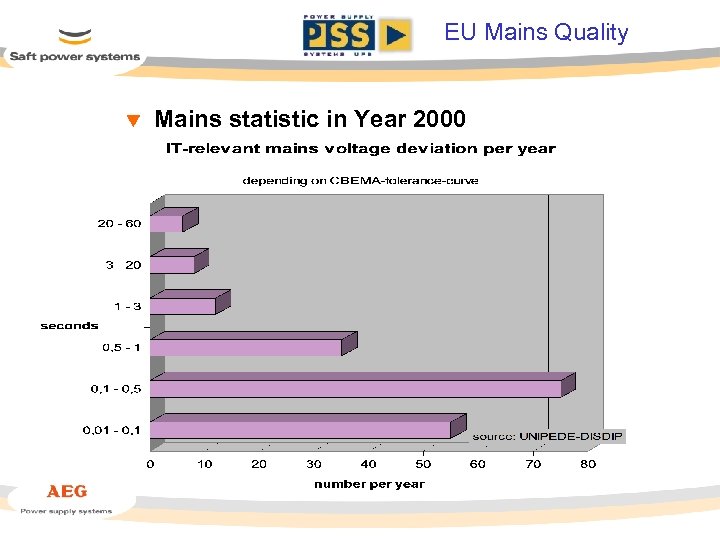

EU Mains Quality t Mains statistic in Year 2000

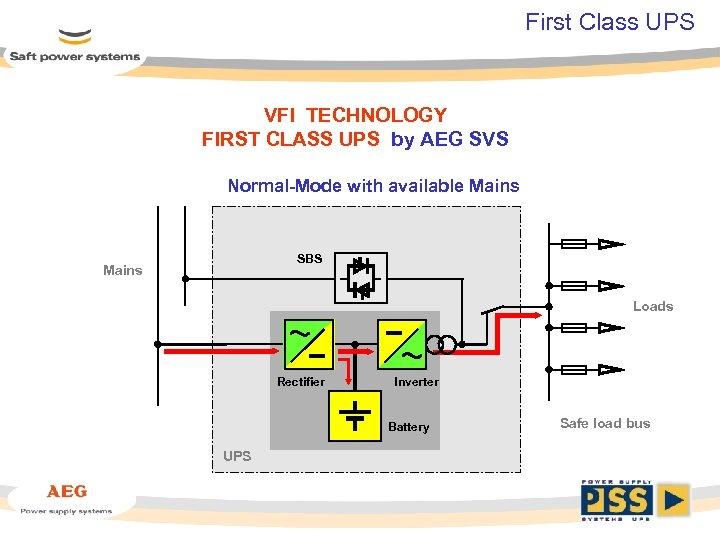

First Class UPS VFI TECHNOLOGY FIRST CLASS UPS by AEG SVS Normal-Mode with available Mains SBS Mains Loads Rectifier Inverter Battery UPS Safe load bus

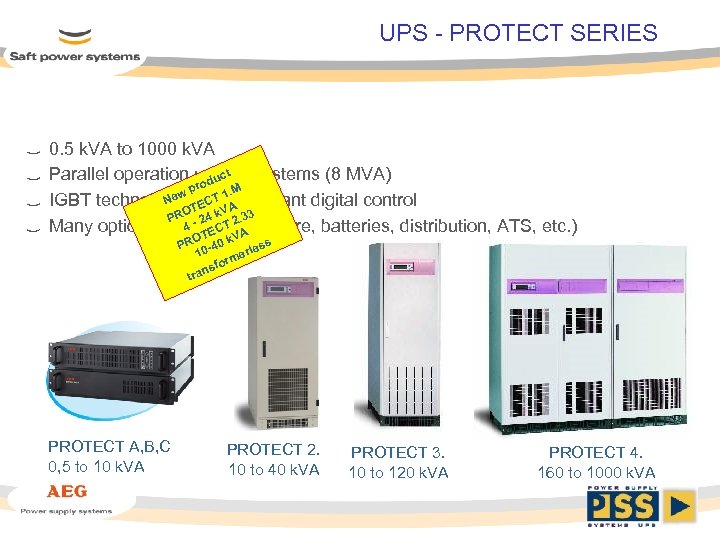

UPS - PROTECT SERIES 0. 5 k. VA to 1000 k. VA ct Parallel operation uputo 8 systems (8 MVA) rod. M wp T 1 Ne C redundant digital control IGBT technology with VA TE RO 24 k 2. 33 P 4 - ECT Many options available (software, batteries, distribution, ATS, etc. ) A T O k. V ss PR 0 -40 1 erle orm nsf tra PROTECT A, B, C 0, 5 to 10 k. VA PROTECT 2. 10 to 40 k. VA PROTECT 3. 10 to 120 k. VA PROTECT 4. 160 to 1000 k. VA

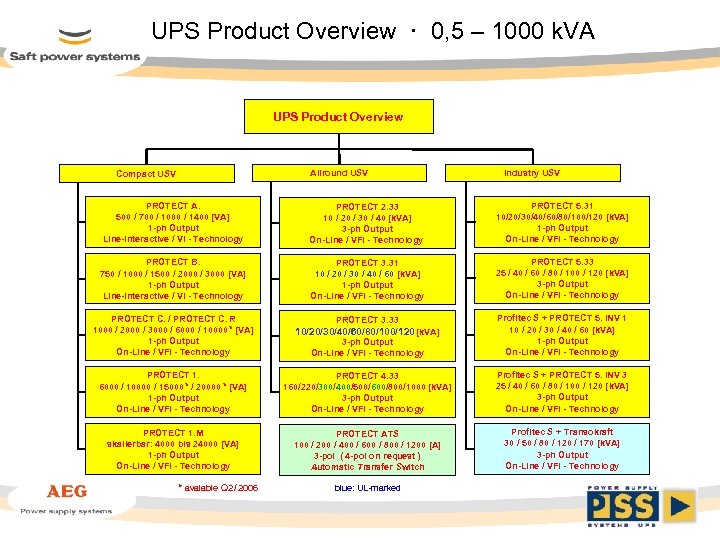

UPS Product Overview · 0, 5 – 1000 k. VA UPS Product Overview Allround USV Compact USV Industry USV PROTECT A. 500 / 700 / 1000 / 1400 [VA] 1 -ph Output Line-Interactive / VI - Technology PROTECT 2. 33 10 / 20 / 30 / 40 [k. VA] 3 -ph Output On-Line / VFI - Technology PROTECT 5. 31 10/20/30/40/60/80/100/120 [k. VA] 1 -ph Output On-Line / VFI - Technology PROTECT B. 750 / 1000 / 1500 / 2000 / 3000 [VA] 1 -ph Output Line-Interactive / VI - Technology PROTECT 3. 31 10 / 20 / 30 / 40 / 60 [k. VA] 1 -ph Output On-Line / VFI - Technology PROTECT 5. 33 25 / 40 / 60 / 80 / 100 / 120 [k. VA] 3 -ph Output On-Line / VFI - Technology PROTECT C. / PROTECT C. R 1000 / 2000 / 3000 / 6000 / 10000 * [VA] 1 -ph Output On-Line / VFI - Technology PROTECT 3. 33 10/20/30/40/60/80/100/120 [k. VA] 3 -ph Output On-Line / VFI - Technology Profitec S + PROTECT 5. INV 1 10 / 20 / 30 / 40 / 60 [k. VA] 1 -ph Output On-Line / VFI - Technology PROTECT 1. 6000 / 10000 / 15000 * / 20000 * [VA] 1 -ph Output On-Line / VFI - Technology PROTECT 4. 33 160/220/300/400/500/600/800/1000 [k. VA] 3 -ph Output On-Line / VFI - Technology Profitec S + PROTECT 5. INV 3 25 / 40 / 60 / 80 / 100 / 120 [k. VA] 3 -ph Output On-Line / VFI - Technology PROTECT 1. M skalierbar: 4000 bis 24000 [VA] 1 -ph Output On-Line / VFI - Technology PROTECT ATS 100 / 200 / 400 / 600 / 800 / 1200 [A] 3 -pol ( 4 -pol on request ) Automatic Transfer Switch * avaiable Q 2 / 2006 blue: UL-marked Profitec S + Ausgang 1 -phasiger Transokraft 30 50 / 80 / 120 / 170 [k. VA] 3 -phasig: /25/40/60/80/(100/120) [k. VA] 3 -ph Output On-Line / VFI - Technology

Allround / Industry UPS · 10 – 1000 k. VA UPS - PROTECT Serie >>>>>>> PROTECT 2. 33 3 ph ~ / 3 ph ~ transformerless PROTECT 3. 31 3 ph ~ / 1 ph ~ PROTECT 3. 33 3 ph ~ / 3 ph ~ PROTECT 4. 33 PROTECT 5. 31 PROTECT 5. 33 Power [ k. VA ] 10 20 25 30 40 60 70 80 100 120 160 220 300 400 500 600 800 1000

Product line Industrial UPS Product-Scope UPS for Industry Other Products SVS PROTECT 5. 31 10/20/30/40/60/80/100/120 [k. VA] Output: 1 -phase On-Line-Technology SVS PROTECT 5. 33 25 / 40 / 60 / 80 / 100 / 120 [k. VA] Output : 3 -phase On-Line-Technology SVS PROTECT 5. Inv 1 10 / 20 / 30 / 40 / 60 [k. VA] Output : 1 -phase On-Line-Technology Rectifier Profitec S 24 - 216 Vdc 100 - 3000 A Rectifier SPR / TPR 24 - 216 Vdc 5 - 500 A SVS PROTECT 5. Inv 3 25 / 40 / 60 / 80 / 100 / 120 [k. VA] Output : 3 -phase Transokraft Inv 3 30 / 50 / 80 / 120 / 170 [k. VA] Output : 3 -phase Autom. Transfer-Switch PROTECT ATS 100/200/400/600/800/1200 A 3 - pole Versions
