УПРАВЛЯЮЩАЯ КОМПАНИЯ Moscow 2010
All gas turbine engines for pipelines made and installed from 1991 until 2008 УПРАВЛЯЮЩАЯ КОМПАНИЯ Company Specifications Type Basic air engine Amount 24, 2 D-30 1 6, 29 27, 37 D-30 2 GTU-10 P 10, 26 31, 9 PS-90 A 40 GTU-12 P 12, 4 33, 8 PS-90 A 74 GTU-16 P 16, 44 35, 8 PS-90 A 169 GTU-25 P 25, 56 38, 5 PS-90 A 3 Power, MW GTU-4 PG 4, 08 GTU-6 PG «Perm Motors» JSC Efficiency, % Total 289 GPA-4 RM 32, 5 no 24 GPA-6, 3 RM 6, 46 32, 58 no 1 GPA-10 RM 10, 16 35, 5 no 4 AL-31 ST «Saturn – Gas Turbines» JSC 4, 1 16, 8 36, 0 AL-31 F Total «Ufa Engine Industrial Association» JSC, «Motor» SPE 29 AL-31 STN 16, 8 37, 0 AL-31 F Total 31 31 NK-12 ST 26, 3 NK-12 MV 459 NK-14 ST-8 8, 54 32, 0 NK-12 MP 181 NK-14 ST-10 10, 6 34, 0 NK-12 MP 7 NK-36 ST «Kuznetsov» JSC, N. D. Kuznetsov STC 6, 3 26, 5 36, 0 NK-32 15 Total «Klimov» JSC 662 GTP-1, 25 1, 276 26, 0 TVЗ-117 GTP-2, 55 26, 0 TVЗ-117 Total 3 3 Total - 1014

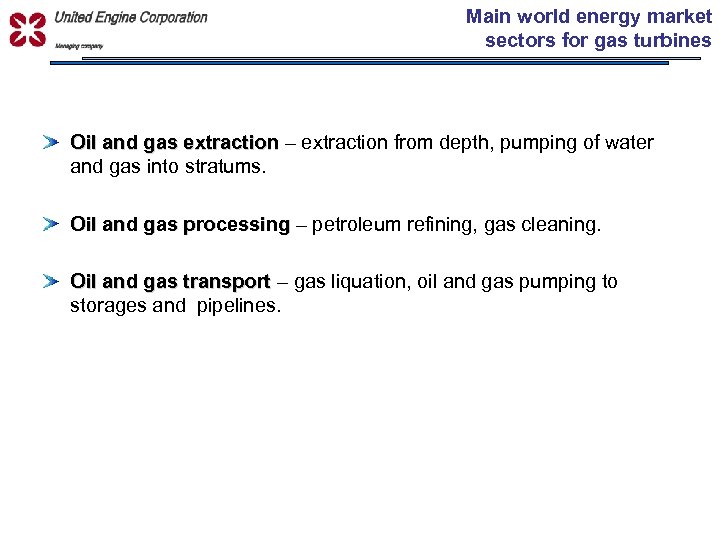

УПРАВЛЯЮЩАЯ КОМПАНИЯ Main world energy market sectors for gas turbines Oil and gas extraction – extraction from depth, pumping of water and gas into stratums. Oil and gas processing – petroleum refining, gas cleaning. Oil and gas transport – gas liquation, oil and gas pumping to storages and pipelines.
УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by «Perm Motors» JSC GTU-4 PG Industrial Gas Turbine GTU-4 PG gas turbine with M-45 PHG step-up gear is used as a mechanical drive of centrifugal natural gas compressors in "Ural" GPA-4 PHG gas turbine pumping packages of underground gas storages. The gas turbine is suitable for operation under moderate and cold climate conditions. The core of the gas turbine is the D-30 EU-2 gas turbine engine developed on the basis of the D-30 III Series aero-engine. M-45 PHG step-up gear matches the power turbine speed (7014 rpm) and mechanical drive shaft nominal speed (14000 rpm). M-45 PHG step-up gear makes it possible to optimize the parameters of a gas turbine pumping package. The first gas turbine has been installed at Kasimovskaya compressor station of Mostransgaz. It is currently in experimental commercial operation in "Ural" GPA-4 PHG gas pumping package. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 4, 0 Efficiency at power turbine shaft, % 24, 0 Exhaust gas temperature, °С 419 Power turbine / step-up gear rotation speed, rpm 7 000 - 7 500 / 14 000 Exhaust gas flow, kg/s 28, 7 Service life: - overhaul interval, h 25 000 - assigned, h 100 000
УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by «Perm Motors» JSC GTU-6 PG Industrial Gas Turbine Engine The updated GTU-6 PG gas turbine with M-60 step-up gear was developed as a mechanical drive for centrifugal compressors used in gas turbine pumping packages. M-60 step-up gear makes it possible to optimize the parameters of a gas turbine pumping package. In 2006 the first gas turbine was installed at Myldzhinskoe gascompressor field of Tomskgazprom. The gas turbine is currently in pilot operation in "Ural" GPA-6 DKS gas pumping packaged unit. The gas turbine is also used as part of "Ural-6000"gas turbine pumping package, which was delivered to the Booster Station 2 within the Sakhalin-2 Project. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 6, 17 Efficiency at power turbine shaft, % 26, 82 Exhaust gas temperature, °С 472 Power turbine / step-up gear rotation speed, rpm 7000 -7500 / 9000 Exhaust gas flow, kg/s 33, 3 Service life: - overhaul interval, h 25000 - assigned, h 100000
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ GTU-10 P Industrial Gas Turbine Engine GTU-10 P industrial gas turbine is based on GTU-12 P gas turbines and is used in the packaged modular gas pumping units, in gas boost compressor stations (BCS), and stations of underground gas storage (UGS), and in particular in GPA-10 BCS "Ural" and GPA-10 UGS "Ural" manufactured by Iskra, and also, for retrofitting the existing GPA-C-6, 3 packages and others. The distinctive feature of the design are a high-speed power turbine that contributes to high efficiency of a gas compressor and a gas generator unified with GTU-12 P gas turbine. The gas turbine inherited all advantages of GTU-12 P. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 10, 3 Efficiency at power turbine shaft, % 33, 1 Exhaust gas temperature, °С 454 Output speed, rpm 9 000 Exhaust gas flow, kg/s 42, 9 Service life: - overhaul interval, h 25 000 - assigned, h 00 000 1

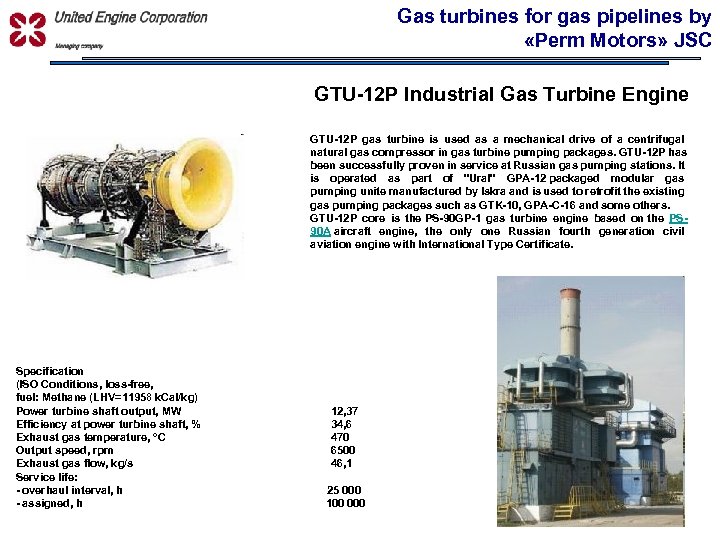

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ GTU-12 P Industrial Gas Turbine Engine GTU-12 P gas turbine is used as a mechanical drive of a centrifugal natural gas compressor in gas turbine pumping packages. GTU-12 P has been successfully proven in service at Russian gas pumping stations. It is operated as part of "Ural" GPA-12 packaged modular gas pumping unite manufactured by Iskra and is used to retrofit the existing gas pumping packages such as GTK-10, GPA-C-16 and some others. GTU-12 P core is the PS-90 GP-1 gas turbine engine based on the PS 90 А aircraft engine, the only one Russian fourth generation civil aviation engine with International Type Certificate. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 12, 37 Efficiency at power turbine shaft, % 34, 6 Exhaust gas temperature, °С 470 Output speed, rpm 6500 Exhaust gas flow, kg/s 46, 1 Service life: - overhaul interval, h 25 000 - assigned, h 00 000 1
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ GTU-16 P Industrial Gas Turbine Engine GTU-16 P gas turbine has been designed on the basis of the gas generator of the high performance PS-90 aircraft engine and GTU-12 P gas turbine. The gas turbine has higher cycle parameters (utilization of 14 stage compressor) and has a power turbine adapted to the existing gas turbine pumping packages. The gas turbine is used in the GPA-16 "Ural" packaged modular-type gas pumping units manufactured by Iskra, and for the reconstruction of the existing gas turbine pumping sets, such as GTK-10, GPA-C-16, GPU-10 and others. GTU-16 P gas turbines have perfectly promoted themselves while running at gas compressor stations of Russia. It is unified and completely interchangeable with GTU-12 P gas turbine, and inherits all the advantages and merits of the latter. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 16, 47 Efficiency at power turbine shaft, % 37, 0 Exhaust gas temperature, °С 466 Output speed, rpm 5300 Exhaust gas flow, kg/s 57, 2 Service life: - overhaul interval, h 25 000 - assigned, h 00 000 1
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ GTU-25 P Industrial Gas Turbine Engine Among Perm gas turbines GTU-25 P has got the highest power rated at 25 MW. It is intended to drive gas compressors in newgeneration gas compressor packages, and to pump gas into underground gas storage. GTU-25 P is based on the PS-90 GP-25 gas turbine engine, which is an industrial derivative of the high efficiency PS-90 A aero engine incorporating as well GTU-12 P and GTU-16 P gas turbine components. The engine consists of: two-shaft gas turbine gas generator module; power turbine module. The engine and power turbine located on the common engine mount are installed on the gas compressor package skid. Specification (ISO Conditions, loss-free, fuel: Methane (LHV=11958 k. Cal/kg) Power turbine shaft output, MW 25, 6 Efficiency at power turbine shaft, % 40, 0 Exhaust gas temperature, °С 451 Output speed, rpm 5000 Exhaust gas flow, kg/s 80, 7 Service life: - overhaul interval, h 25 000 - assigned, h 00 000 1

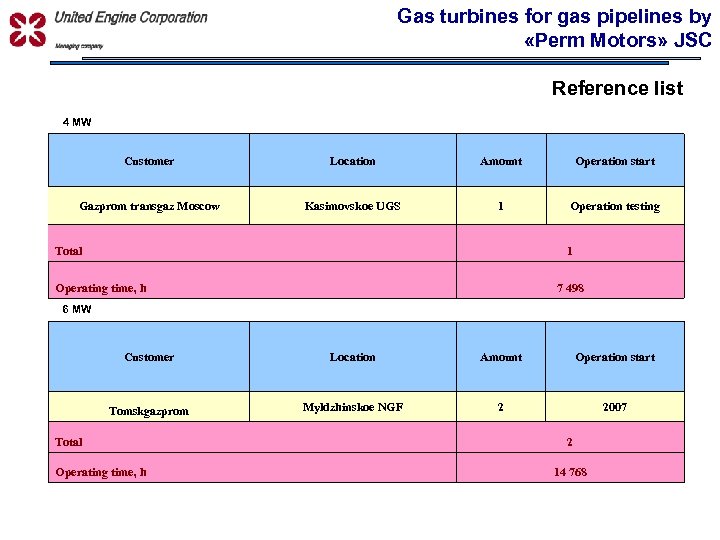

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list 4 MW Customer Location Amount Operation start Gazprom transgaz Moscow Kasimovskoe UGS 1 Operation testing Total 1 Operating time, h 7 498 6 MW Customer Location Amount Operation start Tomskgazprom Myldzhinskoe NGF 2 2007 Total Operating time, h 2 14 768

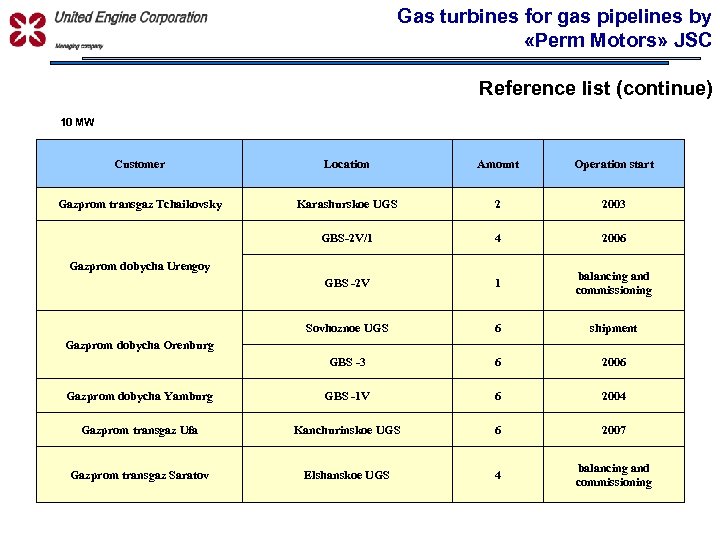

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) 10 MW Customer Location Amount Operation start Gazprom transgaz Tchaikovsky Karashurskoe UGS 2 2003 GBS-2 V/1 4 2006 GBS -2 V 1 balancing and commissioning Sovhoznoe UGS 6 shipment GBS -3 6 2006 Gazprom dobycha Yamburg GBS -1 V 6 2004 Gazprom transgaz Ufa Kanchurinskoe UGS 6 2007 Gazprom transgaz Saratov Elshanskoe UGS 4 balancing and commissioning Gazprom dobycha Urengoy Gazprom dobycha Orenburg

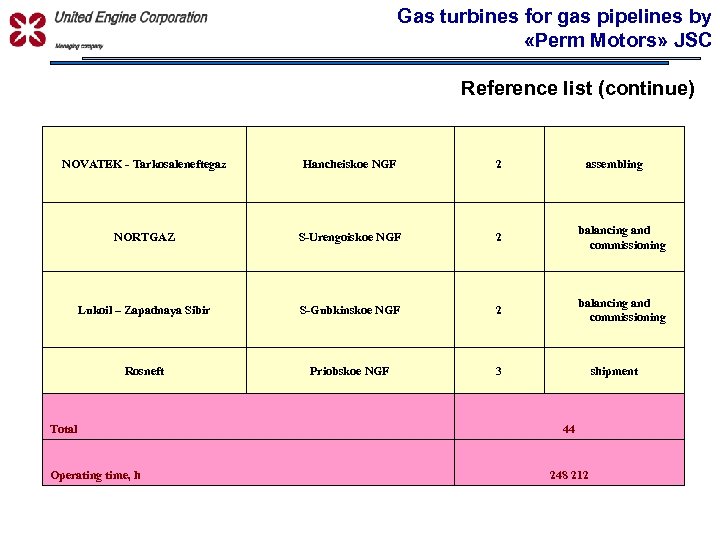

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) NOVATEK - Tarkosaleneftegaz Hancheiskoe NGF 2 NORTGAZ S-Urengoiskoe NGF 2 balancing and commissioning Lukoil – Zapadnaya Sibir S-Gubkinskoe NGF 2 balancing and commissioning Rosneft Priobskoe NGF 3 Total Operating time, h assembling shipment 44 248 212
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) 12 MW Customer Location Amount Operation start GBS-2 Permskaya 1 1994 GBS-2 Permskaya 1 1996 GBS-2 Permskaya 1 2001 GBS-2 Permskaya 1 2005 GBS-18 Ordinskaya 5 1995 Gazprom transgaz Samara GBS -11 Pavlovskaya 3 1997 Gazprom transgaz Ekaterinburg GBS -12 Shatrovskaya 3 1999 Gazprom transgaz Ufa GBS -6 Sharan 4 2000 GBS Tuma 4 1998 GBS Belousovo 2 2002 GBS Volokolamskaya 2 2006 GBS Voskresenskaya 3 2008 GBS Novourengoiskaya-3 9 2003 GBS Novourengoiskaya-4 8 2007 Gazprom transgaz Tchaikovsky Gazprom transgaz Moscow Gazprom transgaz Yugorsk

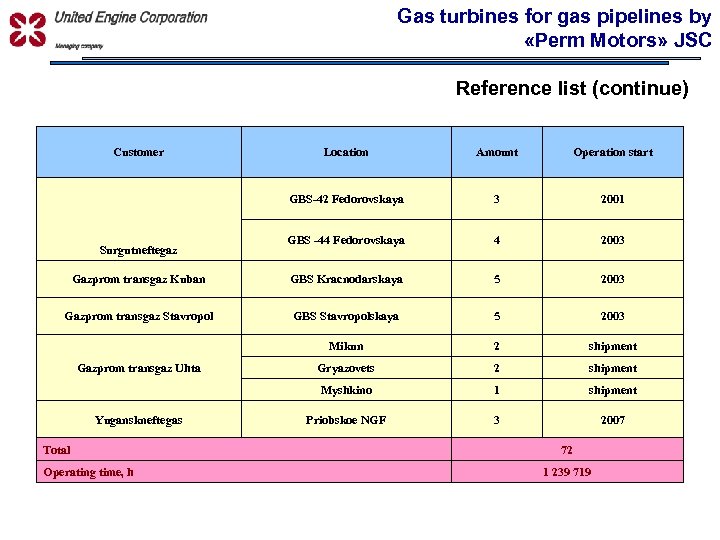

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) Location Amount Operation start GBS-42 Fedorovskaya 3 2001 GBS -44 Fedorovskaya 4 2003 Gazprom transgaz Kuban GBS Kracnodarskaya 5 2003 Gazprom transgaz Stavropol GBS Stavropolskaya 5 2003 Mikun 2 shipment Gryazovets 2 shipment Myshkino 1 shipment Priobskoe NGF 3 2007 Customer Surgutneftegaz Gazprom transgaz Uhta Yuganskneftegas Total Operating time, h 72 1 239 719

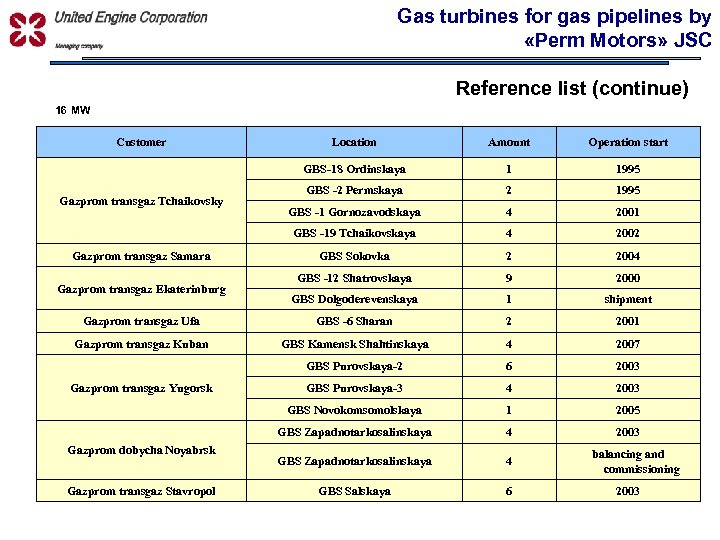

Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) 16 MW Customer Location Amount Operation start GBS-18 Ordinskaya 1 1995 GBS -2 Permskaya 2 1995 GBS -1 Gornozavodskaya 4 2001 GBS -19 Tchaikovskaya 4 2002 GBS Sokovka 2 2004 GBS -12 Shatrovskaya 9 2000 GBS Dolgoderevenskaya 1 shipment Gazprom transgaz Ufa GBS -6 Sharan 2 2001 Gazprom transgaz Kuban GBS Kamensk Shahtinskaya 4 2007 GBS Purovskaya-2 6 2003 GBS Purovskaya-3 4 2003 GBS Novokomsomolskaya 1 2005 GBS Zapadnotarkosalinskaya 4 2003 GBS Zapadnotarkosalinskaya 4 GBS Salskaya 6 Gazprom transgaz Tchaikovsky Gazprom transgaz Samara Gazprom transgaz Ekaterinburg Gazprom transgaz Yugorsk Gazprom dobycha Noyabrsk Gazprom transgaz Stavropol balancing and commissioning 2003
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) Customer Location Amount Operation start Gazprom transgaz Volgograd GBS Volgogradskaya 5 2003 GBS Urdoma 4 2006 GBS Vuktyl 2 2005 GBS -2 7 2002 GBS -5 7 2002 GBS Purtazovskaya-1 6 2002 GBS Purtazovskaya-2 6 2004 GBS Purtazovskaya-3 6 2005 GBS Purtazovskaya-4 8 2008 GBS Yamsoveiskaya 5 2003 GBС Yamsoveiskaya-2 6 GBS Yubileinaya 6 2003 Yubileinaya GBS -2 6 2008 GBS Smolenskaya 6 2004 GBS Torzhokskaya 6 2004 Beltransgaz GBS Krupskaya 7 2005 Turkey GBS Sivas 3 Gazprom transgaz Uhta Gazprom dobycha Yamburg Gazprom transgaz Surgut Gazprom dobycha Nadym Gazprom transgaz Saint-Petersburg balancing and commissioning
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) Customer Location Amount Operation start Severneftegaz Yuzhnorusskaya 4 shipment Tarkosaleneftegaz Vostochnotarkosalinskaya GBS 6 2006 Total Operating time, h 160 2 358 536
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) 25 MW Customer Location Amount Operation start Gazprom transgaz Tchaikovsky GBS Igrinskaya 1 2004 Total Operating time, h 1 24 545
Gas turbines for gas pipelines by «Perm Motors» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list (continue) Operating performance GTU-4 PG GTU-6 PG GTU-10 P GTU-12 P GTU-16 P GTU-25 P 1 0, 99 0, 99 Technical operation ratio 0, 99 0, 98 0, 96 0, 98 0, 97 0, 98 Starting safety factor 1 0, 97 1 0, 99 0, 94 Total units 1 2 45 73 175 3 Total power, MW 4 12 450 876 2 800 75 Overall operating time, h 7 498 14 768 248 212 1 239 719 2 358 536 24 545 Leading unit operating time, h 7 498 7 724 25 022 50 036 30 643 14 717 Index Availability ratio
Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas-Pumping Unit GPA-4 RM - automated gas-pumping unit of container version with rated power about 4 MW. It is intended for use at stations of underground storage of gas and gas pipelines. Gas turbine GTD-4 RM by capacity 4 MW is used as a drive of compressor, it was developed on base of ship engine М-75 Р. Specification Power turbine shaft output, MW Exhaust gas flow, m 3/s 3, 5 - 3, 8 27, 4 – 91, 1
Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list GPA-4 RM Manufacturer Customer Location Amount Operation start Lentransgaz 5 2007 Mostransgaz Saturn – Gas Turbines GBS Izborskaya UGS Kaluzhskoe 2 2006 Mostransgaz UGS Kasimovskoe 6 2004 -2007 Lentransgaz GBS Krasnoznamenskaya 2 2005 Total 15

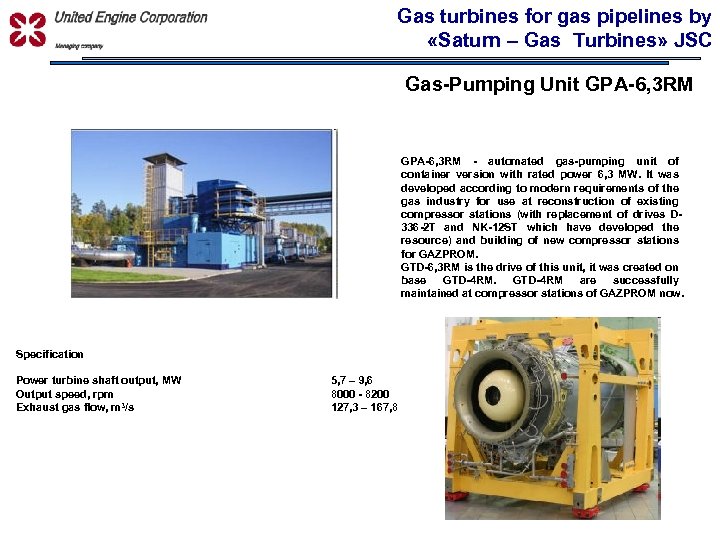

УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC Gas-Pumping Unit GPA-6, 3 RM - automated gas-pumping unit of container version with rated power 6, 3 MW. It was developed according to modern requirements of the gas industry for use at reconstruction of existing compressor stations (with replacement of drives D 336 -2 T and NK-12 ST which have developed the resource) and building of new compressor stations for GAZPROM. GTD-6, 3 RM is the drive of this unit, it was created on base GTD-4 RM are successfully maintained at compressor stations of GAZPROM now. Specification Power turbine shaft output, MW 5, 7 – 9, 6 Output speed, rpm 8000 - 8200 Exhaust gas flow, m 3/s 127, 3 – 167, 8
Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list GPA-6, 3 RM Manufacturer Customer Mostransgaz Location GBS Gavrilov Yam Amount Operation start 1 2007 Saturn – Gas Turbines Total 1

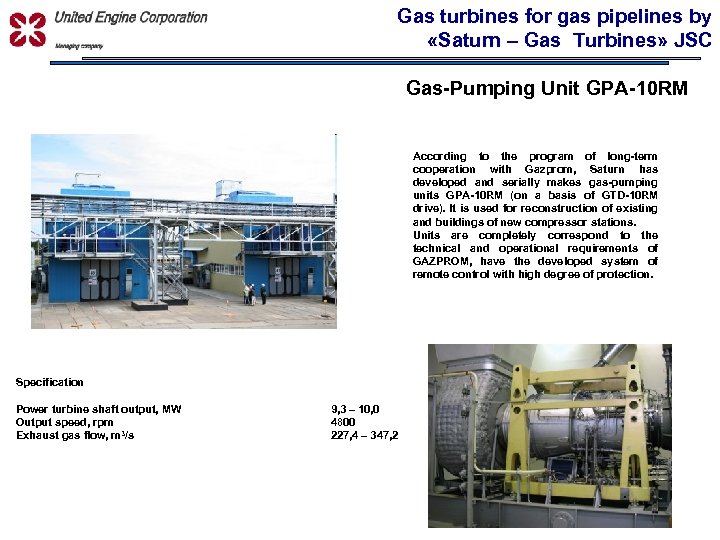

УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC Gas-Pumping Unit GPA-10 RM According to the program of long-term cooperation with Gazprom, Saturn has developed and serially makes gas-pumping units GPA-10 RM (on a basis of GTD-10 RM drive). It is used for reconstruction of existing and buildings of new compressor stations. Units are completely correspond to the technical and operational requirements of GAZPROM, have the developed system of remote control with high degree of protection. Specification Power turbine shaft output, MW 9, 3 – 10, 0 Output speed, rpm 4800 Exhaust gas flow, m 3/s 227, 4 – 347, 2

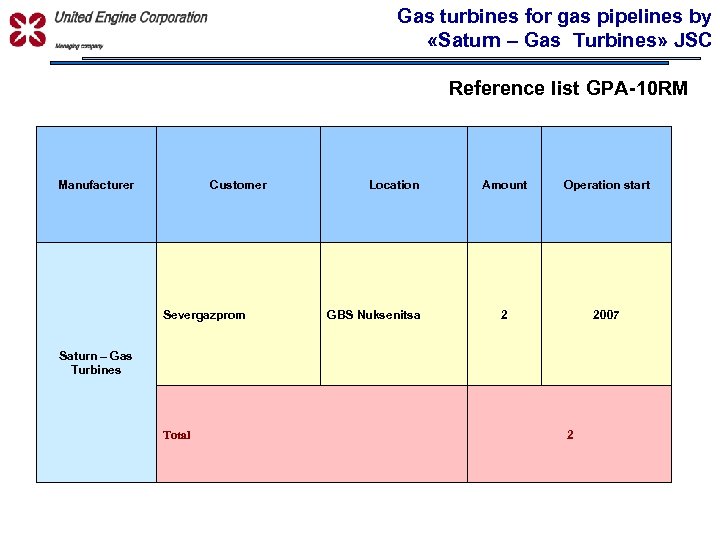

Gas turbines for gas pipelines by «Saturn – Gas Turbines» JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ Reference list GPA-10 RM Manufacturer Customer Severgazprom Location GBS Nuksenitsa Amount Operation start 2 2007 Saturn – Gas Turbines Total 2
Gas turbines for gas pipelines by «UEIA» JSC, «Motor» SPE УПРАВЛЯЮЩАЯ КОМПАНИЯ AL-31 ST-based GPA-16 -AL URAL Modular Gas-Pumping Unit Specification Power turbine rated shaft output, MW 16 Efficiency, % 36 Fuel gas characteristics at gas-turbine engine inlet: -fuel gas pressure, MPa (kgf/cm 2): 2, 74+0, 2(28+2) -fuel gas temperature , °С +20. . +60 Fuel gas flow at rated conditions, kg/s (max), 0, 902 Air mass flow through compressor, kg/s (max) 64, 5

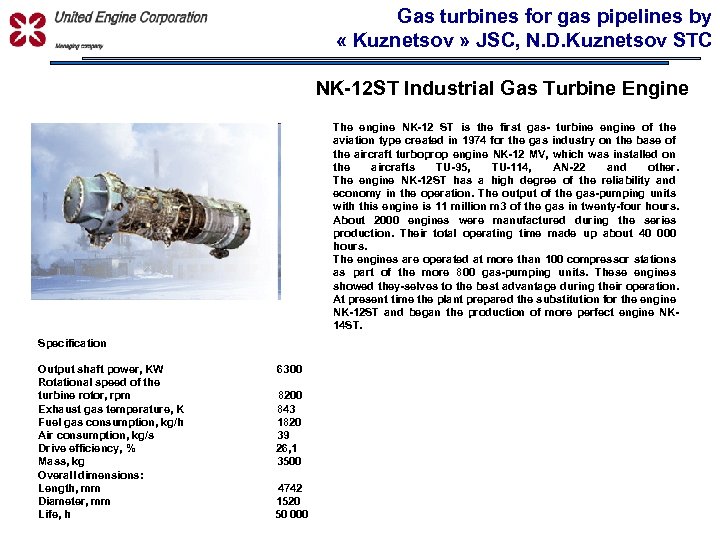

УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by « Kuznetsov » JSC, N. D. Kuznetsov STC NK-12 ST Industrial Gas Turbine Engine The engine NK-12 ST is the first gas- turbine engine of the aviation type created in 1974 for the gas industry on the base of the aircraft turboprop engine NK-12 MV, which was installed on the aircrafts TU-95, TU-114, AN-22 and other. The engine NK-12 ST has a high degree of the reliability and economy in the operation. The output of the gas-pumping units with this engine is 11 million m 3 of the gas in twenty-four hours. About 2000 engines were manufactured during the series production. Their total operating time made up about 40 000 hours. The engines are operated at more than 100 compressor stations as part of the more 800 gas-pumping units. These engines showed they-selves to the best advantage during their operation. At present time the plant prepared the substitution for the engine NK-12 ST and began the production of more perfect engine NK 14 ST. Specification Output shaft power, KW 6300 Rotational speed of the turbine rotor, rpm 200 8 Exhaust gas temperature, K 843 Fuel gas consumption, kg/h 1820 Air consumption, kg/s 39 Drive efficiency, % 6, 1 2 Mass, kg 500 3 Overall dimensions: Length, mm 742 4 Diameter, mm 520 1 Life, h 0 000 5

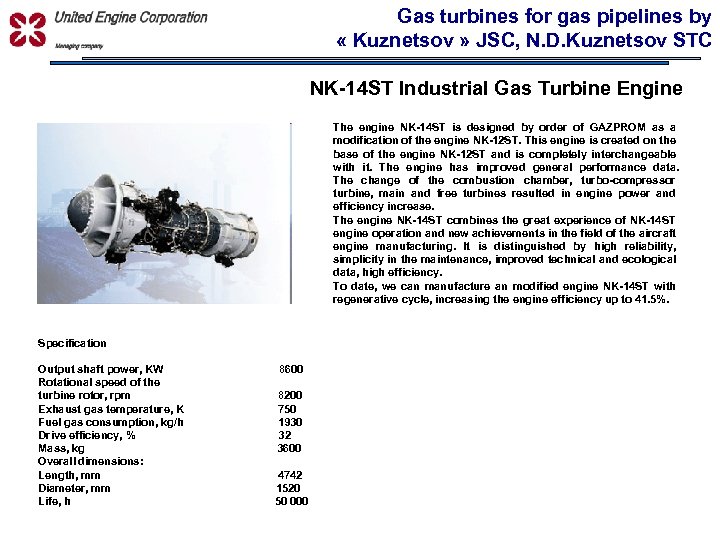

УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by « Kuznetsov » JSC, N. D. Kuznetsov STC NK-14 ST Industrial Gas Turbine Engine The engine NK-14 ST is designed by order of GAZPROM as a modification of the engine NK-12 ST. This engine is created on the base of the engine NK-12 ST and is completely interchangeable with it. The engine has improved general performance data. The change of the combustion chamber, turbo-compressor turbine, main and free turbines resulted in engine power and efficiency increase. The engine NK-14 ST combines the great experience of NK-14 ST engine operation and new achievements in the field of the aircraft engine manufacturing. It is distinguished by high reliability, simplicity in the maintenance, improved technical and ecological data, high efficiency. To date, we can manufacture an modified engine NK-14 ST with regenerative cycle, increasing the engine efficiency up to 41. 5%. Specification Output shaft power, KW 8600 Rotational speed of the turbine rotor, rpm 200 8 Exhaust gas temperature, K 750 Fuel gas consumption, kg/h 1930 Drive efficiency, % 32 Mass, kg 600 3 Overall dimensions: Length, mm 742 4 Diameter, mm 520 1 Life, h 0 000 5
Gas turbines for gas pipelines by « Kuznetsov » JSC, N. D. Kuznetsov STC УПРАВЛЯЮЩАЯ КОМПАНИЯ NK-14 ST-10 Industrial Gas Turbine Engine Specification Output shaft power, KW 10000 Rotational speed of the turbine rotor, rpm 200 8 Exhaust gas temperature, K 507 Fuel gas consumption, kg/h 1820 Air consumption, kg/s 39 Drive efficiency, % 6, 1 2 Mass, kg 500 3 Overall dimensions: Length, mm 742 4 Diameter, mm 520 1 Life, h 100 000 The main kinds of the drive in the range of GPU of gas transportation system of Russia are gas turbine sets. The analysis of the operating indices of GPU with gas turbine drive at the compressor stations shows that the most part of them has worked their motor life ( 100 000 hours), physically weared out and morally became obsolete. The efficiency of the units range is on the level of 20… 21% at power 0. 8. . 0. 9 from the nominal value. In this connection during the reconstruction of the operating compressor stations there is question about the installation of the modern gas turbine engines with efficiency more 33%. With the great overhaul life and high reliability. The variant of GTK-10 -4, GPU- TS- 10 B, GPS -10 serial engine substitution as worked out the life for NK-14 ST-10 engine was considered. The leading development engineer of NK-14 ST-10 engine is JSC Samara Design bureau of machine building (Samara). The leading supplier of the Gas turbine complex -10 -4 is JSC Motorostroitel (Samara).
УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines for gas pipelines by « Kuznetsov » JSC, N. D. Kuznetsov STC NK-36 ST Industrial Gas Turbine Engine Specification Output shaft power, KW 25000 Rotational speed of the turbine rotor, rpm 50 00 Exhaust gas temperature, K 698 Fuel gas consumption, kg/h 5163 Drive efficiency, % 6, 1 2 Mass, kg 869 0 Overall dimensions: Length, mm 6000 Diameter, mm 2300 Life, h 45000 The engine NK-36 ST is created on the base of the production aircraft engine NK-32. It combines the last achievements in the field of the aircraft engine manufacturing and the great experience in the operation of the engines NK-12 ST, NK-14 ST on the cross-country gas pipelines. The engine NK-36 ST id distinguished by the high reliability in the operation, high efficiency, the improved technical data. The level of the emission 3 on the engine NOx is reduced up to 120 mg/m NK-36 ST. This is less than the norm (150 mg/m 3). The systems of the tolerance, of the control, of the protection and of the alarm, which secure the automatic starting, detection of the faults and parameters deviations at the operating engine are provided for the this engine. In addition, the anti-icing system, which permits to operate at the nonfavorable atmospheric conditions is also provided for it. The modular construction of the engine permits to carry it by any kind of the transport, to make the replacement of the modules in the conditions of the compressor station. The gas-pumping unit with the engines NK-36 operates successfully at Tolyatti gas compressor station and has good operation data at the high degree of the reliability.

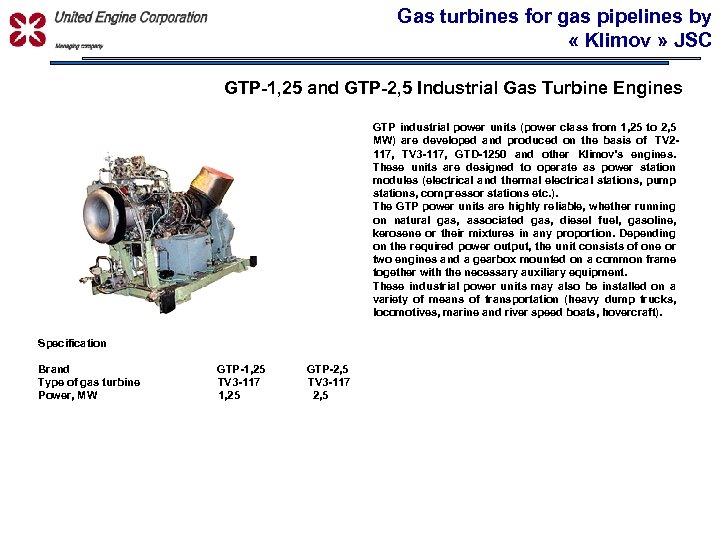

Gas turbines for gas pipelines by « Klimov » JSC УПРАВЛЯЮЩАЯ КОМПАНИЯ GTP-1, 25 and GTP-2, 5 Industrial Gas Turbine Engines GTP industrial power units (power class from 1, 25 to 2, 5 MW) are developed and produced on the basis of TV 2117, TV 3 -117, GTD-1250 and other Klimov’s engines. These units are designed to operate as power station modules (electrical and thermal electrical stations, pump stations, compressor stations etc. ). The GTP power units are highly reliable, whether running on natural gas, associated gas, diesel fuel, gasoline, kerosene or their mixtures in any proportion. Depending on the required power output, the unit consists of one or two engines and a gearbox mounted on a common frame together with the necessary auxiliary equipment. These industrial power units may also be installed on a variety of means of transportation (heavy dump trucks, locomotives, marine and river speed boats, hovercraft). Specification Brand GTP-1, 25 GTP-2, 5 Type of gas turbine TV 3 -117 Power, MW 1, 25 2, 5

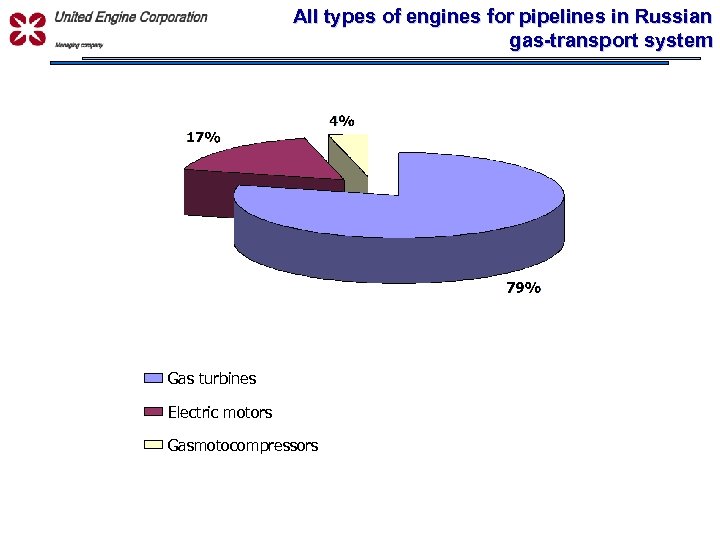

All types of engines for pipelines in Russian gas-transport system УПРАВЛЯЮЩАЯ КОМПАНИЯ Gas turbines Electric motors Gasmotocompressors
Market diagram of all United Engine Corporation’s gas turbine engines made from 1991 until 2008 УПРАВЛЯЮЩАЯ КОМПАНИЯ 6 MW (459) 8 MW (181) 10 MW (7) 25 MW (15) 1, 25 MW (3) 16 MW (31) 4 MW (1) 10 MW (4) 6 MW (1) 4 MW (24) 25 MW (3) 12 MW (74) 16 MW (169) 10 MW (40) 6 MW (2) Perm Motors Saturn – gas turbines Total – 1014 units Ufa Engine Industrial Association, Motor Kuznetsov, N. D. Kusnetsov STC Klimov

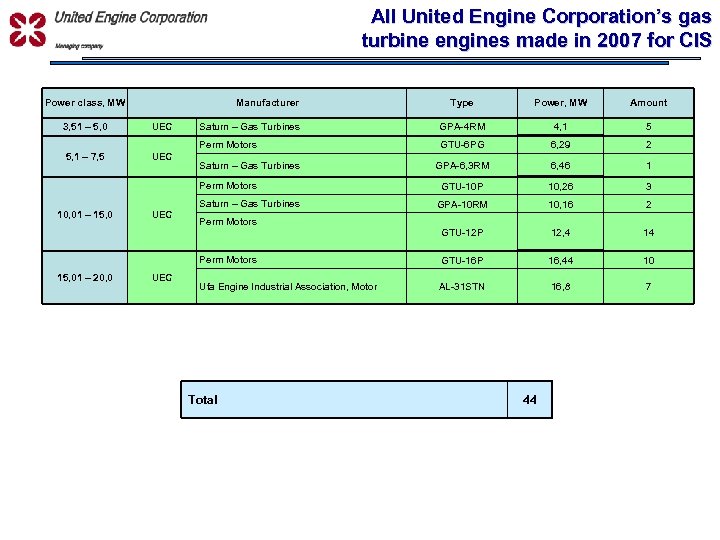

All United Engine Corporation’s gas turbine engines made in 2007 for CIS УПРАВЛЯЮЩАЯ КОМПАНИЯ Power class, MW Manufacturer 5, 1 – 7, 5 UEC Amount Saturn – Gas Turbines GPA-4 RM 4, 1 5 GTU-6 PG 6, 29 2 GPA-6, 3 RM 6, 46 1 GTU-10 P 10, 26 3 GPA-10 RM 10, 16 2 GTU-12 P 12, 4 14 Perm Motors UEC Power, MW Perm Motors 3, 51 – 5, 0 Type GTU-16 P 16, 44 10 Ufa Engine Industrial Association, Motor AL-31 STN 16, 8 7 Saturn – Gas Turbines Perm Motors 10, 01 – 15, 01 – 20, 0 UEC Saturn – Gas Turbines Perm Motors Total 44
УПРАВЛЯЮЩАЯ КОМПАНИЯ All United Engine Corporation’s gas turbine engines at global market engines Ш The amount of United Engine Corporation’s engines for pipelines in other countries is 252* Ш The global market share of United Engine Corporation’s engines for pipelines is ~ 17, 5% * Diesel & Gas Turbine World. Wide
Main gas pipelines: «South Stream» УПРАВЛЯЮЩАЯ КОМПАНИЯ
