University of PISA – DESTEK Oct. 9 th 2014 Workshop on Penetration Testing Frontespizio University of PISA – DESTEK Oct. 9 th 2014 Workshop on Penetration Testing Frontespizio Flat dilatometer (DMT) & Seismic DMT (SDMT) Recent developments Silvano Marchetti University of L'Aquila, Italy [email protected] it 1

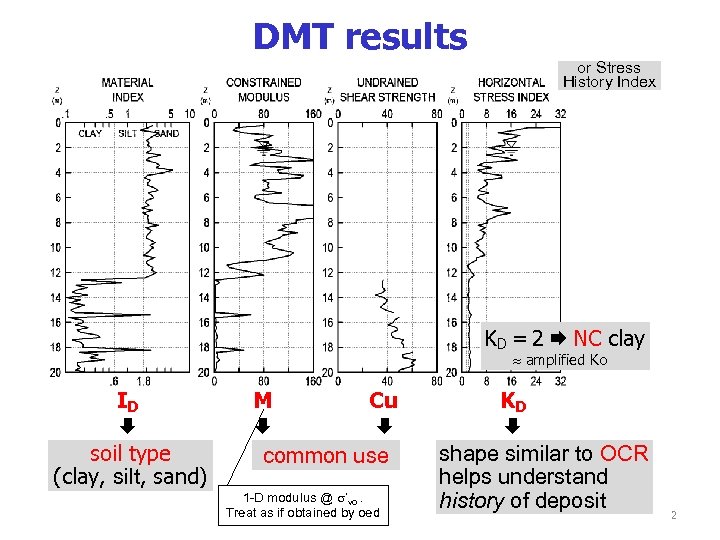

DMT results or Stress History Index KD = 2 NC clay amplified Ko ID DMT results or Stress History Index KD = 2 NC clay amplified Ko ID soil type (clay, silt, sand) M Cu common use 1 -D modulus @ ’vo. Treat as if obtained by oed KD shape similar to OCR helps understand history of deposit 2

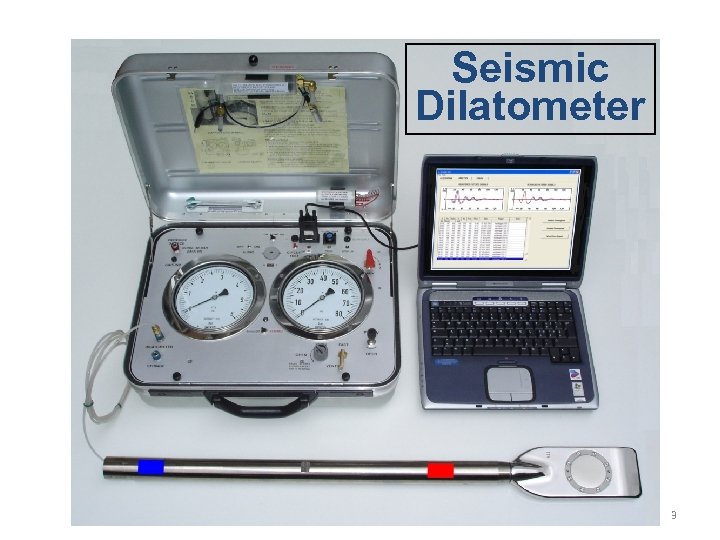

Seismic Dilatometer 3 Seismic Dilatometer 3

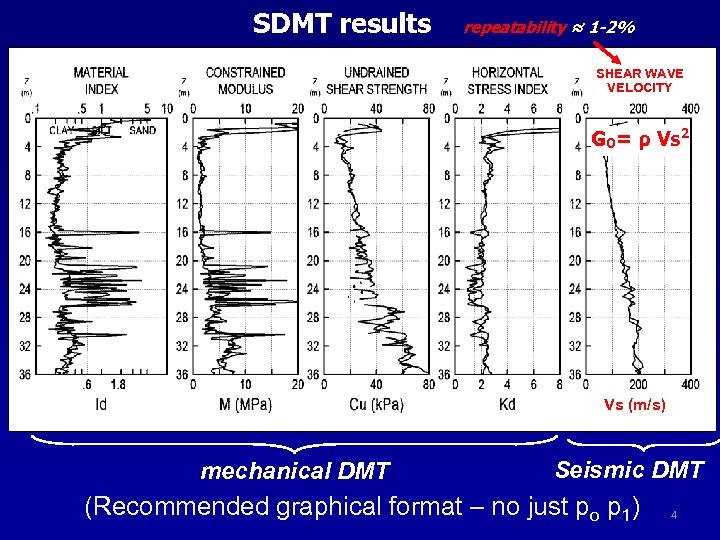

SDMT results repeatability ≈ 1 -2% SHEAR WAVE VELOCITY GO= ρ Vs 2 Vs SDMT results repeatability ≈ 1 -2% SHEAR WAVE VELOCITY GO= ρ Vs 2 Vs (m/s) mechanical DMT Seismic DMT (Recommended graphical format – no just po p 1) 4

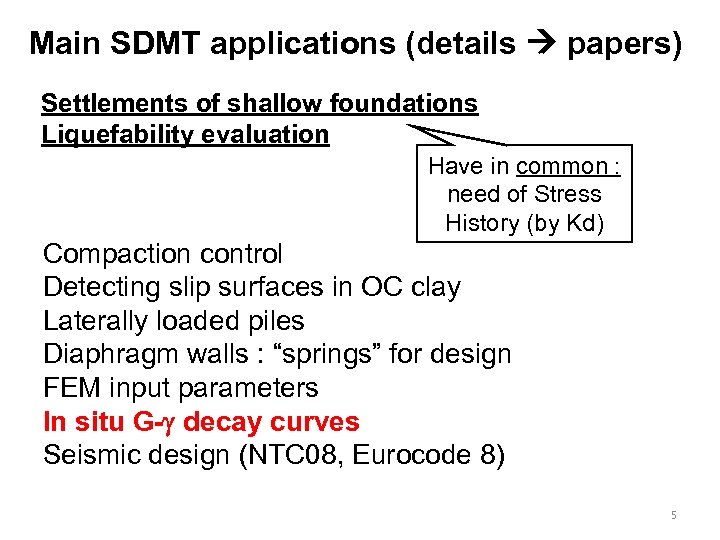

Main SDMT applications (details papers) Settlements of shallow foundations Liquefability evaluation Have in common Main SDMT applications (details papers) Settlements of shallow foundations Liquefability evaluation Have in common : need of Stress History (by Kd) Compaction control Detecting slip surfaces in OC clay Laterally loaded piles Diaphragm walls : “springs” for design FEM input parameters In situ G- decay curves Seismic design (NTC 08, Eurocode 8) 5

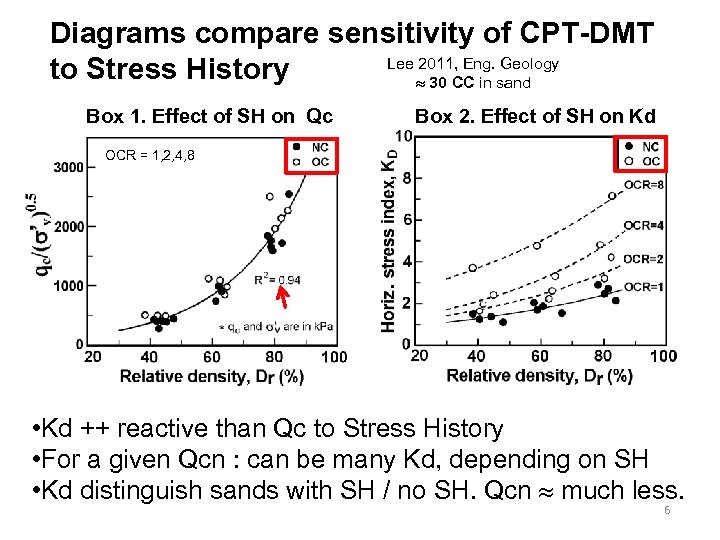

Diagrams compare sensitivity of CPT-DMT Lee 2011, Eng. Geology to Stress History 30 CC Diagrams compare sensitivity of CPT-DMT Lee 2011, Eng. Geology to Stress History 30 CC in sand Box 1. Effect of SH on Qc Box 2. Effect of SH on Kd OCR = 1, 2, 4, 8 CPT DMT • Kd ++ reactive than Qc to Stress History • For a given Qcn : can be many Kd, depending on SH • Kd distinguish sands with SH / no SH. Qcn much less. 6

(3/7) Two sites : same Qc , but different KD. Site 2 much “stronger” (3/7) Two sites : same Qc , but different KD. Site 2 much “stronger” (higher SH) settlement and liquefaction. 7

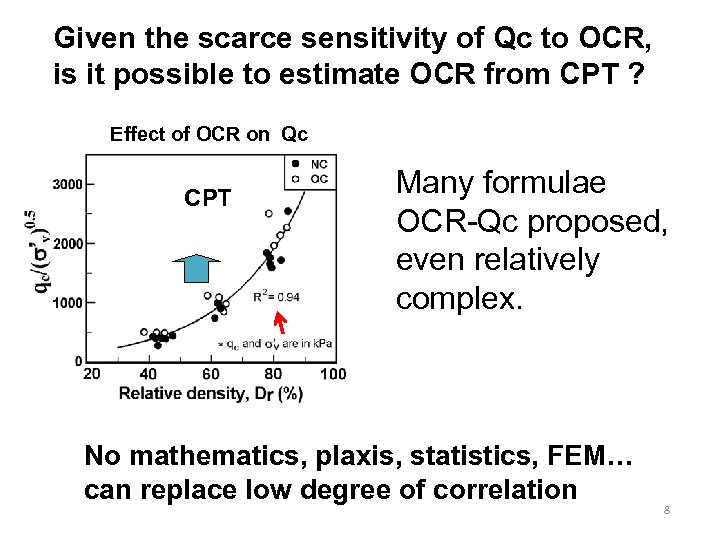

Given the scarce sensitivity of Qc to OCR, is it possible to estimate OCR Given the scarce sensitivity of Qc to OCR, is it possible to estimate OCR from CPT ? Effect of OCR on Qc CPT Many formulae OCR-Qc proposed, even relatively complex. No mathematics, plaxis, statistics, FEM… can replace low degree of correlation 8

Similarly higher sensitivity of Kd to SH & aging observed by Jamiolkowski (ISC'98 Atlanta) Similarly higher sensitivity of Kd to SH & aging observed by Jamiolkowski (ISC'98 Atlanta) They applied prestraining cycles in calibration chamber. Found : KD (DMT) 3 to 7 times more sensitive to AGING than penetration resistance CC TEST N. 216 IN TICINO SAND PRESTRAINING CYCLES simulate AGING (grain slippage) KD + 20 % q. D + 3 % 9

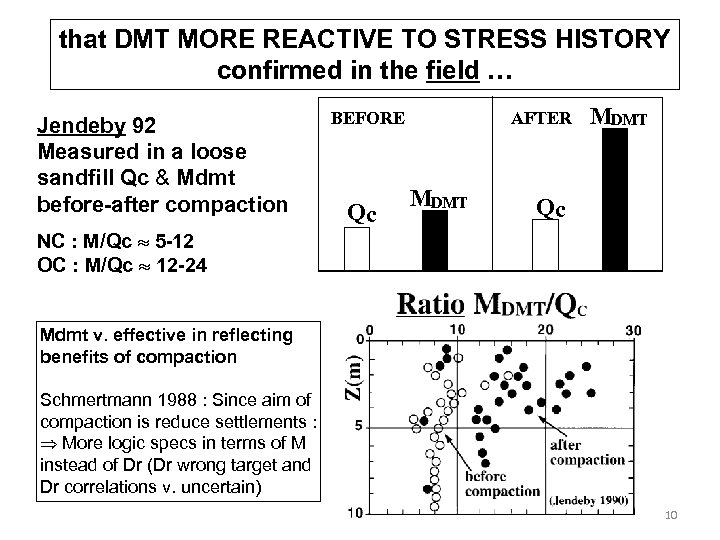

that DMT MORE REACTIVE TO STRESS HISTORY confirmed in the field … Jendeby 92 that DMT MORE REACTIVE TO STRESS HISTORY confirmed in the field … Jendeby 92 Measured in a loose sandfill Qc & Mdmt before-after compaction BEFORE Qc AFTER MDMT Qc NC : M/Qc 5 -12 OC : M/Qc 12 -24 Mdmt v. effective in reflecting benefits of compaction Schmertmann 1988 : Since aim of compaction is reduce settlements : More logic specs in terms of M instead of Dr (Dr wrong target and Dr correlations v. uncertain) 10

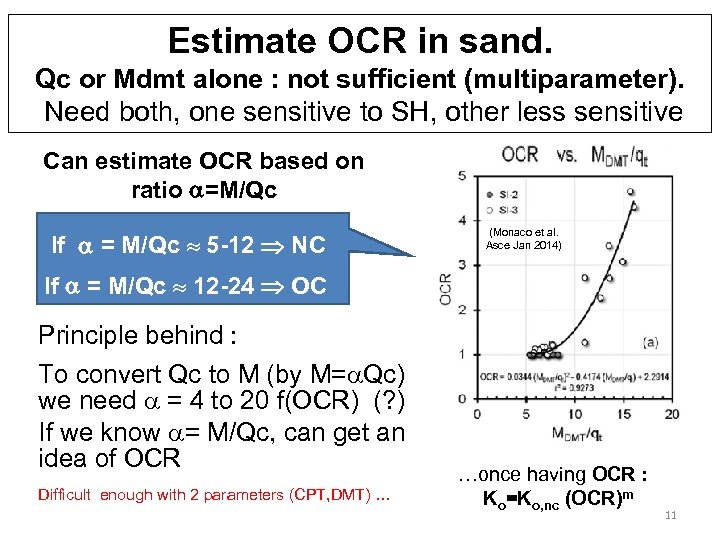

Estimate OCR in sand. Qc or Mdmt alone : not sufficient (multiparameter). Need both, Estimate OCR in sand. Qc or Mdmt alone : not sufficient (multiparameter). Need both, one sensitive to SH, other less sensitive Can estimate OCR based on ratio =M/Qc If = M/Qc 5 -12 NC (Monaco et al. Asce Jan 2014) If = M/Qc 12 -24 OC Principle behind : To convert Qc to M (by M= Qc) we need = 4 to 20 f(OCR) (? ) If we know = M/Qc, can get an idea of OCR Difficult enough with 2 parameters (CPT, DMT) … …once having OCR : Ko=Ko, nc (OCR)m 11

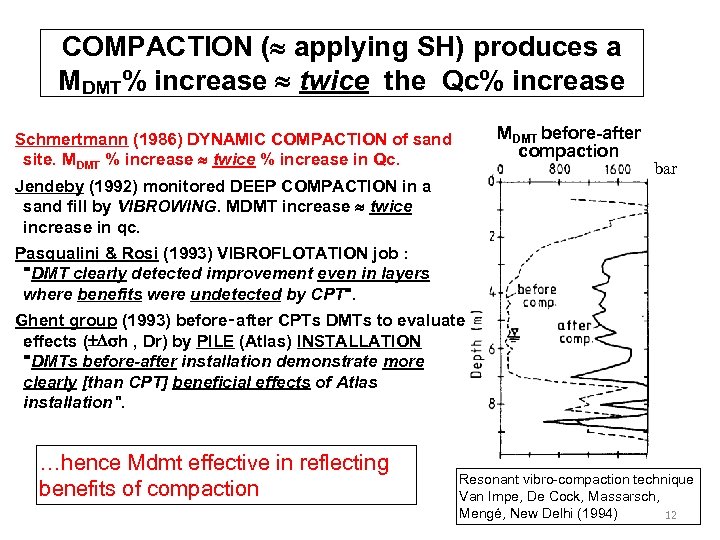

COMPACTION ( applying SH) produces a MDMT% increase twice the Qc% increase MDMT before-after COMPACTION ( applying SH) produces a MDMT% increase twice the Qc% increase MDMT before-after compaction Schmertmann (1986) DYNAMIC COMPACTION of sand site. MDMT % increase twice % increase in Qc. Jendeby (1992) monitored DEEP COMPACTION in a sand fill by VIBROWING. MDMT increase twice increase in qc. bar Pasqualini & Rosi (1993) VIBROFLOTATION job : "DMT clearly detected improvement even in layers where benefits were undetected by CPT". Ghent group (1993) before‑after CPTs DMTs to evaluate effects ( h , Dr) by PILE (Atlas) INSTALLATION "DMTs before-after installation demonstrate more clearly [than CPT] beneficial effects of Atlas installation". …hence Mdmt effective in reflecting benefits of compaction Resonant vibro-compaction technique Van Impe, De Cock, Massarsch, Mengé, New Delhi (1994) 12

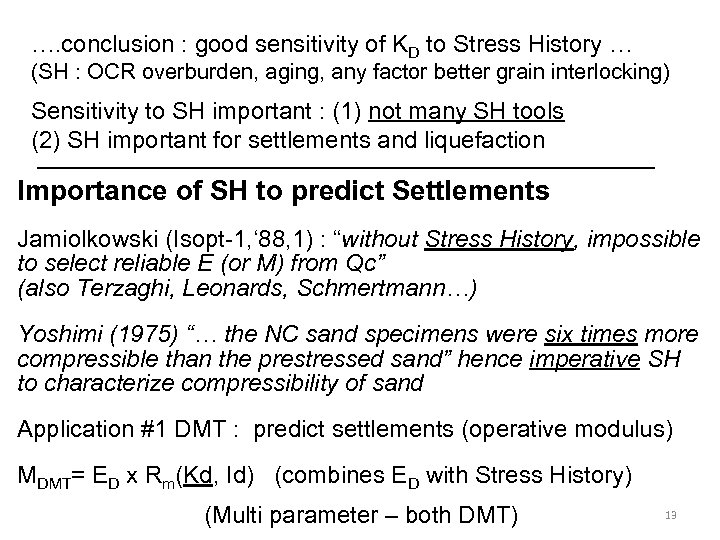

…. conclusion : good sensitivity of KD to Stress History … (SH : OCR …. conclusion : good sensitivity of KD to Stress History … (SH : OCR overburden, aging, any factor better grain interlocking) Sensitivity to SH important : (1) not many SH tools (2) SH important for settlements and liquefaction Importance of SH to predict Settlements Jamiolkowski (Isopt-1, ‘ 88, 1) : “without Stress History, impossible to select reliable E (or M) from Qc” (also Terzaghi, Leonards, Schmertmann…) Yoshimi (1975) “… the NC sand specimens were six times more compressible than the prestressed sand” hence imperative SH to characterize compressibility of sand Application #1 DMT : predict settlements (operative modulus) MDMT= ED x Rm(Kd, Id) (combines ED with Stress History) (Multi parameter – both DMT) 13

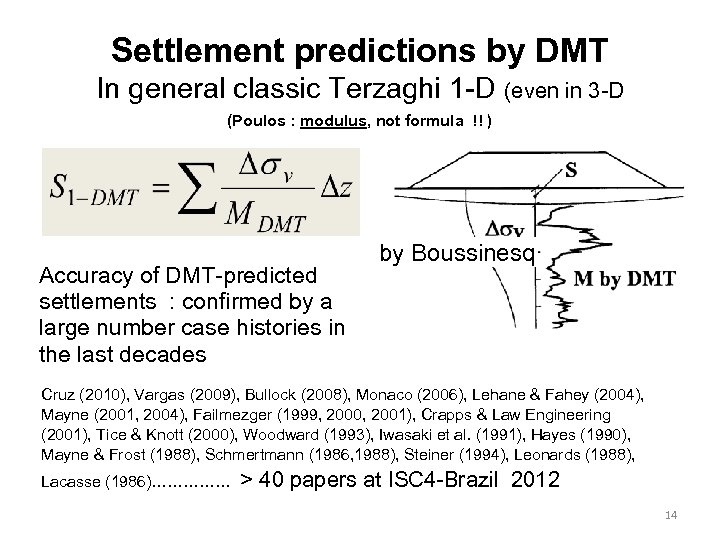

Settlement predictions by DMT In general classic Terzaghi 1 -D (even in 3 -D Settlement predictions by DMT In general classic Terzaghi 1 -D (even in 3 -D (Poulos : modulus, not formula !! ) Accuracy of DMT-predicted settlements : confirmed by a large number case histories in the last decades by Boussinesq Cruz (2010), Vargas (2009), Bullock (2008), Monaco (2006), Lehane & Fahey (2004), Mayne (2001, 2004), Failmezger (1999, 2000, 2001), Crapps & Law Engineering (2001), Tice & Knott (2000), Woodward (1993), Iwasaki et al. (1991), Hayes (1990), Mayne & Frost (1988), Schmertmann (1986, 1988), Steiner (1994), Leonards (1988), Lacasse (1986)…………… > 40 papers at ISC 4 -Brazil 2012 14

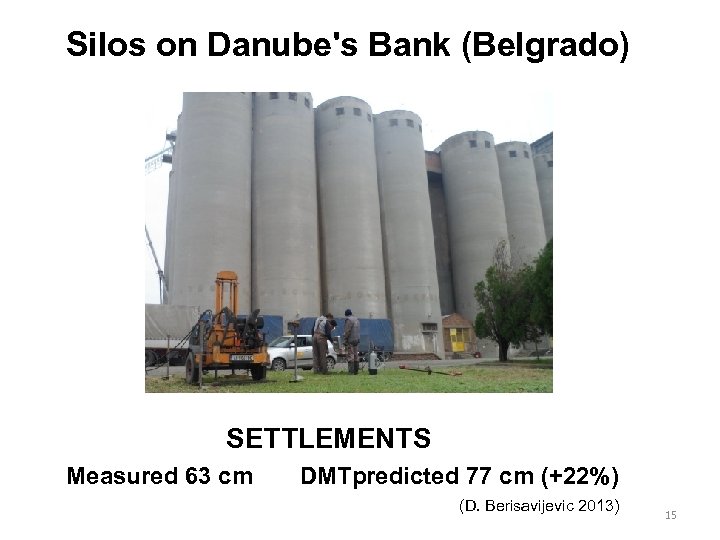

Silos on Danube's Bank (Belgrado) SETTLEMENTS Measured 63 cm DMTpredicted 77 cm (+22%) (D. Silos on Danube's Bank (Belgrado) SETTLEMENTS Measured 63 cm DMTpredicted 77 cm (+22%) (D. Berisavijevic 2013) 15

M at Sunshine Skyway Bridge, Tampa Bay – Florida (Schmertmann – Asce Civil Engng M at Sunshine Skyway Bridge, Tampa Bay – Florida (Schmertmann – Asce Civil Engng – March 1988) World record span for cable stayed post-tensioned concrete box girder concrete construction DMT results: M 200 MPa ( 1000 DMT test points) Laboratory results: M 50 MPa From observed Settlements: M 240 MPa DMT = good evaluation of constrained modulus 16

CAPE HATTERAS LIGHT HOUSE : was moved from its original location to protect it CAPE HATTERAS LIGHT HOUSE : was moved from its original location to protect it from a receding coastline. Selected as one of ASCE outstanding civil engineering achievement 2000 DMTs : executed by Law Engineering Allan Tice, Assistant Vice President : "DMT data provided reliable settlement estimates in the predominately sandy soils along the path and at the final destination of the light house”. 17

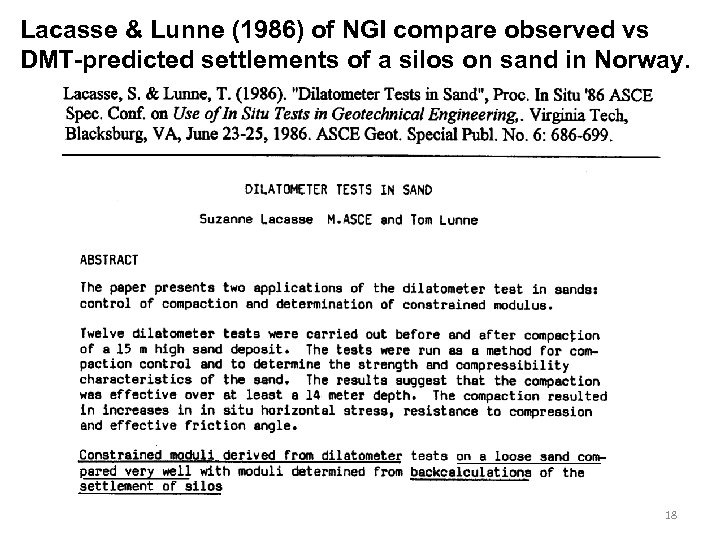

Lacasse & Lunne (1986) of NGI compare observed vs DMT-predicted settlements of a silos Lacasse & Lunne (1986) of NGI compare observed vs DMT-predicted settlements of a silos on sand in Norway. 18

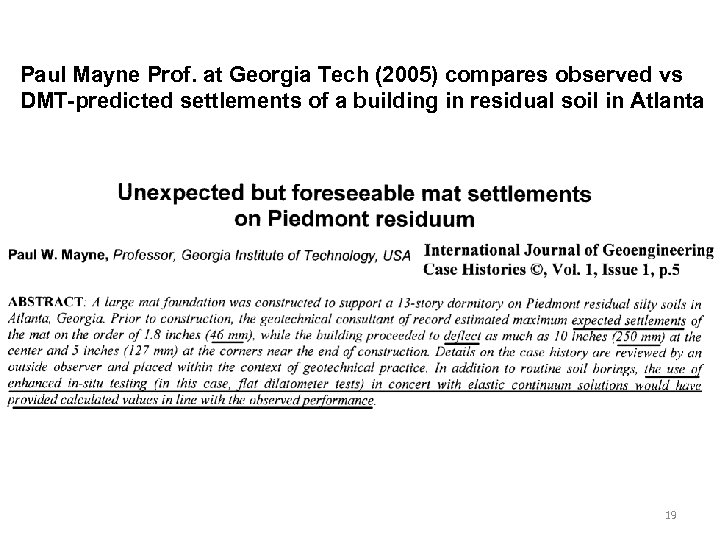

Paul Mayne Prof. at Georgia Tech (2005) compares observed vs DMT-predicted settlements of a Paul Mayne Prof. at Georgia Tech (2005) compares observed vs DMT-predicted settlements of a building in residual soil in Atlanta 19

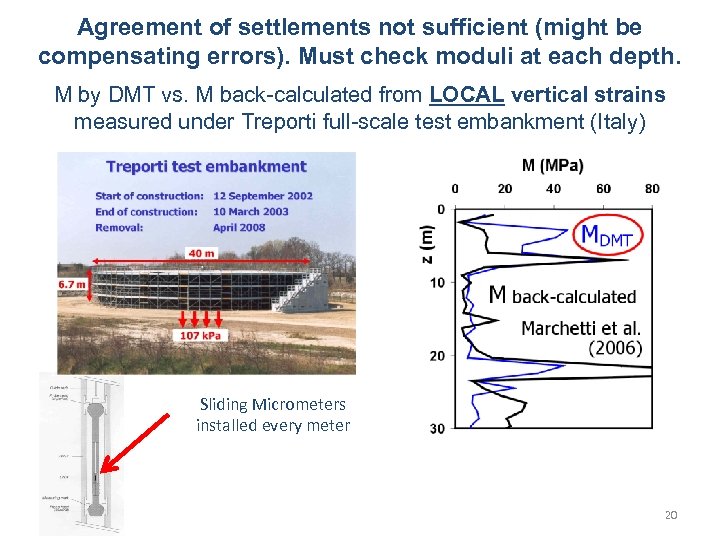

Agreement of settlements not sufficient (might be compensating errors). Must check moduli at each Agreement of settlements not sufficient (might be compensating errors). Must check moduli at each depth. M by DMT vs. M back-calculated from LOCAL vertical strains measured under Treporti full-scale test embankment (Italy) Sliding Micrometers installed every meter 20

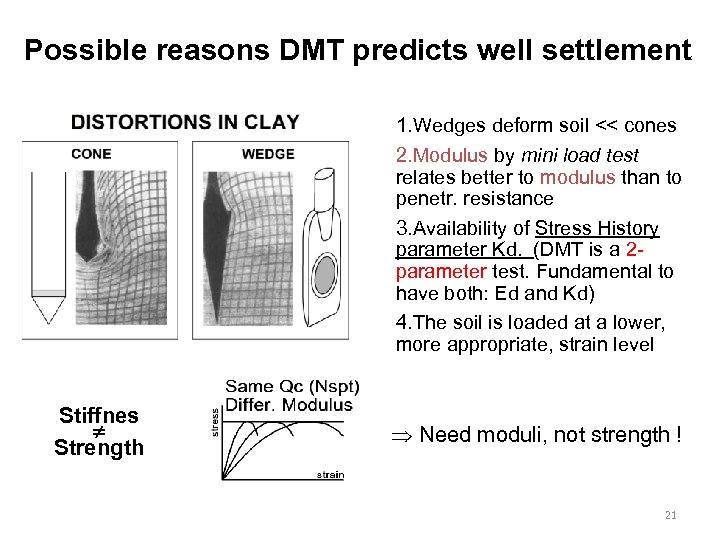

Possible reasons DMT predicts well settlement 1. Wedges deform soil << cones 2. Modulus Possible reasons DMT predicts well settlement 1. Wedges deform soil << cones 2. Modulus by mini load test relates better to modulus than to penetr. resistance 3. Availability of Stress History parameter Kd. (DMT is a 2 parameter test. Fundamental to have both: Ed and Kd) 4. The soil is loaded at a lower, more appropriate, strain level Stiffnes Strength Need moduli, not strength ! 21

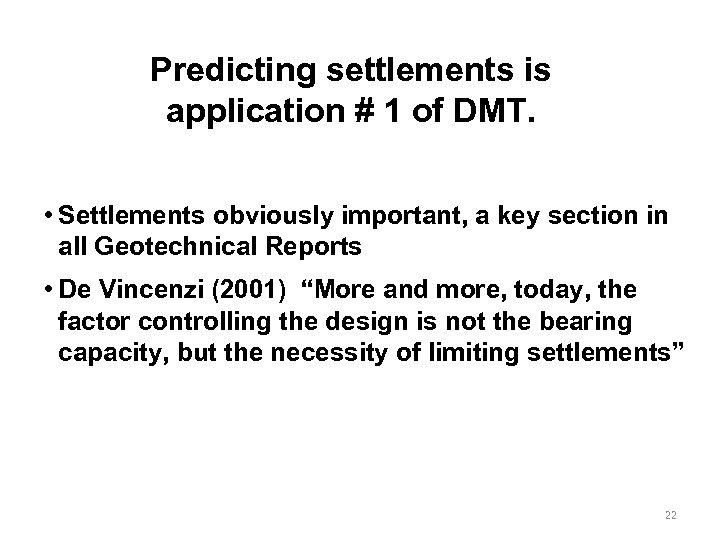

Predicting settlements is application # 1 of DMT. • Settlements obviously important, a key Predicting settlements is application # 1 of DMT. • Settlements obviously important, a key section in all Geotechnical Reports • De Vincenzi (2001) “More and more, today, the factor controlling the design is not the bearing capacity, but the necessity of limiting settlements” 22

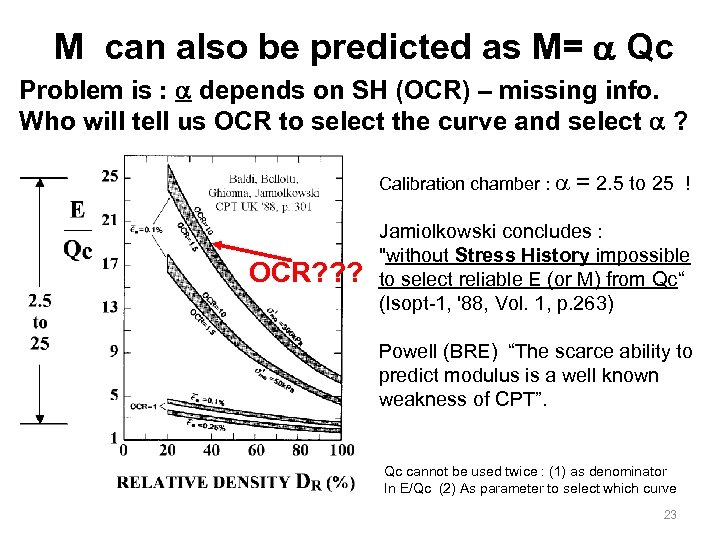

M can also be predicted as M= Qc Problem is : depends on SH M can also be predicted as M= Qc Problem is : depends on SH (OCR) – missing info. Who will tell us OCR to select the curve and select ? Calibration chamber : OCR? ? ? = 2. 5 to 25 ! Jamiolkowski concludes : "without Stress History impossible to select reliable E (or M) from Qc“ (Isopt-1, '88, Vol. 1, p. 263) Powell (BRE) “The scarce ability to predict modulus is a well known weakness of CPT”. Qc cannot be used twice : (1) as denominator In E/Qc (2) As parameter to select which curve 23

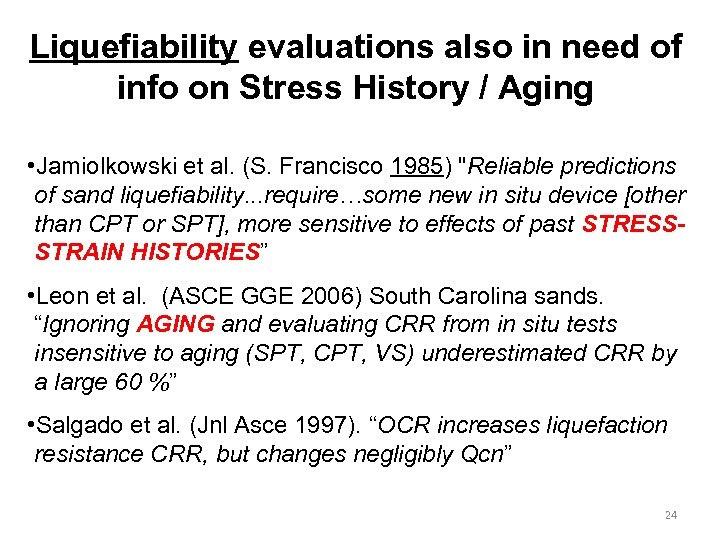

Liquefiability evaluations also in need of info on Stress History / Aging • Jamiolkowski Liquefiability evaluations also in need of info on Stress History / Aging • Jamiolkowski et al. (S. Francisco 1985) "Reliable predictions of sand liquefiability. . . require…some new in situ device [other than CPT or SPT], more sensitive to effects of past STRESSSTRAIN HISTORIES” • Leon et al. (ASCE GGE 2006) South Carolina sands. “Ignoring AGING and evaluating CRR from in situ tests insensitive to aging (SPT, CPT, VS) underestimated CRR by a large 60 %” • Salgado et al. (Jnl Asce 1997). “OCR increases liquefaction resistance CRR, but changes negligibly Qcn” 24

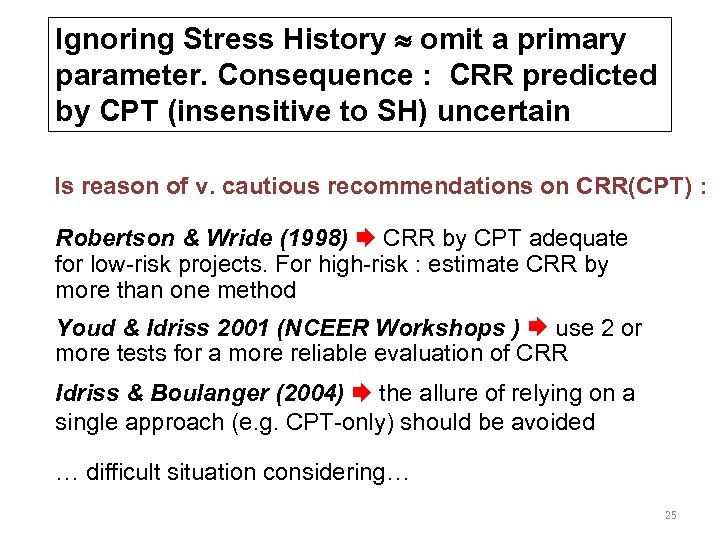

Ignoring Stress History omit a primary parameter. Consequence : CRR predicted by CPT (insensitive Ignoring Stress History omit a primary parameter. Consequence : CRR predicted by CPT (insensitive to SH) uncertain Is reason of v. cautious recommendations on CRR(CPT) : Robertson & Wride (1998) CRR by CPT adequate for low-risk projects. For high-risk : estimate CRR by more than one method Youd & Idriss 2001 (NCEER Workshops ) use 2 or more tests for a more reliable evaluation of CRR Idriss & Boulanger (2004) the allure of relying on a single approach (e. g. CPT-only) should be avoided … difficult situation considering… 25

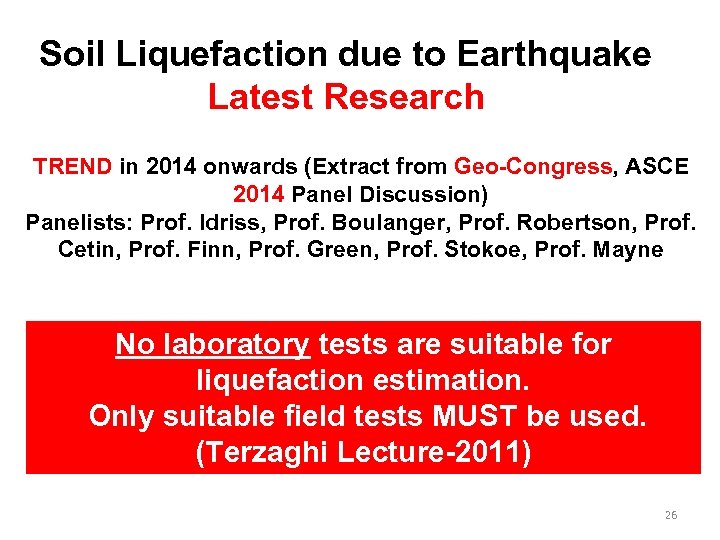

Soil Liquefaction due to Earthquake Latest Research TREND in 2014 onwards (Extract from Geo-Congress, Soil Liquefaction due to Earthquake Latest Research TREND in 2014 onwards (Extract from Geo-Congress, ASCE 2014 Panel Discussion) Panelists: Prof. Idriss, Prof. Boulanger, Prof. Robertson, Prof. Cetin, Prof. Finn, Prof. Green, Prof. Stokoe, Prof. Mayne No laboratory tests are suitable for liquefaction estimation. Only suitable field tests MUST be used. (Terzaghi Lecture-2011) 26

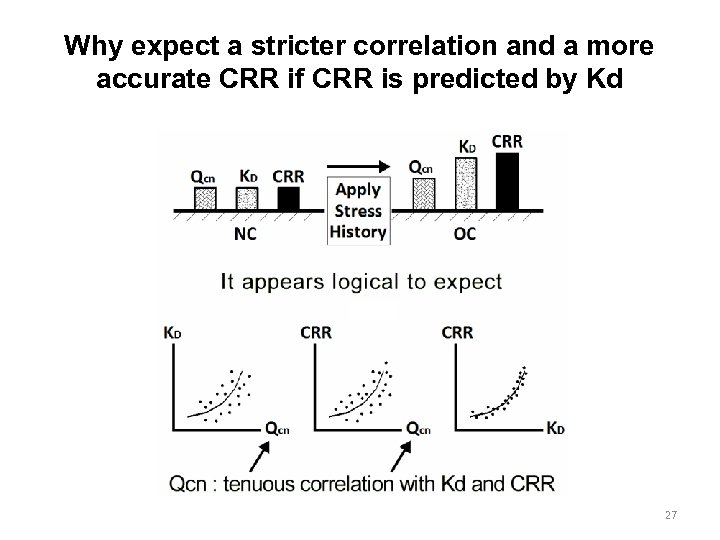

Why expect a stricter correlation and a more accurate CRR if CRR is predicted Why expect a stricter correlation and a more accurate CRR if CRR is predicted by Kd 27

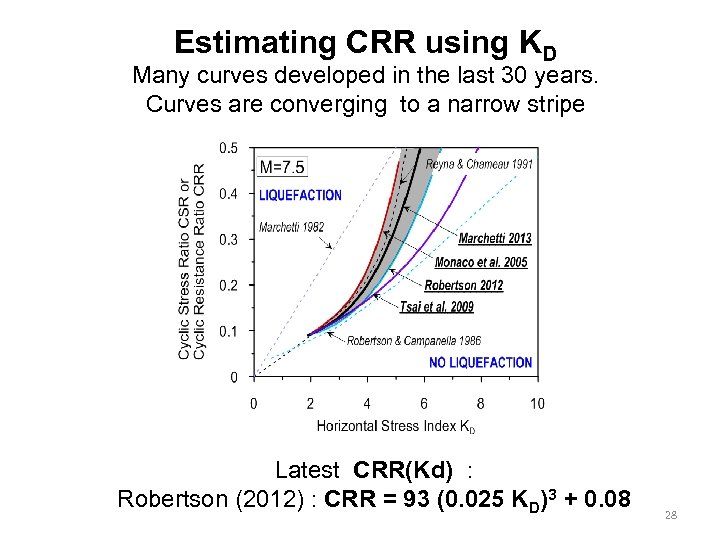

Estimating CRR using KD Many curves developed in the last 30 years. Curves are Estimating CRR using KD Many curves developed in the last 30 years. Curves are converging to a narrow stripe Latest CRR(Kd) : Robertson (2012) : CRR = 93 (0. 025 KD)3 + 0. 08 28

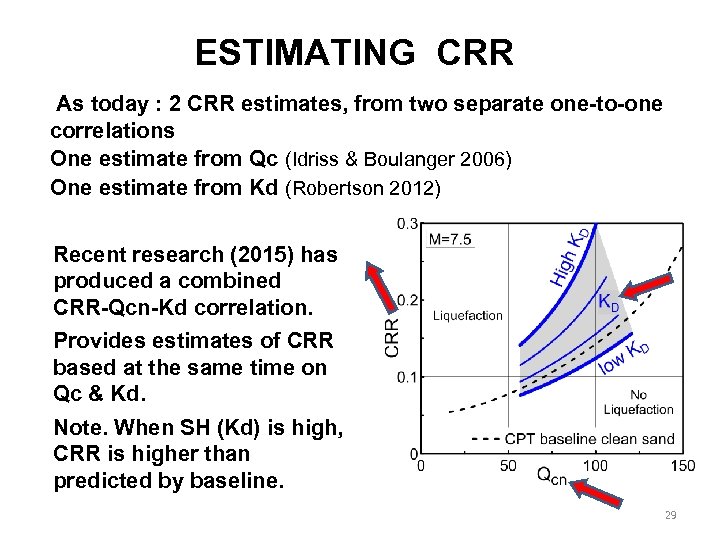

ESTIMATING CRR As today : 2 CRR estimates, from two separate one-to-one correlations One ESTIMATING CRR As today : 2 CRR estimates, from two separate one-to-one correlations One estimate from Qc (Idriss & Boulanger 2006) One estimate from Kd (Robertson 2012) Recent research (2015) has produced a combined CRR-Qcn-Kd correlation. Provides estimates of CRR based at the same time on Qc & Kd. Note. When SH (Kd) is high, CRR is higher than predicted by baseline. 29

SEAFLOOR DILATOMETER WATERDEPTH 0 to 100 m (nearshore jobs) Shipped by air (50 Kg) SEAFLOOR DILATOMETER WATERDEPTH 0 to 100 m (nearshore jobs) Shipped by air (50 Kg) PUSH CAPACITY 7 ton Max test depth is the depth penetrable with 7 ton push. 4 bolts 7 ton ballast (built locally) 30

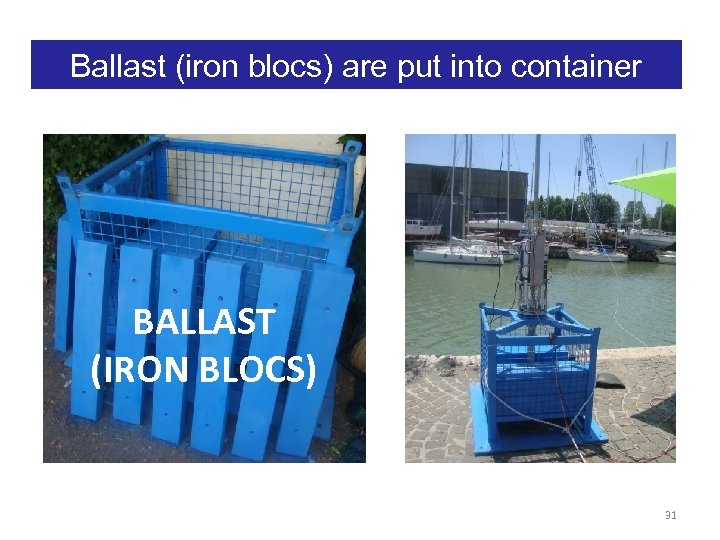

Ballast (iron blocs) are put into container BALLAST (IRON BLOCS) 31 Ballast (iron blocs) are put into container BALLAST (IRON BLOCS) 31

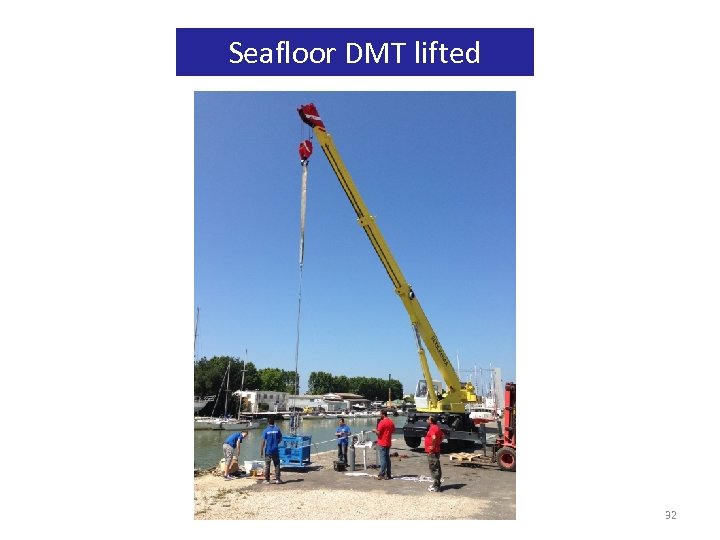

Seafloor DMT lifted 32 Seafloor DMT lifted 32

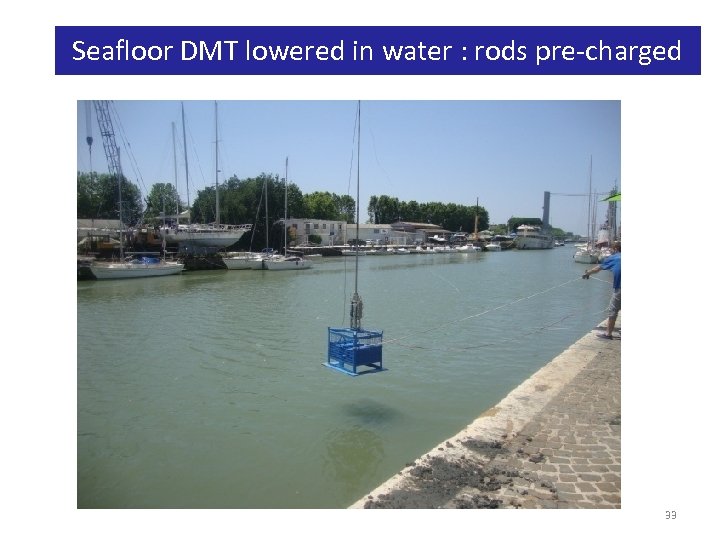

Seafloor DMT lowered in water : rods pre-charged 33 Seafloor DMT lowered in water : rods pre-charged 33

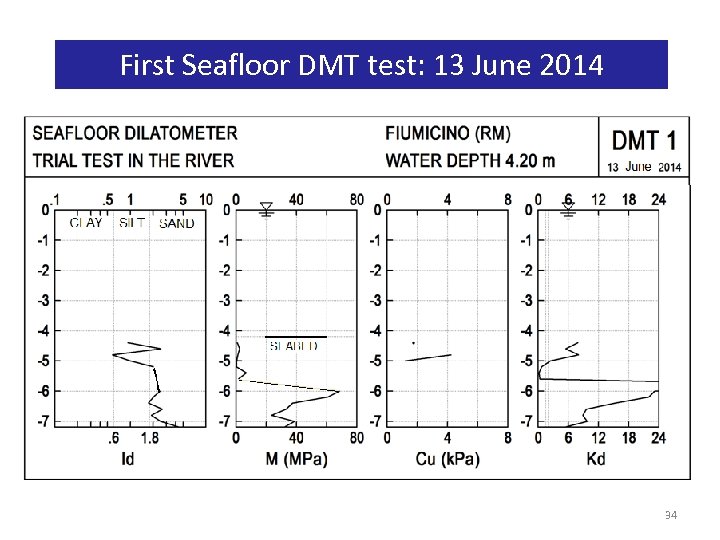

First Seafloor DMT test: 13 June 2014 34 First Seafloor DMT test: 13 June 2014 34

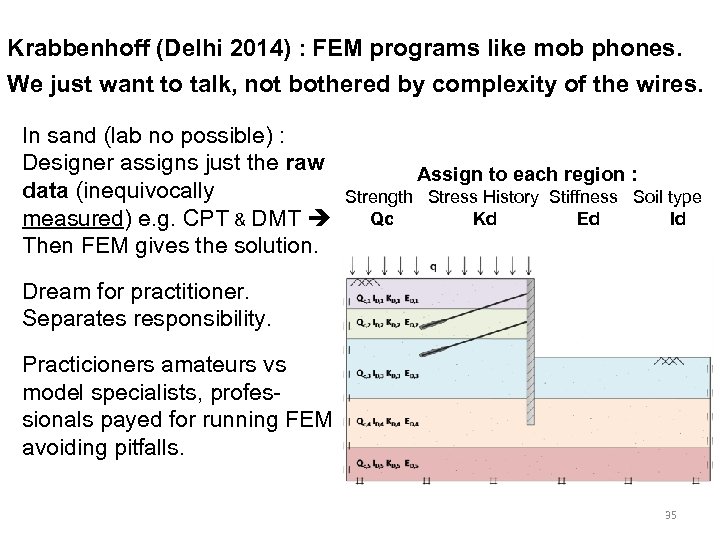

Krabbenhoff (Delhi 2014) : FEM programs like mob phones. We just want to talk, Krabbenhoff (Delhi 2014) : FEM programs like mob phones. We just want to talk, not bothered by complexity of the wires. In sand (lab no possible) : Designer assigns just the raw data (inequivocally measured) e. g. CPT & DMT Then FEM gives the solution. Assign to each region : Strength Stress History Stiffness Soil type Qc Kd Ed Id Dream for practitioner. Separates responsibility. Practicioners amateurs vs model specialists, professionals payed for running FEM avoiding pitfalls. 35

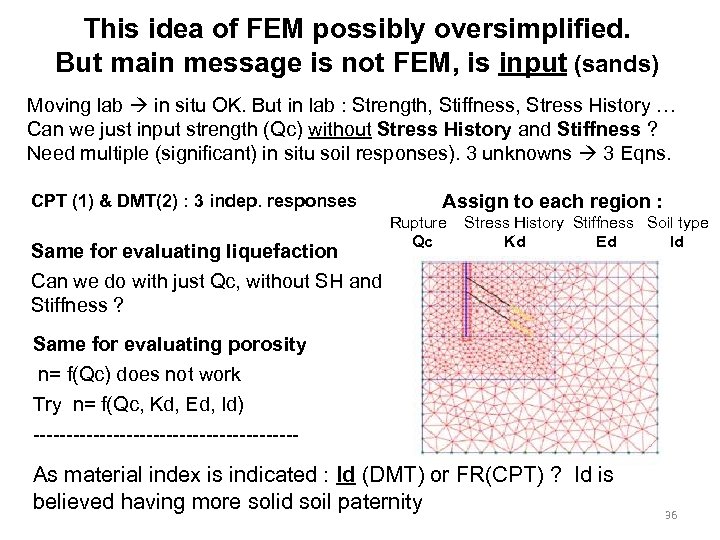

This idea of FEM possibly oversimplified. But main message is not FEM, is input This idea of FEM possibly oversimplified. But main message is not FEM, is input (sands) Moving lab in situ OK. But in lab : Strength, Stiffness, Stress History … Can we just input strength (Qc) without Stress History and Stiffness ? Need multiple (significant) in situ soil responses). 3 unknowns 3 Eqns. CPT (1) & DMT(2) : 3 indep. responses Same for evaluating liquefaction Can we do with just Qc, without SH and Stiffness ? Assign to each region : Rupture Stress History Stiffness Soil type Qc Kd Ed Id Same for evaluating porosity n= f(Qc) does not work Try n= f(Qc, Kd, Ed, Id) -------------------- As material index is indicated : Id (DMT) or FR(CPT) ? Id is believed having more solid soil paternity 36

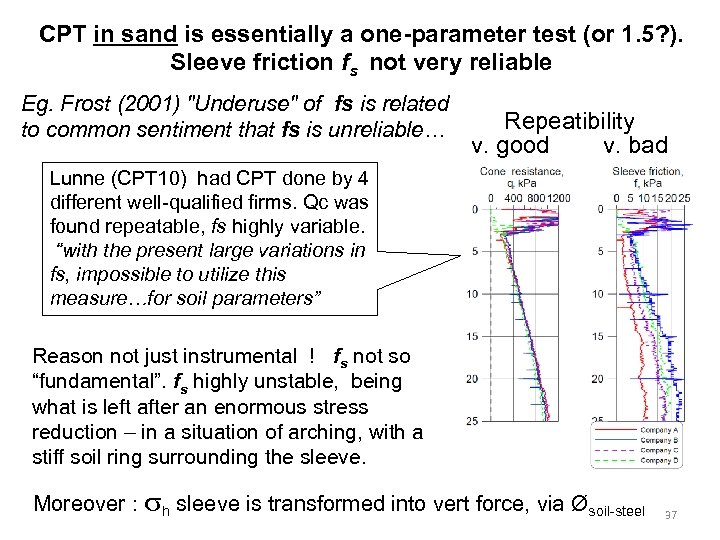

CPT in sand is essentially a one-parameter test (or 1. 5? ). Sleeve friction CPT in sand is essentially a one-parameter test (or 1. 5? ). Sleeve friction fs not very reliable Eg. Frost (2001) "Underuse" of fs is related to common sentiment that fs is unreliable… Repeatibility v. good v. bad Lunne (CPT 10) had CPT done by 4 different well-qualified firms. Qc was found repeatable, fs highly variable. “with the present large variations in fs, impossible to utilize this measure…for soil parameters” Reason not just instrumental ! fs not so “fundamental”. fs highly unstable, being what is left after an enormous stress reduction – in a situation of arching, with a stiff soil ring surrounding the sleeve. Moreover : h sleeve is transformed into vert force, via Øsoil-steel 37

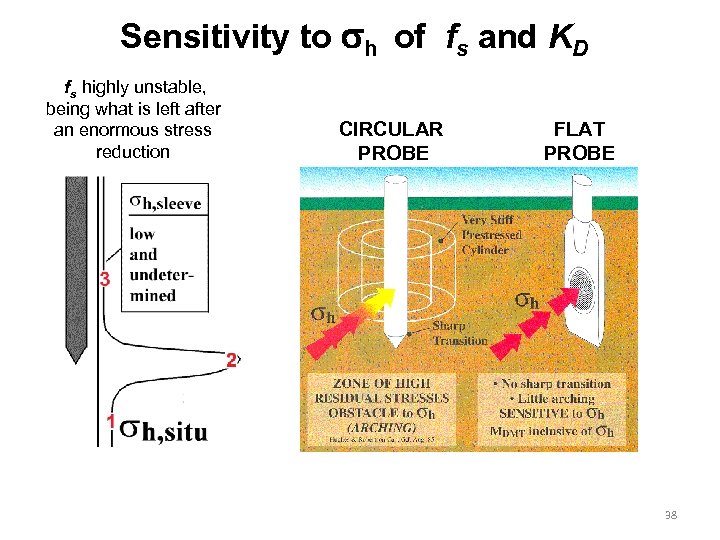

Sensitivity to h of fs and KD fs highly unstable, being what is left Sensitivity to h of fs and KD fs highly unstable, being what is left after an enormous stress reduction CIRCULAR PROBE FLAT PROBE 38

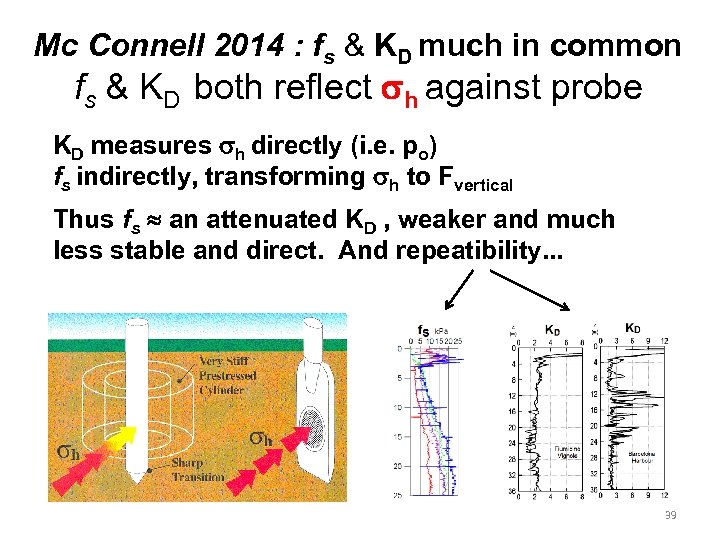

Mc Connell 2014 : fs & KD much in common fs & KD both Mc Connell 2014 : fs & KD much in common fs & KD both reflect h against probe KD measures h directly (i. e. po) fs indirectly, transforming h to Fvertical Thus fs an attenuated KD , weaker and much less stable and direct. And repeatibility. . . 39

 (Robertson Jnl Asce Nov 2009) CPT-DMT inter correlations Robertson has formulae for estimating (Robertson Jnl Asce Nov 2009) CPT-DMT inter correlations Robertson has formulae for estimating DMT from CPT. V. dispersed in particular Kd from Qcn. Expectable : no way reconstructing Kd sensitive to Stress History from insensitive Qcn. Some researchers study opposite direction : Qc from DMT. Should have +success. Should be easier to predict one parameter from two than viceversa. DMT a genuine two parameter test. In that DMT appears a +informative test. 40

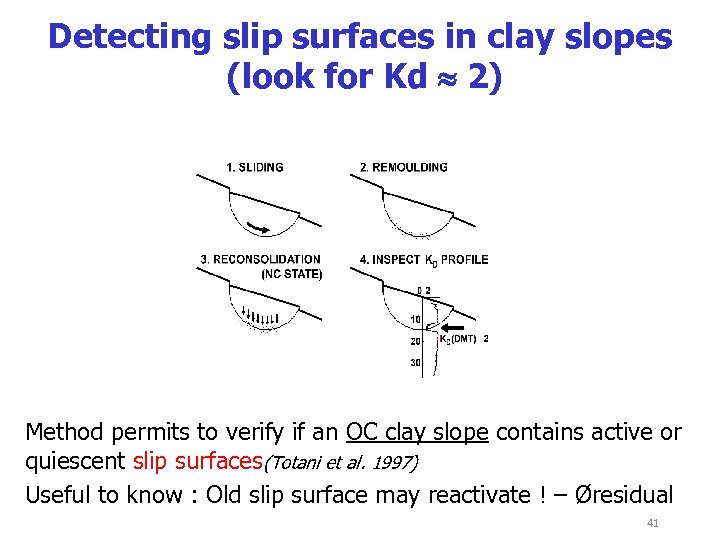

Detecting slip surfaces in clay slopes (look for Kd 2) Method permits to verify Detecting slip surfaces in clay slopes (look for Kd 2) Method permits to verify if an OC clay slope contains active or quiescent slip surfaces(Totani et al. 1997) Useful to know : Old slip surface may reactivate ! – Øresidual 41

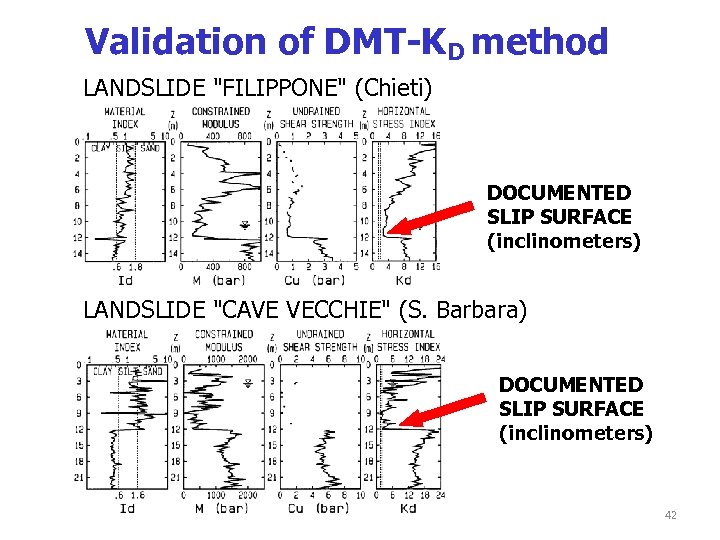

Validation of DMT-KD method LANDSLIDE Validation of DMT-KD method LANDSLIDE "FILIPPONE" (Chieti) DOCUMENTED SLIP SURFACE (inclinometers) LANDSLIDE "CAVE VECCHIE" (S. Barbara) DOCUMENTED SLIP SURFACE (inclinometers) 42

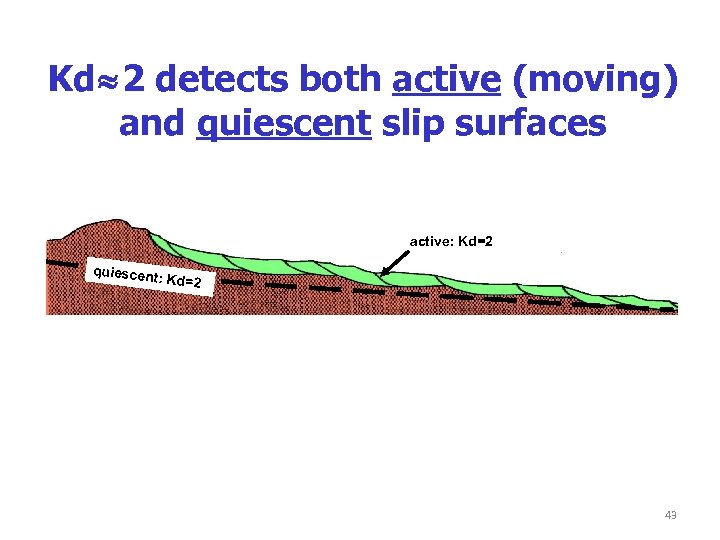

Kd 2 detects both active (moving) and quiescent slip surfaces active: Kd=2 quiescen t: Kd 2 detects both active (moving) and quiescent slip surfaces active: Kd=2 quiescen t: Kd=2 43

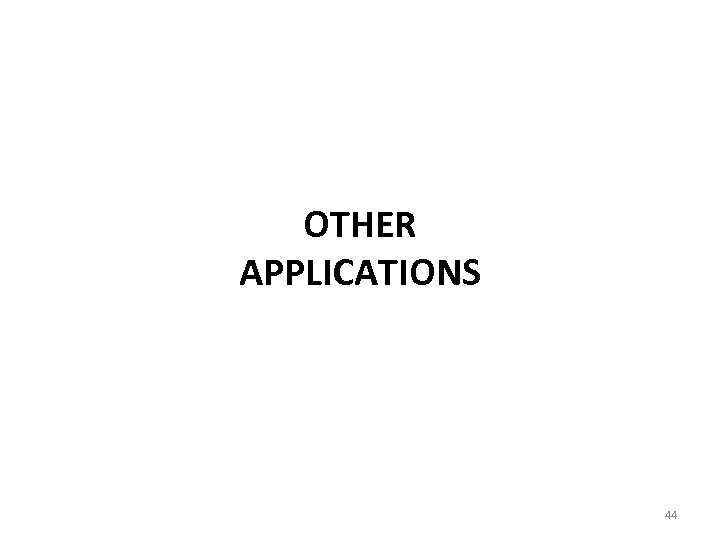

OTHER APPLICATIONS 44 OTHER APPLICATIONS 44

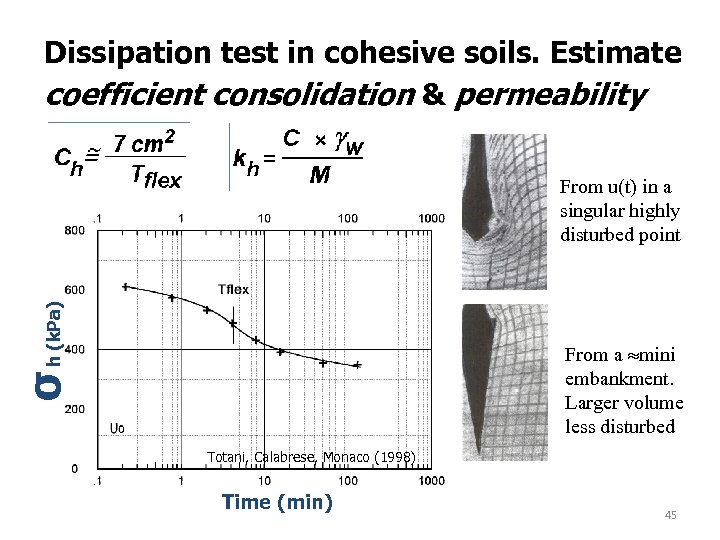

Dissipation test in cohesive soils. Estimate coefficient consolidation & permeability σ h (k. Pa) Dissipation test in cohesive soils. Estimate coefficient consolidation & permeability σ h (k. Pa) From u(t) in a singular highly disturbed point From a mini embankment. Larger volume less disturbed Totani, Calabrese, Monaco (1998) Time (min) 45

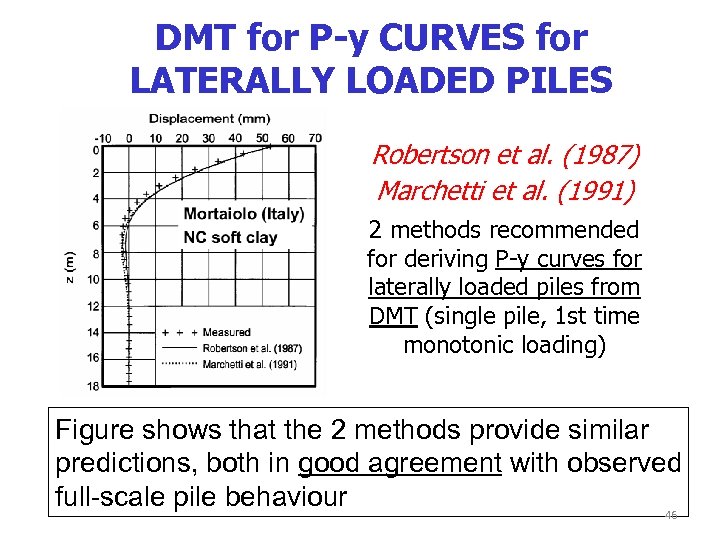

DMT for P-y CURVES for LATERALLY LOADED PILES Robertson et al. (1987) Marchetti et DMT for P-y CURVES for LATERALLY LOADED PILES Robertson et al. (1987) Marchetti et al. (1991) 2 methods recommended for deriving P-y curves for laterally loaded piles from DMT (single pile, 1 st time monotonic loading) Figure shows that the 2 methods provide similar predictions, both in good agreement with observed full-scale pile behaviour 46

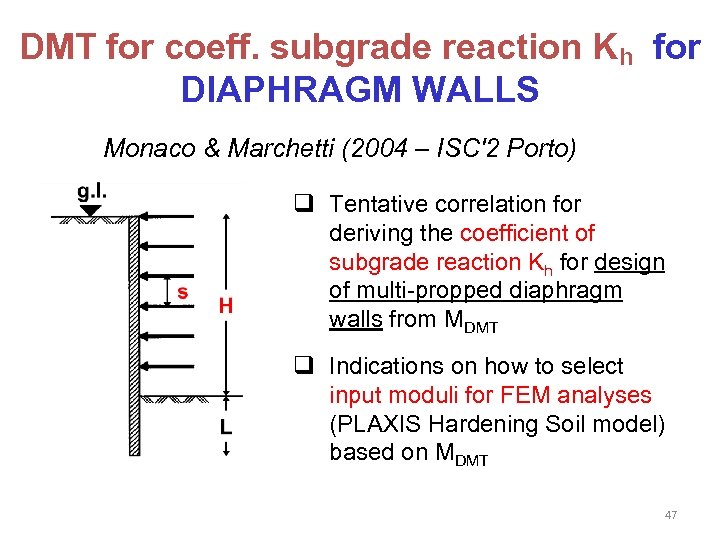

DMT for coeff. subgrade reaction Kh for DIAPHRAGM WALLS Monaco & Marchetti (2004 – DMT for coeff. subgrade reaction Kh for DIAPHRAGM WALLS Monaco & Marchetti (2004 – ISC'2 Porto) q Tentative correlation for deriving the coefficient of subgrade reaction Kh for design of multi-propped diaphragm walls from MDMT q Indications on how to select input moduli for FEM analyses (PLAXIS Hardening Soil model) based on MDMT 47

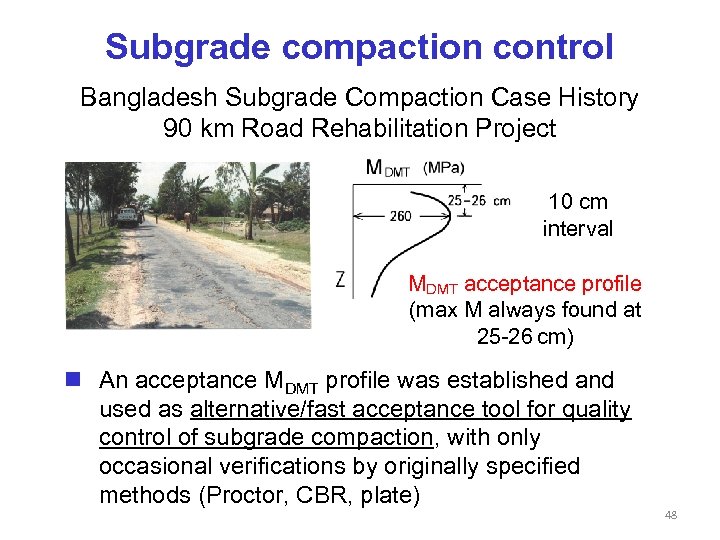

Subgrade compaction control Bangladesh Subgrade Compaction Case History 90 km Road Rehabilitation Project 10 Subgrade compaction control Bangladesh Subgrade Compaction Case History 90 km Road Rehabilitation Project 10 cm interval MDMT acceptance profile (max M always found at 25 -26 cm) An acceptance MDMT profile was established and used as alternative/fast acceptance tool for quality control of subgrade compaction, with only occasional verifications by originally specified methods (Proctor, CBR, plate) 48

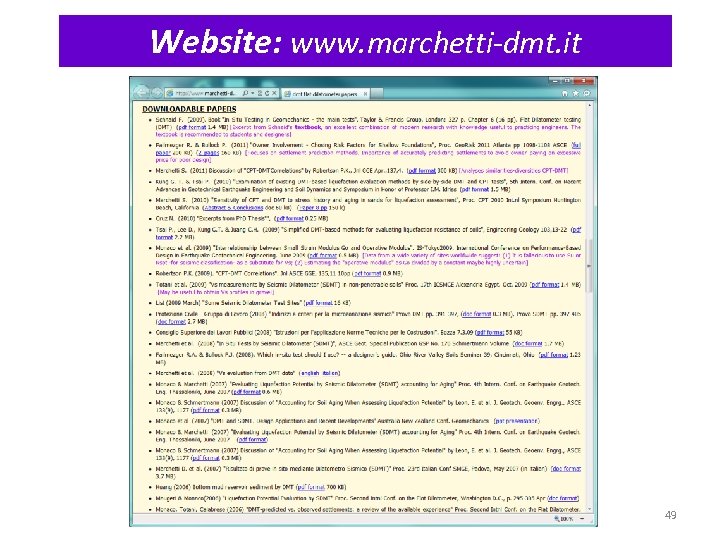

Website: www. marchetti-dmt. it 49 Website: www. marchetti-dmt. it 49

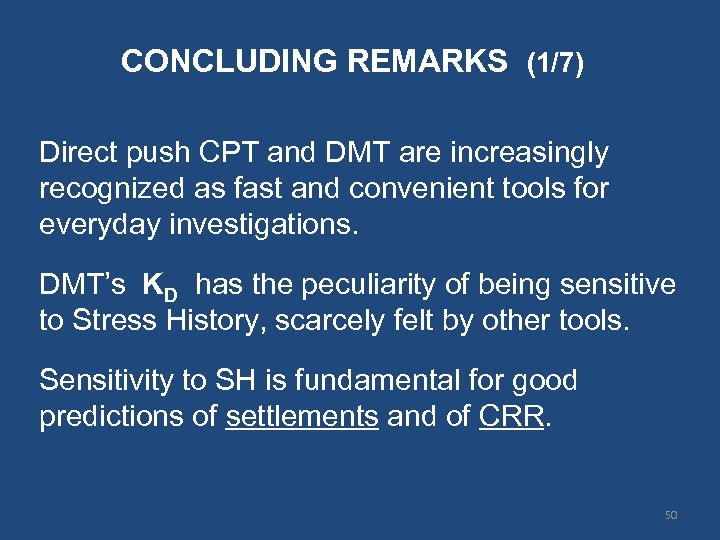

CONCLUDING REMARKS (1/7) Direct push CPT and DMT are increasingly recognized as fast and CONCLUDING REMARKS (1/7) Direct push CPT and DMT are increasingly recognized as fast and convenient tools for everyday investigations. DMT’s KD has the peculiarity of being sensitive to Stress History, scarcely felt by other tools. Sensitivity to SH is fundamental for good predictions of settlements and of CRR. 50

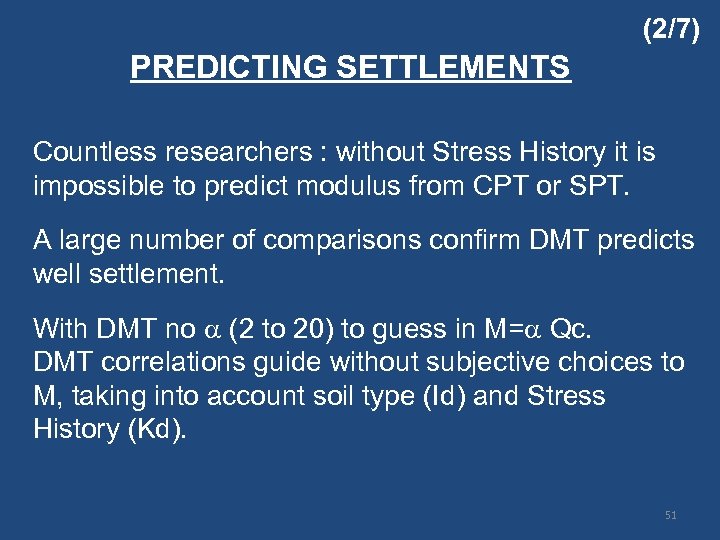

(2/7) PREDICTING SETTLEMENTS Countless researchers : without Stress History it is impossible to predict (2/7) PREDICTING SETTLEMENTS Countless researchers : without Stress History it is impossible to predict modulus from CPT or SPT. A large number of comparisons confirm DMT predicts well settlement. With DMT no (2 to 20) to guess in M= Qc. DMT correlations guide without subjective choices to M, taking into account soil type (Id) and Stress History (Kd). 51

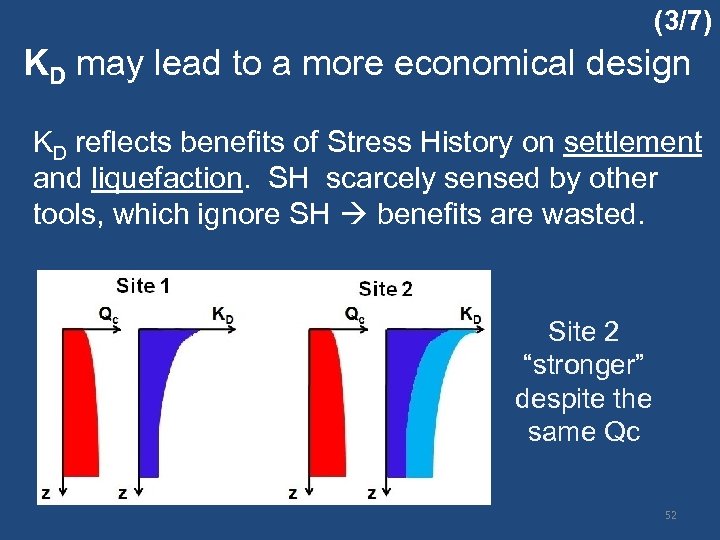

(3/7) KD may lead to a more economical design KD reflects benefits of Stress (3/7) KD may lead to a more economical design KD reflects benefits of Stress History on settlement and liquefaction. SH scarcely sensed by other tools, which ignore SH benefits are wasted. Site 2 “stronger” despite the same Qc 52

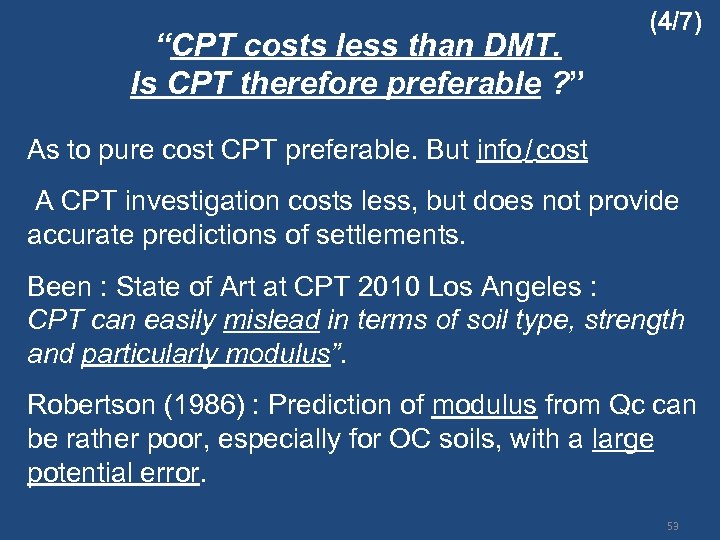

“CPT costs less than DMT. Is CPT therefore preferable ? ” (4/7) As to “CPT costs less than DMT. Is CPT therefore preferable ? ” (4/7) As to pure cost CPT preferable. But info / cost A CPT investigation costs less, but does not provide accurate predictions of settlements. Been : State of Art at CPT 2010 Los Angeles : CPT can easily mislead in terms of soil type, strength and particularly modulus”. Robertson (1986) : Prediction of modulus from Qc can be rather poor, especially for OC soils, with a large potential error. 53

(5/7) SETTLEMENTS ARE IMPORTANT If we do CPT only : may save in investigation. (5/7) SETTLEMENTS ARE IMPORTANT If we do CPT only : may save in investigation. But if we spend a bit more doing DMT, predict more accurate settlements, save in design of foundation, where the $ is. Settlements can have important $ consequences (piles/ shallow foundations…). Important jobs cannot do w/o Accurate Settlements more economical design. Info=$. 54

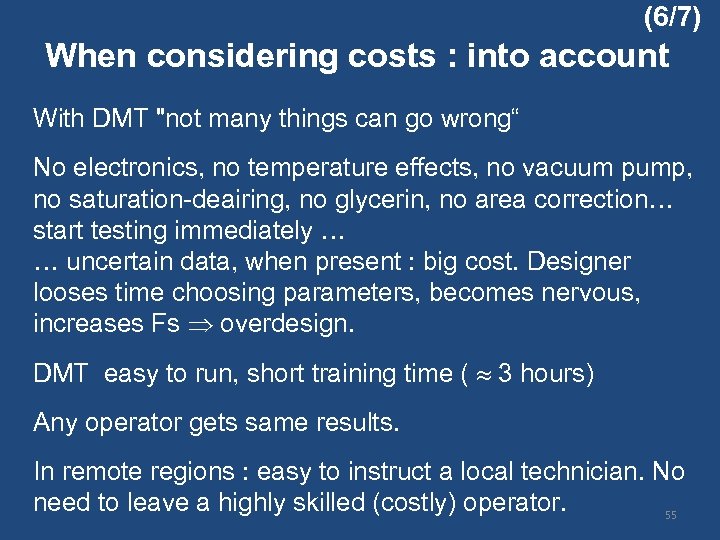

(6/7) When considering costs : into account With DMT (6/7) When considering costs : into account With DMT "not many things can go wrong“ No electronics, no temperature effects, no vacuum pump, no saturation-deairing, no glycerin, no area correction… start testing immediately … … uncertain data, when present : big cost. Designer looses time choosing parameters, becomes nervous, increases Fs overdesign. DMT easy to run, short training time ( 3 hours) Any operator gets same results. In remote regions : easy to instruct a local technician. No need to leave a highly skilled (costly) operator. 55

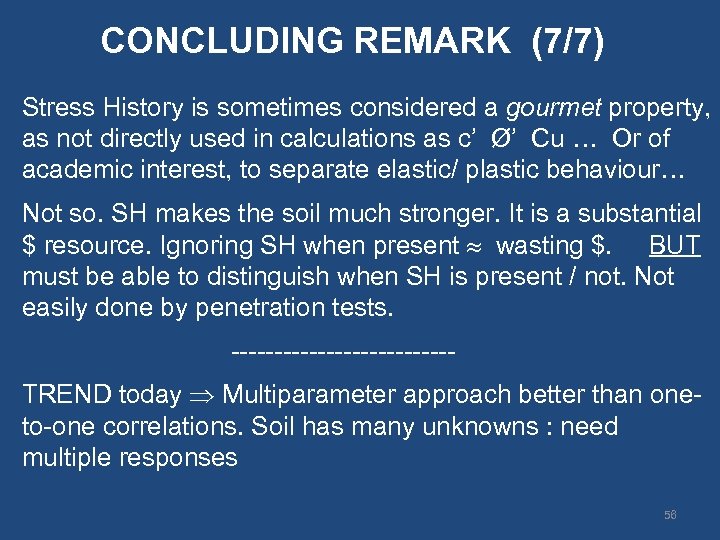

CONCLUDING REMARK (7/7) Stress History is sometimes considered a gourmet property, as not directly CONCLUDING REMARK (7/7) Stress History is sometimes considered a gourmet property, as not directly used in calculations as c’ Ø’ Cu … Or of academic interest, to separate elastic/ plastic behaviour… Not so. SH makes the soil much stronger. It is a substantial $ resource. Ignoring SH when present wasting $. BUT must be able to distinguish when SH is present / not. Not easily done by penetration tests. -------------TREND today Multiparameter approach better than oneto-one correlations. Soil has many unknowns : need multiple responses 56

3 rd International Conference on the Flat Dilatometer (DMT) Rome 14 th-16 th June 3 rd International Conference on the Flat Dilatometer (DMT) Rome 14 th-16 th June 2015 57

Highlights of the conference include www. dmt 15. com § Prof. Roger Frank (ISSMGE Highlights of the conference include www. dmt 15. com § Prof. Roger Frank (ISSMGE president) Welcome speech § Prof. J. Schmertmann’s dinner talk § Prof. M. Jamiolkowski: use of SDMT in the Zelazny Most dam in Poland § Prof. F. Schnaid: use of DMT and SDMT in tailings dam Sofar 120 abstracts from 32 Countries 58

Venue is in the town center www. dmt 15. com 59 Venue is in the town center www. dmt 15. com 59

Rome touristic attractions www. dmt 15. com 60 Rome touristic attractions www. dmt 15. com 60

St. Peters and Pope Francesco www. dmt 15. com 61 St. Peters and Pope Francesco www. dmt 15. com 61

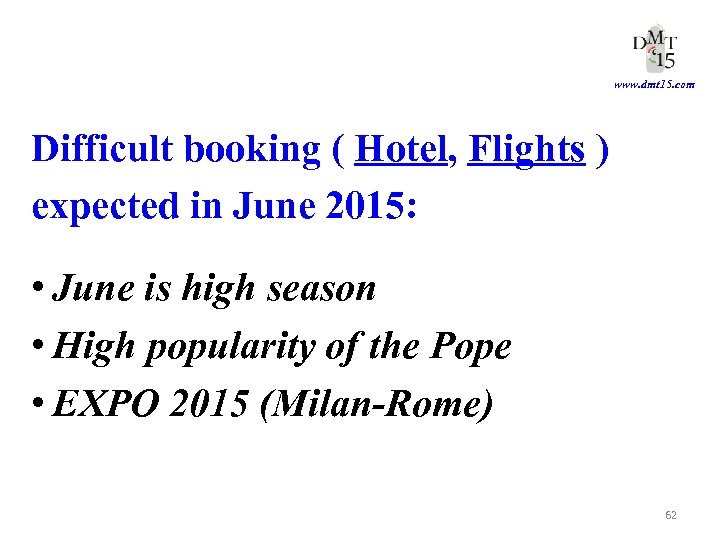

www. dmt 15. com Difficult booking ( Hotel, Flights ) expected in June 2015: www. dmt 15. com Difficult booking ( Hotel, Flights ) expected in June 2015: • June is high season • High popularity of the Pope • EXPO 2015 (Milan-Rome) 62
