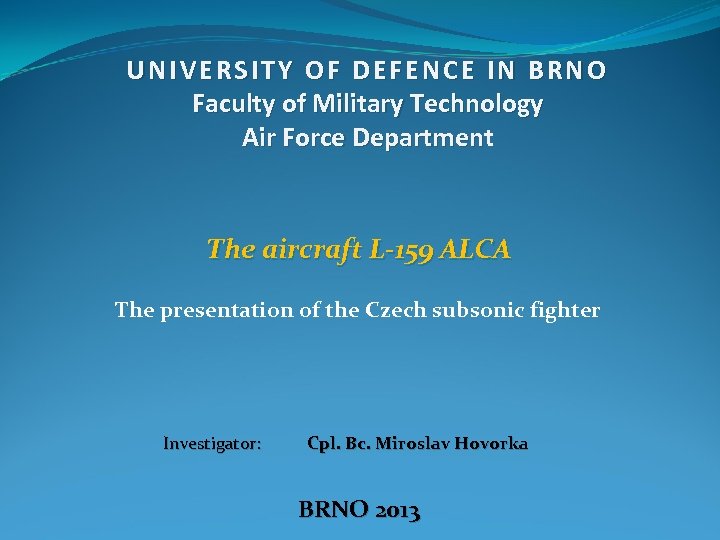

UNIVERSITY OF DEFENCE IN BRNO Faculty of Military Technology Air Force Department Departmen The UNIVERSITY OF DEFENCE IN BRNO Faculty of Military Technology Air Force Department Departmen The aircraft L-159 ALCA The presentation of the Czech subsonic fighter Investigator: Cpl. Bc. Miroslav Hovorka BRNO 2013

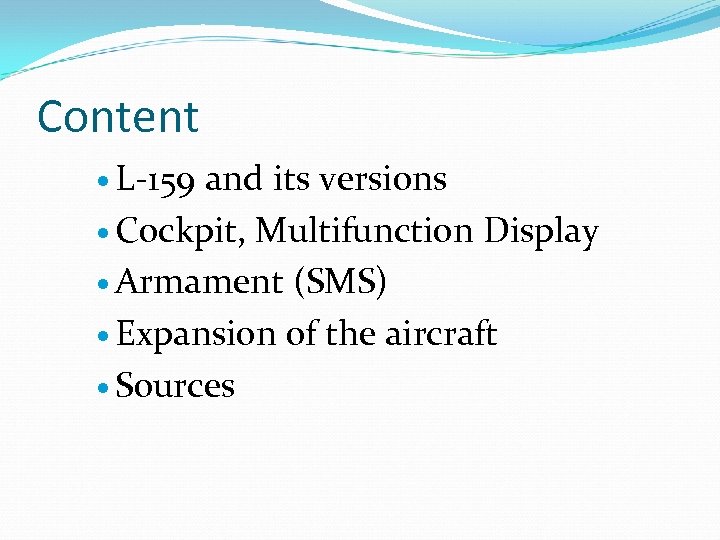

Content L-159 and its versions Cockpit, Multifunction Display Armament (SMS) Expansion of the aircraft Content L-159 and its versions Cockpit, Multifunction Display Armament (SMS) Expansion of the aircraft Sources

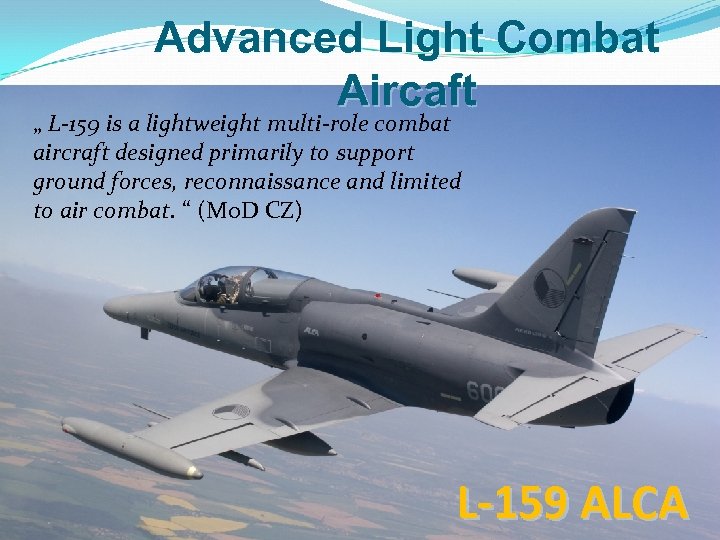

Advanced Light Combat Aircaft „ L-159 is a lightweight multi-role combat aircraft designed primarily Advanced Light Combat Aircaft „ L-159 is a lightweight multi-role combat aircraft designed primarily to support ground forces, reconnaissance and limited to air combat. “ (Mo. D CZ) L-159 ALCA

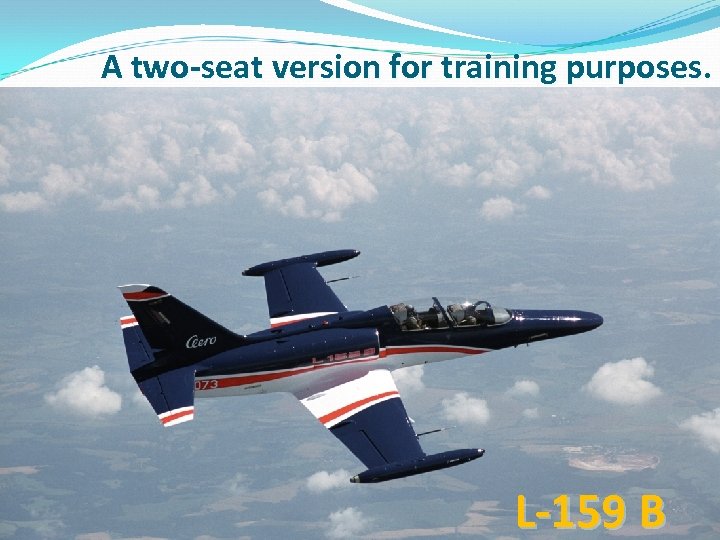

A two-seat version for training purposes. L-159 B A two-seat version for training purposes. L-159 B

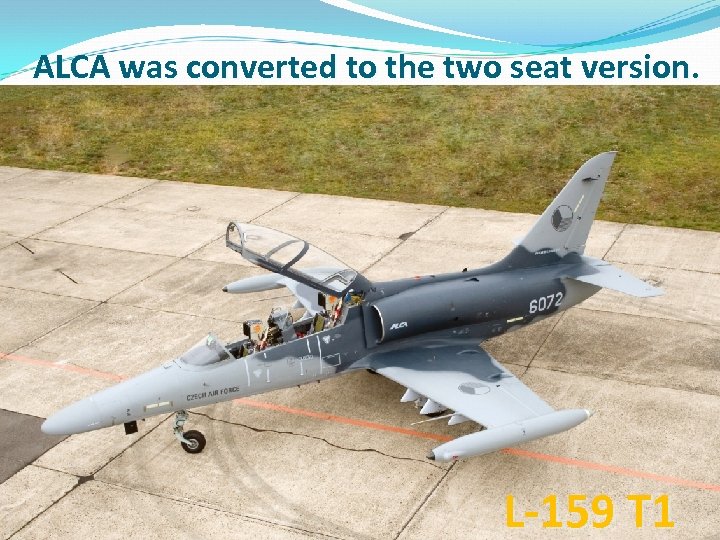

ALCA was converted to the two seat version. L-159 T 1 ALCA was converted to the two seat version. L-159 T 1

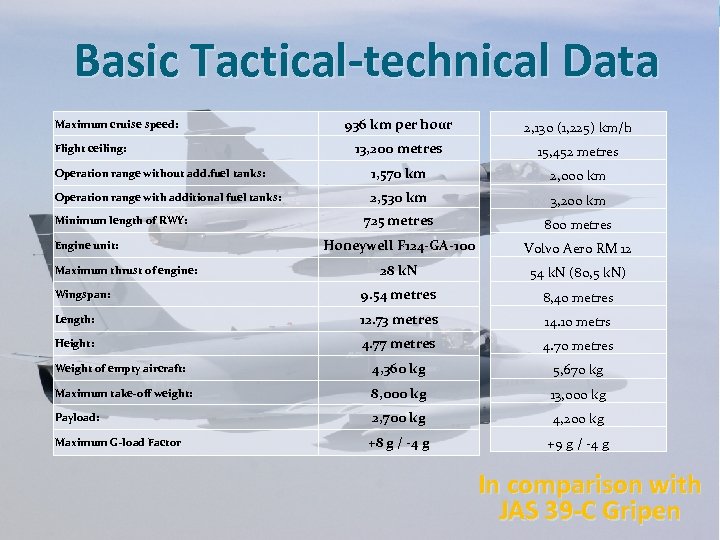

Basic Tactical-technical Data 936 km per hour 2, 130 (1, 225) km/h 13, 200 Basic Tactical-technical Data 936 km per hour 2, 130 (1, 225) km/h 13, 200 metres 15, 452 metres Operation range without add. fuel tanks: 1, 570 km 2, 000 km Operation range with additional fuel tanks: 2, 530 km 3, 200 km 725 metres 800 metres Honeywell F 124 -GA-100 Volvo Aero RM 12 28 k. N 54 k. N (80, 5 k. N) Wingspan: 9. 54 metres 8, 40 metres Length: 12. 73 metres 14. 10 metrs Height: 4. 77 metres 4. 70 metres Weight of empty aircraft: 4, 360 kg 5, 670 kg Maximum take-off weight: 8, 000 kg 13, 000 kg Payload: 2, 700 kg 4, 200 kg +8 g / -4 g +9 g / -4 g Maximum cruise speed: Flight ceiling: Minimum length of RWY: Engine unit: Maximum thrust of engine: Maximum G-load Factor In comparison with JAS 39 -C Gripen

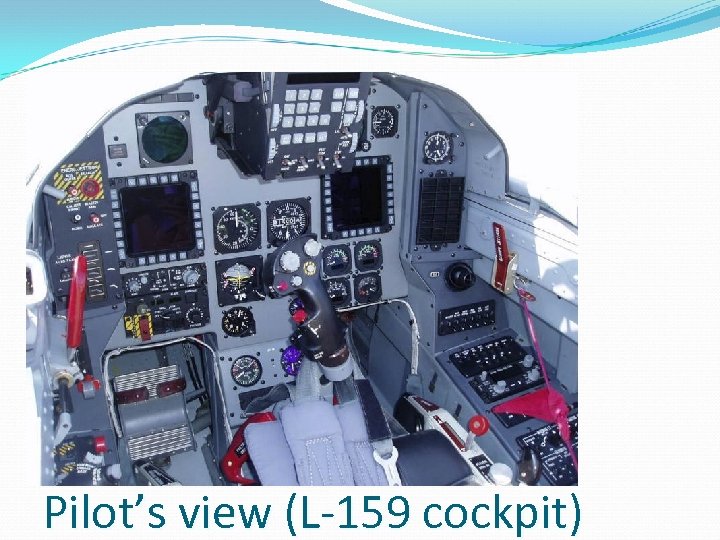

Pilot’s view (L-159 cockpit) Pilot’s view (L-159 cockpit)

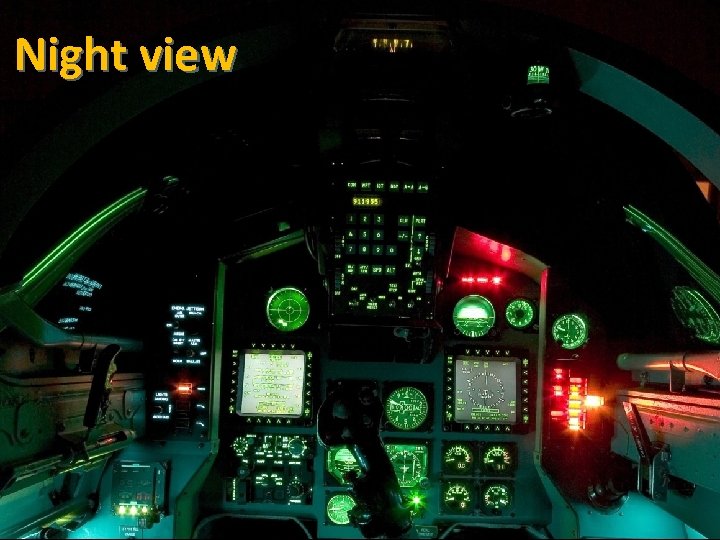

Night view Night view

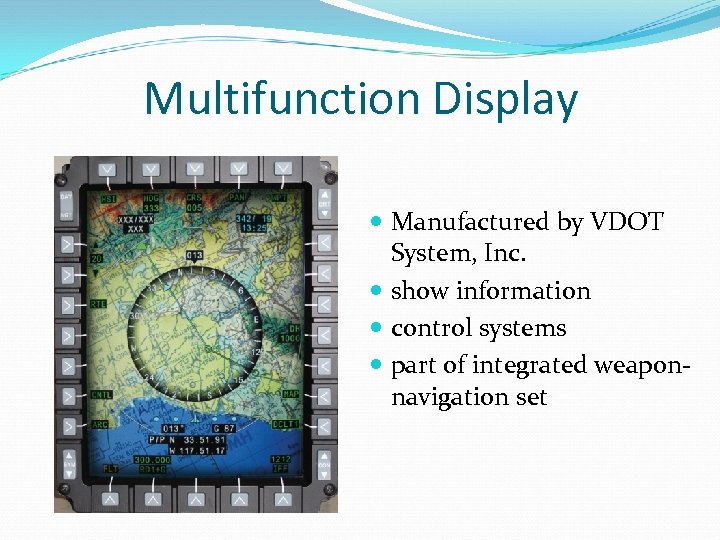

Multifunction Display Manufactured by VDOT System, Inc. show information control systems part of integrated Multifunction Display Manufactured by VDOT System, Inc. show information control systems part of integrated weaponnavigation set

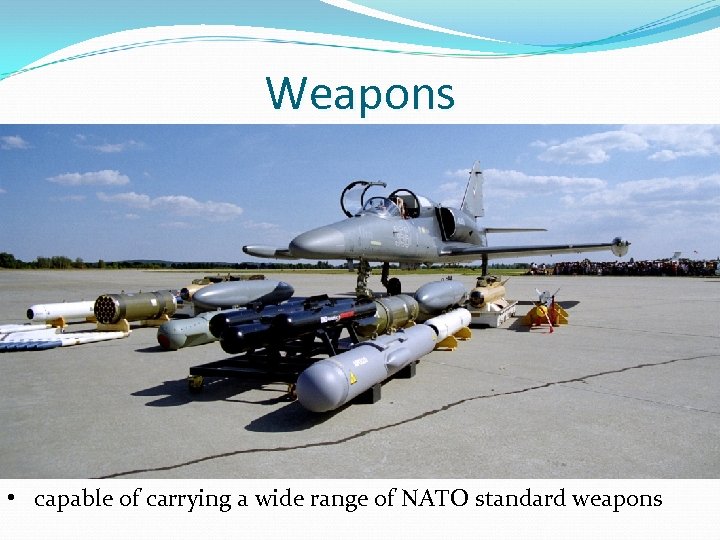

Weapons • capable of carrying a wide range of NATO standard weapons Weapons • capable of carrying a wide range of NATO standard weapons

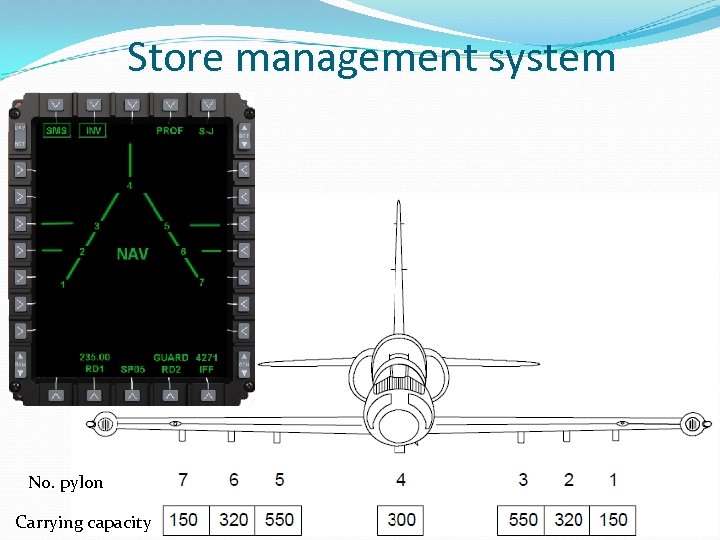

Store management system No. pylon Carrying capacity Store management system No. pylon Carrying capacity

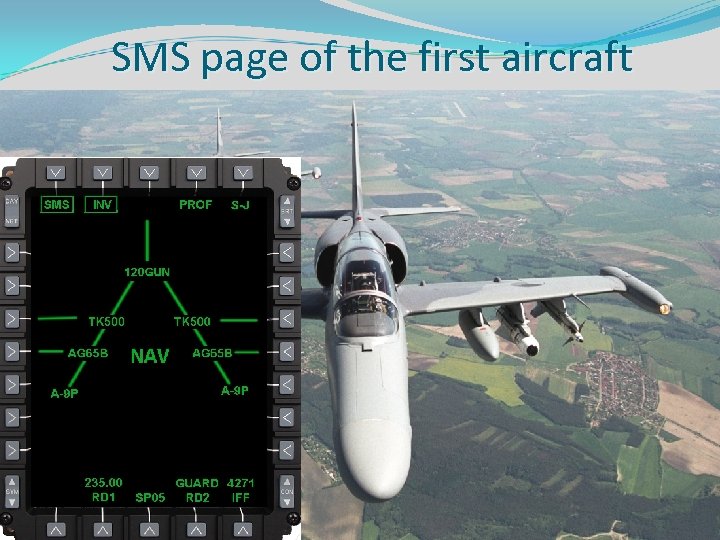

SMS page of the first aircraft SMS page of the first aircraft

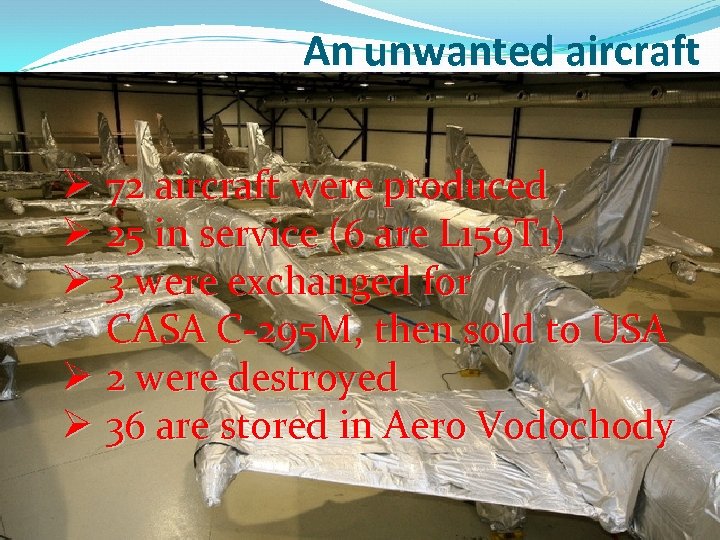

An unwanted aircraft Ø 72 aircraft were produced Ø 25 in service (6 are An unwanted aircraft Ø 72 aircraft were produced Ø 25 in service (6 are L 159 T 1) Ø 3 were exchanged for CASA C-295 M, then sold to USA Ø 2 were destroyed Ø 36 are stored in Aero Vodochody

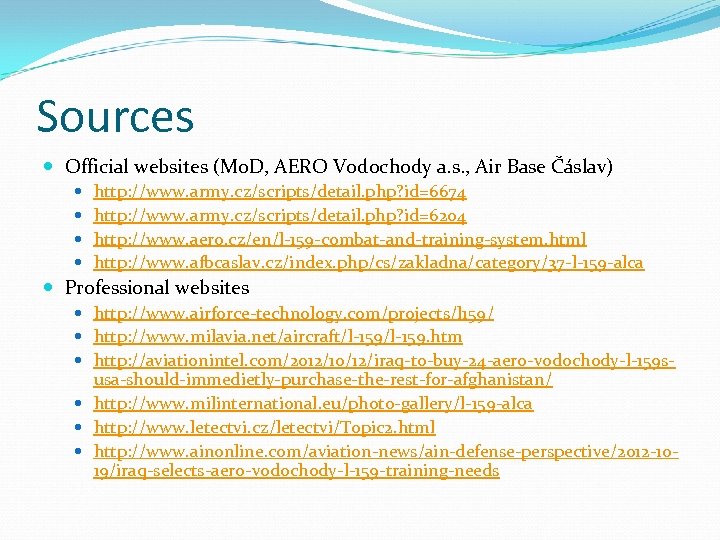

Sources Official websites (Mo. D, AERO Vodochody a. s. , Air Base Čáslav) http: Sources Official websites (Mo. D, AERO Vodochody a. s. , Air Base Čáslav) http: //www. army. cz/scripts/detail. php? id=6674 http: //www. army. cz/scripts/detail. php? id=6204 http: //www. aero. cz/en/l-159 -combat-and-training-system. html http: //www. afbcaslav. cz/index. php/cs/zakladna/category/37 -l-159 -alca Professional websites http: //www. airforce-technology. com/projects/l 159/ http: //www. milavia. net/aircraft/l-159. htm http: //aviationintel. com/2012/10/12/iraq-to-buy-24 -aero-vodochody-l-159 s- usa-should-immedietly-purchase-the-rest-for-afghanistan/ http: //www. milinternational. eu/photo-gallery/l-159 -alca http: //www. letectvi. cz/letectvi/Topic 2. html http: //www. ainonline. com/aviation-news/ain-defense-perspective/2012 -1019/iraq-selects-aero-vodochody-l-159 -training-needs

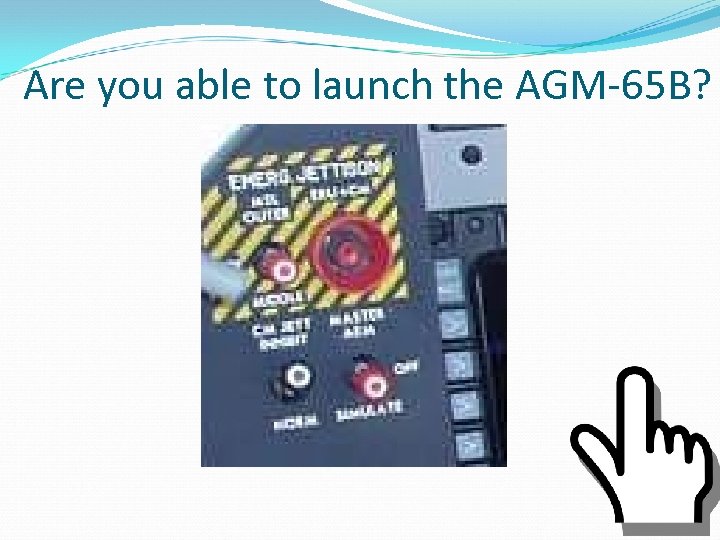

Are you able to launch the AGM-65 B? Are you able to launch the AGM-65 B?

Thank you for your attention. Thank you for your attention.
