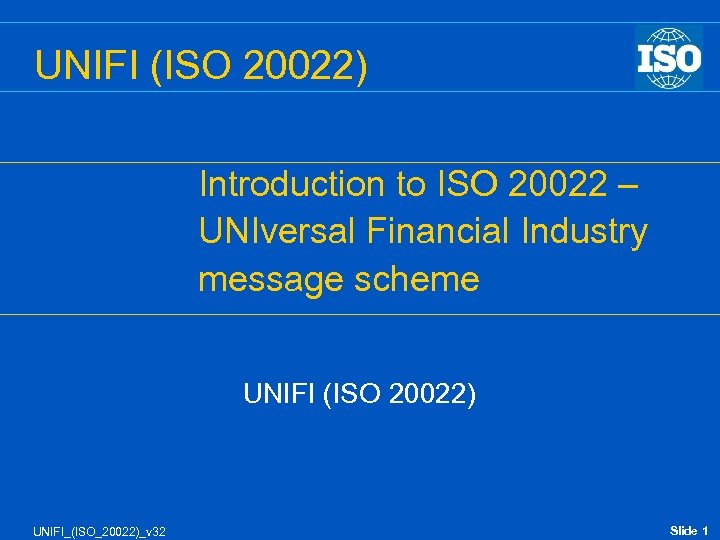

UNIFI (ISO 20022) Introduction to ISO 20022 – UNIversal Financial Industry message scheme UNIFI (ISO 20022) UNIFI_(ISO_20022)_v 32 Slide 1

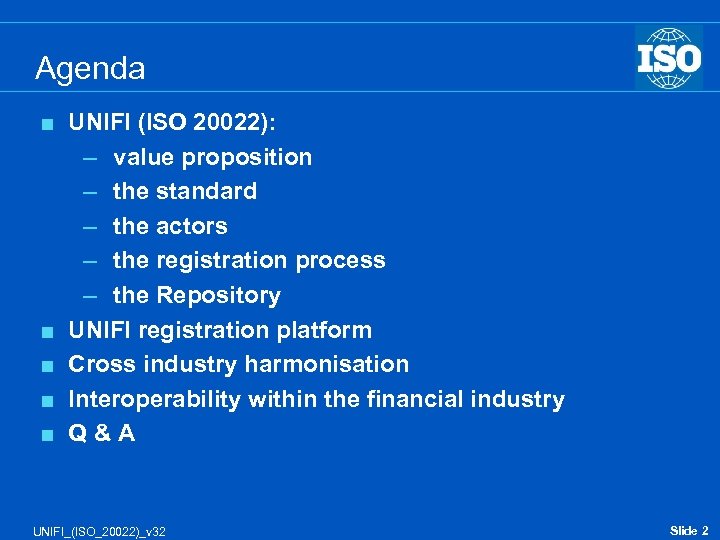

Agenda < < < UNIFI (ISO 20022): – value proposition – the standard – the actors – the registration process – the Repository UNIFI registration platform Cross industry harmonisation Interoperability within the financial industry Q&A UNIFI_(ISO_20022)_v 32 Slide 2

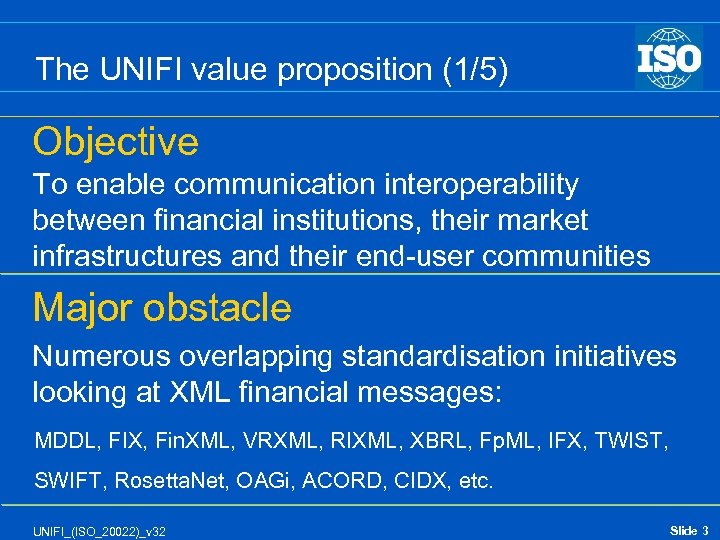

The UNIFI value proposition (1/5) Objective To enable communication interoperability between financial institutions, their market infrastructures and their end-user communities Major obstacle Numerous overlapping standardisation initiatives looking at XML financial messages: MDDL, FIX, Fin. XML, VRXML, RIXML, XBRL, Fp. ML, IFX, TWIST, SWIFT, Rosetta. Net, OAGi, ACORD, CIDX, etc. UNIFI_(ISO_20022)_v 32 Slide 3

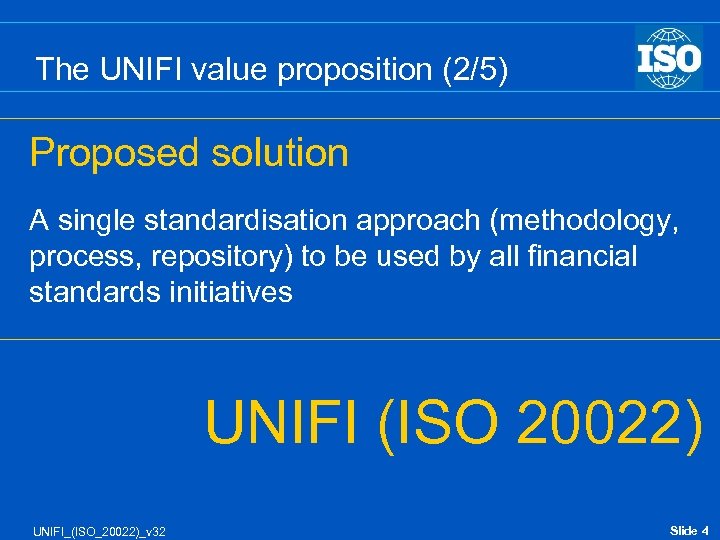

The UNIFI value proposition (2/5) Proposed solution A single standardisation approach (methodology, process, repository) to be used by all financial standards initiatives UNIFI (ISO 20022) UNIFI_(ISO_20022)_v 32 Slide 4

The UNIFI value proposition (3/5) Convergence into ONE standard is the long term objective…. …but in the interim several standards need to coexist to enable quick response to competitive pressures and regulatory demands UNIFI_(ISO_20022)_v 32 Source: John Mersberg, IBM Corporation Slide 5

The UNIFI value proposition (4/5) Growth adds exponential complexity and expense… EDIFACT IFX OAGi TWIST UNIFI_(ISO_20022)_v 32 Rosetta. Net Without common building blocks: • Point-to-point connection SWIFT • Data is mapped directly from one application to another Proprietary • Costly, unscalable and difficult to implement and format maintain • Process, routing, rules logic needs to be coded to specific message types 42 interfaces = n * (n-1) Source: John Mersberg, IBM Corporation Slide 6

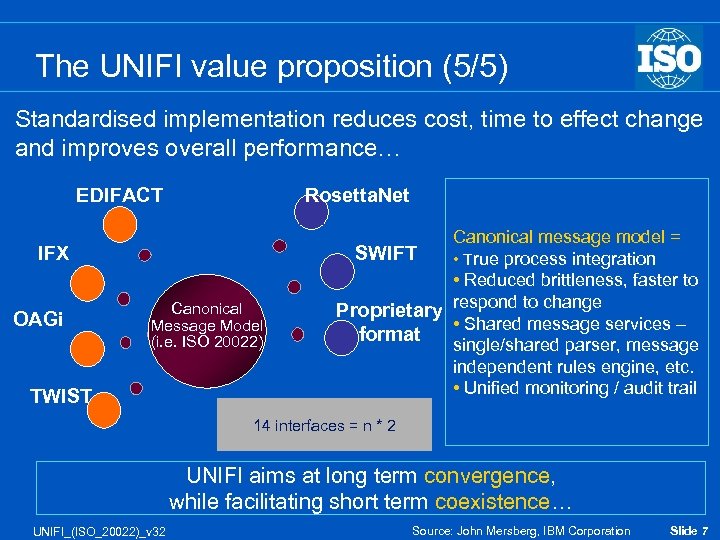

The UNIFI value proposition (5/5) Standardised implementation reduces cost, time to effect change and improves overall performance… EDIFACT Rosetta. Net IFX OAGi Canonical Message Model (i. e. ISO 20022) TWIST Canonical message model = SWIFT • True process integration • Reduced brittleness, faster to Proprietary respond to change • Shared message services – format single/shared parser, message independent rules engine, etc. • Unified monitoring / audit trail 14 interfaces = n * 2 UNIFI aims at long term convergence, while facilitating short term coexistence… UNIFI_(ISO_20022)_v 32 Source: John Mersberg, IBM Corporation Slide 7

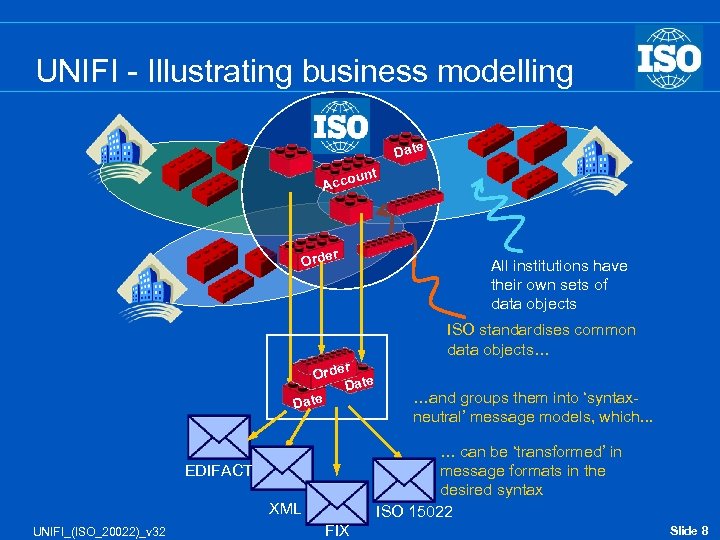

UNIFI - Illustrating business modelling Date nt u Acco r Orde All institutions have their own sets of data objects ISO standardises common data objects… r Date Orde Date … can be ‘transformed’ in message formats in the desired syntax ISO 15022 EDIFACT XML UNIFI_(ISO_20022)_v 32 …and groups them into ‘syntaxneutral’ message models, which. . . FIX Slide 8

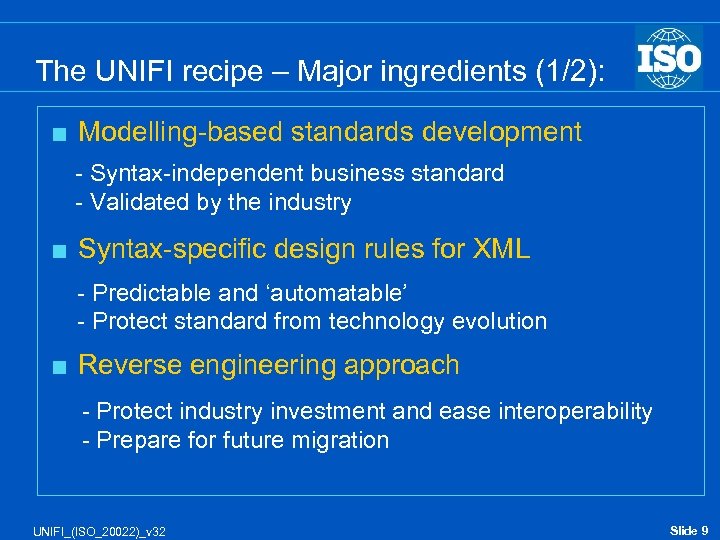

The UNIFI recipe – Major ingredients (1/2): < Modelling-based standards development - Syntax-independent business standard - Validated by the industry < Syntax-specific design rules for XML - Predictable and ‘automatable’ - Protect standard from technology evolution < Reverse engineering approach - Protect industry investment and ease interoperability - Prepare for future migration UNIFI_(ISO_20022)_v 32 Slide 9

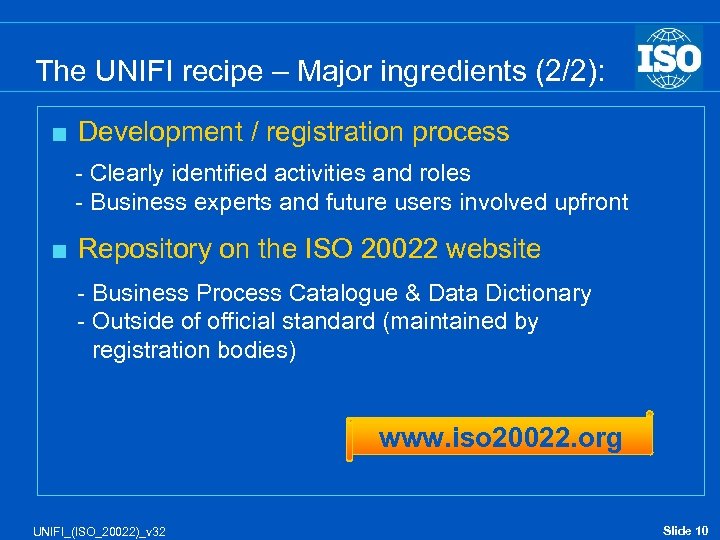

The UNIFI recipe – Major ingredients (2/2): < Development / registration process - Clearly identified activities and roles - Business experts and future users involved upfront < Repository on the ISO 20022 website - Business Process Catalogue & Data Dictionary - Outside of official standard (maintained by registration bodies) www. iso 20022. org UNIFI_(ISO_20022)_v 32 Slide 10

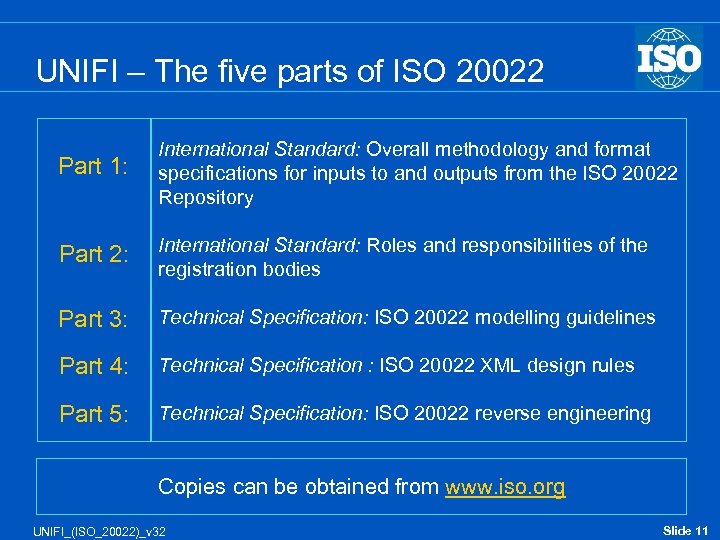

UNIFI – The five parts of ISO 20022 Part 1: International Standard: Overall methodology and format specifications for inputs to and outputs from the ISO 20022 Repository Part 2: International Standard: Roles and responsibilities of the registration bodies Part 3: Technical Specification: ISO 20022 modelling guidelines Part 4: Technical Specification : ISO 20022 XML design rules Part 5: Technical Specification: ISO 20022 reverse engineering Copies can be obtained from www. iso. org UNIFI_(ISO_20022)_v 32 Slide 11

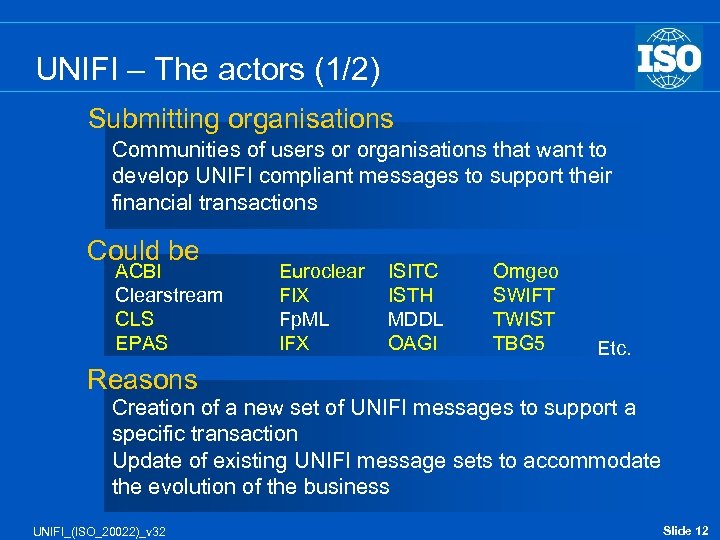

UNIFI – The actors (1/2) Submitting organisations Communities of users or organisations that want to develop UNIFI compliant messages to support their financial transactions Could be ACBI Clearstream CLS EPAS Euroclear FIX Fp. ML IFX ISITC ISTH MDDL OAGI Omgeo SWIFT TWIST TBG 5 Etc. Reasons Creation of a new set of UNIFI messages to support a specific transaction Update of existing UNIFI message sets to accommodate the evolution of the business UNIFI_(ISO_20022)_v 32 Slide 12

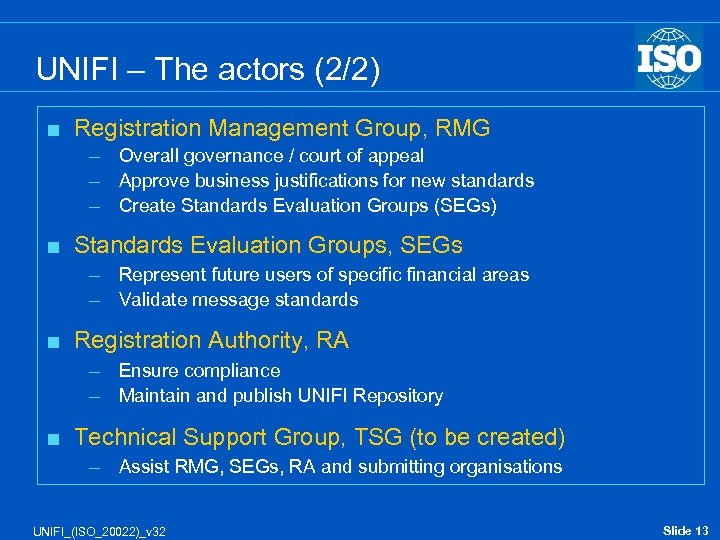

UNIFI – The actors (2/2) < Registration Management Group, RMG – Overall governance / court of appeal – Approve business justifications for new standards – Create Standards Evaluation Groups (SEGs) < Standards Evaluation Groups, SEGs – Represent future users of specific financial areas – Validate message standards < Registration Authority, RA – Ensure compliance – Maintain and publish UNIFI Repository < Technical Support Group, TSG (to be created) – Assist RMG, SEGs, RA and submitting organisations UNIFI_(ISO_20022)_v 32 Slide 13

UNIFI - The registration process (1/3) R M G Submitter Financial industry group or standards body Business justification RMG m o n i t o r s SEG Submitter & RA SEG RA Submitter & users Project approval & allocation to a SEG Endorsement of scope and developers Development & provisional registration Business validation Official registration and publication Optional pilot testing or first implementers Repository Dictionary Catalogue www. iso 20022. org UNIFI_(ISO_20022)_v 32 Slide 14

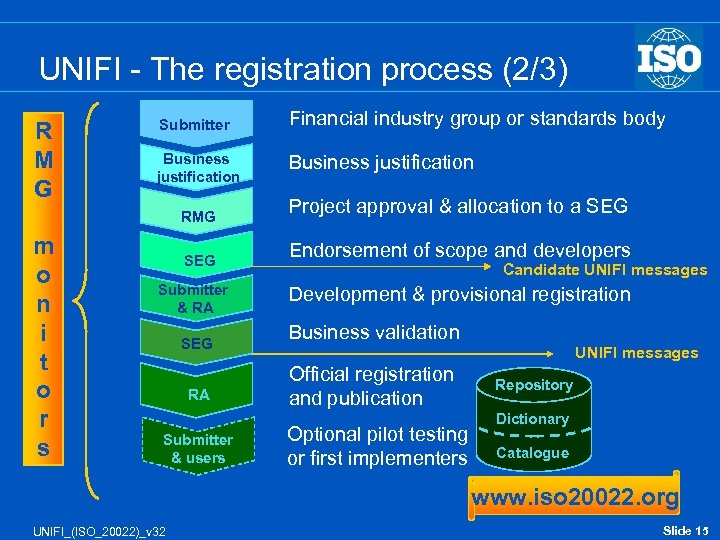

UNIFI - The registration process (2/3) R M G Submitter Financial industry group or standards body Business justification RMG m o n i t o r s SEG Submitter & RA SEG RA Submitter & users Project approval & allocation to a SEG Endorsement of scope and developers Candidate UNIFI messages Development & provisional registration Business validation UNIFI messages Official registration and publication Optional pilot testing or first implementers Repository Dictionary Catalogue www. iso 20022. org UNIFI_(ISO_20022)_v 32 Slide 15

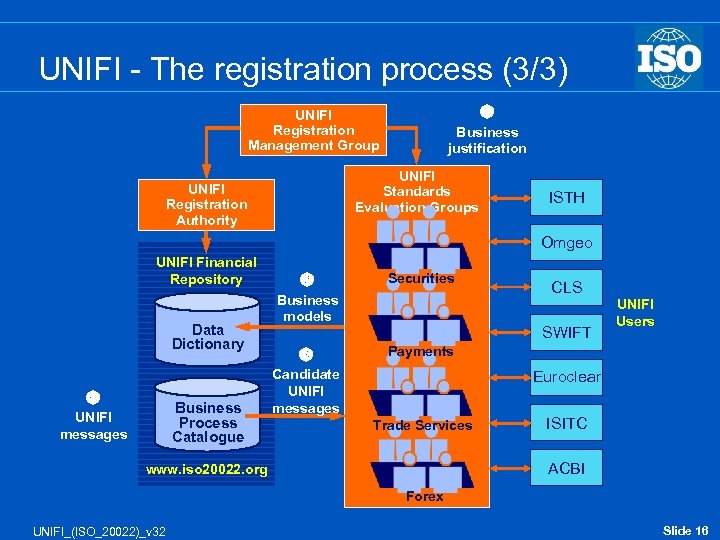

UNIFI - The registration process (3/3) UNIFI Registration Management Group Business justification UNIFI Standards Evaluation Groups UNIFI Registration Authority ISTH Omgeo UNIFI Financial Repository Data Dictionary Business Process Catalogue UNIFI messages Securities Business models CLS SWIFT UNIFI Users Payments Candidate UNIFI messages Euroclear Trade Services ISITC ACBI www. iso 20022. org Forex UNIFI_(ISO_20022)_v 32 Slide 16

UNIFI – The Financial Repository Data Dictionary - Business Concepts - Message Concepts - Data Types Business Process Catalogue - Financial business process models - Financial business transactions, including messages - XML message schemas www. iso 20022. org UNIFI_(ISO_20022)_v 32 Slide 17

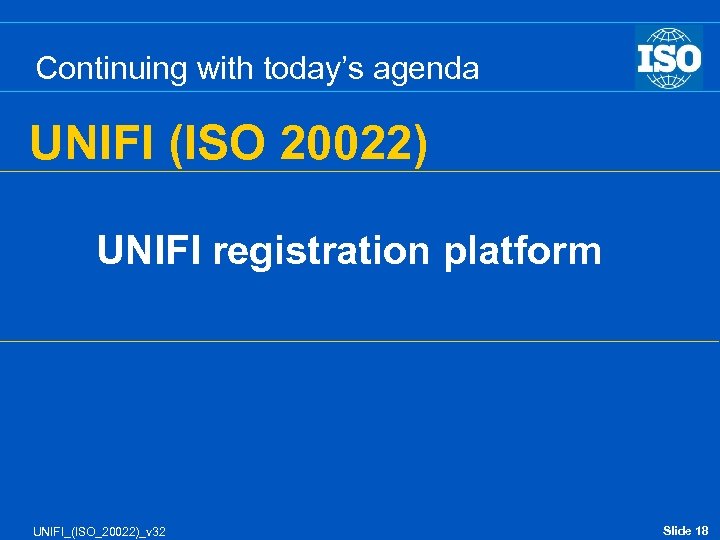

Continuing with today’s agenda UNIFI (ISO 20022) UNIFI registration platform UNIFI_(ISO_20022)_v 32 Slide 18

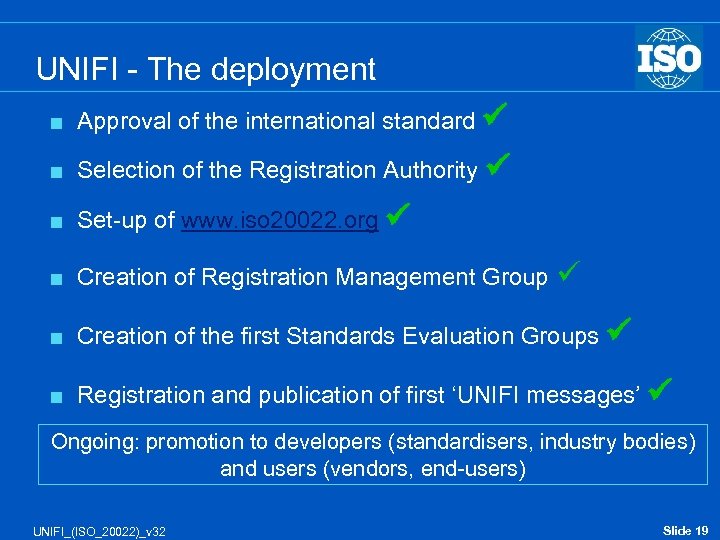

UNIFI - The deployment < Approval of the international standard < Selection of the Registration Authority < Set-up of www. iso 20022. org < Creation of Registration Management Group < Creation of the first Standards Evaluation Groups < Registration and publication of first ‘UNIFI messages’ Ongoing: promotion to developers (standardisers, industry bodies) and users (vendors, end-users) UNIFI_(ISO_20022)_v 32 Slide 19

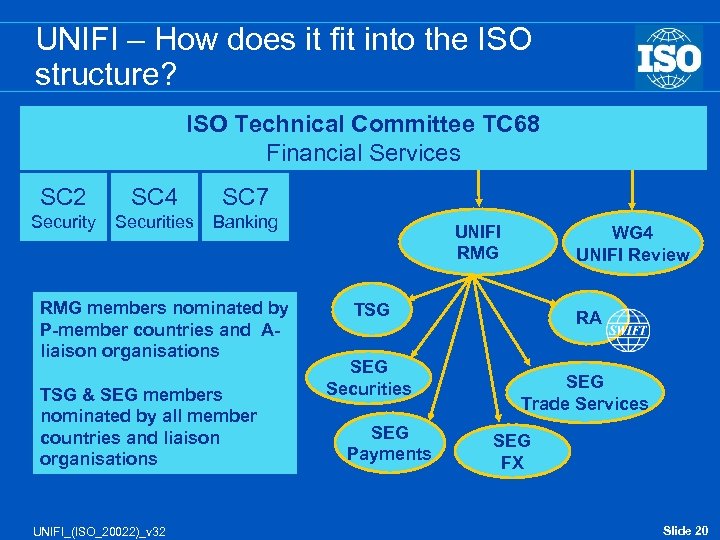

UNIFI – How does it fit into the ISO structure? ISO Technical Committee TC 68 Financial Services SC 2 SC 4 SC 7 Security Securities Banking RMG members nominated by P-member countries and Aliaison organisations TSG & SEG members nominated by all member countries and liaison organisations UNIFI_(ISO_20022)_v 32 UNIFI RMG WG 4 UNIFI Review TSG SEG Securities SEG Payments RA SEG Trade Services SEG FX Slide 20

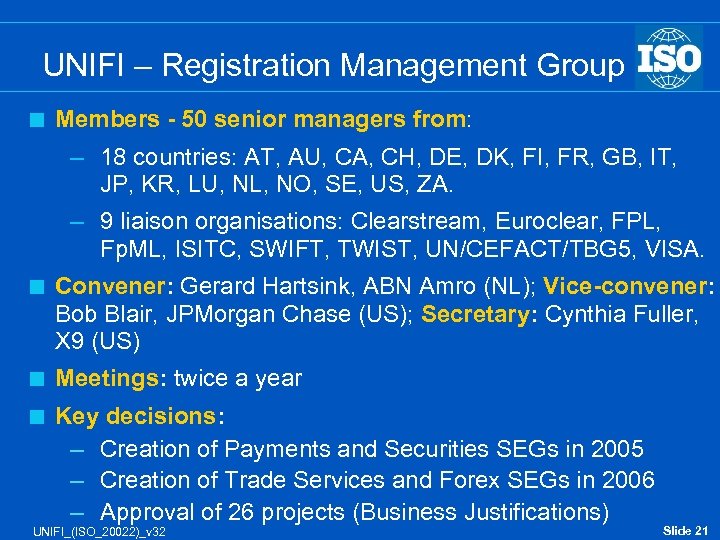

UNIFI – Registration Management Group < Members - 50 senior managers from: – 18 countries: AT, AU, CA, CH, DE, DK, FI, FR, GB, IT, JP, KR, LU, NL, NO, SE, US, ZA. – 9 liaison organisations: Clearstream, Euroclear, FPL, Fp. ML, ISITC, SWIFT, TWIST, UN/CEFACT/TBG 5, VISA. < Convener: Gerard Hartsink, ABN Amro (NL); Vice-convener: Bob Blair, JPMorgan Chase (US); Secretary: Cynthia Fuller, X 9 (US) < Meetings: twice a year < Key decisions: – Creation of Payments and Securities SEGs in 2005 – Creation of Trade Services and Forex SEGs in 2006 – Approval of 26 projects (Business Justifications) UNIFI_(ISO_20022)_v 32 Slide 21

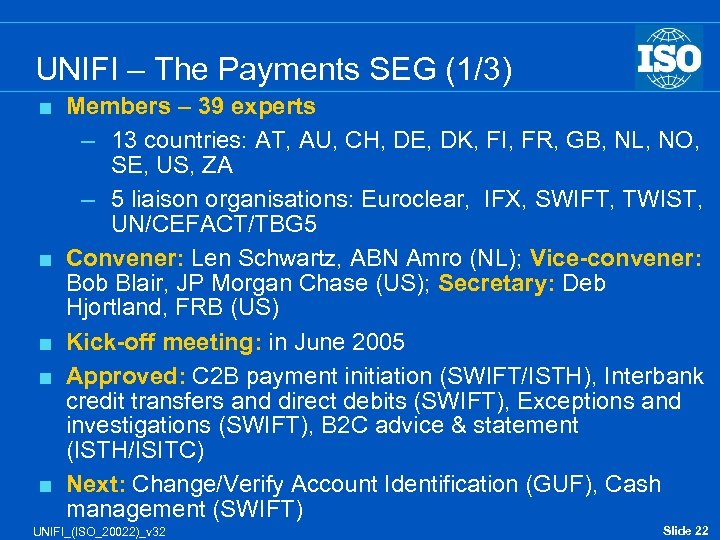

UNIFI – The Payments SEG (1/3) < < < Members – 39 experts – 13 countries: AT, AU, CH, DE, DK, FI, FR, GB, NL, NO, SE, US, ZA – 5 liaison organisations: Euroclear, IFX, SWIFT, TWIST, UN/CEFACT/TBG 5 Convener: Len Schwartz, ABN Amro (NL); Vice-convener: Bob Blair, JP Morgan Chase (US); Secretary: Deb Hjortland, FRB (US) Kick-off meeting: in June 2005 Approved: C 2 B payment initiation (SWIFT/ISTH), Interbank credit transfers and direct debits (SWIFT), Exceptions and investigations (SWIFT), B 2 C advice & statement (ISTH/ISITC) Next: Change/Verify Account Identification (GUF), Cash management (SWIFT) UNIFI_(ISO_20022)_v 32 Slide 22

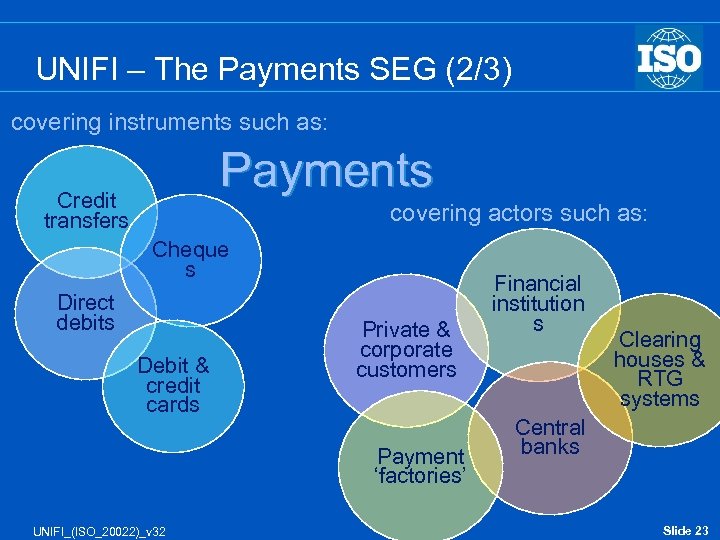

UNIFI – The Payments SEG (2/3) covering instruments such as: Payments Credit transfers covering actors such as: Cheque s Direct debits Debit & credit cards Private & corporate customers Payment ‘factories’ UNIFI_(ISO_20022)_v 32 Financial institution s Clearing houses & RTG systems Central banks Slide 23

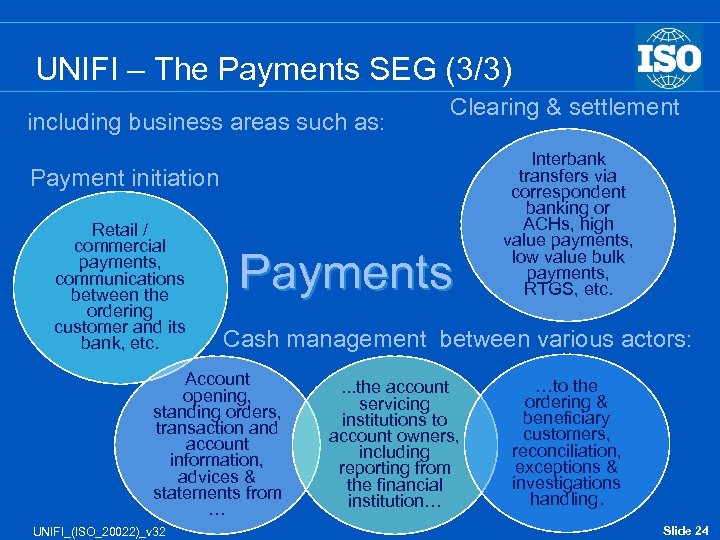

UNIFI – The Payments SEG (3/3) including business areas such as: Clearing & settlement Payment initiation Retail / commercial payments, communications between the ordering customer and its bank, etc. Payments Cash management between various actors: Account opening, standing orders, transaction and account information, advices & statements from … UNIFI_(ISO_20022)_v 32 Interbank transfers via correspondent banking or ACHs, high value payments, low value bulk payments, RTGS, etc. . the account servicing institutions to account owners, including reporting from the financial institution… …to the ordering & beneficiary customers, reconciliation, exceptions & investigations handling. Slide 24

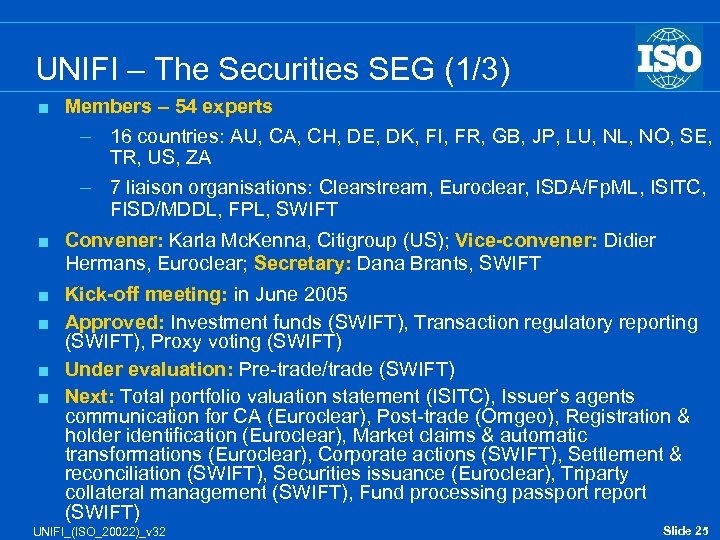

UNIFI – The Securities SEG (1/3) < Members – 54 experts – 16 countries: AU, CA, CH, DE, DK, FI, FR, GB, JP, LU, NL, NO, SE, TR, US, ZA – 7 liaison organisations: Clearstream, Euroclear, ISDA/Fp. ML, ISITC, FISD/MDDL, FPL, SWIFT < Convener: Karla Mc. Kenna, Citigroup (US); Vice-convener: Didier Hermans, Euroclear; Secretary: Dana Brants, SWIFT Kick-off meeting: in June 2005 < Approved: Investment funds (SWIFT), Transaction regulatory reporting (SWIFT), Proxy voting (SWIFT) < Under evaluation: Pre-trade/trade (SWIFT) < Next: Total portfolio valuation statement (ISITC), Issuer’s agents communication for CA (Euroclear), Post-trade (Omgeo), Registration & holder identification (Euroclear), Market claims & automatic transformations (Euroclear), Corporate actions (SWIFT), Settlement & reconciliation (SWIFT), Securities issuance (Euroclear), Triparty collateral management (SWIFT), Fund processing passport report (SWIFT) < UNIFI_(ISO_20022)_v 32 Slide 25

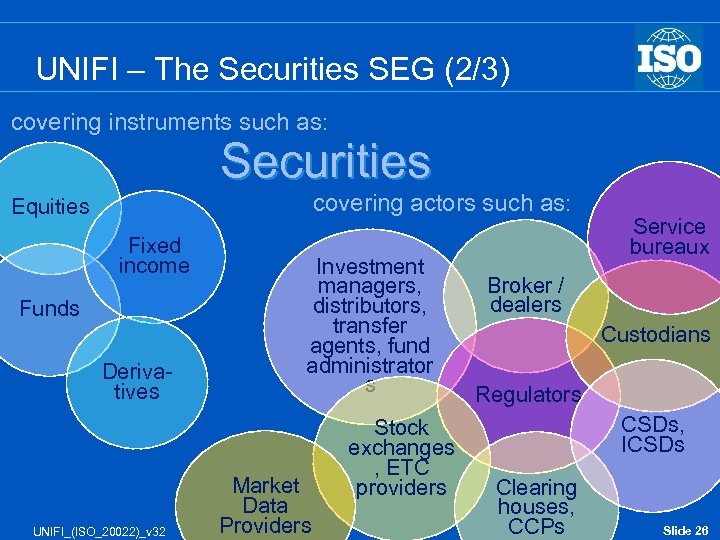

UNIFI – The Securities SEG (2/3) covering instruments such as: Securities covering actors such as: Equities Fixed income Funds Derivatives UNIFI_(ISO_20022)_v 32 Investment managers, distributors, transfer agents, fund administrator s Market Data Providers Stock exchanges , ETC providers Service bureaux Broker / dealers Custodians Regulators CSDs, ICSDs Clearing houses, CCPs Slide 26

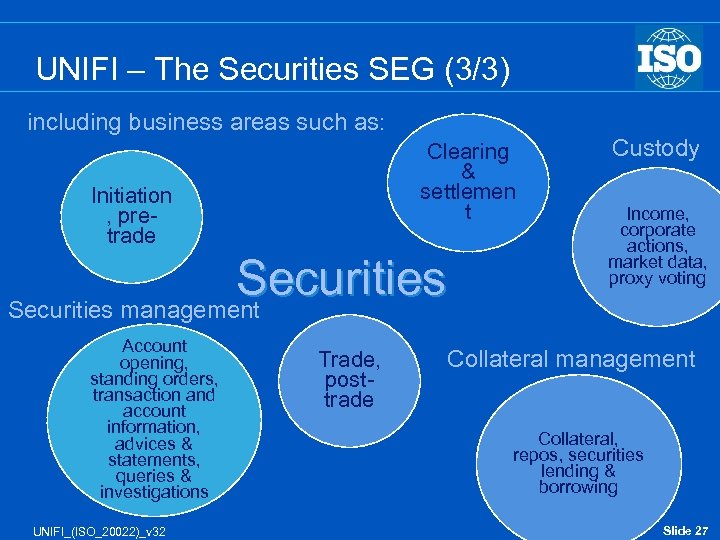

UNIFI – The Securities SEG (3/3) including business areas such as: Clearing & settlemen t Initiation , pretrade Securities management Account opening, standing orders, transaction and account information, advices & statements, queries & investigations UNIFI_(ISO_20022)_v 32 Trade, posttrade Custody Income, corporate actions, market data, proxy voting Collateral management Collateral, repos, securities lending & borrowing Slide 27

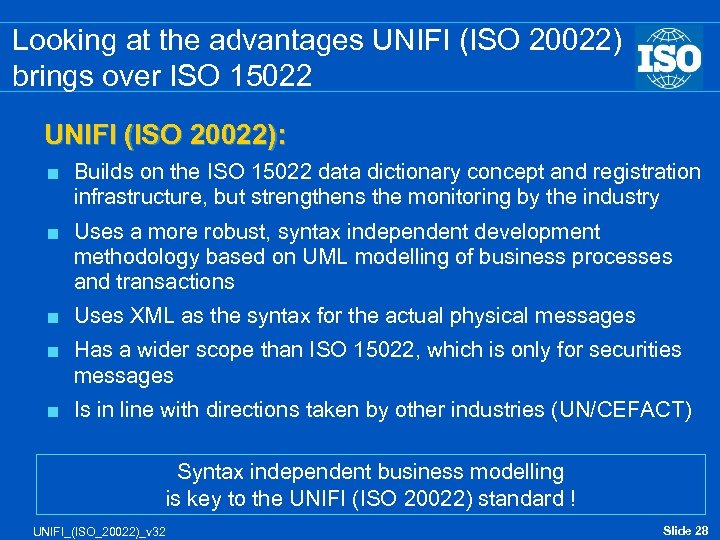

Looking at the advantages UNIFI (ISO 20022) brings over ISO 15022 UNIFI (ISO 20022): < Builds on the ISO 15022 data dictionary concept and registration infrastructure, but strengthens the monitoring by the industry < Uses a more robust, syntax independent development methodology based on UML modelling of business processes and transactions < Uses XML as the syntax for the actual physical messages < Has a wider scope than ISO 15022, which is only for securities messages < Is in line with directions taken by other industries (UN/CEFACT) Syntax independent business modelling is key to the UNIFI (ISO 20022) standard ! UNIFI_(ISO_20022)_v 32 Slide 28

UNIFI – The FX SEG (1/3) < Members – 26 experts – 11 countries: AU, CA, CH, DE, FR, GB, NL, NO, SE, TR, US – 3 liaison organisations: FPL, ISITC, SWIFT < Convener: Ludy Limburg, ABN Amro (NL); Vice-convener: Tony Smith, JP Morgan Chase (UK); Secretary: Joshua Derrick, SWIFT < Kick-off meeting: in September 2006 < Approved: Forex notifications (CLS) UNIFI_(ISO_20022)_v 32 Slide 29

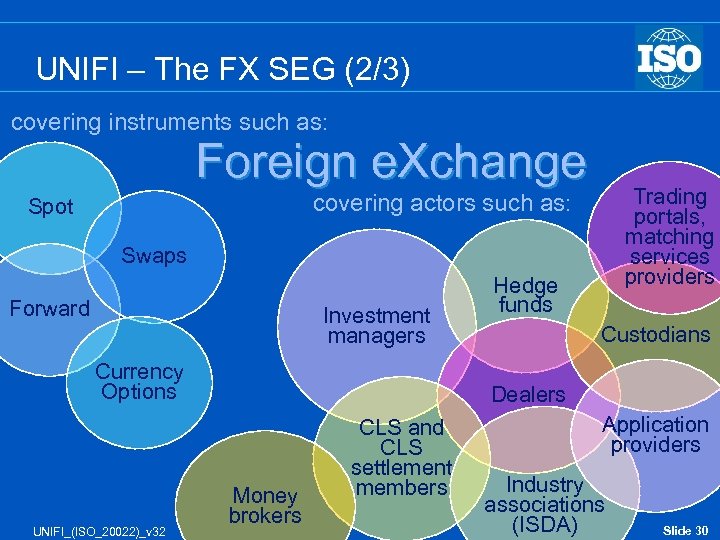

UNIFI – The FX SEG (2/3) covering instruments such as: Foreign e. Xchange Trading portals, matching services providers covering actors such as: Spot Swaps Forward Investment managers Currency Options UNIFI_(ISO_20022)_v 32 Hedge funds Custodians Dealers Money brokers CLS and CLS settlement members Application providers Industry associations (ISDA) Slide 30

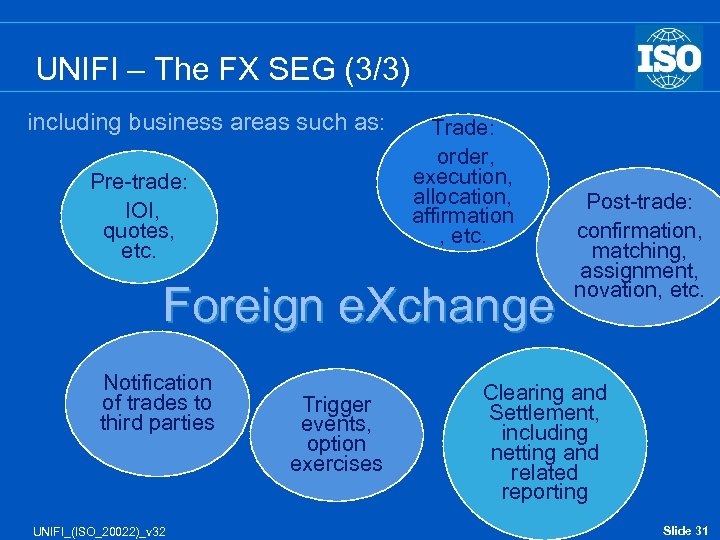

UNIFI – The FX SEG (3/3) including business areas such as: Pre-trade: IOI, quotes, etc. Trade: order, execution, allocation, affirmation , etc. Foreign e. Xchange Notification of trades to third parties UNIFI_(ISO_20022)_v 32 Trigger events, option exercises Post-trade: confirmation, matching, assignment, novation, etc. Clearing and Settlement, including netting and related reporting Slide 31

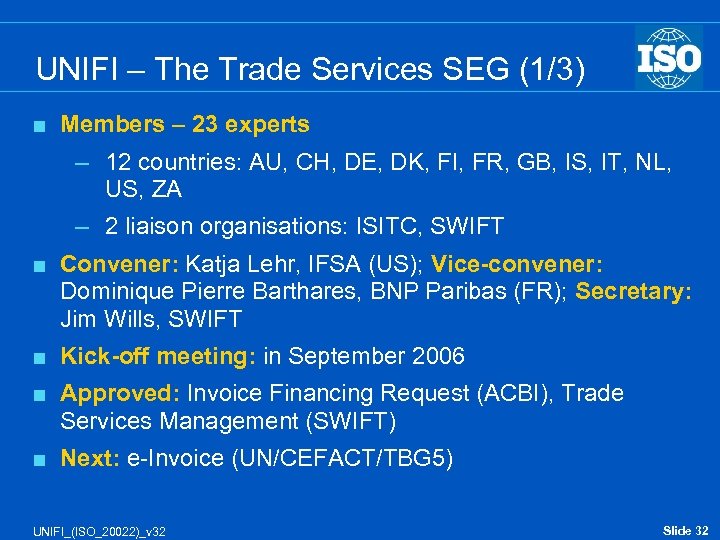

UNIFI – The Trade Services SEG (1/3) < Members – 23 experts – 12 countries: AU, CH, DE, DK, FI, FR, GB, IS, IT, NL, US, ZA – 2 liaison organisations: ISITC, SWIFT < Convener: Katja Lehr, IFSA (US); Vice-convener: Dominique Pierre Barthares, BNP Paribas (FR); Secretary: Jim Wills, SWIFT < Kick-off meeting: in September 2006 < Approved: Invoice Financing Request (ACBI), Trade Services Management (SWIFT) < Next: e-Invoice (UN/CEFACT/TBG 5) UNIFI_(ISO_20022)_v 32 Slide 32

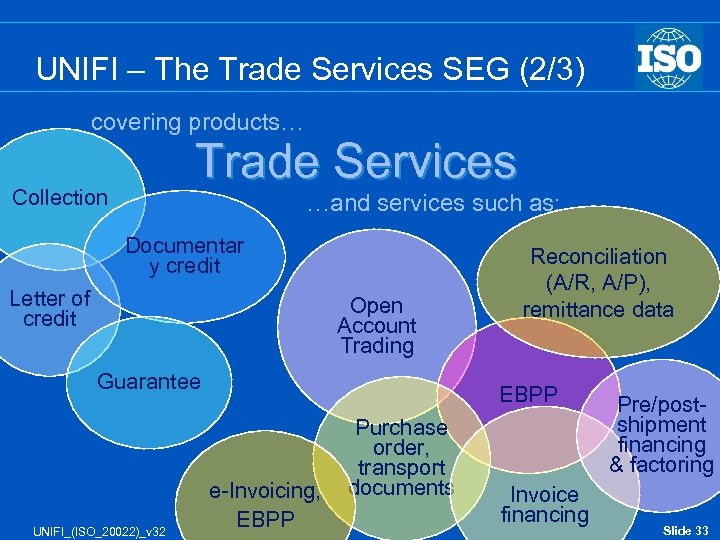

UNIFI – The Trade Services SEG (2/3) covering products… Trade Services Collection …and services such as: Documentar y credit Letter of credit Open Account Trading Guarantee UNIFI_(ISO_20022)_v 32 Reconciliation (A/R, A/P), remittance data EBPP e-Invoicing, EBPP Purchase order, transport documents Invoice financing Pre/postshipment financing & factoring Slide 33

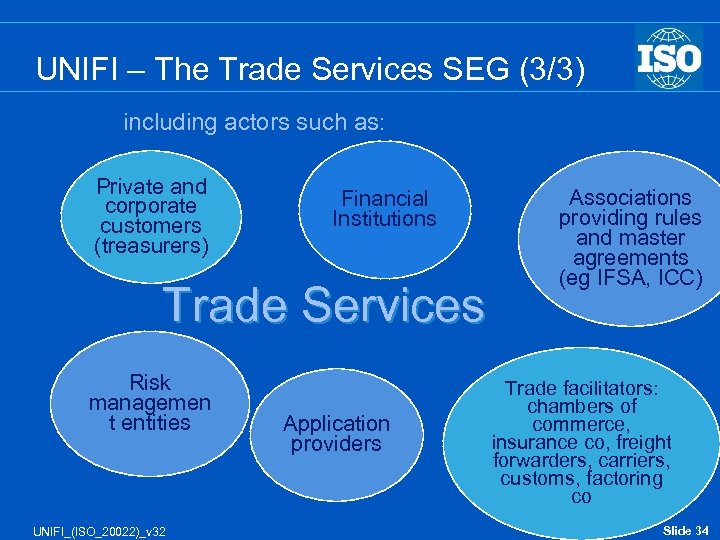

UNIFI – The Trade Services SEG (3/3) including actors such as: Private and corporate customers (treasurers) Financial Institutions Trade Services Risk managemen t entities UNIFI_(ISO_20022)_v 32 Application providers Associations providing rules and master agreements (eg IFSA, ICC) Trade facilitators: chambers of commerce, insurance co, freight forwarders, carriers, customs, factoring co Slide 34

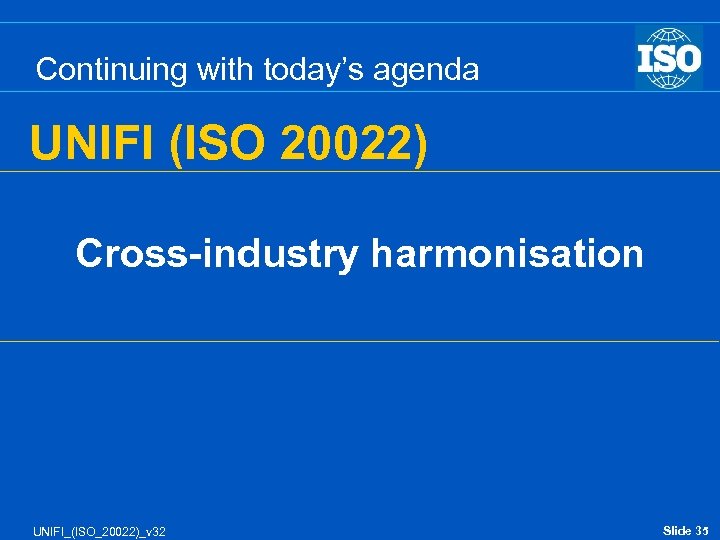

Continuing with today’s agenda UNIFI (ISO 20022) Cross-industry harmonisation UNIFI_(ISO_20022)_v 32 Slide 35

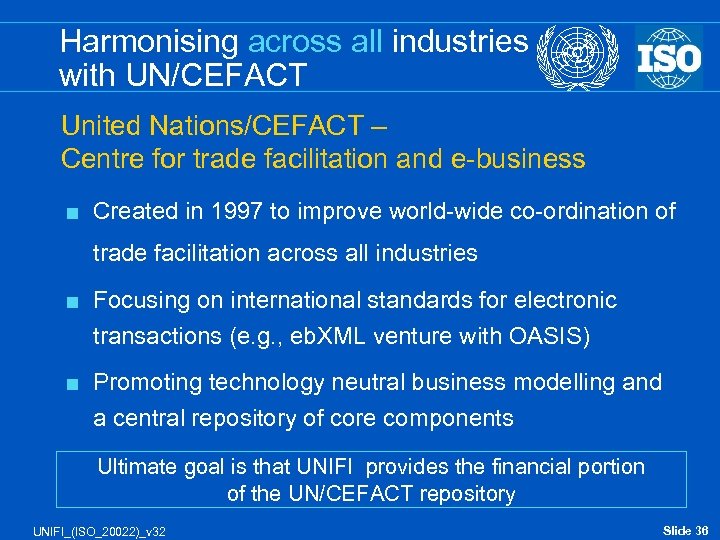

Harmonising across all industries with UN/CEFACT United Nations/CEFACT – Centre for trade facilitation and e-business < Created in 1997 to improve world-wide co-ordination of trade facilitation across all industries < Focusing on international standards for electronic transactions (e. g. , eb. XML venture with OASIS) < Promoting technology neutral business modelling and a central repository of core components Ultimate goal is that UNIFI provides the financial portion of the UN/CEFACT repository UNIFI_(ISO_20022)_v 32 Slide 36

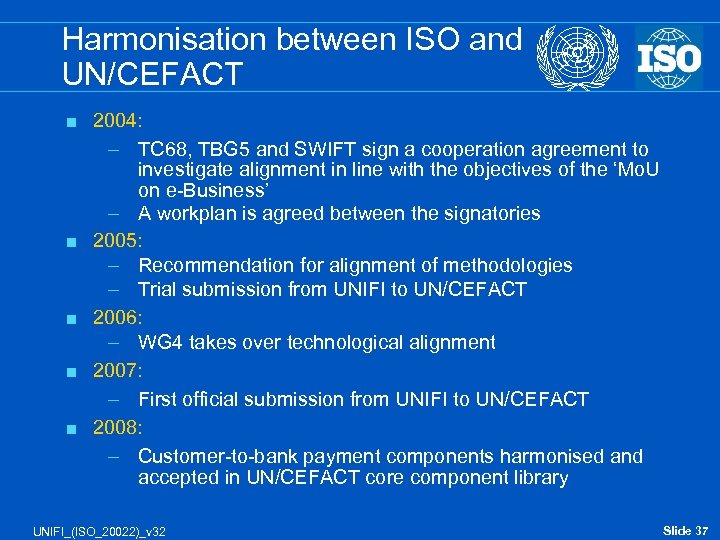

Harmonisation between ISO and UN/CEFACT < < < 2004: – TC 68, TBG 5 and SWIFT sign a cooperation agreement to investigate alignment in line with the objectives of the ‘Mo. U on e-Business’ – A workplan is agreed between the signatories 2005: – Recommendation for alignment of methodologies – Trial submission from UNIFI to UN/CEFACT 2006: – WG 4 takes over technological alignment 2007: – First official submission from UNIFI to UN/CEFACT 2008: – Customer-to-bank payment components harmonised and accepted in UN/CEFACT core component library UNIFI_(ISO_20022)_v 32 Slide 37

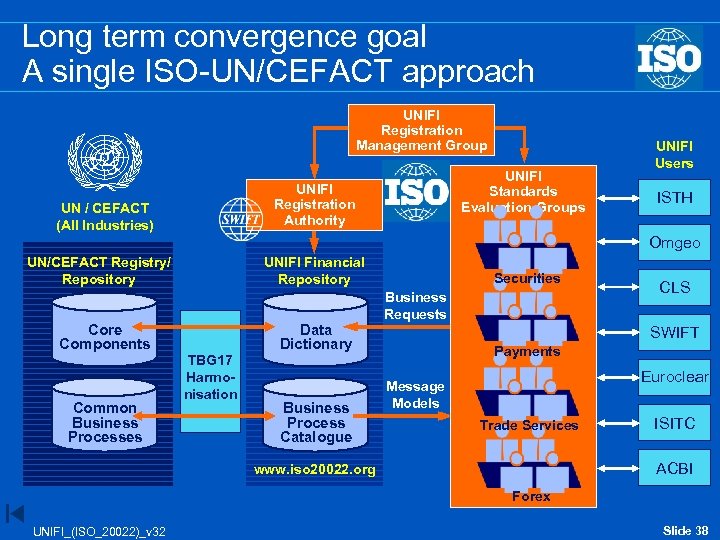

Long term convergence goal A single ISO-UN/CEFACT approach UNIFI Registration Management Group UNIFI Standards Evaluation Groups UNIFI Registration Authority UN / CEFACT (All Industries) UNIFI Users ISTH Omgeo UN/CEFACT Registry/ Repository Core Components Common Business Processes UNIFI Financial Repository TBG 17 Harmonisation Data Dictionary Business Process Catalogue Securities Business Requests CLS SWIFT Payments Euroclear Message Models Trade Services ISITC ACBI www. iso 20022. org Forex UNIFI_(ISO_20022)_v 32 Slide 38

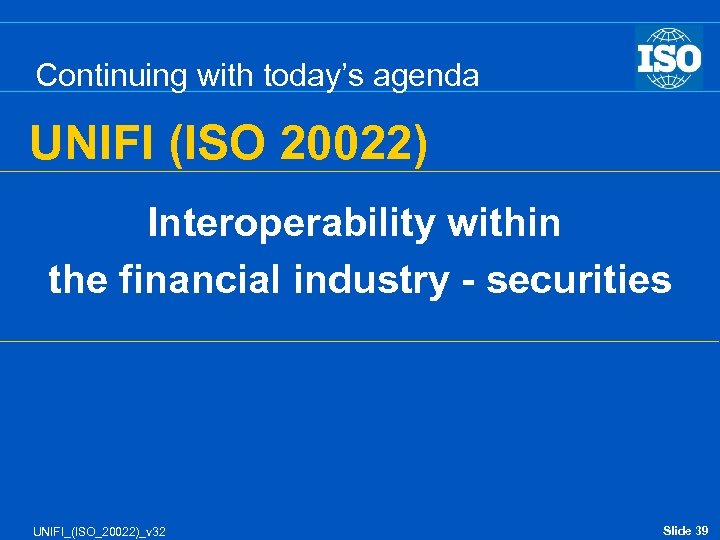

Continuing with today’s agenda UNIFI (ISO 20022) Interoperability within the financial industry - securities UNIFI_(ISO_20022)_v 32 Slide 39

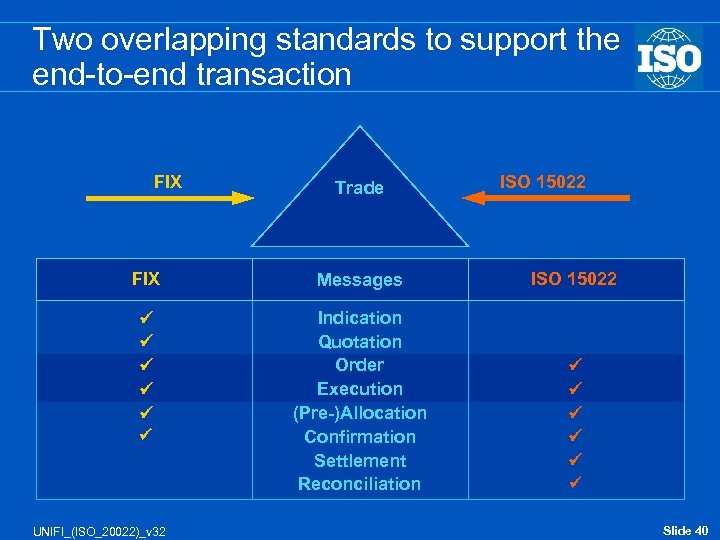

Two overlapping standards to support the end-to-end transaction FIX Trade FIX Messages Indication Quotation Order Execution (Pre-)Allocation Confirmation Settlement Reconciliation UNIFI_(ISO_20022)_v 32 ISO 15022 Slide 40

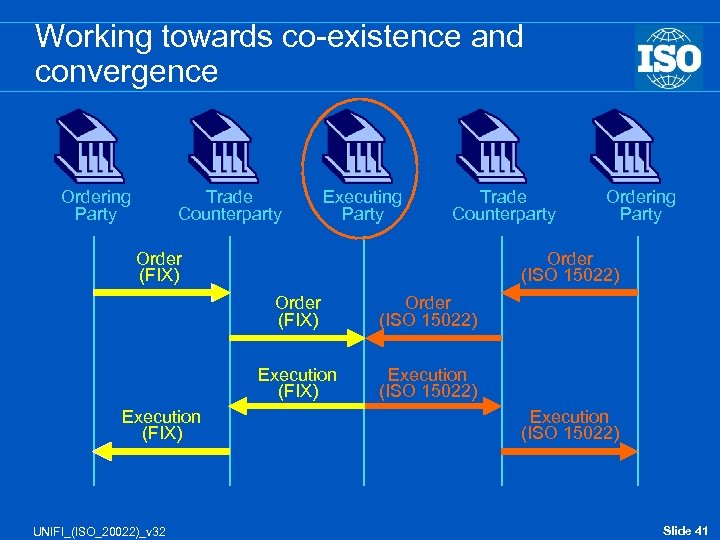

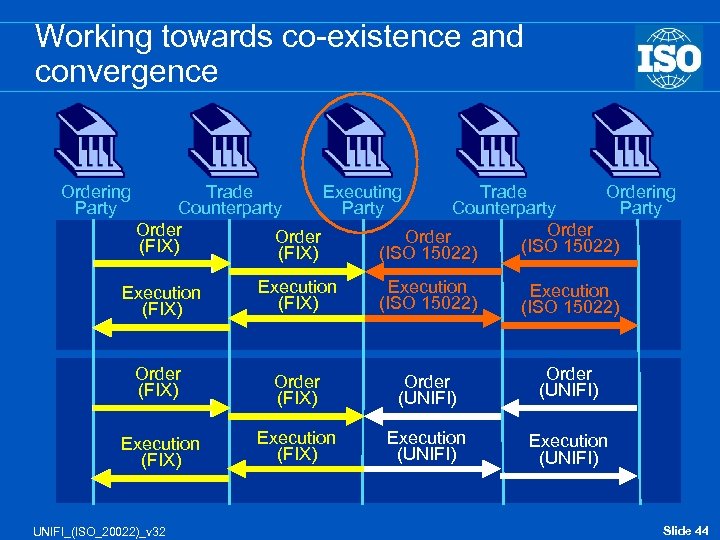

Working towards co-existence and convergence Ordering Party Trade Counterparty Executing Party Trade Counterparty Order (FIX) Order (ISO 15022) Order (FIX) UNIFI_(ISO_20022)_v 32 Order (ISO 15022) Execution (FIX) Ordering Party Execution (ISO 15022) Slide 41

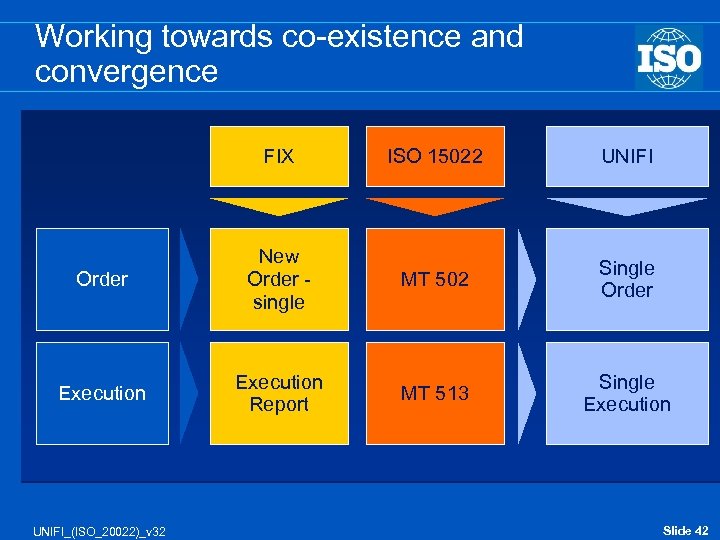

Working towards co-existence and convergence FIX ISO 15022 UNIFI Order New Order single MT 502 Single Order Execution Report MT 513 Single Execution UNIFI_(ISO_20022)_v 32 Slide 42

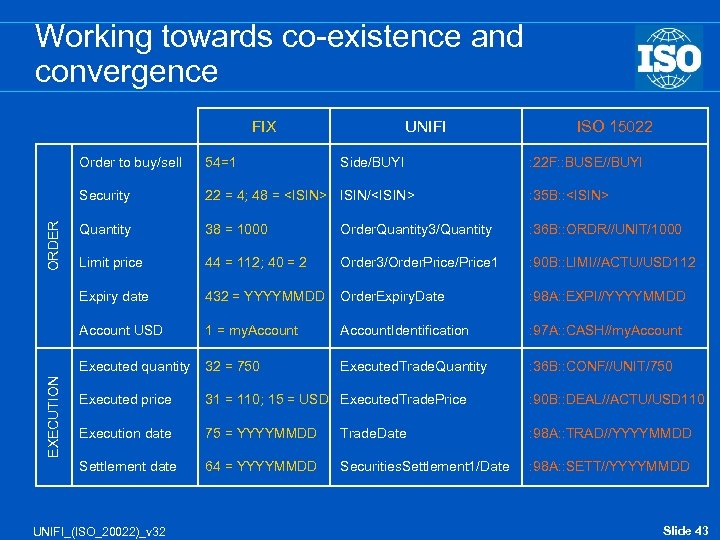

Working towards co-existence and convergence FIX UNIFI 22 = 4; 48 = ISIN/ : 35 B: : Quantity 38 = 1000 Order. Quantity 3/Quantity : 36 B: : ORDR//UNIT/1000 Limit price 44 = 112; 40 = 2 Order 3/Order. Price/Price 1 : 90 B: : LIMI//ACTU/USD 112 Expiry date 432 = YYYYMMDD Order. Expiry. Date : 98 A: : EXPI//YYYYMMDD Account USD 1 = my. Account. Identification : 97 A: : CASH//my. Account Executed quantity 32 = 750 Executed. Trade. Quantity : 36 B: : CONF//UNIT/750 Executed price 31 = 110; 15 = USD Executed. Trade. Price : 90 B: : DEAL//ACTU/USD 110 Execution date 75 = YYYYMMDD Trade. Date : 98 A: : TRAD//YYYYMMDD Settlement date EXECUTION 54=1 Security ORDER Order to buy/sell 64 = YYYYMMDD Securities. Settlement 1/Date : 98 A: : SETT//YYYYMMDD UNIFI_(ISO_20022)_v 32 Side/BUYI ISO 15022 : 22 F: : BUSE//BUYI Slide 43

Working towards co-existence and convergence Ordering Party Trade Executing Trade Ordering Counterparty Party Order (FIX) (ISO 15022) Execution (FIX) Execution (ISO 15022) Order (FIX) Order (UNIFI) Execution (FIX) Execution (UNIFI) UNIFI_(ISO_20022)_v 32 Slide 44

Continuing with today’s agenda UNIFI (ISO 20022) Interoperability within the financial industry - payments UNIFI_(ISO_20022)_v 32 Slide 45

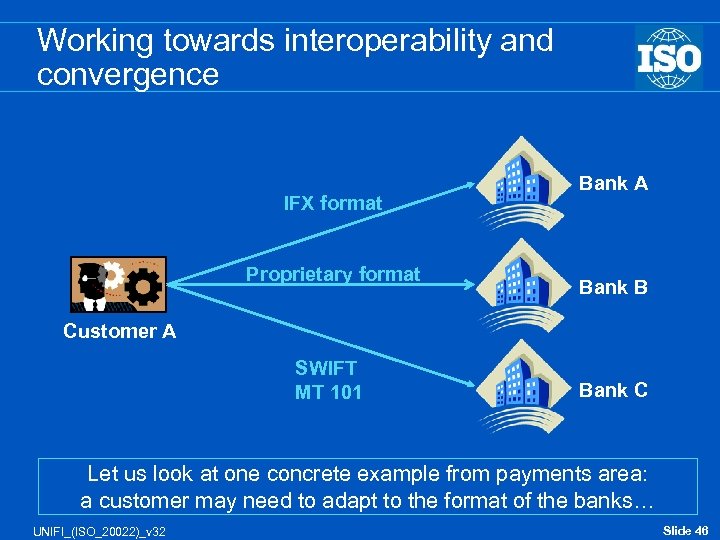

Working towards interoperability and convergence IFX format Proprietary format Bank A Bank B Customer A SWIFT MT 101 Bank C Let us look at one concrete example from payments area: a customer may need to adapt to the format of the banks… UNIFI_(ISO_20022)_v 32 Slide 46

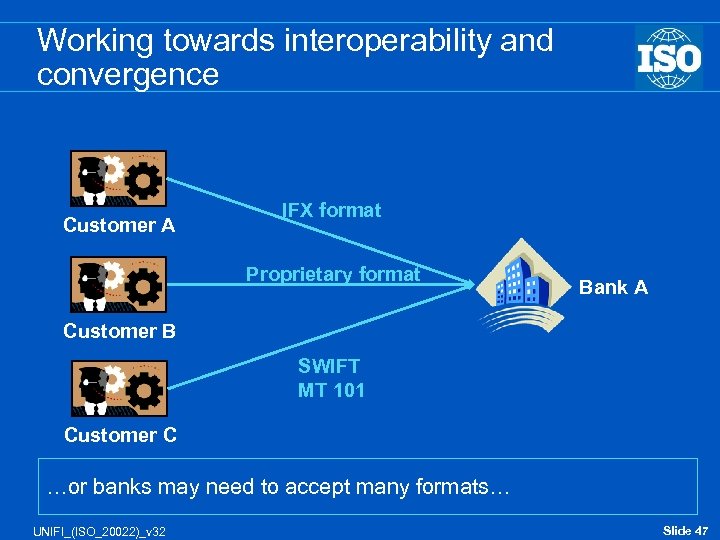

Working towards interoperability and convergence Customer A IFX format Proprietary format Bank A Customer B SWIFT MT 101 Customer C …or banks may need to accept many formats… UNIFI_(ISO_20022)_v 32 Slide 47

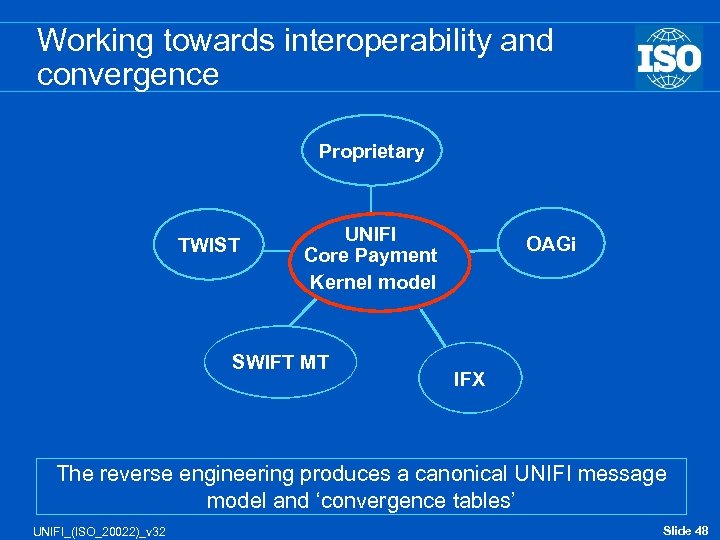

Working towards interoperability and convergence Proprietary TWIST UNIFI Core Payment Kernel model SWIFT MT OAGi IFX The reverse engineering produces a canonical UNIFI message model and ‘convergence tables’ UNIFI_(ISO_20022)_v 32 Slide 48

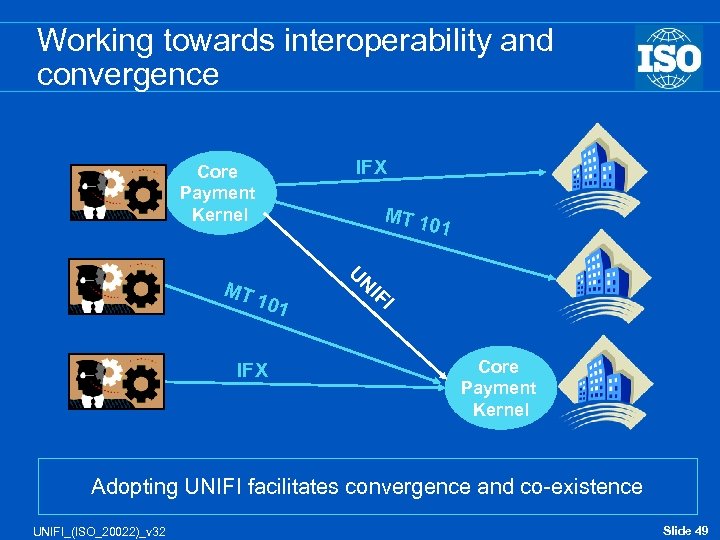

Working towards interoperability and convergence Core Payment Kernel MT 101 IFX MT 1 01 UN I FI Core Payment Kernel Adopting UNIFI facilitates convergence and co-existence UNIFI_(ISO_20022)_v 32 Slide 49
