UNCLASSIFIED Defense-in-Depth Securing Your System Using a Layered Security Approach By Richard Hammer LANL LA-UR-08 -2558 UNCLASSIFIED

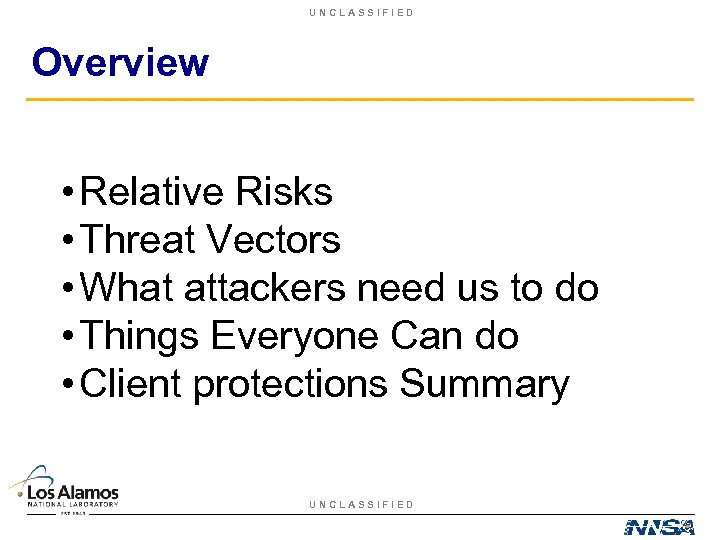

UNCLASSIFIED Overview • Relative Risks • Threat Vectors • What attackers need us to do • Things Everyone Can do • Client protections Summary UNCLASSIFIED

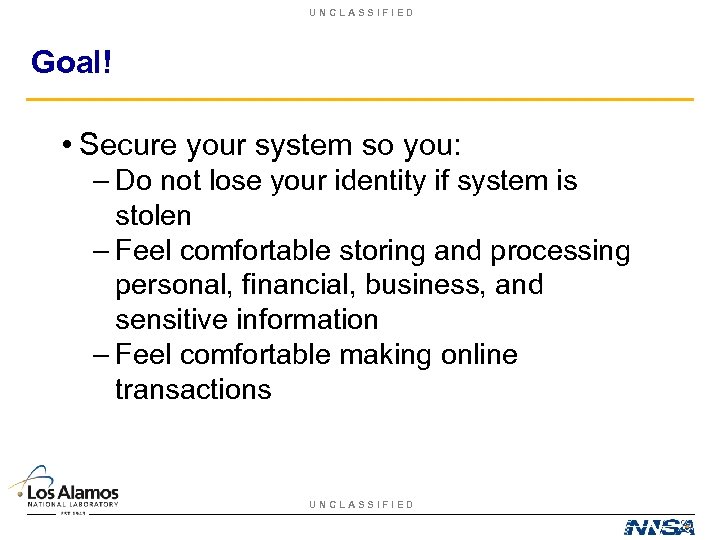

UNCLASSIFIED Goal! • Secure your system so you: – Do not lose your identity if system is stolen – Feel comfortable storing and processing personal, financial, business, and sensitive information – Feel comfortable making online transactions UNCLASSIFIED

UNCLASSIFIED Old and New Threats UNCLASSIFIED

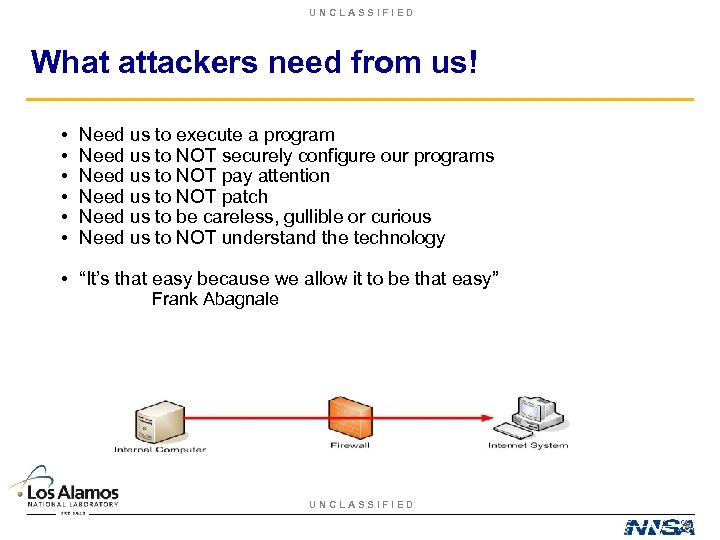

UNCLASSIFIED What attackers need from us! • • • Need us to execute a program Need us to NOT securely configure our programs Need us to NOT pay attention Need us to NOT patch Need us to be careless, gullible or curious Need us to NOT understand the technology • “It’s that easy because we allow it to be that easy” Frank Abagnale UNCLASSIFIED

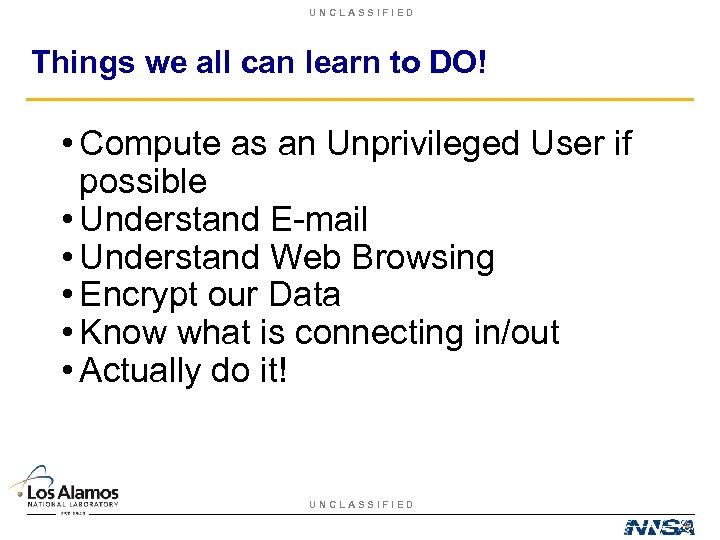

UNCLASSIFIED Things we all can learn to DO! • Compute as an Unprivileged User if possible • Understand E-mail • Understand Web Browsing • Encrypt our Data • Know what is connecting in/out • Actually do it! UNCLASSIFIED

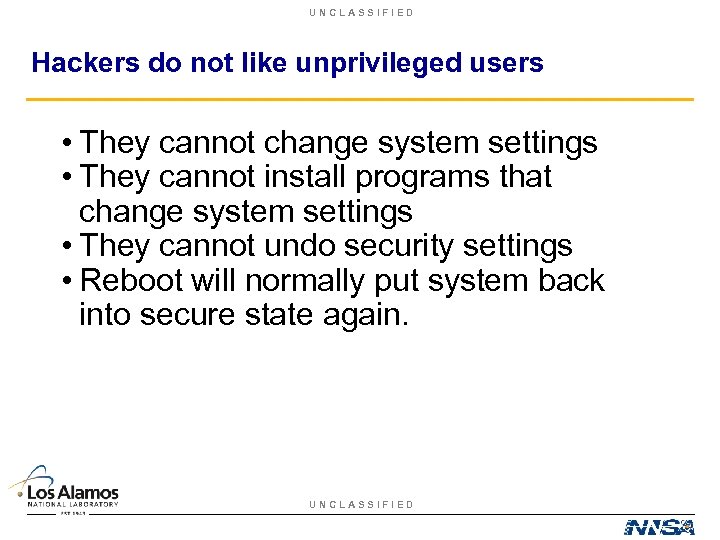

UNCLASSIFIED Hackers do not like unprivileged users • They cannot change system settings • They cannot install programs that change system settings • They cannot undo security settings • Reboot will normally put system back into secure state again. UNCLASSIFIED

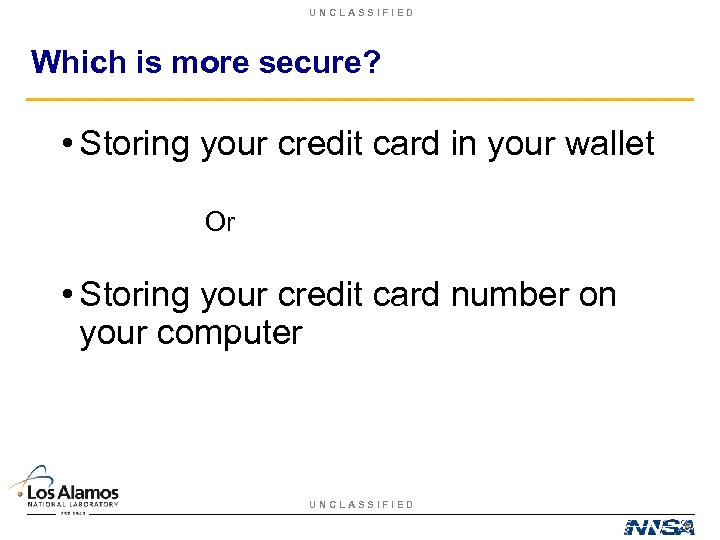

UNCLASSIFIED Which is more secure? • Storing your credit card in your wallet Or • Storing your credit card number on your computer UNCLASSIFIED

UNCLASSIFIED Protecting data at rest (Powered Off) • Physical Security • Encryption • Nothing else will work – Remove the disk – Reset password – Boot off cracker media – T up a Macintosh UNCLASSIFIED

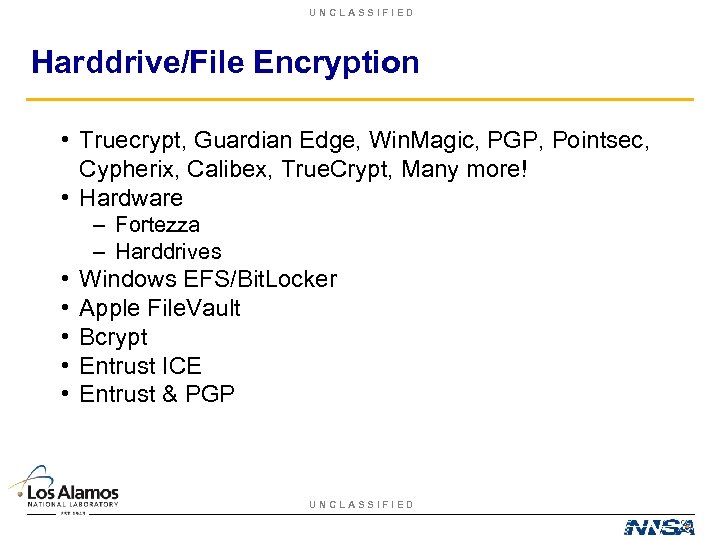

UNCLASSIFIED Harddrive/File Encryption • Truecrypt, Guardian Edge, Win. Magic, PGP, Pointsec, Cypherix, Calibex, True. Crypt, Many more! • Hardware – Fortezza – Harddrives • • • Windows EFS/Bit. Locker Apple File. Vault Bcrypt Entrust ICE Entrust & PGP UNCLASSIFIED

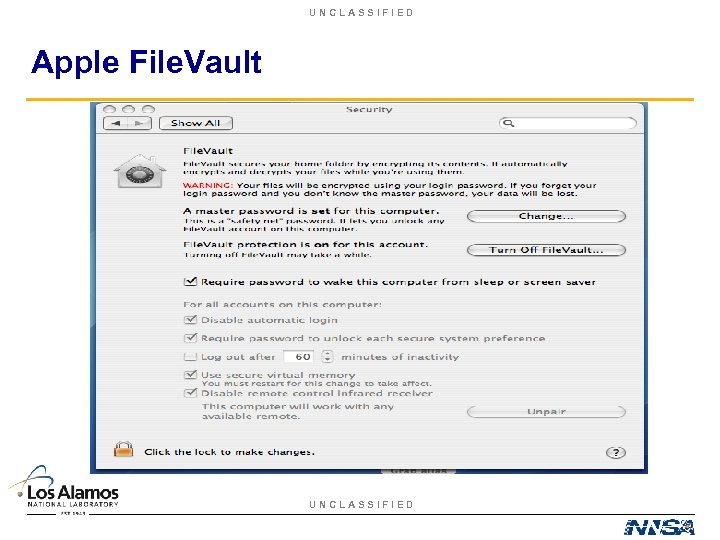

UNCLASSIFIED Apple File. Vault UNCLASSIFIED

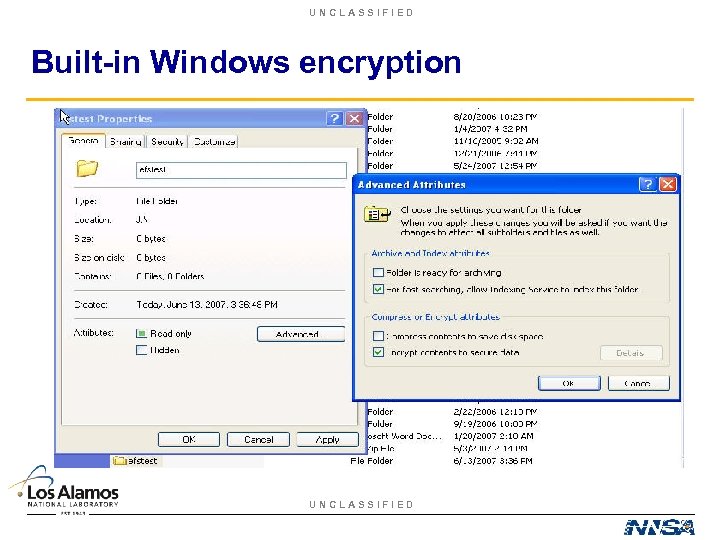

UNCLASSIFIED Built-in Windows encryption UNCLASSIFIED

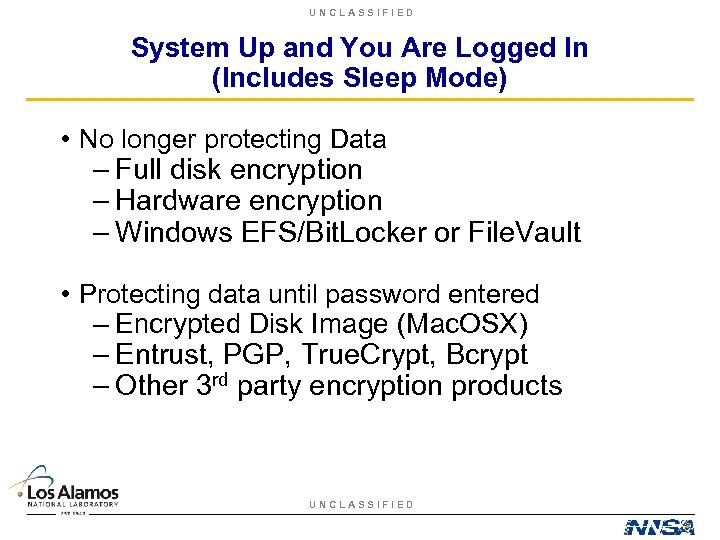

UNCLASSIFIED System Up and You Are Logged In (Includes Sleep Mode) • No longer protecting Data – Full disk encryption – Hardware encryption – Windows EFS/Bit. Locker or File. Vault • Protecting data until password entered – Encrypted Disk Image (Mac. OSX) – Entrust, PGP, True. Crypt, Bcrypt – Other 3 rd party encryption products UNCLASSIFIED

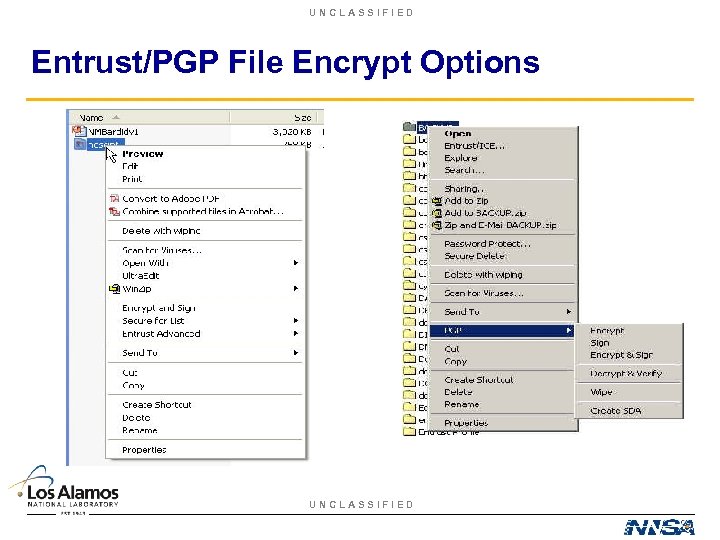

UNCLASSIFIED Entrust/PGP File Encrypt Options UNCLASSIFIED

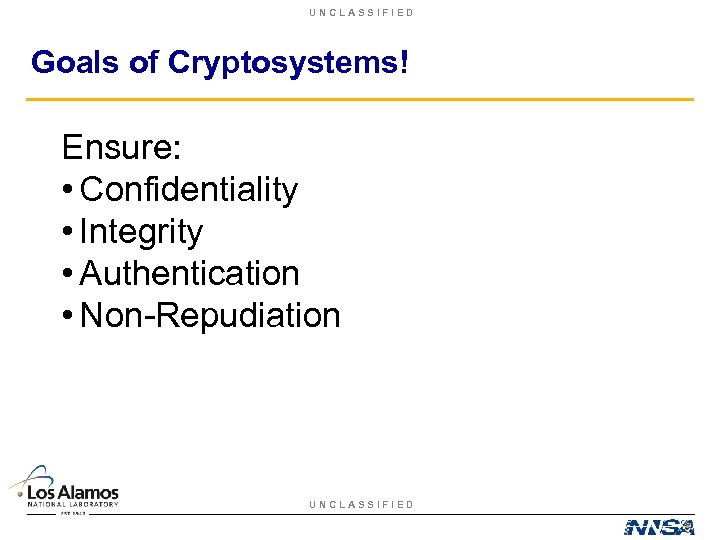

UNCLASSIFIED Goals of Cryptosystems! Ensure: • Confidentiality • Integrity • Authentication • Non-Repudiation UNCLASSIFIED

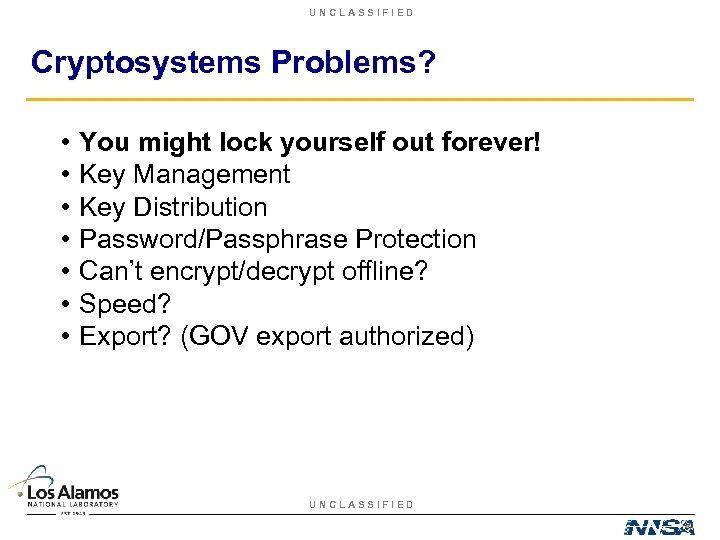

UNCLASSIFIED Cryptosystems Problems? • • You might lock yourself out forever! Key Management Key Distribution Password/Passphrase Protection Can’t encrypt/decrypt offline? Speed? Export? (GOV export authorized) UNCLASSIFIED

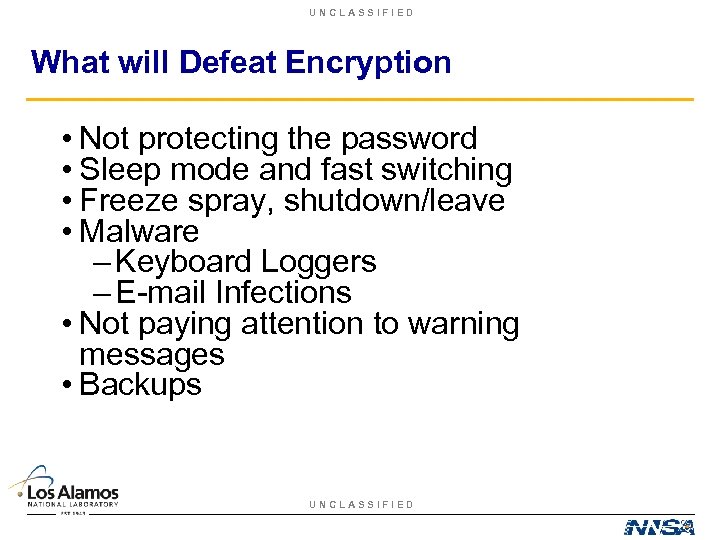

UNCLASSIFIED What will Defeat Encryption • Not protecting the password • Sleep mode and fast switching • Freeze spray, shutdown/leave • Malware – Keyboard Loggers – E-mail Infections • Not paying attention to warning messages • Backups UNCLASSIFIED

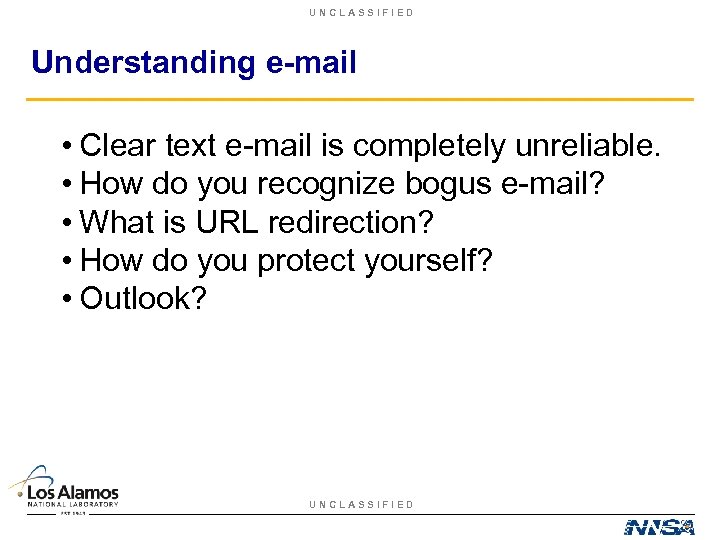

UNCLASSIFIED Understanding e-mail • Clear text e-mail is completely unreliable. • How do you recognize bogus e-mail? • What is URL redirection? • How do you protect yourself? • Outlook? UNCLASSIFIED

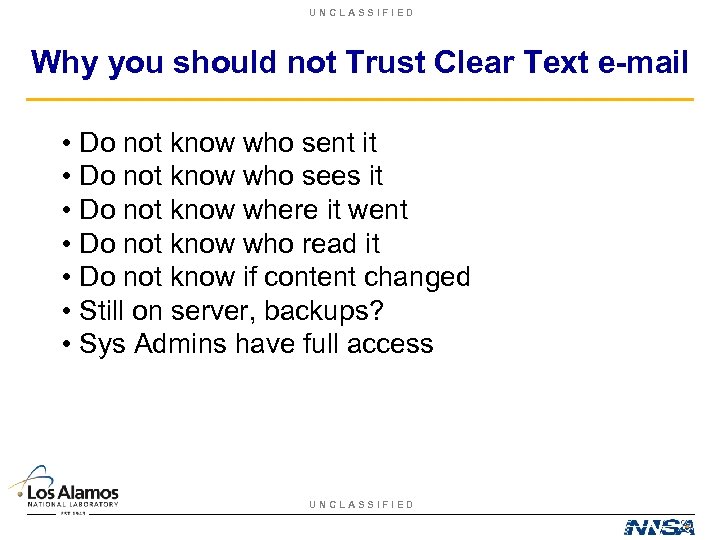

UNCLASSIFIED Why you should not Trust Clear Text e-mail • Do not know who sent it • Do not know who sees it • Do not know where it went • Do not know who read it • Do not know if content changed • Still on server, backups? • Sys Admins have full access UNCLASSIFIED

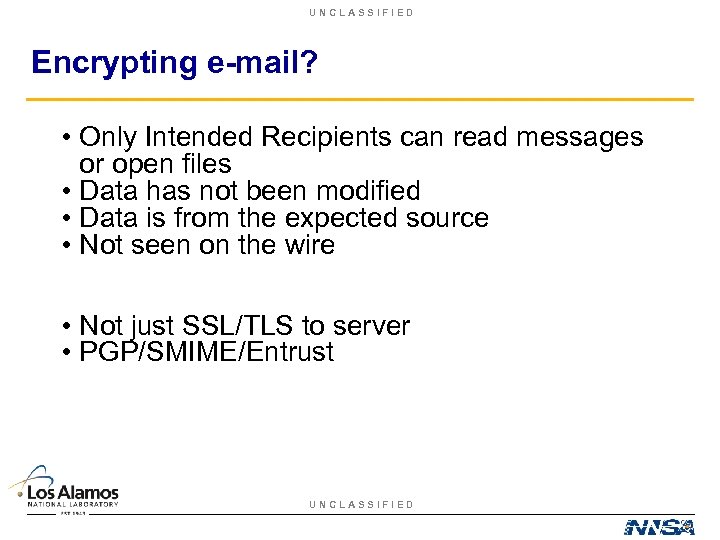

UNCLASSIFIED Encrypting e-mail? • Only Intended Recipients can read messages or open files • Data has not been modified • Data is from the expected source • Not seen on the wire • Not just SSL/TLS to server • PGP/SMIME/Entrust UNCLASSIFIED

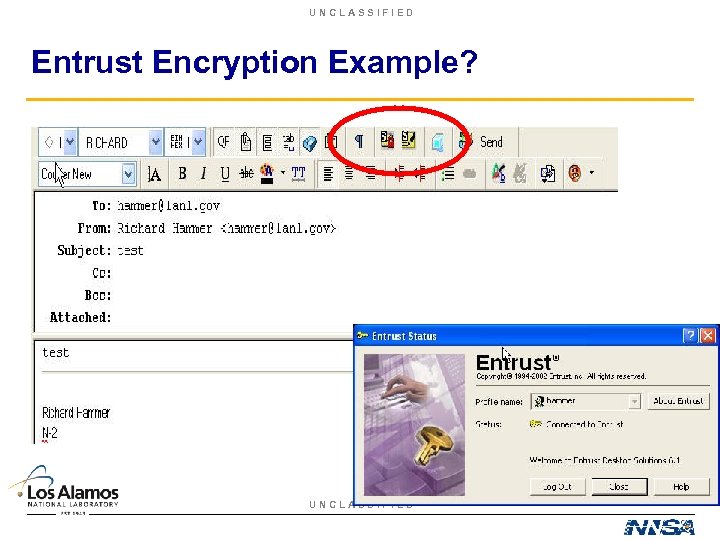

UNCLASSIFIED Entrust Encryption Example? UNCLASSIFIED

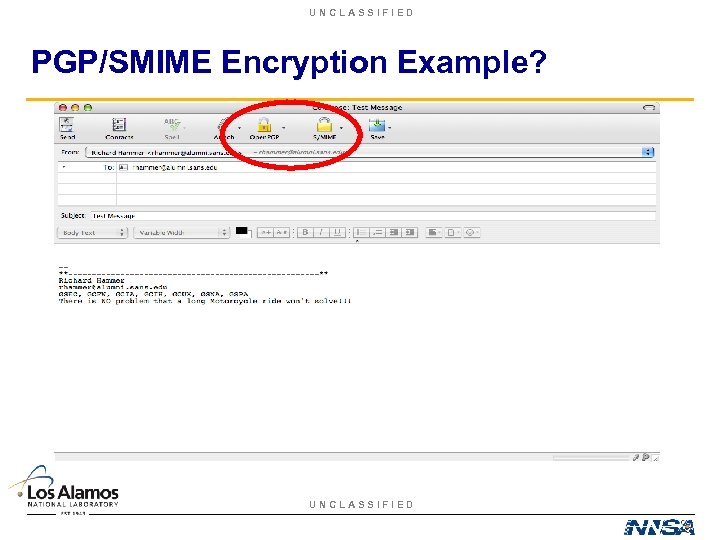

UNCLASSIFIED PGP/SMIME Encryption Example? UNCLASSIFIED

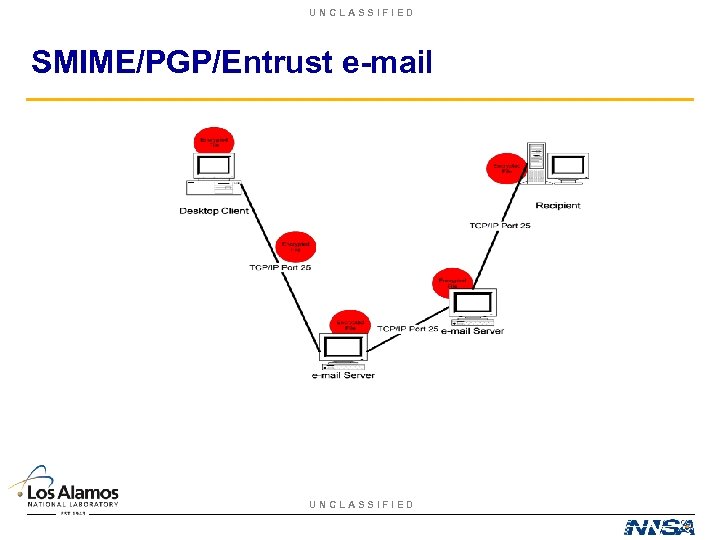

UNCLASSIFIED SMIME/PGP/Entrust e-mail UNCLASSIFIED

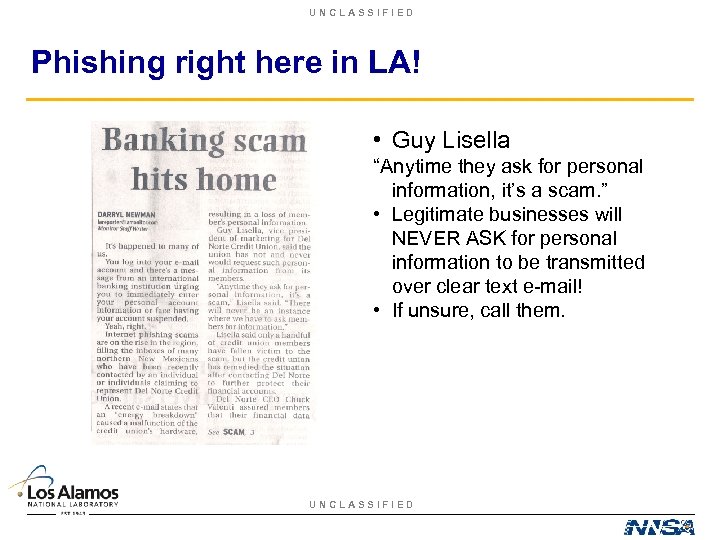

UNCLASSIFIED Phishing right here in LA! • Guy Lisella “Anytime they ask for personal information, it’s a scam. ” • Legitimate businesses will NEVER ASK for personal information to be transmitted over clear text e-mail! • If unsure, call them. UNCLASSIFIED

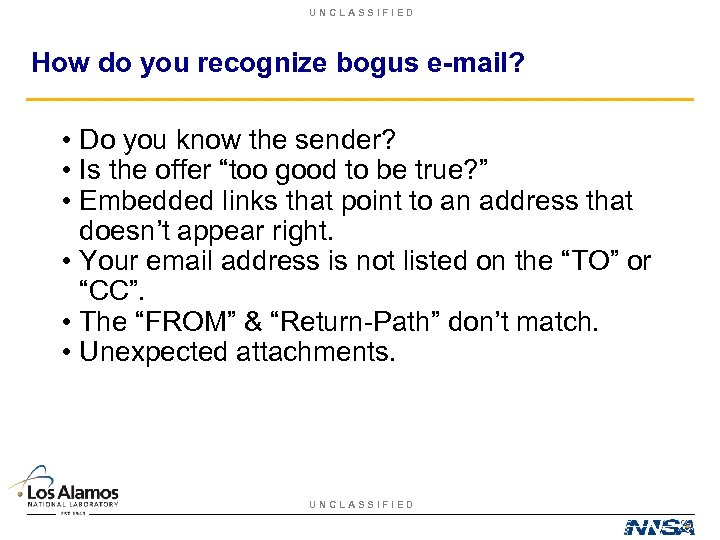

UNCLASSIFIED How do you recognize bogus e-mail? • Do you know the sender? • Is the offer “too good to be true? ” • Embedded links that point to an address that doesn’t appear right. • Your email address is not listed on the “TO” or “CC”. • The “FROM” & “Return-Path” don’t match. • Unexpected attachments. UNCLASSIFIED

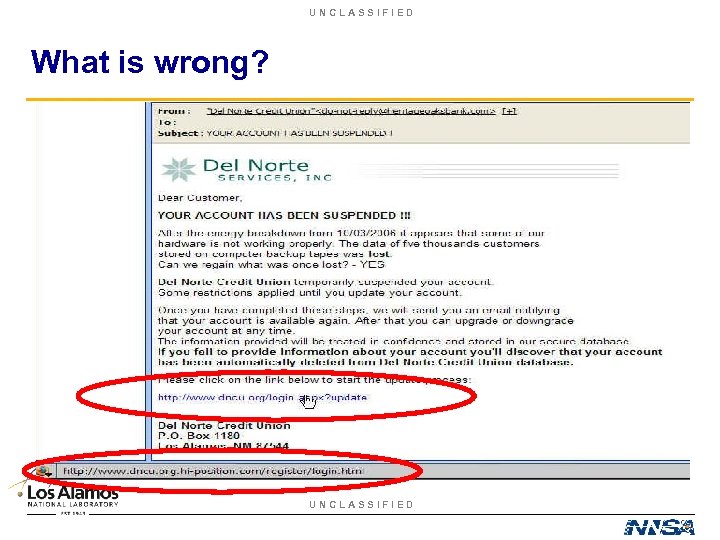

UNCLASSIFIED What is wrong? UNCLASSIFIED

UNCLASSIFIED Understanding URLs/Redirection • http: //computername. domainname/directoryname/indexfile. html Where you thought you were going: http: //www. dncu. com/login. aspx? update http: //63. 214. 247. 170/login. aspx? update Where you are redirected: http: //www. dncu. org. hi-position. com/register/login. html Computer name – www Domainname – dncu. org. hi-position. com IP Address – No longer registered, but was 202. 168. 210. 1 XX Directory – register Index file – login. html UNCLASSIFIED

UNCLASSIFIED Look at the e-mail header • • Eudora – Blah, Blah Outlook – View Options or Right Click Options Webmail – Click on Full Headers Thunderbird – Menu Bar, VIEW/HEADER, ALL UNCLASSIFIED

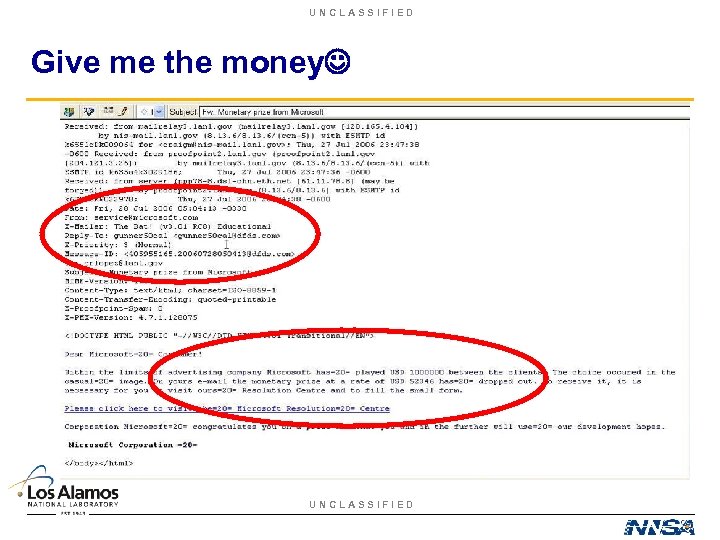

UNCLASSIFIED Give me the money UNCLASSIFIED

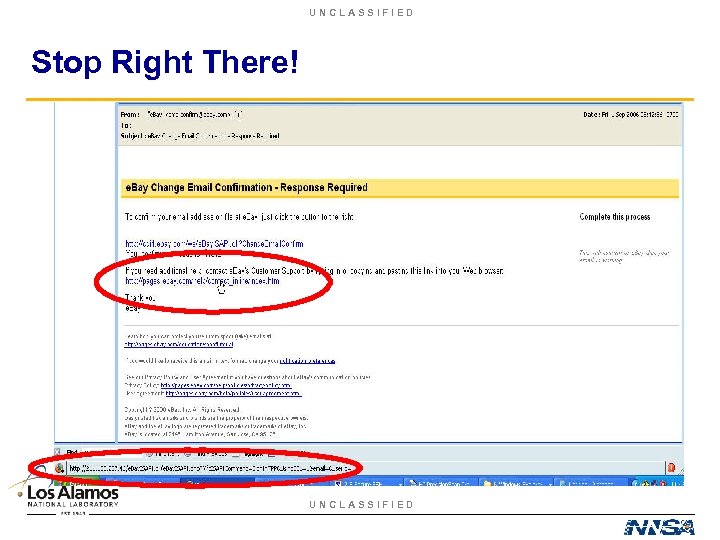

UNCLASSIFIED Stop Right There! UNCLASSIFIED

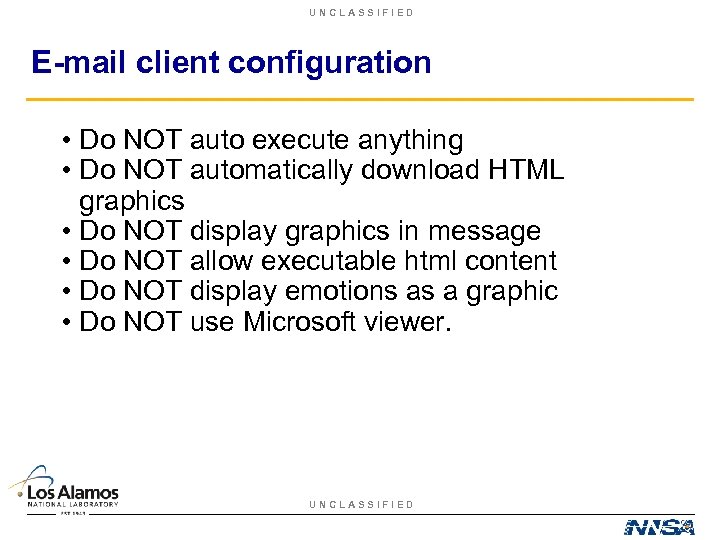

UNCLASSIFIED E-mail client configuration • Do NOT auto execute anything • Do NOT automatically download HTML graphics • Do NOT display graphics in message • Do NOT allow executable html content • Do NOT display emotions as a graphic • Do NOT use Microsoft viewer. UNCLASSIFIED

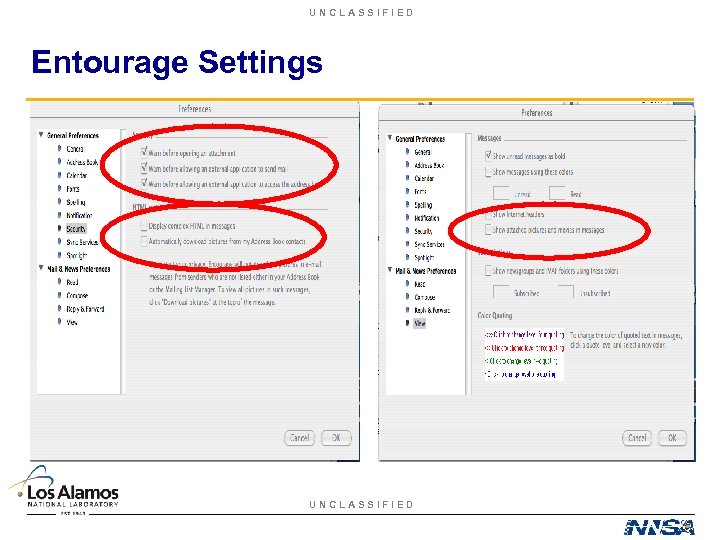

UNCLASSIFIED Entourage Settings UNCLASSIFIED

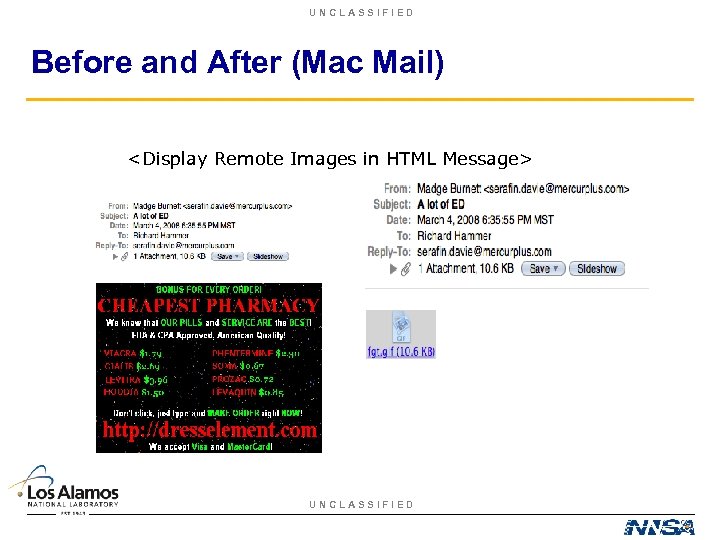

UNCLASSIFIED Before and After (Mac Mail) UNCLASSIFIED

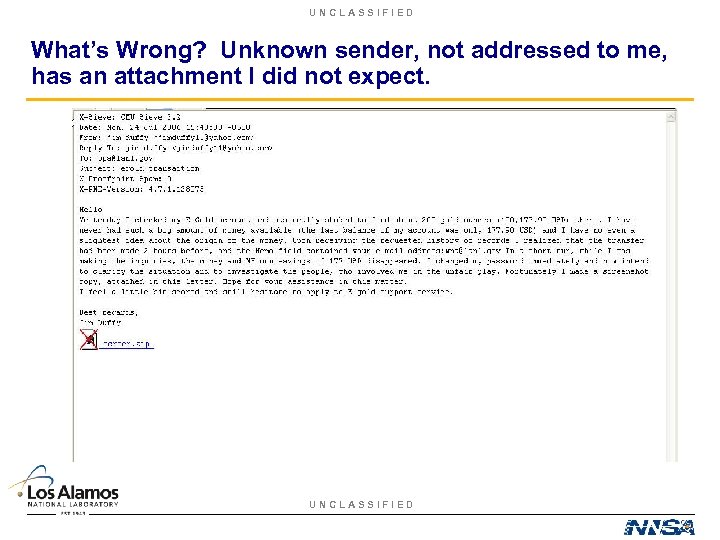

UNCLASSIFIED What’s Wrong? Unknown sender, not addressed to me, has an attachment I did not expect. UNCLASSIFIED

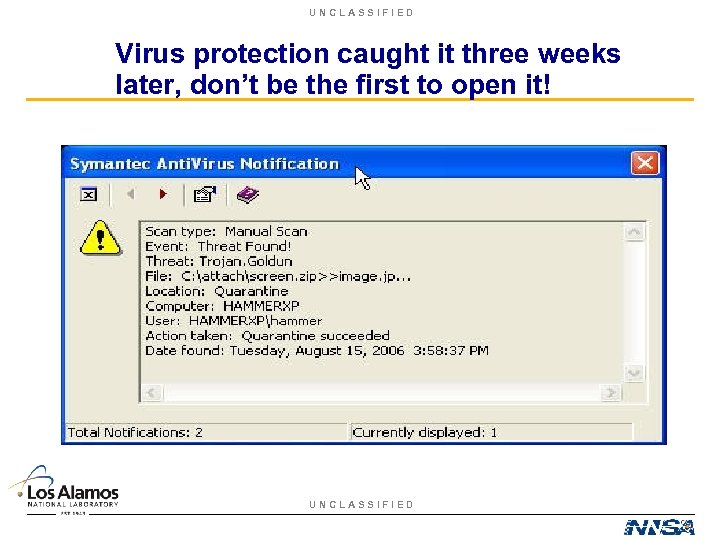

UNCLASSIFIED Virus protection caught it three weeks later, don’t be the first to open it! UNCLASSIFIED

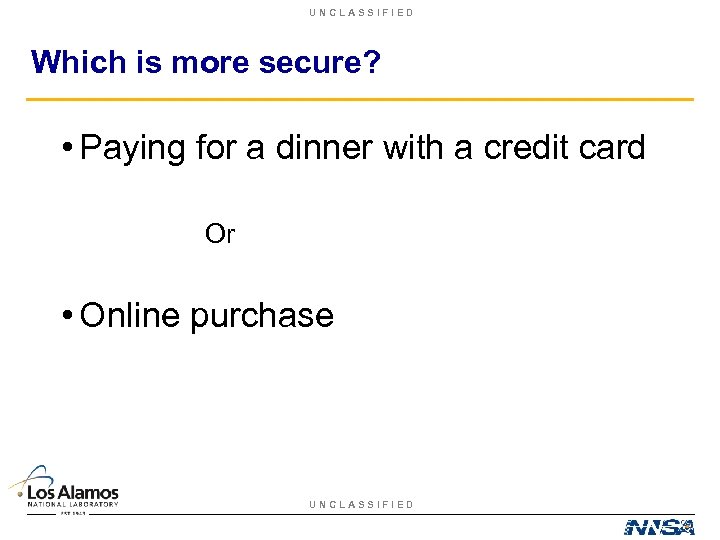

UNCLASSIFIED Which is more secure? • Paying for a dinner with a credit card Or • Online purchase UNCLASSIFIED

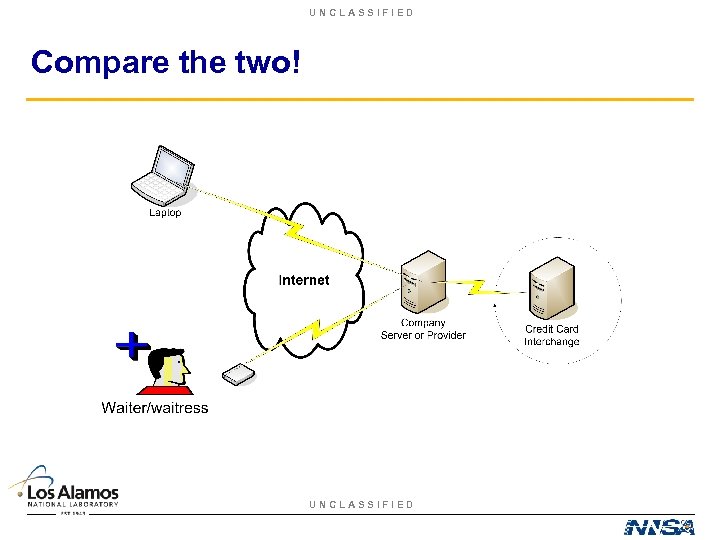

UNCLASSIFIED Compare the two! UNCLASSIFIED

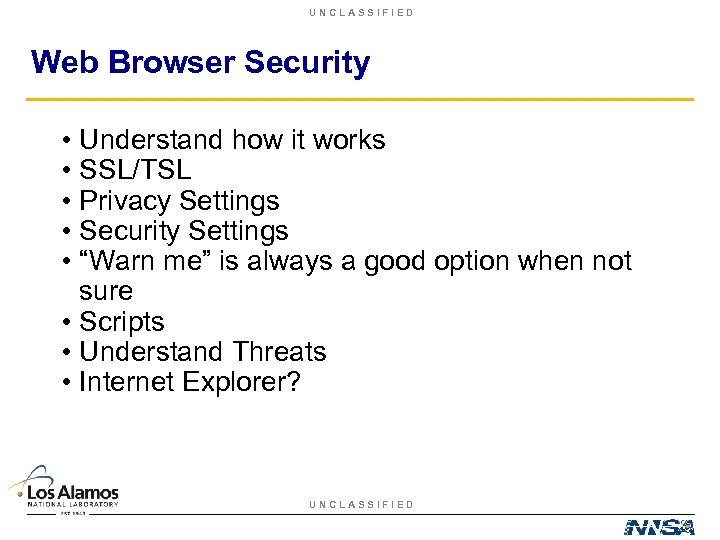

UNCLASSIFIED Web Browser Security • Understand how it works • SSL/TSL • Privacy Settings • Security Settings • “Warn me” is always a good option when not sure • Scripts • Understand Threats • Internet Explorer? UNCLASSIFIED

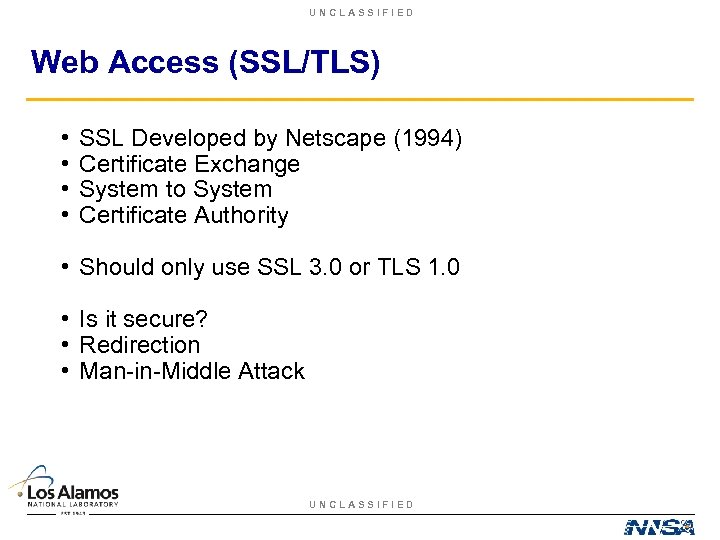

UNCLASSIFIED Web Access (SSL/TLS) • • SSL Developed by Netscape (1994) Certificate Exchange System to System Certificate Authority • Should only use SSL 3. 0 or TLS 1. 0 • Is it secure? • Redirection • Man-in-Middle Attack UNCLASSIFIED

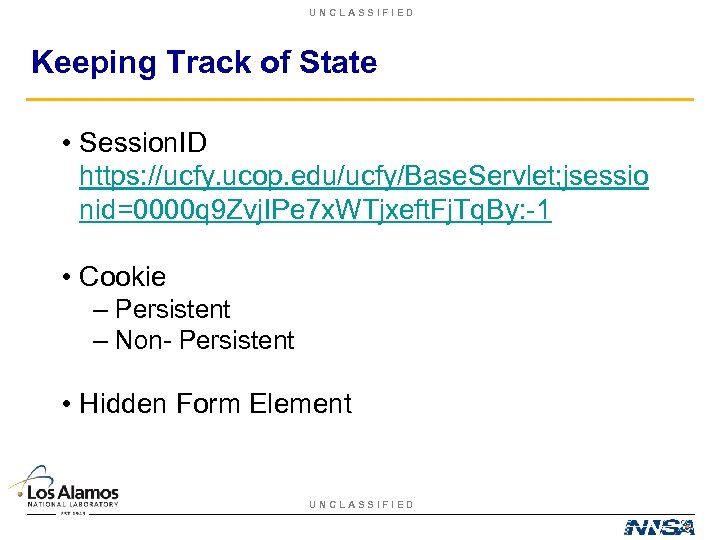

UNCLASSIFIED Keeping Track of State • Session. ID https: //ucfy. ucop. edu/ucfy/Base. Servlet; jsessio nid=0000 q 9 Zvj. IPe 7 x. WTjxeft. Fj. Tq. By: -1 • Cookie – Persistent – Non- Persistent • Hidden Form Element UNCLASSIFIED

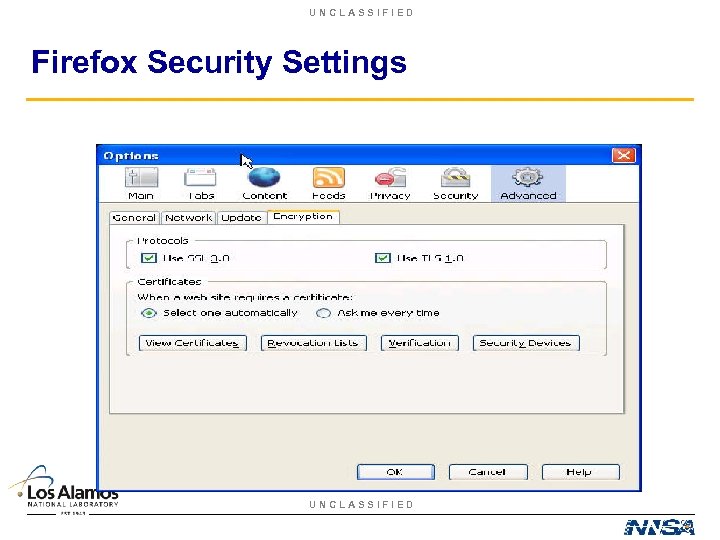

UNCLASSIFIED Firefox Security Settings UNCLASSIFIED

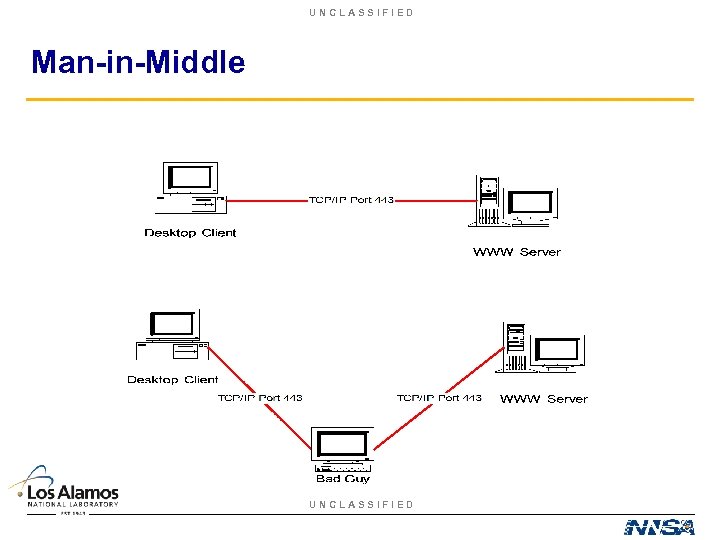

UNCLASSIFIED Man-in-Middle UNCLASSIFIED

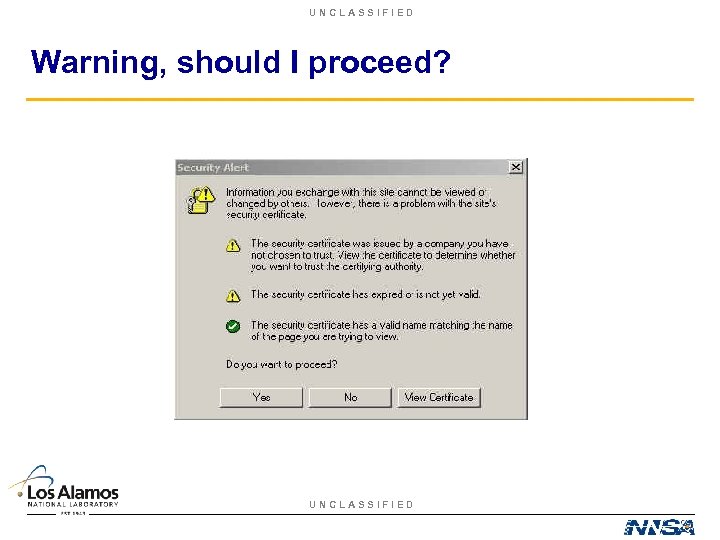

UNCLASSIFIED Warning, should I proceed? UNCLASSIFIED

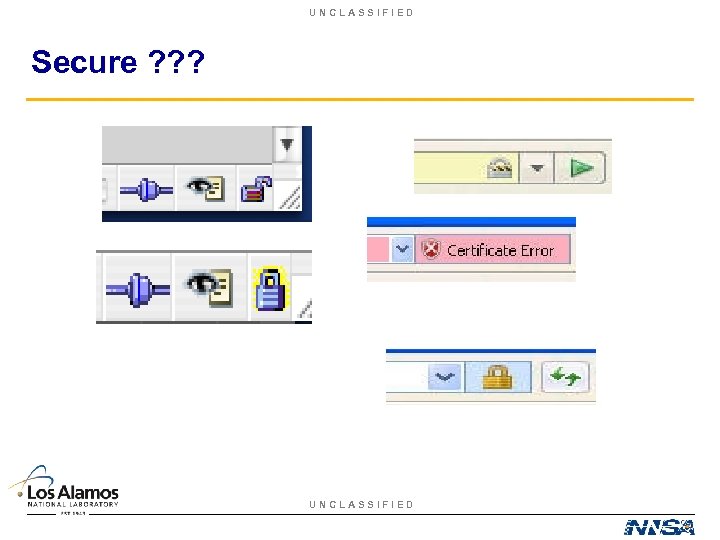

UNCLASSIFIED Secure ? ? ? UNCLASSIFIED

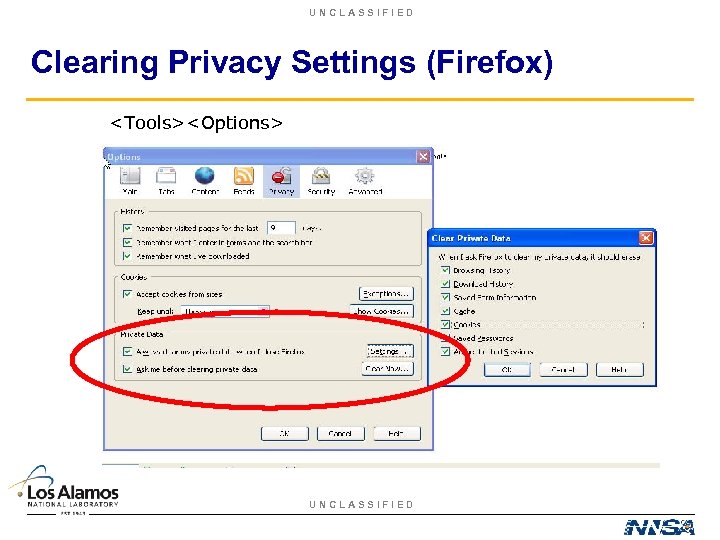

UNCLASSIFIED Clearing Privacy Settings (Firefox) UNCLASSIFIED

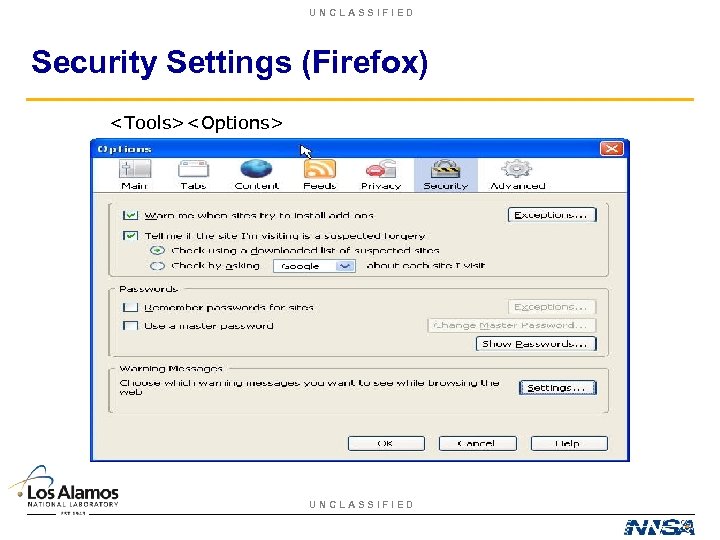

UNCLASSIFIED Security Settings (Firefox) UNCLASSIFIED

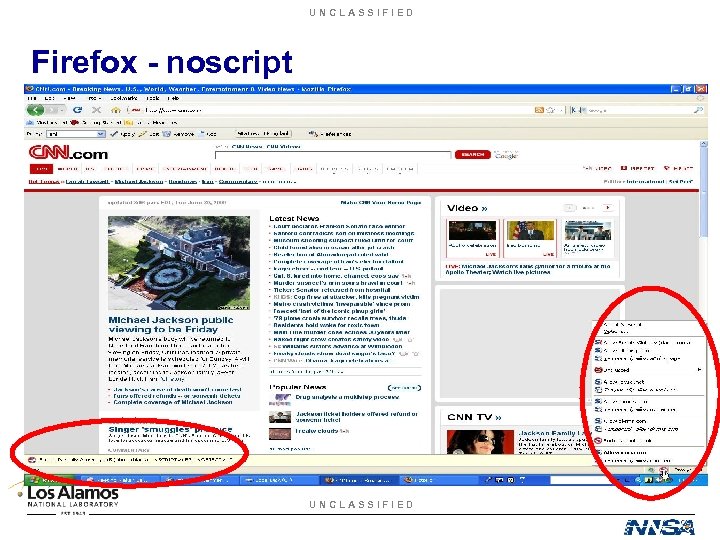

UNCLASSIFIED Firefox - noscript UNCLASSIFIED

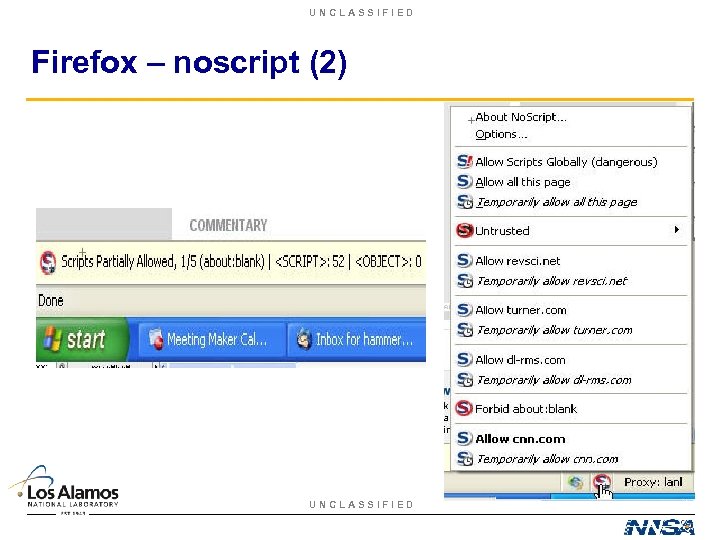

UNCLASSIFIED Firefox – noscript (2) UNCLASSIFIED

UNCLASSIFIED Secure Web Transactions • Open New Browser • Ensure SSLv 3/TLS • You initiate connection • Only go to sites associated with transaction • Use noscript and only allow needed scripts • Pay attention to error messages • Logout when done • Close browser and clear settings UNCLASSIFIED

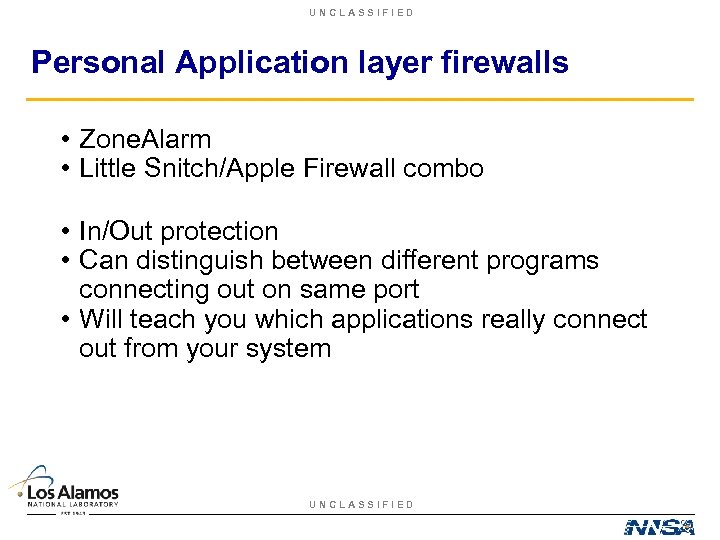

UNCLASSIFIED Personal Application layer firewalls • Zone. Alarm • Little Snitch/Apple Firewall combo • In/Out protection • Can distinguish between different programs connecting out on same port • Will teach you which applications really connect out from your system UNCLASSIFIED

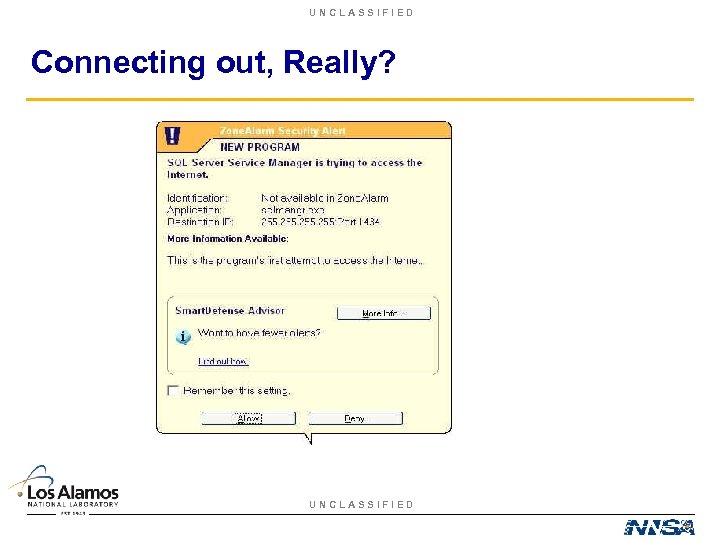

UNCLASSIFIED Connecting out, Really? UNCLASSIFIED

UNCLASSIFIED Same Port, different program UNCLASSIFIED

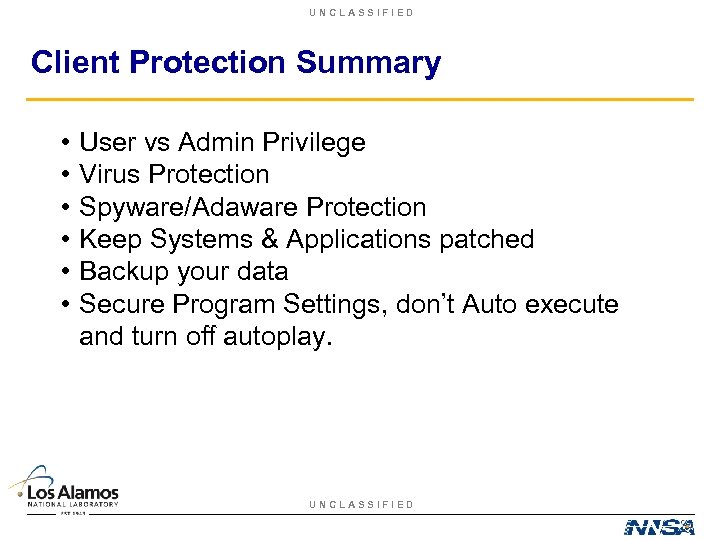

UNCLASSIFIED Client Protection Summary • • • User vs Admin Privilege Virus Protection Spyware/Adaware Protection Keep Systems & Applications patched Backup your data Secure Program Settings, don’t Auto execute and turn off autoplay. UNCLASSIFIED

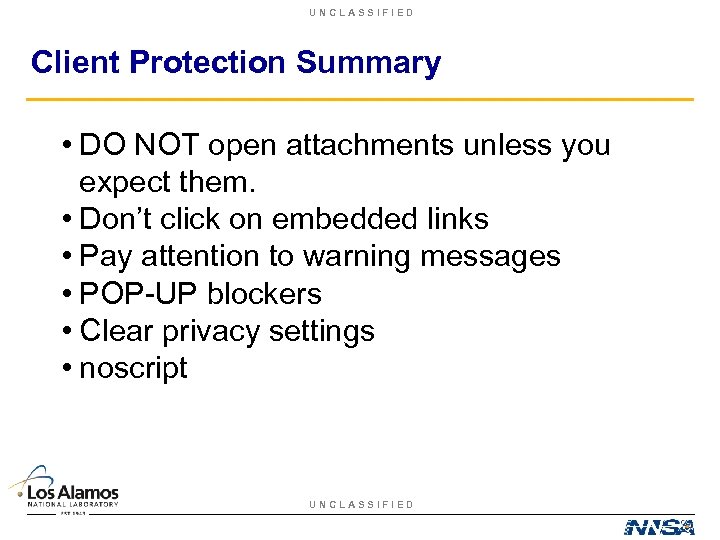

UNCLASSIFIED Client Protection Summary • DO NOT open attachments unless you expect them. • Don’t click on embedded links • Pay attention to warning messages • POP-UP blockers • Clear privacy settings • noscript UNCLASSIFIED

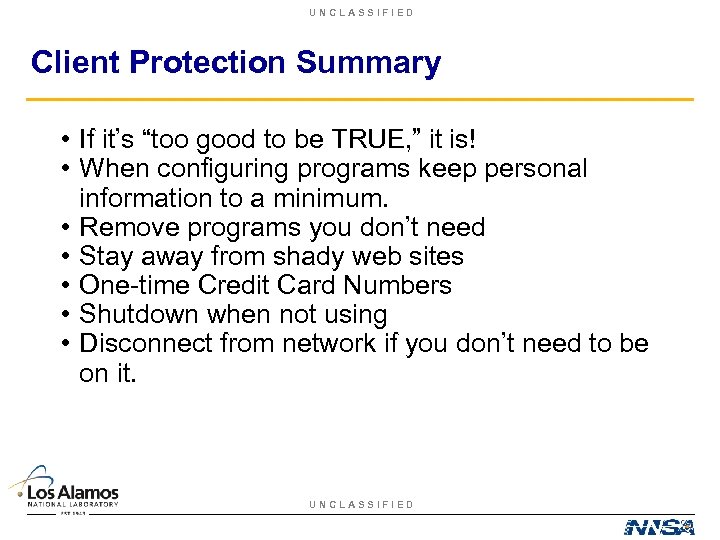

UNCLASSIFIED Client Protection Summary • If it’s “too good to be TRUE, ” it is! • When configuring programs keep personal information to a minimum. • Remove programs you don’t need • Stay away from shady web sites • One-time Credit Card Numbers • Shutdown when not using • Disconnect from network if you don’t need to be on it. UNCLASSIFIED

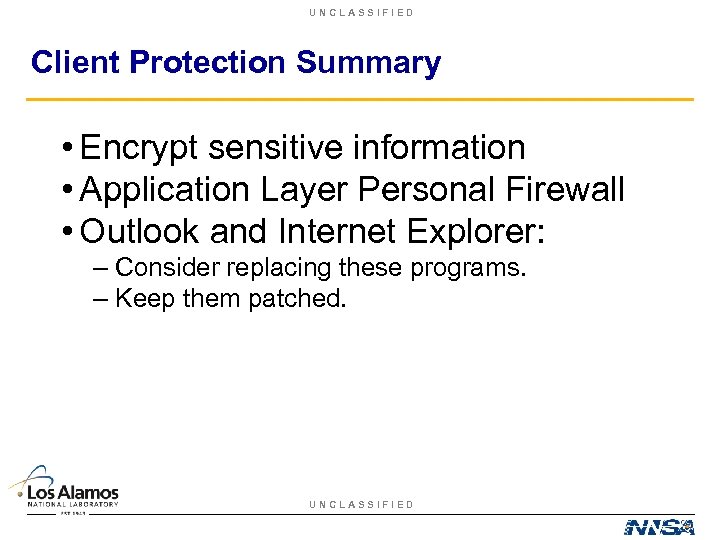

UNCLASSIFIED Client Protection Summary • Encrypt sensitive information • Application Layer Personal Firewall • Outlook and Internet Explorer: – Consider replacing these programs. – Keep them patched. UNCLASSIFIED

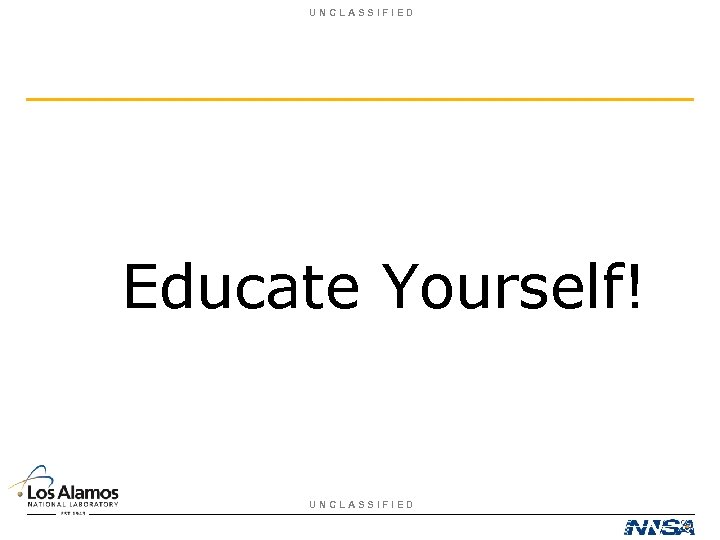

UNCLASSIFIED Educate Yourself! UNCLASSIFIED
