Uncertainty session Uncertainties in measuring and modelling carbon

Uncertainty session "Uncertainties in measuring and modelling carbon and greenhouse gas balances in Europe“ JUTF activity Martin Wattenbach

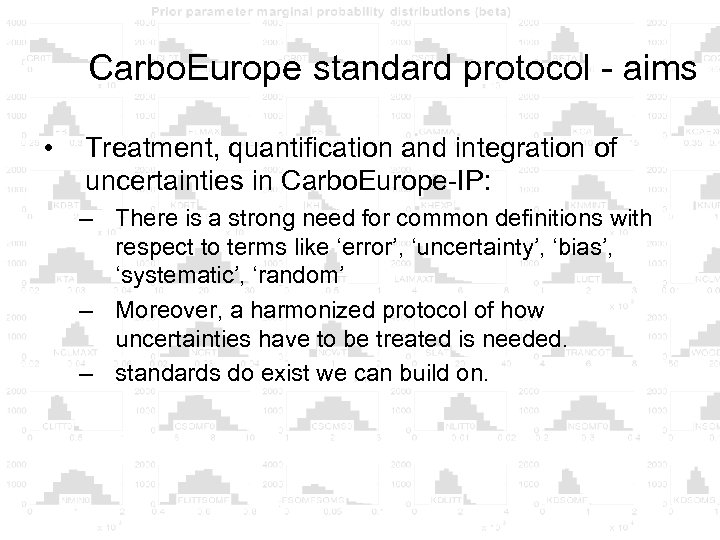

Carbo. Europe standard protocol - aims • Treatment, quantification and integration of uncertainties in Carbo. Europe-IP: – There is a strong need for common definitions with respect to terms like ‘error’, ‘uncertainty’, ‘bias’, ‘systematic’, ‘random’ – Moreover, a harmonized protocol of how uncertainties have to be treated is needed. – standards do exist we can build on.

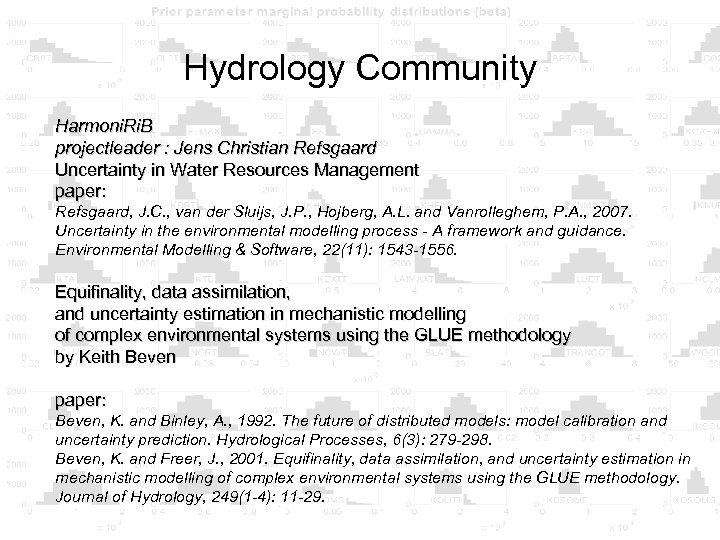

Hydrology Community Harmoni. Ri. B projectleader : Jens Christian Refsgaard Uncertainty in Water Resources Management paper: Refsgaard, J. C. , van der Sluijs, J. P. , Hojberg, A. L. and Vanrolleghem, P. A. , 2007. Uncertainty in the environmental modelling process - A framework and guidance. Environmental Modelling & Software, 22(11): 1543 -1556. Equifinality, data assimilation, and uncertainty estimation in mechanistic modelling of complex environmental systems using the GLUE methodology by Keith Beven paper: Beven, K. and Binley, A. , 1992. The future of distributed models: model calibration and uncertainty prediction. Hydrological Processes, 6(3): 279 -298. Beven, K. and Freer, J. , 2001. Equifinality, data assimilation, and uncertainty estimation in mechanistic modelling of complex environmental systems using the GLUE methodology. Journal of Hydrology, 249(1 -4): 11 -29.

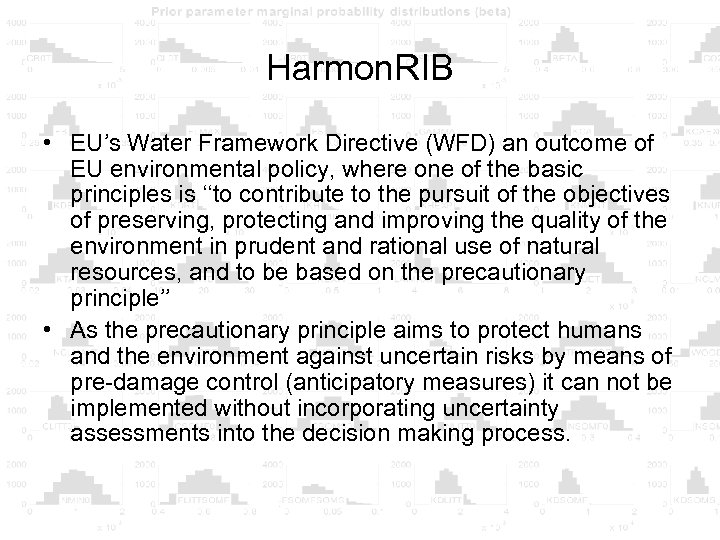

Harmon. RIB • EU’s Water Framework Directive (WFD) an outcome of EU environmental policy, where one of the basic principles is ‘‘to contribute to the pursuit of the objectives of preserving, protecting and improving the quality of the environment in prudent and rational use of natural resources, and to be based on the precautionary principle’’ • As the precautionary principle aims to protect humans and the environment against uncertain risks by means of pre-damage control (anticipatory measures) it can not be implemented without incorporating uncertainty assessments into the decision making process.

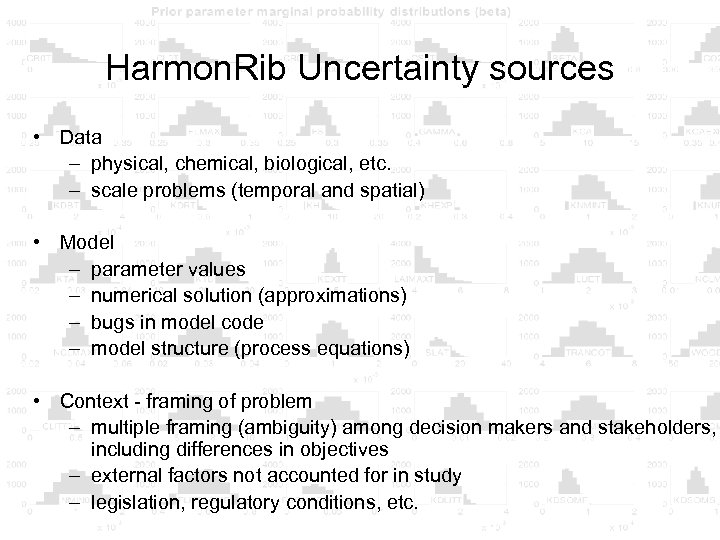

Harmon. Rib Uncertainty sources • Data – physical, chemical, biological, etc. – scale problems (temporal and spatial) • Model – parameter values – numerical solution (approximations) – bugs in model code – model structure (process equations) • Context - framing of problem – multiple framing (ambiguity) among decision makers and stakeholders, including differences in objectives – external factors not accounted for in study – legislation, regulatory conditions, etc.

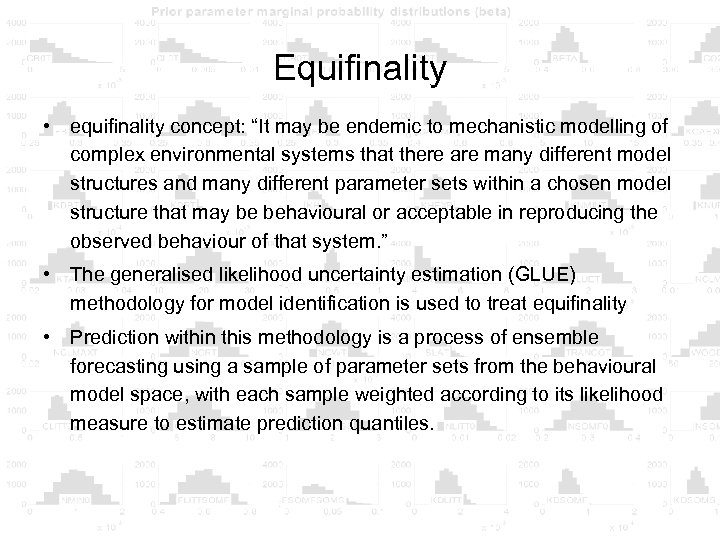

Equifinality • equifinality concept: “It may be endemic to mechanistic modelling of complex environmental systems that there are many different model structures and many different parameter sets within a chosen model structure that may be behavioural or acceptable in reproducing the observed behaviour of that system. ” • The generalised likelihood uncertainty estimation (GLUE) methodology for model identification is used to treat equifinality • Prediction within this methodology is a process of ensemble forecasting using a sample of parameter sets from the behavioural model space, with each sample weighted according to its likelihood measure to estimate prediction quantiles.

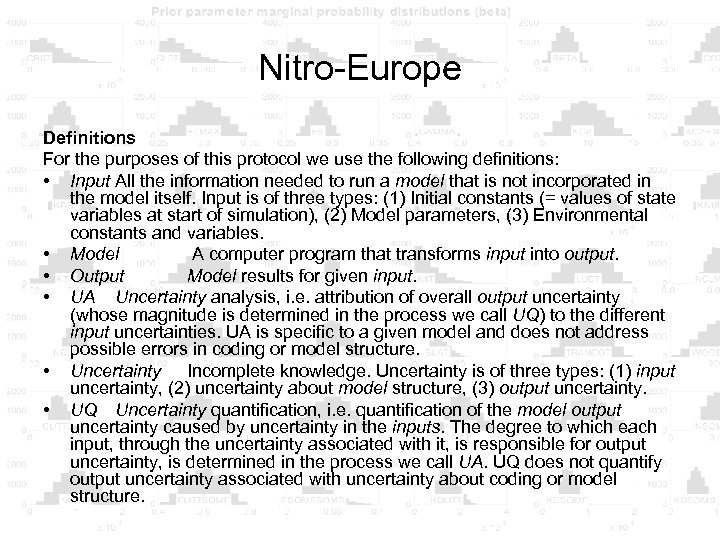

Nitro-Europe Definitions For the purposes of this protocol we use the following definitions: • Input All the information needed to run a model that is not incorporated in the model itself. Input is of three types: (1) Initial constants (= values of state variables at start of simulation), (2) Model parameters, (3) Environmental constants and variables. • Model A computer program that transforms input into output. • Output Model results for given input. • UA Uncertainty analysis, i. e. attribution of overall output uncertainty (whose magnitude is determined in the process we call UQ) to the different input uncertainties. UA is specific to a given model and does not address possible errors in coding or model structure. • Uncertainty Incomplete knowledge. Uncertainty is of three types: (1) input uncertainty, (2) uncertainty about model structure, (3) output uncertainty. • UQ Uncertainty quantification, i. e. quantification of the model output uncertainty caused by uncertainty in the inputs. The degree to which each input, through the uncertainty associated with it, is responsible for output uncertainty, is determined in the process we call UA. UQ does not quantify output uncertainty associated with uncertainty about coding or model structure.

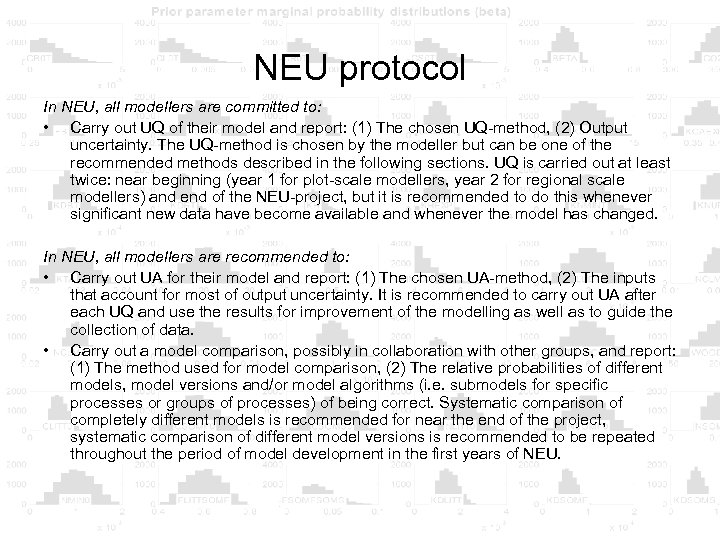

NEU protocol In NEU, all modellers are committed to: • Carry out UQ of their model and report: (1) The chosen UQ-method, (2) Output uncertainty. The UQ-method is chosen by the modeller but can be one of the recommended methods described in the following sections. UQ is carried out at least twice: near beginning (year 1 for plot-scale modellers, year 2 for regional scale modellers) and end of the NEU-project, but it is recommended to do this whenever significant new data have become available and whenever the model has changed. In NEU, all modellers are recommended to: • Carry out UA for their model and report: (1) The chosen UA-method, (2) The inputs that account for most of output uncertainty. It is recommended to carry out UA after each UQ and use the results for improvement of the modelling as well as to guide the collection of data. • Carry out a model comparison, possibly in collaboration with other groups, and report: (1) The method used for model comparison, (2) The relative probabilities of different models, model versions and/or model algorithms (i. e. submodels for specific processes or groups of processes) of being correct. Systematic comparison of completely different models is recommended for near the end of the project, systematic comparison of different model versions is recommended to be repeated throughout the period of model development in the first years of NEU.

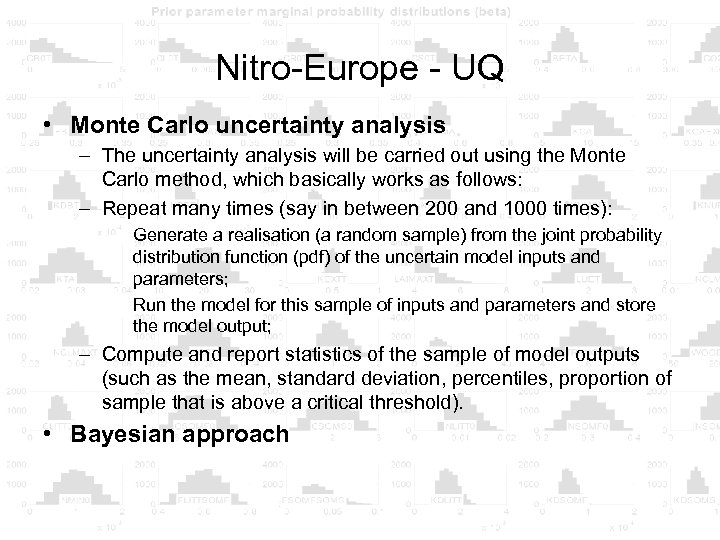

Nitro-Europe - UQ • Monte Carlo uncertainty analysis – The uncertainty analysis will be carried out using the Monte Carlo method, which basically works as follows: – Repeat many times (say in between 200 and 1000 times): Generate a realisation (a random sample) from the joint probability distribution function (pdf) of the uncertain model inputs and parameters; Run the model for this sample of inputs and parameters and store the model output; – Compute and report statistics of the sample of model outputs (such as the mean, standard deviation, percentiles, proportion of sample that is above a critical threshold). • Bayesian approach

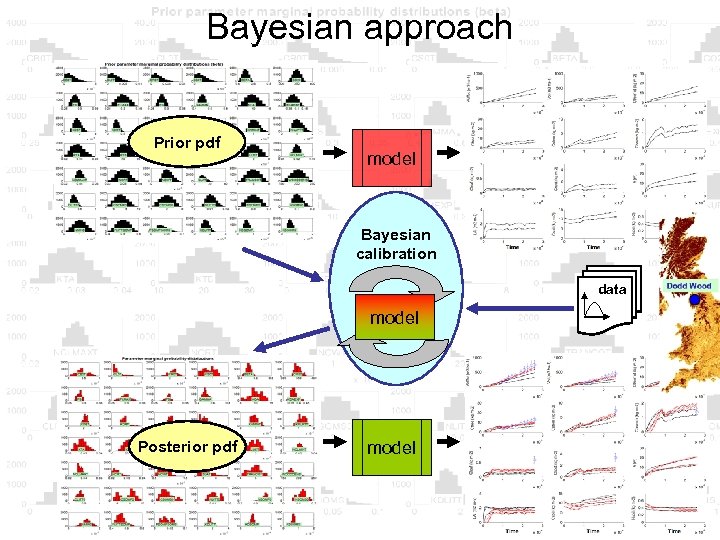

Bayesian approach Prior pdf model Bayesian calibration data model Posterior pdf model

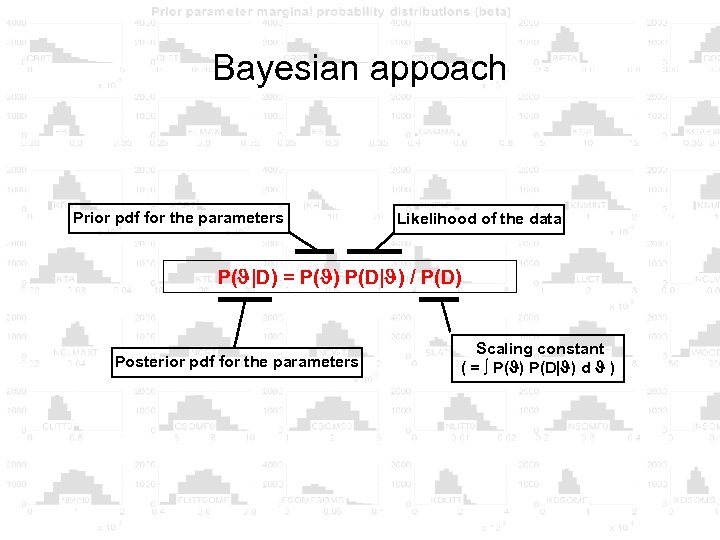

Bayesian appoach Prior pdf for the parameters Likelihood of the data P( |D) = P( ) P(D| ) / P(D) Posterior pdf for the parameters Scaling constant ( = ∫ P( ) P(D| ) d )

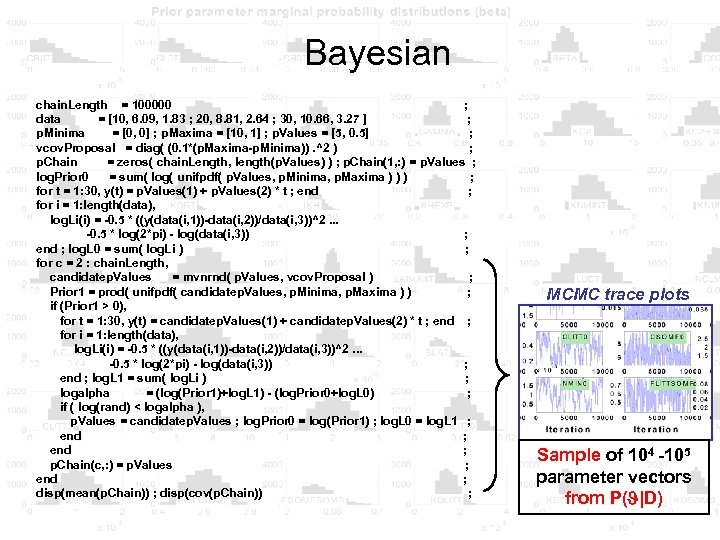

Bayesian chain. Length = 100000 ; data = [10, 6. 09, 1. 83 ; 20, 8. 81, 2. 64 ; 30, 10. 66, 3. 27 ] ; p. Minima = [0, 0] ; p. Maxima = [10, 1] ; p. Values = [5, 0. 5] ; vcov. Proposal = diag( (0. 1*(p. Maxima-p. Minima)). ^2 ) ; p. Chain = zeros( chain. Length, length(p. Values) ) ; p. Chain(1, : ) = p. Values ; log. Prior 0 = sum( log( unifpdf( p. Values, p. Minima, p. Maxima ) ) ) ; for t = 1: 30, y(t) = p. Values(1) + p. Values(2) * t ; end ; for i = 1: length(data), log. Li(i) = -0. 5 * ((y(data(i, 1))-data(i, 2))/data(i, 3))^2. . . -0. 5 * log(2*pi) - log(data(i, 3)) ; end ; log. L 0 = sum( log. Li ) ; for c = 2 : chain. Length, candidatep. Values = mvnrnd( p. Values, vcov. Proposal ) ; Prior 1 = prod( unifpdf( candidatep. Values, p. Minima, p. Maxima ) ) ; if (Prior 1 > 0), for t = 1: 30, y(t) = candidatep. Values(1) + candidatep. Values(2) * t ; end ; for i = 1: length(data), log. Li(i) = -0. 5 * ((y(data(i, 1))-data(i, 2))/data(i, 3))^2. . . -0. 5 * log(2*pi) - log(data(i, 3)) ; end ; log. L 1 = sum( log. Li ) ; logalpha = (log(Prior 1)+log. L 1) - (log. Prior 0+log. L 0) ; if ( log(rand) < logalpha ), p. Values = candidatep. Values ; log. Prior 0 = log(Prior 1) ; log. L 0 = log. L 1 ; end ; p. Chain(c, : ) = p. Values ; end ; disp(mean(p. Chain)) ; disp(cov(p. Chain)) ; MCMC trace plots Sample of 104 -105 parameter vectors from P( |D)

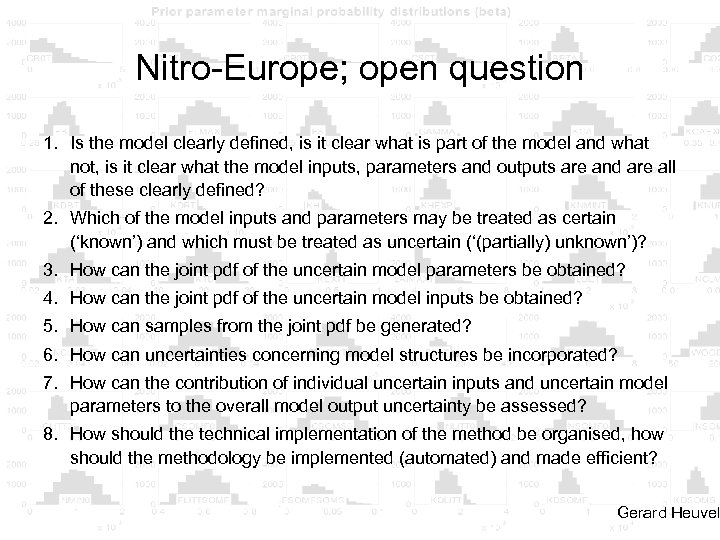

Nitro-Europe; open question 1. Is the model clearly defined, is it clear what is part of the model and what not, is it clear what the model inputs, parameters and outputs are and are all of these clearly defined? 2. Which of the model inputs and parameters may be treated as certain (‘known’) and which must be treated as uncertain (‘(partially) unknown’)? 3. How can the joint pdf of the uncertain model parameters be obtained? 4. How can the joint pdf of the uncertain model inputs be obtained? 5. How can samples from the joint pdf be generated? 6. How can uncertainties concerning model structures be incorporated? 7. How can the contribution of individual uncertain inputs and uncertain model parameters to the overall model output uncertainty be assessed? 8. How should the technical implementation of the method be organised, how should the methodology be implemented (automated) and made efficient? Gerard Heuvel

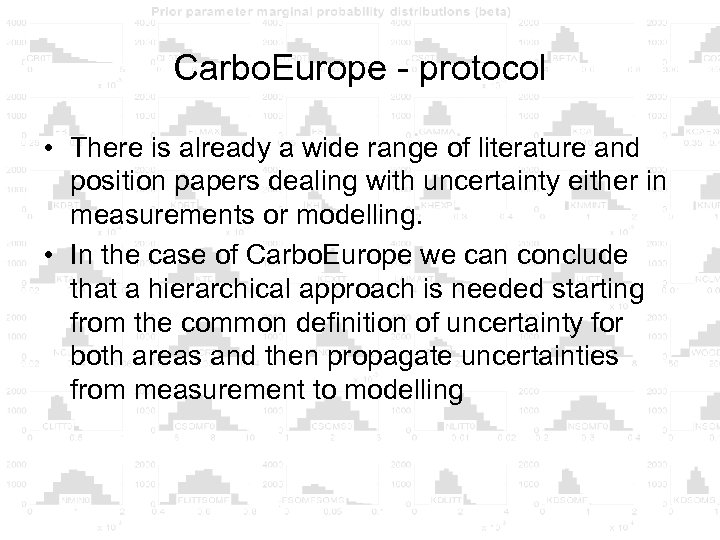

Carbo. Europe - protocol • There is already a wide range of literature and position papers dealing with uncertainty either in measurements or modelling. • In the case of Carbo. Europe we can conclude that a hierarchical approach is needed starting from the common definition of uncertainty for both areas and then propagate uncertainties from measurement to modelling

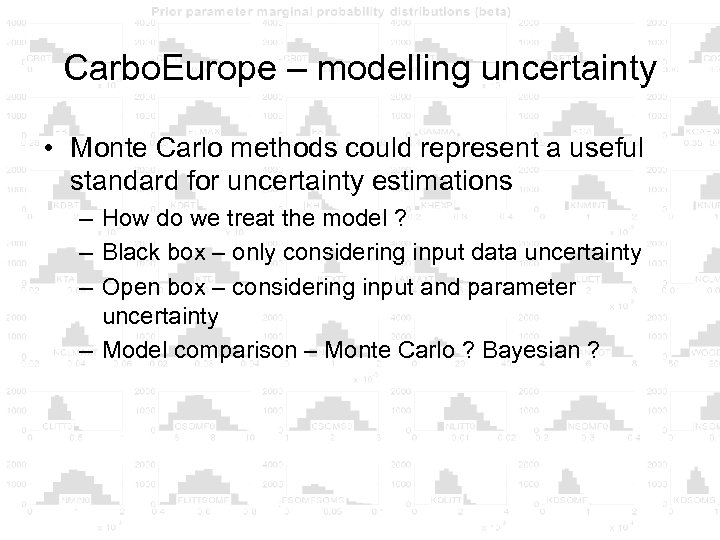

Carbo. Europe – modelling uncertainty • Monte Carlo methods could represent a useful standard for uncertainty estimations – How do we treat the model ? – Black box – only considering input data uncertainty – Open box – considering input and parameter uncertainty – Model comparison – Monte Carlo ? Bayesian ?

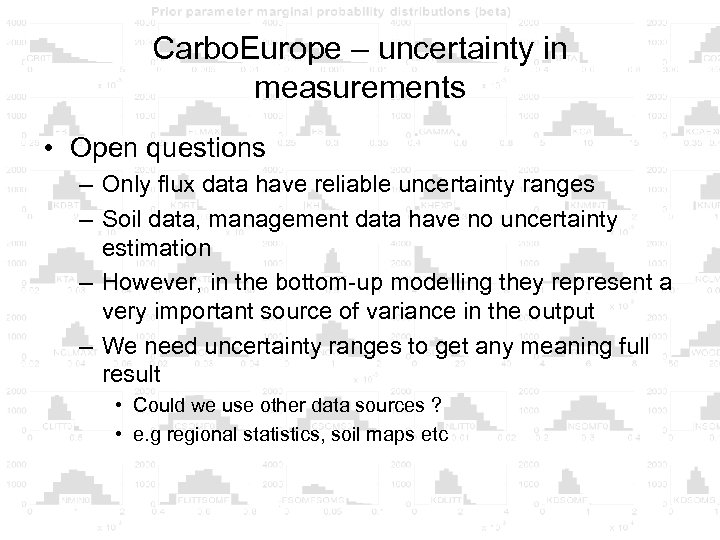

Carbo. Europe – uncertainty in measurements • Open questions – Only flux data have reliable uncertainty ranges – Soil data, management data have no uncertainty estimation – However, in the bottom-up modelling they represent a very important source of variance in the output – We need uncertainty ranges to get any meaning full result • Could we use other data sources ? • e. g regional statistics, soil maps etc

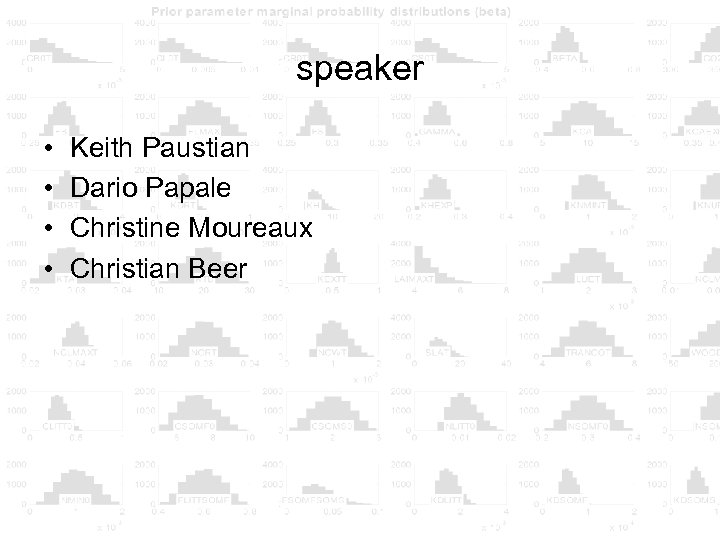

speaker • • Keith Paustian Dario Papale Christine Moureaux Christian Beer

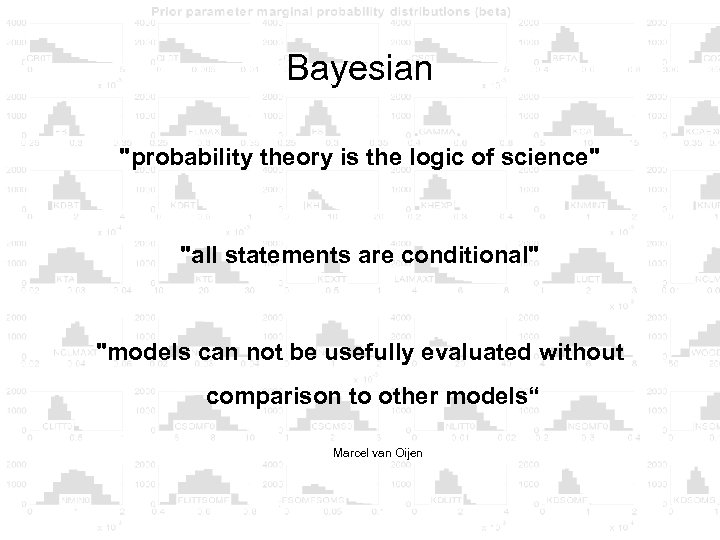

Bayesian "probability theory is the logic of science" "all statements are conditional" "models can not be usefully evaluated without comparison to other models“ Marcel van Oijen

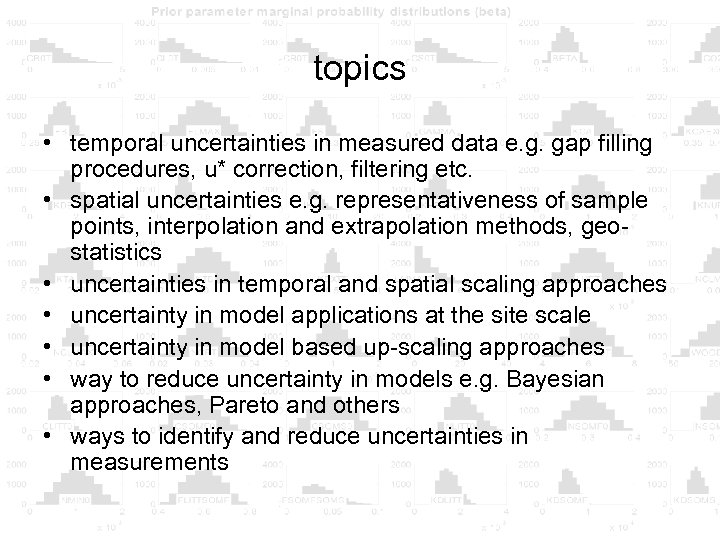

topics • temporal uncertainties in measured data e. g. gap filling procedures, u* correction, filtering etc. • spatial uncertainties e. g. representativeness of sample points, interpolation and extrapolation methods, geostatistics • uncertainties in temporal and spatial scaling approaches • uncertainty in model applications at the site scale • uncertainty in model based up-scaling approaches • way to reduce uncertainty in models e. g. Bayesian approaches, Pareto and others • ways to identify and reduce uncertainties in measurements
