Ultra. Wide Band Architecture For Windows Fred Bhesania Program Manager Windows Device Experience Group Microsoft Corporation PG Madhavan Architect Wireless Networking Group Microsoft Corporation

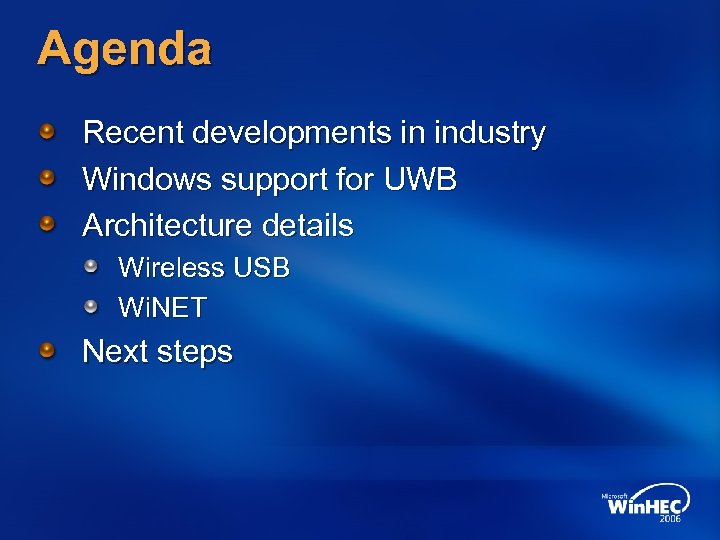

Agenda Recent developments in industry Windows support for UWB Architecture details Wireless USB Wi. NET Next steps

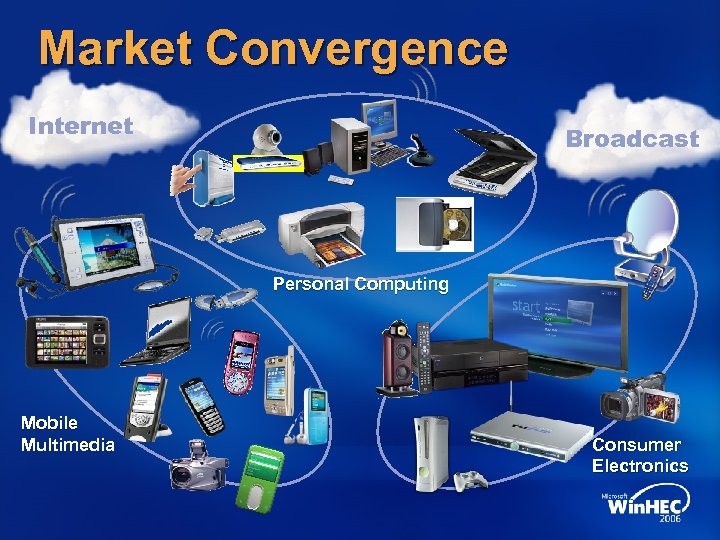

Market Convergence Internet Broadcast Personal Computing Mobile Multimedia Consumer Electronics

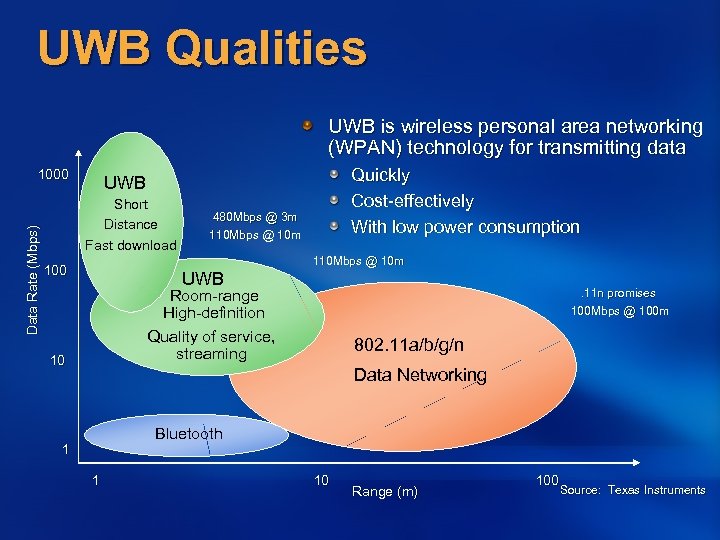

UWB Qualities UWB is wireless personal area networking (WPAN) technology for transmitting data Data Rate (Mbps) 1000 Quickly Cost-effectively With low power consumption UWB Short Distance Fast download 480 Mbps @ 3 m 110 Mbps @ 10 m 100 UWB . 11 n promises 100 Mbps @ 100 m Room-range High-definition Quality of service, streaming 10 802. 11 a/b/g/n Data Networking Bluetooth 1 1 10 Range (m) 100 Source: Texas Instruments
Stephen Wood Technology Strategist Corporate Technology Group Intel Corporation
Wi. Media In Press “Freescale Pulls Out Of UWB Forum To Focus On "Cable Free" Source: Extreme. Tech – April ’ 06 Le. Croy Announces Interchangeable Radio for its Wi. Media Ultra-Wideband Protocol Analysis Source: Business. Wire – March ’ 06 “A single Chipset for Global UWB” Source: Wifi Planet – February ’ 06 “Focus Enhancements Tapes-Out Digital Chip for Talaria“CSR, Le. Croy endorse Wi. Media Ultra Wideband Technology Chipset” Source: Market. Wire – March ’ 06 “Wi. Quest Unveils Wireless USB PCI Express Mini Card” Source: NDTV – March ‘ 06 UWB ” March ‘ 06 “Ultrawideband to Add New Wireless Options” Source: Tid. Bits – April ’ 06

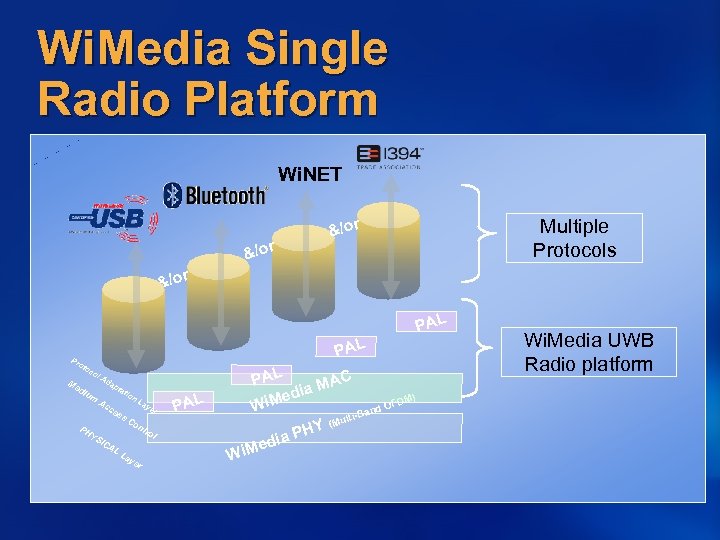

Wi. Media Single Radio Platform Wi. NET Multiple Protocols &/or PAL Pr PAL oto co Me diu m l. A da p Ac tat ce ion PH YS ss La Co n ye IC AL L tro r ay er l PAL AC a. M di i. Me W Y a PH lti (Mu ) FDM d. O -Ban Wi. Media UWB Radio platform

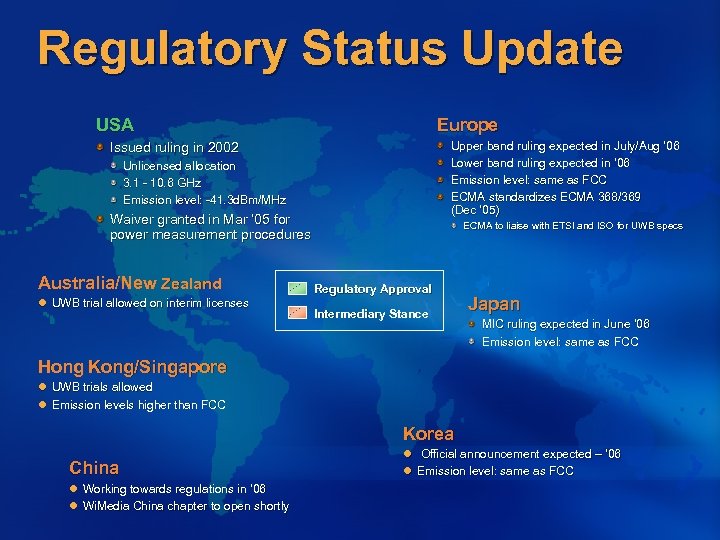

Regulatory Status Update USA Europe Upper band ruling expected in July/Aug ’ 06 Lower band ruling expected in ‘ 06 Emission level: same as FCC ECMA standardizes ECMA 368/369 (Dec ‘ 05) Issued ruling in 2002 Unlicensed allocation 3. 1 - 10. 6 GHz Emission level: -41. 3 d. Bm/MHz Waiver granted in Mar ’ 05 for power measurement procedures Australia/New Zealand l UWB trial allowed on interim licenses ECMA to liaise with ETSI and ISO for UWB specs Regulatory Approval Intermediary Stance Japan MIC ruling expected in June ’ 06 Emission level: same as FCC Hong Kong/Singapore l UWB trials allowed l Emission levels higher than FCC Korea China l Working towards regulations in ’ 06 l Wi. Media China chapter to open shortly l Official announcement expected – ’ 06 l Emission level: same as FCC

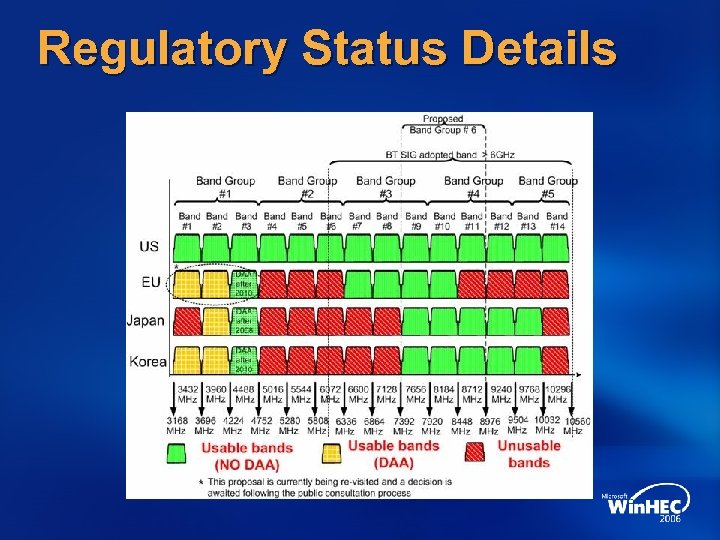

Regulatory Status Details

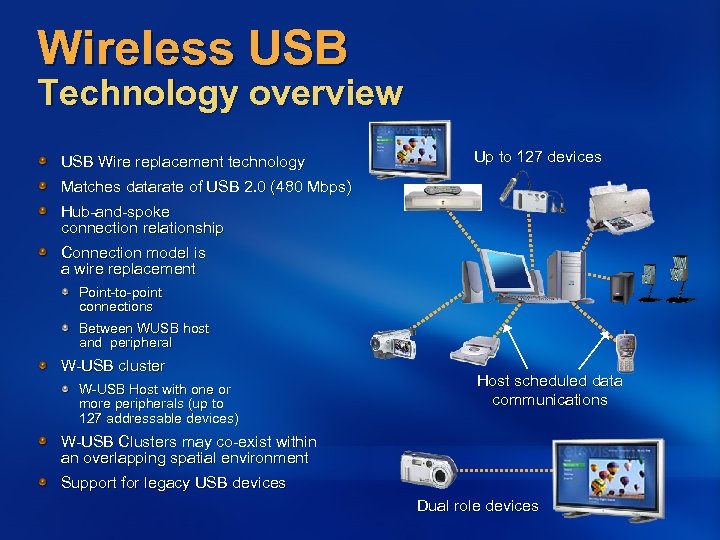

Wireless USB Technology overview USB Wire replacement technology Up to 127 devices Matches datarate of USB 2. 0 (480 Mbps) Hub-and-spoke connection relationship Connection model is a wire replacement Point-to-point connections Between WUSB host and peripheral W-USB cluster W-USB Host with one or more peripherals (up to 127 addressable devices) Host scheduled data communications W-USB Clusters may co-exist within an overlapping spatial environment Support for legacy USB devices Dual role devices

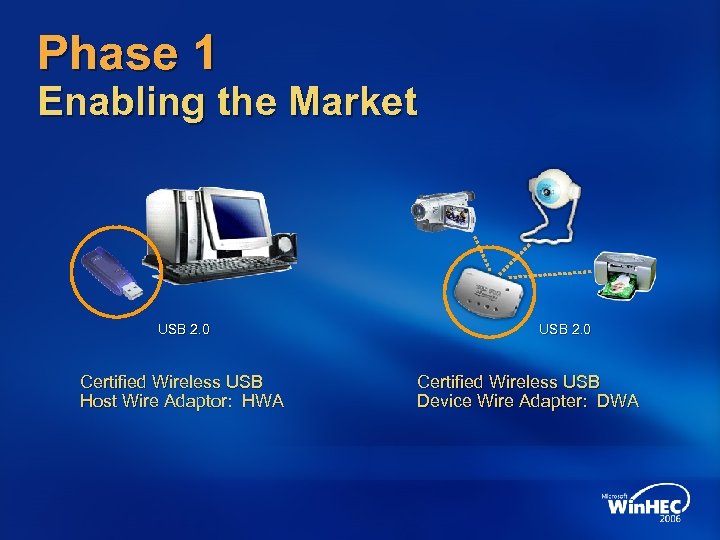

Phase 1 Enabling the Market USB 2. 0 Certified Wireless USB Host Wire Adaptor: HWA USB 2. 0 Certified Wireless USB Device Wire Adapter: DWA

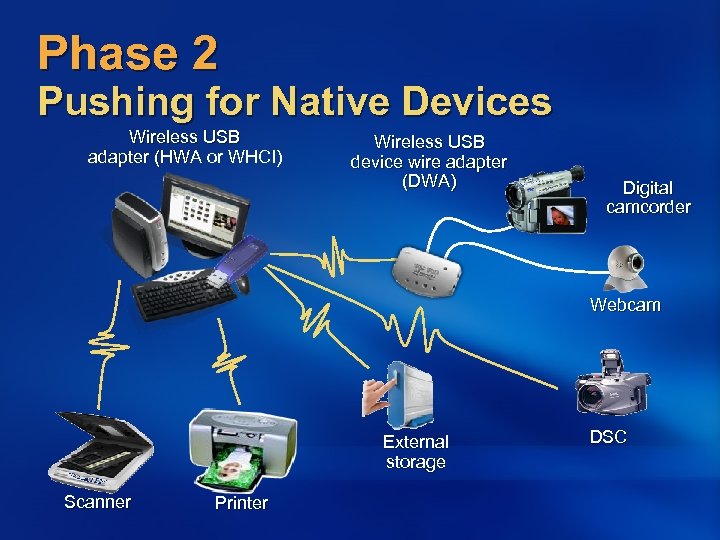

Phase 2 Pushing for Native Devices Wireless USB adapter (HWA or WHCI) Wireless USB device wire adapter (DWA) Digital camcorder Webcam External storage Scanner Printer DSC

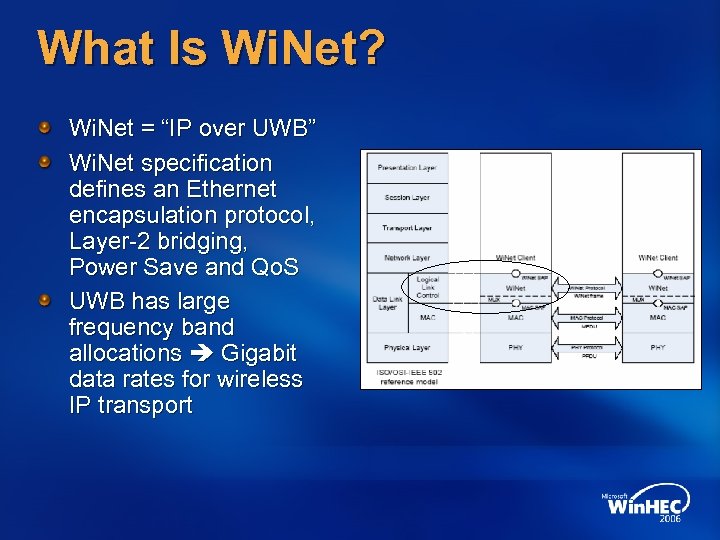

What Is Wi. Net? Wi. Net = “IP over UWB” Wi. Net specification defines an Ethernet encapsulation protocol, Layer-2 bridging, Power Save and Qo. S UWB has large frequency band allocations Gigabit data rates for wireless IP transport

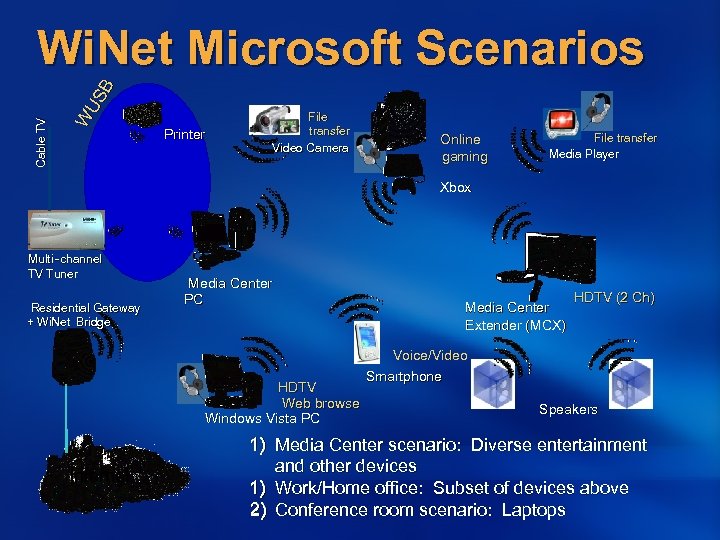

W US B Cable TV Wi. Net Microsoft Scenarios Printer File transfer Video Camera Online gaming File transfer Media Player Xbox Multi - channel TV Tuner Residential Gateway + Wi. Net Bridge Media Center PC Media Center Extender (MCX) HDTV (2 Ch) Voice/Video HDTV Web browse Windows Vista PC Internet Smartphone Speakers 1) Media Center scenario: Diverse entertainment and other devices 1) Work/Home office: Subset of devices above 2) Conference room scenario: Laptops

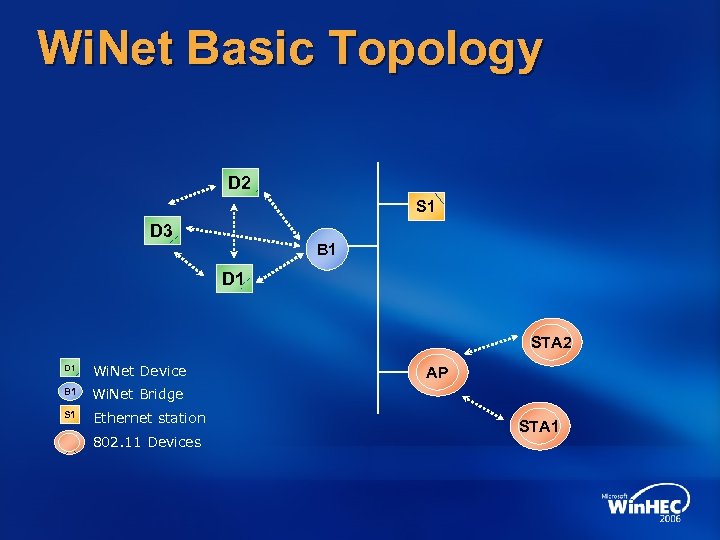

Wi. Net Basic Topology D 2 S 1 D 3 B 1 D 1 STA 2 D 1 Wi. Net Device B 1 Wi. Net Bridge S 1 Ethernet station 802. 11 Devices AP STA 1

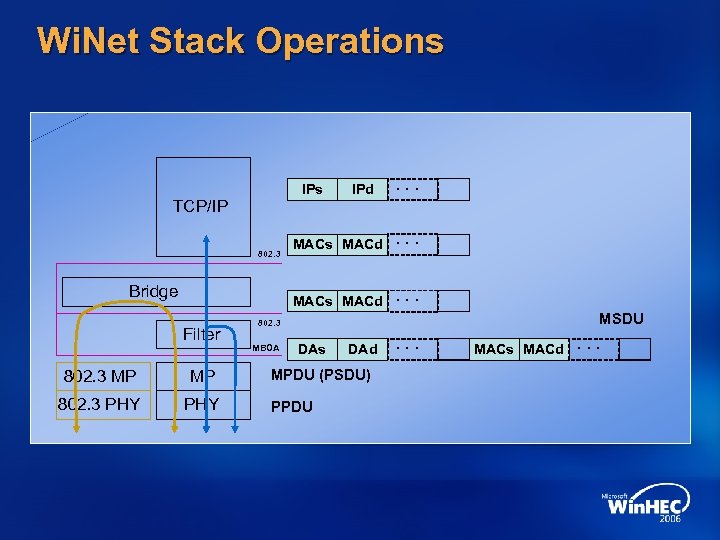

Wi. Net Stack Operations IPa TCP/IP IPd IPb . . . Bridge Filter 802. 3 MP MP 802. 3 PHY MACs MACd MACa MACb . . . MACa MACb MACs MACd 802. 3 . . . MSDU 802. 3 MBOA DAs DAa DAd DAb MPDU (PSDU) PPDU . . . MACs MACd MACa MACb . . .

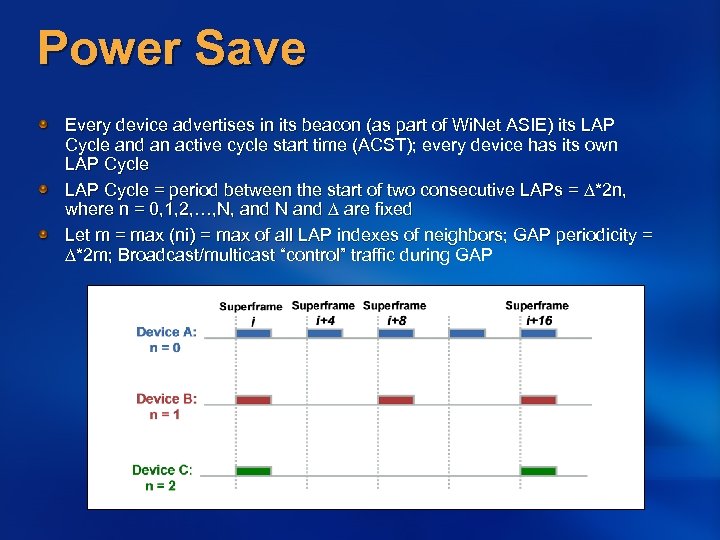

Power Save Every device advertises in its beacon (as part of Wi. Net ASIE) its LAP Cycle and an active cycle start time (ACST); every device has its own LAP Cycle = period between the start of two consecutive LAPs = ∆*2 n, where n = 0, 1, 2, …, N, and N and ∆ are fixed Let m = max (ni) = max of all LAP indexes of neighbors; GAP periodicity = ∆*2 m; Broadcast/multicast “control” traffic during GAP

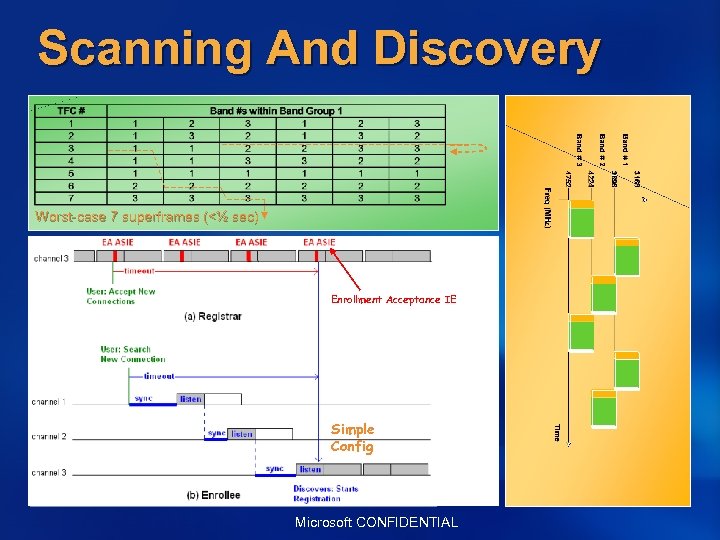

Scanning And Discovery Worst-case 7 superframes (<½ sec) Enrollment Acceptance IE Simple Config Microsoft CONFIDENTIAL

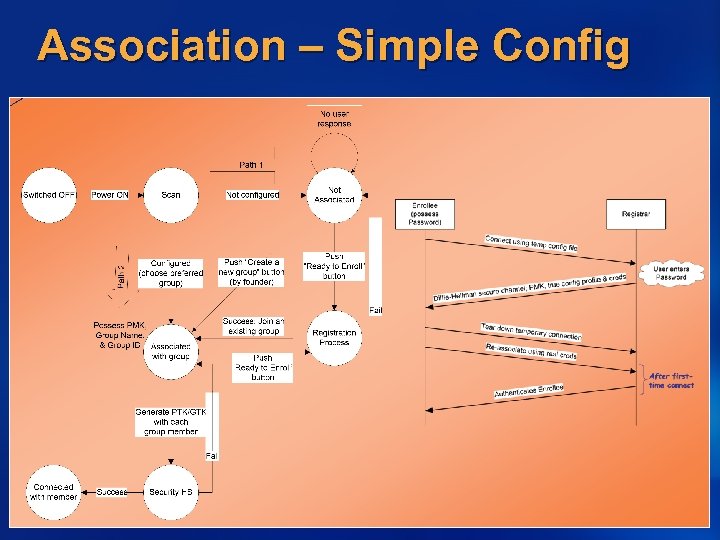

Association – Simple Config

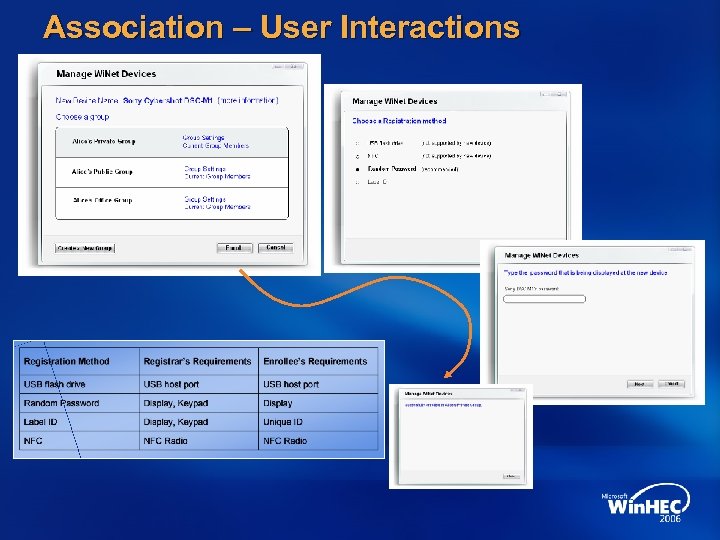

Association – User Interactions
Wi. Net Architecture UI MS App IHV App Legend UWB Radio Windows Software Wireless Auto Config IHV Software MSM User Mode Kernel Mode TCP/IP Stack Wi. Net Filter Driver Wireless USB Stack Industry Standard WUSB Interface WUSB Host Controller (WHCI) UWB Radio Controller Driver UWB Radio Controller (URCI) IHV Miniport Driver Industry Standard Wi. Net Interface Wi. Net Host Controller (Winet HCI) MAC and Convergence Layer UWB Radio PHY NDIS WHQL Test Interface B WHQL Wi. Net HCI Test Interface A Vendor specific HCI Extensions
Wi. Net-WUSB Combo Architecture Legend USB Client Driver + Software TCP/IP Stack PC Radio Components Wi. Net Filter Driver USB Core Stack System Software Hardware Wi. Net Host Controller Miniport UWB Radio Controller Driver Winet Radio Controller (Winet. RCI) UWB Radio Controller (URCI) WUSB Host Controller Miniport Wireless USB Host Controller (WHCI) MAC and Convergence Layer UWB Radio PHY PEER Wi. Net Device Hardware PEER WUSB Device Hardware UWB PC side Radio Hardware

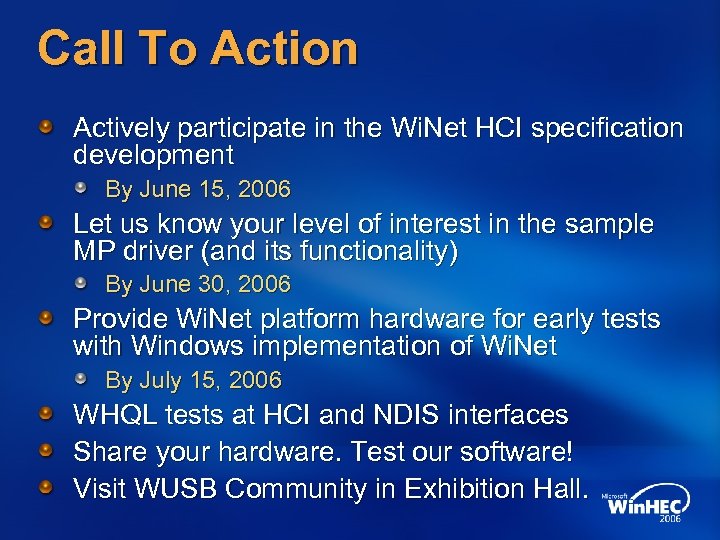

Call To Action Actively participate in the Wi. Net HCI specification development By June 15, 2006 Let us know your level of interest in the sample MP driver (and its functionality) By June 30, 2006 Provide Wi. Net platform hardware for early tests with Windows implementation of Wi. Net By July 15, 2006 WHQL tests at HCI and NDIS interfaces Share your hardware. Test our software! Visit WUSB Community in Exhibition Hall.

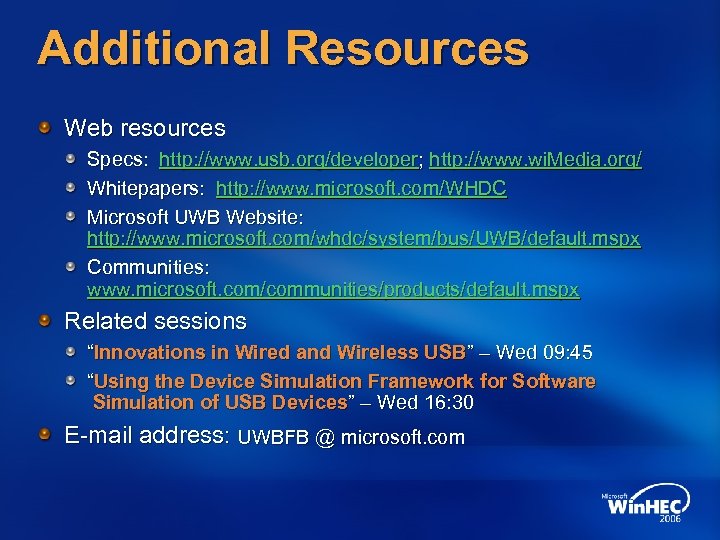

Additional Resources Web resources Specs: http: //www. usb. org/developer; http: //www. wi. Media. org/ Whitepapers: http: //www. microsoft. com/WHDC Microsoft UWB Website: http: //www. microsoft. com/whdc/system/bus/UWB/default. mspx Communities: www. microsoft. com/communities/products/default. mspx Related sessions “Innovations in Wired and Wireless USB” – Wed 09: 45 “Using the Device Simulation Framework for Software Simulation of USB Devices” – Wed 16: 30 E-mail address: UWBFB @ microsoft. com

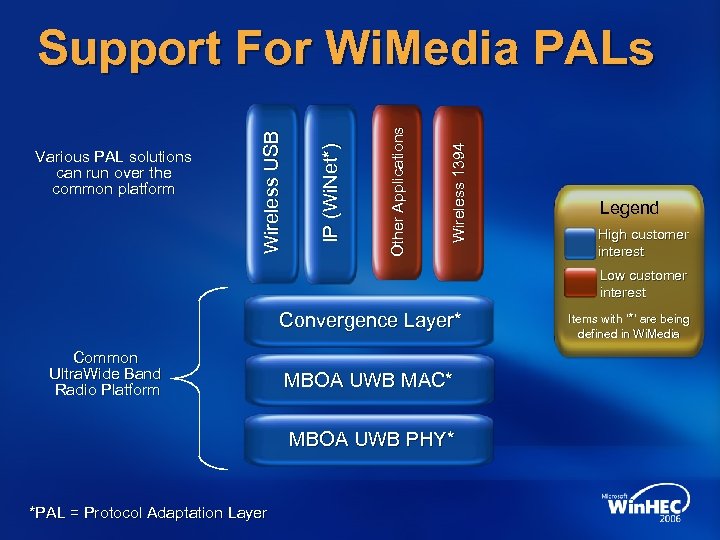

Wireless 1394 Other Applications IP (Wi. Net*) Various PAL solutions can run over the common platform Wireless USB Support For Wi. Media PALs Legend High customer interest Low customer interest Convergence Layer* Common Ultra. Wide Band Radio Platform MBOA UWB MAC* MBOA UWB PHY* *PAL = Protocol Adaptation Layer Items with ‘*’ are being defined in Wi. Media

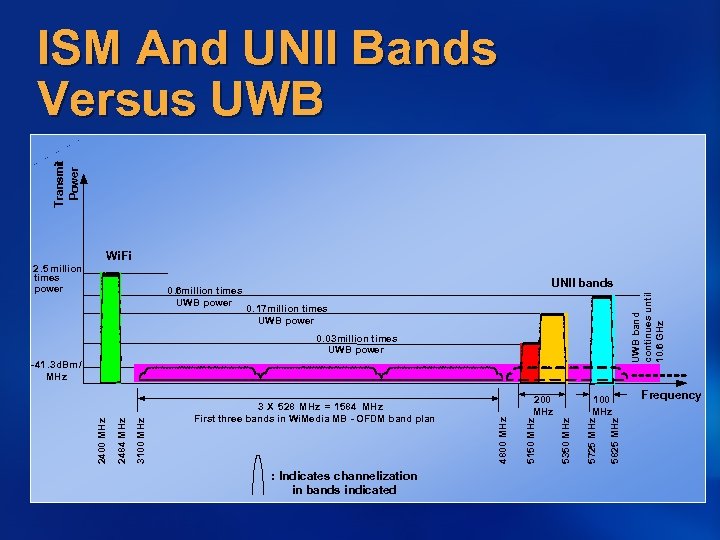

Transmit Power ISM And UNII Bands Versus UWB Wi. Fi 0. 6 million times UWB power UNII bands UWB band continues until 10. 6 GHz 2. 5 million times power 0. 17 million times UWB power 0. 03 million times UWB power : Indicates channelization in bands indicated 5825 MHz 5725 MHz 100 MHz 5350 MHz 200 MHz 5150 MHz 3 X 528 MHz = 1584 MHz First three bands in Wi. Media MB - OFDM band plan 4800 MHz 3100 MHz 2484 MHz 2400 MHz -41. 3 d. Bm / MHz Frequency
