Ultra High-end MPX-Series Net Scaler Appliances Datacenters

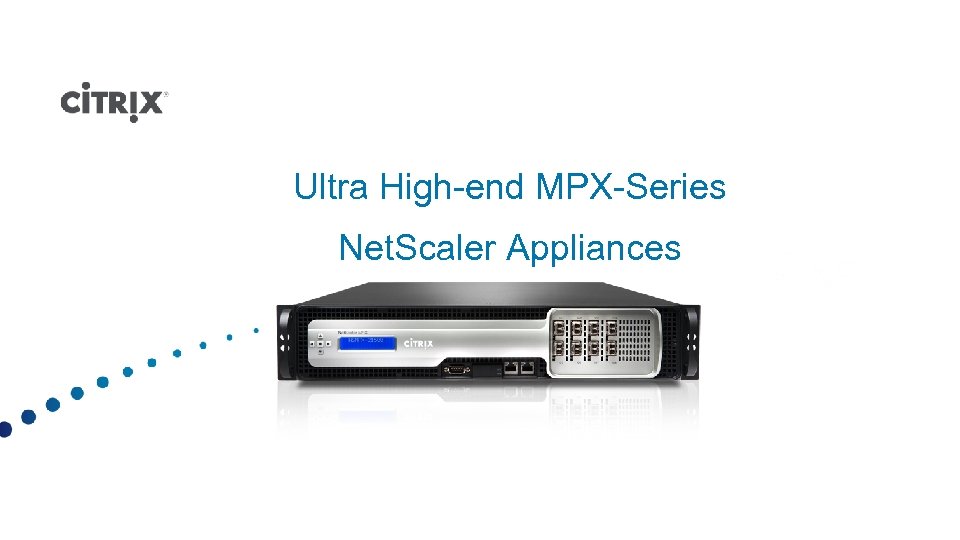

Ultra High-end MPX-Series Net. Scaler Appliances

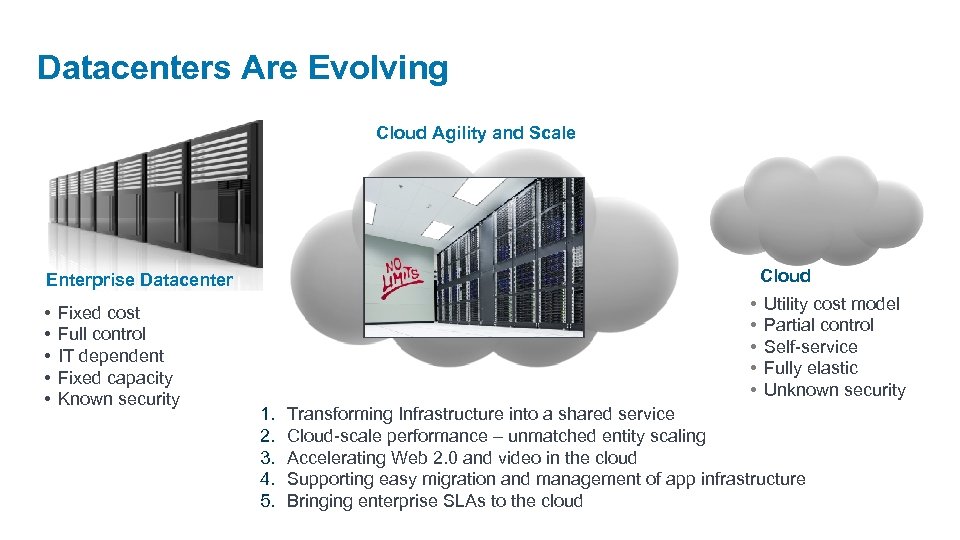

Datacenters Are Evolving Cloud Agility and Scale Cloud Enterprise Datacenter • • • Fixed cost Full control IT dependent Fixed capacity Known security • • • 1. 2. 3. 4. 5. Utility cost model Partial control Self-service Fully elastic Unknown security Transforming Infrastructure into a shared service Cloud-scale performance – unmatched entity scaling Accelerating Web 2. 0 and video in the cloud Supporting easy migration and management of app infrastructure Bringing enterprise SLAs to the cloud

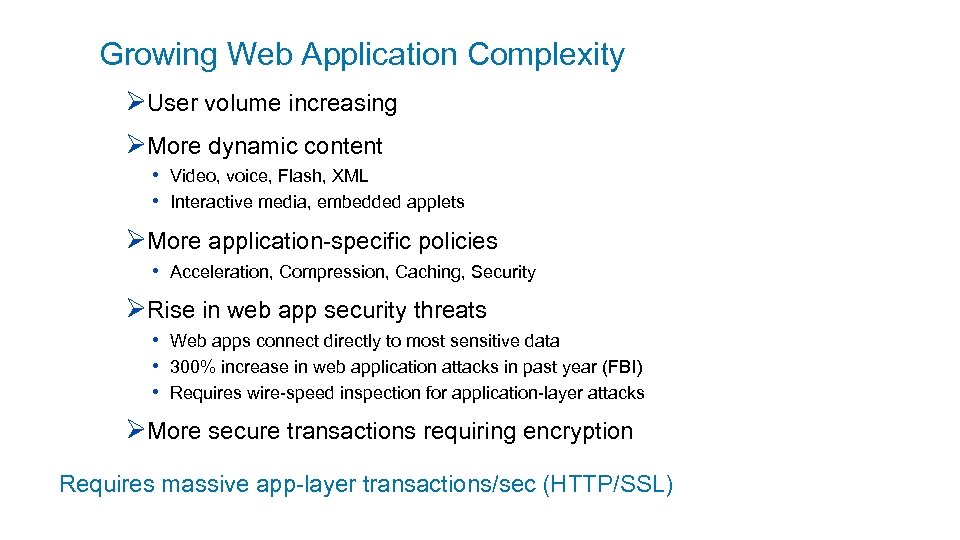

Growing Web Application Complexity ØUser volume increasing ØMore dynamic content • Video, voice, Flash, XML • Interactive media, embedded applets ØMore application-specific policies • Acceleration, Compression, Caching, Security ØRise in web app security threats • Web apps connect directly to most sensitive data • 300% increase in web application attacks in past year (FBI) • Requires wire-speed inspection for application-layer attacks ØMore secure transactions requiring encryption Requires massive app-layer transactions/sec (HTTP/SSL)

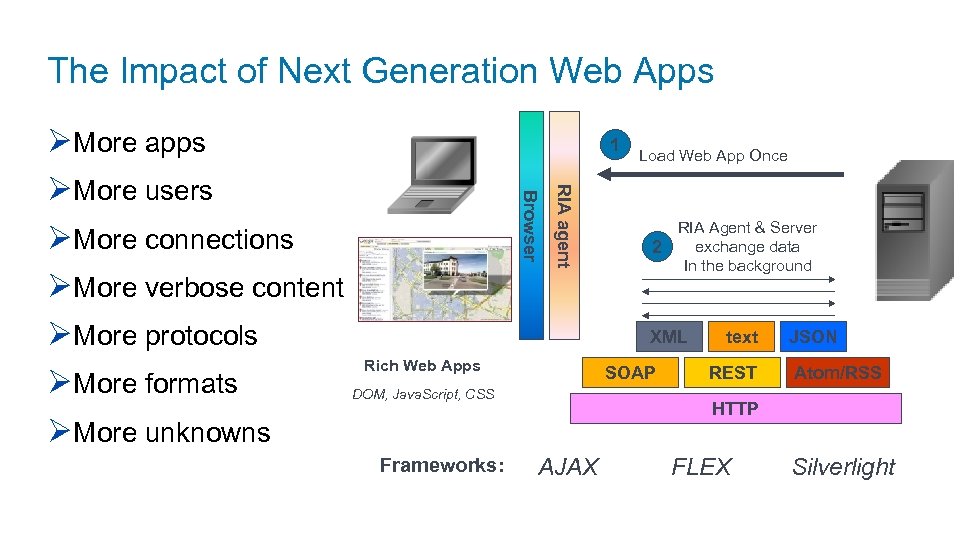

The Impact of Next Generation Web Apps RIA agent Frameworks: 1 Browser ØMore apps ØMore users ØMore connections ØMore verbose content ØMore protocols Rich Web Apps ØMore formats DOM, Java. Script, CSS ØMore unknowns Load Web App Once RIA Agent & Server exchange data 2 In the background XML SOAP text REST JSON Atom/RSS HTTP AJAX FLEX Silverlight

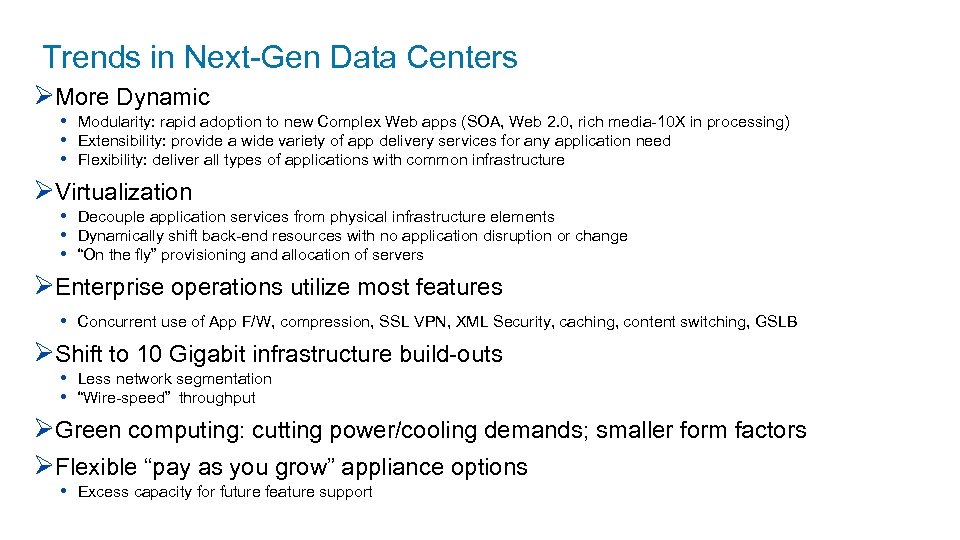

Trends in Next-Gen Data Centers ØMore Dynamic • Modularity: rapid adoption to new Complex Web apps (SOA, Web 2. 0, rich media-10 X in processing) • Extensibility: provide a wide variety of app delivery services for any application need • Flexibility: deliver all types of applications with common infrastructure ØVirtualization • Decouple application services from physical infrastructure elements • Dynamically shift back-end resources with no application disruption or change • “On the fly” provisioning and allocation of servers ØEnterprise operations utilize most features • Concurrent use of App F/W, compression, SSL VPN, XML Security, caching, content switching, GSLB ØShift to 10 Gigabit infrastructure build-outs • Less network segmentation • “Wire-speed” throughput ØGreen computing: cutting power/cooling demands; smaller form factors ØFlexible “pay as you grow” appliance options • Excess capacity for future feature support

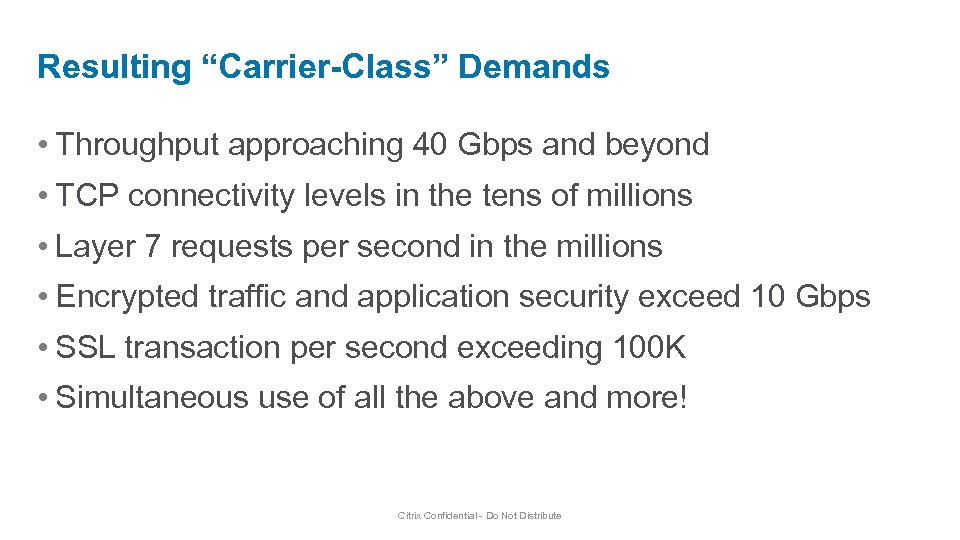

Resulting “Carrier-Class” Demands • Throughput approaching 40 Gbps and beyond • TCP connectivity levels in the tens of millions • Layer 7 requests per second in the millions • Encrypted traffic and application security exceed 10 Gbps • SSL transaction per second exceeding 100 K • Simultaneous use of all the above and more! Citrix Confidential - Do Not Distribute

MPX Series Application Delivery Controllers MPX 5500 ØHighest performance to price for all throughput levels MPX 7500 and MPX 9500 MPX 10500/12500/15500 ØFull concurrent use of all Net. Scaler functional modulesincluding Platinum Edition ØGranular throughput offerings: from 500 Mbps to 50 Gbps ØMaximum scalability with multi- core architectural design and “pay as you grow option” MPX 17500/19500/21500 ØLowest ADC total cost of ownership

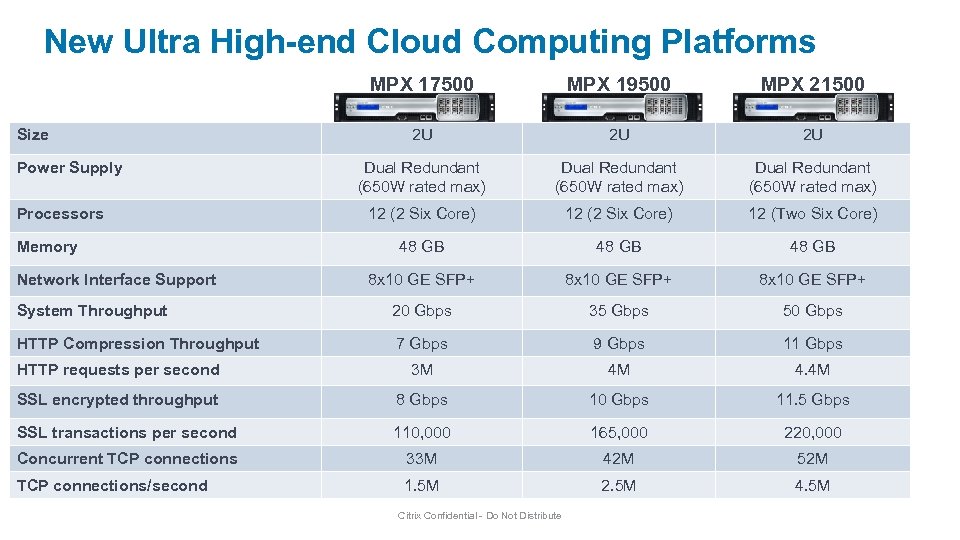

New Ultra High-end Cloud Computing Platforms MPX 17500 MPX 19500 MPX 21500 2 U 2 U 2 U Dual Redundant (650 W rated max) 12 (2 Six Core) 12 (Two Six Core) 48 GB 8 x 10 GE SFP+ System Throughput 20 Gbps 35 Gbps 50 Gbps HTTP Compression Throughput 7 Gbps 9 Gbps 11 Gbps HTTP requests per second 3 M 4 M 4. 4 M SSL encrypted throughput 8 Gbps 10 Gbps 11. 5 Gbps SSL transactions per second 110, 000 165, 000 220, 000 Concurrent TCP connections 33 M 42 M 52 M TCP connections/second 1. 5 M 2. 5 M 4. 5 M Size Power Supply Processors Memory Network Interface Support Citrix Confidential - Do Not Distribute

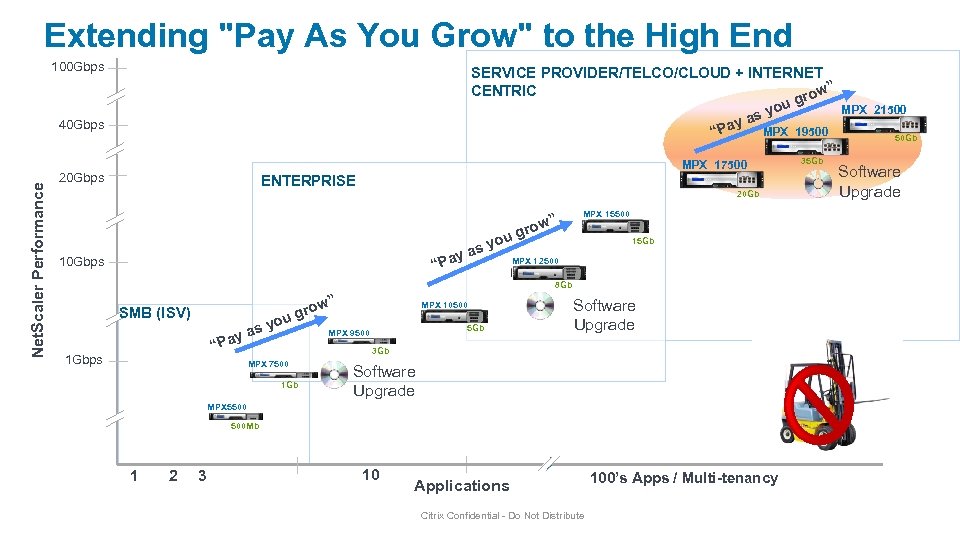

Extending "Pay As You Grow" to the High End 100 Gbps SERVICE PROVIDER/TELCO/CLOUD + INTERNET CENTRIC w” gro ou as y y MPX 19500 “Pa Net. Scaler Performance 40 Gbps MPX 17500 20 Gbps ENTERPRISE 20 Gb u s yo a y “Pa 10 Gbps ” row MPX 15500 g 15 Gb MPX 12500 8 Gb w” MPX 10500 ro ug SMB (ISV) o as y ay “P 1 Gbps MPX 7500 1 Gb 5 Gb MPX 9500 Software Upgrade 3 Gb Software Upgrade MPX 5500 500 Mb 1 2 3 10 Applications Citrix Confidential - Do Not Distribute 100’s Apps / Multi-tenancy 35 Gb MPX 21500 50 Gb Software Upgrade

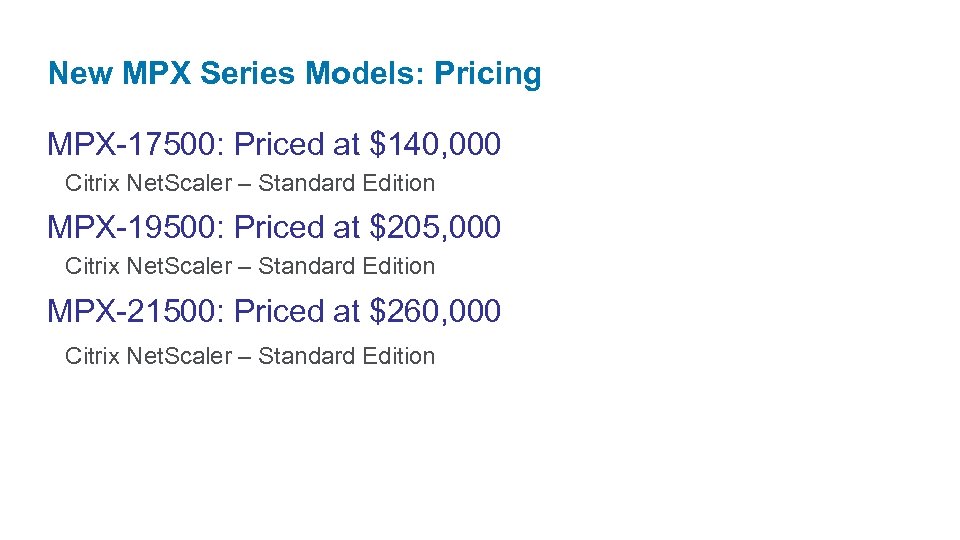

New MPX Series Models: Pricing MPX-17500: Priced at $140, 000 Citrix Net. Scaler – Standard Edition MPX-19500: Priced at $205, 000 Citrix Net. Scaler – Standard Edition MPX-21500: Priced at $260, 000 Citrix Net. Scaler – Standard Edition

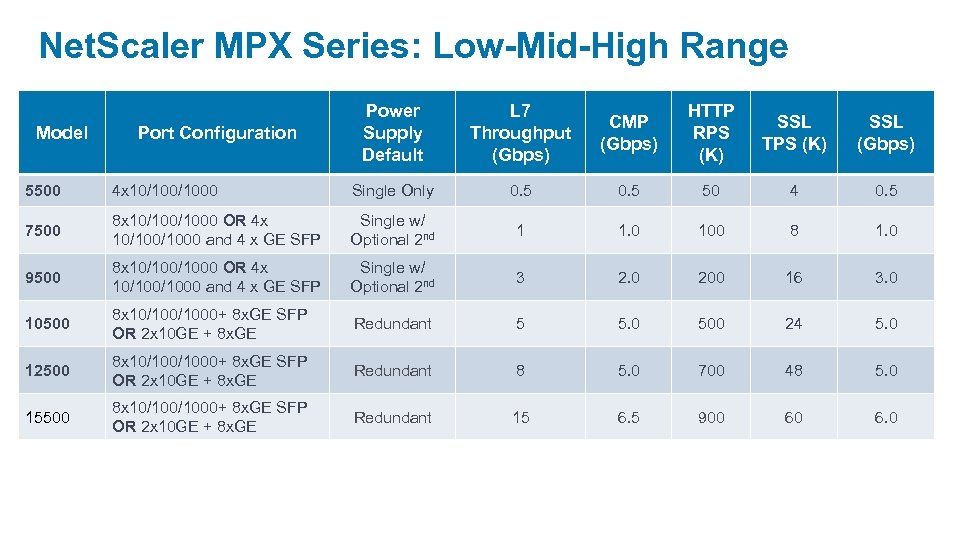

Net. Scaler MPX Series: Low-Mid-High Range Model Port Configuration Power Supply Default L 7 Throughput (Gbps) CMP (Gbps) HTTP RPS (K) SSL TPS (K) SSL (Gbps) 5500 4 x 10/1000 Single Only 0. 5 50 4 0. 5 7500 8 x 10/1000 OR 4 x 10/1000 and 4 x GE SFP Single w/ Optional 2 nd 1 1. 0 100 8 1. 0 9500 8 x 10/1000 OR 4 x 10/1000 and 4 x GE SFP Single w/ Optional 2 nd 3 2. 0 200 16 3. 0 10500 8 x 10/1000+ 8 x. GE SFP OR 2 x 10 GE + 8 x. GE Redundant 5 5. 0 500 24 5. 0 12500 8 x 10/1000+ 8 x. GE SFP OR 2 x 10 GE + 8 x. GE Redundant 8 5. 0 700 48 5. 0 15500 8 x 10/1000+ 8 x. GE SFP OR 2 x 10 GE + 8 x. GE Redundant 15 6. 5 900 60 6. 0

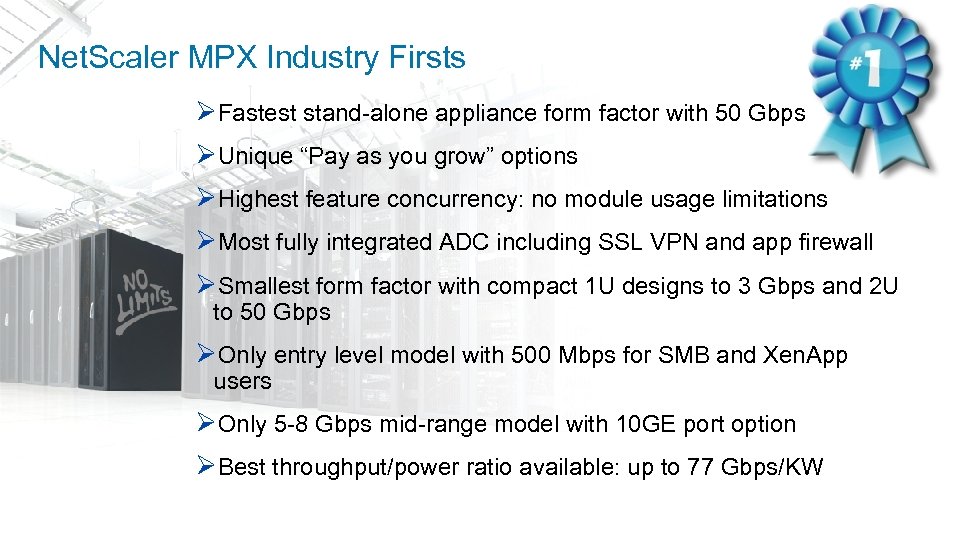

Net. Scaler MPX Industry Firsts ØFastest stand-alone appliance form factor with 50 Gbps ØUnique “Pay as you grow” options ØHighest feature concurrency: no module usage limitations ØMost fully integrated ADC including SSL VPN and app firewall ØSmallest form factor with compact 1 U designs to 3 Gbps and 2 U to 50 Gbps ØOnly entry level model with 500 Mbps for SMB and Xen. App users ØOnly 5 -8 Gbps mid-range model with 10 GE port option ØBest throughput/power ratio available: up to 77 Gbps/KW Citrix Confidential - Do Not Distribute

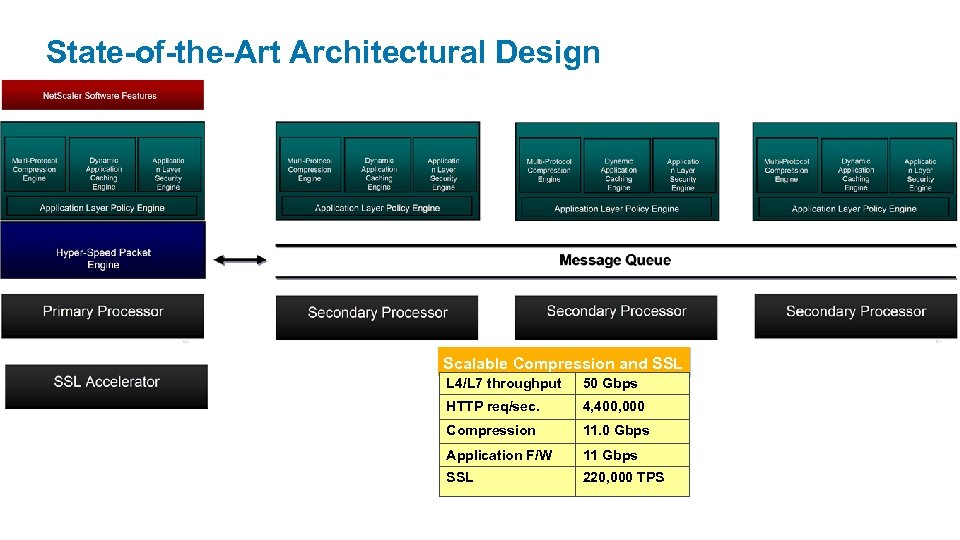

State-of-the-Art Architectural Design Scalable Compression and SSL L 4/L 7 throughput 50 Gbps HTTP req/sec. 4, 400, 000 Compression 11. 0 Gbps Application F/W 11 Gbps SSL 220, 000 TPS

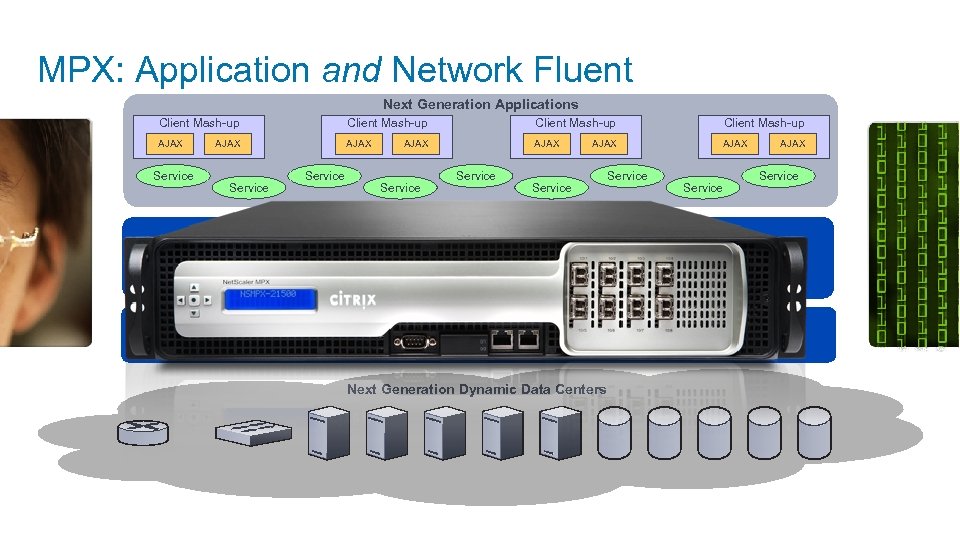

MPX: Application and Network Fluent Next Generation Applications Client Mash-up AJAX AJAX Service AJAX Service Layer 7 Functionality XML. . . SOAP. . . HTTP. . . JSON. . . RSS. . . AJAX APPLICATION AJAX Service AJAX Service Infrastructure Virtualization TRAFFIC Flex…XMPP. . . Mashup. . . Rel. Tag. . . SOA. . . TRAFFIC DNS…Subnet. . . AR. . . ACK. . . SNMP. . . SSL. . . Platform Scalability TCP…UDP. . . OSPF. . . BGP. . . 802. XX…ACL. . . SYN NETWORK Next Generation Dynamic Data Centers

Net. Scaler Enables Workload Virtualization • The end-state of datacenter evolution is fully fluid, automated and dynamic • Net. Scaler offers a rich palette of sensors and actions Automate Monitor Sensors Decide Act Policies Scripts Net. Scaler Policies Net. Scaler Actions • Inline Health Check • Scriptable Monitors • Async and Sync Notifications • Spill Thresholds, … • Inline HA • Backup Vserver • Surge Queuing • Compression Bypass Edge. Sight, XA … 3 rd Party … Command Center Xen. Server, PVS, … 3 rd Party Citrix Workflow Studio Orchestration

The Citrix Delivery Center in Action Citrix Xen. Server Citrix Workflow Studio Pool A Pool B Citrix Net. Scaler Monitor Net. Scaler monitoring passing traffic Decide Net. Scaler determines pool oversubscribed Workflow Studio recieves “add capacity” event Xen. Server Platinum recieves provision event Unpowered, bare Metal servers Act Net. Scaler sends “add capacity” event Workflow Studio sends “provision” event Xen. Server determines VDisk to provision Xen. Server provisions unpowered, bare metal server Xen. Server sees provisioning successful Xen. Server sends “successful provision” event Workflow Studio receives “provision successful” event Workflow Studio sends “capacity available” event Net. Scaler receives “capacity available” event Net. Scaler adds capacity to pool Net. Scaler monitoring passing traffic Net. Scaler determines over-capacity Net. Scaler removes server and sends “release capacity” event Workflow Studio receives “release capacity” event Workflow Studio sends “de-provision” event Xen. Server receives de-provision event Xen. Server powers down server and returns to spare pool

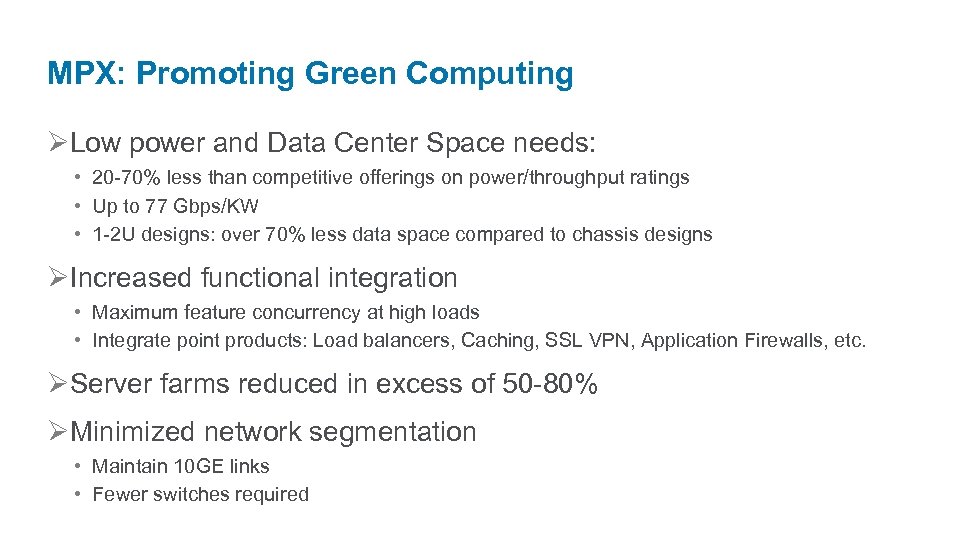

MPX: Promoting Green Computing ØLow power and Data Center Space needs: • 20 -70% less than competitive offerings on power/throughput ratings • Up to 77 Gbps/KW • 1 -2 U designs: over 70% less data space compared to chassis designs ØIncreased functional integration • Maximum feature concurrency at high loads • Integrate point products: Load balancers, Caching, SSL VPN, Application Firewalls, etc. ØServer farms reduced in excess of 50 -80% ØMinimized network segmentation • Maintain 10 GE links • Fewer switches required

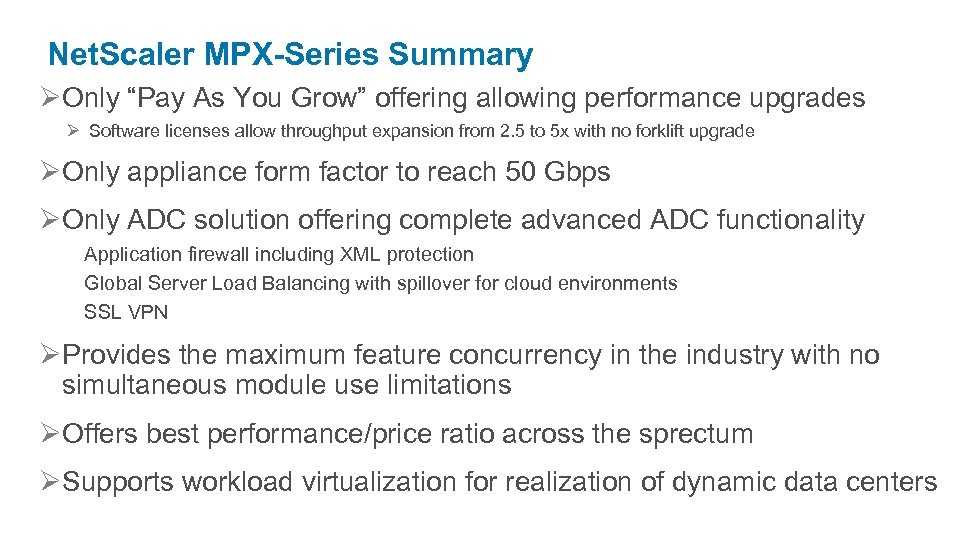

Net. Scaler MPX-Series Summary ØOnly “Pay As You Grow” offering allowing performance upgrades Ø Software licenses allow throughput expansion from 2. 5 to 5 x with no forklift upgrade ØOnly appliance form factor to reach 50 Gbps ØOnly ADC solution offering complete advanced ADC functionality Application firewall including XML protection Global Server Load Balancing with spillover for cloud environments SSL VPN ØProvides the maximum feature concurrency in the industry with no simultaneous module use limitations ØOffers best performance/price ratio across the sprectum ØSupports workload virtualization for realization of dynamic data centers
