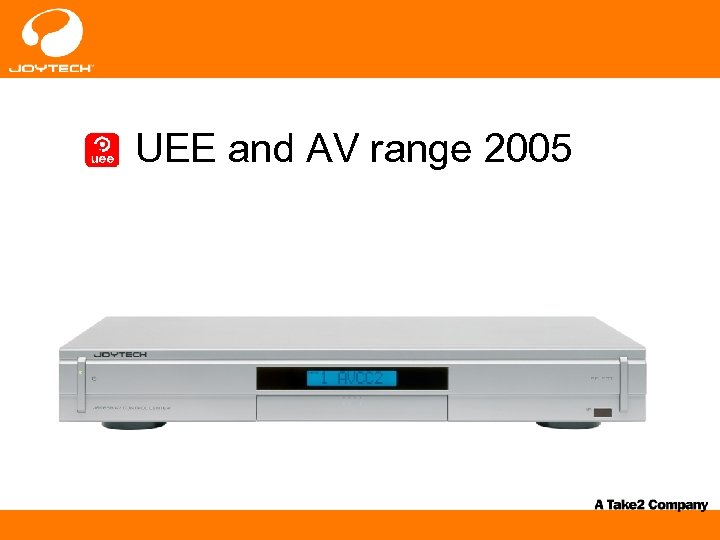

UEE and AV range 2005

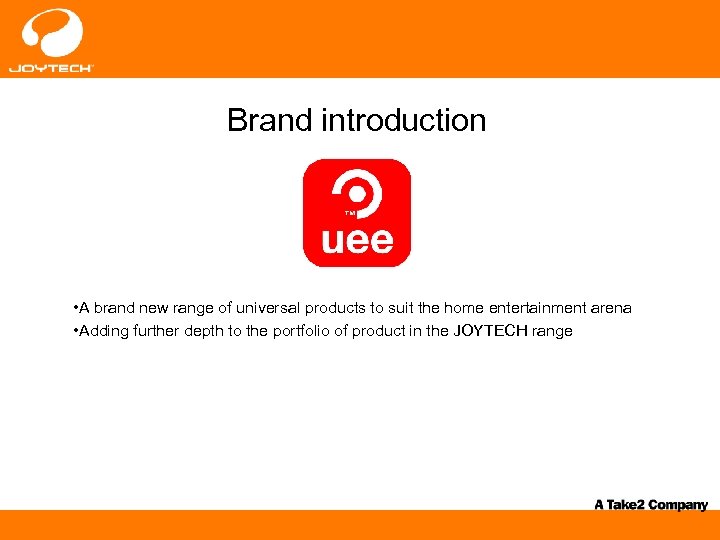

Brand introduction • A brand new range of universal products to suit the home entertainment arena • Adding further depth to the portfolio of product in the JOYTECH range

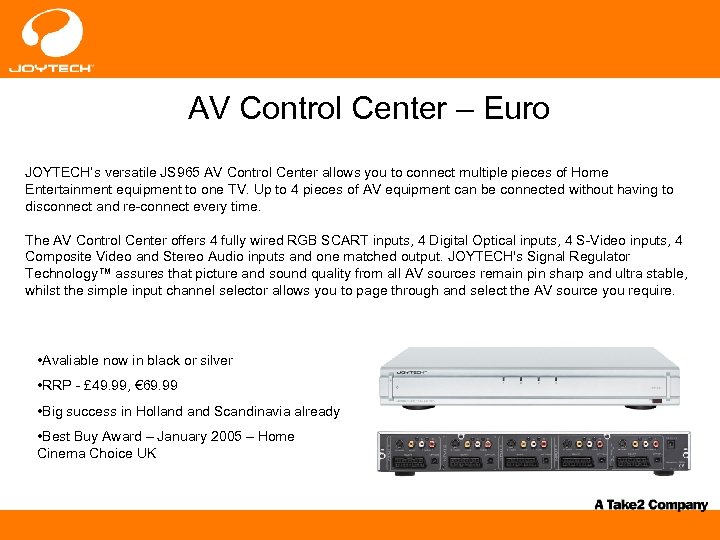

AV Control Center – Euro JOYTECH’s versatile JS 965 AV Control Center allows you to connect multiple pieces of Home Entertainment equipment to one TV. Up to 4 pieces of AV equipment can be connected without having to disconnect and re-connect every time. The AV Control Center offers 4 fully wired RGB SCART inputs, 4 Digital Optical inputs, 4 S-Video inputs, 4 Composite Video and Stereo Audio inputs and one matched output. JOYTECH's Signal Regulator Technology™ assures that picture and sound quality from all AV sources remain pin sharp and ultra stable, whilst the simple input channel selector allows you to page through and select the AV source you require. • Avaliable now in black or silver • RRP - £ 49. 99, € 69. 99 • Big success in Holland Scandinavia already • Best Buy Award – January 2005 – Home Cinema Choice UK

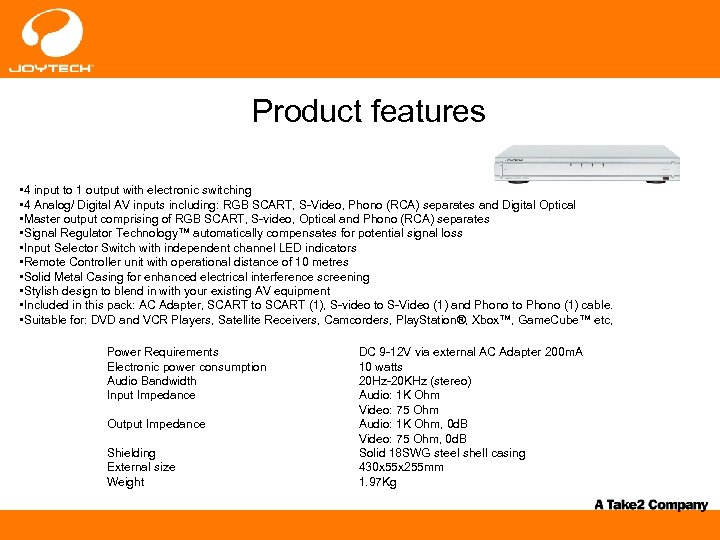

Product features • 4 input to 1 output with electronic switching • 4 Analog/ Digital AV inputs including: RGB SCART, S-Video, Phono (RCA) separates and Digital Optical • Master output comprising of RGB SCART, S-video, Optical and Phono (RCA) separates • Signal Regulator Technology™ automatically compensates for potential signal loss • Input Selector Switch with independent channel LED indicators • Remote Controller unit with operational distance of 10 metres • Solid Metal Casing for enhanced electrical interference screening • Stylish design to blend in with your existing AV equipment • Included in this pack: AC Adapter, SCART to SCART (1), S-video to S-Video (1) and Phono to Phono (1) cable. • Suitable for: DVD and VCR Players, Satellite Receivers, Camcorders, Play. Station®, Xbox™, Game. Cube™ etc, Power Requirements Electronic power consumption Audio Bandwidth Input Impedance Output Impedance Shielding External size Weight DC 9 -12 V via external AC Adapter 200 m. A 10 watts 20 Hz-20 KHz (stereo) Audio: 1 K Ohm Video: 75 Ohm Audio: 1 K Ohm, 0 d. B Video: 75 Ohm, 0 d. B Solid 18 SWG steel shell casing 430 x 55 x 255 mm 1. 97 Kg
AV Control Center 2 – Euro Connect up to six pieces of AV equipment to just one input on your TV and/or Hi-Fi and eliminate the need to connect and disconnect wires with the unique AV Control Center 2 from JOYTECH. In-built LCD User Interface provides a Programmable Backlit Display allowing you to customize your entertainment and rename inputs with a title of your choice. Signal Regulator Technology™ ensures picture and sound remain pin sharp, stable and free of interference whilst the Input Channel Selector and supplied Remote Control allow for simple navigation of all your connected equipment. • Avaliable now in black or silver • RRP - £ 69. 99, € 99. 99 • New and improved remote control • LCD display

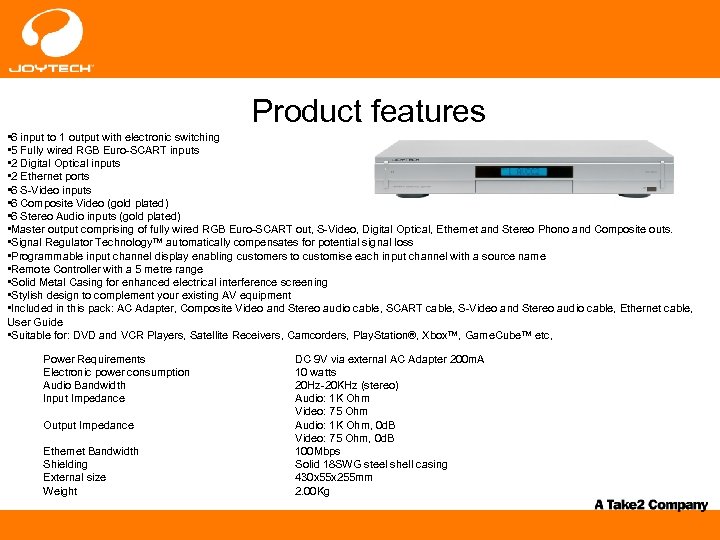

Product features • 6 input to 1 output with electronic switching • 5 Fully wired RGB Euro-SCART inputs • 2 Digital Optical inputs • 2 Ethernet ports • 6 S-Video inputs • 6 Composite Video (gold plated) • 6 Stereo Audio inputs (gold plated) • Master output comprising of fully wired RGB Euro-SCART out, S-Video, Digital Optical, Ethernet and Stereo Phono and Composite outs. • Signal Regulator Technology™ automatically compensates for potential signal loss • Programmable input channel display enabling customers to customise each input channel with a source name • Remote Controller with a 5 metre range • Solid Metal Casing for enhanced electrical interference screening • Stylish design to complement your existing AV equipment • Included in this pack: AC Adapter, Composite Video and Stereo audio cable, SCART cable, S-Video and Stereo audio cable, Ethernet cable, User Guide • Suitable for: DVD and VCR Players, Satellite Receivers, Camcorders, Play. Station®, Xbox™, Game. Cube™ etc, Power Requirements Electronic power consumption Audio Bandwidth Input Impedance Output Impedance Ethernet Bandwidth Shielding External size Weight DC 9 V via external AC Adapter 200 m. A 10 watts 20 Hz-20 KHz (stereo) Audio: 1 K Ohm Video: 75 Ohm Audio: 1 K Ohm, 0 d. B Video: 75 Ohm, 0 d. B 100 Mbps Solid 18 SWG steel shell casing 430 x 55 x 255 mm 2. 00 Kg

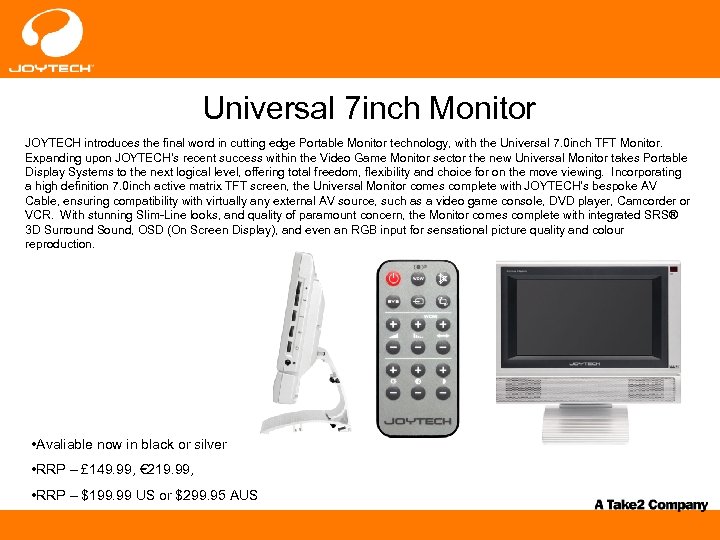

Universal 7 inch Monitor JOYTECH introduces the final word in cutting edge Portable Monitor technology, with the Universal 7. 0 inch TFT Monitor. Expanding upon JOYTECH’s recent success within the Video Game Monitor sector the new Universal Monitor takes Portable Display Systems to the next logical level, offering total freedom, flexibility and choice for on the move viewing. Incorporating a high definition 7. 0 inch active matrix TFT screen, the Universal Monitor comes complete with JOYTECH’s bespoke AV Cable, ensuring compatibility with virtually any external AV source, such as a video game console, DVD player, Camcorder or VCR. With stunning Slim-Line looks, and quality of paramount concern, the Monitor comes complete with integrated SRS® 3 D Surround Sound, OSD (On Screen Display), and even an RGB input for sensational picture quality and colour reproduction. • Avaliable now in black or silver • RRP – £ 149. 99, € 219. 99, • RRP – $199. 99 US or $299. 95 AUS

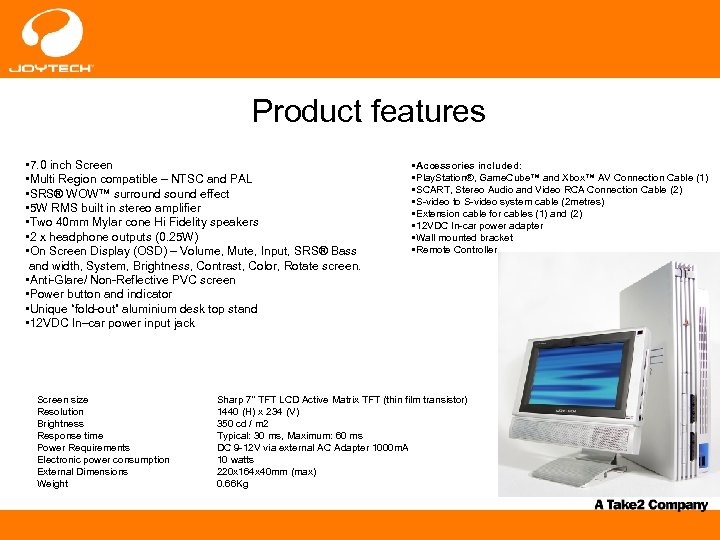

Product features • 7. 0 inch Screen • Multi Region compatible – NTSC and PAL • SRS® WOW™ surround sound effect • 5 W RMS built in stereo amplifier • Two 40 mm Mylar cone Hi Fidelity speakers • 2 x headphone outputs (0. 25 W) • On Screen Display (OSD) – Volume, Mute, Input, SRS® Bass and width, System, Brightness, Contrast, Color, Rotate screen. • Anti-Glare/ Non-Reflective PVC screen • Power button and indicator • Unique “fold-out” aluminium desk top stand • 12 VDC In–car power input jack Screen size Resolution Brightness Response time Power Requirements Electronic power consumption External Dimensions Weight • Accessories included: • Play. Station®, Game. Cube™ and Xbox™ AV Connection Cable (1) • SCART, Stereo Audio and Video RCA Connection Cable (2) • S-video to S-video system cable (2 metres) • Extension cable for cables (1) and (2) • 12 VDC In-car power adapter • Wall mounted bracket • Remote Controller Sharp 7" TFT LCD Active Matrix TFT (thin film transistor) 1440 (H) x 234 (V) 350 cd / m 2 Typical: 30 ms, Maximum: 60 ms DC 9 -12 V via external AC Adapter 1000 m. A 10 watts 220 x 164 x 40 mm (max) 0. 66 Kg

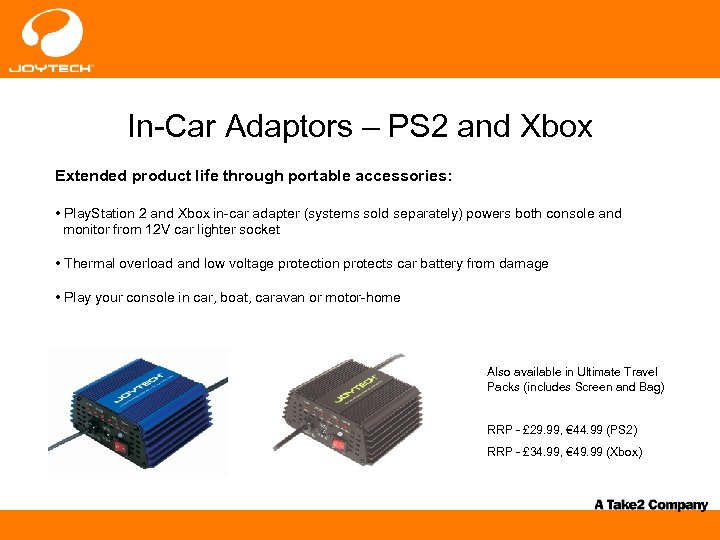

In-Car Adaptors – PS 2 and Xbox Extended product life through portable accessories: • Play. Station 2 and Xbox in-car adapter (systems sold separately) powers both console and monitor from 12 V car lighter socket • Thermal overload and low voltage protection protects car battery from damage • Play your console in car, boat, caravan or motor-home Also available in Ultimate Travel Packs (includes Screen and Bag) RRP - £ 29. 99, € 44. 99 (PS 2) RRP - £ 34. 99, € 49. 99 (Xbox)

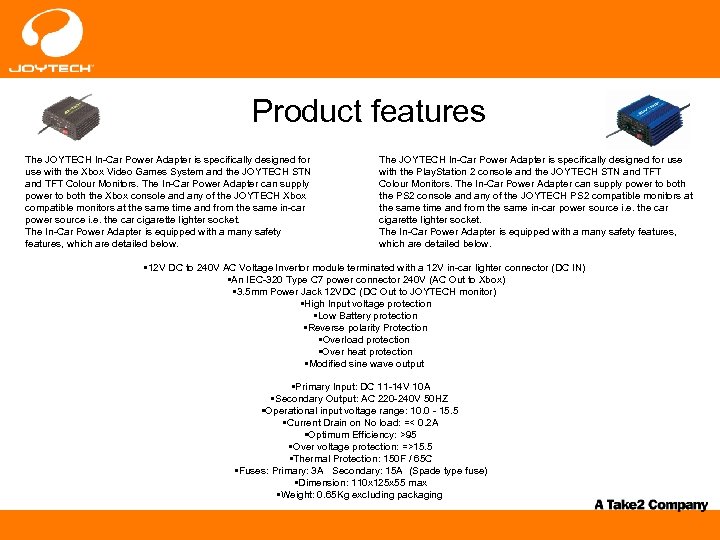

Product features The JOYTECH In-Car Power Adapter is specifically designed for use with the Xbox Video Games System and the JOYTECH STN and TFT Colour Monitors. The In-Car Power Adapter can supply power to both the Xbox console and any of the JOYTECH Xbox compatible monitors at the same time and from the same in-car power source i. e. the car cigarette lighter socket. The In-Car Power Adapter is equipped with a many safety features, which are detailed below. The JOYTECH In-Car Power Adapter is specifically designed for use with the Play. Station 2 console and the JOYTECH STN and TFT Colour Monitors. The In-Car Power Adapter can supply power to both the PS 2 console and any of the JOYTECH PS 2 compatible monitors at the same time and from the same in-car power source i. e. the car cigarette lighter socket. The In-Car Power Adapter is equipped with a many safety features, which are detailed below. • 12 V DC to 240 V AC Voltage Invertor module terminated with a 12 V in-car lighter connector (DC IN) • An IEC-320 Type C 7 power connector 240 V (AC Out to Xbox) • 3. 5 mm Power Jack 12 VDC (DC Out to JOYTECH monitor) • High Input voltage protection • Low Battery protection • Reverse polarity Protection • Overload protection • Over heat protection • Modified sine wave output • Primary Input: DC 11 -14 V 10 A • Secondary Output: AC 220 -240 V 50 HZ • Operational input voltage range: 10. 0 - 15. 5 • Current Drain on No load: =< 0. 2 A • Optimum Efficiency: >95 • Over voltage protection: =>15. 5 • Thermal Protection: 150 F / 65 C • Fuses: Primary: 3 A Secondary: 15 A (Spade type fuse) • Dimension: 110 x 125 x 55 max • Weight: 0. 65 Kg excluding packaging

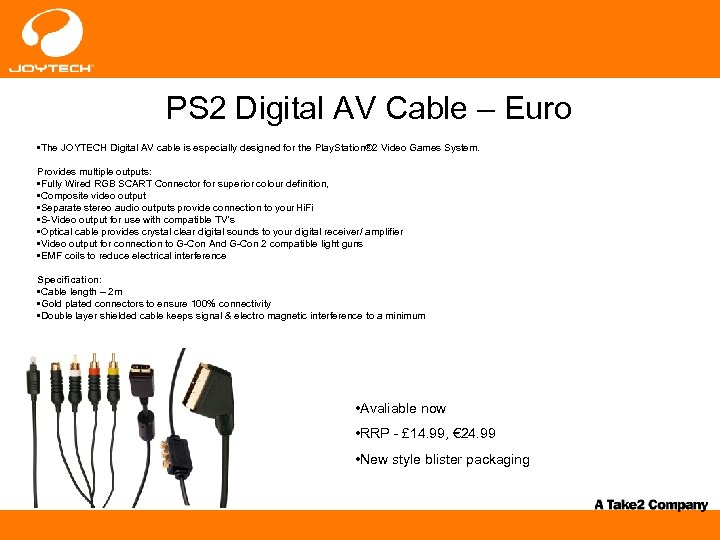

PS 2 Digital AV Cable – Euro • The JOYTECH Digital AV cable is especially designed for the Play. Station® 2 Video Games System. Provides multiple outputs: • Fully Wired RGB SCART Connector for superior colour definition, • Composite video output • Separate stereo audio outputs provide connection to your Hi. Fi • S-Video output for use with compatible TV’s • Optical cable provides crystal clear digital sounds to your digital receiver/ amplifier • Video output for connection to G-Con And G-Con 2 compatible light guns • EMF coils to reduce electrical interference Specification: • Cable length – 2 m • Gold plated connectors to ensure 100% connectivity • Double layer shielded cable keeps signal & electro magnetic interference to a minimum • Avaliable now • RRP - £ 14. 99, € 24. 99 • New style blister packaging

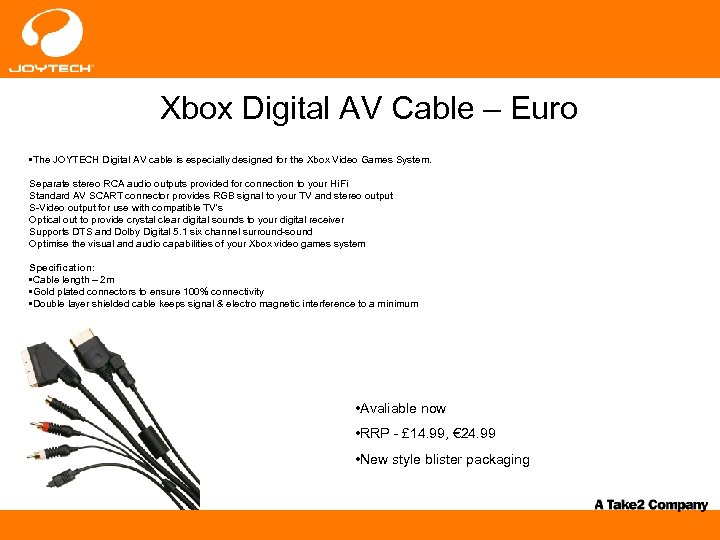

Xbox Digital AV Cable – Euro • The JOYTECH Digital AV cable is especially designed for the Xbox Video Games System. Separate stereo RCA audio outputs provided for connection to your Hi Fi Standard AV SCART connector provides RGB signal to your TV and stereo output S-Video output for use with compatible TV's Optical out to provide crystal clear digital sounds to your digital receiver Supports DTS and Dolby Digital 5. 1 six channel surround-sound Optimise the visual and audio capabilities of your Xbox video games system Specification: • Cable length – 2 m • Gold plated connectors to ensure 100% connectivity • Double layer shielded cable keeps signal & electro magnetic interference to a minimum • Avaliable now • RRP - £ 14. 99, € 24. 99 • New style blister packaging
