TWISTED PAIR Send audio and or composite

TWISTED PAIR Send audio and / or composite video great distances over Cat 5/6 Cable Inexpensive / Not on data network / Many form factors Format A is Audio only, Format C is for video with audio Amplifier Sender Receiver Mixing Console Distribution Amplifier

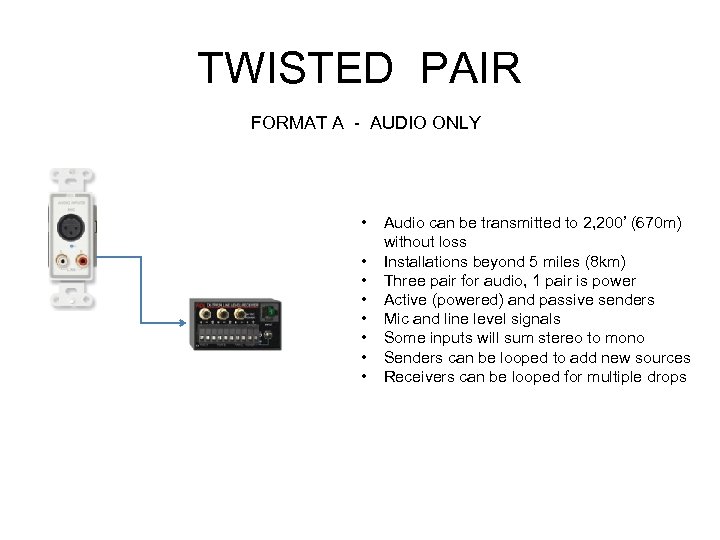

TWISTED PAIR FORMAT A - AUDIO ONLY • • Audio can be transmitted to 2, 200’ (670 m) without loss Installations beyond 5 miles (8 km) Three pair for audio, 1 pair is power Active (powered) and passive senders Mic and line level signals Some inputs will sum stereo to mono Senders can be looped to add new sources Receivers can be looped for multiple drops

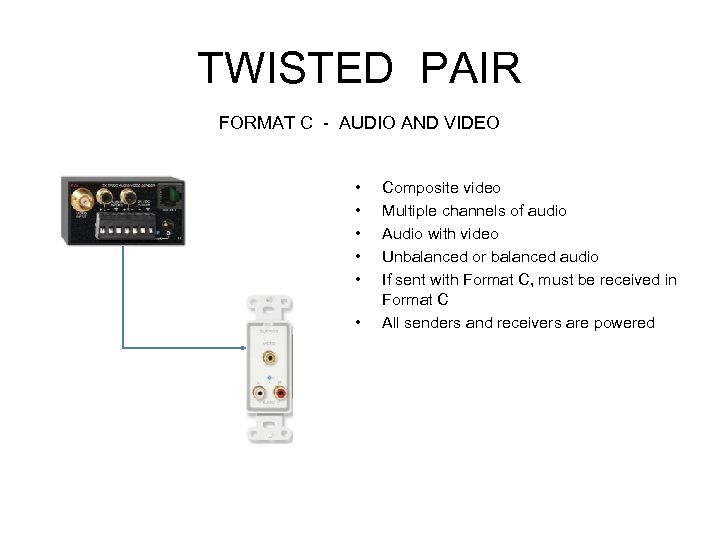

TWISTED PAIR FORMAT C - AUDIO AND VIDEO • • • Composite video Multiple channels of audio Audio with video Unbalanced or balanced audio If sent with Format C, must be received in Format C All senders and receivers are powered

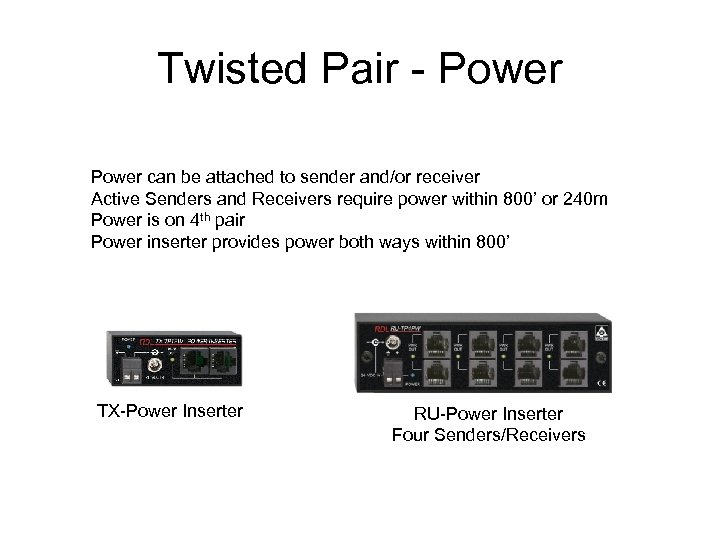

Twisted Pair - Power can be attached to sender and/or receiver Active Senders and Receivers require power within 800’ or 240 m Power is on 4 th pair Power inserter provides power both ways within 800’ TX-Power Inserter RU-Power Inserter Four Senders/Receivers

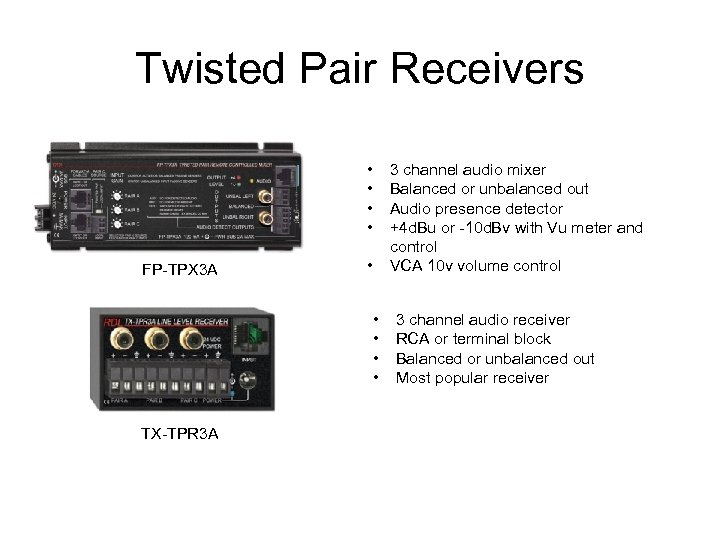

Twisted Pair Receivers • • FP-TPX 3 A 3 channel audio mixer Balanced or unbalanced out Audio presence detector +4 d. Bu or -10 d. Bv with Vu meter and control VCA 10 v volume control • • • TX-TPR 3 A 3 channel audio receiver RCA or terminal block Balanced or unbalanced out Most popular receiver

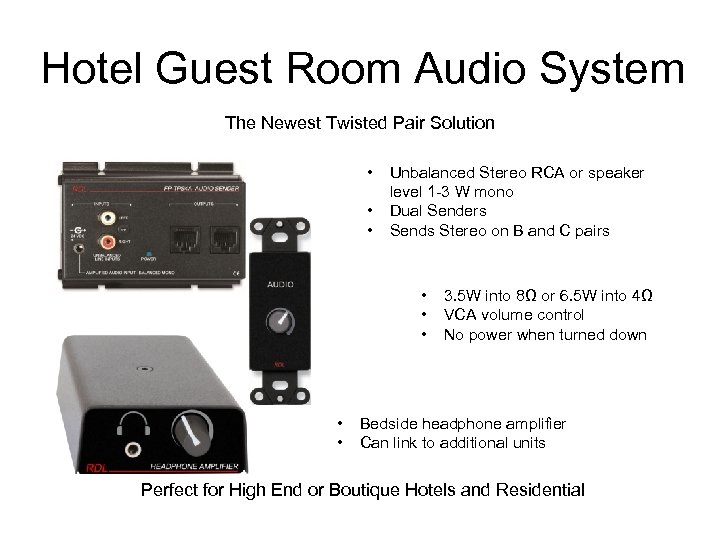

Hotel Guest Room Audio System The Newest Twisted Pair Solution • • • Unbalanced Stereo RCA or speaker level 1 -3 W mono Dual Senders Sends Stereo on B and C pairs • • • 3. 5 W into 8Ω or 6. 5 W into 4Ω VCA volume control No power when turned down Bedside headphone amplifier Can link to additional units Perfect for High End or Boutique Hotels and Residential
