TV WORKFLOWS — 2012 A Review of Production

TV WORKFLOWS - 2012 A Review of Production & Post Production Workflows from the current TV Season

Quick Look Back…. Spring / 2009 – SAG threatens to strike AFTRA alternative – but only if you shoot on tape, not film Studios shot 90% of their pilots on tape under AFTRA And the studios learned that 24 P worked & saved $$$ 2009/2010 season – a lot of film cameras sat on shelves 2010/2011 – 80% shooting on tape (even Alexa) March 11, 2011 – Tsunami hits Northeast Japan Current season of 2011/2012 – 90% shooting onto files

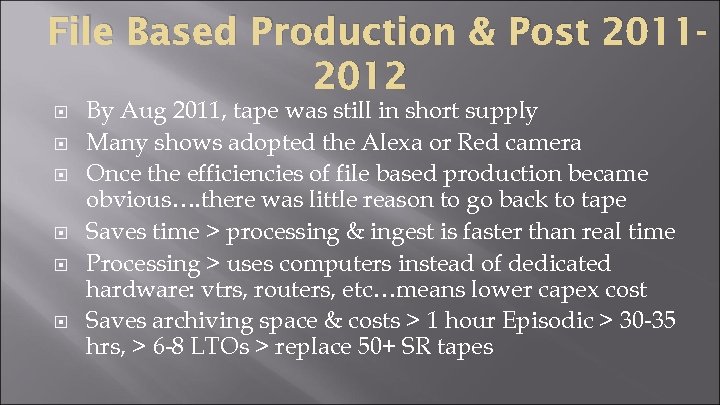

File Based Production & Post 20112012 By Aug 2011, tape was still in short supply Many shows adopted the Alexa or Red camera Once the efficiencies of file based production became obvious…. there was little reason to go back to tape Saves time > processing & ingest is faster than real time Processing > uses computers instead of dedicated hardware: vtrs, routers, etc…means lower capex cost Saves archiving space & costs > 1 hour Episodic > 30 -35 hrs, > 6 -8 LTOs > replace 50+ SR tapes

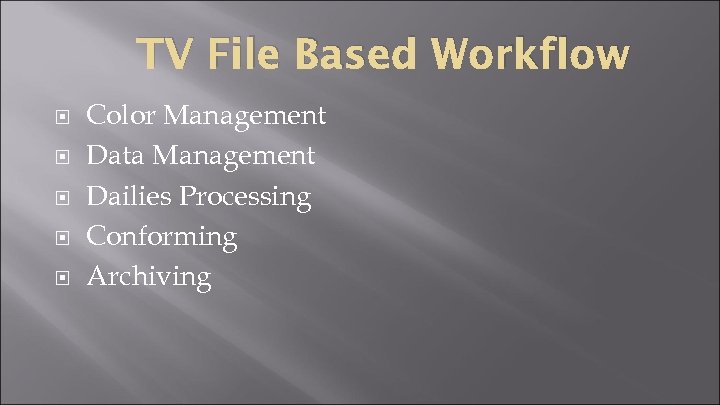

TV File Based Workflow Color Management Data Management Dailies Processing Conforming Archiving

Color Management For best results we shoot LOG Trending away from hands-on dailies colorist How to make it relevant for on set & dailies? Need to choose & apply LUTS or Looks while shooting the scenes. Choosing LUTS for on-set…. & for dailies? Currently there seems to be 4 specific approaches

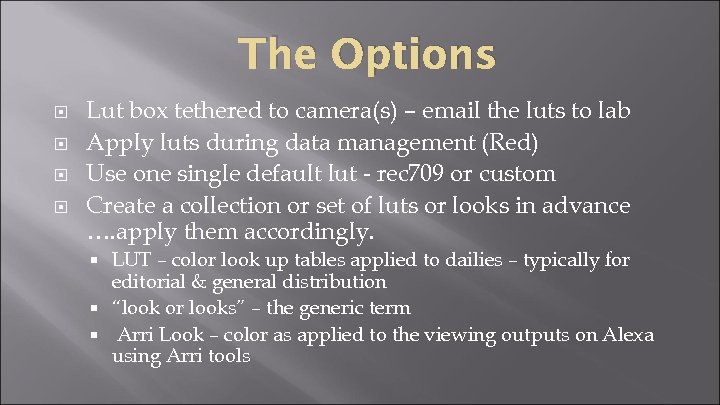

The Options Lut box tethered to camera(s) – email the luts to lab Apply luts during data management (Red) Use one single default lut - rec 709 or custom Create a collection or set of luts or looks in advance …. apply them accordingly. LUT – color look up tables applied to dailies – typically for editorial & general distribution “look or looks” – the generic term Arri Look – color as applied to the viewing outputs on Alexa using Arri tools

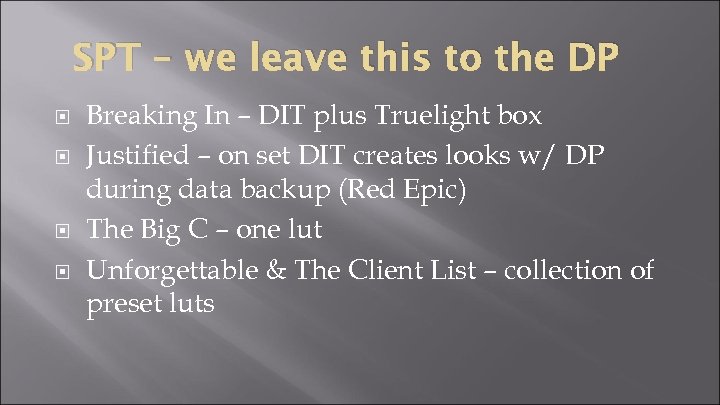

SPT – we leave this to the DP Breaking In – DIT plus Truelight box Justified – on set DIT creates looks w/ DP during data backup (Red Epic) The Big C – one lut Unforgettable & The Client List – collection of preset luts

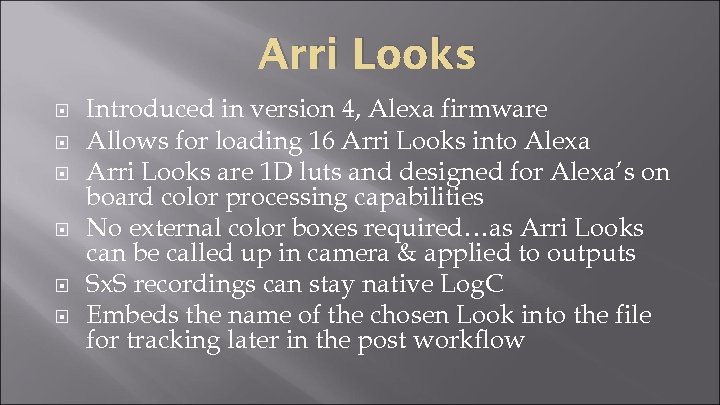

Arri Looks Introduced in version 4, Alexa firmware Allows for loading 16 Arri Looks into Alexa Arri Looks are 1 D luts and designed for Alexa’s on board color processing capabilities No external color boxes required…as Arri Looks can be called up in camera & applied to outputs Sx. S recordings can stay native Log. C Embeds the name of the chosen Look into the file for tracking later in the post workflow

Early Experience w/ Arri Looks Pilot shot > well known graphic novel As such > extreme looks Director wanted to preview looks on set DP shot test material & created a number of looks he might use…. 23 in fact. Ended up using only 7 during actual production

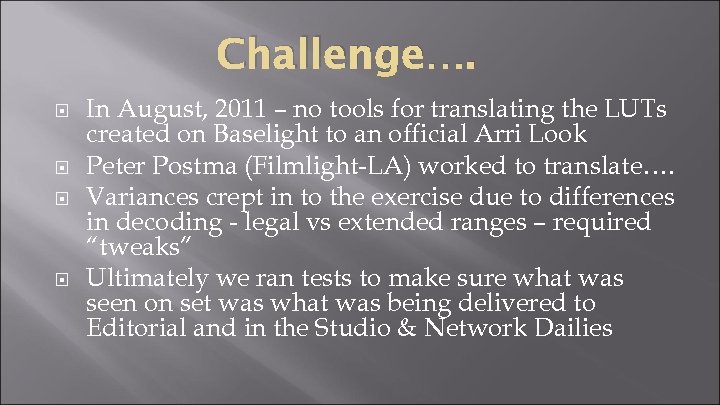

Challenge…. In August, 2011 – no tools for translating the LUTs created on Baselight to an official Arri Look Peter Postma (Filmlight-LA) worked to translate…. Variances crept in to the exercise due to differences in decoding - legal vs extended ranges – required “tweaks” Ultimately we ran tests to make sure what was seen on set was what was being delivered to Editorial and in the Studio & Network Dailies

Six Months Later We now have tools from Arri to build these Arri Looks & to generate matching compatible LUTS Arri Look Creator - application Arri LUT Generator – online web app We also now have third party tools that will generate compatible Arri Looks from LUTS Pomfort’s Live. Grade - beta

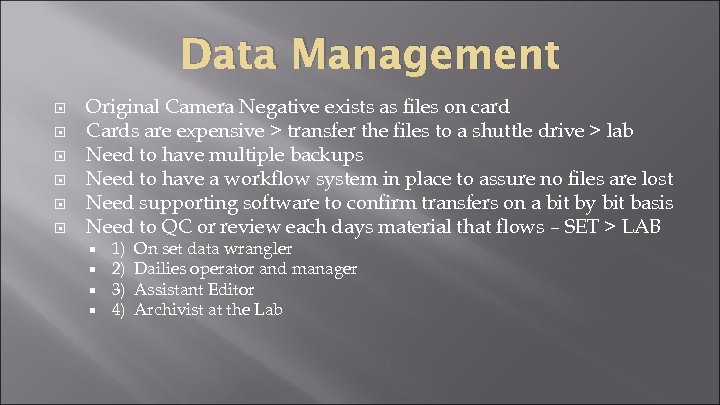

Data Management Original Camera Negative exists as files on card Cards are expensive > transfer the files to a shuttle drive > lab Need to have multiple backups Need to have a workflow system in place to assure no files are lost Need supporting software to confirm transfers on a bit by bit basis Need to QC or review each days material that flows – SET > LAB 1) 2) 3) 4) On set data wrangler Dailies operator and manager Assistant Editor Archivist at the Lab

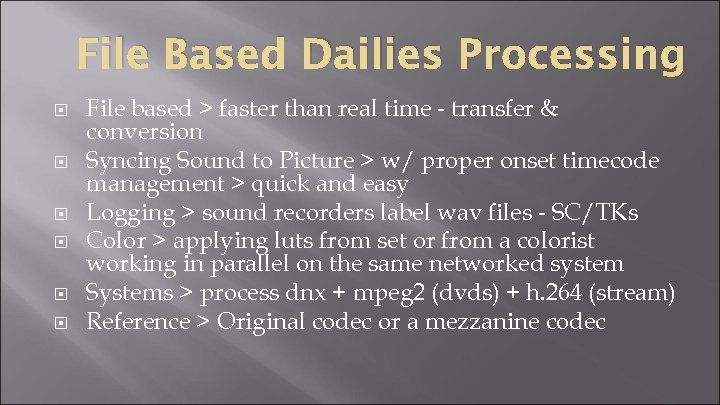

File Based Dailies Processing File based > faster than real time - transfer & conversion Syncing Sound to Picture > w/ proper onset timecode management > quick and easy Logging > sound recorders label wav files - SC/TKs Color > applying luts from set or from a colorist working in parallel on the same networked system Systems > process dnx + mpeg 2 (dvds) + h. 264 (stream) Reference > Original codec or a mezzanine codec

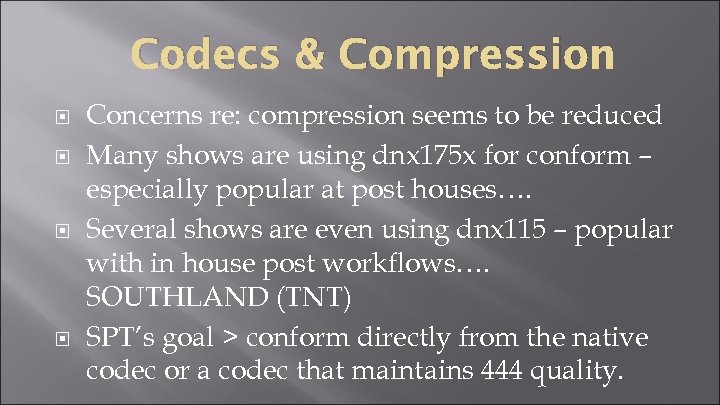

Codecs & Compression Concerns re: compression seems to be reduced Many shows are using dnx 175 x for conform – especially popular at post houses…. Several shows are even using dnx 115 – popular with in house post workflows…. SOUTHLAND (TNT) SPT’s goal > conform directly from the native codec or a codec that maintains 444 quality.

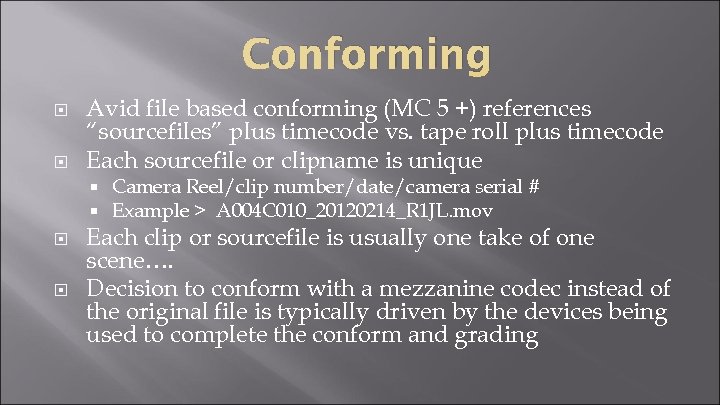

Conforming Avid file based conforming (MC 5 +) references “sourcefiles” plus timecode vs. tape roll plus timecode Each sourcefile or clipname is unique Camera Reel/clip number/date/camera serial # Example > A 004 C 010_20120214_R 1 JL. mov Each clip or sourcefile is usually one take of one scene…. Decision to conform with a mezzanine codec instead of the original file is typically driven by the devices being used to complete the conform and grading

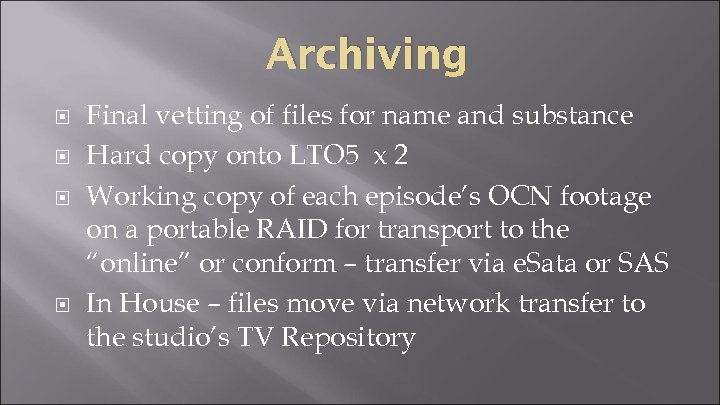

Archiving Final vetting of files for name and substance Hard copy onto LTO 5 x 2 Working copy of each episode’s OCN footage on a portable RAID for transport to the “online” or conform – transfer via e. Sata or SAS In House – files move via network transfer to the studio’s TV Repository

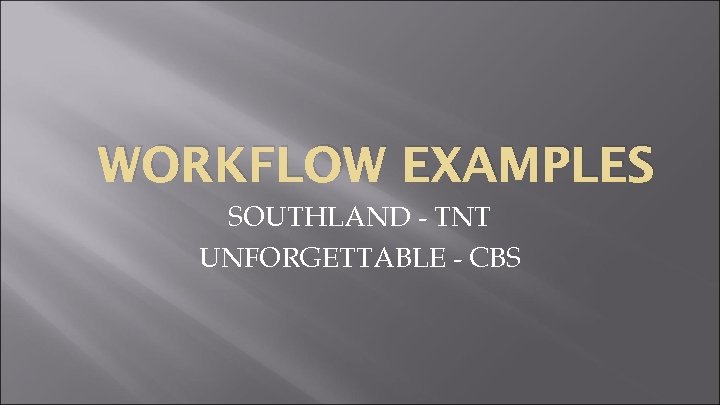

WORKFLOW EXAMPLES SOUTHLAND - TNT UNFORGETTABLE - CBS

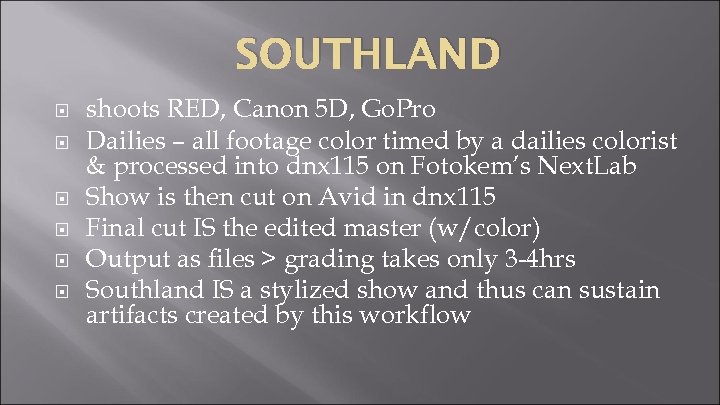

SOUTHLAND shoots RED, Canon 5 D, Go. Pro Dailies – all footage color timed by a dailies colorist & processed into dnx 115 on Fotokem’s Next. Lab Show is then cut on Avid in dnx 115 Final cut IS the edited master (w/color) Output as files > grading takes only 3 -4 hrs Southland IS a stylized show and thus can sustain artifacts created by this workflow

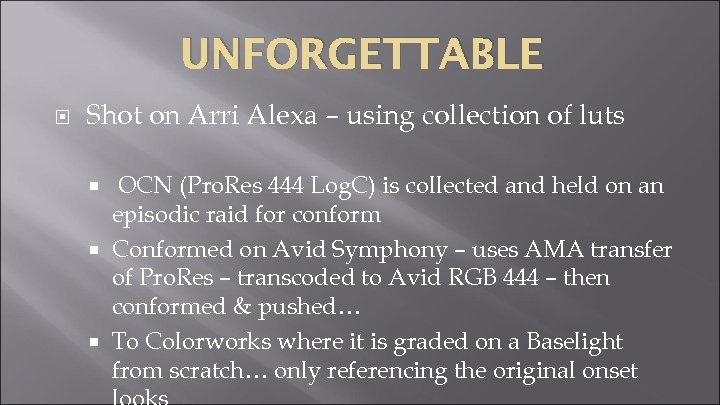

UNFORGETTABLE Shot on Arri Alexa – using collection of luts OCN (Pro. Res 444 Log. C) is collected and held on an episodic raid for conform Conformed on Avid Symphony – uses AMA transfer of Pro. Res – transcoded to Avid RGB 444 – then conformed & pushed… To Colorworks where it is graded on a Baselight from scratch… only referencing the original onset

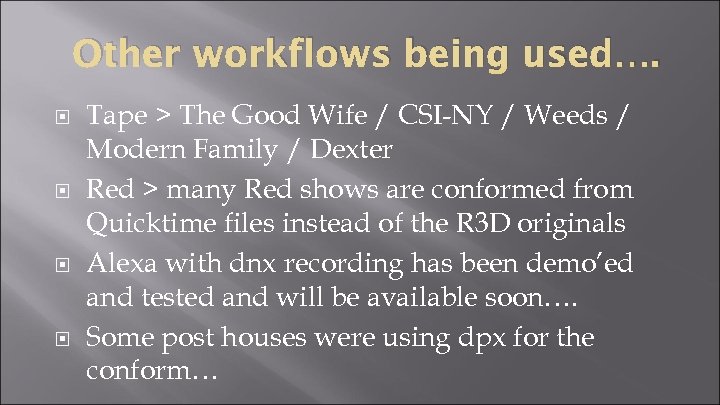

Other workflows being used…. Tape > The Good Wife / CSI-NY / Weeds / Modern Family / Dexter Red > many Red shows are conformed from Quicktime files instead of the R 3 D originals Alexa with dnx recording has been demo’ed and tested and will be available soon…. Some post houses were using dpx for the conform…

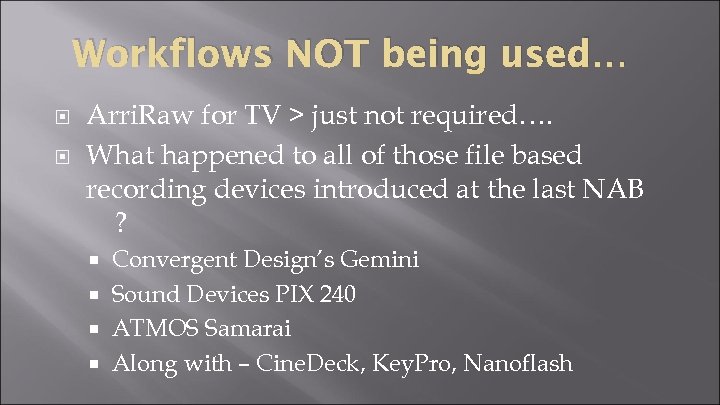

Workflows NOT being used… Arri. Raw for TV > just not required…. What happened to all of those file based recording devices introduced at the last NAB ? Convergent Design’s Gemini Sound Devices PIX 240 ATMOS Samarai Along with – Cine. Deck, Key. Pro, Nanoflash

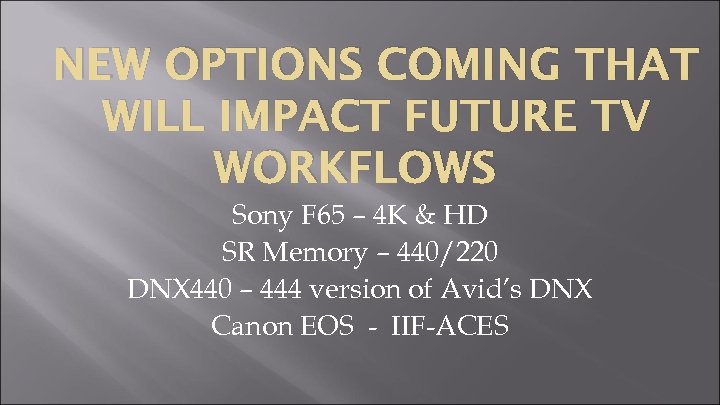

NEW OPTIONS COMING THAT WILL IMPACT FUTURE TV WORKFLOWS Sony F 65 – 4 K & HD SR Memory – 440/220 DNX 440 – 444 version of Avid’s DNX Canon EOS - IIF-ACES
