TURBOKRAFT invigning KTH, 2007 -02 -28 Sören Ramström, VD, Siemens Industrial Turbomachinery AB 1

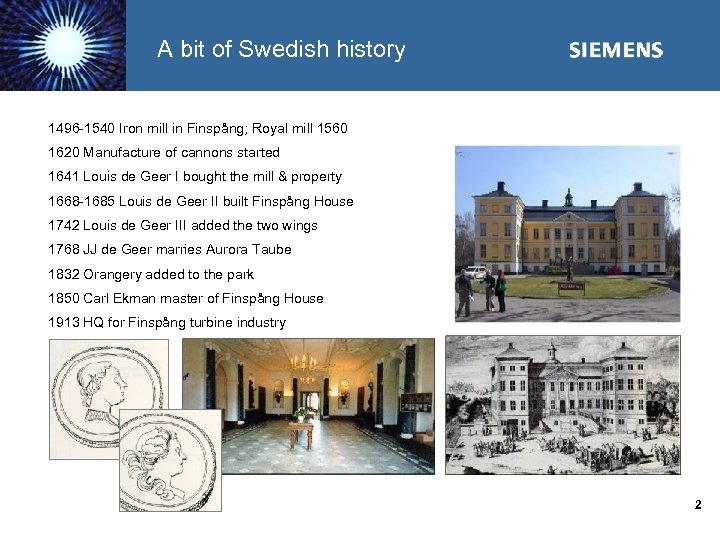

A bit of Swedish history 1496 -1540 Iron mill in Finspång; Royal mill 1560 1620 Manufacture of cannons started 1641 Louis de Geer I bought the mill & property 1668 -1685 Louis de Geer II built Finspång House 1742 Louis de Geer III added the two wings 1768 JJ de Geer marries Aurora Taube 1832 Orangery added to the park 1850 Carl Ekman master of Finspång House 1913 HQ for Finspång turbine industry 2

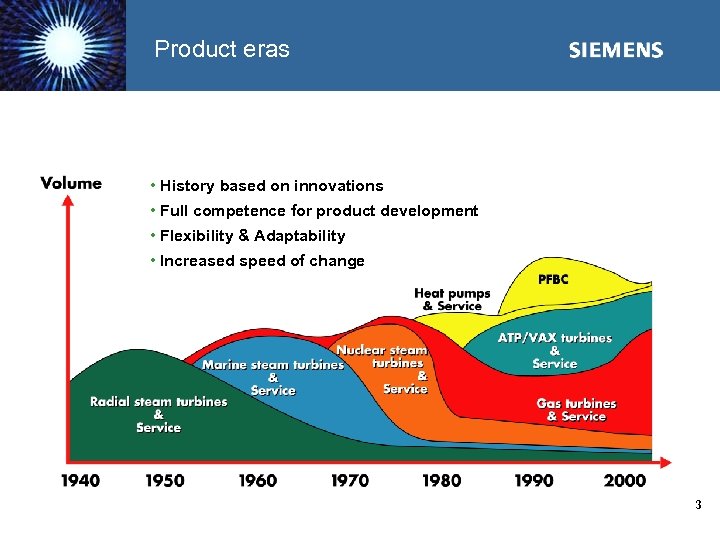

Product eras • History based on innovations • Full competence for product development • Flexibility & Adaptability • Increased speed of change 3

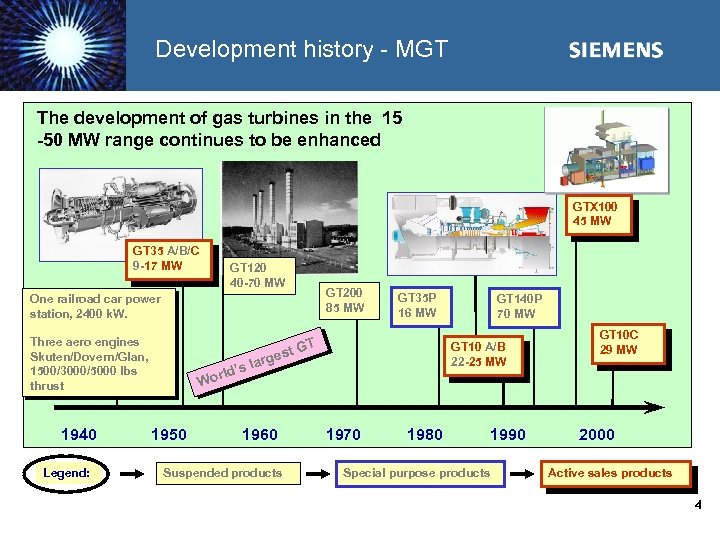

Development history - MGT The development of gas turbines in the 15 -50 MW range continues to be enhanced GTX 100 45 MW GT 35 A/B/C 9 -17 MW GT 120 40 -70 MW GT 200 85 MW One railroad car power station, 2400 k. W. Three aero engines Skuten/Dovern/Glan, 1500/3000/5000 lbs thrust 1940 Legend: GT 35 P 16 MW t GT GT 10 A/B 22 -25 MW es rg ’s la rld Wo 1950 1960 Suspended products GT 140 P 70 MW 1970 1980 1990 Special purpose products GT 10 C 29 MW 2000 Active sales products 4
Long industrial history 5

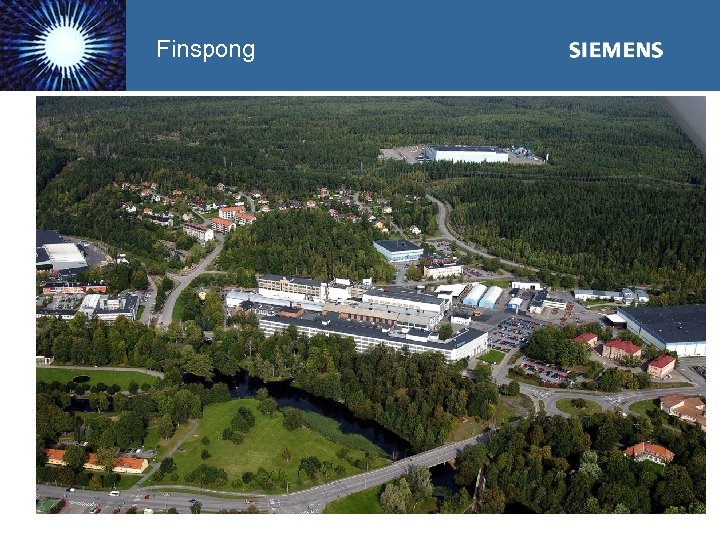

Finspong 6

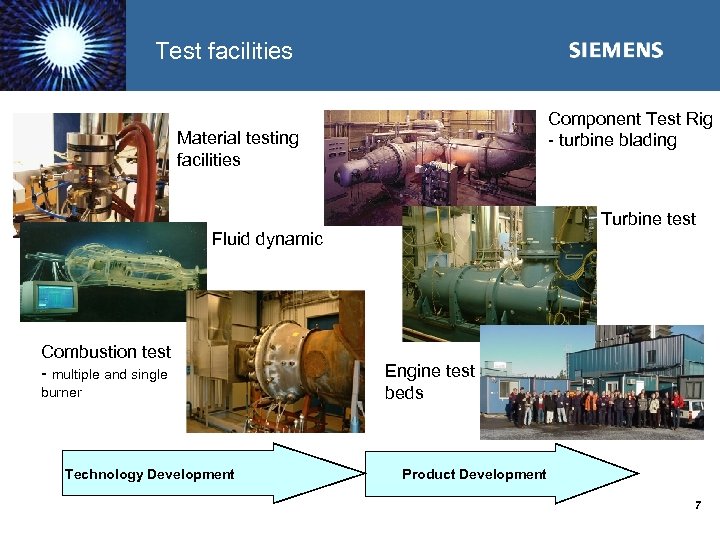

Test facilities Component Test Rig - turbine blading Material testing facilities Turbine test Fluid dynamic Combustion test - multiple and single burner Technology Development Engine test beds Product Development 7
Steam turbines 60 -180 MW SST-900 (ST 5): single casing turbines SST-700 (ST 6): dual casing turbines Finspång: Global responsibility for steam turbines 60 -180 MW for combined cycle plants, as well as supplying individual turbines for power genertion. SST-900 RH (ST 6 -ST 5) in reheat configuration 8

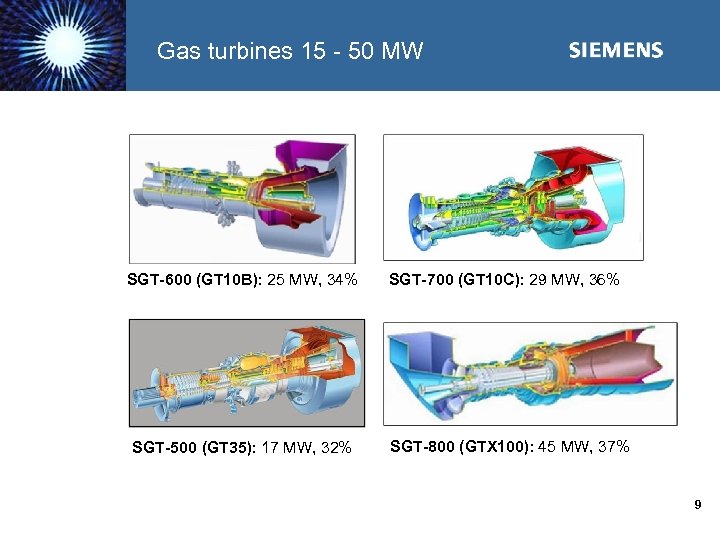

Gas turbines 15 - 50 MW SGT-600 (GT 10 B): 25 MW, 34% SGT-500 (GT 35): 17 MW, 32% SGT-700 (GT 10 C): 29 MW, 36% SGT-800 (GTX 100): 45 MW, 37% 9

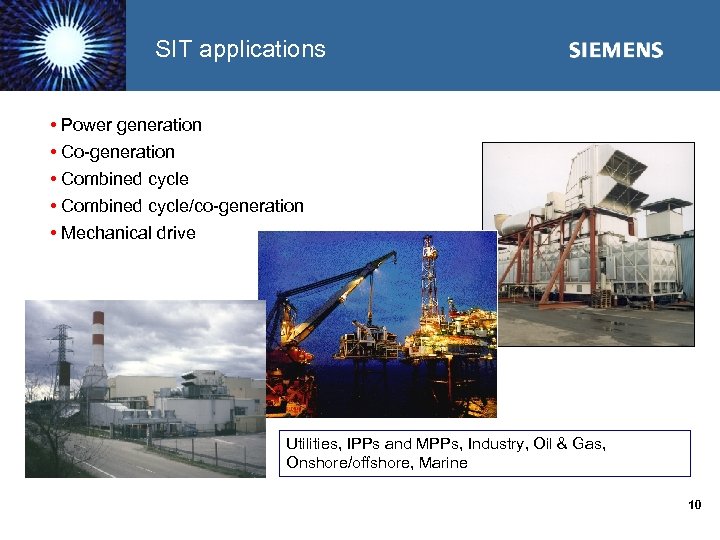

SIT applications • Power generation • Co-generation • Combined cycle/co-generation • Mechanical drive Utilities, IPPs and MPPs, Industry, Oil & Gas, Onshore/offshore, Marine 10
Rya Reference Plant 11

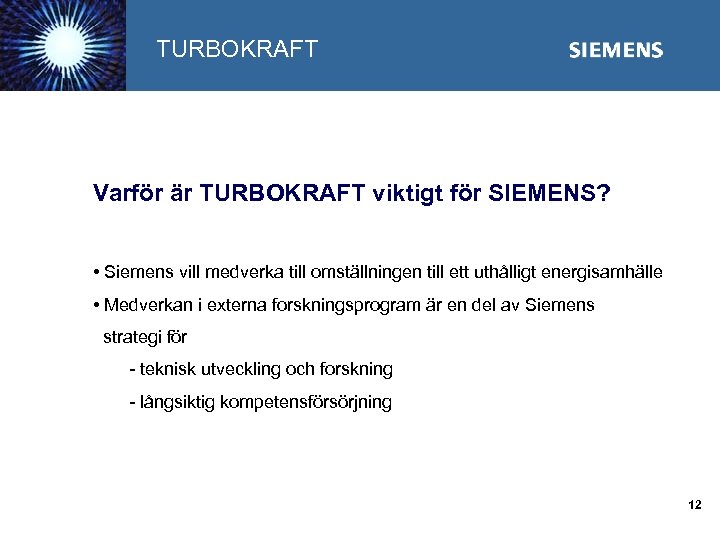

TURBOKRAFT Varför är TURBOKRAFT viktigt för SIEMENS? • Siemens vill medverka till omställningen till ett uthålligt energisamhälle • Medverkan i externa forskningsprogram är en del av Siemens strategi för - teknisk utveckling och forskning - långsiktig kompetensförsörjning 12
