Tumor detection using antibodies conjugated magnetic nanoparticles Arie Levy, Israel Gannot Biomedical Engineering Department Tel Aviv University Israel

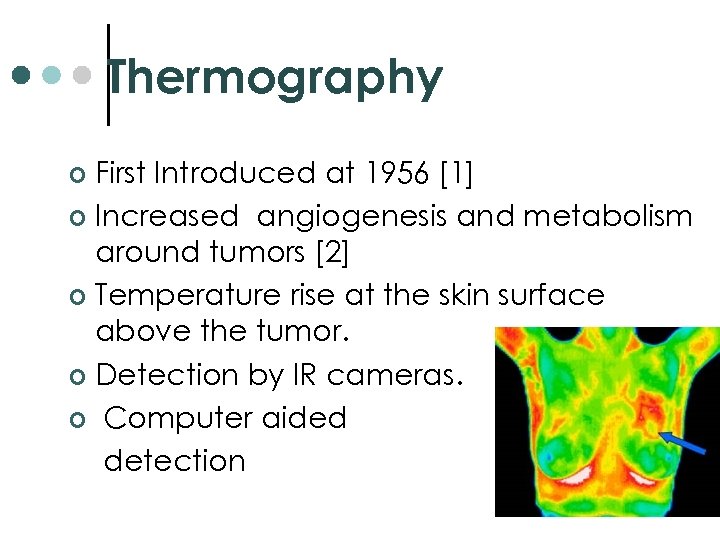

Thermography First Introduced at 1956 [1] ¢ Increased angiogenesis and metabolism around tumors [2] ¢ Temperature rise at the skin surface above the tumor. ¢ Detection by IR cameras. ¢ Computer aided detection ¢

Thermography - cont ¢ Advantages: [2] Radiation free l Contact free l Non Invasive l Low Cost l ¢ Disadvantages Low sensitivity for small & deep tumors [3] l Not tumor specific l Subjective l

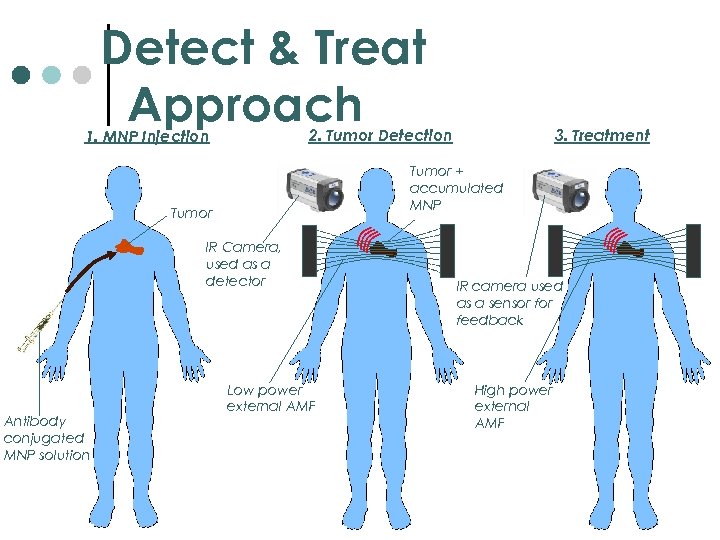

Detect & Treat Approach 2. Tumor Detection 1. MNP Injection Tumor + accumulated MNP Tumor IR Camera, used as a detector Antibody conjugated MNP solution 3. Treatment Low power external AMF IR camera used as a sensor feedback High power external AMF

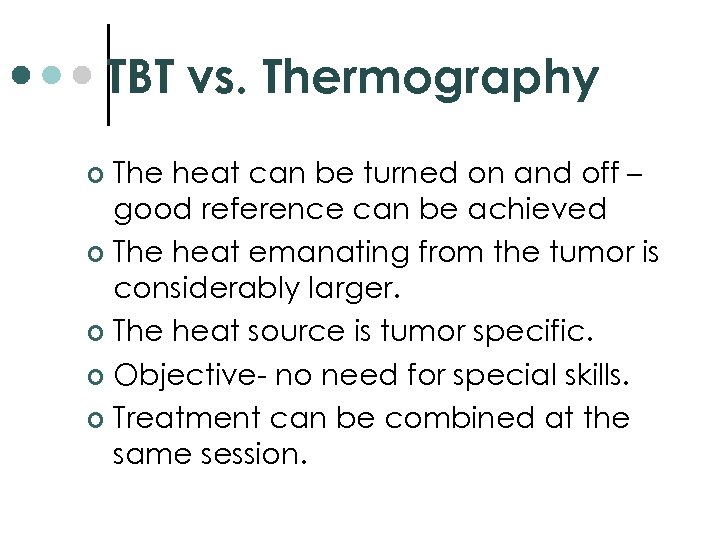

TBT vs. Thermography The heat can be turned on and off – good reference can be achieved ¢ The heat emanating from the tumor is considerably larger. ¢ The heat source is tumor specific. ¢ Objective- no need for special skills. ¢ Treatment can be combined at the same session. ¢

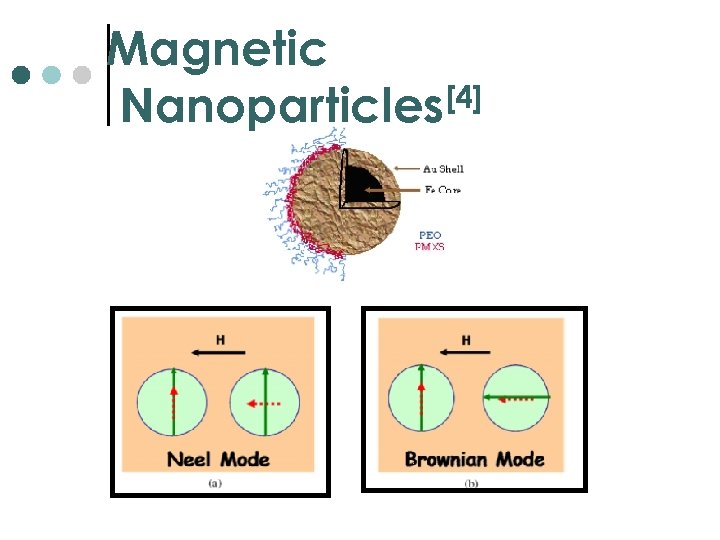

Magnetic [4] Nanoparticles

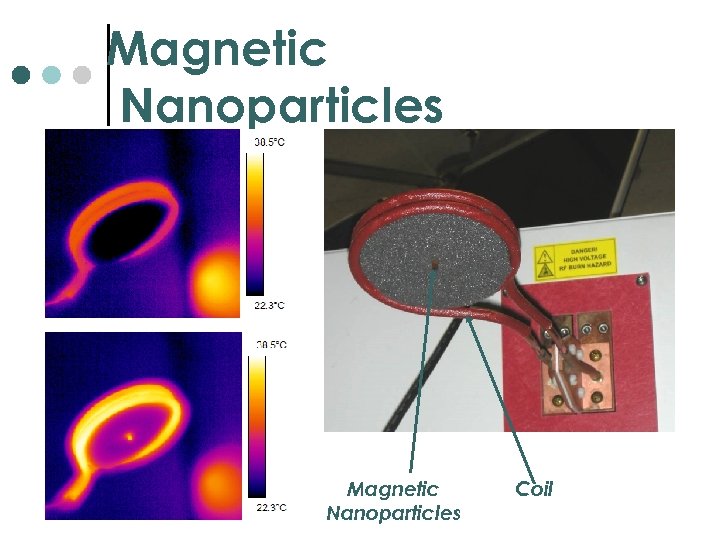

Magnetic Nanoparticles Coil

Magnetic Nanoparticles

Targeting ¢ ¢ ¢ Small enough to diffuse from blood vessel Antibodies targeting Binding sites ¢ HER 2 – Breast Cancer[5]. ¢ MN – renal cell carcinoma [6] ¢ U 251 -SP (G 22 antibody) – Glioma [7] Antibody Coating Magnetic Nanoparticle

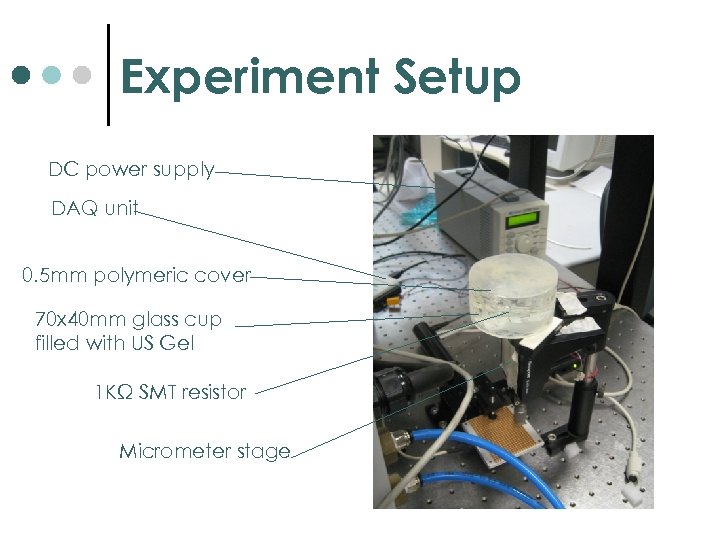

Experiment Setup DC power supply DAQ unit 0. 5 mm polymeric cover 70 x 40 mm glass cup filled with US Gel 1 KΩ SMT resistor Micrometer stage

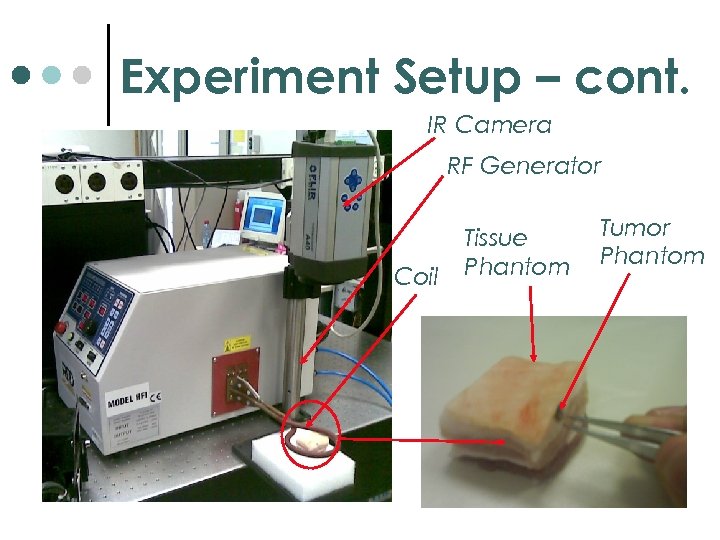

Experiment Setup – cont. IR Camera RF Generator Coil Tissue Phantom Tumor Phantom

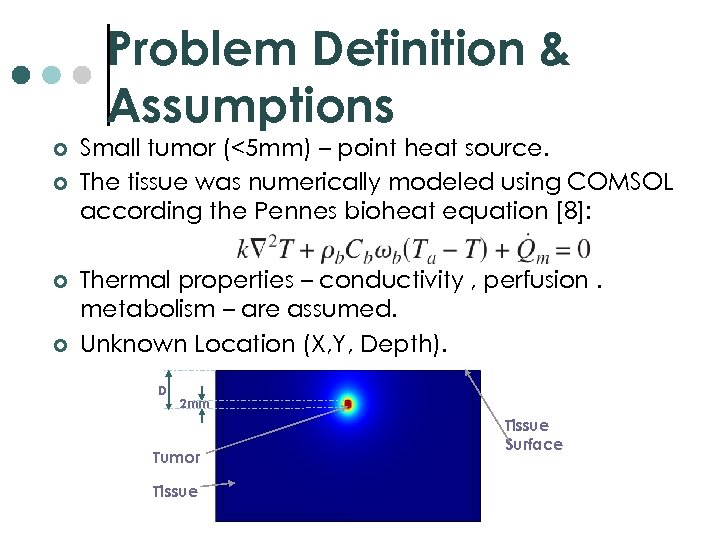

Problem Definition & Assumptions ¢ ¢ Small tumor (<5 mm) – point heat source. The tissue was numerically modeled using COMSOL according the Pennes bioheat equation [8]: Thermal properties – conductivity , perfusion. metabolism – are assumed. Unknown Location (X, Y, Depth). D 2 mm Tumor Tissue Surface

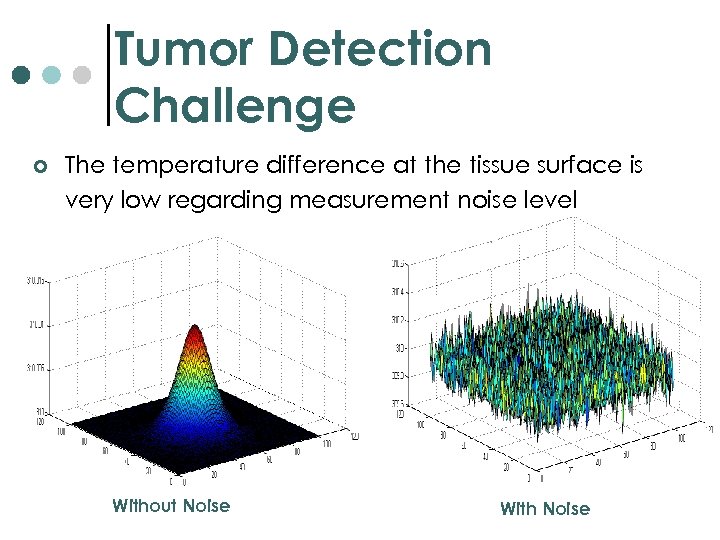

Tumor Detection Challenge ¢ The temperature difference at the tissue surface is very low regarding measurement noise level Without Noise With Noise

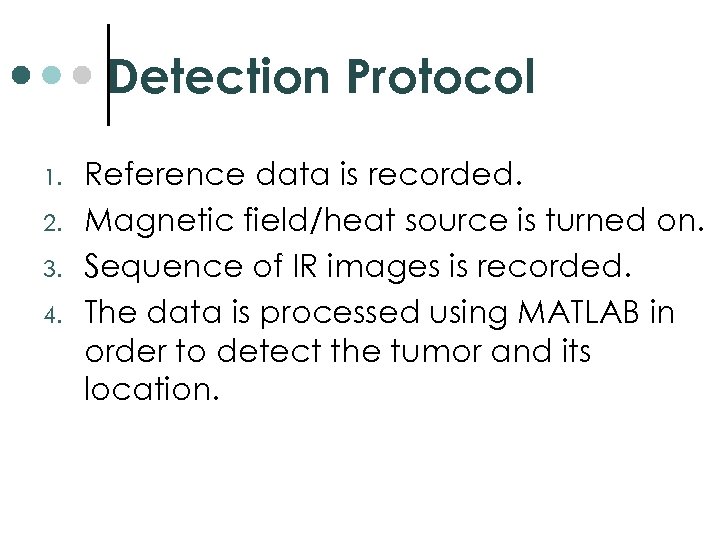

Detection Protocol 1. 2. 3. 4. Reference data is recorded. Magnetic field/heat source is turned on. Sequence of IR images is recorded. The data is processed using MATLAB in order to detect the tumor and its location.

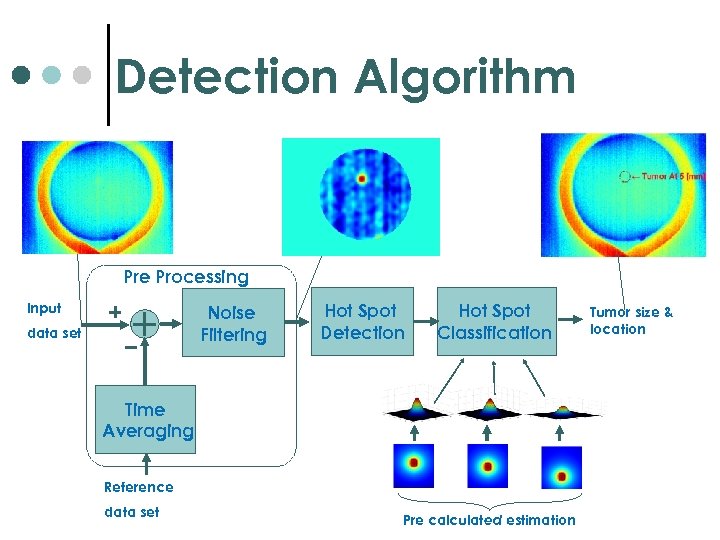

Detection Algorithm Pre Processing Input Noise Filtering data set Hot Spot Detection Hot Spot Classification Time Averaging Reference data set Pre calculated estimation Tumor size & location

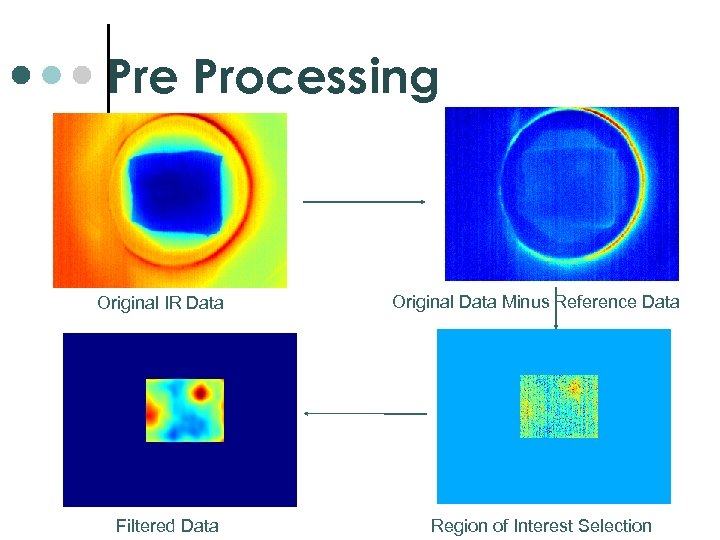

Pre Processing Original IR Data Filtered Data Original Data Minus Reference Data Region of Interest Selection

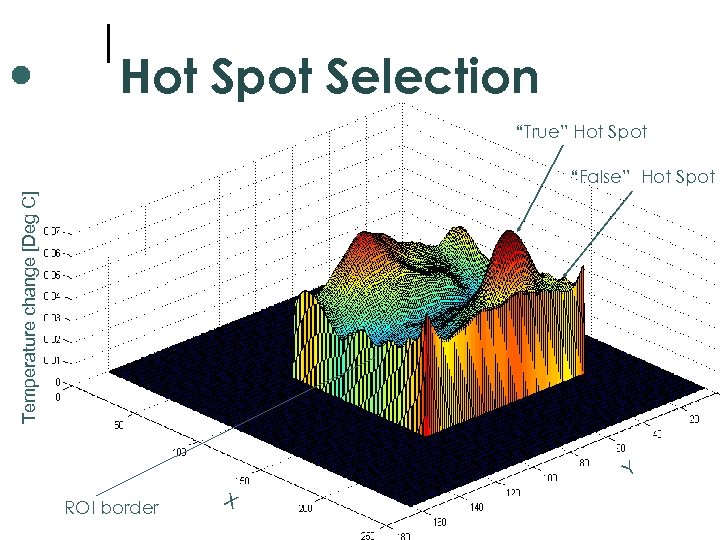

Hot Spot Selection “True” Hot Spot Temperature change [Deg C] “False” Hot Spot Y ROI border X

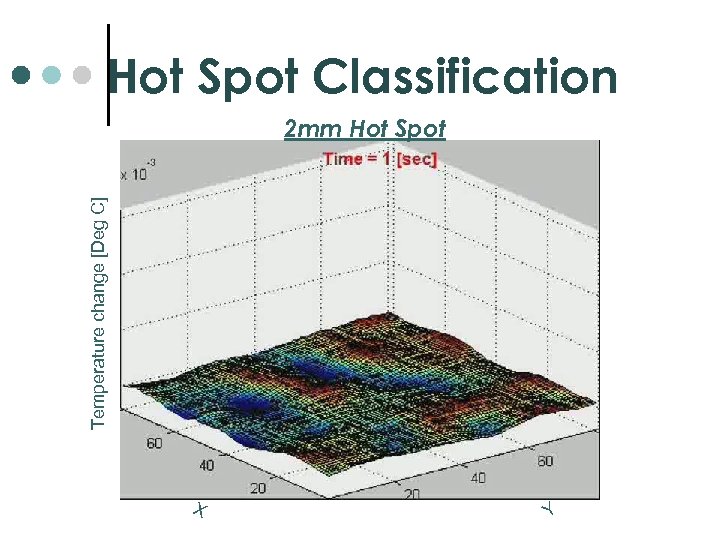

Hot Spot Classification Temperature change [Deg C] 2 mm Hot Spot X Y

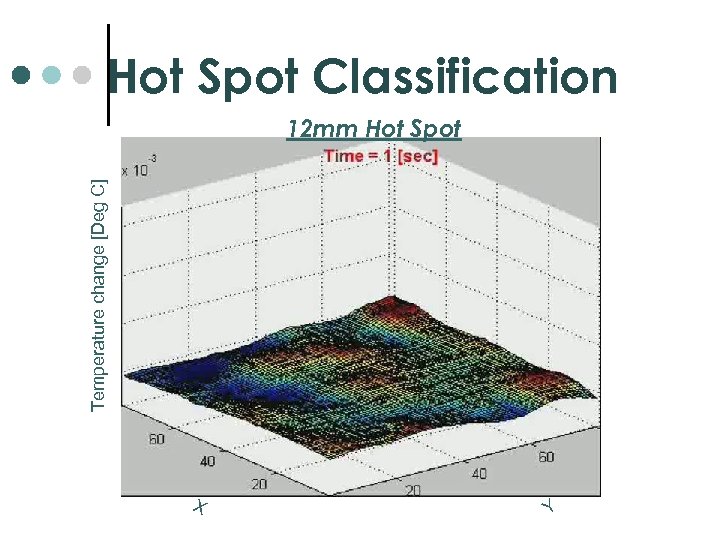

Hot Spot Classification Temperature change [Deg C] 12 mm Hot Spot X Y

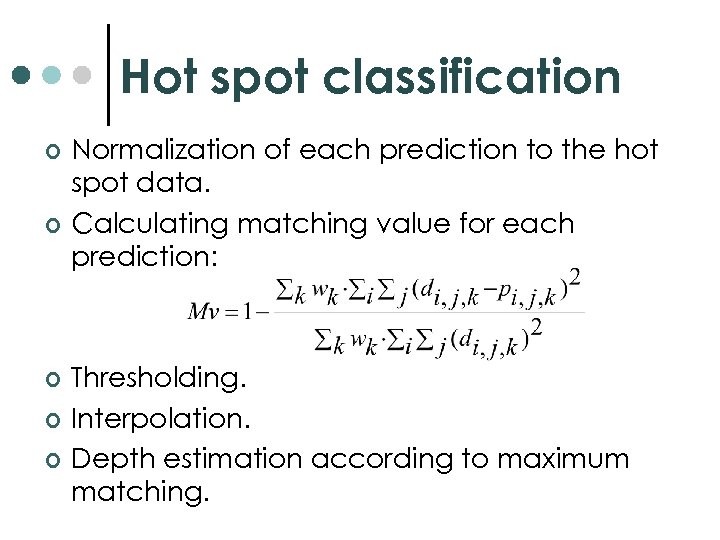

Hot spot classification ¢ ¢ ¢ Normalization of each prediction to the hot spot data. Calculating matching value for each prediction: Thresholding. Interpolation. Depth estimation according to maximum matching.

Hot Spot Classification Best match: 4 mm prediction Normalized predicted temperature change for tumor depths 1 -10[mm] Recorded Temperature change

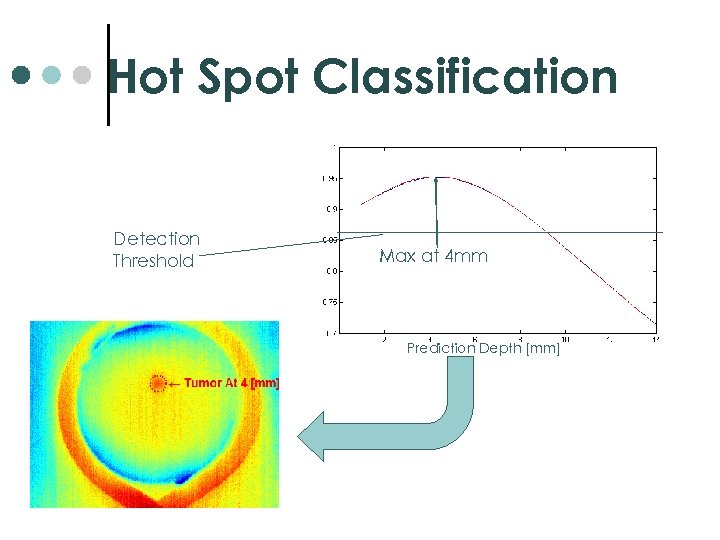

Hot Spot Classification Detection Threshold Max at 4 mm Prediction Depth [mm]

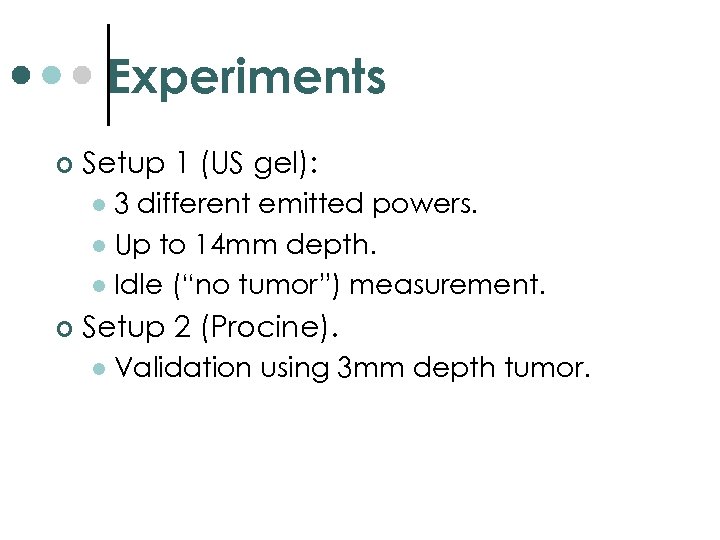

Experiments ¢ Setup 1 (US gel): 3 different emitted powers. l Up to 14 mm depth. l Idle (“no tumor”) measurement. l ¢ Setup 2 (Procine). l Validation using 3 mm depth tumor.

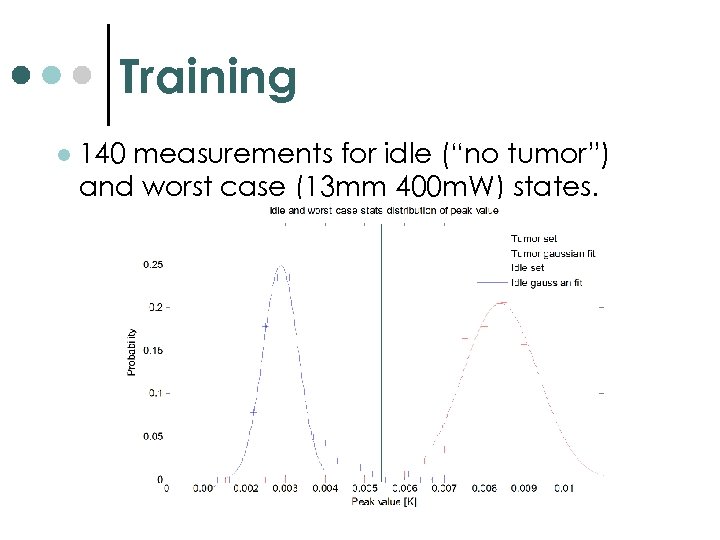

Training l 140 measurements for idle (“no tumor”) and worst case (13 mm 400 m. W) states.

Sensitivity & Specificity ¢ Specificity: 98. 68%

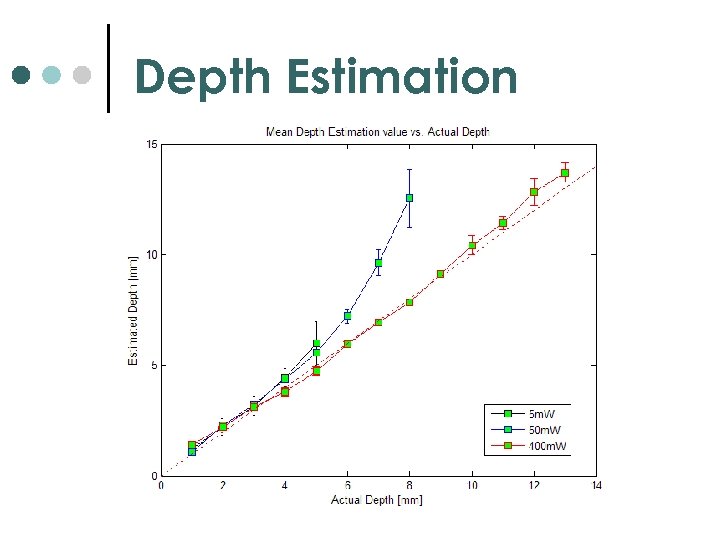

Depth Estimation

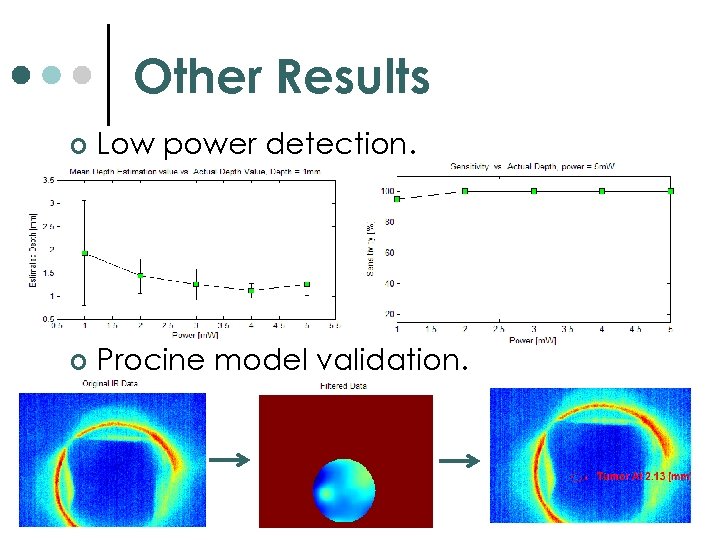

Other Results ¢ Low power detection. ¢ Procine model validation.

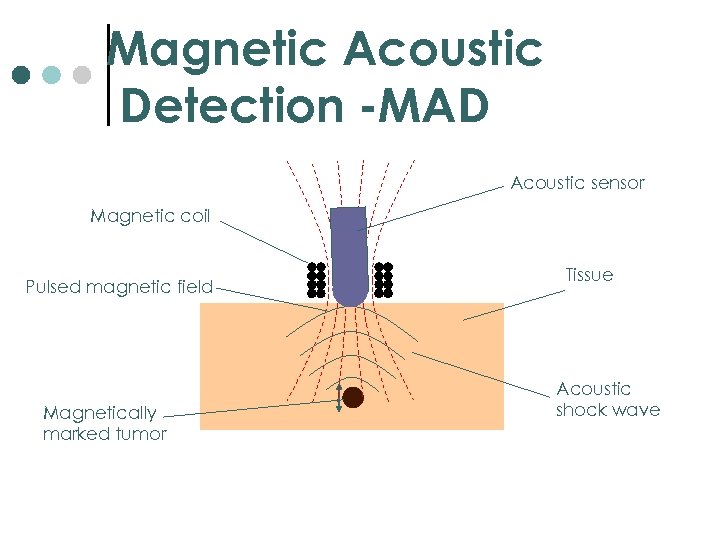

Magnetic Acoustic Detection -MAD Acoustic sensor Magnetic coil Pulsed magnetic field Magnetically marked tumor Tissue Acoustic shock wave

MAD - Simulation

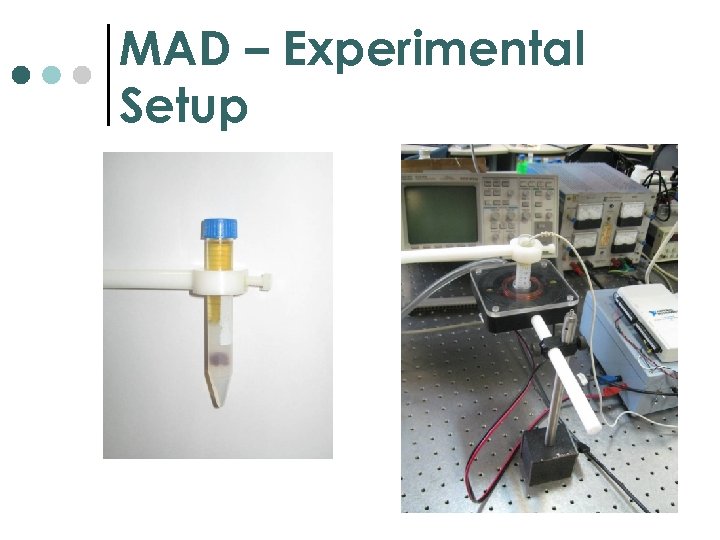

MAD – Experimental Setup

MAD - Results

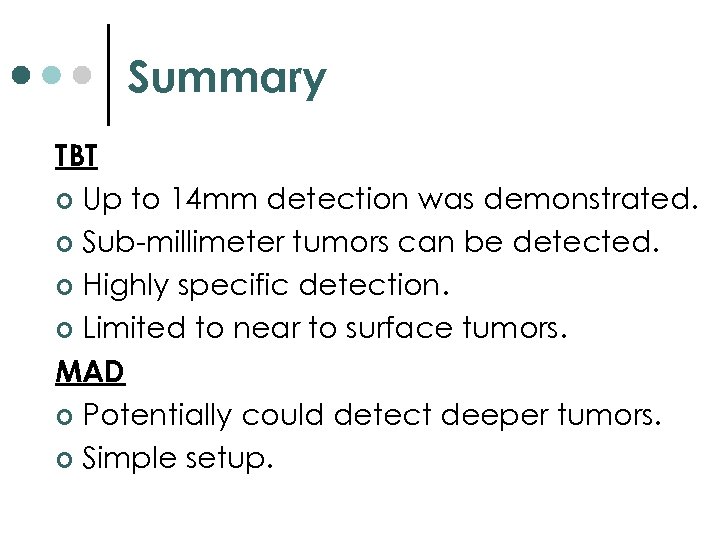

Summary TBT ¢ Up to 14 mm detection was demonstrated. ¢ Sub-millimeter tumors can be detected. ¢ Highly specific detection. ¢ Limited to near to surface tumors. MAD ¢ Potentially could detect deeper tumors. ¢ Simple setup.

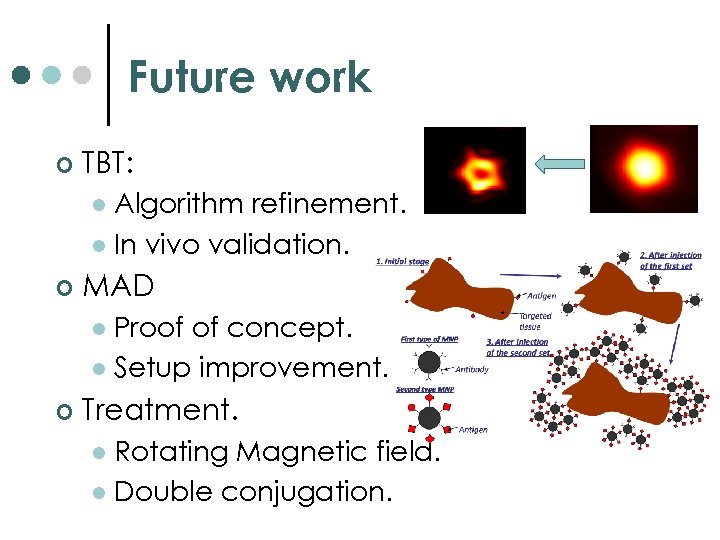

Future work ¢ TBT: Algorithm refinement. l In vivo validation. l ¢ MAD Proof of concept. l Setup improvement. l ¢ Treatment. Rotating Magnetic field. l Double conjugation. l

Thank You…

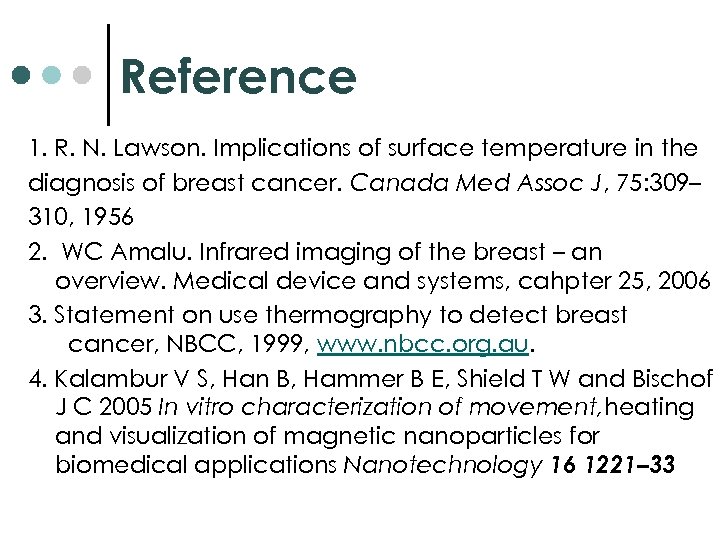

Reference 1. R. N. Lawson. Implications of surface temperature in the diagnosis of breast cancer. Canada Med Assoc J, 75: 309– 310, 1956 2. WC Amalu. Infrared imaging of the breast – an overview. Medical device and systems, cahpter 25, 2006 3. Statement on use thermography to detect breast cancer, NBCC, 1999, www. nbcc. org. au. 4. Kalambur V S, Han B, Hammer B E, Shield T W and Bischof J C 2005 In vitro characterization of movement, heating and visualization of magnetic nanoparticles for biomedical applications Nanotechnology 16 1221– 33

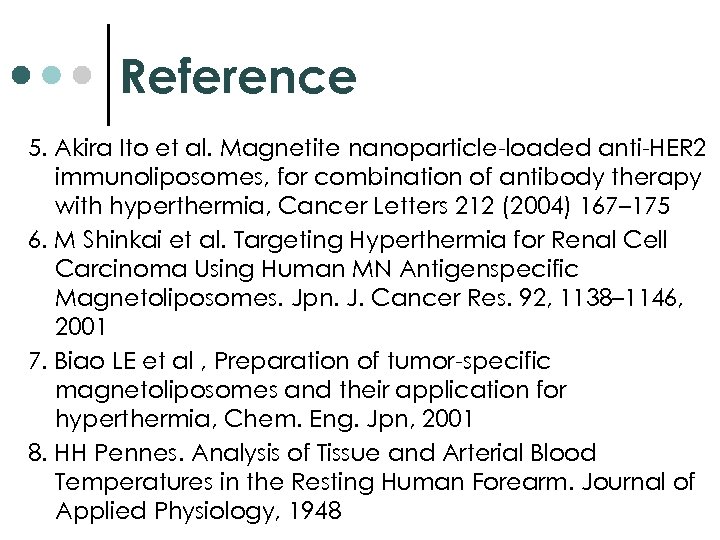

Reference 5. Akira Ito et al. Magnetite nanoparticle-loaded anti-HER 2 immunoliposomes, for combination of antibody therapy with hyperthermia, Cancer Letters 212 (2004) 167– 175 6. M Shinkai et al. Targeting Hyperthermia for Renal Cell Carcinoma Using Human MN Antigenspecific Magnetoliposomes. Jpn. J. Cancer Res. 92, 1138– 1146, 2001 7. Biao LE et al , Preparation of tumor-specific magnetoliposomes and their application for hyperthermia, Chem. Eng. Jpn, 2001 8. HH Pennes. Analysis of Tissue and Arterial Blood Temperatures in the Resting Human Forearm. Journal of Applied Physiology, 1948
