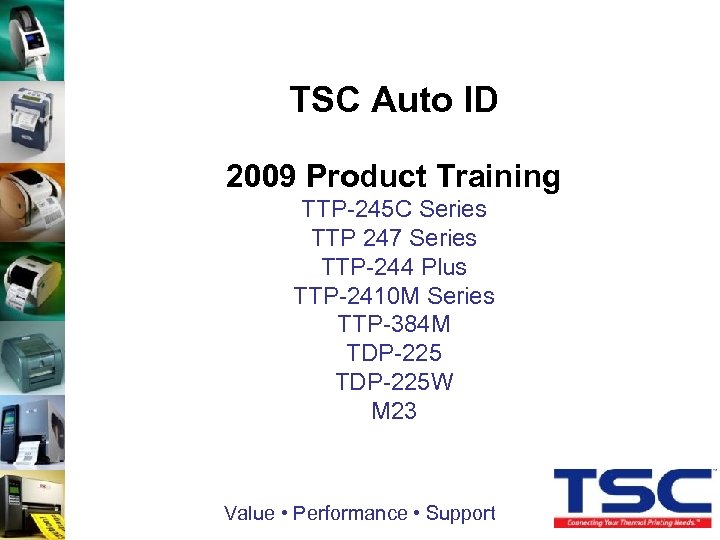

TSC Auto ID 2009 Product Training TTP-245 C Series TTP 247 Series TTP-244 Plus TTP-2410 M Series TTP-384 M TDP-225 W M 23 Value • Performance • Support

TSC Loyal Dealer Network Our TSC dealers are loyal because we treat them like the partner they are. The services we work hard to deliver to our partner’s everyday include: 1. Very powerful flexibility and customization programs including Private Label programs and sophisticated setup software. 2. Powerful application abilities within our printers supported by a great group of engineers based in the United States. We frequently enhance our firmware specifically to meet our partner’s needs. 3. Modern, durable, high quality and feature-rich printers backed up by two year warranties. 4. Emulation – ZPL /EPL out of the box, DPL flashable, IPL coming soon 5. Pricing and programs that produce both competitive bids and high margins for our dealers. 6. Powerful Technical Support Tools Value • Performance • Support

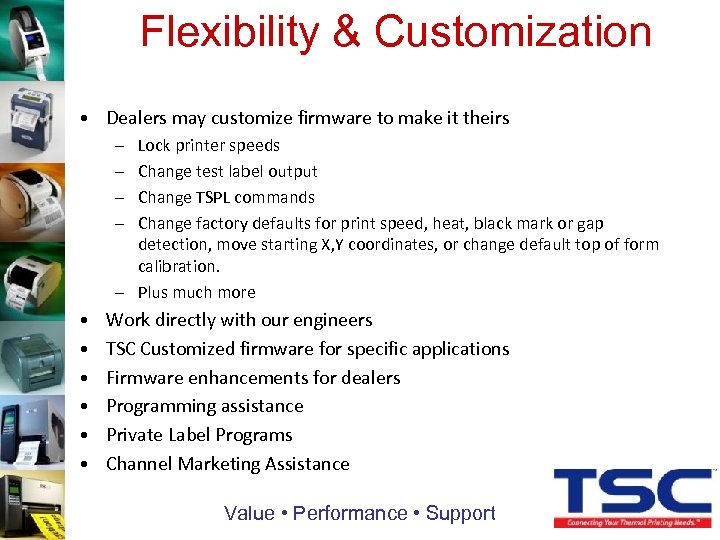

Flexibility & Customization • Dealers may customize firmware to make it theirs – – Lock printer speeds Change test label output Change TSPL commands Change factory defaults for print speed, heat, black mark or gap detection, move starting X, Y coordinates, or change default top of form calibration. – Plus much more • • • Work directly with our engineers TSC Customized firmware for specific applications Firmware enhancements for dealers Programming assistance Private Label Programs Channel Marketing Assistance Value • Performance • Support

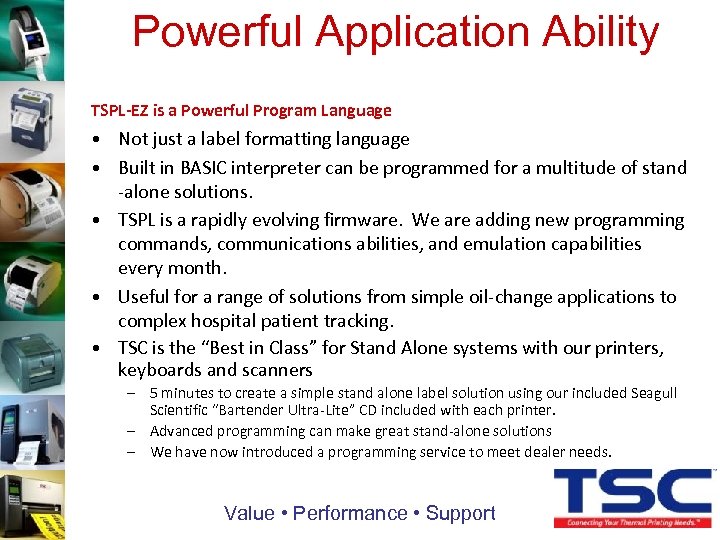

Powerful Application Ability TSPL-EZ is a Powerful Program Language • Not just a label formatting language • Built in BASIC interpreter can be programmed for a multitude of stand -alone solutions. • TSPL is a rapidly evolving firmware. We are adding new programming commands, communications abilities, and emulation capabilities every month. • Useful for a range of solutions from simple oil-change applications to complex hospital patient tracking. • TSC is the “Best in Class” for Stand Alone systems with our printers, keyboards and scanners – 5 minutes to create a simple stand alone label solution using our included Seagull Scientific “Bartender Ultra-Lite” CD included with each printer. – Advanced programming can make great stand-alone solutions – We have now introduced a programming service to meet dealer needs. Value • Performance • Support

Durable High Quality Design • • All TSC printers feature a two year warranty Our printers are inexpensive but not cheap Designed for low cost manufacturing and service Kyocera Printheads, EDAC power supplies High Quality Designs feature dual-wall plastics and die-cast aluminum Modern designs State of the Art Electronics Seagull Scientific Drivers and Bartender Software Value • Performance • Support

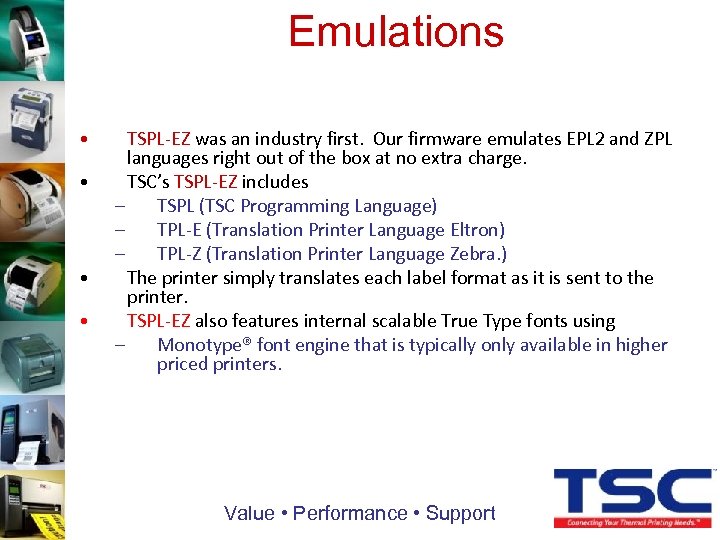

Emulations • • TSPL-EZ was an industry first. Our firmware emulates EPL 2 and ZPL languages right out of the box at no extra charge. TSC’s TSPL-EZ includes – TSPL (TSC Programming Language) – TPL-E (Translation Printer Language Eltron) – TPL-Z (Translation Printer Language Zebra. ) The printer simply translates each label format as it is sent to the printer. TSPL-EZ also features internal scalable True Type fonts using – Monotype® font engine that is typically only available in higher priced printers. Value • Performance • Support

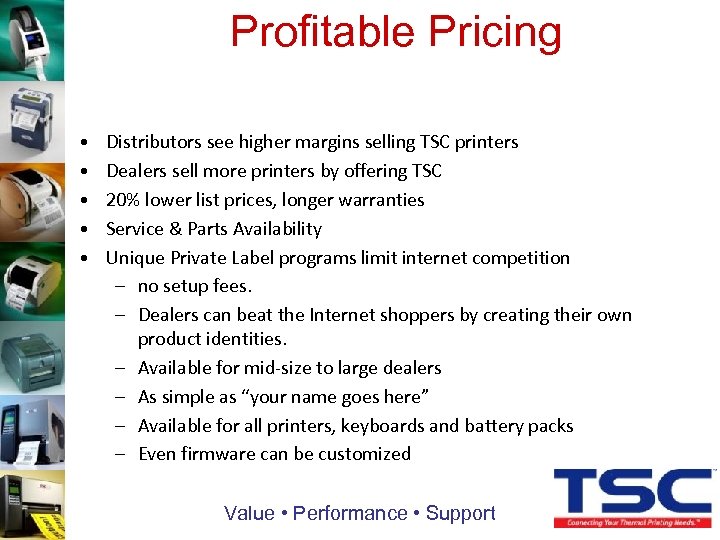

Profitable Pricing • • • Distributors see higher margins selling TSC printers Dealers sell more printers by offering TSC 20% lower list prices, longer warranties Service & Parts Availability Unique Private Label programs limit internet competition – no setup fees. – Dealers can beat the Internet shoppers by creating their own product identities. – Available for mid-size to large dealers – As simple as “your name goes here” – Available for all printers, keyboards and battery packs – Even firmware can be customized Value • Performance • Support

Powerful Support Tools TSC Diagnostic Tool is available at www. tscprinters. com and ships with each TSC printer. • Query printer via Ethernet, USB, Serial or Parallel • Turn features on or off • Set printing parameters • Reset the printer • Load new programs or firmware • Write and test programs via Command Tool interface • Set-Up Ethernet parameters Value • Performance • Support

The TSC Printer Family More Value, Lower Prices and more margin in dealers pockets Value • Performance • Support

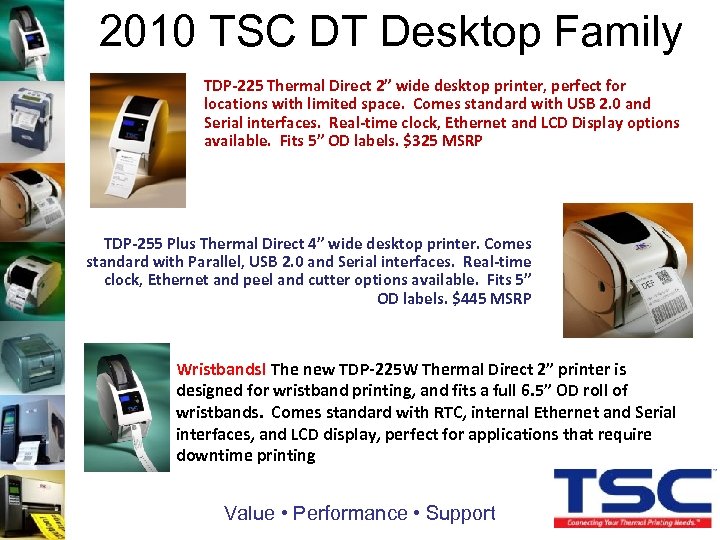

2010 TSC DT Desktop Family TDP-225 Thermal Direct 2” wide desktop printer, perfect for locations with limited space. Comes standard with USB 2. 0 and Serial interfaces. Real-time clock, Ethernet and LCD Display options available. Fits 5” OD labels. $325 MSRP TDP-255 Plus Thermal Direct 4” wide desktop printer. Comes standard with Parallel, USB 2. 0 and Serial interfaces. Real-time clock, Ethernet and peel and cutter options available. Fits 5” OD labels. $445 MSRP Wristbands! The new TDP-225 W Thermal Direct 2” printer is designed for wristband printing, and fits a full 6. 5” OD roll of wristbands. Comes standard with RTC, internal Ethernet and Serial interfaces, and LCD display, perfect for applications that require downtime printing Value • Performance • Support

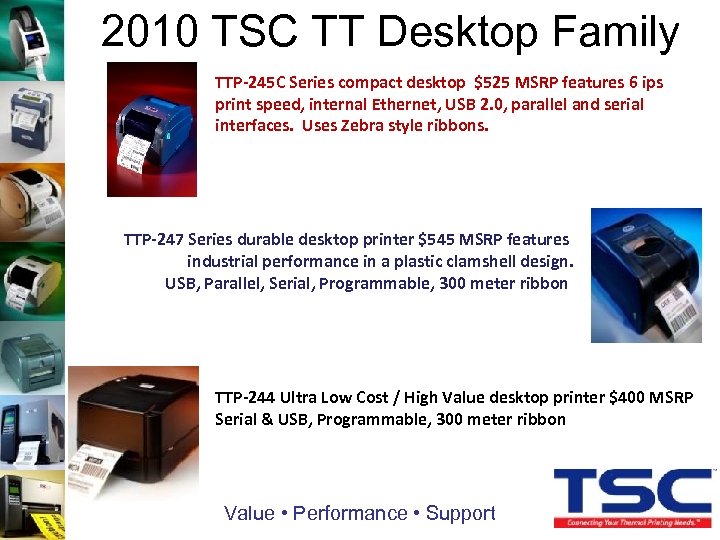

2010 TSC TT Desktop Family TTP-245 C Series compact desktop $525 MSRP features 6 ips print speed, internal Ethernet, USB 2. 0, parallel and serial interfaces. Uses Zebra style ribbons. TTP-247 Series durable desktop printer $545 MSRP features industrial performance in a plastic clamshell design. USB, Parallel, Serial, Programmable, 300 meter ribbon TTP-244 Ultra Low Cost / High Value desktop printer $400 MSRP Serial & USB, Programmable, 300 meter ribbon Value • Performance • Support

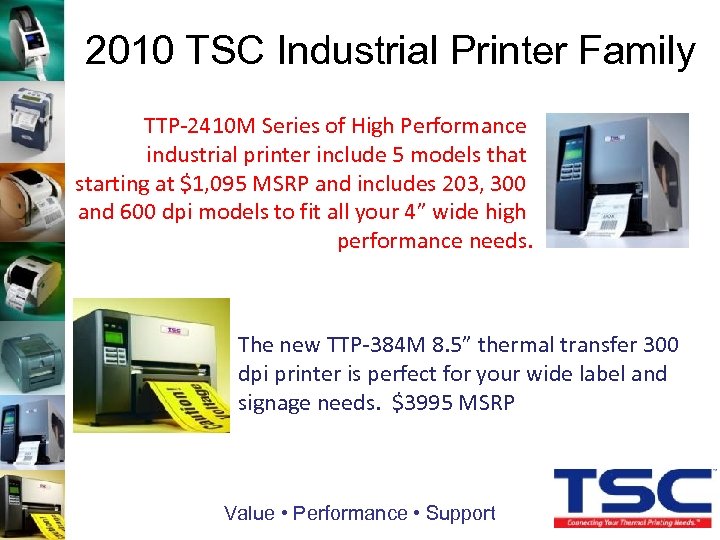

2010 TSC Industrial Printer Family TTP-2410 M Series of High Performance industrial printer include 5 models that starting at $1, 095 MSRP and includes 203, 300 and 600 dpi models to fit all your 4” wide high performance needs. The new TTP-384 M 8. 5” thermal transfer 300 dpi printer is perfect for your wide label and signage needs. $3995 MSRP Value • Performance • Support

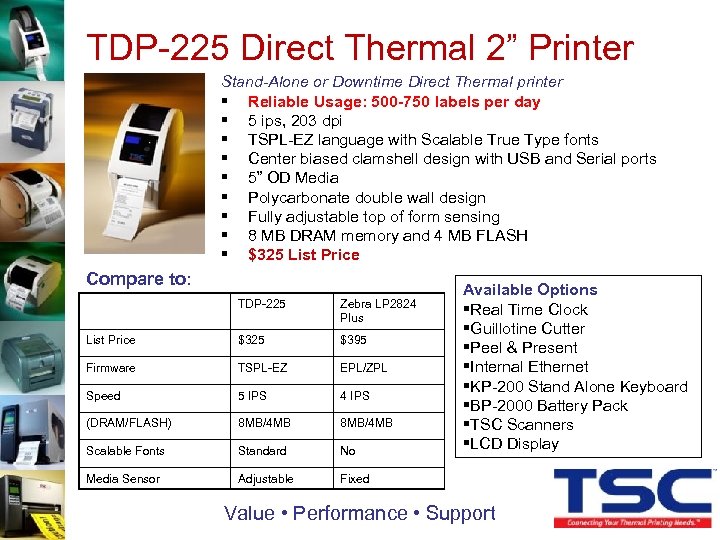

TDP-225 Direct Thermal 2” Printer Stand-Alone or Downtime Direct Thermal printer § Reliable Usage: 500 -750 labels per day § 5 ips, 203 dpi § TSPL-EZ language with Scalable True Type fonts § Center biased clamshell design with USB and Serial ports § 5” OD Media § Polycarbonate double wall design § Fully adjustable top of form sensing § 8 MB DRAM memory and 4 MB FLASH § $325 List Price Compare to: TDP-225 Zebra LP 2824 Plus List Price $325 $395 Firmware TSPL-EZ EPL/ZPL Speed 5 IPS 4 IPS (DRAM/FLASH) 8 MB/4 MB Scalable Fonts Standard No Media Sensor Adjustable Available Options §Real Time Clock §Guillotine Cutter §Peel & Present §Internal Ethernet §KP-200 Stand Alone Keyboard §BP-2000 Battery Pack §TSC Scanners §LCD Display Fixed Value • Performance • Support

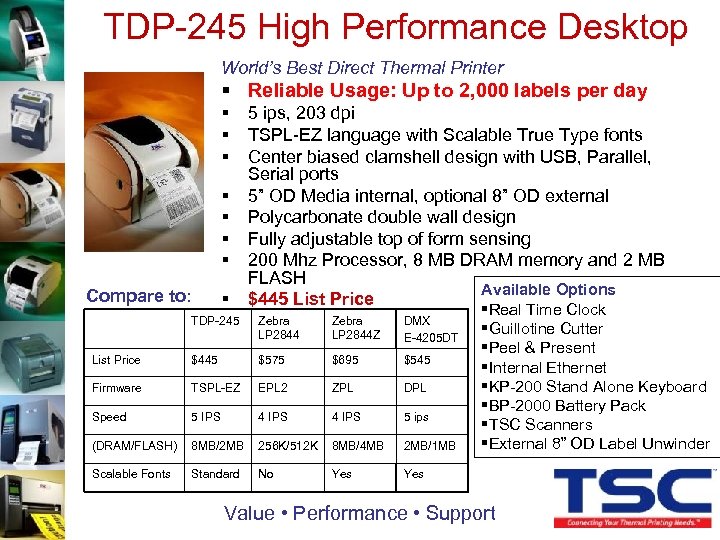

TDP-245 High Performance Desktop World’s Best Direct Thermal Printer § Reliable Usage: Up to 2, 000 labels per day § § § § Compare to: § 5 ips, 203 dpi TSPL-EZ language with Scalable True Type fonts Center biased clamshell design with USB, Parallel, Serial ports 5” OD Media internal, optional 8” OD external Polycarbonate double wall design Fully adjustable top of form sensing 200 Mhz Processor, 8 MB DRAM memory and 2 MB FLASH Available Options $445 List Price TDP-245 Zebra LP 2844 Z DMX E-4205 DT List Price $445 $575 $695 $545 Firmware TSPL-EZ EPL 2 ZPL DPL Speed 5 IPS 4 IPS 5 ips (DRAM/FLASH) 8 MB/2 MB 256 K/512 K 8 MB/4 MB 2 MB/1 MB Scalable Fonts Standard No Yes §Real Time Clock §Guillotine Cutter §Peel & Present §Internal Ethernet §KP-200 Stand Alone Keyboard §BP-2000 Battery Pack §TSC Scanners §External 8” OD Label Unwinder Yes Value • Performance • Support

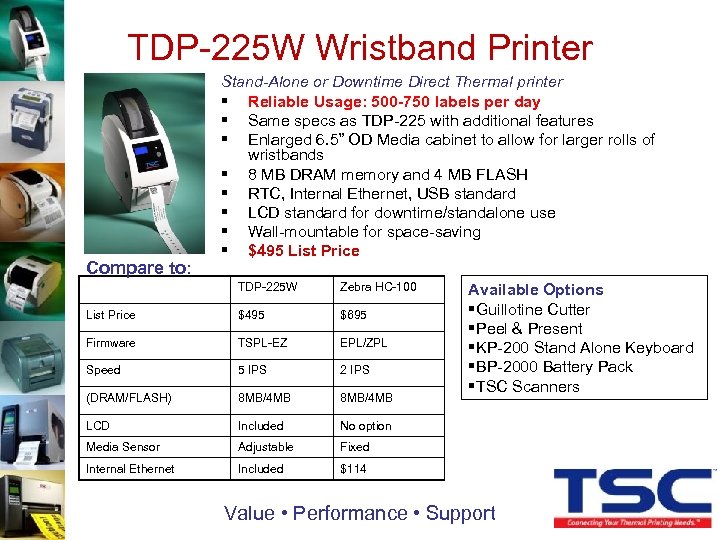

TDP-225 W Wristband Printer Compare to: Stand-Alone or Downtime Direct Thermal printer § Reliable Usage: 500 -750 labels per day § Same specs as TDP-225 with additional features § Enlarged 6. 5” OD Media cabinet to allow for larger rolls of wristbands § 8 MB DRAM memory and 4 MB FLASH § RTC, Internal Ethernet, USB standard § LCD standard for downtime/standalone use § Wall-mountable for space-saving § $495 List Price TDP-225 W Zebra HC-100 List Price $495 $695 Firmware TSPL-EZ EPL/ZPL Speed 5 IPS 2 IPS (DRAM/FLASH) 8 MB/4 MB LCD Included No option Media Sensor Adjustable Fixed Internal Ethernet Included $114 Available Options §Guillotine Cutter §Peel & Present §KP-200 Stand Alone Keyboard §BP-2000 Battery Pack §TSC Scanners Value • Performance • Support

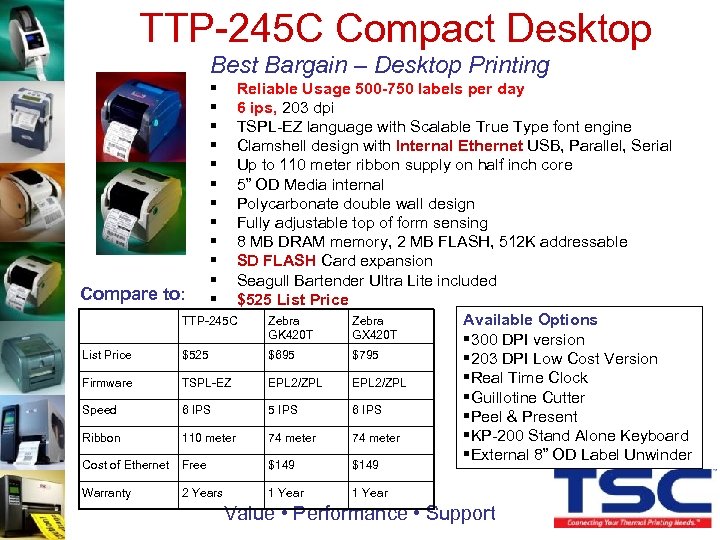

TTP-245 C Compact Desktop Best Bargain – Desktop Printing § § § Reliable Usage 500 -750 labels per day 6 ips, 203 dpi TSPL-EZ language with Scalable True Type font engine Clamshell design with Internal Ethernet USB, Parallel, Serial Up to 110 meter ribbon supply on half inch core 5” OD Media internal Polycarbonate double wall design Fully adjustable top of form sensing 8 MB DRAM memory, 2 MB FLASH, 512 K addressable SD FLASH Card expansion Seagull Bartender Ultra Lite included Compare to: $525 List Price TTP-245 C Zebra Available Options GK 420 T GX 420 T § 300 DPI version List Price $525 $695 $795 § 203 DPI Low Cost Version §Real Time Clock Firmware TSPL-EZ EPL 2/ZPL §Guillotine Cutter Speed 6 IPS 5 IPS 6 IPS §Peel & Present §KP-200 Stand Alone Keyboard Ribbon 110 meter 74 meter §External 8” OD Label Unwinder Cost of Ethernet Free $149 Warranty 2 Years 1 Year Value • Performance • Support

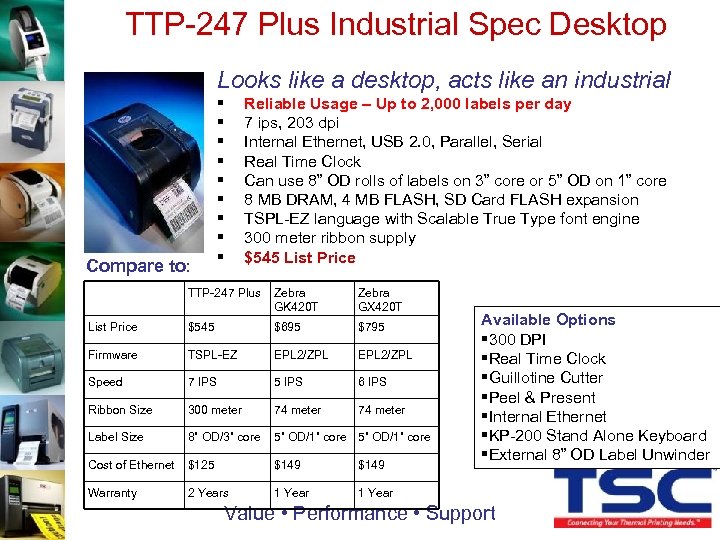

TTP-247 Plus Industrial Spec Desktop Looks like a desktop, acts like an industrial Compare to: § § § § § Reliable Usage – Up to 2, 000 labels per day 7 ips, 203 dpi Internal Ethernet, USB 2. 0, Parallel, Serial Real Time Clock Can use 8” OD rolls of labels on 3” core or 5” OD on 1” core 8 MB DRAM, 4 MB FLASH, SD Card FLASH expansion TSPL-EZ language with Scalable True Type font engine 300 meter ribbon supply $545 List Price TTP-247 Plus Zebra GK 420 T Zebra GX 420 T List Price $545 $695 $795 Firmware TSPL-EZ EPL 2/ZPL Speed 7 IPS 5 IPS 6 IPS Ribbon Size 300 meter 74 meter Label Size 8” OD/3” core 5” OD/1” core Cost of Ethernet $125 $149 Warranty 2 Years 1 Year Available Options § 300 DPI §Real Time Clock §Guillotine Cutter §Peel & Present §Internal Ethernet §KP-200 Stand Alone Keyboard §External 8” OD Label Unwinder Value • Performance • Support

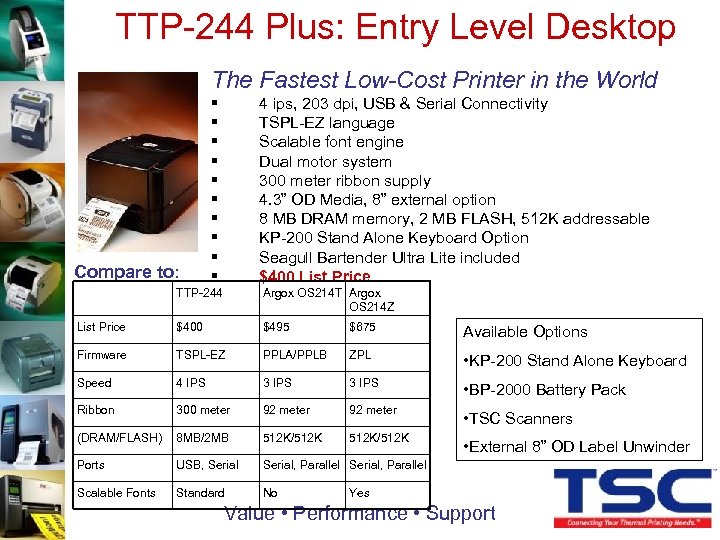

TTP-244 Plus: Entry Level Desktop The Fastest Low-Cost Printer in the World Compare to: § § § § § 4 ips, 203 dpi, USB & Serial Connectivity TSPL-EZ language Scalable font engine Dual motor system 300 meter ribbon supply 4. 3” OD Media, 8” external option 8 MB DRAM memory, 2 MB FLASH, 512 K addressable KP-200 Stand Alone Keyboard Option Seagull Bartender Ultra Lite included $400 List Price TTP-244 Argox OS 214 T Argox OS 214 Z List Price $400 $495 $675 Available Options Firmware TSPL-EZ PPLA/PPLB ZPL • KP-200 Stand Alone Keyboard Speed 4 IPS 3 IPS • BP-2000 Battery Pack Ribbon 300 meter 92 meter • TSC Scanners (DRAM/FLASH) 8 MB/2 MB 512 K/512 K Ports USB, Serial, Parallel Scalable Fonts Standard No • External 8” OD Label Unwinder Yes Value • Performance • Support

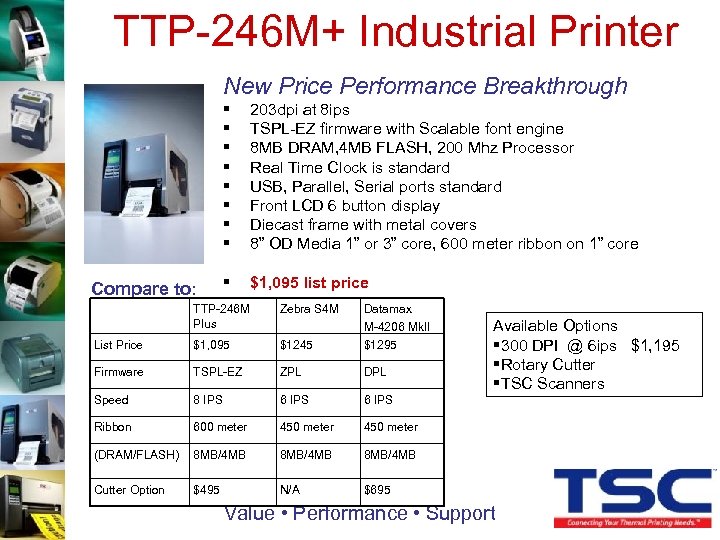

TTP-246 M+ Industrial Printer New Price Performance Breakthrough § § § § Compare to: 203 dpi at 8 ips TSPL-EZ firmware with Scalable font engine 8 MB DRAM, 4 MB FLASH, 200 Mhz Processor Real Time Clock is standard USB, Parallel, Serial ports standard Front LCD 6 button display Diecast frame with metal covers 8” OD Media 1” or 3” core, 600 meter ribbon on 1” core § $1, 095 list price TTP-246 M Plus Zebra S 4 M List Price $1, 095 $1245 Datamax M-4206 Mk. II $1295 Firmware TSPL-EZ ZPL DPL Speed 8 IPS 6 IPS Ribbon 600 meter 450 meter (DRAM/FLASH) 8 MB/4 MB Cutter Option $495 N/A $695 Available Options § 300 DPI @ 6 ips $1, 195 §Rotary Cutter §TSC Scanners Value • Performance • Support

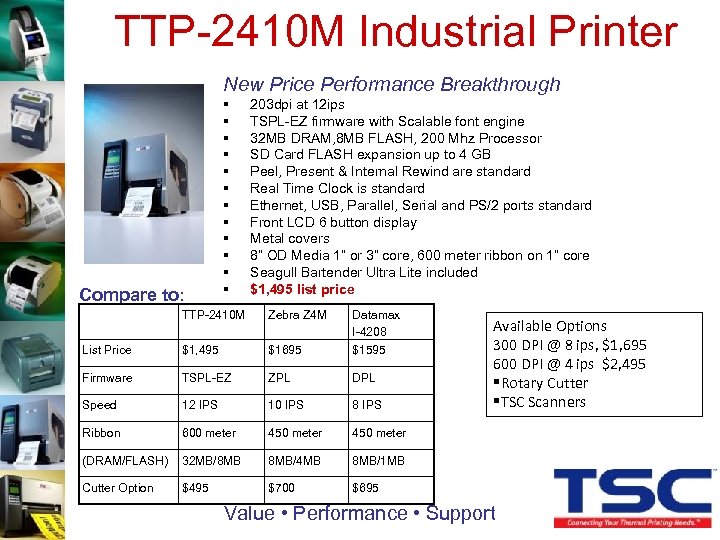

TTP-2410 M Industrial Printer New Price Performance Breakthrough Compare to: § § § 203 dpi at 12 ips TSPL-EZ firmware with Scalable font engine 32 MB DRAM, 8 MB FLASH, 200 Mhz Processor SD Card FLASH expansion up to 4 GB Peel, Present & Internal Rewind are standard Real Time Clock is standard Ethernet, USB, Parallel, Serial and PS/2 ports standard Front LCD 6 button display Metal covers 8” OD Media 1” or 3” core, 600 meter ribbon on 1” core Seagull Bartender Ultra Lite included $1, 495 list price TTP-2410 M Zebra Z 4 M List Price $1, 495 $1695 Datamax I-4208 $1595 Firmware TSPL-EZ ZPL DPL Speed 12 IPS 10 IPS 8 IPS Ribbon 600 meter 450 meter (DRAM/FLASH) 32 MB/8 MB 8 MB/4 MB 8 MB/1 MB Cutter Option $495 $700 $695 Available Options 300 DPI @ 8 ips, $1, 695 600 DPI @ 4 ips $2, 495 §Rotary Cutter §TSC Scanners Value • Performance • Support

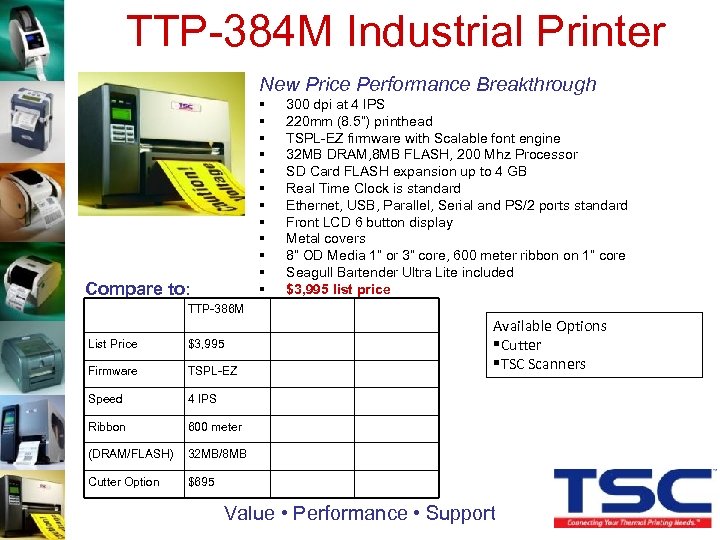

TTP-384 M Industrial Printer New Price Performance Breakthrough § § § Compare to: TTP-386 M List Price $3, 995 Firmware TSPL-EZ Speed 600 meter (DRAM/FLASH) 32 MB/8 MB Cutter Option Available Options §Cutter §TSC Scanners 4 IPS Ribbon 300 dpi at 4 IPS 220 mm (8. 5”) printhead TSPL-EZ firmware with Scalable font engine 32 MB DRAM, 8 MB FLASH, 200 Mhz Processor SD Card FLASH expansion up to 4 GB Real Time Clock is standard Ethernet, USB, Parallel, Serial and PS/2 ports standard Front LCD 6 button display Metal covers 8” OD Media 1” or 3” core, 600 meter ribbon on 1” core Seagull Bartender Ultra Lite included $3, 995 list price $695 Value • Performance • Support

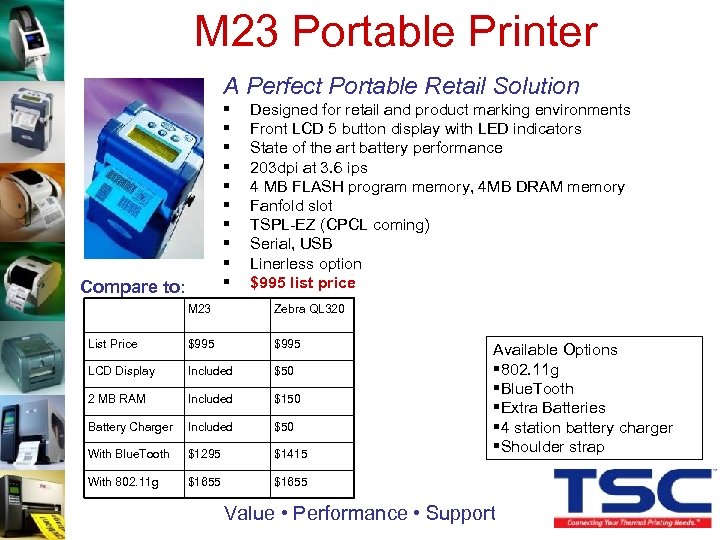

M 23 Portable Printer A Perfect Portable Retail Solution § § § § § Compare to: Designed for retail and product marking environments Front LCD 5 button display with LED indicators State of the art battery performance 203 dpi at 3. 6 ips 4 MB FLASH program memory, 4 MB DRAM memory Fanfold slot TSPL-EZ (CPCL coming) Serial, USB Linerless option $995 list price M 23 Zebra QL 320 List Price $995 LCD Display Included $50 2 MB RAM Included $150 Battery Charger Included $50 With Blue. Tooth $1295 $1415 With 802. 11 g $1655 Available Options § 802. 11 g §Blue. Tooth §Extra Batteries § 4 station battery charger §Shoulder strap Value • Performance • Support

A Quick Recap TSC Printer Emulations Compare to Advantage TTP-246 M Plus $995 TSPL-EZ S 4 M $1245 Less expensive, 2 year warranty, all metal design, front LCD display, exclusive to Blue. Star TTP-2410 M $1375 TSPL-EZ Z 4 M $1695 Less expensive, 2 year warranty, all metal design, front LCD display, exclusive to Blue. Star TTP-244 $400 TSPL-EZ TLP-2742, Argox OS 214 T or Zebra TLP-2742 discontinued, TTP-244 is quieter, larger ribbon supply, lower ribbon MSI TTP-245 C TSPL-EZ Zebra G Series Less Expensive, Internal Ethernet Standard, Uses Zebra supplies TDP-245 $445 TSPL-EZ LP-2844 $575 Less expensive, 2 year warranty, faster, easier to maintain TTP-245 Plus/TTP 247 $525/$545 TSPL-EZ TLP-2844 $675 Less expensive, 2 year warranty, faster, easier to maintain, lower ribbon MSI M 23 $995 TSPL-EZ QL 320 $995 Many more features are standard, designed specifically for retail, fan fold slot KP-200 Keyboards $195 TSPL, EPL 2 Zebra KDU $225 Better size, available Value • Performance • Support

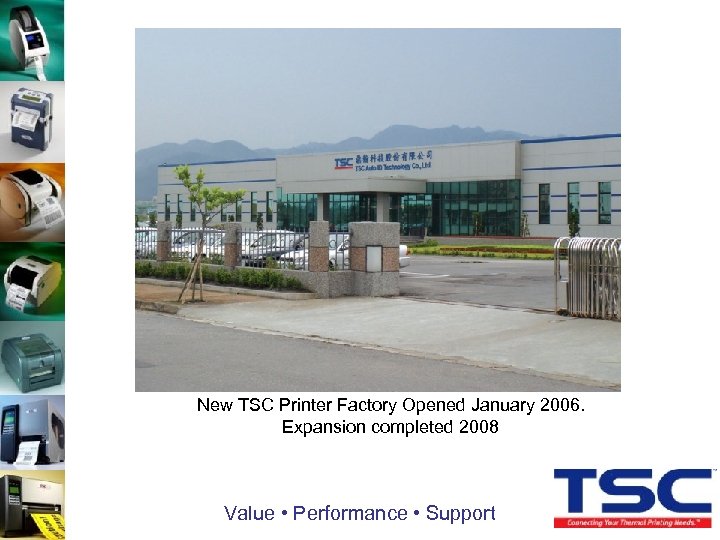

New TSC Printer Factory Opened January 2006. Expansion completed 2008 Value • Performance • Support
