Triple play services and Equal Access Network Alfrēds

"Triple play" services and Equal Access Network Alfrēds Asars LATVENERGO TELEKOMUNIKĀCIJAS alfreds. asars@latvenergo. lv BALTIC IT&T 2006 FORUM: e. Baltics

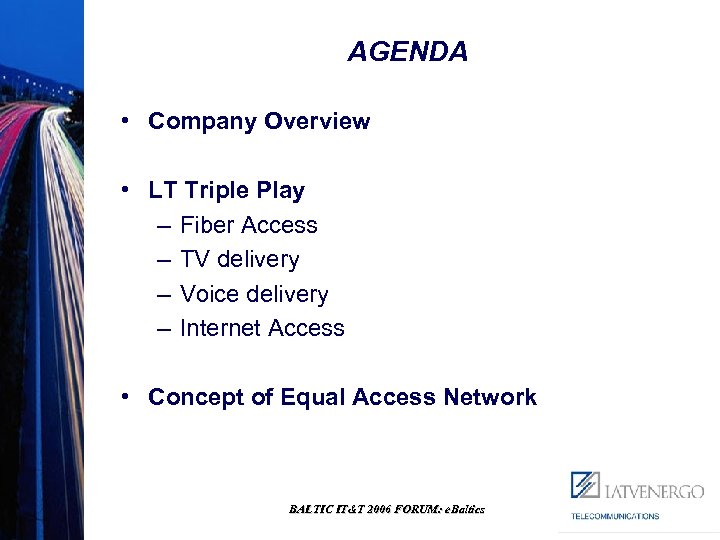

AGENDA • Company Overview • LT Triple Play – Fiber Access – TV delivery – Voice delivery – Internet Access • Concept of Equal Access Network BALTIC IT&T 2006 FORUM: e. Baltics

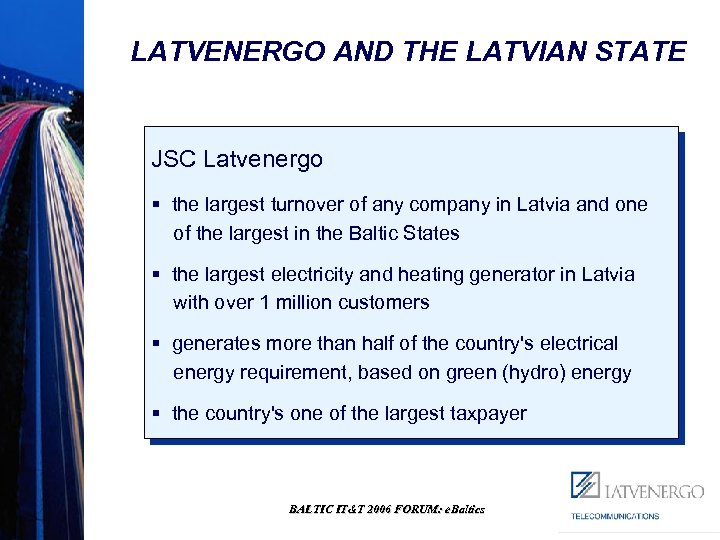

LATVENERGO AND THE LATVIAN STATE JSC Latvenergo § the largest turnover of any company in Latvia and one of the largest in the Baltic States § the largest electricity and heating generator in Latvia with over 1 million customers § generates more than half of the country's electrical energy requirement, based on green (hydro) energy § the country's one of the largest taxpayer BALTIC IT&T 2006 FORUM: e. Baltics

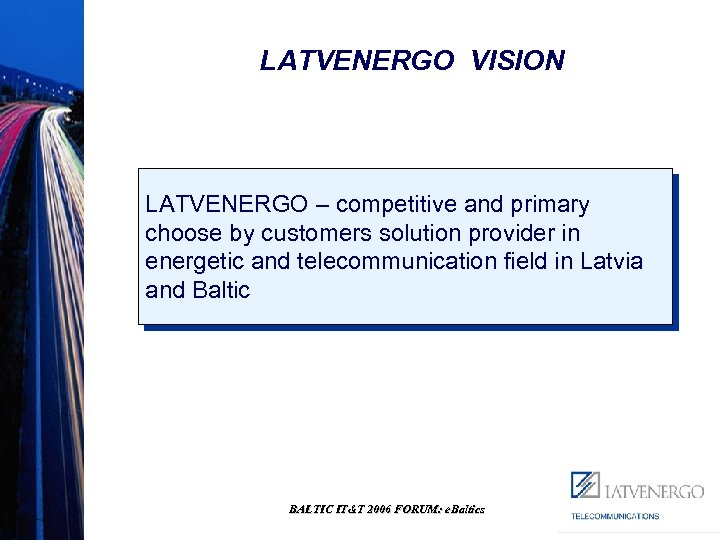

LATVENERGO VISION LATVENERGO – competitive and primary choose by customers solution provider in energetic and telecommunication field in Latvia and Baltic BALTIC IT&T 2006 FORUM: e. Baltics

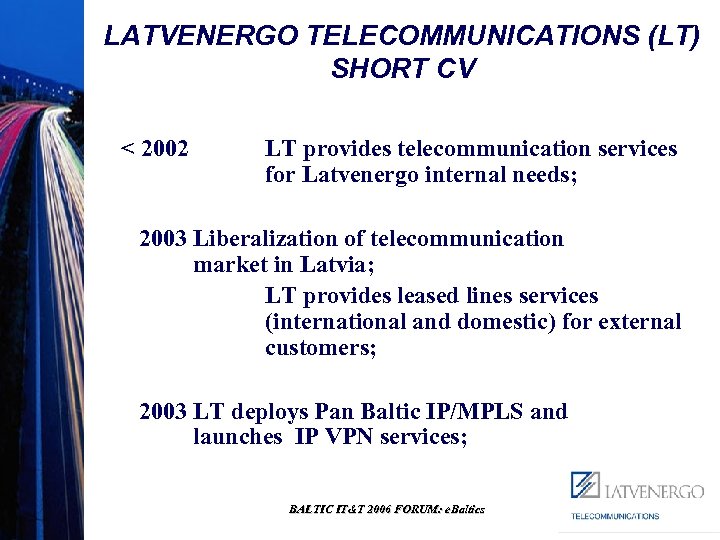

LATVENERGO TELECOMMUNICATIONS (LT) SHORT CV < 2002 LT provides telecommunication services for Latvenergo internal needs; 2003 Liberalization of telecommunication market in Latvia; LT provides leased lines services (international and domestic) for external customers; 2003 LT deploys Pan Baltic IP/MPLS and launches IP VPN services; BALTIC IT&T 2006 FORUM: e. Baltics

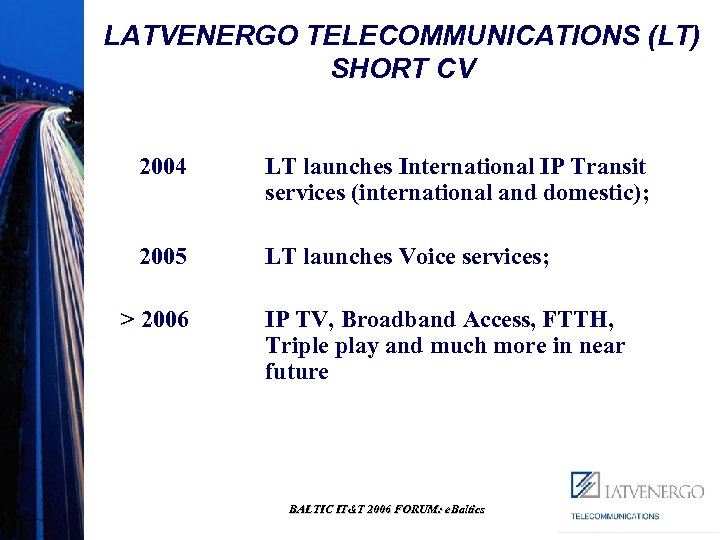

LATVENERGO TELECOMMUNICATIONS (LT) SHORT CV 2004 LT launches International IP Transit services (international and domestic); 2005 LT launches Voice services; > 2006 IP TV, Broadband Access, FTTH, Triple play and much more in near future BALTIC IT&T 2006 FORUM: e. Baltics

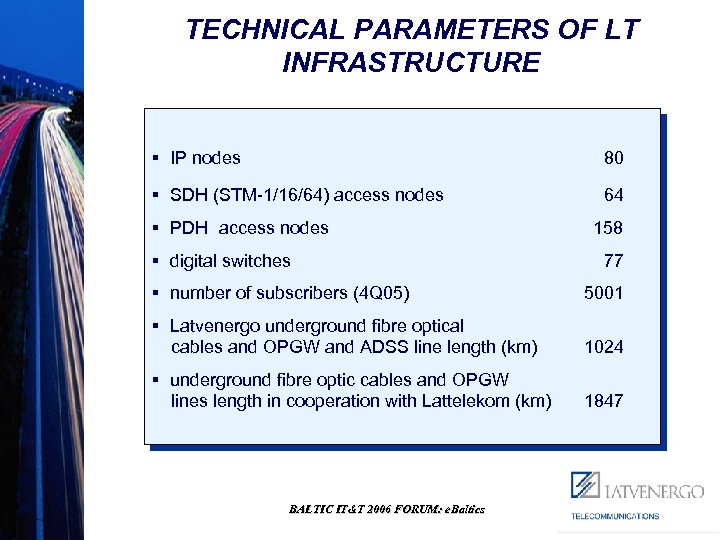

TECHNICAL PARAMETERS OF LT INFRASTRUCTURE § IP nodes 80 § SDH (STM-1/16/64) access nodes 64 § PDH access nodes § digital switches 158 77 § number of subscribers (4 Q 05) 5001 § Latvenergo underground fibre optical cables and OPGW and ADSS line length (km) 1024 § underground fibre optic cables and OPGW lines length in cooperation with Lattelekom (km) 1847 BALTIC IT&T 2006 FORUM: e. Baltics

TRIPLE PLAY: Why ? Telco’s side: • Services bundling - Higher ARPU Customer’s side: • Service integration (for example: Internet surfing & E-mail from TV set) • Unique or exclusive content and services • Extra value to property BALTIC IT&T 2006 FORUM: e. Baltics

LT TRIPLE PLAY: Fiber Access IP/MPLS backbone In-Building cabling Fiber (SM) Fiber (MM) Fiber (SM) In-Building cabling Cat 5 e Splitter (1: 32) BALTIC IT&T 2006 FORUM: e. Baltics

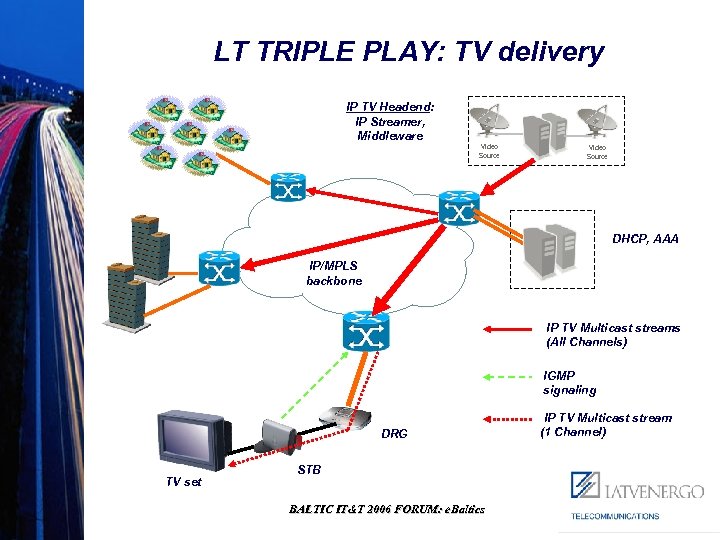

LT TRIPLE PLAY: TV delivery IP TV Headend: IP Streamer, Middleware Video Source DHCP, AAA IP/MPLS backbone IP TV Multicast streams (All Channels) IGMP signaling DRG TV set STB BALTIC IT&T 2006 FORUM: e. Baltics IP TV Multicast stream (1 Channel)

LT TRIPLE PLAY: Voice delivery IP Telephony system PSTN DHCP, AAA IP/MPLS backbone H. 323 or SIP Call signaling Voice conversation DRG Analog phone BALTIC IT&T 2006 FORUM: e. Baltics

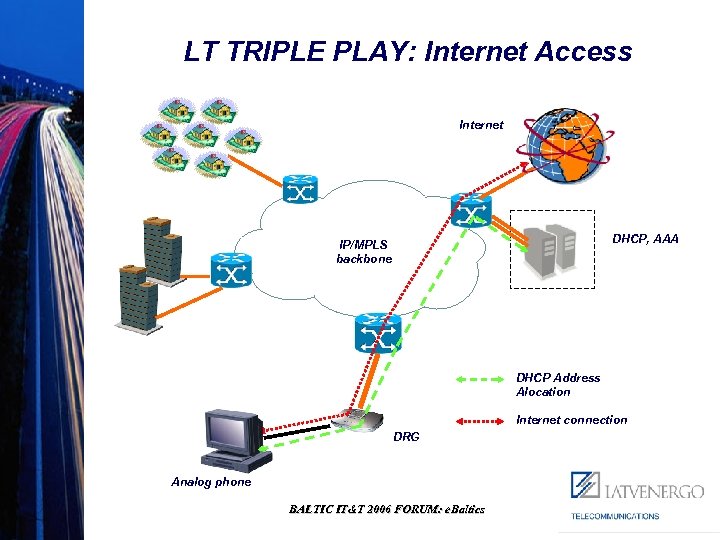

LT TRIPLE PLAY: Internet Access Internet DHCP, AAA IP/MPLS backbone DHCP Address Alocation Internet connection DRG Analog phone BALTIC IT&T 2006 FORUM: e. Baltics

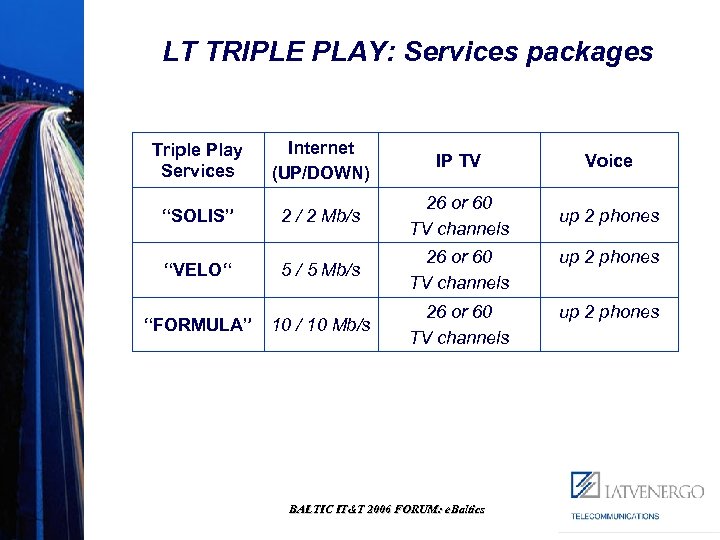

LT TRIPLE PLAY: Services packages Triple Play Services Internet (UP/DOWN) IP TV Voice “SOLIS” 2 / 2 Mb/s 26 or 60 TV channels up 2 phones “VELO“ 5 / 5 Mb/s 26 or 60 TV channels up 2 phones “FORMULA” 10 / 10 Mb/s 26 or 60 TV channels up 2 phones BALTIC IT&T 2006 FORUM: e. Baltics

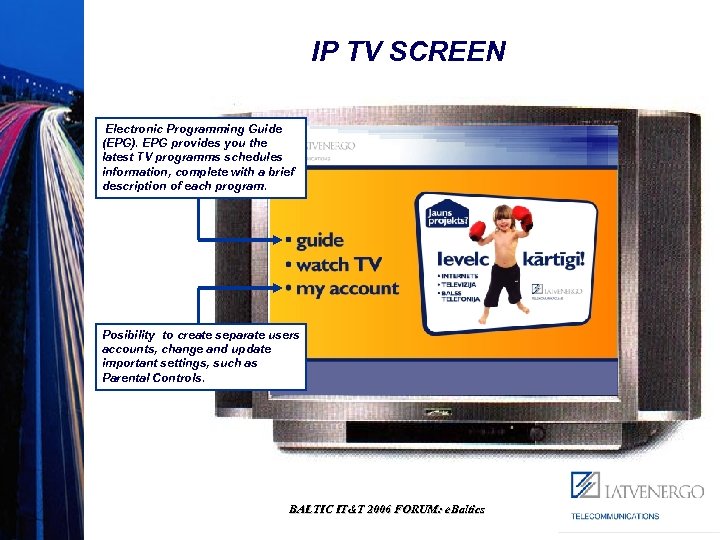

IP TV SCREEN Electronic Programming Guide (EPG). EPG provides you the latest TV programms schedules information, complete with a brief description of each program. Posibility to create separate users accounts, change and update important settings, such as Parental Controls. BALTIC IT&T 2006 FORUM: e. Baltics

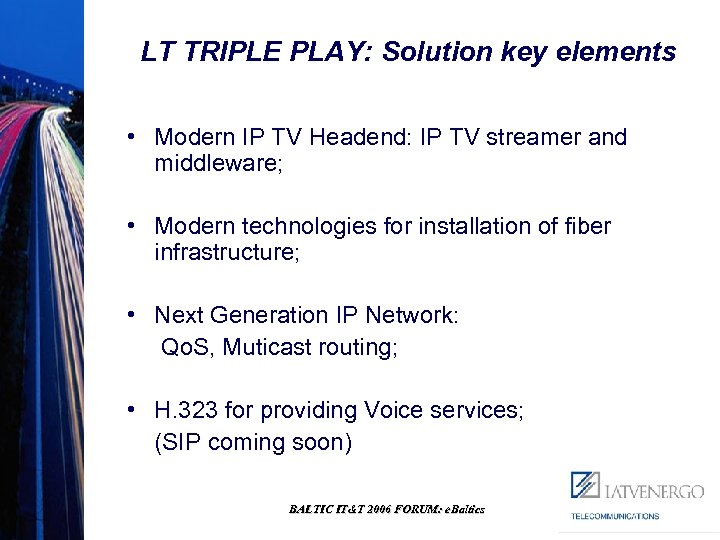

LT TRIPLE PLAY: Solution key elements • Modern IP TV Headend: IP TV streamer and middleware; • Modern technologies for installation of fiber infrastructure; • Next Generation IP Network: Qo. S, Muticast routing; • H. 323 for providing Voice services; (SIP coming soon) BALTIC IT&T 2006 FORUM: e. Baltics

LT PARTNERS AND VENDORS BALTIC IT&T 2006 FORUM: e. Baltics

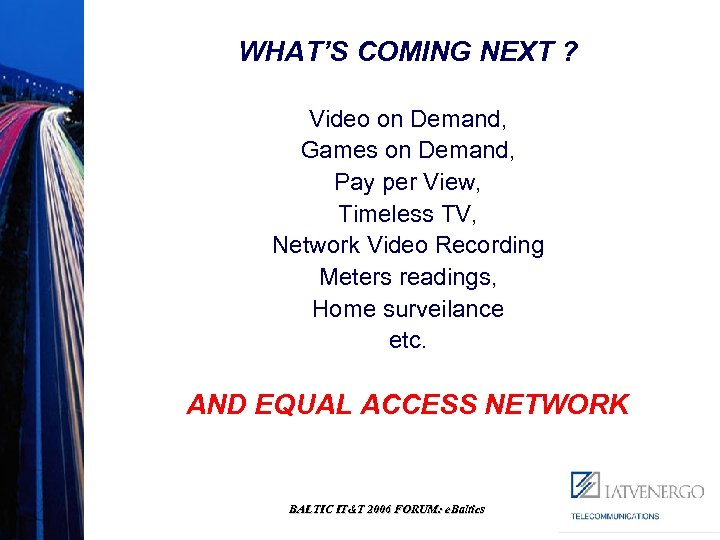

WHAT’S COMING NEXT ? Video on Demand, Games on Demand, Pay per View, Timeless TV, Network Video Recording Meters readings, Home surveilance etc. AND EQUAL ACCESS NETWORK BALTIC IT&T 2006 FORUM: e. Baltics

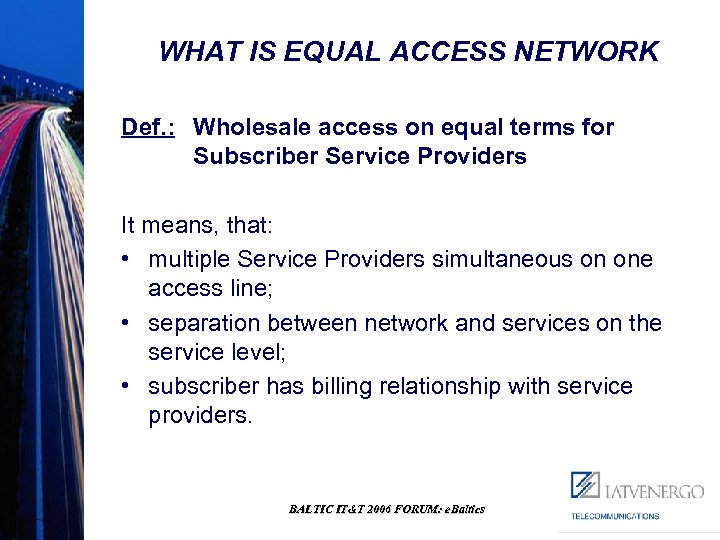

WHAT IS EQUAL ACCESS NETWORK Def. : Wholesale access on equal terms for Subscriber Service Providers It means, that: • multiple Service Providers simultaneous on one access line; • separation between network and services on the service level; • subscriber has billing relationship with service providers. BALTIC IT&T 2006 FORUM: e. Baltics

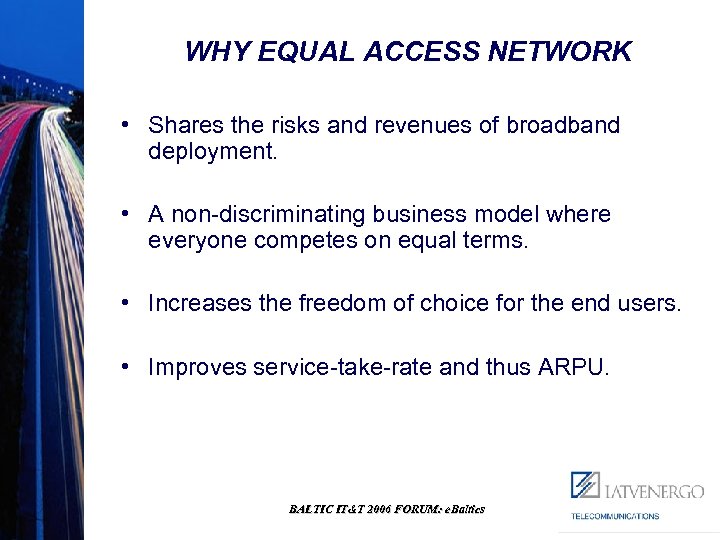

WHY EQUAL ACCESS NETWORK • Shares the risks and revenues of broadband deployment. • A non-discriminating business model where everyone competes on equal terms. • Increases the freedom of choice for the end users. • Improves service-take-rate and thus ARPU. BALTIC IT&T 2006 FORUM: e. Baltics

EQUAL ACCESS IN ACTION Internet from Company X PSTN Voice from Company Y IP/MPLS backbone TV from Company Z DHCP, AAA, Billing, Service Selection Portal Video Source DRG BALTIC IT&T 2006 FORUM: e. Baltics

You shall not plan the future with the past Edmund Burke Thank you !!! don’t forget to visit our technology panel for more details and hands-on experience BALTIC IT&T 2006 FORUM: e. Baltics
