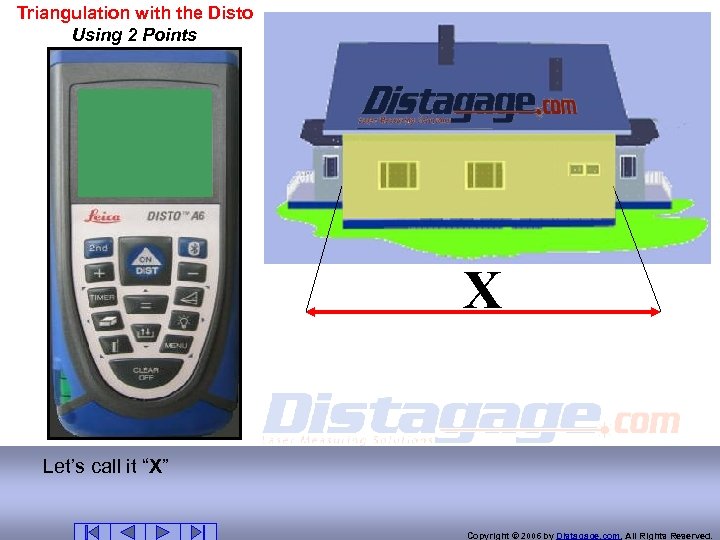

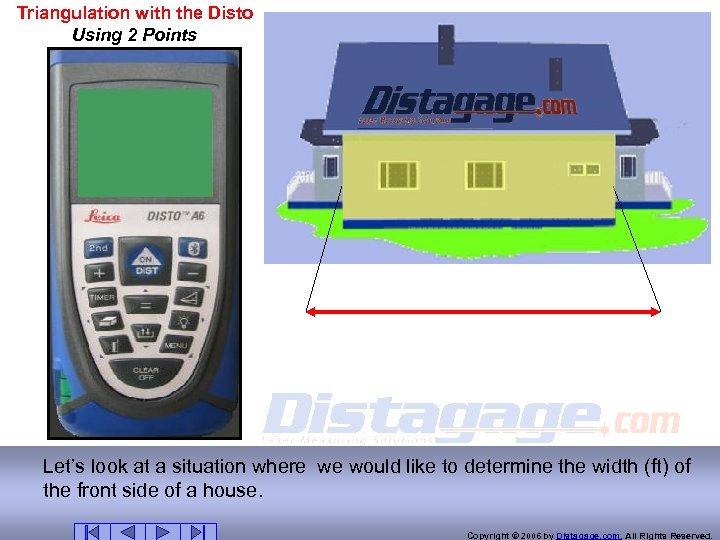

Triangulation with the Disto Using 2 Points X Let’s look at a situation where we would like to determine the width (ft) of the front side of a house. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Let’s look at a situation where we would like to determine the width (ft) of the front side of a house. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Let’s look at a situation where we would like to determine the width (ft) of the front side of a house. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Let’s look at a situation where we would like to determine the width (ft) of the front side of a house. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X ? Let’s look at a situation where we would like to determine the width (ft) of the front side of a house. Copyright © 2006 by Distagage. com, All Rights Reserved.

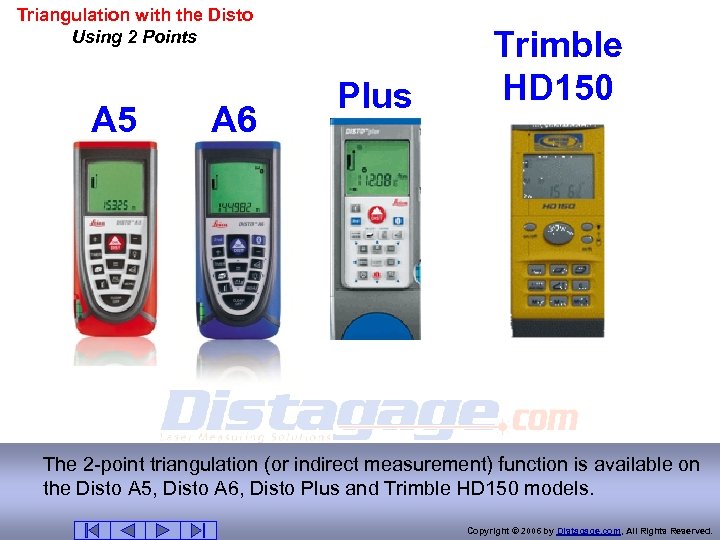

Triangulation with the Disto Using 2 Points X To determine “X, ” we will use the “ 2 -point Triangulation” method; also referred to as the “ 2 -point Indirect Measurement” method. Copyright © 2006 by Distagage. com, All Rights Reserved.

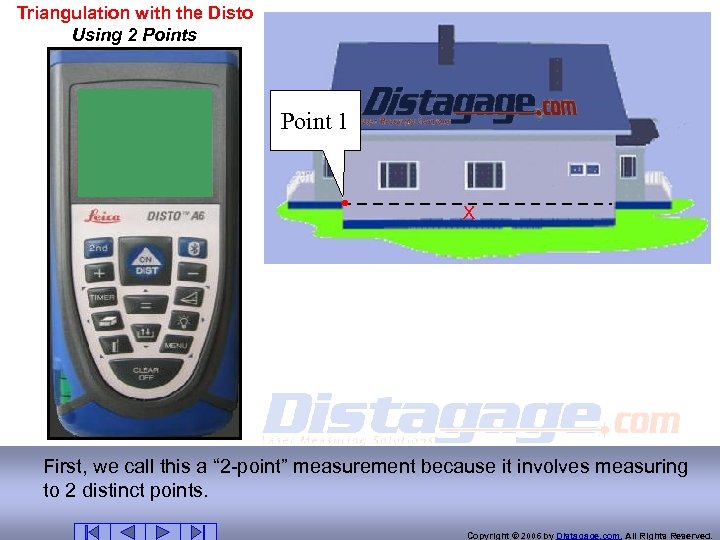

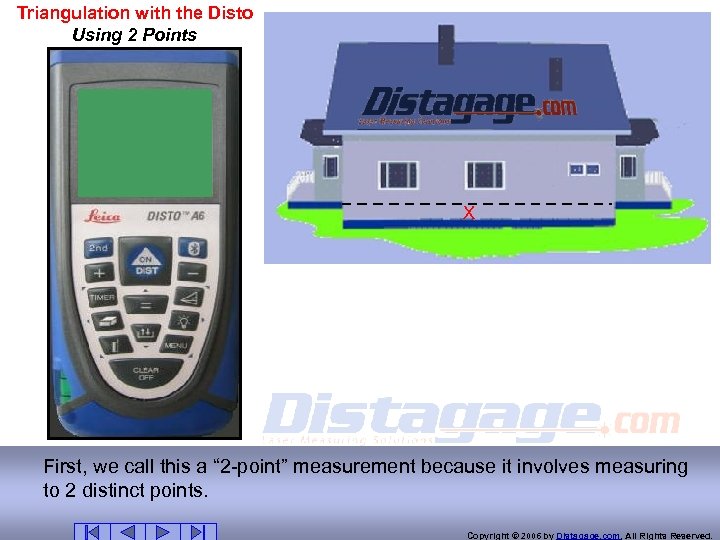

Triangulation with the Disto Using 2 Points X First, we call this a “ 2 -point” measurement because it involves measuring to 2 distinct points. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points Point 1 X First, we call this a “ 2 -point” measurement because it involves measuring to 2 distinct points. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points Point 1 Point 2 X First, we call this a “ 2 -point” measurement because it involves measuring to 2 distinct points. Copyright © 2006 by Distagage. com, All Rights Reserved.

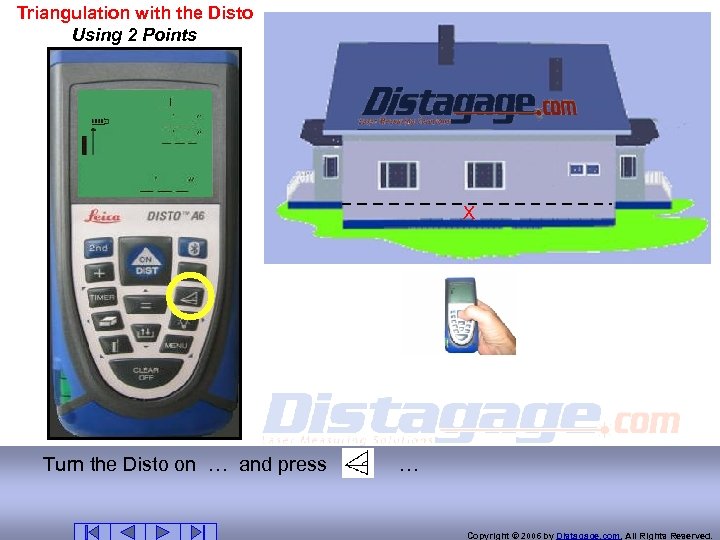

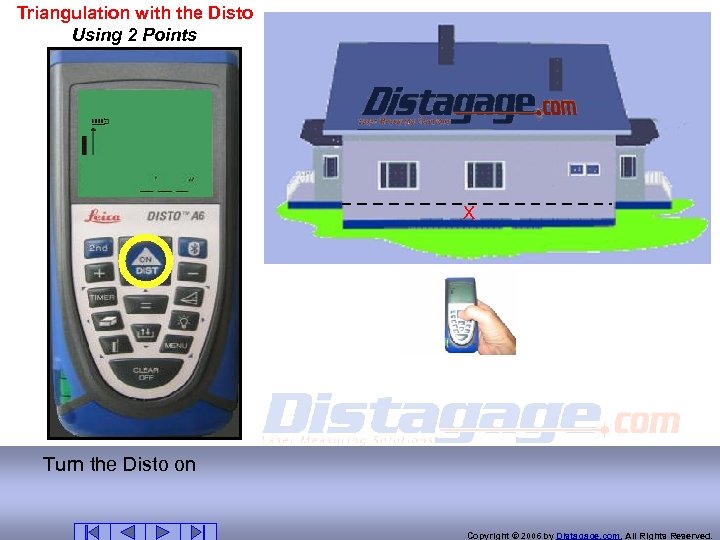

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Turn the Disto on … and press … to enter the 2 -point mode. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Now, step back from the house …. to a distance that will allow you to clearly see both corners of the front side of the house …. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Now, step back from the house …. to a distance that will allow you to clearly see both corners of the front side of the house …. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Now, step back from the house …. to a distance that will allow you to clearly see both corners of the front side of the house …. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Now, step back from the house …. to a distance that will allow you to clearly see both corners of the front side of the house …. Copyright © 2006 by Distagage. com, All Rights Reserved.

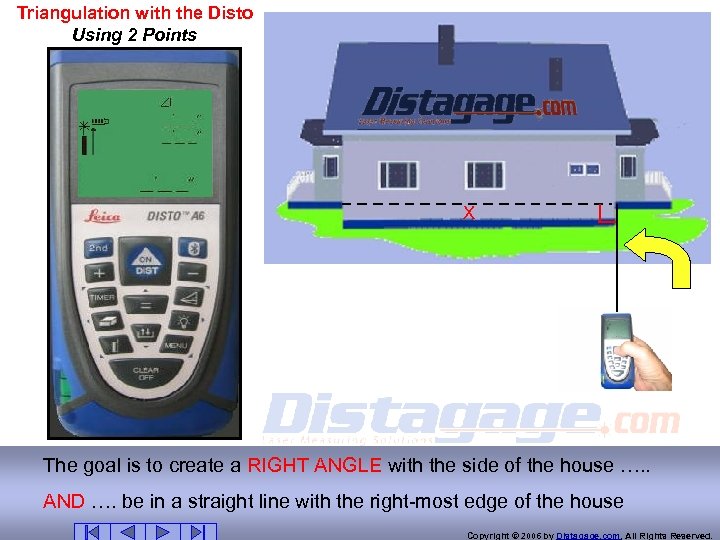

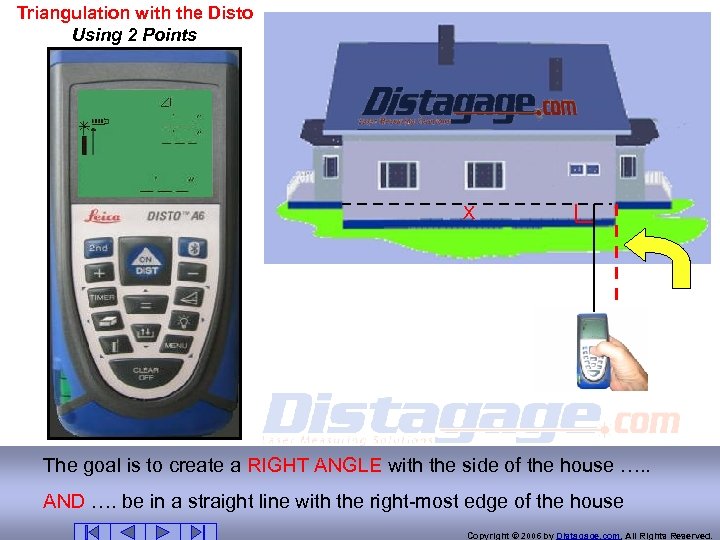

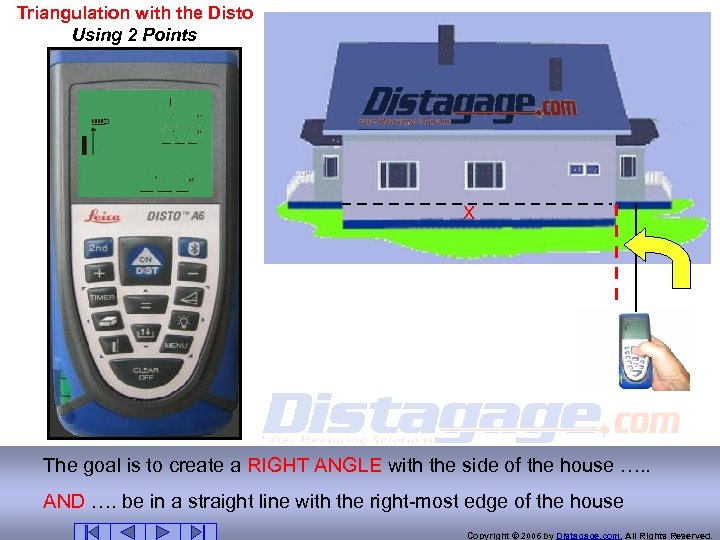

Triangulation with the Disto Using 2 Points X The goal is to create a RIGHT ANGLE with the side of the house …. . Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a RIGHT ANGLE with the side of the house …. . AND …. be in a straight line with the right-most edge of the house Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a RIGHT ANGLE with the side of the house …. . AND …. be in a straight line with the right-most edge of the house Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a RIGHT ANGLE with the side of the house …. . AND …. be in a straight line with the right-most edge of the house Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a RIGHT ANGLE with the side of the house …. . AND …. be in a straight line with the right-most edge of the house Copyright © 2006 by Distagage. com, All Rights Reserved.

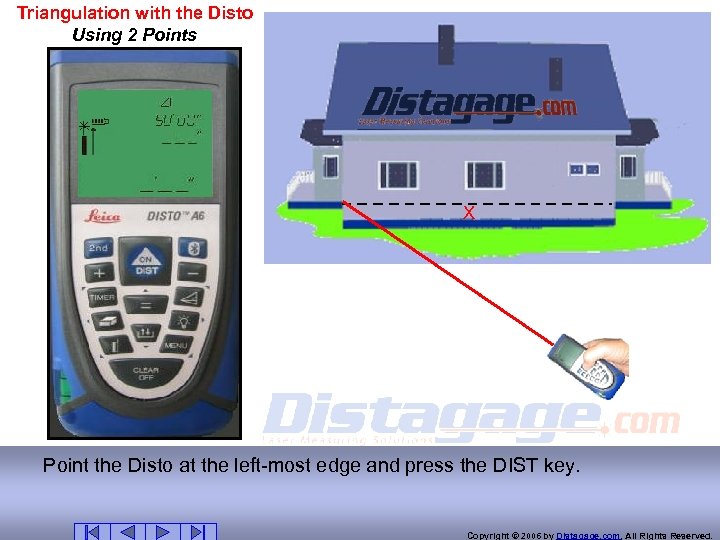

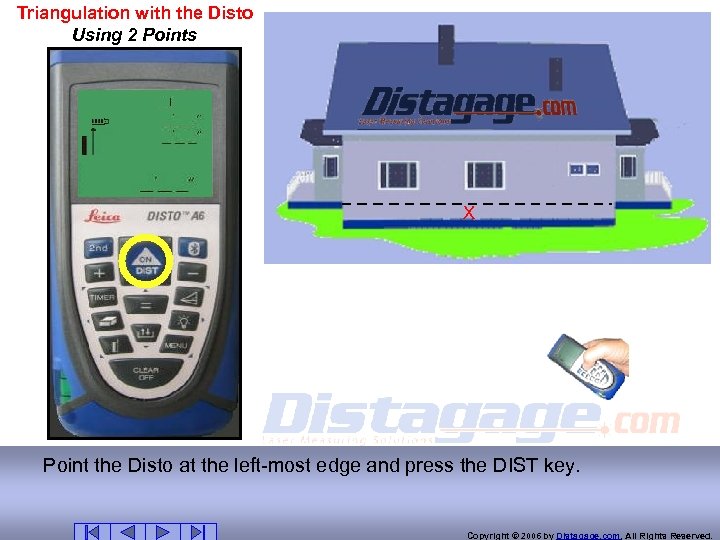

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the left-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

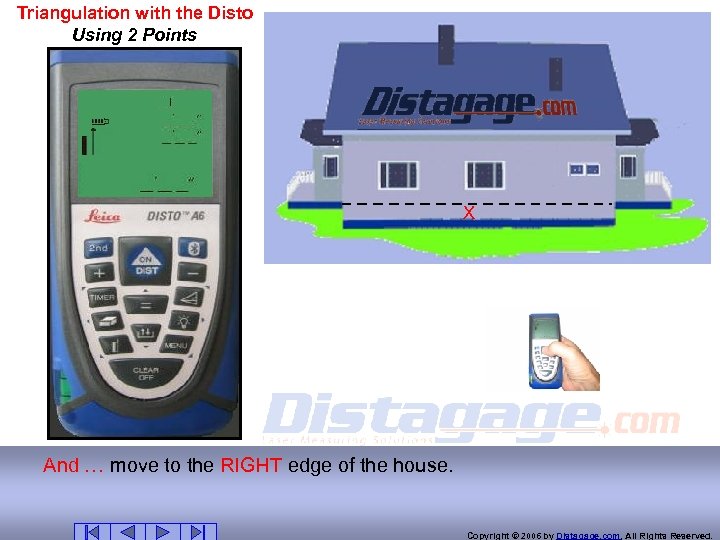

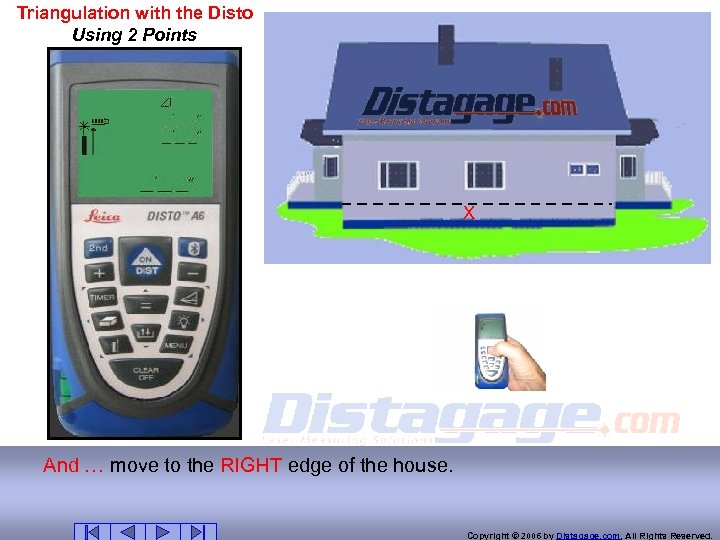

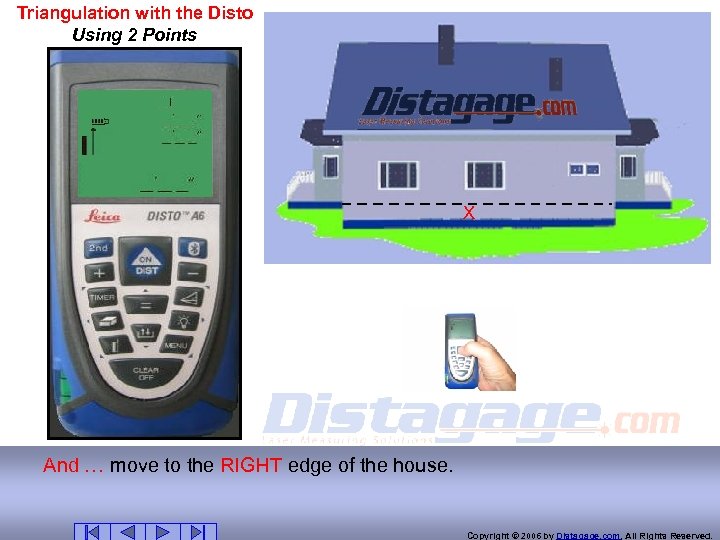

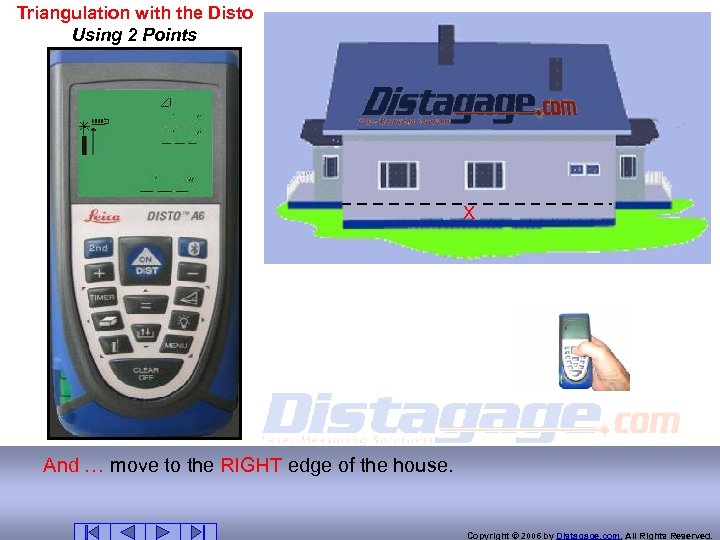

Triangulation with the Disto Using 2 Points X Point the Disto at the right-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the right-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the right-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Point the Disto at the right-most edge and press the DIST key. Copyright © 2006 by Distagage. com, All Rights Reserved.

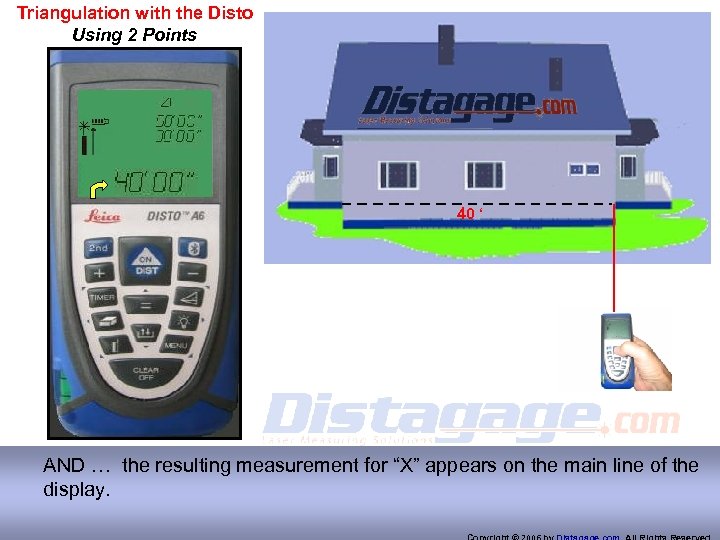

Triangulation with the Disto Using 2 Points X AND … the resulting measurement for “X” appears on the main line of the display. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points 40 ‘ AND … the resulting measurement for “X” appears on the main line of the display.

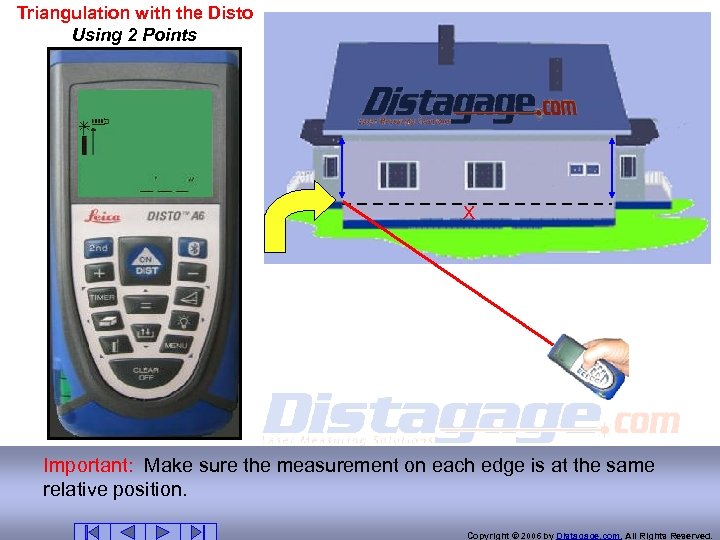

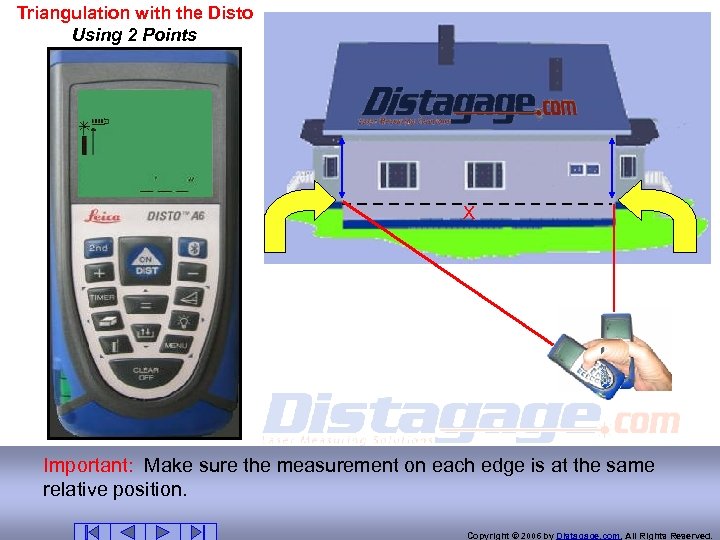

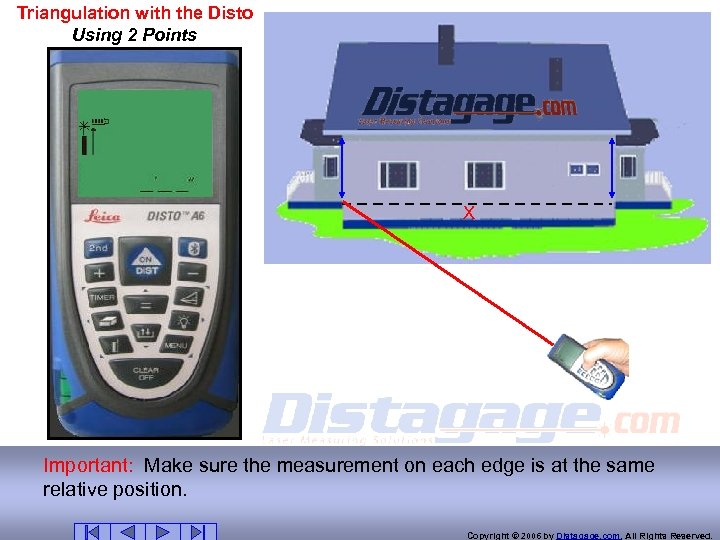

Triangulation with the Disto Using 2 Points X Important: Make sure the measurement on each edge is at the same relative position. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Important: Make sure the measurement on each edge is at the same relative position. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Important: Make sure the measurement on each edge is at the same relative position. Copyright © 2006 by Distagage. com, All Rights Reserved.

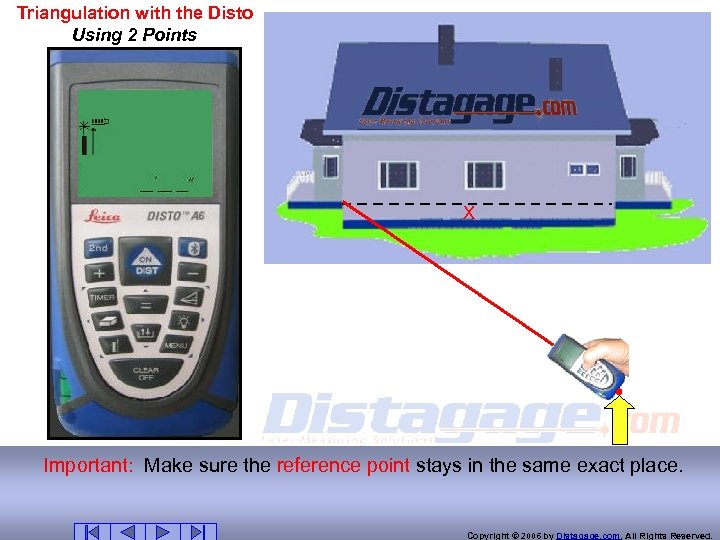

Triangulation with the Disto Using 2 Points X Important: Make sure the reference point stays in the same exact place. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Important: Make sure the reference point stays in the same exact place. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X Important: Make sure the reference point stays in the same exact place. Copyright © 2006 by Distagage. com, All Rights Reserved.

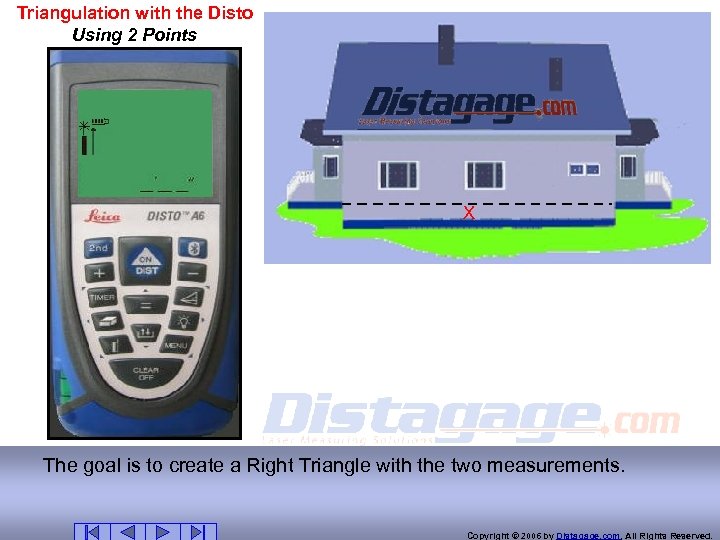

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.

Triangulation with the Disto Using 2 Points X The goal is to create a Right Triangle with the two measurements. Copyright © 2006 by Distagage. com, All Rights Reserved.
