Transforming PRAI data into the INSPIRE Cadastral Parcels Data Specification Gareth John – Department of Environment, Community and Local Government. gareth. john@environ. ie PCC Conference Dublin 20 - 21 June 2013, Dublin

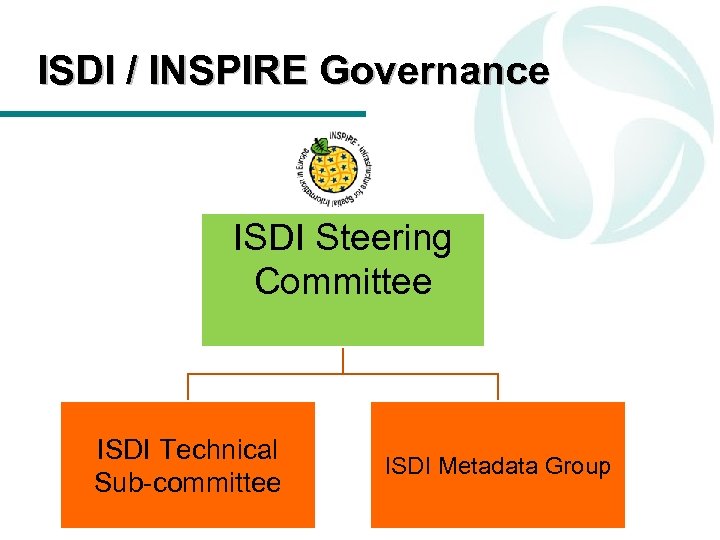

ISDI / INSPIRE Governance ISDI Steering Committee ISDI Technical Sub-committee ISDI Metadata Group

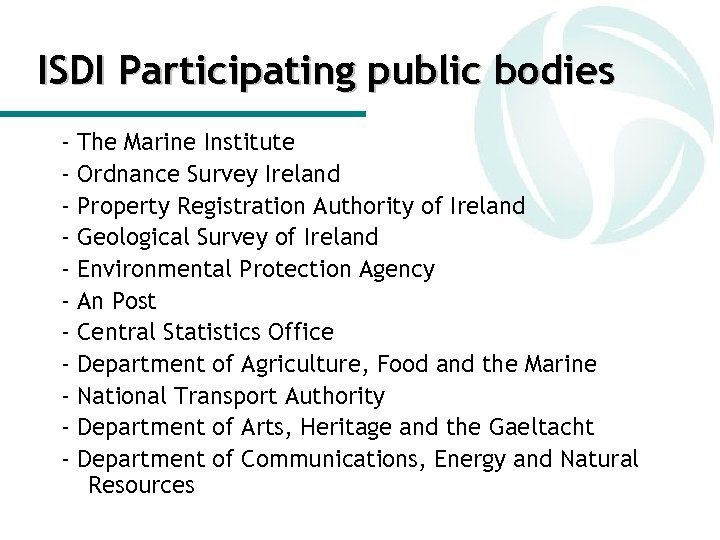

ISDI Participating public bodies - The Marine Institute Ordnance Survey Ireland Property Registration Authority of Ireland Geological Survey of Ireland Environmental Protection Agency An Post Central Statistics Office Department of Agriculture, Food and the Marine National Transport Authority Department of Arts, Heritage and the Gaeltacht Department of Communications, Energy and Natural Resources

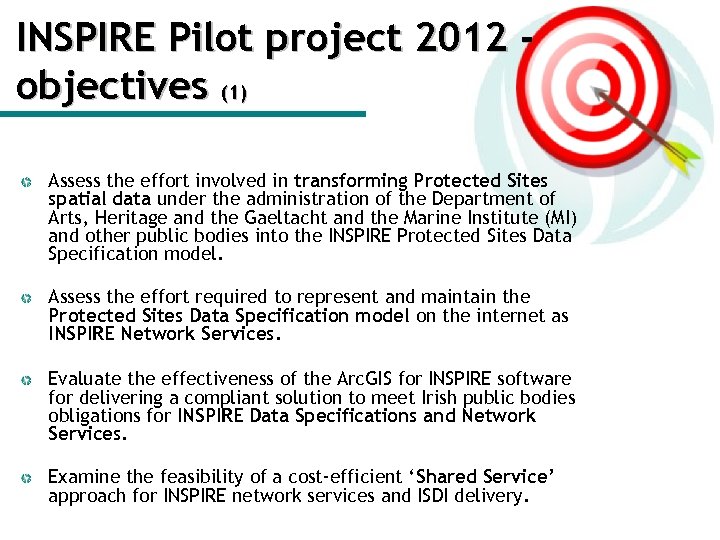

INSPIRE Pilot project 2012 objectives (1) Assess the effort involved in transforming Protected Sites spatial data under the administration of the Department of Arts, Heritage and the Gaeltacht and the Marine Institute (MI) and other public bodies into the INSPIRE Protected Sites Data Specification model. Assess the effort required to represent and maintain the Protected Sites Data Specification model on the internet as INSPIRE Network Services. Evaluate the effectiveness of the Arc. GIS for INSPIRE software for delivering a compliant solution to meet Irish public bodies obligations for INSPIRE Data Specifications and Network Services. Examine the feasibility of a cost-efficient ‘Shared Service’ approach for INSPIRE network services and ISDI delivery.

INSPIRE Pilot Project 2012 objectives (2) Test the Network Services and hosting solutions against the Quality of Service requirements of the INSPIRE Network Services Regulation and INSPIRE Technical Guidance documents. Investigate licensing and security options for INSPIRE Network Services. Use the experience gained in this pilot to advise other Irish Spatial Data Infrastructure partners on the level of effort required to conform with the INSPIRE Directive and associated regulations. Leverage the investment made in INSPIRE implementation to improve spatial data sharing and modelling in the Irish public sector.

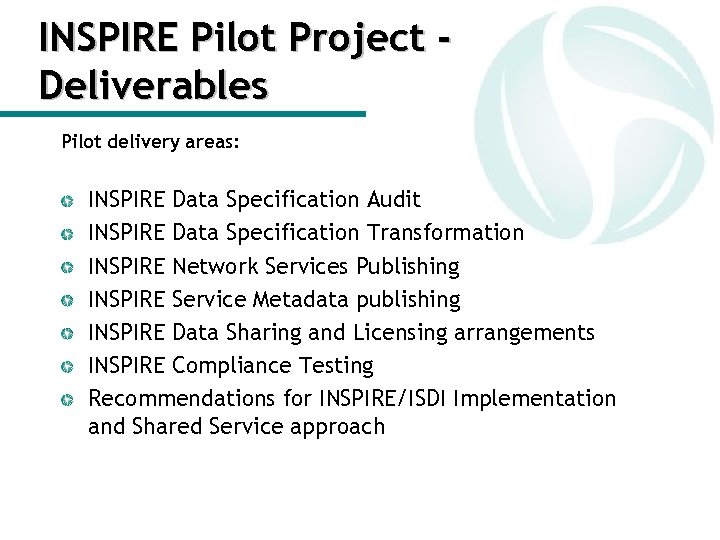

INSPIRE Pilot Project Deliverables Pilot delivery areas: INSPIRE Data Specification Audit INSPIRE Data Specification Transformation INSPIRE Network Services Publishing INSPIRE Service Metadata publishing INSPIRE Data Sharing and Licensing arrangements INSPIRE Compliance Testing Recommendations for INSPIRE/ISDI Implementation and Shared Service approach

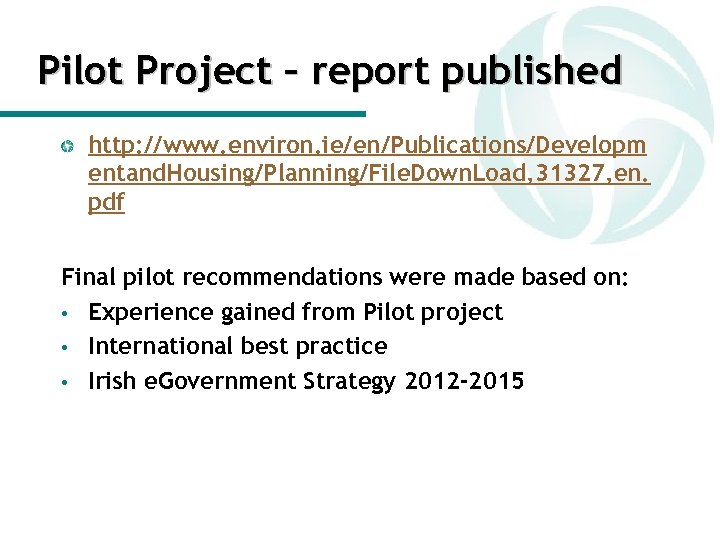

Pilot Project – report published http: //www. environ. ie/en/Publications/Developm entand. Housing/Planning/File. Down. Load, 31327, en. pdf Final pilot recommendations were made based on: • Experience gained from Pilot project • International best practice • Irish e. Government Strategy 2012 -2015

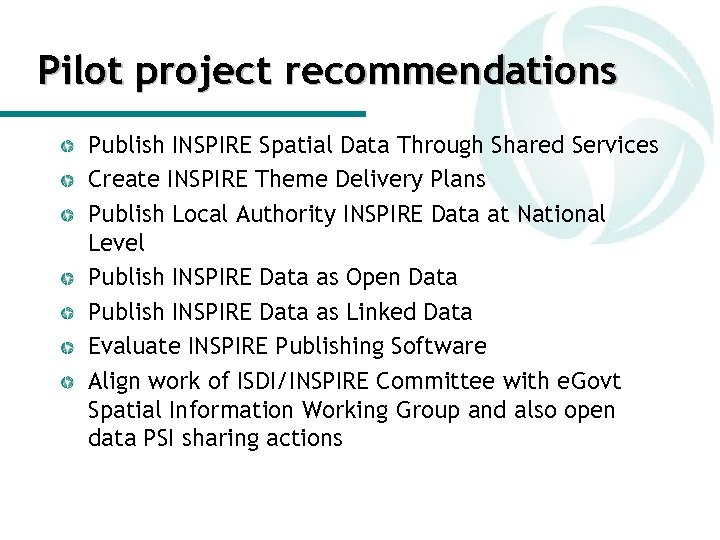

Pilot project recommendations Publish INSPIRE Spatial Data Through Shared Services Create INSPIRE Theme Delivery Plans Publish Local Authority INSPIRE Data at National Level Publish INSPIRE Data as Open Data Publish INSPIRE Data as Linked Data Evaluate INSPIRE Publishing Software Align work of ISDI/INSPIRE Committee with e. Govt Spatial Information Working Group and also open data PSI sharing actions

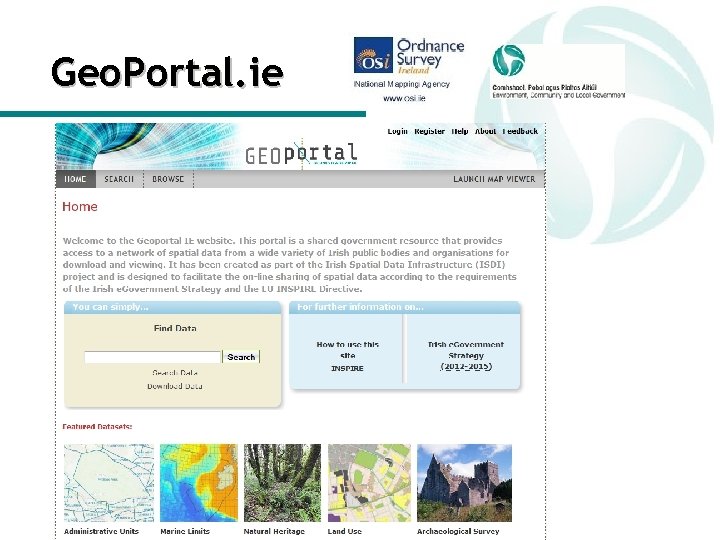

Geo. Portal. ie

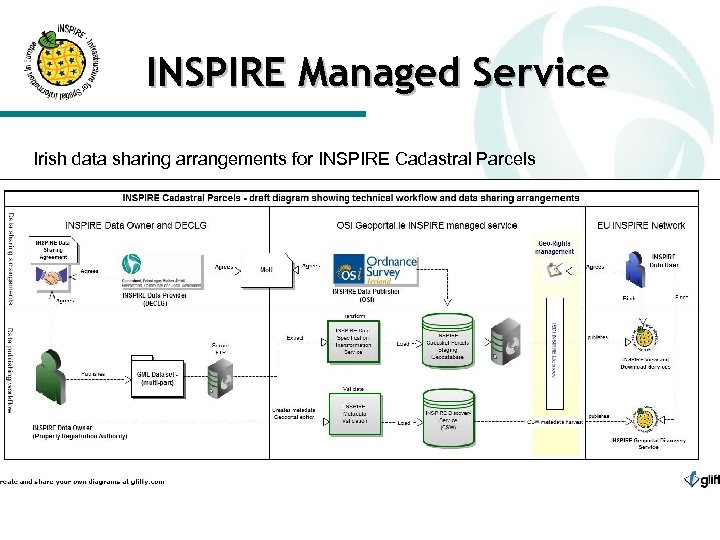

INSPIRE Managed Service Irish data sharing arrangements for INSPIRE Cadastral Parcels

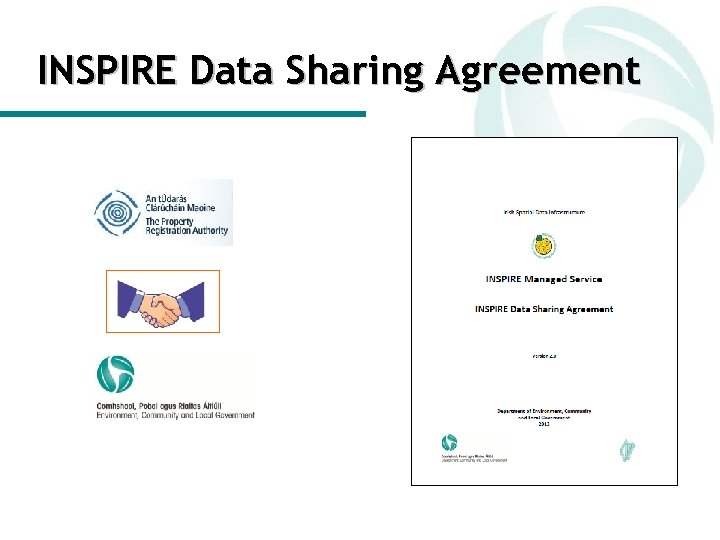

INSPIRE Data Sharing Agreement

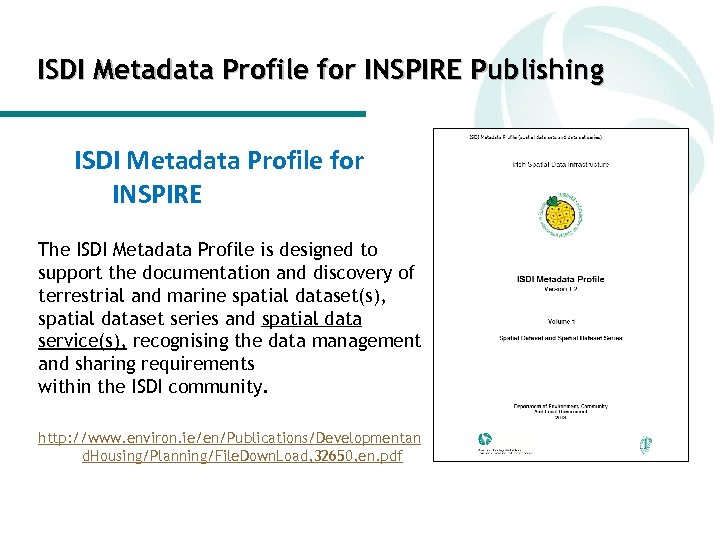

ISDI Metadata Profile for INSPIRE Publishing ISDI Metadata Profile for INSPIRE The ISDI Metadata Profile is designed to support the documentation and discovery of terrestrial and marine spatial dataset(s), spatial dataset series and spatial data service(s), recognising the data management and sharing requirements within the ISDI community. http: //www. environ. ie/en/Publications/Developmentan d. Housing/Planning/File. Down. Load, 32650, en. pdf

ISDI INSPIRE Data Specification Transformation solution Con terra INSPIRE Solution Pack for FME and Arc. GIS for INSPIRE (Source: Image courtesy of Con terra)

INSPIRE Data Specification Transformation for PRAI data Con terra INSPIRE Solution Pack for FME and Arc. GIS for INSPIRE Native PRAI data schema Cadastral Parcels Schema (Source: Image couresy of Con terra)

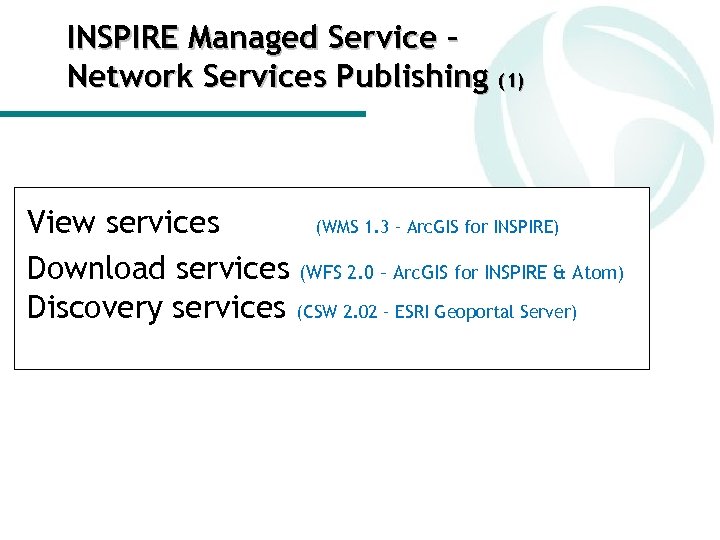

INSPIRE Managed Service – Network Services Publishing (1) View services (WMS 1. 3 – Arc. GIS for INSPIRE) Download services (WFS 2. 0 – Arc. GIS for INSPIRE & Atom) Discovery services (CSW 2. 02 – ESRI Geoportal Server)

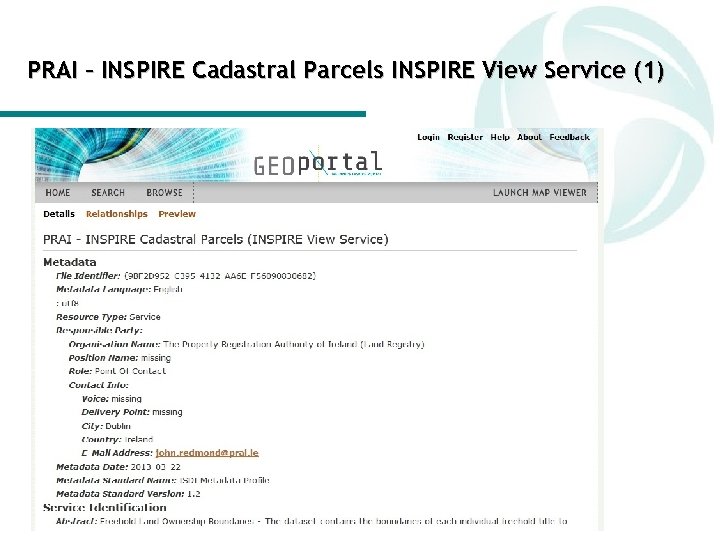

PRAI – INSPIRE Cadastral Parcels INSPIRE View Service (1)

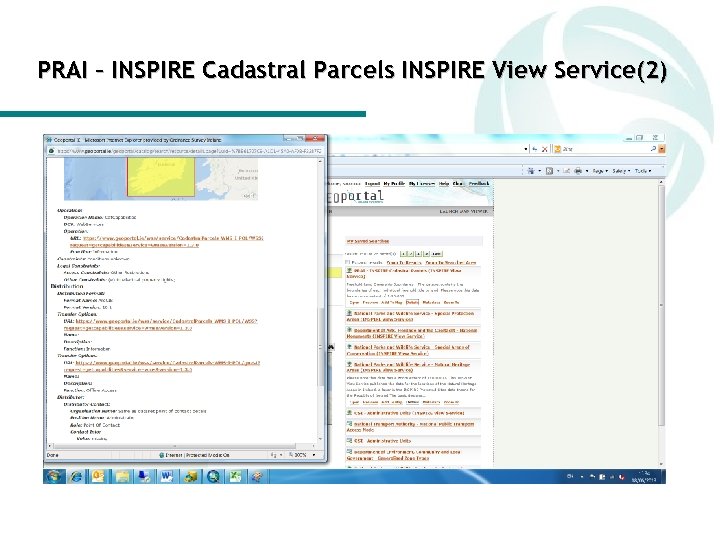

PRAI – INSPIRE Cadastral Parcels INSPIRE View Service(2)

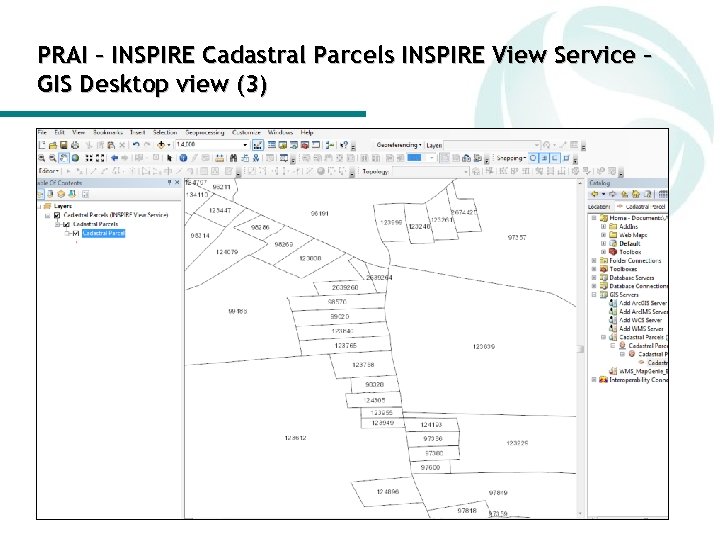

PRAI – INSPIRE Cadastral Parcels INSPIRE View Service – GIS Desktop view (3)

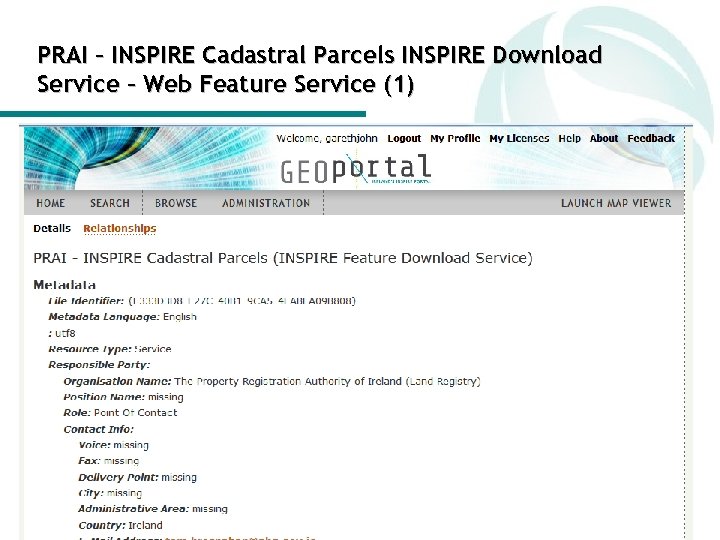

PRAI – INSPIRE Cadastral Parcels INSPIRE Download Service – Web Feature Service (1)

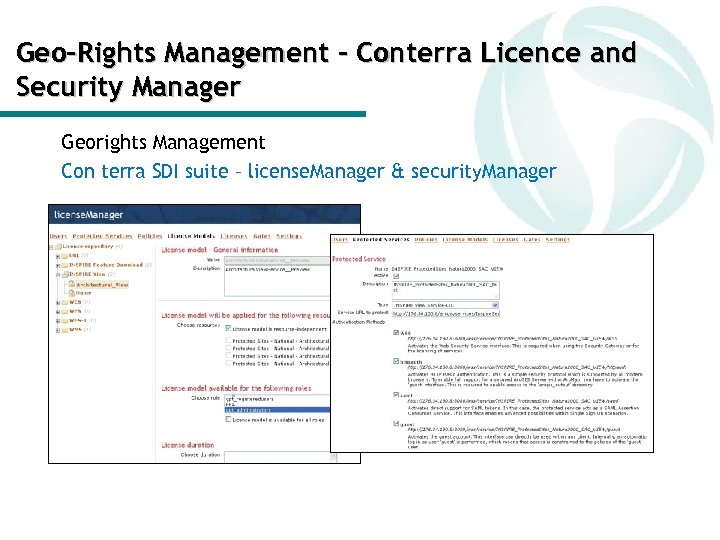

Geo-Rights Management – Conterra Licence and Security Manager Georights Management Con terra SDI suite – license. Manager & security. Manager

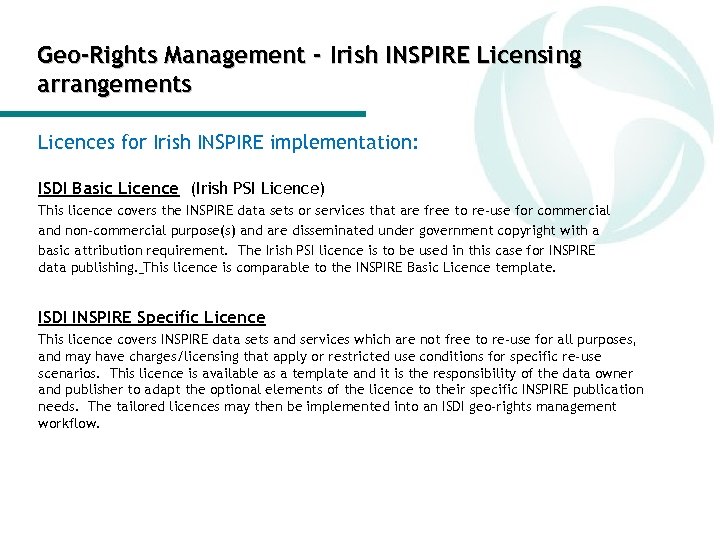

Geo-Rights Management - Irish INSPIRE Licensing arrangements Licences for Irish INSPIRE implementation: ISDI Basic Licence (Irish PSI Licence) This licence covers the INSPIRE data sets or services that are free to re-use for commercial and non-commercial purpose(s) and are disseminated under government copyright with a basic attribution requirement. The Irish PSI licence is to be used in this case for INSPIRE data publishing. This licence is comparable to the INSPIRE Basic Licence template. ISDI INSPIRE Specific Licence This licence covers INSPIRE data sets and services which are not free to re-use for all purposes, and may have charges/licensing that apply or restricted use conditions for specific re-use scenarios. This licence is available as a template and it is the responsibility of the data owner and publisher to adapt the optional elements of the licence to their specific INSPIRE publication needs. The tailored licences may then be implemented into an ISDI geo-rights management workflow.

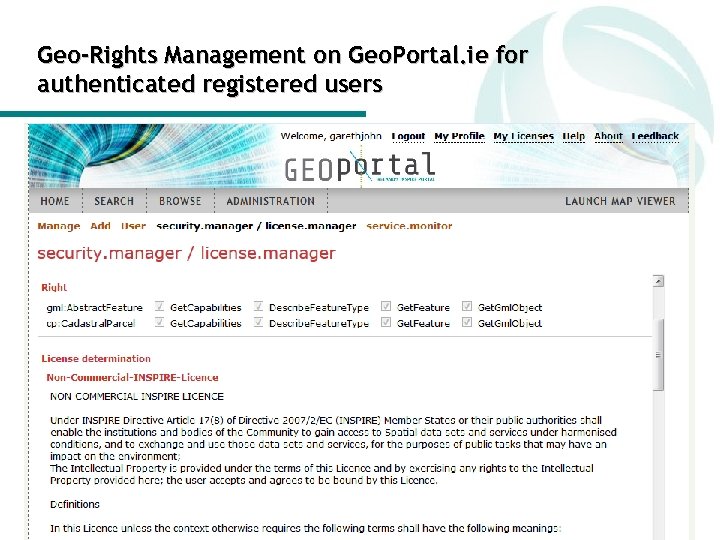

Geo-Rights Management on Geo. Portal. ie for authenticated registered users

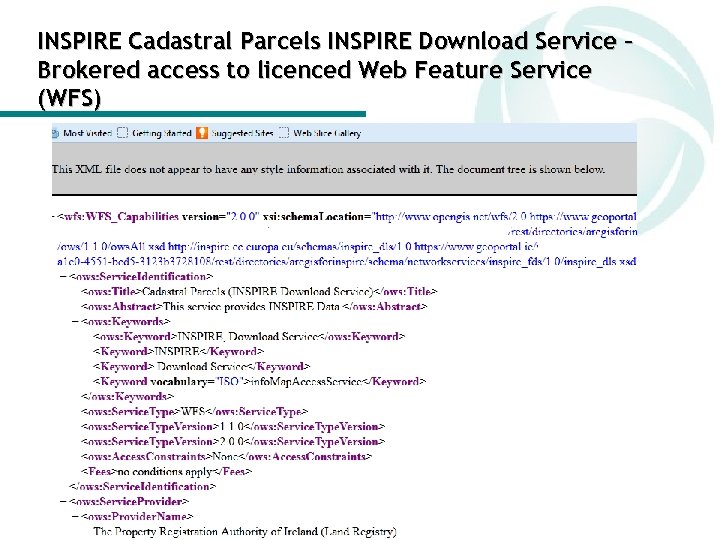

INSPIRE Cadastral Parcels INSPIRE Download Service – Brokered access to licenced Web Feature Service (WFS)

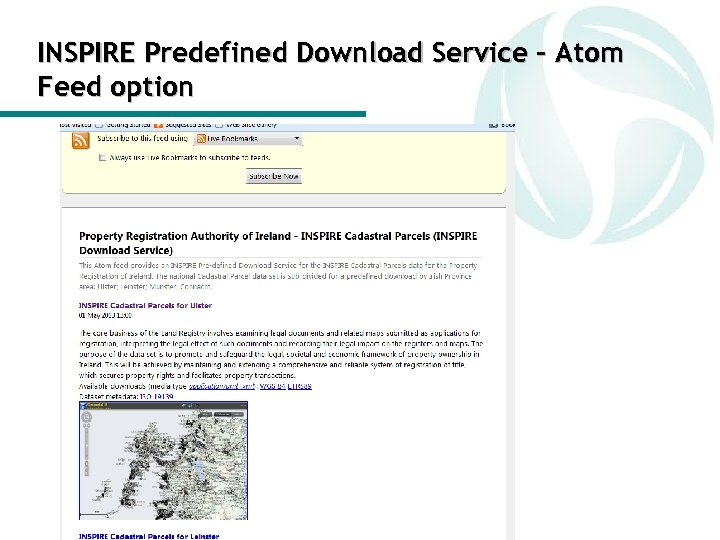

INSPIRE Predefined Download Service – Atom Feed option

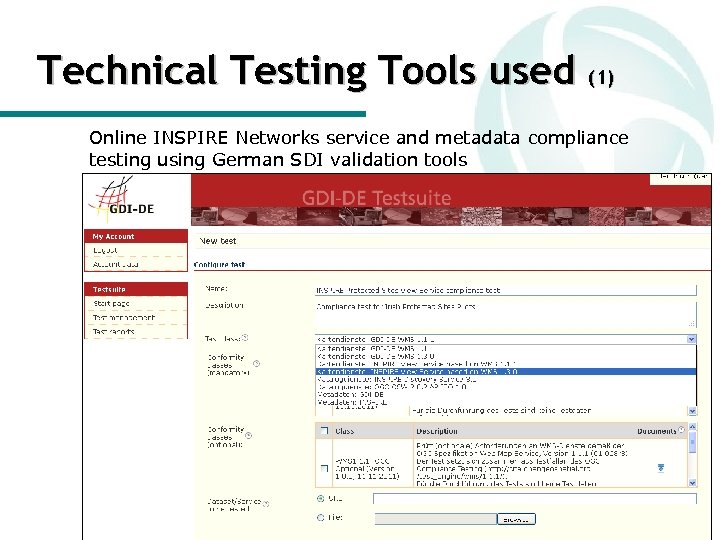

Technical Testing Tools used (1) Online INSPIRE Networks service and metadata compliance testing using German SDI validation tools

Technical Testing Tools used (2) Network Service Regulation - Quality of Service Monitoring Con terra service. Monitor report Requirements: PERFORMANCE: For a 470 Kilobytes image (e. g. 800 × 600 pixels with a colour depth of 8 bits), the response time for sending the initial response to a Get Map Request to a View Service shall be maximum 5 seconds in normal situation. Normal situation represent periods out of peak load. It is set at 90% of the time. CAPACITY: The minimum number of served simultaneous service requests to a View Service according to the performance quality of service shall be 20 per second. AVAILABILITY: Available 99% of the time The following graphic represents the important stages in an INSPIRE publishing workflow for compliance testing.

Validation with the EU INSPIRE Geoportal - Resource tester

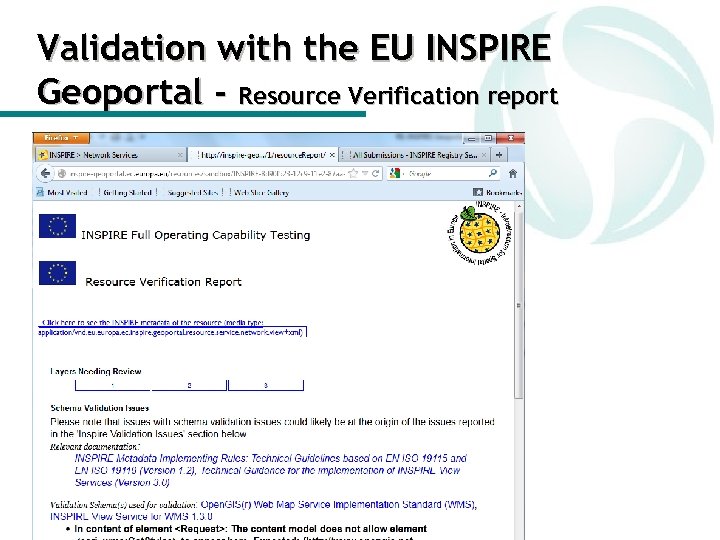

Validation with the EU INSPIRE Geoportal - Resource Verification report

Thank you inspire@environ. ie
