TRAINING CHINA Page Pro 1480 MF /1490 MF Internal document | | 16/03/2018 1 TRAINING CHINA Page Pro 1480 MF /1490 MF Internal document | | 16/03/2018 1

PAGE PRO 1480 MF / 1490 MF PAGE PRO 1480 MF / 1490 MF

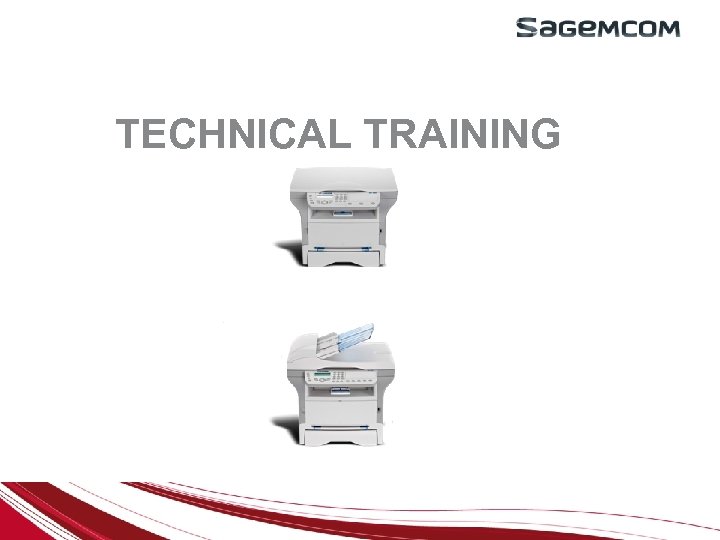

TECHNICAL TRAINING TECHNICAL TRAINING

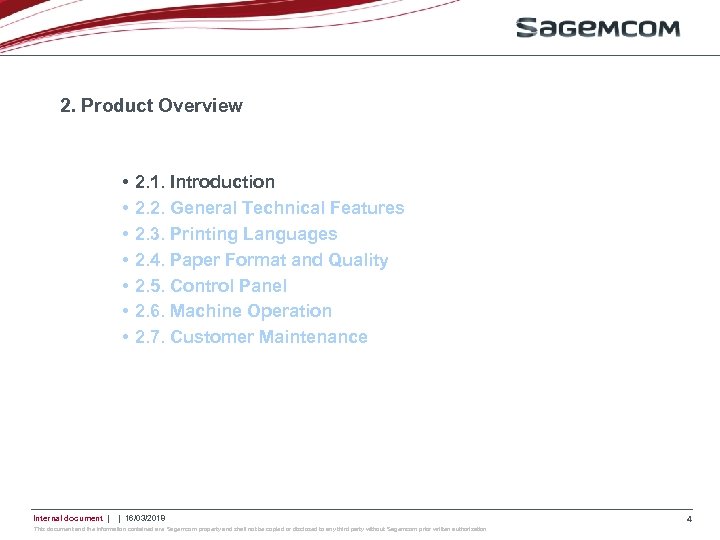

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 4

Introduction Page Pro 1480 MF Page Pro 1490 MF FAX / 33, 6 Kpbs Introduction Page Pro 1480 MF Page Pro 1490 MF FAX / 33, 6 Kpbs SCANNER Color Flatbed Color ADF + Flatbed B/W Digital Copier 20 ppm B/W Laser Printer 20 ppm Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 5

Laser printing Page Pro 1480 MF Page Pro 1490 MF Printing Speed 20 ppm Laser printing Page Pro 1480 MF Page Pro 1490 MF Printing Speed 20 ppm Resolution 600 X 600 dpi Printer Language GDI Paper Tray 250 sheets - 1 sheets Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 6

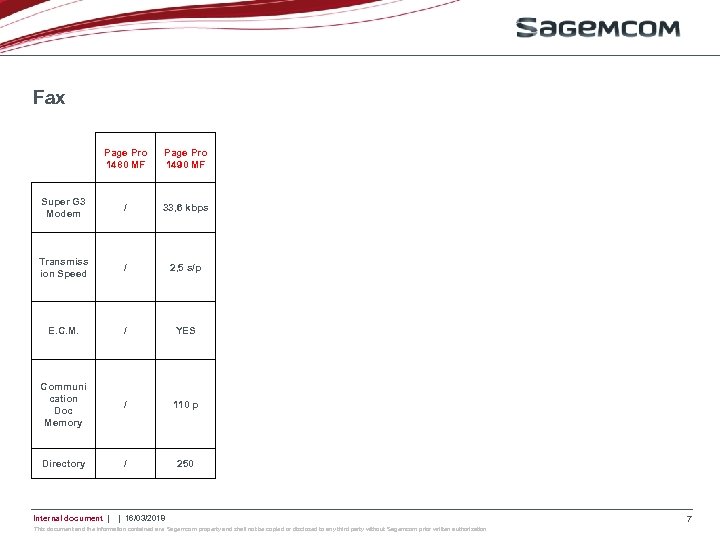

Fax Page Pro 1480 MF Page Pro 1490 MF Super G 3 Modem / Fax Page Pro 1480 MF Page Pro 1490 MF Super G 3 Modem / 33, 6 kbps Transmiss ion Speed / 2, 5 s/p E. C. M. / YES Communi cation Doc Memory / 110 p Directory / 250 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 7

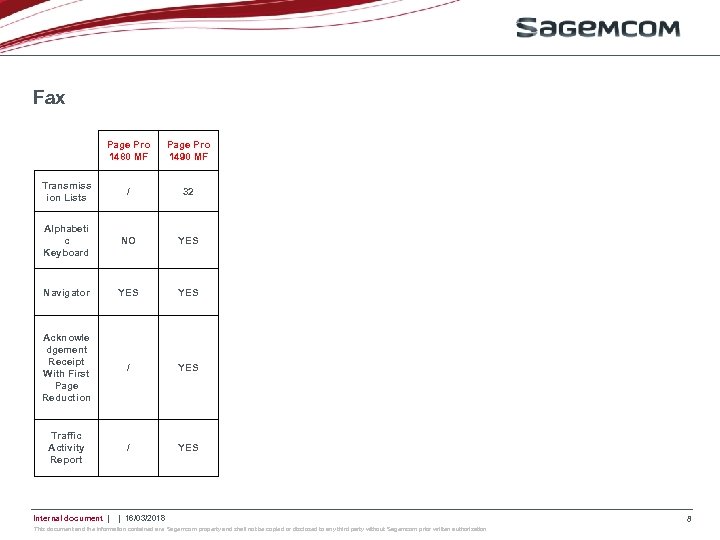

Fax Page Pro 1480 MF Page Pro 1490 MF Transmiss ion Lists / 32 Fax Page Pro 1480 MF Page Pro 1490 MF Transmiss ion Lists / 32 Alphabeti c Keyboard NO YES Navigator YES Acknowle dgement Receipt With First Page Reduction / YES Traffic Activity Report / YES Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 8

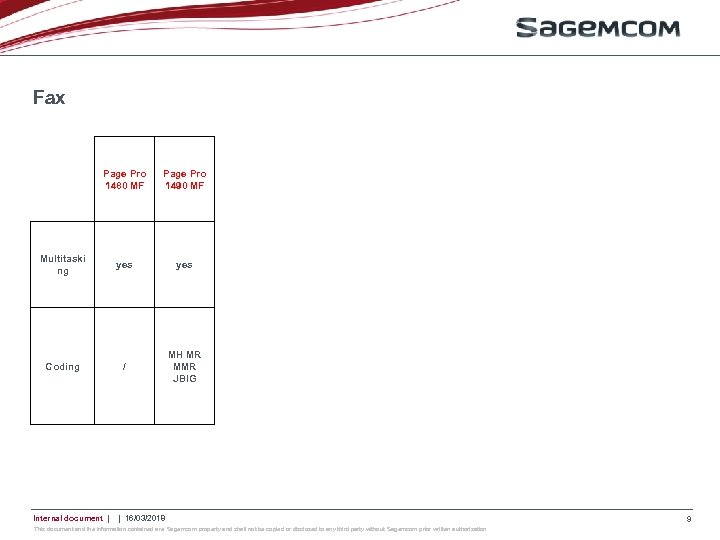

Fax Page Pro 1480 MF Page Pro 1490 MF Multitaski ng yes Coding / Fax Page Pro 1480 MF Page Pro 1490 MF Multitaski ng yes Coding / MH MR MMR JBIG Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 9

Color scanner Page Pro 1480 MF Page Pro 1490 MF Flatbed Type CIS Color Color scanner Page Pro 1480 MF Page Pro 1490 MF Flatbed Type CIS Color Speed 600/600 dpi (B&W/Color) 3, 9 / 7, 9 / Page Setting: Contrast/Brightnes s YES ADF Type / CIS Color Feeder Capacity / 35 p Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 10

Advanced function Page Pro 1480 MF Page Pro 1490 MF companion Suite Pro YES Advanced function Page Pro 1480 MF Page Pro 1490 MF companion Suite Pro YES Paperport YES Printer Driver YES Fax Management / YES Directory Card / Option Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 11

Digital copier Page Pro 1480 MF Page Pro 1490 MF Type B&W Input Resolution Digital copier Page Pro 1480 MF Page Pro 1490 MF Type B&W Input Resolution In dpi YES Output Resolution in dpi YES Speed with 300 X 100 dpi YES Zoom YES Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 12

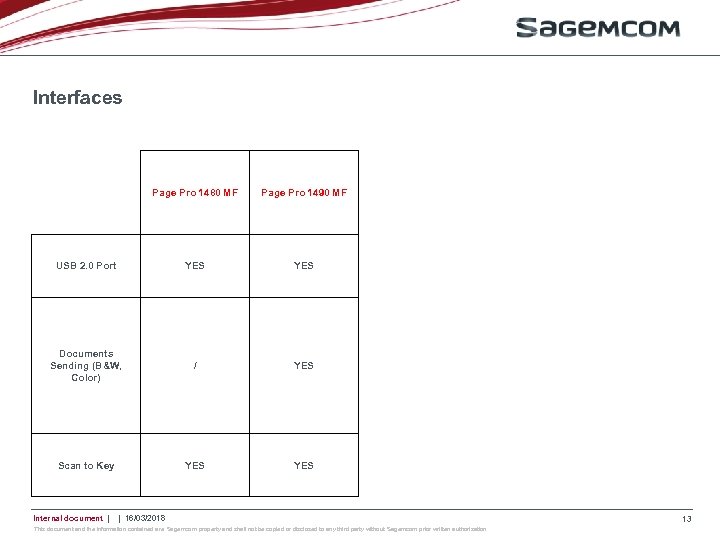

Interfaces Page Pro 1480 MF Page Pro 1490 MF USB 2. 0 Port YES Interfaces Page Pro 1480 MF Page Pro 1490 MF USB 2. 0 Port YES Documents Sending (B&W, Color) / YES Scan to Key YES Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 13

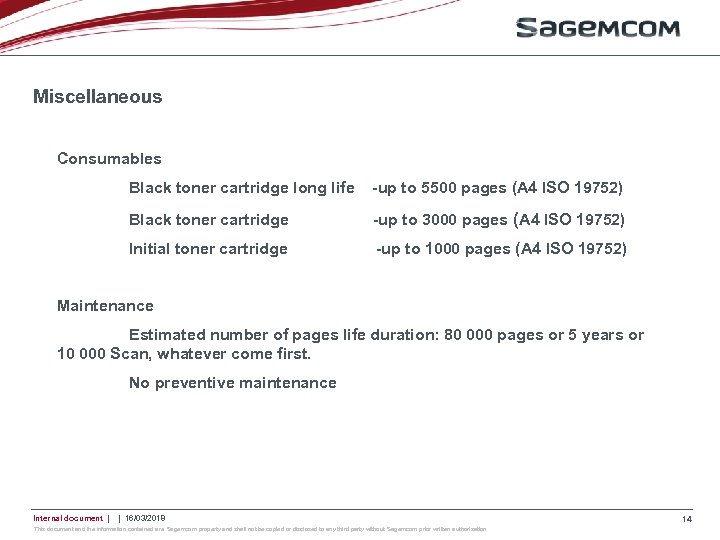

Miscellaneous Consumables Black toner cartridge long life -up to 5500 pages (A 4 ISO Miscellaneous Consumables Black toner cartridge long life -up to 5500 pages (A 4 ISO 19752) Black toner cartridge -up to 3000 pages (A 4 ISO 19752) Initial toner cartridge -up to 1000 pages (A 4 ISO 19752) Maintenance Estimated number of pages life duration: 80 000 pages or 5 years or 10 000 Scan, whatever come first. No preventive maintenance Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 14

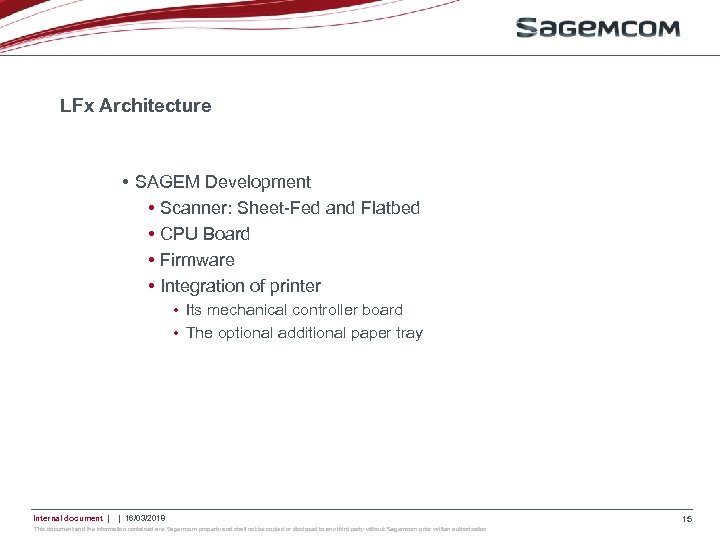

LFx Architecture • SAGEM Development • Scanner: Sheet-Fed and Flatbed • CPU Board • LFx Architecture • SAGEM Development • Scanner: Sheet-Fed and Flatbed • CPU Board • Firmware • Integration of printer • Its mechanical controller board • The optional additional paper tray Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 15

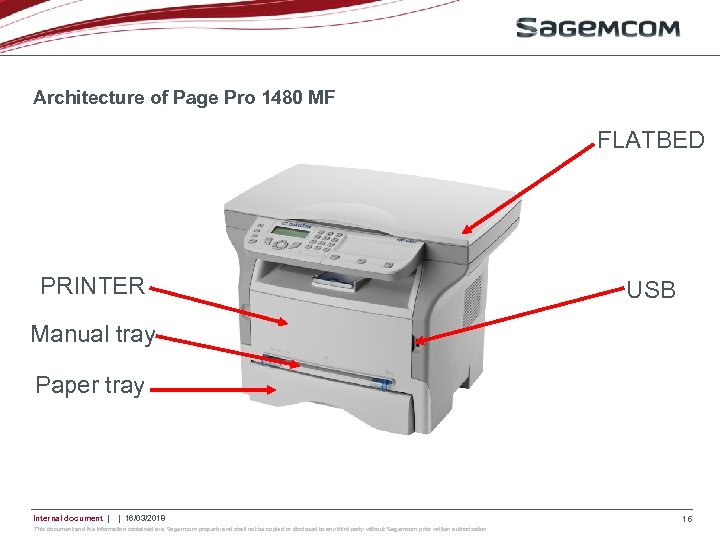

Architecture of Page Pro 1480 MF FLATBED PRINTER USB Manual tray Paper tray Internal Architecture of Page Pro 1480 MF FLATBED PRINTER USB Manual tray Paper tray Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 16

Architecture of Page Pro 1490 MF ADF PRINTER FLATBED USB Manual tray Paper tray Architecture of Page Pro 1490 MF ADF PRINTER FLATBED USB Manual tray Paper tray Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 17

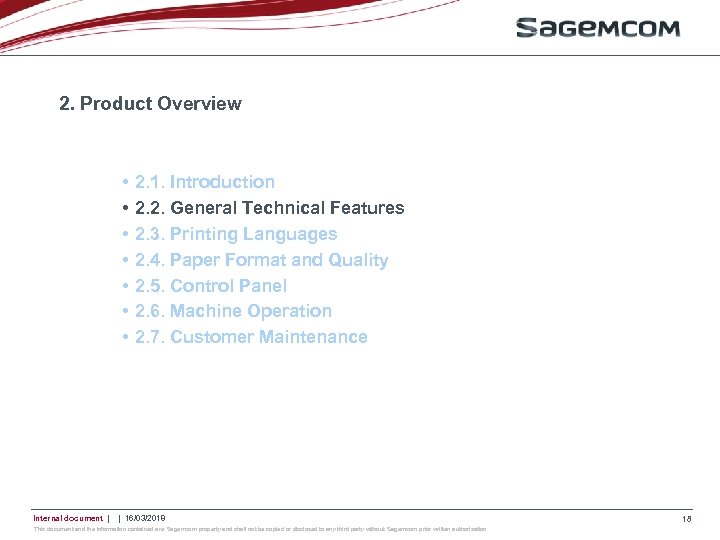

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 18

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 19

Introduction • All LFx machines support GDI printing language • GDI, Short for Graphical Introduction • All LFx machines support GDI printing language • GDI, Short for Graphical Device Interface, a Windows standard for representing graphical objects and transmitting them to output devices, such as monitors and printers Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 20

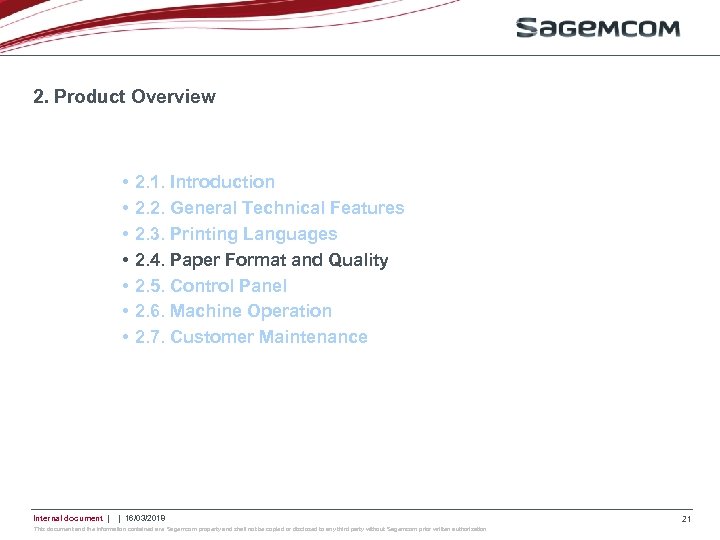

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 21

Supported Formats MEDIA TRAYS Media Sizes Dimensions Paper Tray Manual Feed A 4 210 Supported Formats MEDIA TRAYS Media Sizes Dimensions Paper Tray Manual Feed A 4 210 x 297 YES Letter 215. 9 x 279. 4 YES Legal 215. 9 x 355. 6 YES Executive 184. 2 x 266. 7 YES A 5 148 x 210 YES B 5 (JIS) 182 x 257 YES Env. B 5 ISO 176 x 250 YES Env. COM 10 104. 8 x 241. 3 YES Env. Monarch 98. 4 x 190. 5 YES Env. DL 110 x 220 YES Env. C 5 162 x 229 YES Env. C 6 114 x 162 YES Postcard 100 x 148 YES 250 1 Capacity Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 22

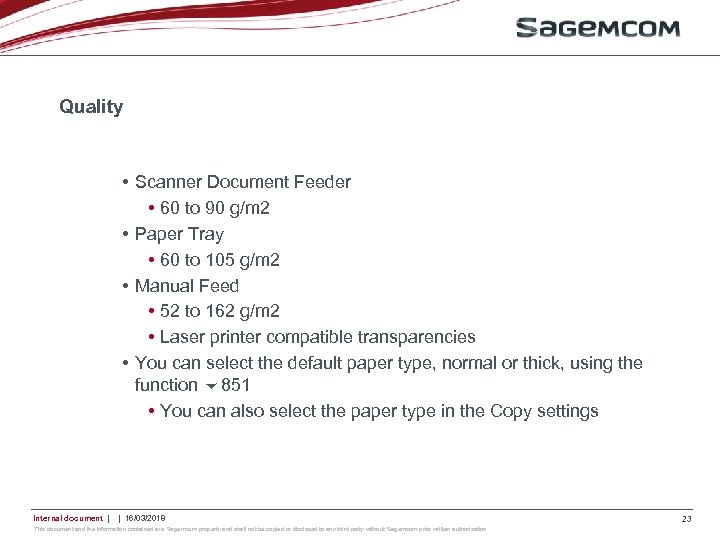

Quality • Scanner Document Feeder • 60 to 90 g/m 2 • Paper Tray Quality • Scanner Document Feeder • 60 to 90 g/m 2 • Paper Tray • 60 to 105 g/m 2 • Manual Feed • 52 to 162 g/m 2 • Laser printer compatible transparencies • You can select the default paper type, normal or thick, using the function 851 • You can also select the paper type in the Copy settings Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 23

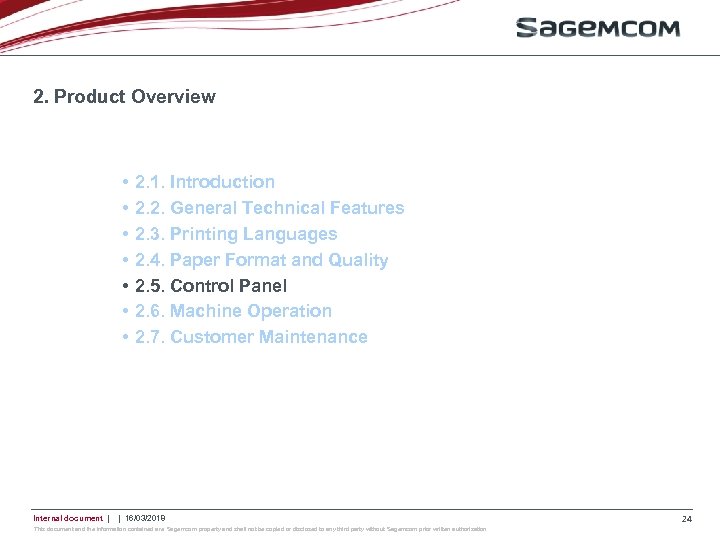

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 24

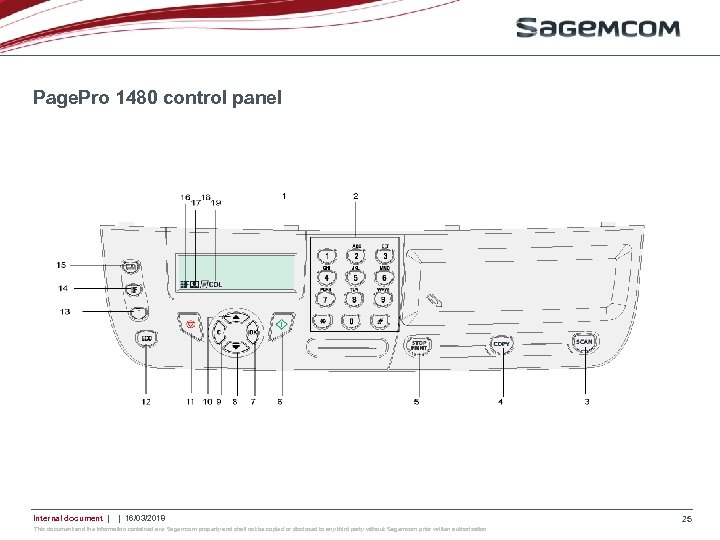

Page. Pro 1480 control panel Internal document | | 16/03/2018 This document and the Page. Pro 1480 control panel Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 25

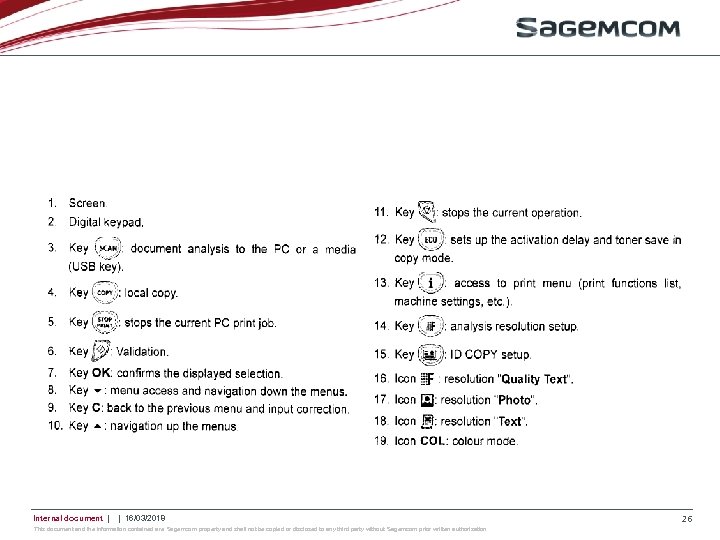

Internal document | | 16/03/2018 This document and the information contained are Sagemcom property Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 26

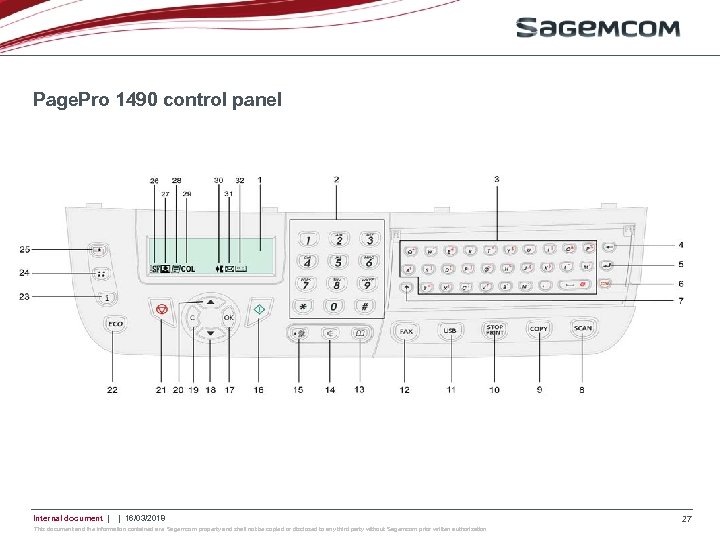

Page. Pro 1490 control panel Internal document | | 16/03/2018 This document and the Page. Pro 1490 control panel Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 27

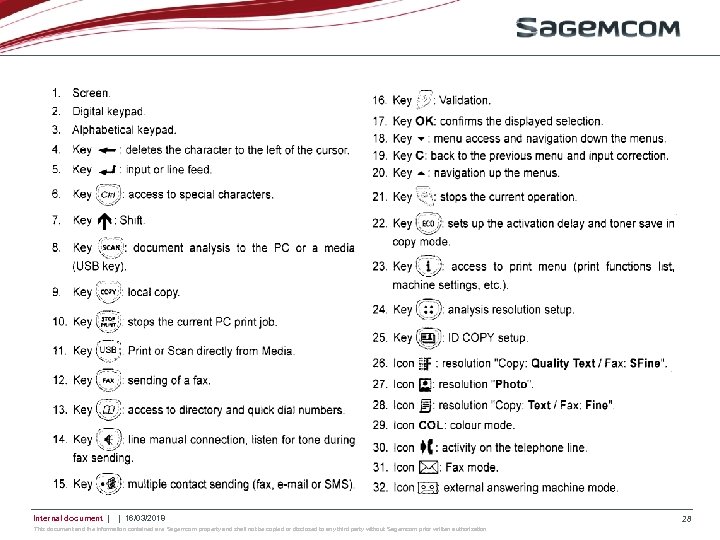

Internal document | | 16/03/2018 This document and the information contained are Sagemcom property Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 28

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 29

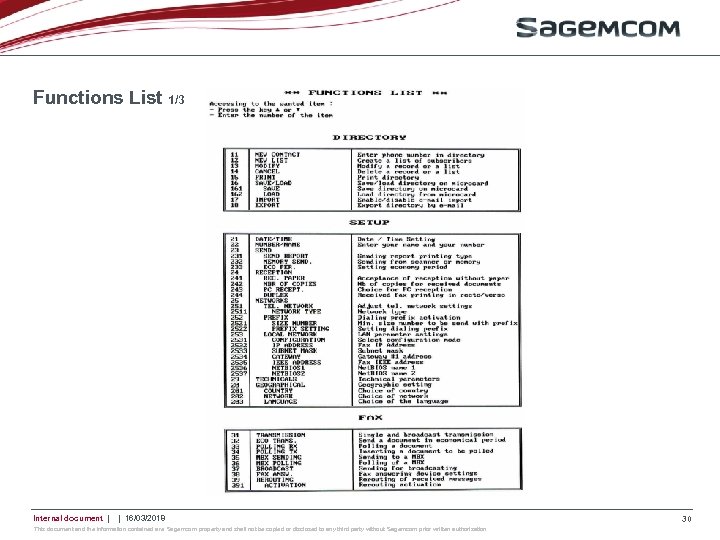

Functions List 1/3 Internal document | | 16/03/2018 This document and the information contained Functions List 1/3 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 30

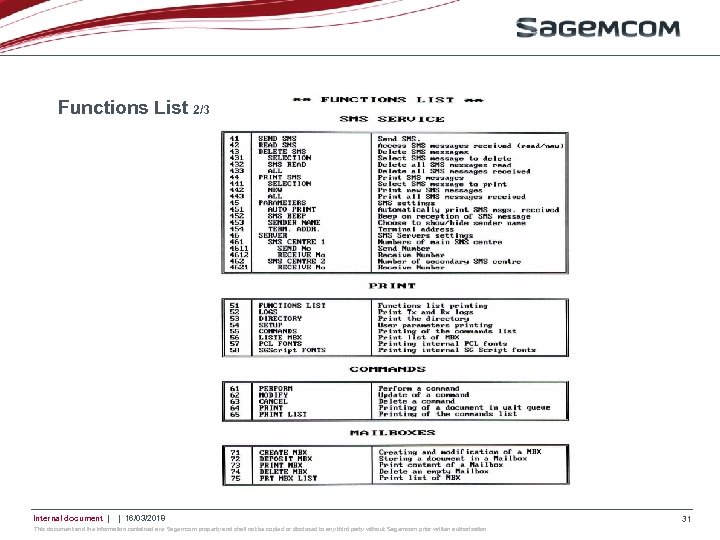

Functions List 2/3 Internal document | | 16/03/2018 This document and the information contained Functions List 2/3 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 31

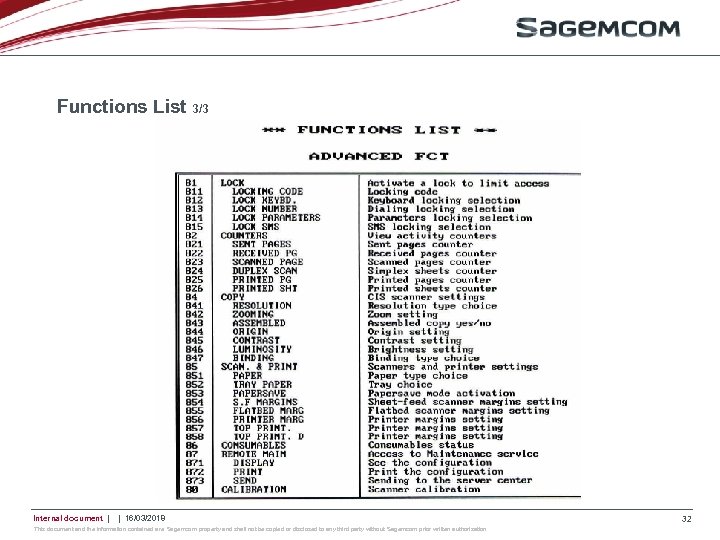

Functions List 3/3 Internal document | | 16/03/2018 This document and the information contained Functions List 3/3 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 32

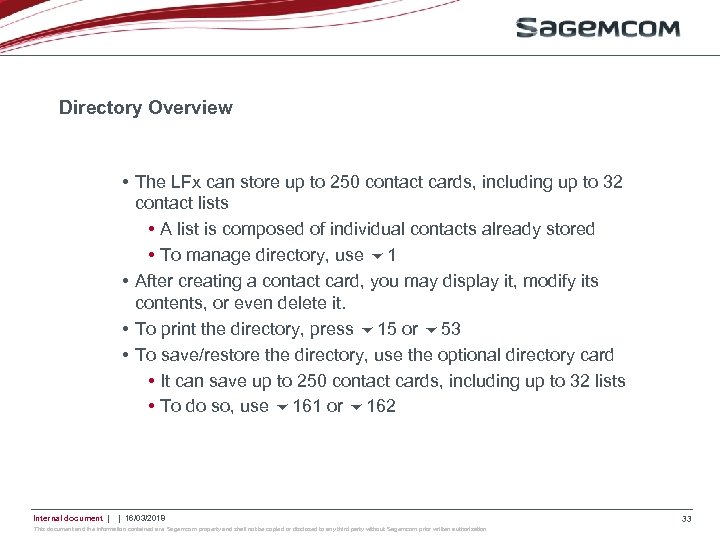

Directory Overview • The LFx can store up to 250 contact cards, including up Directory Overview • The LFx can store up to 250 contact cards, including up to 32 contact lists • A list is composed of individual contacts already stored • To manage directory, use 1 • After creating a contact card, you may display it, modify its contents, or even delete it. • To print the directory, press 15 or 53 • To save/restore the directory, use the optional directory card • It can save up to 250 contact cards, including up to 32 lists • To do so, use 161 or 162 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 33

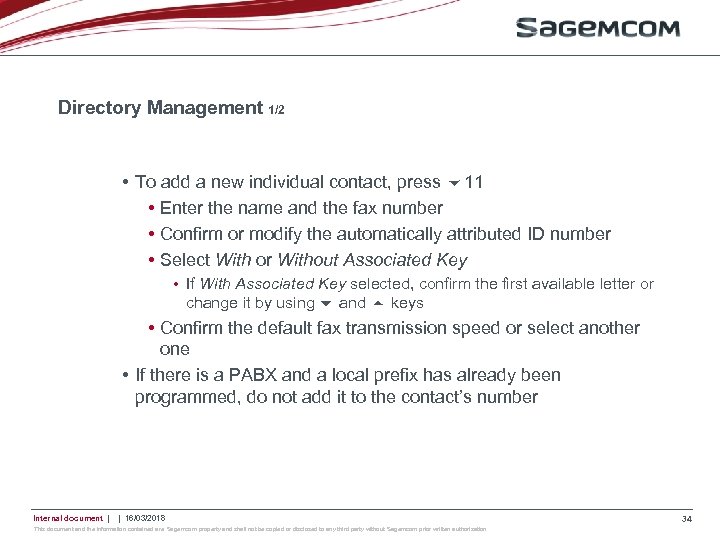

Directory Management 1/2 • To add a new individual contact, press 11 • Enter Directory Management 1/2 • To add a new individual contact, press 11 • Enter the name and the fax number • Confirm or modify the automatically attributed ID number • Select With or Without Associated Key • If With Associated Key selected, confirm the first available letter or change it by using and keys • Confirm the default fax transmission speed or select another one • If there is a PABX and a local prefix has already been programmed, do not add it to the contact’s number Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 34

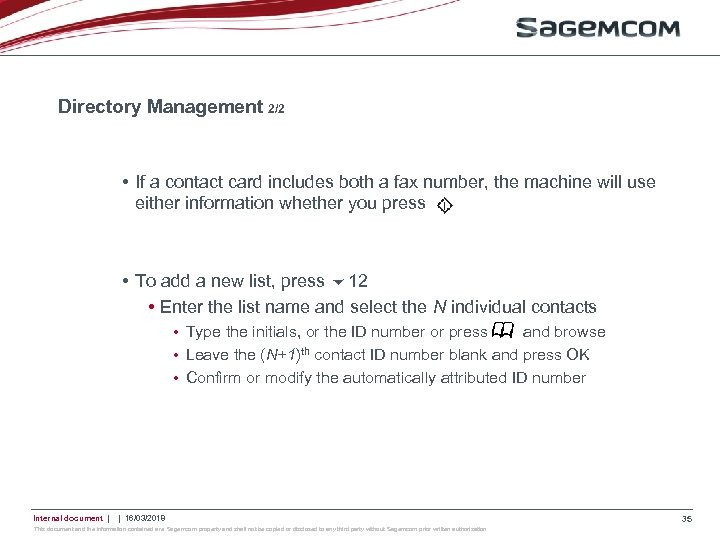

Directory Management 2/2 • If a contact card includes both a fax number, the Directory Management 2/2 • If a contact card includes both a fax number, the machine will use either information whether you press • To add a new list, press 12 • Enter the list name and select the N individual contacts • Type the initials, or the ID number or press and browse • Leave the (N+1)th contact ID number blank and press OK • Confirm or modify the automatically attributed ID number Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 35

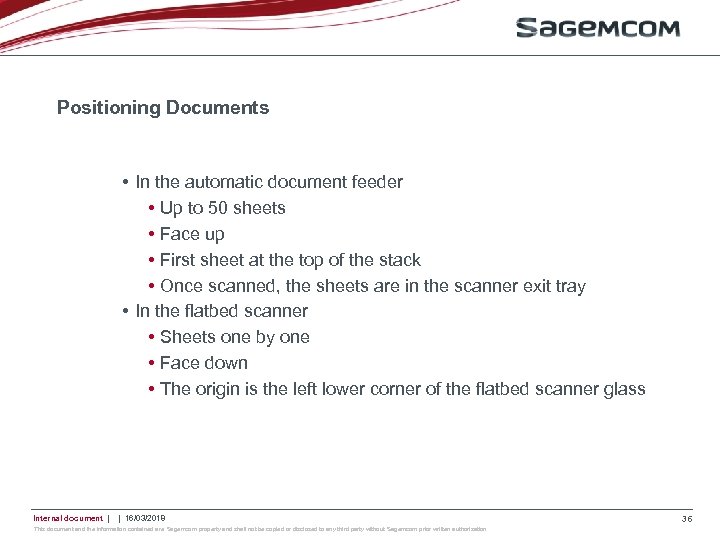

Positioning Documents • In the automatic document feeder • Up to 50 sheets • Positioning Documents • In the automatic document feeder • Up to 50 sheets • Face up • First sheet at the top of the stack • Once scanned, the sheets are in the scanner exit tray • In the flatbed scanner • Sheets one by one • Face down • The origin is the left lower corner of the flatbed scanner glass Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 36

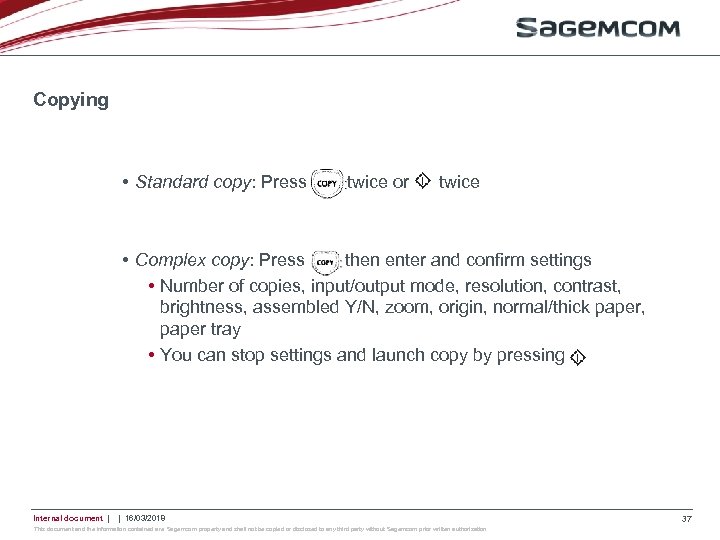

Copying • Standard copy: Press twice or twice • Complex copy: Press then enter Copying • Standard copy: Press twice or twice • Complex copy: Press then enter and confirm settings • Number of copies, input/output mode, resolution, contrast, brightness, assembled Y/N, zoom, origin, normal/thick paper, paper tray • You can stop settings and launch copy by pressing Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 37

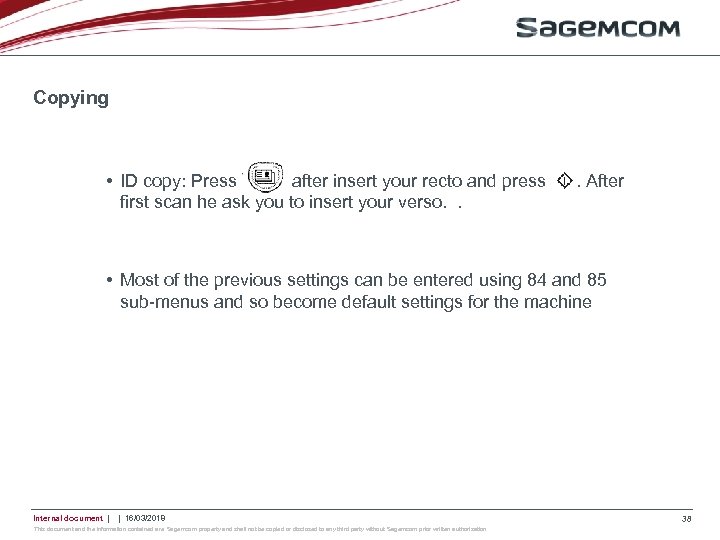

Copying • ID copy: Press after insert your recto and press first scan he Copying • ID copy: Press after insert your recto and press first scan he ask you to insert your verso. . . After • Most of the previous settings can be entered using 84 and 85 sub-menus and so become default settings for the machine Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 38

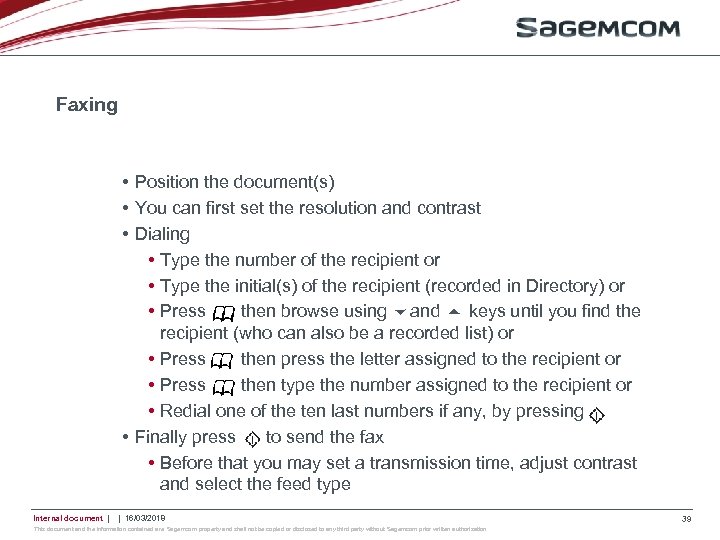

Faxing • Position the document(s) • You can first set the resolution and contrast Faxing • Position the document(s) • You can first set the resolution and contrast • Dialing • Type the number of the recipient or • Type the initial(s) of the recipient (recorded in Directory) or • Press then browse using and keys until you find the recipient (who can also be a recorded list) or • Press then press the letter assigned to the recipient or • Press then type the number assigned to the recipient or • Redial one of the ten last numbers if any, by pressing • Finally press to send the fax • Before that you may set a transmission time, adjust contrast and select the feed type Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 39

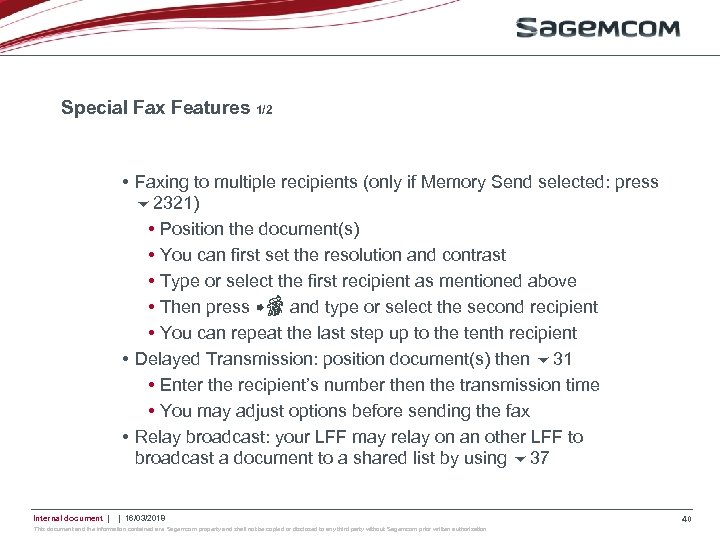

Special Fax Features 1/2 • Faxing to multiple recipients (only if Memory Send selected: Special Fax Features 1/2 • Faxing to multiple recipients (only if Memory Send selected: press 2321) • Position the document(s) • You can first set the resolution and contrast • Type or select the first recipient as mentioned above • Then press and type or select the second recipient • You can repeat the last step up to the tenth recipient • Delayed Transmission: position document(s) then 31 • Enter the recipient’s number then the transmission time • You may adjust options before sending the fax • Relay broadcast: your LFF may relay on an other LFF to broadcast a document to a shared list by using 37 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 40

Special Fax Features 2/2 • Sending a fax manually • Position the document(s), press Special Fax Features 2/2 • Sending a fax manually • Position the document(s), press , adjust the sound level using / keys (if necessary), enter the recipient number • The remote fax is called and as soon as you hear the fax signal, press to start transmission • Rerouting faxes to a contact stored in the directory • Enable rerouting: 3911 • Menus 392 and 393 are therefore enabled • 392 then enter the destination number from directory • 3931 to have a local copy of the rerouted document • A fax can be rerouted to a contact’s Email address if the contact’s fax machine is not available Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 41

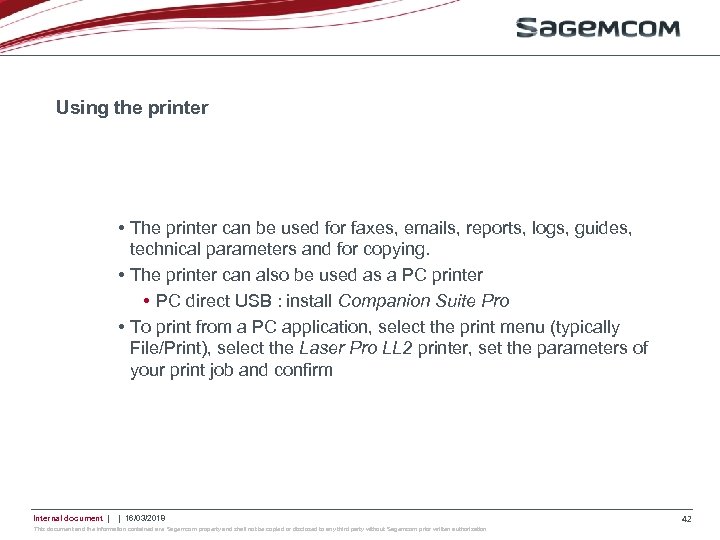

Using the printer • The printer can be used for faxes, emails, reports, logs, Using the printer • The printer can be used for faxes, emails, reports, logs, guides, technical parameters and for copying. • The printer can also be used as a PC printer • PC direct USB : install Companion Suite Pro • To print from a PC application, select the print menu (typically File/Print), select the Laser Pro LL 2 printer, set the parameters of your print job and confirm Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 42

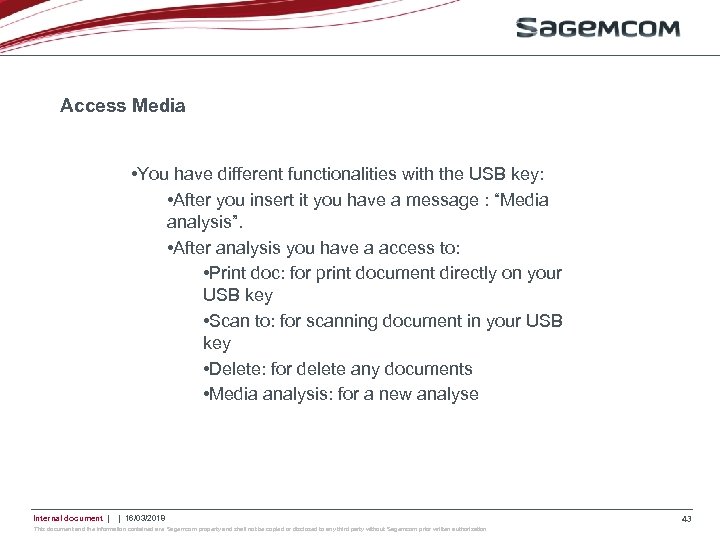

Access Media • You have different functionalities with the USB key: • After you Access Media • You have different functionalities with the USB key: • After you insert it you have a message : “Media analysis”. • After analysis you have a access to: • Print doc: for print document directly on your USB key • Scan to: for scanning document in your USB key • Delete: for delete any documents • Media analysis: for a new analyse Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 43

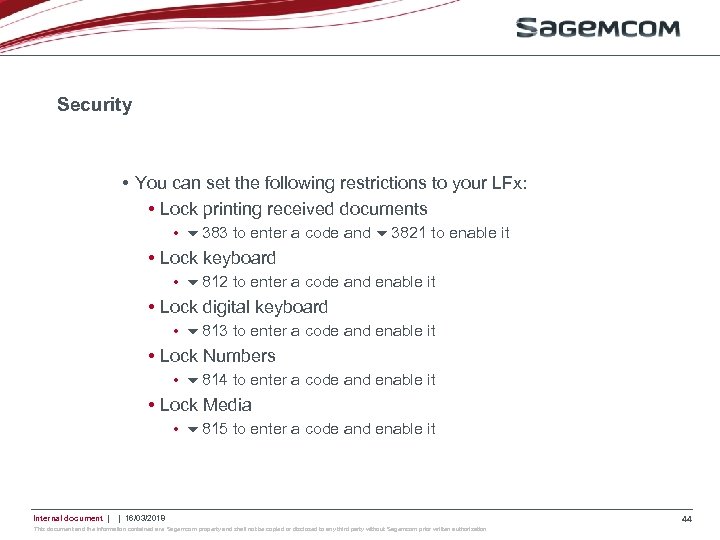

Security • You can set the following restrictions to your LFx: • Lock printing Security • You can set the following restrictions to your LFx: • Lock printing received documents • 383 to enter a code and 3821 to enable it • Lock keyboard • 812 to enter a code and enable it • Lock digital keyboard • 813 to enter a code and enable it • Lock Numbers • 814 to enter a code and enable it • Lock Media • 815 to enter a code and enable it Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 44

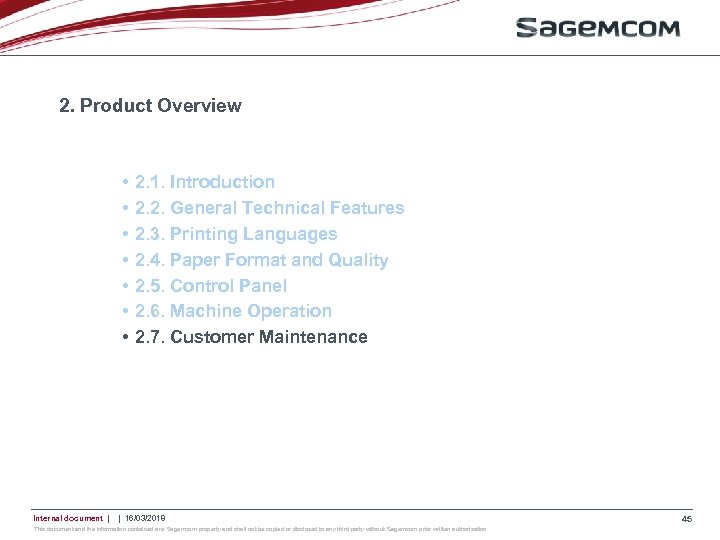

2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General 2. Product Overview • • Internal document | 2. 1. Introduction 2. 2. General Technical Features 2. 3. Printing Languages 2. 4. Paper Format and Quality 2. 5. Control Panel 2. 6. Machine Operation 2. 7. Customer Maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 45

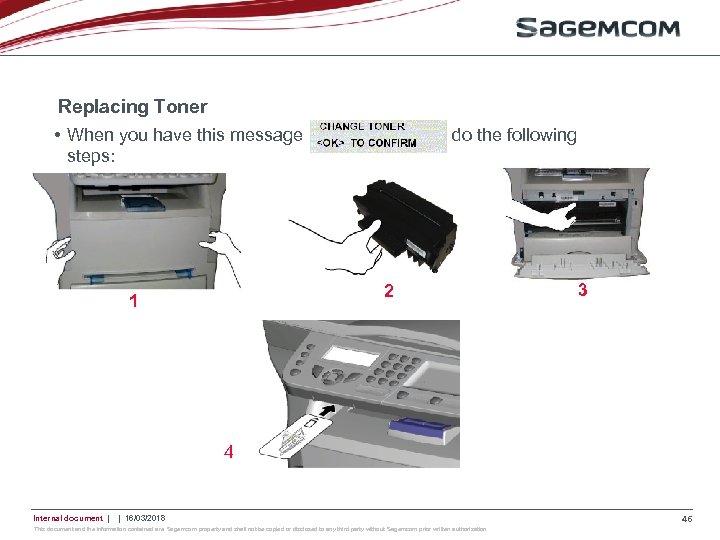

Replacing Toner • When you have this message do the following steps: 2 1 Replacing Toner • When you have this message do the following steps: 2 1 3 4 Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 46

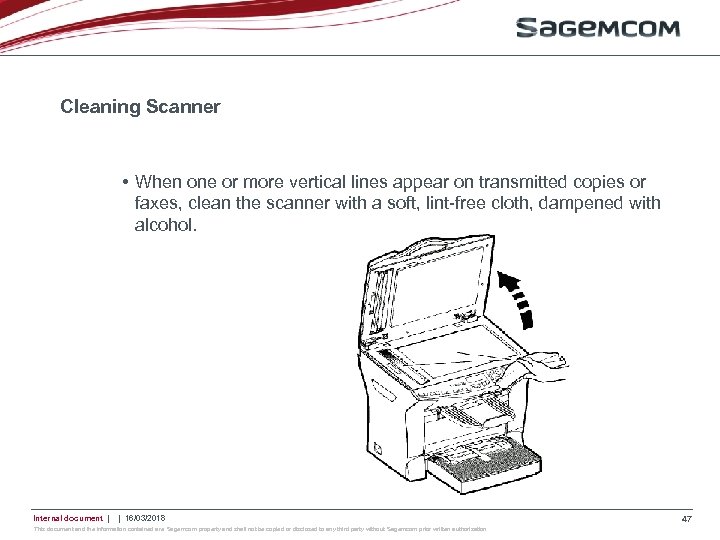

Cleaning Scanner • When one or more vertical lines appear on transmitted copies or Cleaning Scanner • When one or more vertical lines appear on transmitted copies or faxes, clean the scanner with a soft, lint-free cloth, dampened with alcohol. Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 47

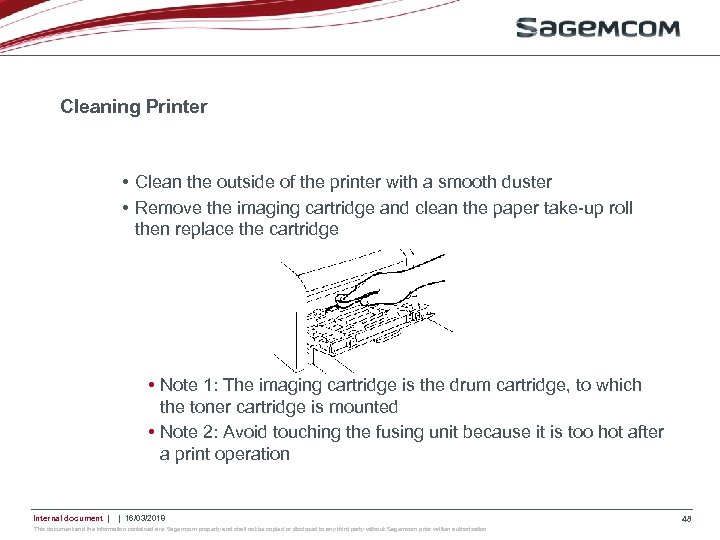

Cleaning Printer • Clean the outside of the printer with a smooth duster • Cleaning Printer • Clean the outside of the printer with a smooth duster • Remove the imaging cartridge and clean the paper take-up roll then replace the cartridge • Note 1: The imaging cartridge is the drum cartridge, to which the toner cartridge is mounted • Note 2: Avoid touching the fusing unit because it is too hot after a print operation Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 48

Cleaning Document Feed Elements • Open the top cover • Clean the document feed Cleaning Document Feed Elements • Open the top cover • Clean the document feed rollers • Clean the paper separator Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 49

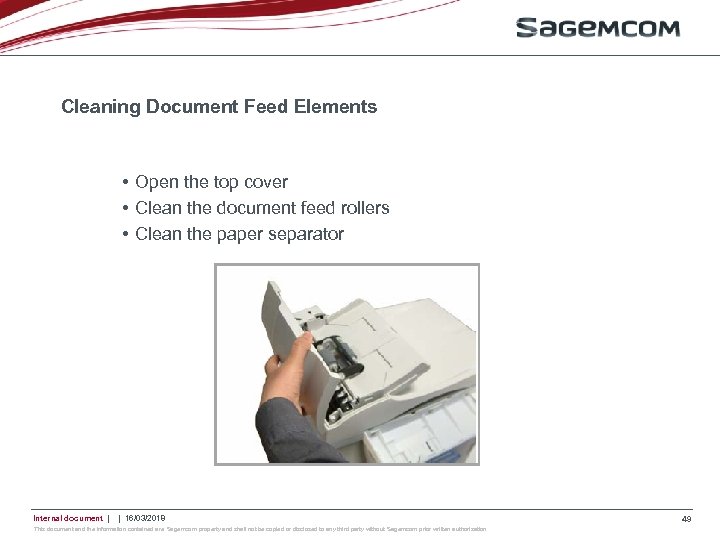

Cleaning Document Feed Elements • Clean the document feed rollers • Clean the paper Cleaning Document Feed Elements • Clean the document feed rollers • Clean the paper separator Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 50

Cleaning Control Panel and Keys • Switch off the LFx and clean the top Cleaning Control Panel and Keys • Switch off the LFx and clean the top of the control panel and the keys with a lint-free cloth moistened with isopropyl alcohol or by means of a spray-on cleaning product. Let the product act for a few moments before wiping it off Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 51

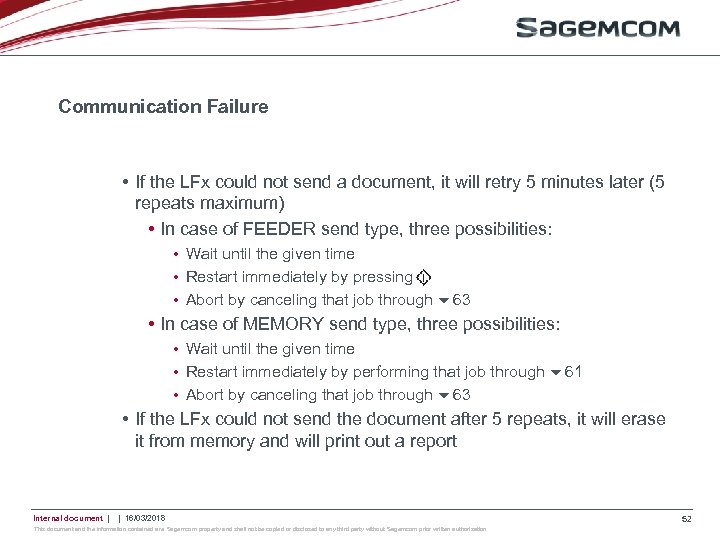

Communication Failure • If the LFx could not send a document, it will retry Communication Failure • If the LFx could not send a document, it will retry 5 minutes later (5 repeats maximum) • In case of FEEDER send type, three possibilities: • Wait until the given time • Restart immediately by pressing • Abort by canceling that job through 63 • In case of MEMORY send type, three possibilities: • Wait until the given time • Restart immediately by performing that job through 61 • Abort by canceling that job through 63 • If the LFx could not send the document after 5 repeats, it will erase it from memory and will print out a report Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 52

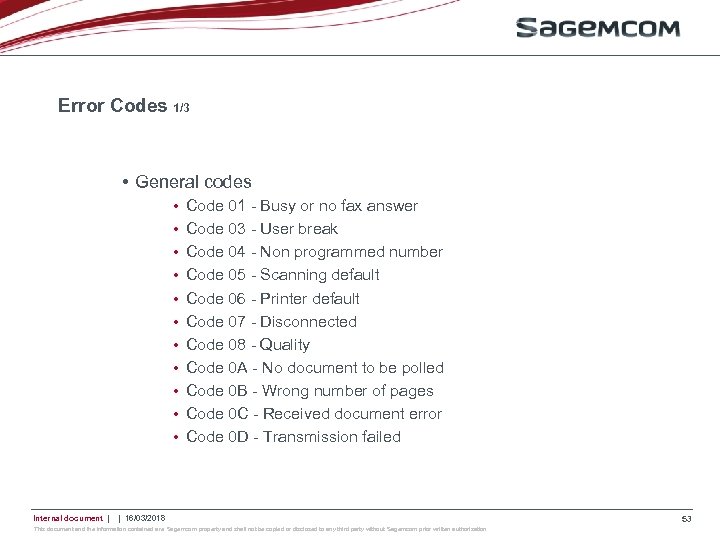

Error Codes 1/3 • General codes • • • Internal document | Code 01 Error Codes 1/3 • General codes • • • Internal document | Code 01 - Busy or no fax answer Code 03 - User break Code 04 - Non programmed number Code 05 - Scanning default Code 06 - Printer default Code 07 - Disconnected Code 08 - Quality Code 0 A - No document to be polled Code 0 B - Wrong number of pages Code 0 C - Received document error Code 0 D - Transmission failed | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 53

Error Codes 2/3 • • • Internal document | Code 13 - Memory full Error Codes 2/3 • • • Internal document | Code 13 - Memory full Code 14 - Memory full Code 15 - Unknown mailbox number Code 16 - No Relay Broadcast list Number x Code 17 - Unknown mailbox number Code 18 - Relay Broadcast impossible Code 19 - Subscriber has stopped Code 1 A - Disconnected Code 1 B - Transmission failed | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 54

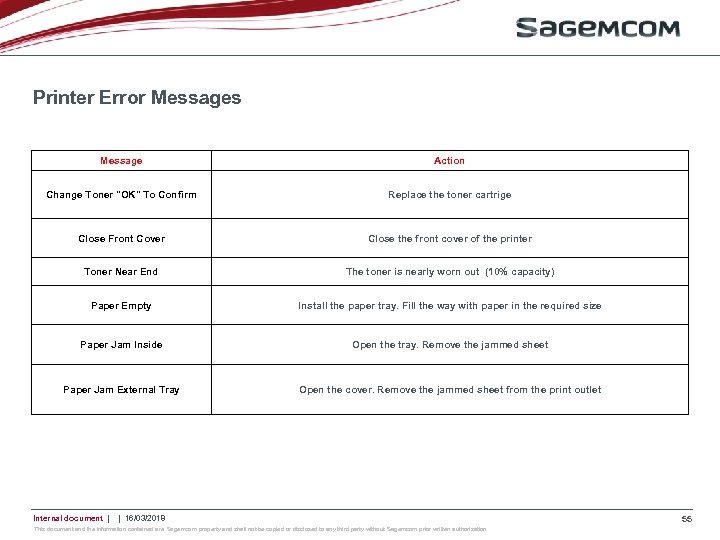

Printer Error Messages Message Action Change Toner Printer Error Messages Message Action Change Toner "OK" To Confirm Replace the toner cartrige Close Front Cover Close the front cover of the printer Toner Near End The toner is nearly worn out (10% capacity) Paper Empty Install the paper tray. Fill the way with paper in the required size Paper Jam Inside Open the tray. Remove the jammed sheet Paper Jam External Tray Open the cover. Remove the jammed sheet from the print outlet Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 55

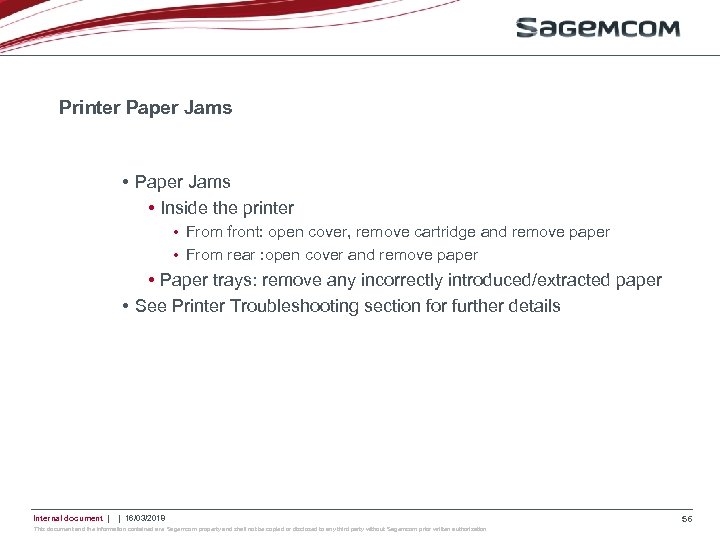

Printer Paper Jams • Paper Jams • Inside the printer • From front: open Printer Paper Jams • Paper Jams • Inside the printer • From front: open cover, remove cartridge and remove paper • From rear : open cover and remove paper • Paper trays: remove any incorrectly introduced/extracted paper • See Printer Troubleshooting section for further details Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 56

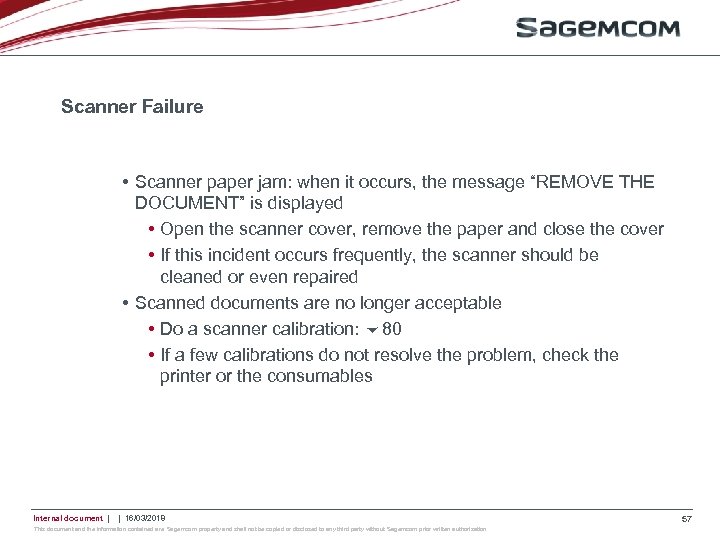

Scanner Failure • Scanner paper jam: when it occurs, the message “REMOVE THE DOCUMENT” Scanner Failure • Scanner paper jam: when it occurs, the message “REMOVE THE DOCUMENT” is displayed • Open the scanner cover, remove the paper and close the cover • If this incident occurs frequently, the scanner should be cleaned or even repaired • Scanned documents are no longer acceptable • Do a scanner calibration: 80 • If a few calibrations do not resolve the problem, check the printer or the consumables Internal document | | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 57

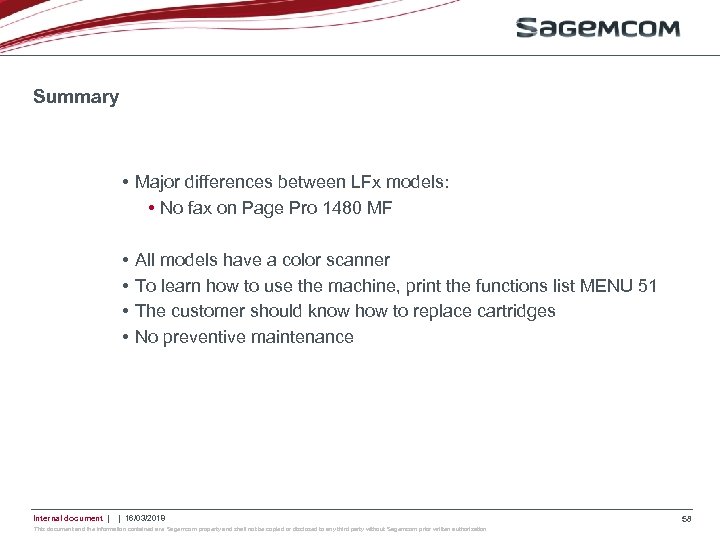

Summary • Major differences between LFx models: • No fax on Page Pro 1480 Summary • Major differences between LFx models: • No fax on Page Pro 1480 MF • • Internal document | All models have a color scanner To learn how to use the machine, print the functions list MENU 51 The customer should know how to replace cartridges No preventive maintenance | 16/03/2018 This document and the information contained are Sagemcom property and shall not be copied or disclosed to any third party without Sagemcom prior written authorization 58
