TRAFF-20 Development Author Nick Rubbi Prepared March 2015

TRAFF-20 Development Author: Nick Rubbi Prepared: March 2015

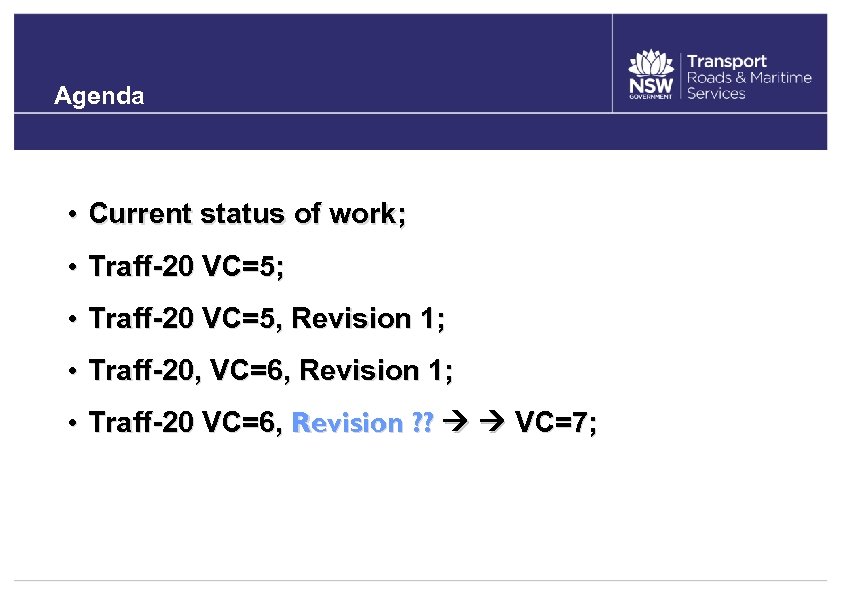

Agenda • Current status of work; • Traff-20 VC=5, Revision 1; • Traff-20, VC=6, Revision 1; • Traff-20 VC=6, Revision ? ? VC=7;

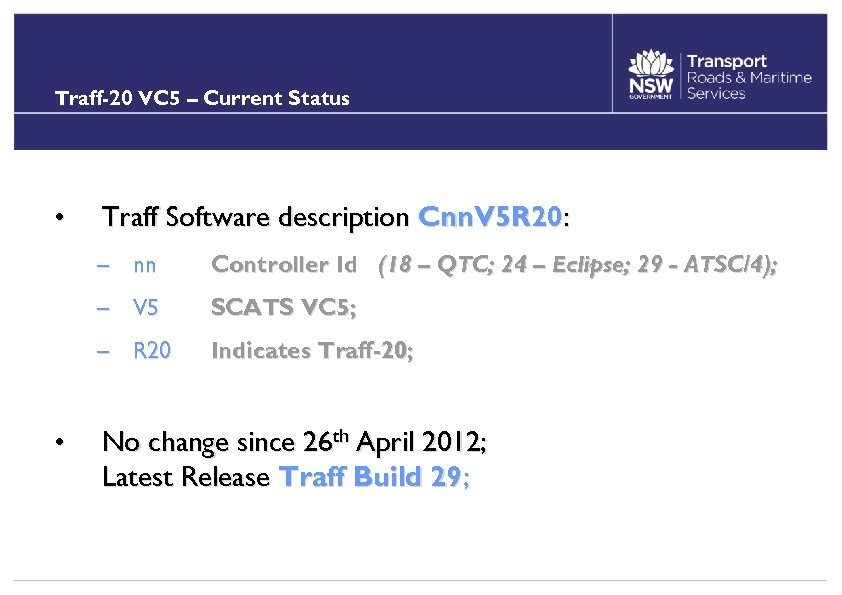

Traff-20 VC 5 – Current Status • Traff Software description Cnn. V 5 R 20: – nn – V 5 SCATS VC 5; – R 20 • Controller Id (18 – QTC; 24 – Eclipse; 29 - ATSC/4); Indicates Traff-20; No change since 26 th April 2012; Latest Release Traff Build 29;

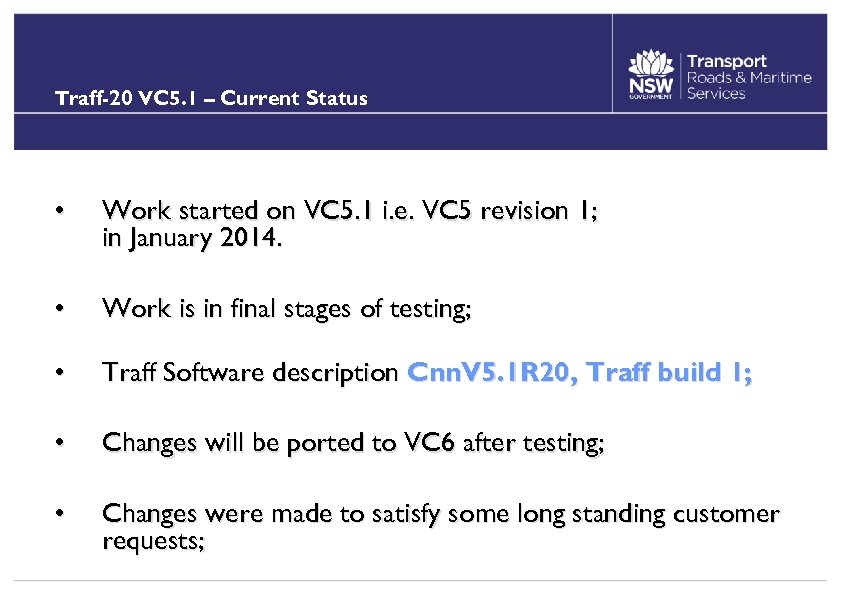

Traff-20 VC 5. 1 – Current Status • Work started on VC 5. 1 i. e. VC 5 revision 1; in January 2014. • Work is in final stages of testing; • Traff Software description Cnn. V 5. 1 R 20, Traff build 1; • Changes will be ported to VC 6 after testing; • Changes were made to satisfy some long standing customer requests;

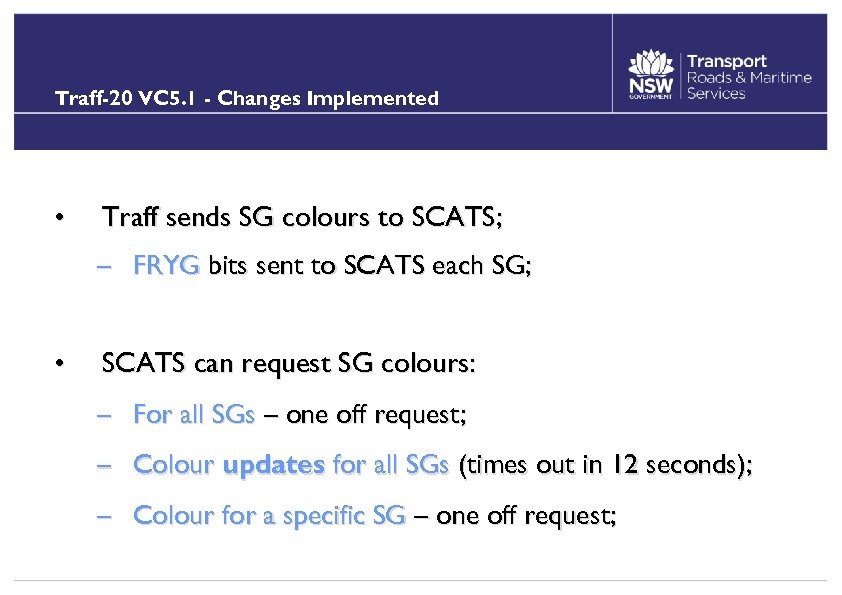

Traff-20 VC 5. 1 - Changes Implemented • Traff sends SG colours to SCATS; – FRYG bits sent to SCATS each SG; • SCATS can request SG colours: – For all SGs – one off request; – Colour updates for all SGs (times out in 12 seconds); – Colour for a specific SG – one off request;

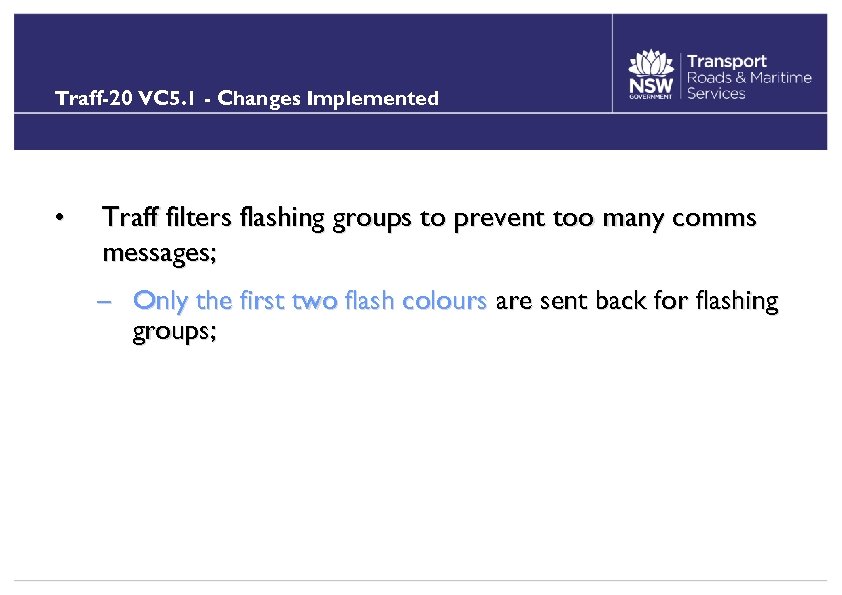

Traff-20 VC 5. 1 - Changes Implemented • Traff filters flashing groups to prevent too many comms messages; – Only the first two flash colours are sent back for flashing groups;

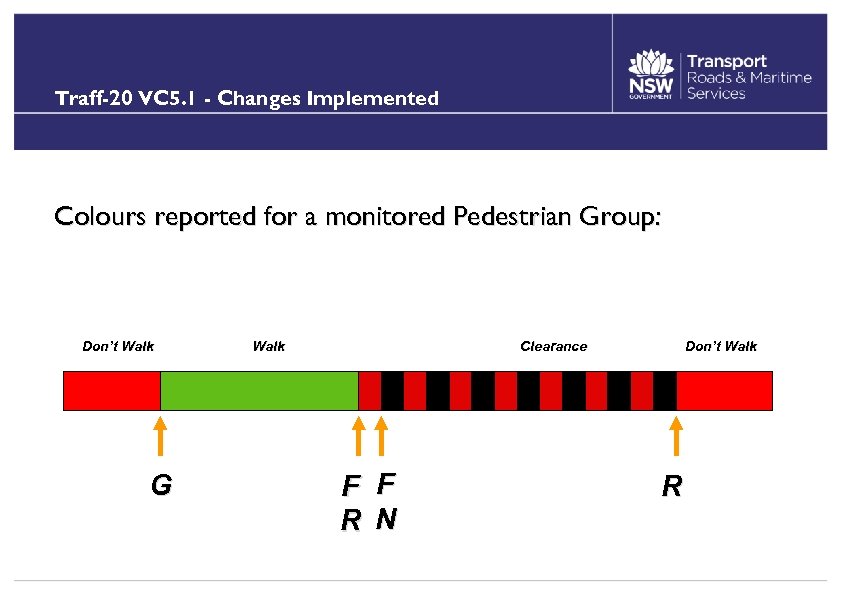

Traff-20 VC 5. 1 - Changes Implemented Colours reported for a monitored Pedestrian Group: Don’t Walk G Walk Clearance F F R N Don’t Walk R

Traff-20 VC 5. 1 - Changes Implemented Colours reported for a Flashing Group (where the SG colour is stable for less than 1 second): Off Flashing Yellow and Red (Wig Wag) Y F R F Y Off N

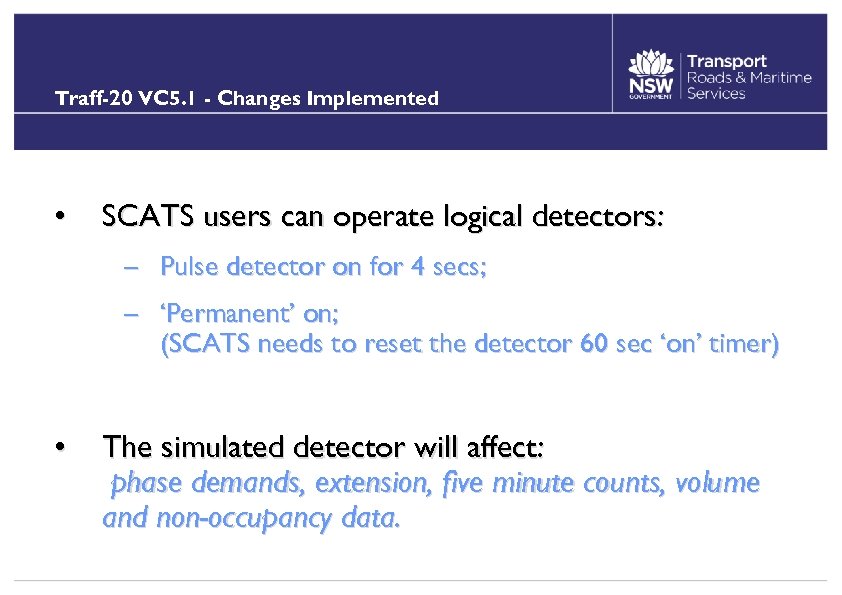

Traff-20 VC 5. 1 - Changes Implemented • SCATS users can operate logical detectors: – Pulse detector on for 4 secs; – ‘Permanent’ on; (SCATS needs to reset the detector 60 sec ‘on’ timer) • The simulated detector will affect: phase demands, extension, five minute counts, volume and non-occupancy data.

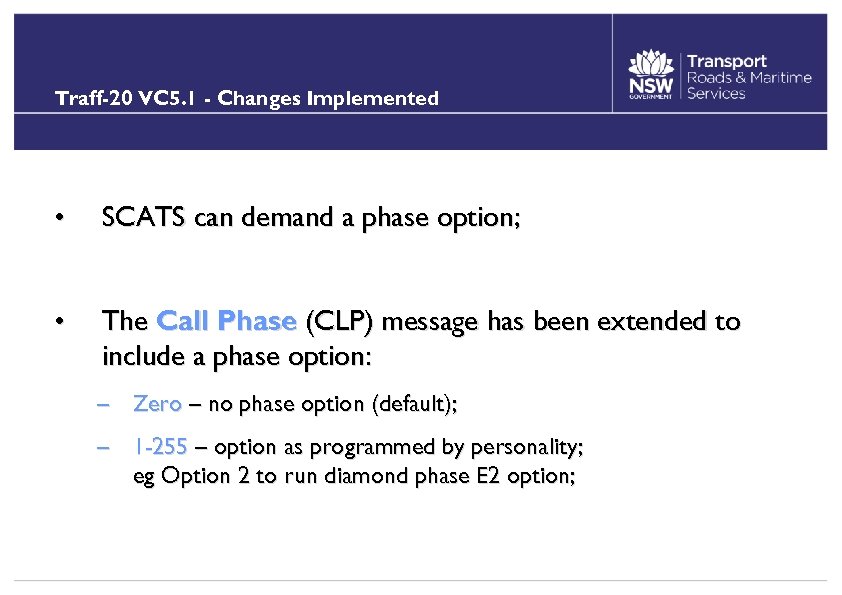

Traff-20 VC 5. 1 - Changes Implemented • SCATS can demand a phase option; • The Call Phase (CLP) message has been extended to include a phase option: – Zero – no phase option (default); – 1 -255 – option as programmed by personality; eg Option 2 to run diamond phase E 2 option;

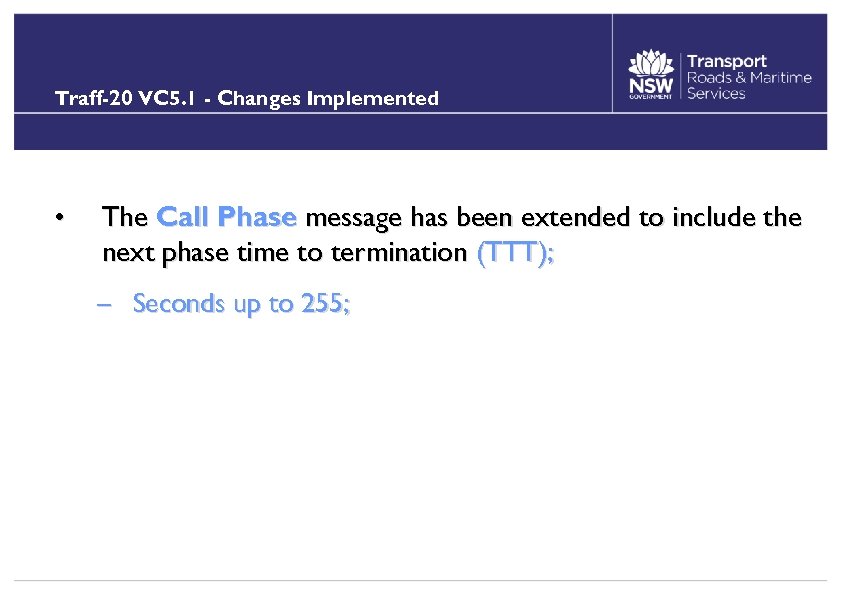

Traff-20 VC 5. 1 - Changes Implemented • The Call Phase message has been extended to include the next phase time to termination (TTT); – Seconds up to 255;

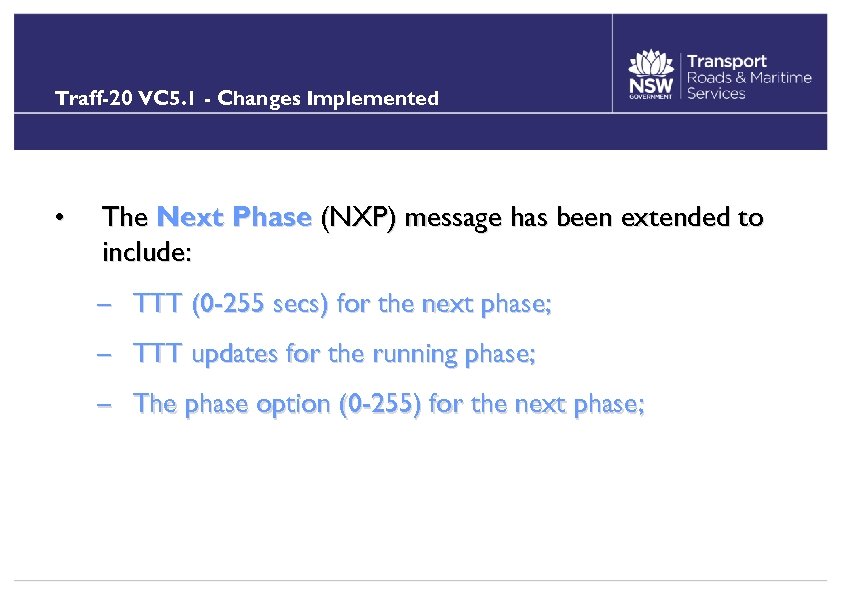

Traff-20 VC 5. 1 - Changes Implemented • The Next Phase (NXP) message has been extended to include: – TTT (0 -255 secs) for the next phase; – TTT updates for the running phase; – The phase option (0 -255) for the next phase;

Traff-20 VC 5. 1 - Changes Implemented • Advantages of TTT data: – Immunity to longer breaks in SCATS communications (without fallback and breaking marriage chains); – Allow personality to introduce features late in the phase (similar principle to Z 5); – SPa. T (Signal Group Phase and Timing) data (eg predict end of phase);

Traff-20 VC 5. 1 - Changes Implemented • Advantages of TTT data: B Phase Min NXP C B TTT C Option C Phase Min B TTT Comms Break C TTT Controller Moves to C if Demanded Fallback from Masterlink Mode

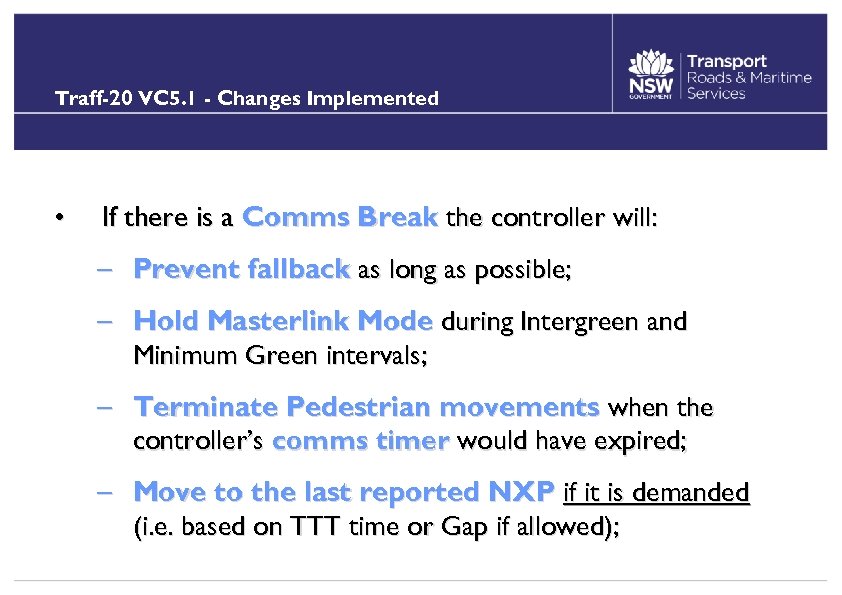

Traff-20 VC 5. 1 - Changes Implemented • If there is a Comms Break the controller will: – Prevent fallback as long as possible; – Hold Masterlink Mode during Intergreen and Minimum Green intervals; – Terminate Pedestrian movements when the controller’s comms timer would have expired; – Move to the last reported NXP if it is demanded (i. e. based on TTT time or Gap if allowed);

Traff-20 VC 5. 1 - Changes Implemented • More information in the Pedestrian Status Message (PED): – Now sends Pedestrian clearance 1 and 2 status; – Still sends Walk and Demand status; – Delay and Walk 2 status are sent in another message; Don’t Walk Delay 1 2 Walk 1 Walk 2 Clearance 1 Clearance 2 Don’t Walk

Traff-20 VC 5. 1 - Changes Implemented • VC 5. 1 Region will work with Traff-20 VC 5; • VC 5 Region will work with Traff-20 VC 5. 1;

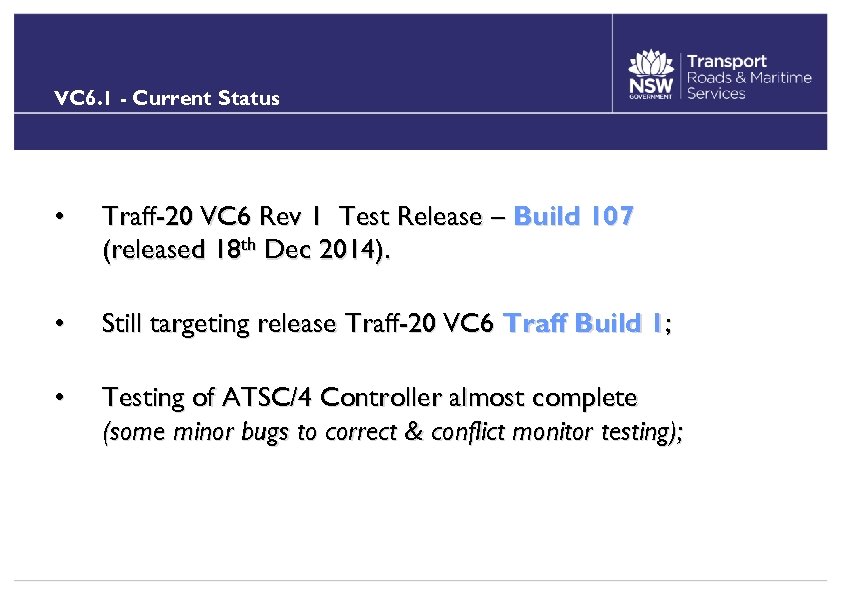

VC 6. 1 - Current Status • Traff-20 VC 6 Rev 1 Test Release – Build 107 (released 18 th Dec 2014). • Still targeting release Traff-20 VC 6 Traff Build 1; • Testing of ATSC/4 Controller almost complete (some minor bugs to correct & conflict monitor testing);

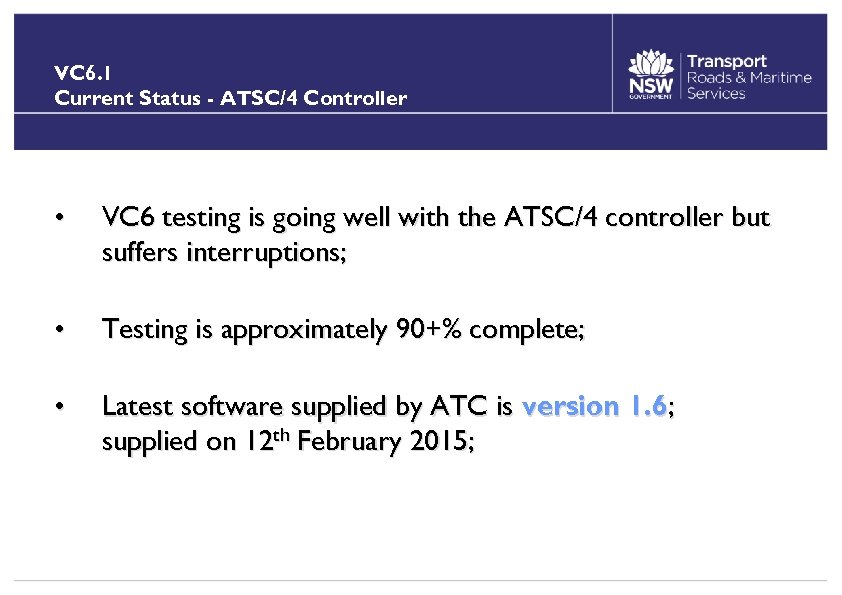

VC 6. 1 Current Status - ATSC/4 Controller • VC 6 testing is going well with the ATSC/4 controller but suffers interruptions; • Testing is approximately 90+% complete; • Latest software supplied by ATC is version 1. 6; supplied on 12 th February 2015;

VC 6. 1 Current Status - QTC Controller • QTC provided hardware and software for the test controller on 3 rd February 2011; • Software fails to run; • No current estimated software delivery date;

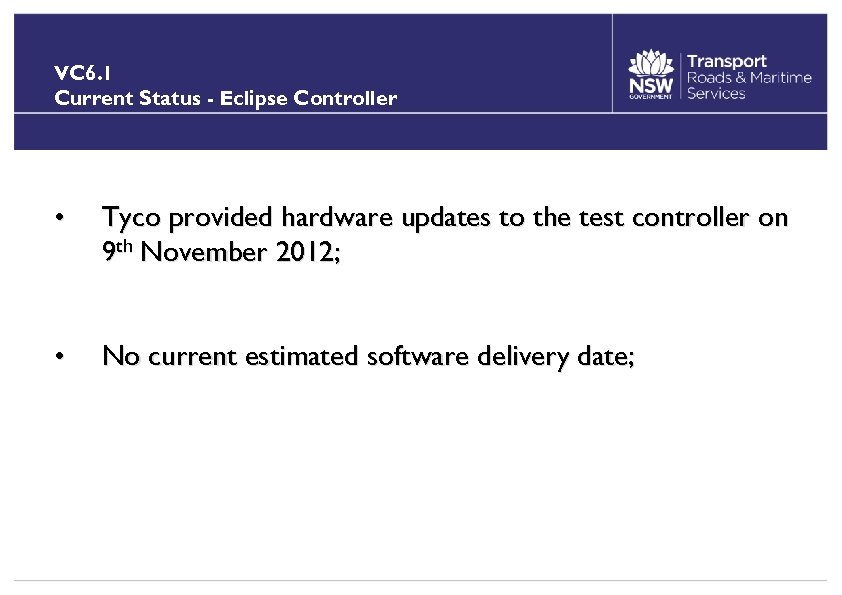

VC 6. 1 Current Status - Eclipse Controller • Tyco provided hardware updates to the test controller on 9 th November 2012; • No current estimated software delivery date;

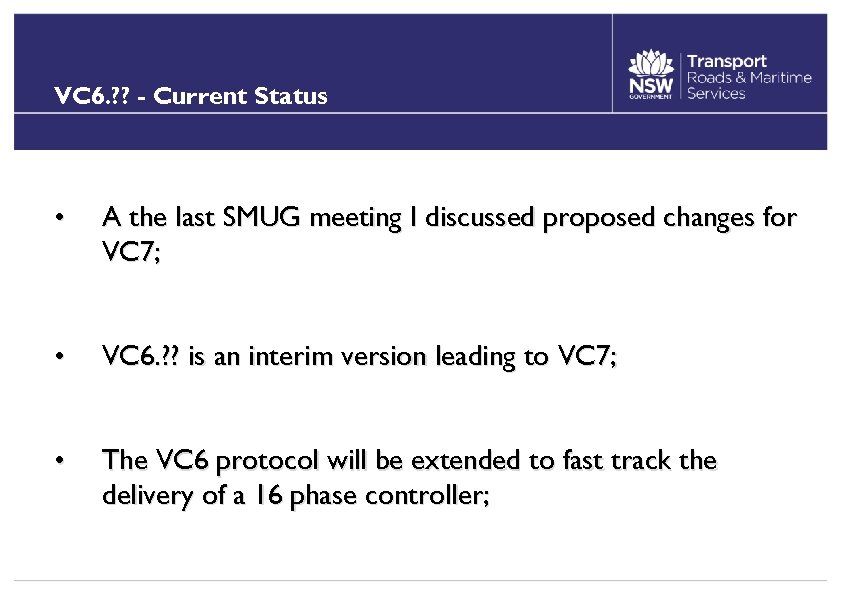

VC 6. ? ? - Current Status • A the last SMUG meeting I discussed proposed changes for VC 7; • VC 6. ? ? is an interim version leading to VC 7; • The VC 6 protocol will be extended to fast track the delivery of a 16 phase controller;

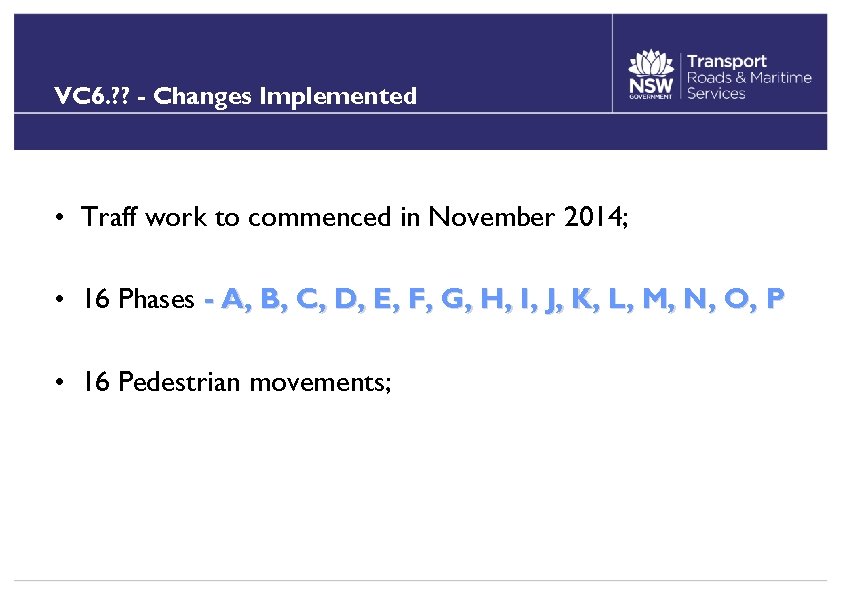

VC 6. ? ? - Changes Implemented • Traff work to commenced in November 2014; • 16 Phases - A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P • 16 Pedestrian movements;

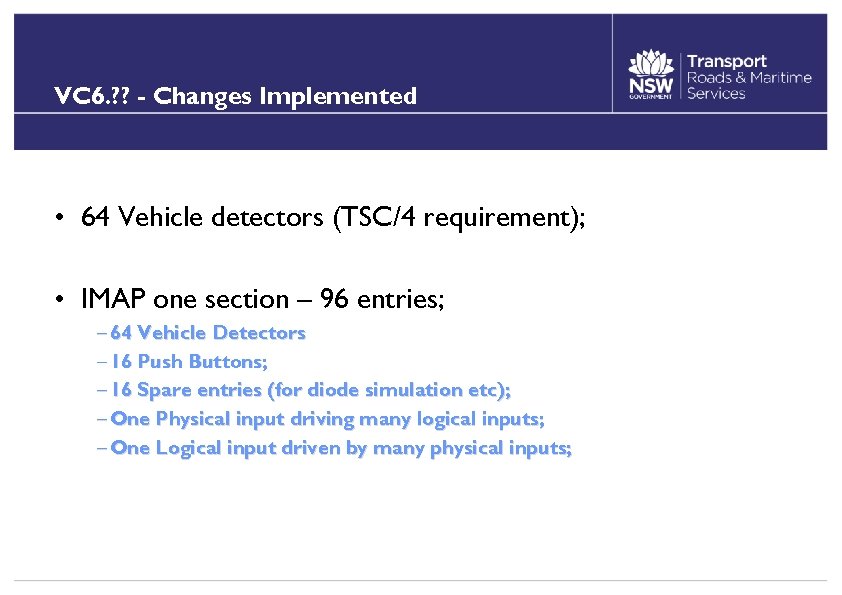

VC 6. ? ? - Changes Implemented • 64 Vehicle detectors (TSC/4 requirement); • IMAP one section – 96 entries; – 64 Vehicle Detectors – 16 Push Buttons; – 16 Spare entries (for diode simulation etc); – One Physical input driving many logical inputs; – One Logical input driven by many physical inputs;

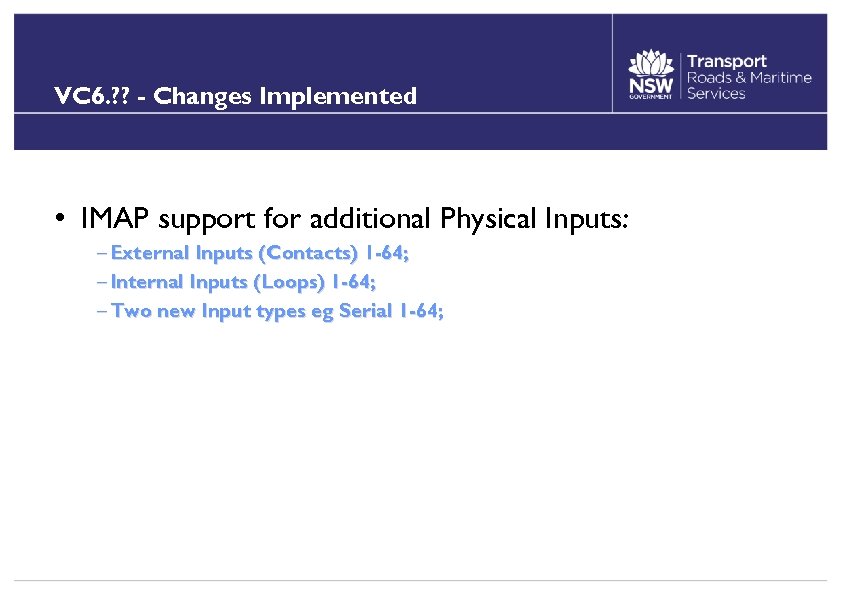

VC 6. ? ? - Changes Implemented • IMAP support for additional Physical Inputs: – External Inputs (Contacts) 1 -64; – Internal Inputs (Loops) 1 -64; – Two new Input types eg Serial 1 -64;

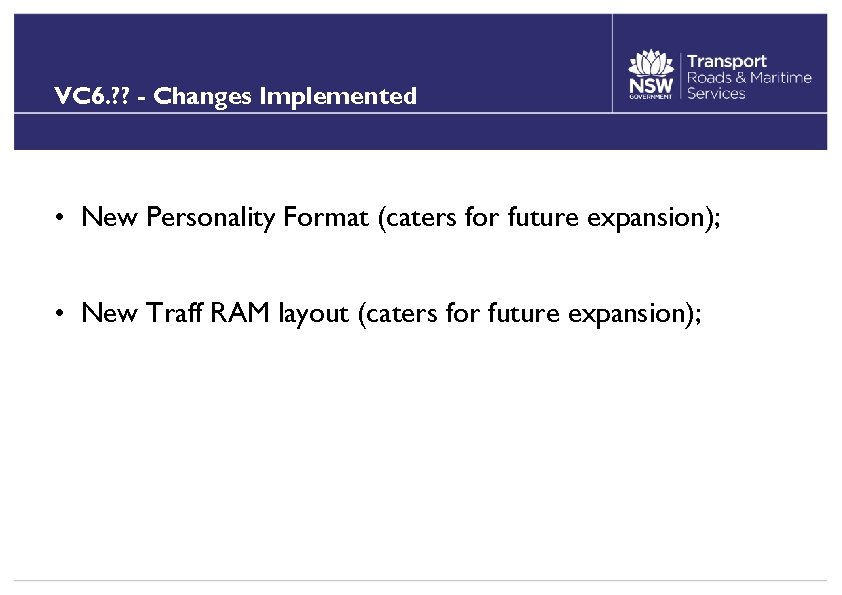

VC 6. ? ? - Changes Implemented • New Personality Format (caters for future expansion); • New Traff RAM layout (caters for future expansion);

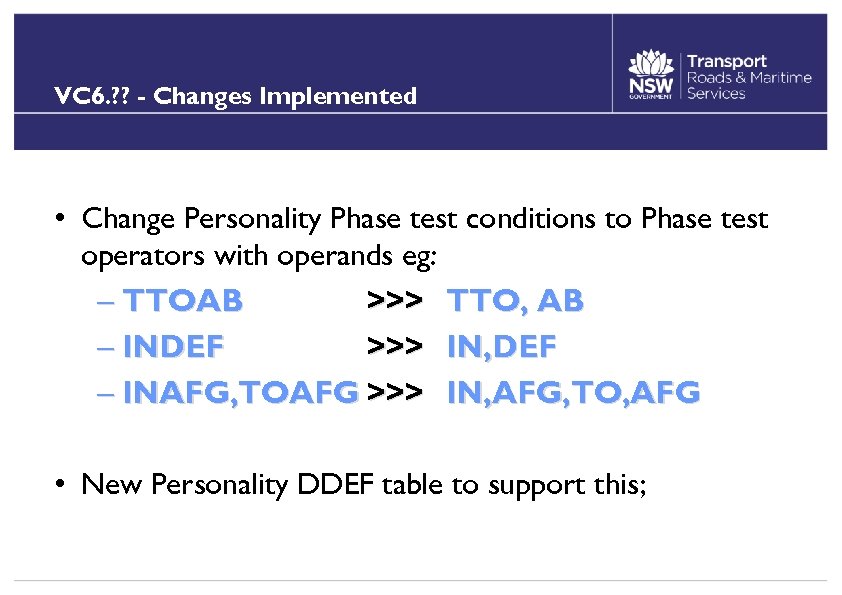

VC 6. ? ? - Changes Implemented • Change Personality Phase test conditions to Phase test operators with operands eg: – TTOAB >>> TTO, AB – INDEF >>> IN, DEF – INAFG, TOAFG >>> IN, AFG, TO, AFG • New Personality DDEF table to support this;

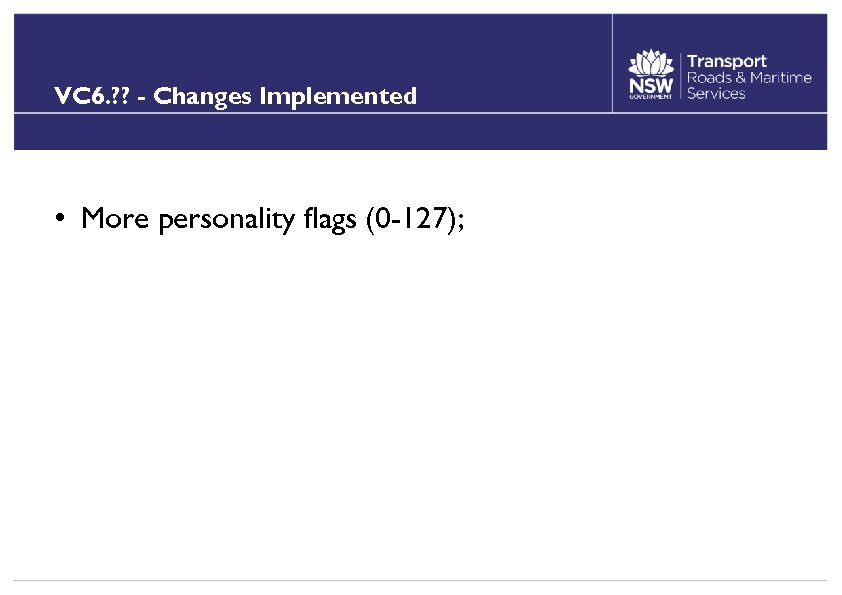

VC 6. ? ? - Changes Implemented • More personality flags (0 -127);

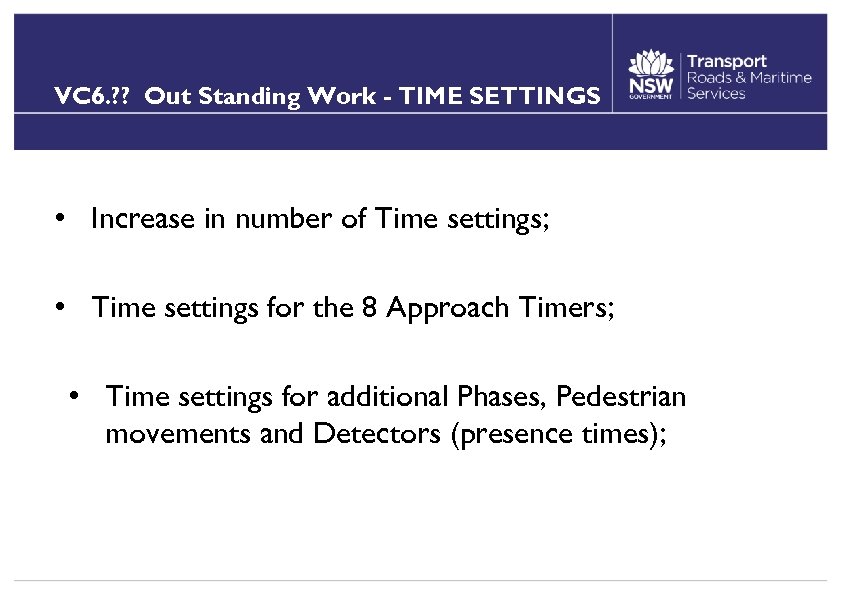

VC 6. ? ? Out Standing Work - TIME SETTINGS • Increase in number of Time settings; • Time settings for the 8 Approach Timers; • Time settings for additional Phases, Pedestrian movements and Detectors (presence times);

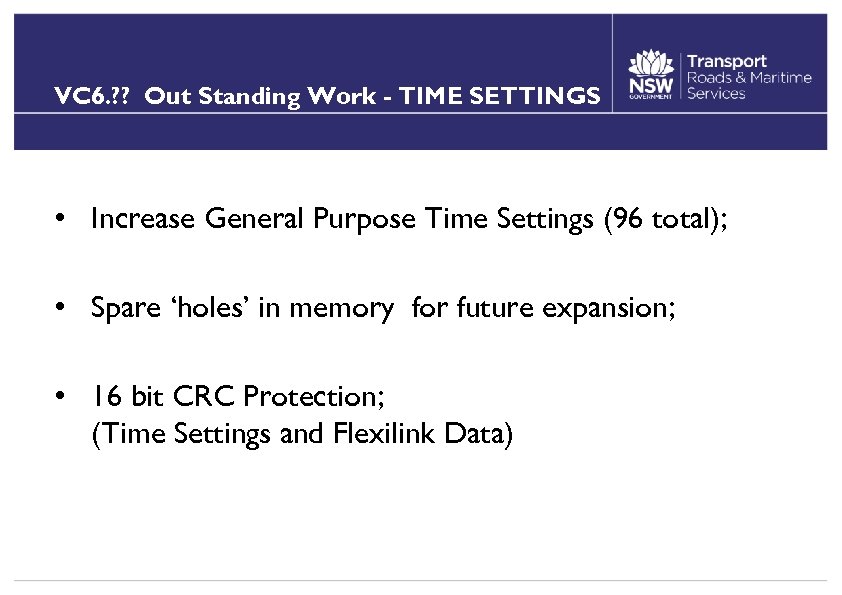

VC 6. ? ? Out Standing Work - TIME SETTINGS • Increase General Purpose Time Settings (96 total); • Spare ‘holes’ in memory for future expansion; • 16 bit CRC Protection; (Time Settings and Flexilink Data)

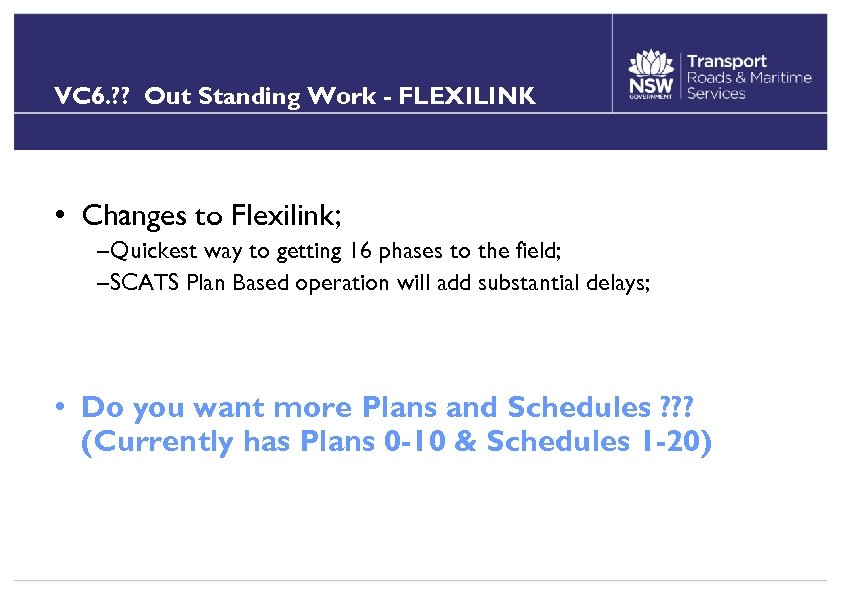

VC 6. ? ? Out Standing Work - FLEXILINK • Changes to Flexilink; – Quickest way to getting 16 phases to the field; – SCATS Plan Based operation will add substantial delays; • Do you want more Plans and Schedules ? ? ? (Currently has Plans 0 -10 & Schedules 1 -20)

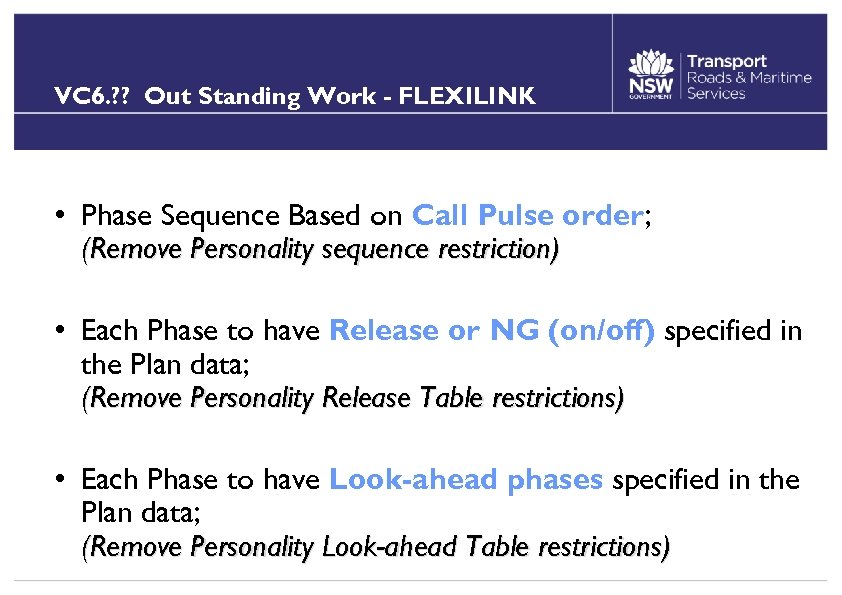

VC 6. ? ? Out Standing Work - FLEXILINK • Phase Sequence Based on Call Pulse order; (Remove Personality sequence restriction) • Each Phase to have Release or NG (on/off) specified in the Plan data; (Remove Personality Release Table restrictions) • Each Phase to have Look-ahead phases specified in the Plan data; (Remove Personality Look-ahead Table restrictions)

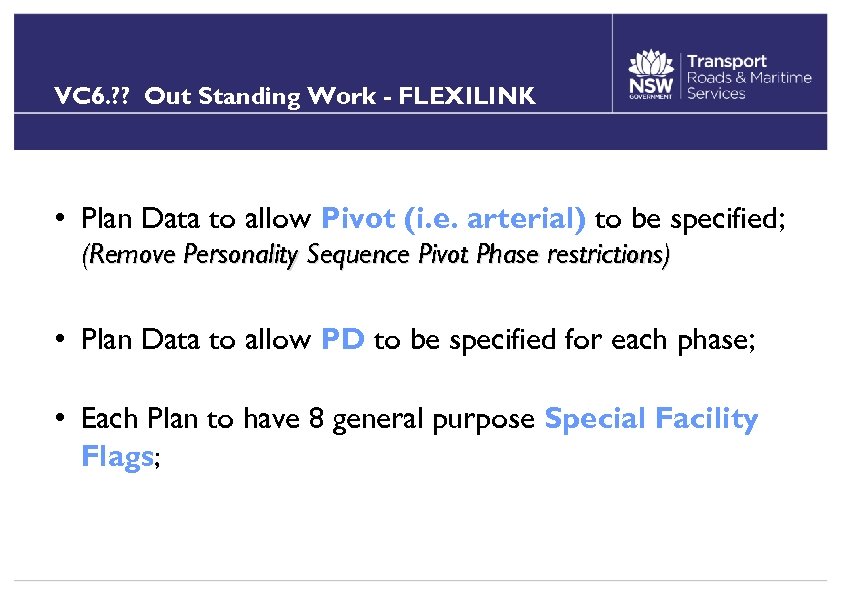

VC 6. ? ? Out Standing Work - FLEXILINK • Plan Data to allow Pivot (i. e. arterial) to be specified; (Remove Personality Sequence Pivot Phase restrictions) • Plan Data to allow PD to be specified for each phase; • Each Plan to have 8 general purpose Special Facility Flags;

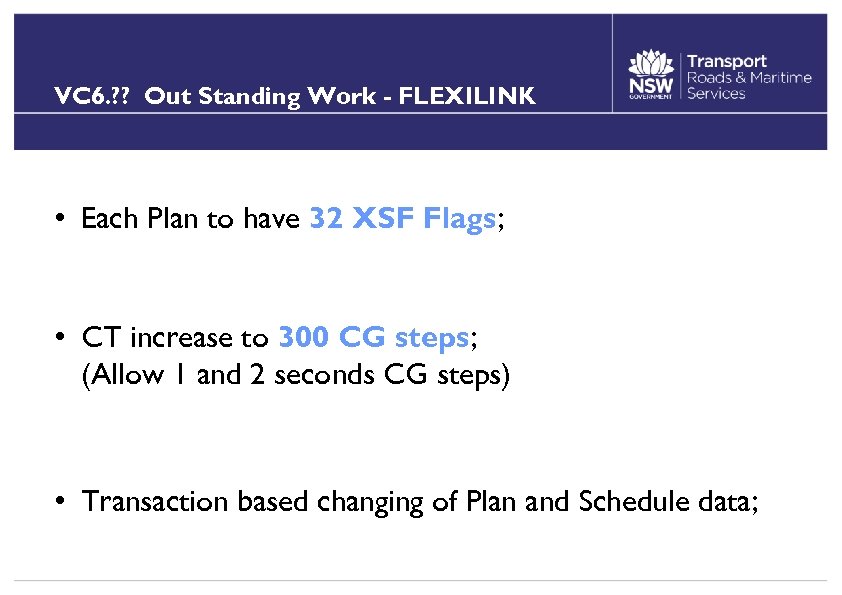

VC 6. ? ? Out Standing Work - FLEXILINK • Each Plan to have 32 XSF Flags; • CT increase to 300 CG steps; (Allow 1 and 2 seconds CG steps) • Transaction based changing of Plan and Schedule data;

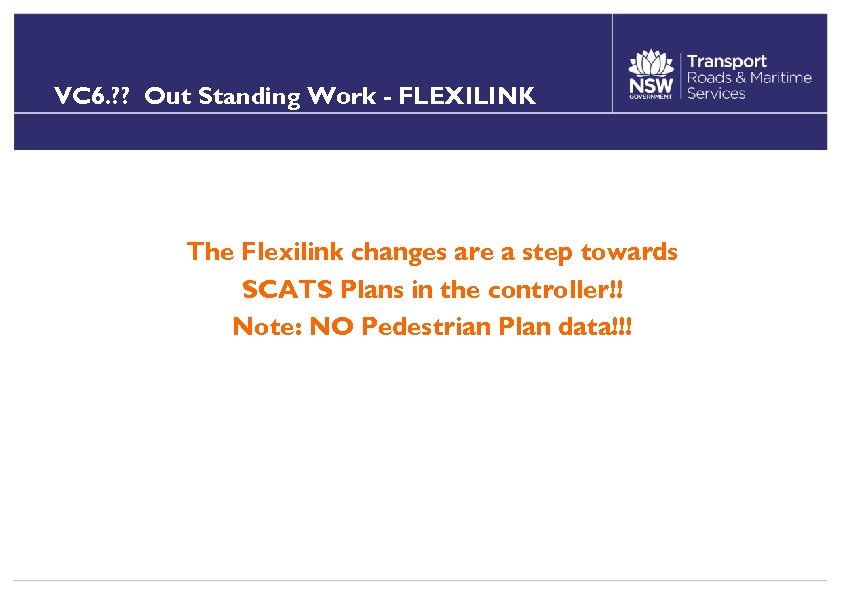

VC 6. ? ? Out Standing Work - FLEXILINK The Flexilink changes are a step towards SCATS Plans in the controller!! Note: NO Pedestrian Plan data!!!

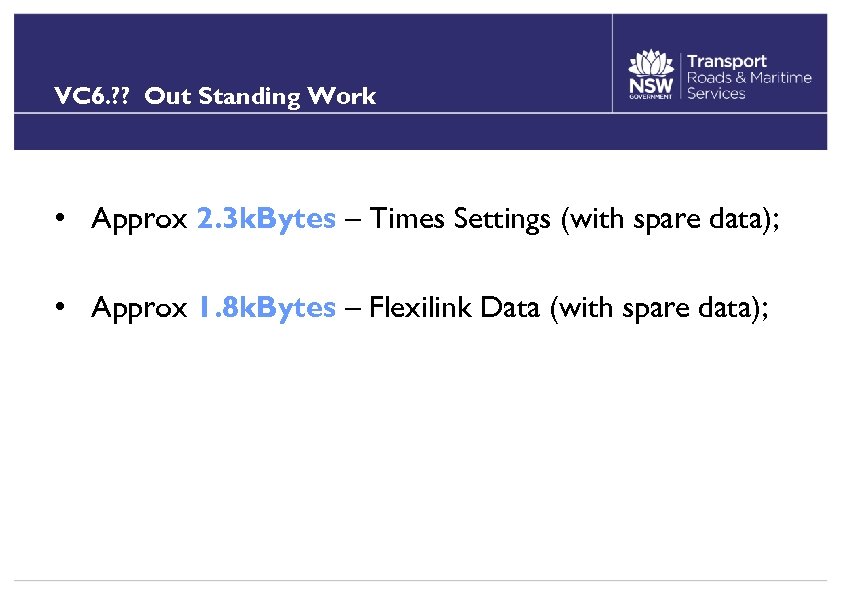

VC 6. ? ? Out Standing Work • Approx 2. 3 k. Bytes – Times Settings (with spare data); • Approx 1. 8 k. Bytes – Flexilink Data (with spare data);

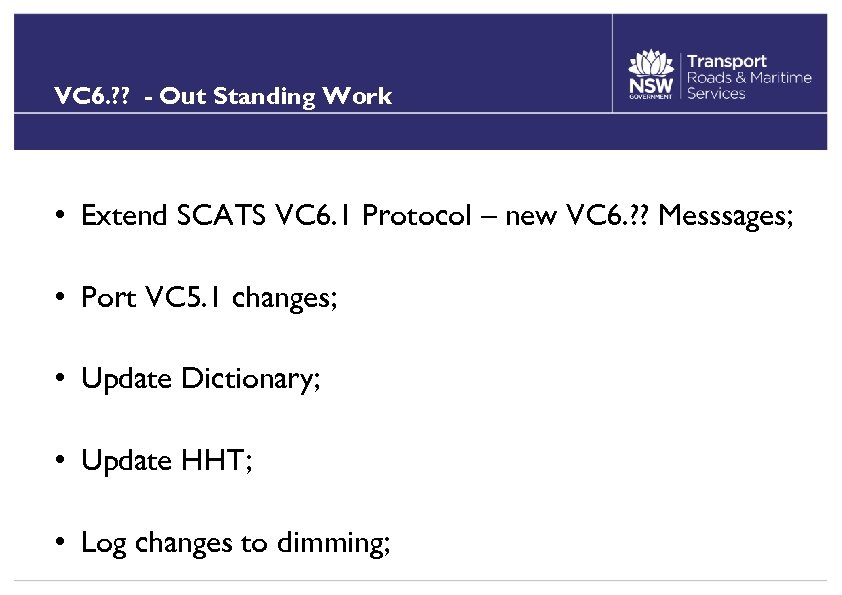

VC 6. ? ? - Out Standing Work • Extend SCATS VC 6. 1 Protocol – new VC 6. ? ? Messsages; • Port VC 5. 1 changes; • Update Dictionary; • Update HHT; • Log changes to dimming;

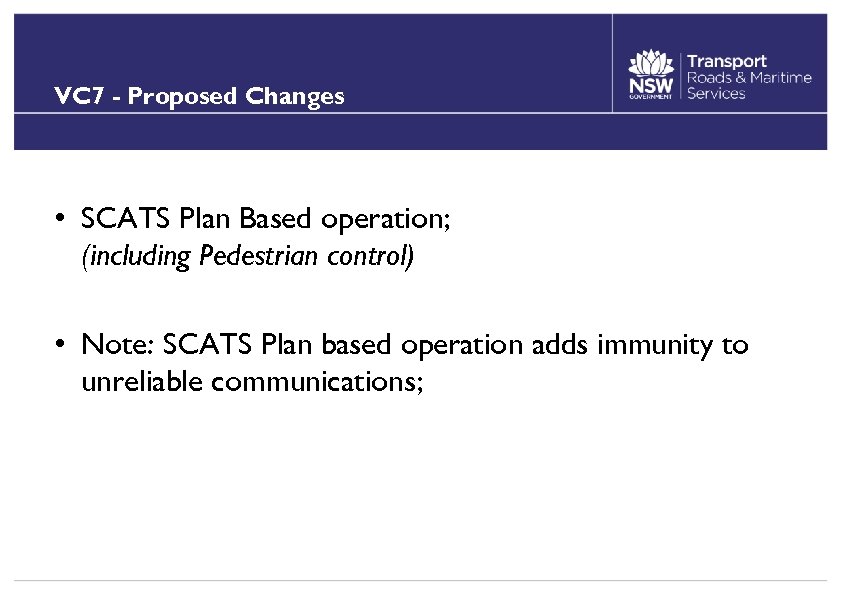

VC 7 - Proposed Changes • SCATS Plan Based operation; (including Pedestrian control) • Note: SCATS Plan based operation adds immunity to unreliable communications;

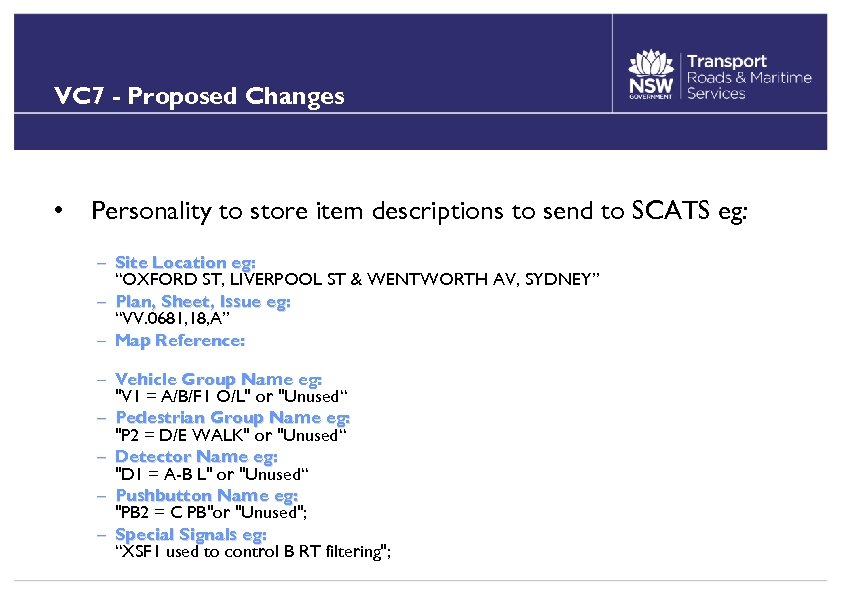

VC 7 - Proposed Changes • Personality to store item descriptions to send to SCATS eg: – Site Location eg: “OXFORD ST, LIVERPOOL ST & WENTWORTH AV, SYDNEY” – Plan, Sheet, Issue eg: “VV. 0681, 18, A” – Map Reference: – Vehicle Group Name eg: "V 1 = A/B/F 1 O/L" or "Unused“ – Pedestrian Group Name eg: "P 2 = D/E WALK" or "Unused“ – Detector Name eg: "D 1 = A-B L" or "Unused“ – Pushbutton Name eg: "PB 2 = C PB"or "Unused"; – Special Signals eg: “XSF 1 used to control B RT filtering";

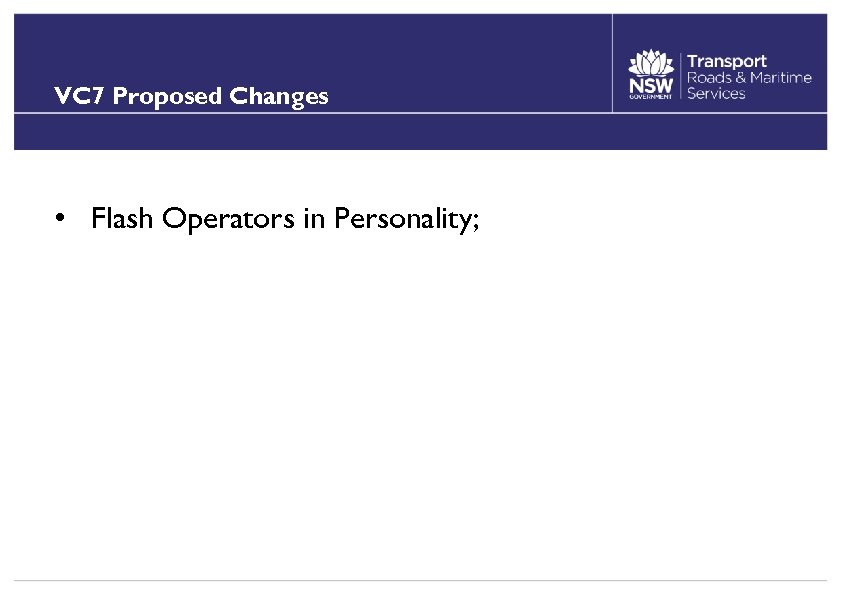

VC 7 Proposed Changes • Flash Operators in Personality;

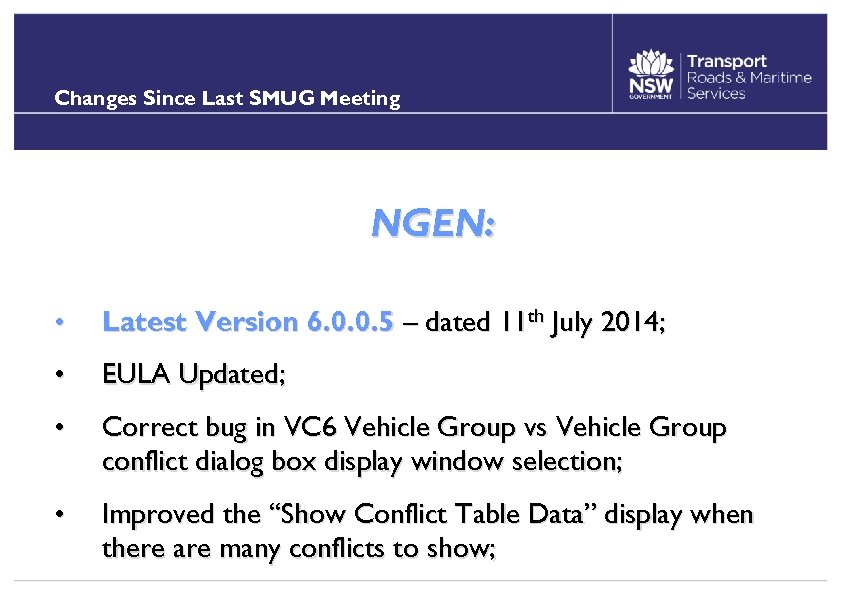

Changes Since Last SMUG Meeting NGEN: • Latest Version 6. 0. 0. 5 – dated 11 th July 2014; • EULA Updated; • Correct bug in VC 6 Vehicle Group vs Vehicle Group conflict dialog box display window selection; • Improved the “Show Conflict Table Data” display when there are many conflicts to show;

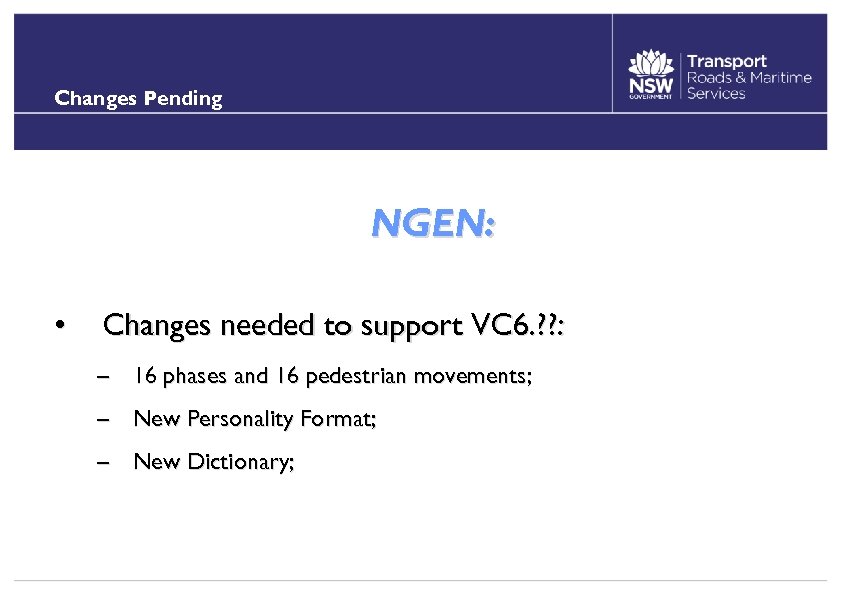

Changes Pending NGEN: • Changes needed to support VC 6. ? ? : – 16 phases and 16 pedestrian movements; – New Personality Format; – New Dictionary;

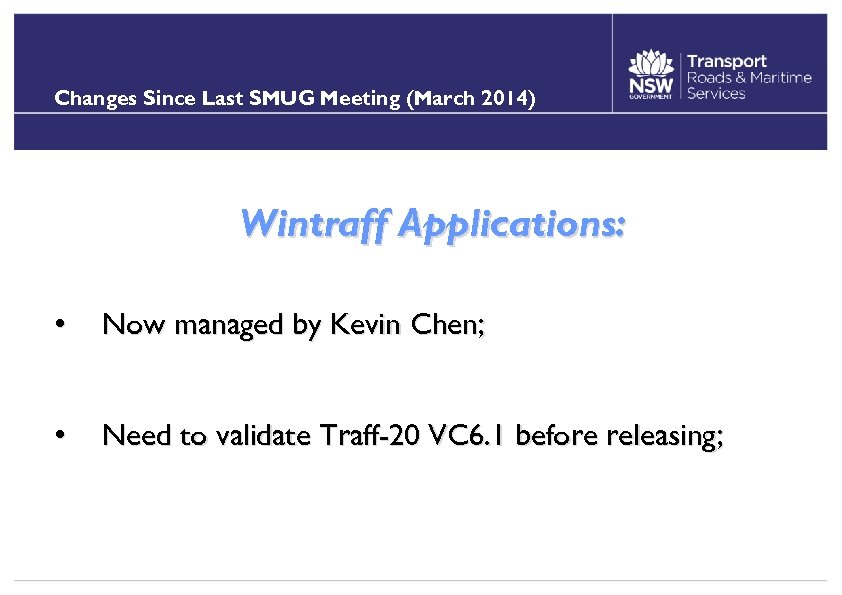

Changes Since Last SMUG Meeting (March 2014) Wintraff Applications: • Now managed by Kevin Chen; • Need to validate Traff-20 VC 6. 1 before releasing;

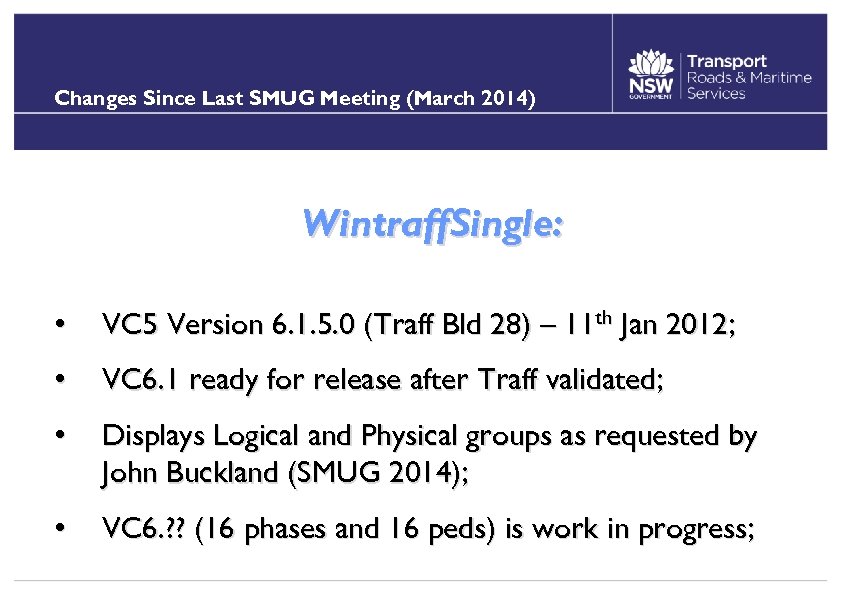

Changes Since Last SMUG Meeting (March 2014) Wintraff. Single: • VC 5 Version 6. 1. 5. 0 (Traff Bld 28) – 11 th Jan 2012; • VC 6. 1 ready for release after Traff validated; • Displays Logical and Physical groups as requested by John Buckland (SMUG 2014); • VC 6. ? ? (16 phases and 16 peds) is work in progress;

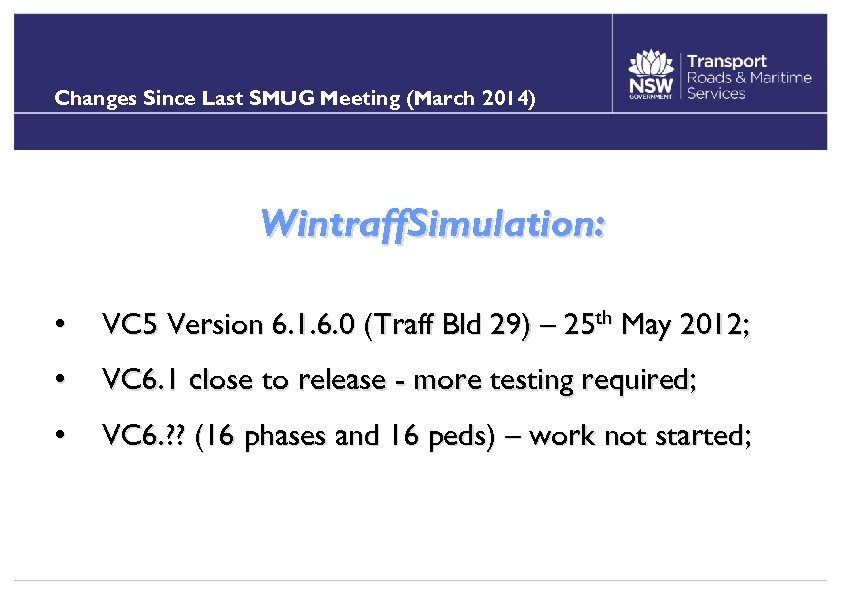

Changes Since Last SMUG Meeting (March 2014) Wintraff. Simulation: • VC 5 Version 6. 1. 6. 0 (Traff Bld 29) – 25 th May 2012; • VC 6. 1 close to release - more testing required; • VC 6. ? ? (16 phases and 16 peds) – work not started;

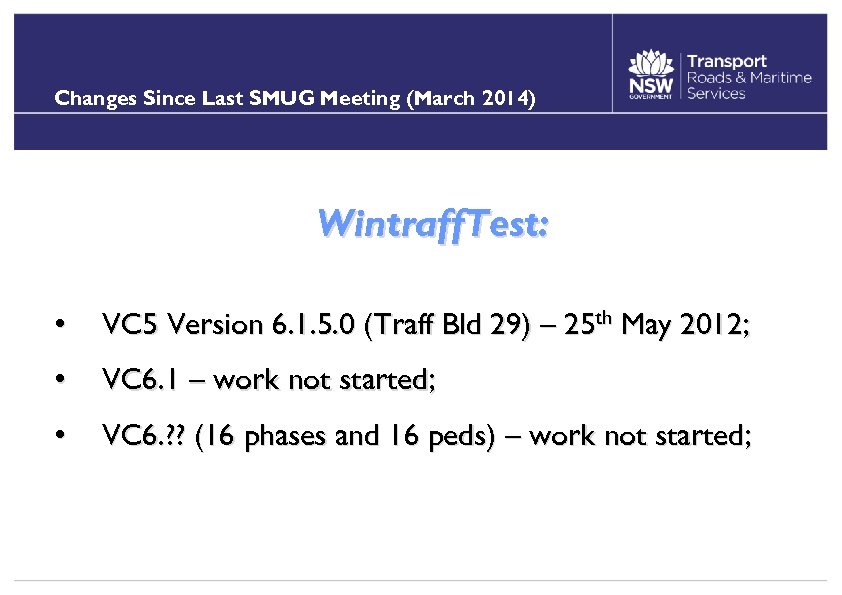

Changes Since Last SMUG Meeting (March 2014) Wintraff. Test: • VC 5 Version 6. 1. 5. 0 (Traff Bld 29) – 25 th May 2012; • VC 6. 1 – work not started; • VC 6. ? ? (16 phases and 16 peds) – work not started;

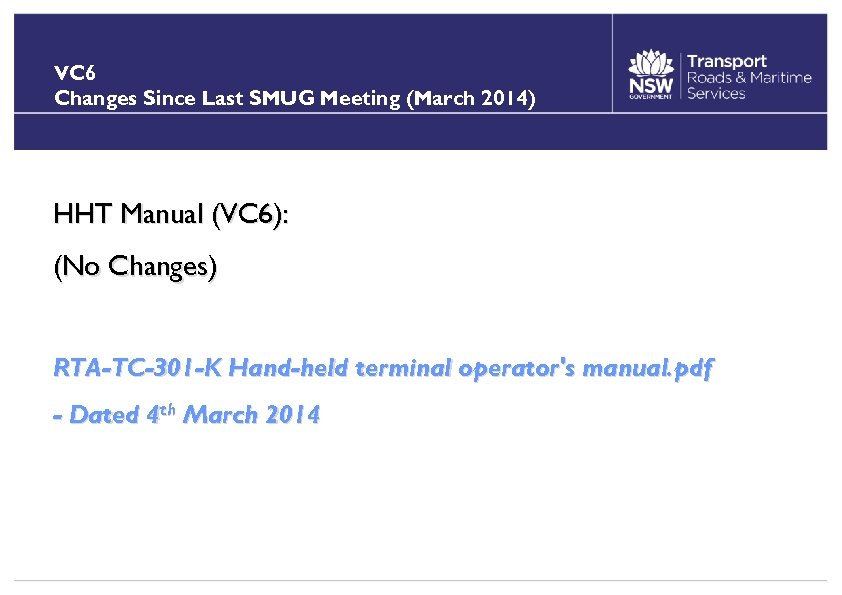

VC 6 Changes Since Last SMUG Meeting (March 2014) HHT Manual (VC 6): (No Changes) RTA-TC-301 -K Hand-held terminal operator's manual. pdf - Dated 4 th March 2014

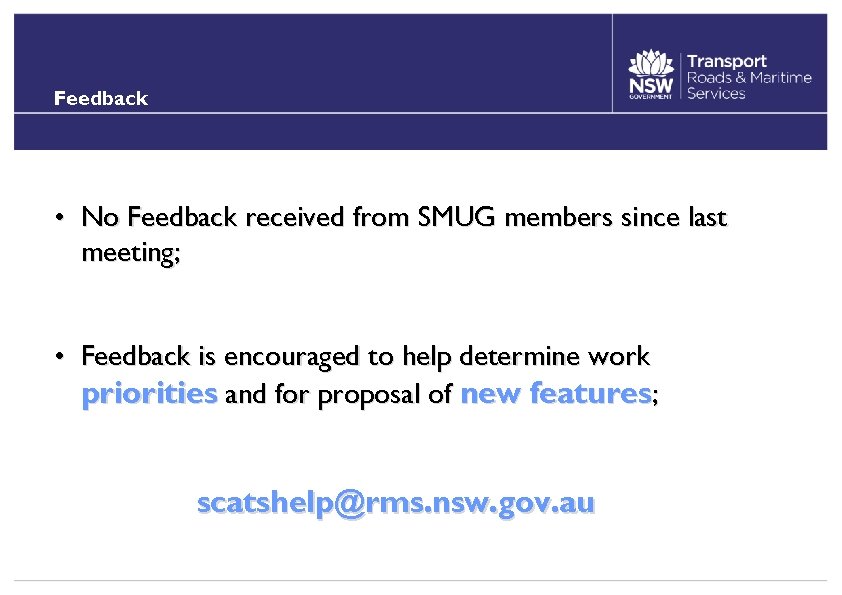

Feedback • No Feedback received from SMUG members since last meeting; • Feedback is encouraged to help determine work priorities and for proposal of new features; scatshelp@rms. nsw. gov. au
