Trading Agent Competition Bassam Aoun baoun@cs. uwaterloo. ca 08/11/2004

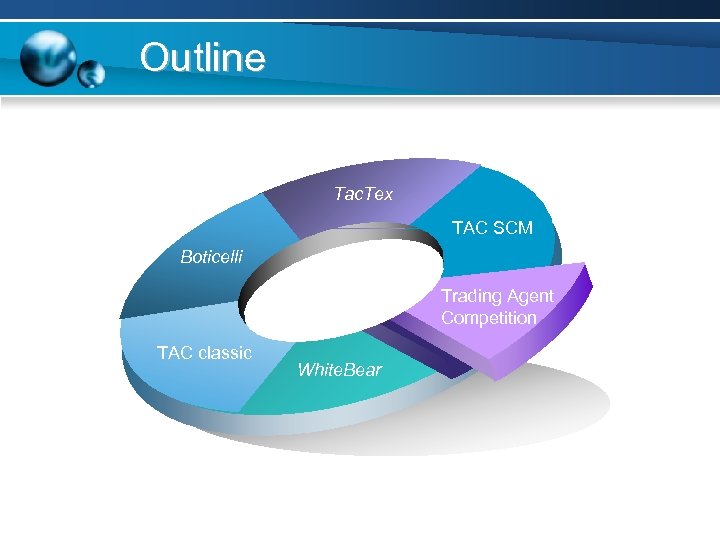

Outline Tac. Tex TAC SCM Boticelli Trading Agent Competition TAC classic White. Bear

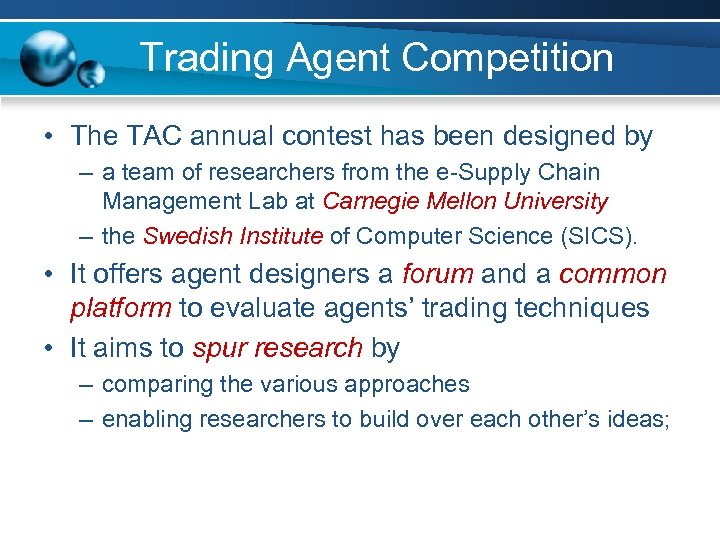

Trading Agent Competition • The TAC annual contest has been designed by – a team of researchers from the e-Supply Chain Management Lab at Carnegie Mellon University – the Swedish Institute of Computer Science (SICS). • It offers agent designers a forum and a common platform to evaluate agents’ trading techniques • It aims to spur research by – comparing the various approaches – enabling researchers to build over each other’s ideas;

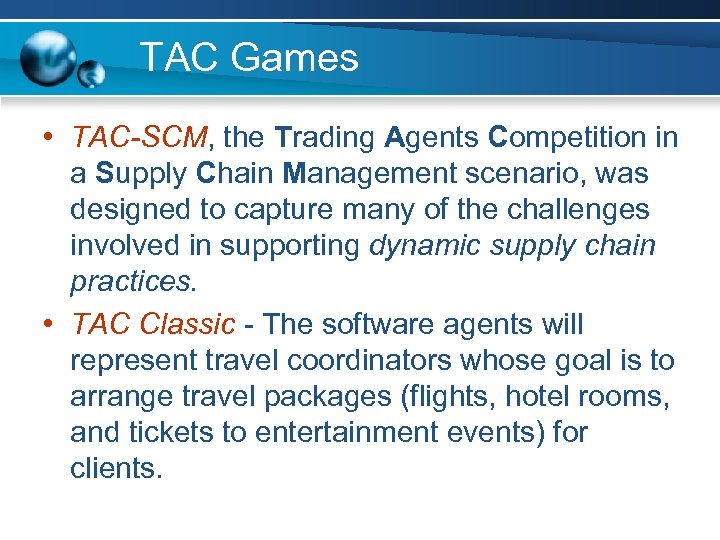

TAC Games • TAC-SCM, the Trading Agents Competition in a Supply Chain Management scenario, was designed to capture many of the challenges involved in supporting dynamic supply chain practices. • TAC Classic - The software agents will represent travel coordinators whose goal is to arrange travel packages (flights, hotel rooms, and tickets to entertainment events) for clients.

Outline Boticelli Tac. Tex TAC classic TAC SCM White. Bear Trading Agent Competition

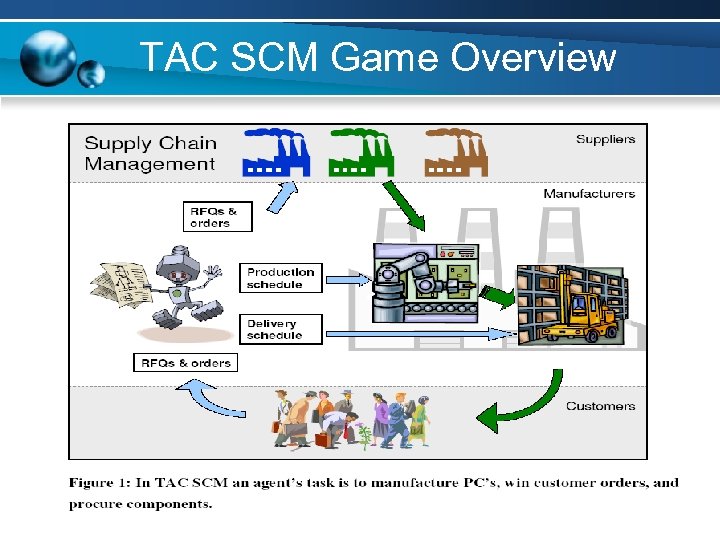

TAC SCM Game Overview

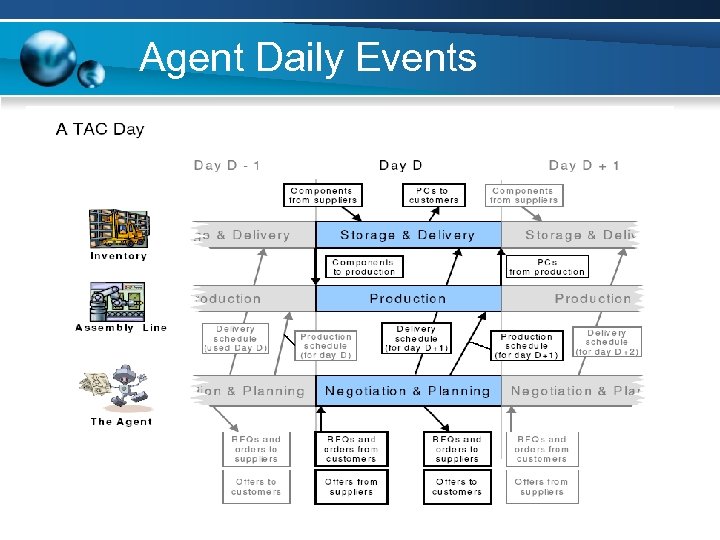

Agent Daily Events

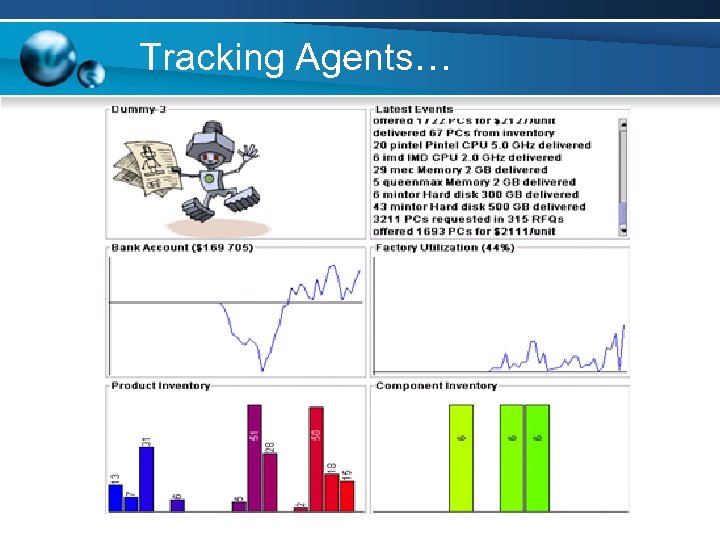

Tracking Agents…

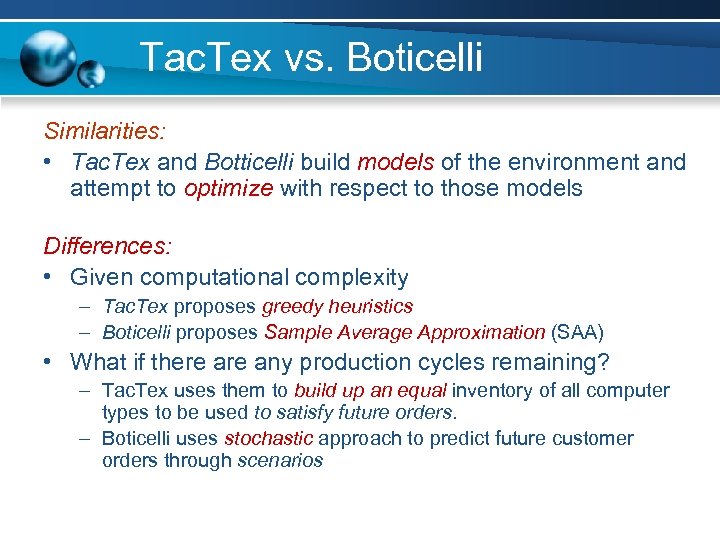

Tac. Tex vs. Boticelli Similarities: • Tac. Tex and Botticelli build models of the environment and attempt to optimize with respect to those models Differences: • Given computational complexity – Tac. Tex proposes greedy heuristics – Boticelli proposes Sample Average Approximation (SAA) • What if there any production cycles remaining? – Tac. Tex uses them to build up an equal inventory of all computer types to be used to satisfy future orders. – Boticelli uses stochastic approach to predict future customer orders through scenarios

Outline TAC classic Boticelli White. Bear Tac. Tex Trading Agent Competition TAC SCM

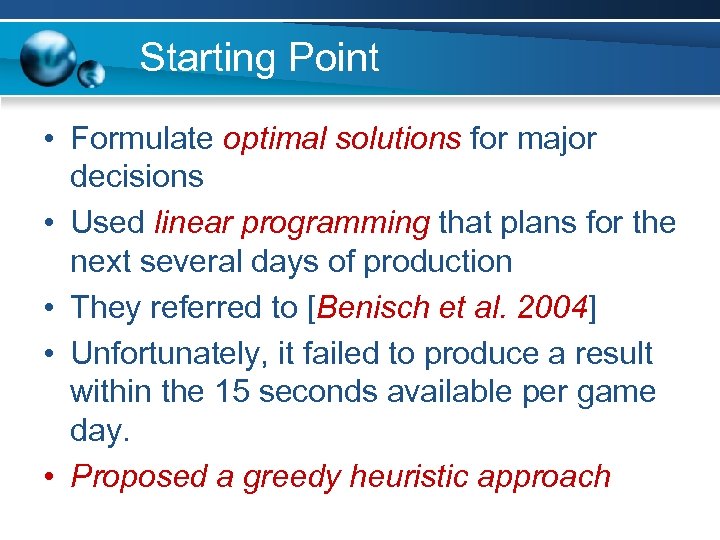

Starting Point • Formulate optimal solutions for major decisions • Used linear programming that plans for the next several days of production • They referred to [Benisch et al. 2004] • Unfortunately, it failed to produce a result within the 15 seconds available per game day. • Proposed a greedy heuristic approach

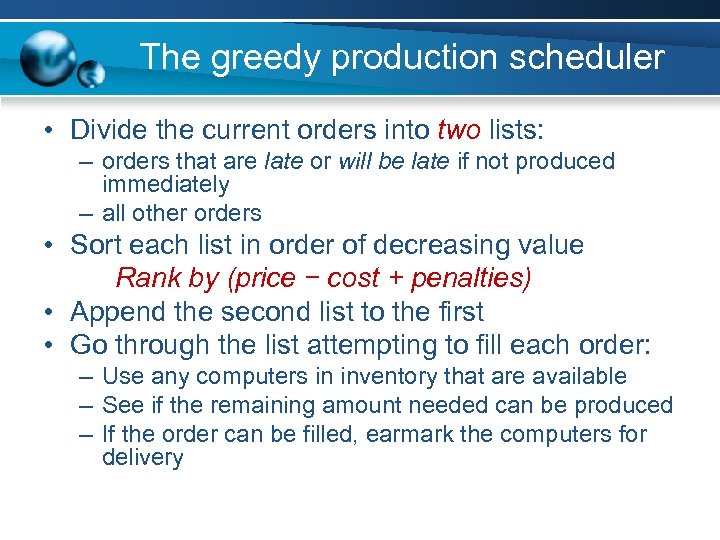

The greedy production scheduler • Divide the current orders into two lists: – orders that are late or will be late if not produced immediately – all other orders • Sort each list in order of decreasing value Rank by (price − cost + penalties) • Append the second list to the first • Go through the list attempting to fill each order: – Use any computers in inventory that are available – See if the remaining amount needed can be produced – If the order can be filled, earmark the computers for delivery

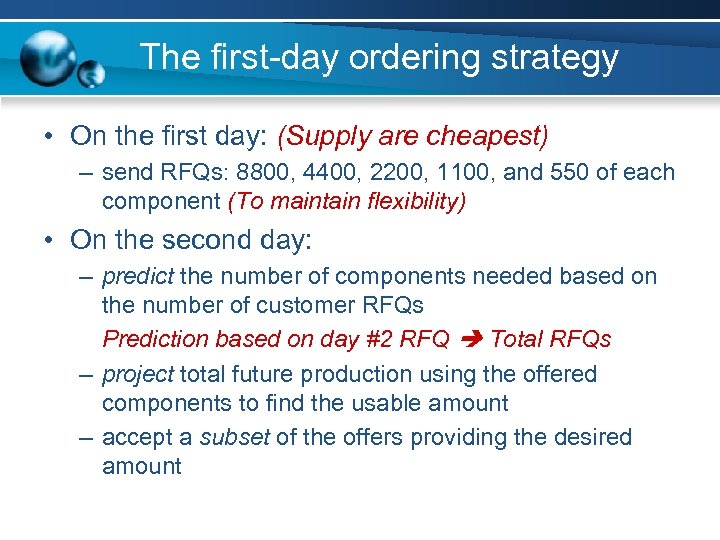

The first-day ordering strategy • On the first day: (Supply are cheapest) – send RFQs: 8800, 4400, 2200, 1100, and 550 of each component (To maintain flexibility) • On the second day: – predict the number of components needed based on the number of customer RFQs Prediction based on day #2 RFQ Total RFQs – project total future production using the offered components to find the usable amount – accept a subset of the offers providing the desired amount

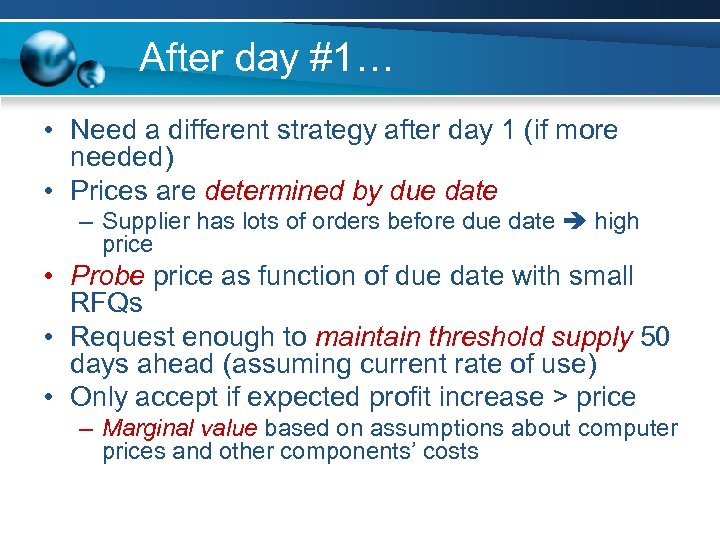

After day #1… • Need a different strategy after day 1 (if more needed) • Prices are determined by due date – Supplier has lots of orders before due date high price • Probe price as function of due date with small RFQs • Request enough to maintain threshold supply 50 days ahead (assuming current rate of use) • Only accept if expected profit increase > price – Marginal value based on assumptions about computer prices and other components’ costs

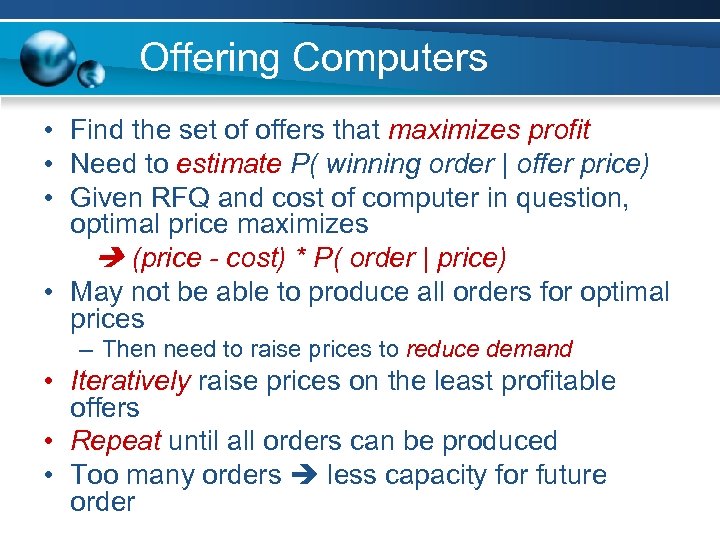

Offering Computers • Find the set of offers that maximizes profit • Need to estimate P( winning order | offer price) • Given RFQ and cost of computer in question, optimal price maximizes (price - cost) * P( order | price) • May not be able to produce all orders for optimal prices – Then need to raise prices to reduce demand • Iteratively raise prices on the least profitable offers • Repeat until all orders can be produced • Too many orders less capacity for future order

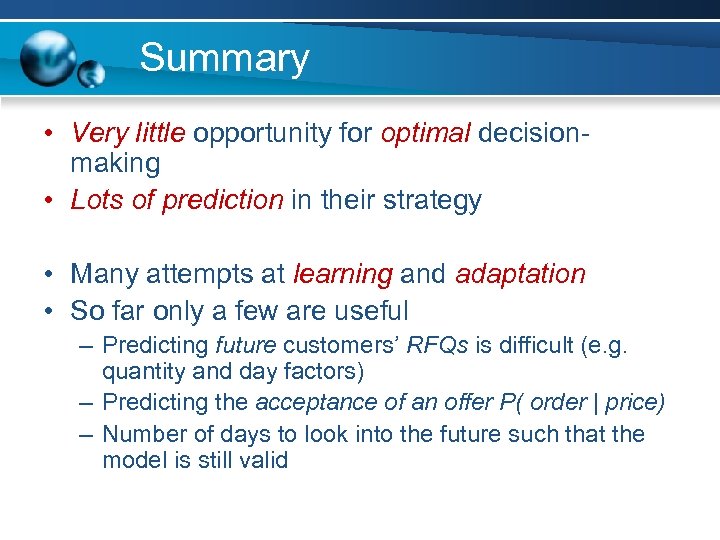

Summary • Very little opportunity for optimal decisionmaking • Lots of prediction in their strategy • Many attempts at learning and adaptation • So far only a few are useful – Predicting future customers’ RFQs is difficult (e. g. quantity and day factors) – Predicting the acceptance of an offer P( order | price) – Number of days to look into the future such that the model is still valid

Outline White. Bear TAC classic Trading Agent Competition Boticelli TAC SCM Tac. Tex

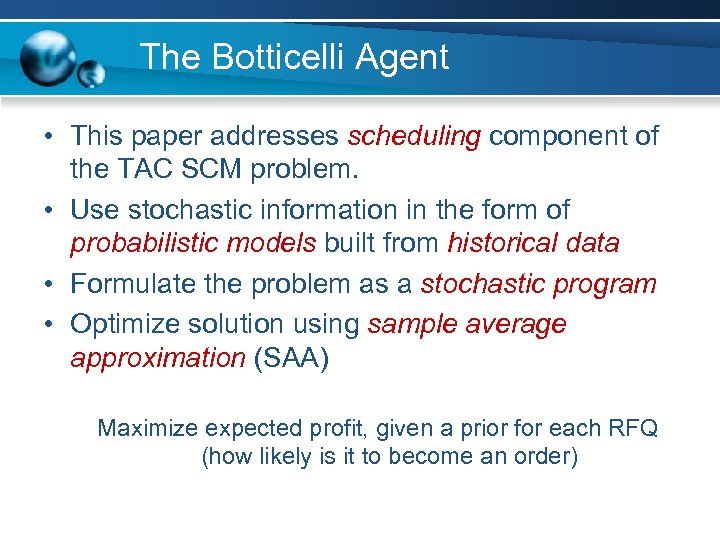

The Botticelli Agent • This paper addresses scheduling component of the TAC SCM problem. • Use stochastic information in the form of probabilistic models built from historical data • Formulate the problem as a stochastic program • Optimize solution using sample average approximation (SAA) Maximize expected profit, given a prior for each RFQ (how likely is it to become an order)

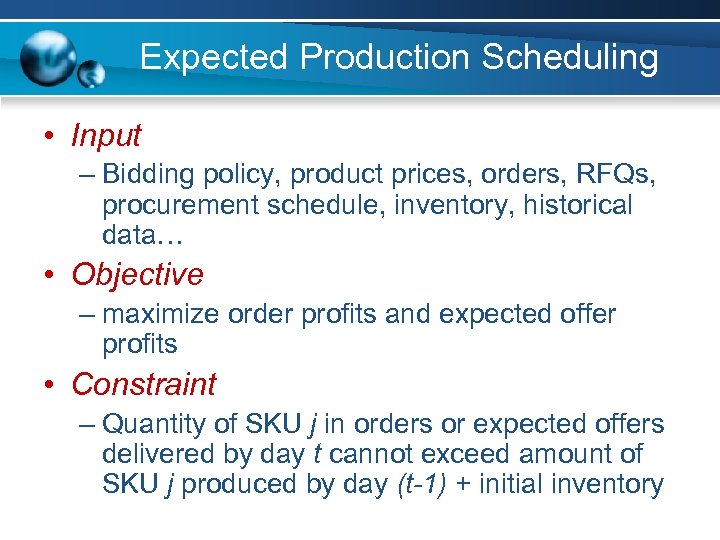

Expected Production Scheduling • Input – Bidding policy, product prices, orders, RFQs, procurement schedule, inventory, historical data… • Objective – maximize order profits and expected offer profits • Constraint – Quantity of SKU j in orders or expected offers delivered by day t cannot exceed amount of SKU j produced by day (t-1) + initial inventory

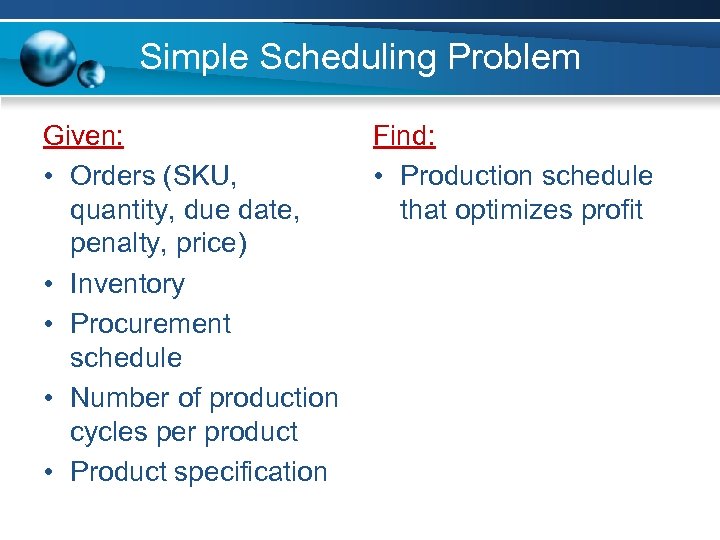

Simple Scheduling Problem Given: • Orders (SKU, quantity, due date, penalty, price) • Inventory • Procurement schedule • Number of production cycles per product • Product specification Find: • Production schedule that optimizes profit

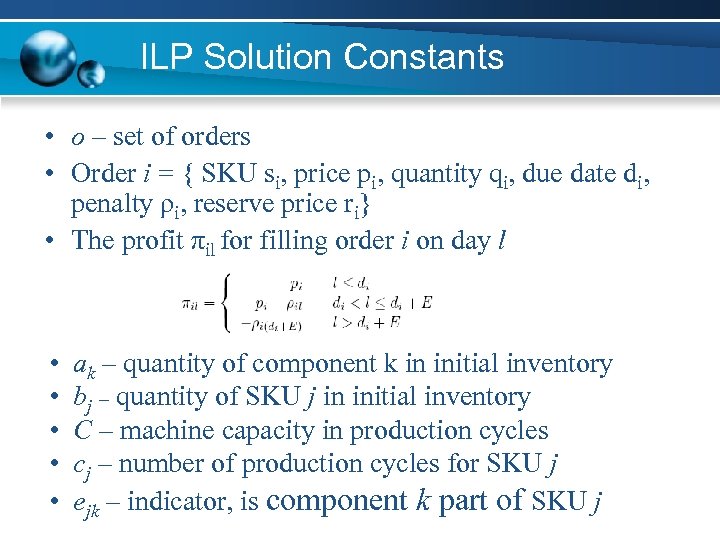

ILP Solution Constants • o – set of orders • Order i = { SKU si, price pi, quantity qi, due date di, penalty ρi, reserve price ri} • The profit πil for filling order i on day l • • • ak – quantity of component k in initial inventory bj – quantity of SKU j in initial inventory C – machine capacity in production cycles cj – number of production cycles for SKU j ejk – indicator, is component k part of SKU j

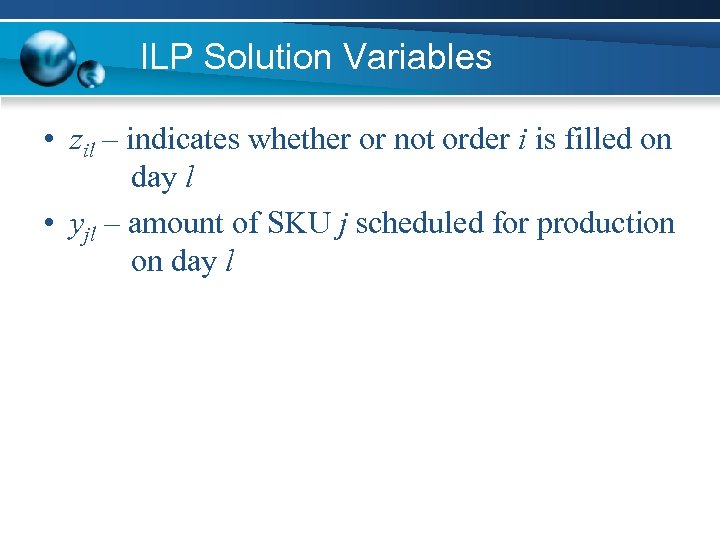

ILP Solution Variables • zil – indicates whether or not order i is filled on day l • yjl – amount of SKU j scheduled for production on day l

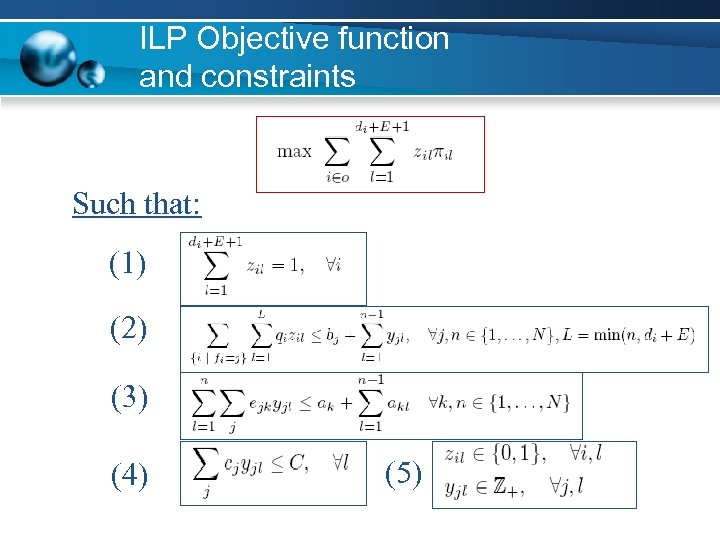

ILP Objective function and constraints Such that: (1) (2) (3) (4) (5)

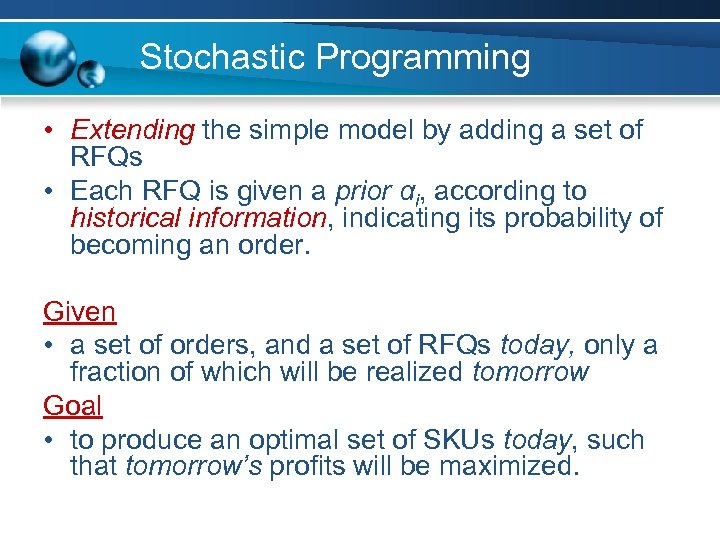

Stochastic Programming • Extending the simple model by adding a set of RFQs • Each RFQ is given a prior αi, according to historical information, indicating its probability of becoming an order. Given • a set of orders, and a set of RFQs today, only a fraction of which will be realized tomorrow Goal • to produce an optimal set of SKUs today, such that tomorrow’s profits will be maximized.

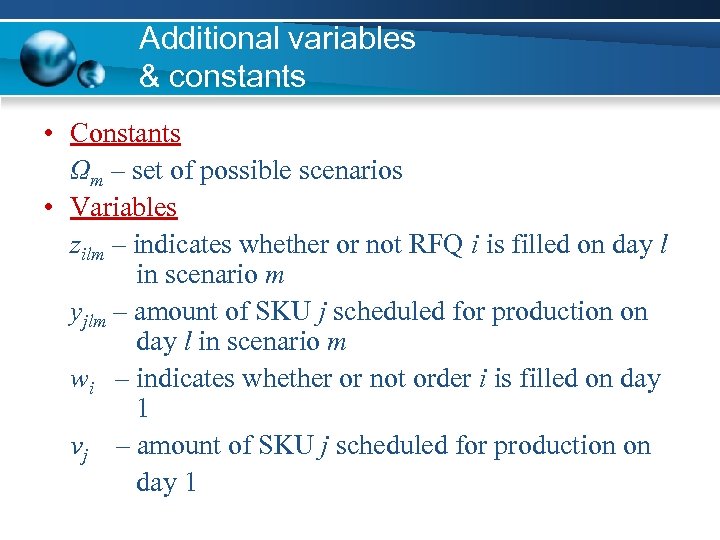

Additional variables & constants • Constants Ωm – set of possible scenarios • Variables zilm – indicates whether or not RFQ i is filled on day l in scenario m yjlm – amount of SKU j scheduled for production on day l in scenario m wi – indicates whether or not order i is filled on day 1 vj – amount of SKU j scheduled for production on day 1

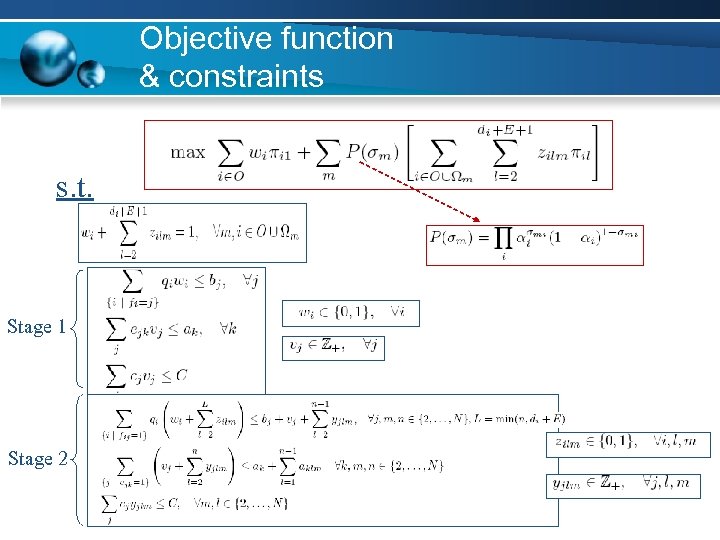

Objective function & constraints s. t. Stage 1 Stage 2

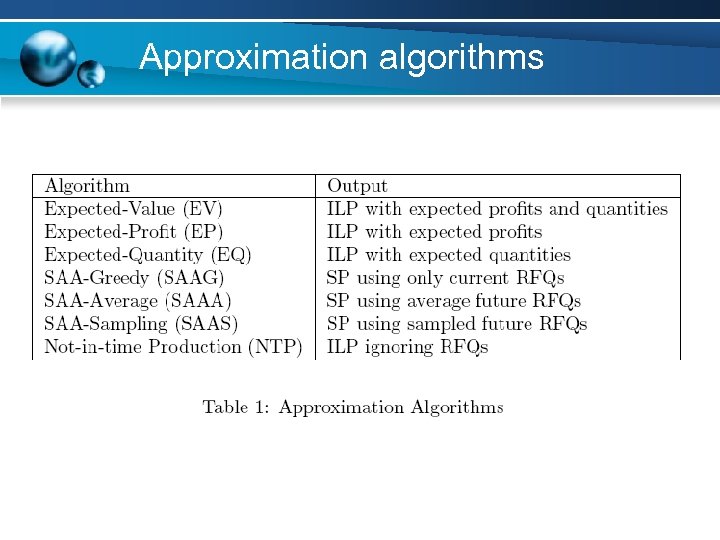

Approximation algorithms

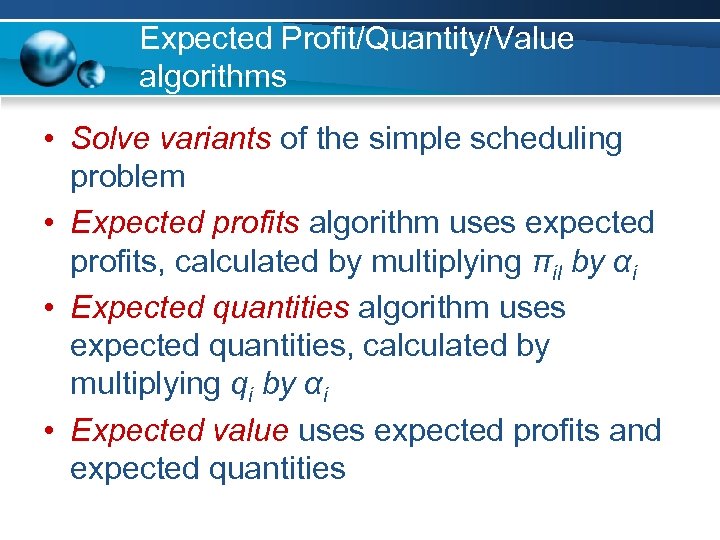

Expected Profit/Quantity/Value algorithms • Solve variants of the simple scheduling problem • Expected profits algorithm uses expected profits, calculated by multiplying πil by αi • Expected quantities algorithm uses expected quantities, calculated by multiplying qi by αi • Expected value uses expected profits and expected quantities

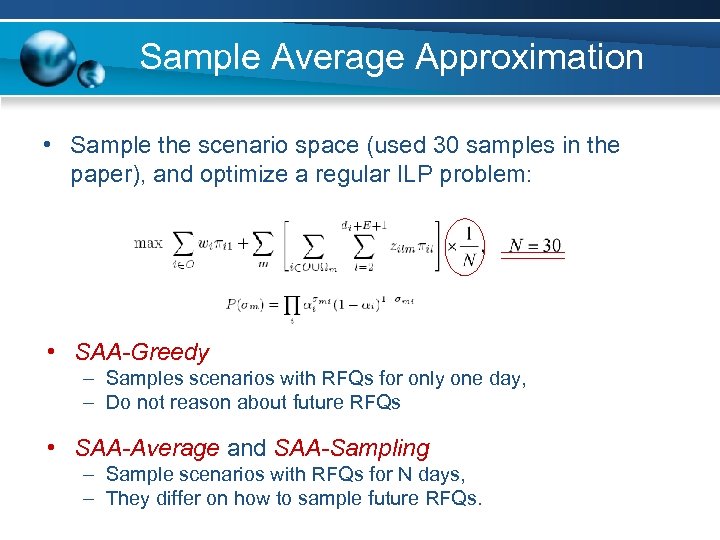

Sample Average Approximation • Sample the scenario space (used 30 samples in the paper), and optimize a regular ILP problem: • SAA-Greedy – Samples scenarios with RFQs for only one day, – Do not reason about future RFQs • SAA-Average and SAA-Sampling – Sample scenarios with RFQs for N days, – They differ on how to sample future RFQs.

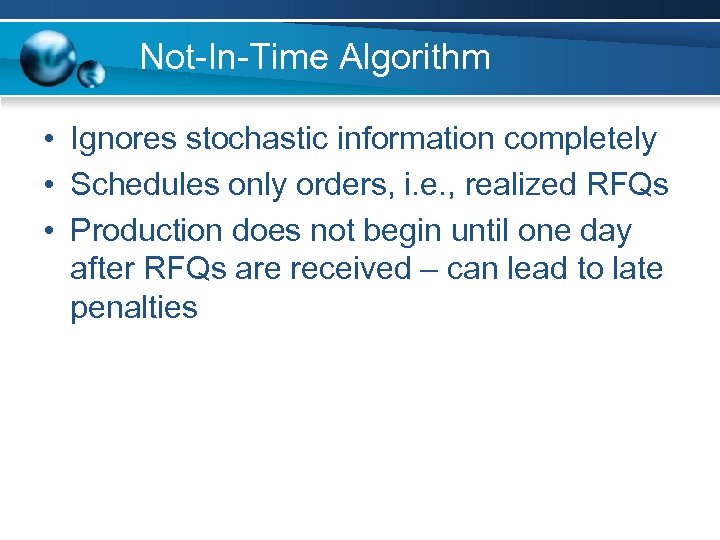

Not-In-Time Algorithm • Ignores stochastic information completely • Schedules only orders, i. e. , realized RFQs • Production does not begin until one day after RFQs are received – can lead to late penalties

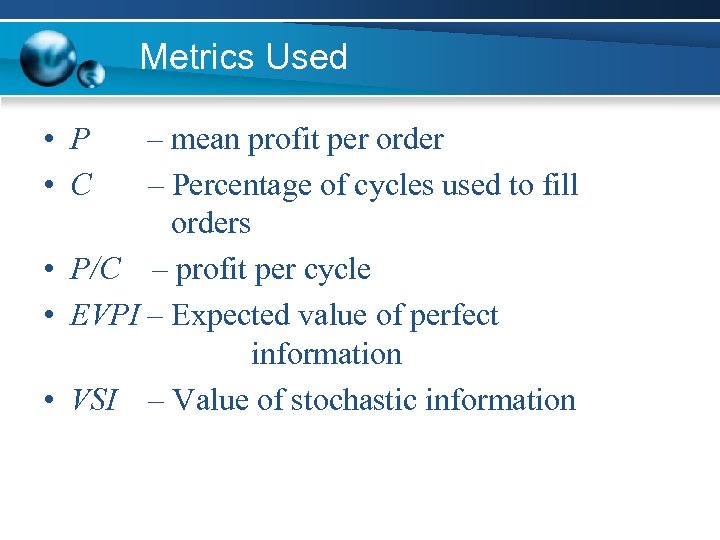

Metrics Used • P • C – mean profit per order – Percentage of cycles used to fill orders • P/C – profit per cycle • EVPI – Expected value of perfect information • VSI – Value of stochastic information

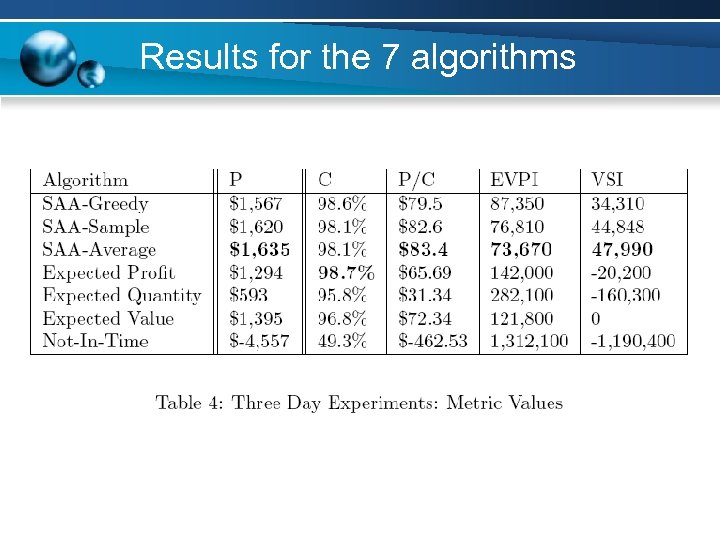

Results for the 7 algorithms

Conclusions 1. The stochastic programs outperformed all of the other schedulers (in all except one metric) 1. Using stochastic information improves performance 2. Stochastic algorithms that rely on forecasts about future RFQs outperformed SAAG 2. Utilizing more stochastic information about the future leads to better performance

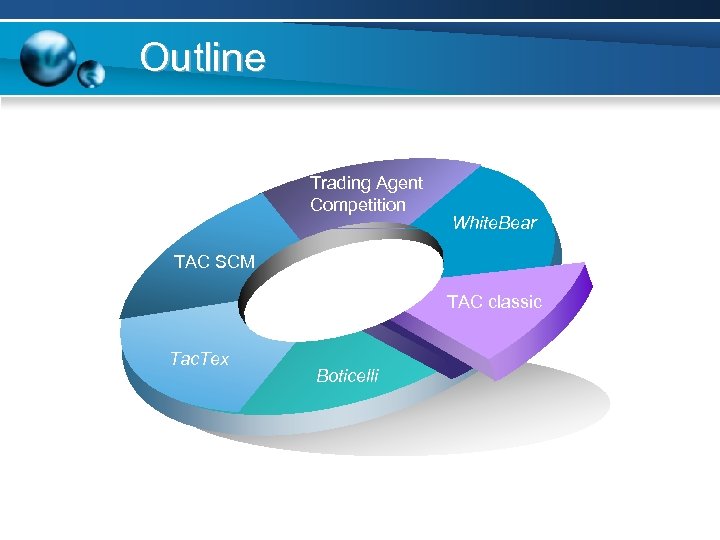

Outline Trading Agent Competition White. Bear TAC SCM TAC classic Tac. Tex Boticelli

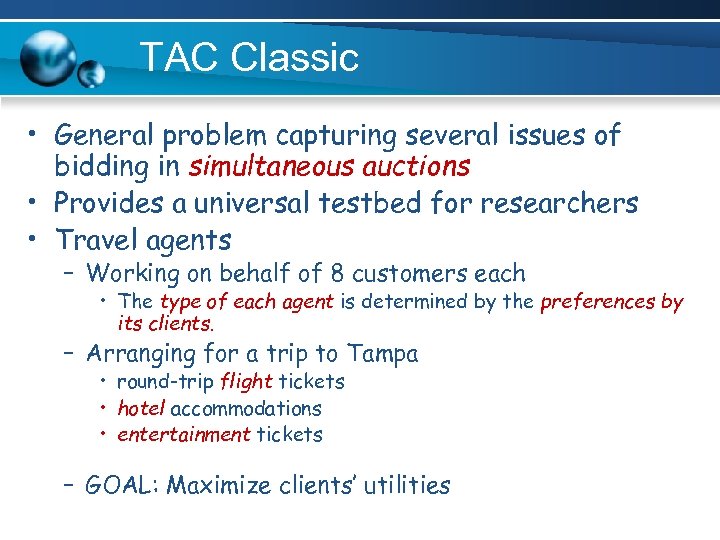

TAC Classic • General problem capturing several issues of bidding in simultaneous auctions • Provides a universal testbed for researchers • Travel agents – Working on behalf of 8 customers each • The type of each agent is determined by the preferences by its clients. – Arranging for a trip to Tampa • round-trip flight tickets • hotel accommodations • entertainment tickets – GOAL: Maximize clients’ utilities

TAC Classic URL: www. sics. se/tac

Outline TAC SCM Trading Agent Competition Tac. Tex White. Bear Boticelli TAC classic

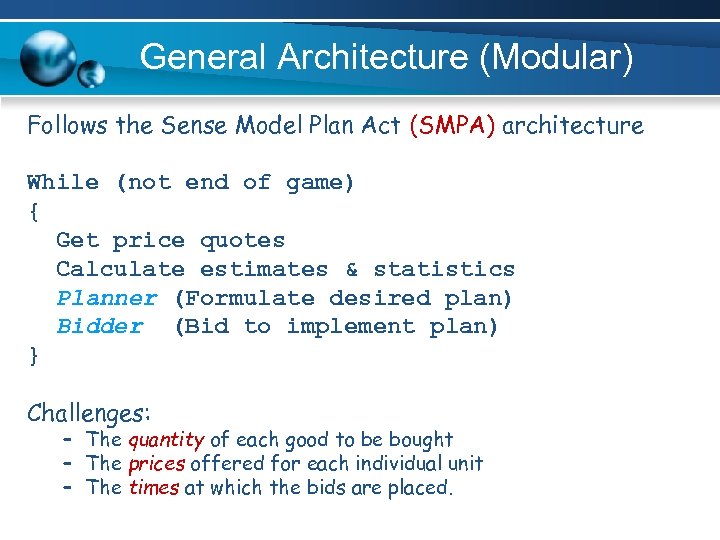

General Architecture (Modular) Follows the Sense Model Plan Act (SMPA) architecture While (not end of game) { Get price quotes Calculate estimates & statistics Planner (Formulate desired plan) Bidder (Bid to implement plan) } Challenges: – The quantity of each good to be bought – The prices offered for each individual unit – The times at which the bids are placed.

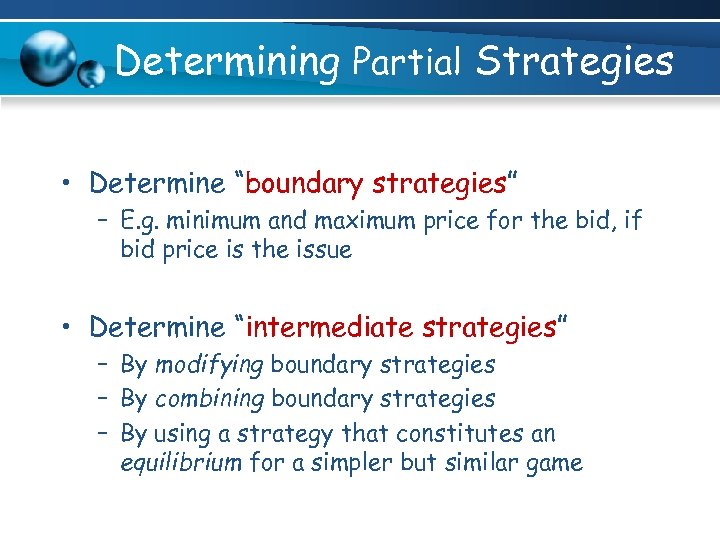

Determining Partial Strategies • Determine “boundary strategies” – E. g. minimum and maximum price for the bid, if bid price is the issue • Determine “intermediate strategies” – By modifying boundary strategies – By combining boundary strategies – By using a strategy that constitutes an equilibrium for a simpler but similar game

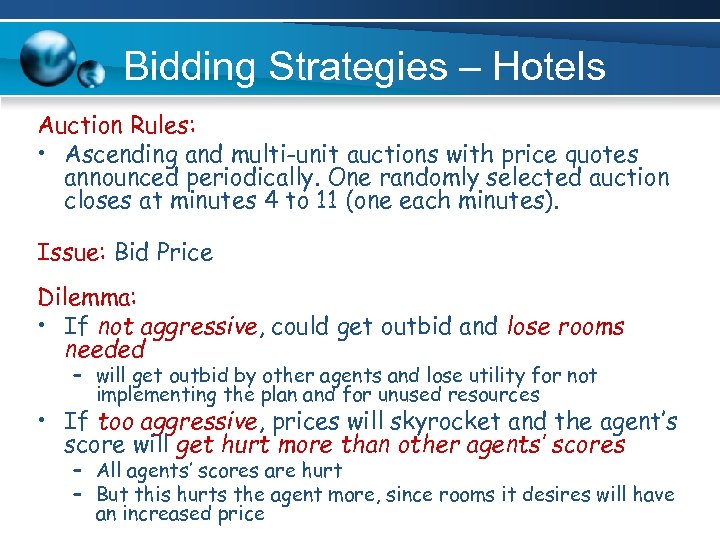

Bidding Strategies – Hotels Auction Rules: • Ascending and multi-unit auctions with price quotes announced periodically. One randomly selected auction closes at minutes 4 to 11 (one each minutes). Issue: Bid Price Dilemma: • If not aggressive, could get outbid and lose rooms needed – will get outbid by other agents and lose utility for not implementing the plan and for unused resources • If too aggressive, prices will skyrocket and the agent’s score will get hurt more than other agents’ scores – All agents’ scores are hurt – But this hurts the agent more, since rooms it desires will have an increased price

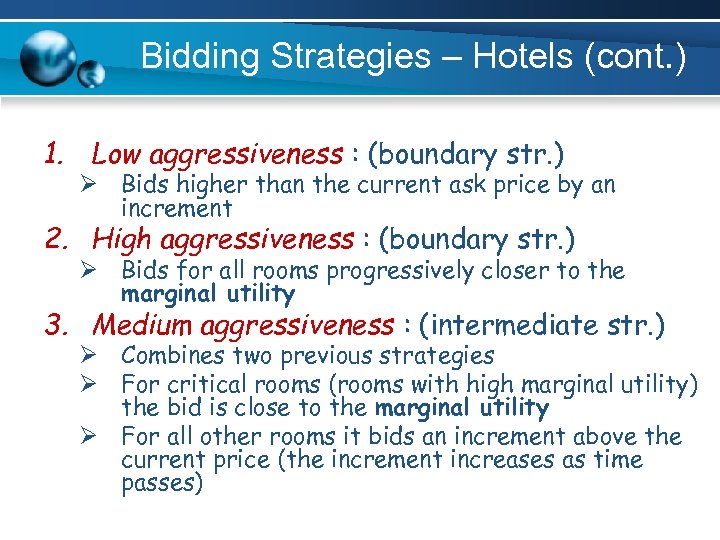

Bidding Strategies – Hotels (cont. ) 1. Low aggressiveness : (boundary str. ) Ø Bids higher than the current ask price by an increment 2. High aggressiveness : (boundary str. ) Ø Bids for all rooms progressively closer to the marginal utility 3. Medium aggressiveness : (intermediate str. ) Ø Combines two previous strategies Ø For critical rooms (rooms with high marginal utility) the bid is close to the marginal utility Ø For all other rooms it bids an increment above the current price (the increment increases as time passes)

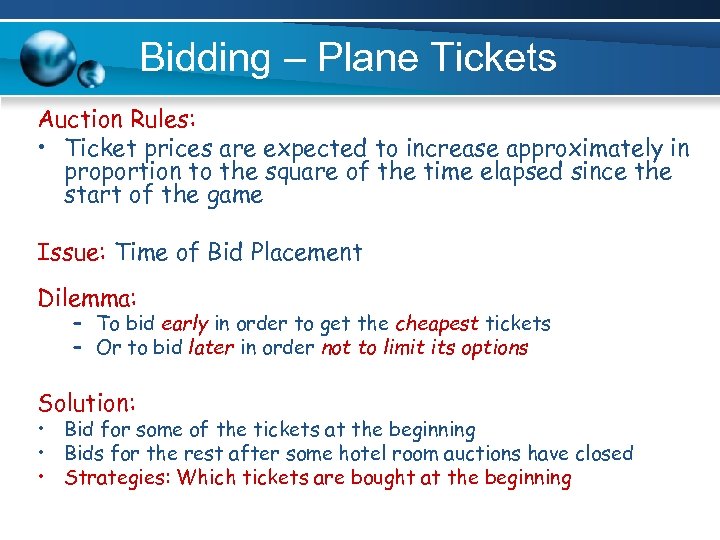

Bidding – Plane Tickets Auction Rules: • Ticket prices are expected to increase approximately in proportion to the square of the time elapsed since the start of the game Issue: Time of Bid Placement Dilemma: – To bid early in order to get the cheapest tickets – Or to bid later in order not to limit its options Solution: • Bid for some of the tickets at the beginning • Bids for the rest after some hotel room auctions have closed • Strategies: Which tickets are bought at the beginning

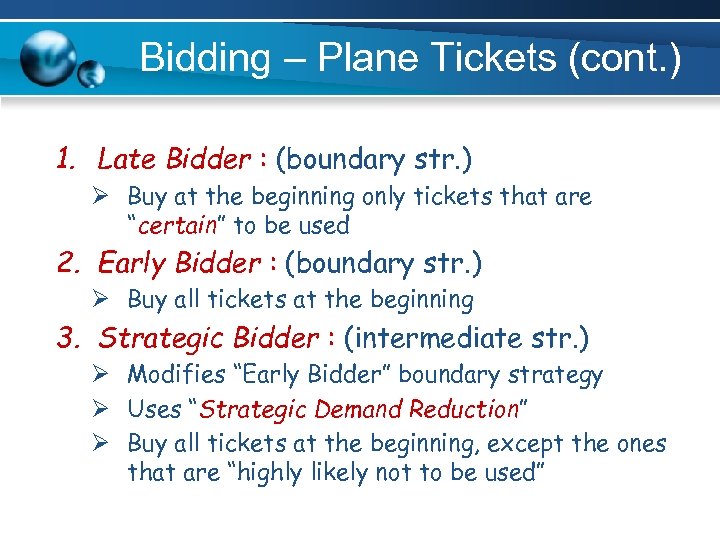

Bidding – Plane Tickets (cont. ) 1. Late Bidder : (boundary str. ) Ø Buy at the beginning only tickets that are “certain” to be used 2. Early Bidder : (boundary str. ) Ø Buy all tickets at the beginning 3. Strategic Bidder : (intermediate str. ) Ø Modifies “Early Bidder” boundary strategy Ø Uses “Strategic Demand Reduction” Ø Buy all tickets at the beginning, except the ones that are “highly likely not to be used”

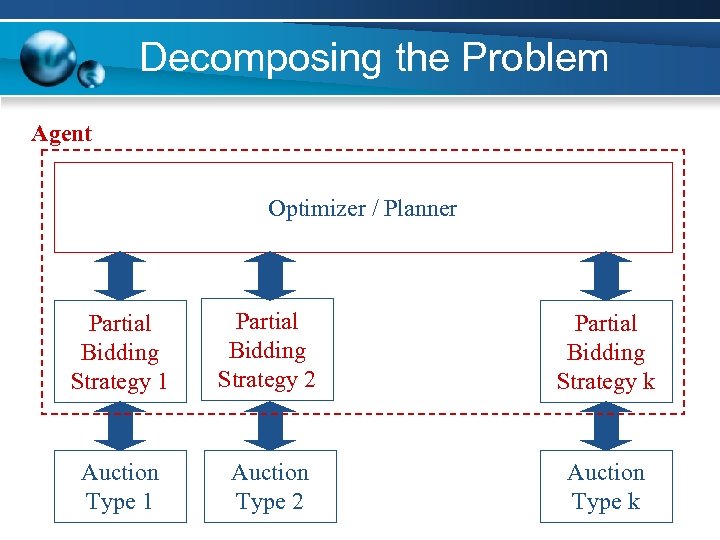

Decomposing the Problem Agent Optimizer / Planner Partial Bidding Strategy 1 Partial Bidding Strategy 2 Partial Bidding Strategy k Auction Type 1 Auction Type 2 Auction Type k

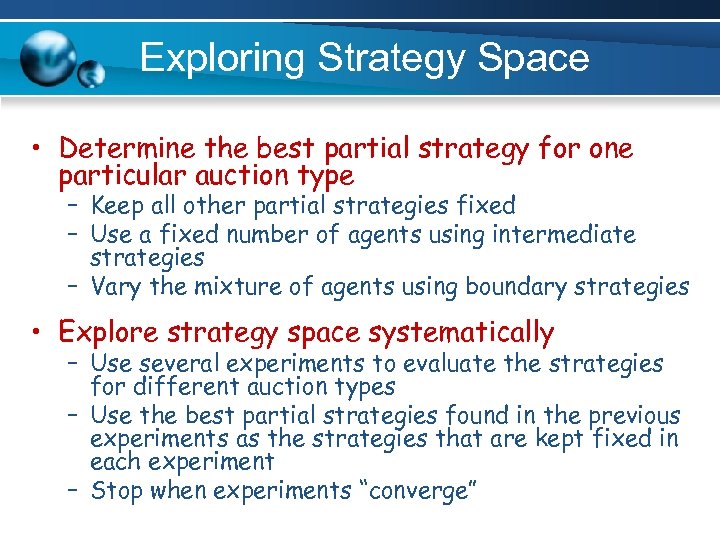

Exploring Strategy Space • Determine the best partial strategy for one particular auction type – Keep all other partial strategies fixed – Use a fixed number of agents using intermediate strategies – Vary the mixture of agents using boundary strategies • Explore strategy space systematically – Use several experiments to evaluate the strategies for different auction types – Use the best partial strategies found in the previous experiments as the strategies that are kept fixed in each experiment – Stop when experiments “converge”

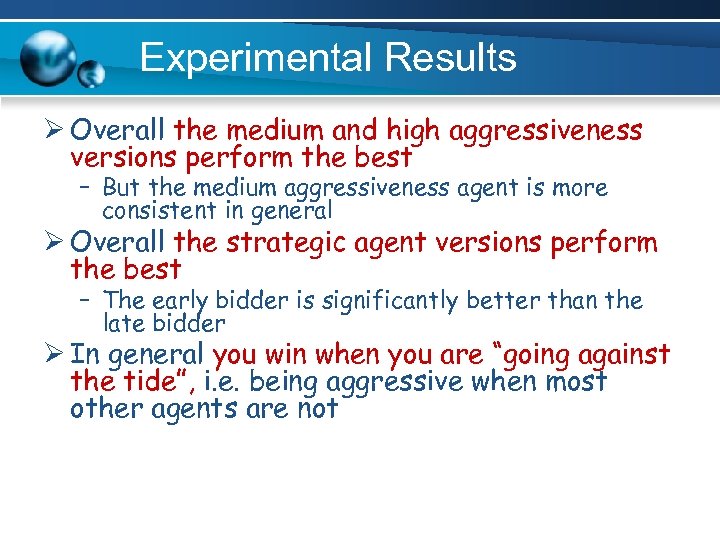

Experimental Results Ø Overall the medium and high aggressiveness versions perform the best – But the medium aggressiveness agent is more consistent in general Ø Overall the strategic agent versions perform the best – The early bidder is significantly better than the late bidder Ø In general you win when you are “going against the tide”, i. e. being aggressive when most other agents are not

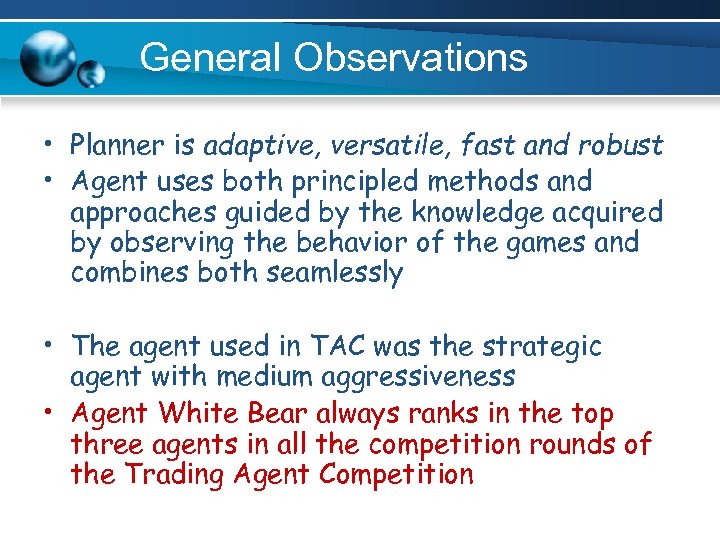

General Observations • Planner is adaptive, versatile, fast and robust • Agent uses both principled methods and approaches guided by the knowledge acquired by observing the behavior of the games and combines both seamlessly • The agent used in TAC was the strategic agent with medium aggressiveness • Agent White Bear always ranks in the top three agents in all the competition rounds of the Trading Agent Competition

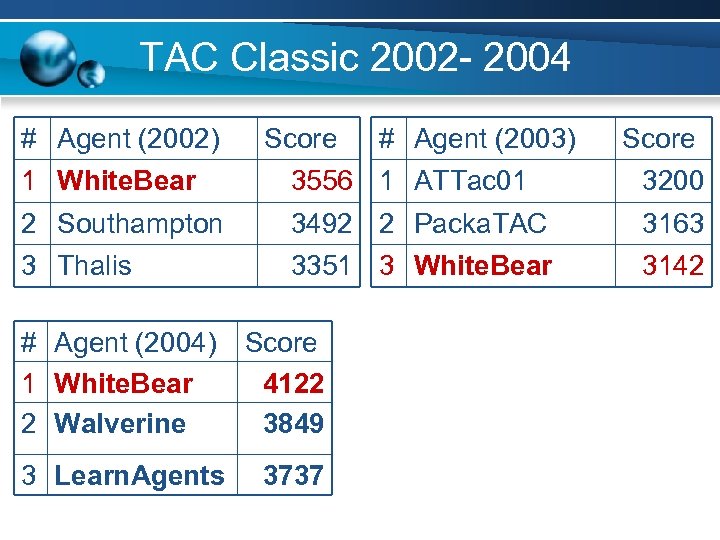

TAC Classic 2002 - 2004 # Agent (2002) Score # Agent (2003) Score 1 White. Bear 3556 1 ATTac 01 3200 2 Southampton 3492 2 Packa. TAC 3163 3 Thalis 3351 3 White. Bear 3142 # Agent (2004) 1 White. Bear 2 Walverine 3 Learn. Agents Score 4122 3849 3737

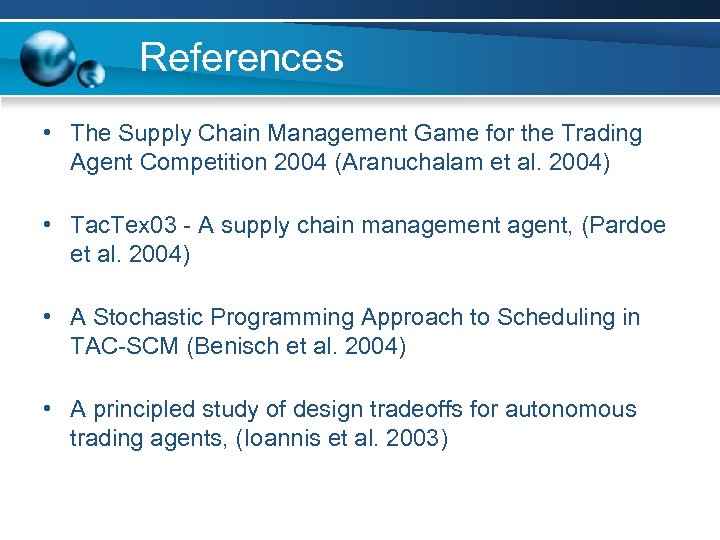

References • The Supply Chain Management Game for the Trading Agent Competition 2004 (Aranuchalam et al. 2004) • Tac. Tex 03 - A supply chain management agent, (Pardoe et al. 2004) • A Stochastic Programming Approach to Scheduling in TAC-SCM (Benisch et al. 2004) • A principled study of design tradeoffs for autonomous trading agents, (Ioannis et al. 2003)
