TOWN OF PENETANGUISHENE PAYETTE RESERVOIR UPGRADES July 24

TOWN OF PENETANGUISHENE PAYETTE RESERVOIR UPGRADES July 24, 2014

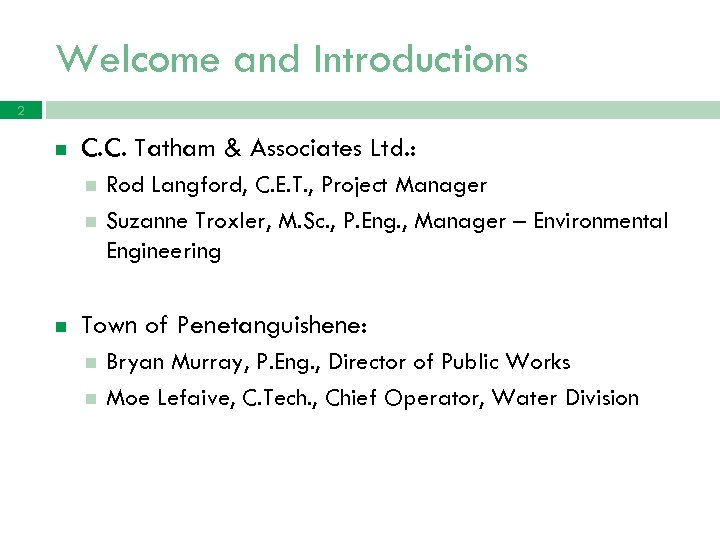

Welcome and Introductions 2 n C. C. Tatham & Associates Ltd. : n n n Rod Langford, C. E. T. , Project Manager Suzanne Troxler, M. Sc. , P. Eng. , Manager – Environmental Engineering Town of Penetanguishene: n n Bryan Murray, P. Eng. , Director of Public Works Moe Lefaive, C. Tech. , Chief Operator, Water Division

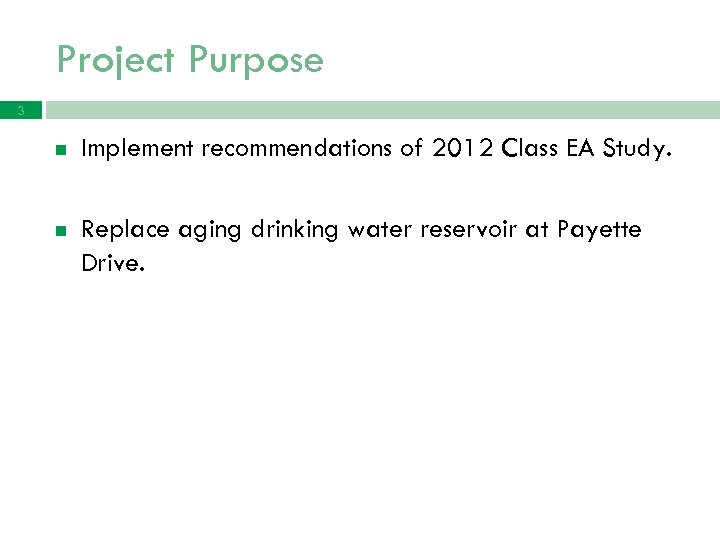

Project Purpose 3 n Implement recommendations of 2012 Class EA Study. n Replace aging drinking water reservoir at Payette Drive.

Existing Drinking Water System 4 n Payette DWS: 3 groundwater supply wells n 3 water reservoirs (1 on-site, 2 off-site) n 1 pump house n 4 pressure zones n n Water Storage: Payette Drive Reservoir n Robert Street West Reservoir n Centennial Drive Elevated Tank n

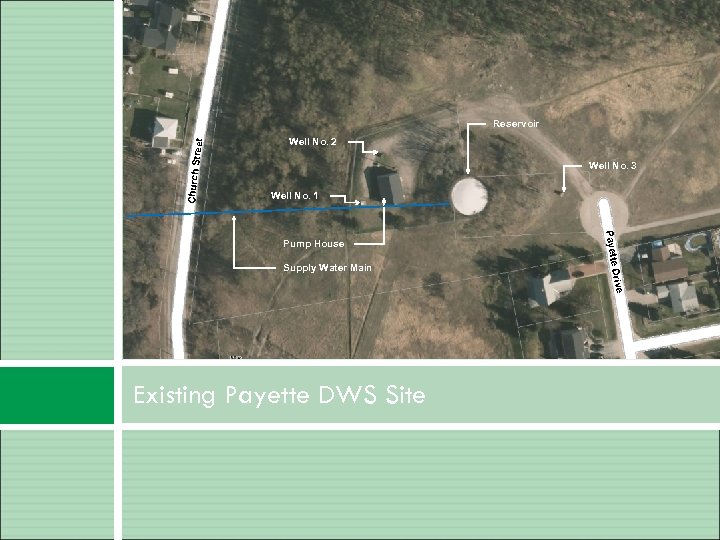

Church S treet Reservoir Well No. 2 Well No. 3 Well No. 1 Existing Payette DWS Site e Drive Supply Water Main Payett Pump House

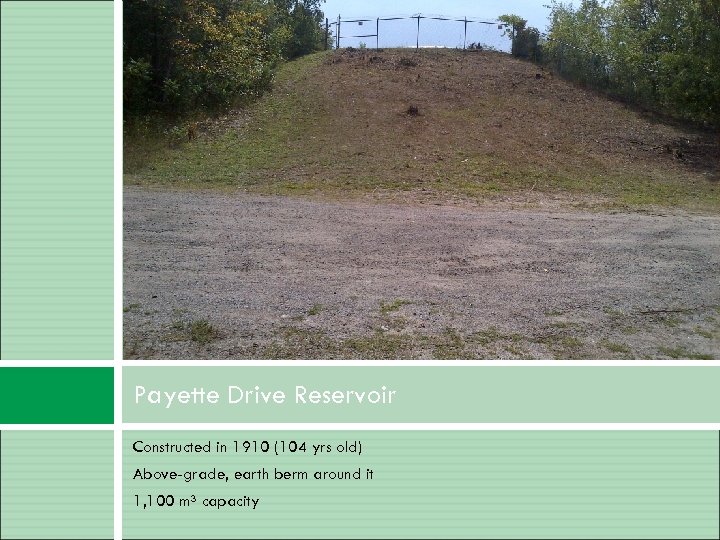

Payette Drive Reservoir Constructed in 1910 (104 yrs old) Above-grade, earth berm around it 1, 100 m³ capacity

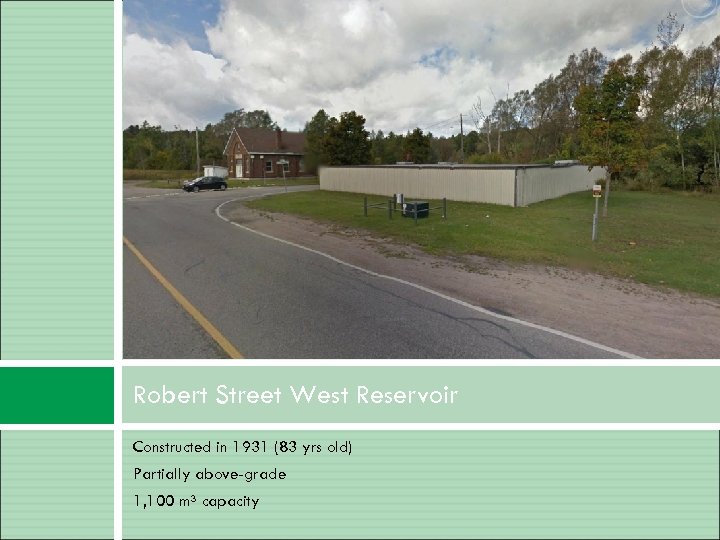

Robert Street West Reservoir Constructed in 1931 (83 yrs old) Partially above-grade 1, 100 m³ capacity

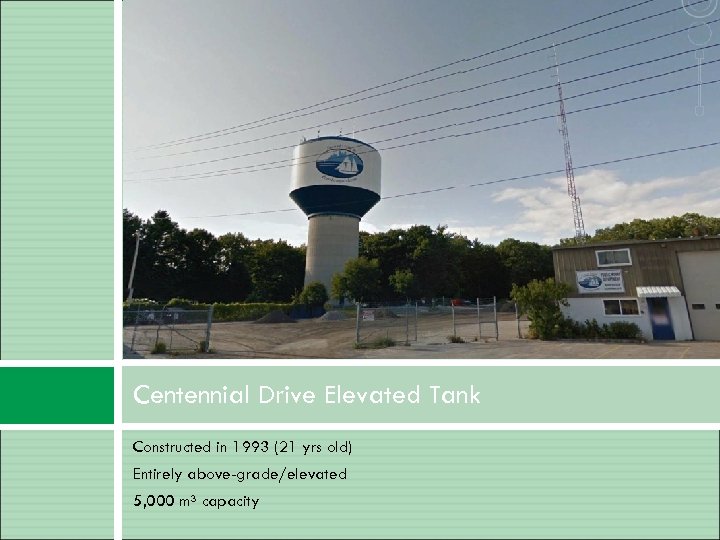

Centennial Drive Elevated Tank Constructed in 1993 (21 yrs old) Entirely above-grade/elevated 5, 000 m³ capacity

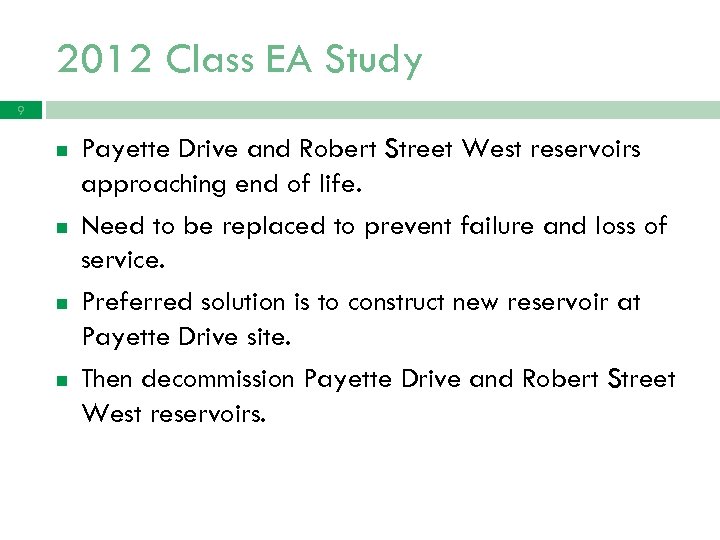

2012 Class EA Study 9 n n Payette Drive and Robert Street West reservoirs approaching end of life. Need to be replaced to prevent failure and loss of service. Preferred solution is to construct new reservoir at Payette Drive site. Then decommission Payette Drive and Robert Street West reservoirs.

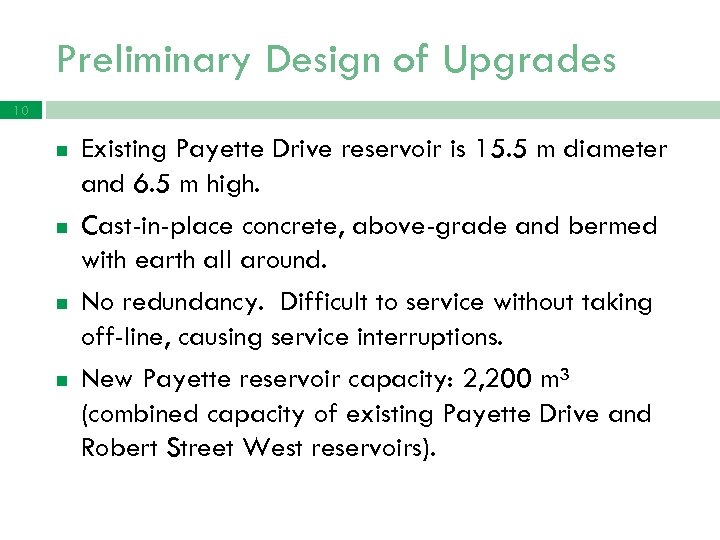

Preliminary Design of Upgrades 10 n n Existing Payette Drive reservoir is 15. 5 m diameter and 6. 5 m high. Cast-in-place concrete, above-grade and bermed with earth all around. No redundancy. Difficult to service without taking off-line, causing service interruptions. New Payette reservoir capacity: 2, 200 m³ (combined capacity of existing Payette Drive and Robert Street West reservoirs).

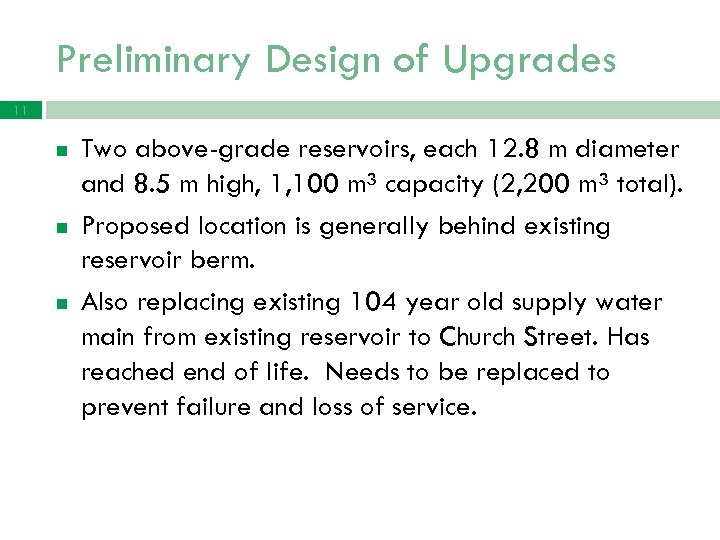

Preliminary Design of Upgrades 11 n n n Two above-grade reservoirs, each 12. 8 m diameter and 8. 5 m high, 1, 100 m³ capacity (2, 200 m³ total). Proposed location is generally behind existing reservoir berm. Also replacing existing 104 year old supply water main from existing reservoir to Church Street. Has reached end of life. Needs to be replaced to prevent failure and loss of service.

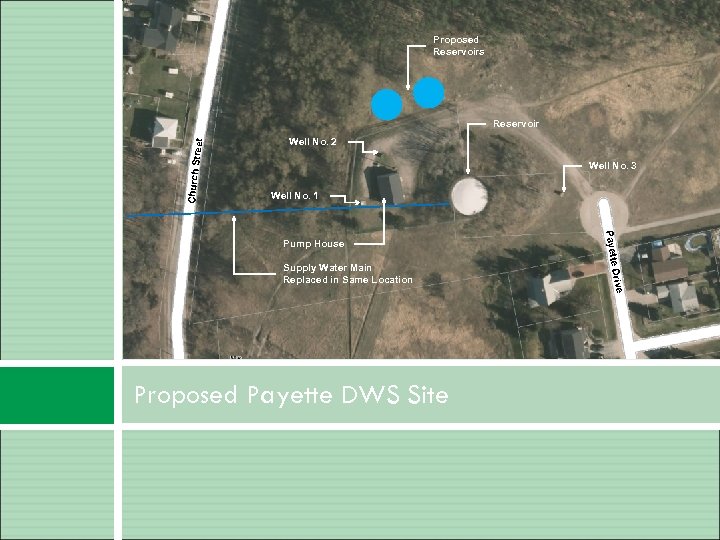

Proposed Reservoirs Church S treet Reservoir Well No. 2 Well No. 3 Well No. 1 Proposed Payette DWS Site e Drive Supply Water Main Replaced in Same Location Payett Pump House

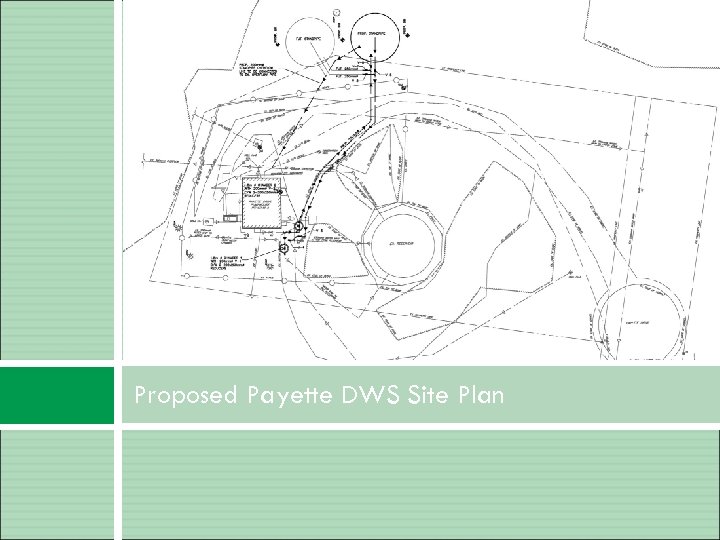

Proposed Payette DWS Site Plan

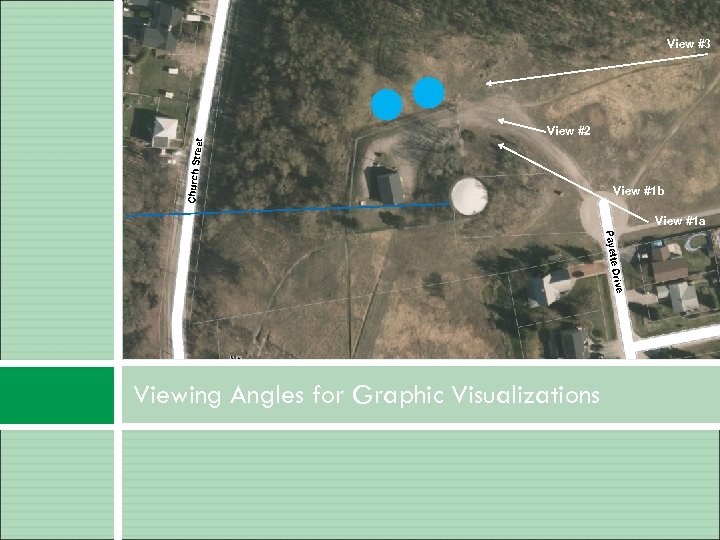

View #3 Church S treet View #2 View #1 b View #1 a e Drive Payett Viewing Angles for Graphic Visualizations

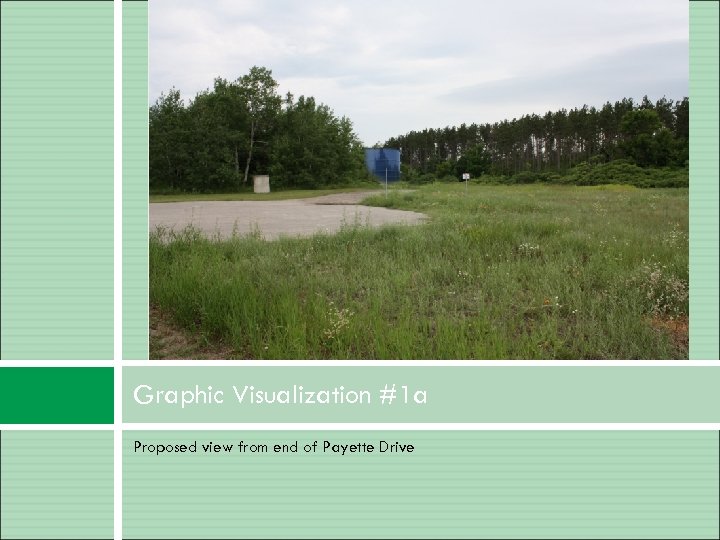

Graphic Visualization #1 a Proposed view from end of Payette Drive

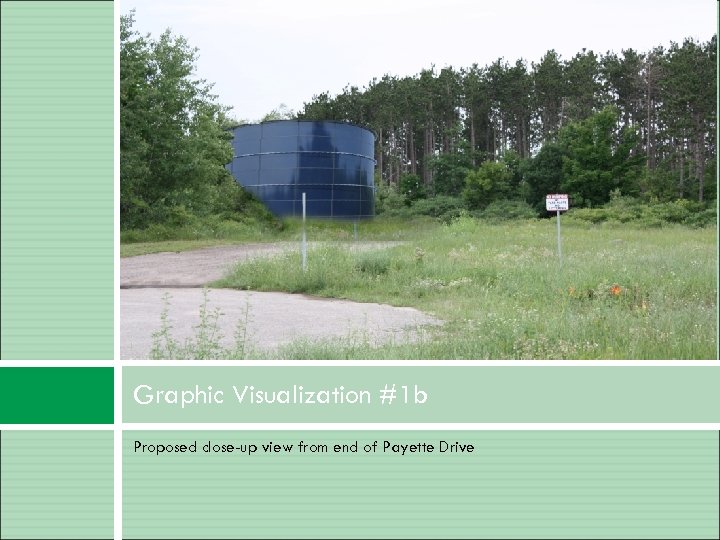

Graphic Visualization #1 b Proposed close-up view from end of Payette Drive

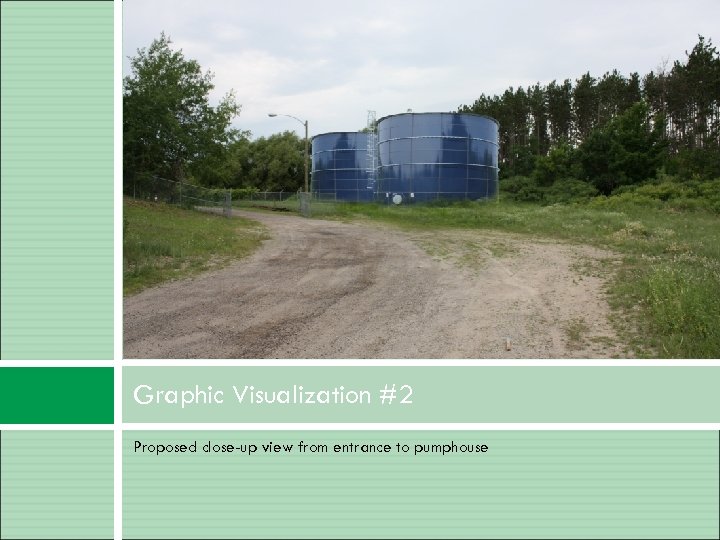

Graphic Visualization #2 Proposed close-up view from entrance to pumphouse

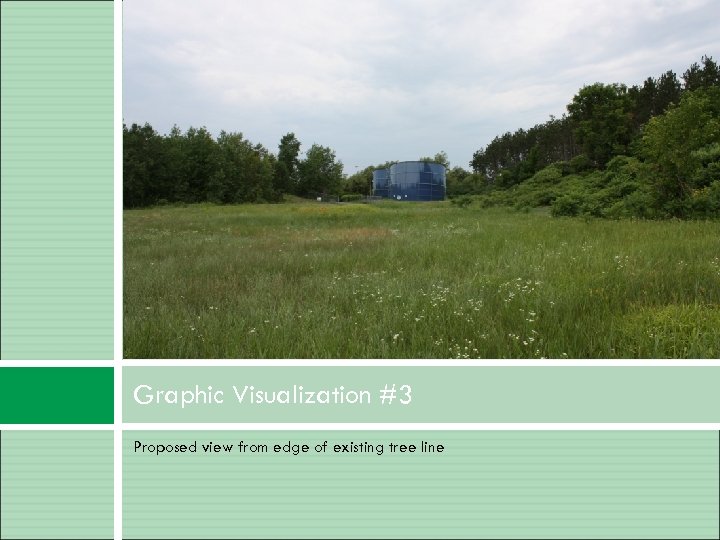

Graphic Visualization #3 Proposed view from edge of existing tree line

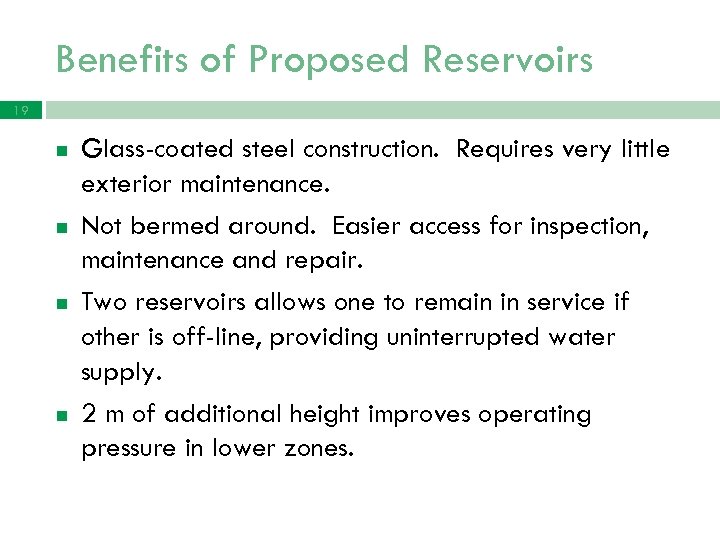

Benefits of Proposed Reservoirs 19 n n Glass-coated steel construction. Requires very little exterior maintenance. Not bermed around. Easier access for inspection, maintenance and repair. Two reservoirs allows one to remain in service if other is off-line, providing uninterrupted water supply. 2 m of additional height improves operating pressure in lower zones.

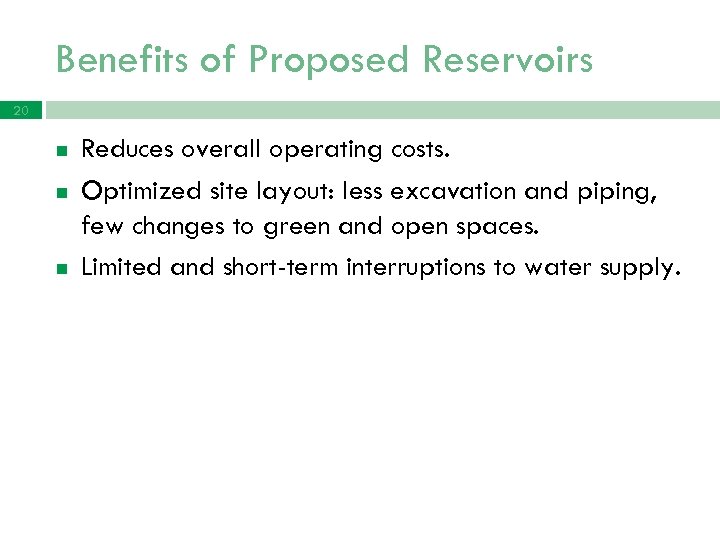

Benefits of Proposed Reservoirs 20 n n n Reduces overall operating costs. Optimized site layout: less excavation and piping, few changes to green and open spaces. Limited and short-term interruptions to water supply.

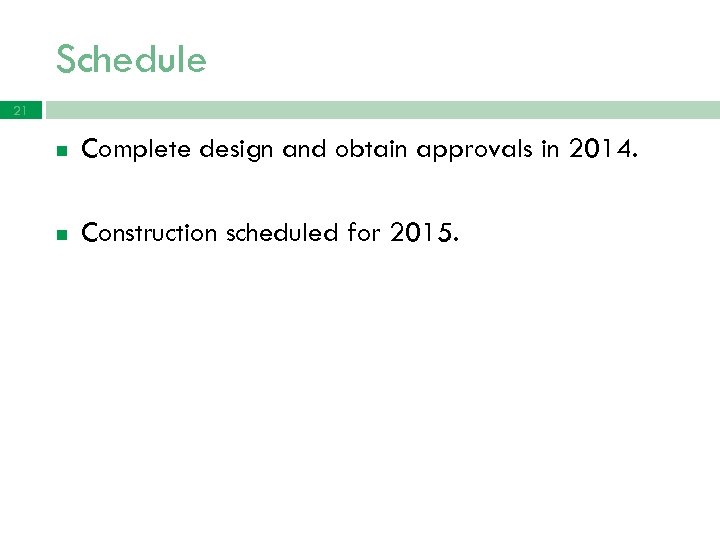

Schedule 21 n Complete design and obtain approvals in 2014. n Construction scheduled for 2015.

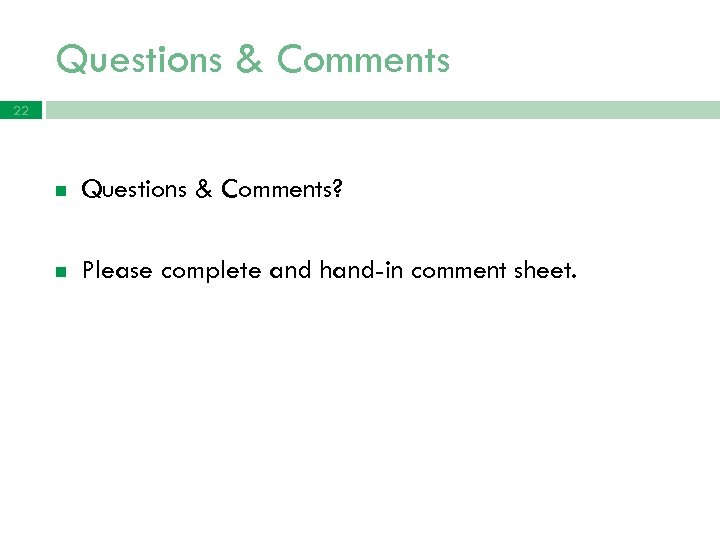

Questions & Comments 22 n Questions & Comments? n Please complete and hand-in comment sheet.
