Towards 200 million Telephone and Internet Connections in India Dr. Ashok Jhunjhunwala, Te. Ne. T Group Department of Electrical Engineering IIT Madras, Chennai ashok@tenet. res. in iit madras

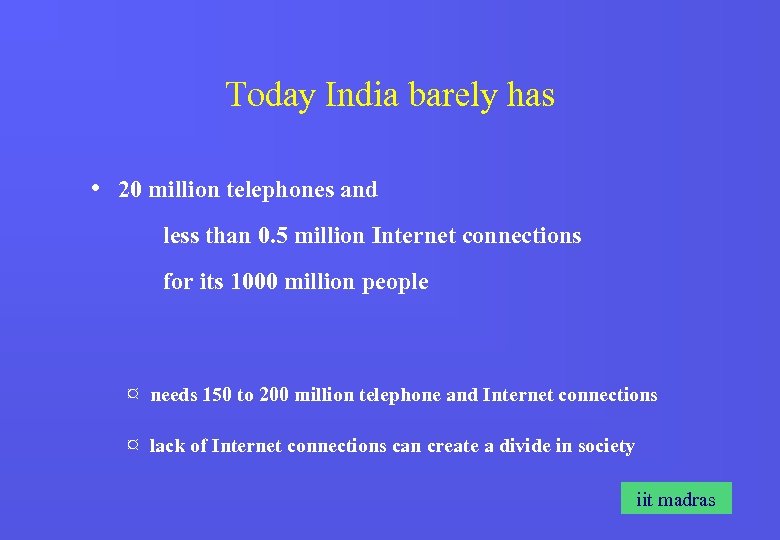

Today India barely has • 20 million telephones and less than 0. 5 million Internet connections for its 1000 million people ¤ needs 150 to 200 million telephone and Internet connections ¤ lack of Internet connections can create a divide in society iit madras

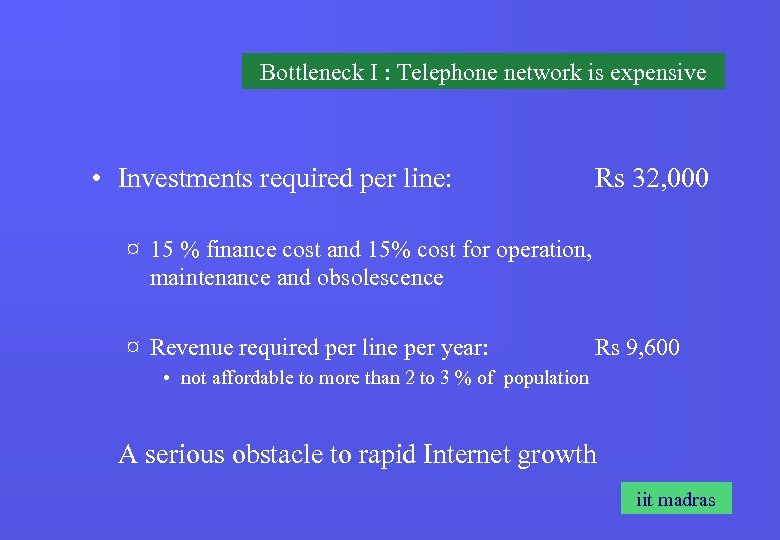

Bottleneck I : Telephone network is expensive • Investments required per line: Rs 32, 000 ¤ 15 % finance cost and 15% cost for operation, maintenance and obsolescence ¤ Revenue required per line per year: Rs 9, 600 • not affordable to more than 2 to 3 % of population A serious obstacle to rapid Internet growth iit madras

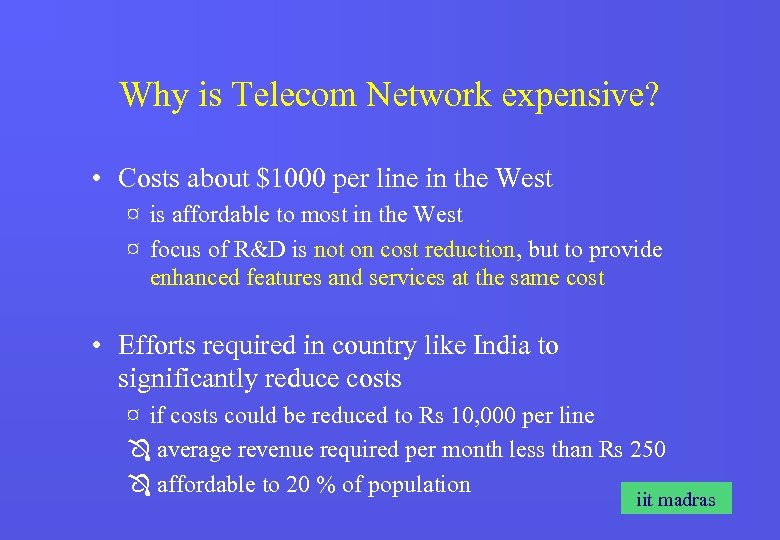

Why is Telecom Network expensive? • Costs about $1000 per line in the West ¤ is affordable to most in the West ¤ focus of R&D is not on cost reduction, but to provide enhanced features and services at the same cost • Efforts required in country like India to significantly reduce costs ¤ if costs could be reduced to Rs 10, 000 per line average revenue required per month less than Rs 250 affordable to 20 % of population iit madras

But is it possible ? • Not easy, but why not ? • For example CDOT’s exchange today ° costs two-third of imported exchange and ° provides 10 million of 20 million lines in India • And in the process ¤ achieve lowest cost telecom and Internet solution ¤ serve a market of several hundred million in India and other developing countries Consequently become the world leader in technology iit madras

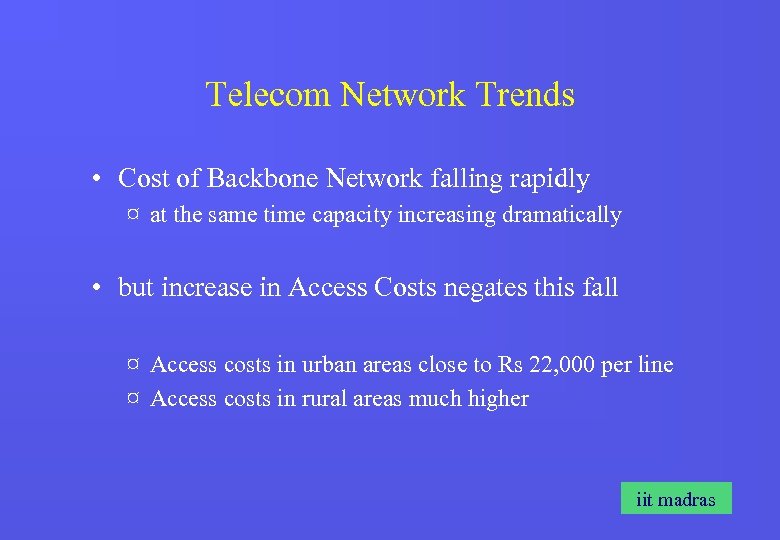

Telecom Network Trends • Cost of Backbone Network falling rapidly ¤ at the same time capacity increasing dramatically • but increase in Access Costs negates this fall ¤ Access costs in urban areas close to Rs 22, 000 per line ¤ Access costs in rural areas much higher iit madras

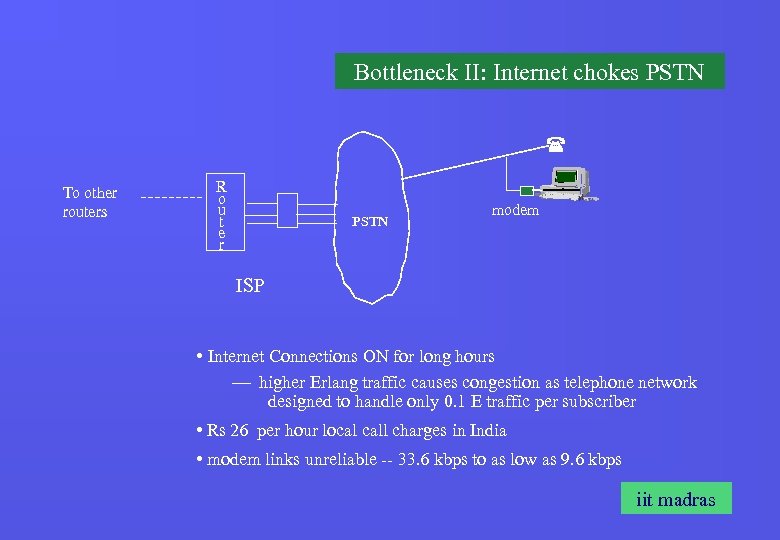

Bottleneck II: Internet chokes PSTN To other routers R o u t e r PSTN modem ISP • Internet Connections ON for long hours — higher Erlang traffic causes congestion as telephone network designed to handle only 0. 1 E traffic per subscriber • Rs 26 per hour local call charges in India • modem links unreliable -- 33. 6 kbps to as low as 9. 6 kbps iit madras

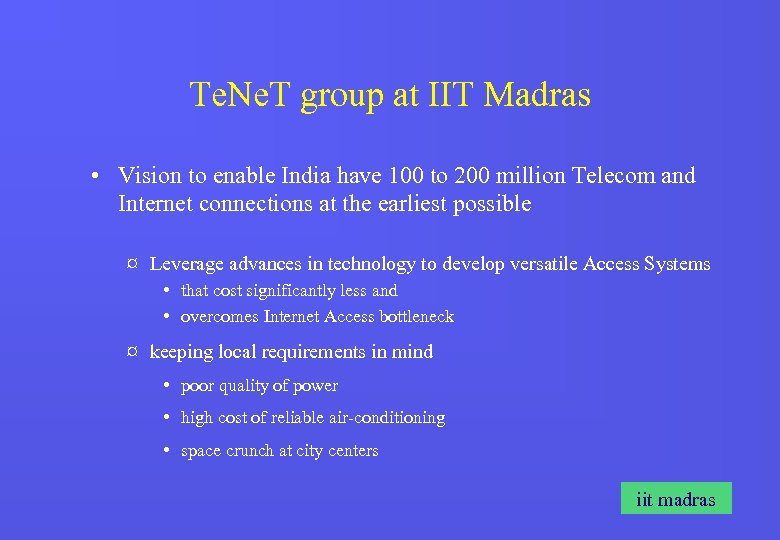

Te. Ne. T group at IIT Madras • Vision to enable India have 100 to 200 million Telecom and Internet connections at the earliest possible ¤ Leverage advances in technology to develop versatile Access Systems • that cost significantly less and • overcomes Internet Access bottleneck ¤ keeping local requirements in mind • poor quality of power • high cost of reliable air-conditioning • space crunch at city centers iit madras

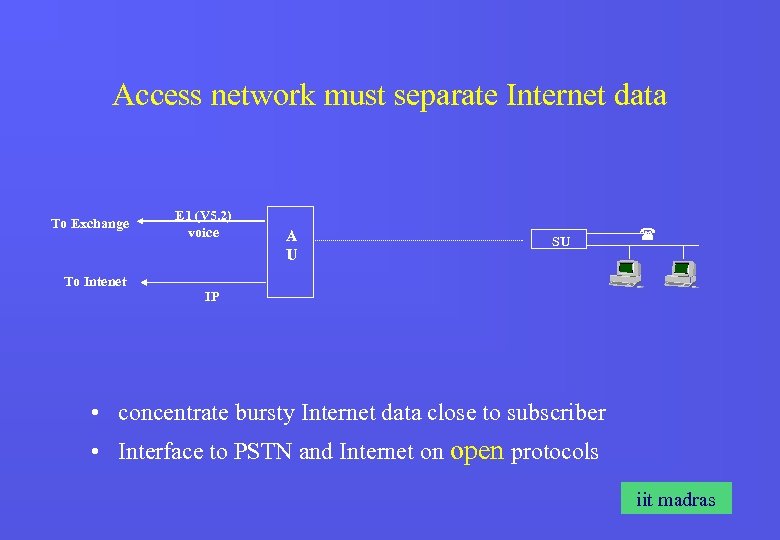

Access network must separate Internet data To Exchange To Intenet E 1 (V 5. 2) voice A U SU IP • concentrate bursty Internet data close to subscriber • Interface to PSTN and Internet on open protocols iit madras

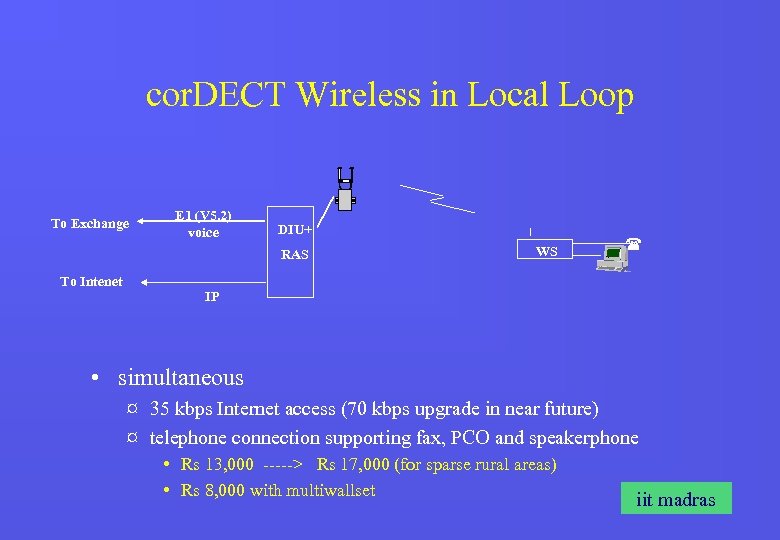

cor. DECT Wireless in Local Loop To Exchange E 1 (V 5. 2) voice DIU+ RAS To Intenet WS IP • simultaneous ¤ 35 kbps Internet access (70 kbps upgrade in near future) ¤ telephone connection supporting fax, PCO and speakerphone • Rs 13, 000 -----> Rs 17, 000 (for sparse rural areas) • Rs 8, 000 with multiwallset iit madras

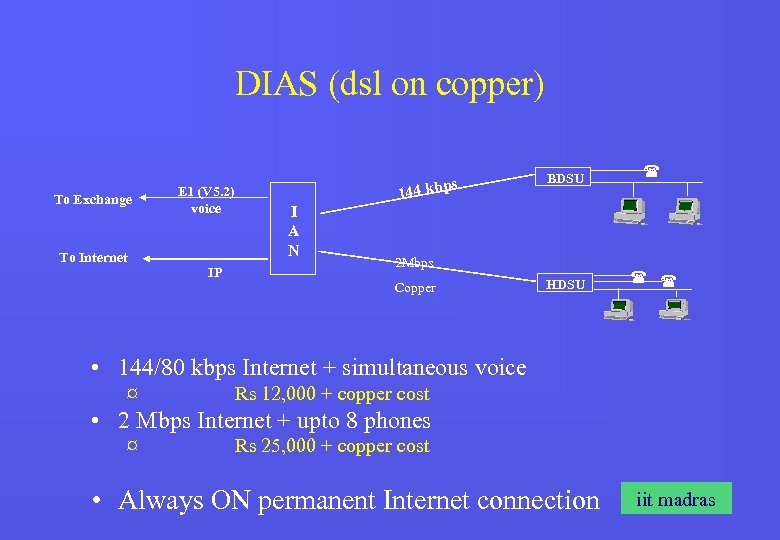

DIAS (dsl on copper) To Exchange To Internet E 1 (V 5. 2) voice IP s 144 kbp I A N BDSU HDSU 2 Mbps Copper • 144/80 kbps Internet + simultaneous voice ¤ Rs 12, 000 + copper cost • 2 Mbps Internet + upto 8 phones ¤ Rs 25, 000 + copper cost • Always ON permanent Internet connection iit madras

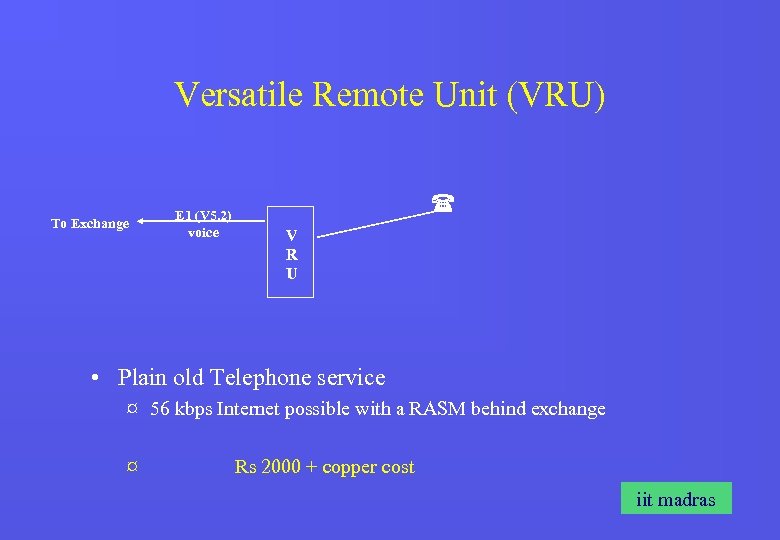

Versatile Remote Unit (VRU) To Exchange E 1 (V 5. 2) voice V R U • Plain old Telephone service ¤ 56 kbps Internet possible with a RASM behind exchange ¤ Rs 2000 + copper cost iit madras

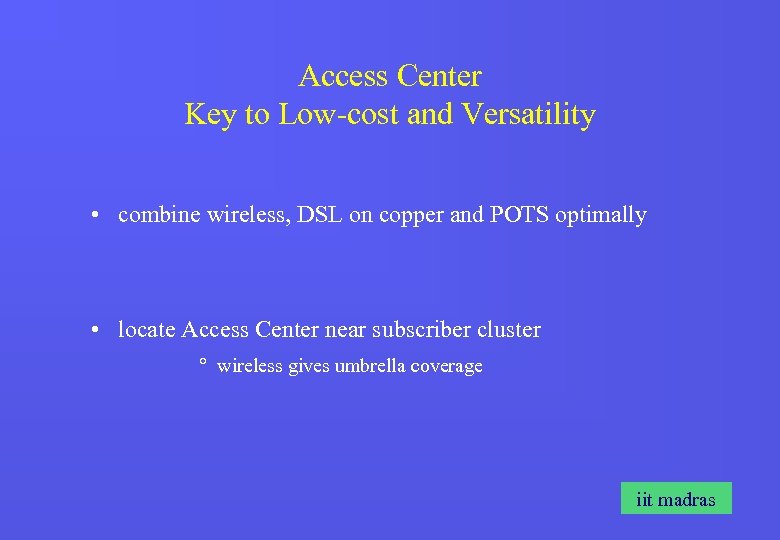

Access Center Key to Low-cost and Versatility • combine wireless, DSL on copper and POTS optimally • locate Access Center near subscriber cluster ° wireless gives umbrella coverage iit madras

Integrated Access Centre (AC) SU E 1 (V 5. 2) voice To Exchange To Internet A C IP DSU • combines Wi. LL, DIAS and VRU ¤ Wi. LL : Rs 13, 000 ---> Rs 17, 000 (for sparse rural areas) • Rs 8000 with multiwallset ¤ BDSU : Rs 12, 000 + copper • HDSU : Rs 25, 000 + copper ¤ POTS : Rs 2, 000 + copper iit madras

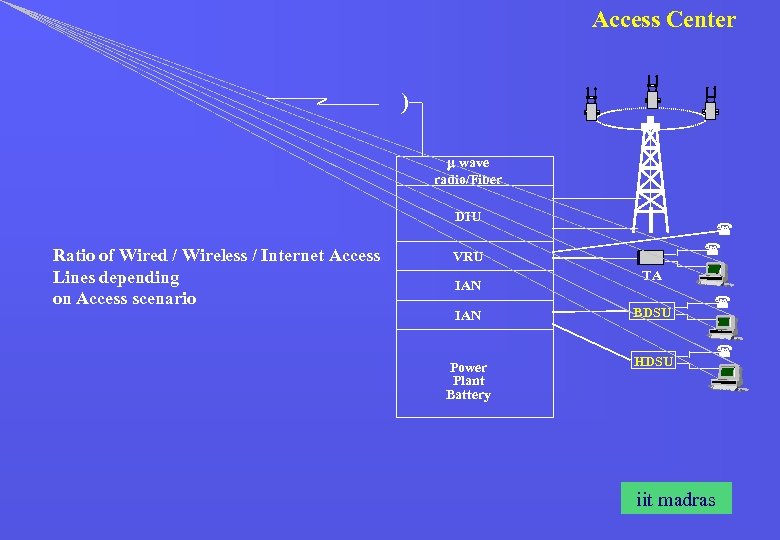

Access Center ) wave radio/Fiber DIU Ratio of Wired / Wireless / Internet Access Lines depending on Access scenario VRU IAN TA IAN BDSU Power Plant Battery HDSU iit madras

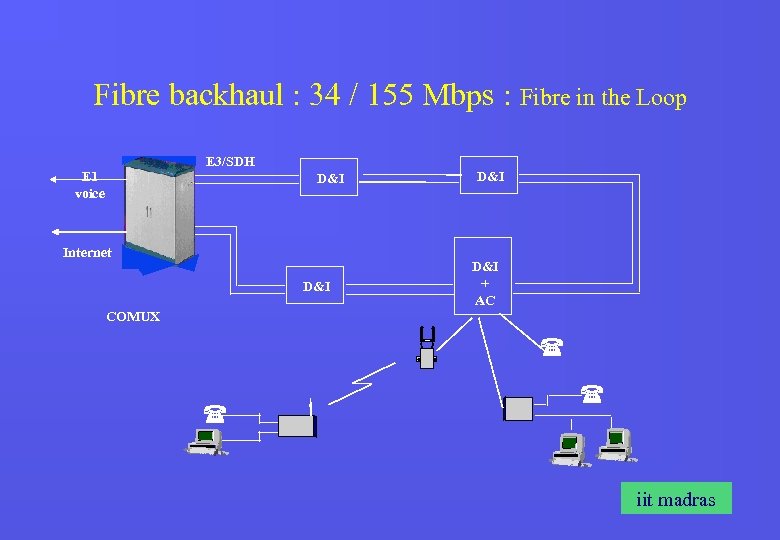

Fibre backhaul : 34 / 155 Mbps : Fibre in the Loop E 3/SDH E 1 voice D&I Internet D&I D&I + AC COMUX iit madras

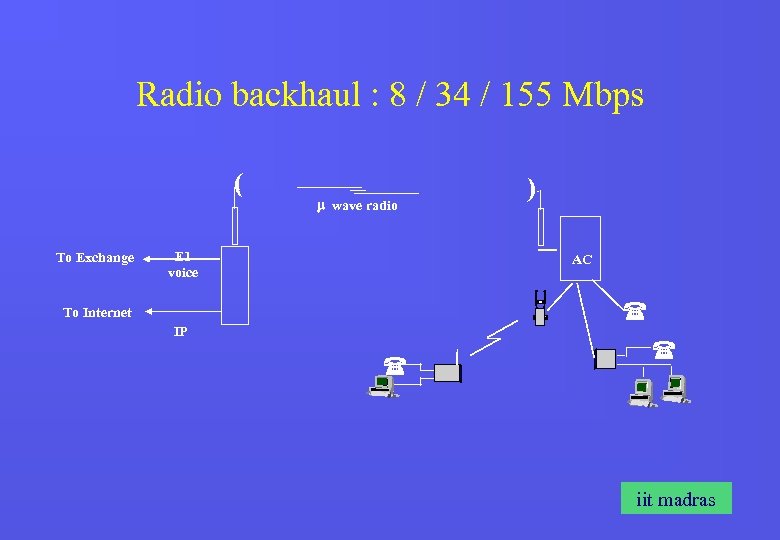

Radio backhaul : 8 / 34 / 155 Mbps To Exchange wave radio E 1 voice ( ( AC To Internet IP iit madras

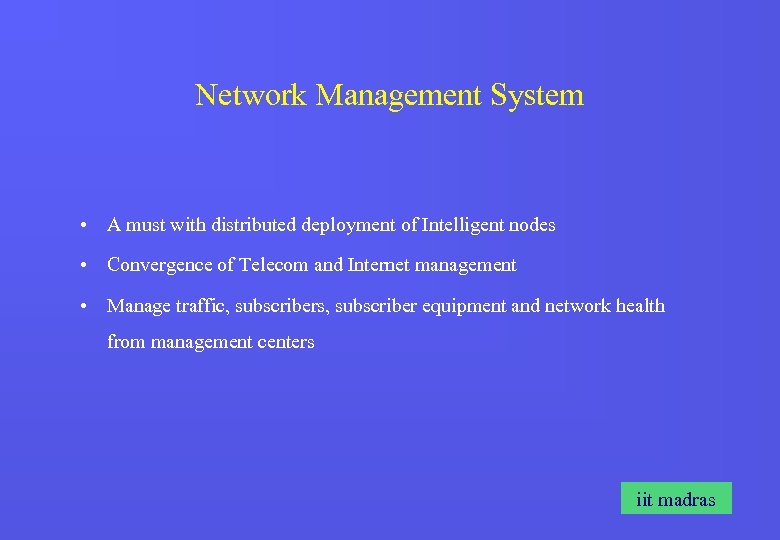

Network Management System • A must with distributed deployment of Intelligent nodes • Convergence of Telecom and Internet management • Manage traffic, subscribers, subscriber equipment and network health from management centers iit madras

Product Visuals iit madras

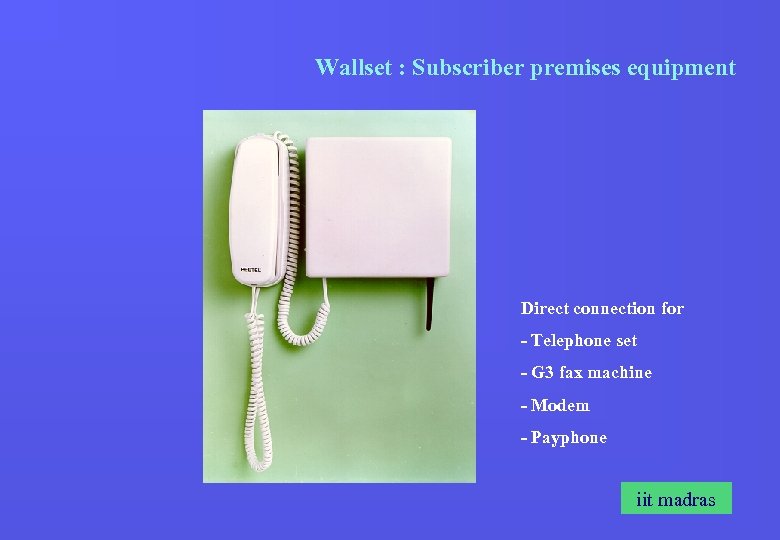

Wallset : Subscriber premises equipment Direct connection for - Telephone set - G 3 fax machine - Modem - Payphone iit madras

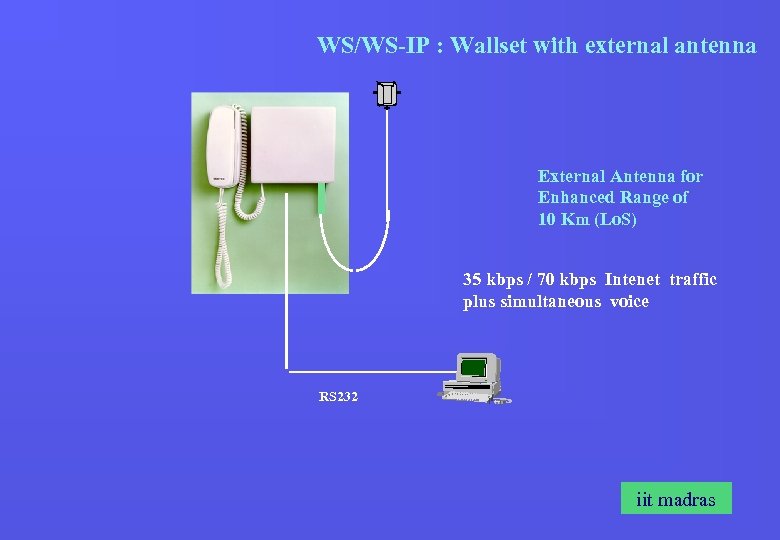

WS/WS-IP : Wallset with external antenna External Antenna for Enhanced Range of 10 Km (Lo. S) 35 kbps / 70 kbps Intenet traffic plus simultaneous voice RS 232 iit madras

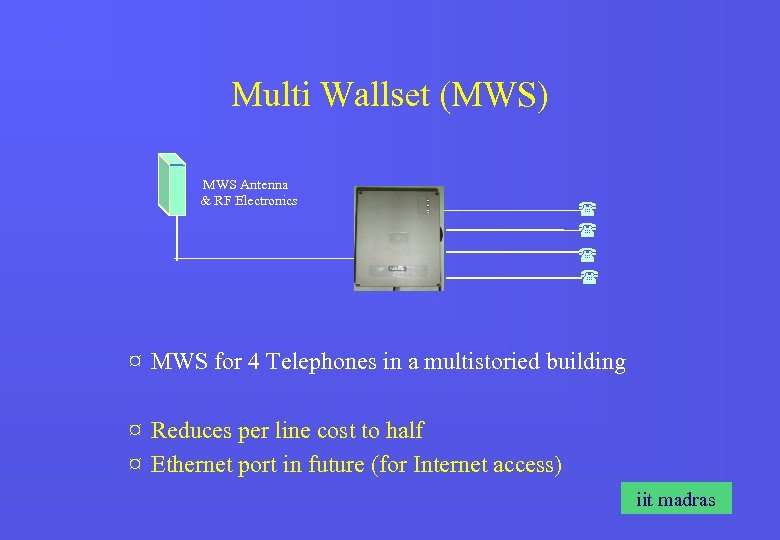

Multi Wallset (MWS) MWS Antenna & RF Electronics ¤ MWS for 4 Telephones in a multistoried building ¤ Reduces per line cost to half ¤ Ethernet port in future (for Internet access) iit madras

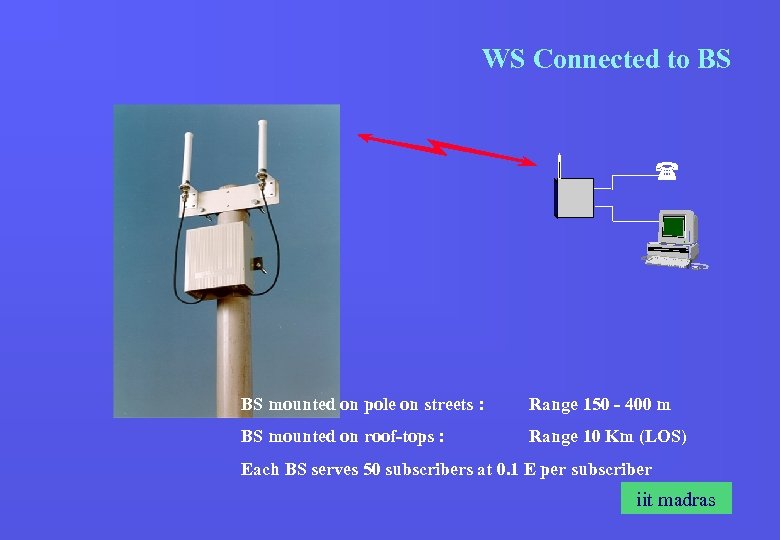

WS Connected to BS BS mounted on pole on streets : Range 150 - 400 m BS mounted on roof-tops : Range 10 Km (LOS) Each BS serves 50 subscribers at 0. 1 E per subscriber iit madras

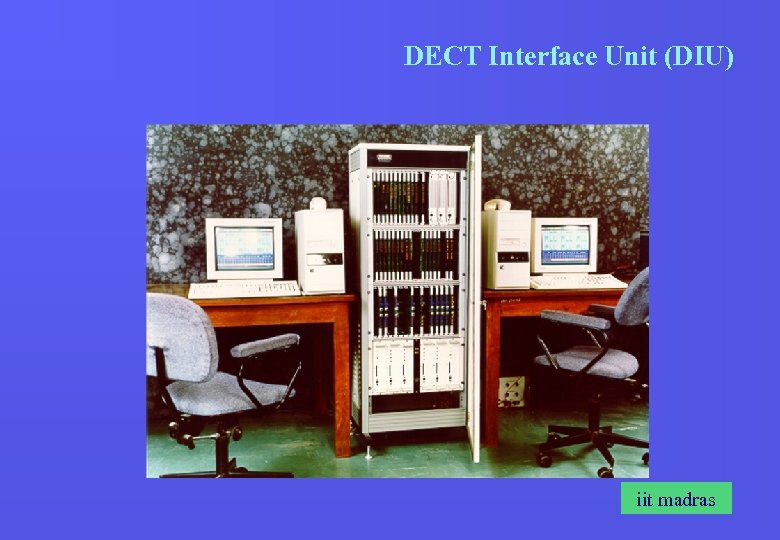

DECT Interface Unit (DIU) iit madras

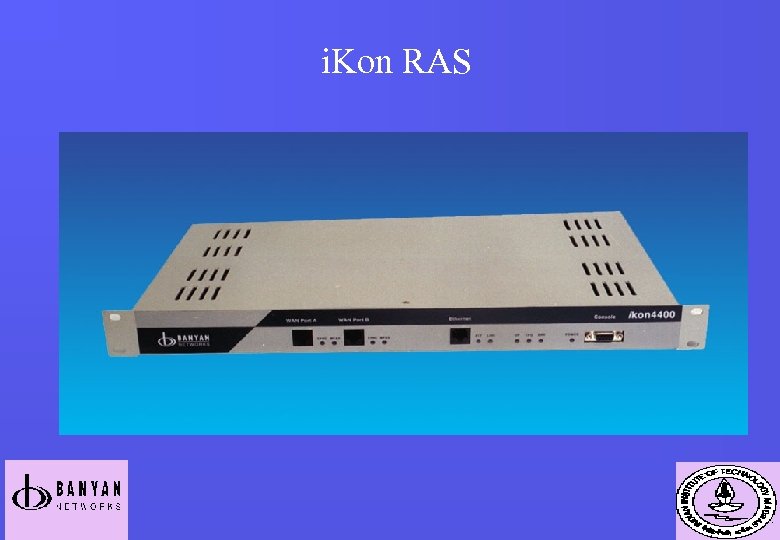

i. Kon RAS

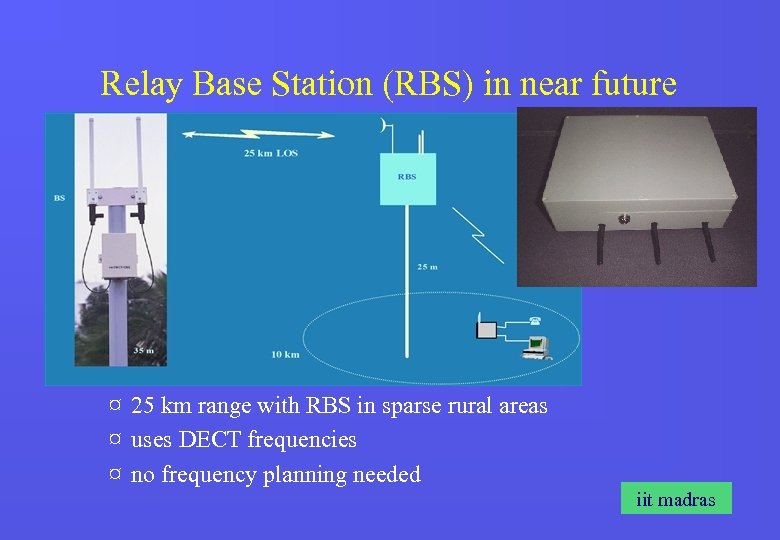

Relay Base Station (RBS) in near future ¤ 25 km range with RBS in sparse rural areas ¤ uses DECT frequencies ¤ no frequency planning needed iit madras

DIAS - IAN Rack

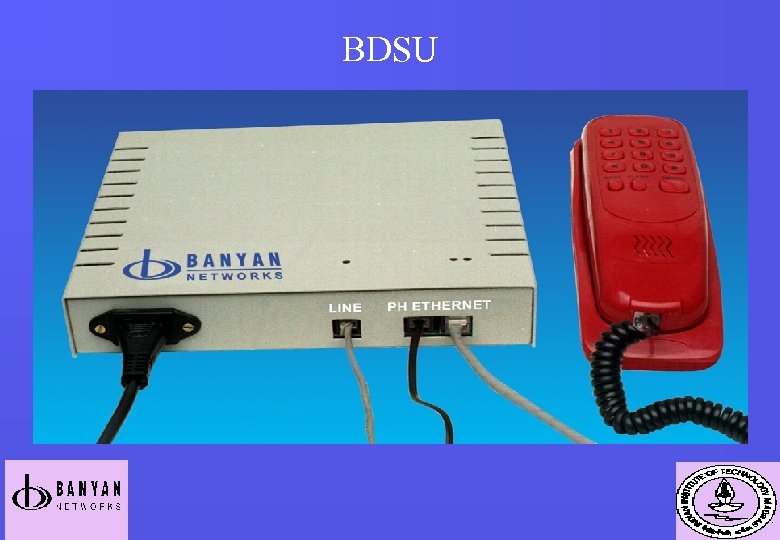

BDSU

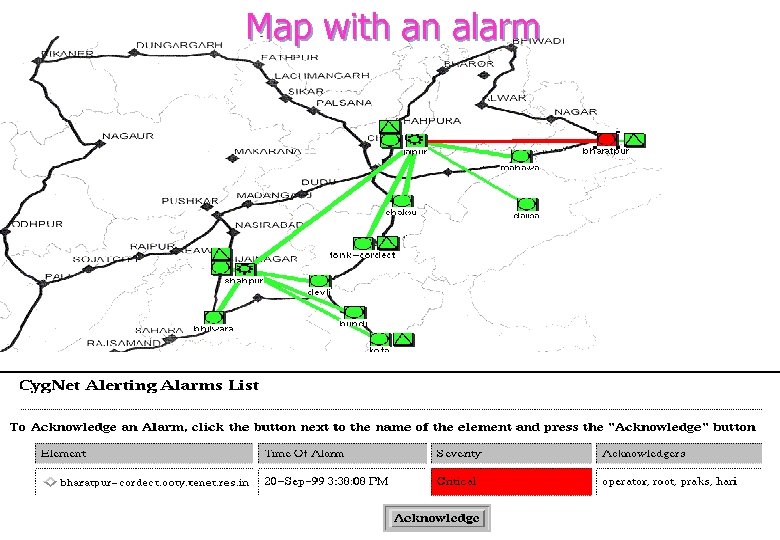

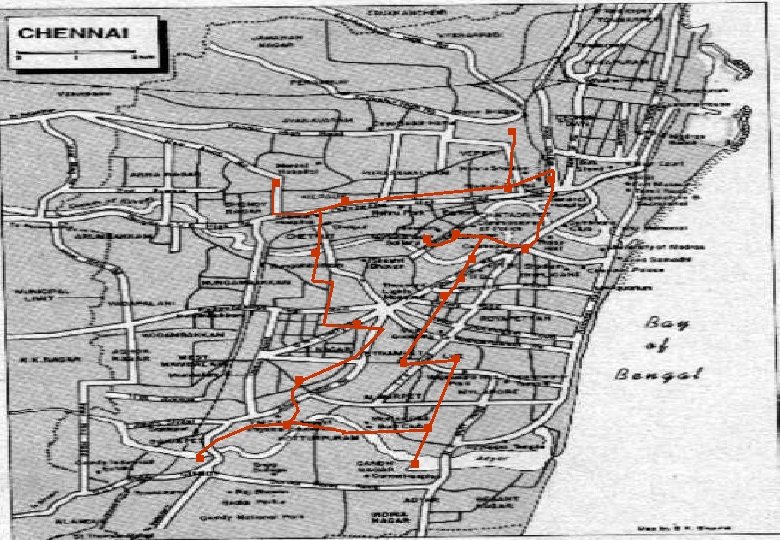

Map with an alarm iit madras

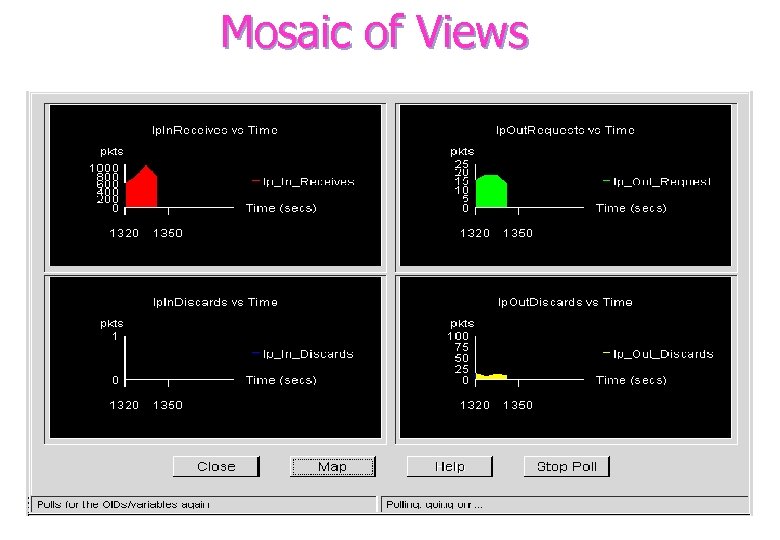

Mosaic of Views iit madras

Access Centre deployment examples iit madras

iit madras

iit madras

Connaught Place (Delhi) iit madras

iit madras

iit madras

Available Solution from Te. Ne. T group • Can provide total Telecom and Internet solution ¤ in urban areas at a cost of Rs 17, 000 per line ¤ in rural areas at a cost of Rs 21, 000 per line iit madras

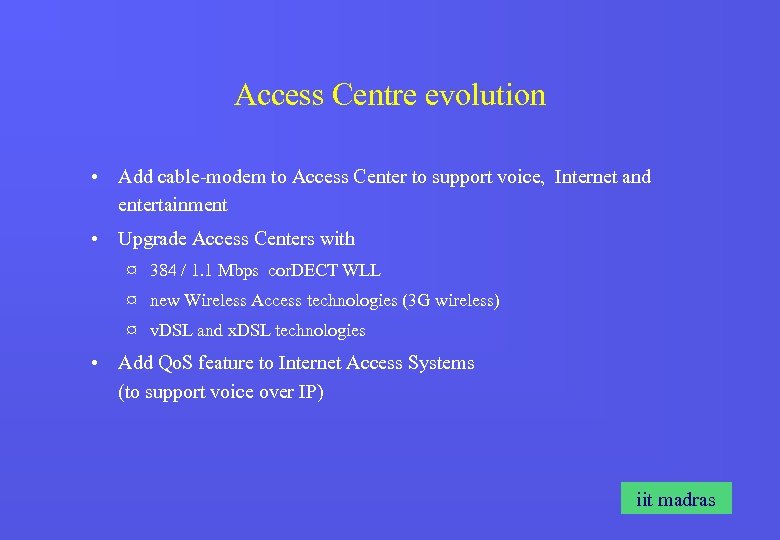

Access Centre evolution • Add cable-modem to Access Center to support voice, Internet and entertainment • Upgrade Access Centers with ¤ 384 / 1. 1 Mbps cor. DECT WLL ¤ new Wireless Access technologies (3 G wireless) ¤ v. DSL and x. DSL technologies • Add Qo. S feature to Internet Access Systems (to support voice over IP) iit madras

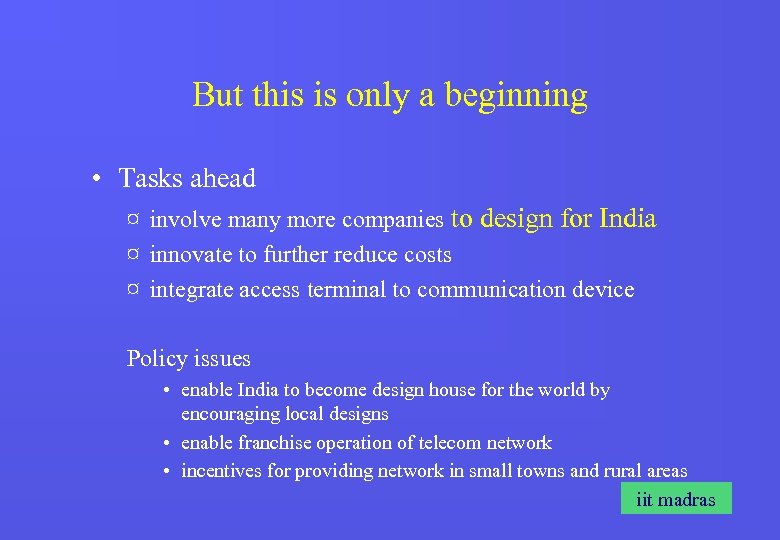

But this is only a beginning • Tasks ahead ¤ involve many more companies to design for India ¤ innovate to further reduce costs ¤ integrate access terminal to communication device Policy issues • enable India to become design house for the world by encouraging local designs • enable franchise operation of telecom network • incentives for providing network in small towns and rural areas iit madras

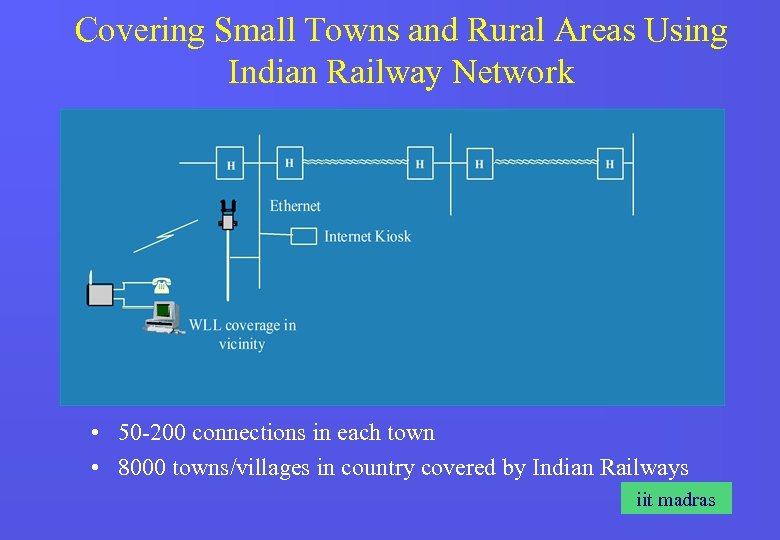

Covering Small Towns and Rural Areas Using Indian Railway Network • 50 -200 connections in each town • 8000 towns/villages in country covered by Indian Railways iit madras

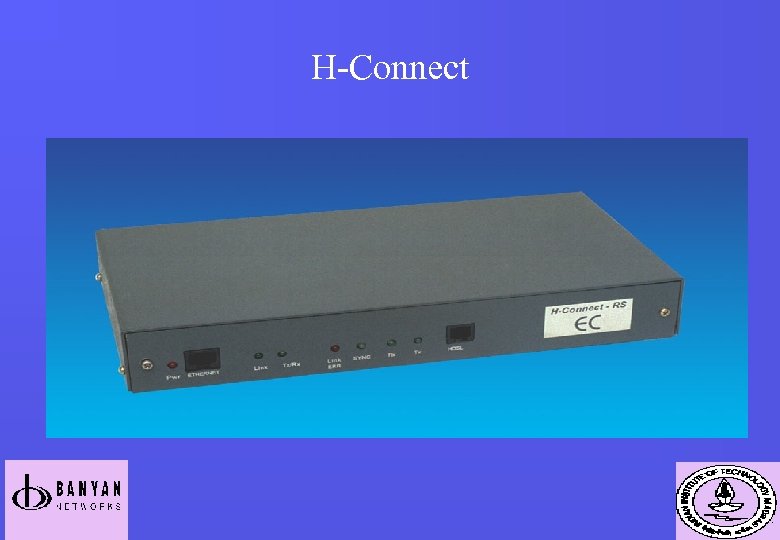

H-Connect
