Topic Idea Presentation ME 4182 Team 5

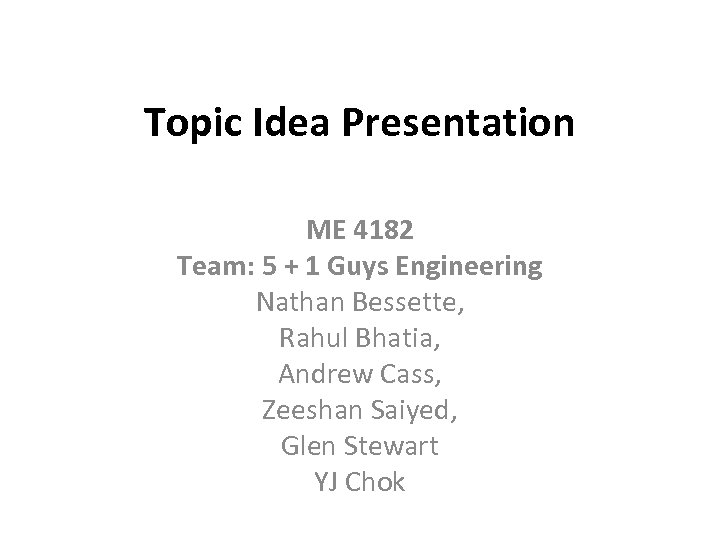

Topic Idea Presentation ME 4182 Team: 5 + 1 Guys Engineering Nathan Bessette, Rahul Bhatia, Andrew Cass, Zeeshan Saiyed, Glen Stewart YJ Chok

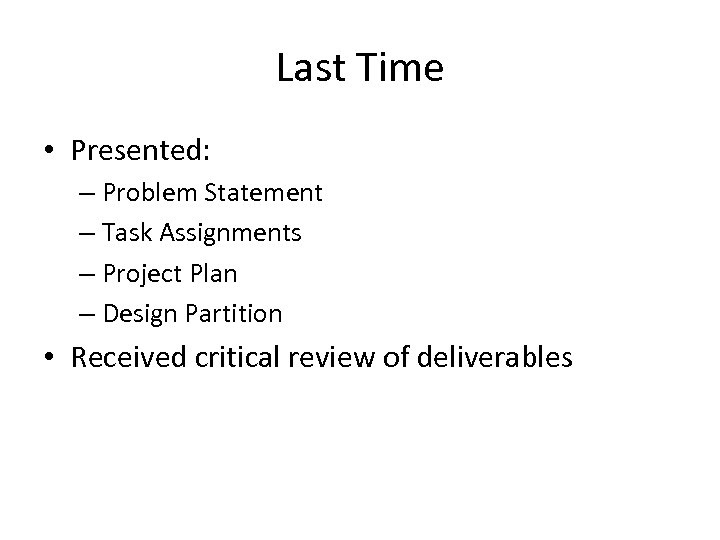

Last Time • Presented: – Problem Statement – Task Assignments – Project Plan – Design Partition • Received critical review of deliverables

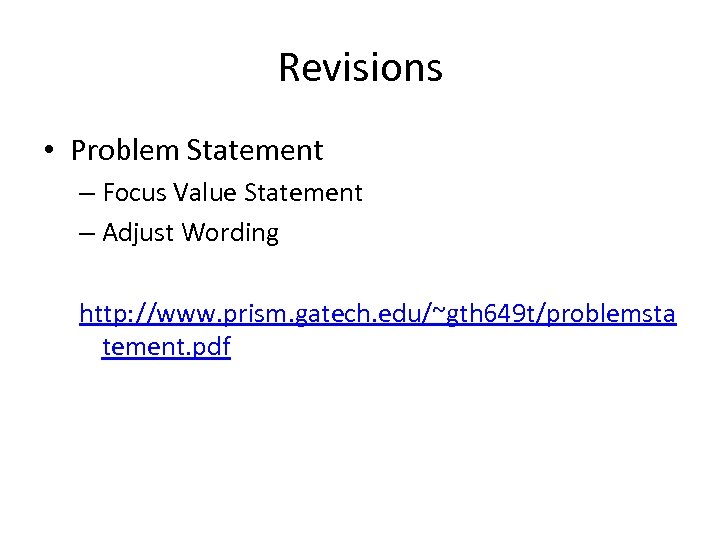

Revisions • Problem Statement – Focus Value Statement – Adjust Wording http: //www. prism. gatech. edu/~gth 649 t/problemsta tement. pdf

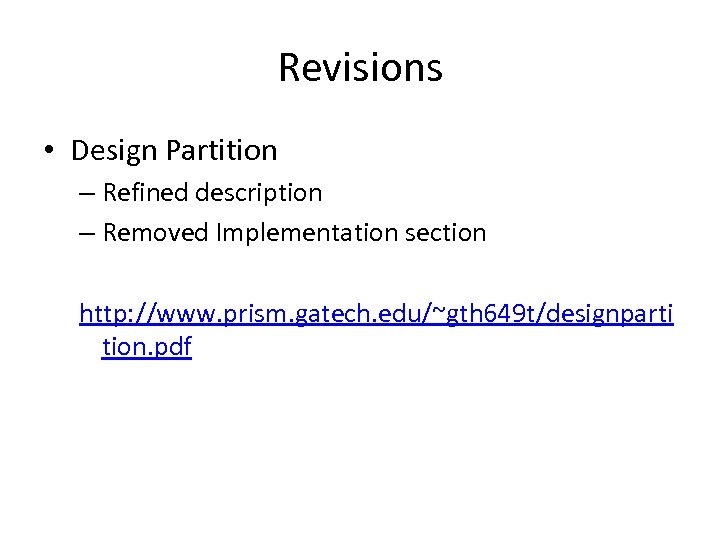

Revisions • Design Partition – Refined description – Removed Implementation section http: //www. prism. gatech. edu/~gth 649 t/designparti tion. pdf

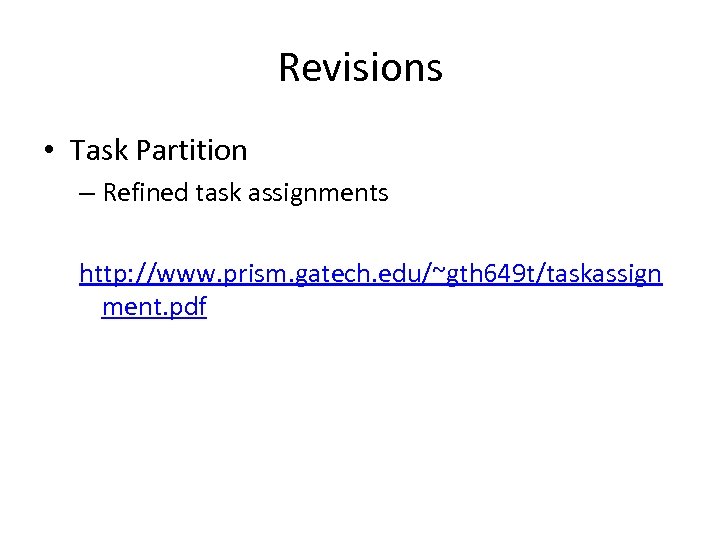

Revisions • Task Partition – Refined task assignments http: //www. prism. gatech. edu/~gth 649 t/taskassign ment. pdf

Revisions • Project Plan – Provided a specific timeline http: //www. prism. gatech. edu/~gth 649 t/projectplan. pdf

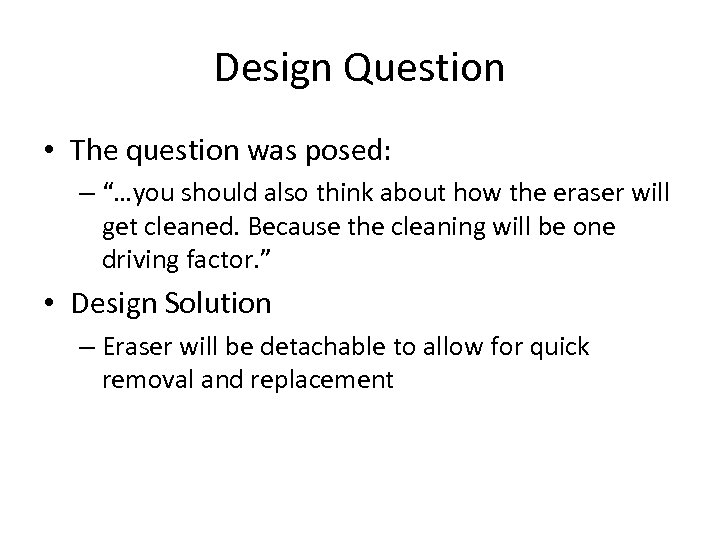

Design Question • The question was posed: – “…you should also think about how the eraser will get cleaned. Because the cleaning will be one driving factor. ” • Design Solution – Eraser will be detachable to allow for quick removal and replacement

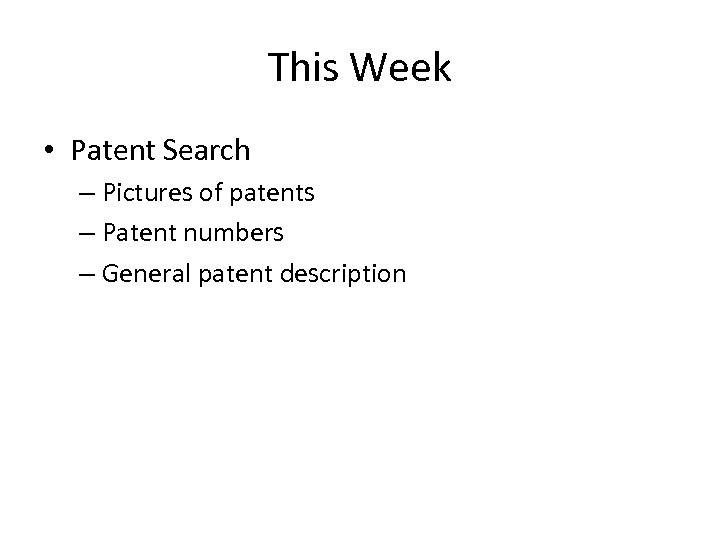

This Week • Patent Search – Pictures of patents – Patent numbers – General patent description

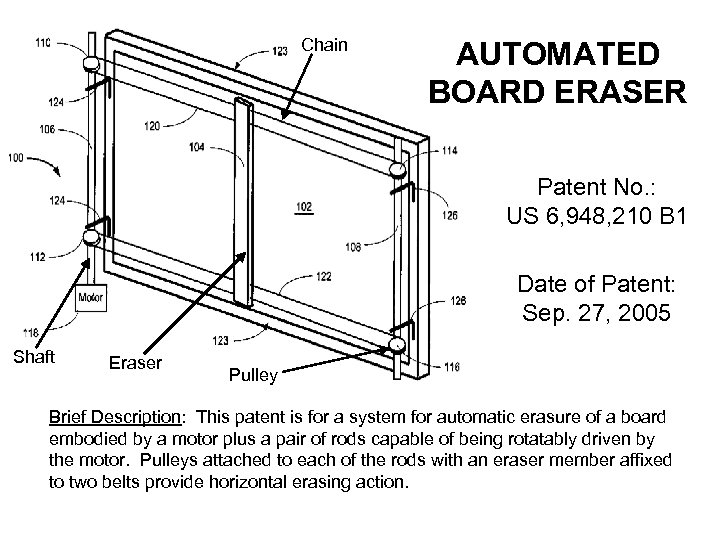

Chain AUTOMATED BOARD ERASER Patent No. : US 6, 948, 210 B 1 Date of Patent: Sep. 27, 2005 Shaft Eraser Pulley Brief Description: This patent is for a system for automatic erasure of a board embodied by a motor plus a pair of rods capable of being rotatably driven by the motor. Pulleys attached to each of the rods with an eraser member affixed to two belts provide horizontal erasing action.

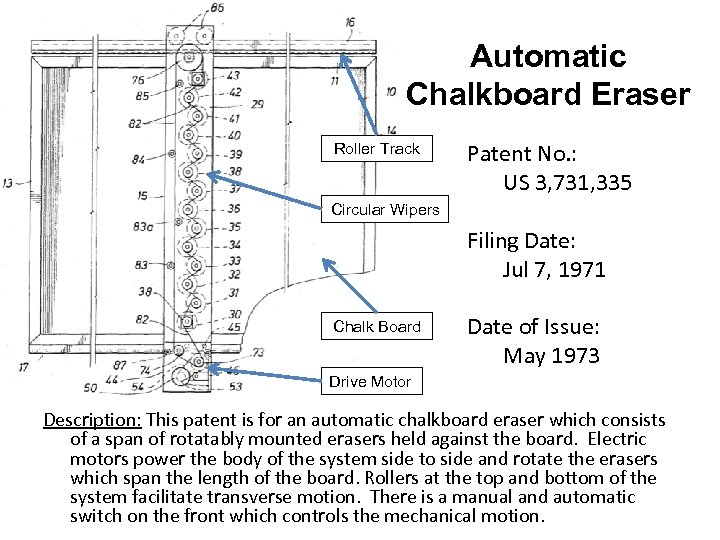

Automatic Chalkboard Eraser Roller Track Patent No. : US 3, 731, 335 Circular Wipers Filing Date: Jul 7, 1971 Chalk Board Date of Issue: May 1973 Drive Motor Description: This patent is for an automatic chalkboard eraser which consists of a span of rotatably mounted erasers held against the board. Electric motors power the body of the system side to side and rotate the erasers which span the length of the board. Rollers at the top and bottom of the system facilitate transverse motion. There is a manual and automatic switch on the front which controls the mechanical motion.

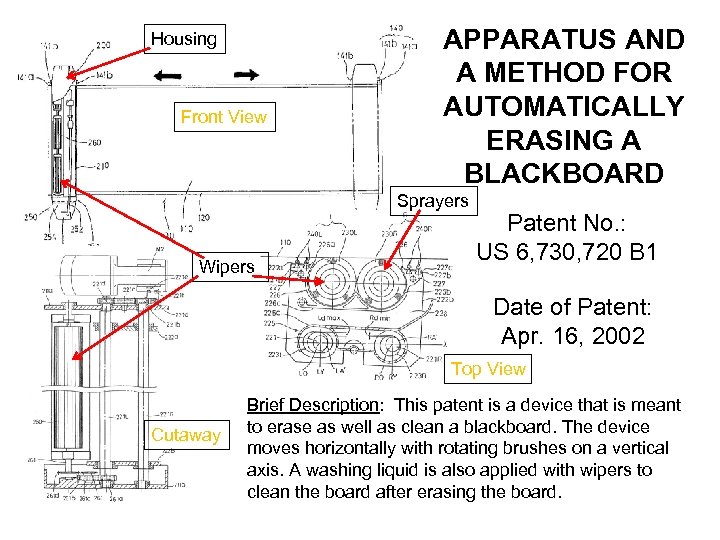

Housing Front View APPARATUS AND A METHOD FOR AUTOMATICALLY ERASING A BLACKBOARD Sprayers Wipers Patent No. : US 6, 730, 720 B 1 Date of Patent: Apr. 16, 2002 Top View Cutaway Brief Description: This patent is a device that is meant to erase as well as clean a blackboard. The device moves horizontally with rotating brushes on a vertical axis. A washing liquid is also applied with wipers to clean the board after erasing the board.

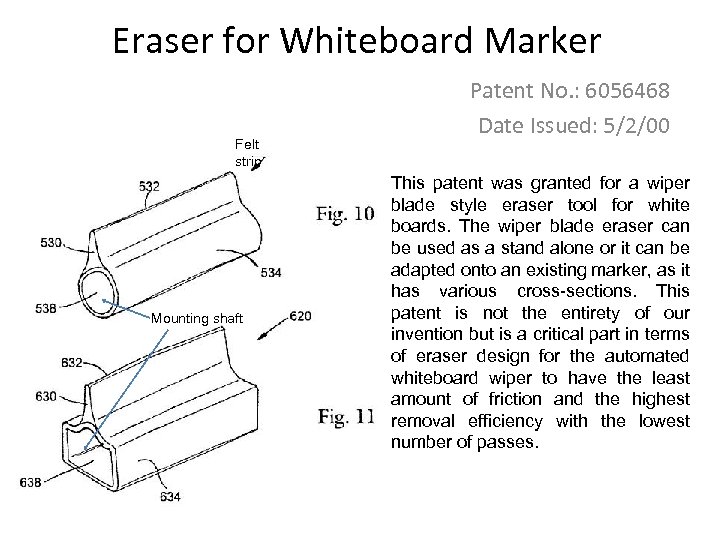

Eraser for Whiteboard Marker Felt strip Mounting shaft Patent No. : 6056468 Date Issued: 5/2/00 This patent was granted for a wiper blade style eraser tool for white boards. The wiper blade eraser can be used as a stand alone or it can be adapted onto an existing marker, as it has various cross-sections. This patent is not the entirety of our invention but is a critical part in terms of eraser design for the automated whiteboard wiper to have the least amount of friction and the highest removal efficiency with the lowest number of passes.

Apparatus for cleaning blackboards Date of Patent: Jun. 14, 1994 Patent No. : US 5, 319, 820 Brief Description: A system that utilizes a vertically sliding pivoting head mounted to a frame attached to the surrounding wall. The entire assembly can slide horizontally while the head can move vertically when cleaning the board. The head can be lifted off the surface for selective cleaning. The cleaning medium is sponge-like and removable.

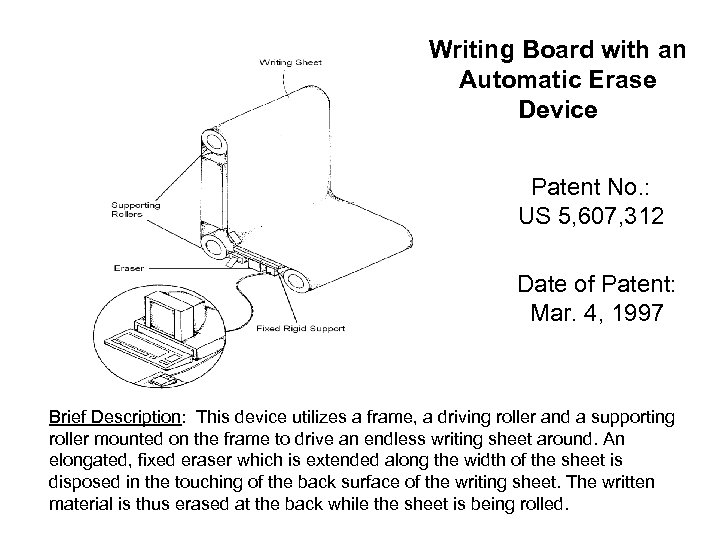

Writing Board with an Automatic Erase Device Patent No. : US 5, 607, 312 Date of Patent: Mar. 4, 1997 Brief Description: This device utilizes a frame, a driving roller and a supporting roller mounted on the frame to drive an endless writing sheet around. An elongated, fixed eraser which is extended along the width of the sheet is disposed in the touching of the back surface of the writing sheet. The written material is thus erased at the back while the sheet is being rolled.

Next Time • Procure whiteboard – Compare prices and purchase whiteboard – Look into supporting building materials • Concept designs – Present different conceptual designs • Drawings, descriptions, and key points
