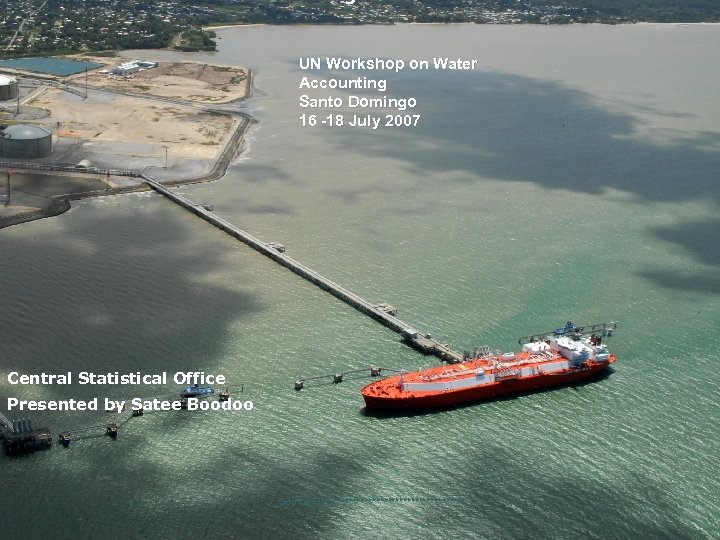

Tobago UN Workshop on Water Accounting Santo Domingo 16 -18 July 2007 Central Statistical Office Presented by Satee Boodoo 1 Source: UWI*****************
Source: UWI************* 2

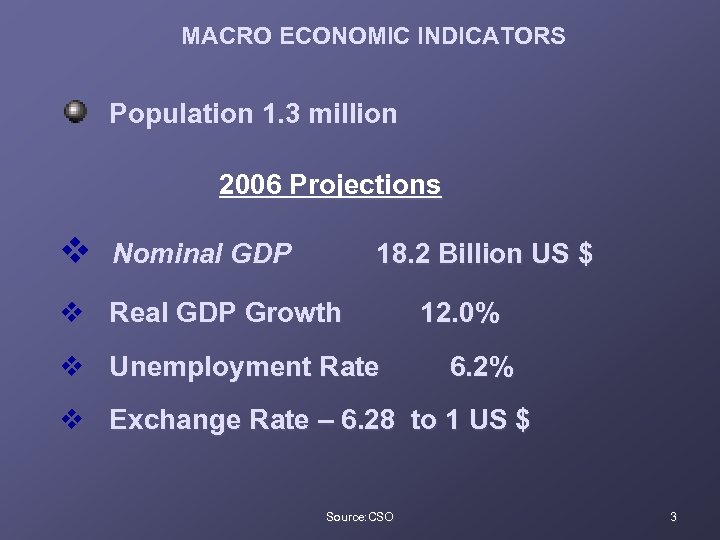

MACRO ECONOMIC INDICATORS Population 1. 3 million 2006 Projections v Nominal GDP 18. 2 Billion US $ v Real GDP Growth v Unemployment Rate 12. 0% 6. 2% v Exchange Rate – 6. 28 to 1 US $ Source: CSO 3

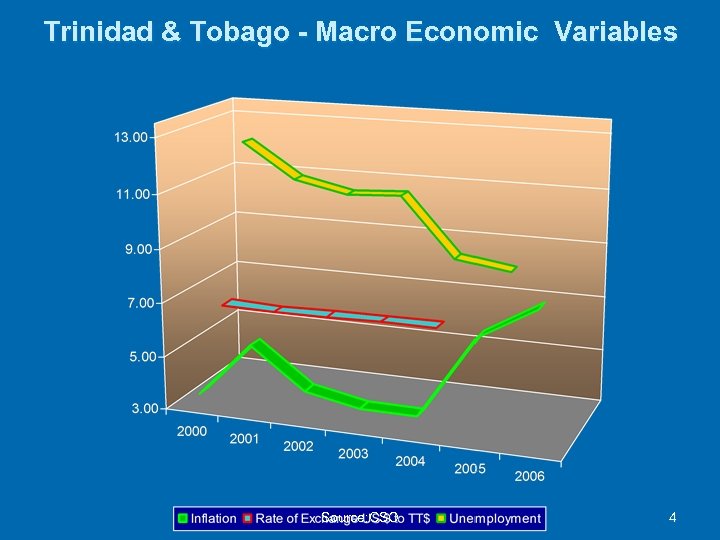

Trinidad & Tobago - Macro Economic Variables Source: CSO 4

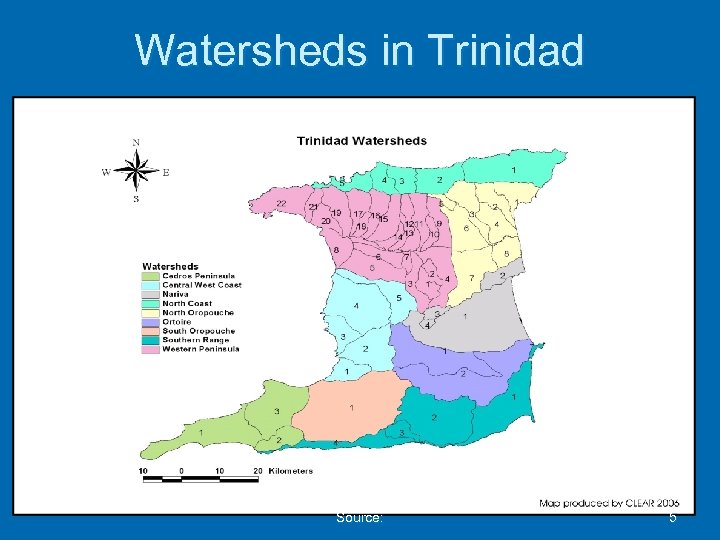

Watersheds in Trinidad Source: 5
Watersheds in Tobago 6

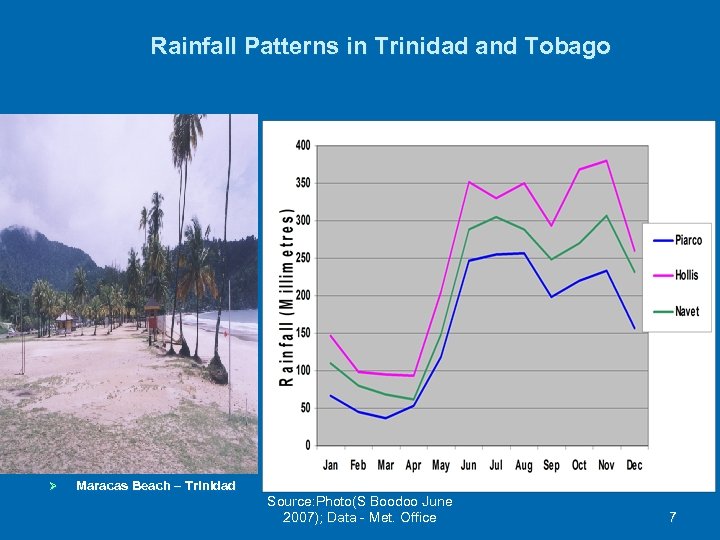

Rainfall Patterns in Trinidad and Tobago Ø Maracas Beach – Trinidad Source: Photo(S Boodoo June 2007); Data - Met. Office 7

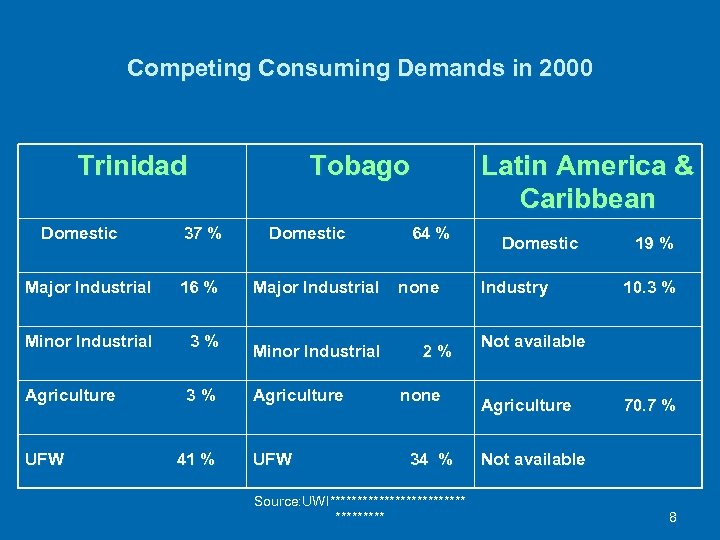

Competing Consuming Demands in 2000 Trinidad Domestic Tobago 37 % Major Industrial 16 % Minor Industrial 3% Agriculture 3% UFW 41 % Domestic Major Industrial Minor Industrial Agriculture UFW Latin America & Caribbean 64 % none 2% none 34 % Source: UWI************* Domestic Industry 19 % 10. 3 % Not available Agriculture 70. 7 % Not available 8

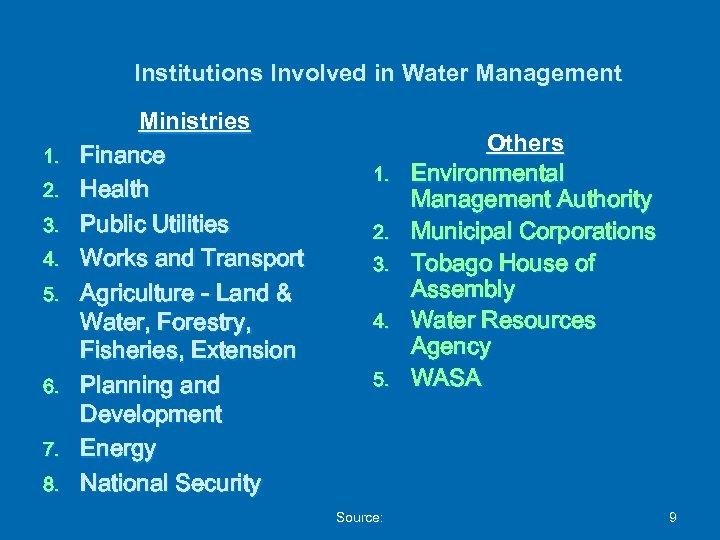

Institutions Involved in Water Management 1. 2. 3. 4. 5. 6. 7. 8. Ministries Finance Health Public Utilities Works and Transport Agriculture - Land & Water, Forestry, Fisheries, Extension Planning and Development Energy National Security 1. 2. 3. 4. 5. Source: Others Environmental Management Authority Municipal Corporations Tobago House of Assembly Water Resources Agency WASA 9

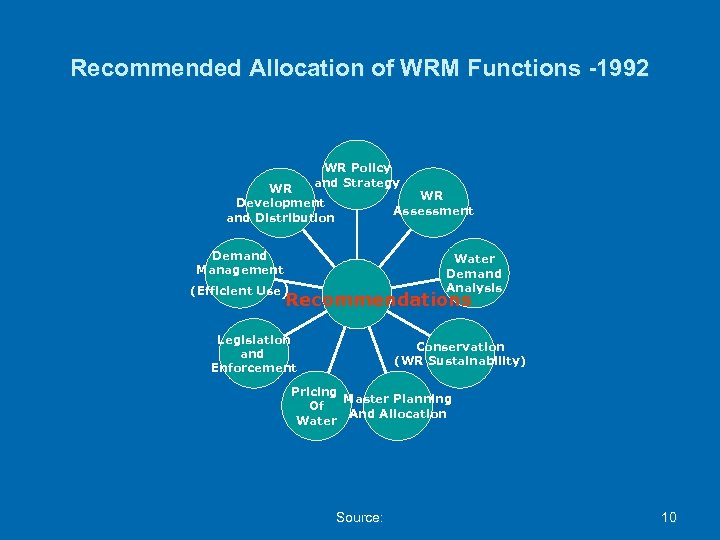

Recommended Allocation of WRM Functions -1992 WR Policy and Strategy WR Development and Distribution WR Assessment Demand Management Water Demand Analysis (Efficient Use) Recommendations Legislation and Enforcement Conservation (WR Sustainability) Pricing Master Planning Of And Allocation Water Source: 10

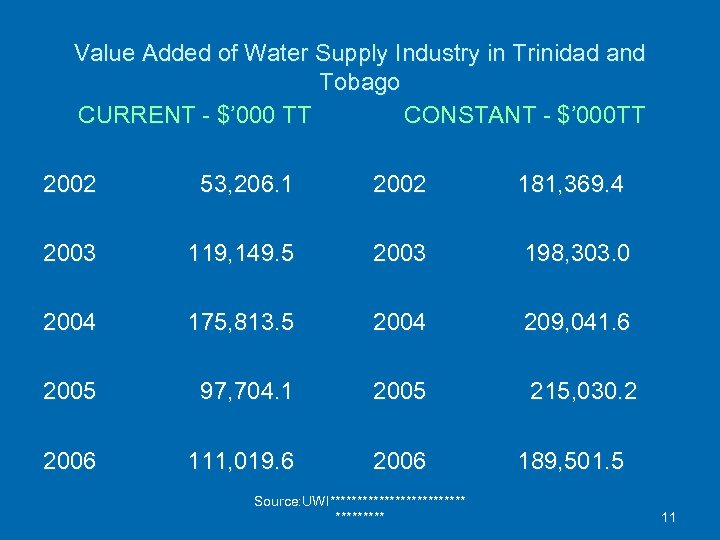

Value Added of Water Supply Industry in Trinidad and Tobago CURRENT - $’ 000 TT CONSTANT - $’ 000 TT 2002 53, 206. 1 2002 181, 369. 4 2003 119, 149. 5 2003 198, 303. 0 2004 175, 813. 5 2004 209, 041. 6 2005 97, 704. 1 2005 215, 030. 2 2006 111, 019. 6 2006 Source: UWI************* 189, 501. 5 11

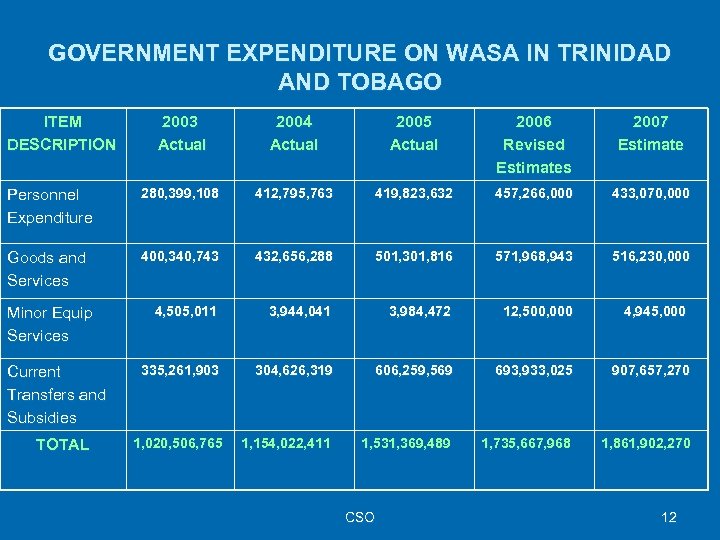

GOVERNMENT EXPENDITURE ON WASA IN TRINIDAD AND TOBAGO ITEM DESCRIPTION 2003 Actual 2004 Actual 2005 Actual 2006 Revised Estimates 2007 Estimate Personnel Expenditure 280, 399, 108 412, 795, 763 419, 823, 632 457, 266, 000 433, 070, 000 Goods and Services 400, 340, 743 432, 656, 288 501, 301, 816 571, 968, 943 516, 230, 000 4, 505, 011 3, 944, 041 3, 984, 472 12, 500, 000 4, 945, 000 335, 261, 903 304, 626, 319 606, 259, 569 693, 933, 025 907, 657, 270 1, 020, 506, 765 1, 154, 022, 411 1, 531, 369, 489 1, 735, 667, 968 1, 861, 902, 270 Minor Equip Services Current Transfers and Subsidies TOTAL CSO 12

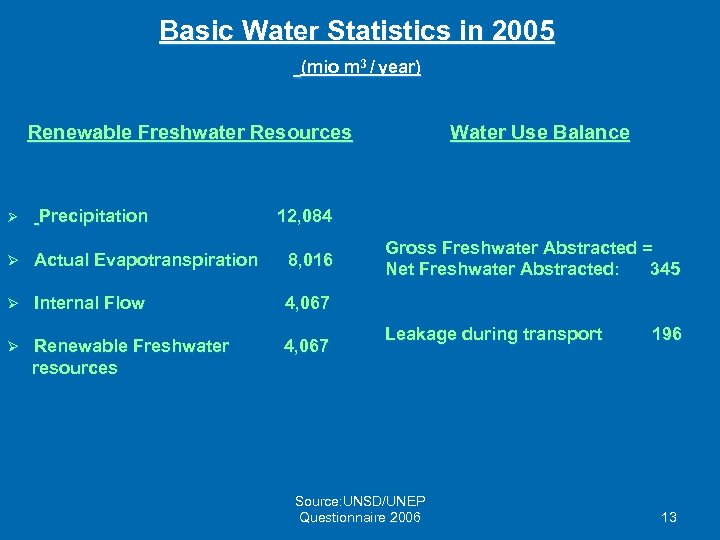

Basic Water Statistics in 2005 (mio m 3 / year) Renewable Freshwater Resources Ø Precipitation Water Use Balance 12, 084 Ø Actual Evapotranspiration 8, 016 Ø Internal Flow 4, 067 Ø Renewable Freshwater resources 4, 067 Gross Freshwater Abstracted = Net Freshwater Abstracted: 345 Leakage during transport Source: UNSD/UNEP Questionnaire 2006 196 13

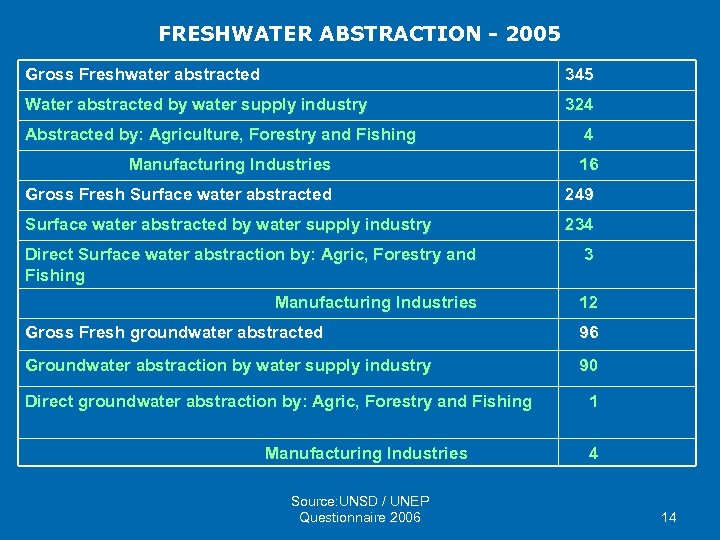

FRESHWATER ABSTRACTION - 2005 Gross Freshwater abstracted 345 Water abstracted by water supply industry 324 Abstracted by: Agriculture, Forestry and Fishing 4 Manufacturing Industries 16 Gross Fresh Surface water abstracted 249 Surface water abstracted by water supply industry 234 Direct Surface water abstraction by: Agric, Forestry and Fishing 3 Manufacturing Industries 12 Gross Fresh groundwater abstracted 96 Groundwater abstraction by water supply industry 90 Direct groundwater abstraction by: Agric, Forestry and Fishing Manufacturing Industries Source: UNSD / UNEP Questionnaire 2006 1 4 14

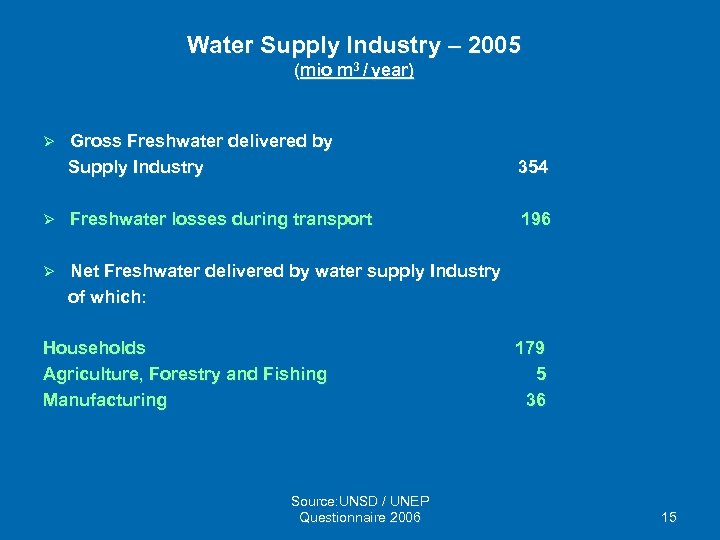

Water Supply Industry – 2005 (mio m 3 / year) Gross Freshwater delivered by Supply Industry 354 Ø Freshwater losses during transport 196 Ø Net Freshwater delivered by water supply Industry of which: Ø Households Agriculture, Forestry and Fishing Manufacturing Source: UNSD / UNEP Questionnaire 2006 179 5 36 15

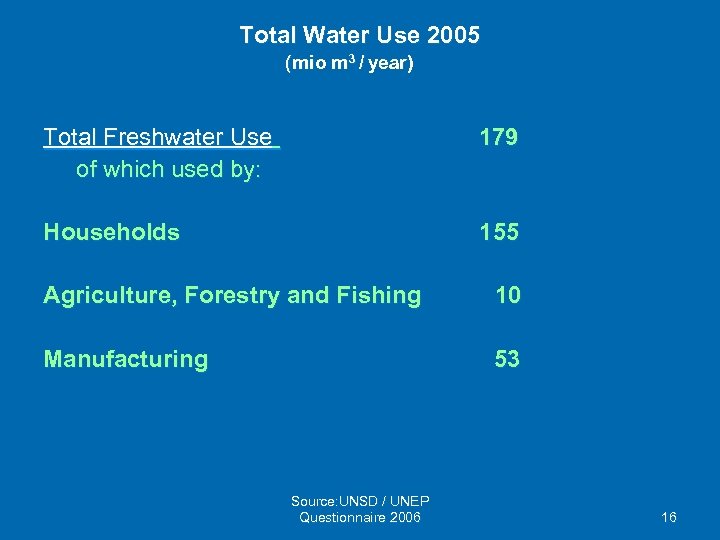

Total Water Use 2005 ( mio m 3 / year) Total Freshwater Use of which used by: 179 Households 155 Agriculture, Forestry and Fishing 10 Manufacturing 53 Source: UNSD / UNEP Questionnaire 2006 16
Water Production in Trinidad 1920 -2002 Source: WASA 17

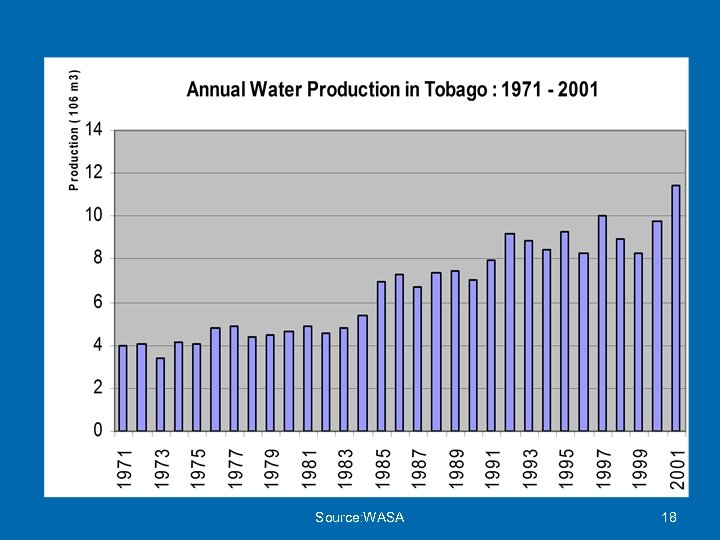

Source: WASA 18

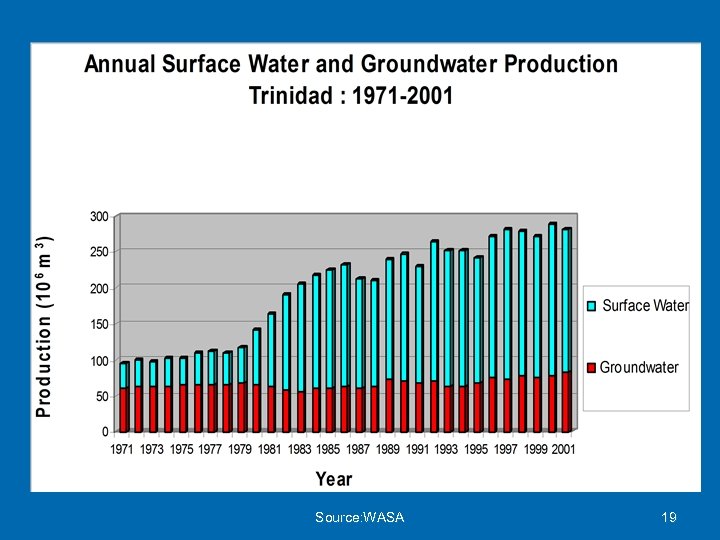

Source: WASA 19

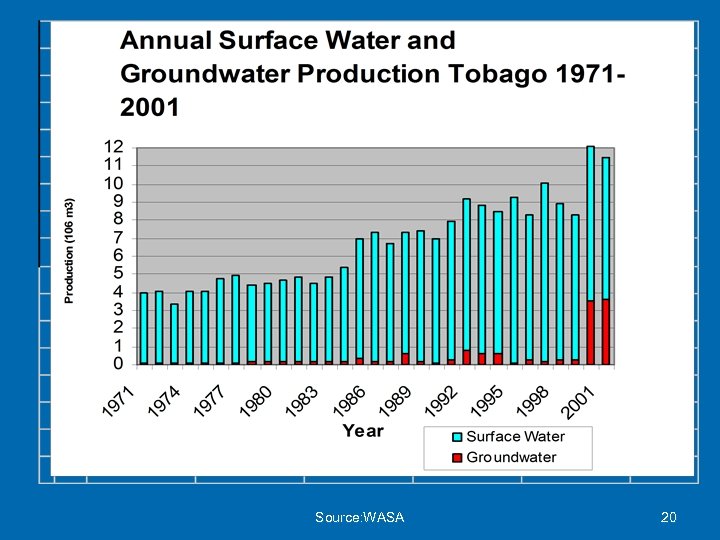

Source: WASA 20

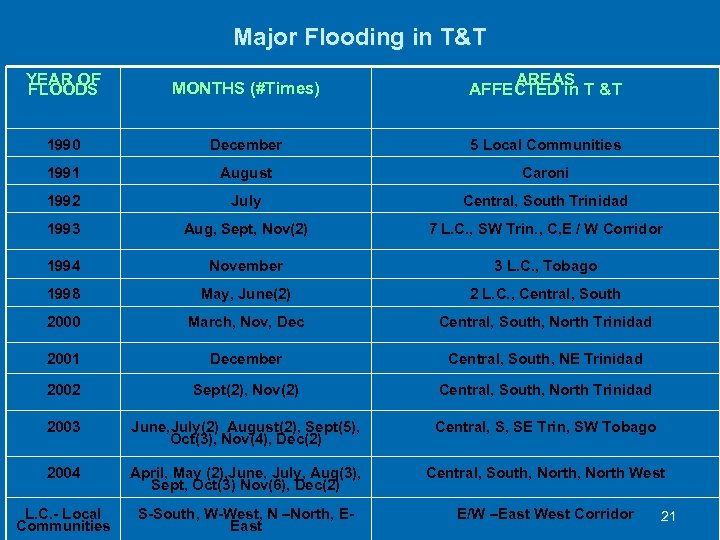

Major Flooding in T&T YEAR OF FLOODS MONTHS (#Times) AREAS AFFECTED in T &T 1990 December 5 Local Communities 1991 August Caroni 1992 July Central, South Trinidad 1993 Aug, Sept, Nov(2) 7 L. C. , SW Trin. , C, E / W Corridor 1994 November 3 L. C. , Tobago 1998 May, June(2) 2 L. C. , Central, South 2000 March, Nov, Dec Central, South, North Trinidad 2001 December Central, South, NE Trinidad 2002 Sept(2), Nov(2) Central, South, North Trinidad 2003 June, July(2) August(2), Sept(5), Oct(3), Nov(4), Dec(2) Central, S, SE Trin, SW Tobago 2004 April, May (2), June, July, Aug(3), Sept, Oct(3) Nov(6), Dec(2) Central, South, North West L. C. - Local Communities S-South, W-West, N –North, EEast E/W –East West Corridor 21

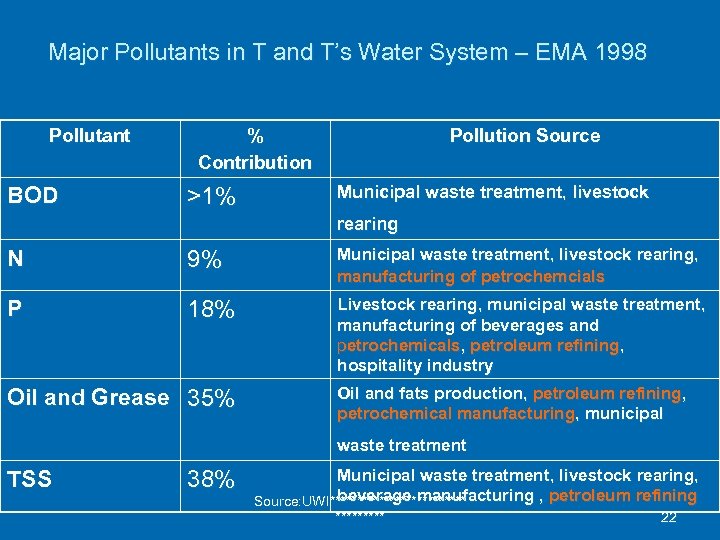

Major Pollutants in T and T’s Water System – EMA 1998 Pollutant BOD % Contribution >1% Pollution Source Municipal waste treatment, livestock rearing N 9% Municipal waste treatment, livestock rearing, manufacturing of petrochemcials P 18% Livestock rearing, municipal waste treatment, manufacturing of beverages and petrochemicals, petroleum refining, hospitality industry Oil and Grease 35% Oil and fats production, petroleum refining, petrochemical manufacturing, municipal waste treatment TSS 38% Municipal waste treatment, livestock rearing, beverage manufacturing , petroleum refining Source: UWI************* 22
Physio-Chemical Surface Water Quality in Trinidad Agri Commercial/ Industrial/Residential Swamp /Reservoir Grassland Forest Disturbed natural ecosystem Pitch Lake Clean Perturbed Polluted Water Intake or Extraction point Town Roads Source: University of the West Indies 23

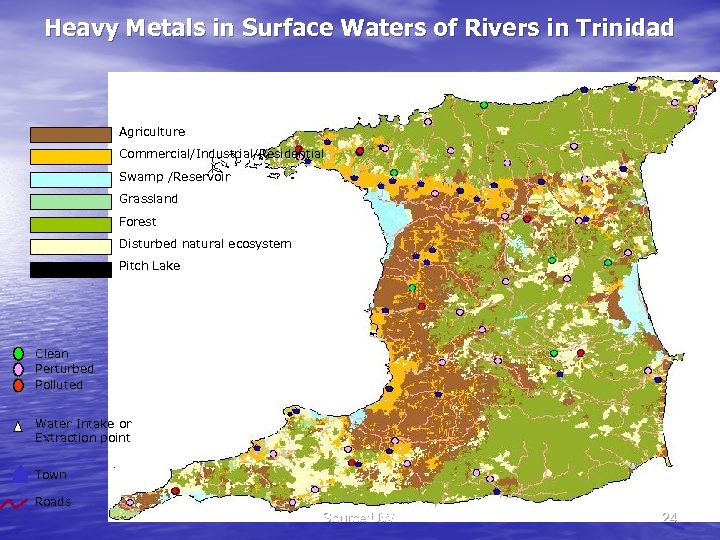

Heavy Metals in Surface Waters of Rivers in Trinidad Agriculture Commercial/Industrial/Residential Swamp /Reservoir Grassland Forest Disturbed natural ecosystem Pitch Lake Clean Perturbed Polluted Water Intake or Extraction point Town Roads Source: UWI 24

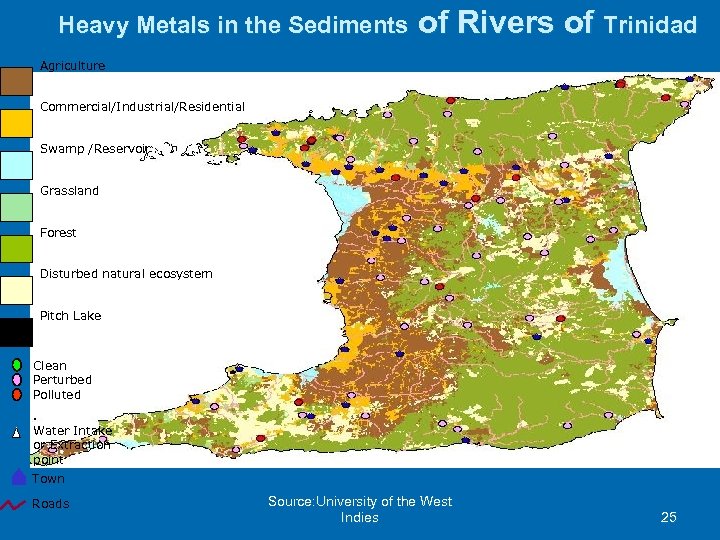

Heavy Metals in the Sediments of Rivers of Trinidad Agriculture Commercial/Industrial/Residential Swamp /Reservoir Grassland Forest Disturbed natural ecosystem Pitch Lake Clean Perturbed Polluted Water Intake or Extraction point Town Roads Source: University of the West Indies 25
AREA OF CONCERN ¡Source: An Assessment of the Vulnerability of Trinidad to Oil and hazardous Substance Spills ¡using an Environmental Vulnerability Index. -Austin J. G. M. S. c Thesis, University of the West Indies 2001 NAME of SITE RANK C Guapo Bay: Bleed Water from Crude Oil Tanks x Point Ligoure Main Storage(1 km River from Disposal Pit to the Sea) of Trinmar x Central Los Bajos x Palo Seco and Central Los Bajos Oilfields x Forest Reserve Main Storage and Forest Reserve Berstein Storage-Cocoa Catch in the Silver Stream RANK A x Point Fortin Main Storage RANK B x 26

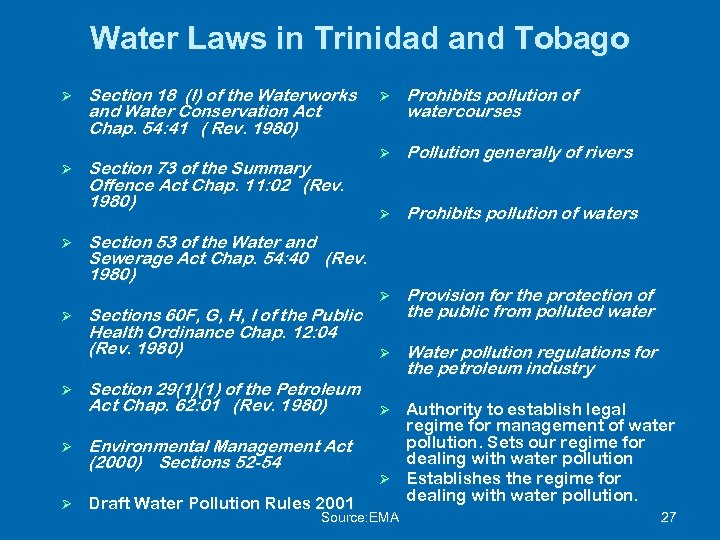

Water Laws in Trinidad and Tobago Ø Ø Ø Section 18 (I) of the Waterworks and Water Conservation Act Chap. 54: 41 ( Rev. 1980) Section 73 of the Summary Offence Act Chap. 11: 02 (Rev. 1980) Ø Prohibits pollution of watercourses Ø Pollution generally of rivers Ø Prohibits pollution of waters Ø Provision for the protection of the public from polluted water Ø Water pollution regulations for the petroleum industry Section 53 of the Water and Sewerage Act Chap. 54: 40 (Rev. 1980) Sections 60 F, G, H, I of the Public Health Ordinance Chap. 12: 04 (Rev. 1980) Section 29(1)(1) of the Petroleum Act Chap. 62: 01 (Rev. 1980) Ø Environmental Management Act (2000) Sections 52 -54 Ø Draft Water Pollution Rules 2001 Authority to establish legal regime for management of water pollution. Sets our regime for dealing with water pollution Ø Establishes the regime for dealing with water pollution. Ø Source: EMA 27

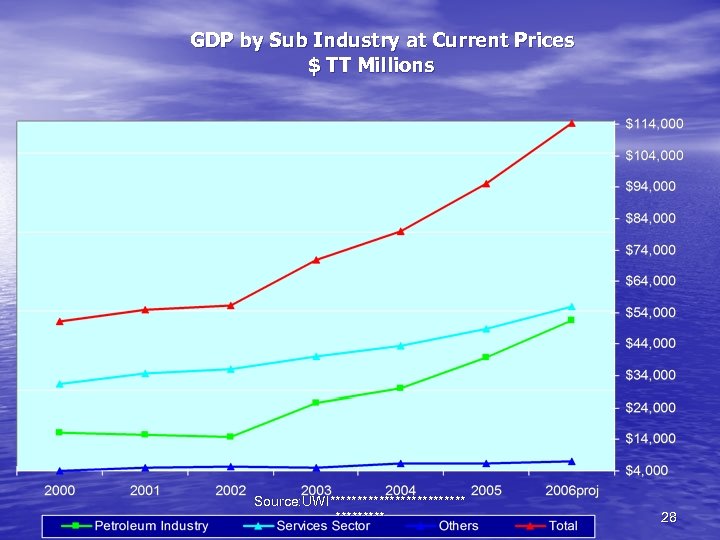

GDP by Sub Industry at Current Prices $ TT Millions Source: UWI************* 28
Real GDP by Sub - Industry ($TT Millions) Source: UWI************* 29

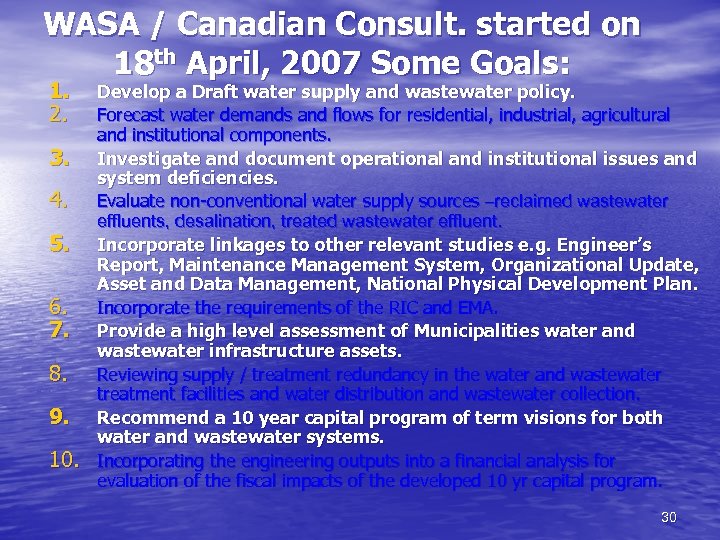

WASA / Canadian Consult. started on 18 th April, 2007 Some Goals: 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Develop a Draft water supply and wastewater policy. Forecast water demands and flows for residential, industrial, agricultural and institutional components. Investigate and document operational and institutional issues and system deficiencies. Evaluate non-conventional water supply sources –reclaimed wastewater effluents, desalination, treated wastewater effluent. Incorporate linkages to other relevant studies e. g. Engineer’s Report, Maintenance Management System, Organizational Update, Asset and Data Management, National Physical Development Plan. Incorporate the requirements of the RIC and EMA. Provide a high level assessment of Municipalities water and wastewater infrastructure assets. Reviewing supply / treatment redundancy in the water and wastewater treatment facilities and water distribution and wastewater collection. Recommend a 10 year capital program of term visions for both water and wastewater systems. Incorporating the engineering outputs into a financial analysis for evaluation of the fiscal impacts of the developed 10 yr capital program. 30
Sources of Information • Central Statistical Office –National Income, Economic Statistics, • • • CSSP, Environmental Stakeholders Meetings Water and Sewage Authority; Public Consultation meeting Water Resources Agency FAO WATER at a glance Meteorological Office – T &T University of the West Indies, St Augustine, M. Sc Thesis, CLEAR maps International Institute for Applied Systems Analysis, Austria; Integrated Water Resource Management in T&T, Sharda Maharaj EMA-Pollutant Inventory Study, Legal Department Report of the Sub-Committee on the Environment-Ministry of Planning and Development Atlantic LNG –Photo on Slide 1 Photos: Satee Boodoo – June 2007 –Slides 7, Slide 22 31
THE END YOU NEVER MISS THE WATER T’ILL THE WELL RUNS DRY Source: Old English Proverb 32
