TLS Webinar Safeguarding Our Email Via TLS Presented by: Jim Rogers, Director of Distribution Technology, The Hartford Tim Woodcock, President, Courtesy Computers Jeff Yates, Executive Director, Agents Council for Technology 1

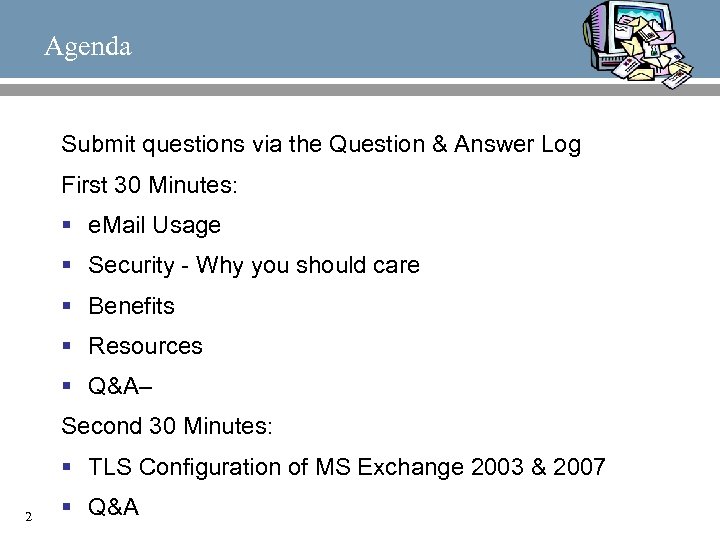

Agenda Submit questions via the Question & Answer Log First 30 Minutes: § e. Mail Usage § Security - Why you should care § Benefits § Resources § Q&A– Second 30 Minutes: § TLS Configuration of MS Exchange 2003 & 2007 2 § Q&A

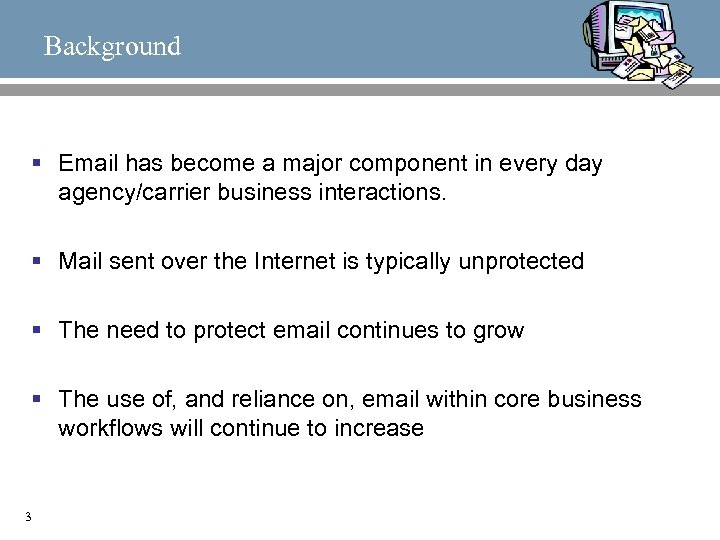

Background § Email has become a major component in every day agency/carrier business interactions. § Mail sent over the Internet is typically unprotected § The need to protect email continues to grow § The use of, and reliance on, email within core business workflows will continue to increase 3

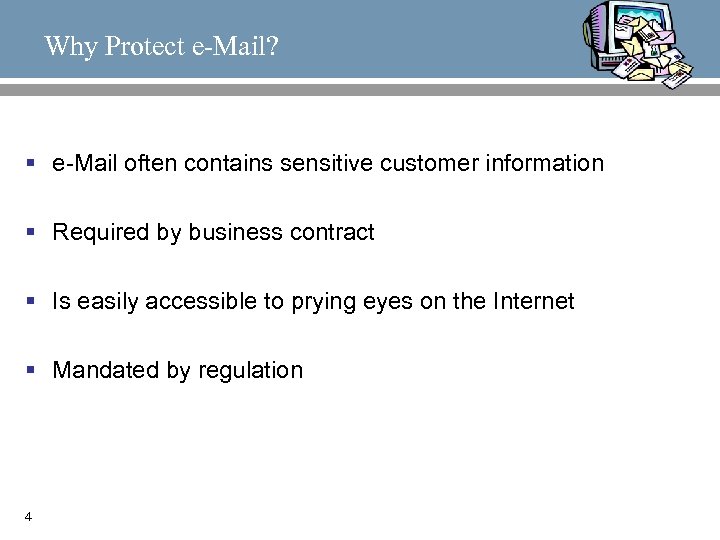

Why Protect e-Mail? § e-Mail often contains sensitive customer information § Required by business contract § Is easily accessible to prying eyes on the Internet § Mandated by regulation 4

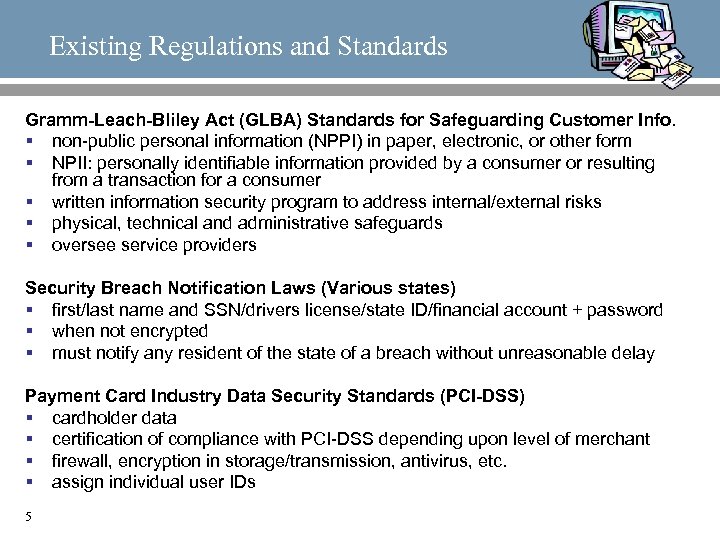

Existing Regulations and Standards Gramm-Leach-Bliley Act (GLBA) Standards for Safeguarding Customer Info. § non-public personal information (NPPI) in paper, electronic, or other form § NPII: personally identifiable information provided by a consumer or resulting from a transaction for a consumer § written information security program to address internal/external risks § physical, technical and administrative safeguards § oversee service providers Security Breach Notification Laws (Various states) § first/last name and SSN/drivers license/state ID/financial account + password § when not encrypted § must notify any resident of the state of a breach without unreasonable delay Payment Card Industry Data Security Standards (PCI-DSS) § cardholder data § certification of compliance with PCI-DSS depending upon level of merchant § firewall, encryption in storage/transmission, antivirus, etc. § assign individual user IDs 5

Recent Regulatory Developments Nevada 597. 970 “Restrictions on transfer of personal information through electronic transmission” Massachusetts 201 CMR 17. 00 “Standards for The Protection of Personal Information of Residents of the Commonwealth” California Department of Motor Vehicles “On-Line DMV Special Permit Program” Ohio Department of Insurance Proposed Rule 3901 -1 -66 “Breach of Security Reporting Requirements” 6

TLS: Transport Layer Security § Provides secure e-Mail communications across the Internet through a standardized, secure, and non-proprietary mechanism § Eliminates the “drawbacks” that plague the commonly used tools and services § Is built-in to most modern e-Mail systems and just needs to be “turned on” by your technology professional 7

How Does TLS Work ? § At transmission time, TLS creates an encrypted communication session between email servers § The e-Mail is then sent through a protected “tunnel” § The servers de-crypt the message and send it along to the client Encrypted Agency Partner Client 8 Carrier Client

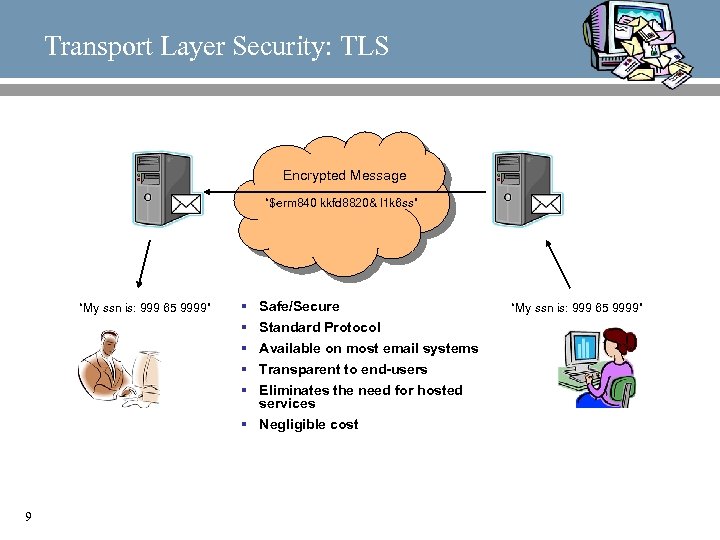

Transport Layer Security: TLS Encrypted Message “$erm 840 kkfd 8820& l 1 k 6 ss” “My ssn is: 999 65 9999” § § § Safe/Secure Standard Protocol Available on most email systems Transparent to end-users Eliminates the need for hosted services § Negligible cost 9 “My ssn is: 999 65 9999”

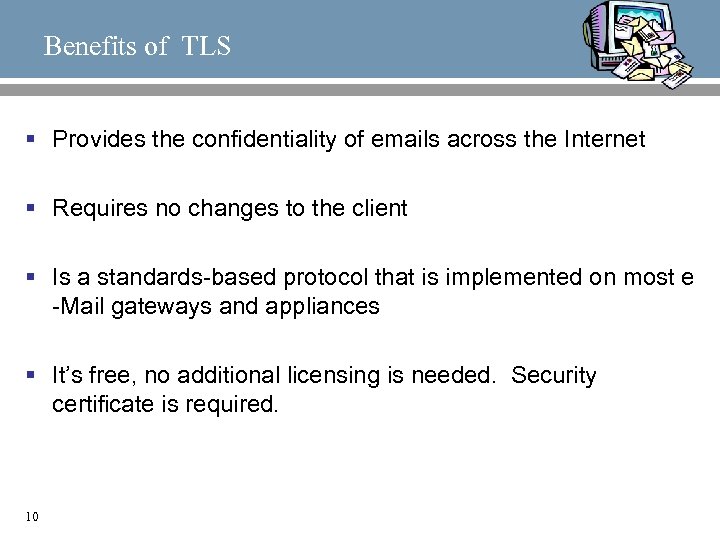

Benefits of TLS § Provides the confidentiality of emails across the Internet § Requires no changes to the client § Is a standards-based protocol that is implemented on most e -Mail gateways and appliances § It’s free, no additional licensing is needed. Security certificate is required. 10

How Do I Get TLS ? § TLS is a standards-based protocol enabled on most serverbased email systems § Talk with your system support staff or e-Mail service provider § Most agencies that have an up-to-date in-house mail server are TLS capable. Agencies with a hosted Microsoft Exchange server are TLS capable. Those with hosted email using hotmail, gmail, and yahoo are not currently TLS capable 11

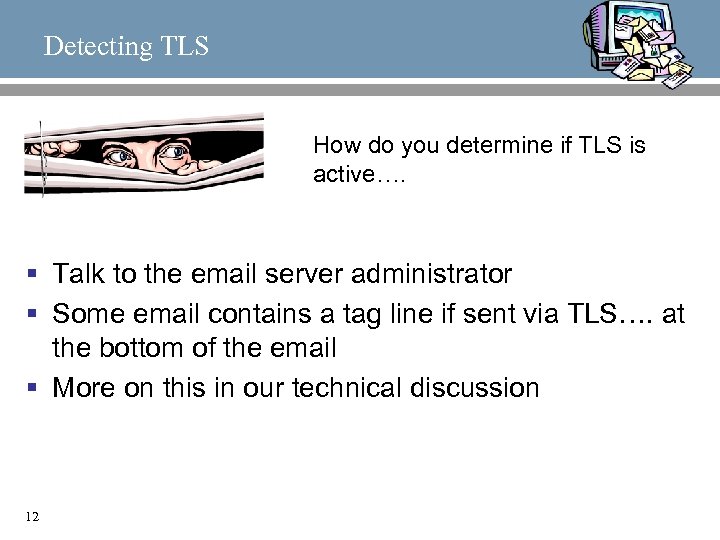

Detecting TLS How do you determine if TLS is active…. § Talk to the email server administrator § Some email contains a tag line if sent via TLS…. at the bottom of the email § More on this in our technical discussion 12

Carriers supporting TLS § § § § Allied/Nationwide Chubb Cincinnati CNA EMC Harleysville The Hartford, Liberty Agency Markets Met. Life – Met. Life Auto & Home One. Beacon Progressive Summit Holdings Travelers Westfield W. R. Berkley Companies Note: for updated list of carriers supporting TLS see “Agency Security” Section of www. independentagent. com/act or ask you carrier 13

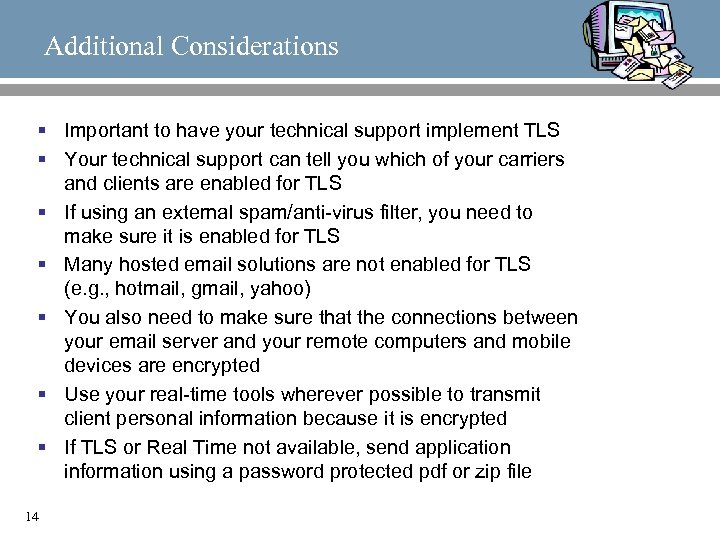

Additional Considerations § Important to have your technical support implement TLS § Your technical support can tell you which of your carriers and clients are enabled for TLS § If using an external spam/anti-virus filter, you need to make sure it is enabled for TLS § Many hosted email solutions are not enabled for TLS (e. g. , hotmail, gmail, yahoo) § You also need to make sure that the connections between your email server and your remote computers and mobile devices are encrypted § Use your real-time tools wherever possible to transmit client personal information because it is encrypted § If TLS or Real Time not available, send application information using a password protected pdf or zip file 14

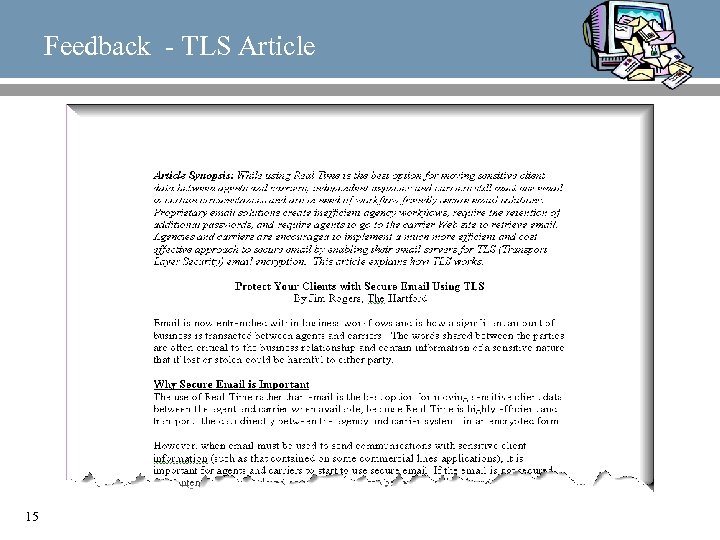

Feedback - TLS Article 15

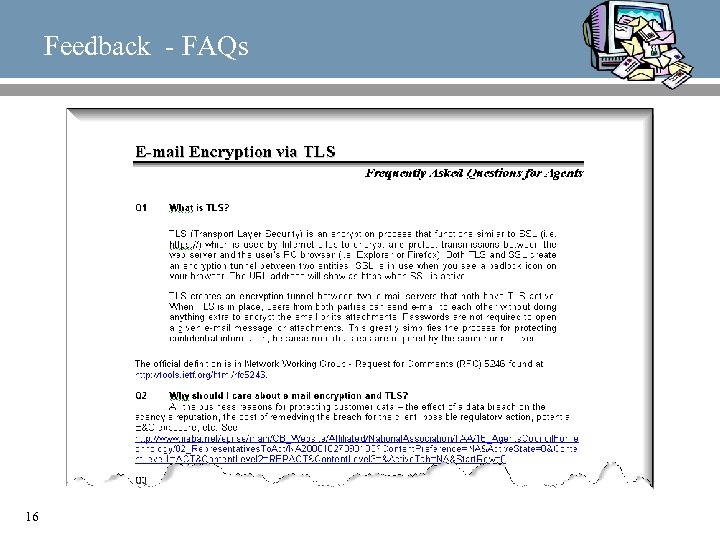

Feedback - FAQs 16

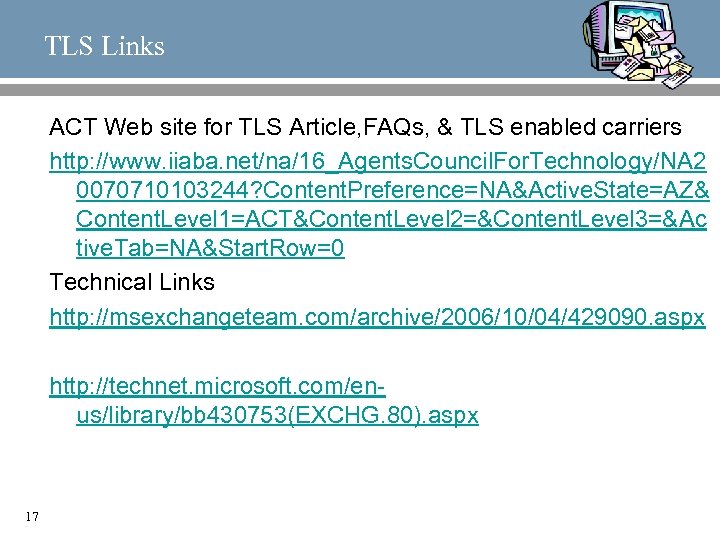

TLS Links ACT Web site for TLS Article, FAQs, & TLS enabled carriers http: //www. iiaba. net/na/16_Agents. Council. For. Technology/NA 2 0070710103244? Content. Preference=NA&Active. State=AZ& Content. Level 1=ACT&Content. Level 2=&Content. Level 3=&Ac tive. Tab=NA&Start. Row=0 Technical Links http: //msexchangeteam. com/archive/2006/10/04/429090. aspx http: //technet. microsoft. com/enus/library/bb 430753(EXCHG. 80). aspx 17

Questions so far ? ? ? 18

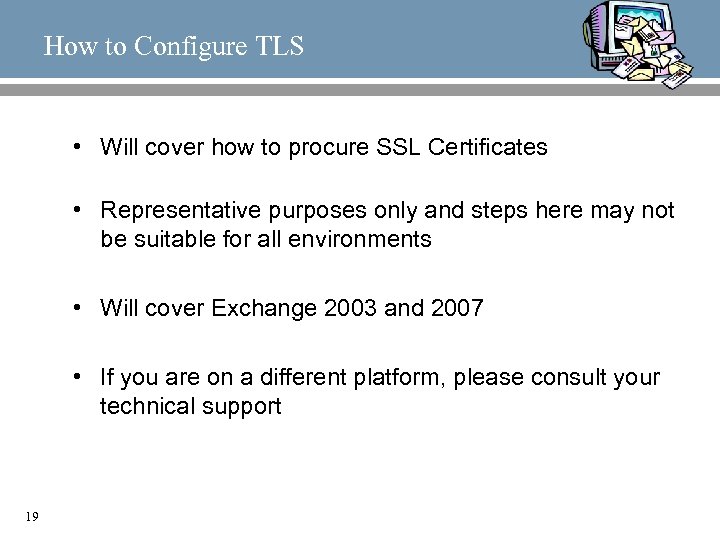

How to Configure TLS • Will cover how to procure SSL Certificates • Representative purposes only and steps here may not be suitable for all environments • Will cover Exchange 2003 and 2007 • If you are on a different platform, please consult your technical support 19

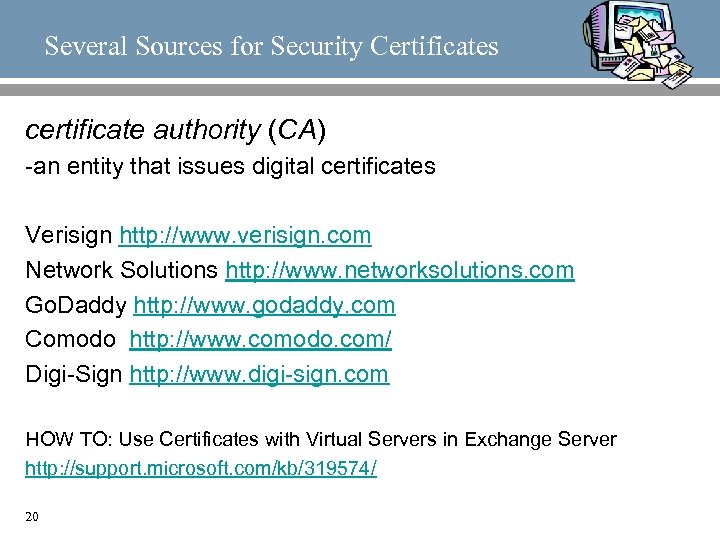

Several Sources for Security Certificates certificate authority (CA) -an entity that issues digital certificates Verisign http: //www. verisign. com Network Solutions http: //www. networksolutions. com Go. Daddy http: //www. godaddy. com Comodo http: //www. comodo. com/ Digi-Sign http: //www. digi-sign. com HOW TO: Use Certificates with Virtual Servers in Exchange Server http: //support. microsoft. com/kb/319574/ 20

Windows. ITPro MS Exchange Server Poll 21

Difference between Exchange 2003 & 2007 Exchange 2003 • • requires a valid X. 509 server certificate (suitable for TLS usage) DOES NOT support ‘Opportunistic TLS’ Requires to manually configure TLS (minimum 6 steps) Difficult to monitor TLS transmit-receive success/failures Exchange 2007 • • requires a valid X. 509 server certificate (suitable for TLS usage) ‘Opportunistic TLS is automatically enabled (by default) Easy to monitor TLS transmit-receive success/failures Greater Message Control with Robust ‘Transport Rules’ Features • Block, Bounce, Copy, append, Send to Archive, Quarantine 22

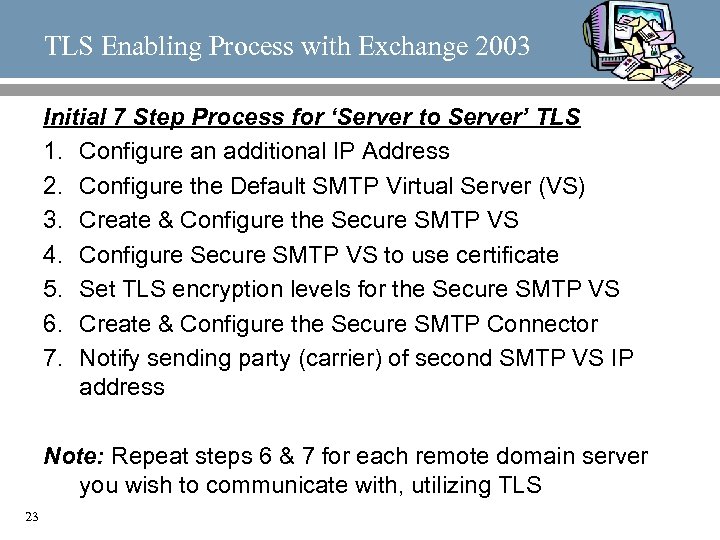

TLS Enabling Process with Exchange 2003 Initial 7 Step Process for ‘Server to Server’ TLS 1. Configure an additional IP Address 2. Configure the Default SMTP Virtual Server (VS) 3. Create & Configure the Secure SMTP VS 4. Configure Secure SMTP VS to use certificate 5. Set TLS encryption levels for the Secure SMTP VS 6. Create & Configure the Secure SMTP Connector 7. Notify sending party (carrier) of second SMTP VS IP address Note: Repeat steps 6 & 7 for each remote domain server you wish to communicate with, utilizing TLS 23

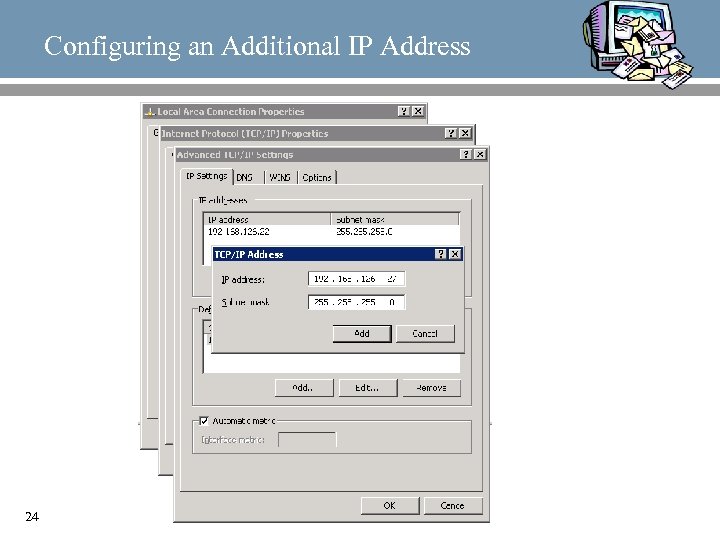

Configuring an Additional IP Address 24

Configuring the Default SMTP VS 25

Creating and Configuring the Secure SMTP VS 26

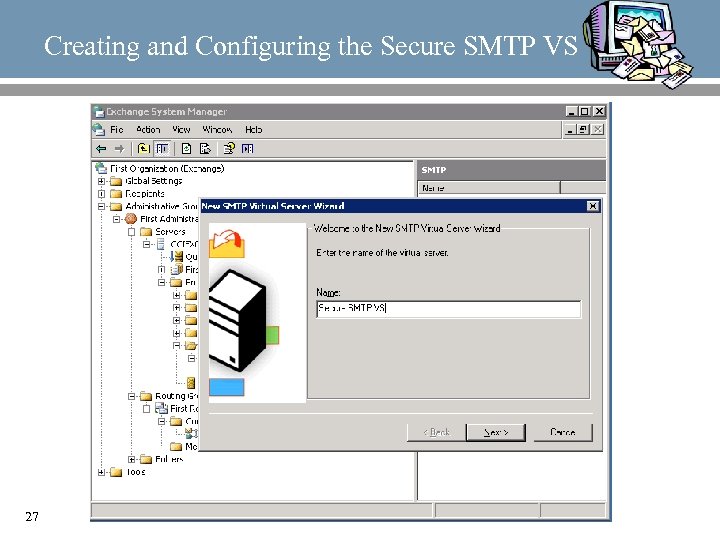

Creating and Configuring the Secure SMTP VS 27

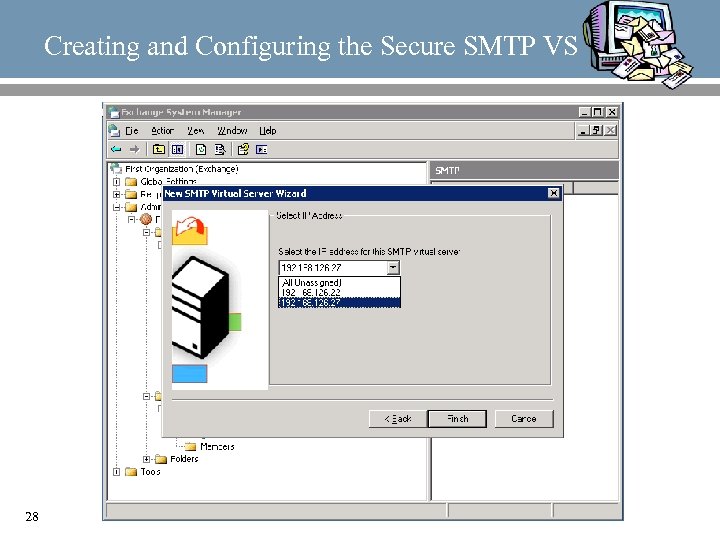

Creating and Configuring the Secure SMTP VS 28

Configure Secure SMTP VS to use a certificate 29

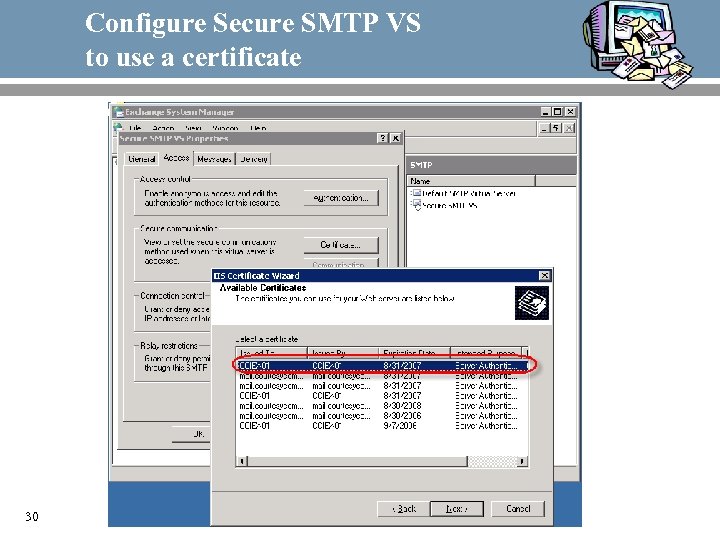

Configure Secure SMTP VS to use a certificate 30

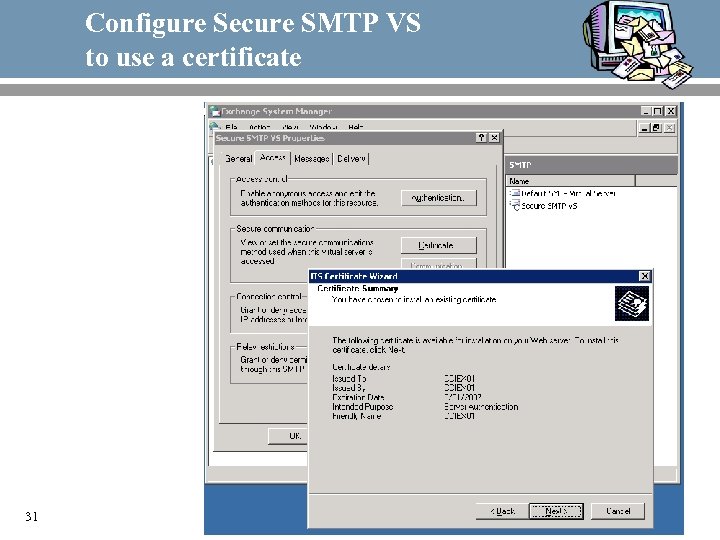

Configure Secure SMTP VS to use a certificate 31

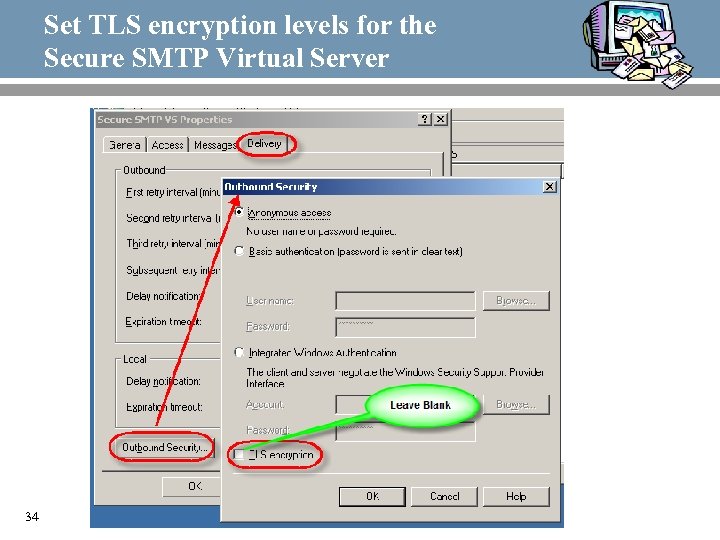

Set TLS encryption levels for the Secure SMTP Virtual Server 32

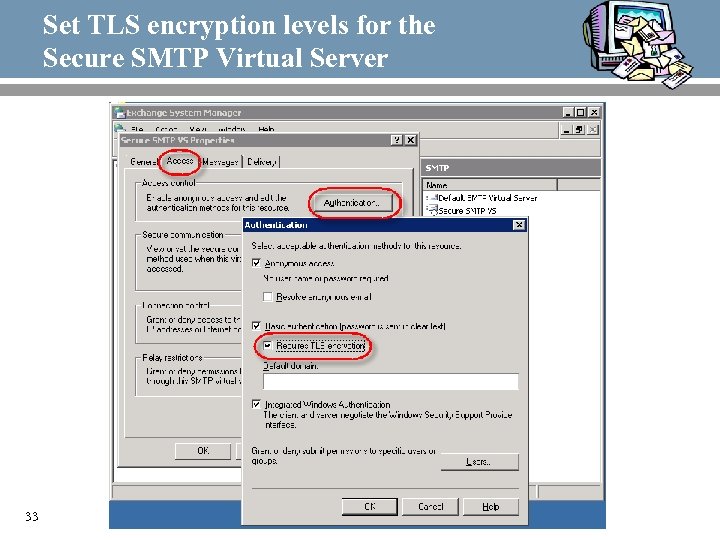

Set TLS encryption levels for the Secure SMTP Virtual Server 33

Set TLS encryption levels for the Secure SMTP Virtual Server 34

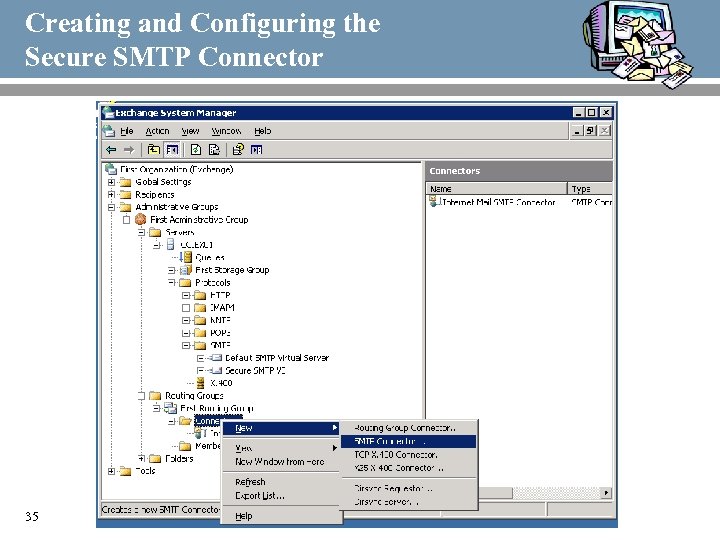

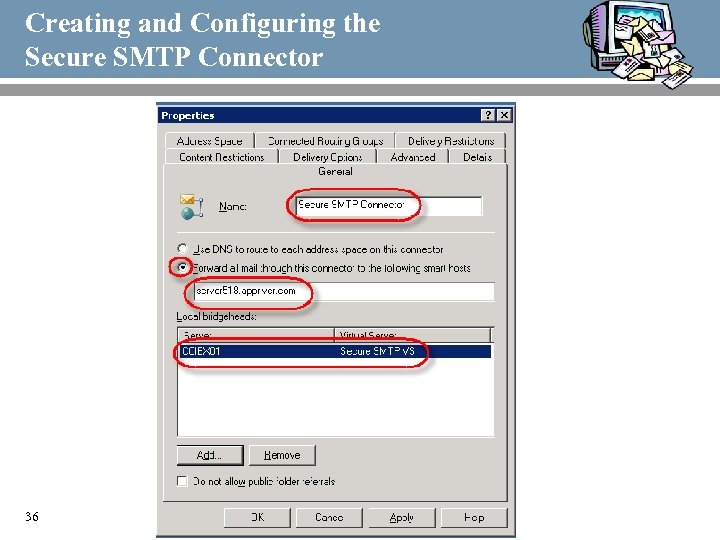

Creating and Configuring the Secure SMTP Connector 35

Creating and Configuring the Secure SMTP Connector 36

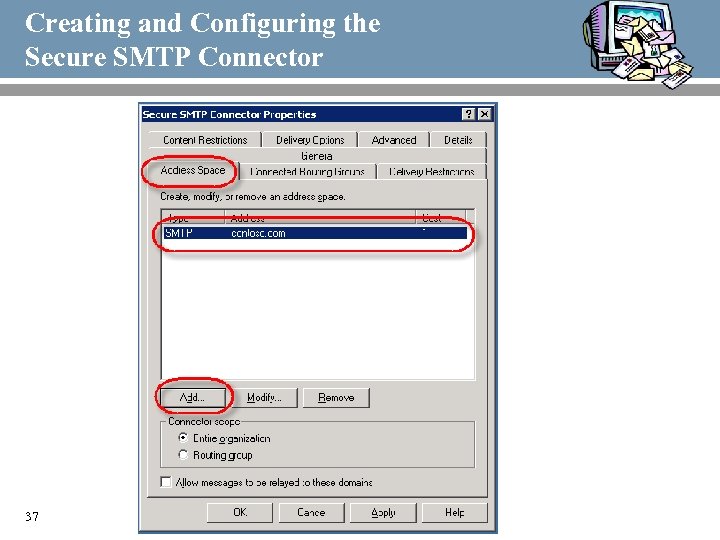

Creating and Configuring the Secure SMTP Connector 37

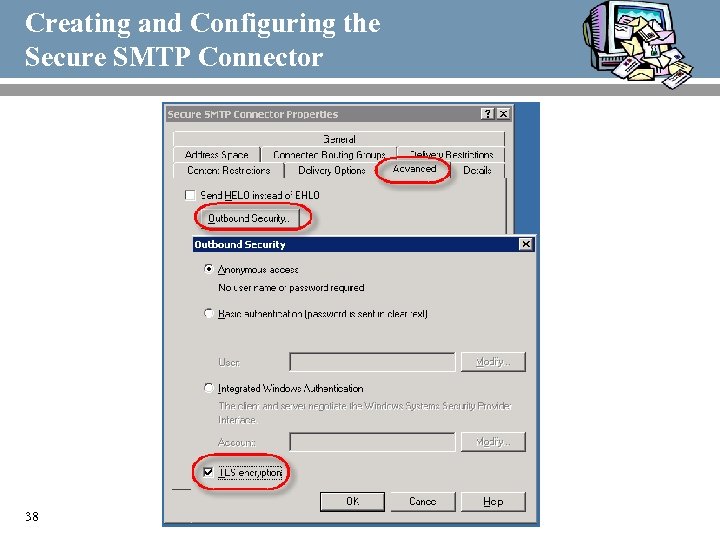

Creating and Configuring the Secure SMTP Connector 38

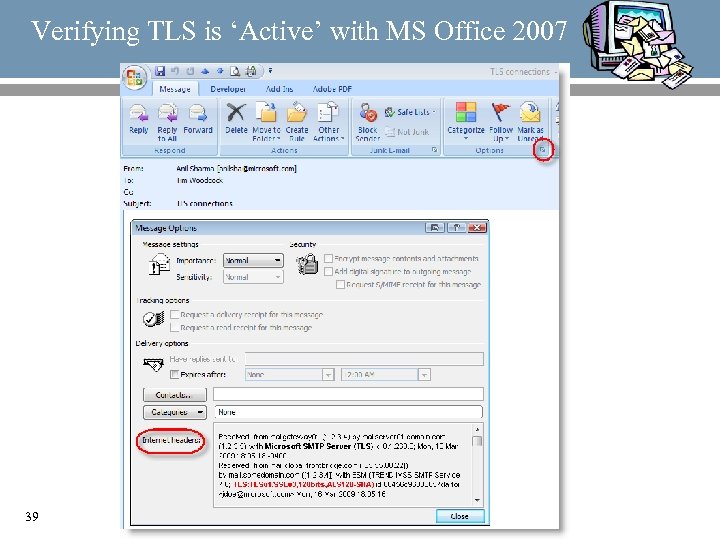

Verifying TLS is ‘Active’ with MS Office 2007 39

Questions 40

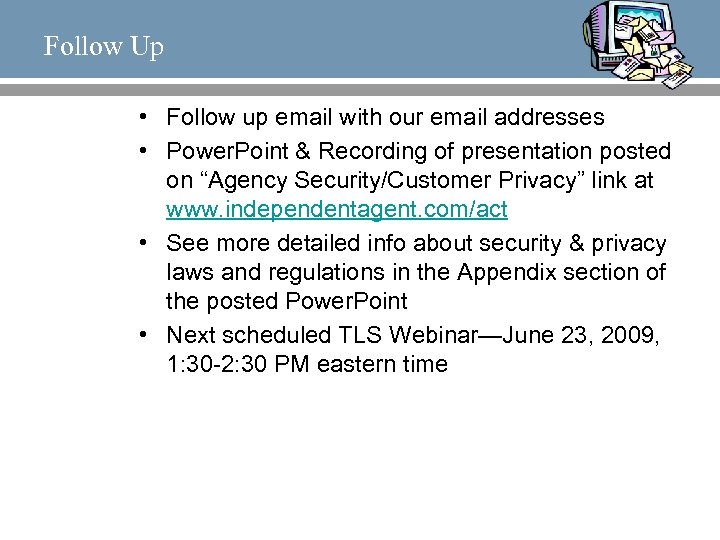

Follow Up • Follow up email with our email addresses • Power. Point & Recording of presentation posted on “Agency Security/Customer Privacy” link at www. independentagent. com/act • See more detailed info about security & privacy laws and regulations in the Appendix section of the posted Power. Point • Next scheduled TLS Webinar—June 23, 2009, 1: 30 -2: 30 PM eastern time

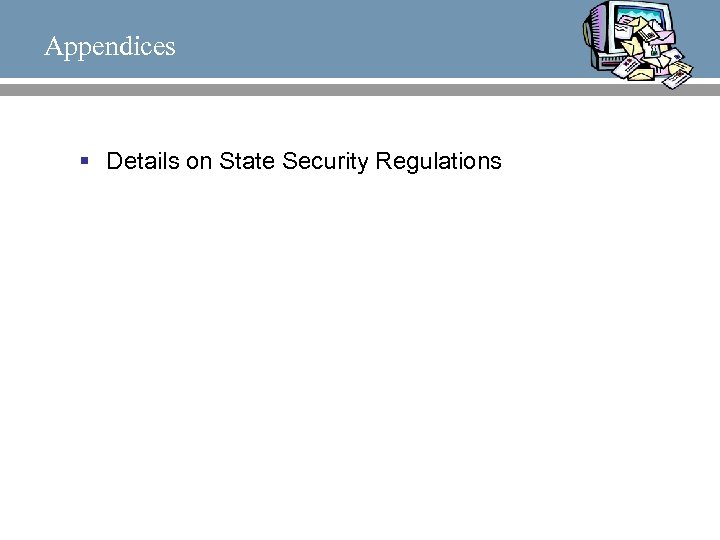

Appendices § Details on State Security Regulations

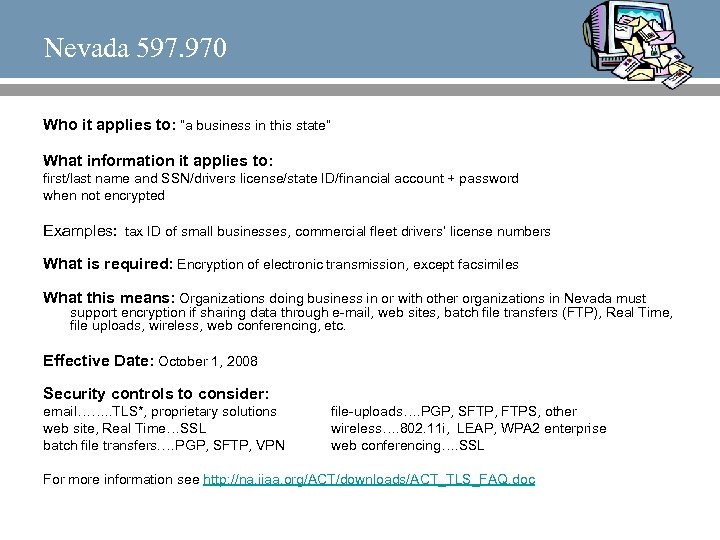

Nevada 597. 970 Who it applies to: “a business in this state” What information it applies to: first/last name and SSN/drivers license/state ID/financial account + password when not encrypted Examples: tax ID of small businesses, commercial fleet drivers’ license numbers What is required: Encryption of electronic transmission, except facsimiles What this means: Organizations doing business in or with other organizations in Nevada must support encryption if sharing data through e-mail, web sites, batch file transfers (FTP), Real Time, file uploads, wireless, web conferencing, etc. Effective Date: October 1, 2008 Security controls to consider: email……. . TLS*, proprietary solutions web site, Real Time…SSL batch file transfers. …PGP, SFTP, VPN file-uploads…. PGP, SFTP, FTPS, other wireless…. 802. 11 i, LEAP, WPA 2 enterprise web conferencing…. SSL For more information see http: //na. iiaa. org/ACT/downloads/ACT_TLS_FAQ. doc

Massachusetts 201 CMR 17. 00 Who it applies to: all “entities” that own, license, store or maintain personal information about a resident of Massachusetts What information it applies to: first/last name + SSN/drivers license/state ID/financial account - password when not encrypted of any resident of the state Examples: Insureds, claimants, employees Applications for insurance, claims, premium payments, claim payments, personnel records, etc. What is required: • • Designating someone to maintain a comprehensive written security program Assessing internal and external risks to electronic and paper records Imposing disciplinary measures for violations of the security program Other common elements of a security program: monitoring, updating safeguards, annual review of program, etc.

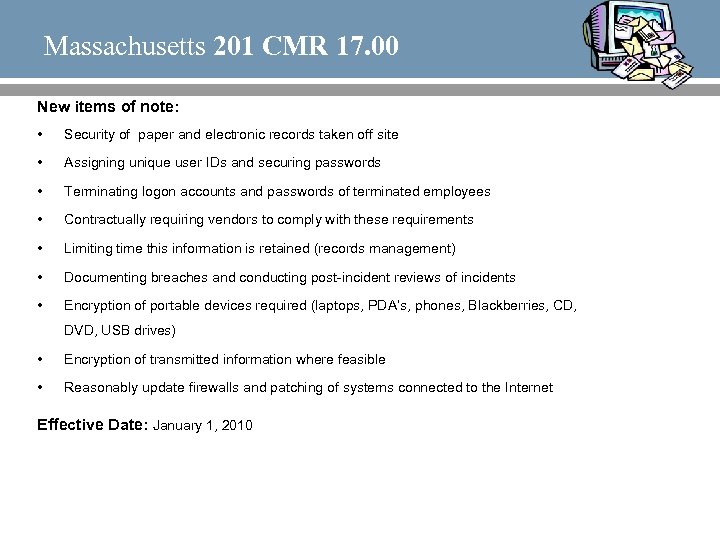

Massachusetts 201 CMR 17. 00 New items of note: • Security of paper and electronic records taken off site • Assigning unique user IDs and securing passwords • Terminating logon accounts and passwords of terminated employees • Contractually requiring vendors to comply with these requirements • Limiting time this information is retained (records management) • Documenting breaches and conducting post-incident reviews of incidents • Encryption of portable devices required (laptops, PDA’s, phones, Blackberries, CD, DVD, USB drives) • Encryption of transmitted information where feasible • Reasonably update firewalls and patching of systems connected to the Internet Effective Date: January 1, 2010

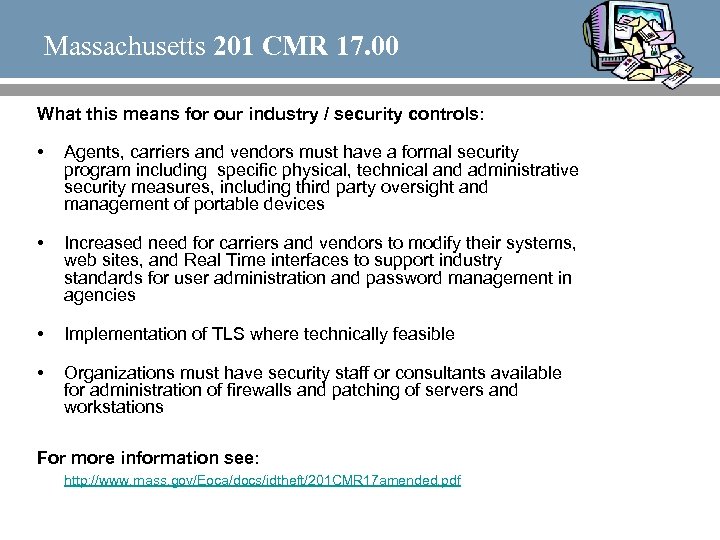

Massachusetts 201 CMR 17. 00 What this means for our industry / security controls: • Agents, carriers and vendors must have a formal security program including specific physical, technical and administrative security measures, including third party oversight and management of portable devices • Increased need for carriers and vendors to modify their systems, web sites, and Real Time interfaces to support industry standards for user administration and password management in agencies • Implementation of TLS where technically feasible • Organizations must have security staff or consultants available for administration of firewalls and patching of servers and workstations For more information see: http: //www. mass. gov/Eoca/docs/idtheft/201 CMR 17 amended. pdf

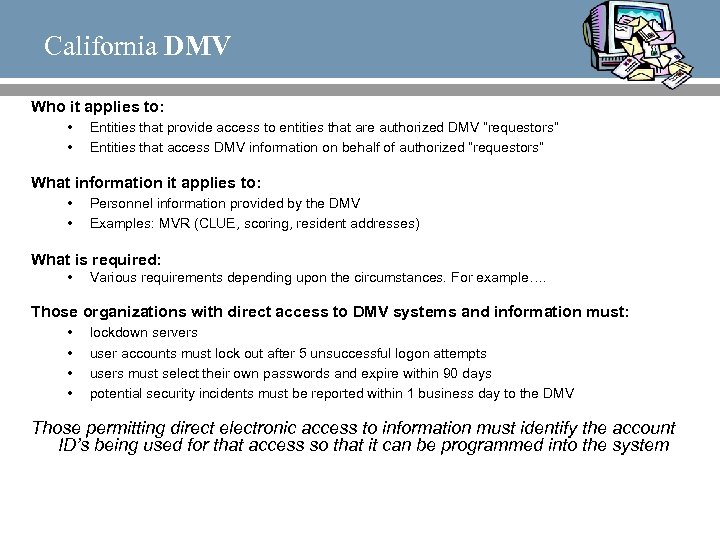

California DMV Who it applies to: • • Entities that provide access to entities that are authorized DMV “requestors” Entities that access DMV information on behalf of authorized “requestors” What information it applies to: • • Personnel information provided by the DMV Examples: MVR (CLUE, scoring, resident addresses) What is required: • Various requirements depending upon the circumstances. For example…. Those organizations with direct access to DMV systems and information must: • • lockdown servers user accounts must lock out after 5 unsuccessful logon attempts users must select their own passwords and expire within 90 days potential security incidents must be reported within 1 business day to the DMV Those permitting direct electronic access to information must identify the account ID’s being used for that access so that it can be programmed into the system

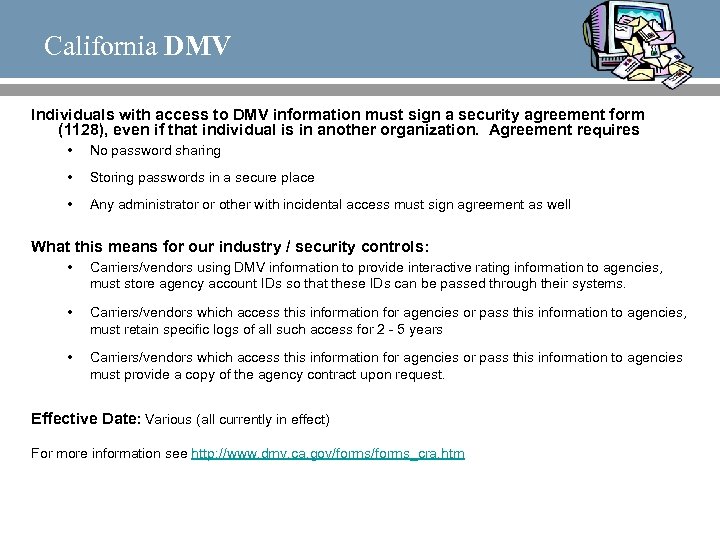

California DMV Individuals with access to DMV information must sign a security agreement form (1128), even if that individual is in another organization. Agreement requires • No password sharing • Storing passwords in a secure place • Any administrator or other with incidental access must sign agreement as well What this means for our industry / security controls: • Carriers/vendors using DMV information to provide interactive rating information to agencies, must store agency account IDs so that these IDs can be passed through their systems. • Carriers/vendors which access this information for agencies or pass this information to agencies, must retain specific logs of all such access for 2 - 5 years • Carriers/vendors which access this information for agencies or pass this information to agencies must provide a copy of the agency contract upon request. Effective Date: Various (all currently in effect) For more information see http: //www. dmv. ca. gov/forms_cra. htm

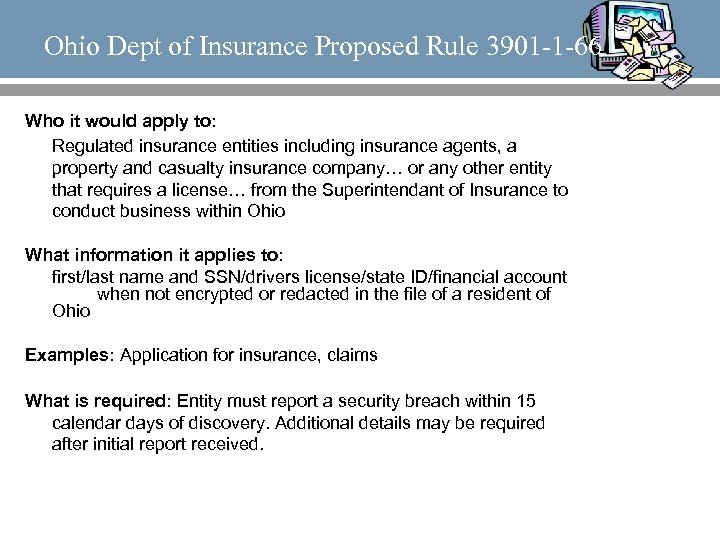

Ohio Dept of Insurance Proposed Rule 3901 -1 -66 Who it would apply to: Regulated insurance entities including insurance agents, a property and casualty insurance company… or any other entity that requires a license… from the Superintendant of Insurance to conduct business within Ohio What information it applies to: first/last name and SSN/drivers license/state ID/financial account when not encrypted or redacted in the file of a resident of Ohio Examples: Application for insurance, claims What is required: Entity must report a security breach within 15 calendar days of discovery. Additional details may be required after initial report received.

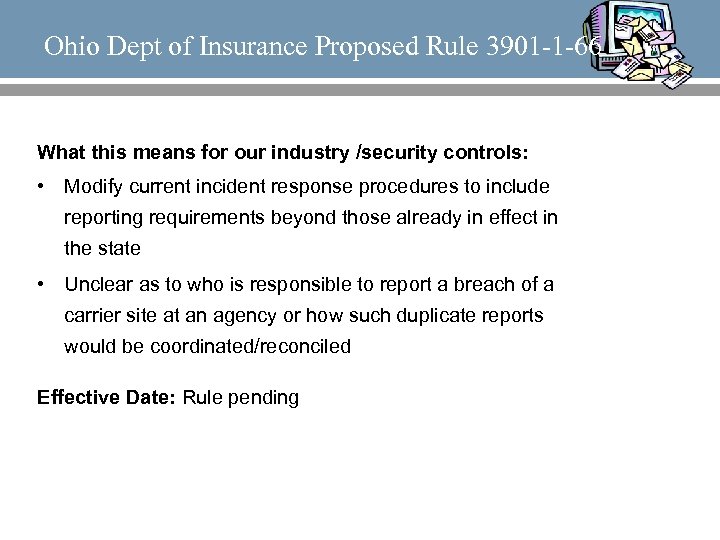

Ohio Dept of Insurance Proposed Rule 3901 -1 -66 What this means for our industry /security controls: • Modify current incident response procedures to include reporting requirements beyond those already in effect in the state • Unclear as to who is responsible to report a breach of a carrier site at an agency or how such duplicate reports would be coordinated/reconciled Effective Date: Rule pending
