Meridian 1 System & Applications Overview
Meridian 1 Systems • Seamless Growth From 16 to 16, 000 Ports • Comprehensive Suite of Software Features • Hundreds of Available Features • Powerful Networking Features • Rich Call Center Applications • Wide Range of Desktop Products • Wired/Wireless • Computer Telephony • Unified Messaging • Integrated Voice, Fax, E-mail • Advanced System Administration Tools Presentation name - 2

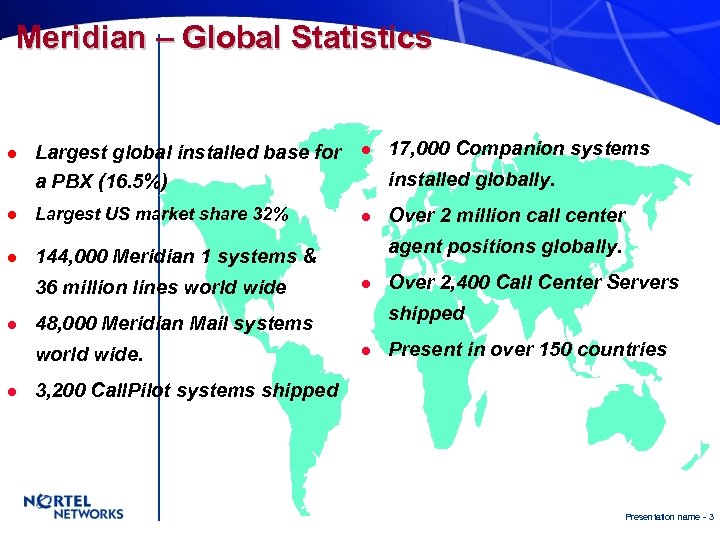

Meridian – Global Statistics Largest global installed base for a PBX (16. 5%) l l Largest US market share 32% l l 144, 000 Meridian 1 systems & l 36 million lines world wide l l installed globally. Over 2 million call center agent positions globally. l Over 2, 400 Call Center Servers shipped 48, 000 Meridian Mail systems world wide. 17, 000 Companion systems l Present in over 150 countries 3, 200 Call. Pilot systems shipped Presentation name - 3
1999 U. S. PBX Market Share Total PBX Lines Shipped Total PBX Systems Shipped Source Datapro Presentation name - 4

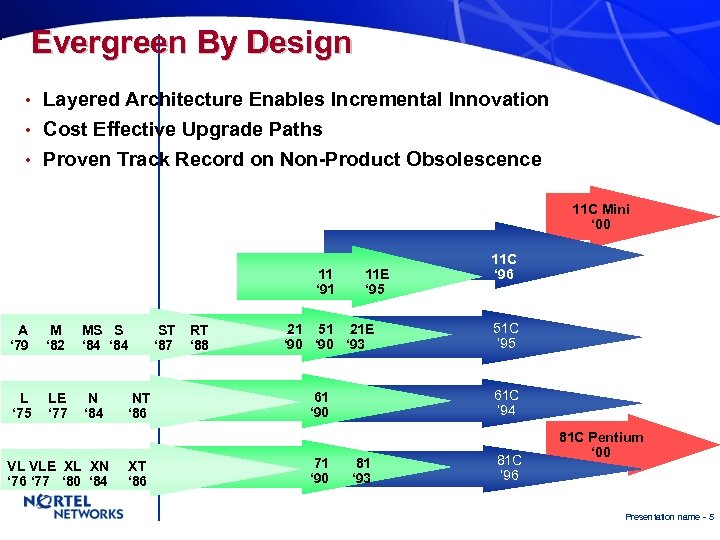

Evergreen By Design • • • Layered Architecture Enables Incremental Innovation Cost Effective Upgrade Paths Proven Track Record on Non-Product Obsolescence 11 C Mini ‘ 00 11 ‘ 91 A ‘ 79 M ‘ 82 MS S ‘ 84 L ‘ 75 LE ‘ 77 N ‘ 84 VL VLE XL XN ‘ 76 ‘ 77 ‘ 80 ‘ 84 NT ‘ 86 XT ‘ 86 ST ‘ 87 RT ‘ 88 11 E ‘ 95 21 51 21 E ‘ 90 ‘ 93 51 C ‘ 95 61 C ‘ 94 61 ‘ 90 71 ‘ 90 11 C ‘ 96 81 ‘ 93 81 C ‘ 96 81 C Pentium ‘ 00 Presentation name - 5
Meridian 1 Family l The enterprise network solution for mid-size to large companies - from 16 to 16, 000 users l Modular growth - pay as you grow l Redundant Core Processor’s (61 C & 81 C) l The industry leading solution for medium to large Call Centers Option 11 C Mini Option 11 C Option 61 C Option 81 C From 16 to 16, 000 users on one system ! Presentation name - 6

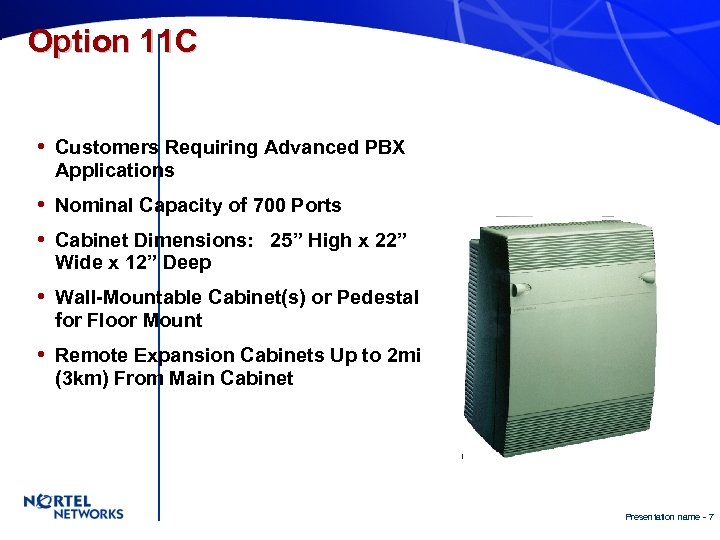

Option 11 C • Customers Requiring Advanced PBX Applications • Nominal Capacity of 700 Ports • Cabinet Dimensions: 25” High x 22” Wide x 12” Deep • Wall-Mountable Cabinet(s) or Pedestal for Floor Mount • Remote Expansion Cabinets Up to 2 mi (3 km) From Main Cabinet Presentation name - 7

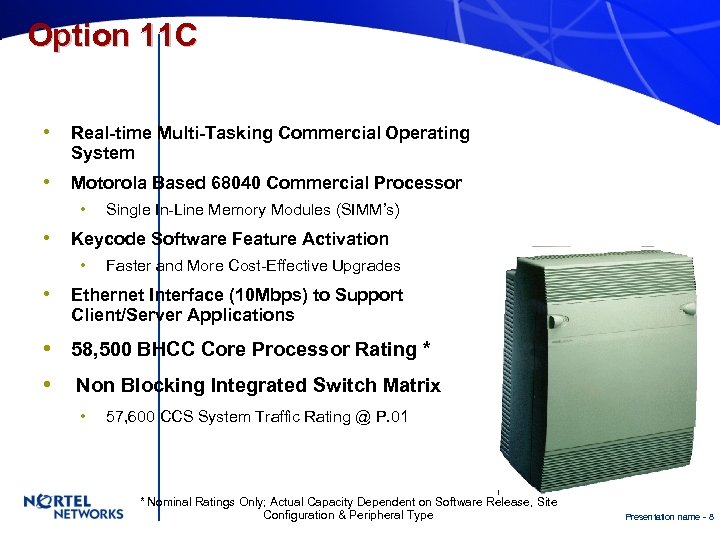

Option 11 C • Real-time Multi-Tasking Commercial Operating System • Motorola Based 68040 Commercial Processor • • Keycode Software Feature Activation • • Single In-Line Memory Modules (SIMM’s) Faster and More Cost-Effective Upgrades Ethernet Interface (10 Mbps) to Support Client/Server Applications • 58, 500 BHCC Core Processor Rating * • Non Blocking Integrated Switch Matrix • 57, 600 CCS System Traffic Rating @ P. 01 * Nominal Ratings Only; Actual Capacity Dependent on Software Release, Site Configuration & Peripheral Type Presentation name - 8

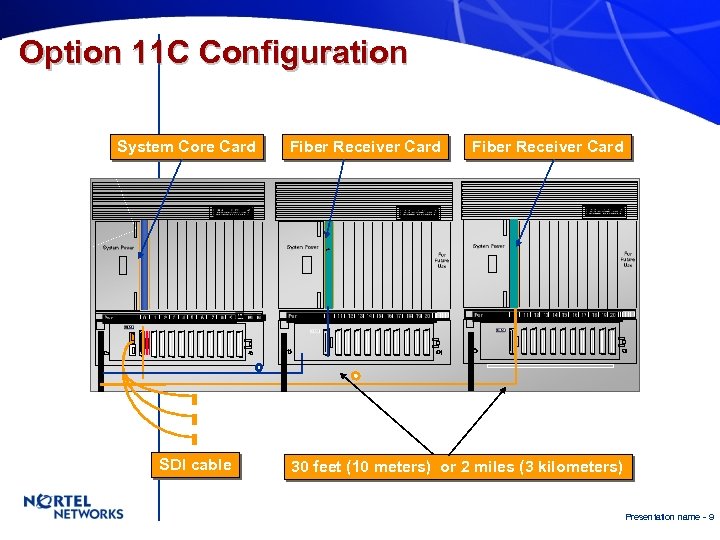

Option 11 C Configuration System Core Card SDI cable Fiber Receiver Card 30 feet (10 meters) or 2 miles (3 kilometers) Presentation name - 9

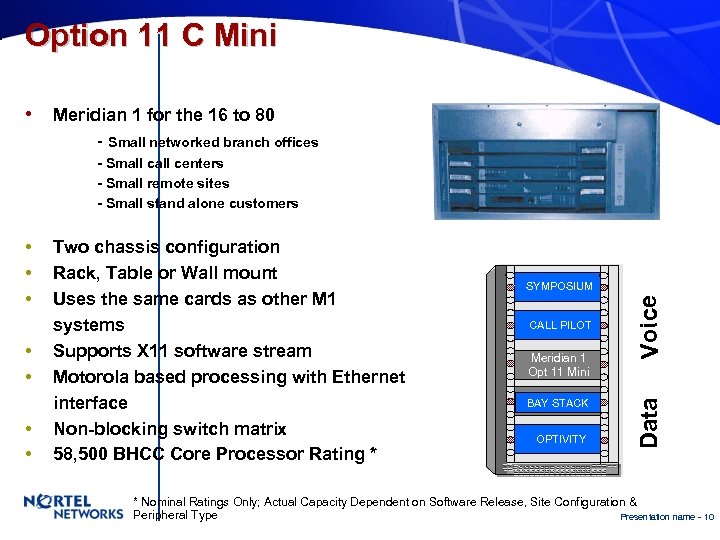

Option 11 C Mini • Meridian 1 for the 16 to 80 - Small networked branch offices - Small centers - Small remote sites - Small stand alone customers • • SYMPOSIUM CALL PILOT Meridian 1 Opt 11 Mini BAY STACK OPTIVITY Voice • • Two chassis configuration Rack, Table or Wall mount Uses the same cards as other M 1 systems Supports X 11 software stream Motorola based processing with Ethernet interface Non-blocking switch matrix 58, 500 BHCC Core Processor Rating * Data • • • * Nominal Ratings Only; Actual Capacity Dependent on Software Release, Site Configuration & Peripheral Type Presentation name - 10

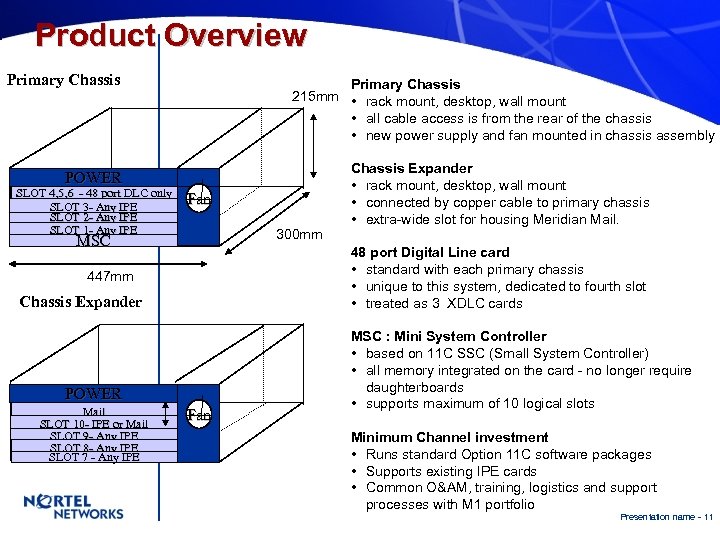

Product Overview Primary Chassis 215 mm • rack mount, desktop, wall mount • all cable access is from the rear of the chassis • new power supply and fan mounted in chassis assembly POWER SLOT 4, 5, 6 - 48 port DLC only SLOT 3 - Any IPE SLOT 2 - Any IPE SLOT 1 - Any IPE Fan 300 mm MSC 48 port Digital Line card • standard with each primary chassis • unique to this system, dedicated to fourth slot • treated as 3 XDLC cards 447 mm Chassis Expander POWER Mail SLOT 10 - IPE or Mail SLOT 9 - Any IPE SLOT 8 - Any IPE SLOT 7 - Any IPE Chassis Expander • rack mount, desktop, wall mount • connected by copper cable to primary chassis • extra-wide slot for housing Meridian Mail. Fan MSC : Mini System Controller • based on 11 C SSC (Small System Controller) • all memory integrated on the card - no longer require daughterboards • supports maximum of 10 logical slots Minimum Channel investment • Runs standard Option 11 C software packages • Supports existing IPE cards • Common O&AM, training, logistics and support processes with M 1 portfolio Presentation name - 11

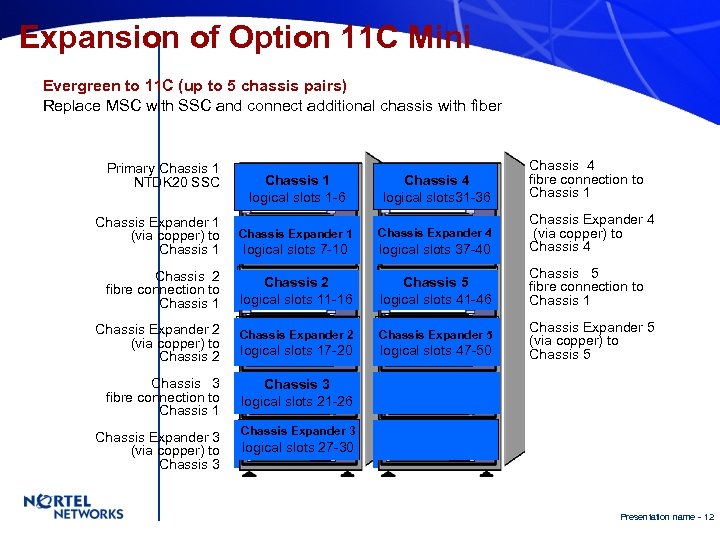

Expansion of Option 11 C Mini Evergreen to 11 C (up to 5 chassis pairs) Replace MSC with SSC and connect additional chassis with fiber Primary Chassis 1 NTDK 20 SSC Chassis 4 fibre connection to Chassis 1 logical slots 1 -6 Chassis 4 logical slots 31 -36 Chassis Expander 1 (via copper) to Chassis 1 Chassis Expander 4 logical slots 7 -10 logical slots 37 -40 Chassis Expander 4 (via copper) to Chassis 4 Chassis 2 fibre connection to Chassis 1 Chassis 2 logical slots 11 -16 Chassis 5 logical slots 41 -46 Chassis 5 fibre connection to Chassis 1 Chassis Expander 2 Chassis Expander 5 logical slots 17 -20 logical slots 47 -50 Chassis Expander 5 (via copper) to Chassis 5 Chassis Expander 2 (via copper) to Chassis 2 Chassis 3 fibre connection to Chassis 1 Chassis 3 logical slots 21 -26 Chassis Expander 3 (via copper) to Chassis 3 Chassis Expander 3 logical slots 27 -30 Presentation name - 12
Small System Controller (SSC) • • Motorola 68040 CPU Client/Server Support with Built-in Ethernet PCMCIA interfaces: Hard Drive or Software Updates System Conference/Tone Generation Flash ROM S/W Daughterboard - software delivery media, storage and operating space PCMCIA Card - Software Distribution Performed for up-issues via PCMCIA Flash Card and - Can be used for an external data storage device Expansion Daughterboard Fiber Expansion 30 ft or 2 miles versions IP Expansion 100 B-T or 100 B-F Presentation name - 13

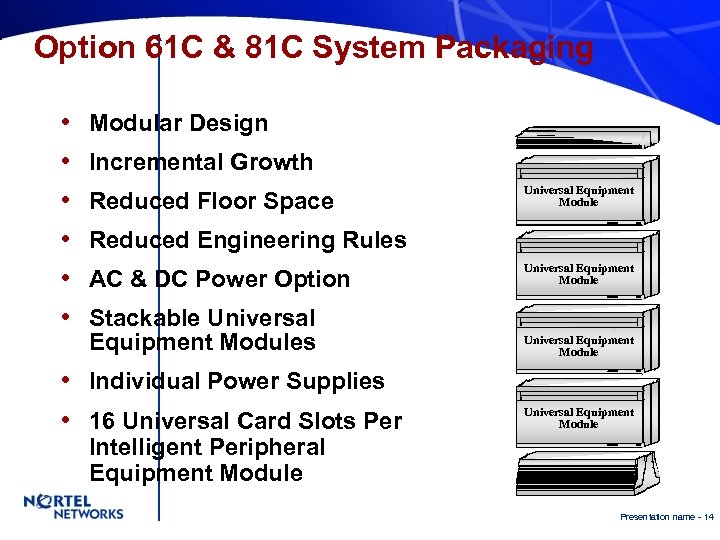

Option 61 C & 81 C System Packaging • • • Modular Design Incremental Growth Reduced Floor Space Universal Equipment Module Reduced Engineering Rules AC & DC Power Option Universal Equipment Module Stackable Universal Equipment Modules Universal Equipment Module • Individual Power Supplies • 16 Universal Card Slots Per Universal Equipment Module Intelligent Peripheral Equipment Module Presentation name - 14

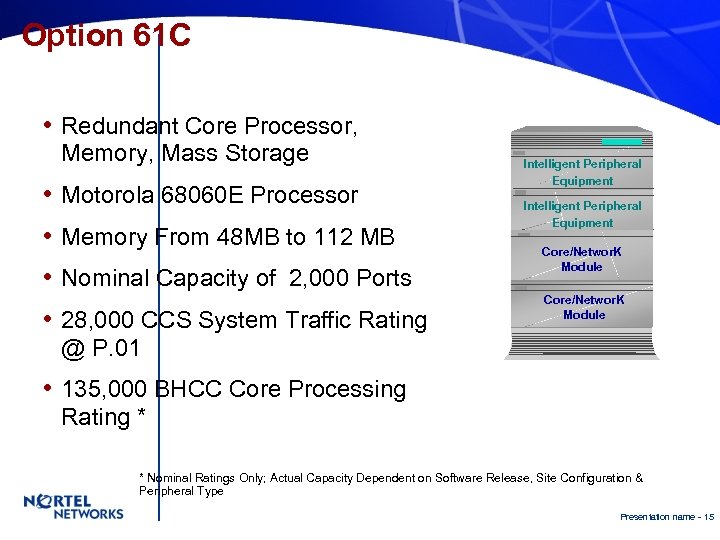

Option 61 C • Redundant Core Processor, Memory, Mass Storage • Motorola 68060 E Processor • Memory From 48 MB to 112 MB • Nominal Capacity of 2, 000 Ports • 28, 000 CCS System Traffic Rating Intelligent Peripheral Equipment Core/Networ. K Module @ P. 01 • 135, 000 BHCC Core Processing Rating * * Nominal Ratings Only; Actual Capacity Dependent on Software Release, Site Configuration & Peripheral Type Presentation name - 15

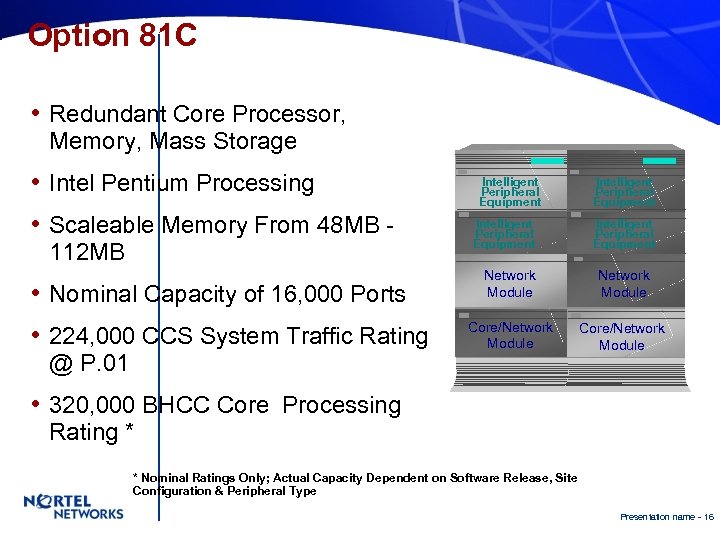

Option 81 C • Redundant Core Processor, Memory, Mass Storage • Intel Pentium Processing • Scaleable Memory From 48 MB 112 MB • Nominal Capacity of 16, 000 Ports • 224, 000 CCS System Traffic Rating @ P. 01 Intelligent Peripheral Equipment Network Module Core/Network Module • 320, 000 BHCC Core Processing Rating * * Nominal Ratings Only; Actual Capacity Dependent on Software Release, Site Configuration & Peripheral Type Presentation name - 16

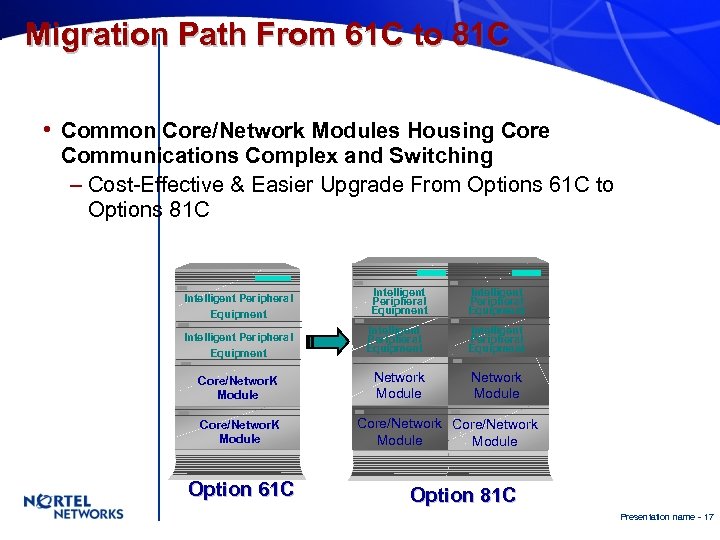

Migration Path From 61 C to 81 C • Common Core/Network Modules Housing Core Communications Complex and Switching – Cost-Effective & Easier Upgrade From Options 61 C to Options 81 C Intelligent Peripheral Equipment Core/Networ. K Module Option 61 C Intelligent Peripheral Equipment Network Module Core/Network Module Option 81 C Presentation name - 17

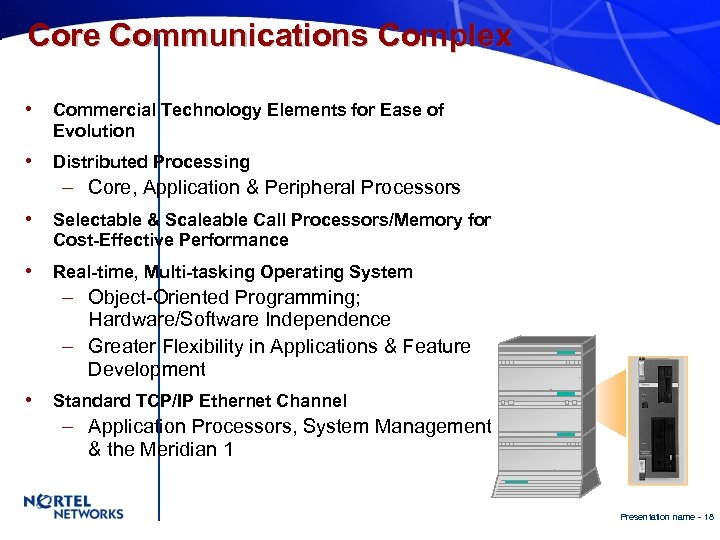

Core Communications Complex • Commercial Technology Elements for Ease of Evolution • Distributed Processing – Core, Application & Peripheral Processors • Selectable & Scaleable Call Processors/Memory for Cost-Effective Performance • Real-time, Multi-tasking Operating System – Object-Oriented Programming; Hardware/Software Independence – Greater Flexibility in Applications & Feature Development • Standard TCP/IP Ethernet Channel – Application Processors, System Management & the Meridian 1 Presentation name - 18

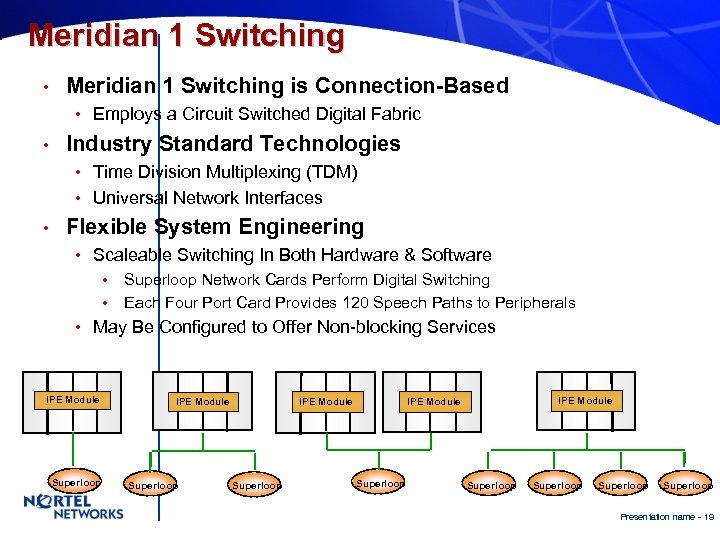

Meridian 1 Switching • Meridian 1 Switching is Connection-Based • Employs a Circuit Switched Digital Fabric • Industry Standard Technologies • Time Division Multiplexing (TDM) • Universal Network Interfaces • Flexible System Engineering • Scaleable Switching In Both Hardware & Software • Superloop Network Cards Perform Digital Switching • Each Four Port Card Provides 120 Speech Paths to Peripherals • May Be Configured to Offer Non-blocking Services IPE Module Superloop IPE Module Superloop Superloop Presentation name - 19

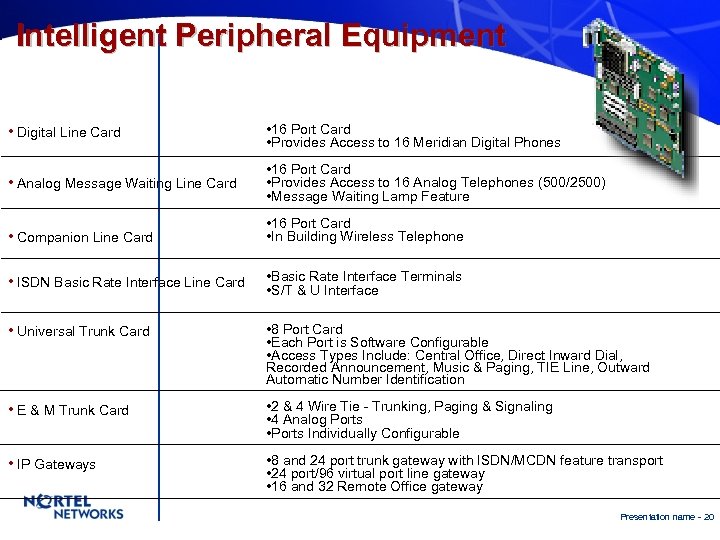

Intelligent Peripheral Equipment • Digital Line Card • 16 Port Card • Provides Access to 16 Meridian Digital Phones • Analog Message Waiting Line Card • 16 Port Card • Provides Access to 16 Analog Telephones (500/2500) • Message Waiting Lamp Feature • Companion Line Card • 16 Port Card • In Building Wireless Telephone • ISDN Basic Rate Interface Line Card • Basic Rate Interface Terminals • S/T & U Interface • Universal Trunk Card • 8 Port Card • Each Port is Software Configurable • Access Types Include: Central Office, Direct Inward Dial, Recorded Announcement, Music & Paging, TIE Line, Outward Automatic Number Identification • E & M Trunk Card • 2 & 4 Wire Tie - Trunking, Paging & Signaling • 4 Analog Ports • Ports Individually Configurable • IP Gateways • 8 and 24 port trunk gateway with ISDN/MCDN feature transport • 24 port/96 virtual port line gateway • 16 and 32 Remote Office gateway Presentation name - 20
