THEGrid Workshop Jae Yu THEGrid Workshop UTA July

THEGrid Workshop Jae Yu THEGrid Workshop UTA, July 8 – 9, 2004 • Introduction • An Example of Existing Activities • What do we want to accomplish at the workshop? • Programs and demo plans • Workshop Organizations July 8, 2004 Jae Yu, THEGrid Workshop Introduction

Welcome everyone! Thank you for your strong interest and participation! July 8, 2004 Jae Yu, THEGrid Workshop Introduction

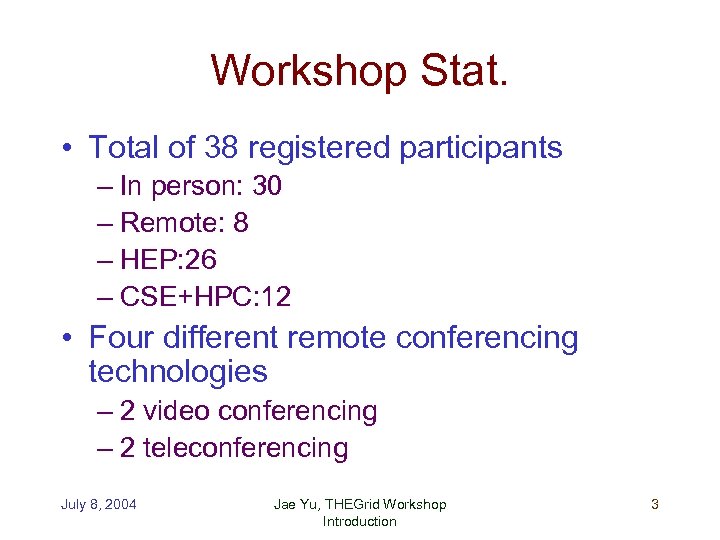

Workshop Stat. • Total of 38 registered participants – In person: 30 – Remote: 8 – HEP: 26 – CSE+HPC: 12 • Four different remote conferencing technologies – 2 video conferencing – 2 teleconferencing July 8, 2004 Jae Yu, THEGrid Workshop Introduction 3

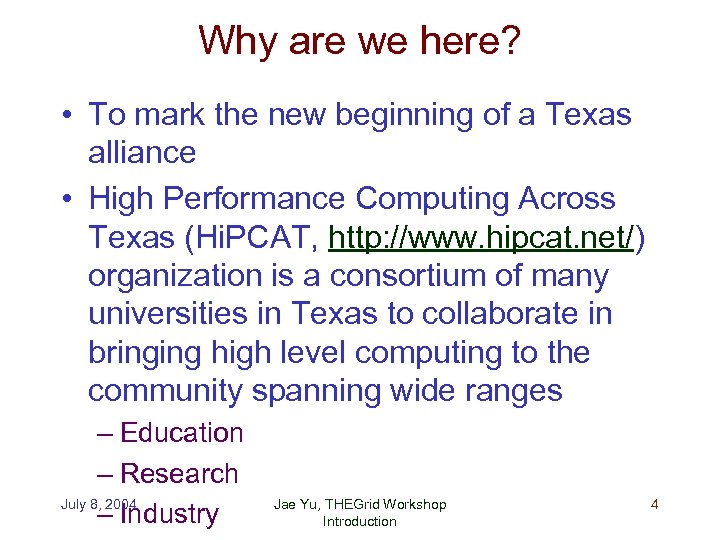

Why are we here? • To mark the new beginning of a Texas alliance • High Performance Computing Across Texas (Hi. PCAT, http: //www. hipcat. net/) organization is a consortium of many universities in Texas to collaborate in bringing high level computing to the community spanning wide ranges – Education – Research July 8, 2004 – Industry Jae Yu, THEGrid Workshop Introduction 4

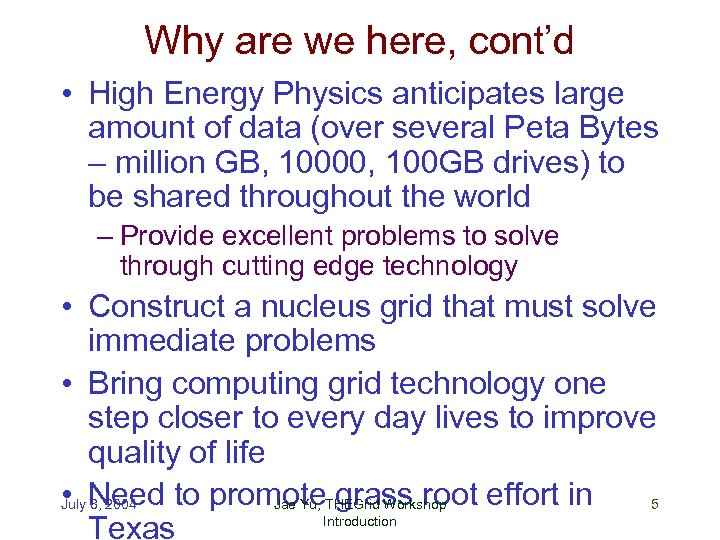

Why are we here, cont’d • High Energy Physics anticipates large amount of data (over several Peta Bytes – million GB, 10000, 100 GB drives) to be shared throughout the world – Provide excellent problems to solve through cutting edge technology • Construct a nucleus grid that must solve immediate problems • Bring computing grid technology one step closer to every day lives to improve quality of life • Need to promote grass root effort in July 8, 2004 Jae Yu, THEGrid Workshop 5 Introduction Texas

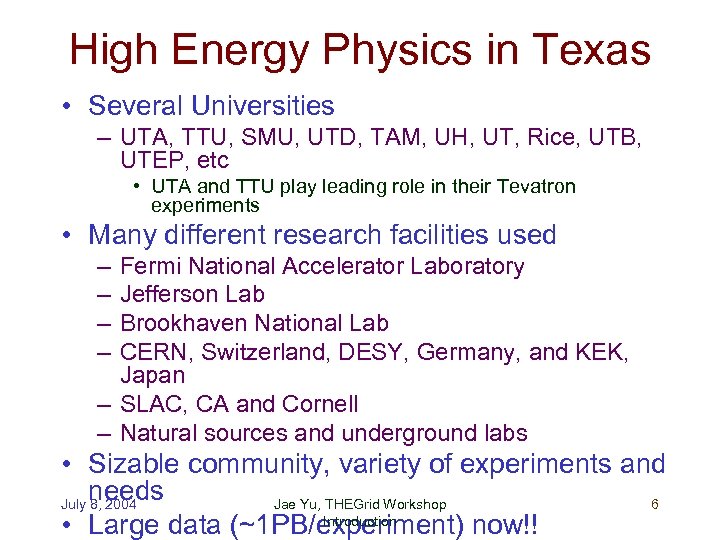

High Energy Physics in Texas • Several Universities – UTA, TTU, SMU, UTD, TAM, UH, UT, Rice, UTB, UTEP, etc • UTA and TTU play leading role in their Tevatron experiments • Many different research facilities used – – Fermi National Accelerator Laboratory Jefferson Lab Brookhaven National Lab CERN, Switzerland, DESY, Germany, and KEK, Japan – SLAC, CA and Cornell – Natural sources and underground labs • Sizable community, variety of experiments and needs July 8, 2004 Jae Yu, THEGrid Workshop 6 Introduction • Large data (~1 PB/experiment) now!!

DØ Collaboration 650 Collaborators 78 Institutions 18 Countries July 8, 2004 Jae Yu, THEGrid Workshop Introduction 7

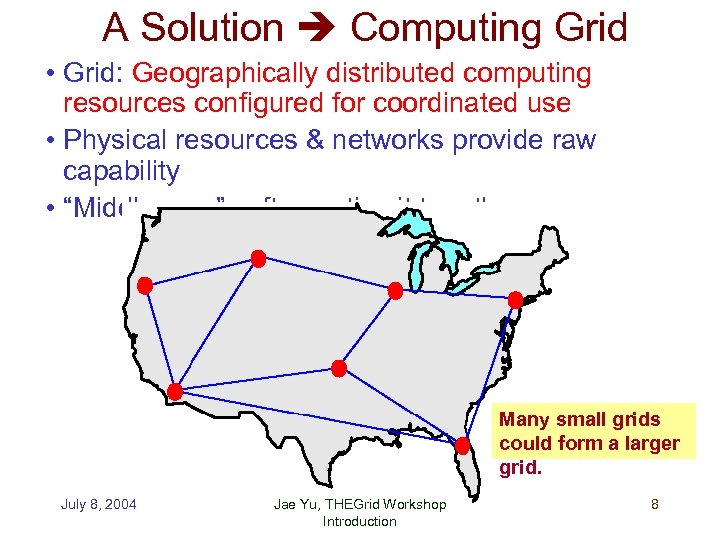

A Solution Computing Grid • Grid: Geographically distributed computing resources configured for coordinated use • Physical resources & networks provide raw capability • “Middleware” software ties it together Many small grids could form a larger grid. July 8, 2004 Jae Yu, THEGrid Workshop Introduction 8

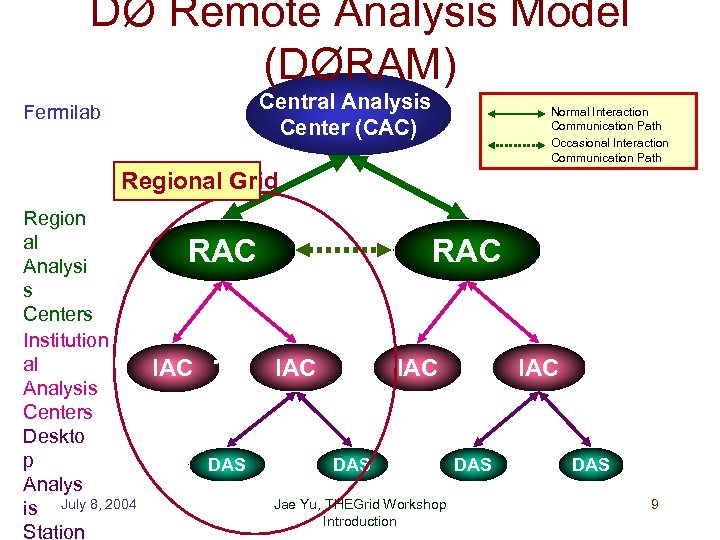

DØ Remote Analysis Model (DØRAM) Central Analysis Center (CAC) Fermilab Normal Interaction Communication Path Occasional Interaction Communication Path Regional Grid Region al Analysi s Centers Institution al Analysis Centers Deskto p Analys is July 8, 2004 Station …. RAC IAC . . . DAS IAC …. RAC IAC DAS Jae Yu, THEGrid Workshop Introduction … DAS IAC …. DAS 9

DØ Southern Analysis Region (DØSAR) • One of the regional grids within the DØGrid • Consortium coordinating activities to maximize computing and analysis resources in addition to the whole European efforts • UTA, LU, OU, LTU, SPRACE, Tata, KSU, KU, Rice, UMiss, CSF, UAZ • MC farm clusters – mixture of dedicated and multi-purpose, rack mounted and desktop, 10’sdesktop 100’s of CPU’s • http: //www-hep. uta. edu/d 0 -sar. html July 8, 2004 Jae Yu, THEGrid Workshop Introduction 10

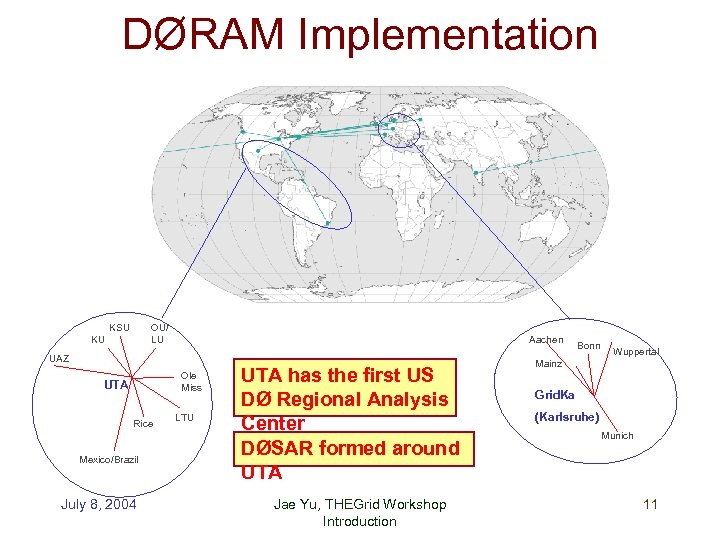

DØRAM Implementation OU/ LU KSU KU Aachen UAZ Ole Miss UTA Rice Mexico/Brazil July 8, 2004 LTU UTA has the first US DØ Regional Analysis Center DØSAR formed around UTA Jae Yu, THEGrid Workshop Introduction Bonn Wuppertal Mainz Grid. Ka (Karlsruhe) Munich 11

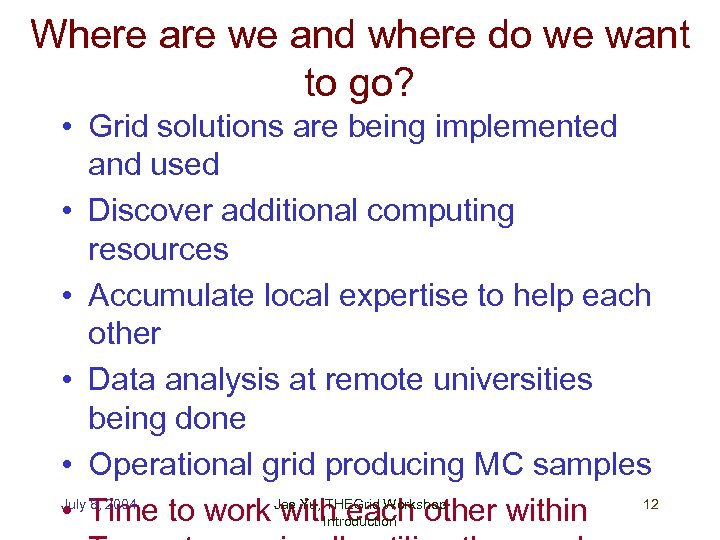

Where are we and where do we want to go? • Grid solutions are being implemented and used • Discover additional computing resources • Accumulate local expertise to help each other • Data analysis at remote universities being done • Operational grid producing MC samples July 8, 2004 Jae Yu, THEGrid Workshop • Time to work with each other within 12 Introduction

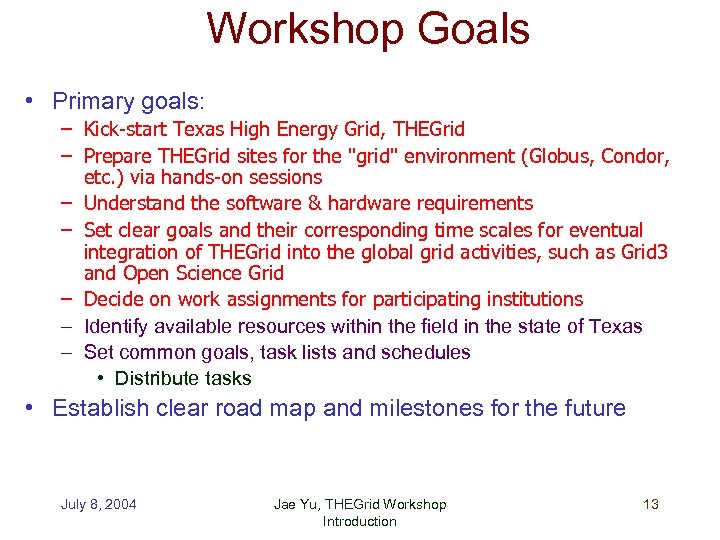

Workshop Goals • Primary goals: – Kick-start Texas High Energy Grid, THEGrid – Prepare THEGrid sites for the "grid" environment (Globus, Condor, etc. ) via hands-on sessions – Understand the software & hardware requirements – Set clear goals and their corresponding time scales for eventual integration of THEGrid into the global grid activities, such as Grid 3 and Open Science Grid – Decide on work assignments for participating institutions – Identify available resources within the field in the state of Texas – Set common goals, task lists and schedules • Distribute tasks • Establish clear road map and milestones for the future July 8, 2004 Jae Yu, THEGrid Workshop Introduction 13

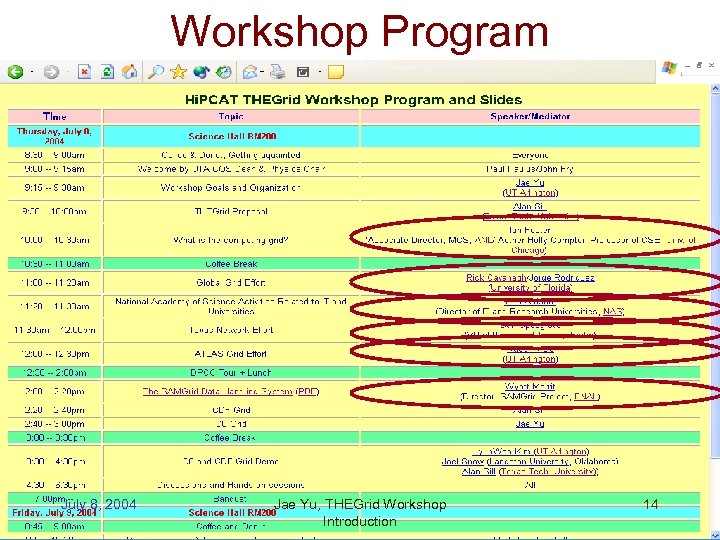

Workshop Program July 8, 2004 Jae Yu, THEGrid Workshop Introduction 14

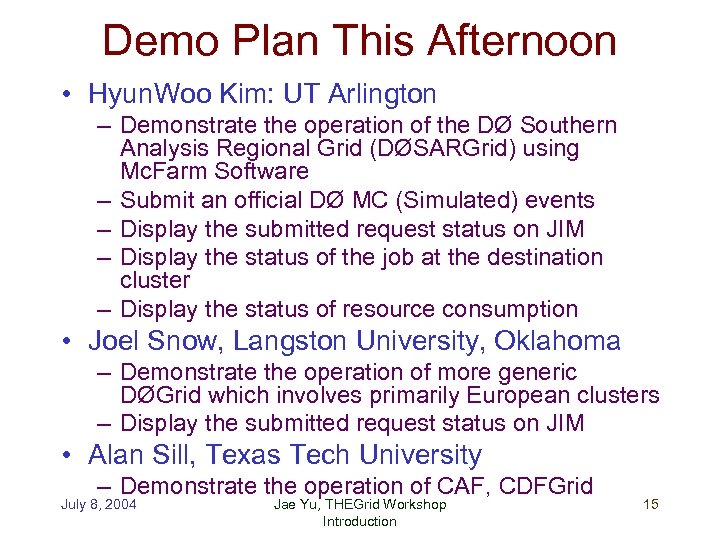

Demo Plan This Afternoon • Hyun. Woo Kim: UT Arlington – Demonstrate the operation of the DØ Southern Analysis Regional Grid (DØSARGrid) using Mc. Farm Software – Submit an official DØ MC (Simulated) events – Display the submitted request status on JIM – Display the status of the job at the destination cluster – Display the status of resource consumption • Joel Snow, Langston University, Oklahoma – Demonstrate the operation of more generic DØGrid which involves primarily European clusters – Display the submitted request status on JIM • Alan Sill, Texas Tech University – Demonstrate the operation of CAF, CDFGrid July 8, 2004 Jae Yu, THEGrid Workshop Introduction 15

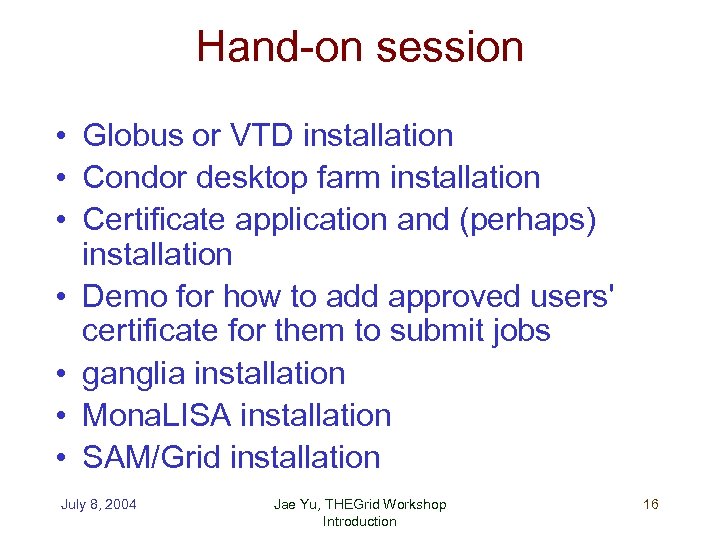

Hand-on session • Globus or VTD installation • Condor desktop farm installation • Certificate application and (perhaps) installation • Demo for how to add approved users' certificate for them to submit jobs • ganglia installation • Mona. LISA installation • SAM/Grid installation July 8, 2004 Jae Yu, THEGrid Workshop Introduction 16

Some Workshop Arrangements • Your package includes your name tag, program, a pen, and a pad • Coffee and other refreshment are in next door. Help yourself at any time. • The banquet is at 7: 00 pm tonight • Tomorrow morning’s session begins at 9 am here in room 200. July 8, 2004 Jae Yu, THEGrid Workshop Introduction 17

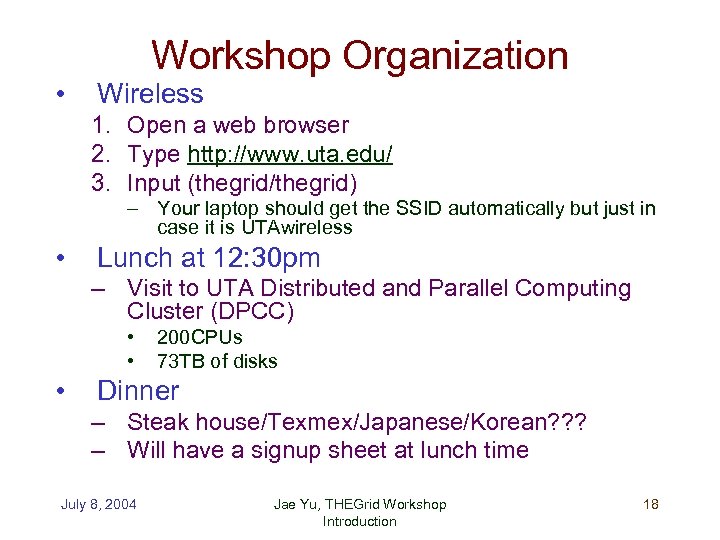

Workshop Organization • Wireless 1. Open a web browser 2. Type http: //www. uta. edu/ 3. Input (thegrid/thegrid) – Your laptop should get the SSID automatically but just in case it is UTAwireless • Lunch at 12: 30 pm – Visit to UTA Distributed and Parallel Computing Cluster (DPCC) • • • 200 CPUs 73 TB of disks Dinner – Steak house/Texmex/Japanese/Korean? ? ? – Will have a signup sheet at lunch time July 8, 2004 Jae Yu, THEGrid Workshop Introduction 18
