The World Leader in High-Performance Signal Processing Solutions Converters First Autumn 2003

Converters First and Signal Chain Selling with Analog Devices Converter Agenda u Why Converters First? u WHAT ARE CONVERTERS? u KEY CONVERTER PRODUCT AREAS l l High Resolution Converters General Purpose Converters High Speed Converters Specialty Converters: Micro. Converters, Audio/Video Converters, DDS u DISCUSS CONVERTER SALES OPPORTUNITIES

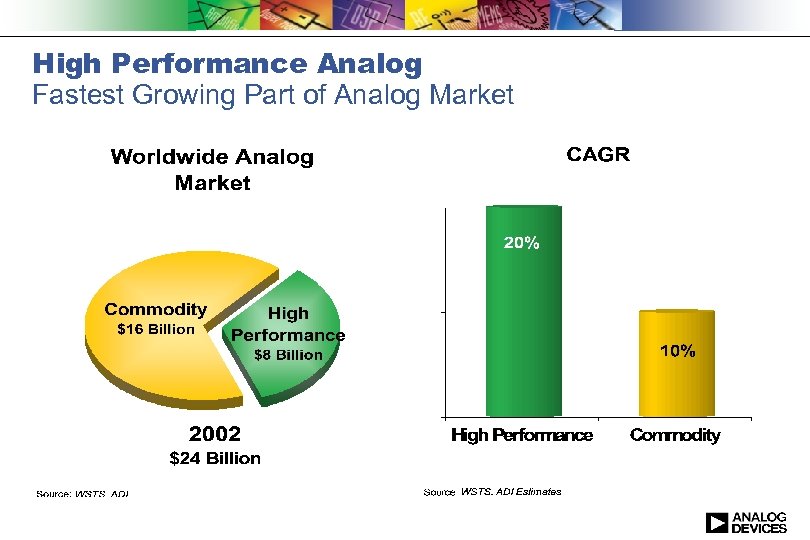

High Performance Analog Fastest Growing Part of Analog Market

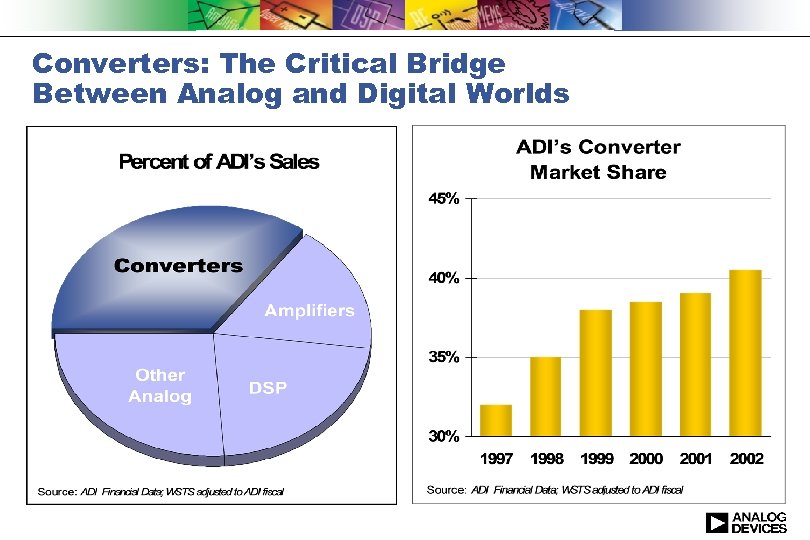

Converters: The Critical Bridge Between Analog and Digital Worlds

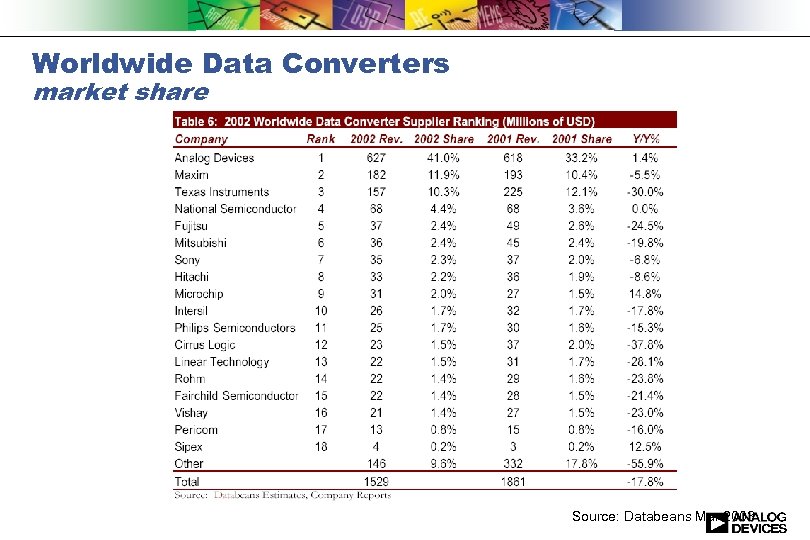

Worldwide Data Converters market share Source: Databeans Mar 2003

Precision Data Converters RECENT TECHNOLOGY LEADERSHIP Year Product Description 1997 AD 7730 Worlds first integrated load cell converter 1998 AD 5320 Worlds first DAC in SOT-23 package 1998 AD 7723 Worlds first 1 Msps SD 1999 ADu. C 812 Worlds first Micro. Converter ® 1999 AD 7472 Worlds first 1 Msps SAR ADC 2000 AD 7476 Worlds first SOT-23 ADC 2000 AD 5532 Worlds first 32 -channel DAC 2001 ADu. C 824 Worlds first sensor signal conditioning chip 2001 AD 7671 Worlds first 1 Msps 16 -bit SAR ADC 2002 AD 7677 Worlds first 16 -bit SAR ADC with ± 1 LSB accuracy 2002 AD 5379 Worlds first 40 -channel DAC 2002 AD 7476 A Worlds first ADC in SC-70 package 2003 AD 7725 Worlds first SD with post processing engine 2003 AD 7674 Worlds fastest 18 -bit ADC 2003 AD 7680 Worlds smallest 16 -bit ADC – SOT 23 package 2003 AD 7790 Worlds lowest power/noise 24 -bit SD

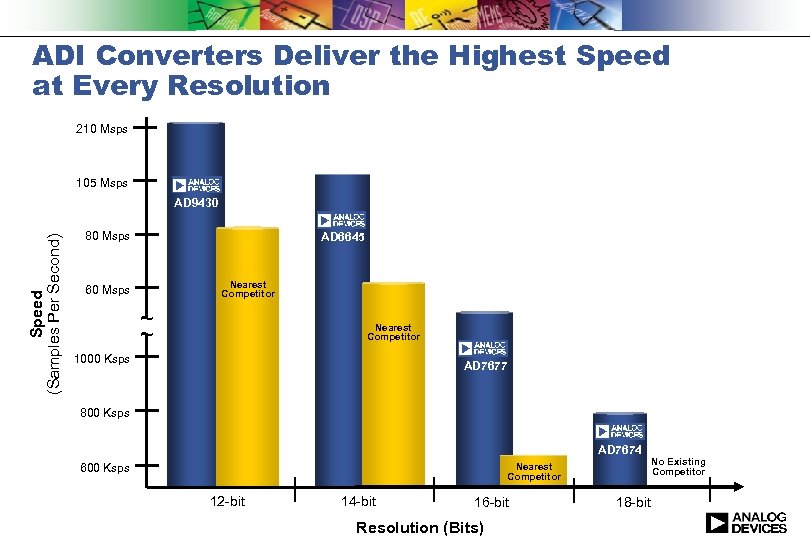

ADI Converters Deliver the Highest Speed at Every Resolution 210 Msps 105 Msps Speed (Samples Per Second) AD 9430 80 Msps AD 6645 Nearest Competitor 60 Msps ~ ~ Nearest Competitor 1000 Ksps AD 7677 800 Ksps AD 7674 600 Ksps Nearest Competitor 12 -bit 14 -bit 16 -bit Resolution (Bits) 18 -bit No Existing Competitor

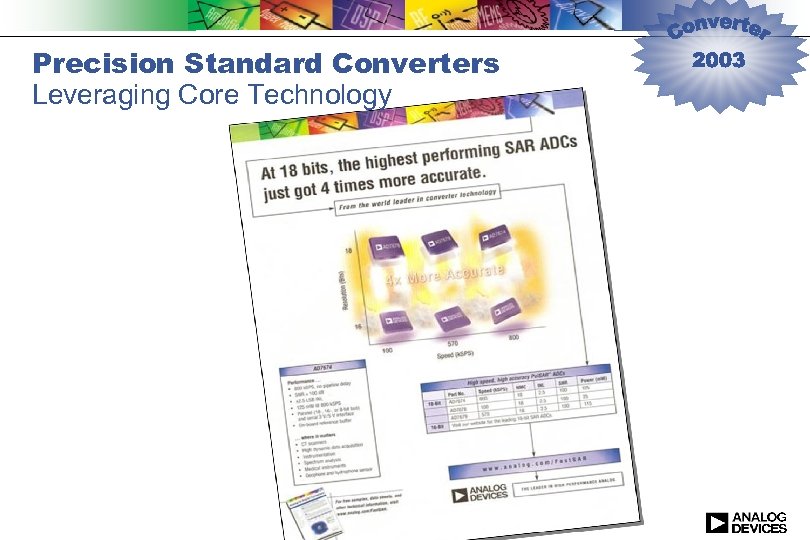

Precision Standard Converters Leveraging Core Technology

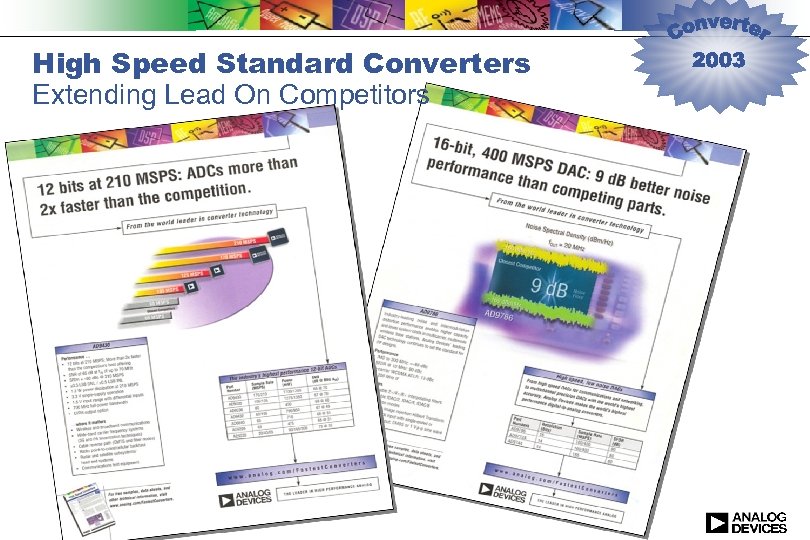

High Speed Standard Converters Extending Lead On Competitors

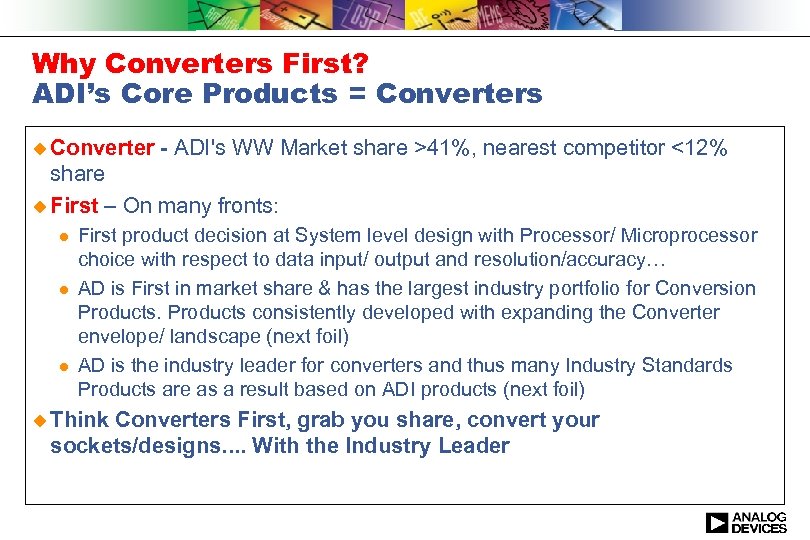

Why Converters First? ADI’s Core Products = Converters u Converter - ADI's WW Market share >41%, nearest competitor <12% share u First – On many fronts: l l l First product decision at System level design with Processor/ Microprocessor choice with respect to data input/ output and resolution/accuracy… AD is First in market share & has the largest industry portfolio for Conversion Products consistently developed with expanding the Converter envelope/ landscape (next foil) AD is the industry leader for converters and thus many Industry Standards Products are as a result based on ADI products (next foil) u Think Converters First, grab you share, convert your sockets/designs. . With the Industry Leader

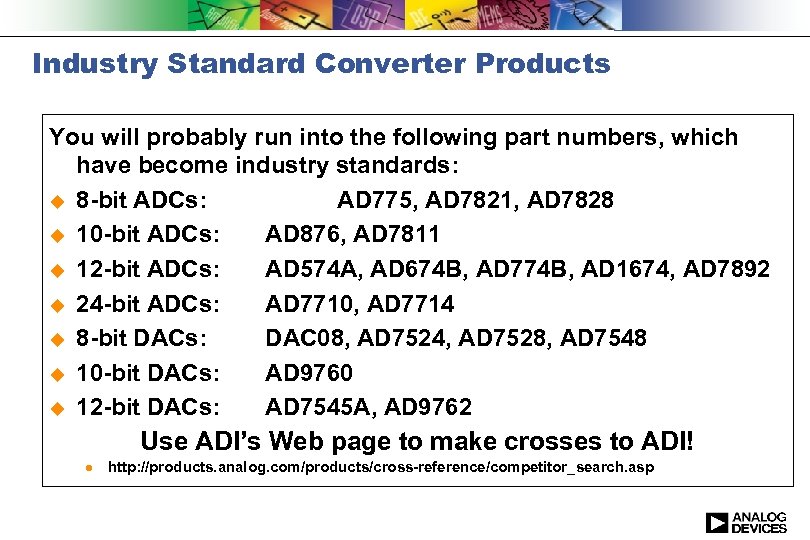

Industry Standard Converter Products You will probably run into the following part numbers, which have become industry standards: u 8 -bit ADCs: AD 775, AD 7821, AD 7828 u 10 -bit ADCs: AD 876, AD 7811 u 12 -bit ADCs: AD 574 A, AD 674 B, AD 774 B, AD 1674, AD 7892 u 24 -bit ADCs: AD 7710, AD 7714 u 8 -bit DACs: DAC 08, AD 7524, AD 7528, AD 7548 u 10 -bit DACs: AD 9760 u 12 -bit DACs: AD 7545 A, AD 9762 Use ADI’s Web page to make crosses to ADI!

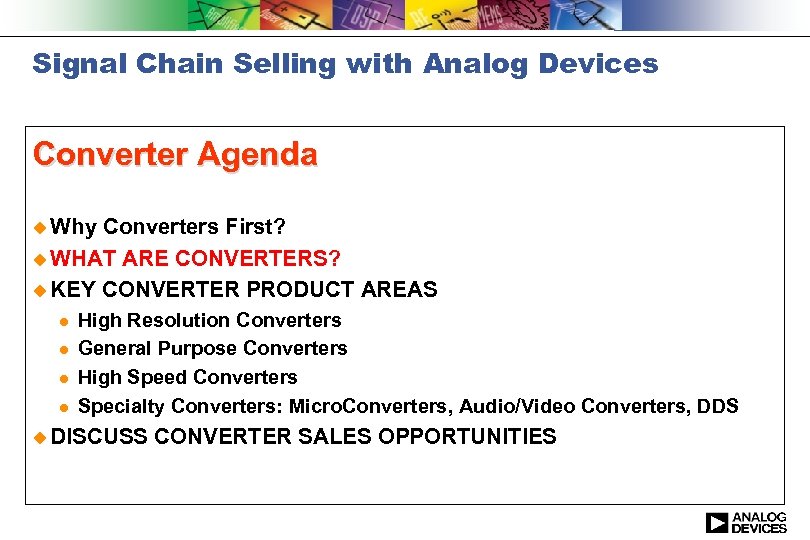

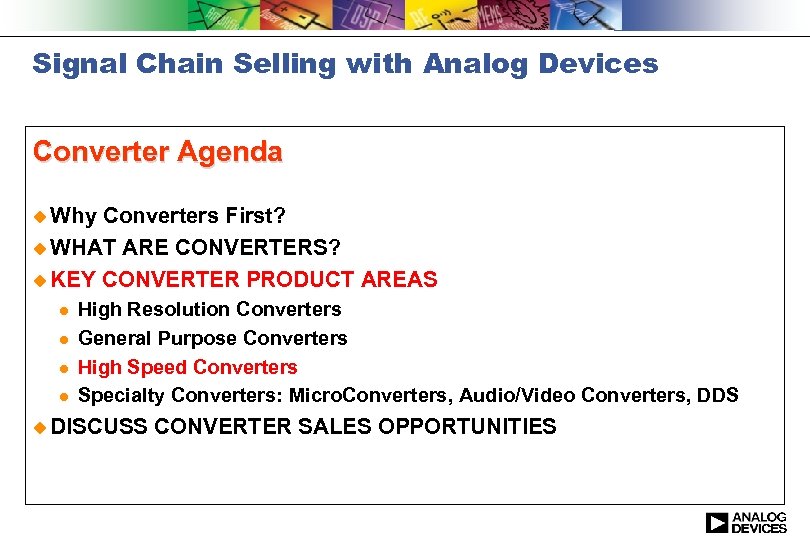

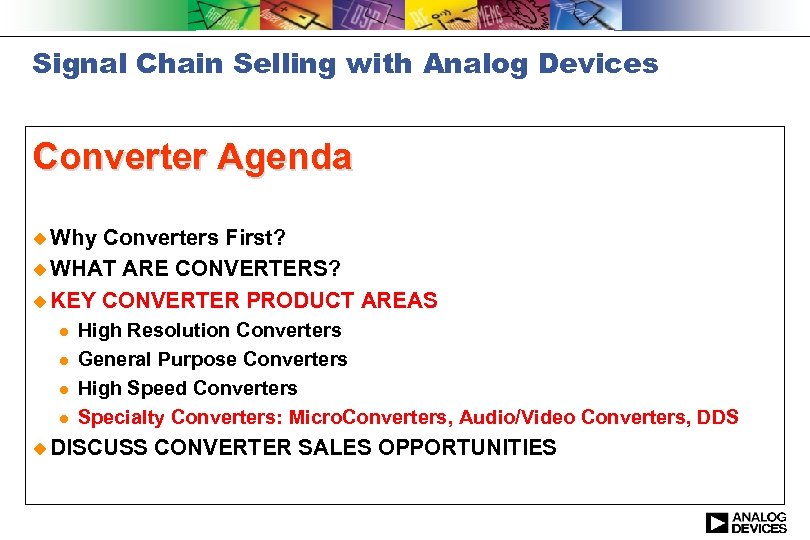

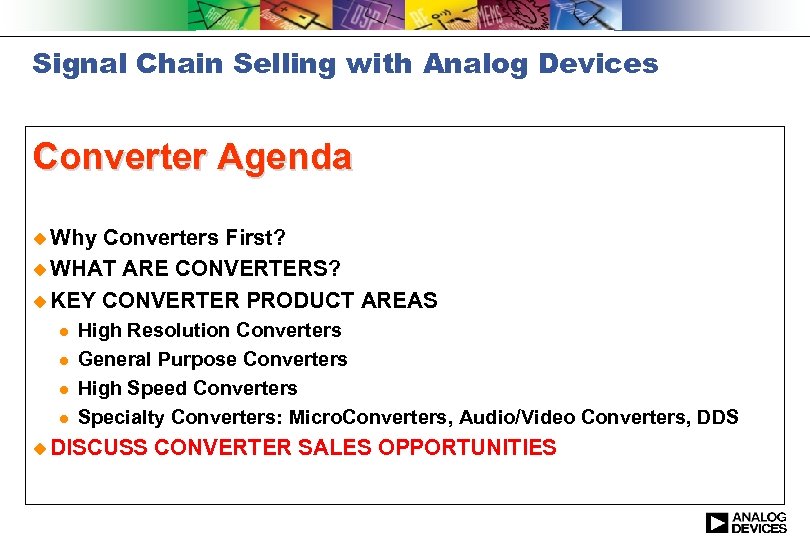

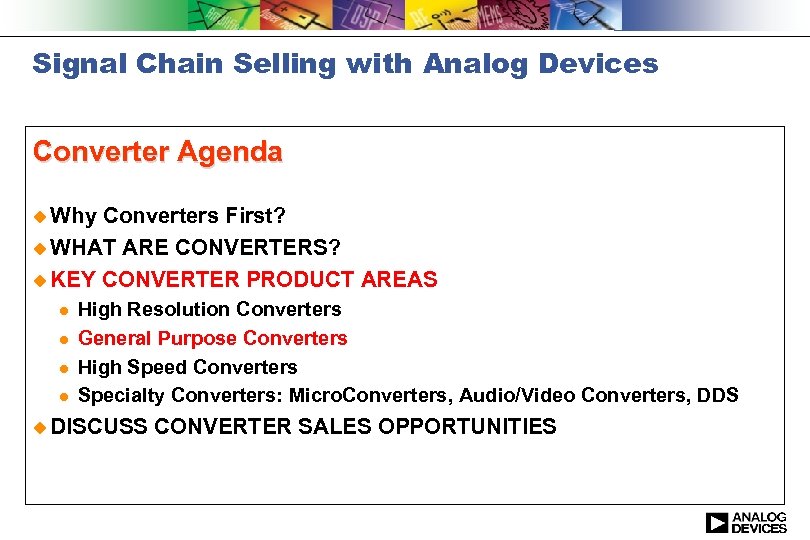

Signal Chain Selling with Analog Devices Converter Agenda u Why Converters First? u WHAT ARE CONVERTERS? u KEY CONVERTER PRODUCT AREAS l l High Resolution Converters General Purpose Converters High Speed Converters Specialty Converters: Micro. Converters, Audio/Video Converters, DDS u DISCUSS CONVERTER SALES OPPORTUNITIES

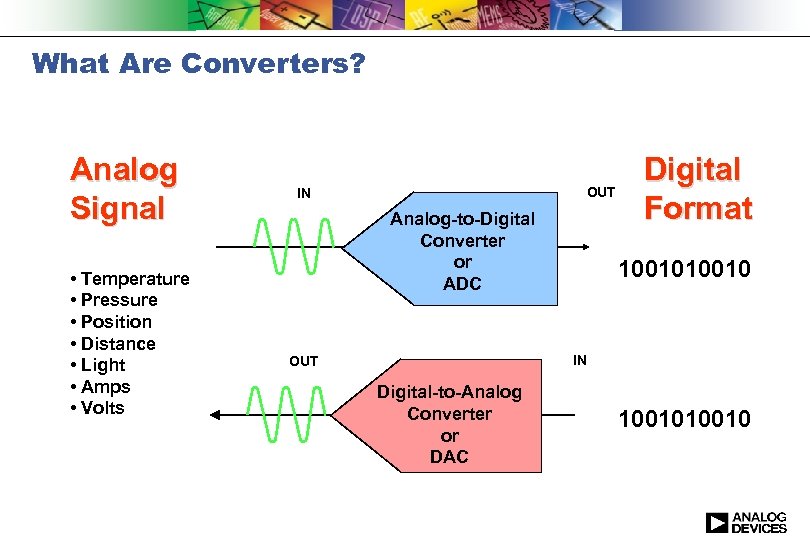

What Are Converters? Analog Signal • Temperature • Pressure • Position • Distance • Light • Amps • Volts OUT IN Analog-to-Digital Converter or ADC Digital Format 10010 IN OUT Digital-to-Analog Converter or DAC 10010

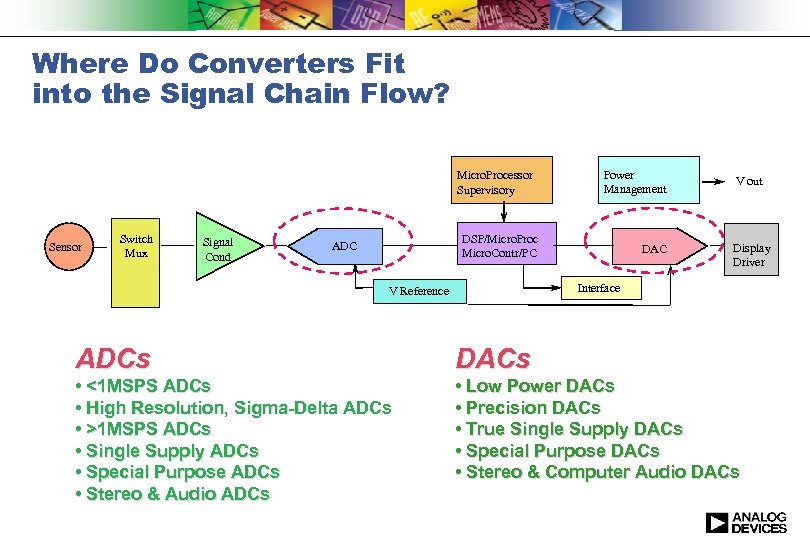

Where Do Converters Fit into the Signal Chain Flow? Micro. Processor Supervisory Sensor Switch Mux Signal Cond Power Management DSP/Micro. Proc Micro. Contr/PC ADC DAC V out Display Driver Interface V Reference ADCs DACs • <1 MSPS ADCs • High Resolution, Sigma-Delta ADCs • >1 MSPS ADCs • Single Supply ADCs • Special Purpose ADCs • Stereo & Audio ADCs • Low Power DACs • Precision DACs • True Single Supply DACs • Special Purpose DACs • Stereo & Computer Audio DACs

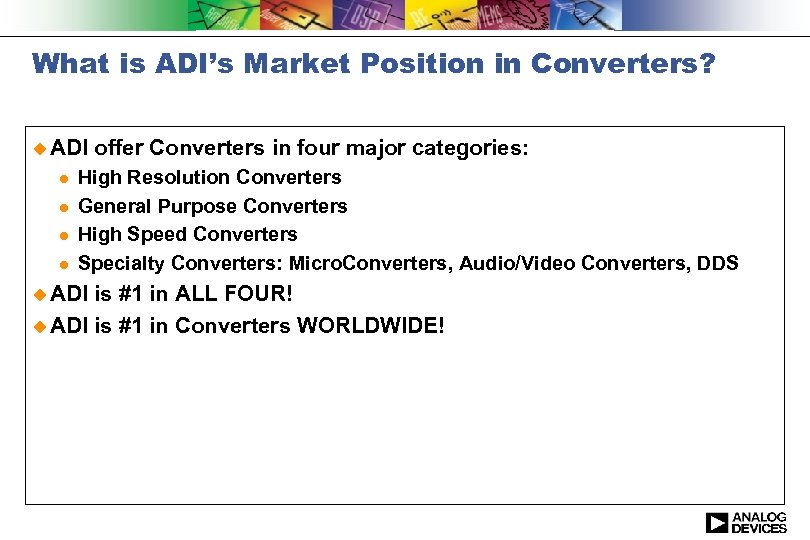

What is ADI’s Market Position in Converters? u ADI l l offer Converters in four major categories: High Resolution Converters General Purpose Converters High Speed Converters Specialty Converters: Micro. Converters, Audio/Video Converters, DDS u ADI is #1 in ALL FOUR! u ADI is #1 in Converters WORLDWIDE!

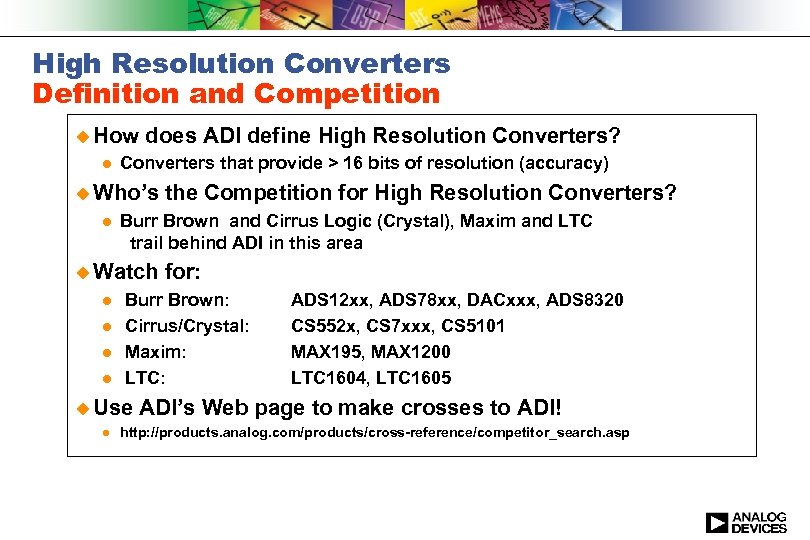

High Resolution Converters Definition and Competition u How l does ADI define High Resolution Converters? Converters that provide > 16 bits of resolution (accuracy) u Who’s l Burr Brown and Cirrus Logic (Crystal), Maxim and LTC trail behind ADI in this area u Watch l l for: Burr Brown: Cirrus/Crystal: Maxim: LTC: u Use l the Competition for High Resolution Converters? ADS 12 xx, ADS 78 xx, DACxxx, ADS 8320 CS 552 x, CS 7 xxx, CS 5101 MAX 195, MAX 1200 LTC 1604, LTC 1605 ADI’s Web page to make crosses to ADI! http: //products. analog. com/products/cross-reference/competitor_search. asp

High Resolution Converters You Can Win Designs in. . . Communications Instrumentation • EKG equipment • Blood chemistry/blood analysis measurement • Patient monitoring systems • Weigh scales • High speed modems • Video set top boxes • ADSL/HDSL • Cable modems Industrial Controls For monitoring low-level signals for controlling flow, pressure, linear motion Imaging • Camcorders • Scanners • Digital cameras • Graphics digitizers Data Acquisition • PC-compatible plug-in boards • Data monitoring/logging equipment • Automatic test equipment

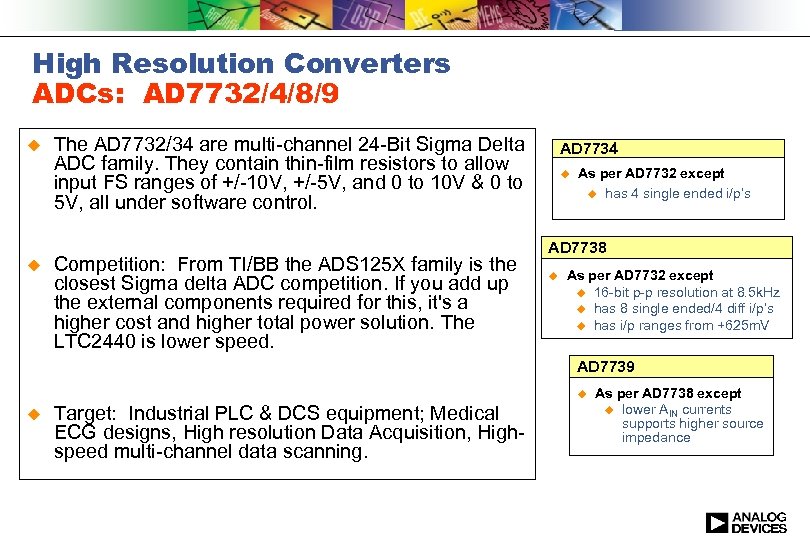

High Resolution Converters ADCs: AD 7732/4/8/9 u u The AD 7732/34 are multi-channel 24 -Bit Sigma Delta ADC family. They contain thin-film resistors to allow input FS ranges of +/-10 V, +/-5 V, and 0 to 10 V & 0 to 5 V, all under software control. Competition: From TI/BB the ADS 125 X family is the closest Sigma delta ADC competition. If you add up the external components required for this, it's a higher cost and higher total power solution. The LTC 2440 is lower speed. AD 7734 u As per AD 7732 except u has 4 single ended i/p’s AD 7738 u As per AD 7732 except u 16 -bit p-p resolution at 8. 5 k. Hz u has 8 single ended/4 diff i/p’s u has i/p ranges from +625 m. V AD 7739 u u Target: Industrial PLC & DCS equipment; Medical ECG designs, High resolution Data Acquisition, Highspeed multi-channel data scanning. As per AD 7738 except u lower AIN currents supports higher source impedance

High Resolution Converters ADCs: AD 7790/1 u The AD 7790/AD 7791 are low-power, complete analog front ends for low frequency me u Competition: ADS 1100 or ADS 1244, the AD 7790/91 easily outperform both parts and u Target: 4 -20 m. A Transmitters, Battery Applications, Handheld Instrumentation, Sensor Pressure Measurement, Weighscales (kitchen/bathroom)

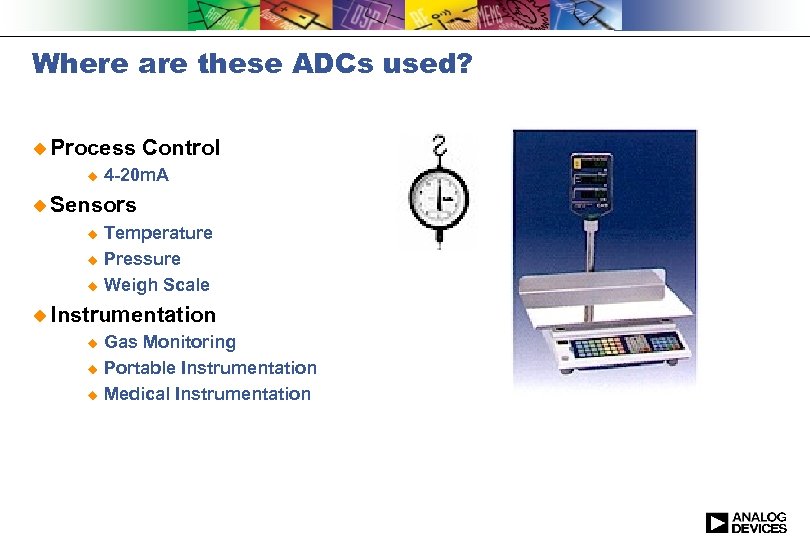

Where are these ADCs used? u Process u Control 4 -20 m. A u Sensors u u u Temperature Pressure Weigh Scale u Instrumentation u u u Gas Monitoring Portable Instrumentation Medical Instrumentation

High Resolution Converters 18 Bit SAR ADCs: AD 7674 u The AD 7674 is a 18 -bit, 800 k. SPS, SAR, fully differential ADC that operates from a single 5 V power supply. The part an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. u Competition: TI/BB ADS 8381 AD 7678 u u Target applications: CT scanners and other medical instrumentation, high-speed data acquisition, spectrum analyzers, control systems, test and measurement, and communications systems. As per AD 7674 except u 100 ksps throughput AD 7679 u As per AD 7674 except u 570 ksps throughput

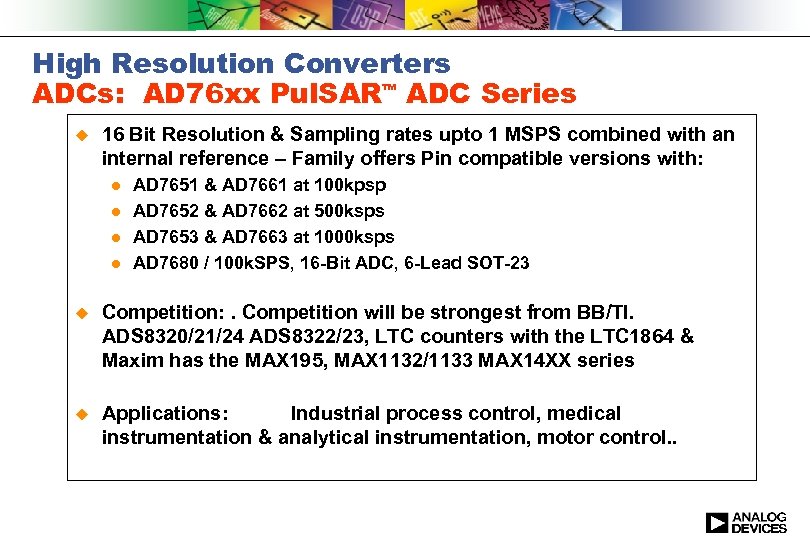

High Resolution Converters ADCs: AD 76 xx Pul. SAR ADC Series TM u 16 Bit Resolution & Sampling rates upto 1 MSPS combined with an internal reference – Family offers Pin compatible versions with: l l AD 7651 & AD 7661 at 100 kpsp AD 7652 & AD 7662 at 500 ksps AD 7653 & AD 7663 at 1000 ksps AD 7680 / 100 k. SPS, 16 -Bit ADC, 6 -Lead SOT-23 Anonymous u Competition: . Competition will be strongest from BB/TI. ADS 8320/21/24 ADS 8322/23, LTC counters with the LTC 1864 & Maxim has the MAX 195, MAX 1132/1133 MAX 14 XX series u Applications: Industrial process control, medical instrumentation & analytical instrumentation, motor control. .

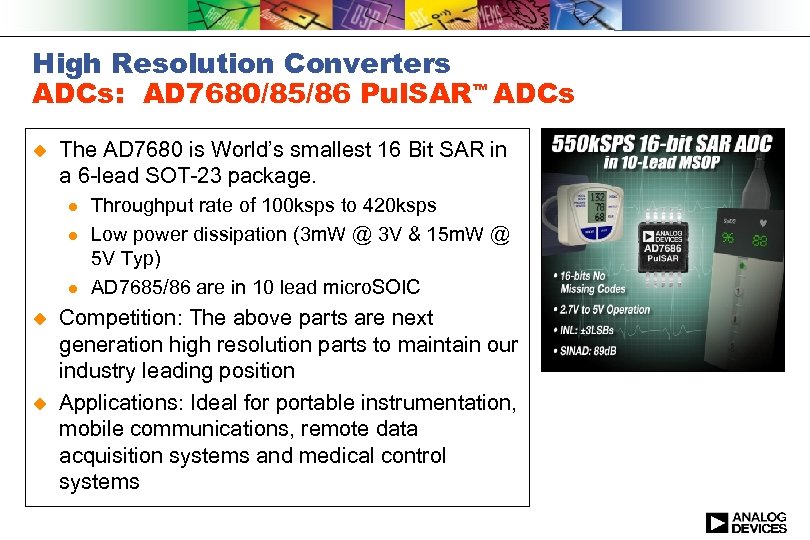

High Resolution Converters ADCs: AD 7680/85/86 Pul. SAR ADCs TM u The AD 7680 is World’s smallest 16 Bit SAR in a 6 -lead SOT-23 package. l l l u u Throughput rate of 100 ksps to 420 ksps Low power dissipation (3 m. W @ 3 V & 15 m. W @ 5 V Typ) AD 7685/86 are in 10 lead micro. SOIC Competition: The above parts are next generation high resolution parts to maintain our industry leading position Applications: Ideal for portable instrumentation, mobile communications, remote data acquisition systems and medical control systems

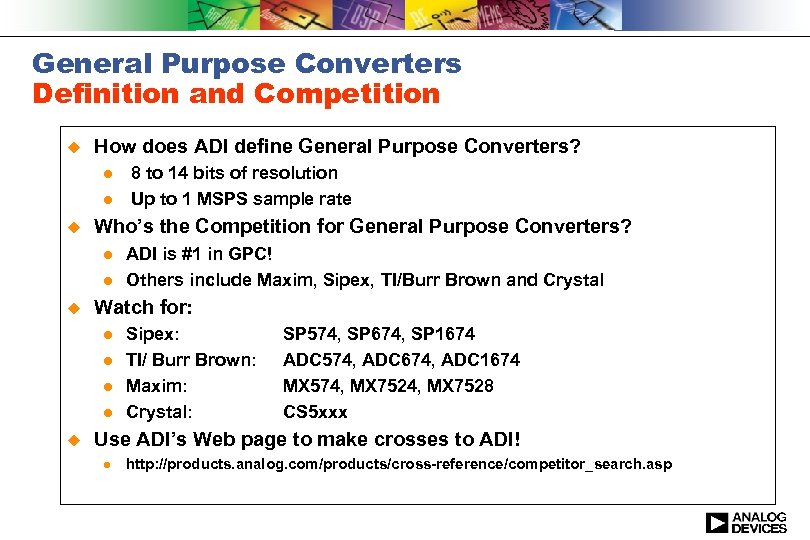

General Purpose Converters Definition and Competition u How does ADI define General Purpose Converters? l l u Who’s the Competition for General Purpose Converters? l l u ADI is #1 in GPC! Others include Maxim, Sipex, TI/Burr Brown and Crystal Watch for: l l u 8 to 14 bits of resolution Up to 1 MSPS sample rate Sipex: TI/ Burr Brown: Maxim: Crystal: SP 574, SP 674, SP 1674 ADC 574, ADC 674, ADC 1674 MX 574, MX 7528 CS 5 xxx Use ADI’s Web page to make crosses to ADI! l http: //products. analog. com/products/cross-reference/competitor_search. asp

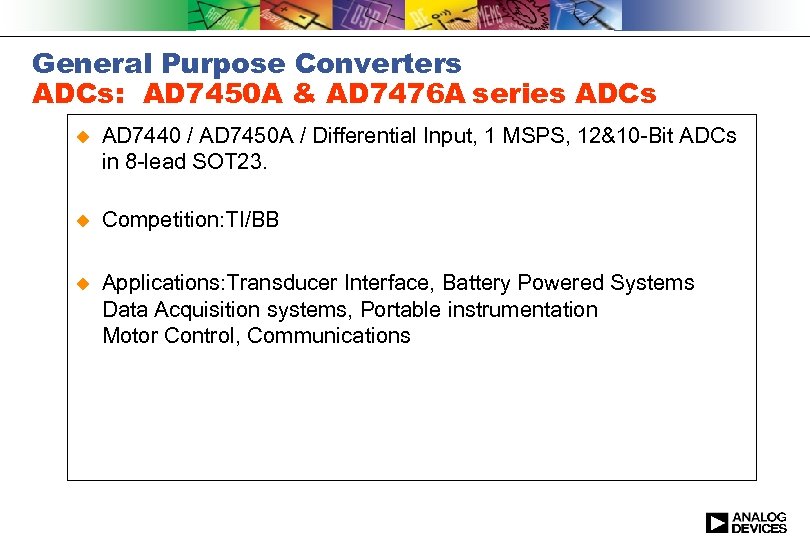

General Purpose Converters ADCs: AD 7450 A & AD 7476 A series ADCs u AD 7440 / AD 7450 A / Differential Input, 1 MSPS, 12&10 -Bit ADCs in 8 -lead SOT 23. u Competition: TI/BB u Applications: Transducer Interface, Battery Powered Systems Data Acquisition systems, Portable instrumentation Motor Control, Communications

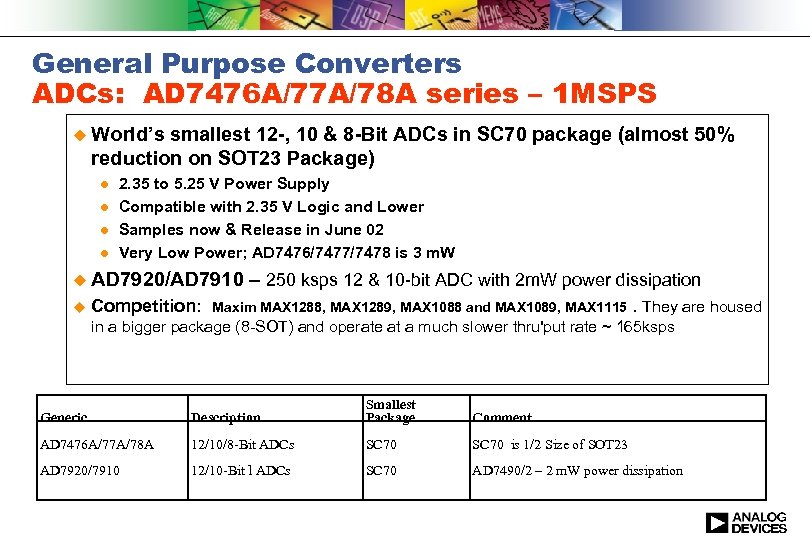

General Purpose Converters ADCs: AD 7476 A/77 A/78 A series – 1 MSPS u World’s smallest 12 -, 10 & 8 -Bit ADCs in SC 70 package (almost 50% reduction on SOT 23 Package) l l 2. 35 to 5. 25 V Power Supply Compatible with 2. 35 V Logic and Lower Samples now & Release in June 02 Very Low Power; AD 7476/7477/7478 is 3 m. W u AD 7920/AD 7910 u Competition: – 250 ksps 12 & 10 -bit ADC with 2 m. W power dissipation Maxim MAX 1288, MAX 1289, MAX 1088 and MAX 1089, MAX 1115 . They are housed in a bigger package (8 -SOT) and operate at a much slower thru'put rate ~ 165 ksps Generic Description Smallest Package Comment AD 7476 A/77 A/78 A 12/10/8 -Bit ADCs SC 70 is 1/2 Size of SOT 23 AD 7920/7910 12/10 -Bit l ADCs SC 70 AD 7490/2 – 2 m. W power dissipation

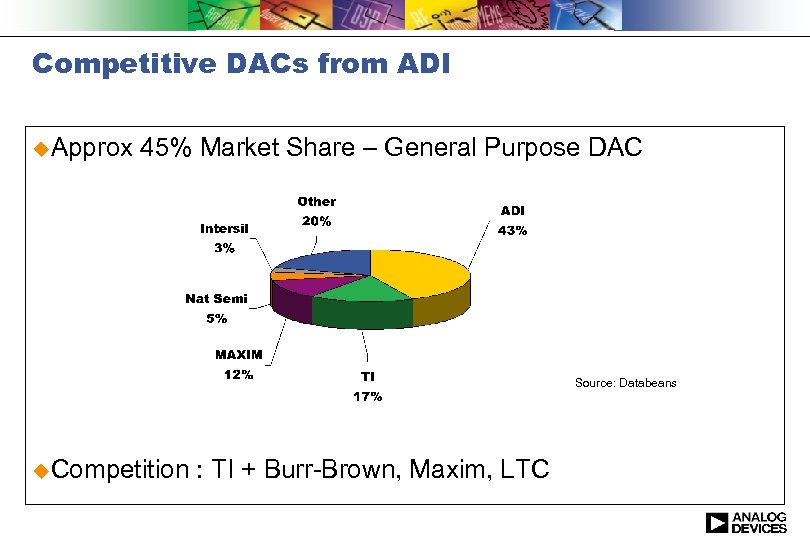

Competitive DACs from ADI u. Approx 45% Market Share – General Purpose DAC Source: Databeans u. Competition : TI + Burr-Brown, Maxim, LTC

General Purpose DAC Markets

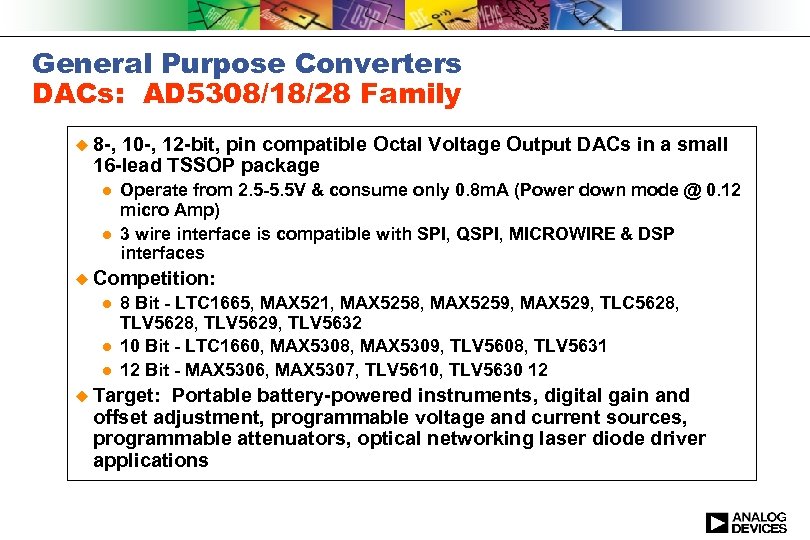

General Purpose Converters DACs: AD 5308/18/28 Family u 8 -, 10 -, 12 -bit, pin compatible Octal Voltage Output DACs in a small 16 -lead TSSOP package l l Operate from 2. 5 -5. 5 V & consume only 0. 8 m. A (Power down mode @ 0. 12 micro Amp) 3 wire interface is compatible with SPI, QSPI, MICROWIRE & DSP interfaces u Competition: l l l 8 Bit - LTC 1665, MAX 521, MAX 5258, MAX 5259, MAX 529, TLC 5628, TLV 5629, TLV 5632 10 Bit - LTC 1660, MAX 5308, MAX 5309, TLV 5608, TLV 5631 12 Bit - MAX 5306, MAX 5307, TLV 5610, TLV 5630 12 u Target: Portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, programmable attenuators, optical networking laser diode driver applications

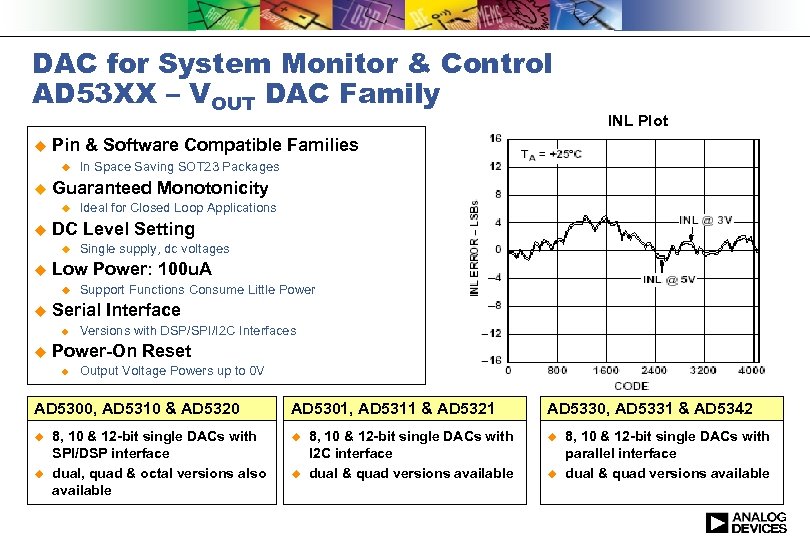

DAC for System Monitor & Control AD 53 XX – VOUT DAC Family u Pin & Software Compatible Families u u Support Functions Consume Little Power Serial Interface u u Single supply, dc voltages Low Power: 100 u. A u u Ideal for Closed Loop Applications DC Level Setting u u In Space Saving SOT 23 Packages Guaranteed Monotonicity u u Versions with DSP/SPI/I 2 C Interfaces Power-On Reset u Output Voltage Powers up to 0 V AD 5300, AD 5310 & AD 5320 u u INL Plot 8, 10 & 12 -bit single DACs with SPI/DSP interface dual, quad & octal versions also available AD 5301, AD 5311 & AD 5321 u u 8, 10 & 12 -bit single DACs with I 2 C interface dual & quad versions available AD 5330, AD 5331 & AD 5342 u u 8, 10 & 12 -bit single DACs with parallel interface dual & quad versions available

General Purpose Converters DAC: AD 5530 & AD 5531 u The 12 -bit AD 5530 and the 14 -bit AD 5531 are high-accuracy, bipolar ± 10 V voltage output, pin and software compatible digital-to-analog converters (DAC) with a serial interface. The AD 5530 and the AD 5531 utilize a versatile 3 -wire serial interface compatible with standard SPITM , QSPITM MICROWIRETM and DSP interface standards. Other features include power down, data read-back and daisy-chaining of parts over a single interface. u Competition: The ADI advantage is better specifications, more compact packaging, and lower prices than LTC/Maxim. u Target: Industrial Automation, Digital Gain and Offset Control, Automatic Test Equipment, Process Control, General Purpose Instrumentation

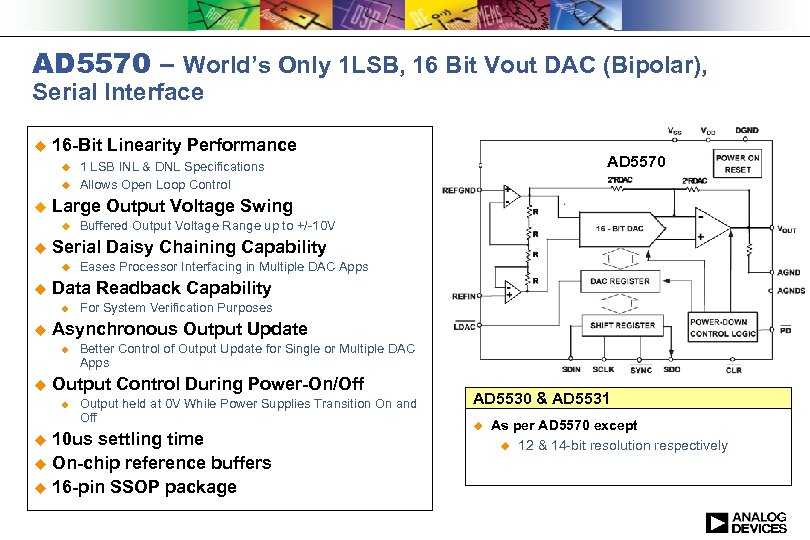

AD 5570 – World’s Only 1 LSB, 16 Bit Vout DAC (Bipolar), Serial Interface u 16 -Bit Linearity Performance u u u Large Output Voltage Swing u u For System Verification Purposes Asynchronous Output Update u u Eases Processor Interfacing in Multiple DAC Apps Data Readback Capability u u Buffered Output Voltage Range up to +/-10 V Serial Daisy Chaining Capability u u Better Control of Output Update for Single or Multiple DAC Apps Output Control During Power-On/Off u Output held at 0 V While Power Supplies Transition On and Off 10 us settling time u On-chip reference buffers u 16 -pin SSOP package u AD 5570 1 LSB INL & DNL Specifications Allows Open Loop Control AD 5530 & AD 5531 u As per AD 5570 except u 12 & 14 -bit resolution respectively

DAC Applications Matrix INDUSTRIAL Process control, Motor Control, PLC AD 5530/1 - +/-10 V 12/14 Bit AD 5570 -1 LSB 16 Bit AD 5582/3 – +/-10 V Quad 10/12 Bit AD 7398/9 - +/- 5 V, Quad 10/12 Bit AD 9833/4 – 25/50 Mhz, <30 m. W, MSOP COMMUNICATIONS Base-stations, Optical AD 53 xx – Low Power, Small Pkg AD 539 x – High Density DAC (16 Ch) AD 538 x – High Density DAC (40 Ch) INSTRUMENTATION Portable, Communications AD 53 xx – Low Power, Small Pkg AD 54 xx – >10 MHz B/W - MSOP AD 9833/4 – 25/50 Mhz, <30 m. W, MSOP ATE AD 5379 – Bipolar 40 Ch DAC AD 55 xx – 14/16 Bit Current Out AD 538 x – High Density DAC (40 Ch)

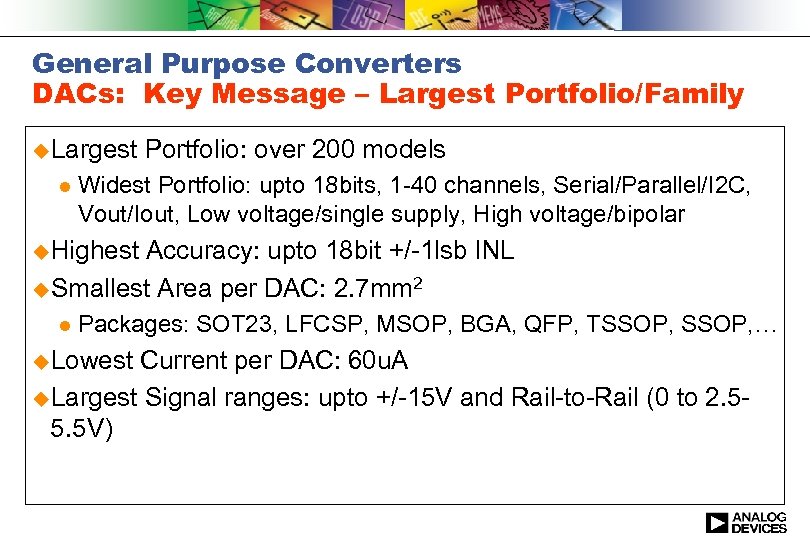

General Purpose Converters DACs: Key Message – Largest Portfolio/Family u. Largest l Portfolio: over 200 models Widest Portfolio: upto 18 bits, 1 -40 channels, Serial/Parallel/I 2 C, Vout/Iout, Low voltage/single supply, High voltage/bipolar u. Highest Accuracy: upto 18 bit +/-1 lsb INL u. Smallest Area per DAC: 2. 7 mm 2 l Packages: SOT 23, LFCSP, MSOP, BGA, QFP, TSSOP, … u. Lowest Current per DAC: 60 u. A u. Largest Signal ranges: upto +/-15 V and Rail-to-Rail (0 to 2. 55. 5 V)

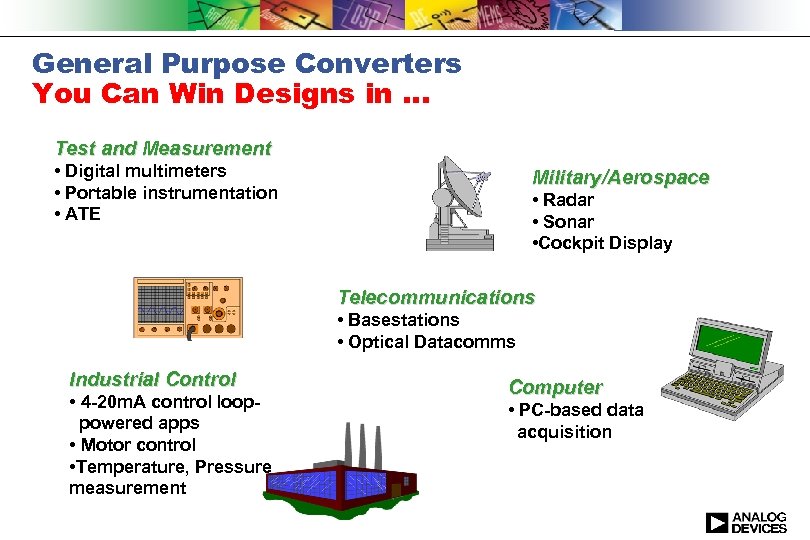

General Purpose Converters You Can Win Designs in. . . Test and Measurement • Digital multimeters • Portable instrumentation • ATE Military/Aerospace • Radar • Sonar • Cockpit Display Telecommunications • Basestations • Optical Datacomms Industrial Control • 4 -20 m. A control looppowered apps • Motor control • Temperature, Pressure measurement Computer • PC-based data acquisition

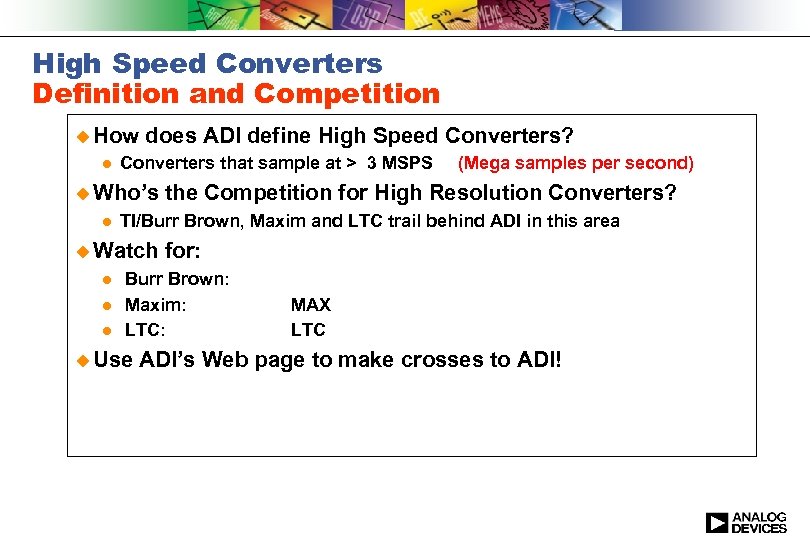

High Speed Converters Definition and Competition u How l does ADI define High Speed Converters? Converters that sample at > 3 MSPS u Who’s l l l the Competition for High Resolution Converters? TI/Burr Brown, Maxim and LTC trail behind ADI in this area u Watch l (Mega samples per second) for: Burr Brown: Maxim: LTC: u Use MAX LTC ADI’s Web page to make crosses to ADI!

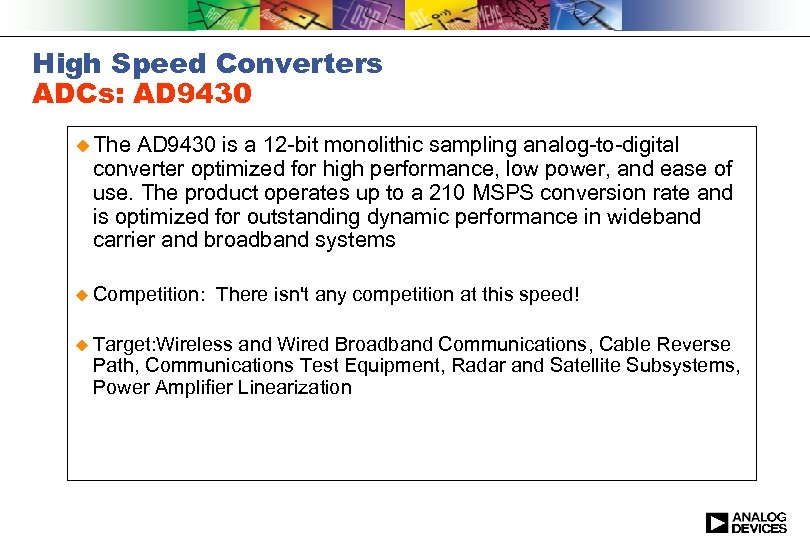

High Speed Converters ADCs: AD 9430 u The AD 9430 is a 12 -bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates up to a 210 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems u Competition: There isn't any competition at this speed! u Target: Wireless and Wired Broadband Communications, Cable Reverse Path, Communications Test Equipment, Radar and Satellite Subsystems, Power Amplifier Linearization

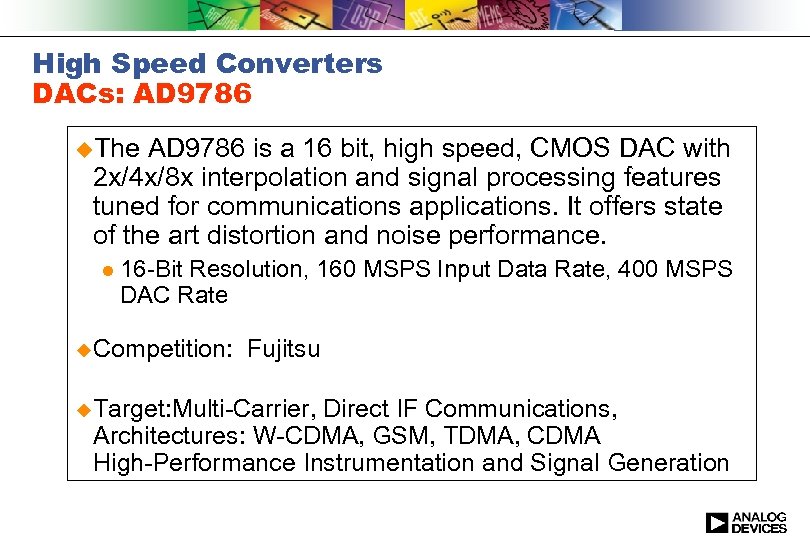

High Speed Converters DACs: AD 9786 u. The AD 9786 is a 16 bit, high speed, CMOS DAC with 2 x/4 x/8 x interpolation and signal processing features tuned for communications applications. It offers state of the art distortion and noise performance. l 16 -Bit Resolution, 160 MSPS Input Data Rate, 400 MSPS DAC Rate u. Competition: Fujitsu u. Target: Multi-Carrier, Direct IF Communications, Architectures: W-CDMA, GSM, TDMA, CDMA High-Performance Instrumentation and Signal Generation

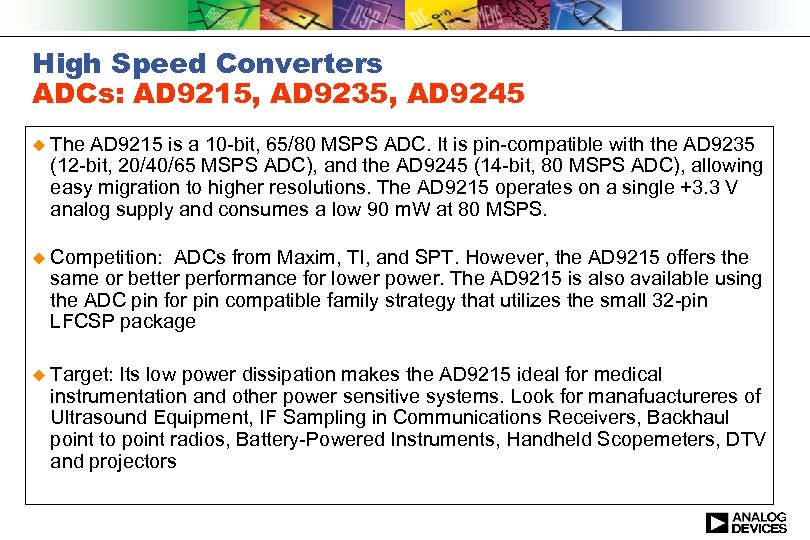

High Speed Converters ADCs: AD 9215, AD 9235, AD 9245 u The AD 9215 is a 10 -bit, 65/80 MSPS ADC. It is pin-compatible with the AD 9235 (12 -bit, 20/40/65 MSPS ADC), and the AD 9245 (14 -bit, 80 MSPS ADC), allowing easy migration to higher resolutions. The AD 9215 operates on a single +3. 3 V analog supply and consumes a low 90 m. W at 80 MSPS. u Competition: ADCs from Maxim, TI, and SPT. However, the AD 9215 offers the same or better performance for lower power. The AD 9215 is also available using the ADC pin for pin compatible family strategy that utilizes the small 32 -pin LFCSP package u Target: Its low power dissipation makes the AD 9215 ideal for medical instrumentation and other power sensitive systems. Look for manafuactureres of Ultrasound Equipment, IF Sampling in Communications Receivers, Backhaul point to point radios, Battery-Powered Instruments, Handheld Scopemeters, DTV and projectors

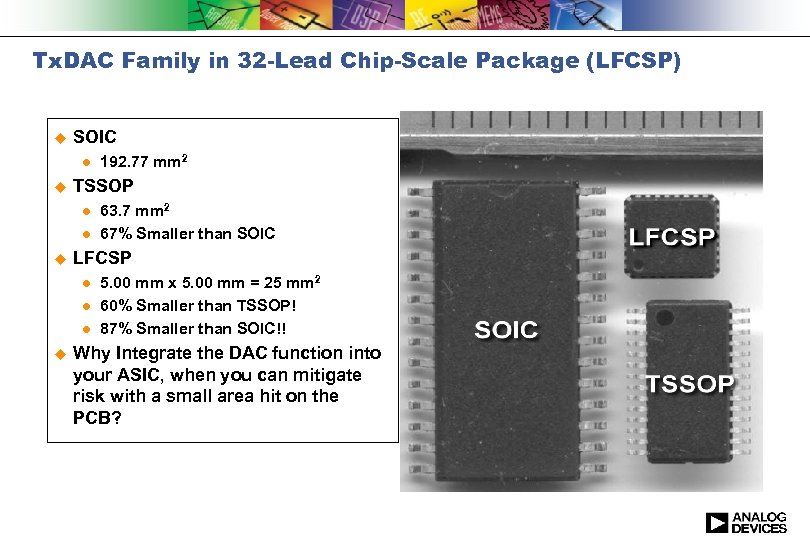

Tx. DAC Family in 32 -Lead Chip-Scale Package (LFCSP) u SOIC l u TSSOP l l u 63. 7 mm 2 67% Smaller than SOIC LFCSP l l l u 192. 77 mm 2 5. 00 mm x 5. 00 mm = 25 mm 2 60% Smaller than TSSOP! 87% Smaller than SOIC!! Why Integrate the DAC function into your ASIC, when you can mitigate risk with a small area hit on the PCB?

Analog Devices Leader In High-performance Analog For every tough design challenge, a high performance solution… l INDUSTRY LEADERSHIP u Speed u Accuracy u Low Power l SIGNAL PROCESSING EXPERTISE u General Purpose DSP u Specialized Transceiver Processors l BROAD TECHNOLOGY CAPABILITY u Broadest Portfolio Of System Focused Converter Solutions Available From An IC Supplier, Enabled By Superior Technology Access

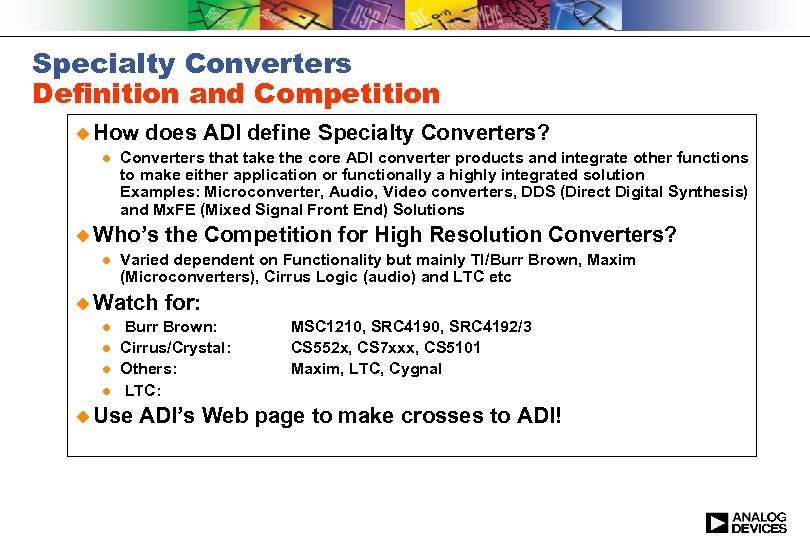

Specialty Converters Definition and Competition u How does ADI define Specialty Converters? l Converters that take the core ADI converter products and integrate other functions to make either application or functionally a highly integrated solution Examples: Microconverter, Audio, Video converters, DDS (Direct Digital Synthesis) and Mx. FE (Mixed Signal Front End) Solutions u Who’s the Competition for High Resolution Converters? l Varied dependent on Functionality but mainly TI/Burr Brown, Maxim (Microconverters), Cirrus Logic (audio) and LTC etc u Watch for: l Burr Brown: l Cirrus/Crystal: l Others: l LTC: u Use MSC 1210, SRC 4192/3 CS 552 x, CS 7 xxx, CS 5101 Maxim, LTC, Cygnal ADI’s Web page to make crosses to ADI!

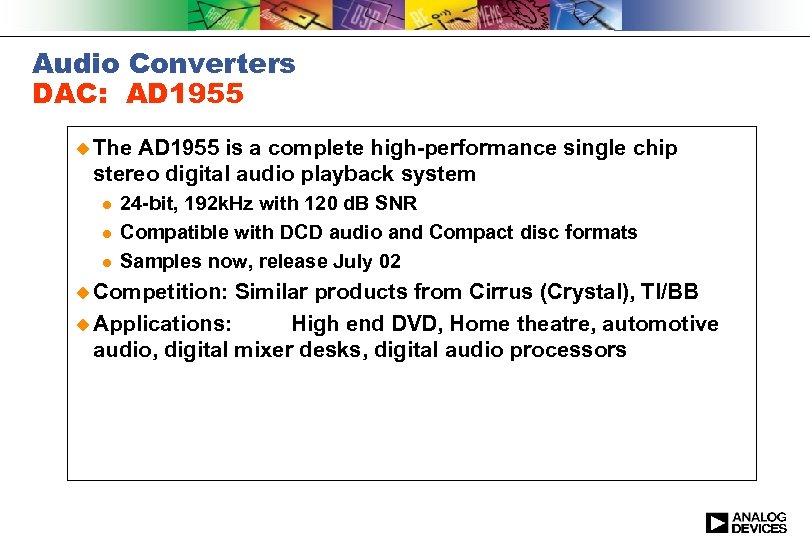

Audio Converters DAC: AD 1955 u The AD 1955 is a complete high-performance single chip stereo digital audio playback system l l l 24 -bit, 192 k. Hz with 120 d. B SNR Compatible with DCD audio and Compact disc formats Samples now, release July 02 u Competition: Similar products from Cirrus (Crystal), TI/BB u Applications: High end DVD, Home theatre, automotive audio, digital mixer desks, digital audio processors

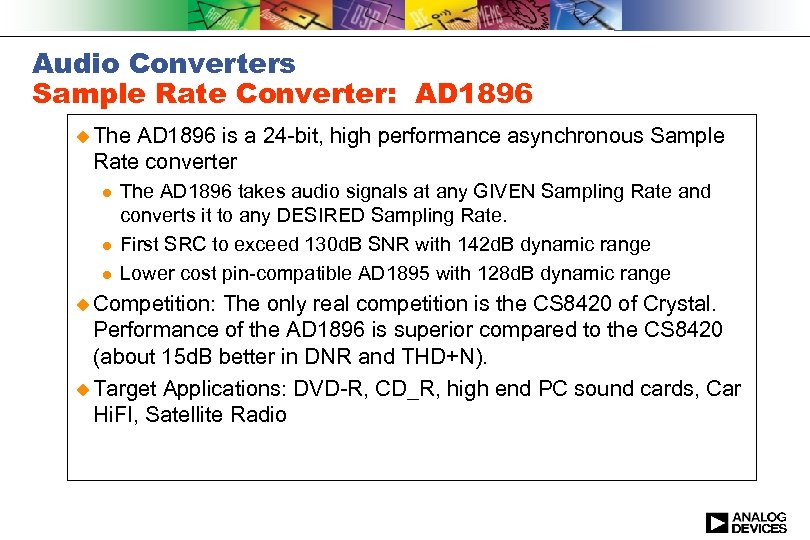

Audio Converters Sample Rate Converter: AD 1896 u The AD 1896 is a 24 -bit, high performance asynchronous Sample Rate converter l l l The AD 1896 takes audio signals at any GIVEN Sampling Rate and converts it to any DESIRED Sampling Rate. First SRC to exceed 130 d. B SNR with 142 d. B dynamic range Lower cost pin-compatible AD 1895 with 128 d. B dynamic range u Competition: The only real competition is the CS 8420 of Crystal. Performance of the AD 1896 is superior compared to the CS 8420 (about 15 d. B better in DNR and THD+N). u Target Applications: DVD-R, CD_R, high end PC sound cards, Car Hi. FI, Satellite Radio

Decoders, where do you use them? u u Any application that needs to convert analog video signal into digital format Examples of applications DVD Recorders u New Generation Digital TV’s u PVR HD based u LCD TV u Projectors u Flat Panels with Video options u Security & Surveillance u Industrial Imaging u Automotive entertainment u

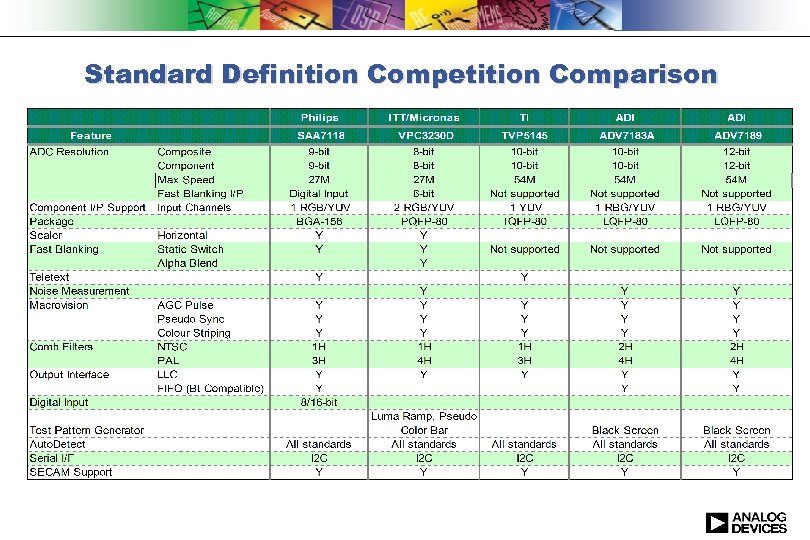

Standard Definition Competition Comparison

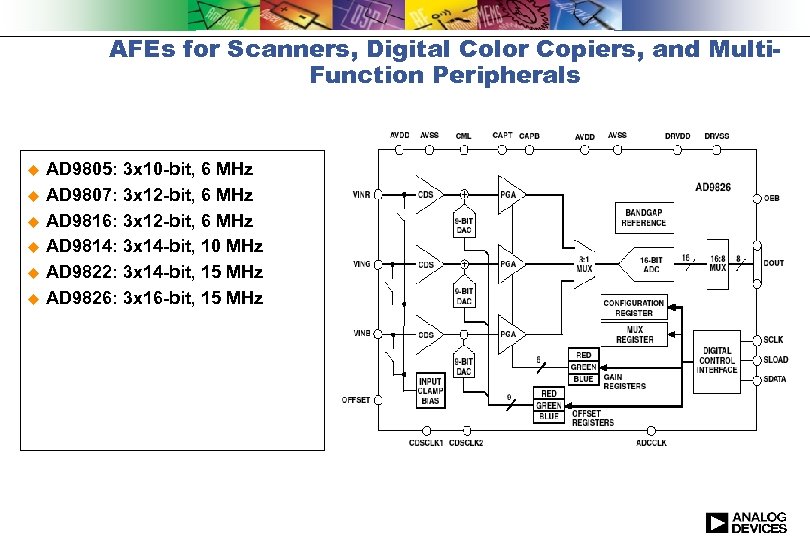

AFEs for Scanners, Digital Color Copiers, and Multi. Function Peripherals AD 9805: 3 x 10 -bit, 6 MHz u AD 9807: 3 x 12 -bit, 6 MHz u AD 9816: 3 x 12 -bit, 6 MHz u AD 9814: 3 x 14 -bit, 10 MHz u AD 9822: 3 x 14 -bit, 15 MHz u AD 9826: 3 x 16 -bit, 15 MHz u

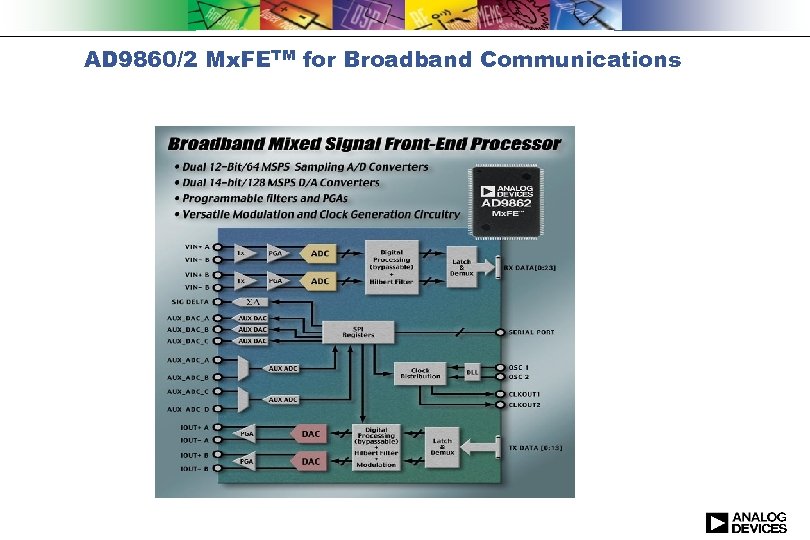

AD 9860/2 Mx. FETM for Broadband Communications

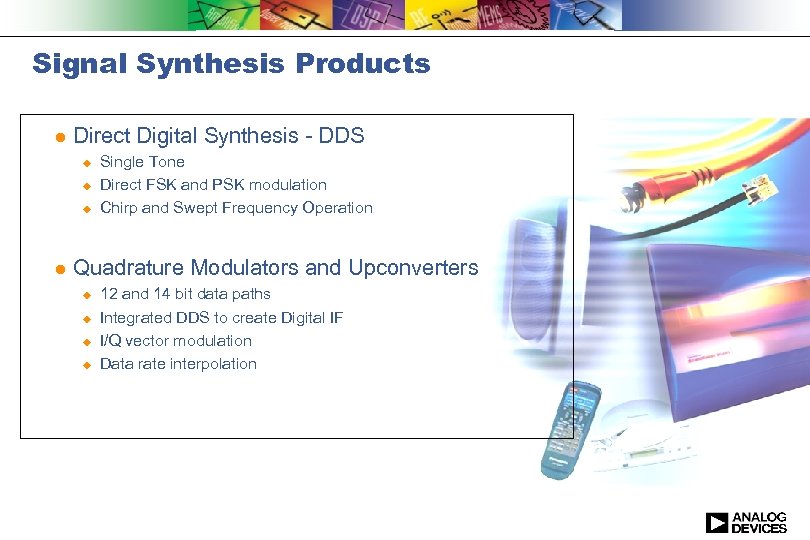

Signal Synthesis Products l Direct Digital Synthesis - DDS u u u l Single Tone Direct FSK and PSK modulation Chirp and Swept Frequency Operation Quadrature Modulators and Upconverters u u 12 and 14 bit data paths Integrated DDS to create Digital IF I/Q vector modulation Data rate interpolation

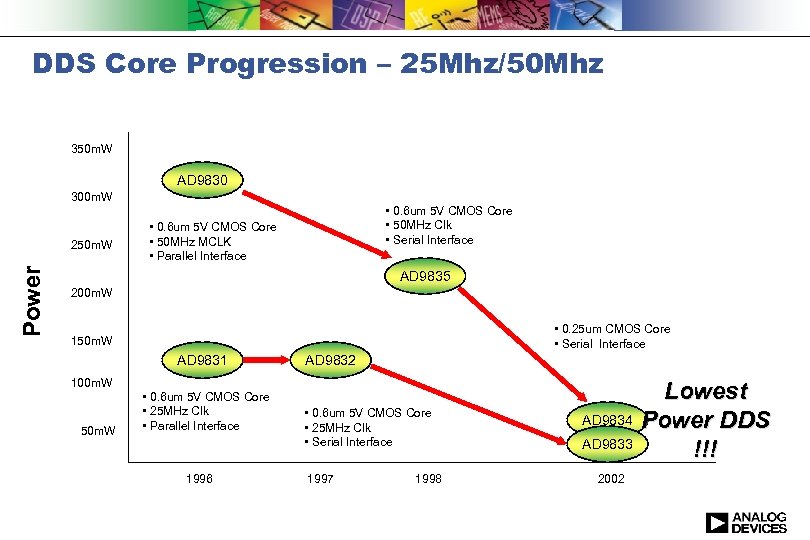

DDS Core Progression – 25 Mhz/50 Mhz 350 m. W AD 9830 300 m. W Power 250 m. W • 0. 6 um 5 V CMOS Core • 50 MHz Clk • Serial Interface • 0. 6 um 5 V CMOS Core • 50 MHz MCLK • Parallel Interface AD 9835 200 m. W • 0. 25 um CMOS Core • Serial Interface 150 m. W AD 9831 100 m. W 50 m. W • 0. 6 um 5 V CMOS Core • 25 MHz Clk • Parallel Interface 1996 AD 9832 • 0. 6 um 5 V CMOS Core • 25 MHz Clk • Serial Interface 1997 1998 AD 9834 AD 9833 2002 Lowest Power DDS !!!

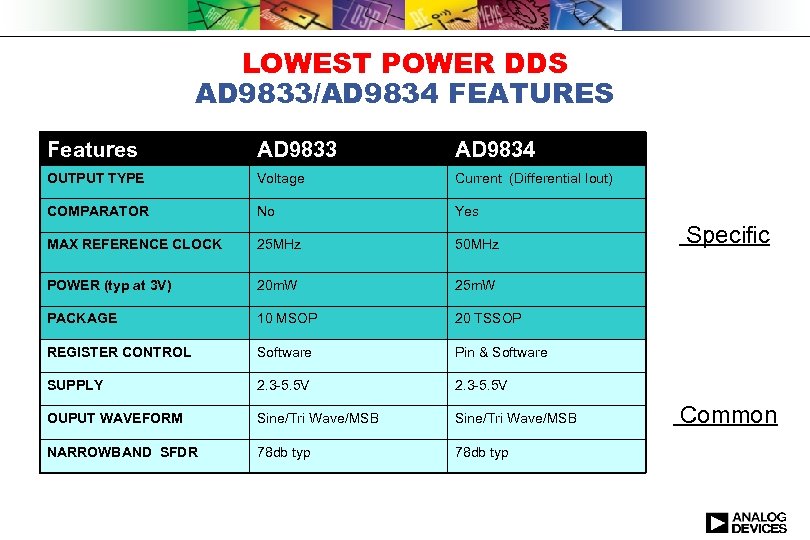

LOWEST POWER DDS AD 9833/AD 9834 FEATURES Features AD 9833 AD 9834 OUTPUT TYPE Voltage Current (Differential Iout) COMPARATOR No Yes MAX REFERENCE CLOCK 25 MHz 50 MHz POWER (typ at 3 V) 20 m. W 25 m. W PACKAGE 10 MSOP 20 TSSOP REGISTER CONTROL Software Pin & Software SUPPLY 2. 3 -5. 5 V OUPUT WAVEFORM Sine/Tri Wave/MSB NARROWBAND SFDR 78 db typ Specific Common

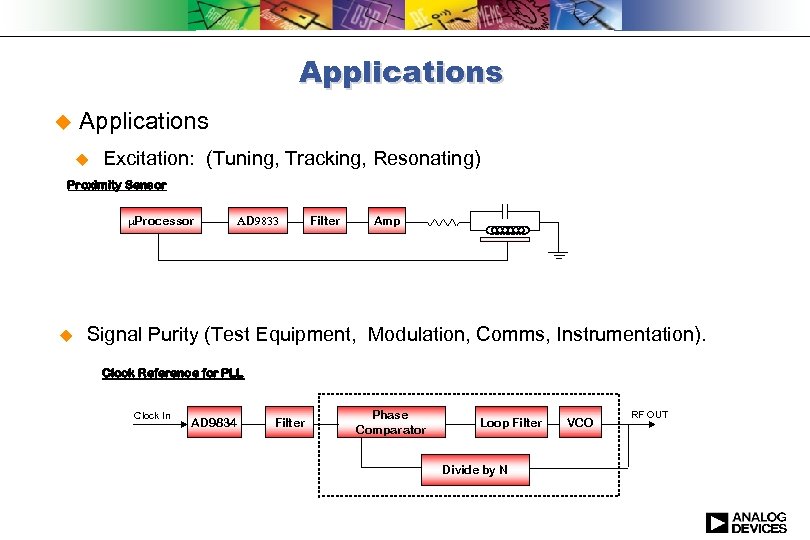

Applications u Excitation: (Tuning, Tracking, Resonating) Proximity Sensor m. Processor u AD 9833 Filter Amp Signal Purity (Test Equipment, Modulation, Comms, Instrumentation). Clock Reference for PLL Clock In AD 9834 Filter Phase Comparator Loop Filter Divide by N VCO RF OUT

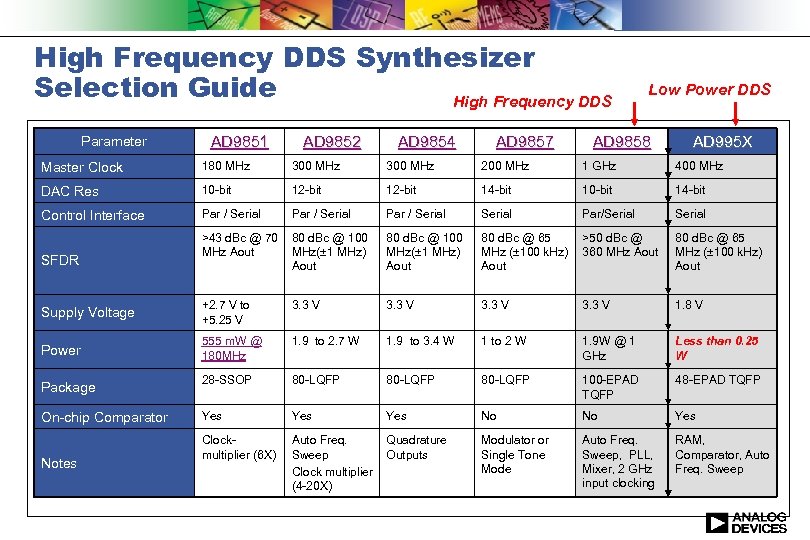

High Frequency DDS Synthesizer Selection Guide High Frequency DDS Parameter AD 9851 AD 9852 AD 9854 AD 9857 Low Power DDS AD 9858 AD 995 X Master Clock 180 MHz 300 MHz 200 MHz 1 GHz 400 MHz DAC Res 10 -bit 12 -bit 14 -bit 10 -bit 14 -bit Control Interface Par / Serial Par/Serial >43 d. Bc @ 70 MHz Aout 80 d. Bc @ 100 MHz(± 1 MHz) Aout 80 d. Bc @ 65 MHz (± 100 k. Hz) Aout >50 d. Bc @ 360 MHz Aout 80 d. Bc @ 65 MHz (± 100 k. Hz) Aout Supply Voltage +2. 7 V to +5. 25 V 3. 3 V 1. 8 V Power 555 m. W @ 180 MHz 1. 9 to 2. 7 W 1. 9 to 3. 4 W 1 to 2 W 1. 9 W @ 1 GHz Less than 0. 25 W 28 -SSOP 80 -LQFP 100 -EPAD TQFP 48 -EPAD TQFP Yes Yes No No Yes Clockmultiplier (6 X) Auto Freq. Sweep Clock multiplier (4 -20 X) Quadrature Outputs Modulator or Single Tone Mode Auto Freq. Sweep, PLL, Mixer, 2 GHz input clocking RAM, Comparator, Auto Freq. Sweep SFDR Package On-chip Comparator Notes

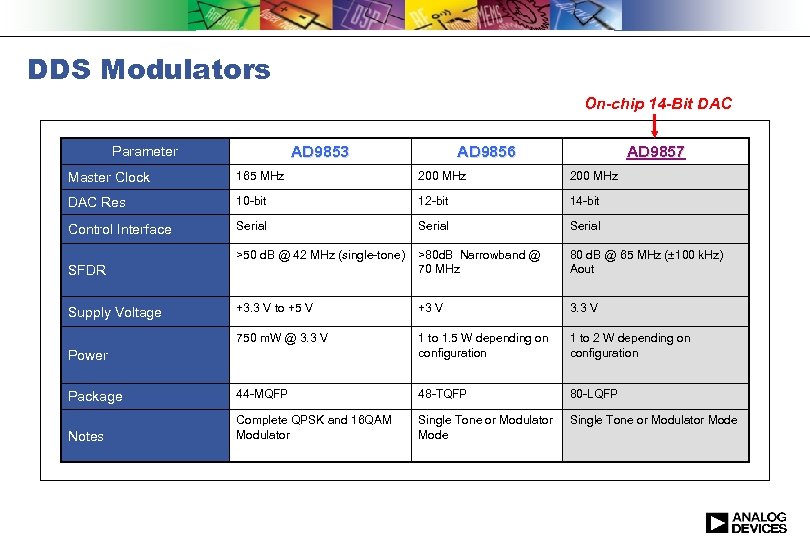

DDS Modulators On-chip 14 -Bit DAC AD 9853 Parameter AD 9856 AD 9857 Master Clock 165 MHz 200 MHz DAC Res 10 -bit 12 -bit 14 -bit Control Interface Serial >50 d. B @ 42 MHz (single-tone) >80 d. B Narrowband @ 70 MHz 80 d. B @ 65 MHz (± 100 k. Hz) Aout +3. 3 V to +5 V +3 V 3. 3 V 750 m. W @ 3. 3 V 1 to 1. 5 W depending on configuration 1 to 2 W depending on configuration Package 44 -MQFP 48 -TQFP 80 -LQFP Single Tone or Modulator Mode Notes Complete QPSK and 16 QAM Modulator SFDR Supply Voltage Power

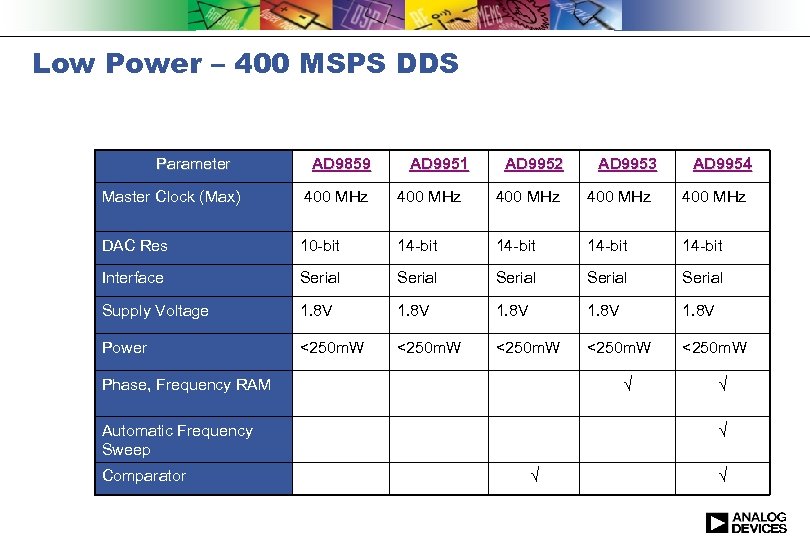

Low Power – 400 MSPS DDS Parameter AD 9859 AD 9951 AD 9952 AD 9953 AD 9954 Master Clock (Max) 400 MHz 400 MHz DAC Res 10 -bit 14 -bit Interface Serial Serial Supply Voltage 1. 8 V Power <250 m. W Phase, Frequency RAM √ Automatic Frequency Sweep Comparator √ √

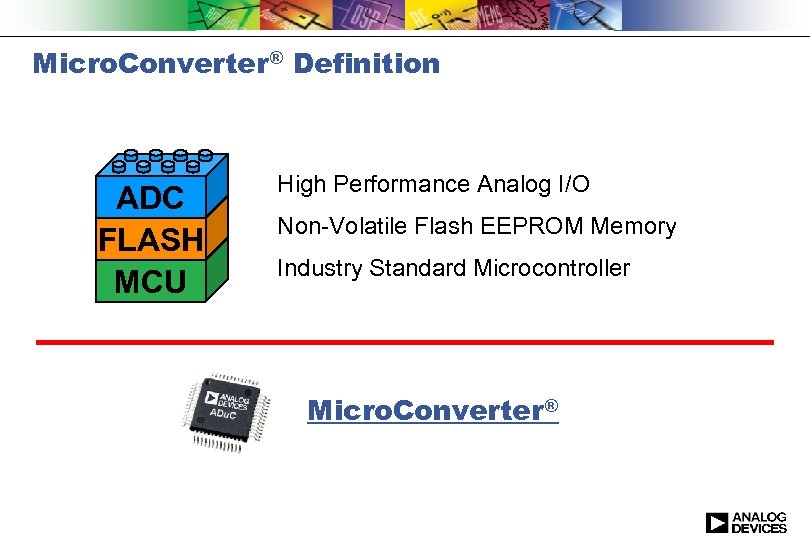

Micro. Converter® Definition ADC FLASH MCU High Performance Analog I/O Non-Volatile Flash EEPROM Memory Industry Standard Microcontroller ® Micro. Converter

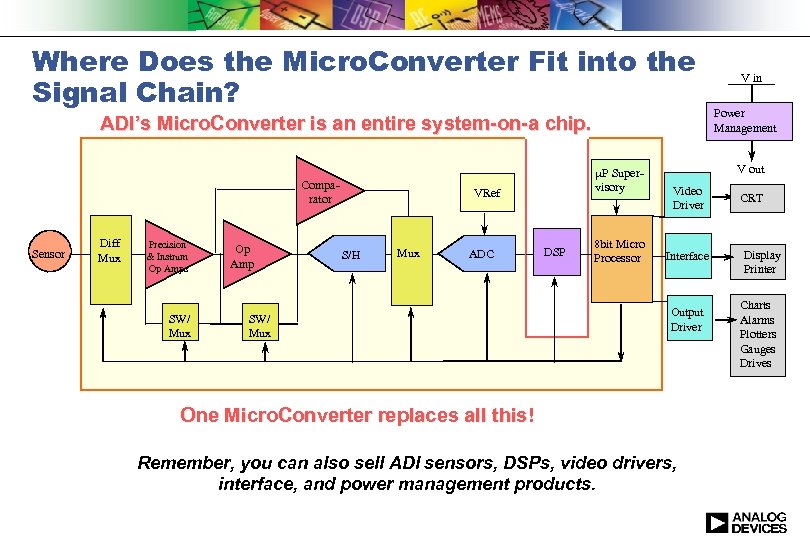

Where Does the Micro. Converter Fit into the Signal Chain? ADI’s Micro. Converter is an entire system-on-a chip. Comparator Sensor Diff Mux Precision & Instrum Op Amps SW/ Mux Op Amp m. P Supervisory VRef S/H Mux ADC SW/ Mux DSP 8 bit Micro Processor V in Power Management V out Video Driver Interface Output Driver One Micro. Converter replaces all this! Remember, you can also sell ADI sensors, DSPs, video drivers, interface, and power management products. CRT Display Printer Charts Alarms Plotters Gauges Drives

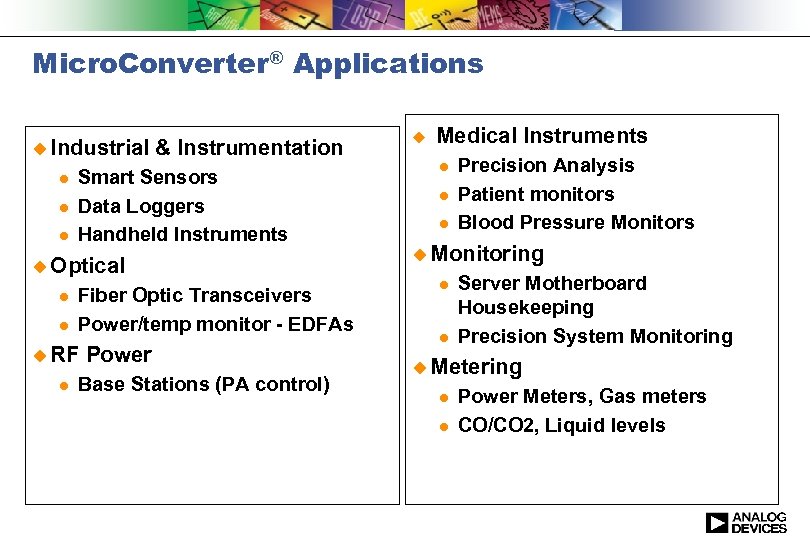

Micro. Converter® Applications u Industrial l & Instrumentation Smart Sensors Data Loggers Handheld Instruments u Optical l l Fiber Optic Transceivers Power/temp monitor - EDFAs u RF l Power Base Stations (PA control) u Medical Instruments l l l Precision Analysis Patient monitors Blood Pressure Monitors u Monitoring l l Server Motherboard Housekeeping Precision System Monitoring u Metering l l Power Meters, Gas meters CO/CO 2, Liquid levels

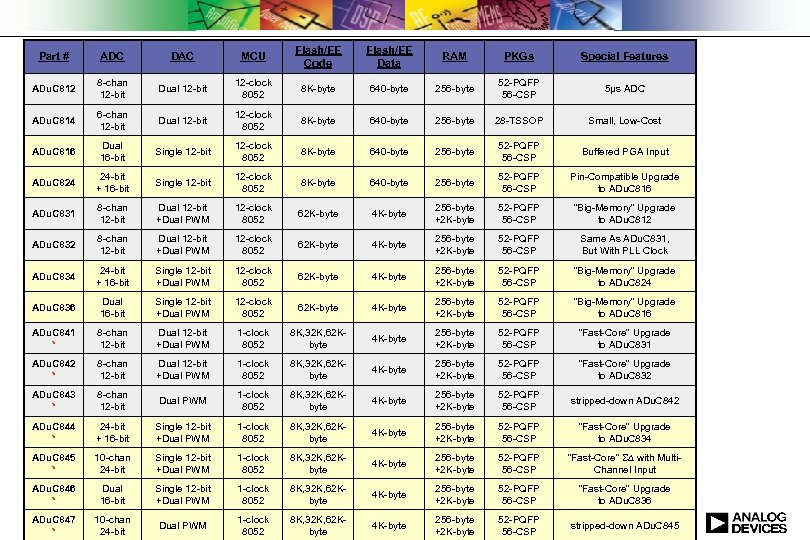

® Flash/EE Code Data Micro. Converter Product Part # ADC DAC MCU ADu. C 812 8 -chan 12 -bit Dual 12 -bit 12 -clock 8052 8 K-byte ADu. C 814 6 -chan 12 -bit Dual 12 -bit 12 -clock 8052 ADu. C 816 Dual 16 -bit Single 12 -bit ADu. C 824 24 -bit + 16 -bit ADu. C 831 Table RAM PKGs Special Features 640 -byte 256 -byte 52 -PQFP 56 -CSP 5µs ADC 8 K-byte 640 -byte 256 -byte 28 -TSSOP Small, Low-Cost 12 -clock 8052 8 K-byte 640 -byte 256 -byte 52 -PQFP 56 -CSP Buffered PGA Input Single 12 -bit 12 -clock 8052 8 K-byte 640 -byte 256 -byte 52 -PQFP 56 -CSP Pin-Compatible Upgrade to ADu. C 816 8 -chan 12 -bit Dual 12 -bit +Dual PWM 12 -clock 8052 62 K-byte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Big-Memory” Upgrade to ADu. C 812 ADu. C 832 8 -chan 12 -bit Dual 12 -bit +Dual PWM 12 -clock 8052 62 K-byte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP Same As ADu. C 831, But With PLL Clock ADu. C 834 24 -bit + 16 -bit Single 12 -bit +Dual PWM 12 -clock 8052 62 K-byte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Big-Memory” Upgrade to ADu. C 824 ADu. C 836 Dual 16 -bit Single 12 -bit +Dual PWM 12 -clock 8052 62 K-byte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Big-Memory” Upgrade to ADu. C 816 ADu. C 841 * 8 -chan 12 -bit Dual 12 -bit +Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Fast-Core” Upgrade to ADu. C 831 ADu. C 842 * 8 -chan 12 -bit Dual 12 -bit +Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Fast-Core” Upgrade to ADu. C 832 ADu. C 843 * 8 -chan 12 -bit Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP stripped-down ADu. C 842 ADu. C 844 * 24 -bit + 16 -bit Single 12 -bit +Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Fast-Core” Upgrade to ADu. C 834 ADu. C 845 * 10 -chan 24 -bit Single 12 -bit +Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Fast-Core” with Multi. Channel Input ADu. C 846 * Dual 16 -bit Single 12 -bit +Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP “Fast-Core” Upgrade to ADu. C 836 ADu. C 847 * 10 -chan 24 -bit Dual PWM 1 -clock 8052 8 K, 32 K, 62 Kbyte 4 K-byte 256 -byte +2 K-byte 52 -PQFP 56 -CSP stripped-down ADu. C 845

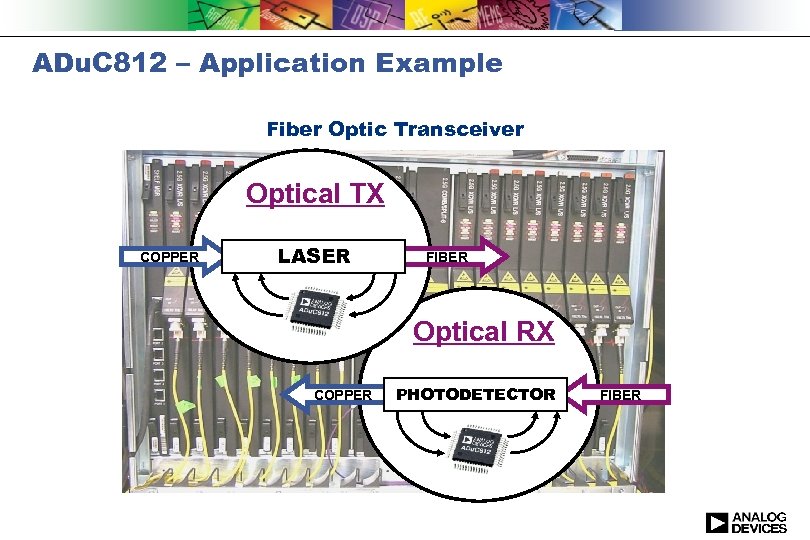

ADu. C 812 – Application Example Fiber Optic Transceiver Optical TX COPPER LASER FIBER Optical RX COPPER PHOTODETECTOR FIBER

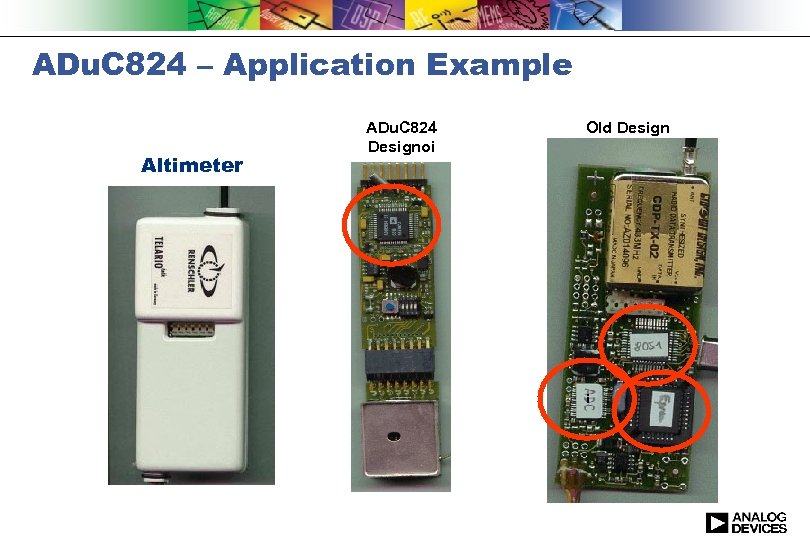

ADu. C 824 – Application Example Altimeter ADu. C 824 Designoi Old Design i

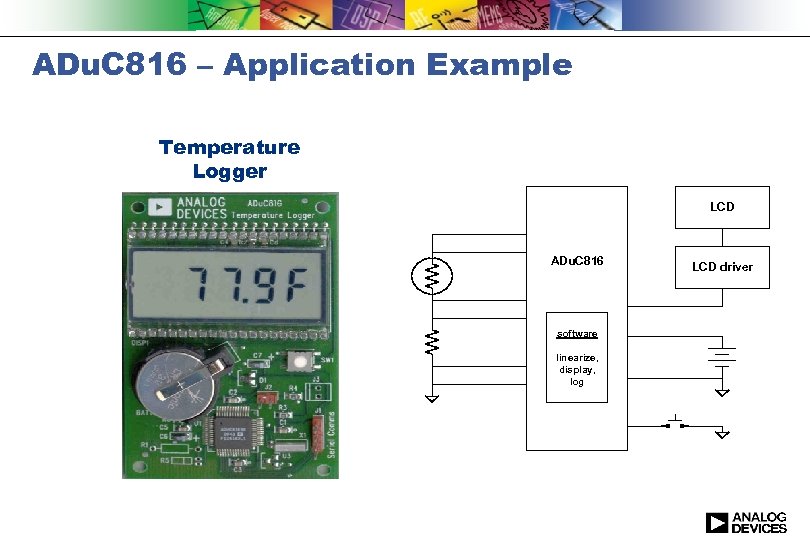

ADu. C 816 – Application Example Temperature Logger LCD ADu. C 816 software linearize, display, log LCD driver

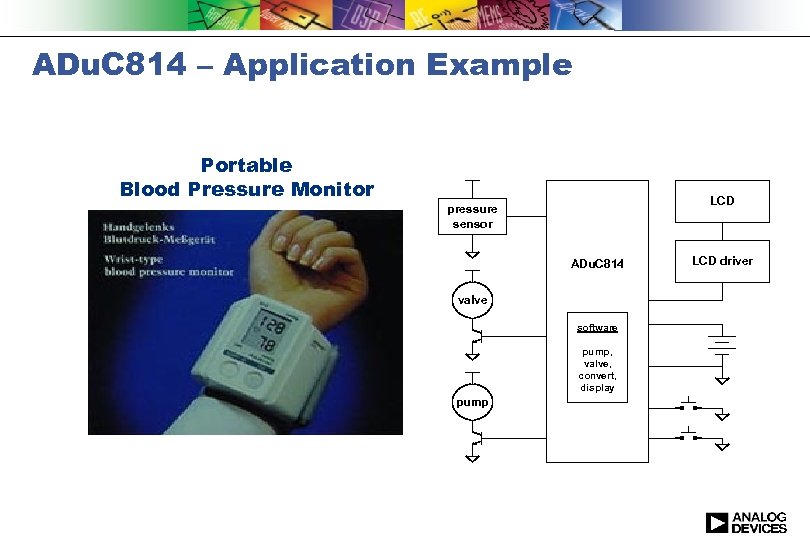

ADu. C 814 – Application Example Portable Blood Pressure Monitor LCD pressure sensor ADu. C 814 valve software pump, valve, convert, display pump LCD driver

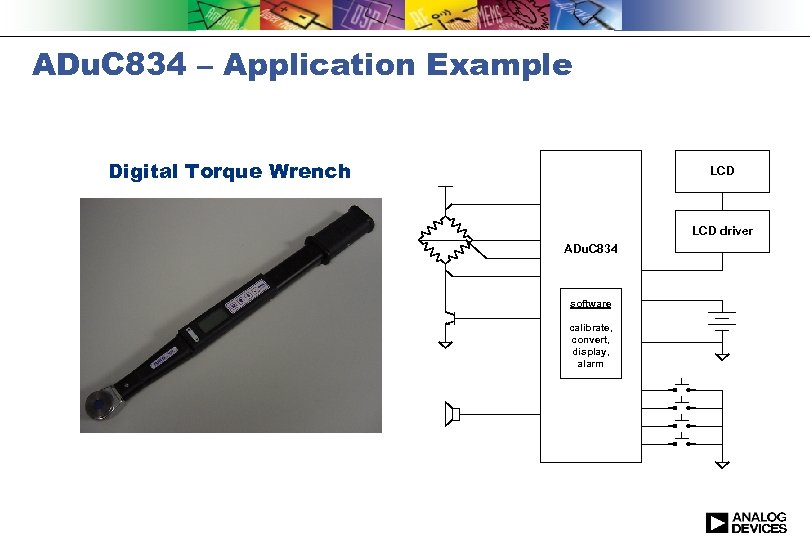

ADu. C 834 – Application Example Digital Torque Wrench LCD driver ADu. C 834 software calibrate, convert, display, alarm

Micro. Converter® Tools Check www. analog. com/microconverter

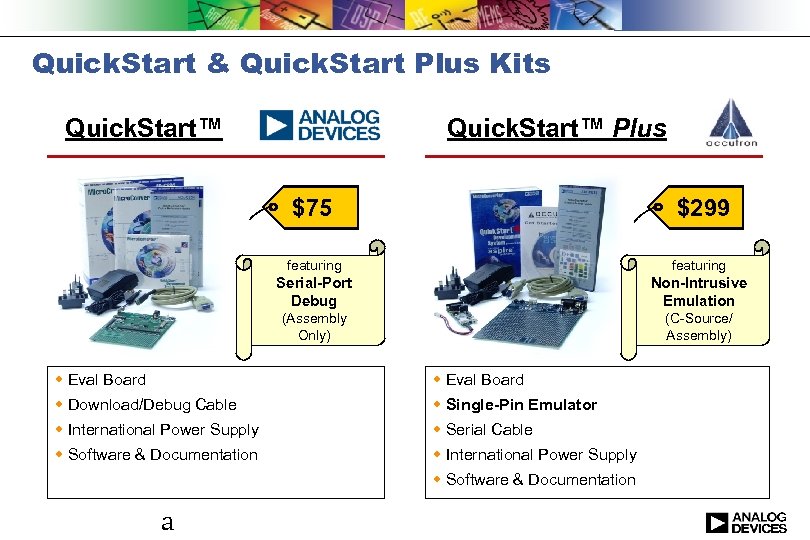

Quick. Start & Quick. Start Plus Kits Quick. Start™ Plus $75 $299 featuring Serial-Port Debug Non-Intrusive Emulation (Assembly Only) (C-Source/ Assembly) w Eval Board w Download/Debug Cable w Single-Pin Emulator w International Power Supply w Serial Cable w Software & Documentation w International Power Supply w Software & Documentation a

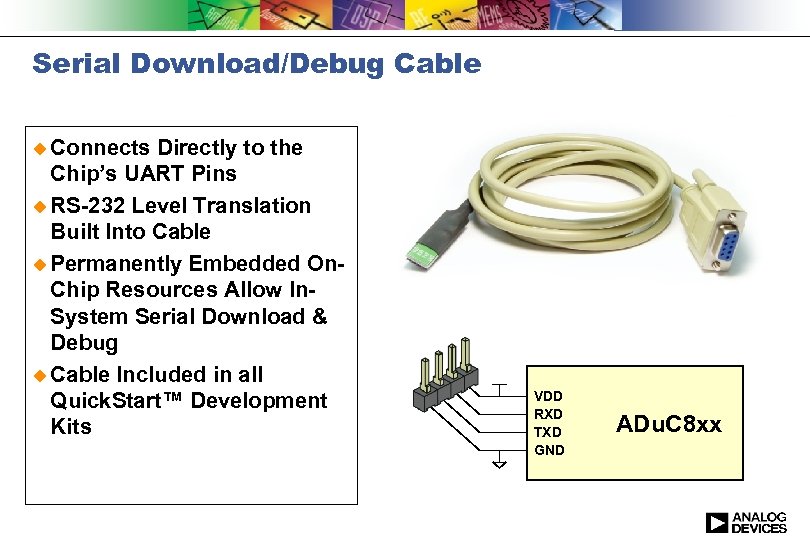

Serial Download/Debug Cable u Connects Directly to the Chip’s UART Pins u RS-232 Level Translation Built Into Cable u Permanently Embedded On. Chip Resources Allow In. System Serial Download & Debug u Cable Included in all Quick. Start™ Development Kits VDD RXD TXD GND ADu. C 8 xx

Single-Pin Emulator u Connects to Chip via a Single Pin & Ground u Allows Full Non-Intrusive Emulation Using Chip that’s Already Soldered Down u Analogous to JTAG, but Uses Fewer Pins u Emulator Included in all Quick. Start™ Plus Development Kits EA GND ADu. C 8 xx

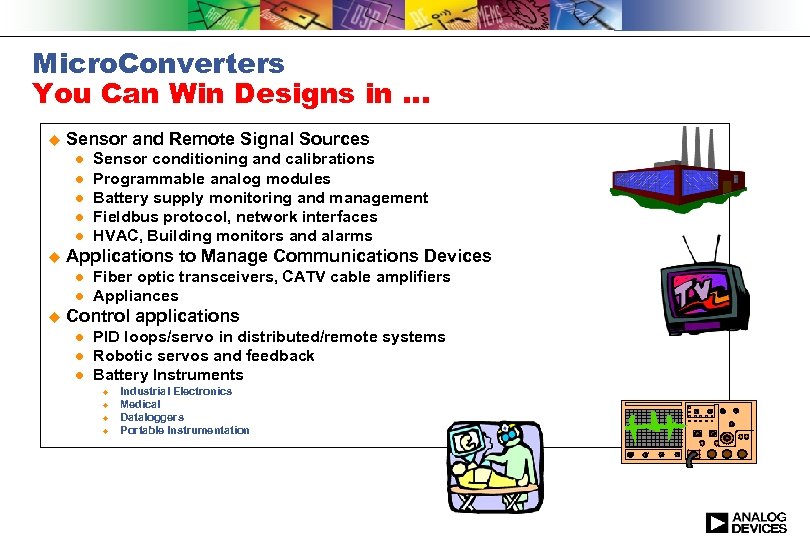

Micro. Converters You Can Win Designs in. . . u Sensor and Remote Signal Sources l l l u Applications to Manage Communications Devices l l u Sensor conditioning and calibrations Programmable analog modules Battery supply monitoring and management Fieldbus protocol, network interfaces HVAC, Building monitors and alarms Fiber optic transceivers, CATV cable amplifiers Appliances Control applications l l l PID loops/servo in distributed/remote systems Robotic servos and feedback Battery Instruments u u Industrial Electronics Medical Dataloggers Portable Instrumentation

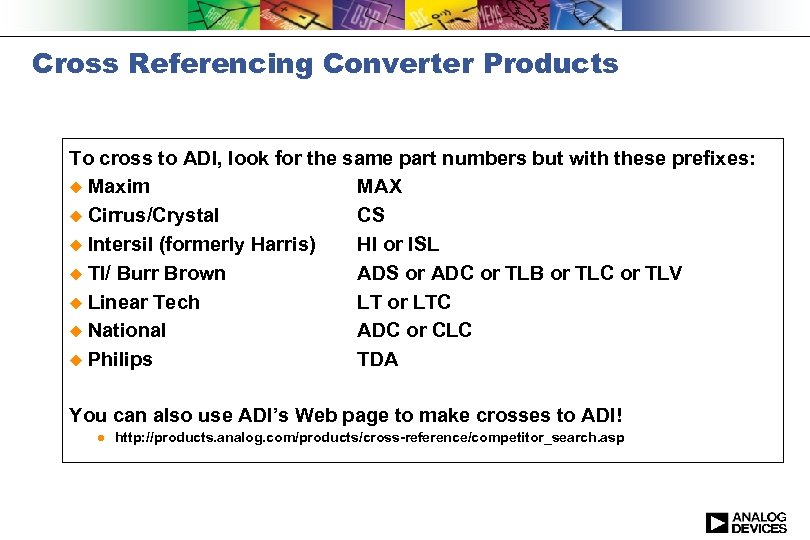

Cross Referencing Converter Products To cross to ADI, look for the same part numbers but with these prefixes: u Maxim MAX u Cirrus/Crystal CS u Intersil (formerly Harris) HI or ISL u TI/ Burr Brown ADS or ADC or TLB or TLC or TLV u Linear Tech LT or LTC u National ADC or CLC u Philips TDA You can also use ADI’s Web page to make crosses to ADI! l http: //products. analog. com/products/cross-reference/competitor_search. asp

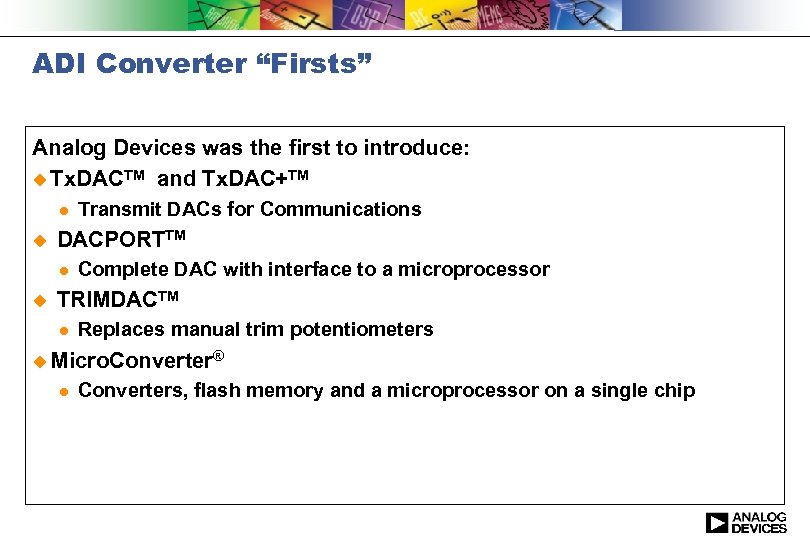

ADI Converter “Firsts” Analog Devices was the first to introduce: u Tx. DACTM and Tx. DAC+TM l u DACPORTTM l u Transmit DACs for Communications Complete DAC with interface to a microprocessor TRIMDACTM l Replaces manual trim potentiometers u Micro. Converter® l Converters, flash memory and a microprocessor on a single chip

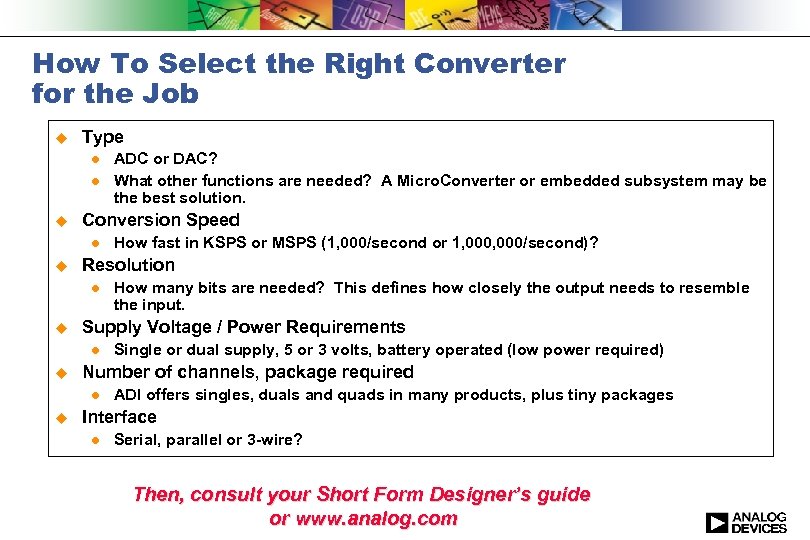

How To Select the Right Converter for the Job u Type l l u Conversion Speed l u Single or dual supply, 5 or 3 volts, battery operated (low power required) Number of channels, package required l u How many bits are needed? This defines how closely the output needs to resemble the input. Supply Voltage / Power Requirements l u How fast in KSPS or MSPS (1, 000/second or 1, 000/second)? Resolution l u ADC or DAC? What other functions are needed? A Micro. Converter or embedded subsystem may be the best solution. ADI offers singles, duals and quads in many products, plus tiny packages Interface l Serial, parallel or 3 -wire? Then, consult your Short Form Designer’s guide or www. analog. com

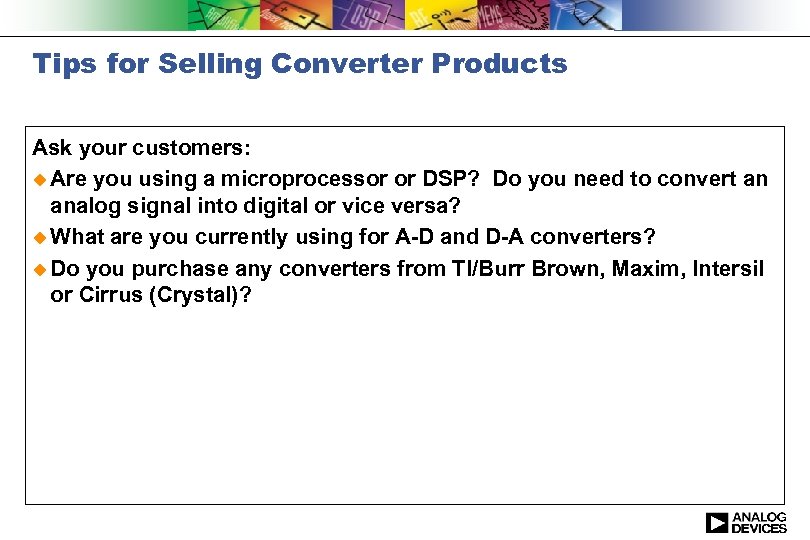

Tips for Selling Converter Products Ask your customers: u Are you using a microprocessor or DSP? Do you need to convert an analog signal into digital or vice versa? u What are you currently using for A-D and D-A converters? u Do you purchase any converters from TI/Burr Brown, Maxim, Intersil or Cirrus (Crystal)?

Signal Chain. SM Selling with ADI Related Products u Remember! l l l l u If You can also cross sell: Op Amps DSPs Temperature Controllers Microprocessor Supervisory Interface Analog Switches & Muxes Analog Signal Processors Power Management you sell an ADC or DAC, also ask if your customer needs: l l Voltage References Sample-and-Hold Amplifiers

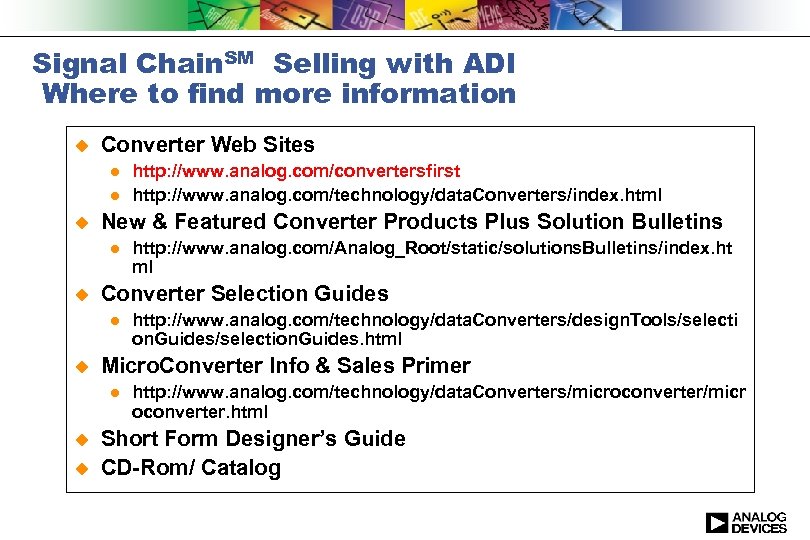

Signal Chain. SM Selling with ADI Where to find more information u Converter Web Sites l l u New & Featured Converter Products Plus Solution Bulletins l u u http: //www. analog. com/technology/data. Converters/design. Tools/selecti on. Guides/selection. Guides. html Micro. Converter Info & Sales Primer l u http: //www. analog. com/Analog_Root/static/solutions. Bulletins/index. ht ml Converter Selection Guides l u http: //www. analog. com/convertersfirst http: //www. analog. com/technology/data. Converters/index. html http: //www. analog. com/technology/data. Converters/microconverter/micr oconverter. html Short Form Designer’s Guide CD-Rom/ Catalog
