The Virtual Space weather Applications Network of Tools

The Virtual Space weather Applications Network of Tools – Vi. Spa. Ne. T A Virtual Observatory for SWE data and model assets P. Beltrami Karlezi Philipp Hake Michel Gangloff Didier Lazaro Daniel Heynderickx Peter Wintoft Sebastian Bourdarie Christian Jacquey Alain Hilgers etamax space Gmb. H Université Paul Sabatier ONERA, DH Consultancy IRF ONERA Université Paul Sabatier ESA/ESTEC p. beltrami@etamax. de p. hake@etamax. de Michel. Gangloff@cesr. fr Didier. Lazaro@onera. fr DHConsultancy@skynet. be peter@lund. irf. se Sebastian. Bourdarie@onera. fr Christian Jacquey @cesr. fr alain. hilgers@esa. int ESA/ESTEC contract 22539/09/NL/AT

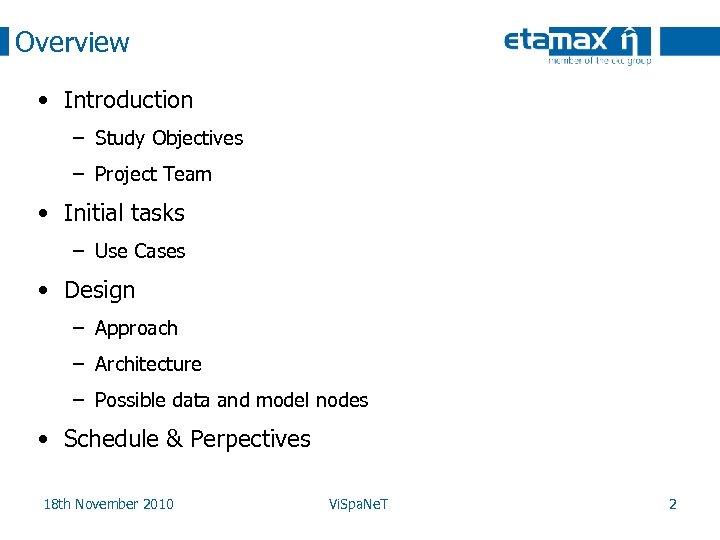

Overview • Introduction – Study Objectives – Project Team • Initial tasks – Use Cases • Design – Approach – Architecture – Possible data and model nodes • Schedule & Perpectives 18 th November 2010 Vi. Spa. Ne. T 2

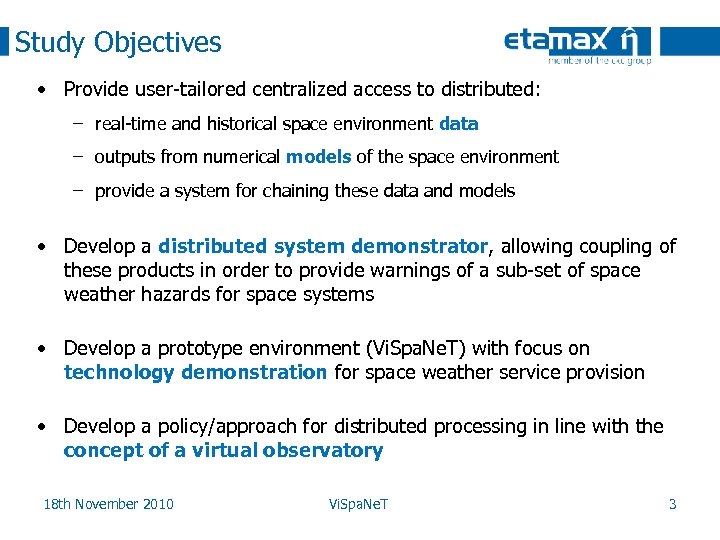

Study Objectives • Provide user-tailored centralized access to distributed: – real-time and historical space environment data – outputs from numerical models of the space environment – provide a system for chaining these data and models • Develop a distributed system demonstrator, allowing coupling of these products in order to provide warnings of a sub-set of space weather hazards for space systems • Develop a prototype environment (Vi. Spa. Ne. T) with focus on technology demonstration for space weather service provision • Develop a policy/approach for distributed processing in line with the concept of a virtual observatory 18 th November 2010 Vi. Spa. Ne. T 3

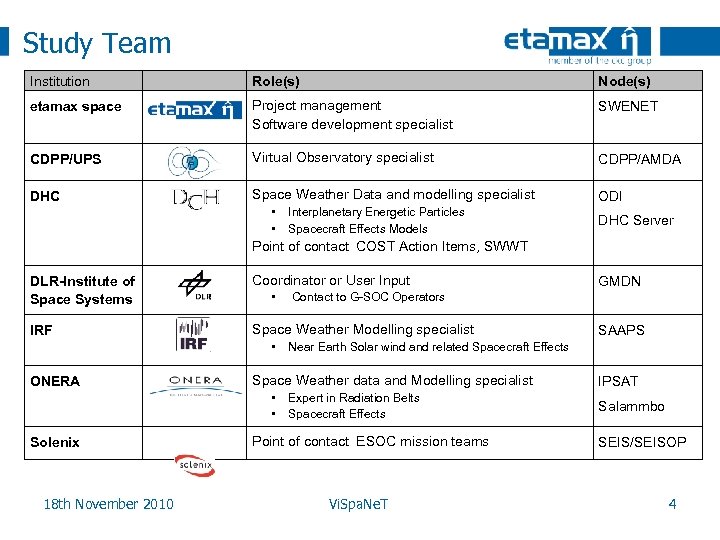

Study Team Institution Role(s) Node(s) etamax space Project management Software development specialist SWENET CDPP/UPS Virtual Observatory specialist CDPP/AMDA DHC Space Weather Data and modelling specialist ODI • • Interplanetary Energetic Particles Spacecraft Effects Models DHC Server Point of contact COST Action Items, SWWT DLR-Institute of Space Systems Coordinator or User Input IRF Space Weather Modelling specialist • • ONERA Solenix 18 th November 2010 Contact to G-SOC Operators SAAPS Near Earth Solar wind and related Spacecraft Effects Space Weather data and Modelling specialist • • GMDN Expert in Radiation Belts Spacecraft Effects Point of contact ESOC mission teams Vi. Spa. Ne. T IPSAT Salammbo SEIS/SEISOP 4

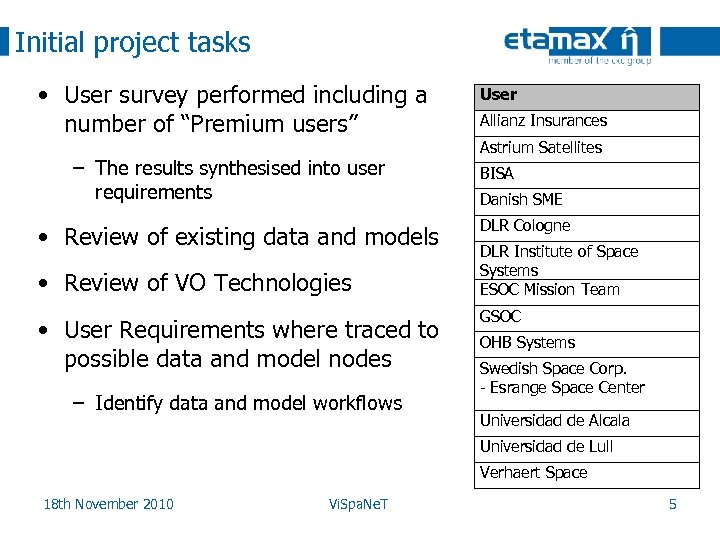

Initial project tasks • User survey performed including a number of “Premium users” – The results synthesised into user requirements • Review of existing data and models • Review of VO Technologies • User Requirements where traced to possible data and model nodes – Identify data and model workflows User Allianz Insurances Astrium Satellites BISA Danish SME DLR Cologne DLR Institute of Space Systems ESOC Mission Team GSOC OHB Systems Swedish Space Corp. - Esrange Space Center Universidad de Alcala Universidad de Lull Verhaert Space 18 th November 2010 Vi. Spa. Ne. T 5

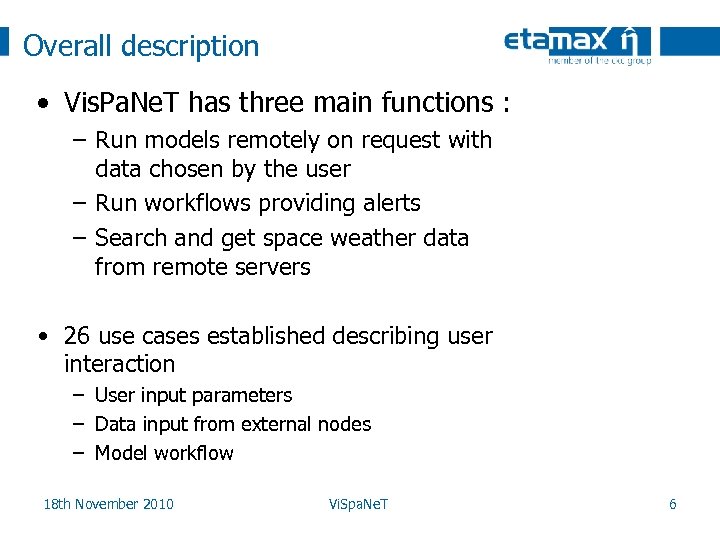

Overall description • Vis. Pa. Ne. T has three main functions : – Run models remotely on request with data chosen by the user – Run workflows providing alerts – Search and get space weather data from remote servers • 26 use cases established describing user interaction – User input parameters – Data input from external nodes – Model workflow 18 th November 2010 Vi. Spa. Ne. T 6

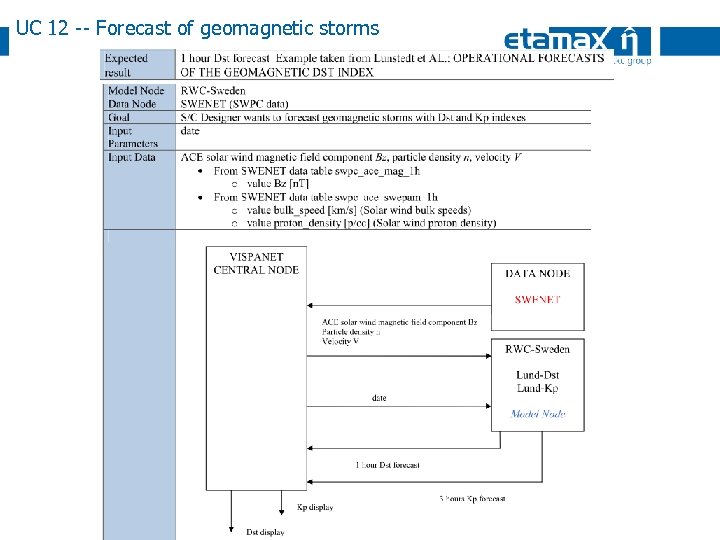

UC 12 -- Forecast of geomagnetic storms

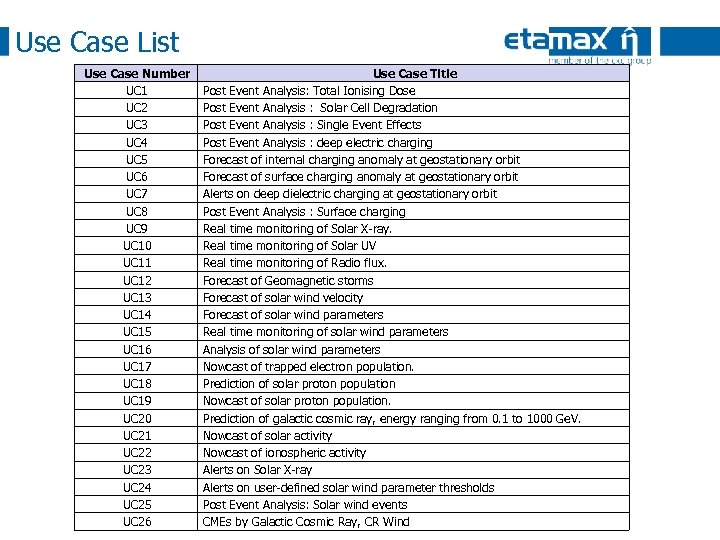

Use Case List Use Case Number UC 1 UC 2 UC 3 UC 4 UC 5 UC 6 UC 7 UC 8 UC 9 UC 10 UC 11 UC 12 UC 13 UC 14 UC 15 UC 16 UC 17 UC 18 UC 19 UC 20 UC 21 UC 22 UC 23 UC 24 UC 25 18 th November 2010 UC 26 Use Case Title Post Event Analysis: Total Ionising Dose Post Event Analysis : Solar Cell Degradation Post Event Analysis : Single Event Effects Post Event Analysis : deep electric charging Forecast of internal charging anomaly at geostationary orbit Forecast of surface charging anomaly at geostationary orbit Alerts on deep dielectric charging at geostationary orbit Post Event Analysis : Surface charging Real time monitoring of Solar X-ray. Real time monitoring of Solar UV Real time monitoring of Radio flux. Forecast of Geomagnetic storms Forecast of solar wind velocity Forecast of solar wind parameters Real time monitoring of solar wind parameters Analysis of solar wind parameters Nowcast of trapped electron population. Prediction of solar proton population Nowcast of solar proton population. Prediction of galactic cosmic ray, energy ranging from 0. 1 to 1000 Ge. V. Nowcast of solar activity Nowcast of ionospheric activity Alerts on Solar X-ray Alerts on user-defined solar wind parameter thresholds Post Event Analysis: Solar wind events Vi. Spa. Ne. T CMEs by Galactic Cosmic Ray, CR Wind 8

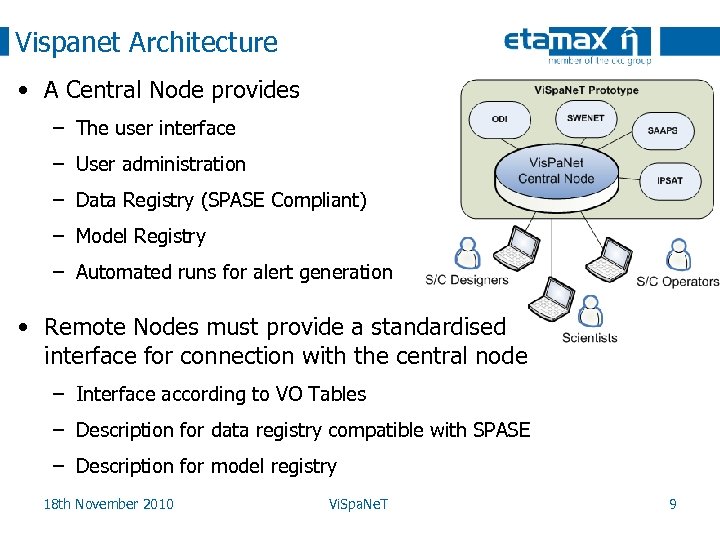

Vispanet Architecture • A Central Node provides – The user interface – User administration – Data Registry (SPASE Compliant) – Model Registry – Automated runs for alert generation • Remote Nodes must provide a standardised interface for connection with the central node – Interface according to VO Tables – Description for data registry compatible with SPASE – Description for model registry 18 th November 2010 Vi. Spa. Ne. T 9

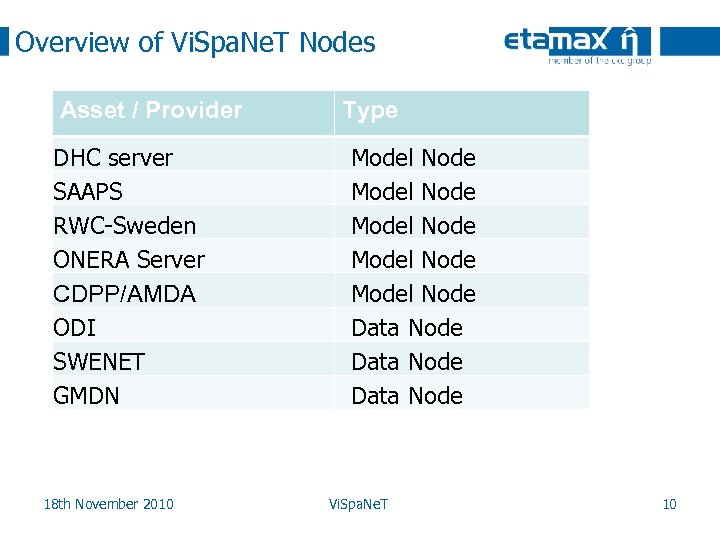

Overview of Vi. Spa. Ne. T Nodes Asset / Provider DHC server SAAPS RWC-Sweden ONERA Server CDPP/AMDA ODI SWENET GMDN 18 th November 2010 Type Model Node Model Node Data Node Vi. Spa. Ne. T 10

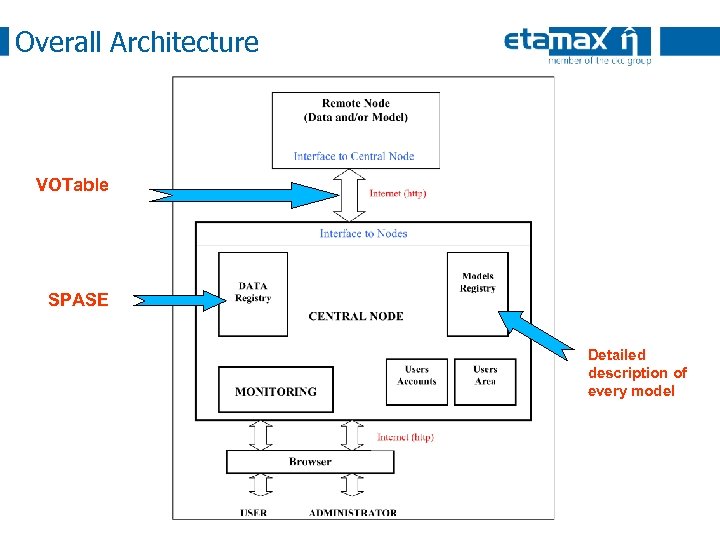

Overall Architecture VOTable SPASE Detailed description of every model 18 th November 2010 Vi. Spa. Ne. T 11

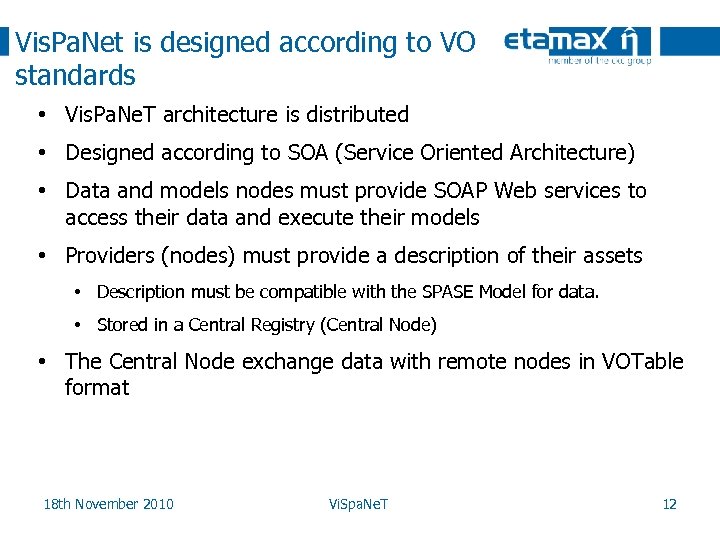

Vis. Pa. Net is designed according to VO standards • Vis. Pa. Ne. T architecture is distributed • Designed according to SOA (Service Oriented Architecture) • Data and models nodes must provide SOAP Web services to access their data and execute their models • Providers (nodes) must provide a description of their assets • Description must be compatible with the SPASE Model for data. • Stored in a Central Registry (Central Node) • The Central Node exchange data with remote nodes in VOTable format 18 th November 2010 Vi. Spa. Ne. T 12

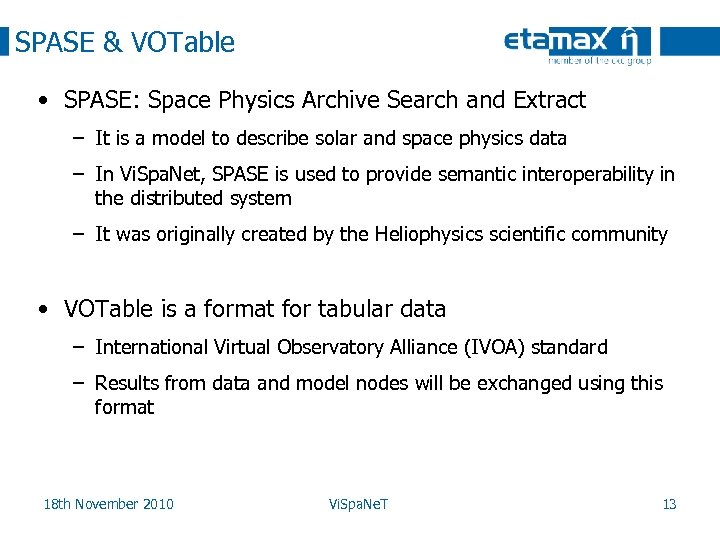

SPASE & VOTable • SPASE: Space Physics Archive Search and Extract – It is a model to describe solar and space physics data – In Vi. Spa. Net, SPASE is used to provide semantic interoperability in the distributed system – It was originally created by the Heliophysics scientific community • VOTable is a format for tabular data – International Virtual Observatory Alliance (IVOA) standard – Results from data and model nodes will be exchanged using this format 18 th November 2010 Vi. Spa. Ne. T 13

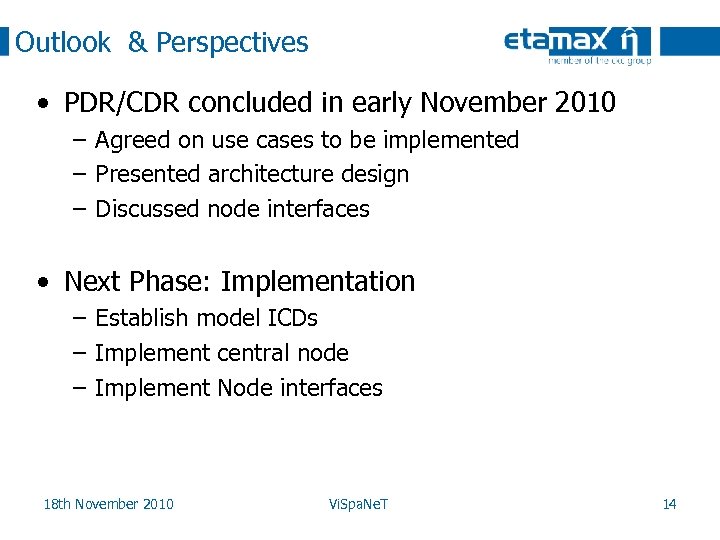

Outlook & Perspectives • PDR/CDR concluded in early November 2010 – Agreed on use cases to be implemented – Presented architecture design – Discussed node interfaces • Next Phase: Implementation – Establish model ICDs – Implement central node – Implement Node interfaces 18 th November 2010 Vi. Spa. Ne. T 14

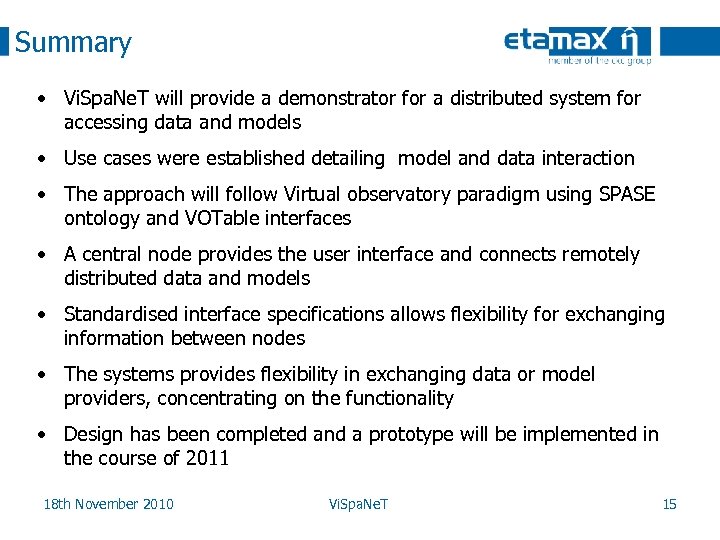

Summary • Vi. Spa. Ne. T will provide a demonstrator for a distributed system for accessing data and models • Use cases were established detailing model and data interaction • The approach will follow Virtual observatory paradigm using SPASE ontology and VOTable interfaces • A central node provides the user interface and connects remotely distributed data and models • Standardised interface specifications allows flexibility for exchanging information between nodes • The systems provides flexibility in exchanging data or model providers, concentrating on the functionality • Design has been completed and a prototype will be implemented in the course of 2011 18 th November 2010 Vi. Spa. Ne. T 15

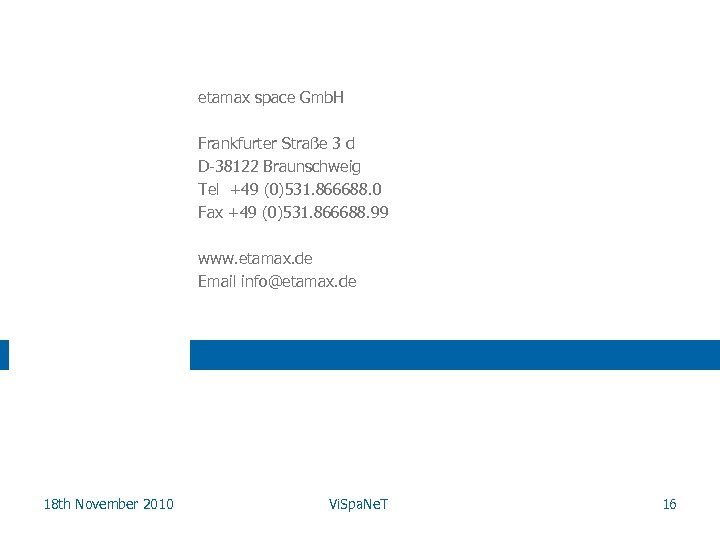

etamax space Gmb. H Frankfurter Straße 3 d D-38122 Braunschweig Tel +49 (0)531. 866688. 0 Fax +49 (0)531. 866688. 99 www. etamax. de Email info@etamax. de 18 th November 2010 Vi. Spa. Ne. T 16
