The TWAREN Initiative An Update Fay Sheu (faysheu@nchc. org. tw) The National Center for High-performance Computing Science-based Industrial Park, Hsinchu, Taiwan National Center for High-performance Computing 1

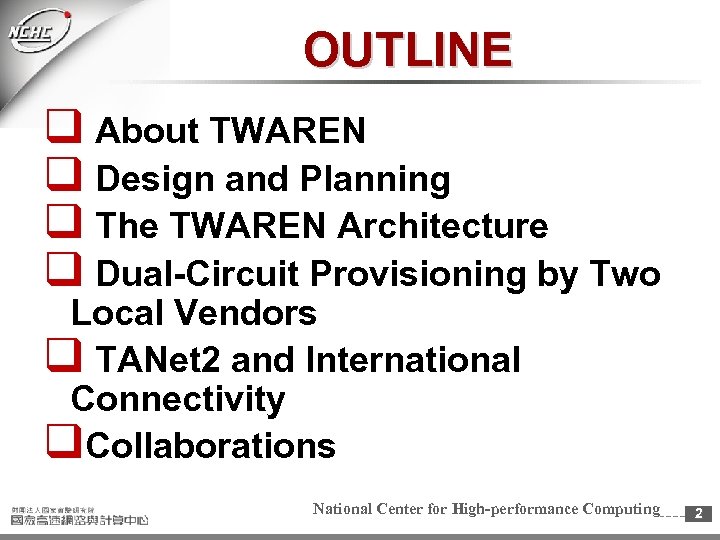

OUTLINE q About TWAREN q Design and Planning q The TWAREN Architecture q Dual-Circuit Provisioning by Two Local Vendors q TANet 2 and International Connectivity q. Collaborations National Center for High-performance Computing 2

EN AR TW Wan nced T ai and dva A arch n ese R catio Edu work N et National Center for High-performance Computing 3

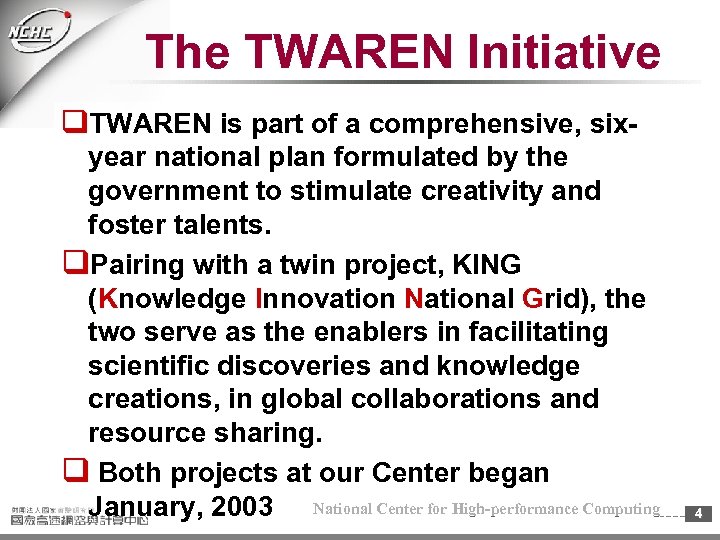

The TWAREN Initiative q. TWAREN is part of a comprehensive, sixyear national plan formulated by the government to stimulate creativity and foster talents. q. Pairing with a twin project, KING (Knowledge Innovation National Grid), the two serve as the enablers in facilitating scientific discoveries and knowledge creations, in global collaborations and resource sharing. q Both projects at our Center began January, 2003 National Center for High-performance Computing 4

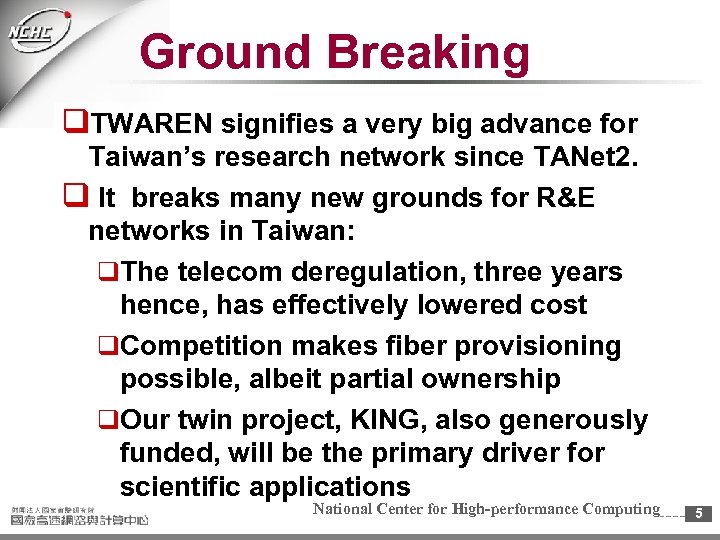

Ground Breaking q. TWAREN signifies a very big advance for Taiwan’s research network since TANet 2. q It breaks many new grounds for R&E networks in Taiwan: q. The telecom deregulation, three years hence, has effectively lowered cost q. Competition makes fiber provisioning possible, albeit partial ownership q. Our twin project, KING, also generously funded, will be the primary driver for scientific applications National Center for High-performance Computing 5

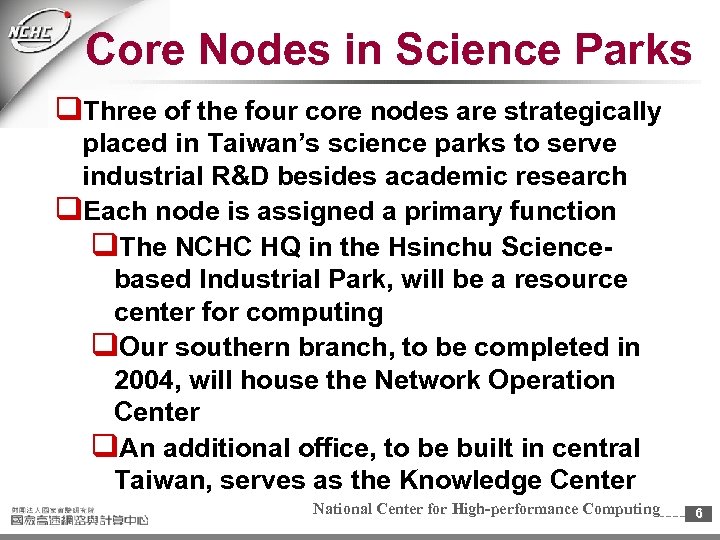

Core Nodes in Science Parks q. Three of the four core nodes are strategically placed in Taiwan’s science parks to serve industrial R&D besides academic research q. Each node is assigned a primary function q. The NCHC HQ in the Hsinchu Sciencebased Industrial Park, will be a resource center for computing q. Our southern branch, to be completed in 2004, will house the Network Operation Center q. An additional office, to be built in central Taiwan, serves as the Knowledge Center National Center for High-performance Computing 6

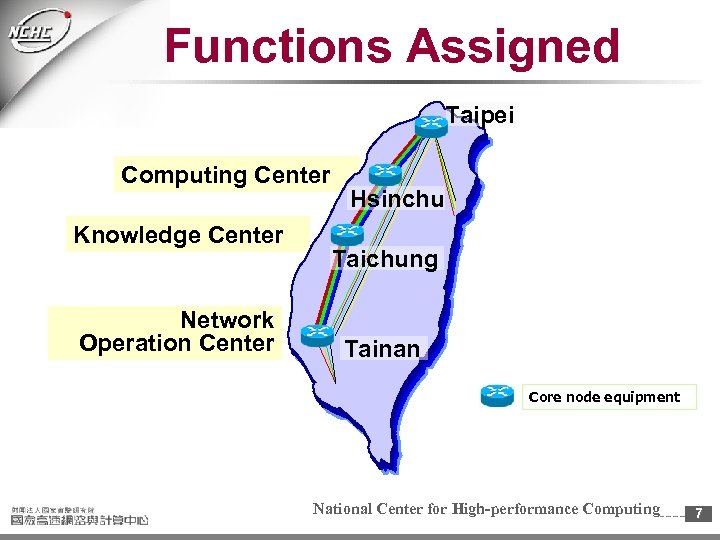

Functions Assigned Taipei Computing Center Knowledge Center Network Operation Center Hsinchu Taichung Tainan Core node equipment National Center for High-performance Computing 7

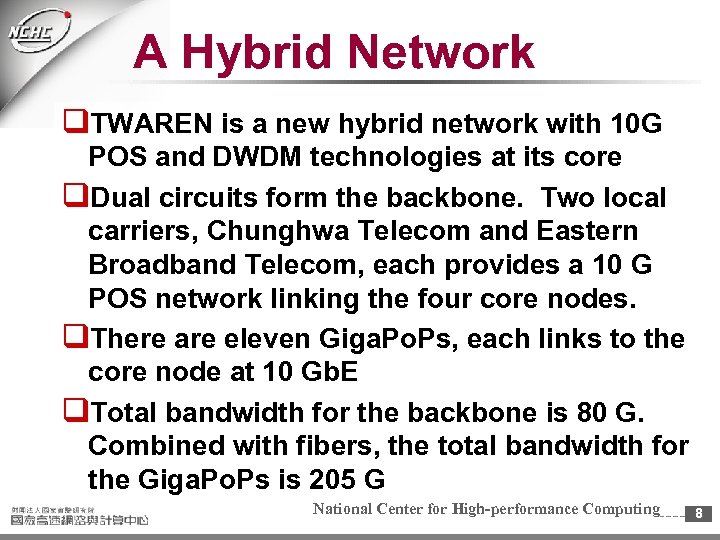

A Hybrid Network q. TWAREN is a new hybrid network with 10 G POS and DWDM technologies at its core q. Dual circuits form the backbone. Two local carriers, Chunghwa Telecom and Eastern Broadband Telecom, each provides a 10 G POS network linking the four core nodes. q. There are eleven Giga. Po. Ps, each links to the core node at 10 Gb. E q. Total bandwidth for the backbone is 80 G. Combined with fibers, the total bandwidth for the Giga. Po. Ps is 205 G National Center for High-performance Computing 8

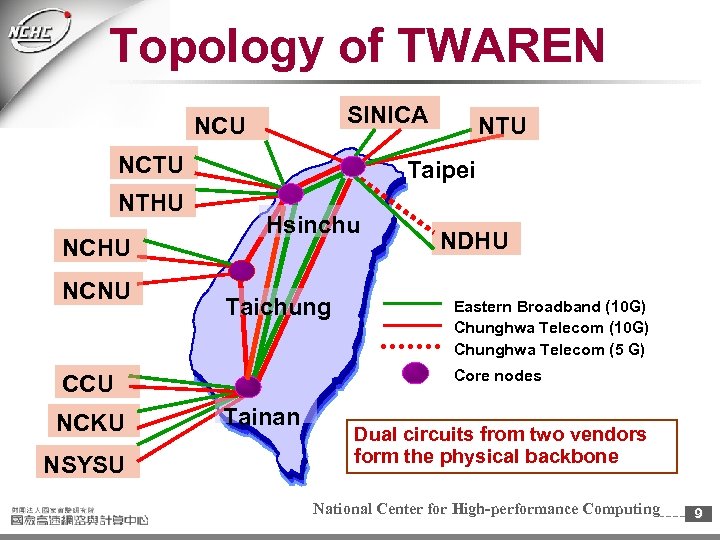

Topology of TWAREN SINICA NCU NCTU NTHU NCNU Taipei Hsinchu Taichung NSYSU NDHU Eastern Broadband (10 G) Chunghwa Telecom (5 G) Core nodes CCU NCKU NTU Tainan Dual circuits from two vendors form the physical backbone National Center for High-performance Computing 9

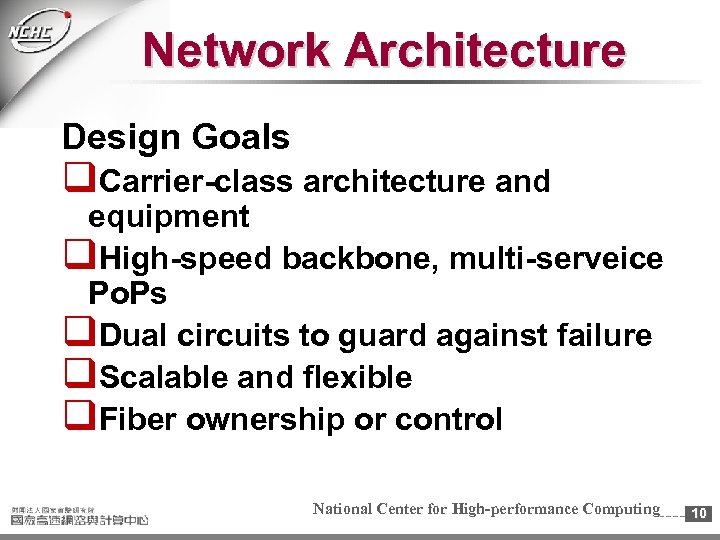

Network Architecture Design Goals q. Carrier-class architecture and equipment q. High-speed backbone, multi-serveice Po. Ps q. Dual circuits to guard against failure q. Scalable and flexible q. Fiber ownership or control National Center for High-performance Computing 10

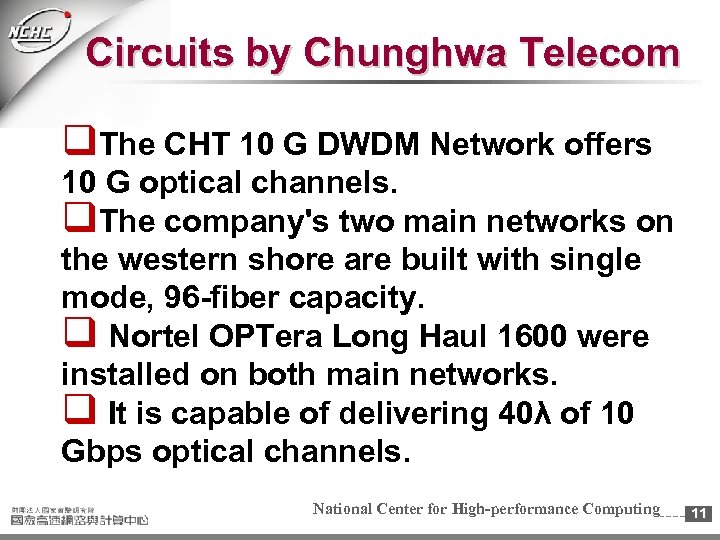

Circuits by Chunghwa Telecom q. The CHT 10 G DWDM Network offers 10 G optical channels. q. The company's two main networks on the western shore are built with single mode, 96 -fiber capacity. q Nortel OPTera Long Haul 1600 were installed on both main networks. q It is capable of delivering 40λ of 10 Gbps optical channels. National Center for High-performance Computing 11

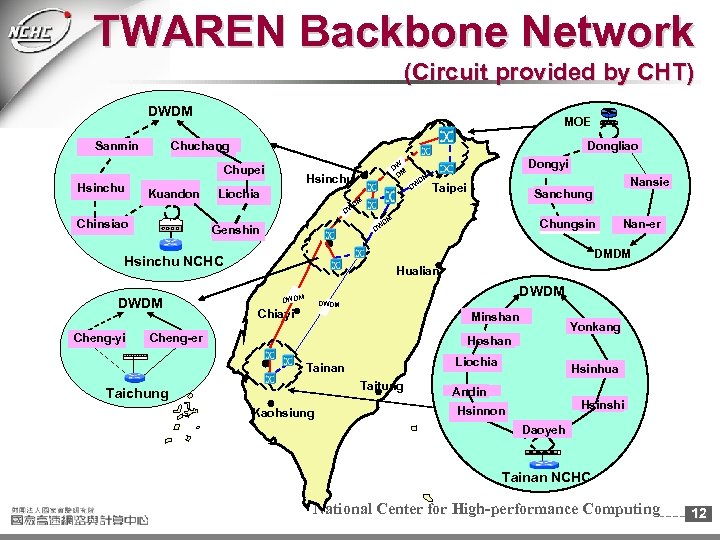

TWAREN Backbone Network (Circuit provided by CHT) DWDM Sanmin MOE Dongliao Chuchang Chupei Hsinchu Kuandon Hsinchu Liochia DW Chinsiao Genshin Cheng-yi DW DM Taipei Nansie Sanchung DM DW DM Chungsin Nan-er DMDM Hsinchu NCHC DWDM Dongyi DW DM Hualian DWDM Chiayi Minshan Cheng-er Yonkang Hoshan Liochia Tainan Taitung Taichung Kaohsiung Hsinhua Andin Hsinshi Hsinnon Daoyeh Tainan NCHC National Center for High-performance Computing 12

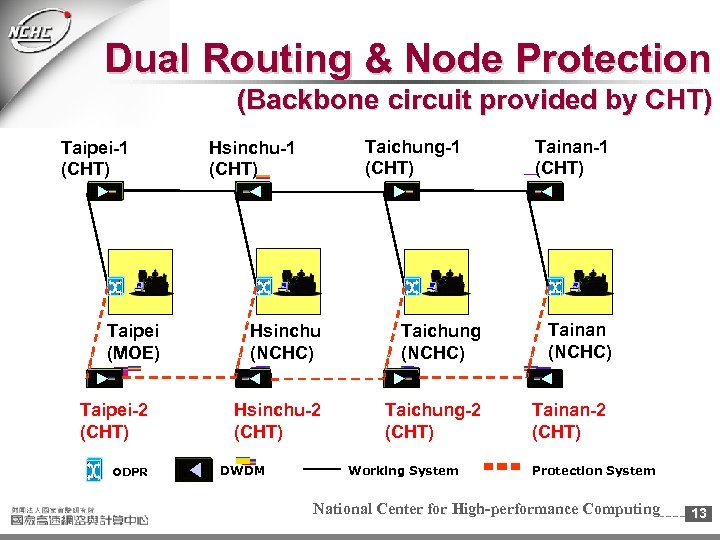

Dual Routing & Node Protection (Backbone circuit provided by CHT) Taipei-1 (CHT) Taipei (MOE) Taipei-2 (CHT) ODPR Taichung-1 (CHT) Hsinchu (NCHC) Taichung (NCHC) Hsinchu-2 (CHT) Taichung-2 (CHT) DWDM Working System Tainan-1 (CHT) Tainan (NCHC) Tainan-2 (CHT) Protection System National Center for High-performance Computing 13

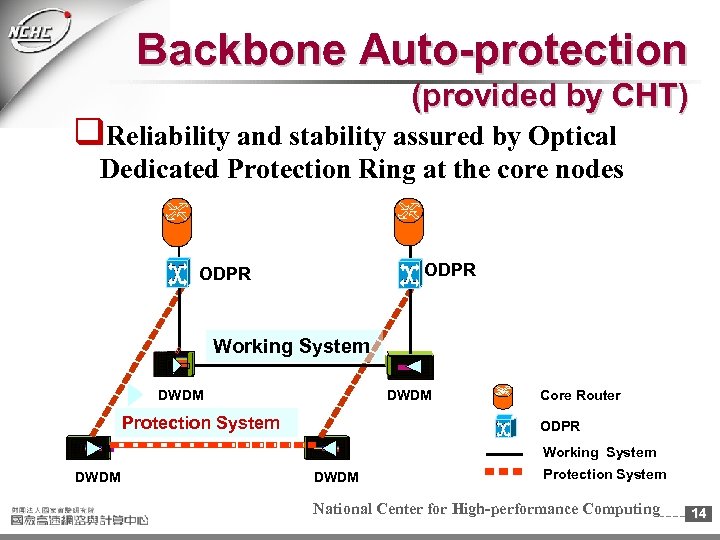

Backbone Auto-protection (provided by CHT) q. Reliability and stability assured by Optical Dedicated Protection Ring at the core nodes ODPR Working System DWDM Protection System Core Router ODPR Working System DWDM Protection System National Center for High-performance Computing 14

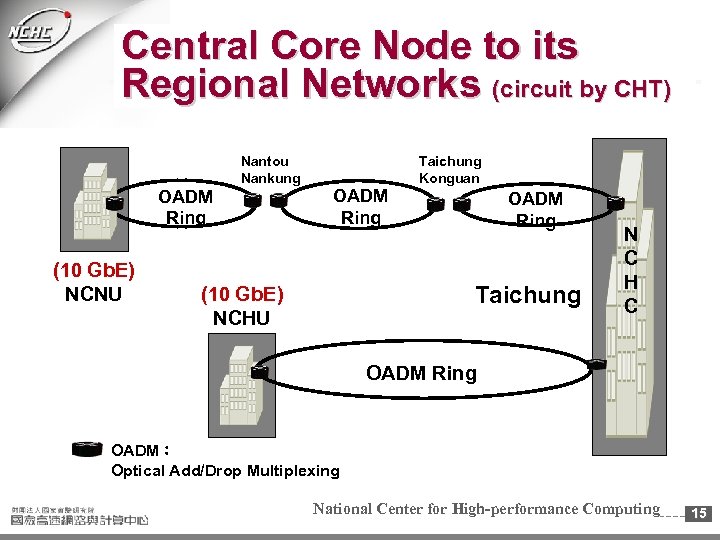

Central Core Node to its Regional Networks (circuit by CHT) Nantou Nankung OADM Ring (10 Gb. E) NCNU OADM Ring Taichung Konguan OADM Ring Taichung (10 Gb. E) NCHU N C H C OADM Ring OADM： Optical Add/Drop Multiplexing National Center for High-performance Computing 15

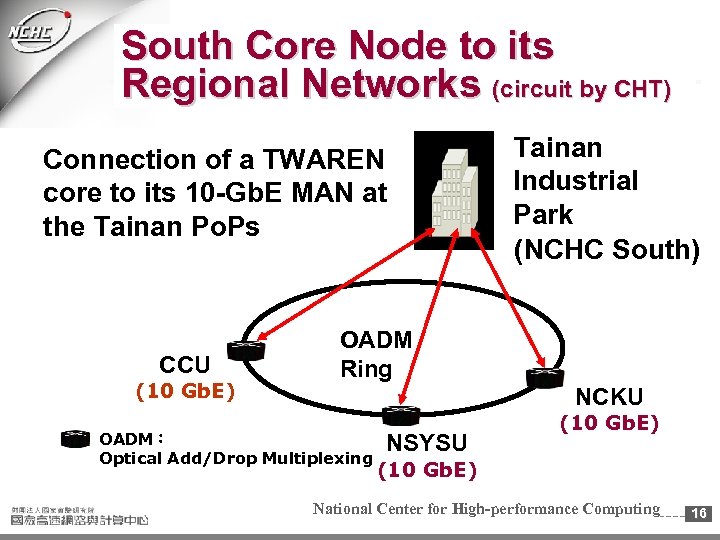

South Core Node to its Regional Networks (circuit by CHT) Connection of a TWAREN core to its 10 -Gb. E MAN at the Tainan Po. Ps CCU (10 Gb. E) Tainan Industrial Park (NCHC South) OADM Ring NCKU OADM： Optical Add/Drop Multiplexing NSYSU (10 Gb. E) National Center for High-performance Computing 16

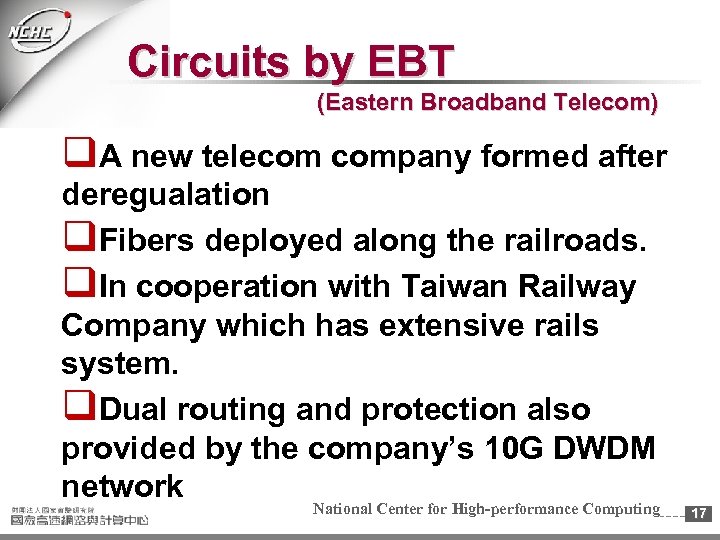

Circuits by EBT (Eastern Broadband Telecom) q. A new telecom company formed after deregualation q. Fibers deployed along the railroads. q. In cooperation with Taiwan Railway Company which has extensive rails system. q. Dual routing and protection also provided by the company’s 10 G DWDM network National Center for High-performance Computing 17

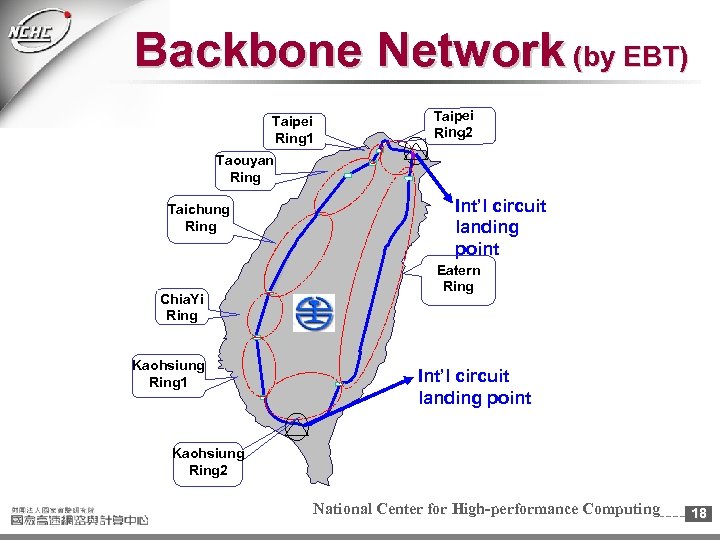

Backbone Network (by EBT) Taipei Ring 1 Taipei Ring 2 Taouyan Ring Taichung Ring Chia. Yi Ring Kaohsiung Ring 1 Int’l circuit landing point Eatern Ring Int’l circuit landing point Kaohsiung Ring 2 National Center for High-performance Computing 18

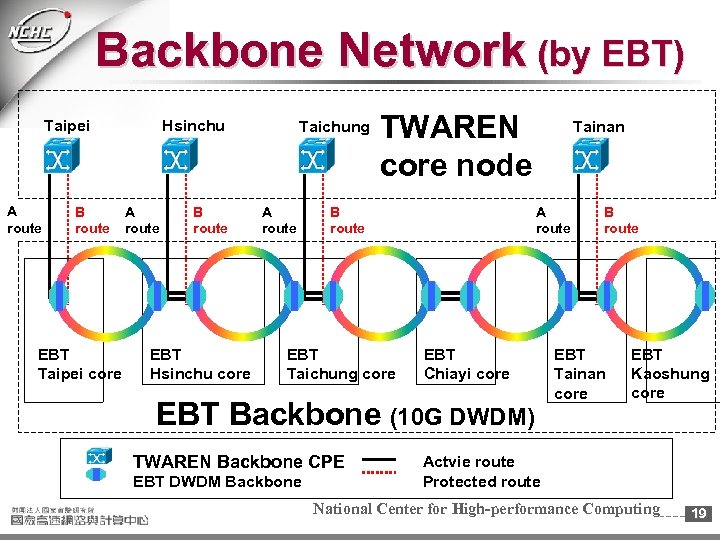

Backbone Network (by EBT) Taipei A route B route EBT Taipei core Hsinchu A route B route EBT Hsinchu core Taichung A route TWAREN core node B route EBT Taichung core Tainan A route EBT Chiayi core EBT Backbone (10 G DWDM) TWAREN Backbone CPE EBT DWDM Backbone B route EBT Tainan core EBT Kaoshung core Actvie route Protected route National Center for High-performance Computing 19

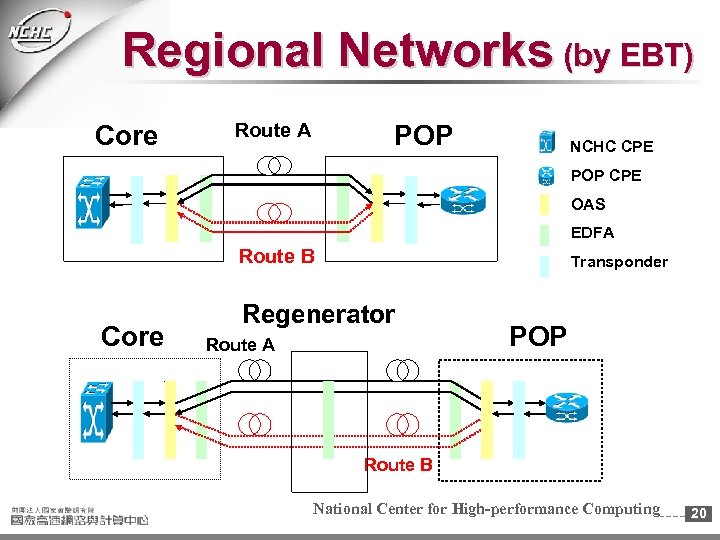

Regional Networks (by EBT) Core Route A POP NCHC CPE POP CPE OAS EDFA Route B Core Transponder Regenerator Route A POP Route B National Center for High-performance Computing 20

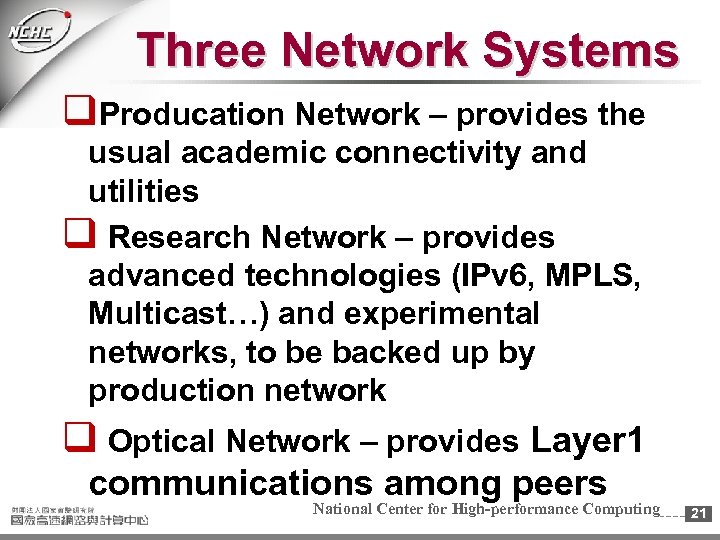

Three Network Systems q. Producation Network – provides the usual academic connectivity and utilities q Research Network – provides advanced technologies (IPv 6, MPLS, Multicast…) and experimental networks, to be backed up by production network q Optical Network – provides Layer 1 communications among peers National Center for High-performance Computing 21

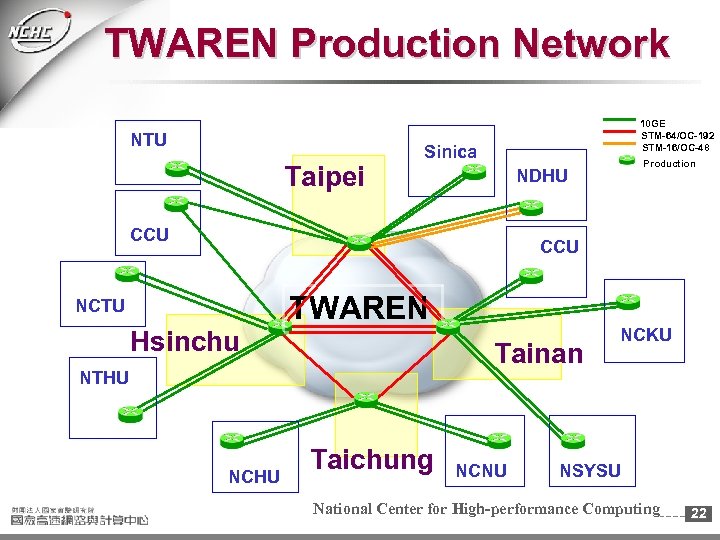

TWAREN Production Network NTU Taipei 10 GE STM-64/OC-192 STM-16/OC-48 Sinica Production NDHU CCU NCTU Hsinchu TWAREN Tainan NTHU NCHU Taichung NCNU NCKU NSYSU National Center for High-performance Computing 22

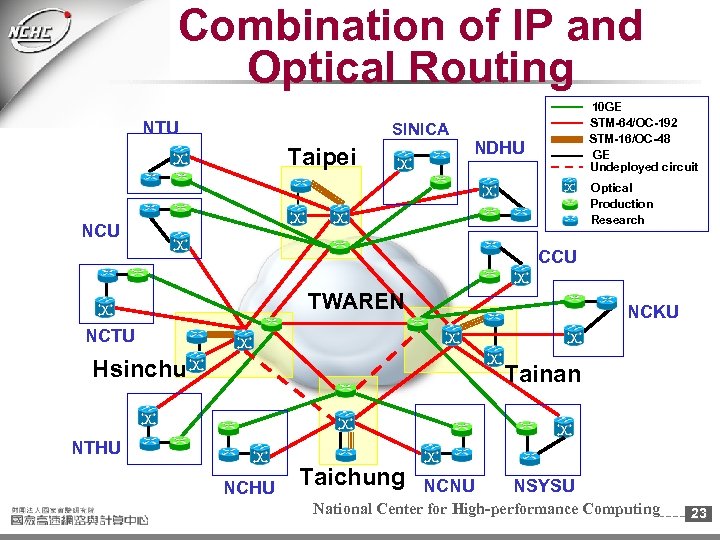

Combination of IP and Optical Routing NTU SINICA Taipei 10 GE STM-64/OC-192 STM-16/OC-48 GE Undeployed circuit NDHU Optical Production Research NCU CCU TWAREN NCKU NCTU Hsinchu Tainan NTHU NCHU Taichung NCNU NSYSU National Center for High-performance Computing 23

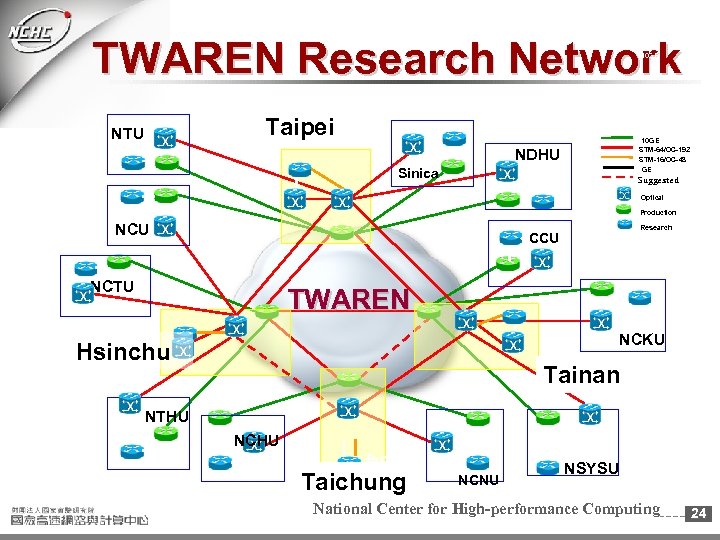

TWAREN Research Network 10 GE Taipei NTU 10 GE STM-64/OC-192 STM-16/OC-48 GE NDHU Sinica Suggested Optical Production NCU Research CCU NCTU TWAREN NCKU 新竹 Hsinchu 台南 Tainan NTHU NCHU 台中 Taichung NCNU NSYSU National Center for High-performance Computing 24

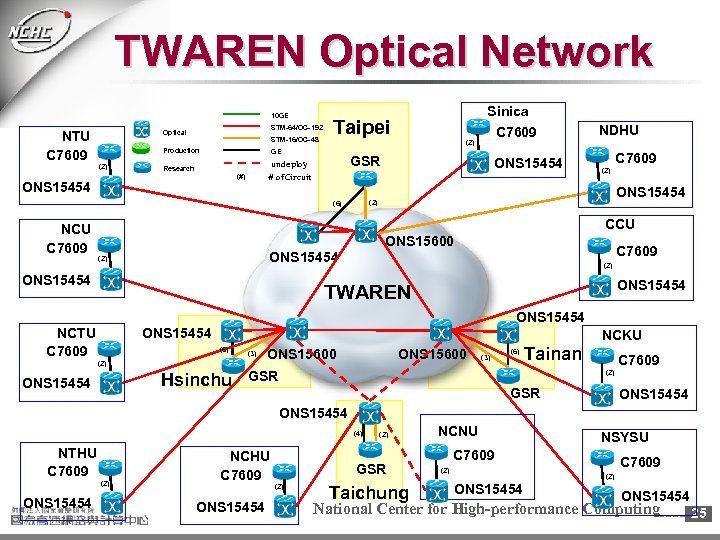

TWAREN Optical Network 10 GE NTU C 7609 STM-64/OC-192 Optical STM-16/OC-48 Production (2) Taipei (2) GE Research GSR undeploy # of Circuit (#) ONS 15454 NDHU C 7609 (2) ONS 15454 (2) (6) NCU C 7609 Sinica C 7609 CCU ONS 15600 C 7609 ONS 15454 (2) ONS 15454 TWAREN ONS 15454 NCTU C 7609 ONS 15454 NCKU (6) (3) (2) Hsinchu ONS 15454 ONS 15600 (3) (6) Tainan GSR C 7609 (2) GSR ONS 15454 (4) NTHU C 7609 (2) ONS 15454 NCHU C 7609 ONS 15454 (2) GSR (2) Taichung NCNU NSYSU C 7609 (2) ONS 15454 National Center for High-performance Computing 25

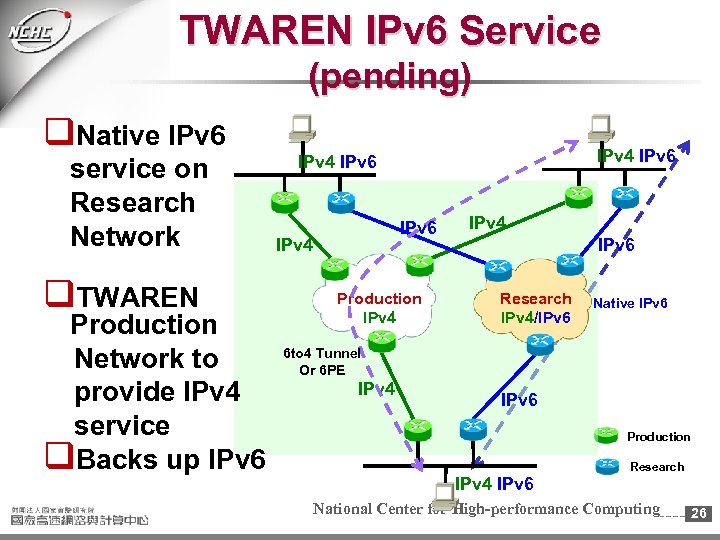

TWAREN IPv 6 Service (pending) q. Native IPv 6 service on Research Network q. TWAREN Production Network to provide IPv 4 service q. Backs up IPv 6 IPv 4/IPv 6 IPv 4 Production IPv 4 IPv 6 Research IPv 4/IPv 6 Native IPv 6 6 to 4 Tunnel Or 6 PE IPv 4 IPv 6 Production Research IPv 4/IPv 6 National Center for High-performance Computing 26

et 2 AN T work h net earc CHC A res d by the N nage ma ceed l suc eted N wil mpl ARE TW en co 2 wh ANet T National Center for High-performance Computing 27

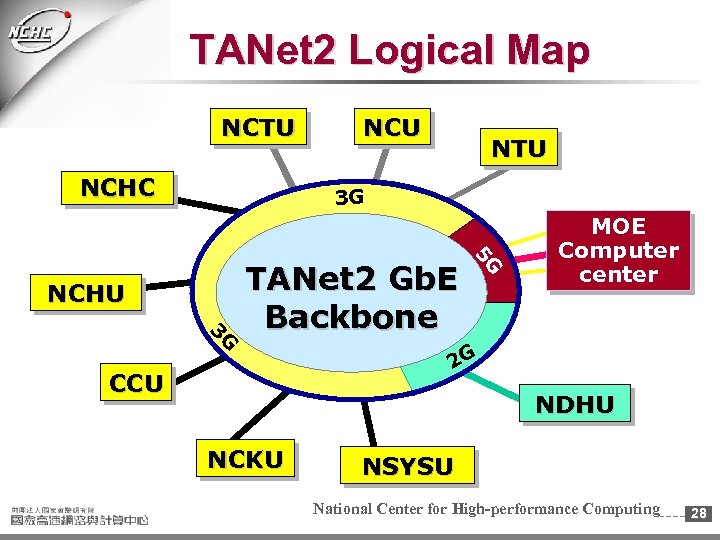

TANet 2 Logical Map NCTU NCHC NCU NTU 3 G 3 TANet 2 Gb. E Backbone G CCU 5 G NCHU MOE Computer center 2 G NDHU NCKU NSYSU National Center for High-performance Computing 28

International Connectivity Vancouver Edmonton CA*net 4 Calgary Winnipeg Halifax Montreal Star. Tap Toronto Star. Light Taipei TANet 2 Abilene In Nov. 2003: the link to Seattle and extension to STARLight upgraded from OC-3 Possibly there will be another link to LA National Center for High-performance Computing 29

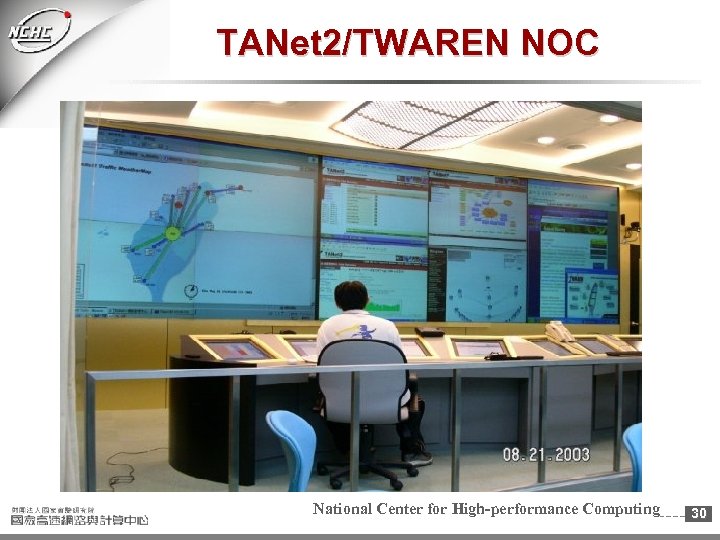

TANet 2/TWAREN NOC National Center for High-performance Computing 30

ons ati bor olla C National Center for High-performance Computing 31

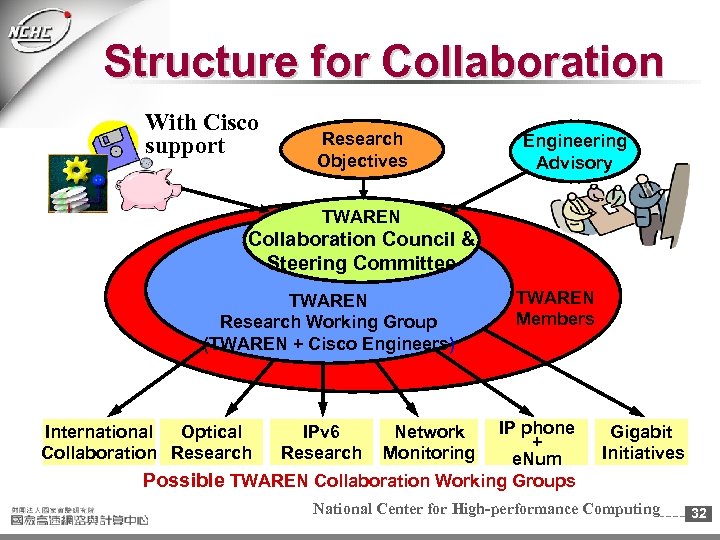

Structure for Collaboration With Cisco support Research Objectives Engineering Advisory TWAREN Collaboration Council & Steering Committee TWAREN Research Working Group (TWAREN + Cisco Engineers) TWAREN Members IP phone + e. Num Possible TWAREN Collaboration Working Groups Optical International Collaboration Research IPv 6 Research Network Monitoring Gigabit Initiatives National Center for High-performance Computing 32

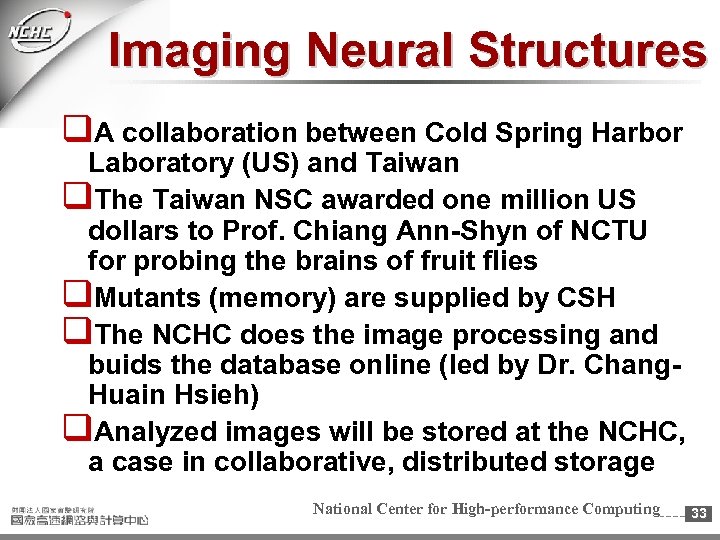

Imaging Neural Structures q. A collaboration between Cold Spring Harbor Laboratory (US) and Taiwan q. The Taiwan NSC awarded one million US dollars to Prof. Chiang Ann-Shyn of NCTU for probing the brains of fruit flies q. Mutants (memory) are supplied by CSH q. The NCHC does the image processing and buids the database online (led by Dr. Chang. Huain Hsieh) q. Analyzed images will be stored at the NCHC, a case in collaborative, distributed storage National Center for High-performance Computing 33

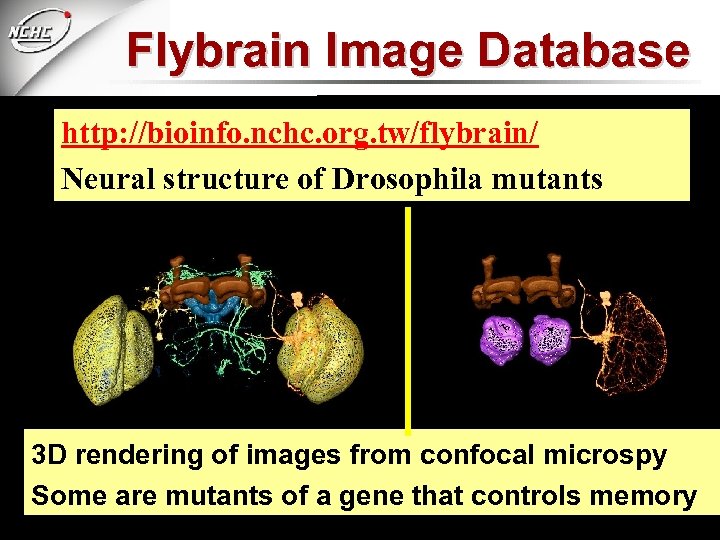

Flybrain Image Database http: //bioinfo. nchc. org. tw/flybrain/ Neural structure of Drosophila mutants 3 D rendering of images from confocal microspy Some are mutants of National Center for High-performance Computing 34 a gene that controls memory

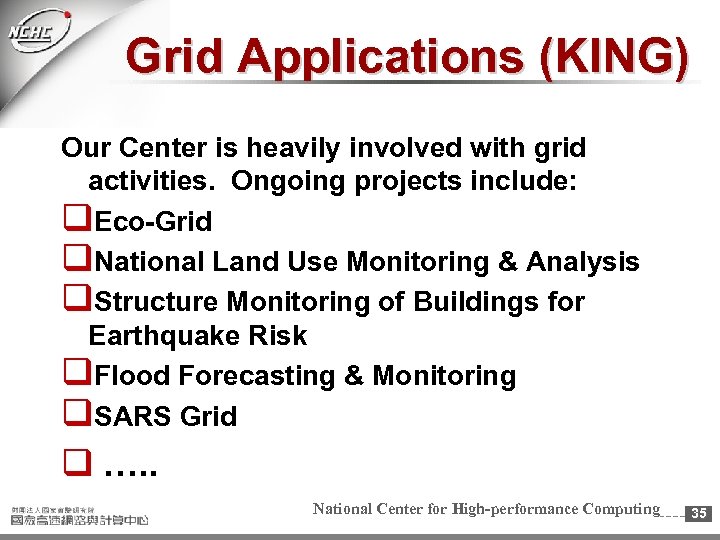

Grid Applications (KING) Our Center is heavily involved with grid activities. Ongoing projects include: q. Eco-Grid q. National Land Use Monitoring & Analysis q. Structure Monitoring of Buildings for Earthquake Risk q. Flood Forecasting & Monitoring q. SARS Grid q …. . National Center for High-performance Computing 35

Thank You! National Center for High-performance Computing 36
