The textbook of KT torque wrench series The

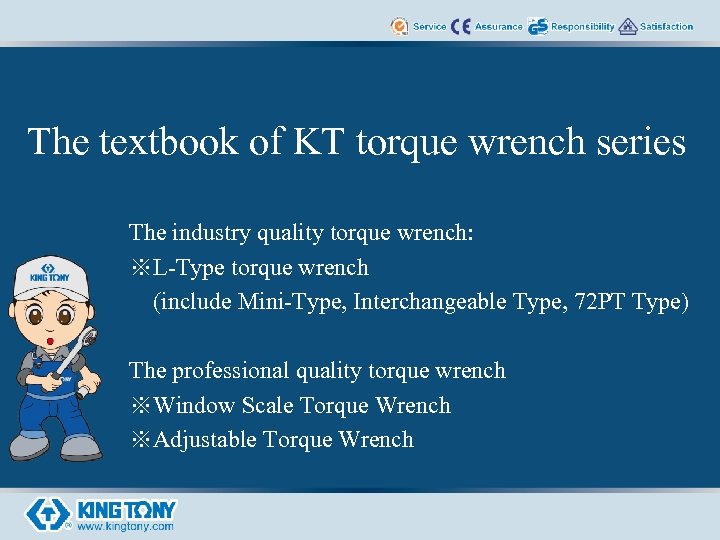

The textbook of KT torque wrench series The industry quality torque wrench: ※L-Type torque wrench (include Mini-Type, Interchangeable Type, 72 PT Type) The professional quality torque wrench ※Window Scale Torque Wrench ※Adjustable Torque Wrench

About KT Torque Wrench KT torque wrenches are tested according to International Standard DIN-ISO-6789 and get the GS certificate. v We calibrate every torque wrench that is produced by standard production process according to international standard DIN-ISO-6789 which doing three-point calibration to meet the standard rule of testing torque. v All testing inspects are difference with other company. Other company calibrates product by human, but KT company calibrates it by calibration machine to avoid human error calibration. v

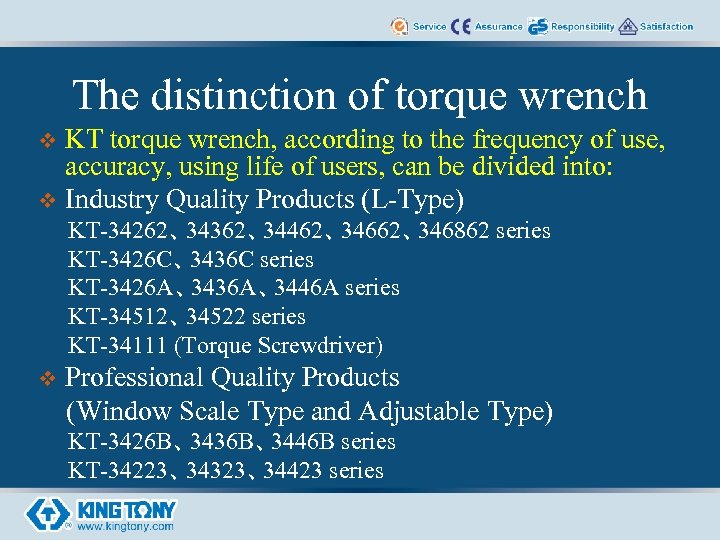

The distinction of torque wrench KT torque wrench, according to the frequency of use, accuracy, using life of users, can be divided into: v Industry Quality Products (L-Type) v KT-34262、 34362、 34462、 346862 series KT-3426 C、 3436 C series KT-3426 A、 3436 A、 3446 A series KT-34512、 34522 series KT-34111 (Torque Screwdriver) v Professional Quality Products (Window Scale Type and Adjustable Type) KT-3426 B、 3436 B、 3446 B series KT-34223、 34323、 34423 series

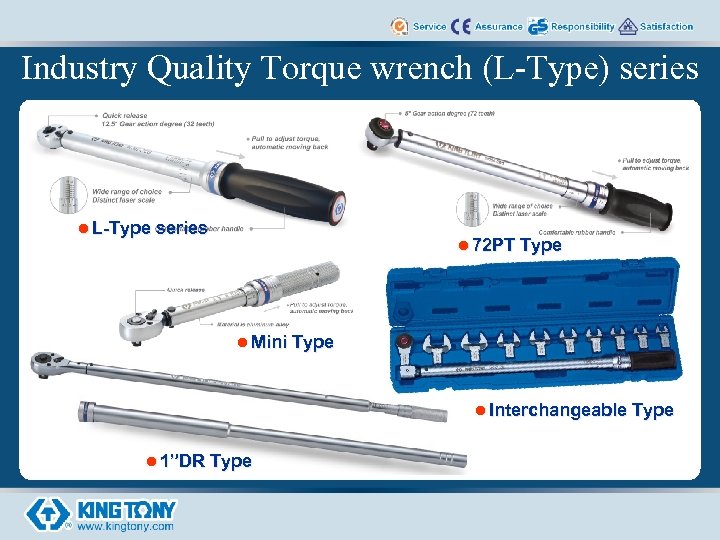

Industry Quality Torque wrench (L-Type) series l L-Type series l 72 PT Type l Mini Type l Interchangeable Type l 1”DR Type

Professional Quality Torque Wrench (Window Scale Type、 Adjustable Type) series l Window Scale Type l Adjustable Type

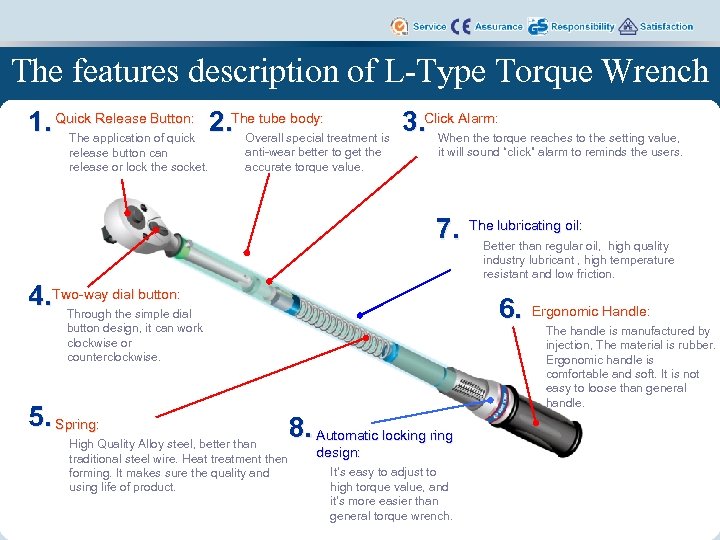

The features description of L-Type Torque Wrench body: Release 1. Quick application. Button: 2. The tubespecial treatment is 3. Click Alarm: reaches to the setting value, Overall When the torque The of quick release button can release or lock the socket. anti-wear better to get the accurate torque value. it will sound “click” alarm to reminds the users. 7. button: 4. Two-way dialsimple dial Through the High Quality Alloy steel, better than traditional steel wire. Heat treatment then forming. It makes sure the quality and using life of product. Better than regular oil, high quality industry lubricant , high temperature resistant and low friction. 6. button design, it can work clockwise or counterclockwise. 5. Spring: The lubricating oil: 8. Automatic locking ring design: It’s easy to adjust to high torque value, and it’s more easier than general torque wrench. Ergonomic Handle: The handle is manufactured by injection, The material is rubber. Ergonomic handle is comfortable and soft. It is not easy to loose than general handle.

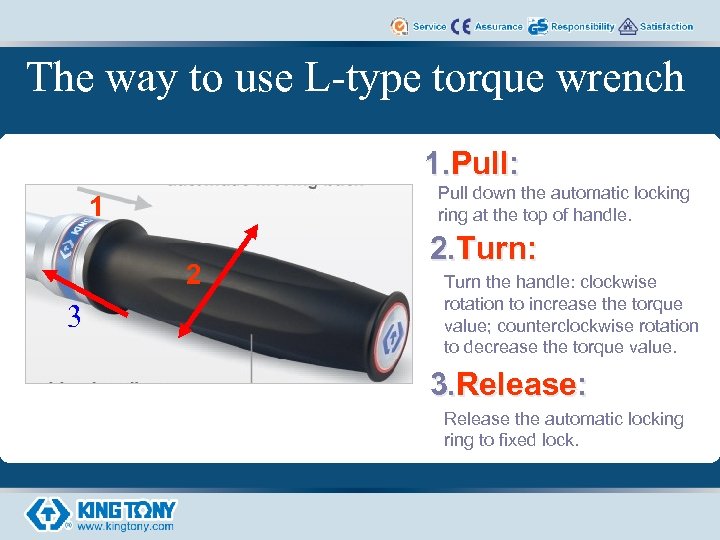

The way to use L-type torque wrench 1. Pull: Pull down the automatic locking ring at the top of handle. 1 2 3 2. Turn: Turn the handle: clockwise rotation to increase the torque value; counterclockwise rotation to decrease the torque value. 3. Release: Release the automatic locking ring to fixed lock.

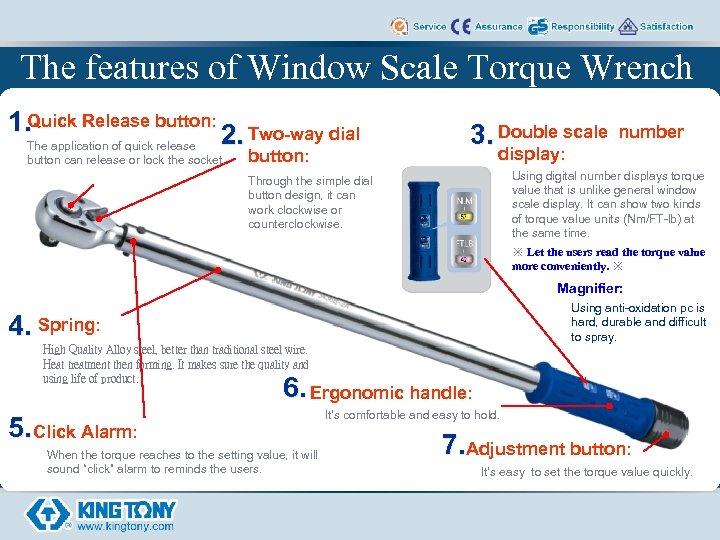

The features of Window Scale Torque Wrench 1. Quick Release button: 2. Two-way dial The application of quick release button can release or lock the socket. button: 3. Double scale number display: Using digital number displays torque value that is unlike general window scale display. It can show two kinds of torque value units (Nm/FT-lb) at the same time. Through the simple dial button design, it can work clockwise or counterclockwise. ※ Let the users read the torque value more conveniently. ※ Magnifier: Using anti-oxidation pc is hard, durable and difficult to spray. 4. Spring: High Quality Alloy steel, better than traditional steel wire. Heat treatment then forming. It makes sure the quality and using life of product. 6. Ergonomic handle: 5. Click Alarm: When the torque reaches to the setting value, it will sound “click” alarm to reminds the users. It’s comfortable and easy to hold. 7. Adjustment button: It’s easy to set the torque value quickly.

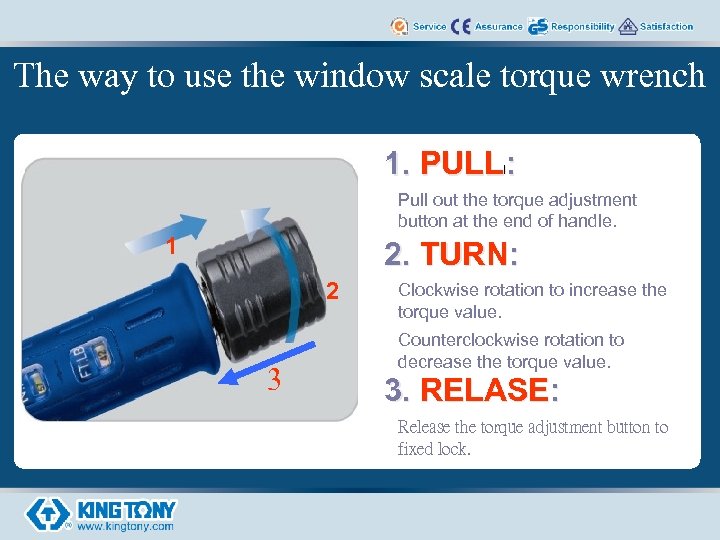

The way to use the window scale torque wrench 1. PULL : l Pull out the torque adjustment button at the end of handle. 1 2. TURN: 2 3 Clockwise rotation to increase the torque value. Counterclockwise rotation to decrease the torque value. 3. RELASE: Release the torque adjustment button to fixed lock.

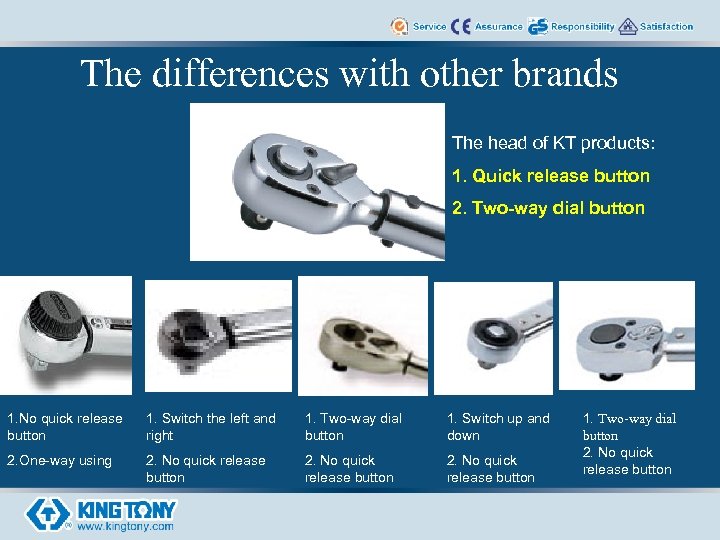

The differences with other brands The head of KT products: 1. Quick release button 2. Two-way dial button 1. No quick release button 1. Switch the left and right 1. Two-way dial button 1. Switch up and down 2. One-way using 2. No quick release button 1. Two-way dial button 2. No quick release button

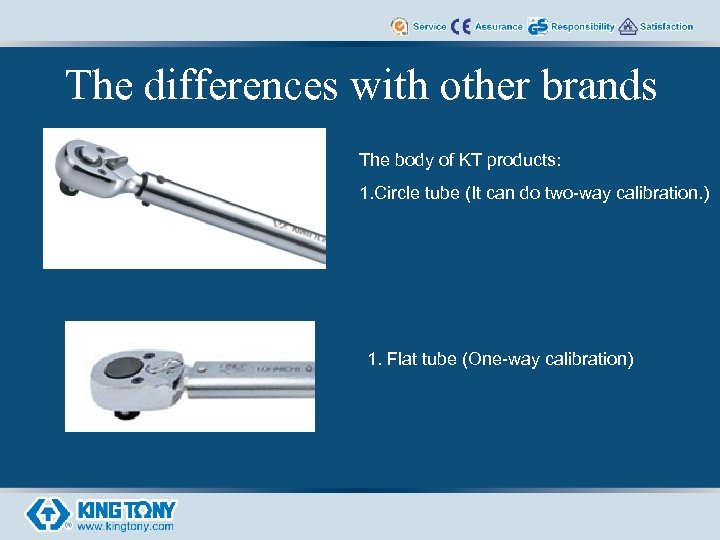

The differences with other brands The body of KT products: 1. Circle tube (It can do two-way calibration. ) 1. Flat tube (One-way calibration)

The differences with other brands Distinct laser scale 1. single scale/double scale 2. We can quickly response to satisfy customers for their different needs. 1. Window scale display 2. Single scale Window scale display 1. Two torque units display (Nm/ft-lb、in-lb) 2. Digital display 1. Window scale display 2. Single scale 1. Caved scale 2. Single scale

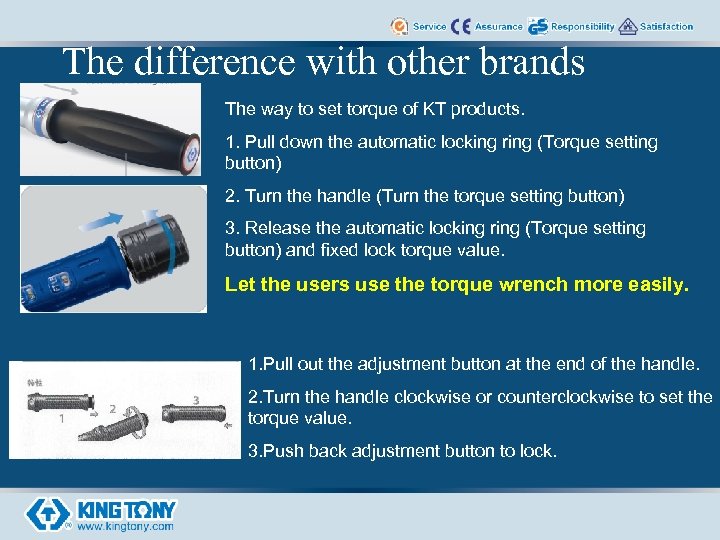

The difference with other brands The way to set torque of KT products. 1. Pull down the automatic locking ring (Torque setting button) 2. Turn the handle (Turn the torque setting button) 3. Release the automatic locking ring (Torque setting button) and fixed lock torque value. Let the users use the torque wrench more easily. 1. Pull out the adjustment button at the end of the handle. 2. Turn the handle clockwise or counterclockwise to set the torque value. 3. Push back adjustment button to lock.

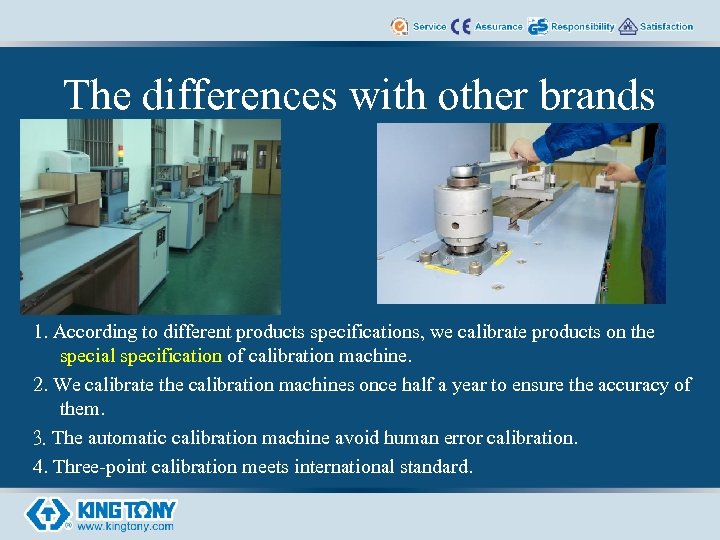

The differences with other brands 1. According to different products specifications, we calibrate products on the special specification of calibration machine. 2. We calibrate the calibration machines once half a year to ensure the accuracy of them. 3. The automatic calibration machine avoid human error calibration. 4. Three-point calibration meets international standard.

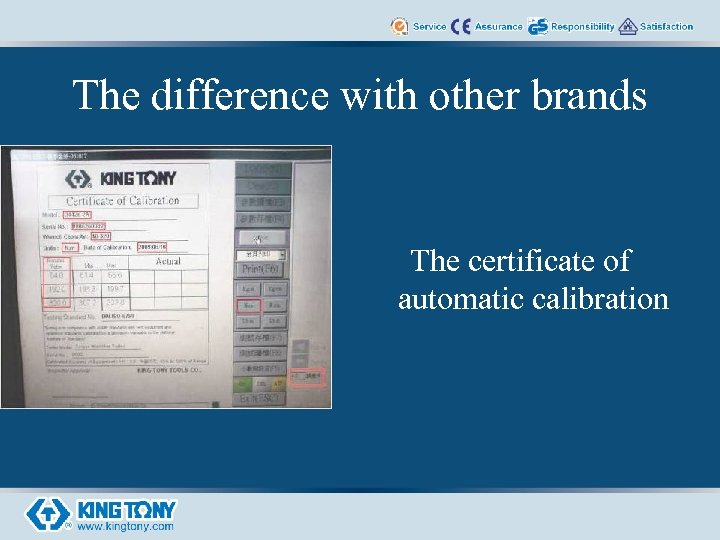

The difference with other brands The certificate of automatic calibration

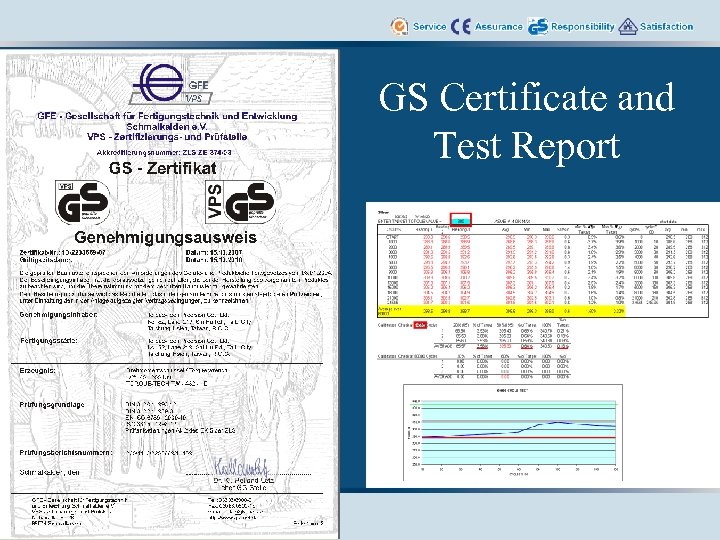

GS Certificate and Test Report

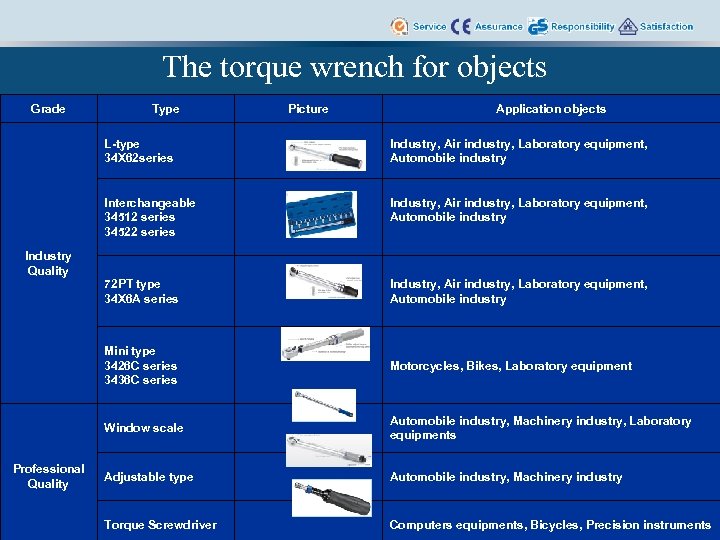

The torque wrench for objects Grade Type Picture Application objects L-type 34 X 62 series Industry, Air industry, Laboratory equipment, Automobile industry Interchangeable 34512 series 34522 series Industry, Air industry, Laboratory equipment, Automobile industry 72 PT type 34 X 6 A series Industry, Air industry, Laboratory equipment, Automobile industry Mini type 3426 C series 3436 C series Motorcycles, Bikes, Laboratory equipment Window scale Automobile industry, Machinery industry, Laboratory equipments Adjustable type Automobile industry, Machinery industry Torque Screwdriver Computers equipments, Bicycles, Precision instruments Industry Quality Professional Quality

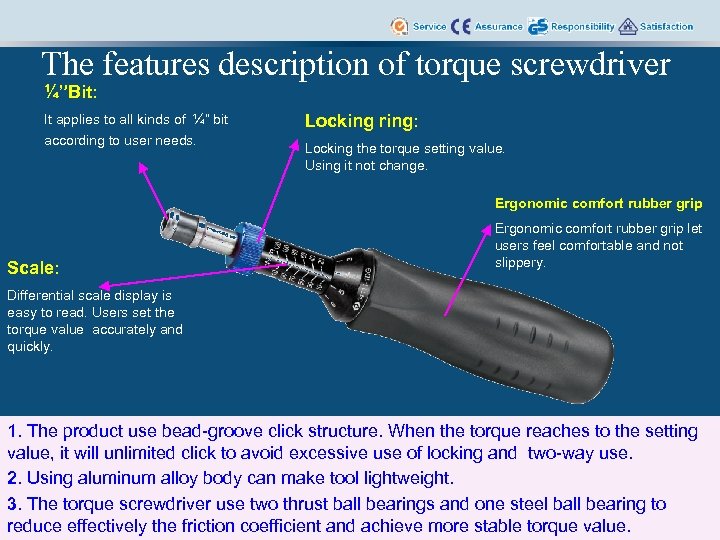

The features description of torque screwdriver ¼”Bit: It applies to all kinds of ¼” bit according to user needs. Locking ring: Locking the torque setting value. Using it not change. Ergonomic comfort rubber grip Scale: Ergonomic comfort rubber grip let users feel comfortable and not slippery. Differential scale display is easy to read. Users set the torque value accurately and quickly. 1. The product use bead-groove click structure. When the torque reaches to the setting value, it will unlimited click to avoid excessive use of locking and two-way use. 2. Using aluminum alloy body can make tool lightweight. 3. The torque screwdriver use two thrust ball bearings and one steel ball bearing to reduce effectively the friction coefficient and achieve more stable torque value.

The six main factors affect the quality of torque wrench 1. The tube body: Overall special treatment is anti-wear better to get the accurate torque value. 2. Spring: The different materials of springs have different fatigue resistance. The general torque wrench is made of ordinary materials. KT product has High Quality Alloy steel and is better than traditional steel wire. Heat treatment then forming. It makes sure the quality (the k-value of spring) and using life of spring. 3. The lubricating oil: When the tube body and the parts are working to produce friction coefficient. Using good lubricating oil can effectively reduce friction coefficient. (KT products use imported high-class lubricating oil to increase the using life and lubrication, then It will reduce the friction coefficient.

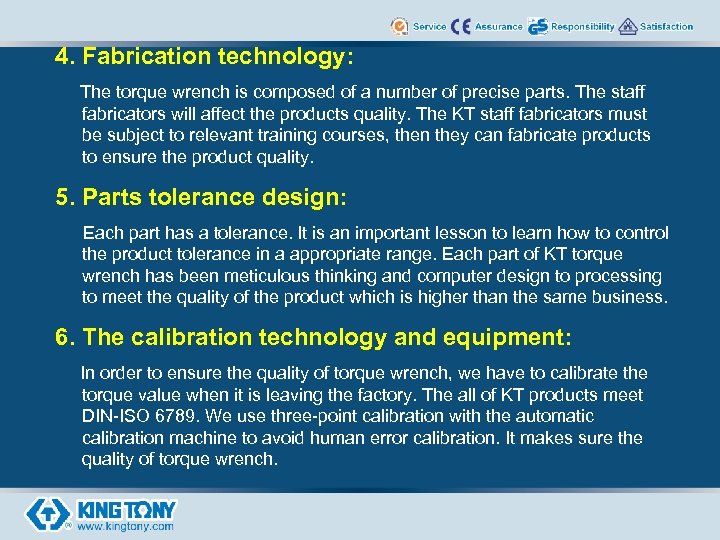

4. Fabrication technology: The torque wrench is composed of a number of precise parts. The staff fabricators will affect the products quality. The KT staff fabricators must be subject to relevant training courses, then they can fabricate products to ensure the product quality. 5. Parts tolerance design: Each part has a tolerance. It is an important lesson to learn how to control the product tolerance in a appropriate range. Each part of KT torque wrench has been meticulous thinking and computer design to processing to meet the quality of the product which is higher than the same business. 6. The calibration technology and equipment: In order to ensure the quality of torque wrench, we have to calibrate the torque value when it is leaving the factory. The all of KT products meet DIN-ISO 6789. We use three-point calibration with the automatic calibration machine to avoid human error calibration. It makes sure the quality of torque wrench.

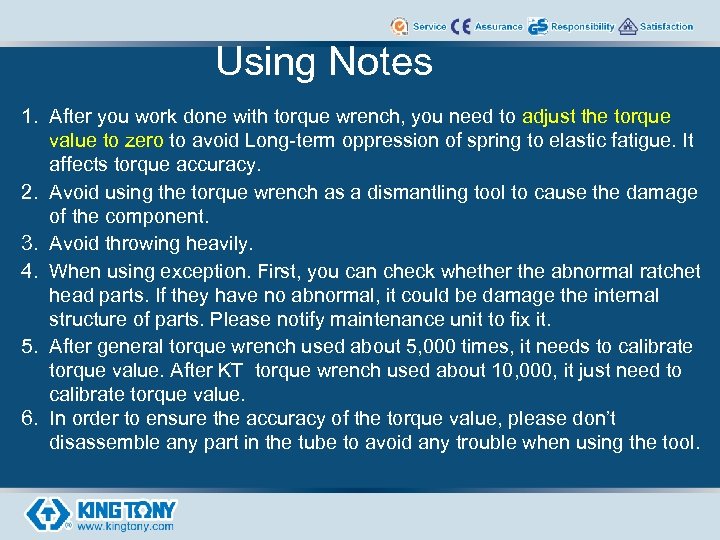

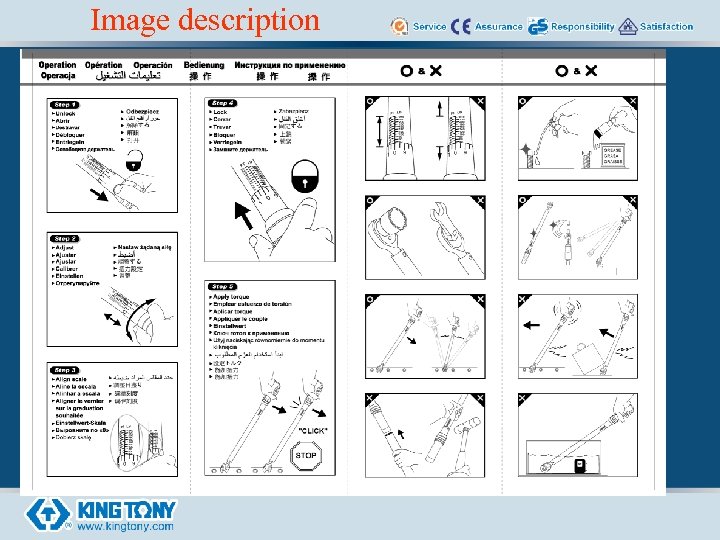

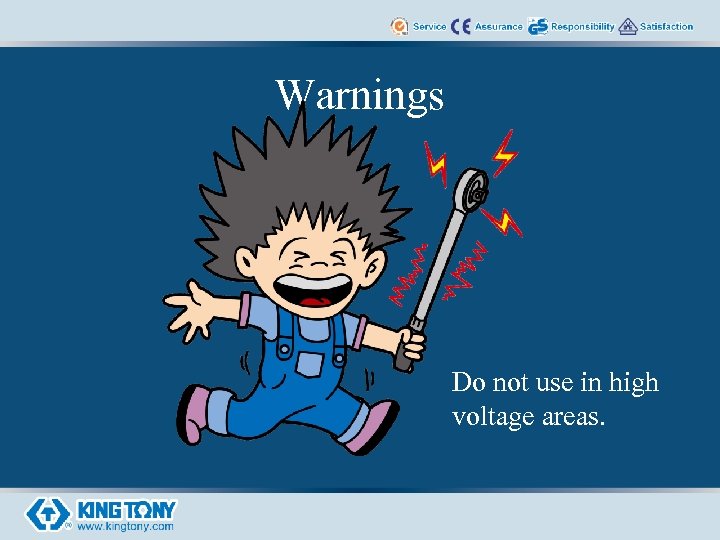

Using Notes 1. After you work done with torque wrench, you need to adjust the torque value to zero to avoid Long-term oppression of spring to elastic fatigue. It affects torque accuracy. 2. Avoid using the torque wrench as a dismantling tool to cause the damage of the component. 3. Avoid throwing heavily. 4. When using exception. First, you can check whether the abnormal ratchet head parts. If they have no abnormal, it could be damage the internal structure of parts. Please notify maintenance unit to fix it. 5. After general torque wrench used about 5, 000 times, it needs to calibrate torque value. After KT torque wrench used about 10, 000, it just need to calibrate torque value. 6. In order to ensure the accuracy of the torque value, please don’t disassemble any part in the tube to avoid any trouble when using the tool.
