The Status and Progress of Next-Generation Ben. MAP Development and Future Work Plan Shuxiao Wang 1, Yun Zhu 2, 1, Joshua Fu 3 1 Tsinghua University, Beijing, China 2 South China University of Technology, Guangzhou, China 3 Univ. of Tennessee, Knoxville, TN

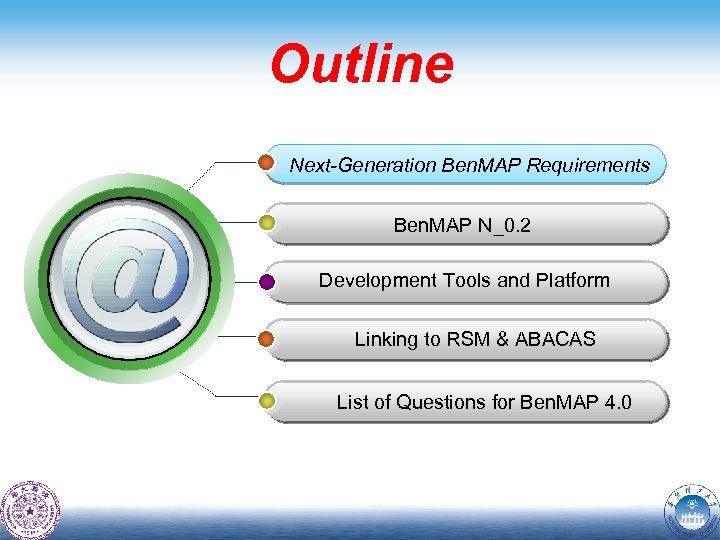

Outline Next-Generation Ben. MAP Requirements Ben. MAP N_0. 2 Development Tools and Platform Linking to RSM & ABACAS List of Questions for Ben. MAP 4. 0

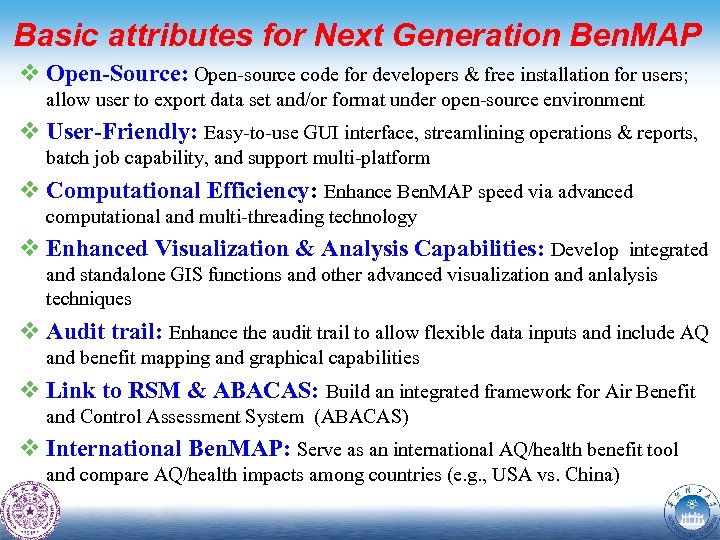

Basic attributes for Next Generation Ben. MAP v Open-Source: Open-source code for developers & free installation for users; allow user to export data set and/or format under open-source environment v User-Friendly: Easy-to-use GUI interface, streamlining operations & reports, batch job capability, and support multi-platform v Computational Efficiency: Enhance Ben. MAP speed via advanced computational and multi-threading technology v Enhanced Visualization & Analysis Capabilities: Develop integrated and standalone GIS functions and other advanced visualization and anlalysis techniques v Audit trail: Enhance the audit trail to allow flexible data inputs and include AQ and benefit mapping and graphical capabilities v Link to RSM & ABACAS: Build an integrated framework for Air Benefit and Control Assessment System (ABACAS) v International Ben. MAP: Serve as an international AQ/health benefit tool and compare AQ/health impacts among countries (e. g. , USA vs. China)

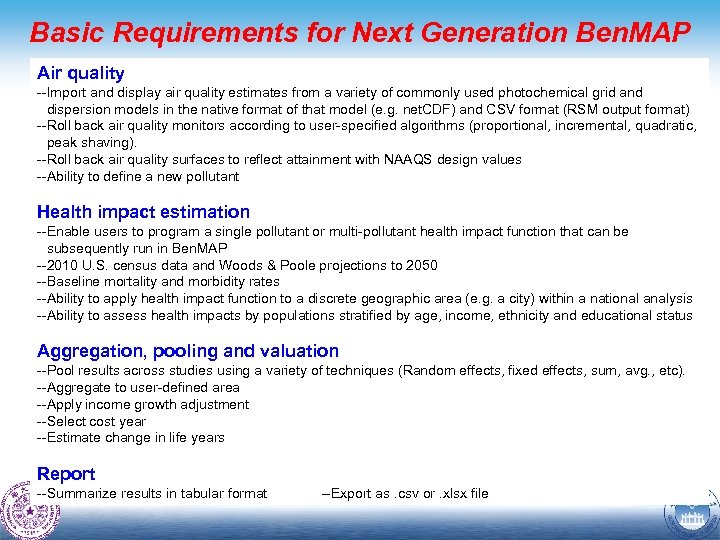

Basic Requirements for Next Generation Ben. MAP Air quality --Import and display air quality estimates from a variety of commonly used photochemical grid and dispersion models in the native format of that model (e. g. net. CDF) and CSV format (RSM output format) --Roll back air quality monitors according to user-specified algorithms (proportional, incremental, quadratic, peak shaving). --Roll back air quality surfaces to reflect attainment with NAAQS design values --Ability to define a new pollutant Health impact estimation --Enable users to program a single pollutant or multi-pollutant health impact function that can be subsequently run in Ben. MAP --2010 U. S. census data and Woods & Poole projections to 2050 --Baseline mortality and morbidity rates --Ability to apply health impact function to a discrete geographic area (e. g. a city) within a national analysis --Ability to assess health impacts by populations stratified by age, income, ethnicity and educational status Aggregation, pooling and valuation --Pool results across studies using a variety of techniques (Random effects, fixed effects, sum, avg. , etc). --Aggregate to user-defined area --Apply income growth adjustment --Select cost year --Estimate change in life years Report --Summarize results in tabular format --Export as. csv or. xlsx file

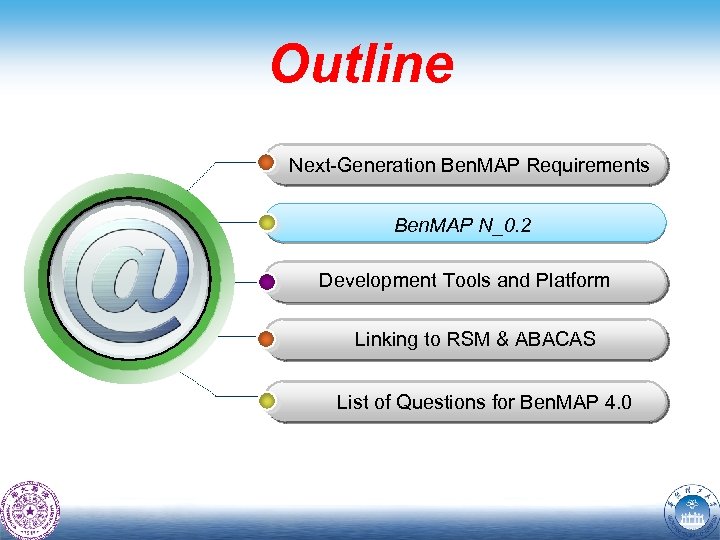

Outline Next-Generation Ben. MAP Requirements Ben. MAP N_0. 2 Development Tools and Platform Linking to RSM & ABACAS List of Questions for Ben. MAP 4. 0
Framework of Next-Generation Ben. MAP Integrated GIS Develop integrated GIS to display in-step AQ/Benefit data.
Framework of Next-Generation Ben. MAP stand-alone GIS Develop stand-alone GIS to perform advanced analysis of spatially-bound input data (e. g. population, baseline incidence) & results (e. g. estimated health impacts)

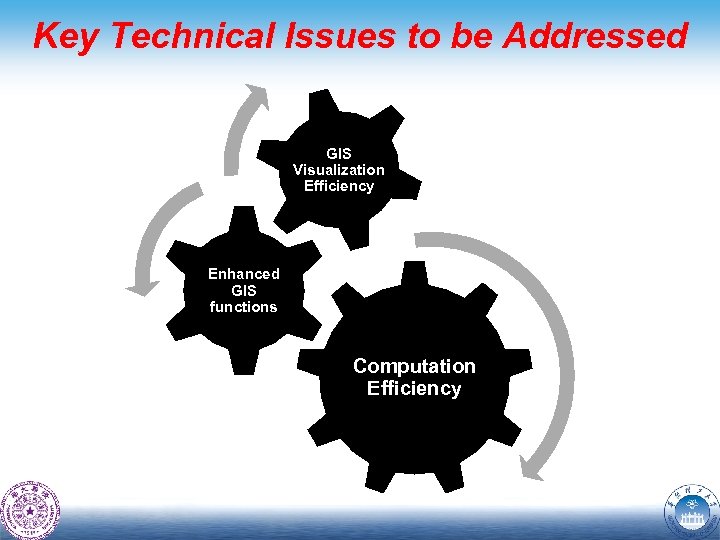

Key Technical Issues to be Addressed GIS Visualization Efficiency Enhanced GIS functions Computation Efficiency
Key Technical Issues----Computation Efficiency v. Multi-thread: Multi-threading technology will be used in both Health Impact Functions and Aggregation, Pooling and Valuation (APV) calculations to improve the computational speed when multiple formulas are chosen. Each single computational function will be assigned a independent thread to take advantage of multi-CPU (or cores) power (in most PCs/laptop now). v. Database Optimization: Both database design and access mode will be optimized to enhance the computational efficiency

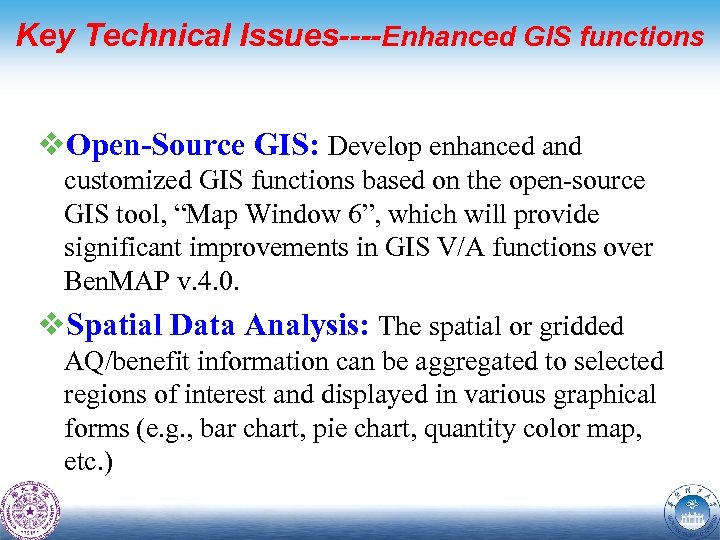

Key Technical Issues----Enhanced GIS functions v. Open-Source GIS: Develop enhanced and customized GIS functions based on the open-source GIS tool, “Map Window 6”, which will provide significant improvements in GIS V/A functions over Ben. MAP v. 4. 0. v. Spatial Data Analysis: The spatial or gridded AQ/benefit information can be aggregated to selected regions of interest and displayed in various graphical forms (e. g. , bar chart, pie chart, quantity color map, etc. )

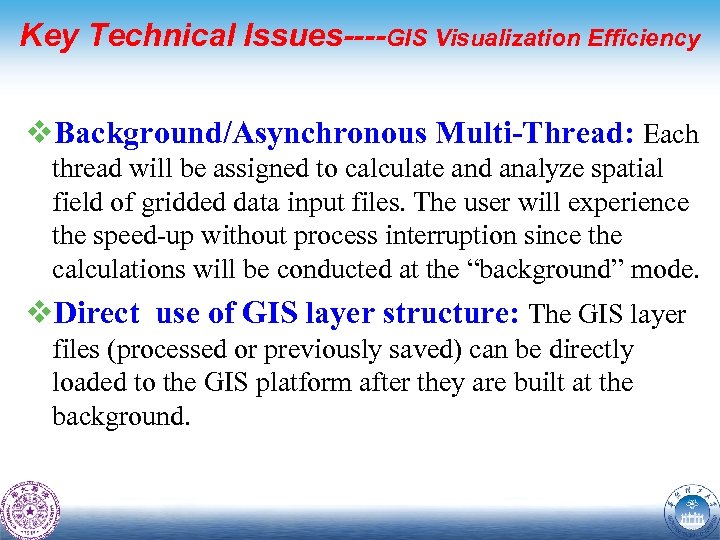

Key Technical Issues----GIS Visualization Efficiency v. Background/Asynchronous Multi-Thread: Each thread will be assigned to calculate and analyze spatial field of gridded data input files. The user will experience the speed-up without process interruption since the calculations will be conducted at the “background” mode. v. Direct use of GIS layer structure: The GIS layer files (processed or previously saved) can be directly loaded to the GIS platform after they are built at the background.

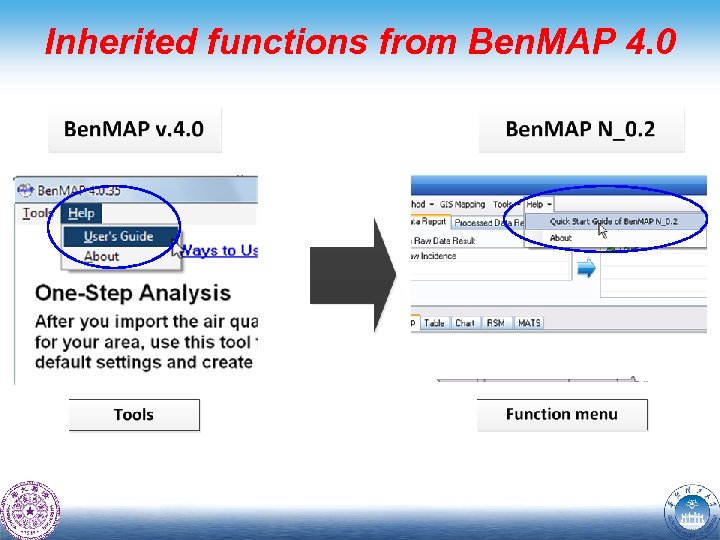

Inherited functions from Ben. MAP 4. 0
Inherited functions from Ben. MAP 4. 0
Inherited functions from Ben. MAP 4. 0

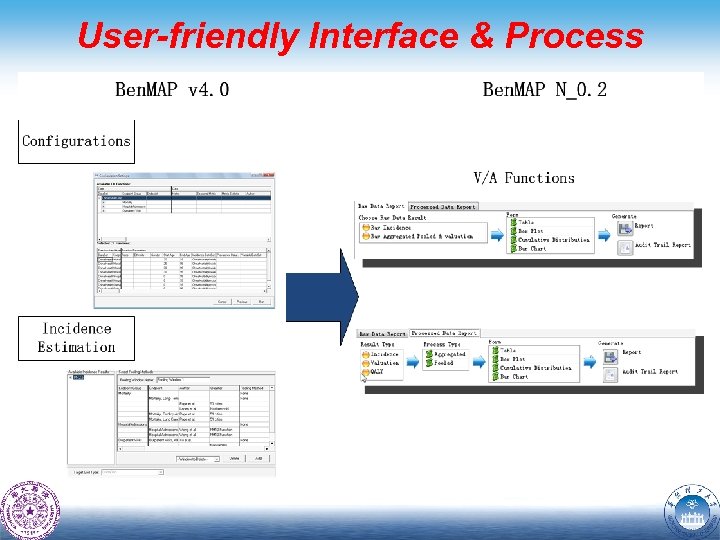

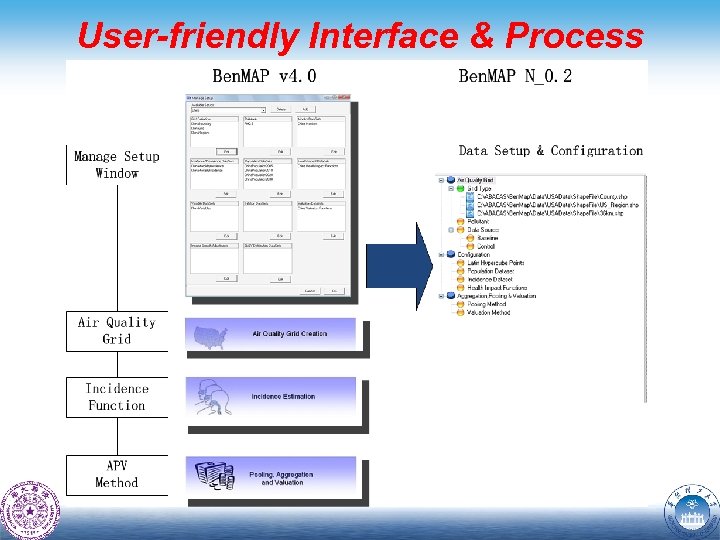

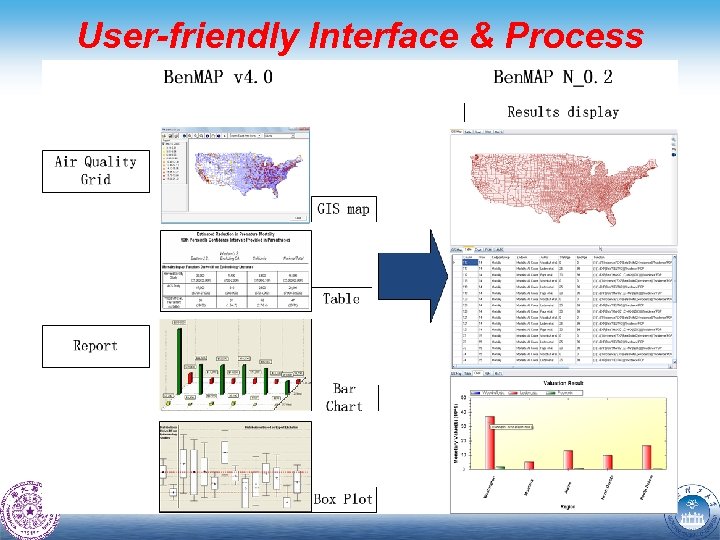

User-friendly Interface & Process
User-friendly Interface & Process
User-friendly Interface & Process

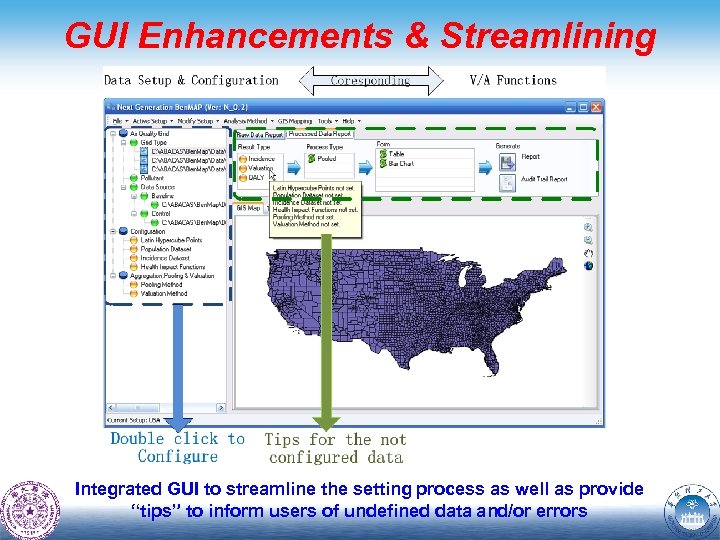

GUI Enhancements & Streamlining Integrated GUI to streamline the setting process as well as provide “tips” to inform users of undefined data and/or errors
Outline Next-Generation Ben. MAP Requirements Ben. MAP N_0. 2 Development Tools and Platform Linking to RSM & ABACAS List of Questions for Ben. MAP 4. 0

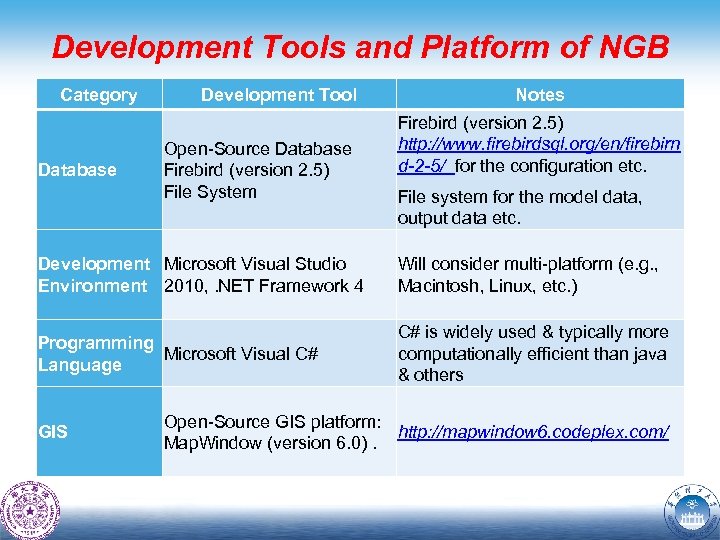

Development Tools and Platform of NGB Category Database Development Tool Open-Source Database Firebird (version 2. 5) File System Notes Firebird (version 2. 5) http: //www. firebirdsql. org/en/firebirn d-2 -5/ for the configuration etc. File system for the model data, output data etc. Development Microsoft Visual Studio Environment 2010, . NET Framework 4 Will consider multi-platform (e. g. , Macintosh, Linux, etc. ) Programming Microsoft Visual C# Language C# is widely used & typically more computationally efficient than java & others GIS Open-Source GIS platform: http: //mapwindow 6. codeplex. com/ Map. Window (version 6. 0).

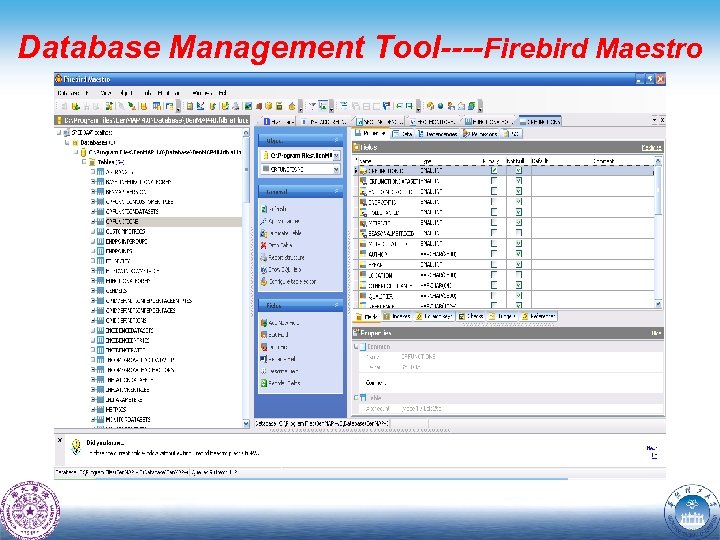

Database Management Tool----Firebird Maestro

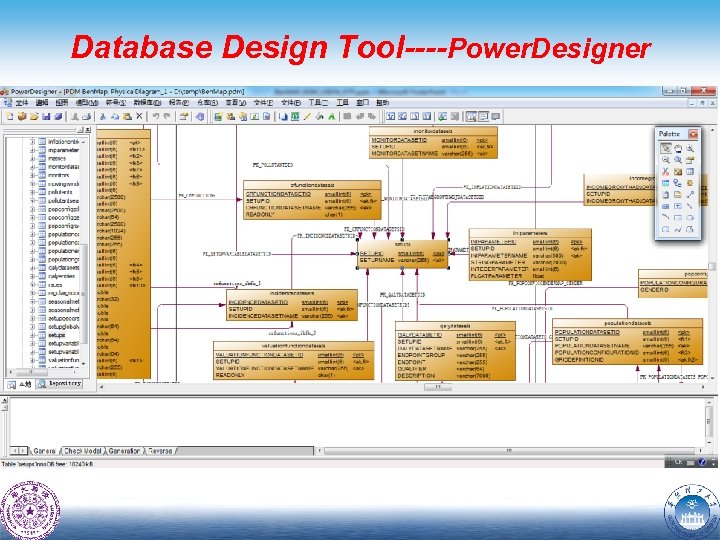

Database Design Tool----Power. Designer

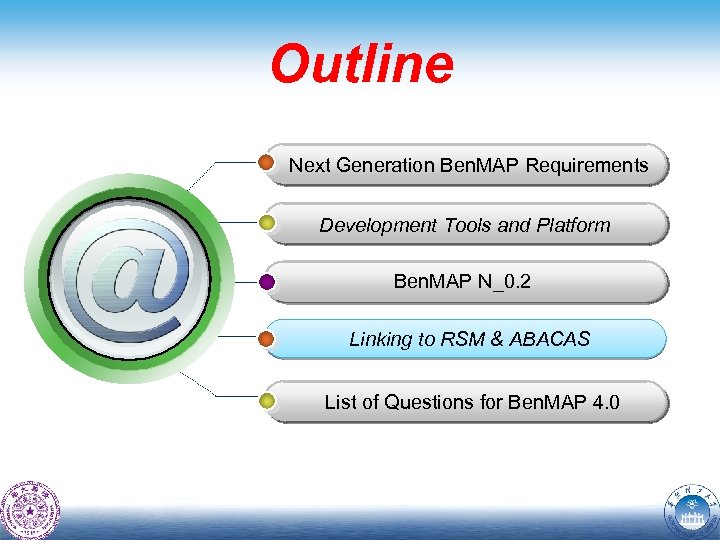

Outline Next Generation Ben. MAP Requirements Development Tools and Platform Ben. MAP N_0. 2 Linking to RSM & ABACAS List of Questions for Ben. MAP 4. 0

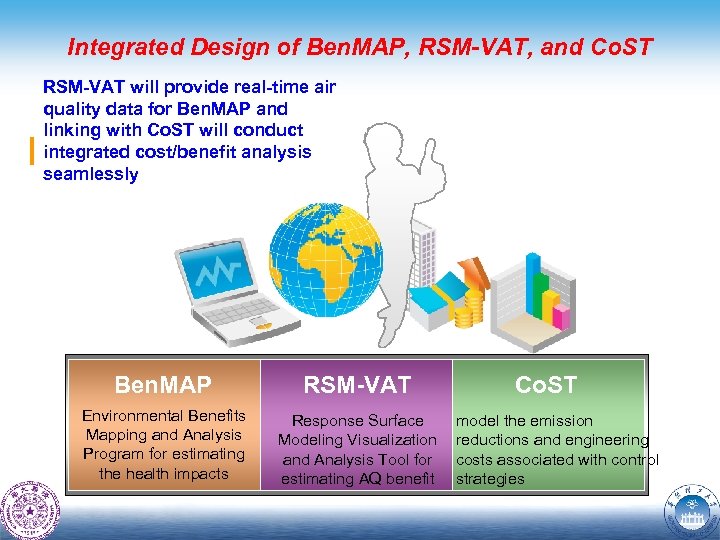

Integrated Design of Ben. MAP, RSM-VAT, and Co. ST RSM-VAT will provide real-time air quality data for Ben. MAP and linking with Co. ST will conduct integrated cost/benefit analysis seamlessly Ben. MAP RSM-VAT Environmental Benefits Mapping and Analysis Program for estimating the health impacts Response Surface Modeling Visualization and Analysis Tool for estimating AQ benefit Co. ST model the emission reductions and engineering costs associated with control strategies

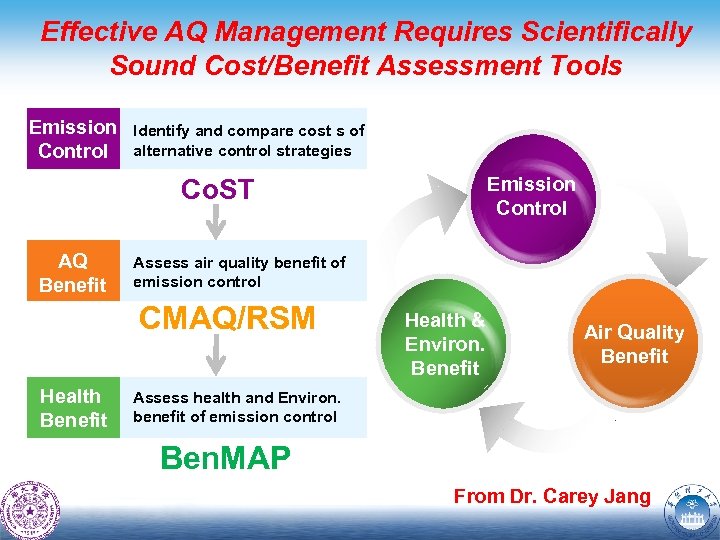

Effective AQ Management Requires Scientifically Sound Cost/Benefit Assessment Tools Emission Control Identify and compare cost s of alternative control strategies Emission Control Co. ST AQ Benefit Assess air quality benefit of emission control CMAQ/RSM Health Benefit Health & Environ. Benefit Air Quality Benefit Assess health and Environ. benefit of emission control Ben. MAP From Dr. Carey Jang

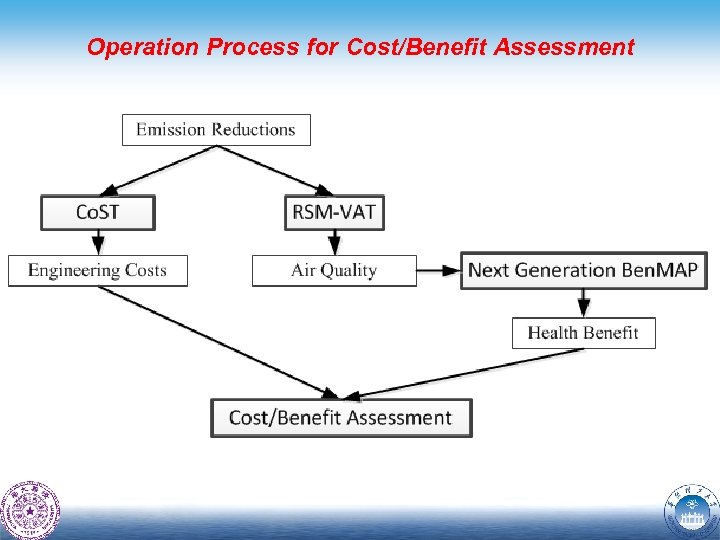

Operation Process for Cost/Benefit Assessment
ABACAS Prototype Development ABACAS system will provide an integrated framework to link key AQ benefit and cost assessment tools together

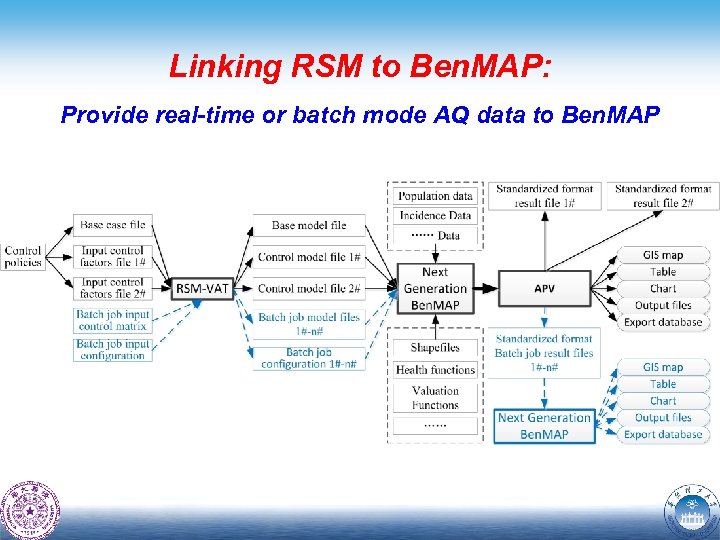

Linking RSM to Ben. MAP: Provide real-time or batch mode AQ data to Ben. MAP

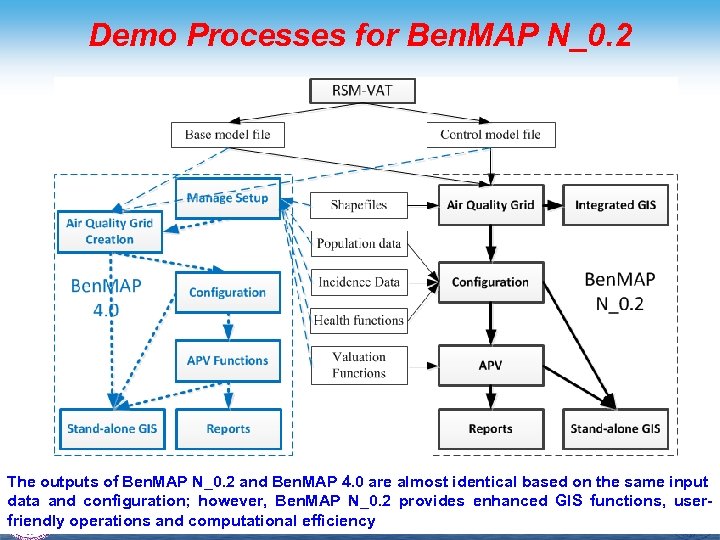

Demo Processes for Ben. MAP N_0. 2 The outputs of Ben. MAP N_0. 2 and Ben. MAP 4. 0 are almost identical based on the same input data and configuration; however, Ben. MAP N_0. 2 provides enhanced GIS functions, userfriendly operations and computational efficiency
Outline Next Generation Ben. MAP Requirements Development Tools and Platform Ben. MAP N_0. 2 Linking to RSM & ABACAS List of Questions for Ben. MAP 4. 0

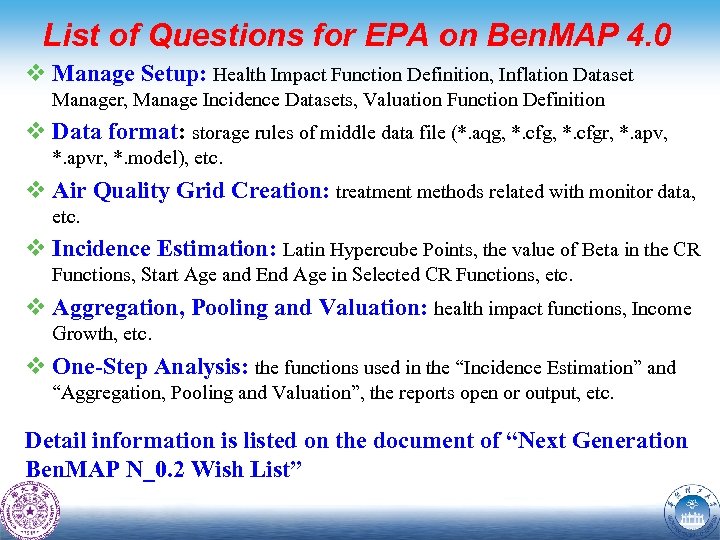

List of Questions for EPA on Ben. MAP 4. 0 v Manage Setup: Health Impact Function Definition, Inflation Dataset Manager, Manage Incidence Datasets, Valuation Function Definition v Data format: storage rules of middle data file (*. aqg, *. cfgr, *. apvr, *. model), etc. v Air Quality Grid Creation: treatment methods related with monitor data, etc. v Incidence Estimation: Latin Hypercube Points, the value of Beta in the CR Functions, Start Age and End Age in Selected CR Functions, etc. v Aggregation, Pooling and Valuation: health impact functions, Income Growth, etc. v One-Step Analysis: the functions used in the “Incidence Estimation” and “Aggregation, Pooling and Valuation”, the reports open or output, etc. Detail information is listed on the document of “Next Generation Ben. MAP N_0. 2 Wish List”

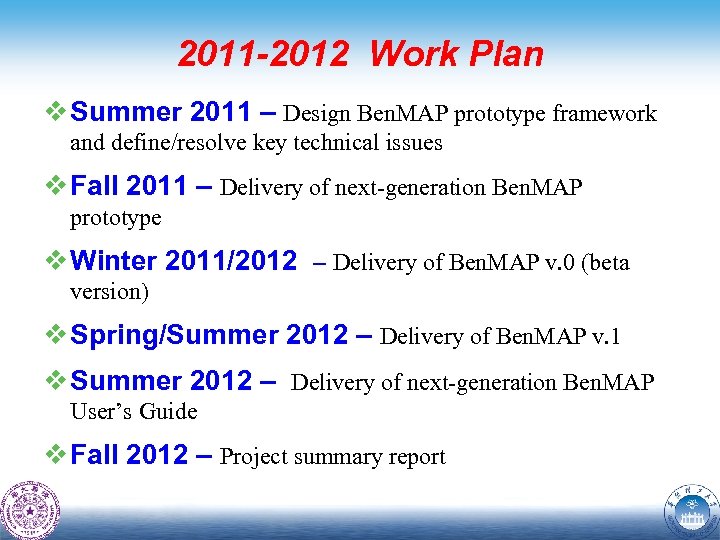

2011 -2012 Work Plan v Summer 2011 – Design Ben. MAP prototype framework and define/resolve key technical issues v Fall 2011 – Delivery of next-generation Ben. MAP prototype v Winter 2011/2012 – Delivery of Ben. MAP v. 0 (beta version) v Spring/Summer 2012 – Delivery of Ben. MAP v. 1 v Summer 2012 – Delivery of next-generation Ben. MAP User’s Guide v Fall 2012 – Project summary report
Tsinghua University, Beijing, China South China University of Technology, Guangzhou, China Univ. of Tennessee, Knoxville, TN
