The Relationship between Engineering Architecture References The

The Relationship between Engineering & Architecture References: The Tower and the Bridge by David Billington Bridging the Gap, Proceedings of the Building Arts Forum

Designers of Three Dimensional Public Spaces Architects Structural Engineers Sculptors

3 Measures of Design Performance • Efficiency • Scientific Dimension • Use of Minimal Natural Resouces • Economy • Social Dimension • Use of Minimal Public Resources • Must Consider Material Costs & Constructability • Elegance • Symbolic Dimension • Aesthetic Motivation of the Designer

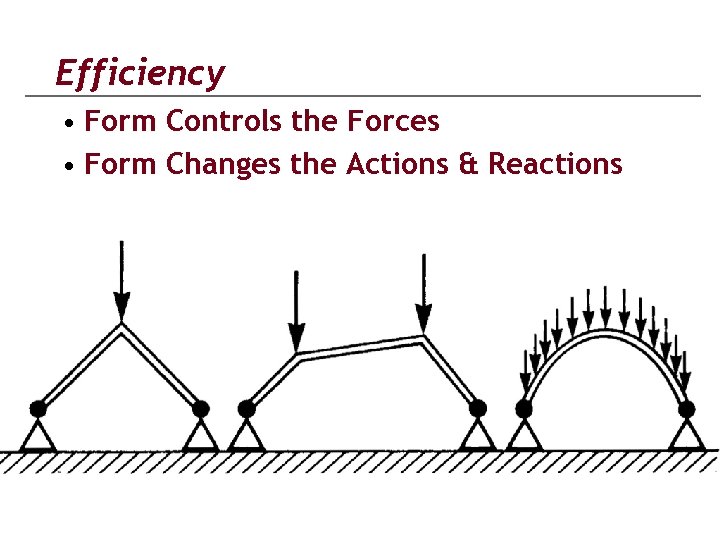

Efficiency • Form Controls the Forces • Form Changes the Actions & Reactions

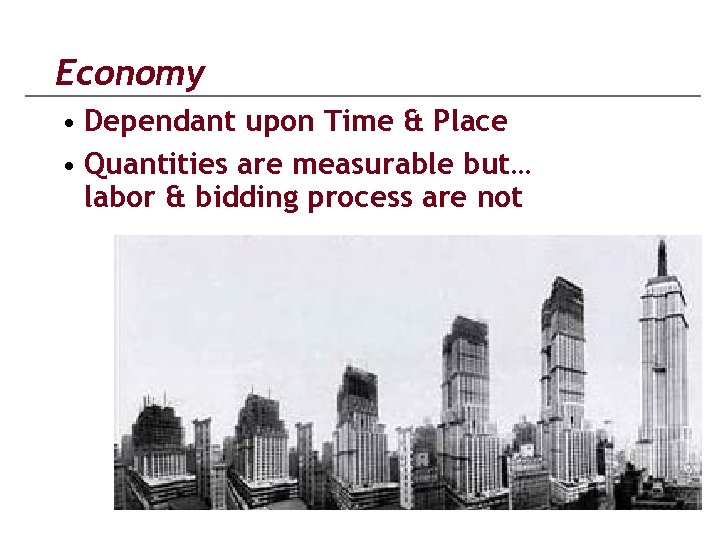

Economy • Dependant upon Time & Place • Quantities are measurable but… labor & bidding process are not

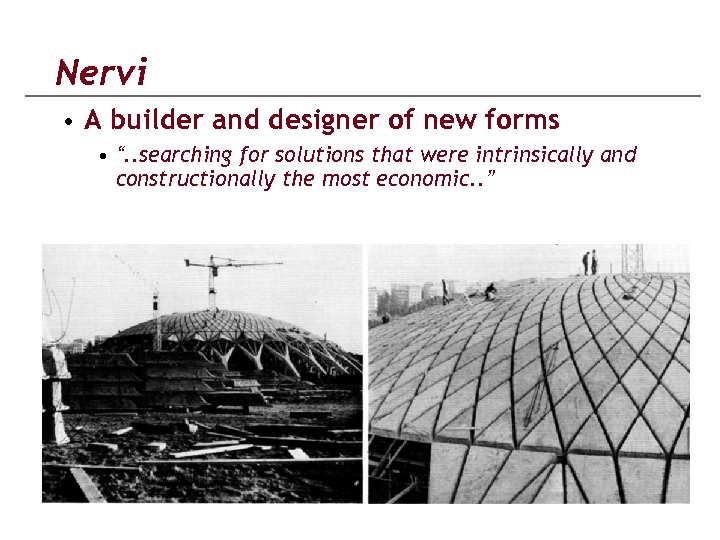

Nervi • A builder and designer of new forms • “. . searching for solutions that were intrinsically and constructionally the most economic. . ”

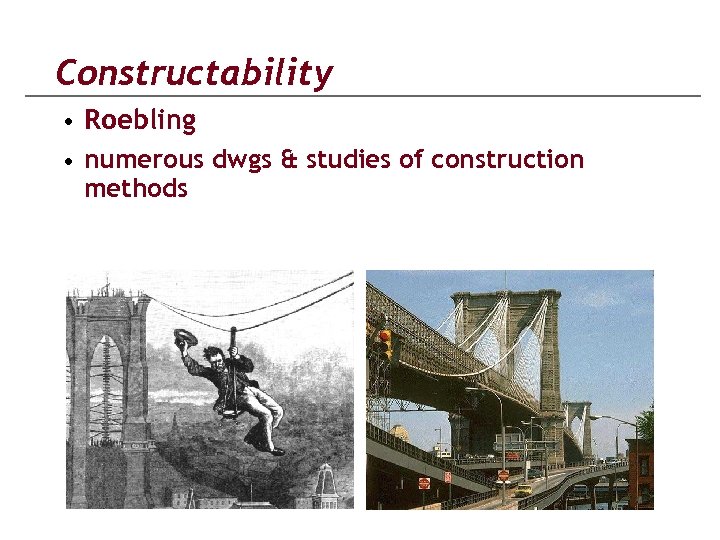

Constructability • Roebling • numerous dwgs & studies of construction methods

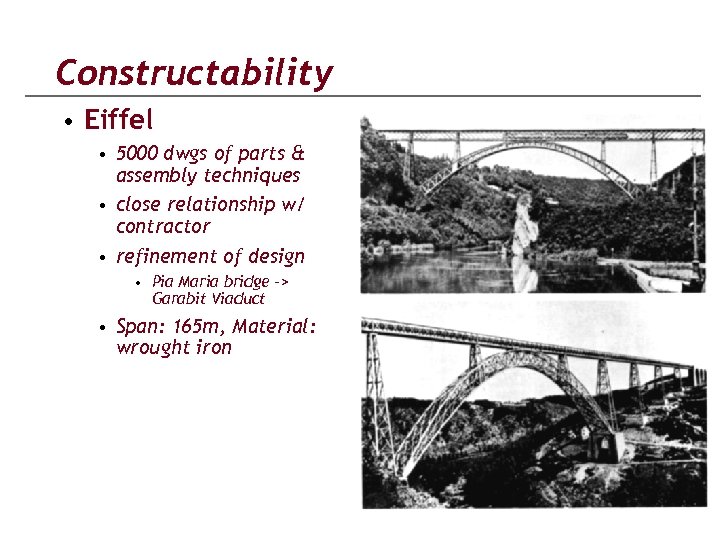

Constructability • Eiffel • 5000 dwgs of parts & assembly techniques • close relationship w/ contractor • refinement of design • Pia Maria bridge -> Garabit Viaduct • Span: 165 m, Material: wrought iron

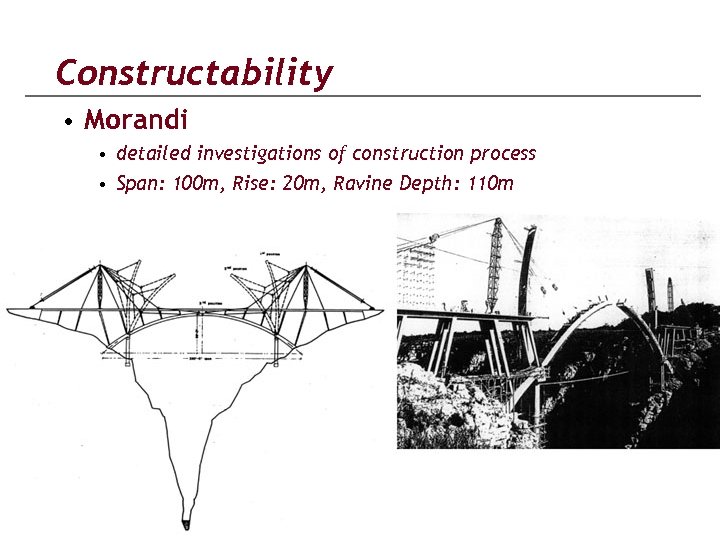

Constructability • Morandi • detailed investigations of construction process • Span: 100 m, Rise: 20 m, Ravine Depth: 110 m

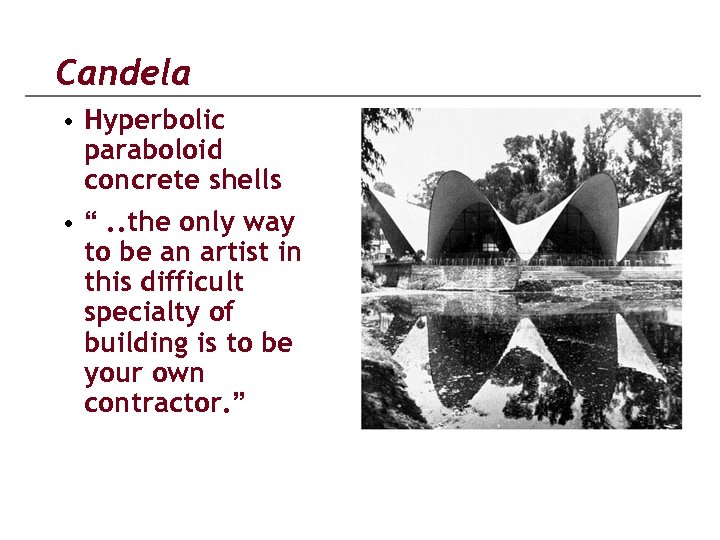

Candela • Hyperbolic paraboloid concrete shells • “. . the only way to be an artist in this difficult specialty of building is to be your own contractor. ”

Elegance • Aesthetic ideas can be traced back to Viollet le Duc, Entretiens, (1863, 1872) • Theories on the importance of structural expression and construction techniques

Engineering v. Science • Engineering (Technology) is: • the making of things that did not previously exist • creation of specific objects • Science is: • the discovery of things that have long existed • creation of general theories that unify knowledge • To what extent does technological innovation flow from scientific discovery?

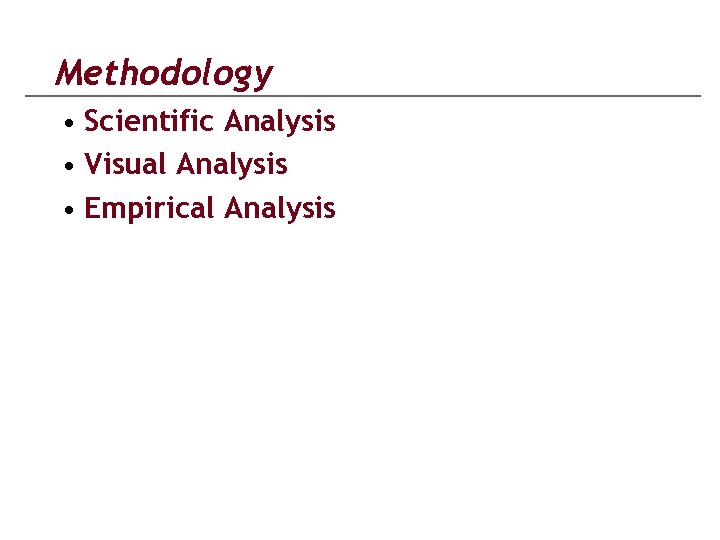

Methodology • Scientific Analysis • Visual Analysis • Empirical Analysis

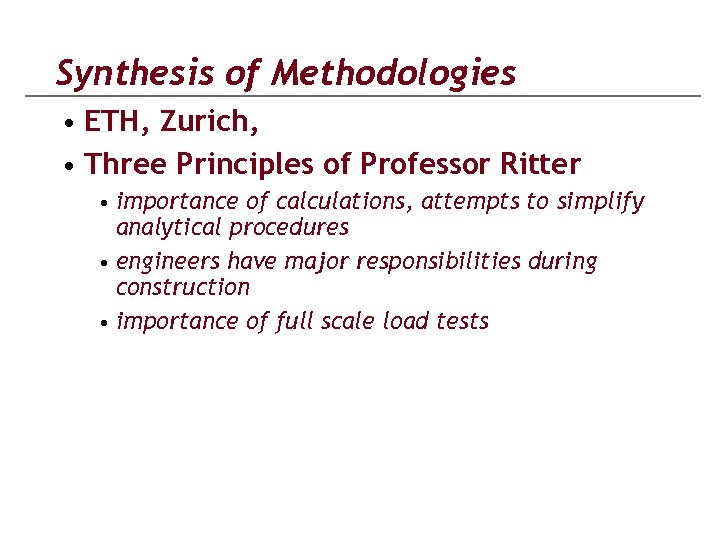

Synthesis of Methodologies • ETH, Zurich, • Three Principles of Professor Ritter • importance of calculations, attempts to simplify analytical procedures • engineers have major responsibilities during construction • importance of full scale load tests

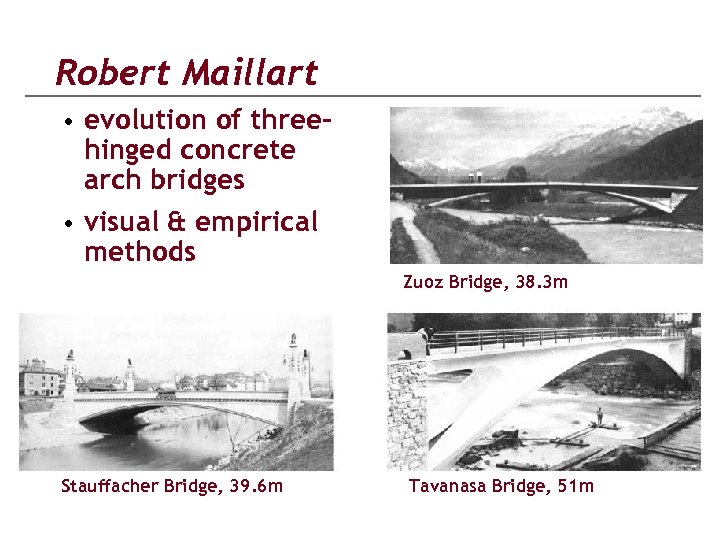

Robert Maillart • evolution of three- hinged concrete arch bridges • visual & empirical methods Zuoz Bridge, 38. 3 m Stauffacher Bridge, 39. 6 m Tavanasa Bridge, 51 m

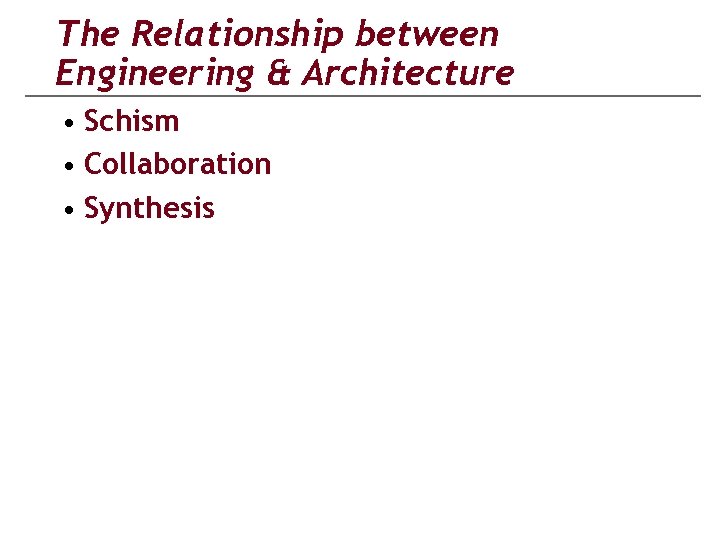

The Relationship between Engineering & Architecture • Schism • Collaboration • Synthesis

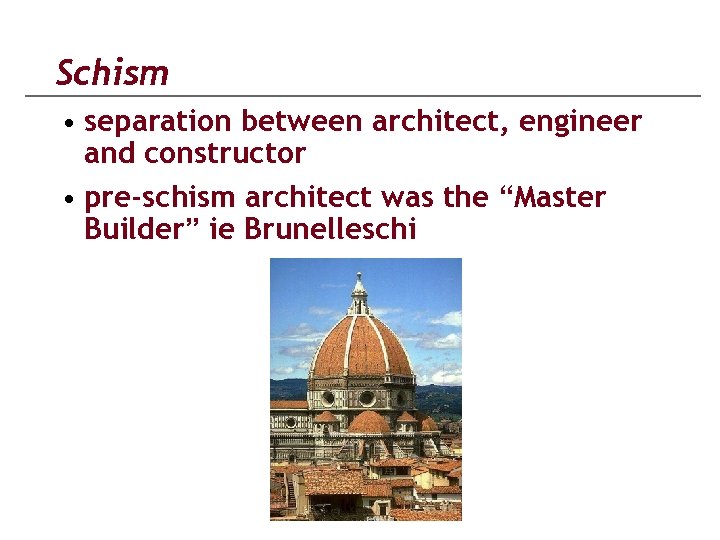

Schism • separation between architect, engineer and constructor • pre-schism architect was the “Master Builder” ie Brunelleschi

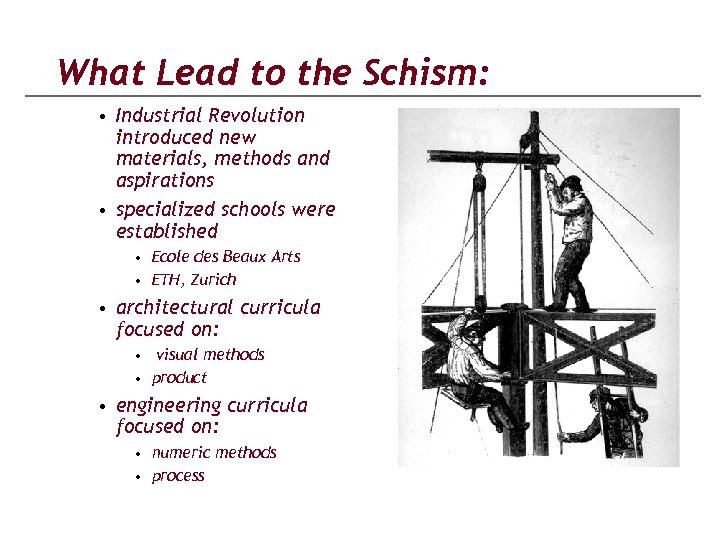

What Lead to the Schism: • Industrial Revolution introduced new materials, methods and aspirations • specialized schools were established • Ecole des Beaux Arts • ETH, Zurich • architectural curricula focused on: visual methods • product • • engineering curricula focused on: • numeric methods • process

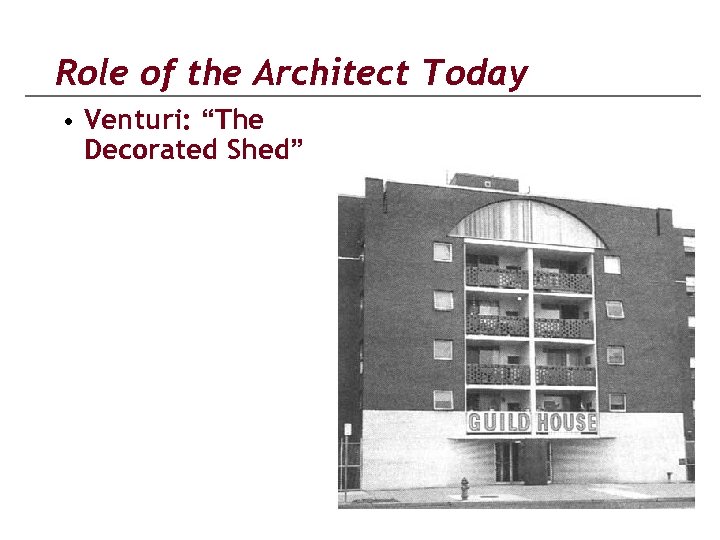

Role of the Architect Today • Venturi: “The Decorated Shed”

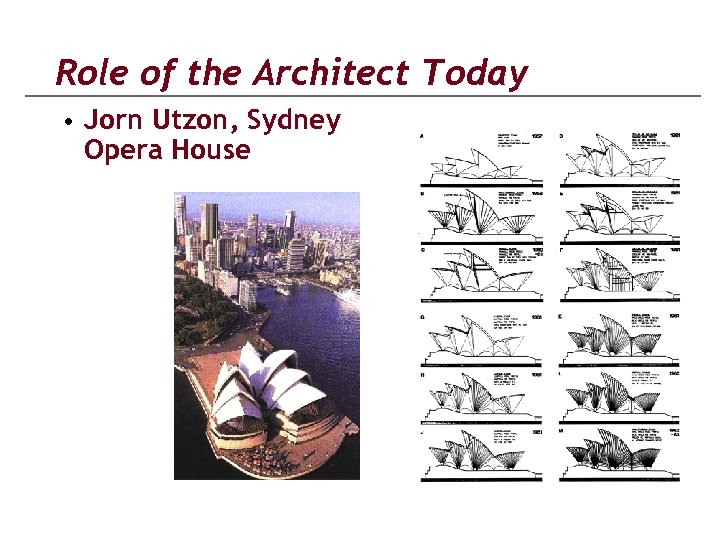

Role of the Architect Today • Jorn Utzon, Sydney Opera House

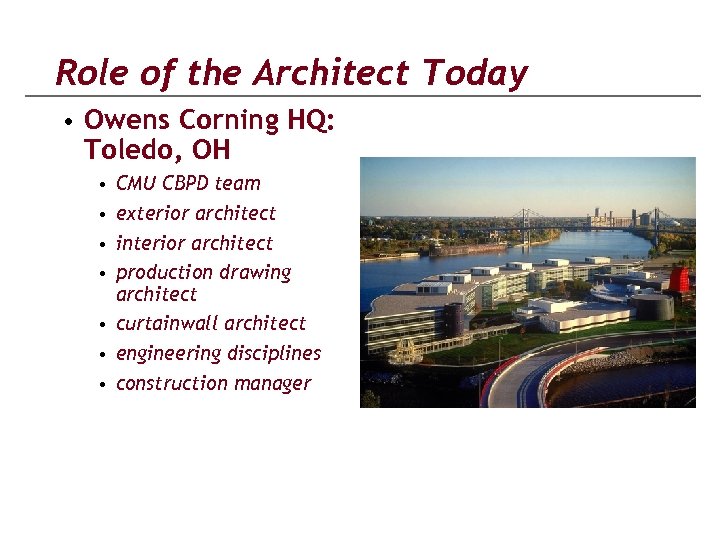

Role of the Architect Today • Owens Corning HQ: Toledo, OH • CMU CBPD team • exterior architect • interior architect • production drawing architect • curtainwall architect • engineering disciplines • construction manager

Role of the Engineer Today • technician vs innovator • synthesis of scientific & empirical knowledge • debate is raging over appropriate curriculum

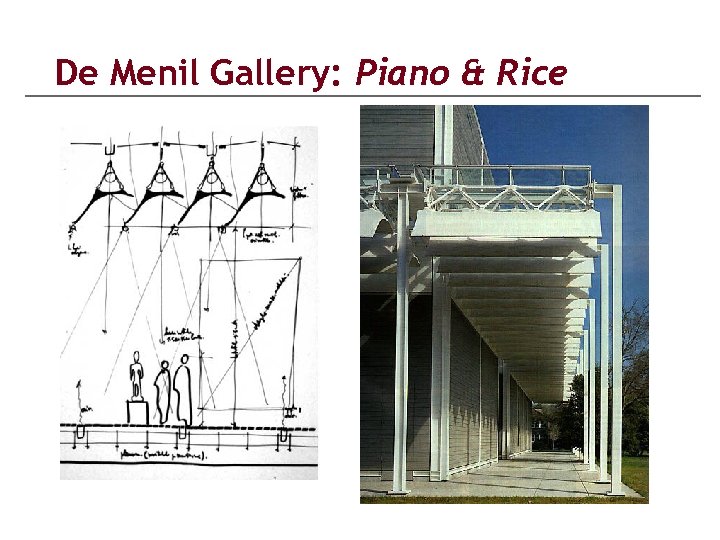

De Menil Gallery: Piano & Rice

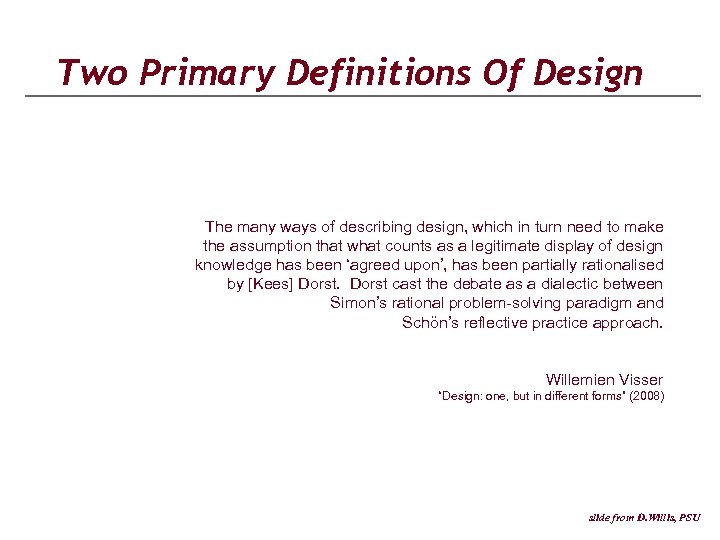

Two Primary Definitions Of Design The many ways of describing design, which in turn need to make the assumption that what counts as a legitimate display of design knowledge has been ‘agreed upon’, has been partially rationalised by [Kees] Dorst cast the debate as a dialectic between Simon’s rational problem-solving paradigm and Schön’s reflective practice approach. Willemien Visser “Design: one, but in different forms” (2008) slide from D. Willis, PSU

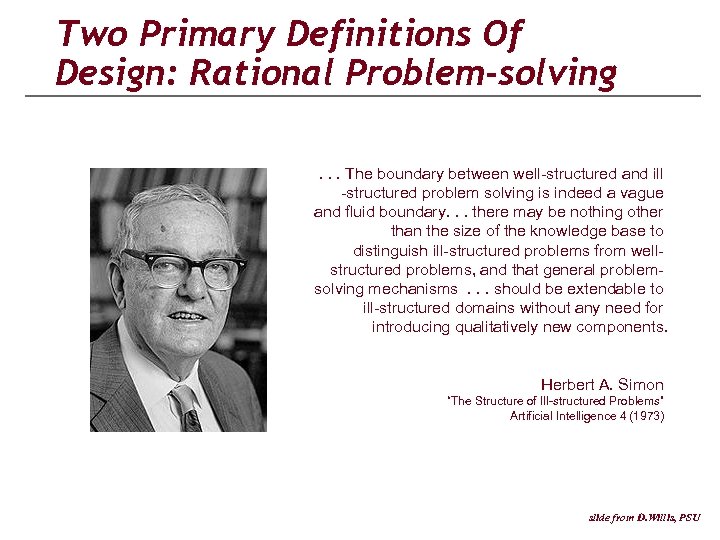

Two Primary Definitions Of Design: Rational Problem-solving. . . The boundary between well-structured and ill -structured problem solving is indeed a vague and fluid boundary. . . there may be nothing other than the size of the knowledge base to distinguish ill-structured problems from wellstructured problems, and that general problemsolving mechanisms. . . should be extendable to ill-structured domains without any need for introducing qualitatively new components. Herbert A. Simon “The Structure of Ill-structured Problems” Artificial Intelligence 4 (1973) slide from D. Willis, PSU

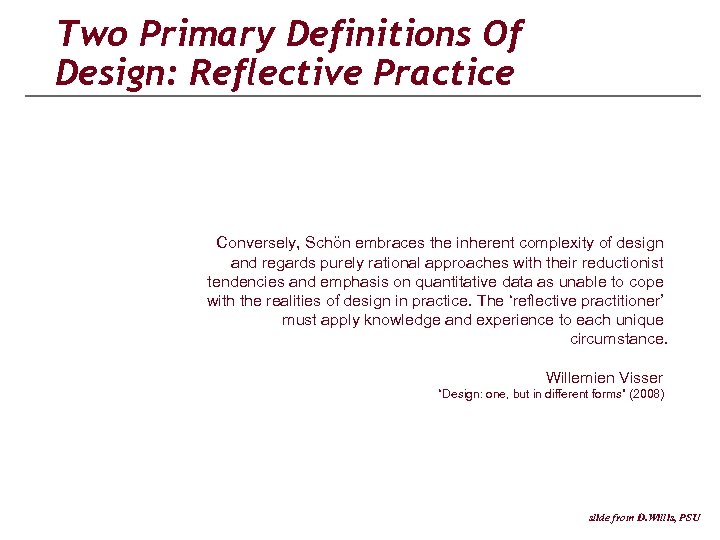

Two Primary Definitions Of Design: Reflective Practice Conversely, Schön embraces the inherent complexity of design and regards purely rational approaches with their reductionist tendencies and emphasis on quantitative data as unable to cope with the realities of design in practice. The ‘reflective practitioner’ must apply knowledge and experience to each unique circumstance. Willemien Visser “Design: one, but in different forms” (2008) slide from D. Willis, PSU

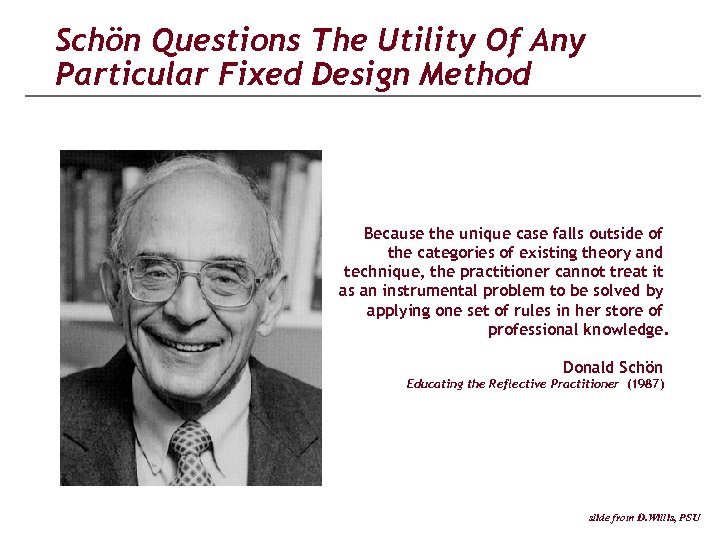

Schön Questions The Utility Of Any Particular Fixed Design Method Because the unique case falls outside of the categories of existing theory and technique, the practitioner cannot treat it as an instrumental problem to be solved by applying one set of rules in her store of professional knowledge. Donald Schön Educating the Reflective Practitioner (1987) slide from D. Willis, PSU

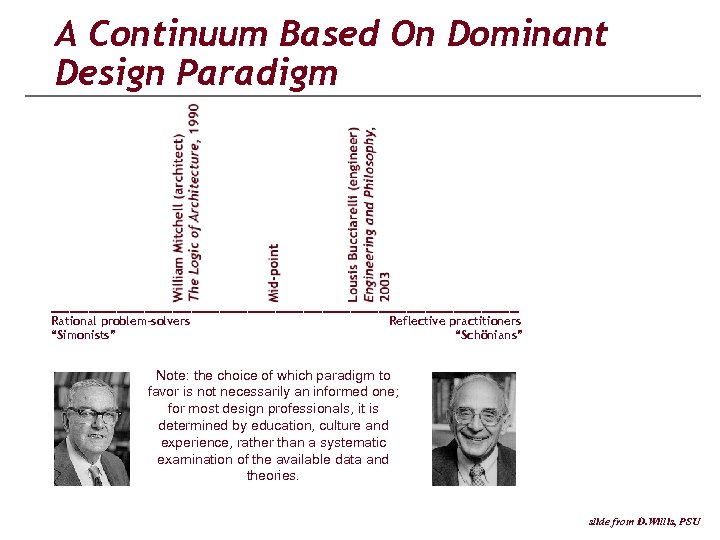

A Continuum Based On Dominant Design Paradigm _________________________ Rational problem-solvers “Simonists” Reflective practitioners “Schönians” Note: the choice of which paradigm to favor is not necessarily an informed one; for most design professionals, it is determined by education, culture and experience, rather than a systematic examination of the available data and theories. slide from D. Willis, PSU

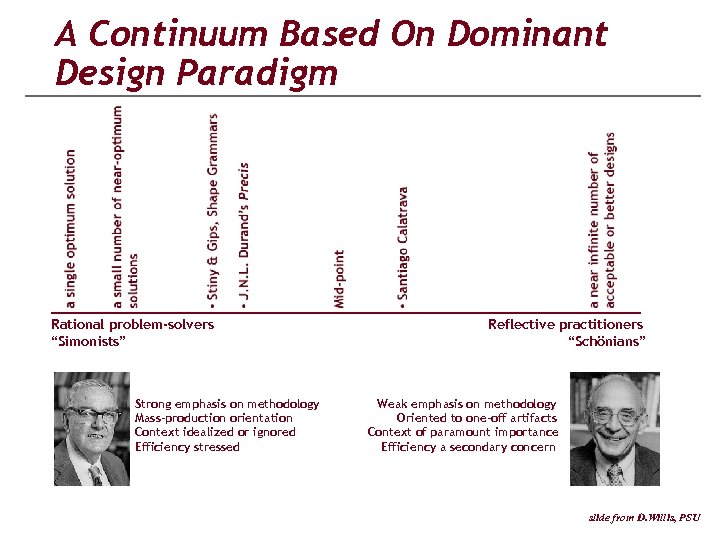

A Continuum Based On Dominant Design Paradigm ____________________________ Rational problem-solvers “Simonists” Strong emphasis on methodology Mass-production orientation Context idealized or ignored Efficiency stressed Reflective practitioners “Schönians” Weak emphasis on methodology Oriented to one-off artifacts Context of paramount importance Efficiency a secondary concern slide from D. Willis, PSU

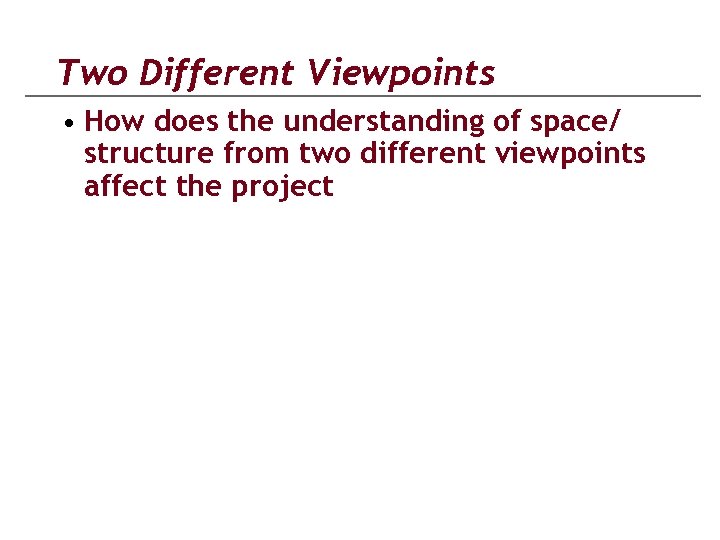

Two Different Viewpoints • How does the understanding of space/ structure from two different viewpoints affect the project

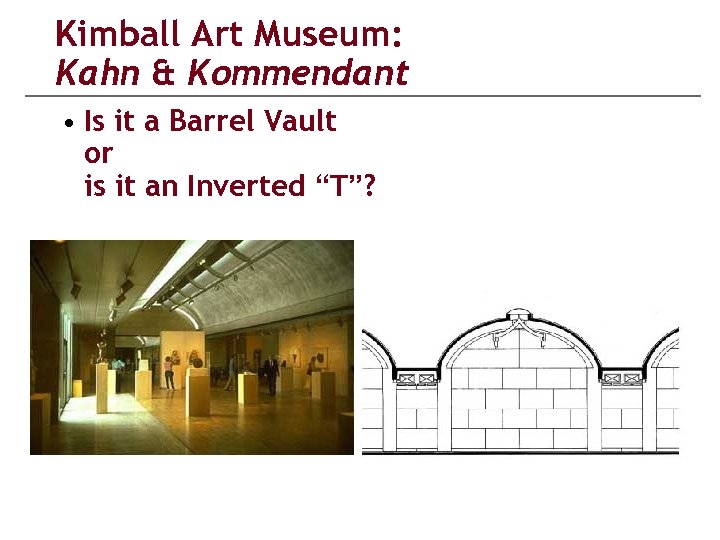

Kimball Art Museum: Kahn & Kommendant • Is it a Barrel Vault or is it an Inverted “T”?

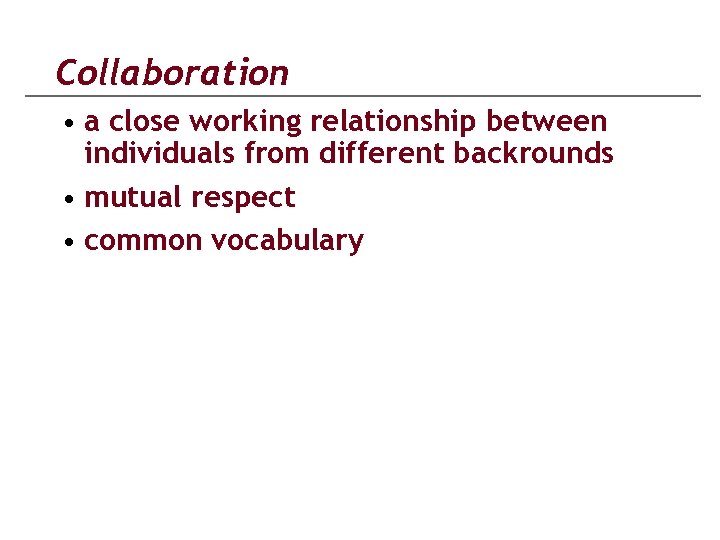

Collaboration • a close working relationship between individuals from different backrounds • mutual respect • common vocabulary

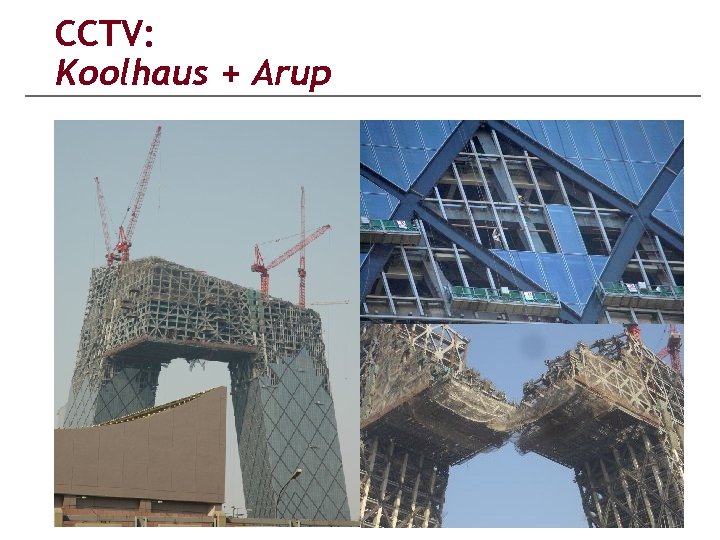

CCTV: Koolhaus + Arup

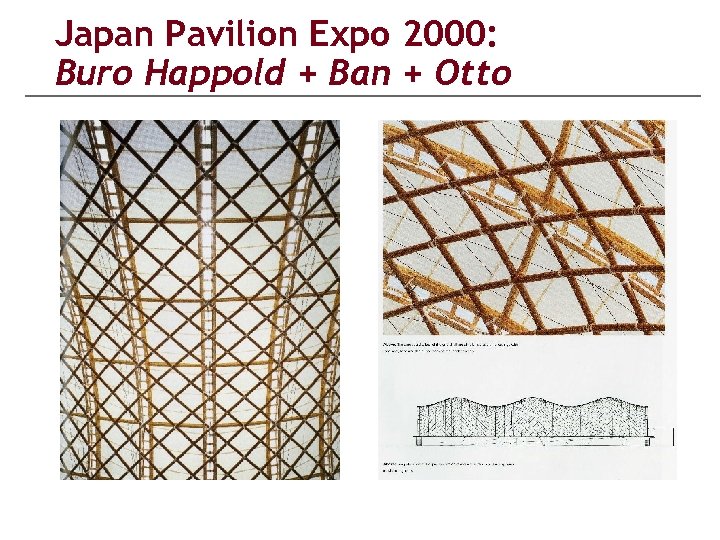

Japan Pavilion Expo 2000: Buro Happold + Ban + Otto

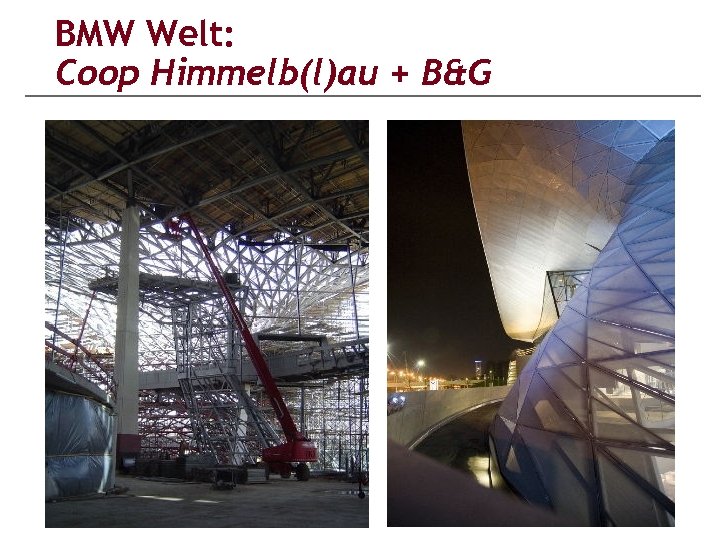

BMW Welt: Coop Himmelb(l)au + B&G

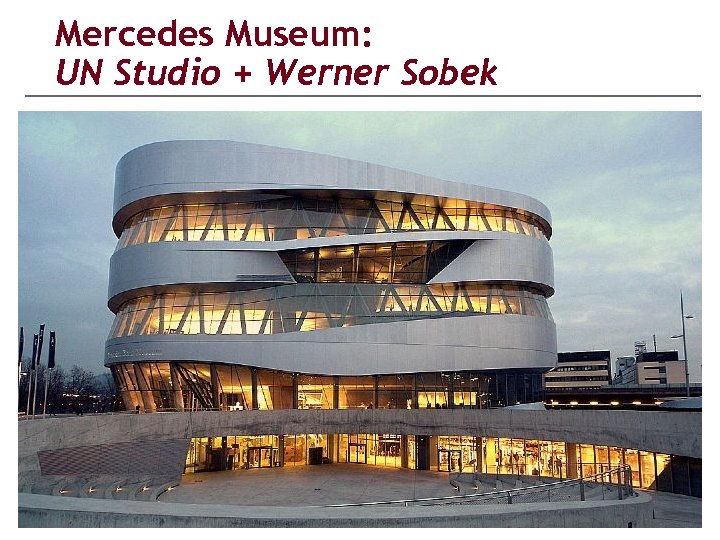

Mercedes Museum: UN Studio + Werner Sobek

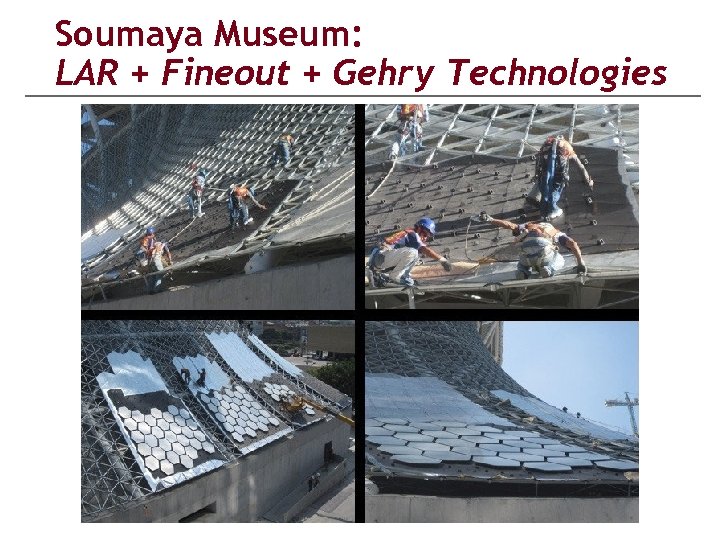

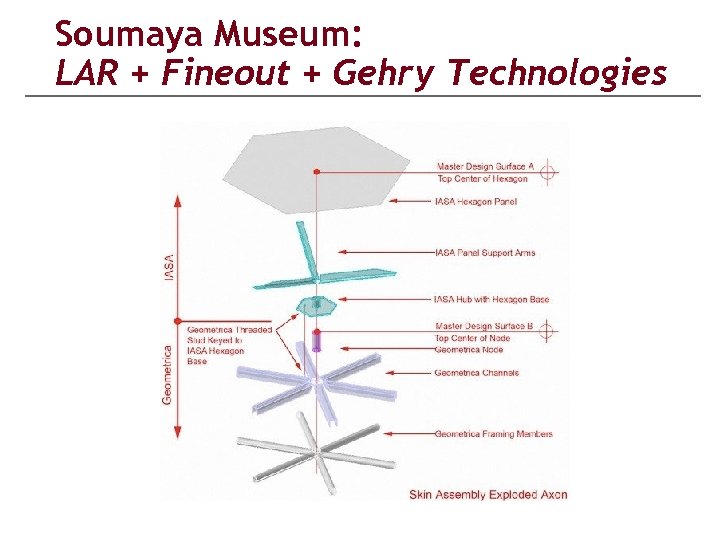

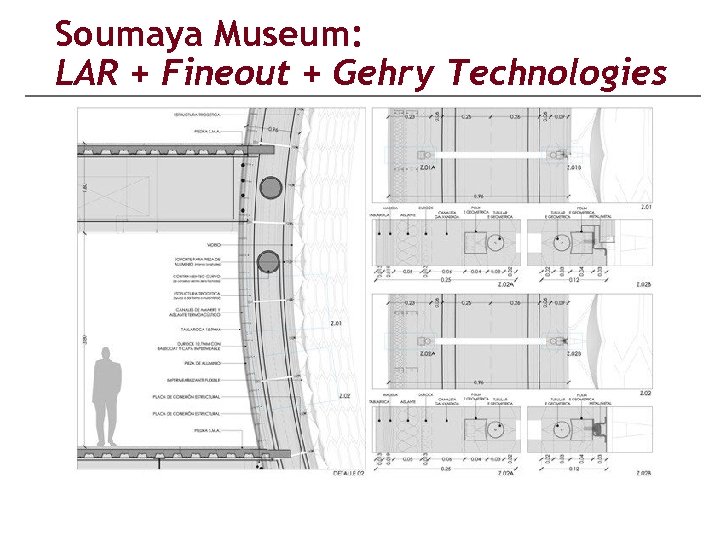

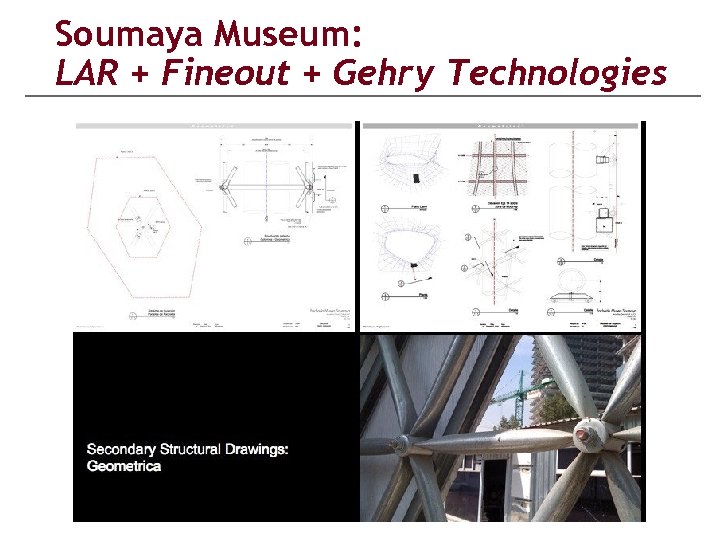

Soumaya Museum: LAR + Fineout + Gehry Technologies

Synthesis • Can there be a modern day “master builder”? • Nervi, Candela, Wright, Rogers, Calatrava

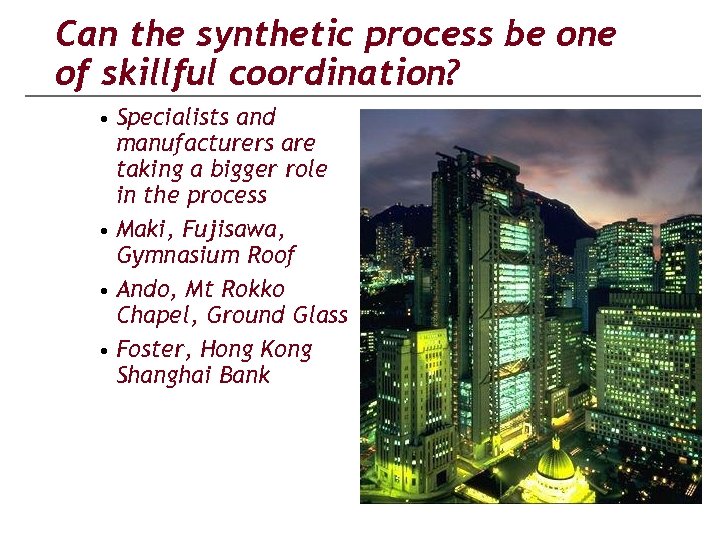

Can the synthetic process be one of skillful coordination? • Specialists and manufacturers are taking a bigger role in the process • Maki, Fujisawa, Gymnasium Roof • Ando, Mt Rokko Chapel, Ground Glass • Foster, Hong Kong Shanghai Bank

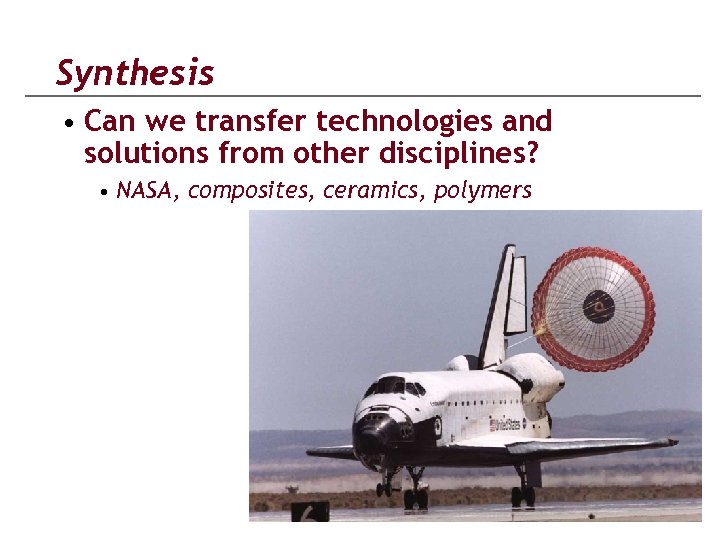

Synthesis • Can we transfer technologies and solutions from other disciplines? • NASA, composites, ceramics, polymers

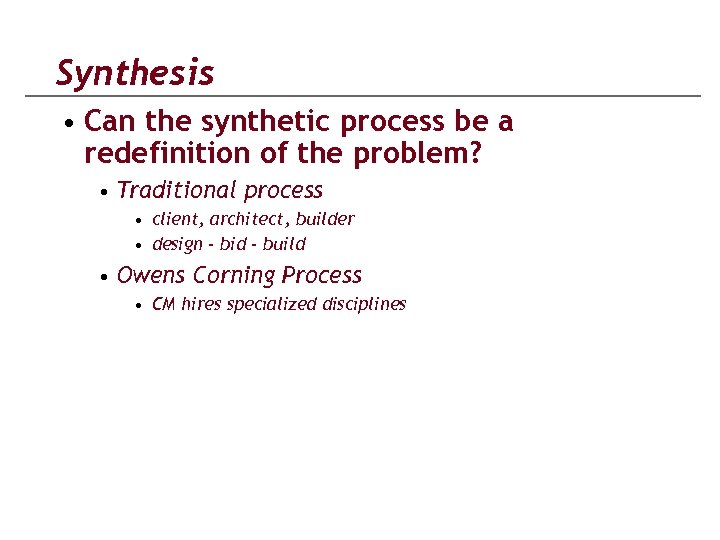

Synthesis • Can the synthetic process be a redefinition of the problem? • Traditional process • client, architect, builder • design - bid - build • Owens Corning Process • CM hires specialized disciplines

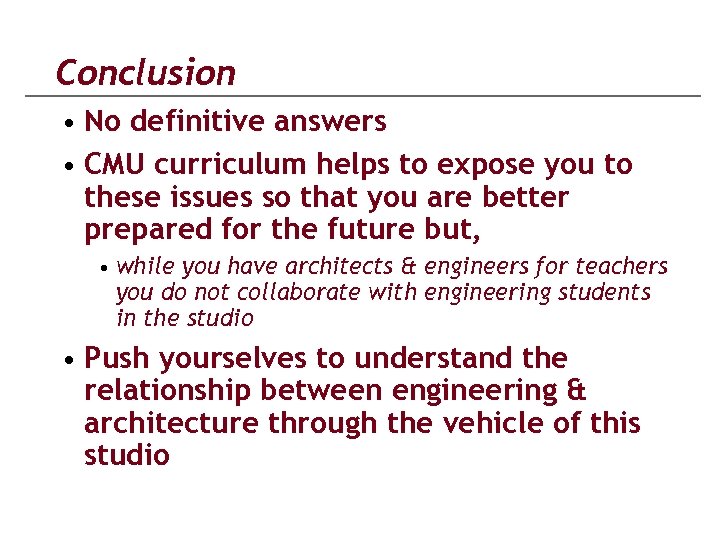

Conclusion • No definitive answers • CMU curriculum helps to expose you to these issues so that you are better prepared for the future but, • while you have architects & engineers for teachers you do not collaborate with engineering students in the studio • Push yourselves to understand the relationship between engineering & architecture through the vehicle of this studio
