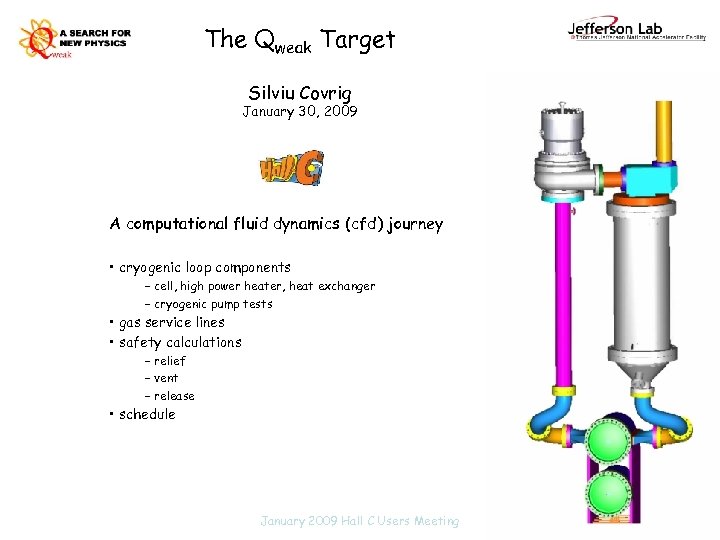

The Qweak Target Silviu Covrig January 30, 2009 A computational fluid dynamics (cfd) journey The Qweak Target Silviu Covrig January 30, 2009 A computational fluid dynamics (cfd) journey • cryogenic loop components – cell, high power heater, heat exchanger – cryogenic pump tests • gas service lines • safety calculations – relief – vent – release • schedule January 2009 Hall C Users Meeting

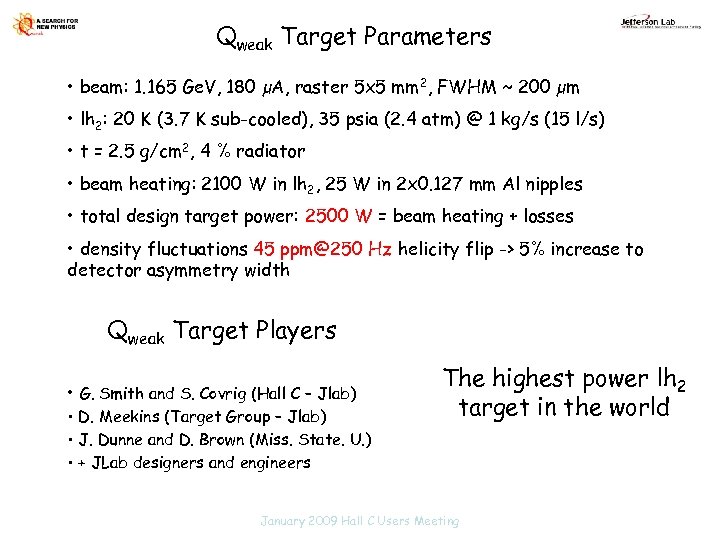

Qweak Target Parameters • beam: 1. 165 Ge. V, 180 µA, raster 5 x Qweak Target Parameters • beam: 1. 165 Ge. V, 180 µA, raster 5 x 5 mm 2, FWHM ~ 200 µm • lh 2: 20 K (3. 7 K sub-cooled), 35 psia (2. 4 atm) @ 1 kg/s (15 l/s) • t = 2. 5 g/cm 2, 4 % radiator • beam heating: 2100 W in lh 2, 25 W in 2 x 0. 127 mm Al nipples • total design target power: 2500 W = beam heating + losses • density fluctuations 45 [email protected] Hz helicity flip -> 5% increase to detector asymmetry width Qweak Target Players • G. Smith and S. Covrig (Hall C – Jlab) • D. Meekins (Target Group – Jlab) • J. Dunne and D. Brown (Miss. State. U. ) • + JLab designers and engineers The highest power lh 2 target in the world January 2009 Hall C Users Meeting

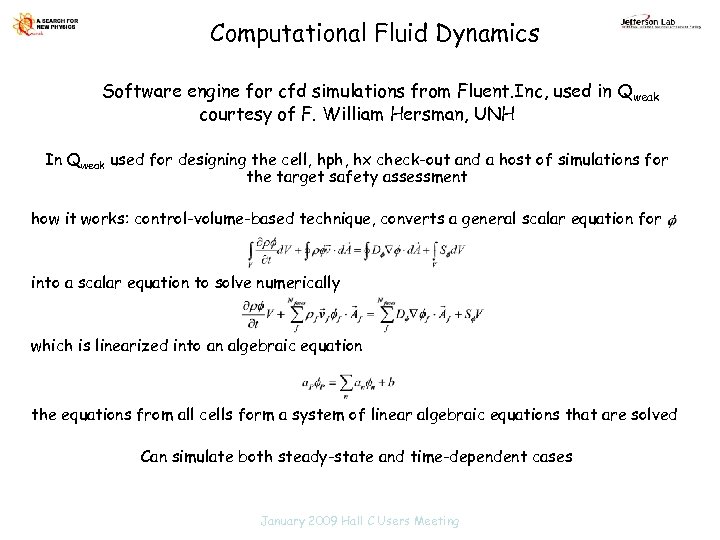

Computational Fluid Dynamics Software engine for cfd simulations from Fluent. Inc, used in Qweak Computational Fluid Dynamics Software engine for cfd simulations from Fluent. Inc, used in Qweak courtesy of F. William Hersman, UNH In Qweak used for designing the cell, hph, hx check-out and a host of simulations for the target safety assessment how it works: control-volume-based technique, converts a general scalar equation for into a scalar equation to solve numerically which is linearized into an algebraic equation the equations from all cells form a system of linear algebraic equations that are solved Can simulate both steady-state and time-dependent cases January 2009 Hall C Users Meeting

CFD Design Process for the Cell Simulations run in steady-state Conditions: lh 2, beam CFD Design Process for the Cell Simulations run in steady-state Conditions: lh 2, beam in nominal conditions, beam heating sourced as uniform power density in both lh 2 and Al windows (typically 2. 4 e 8 W/m 3 in lh 2, 3. 9 e 9 W/m 3 in Al), turbulence model used k-ε Requirements: minimization of both bulk heating and windows heating, in steady-state cannot estimate ⁄ on the scale of the helicity frequency • • Started with a G 0 -type longitudinal flow cell (4 cases modeled) Converged on a transverse flow cell (>4 cases modeled), which became the Qweak target cell NB. without cfd the Qweak target cell would have been a G 0 -type cell 2 liters cell January 2009 Hall C Users Meeting

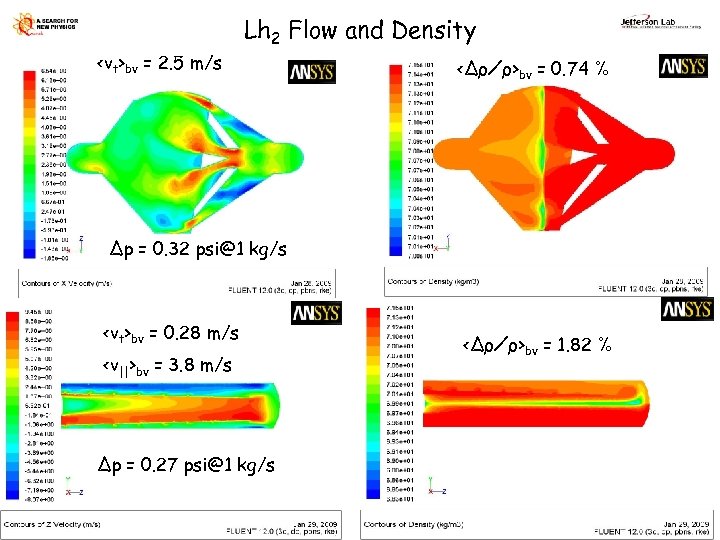

<vt>bv = 2. 5 m/s Lh 2 Flow and Density <Δρ⁄ρ>bv = 0. 74 bv = 2. 5 m/s Lh 2 Flow and Density <Δρ⁄ρ>bv = 0. 74 % Δp = 0. 32 [email protected] kg/s bv = 0. 28 m/s bv = 3. 8 m/s Δp = 0. 27 [email protected] kg/s <Δρ⁄ρ>bv = 1. 82 %

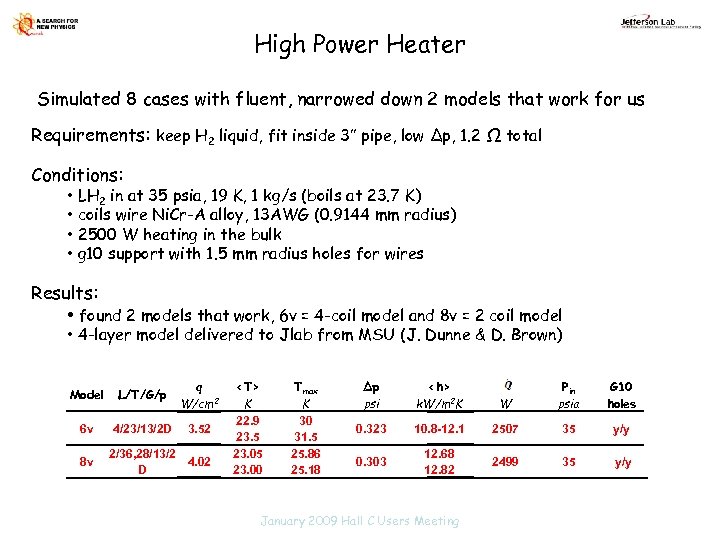

High Power Heater Simulated 8 cases with fluent, narrowed down 2 models that work High Power Heater Simulated 8 cases with fluent, narrowed down 2 models that work for us Requirements: keep H 2 liquid, fit inside 3” pipe, low Δp, 1. 2 Ω total Conditions: • LH 2 in at 35 psia, 19 K, 1 kg/s (boils at 23. 7 K) • coils wire Ni. Cr-A alloy, 13 AWG (0. 9144 mm radius) • 2500 W heating in the bulk • g 10 support with 1. 5 mm radius holes for wires Results: • found 2 models that work, 6 v = 4 -coil model and 8 v = 2 coil model • 4 -layer model delivered to Jlab from MSU (J. Dunne & D. Brown) Model L/T/G/p q W/cm 2 6 v 4/23/13/2 D 3. 52 8 v 2/36, 28/13/2 4. 02 D K 22. 9 23. 5 23. 00 Tmax K 30 31. 5 25. 86 25. 18 Δp psi k. W/m 2 K W Pin psia 0. 323 10. 8 -12. 1 2507 35 y/y 0. 303 12. 68 12. 82 2499 35 y/y January 2009 Hall C Users Meeting G 10 holes

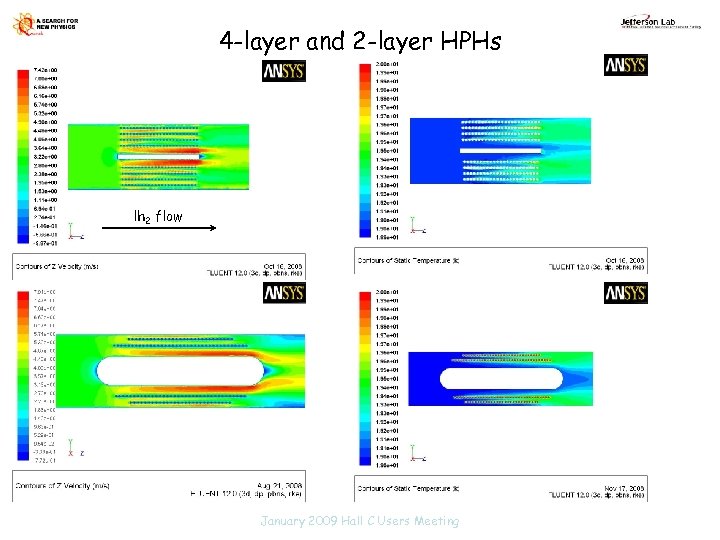

4 -layer and 2 -layer HPHs lh 2 flow January 2009 Hall C Users 4 -layer and 2 -layer HPHs lh 2 flow January 2009 Hall C Users Meeting

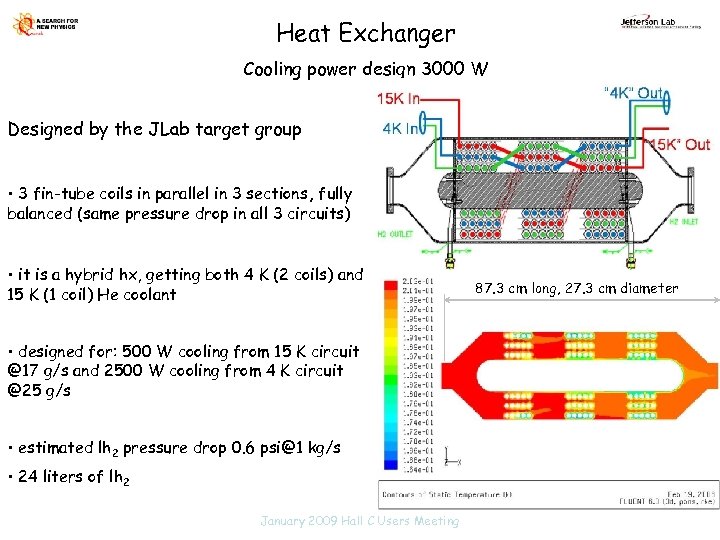

Heat Exchanger Cooling power design 3000 W Designed by the JLab target group • Heat Exchanger Cooling power design 3000 W Designed by the JLab target group • 3 fin-tube coils in parallel in 3 sections, fully balanced (same pressure drop in all 3 circuits) • it is a hybrid hx, getting both 4 K (2 coils) and 15 K (1 coil) He coolant • designed for: 500 W cooling from 15 K circuit @17 g/s and 2500 W cooling from 4 K circuit @25 g/s • estimated lh 2 pressure drop 0. 6 [email protected] kg/s • 24 liters of lh 2 January 2009 Hall C Users Meeting 87. 3 cm long, 27. 3 cm diameter

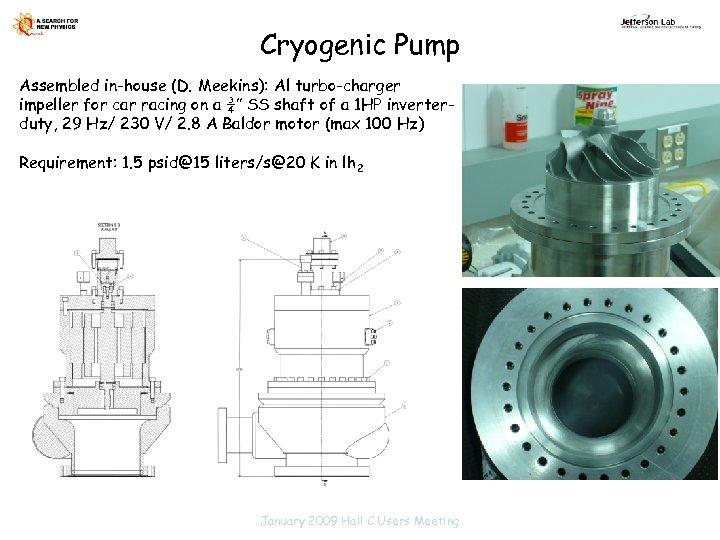

Cryogenic Pump Assembled in-house (D. Meekins): Al turbo-charger impeller for car racing on a Cryogenic Pump Assembled in-house (D. Meekins): Al turbo-charger impeller for car racing on a ¾” SS shaft of a 1 HP inverterduty, 29 Hz/ 230 V/ 2. 8 A Baldor motor (max 100 Hz) Requirement: 1. 5 [email protected] liters/[email protected] K in lh 2 January 2009 Hall C Users Meeting

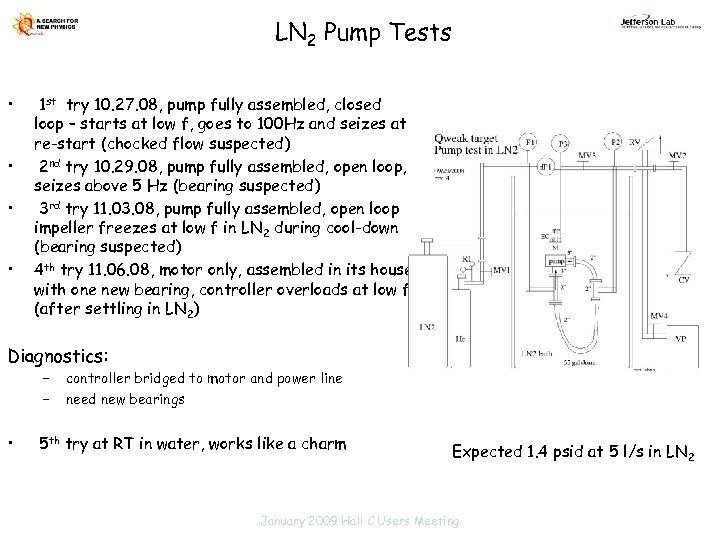

LN 2 Pump Tests • • 1 st try 10. 27. 08, pump fully LN 2 Pump Tests • • 1 st try 10. 27. 08, pump fully assembled, closed loop – starts at low f, goes to 100 Hz and seizes at re-start (chocked flow suspected) 2 nd try 10. 29. 08, pump fully assembled, open loop, seizes above 5 Hz (bearing suspected) 3 rd try 11. 03. 08, pump fully assembled, open loop impeller freezes at low f in LN 2 during cool-down (bearing suspected) 4 th try 11. 06. 08, motor only, assembled in its house with one new bearing, controller overloads at low f (after settling in LN 2) Diagnostics: – – • controller bridged to motor and power line need new bearings 5 th try at RT in water, works like a charm Expected 1. 4 psid at 5 l/s in LN 2 January 2009 Hall C Users Meeting

Pump Tests Pictures Measured in H 2 O 1. 1 psid at 10 Hz Pump Tests Pictures Measured in H 2 O 1. 1 psid at 10 Hz 5. 4 psid at 30 Hz January 2009 Hall C Users Meeting

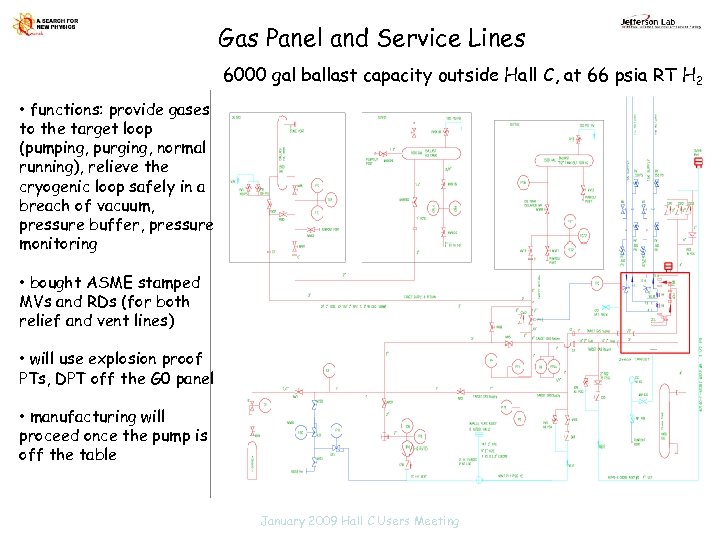

Gas Panel and Service Lines 6000 gal ballast capacity outside Hall C, at 66 Gas Panel and Service Lines 6000 gal ballast capacity outside Hall C, at 66 psia RT H 2 • functions: provide gases to the target loop (pumping, purging, normal running), relieve the cryogenic loop safely in a breach of vacuum, pressure buffer, pressure monitoring • bought ASME stamped MVs and RDs (for both relief and vent lines) • will use explosion proof PTs, DPT off the G 0 panel • manufacturing will proceed once the pump is off the table January 2009 Hall C Users Meeting

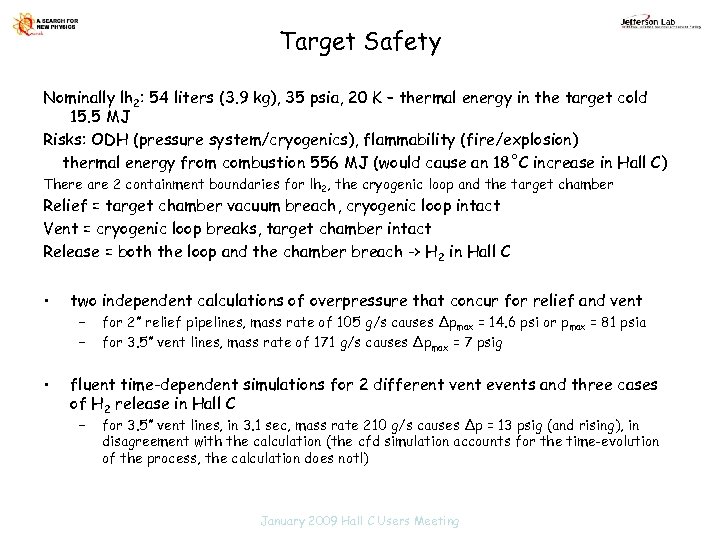

Target Safety Nominally lh 2: 54 liters (3. 9 kg), 35 psia, 20 K Target Safety Nominally lh 2: 54 liters (3. 9 kg), 35 psia, 20 K – thermal energy in the target cold 15. 5 MJ Risks: ODH (pressure system/cryogenics), flammability (fire/explosion) thermal energy from combustion 556 MJ (would cause an 18˚C increase in Hall C) There are 2 containment boundaries for lh 2, the cryogenic loop and the target chamber Relief = target chamber vacuum breach, cryogenic loop intact Vent = cryogenic loop breaks, target chamber intact Release = both the loop and the chamber breach -> H 2 in Hall C • • two independent calculations of overpressure that concur for relief and vent – – for 2” relief pipelines, mass rate of 105 g/s causes Δpmax = 14. 6 psi or pmax = 81 psia for 3. 5” vent lines, mass rate of 171 g/s causes Δpmax = 7 psig fluent time-dependent simulations for 2 different vent events and three cases of H 2 release in Hall C – for 3. 5” vent lines, in 3. 1 sec, mass rate 210 g/s causes Δp = 13 psig (and rising), in disagreement with the calculation (the cfd simulation accounts for the time-evolution of the process, the calculation does not!) January 2009 Hall C Users Meeting

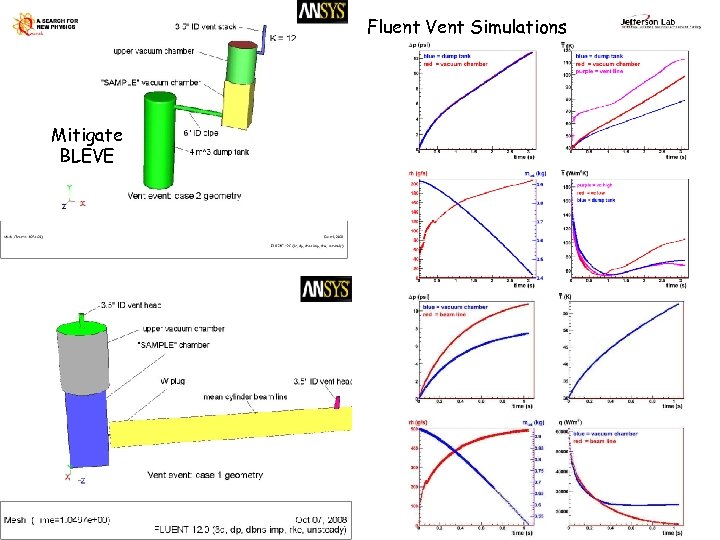

Fluent Vent Simulations Mitigate BLEVE Fluent Vent Simulations Mitigate BLEVE

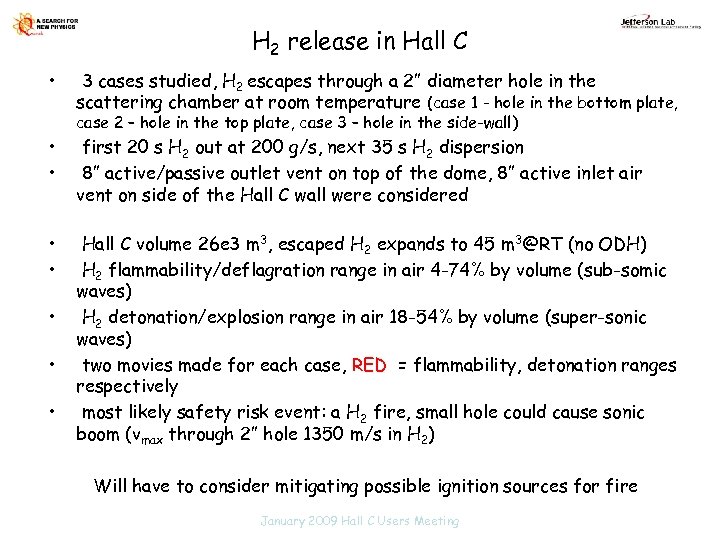

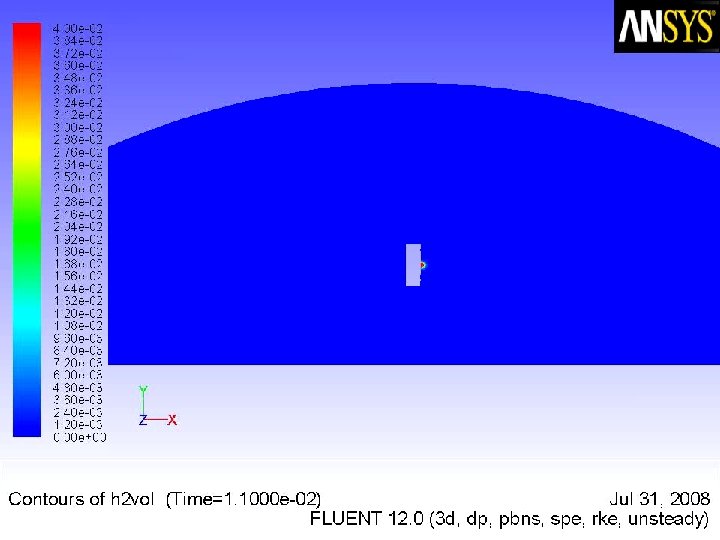

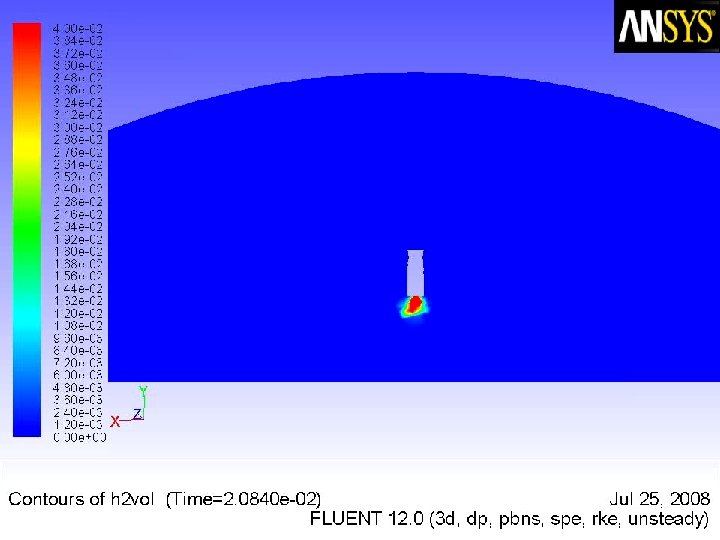

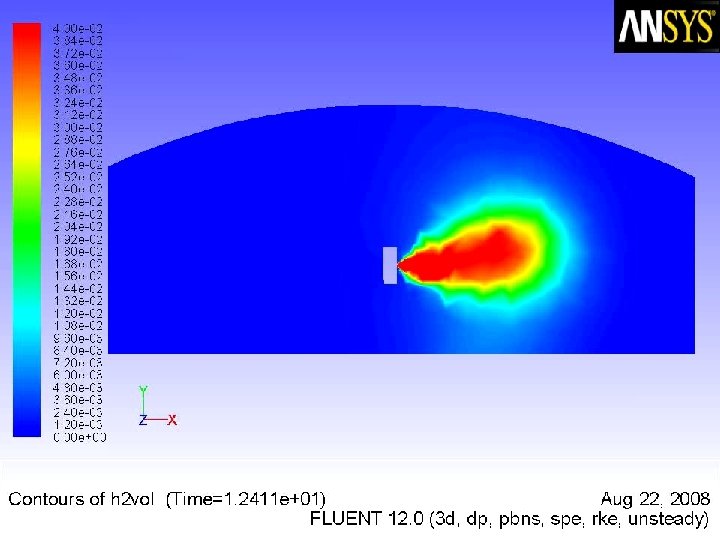

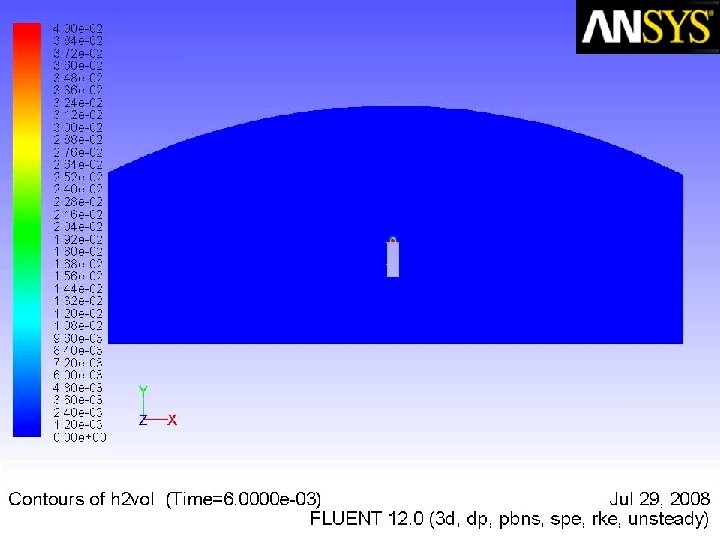

H 2 release in Hall C • 3 cases studied, H 2 escapes through H 2 release in Hall C • 3 cases studied, H 2 escapes through a 2” diameter hole in the scattering chamber at room temperature (case 1 - hole in the bottom plate, case 2 – hole in the top plate, case 3 – hole in the side-wall) • • first 20 s H 2 out at 200 g/s, next 35 s H 2 dispersion 8” active/passive outlet vent on top of the dome, 8” active inlet air vent on side of the Hall C wall were considered • • Hall C volume 26 e 3 m 3, escaped H 2 expands to 45 m [email protected] (no ODH) H 2 flammability/deflagration range in air 4 -74% by volume (sub-somic waves) H 2 detonation/explosion range in air 18 -54% by volume (super-sonic waves) two movies made for each case, RED = flammability, detonation ranges respectively most likely safety risk event: a H 2 fire, small hole could cause sonic boom (vmax through 2” hole 1350 m/s in H 2) • • • Will have to consider mitigating possible ignition sources for fire January 2009 Hall C Users Meeting

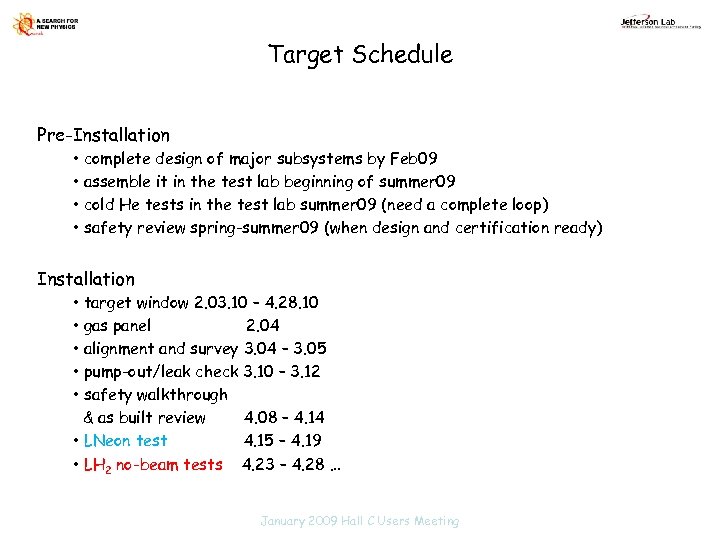

Target Schedule Pre-Installation • complete design of major subsystems by Feb 09 • assemble Target Schedule Pre-Installation • complete design of major subsystems by Feb 09 • assemble it in the test lab beginning of summer 09 • cold He tests in the test lab summer 09 (need a complete loop) • safety review spring-summer 09 (when design and certification ready) Installation • target window 2. 03. 10 – 4. 28. 10 • gas panel 2. 04 • alignment and survey 3. 04 – 3. 05 • pump-out/leak check 3. 10 – 3. 12 • safety walkthrough & as built review 4. 08 – 4. 14 • LNeon test 4. 15 – 4. 19 • LH 2 no-beam tests 4. 23 – 4. 28 … January 2009 Hall C Users Meeting

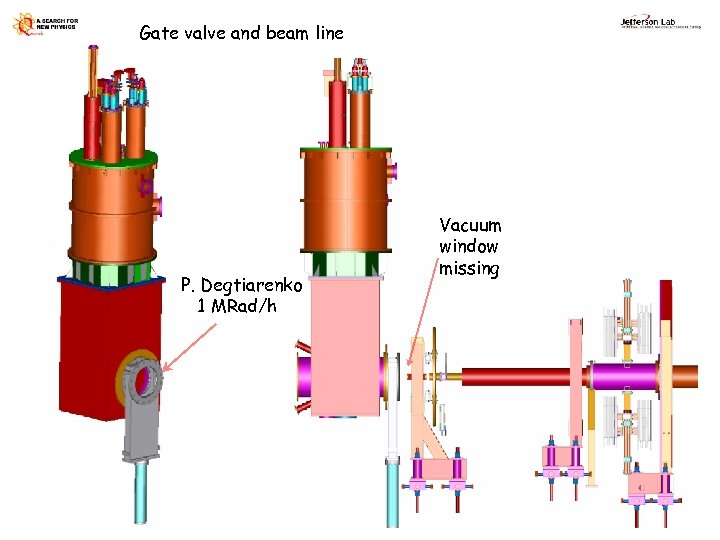

Gate valve and beam line P. Degtiarenko 1 MRad/h Vacuum window missing Gate valve and beam line P. Degtiarenko 1 MRad/h Vacuum window missing

Motion Mechanism • vertical lifter • horizontal motion – 24” travel, 6 positions – Motion Mechanism • vertical lifter • horizontal motion – 24” travel, 6 positions – spare limit switches, relays and dc power supplies procured – has to be thoroughly tested in the test lab – 2” travel – brake and limit switches ordered – 900, 10: 1 gear box was degreased and packed with vacuum grease – the Phytron motor is the first target component controlled from the target-IOC – has to be tested in the test lab MSU logic diagram for the cryogenic loop vertical lifter using IDC-S 6961 January 2009 Hall C Users Meeting

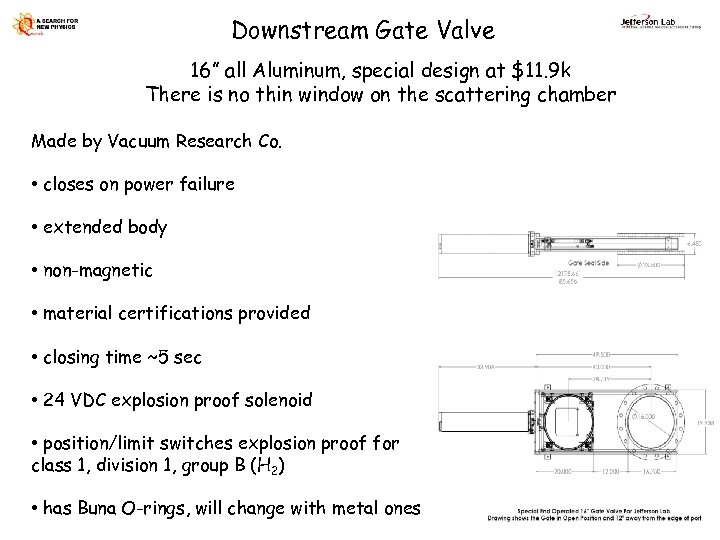

Downstream Gate Valve 16” all Aluminum, special design at $11. 9 k There is Downstream Gate Valve 16” all Aluminum, special design at $11. 9 k There is no thin window on the scattering chamber Made by Vacuum Research Co. • closes on power failure • extended body • non-magnetic • material certifications provided • closing time ~5 sec • 24 VDC explosion proof solenoid • position/limit switches explosion proof for class 1, division 1, group B (H 2) • has Buna O-rings, will change with metal ones
