The PATENTSCOPE search system December 2012 Sandrine Ammann Marketing & Communications Officer
To the PATENTSCOPE search system webinar

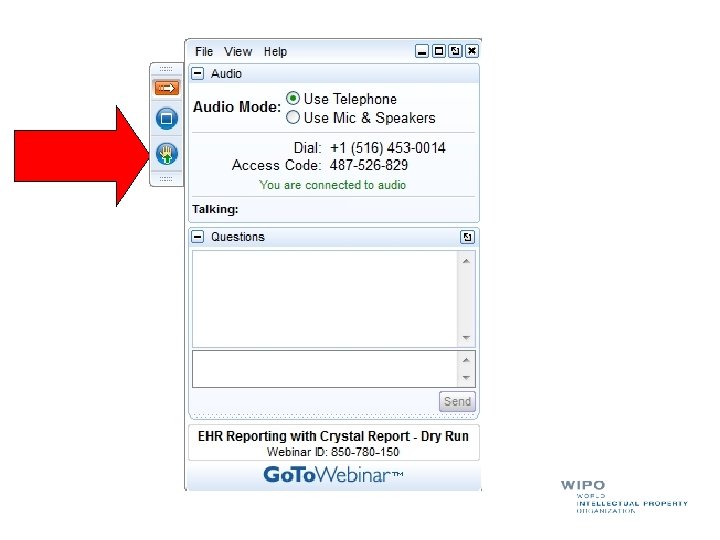

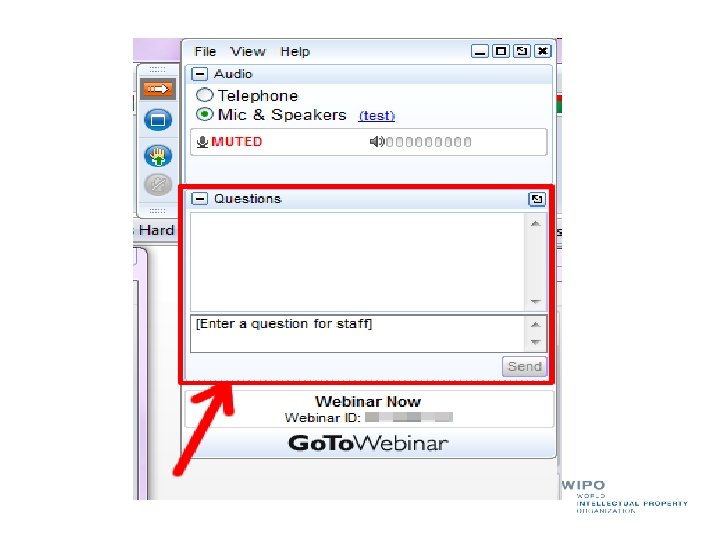

Questions/concerns patentscope@wipo. int

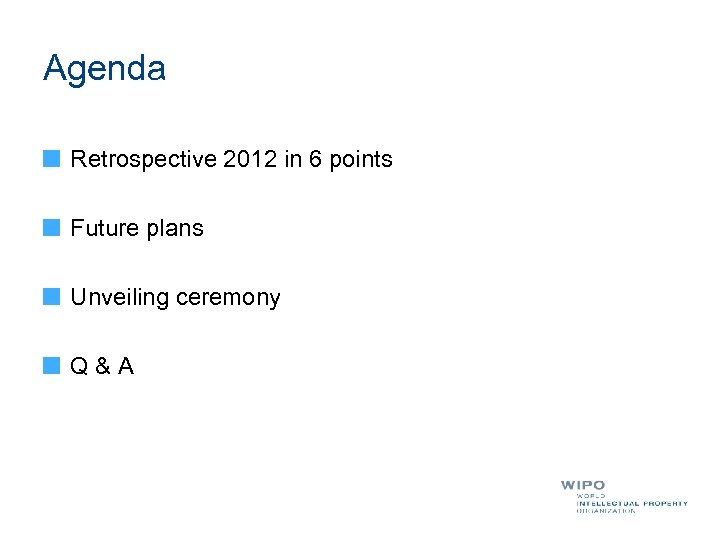

Agenda Retrospective 2012 in 6 points Future plans Unveiling ceremony Q & A
End of 2012

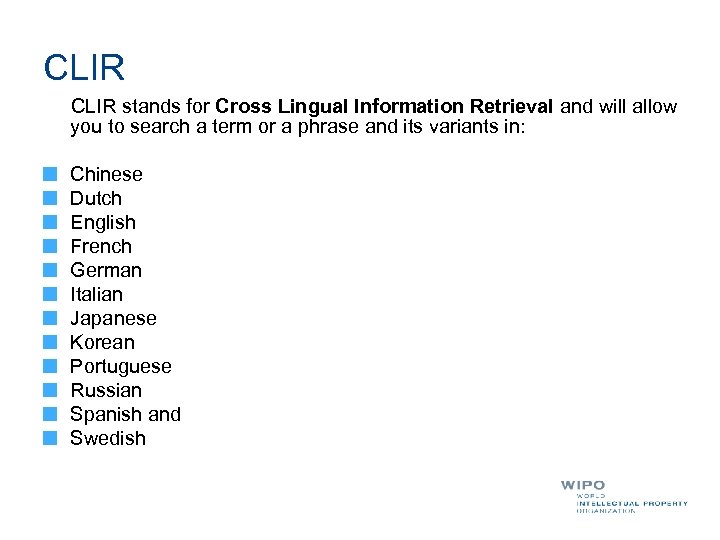

CLIR
CLIR stands for Cross Lingual Information Retrieval and will allow you to search a term or a phrase and its variants in: Chinese Dutch English French German Italian Japanese Korean Portuguese Russian Spanish and Swedish

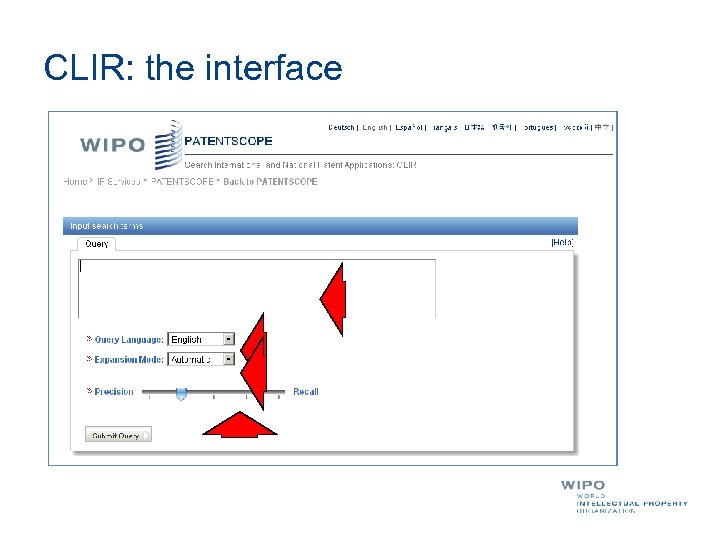

CLIR: the interface

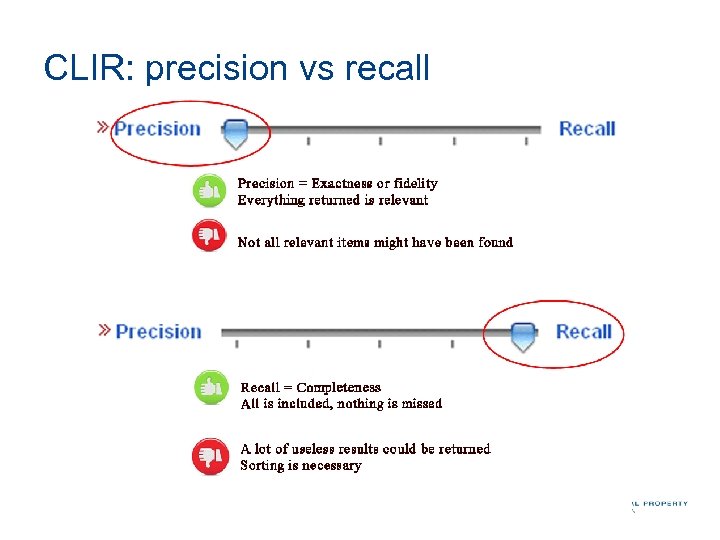

CLIR: precision vs recall

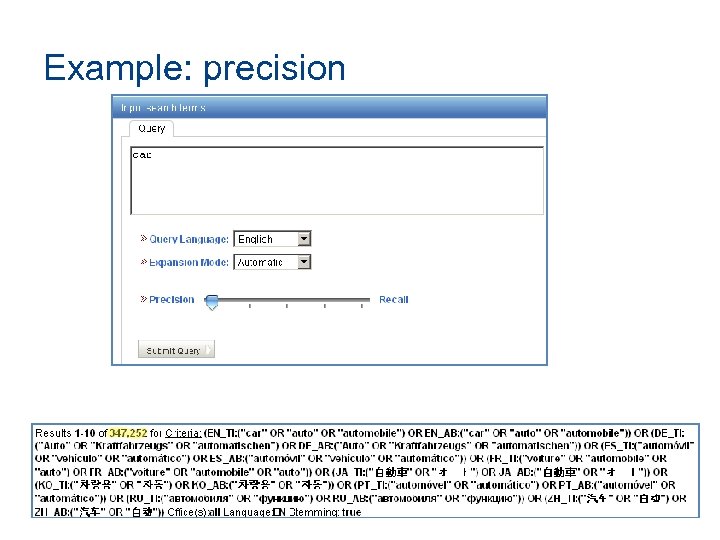

Example: precision

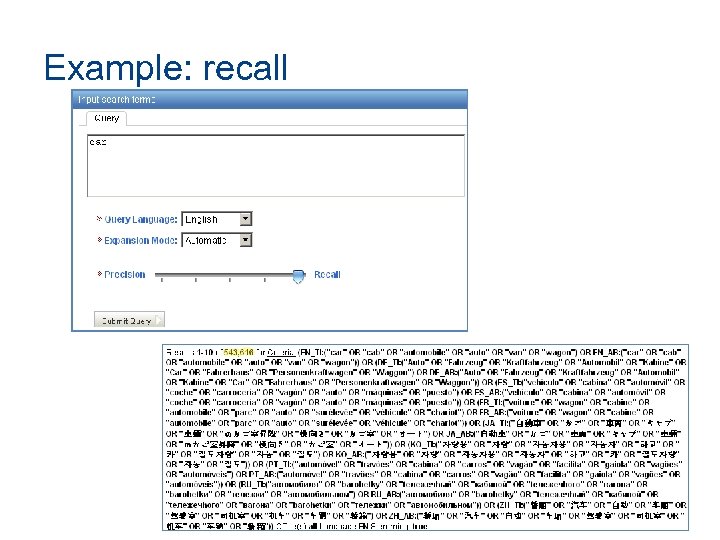

Example: recall

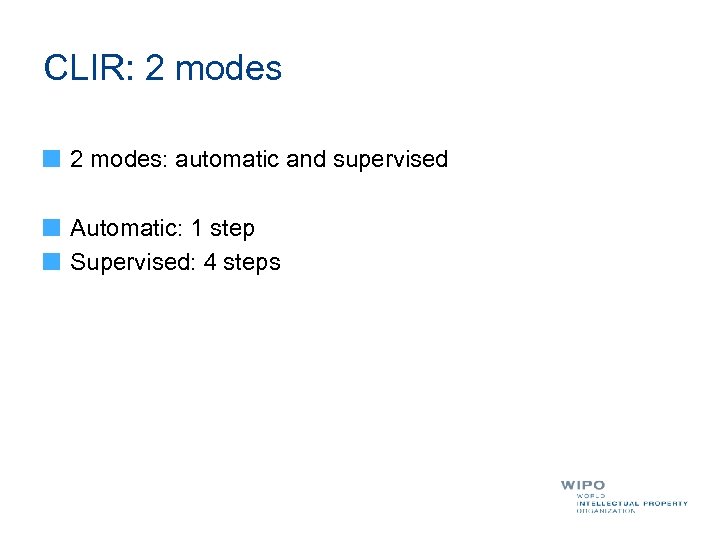

CLIR: 2 modes: automatic and supervised Automatic: 1 step Supervised: 4 steps

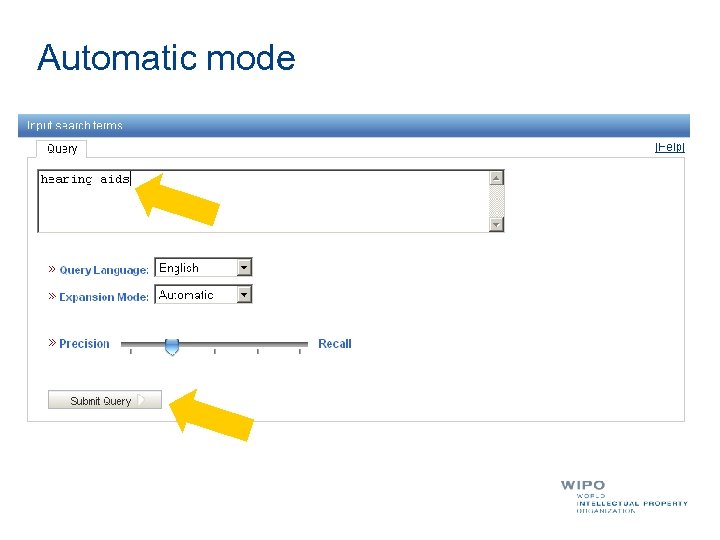

Automatic mode

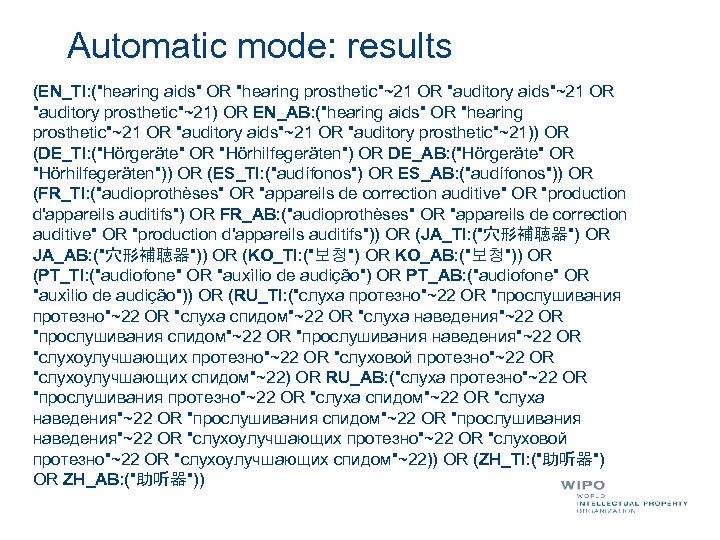

Automatic mode: results (EN_TI: ("hearing aids" OR "hearing prosthetic"~21 OR "auditory aids"~21 OR "auditory prosthetic"~21) OR EN_AB: ("hearing aids" OR "hearing prosthetic"~21 OR "auditory aids"~21 OR "auditory prosthetic"~21)) OR (DE_TI: ("Hörgeräte" OR "Hörhilfegeräten") OR DE_AB: ("Hörgeräte" OR "Hörhilfegeräten")) OR (ES_TI: ("audífonos") OR ES_AB: ("audífonos")) OR (FR_TI: ("audioprothèses" OR "appareils de correction auditive" OR "production d'appareils auditifs") OR FR_AB: ("audioprothèses" OR "appareils de correction auditive" OR "production d'appareils auditifs")) OR (JA_TI: ("穴形補聴器") OR JA_AB: ("穴形補聴器")) OR (KO_TI: ("보청") OR KO_AB: ("보청")) OR (PT_TI: ("audiofone" OR "auxìlio de audição") OR PT_AB: ("audiofone" OR "auxìlio de audição")) OR (RU_TI: ("слуха протезно"~22 OR "прослушивания протезно"~22 OR "слуха спидом"~22 OR "слуха наведения"~22 OR "прослушивания спидом"~22 OR "прослушивания наведения"~22 OR "слухоулучшающих протезно"~22 OR "слуховой протезно"~22 OR "слухоулучшающих спидом"~22) OR RU_AB: ("слуха протезно"~22 OR "прослушивания протезно"~22 OR "слуха спидом"~22 OR "слуха наведения"~22 OR "прослушивания спидом"~22 OR "прослушивания наведения"~22 OR "слухоулучшающих протезно"~22 OR "слуховой протезно"~22 OR "слухоулучшающих спидом"~22)) OR (ZH_TI: ("助听器") OR ZH_AB: ("助听器"))

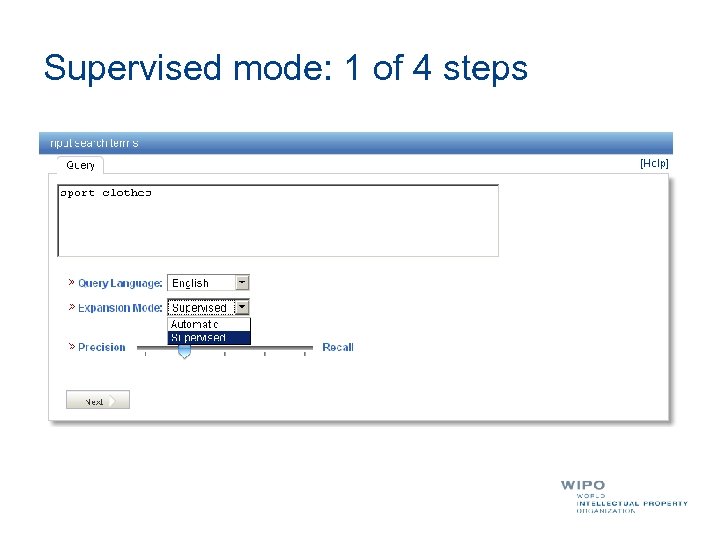

Supervised mode: 1 of 4 steps

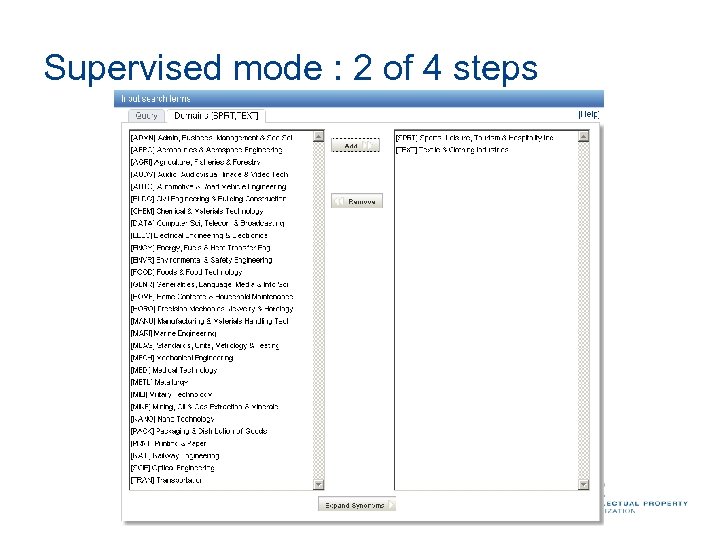

Supervised mode : 2 of 4 steps

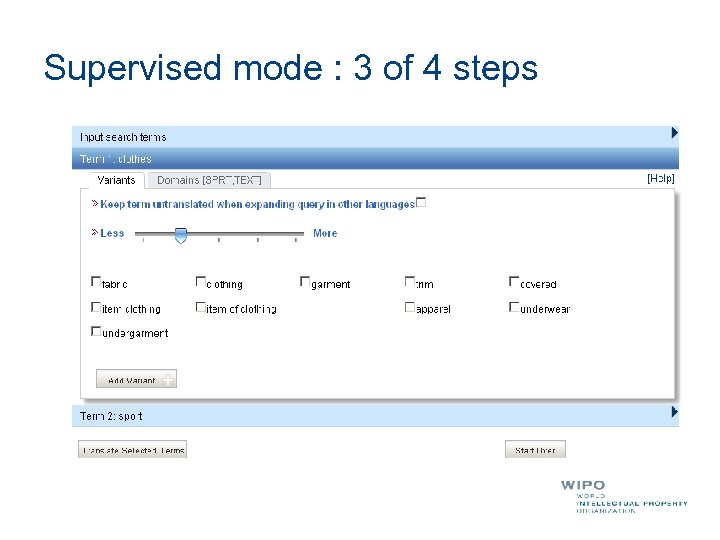

Supervised mode : 3 of 4 steps

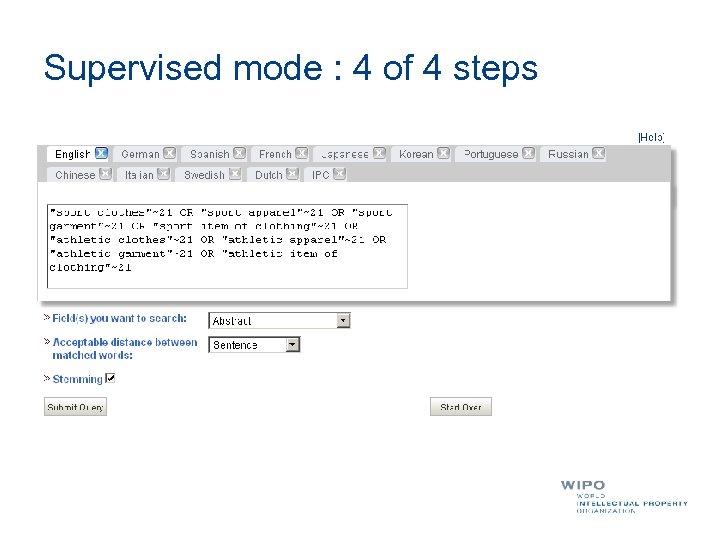

Supervised mode : 4 of 4 steps

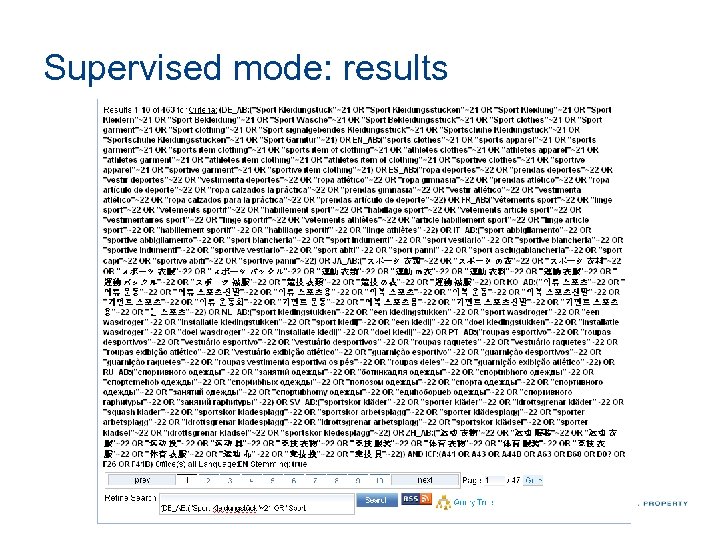

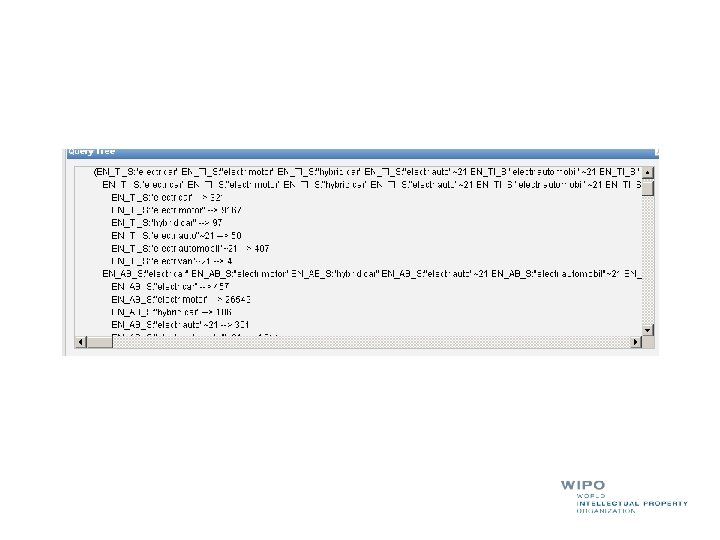

Supervised mode: results

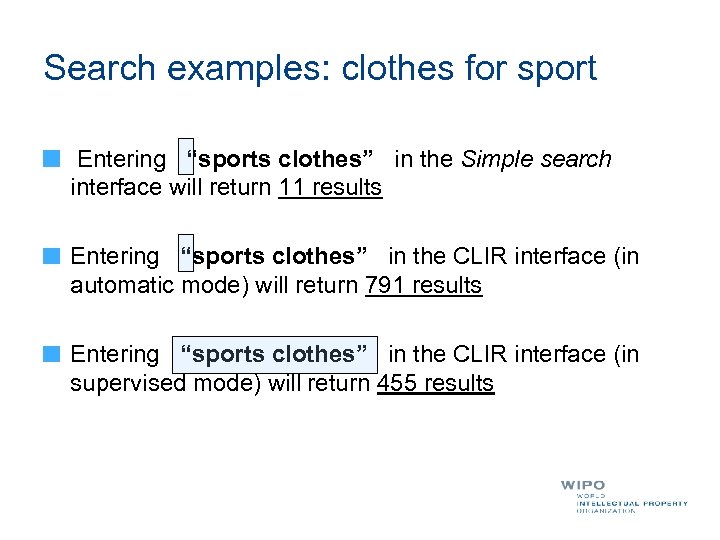

Search examples: clothes for sport Entering “sports clothes” in the Simple search interface will return 11 results Entering “sports clothes” in the CLIR interface (in automatic mode) will return 791 results Entering “sports clothes” in the CLIR interface (in supervised mode) will return 455 results
PCT Licensing feature

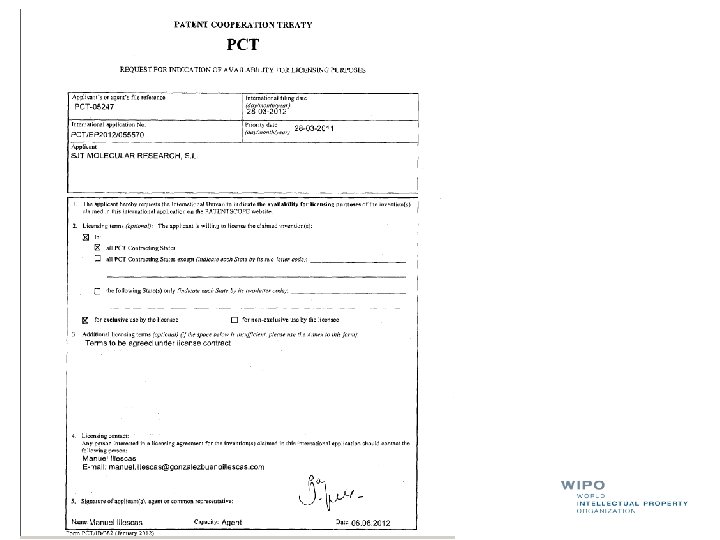

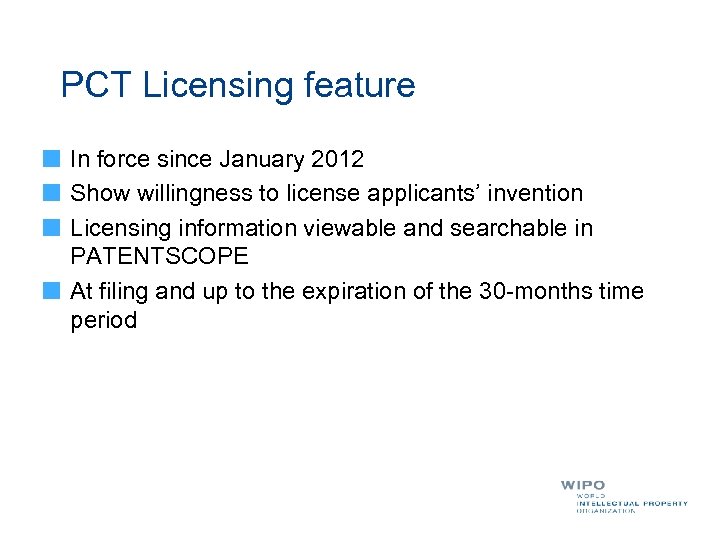

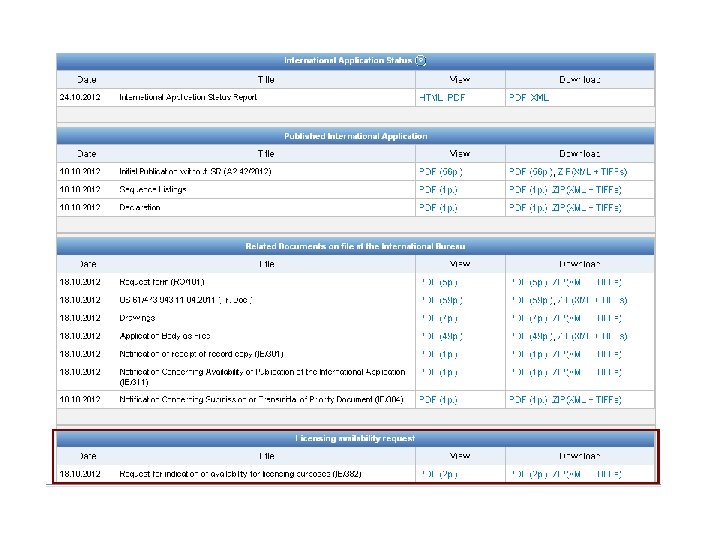

PCT Licensing feature In force since January 2012 Show willingness to license applicants’ invention Licensing information viewable and searchable in PATENTSCOPE At filing and up to the expiration of the 30 -months time period

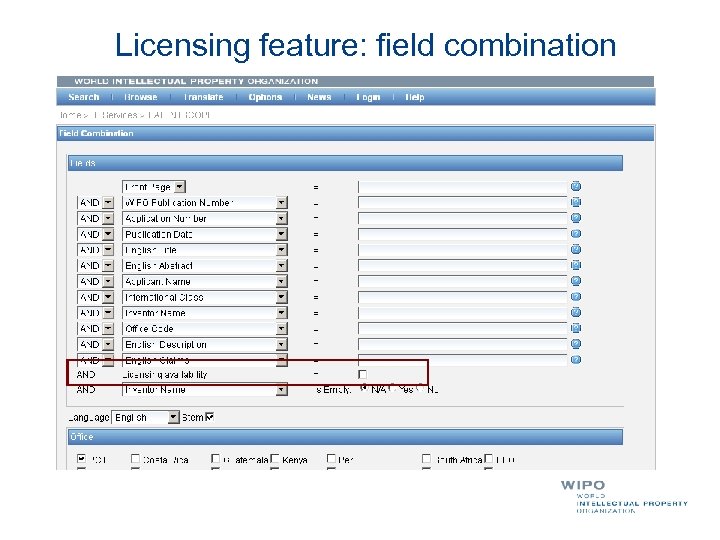

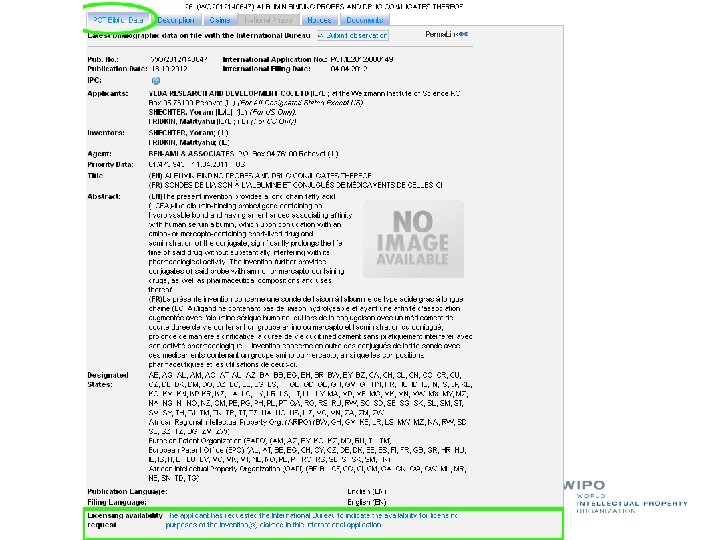

Licensing feature: field combination

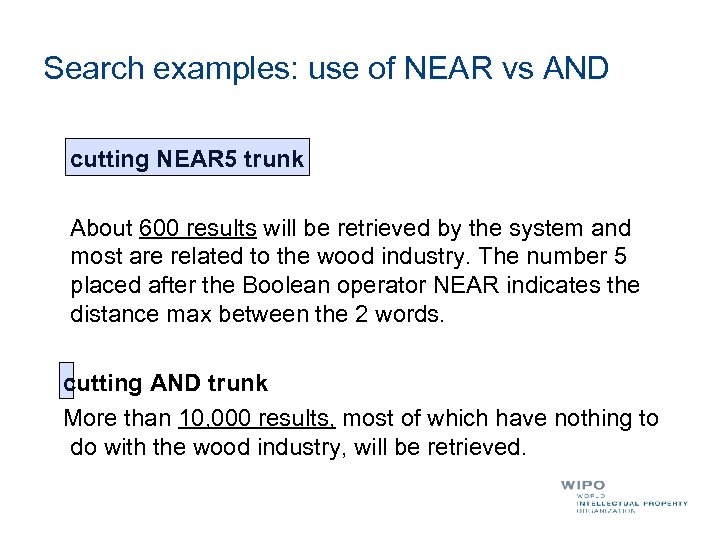

Search examples: use of NEAR vs AND cutting NEAR 5 trunk About 600 results will be retrieved by the system and most are related to the wood industry. The number 5 placed after the Boolean operator NEAR indicates the distance max between the 2 words. cutting AND trunk More than 10, 000 results, most of which have nothing to do with the wood industry, will be retrieved.

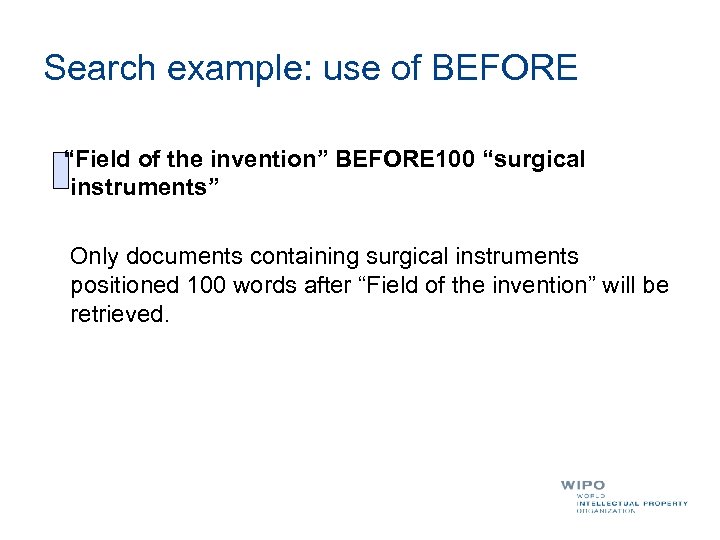

Search example: use of BEFORE “Field of the invention” BEFORE 100 “surgical instruments” Only documents containing surgical instruments positioned 100 words after “Field of the invention” will be retrieved.

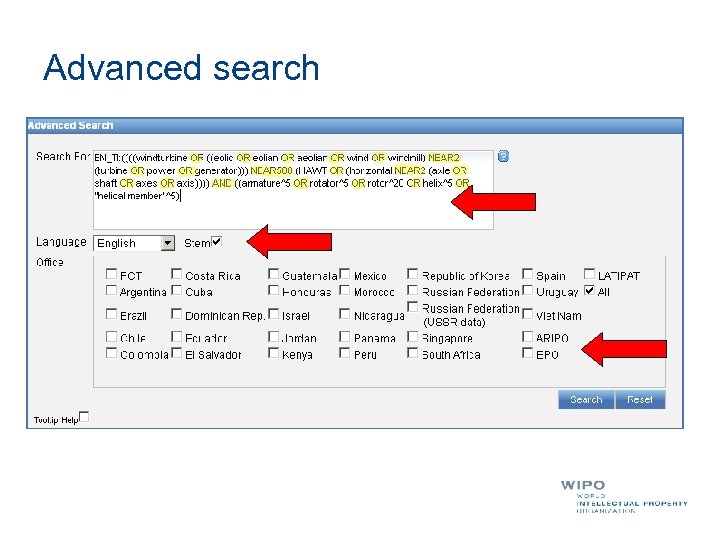

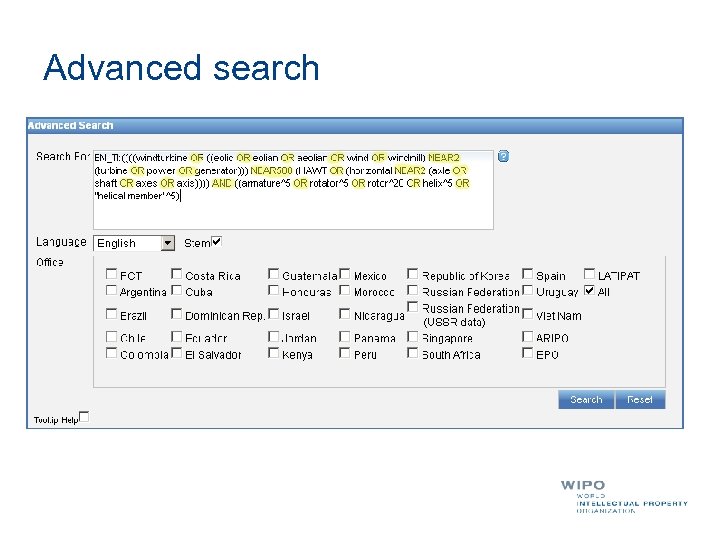

Advanced search

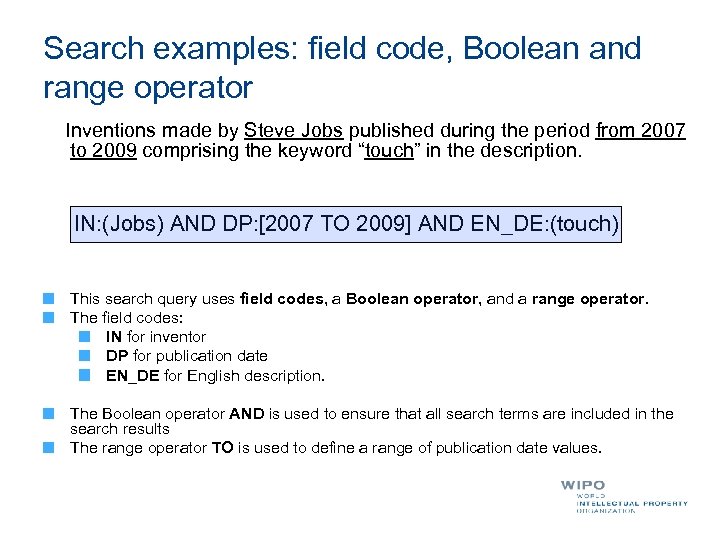

Search examples: field code, Boolean and range operator Inventions made by Steve Jobs published during the period from 2007 to 2009 comprising the keyword “touch” in the description. IN: (Jobs) AND DP: [2007 TO 2009] AND EN_DE: (touch) This search query uses field codes, a Boolean operator, and a range operator. The field codes: IN for inventor DP for publication date EN_DE for English description. The Boolean operator AND is used to ensure that all search terms are included in the search results The range operator TO is used to define a range of publication date values.

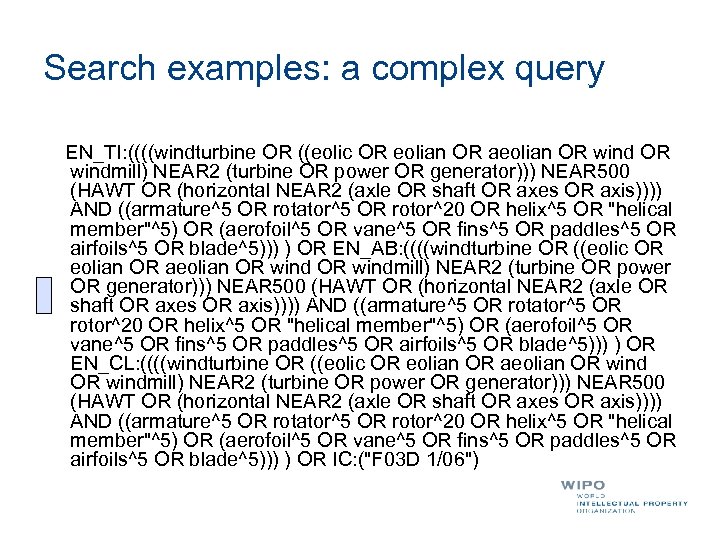

Search examples: a complex query EN_TI: ((((windturbine OR ((eolic OR eolian OR aeolian OR windmill) NEAR 2 (turbine OR power OR generator))) NEAR 500 (HAWT OR (horizontal NEAR 2 (axle OR shaft OR axes OR axis)))) AND ((armature^5 OR rotator^5 OR rotor^20 OR helix^5 OR "helical member"^5) OR (aerofoil^5 OR vane^5 OR fins^5 OR paddles^5 OR airfoils^5 OR blade^5))) ) OR EN_AB: ((((windturbine OR ((eolic OR eolian OR aeolian OR windmill) NEAR 2 (turbine OR power OR generator))) NEAR 500 (HAWT OR (horizontal NEAR 2 (axle OR shaft OR axes OR axis)))) AND ((armature^5 OR rotator^5 OR rotor^20 OR helix^5 OR "helical member"^5) OR (aerofoil^5 OR vane^5 OR fins^5 OR paddles^5 OR airfoils^5 OR blade^5))) ) OR EN_CL: ((((windturbine OR ((eolic OR eolian OR aeolian OR windmill) NEAR 2 (turbine OR power OR generator))) NEAR 500 (HAWT OR (horizontal NEAR 2 (axle OR shaft OR axes OR axis)))) AND ((armature^5 OR rotator^5 OR rotor^20 OR helix^5 OR "helical member"^5) OR (aerofoil^5 OR vane^5 OR fins^5 OR paddles^5 OR airfoils^5 OR blade^5))) ) OR IC: ("F 03 D 1/06")
Advanced search

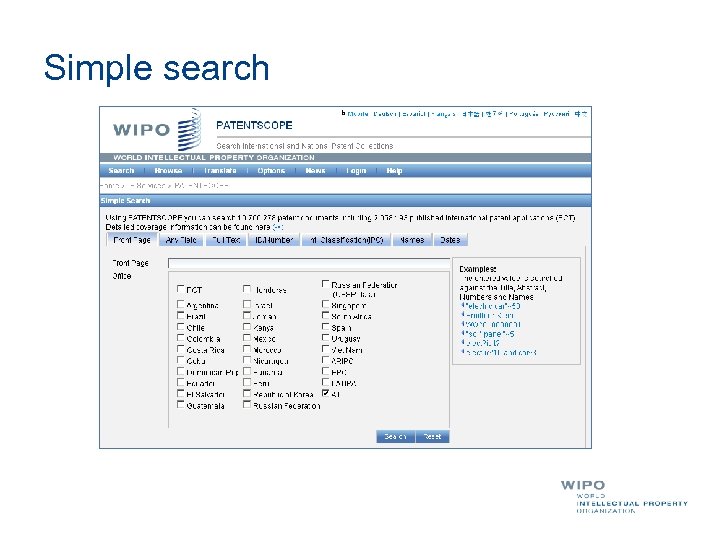

Simple search

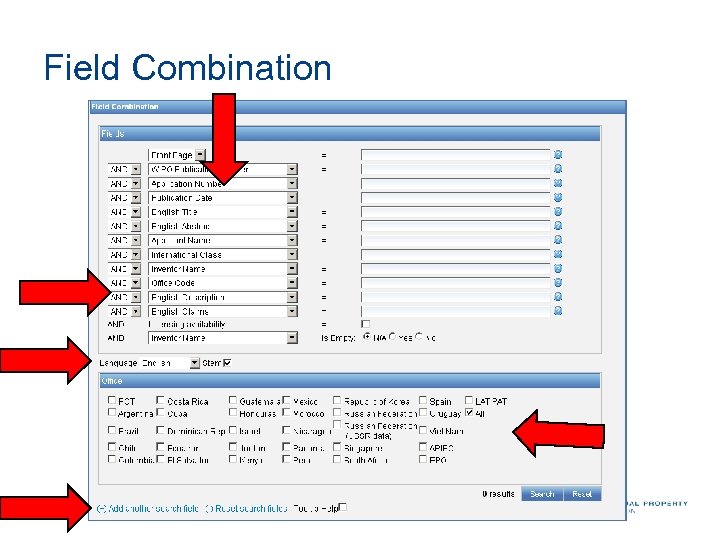

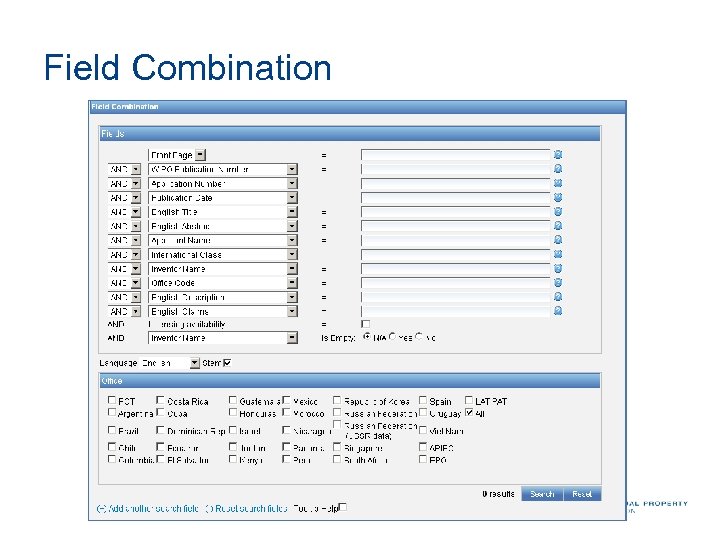

Field Combination

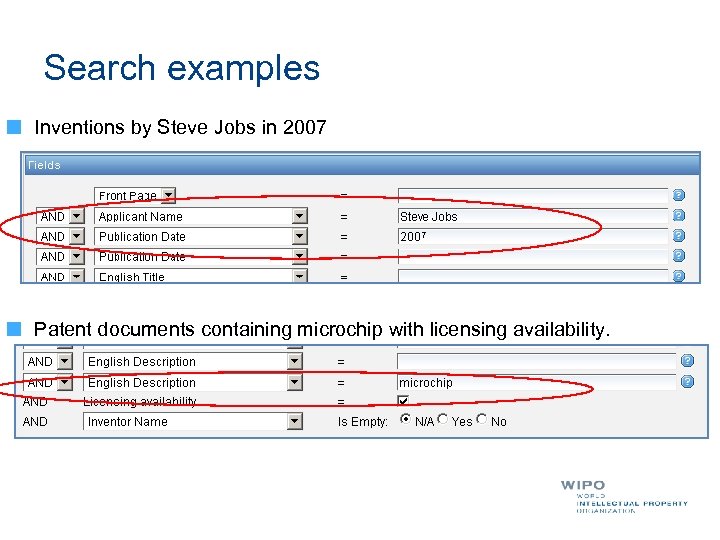

Search examples Inventions by Steve Jobs in 2007 Patent documents containing microchip with licensing availability.

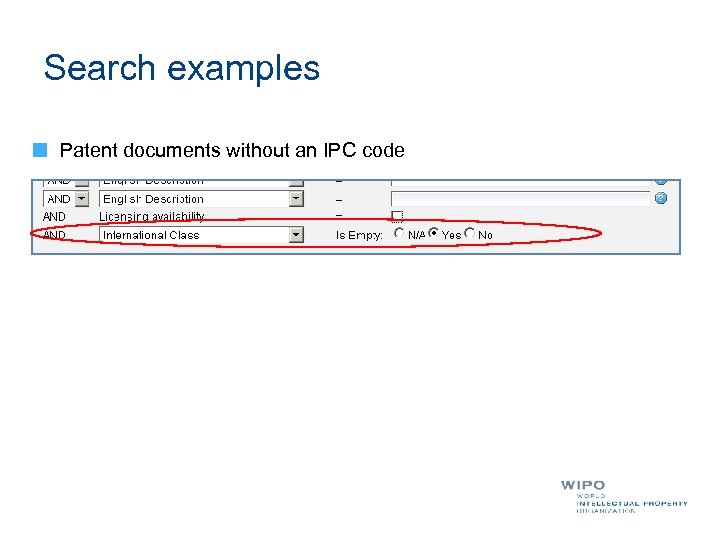

Search examples Patent documents without an IPC code
Field Combination

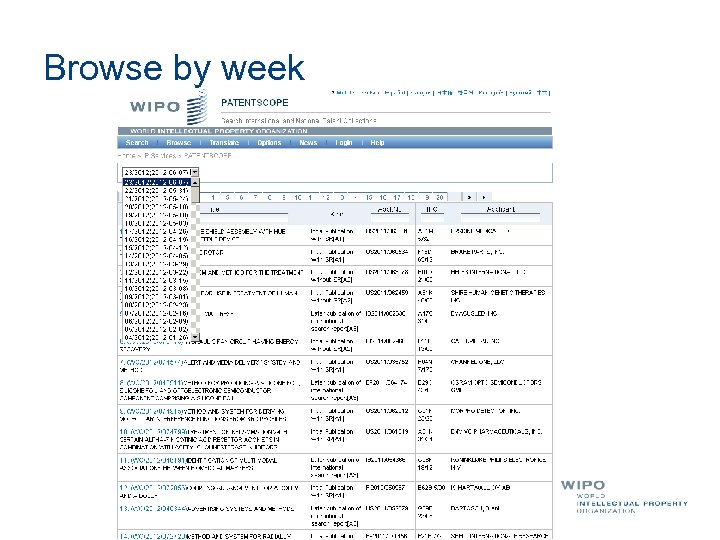

Browse by week

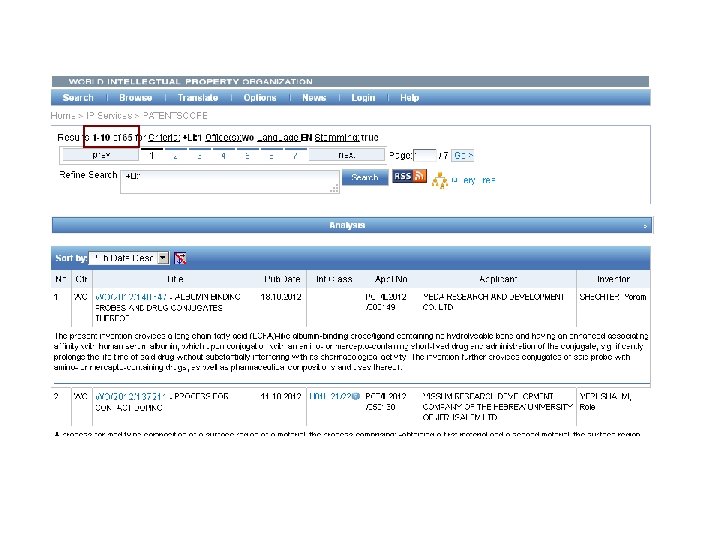

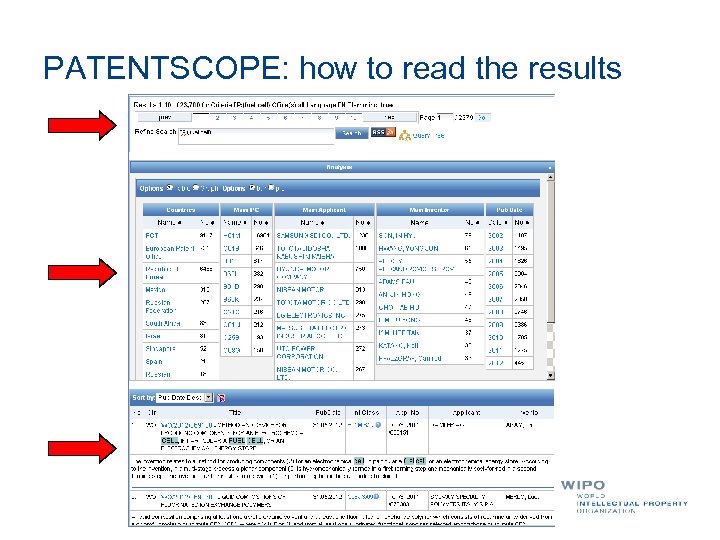

PATENTSCOPE: how to read the results

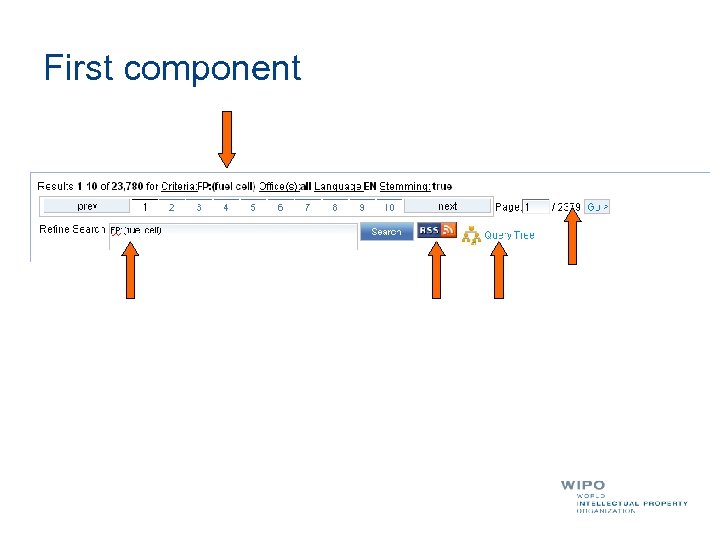

First component

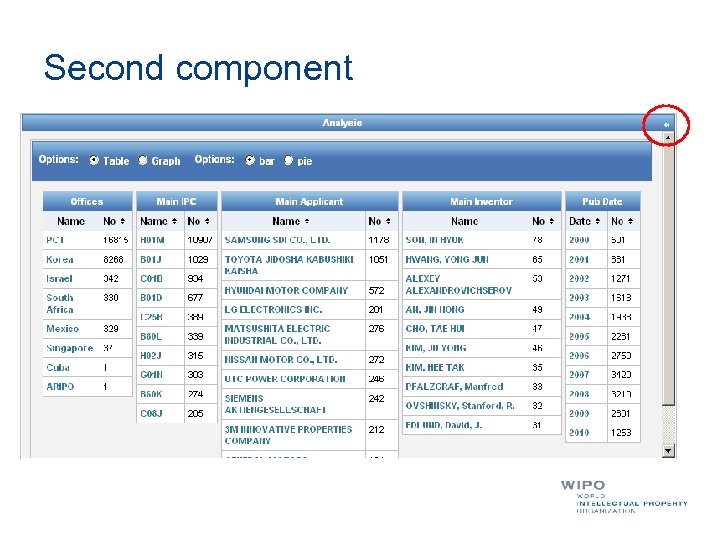

Second component

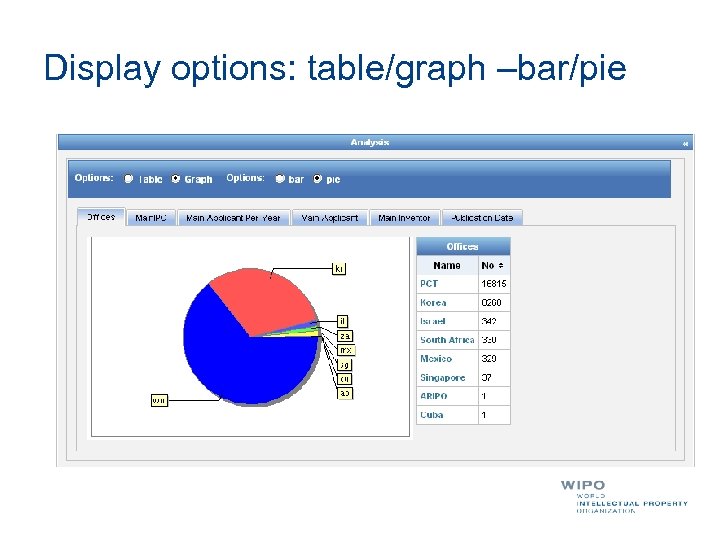

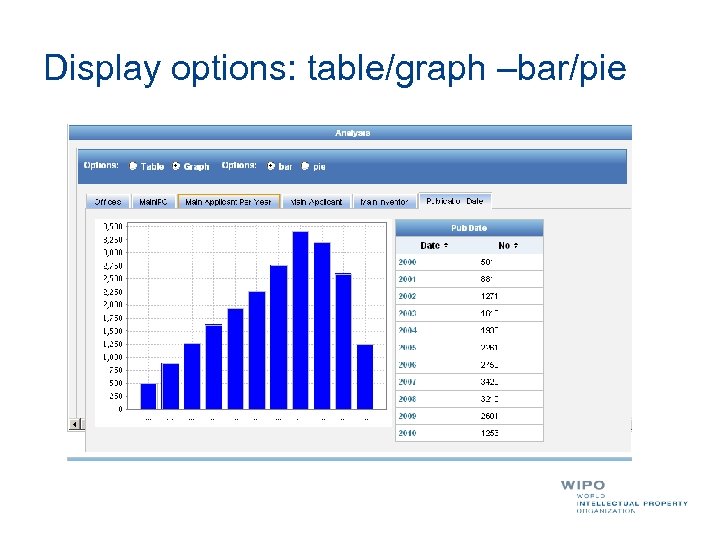

Display options: table/graph –bar/pie
Display options: table/graph –bar/pie

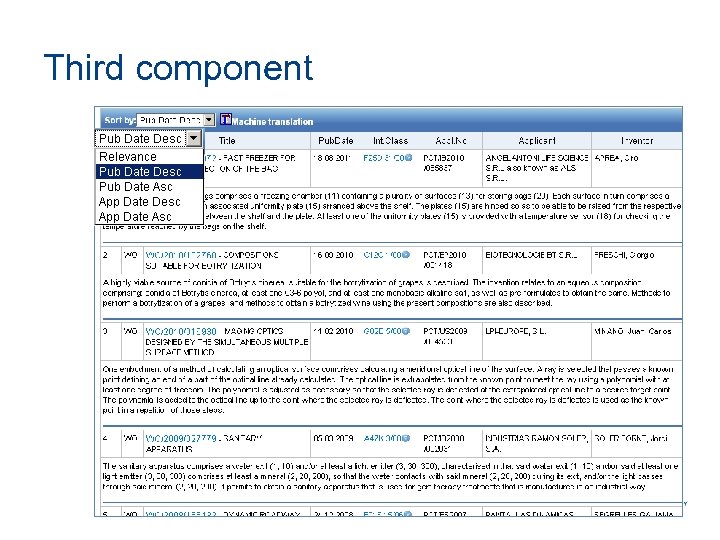

Third component

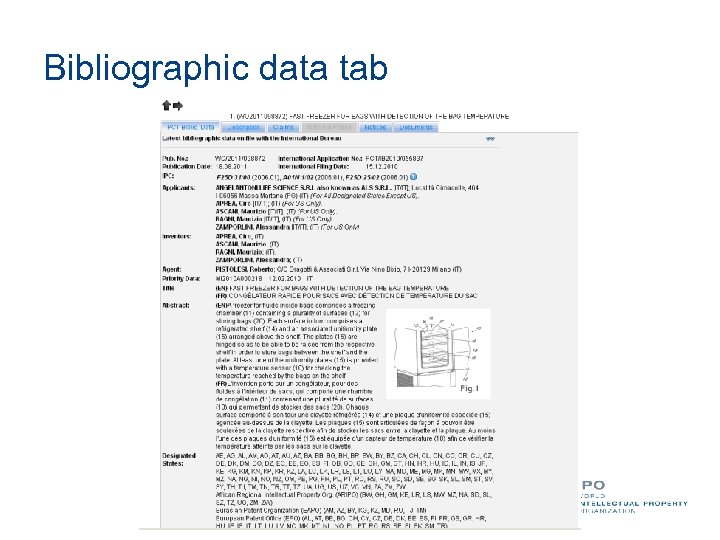

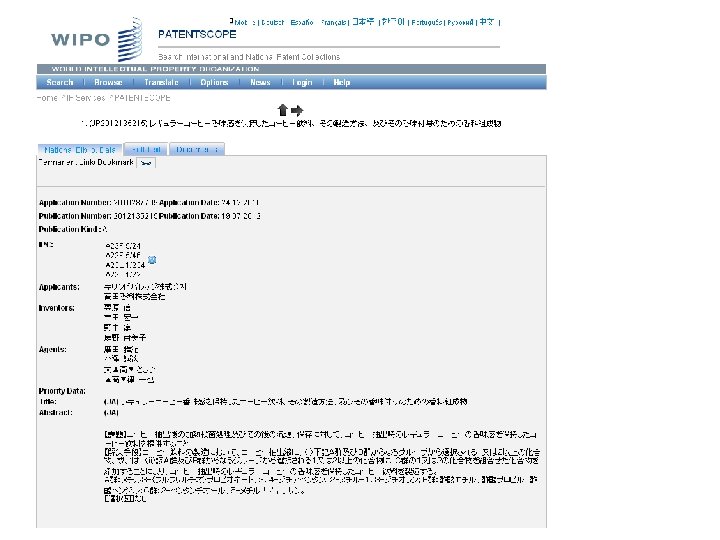

Bibliographic data tab

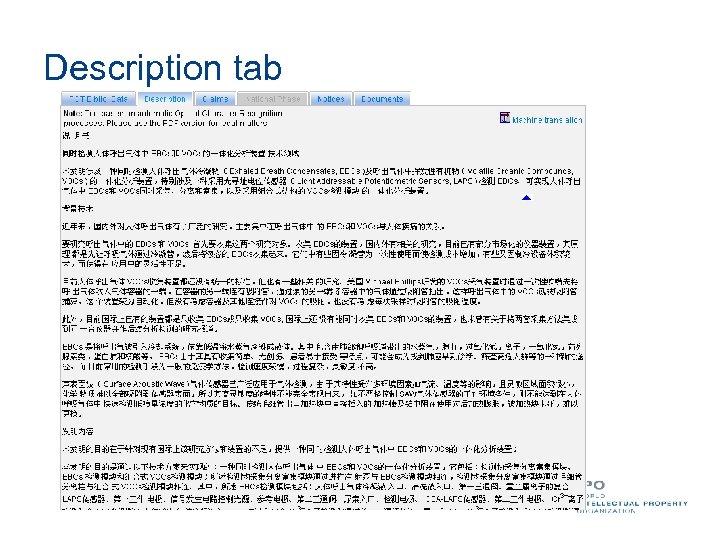

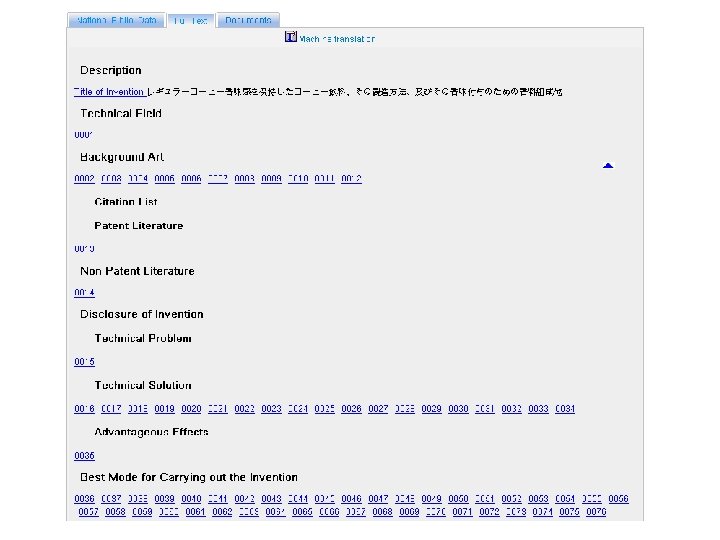

Description tab

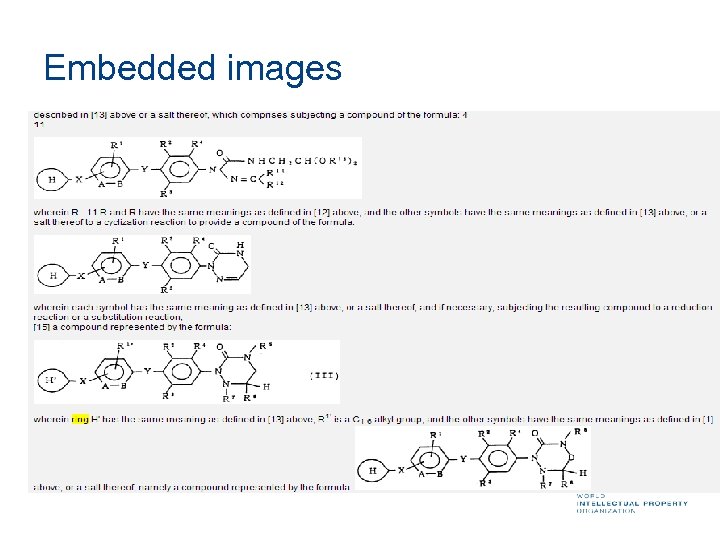

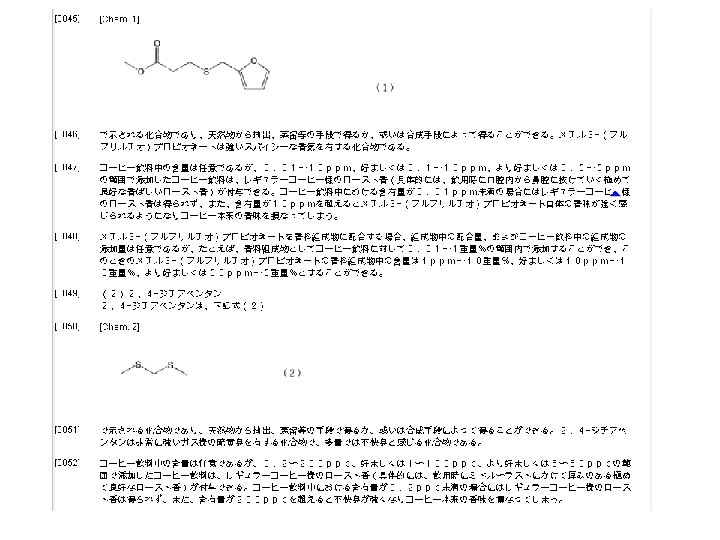

Embedded images
Robust highlighting and hit maps

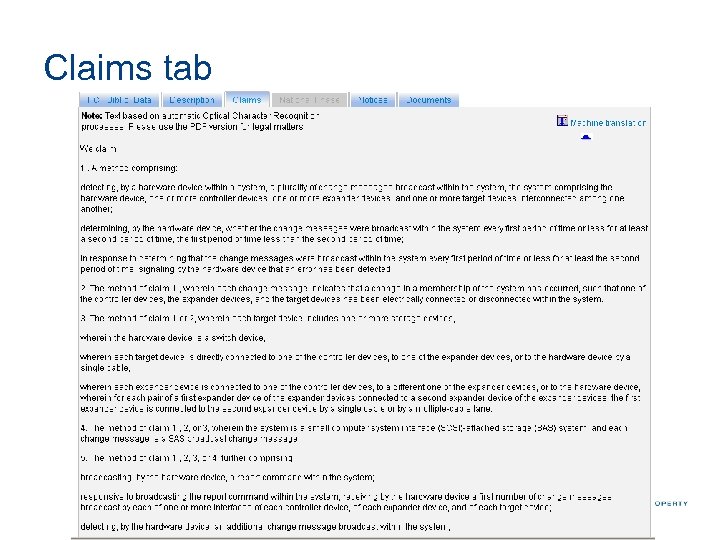

Claims tab

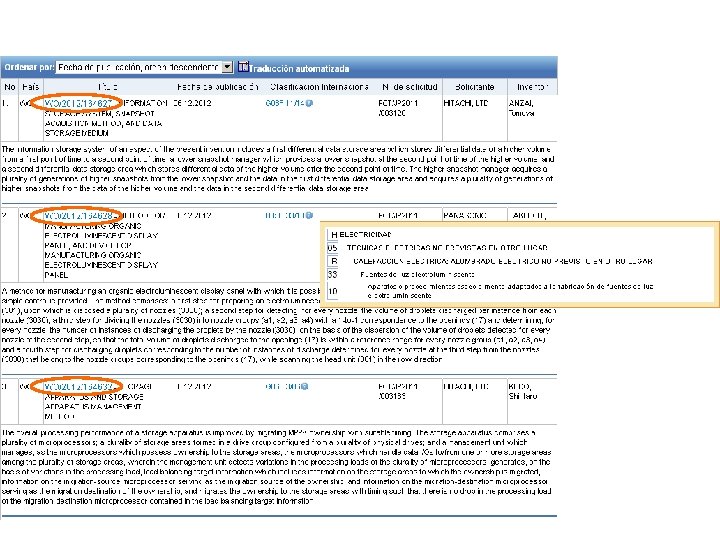

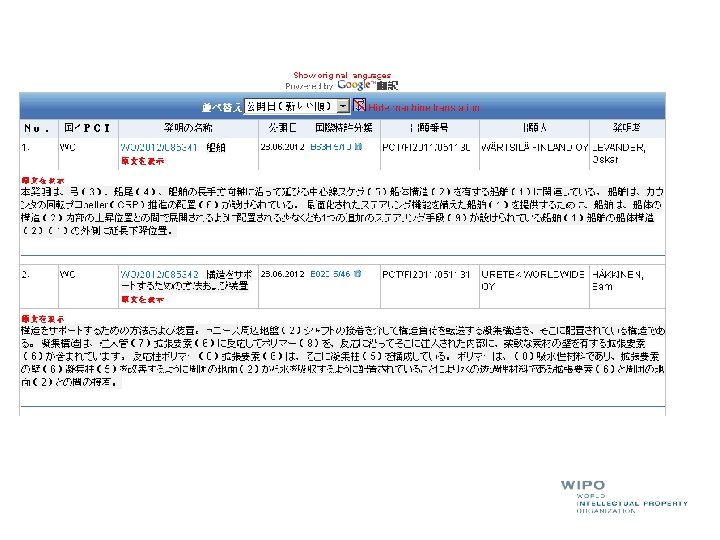

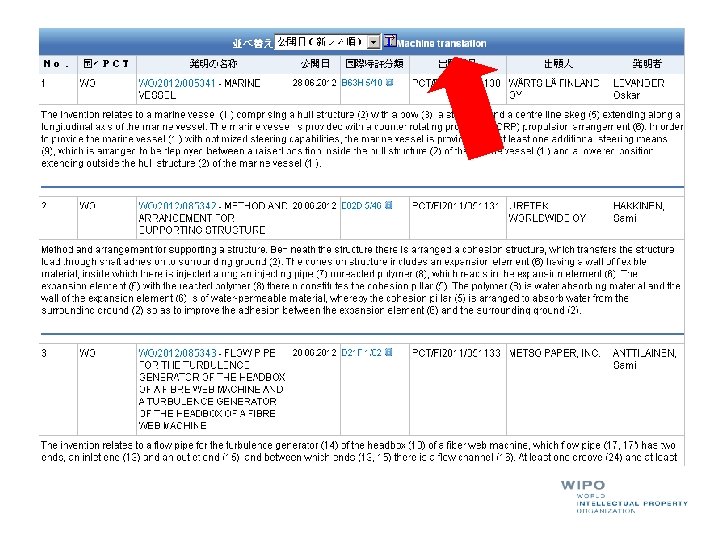

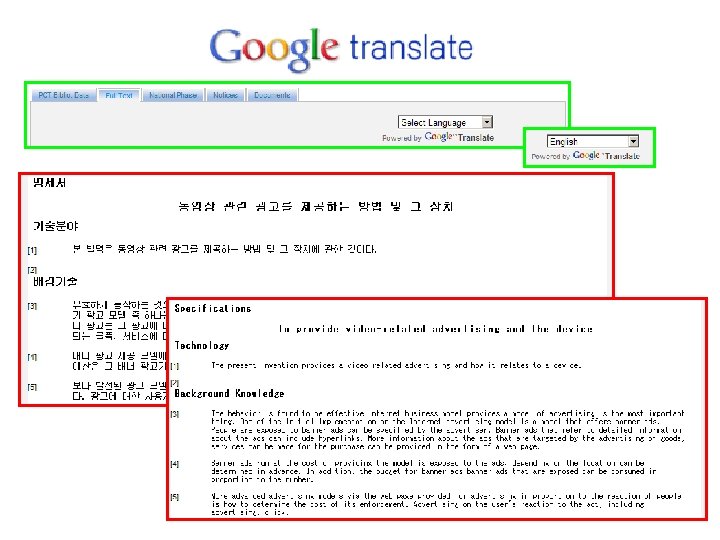

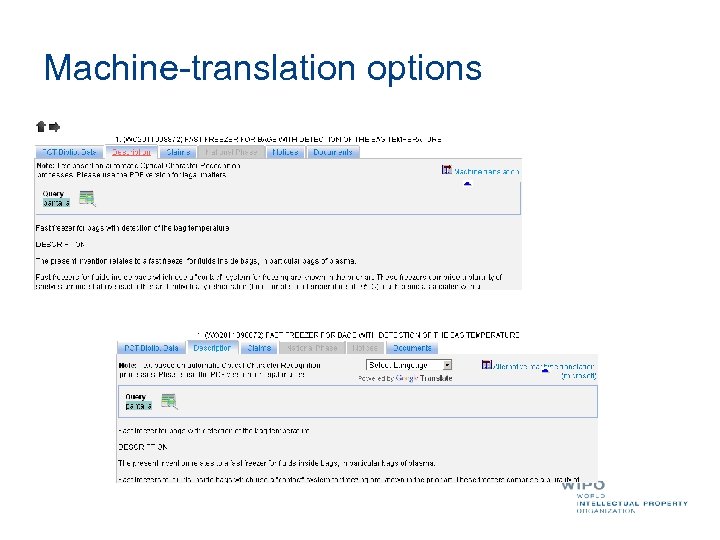

Machine-translation options

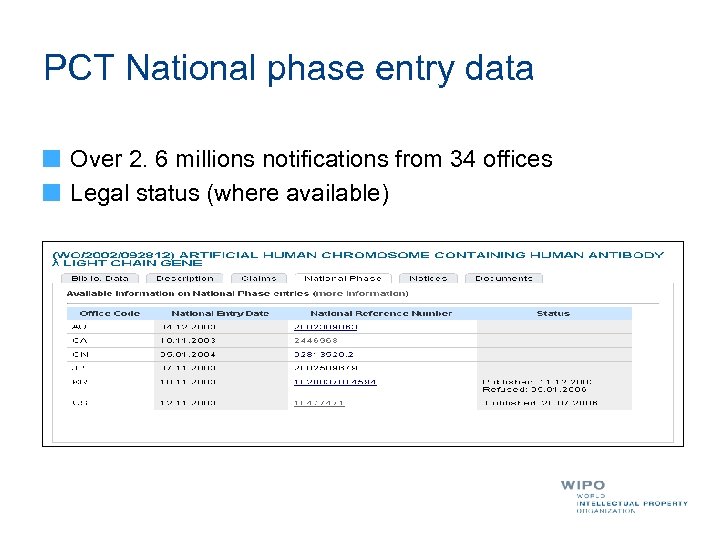

PCT National phase entry data Over 2. 6 millions notifications from 34 offices Legal status (where available)

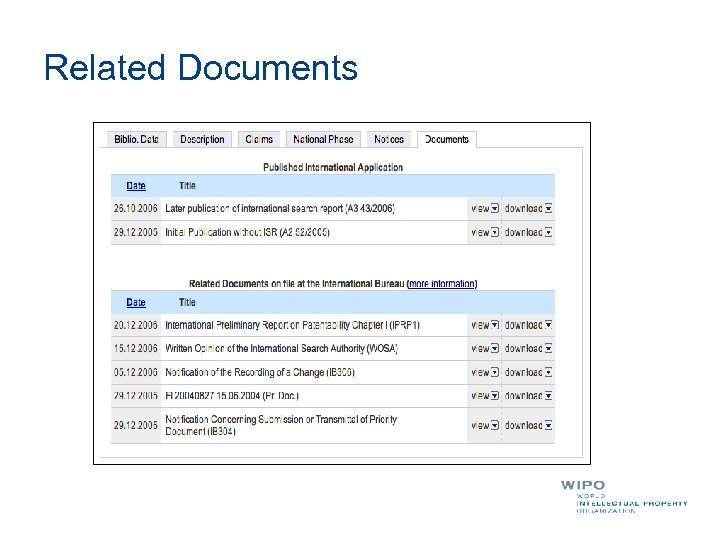

Related Documents

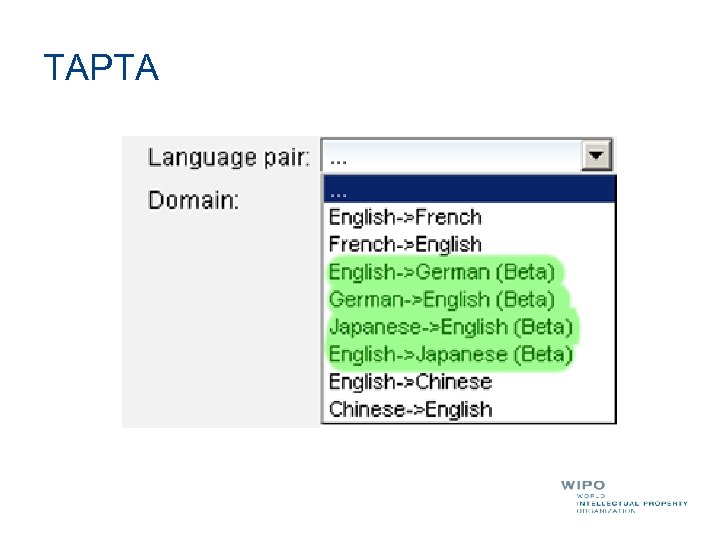

TAPTA

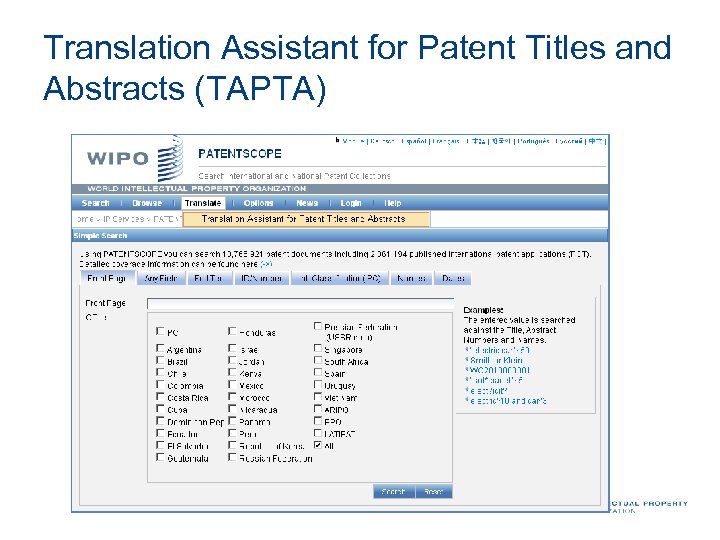

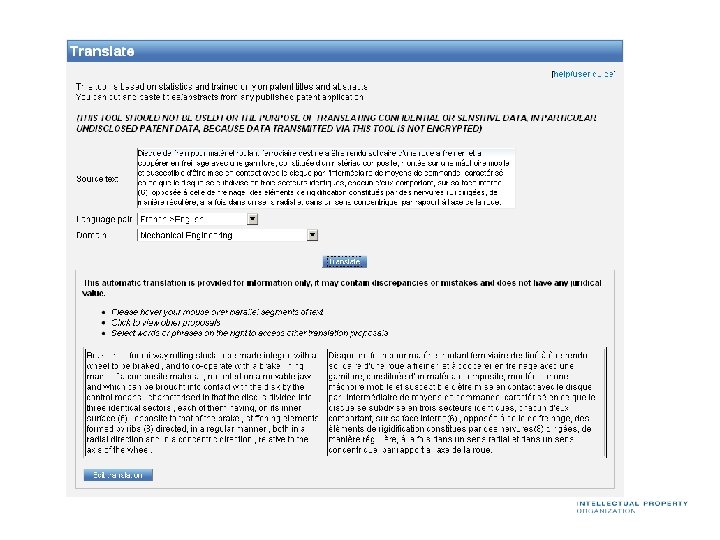

Translation Assistant for Patent Titles and Abstracts (TAPTA)
![32 Technical domains from the IPC [ADMN] Admin, Business, Management & Soc Sci [AERO]](https://present5.com/presentation/d1679c4ebaad7476b9f6111735d22332/image-67.jpg "32 Technical domains from the IPC [ADMN] Admin, Business, Management & Soc Sci [AERO]")

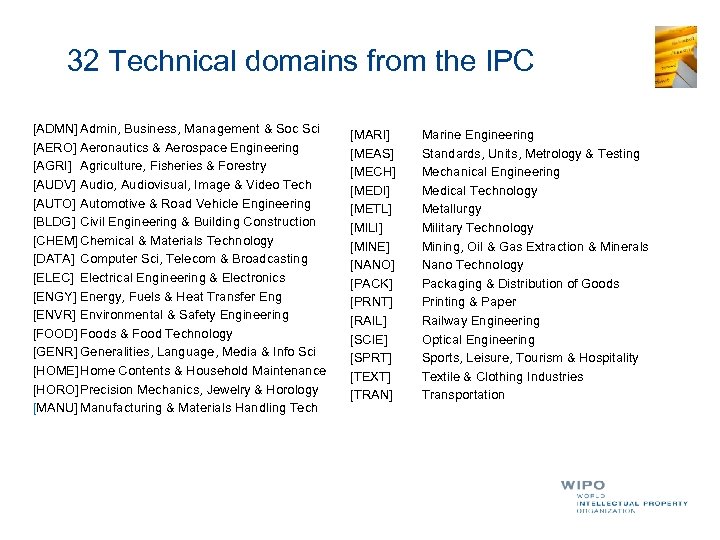

32 Technical domains from the IPC [ADMN] Admin, Business, Management & Soc Sci [AERO] Aeronautics & Aerospace Engineering [AGRI] Agriculture, Fisheries & Forestry [AUDV] Audio, Audiovisual, Image & Video Tech [AUTO] Automotive & Road Vehicle Engineering [BLDG] Civil Engineering & Building Construction [CHEM] Chemical & Materials Technology [DATA] Computer Sci, Telecom & Broadcasting [ELEC] Electrical Engineering & Electronics [ENGY] Energy, Fuels & Heat Transfer Eng [ENVR] Environmental & Safety Engineering [FOOD] Foods & Food Technology [GENR] Generalities, Language, Media & Info Sci [HOME] Home Contents & Household Maintenance [HORO] Precision Mechanics, Jewelry & Horology [MANU] Manufacturing & Materials Handling Tech [MARI] [MEAS] [MECH] [MEDI] [METL] [MILI] [MINE] [NANO] [PACK] [PRNT] [RAIL] [SCIE] [SPRT] [TEXT] [TRAN] Marine Engineering Standards, Units, Metrology & Testing Mechanical Engineering Medical Technology Metallurgy Military Technology Mining, Oil & Gas Extraction & Minerals Nano Technology Packaging & Distribution of Goods Printing & Paper Railway Engineering Optical Engineering Sports, Leisure, Tourism & Hospitality Textile & Clothing Industries Transportation

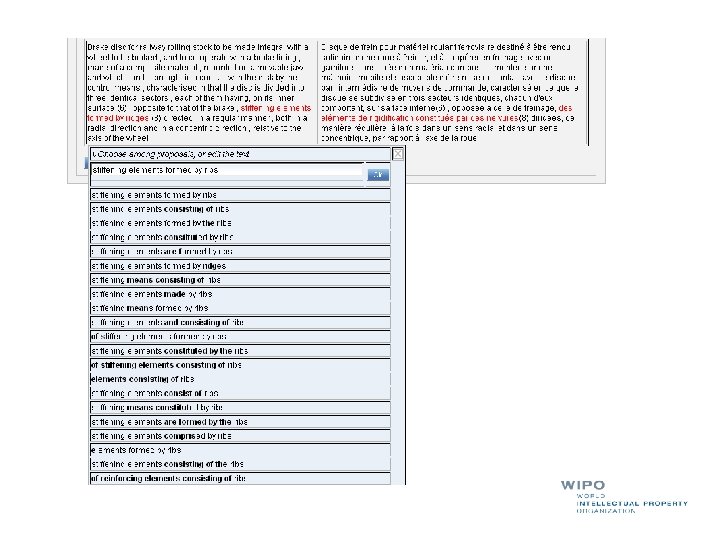

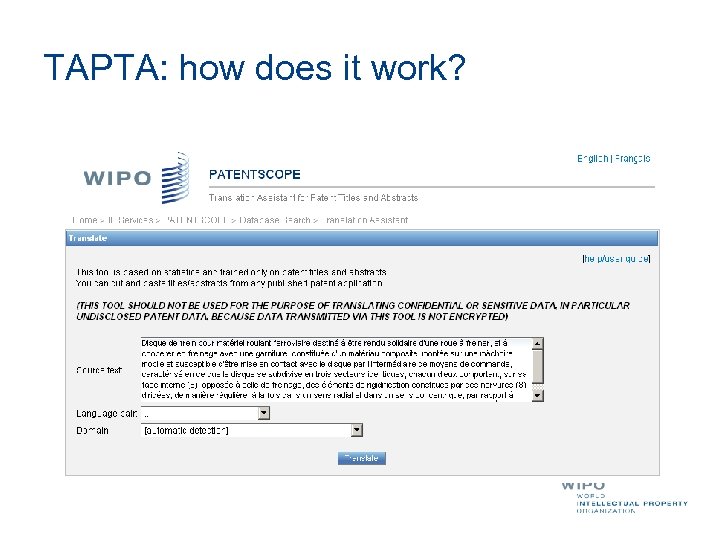

TAPTA: how does it work?

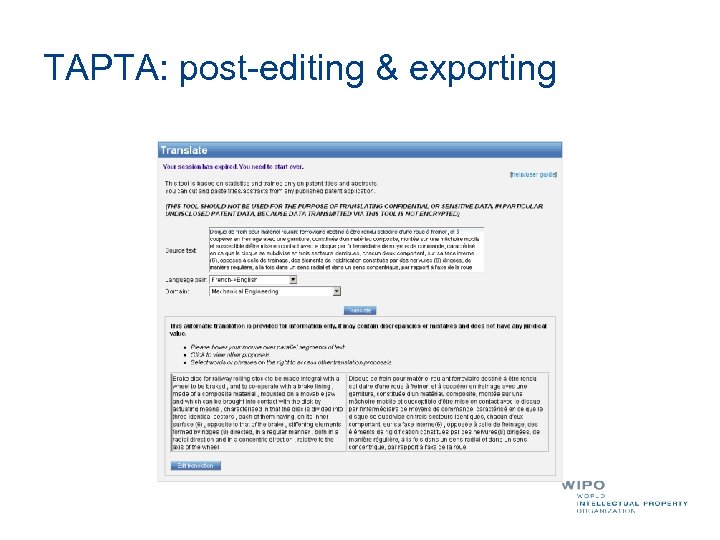

TAPTA: post-editing & exporting

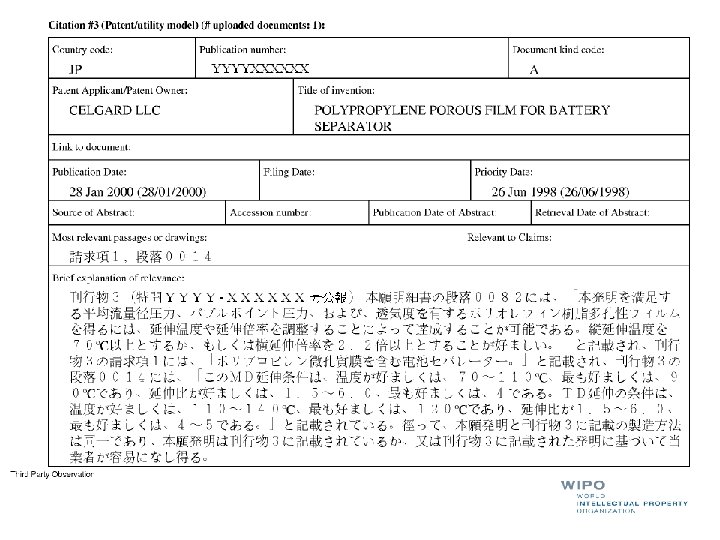

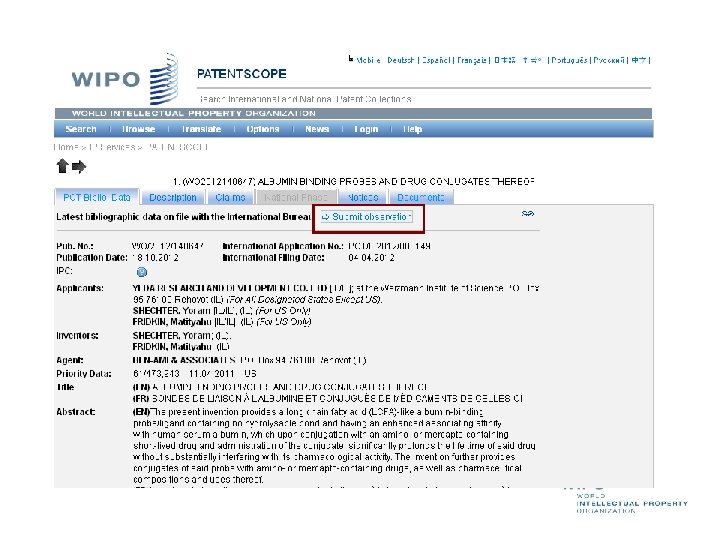

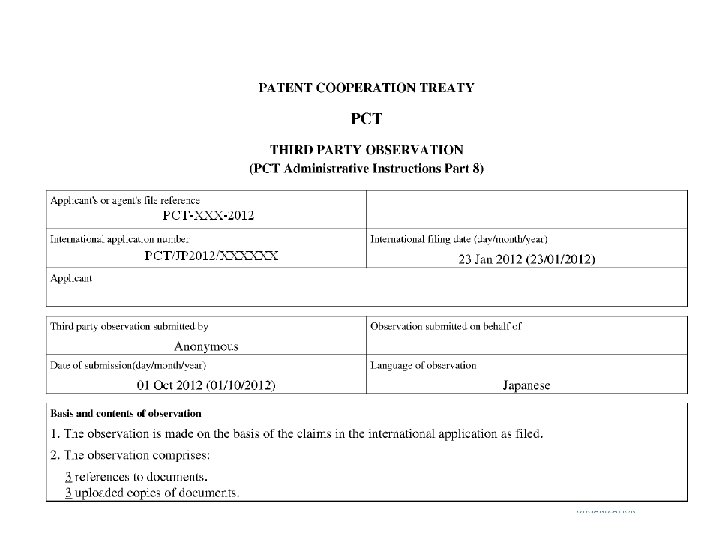

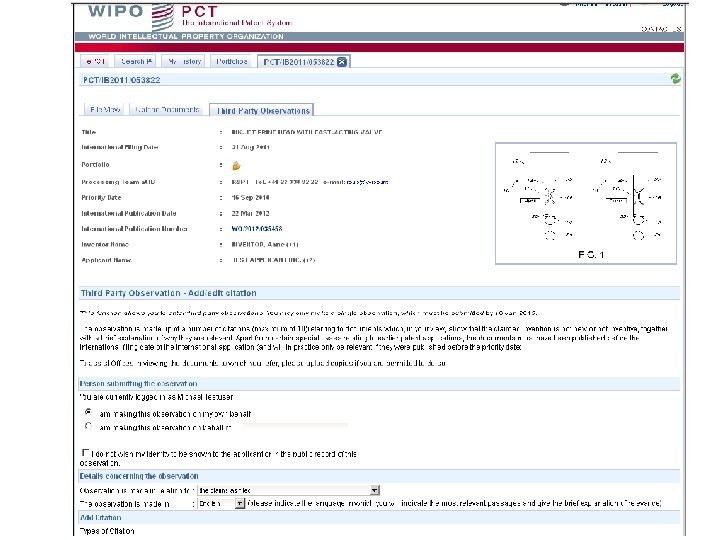

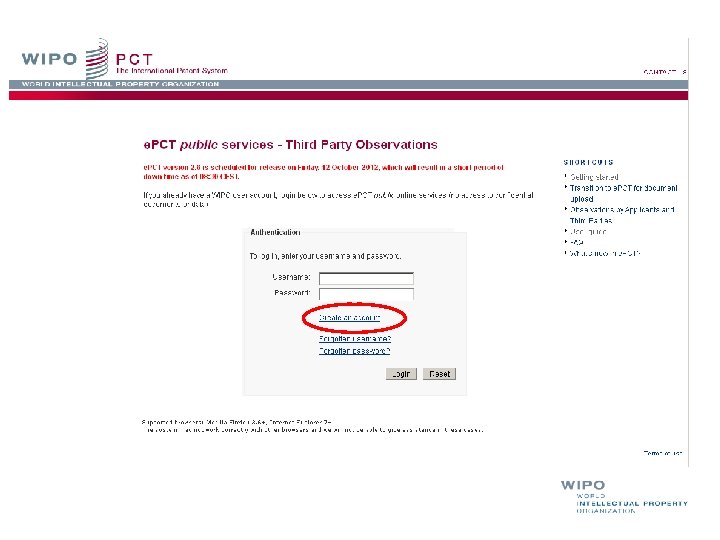

3 rd party observation feature

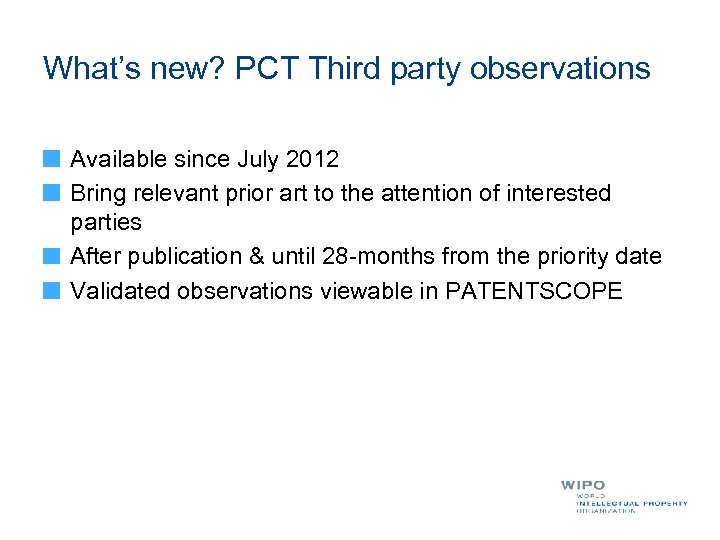

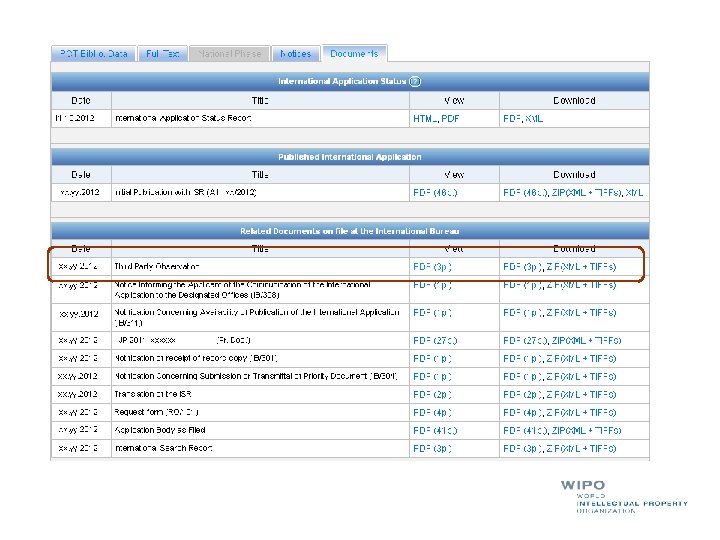

What’s new? PCT Third party observations Available since July 2012 Bring relevant prior art to the attention of interested parties After publication & until 28 -months from the priority date Validated observations viewable in PATENTSCOPE

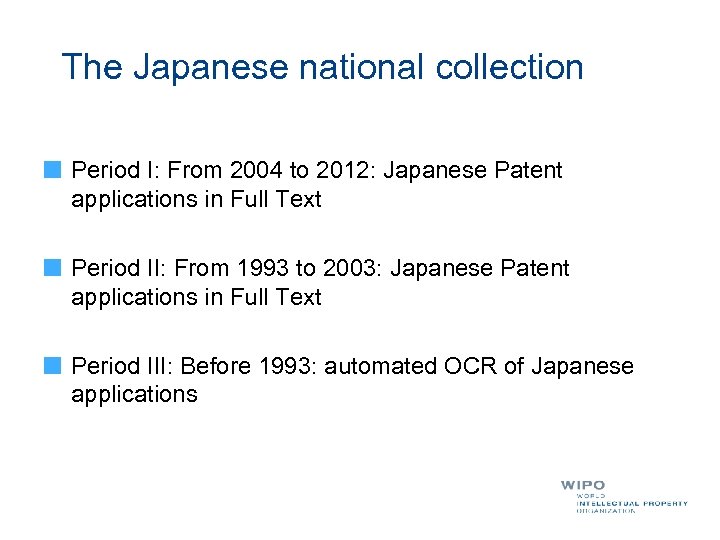

The Japanese national collection Period I: From 2004 to 2012: Japanese Patent applications in Full Text Period II: From 1993 to 2003: Japanese Patent applications in Full Text Period III: Before 1993: automated OCR of Japanese applications

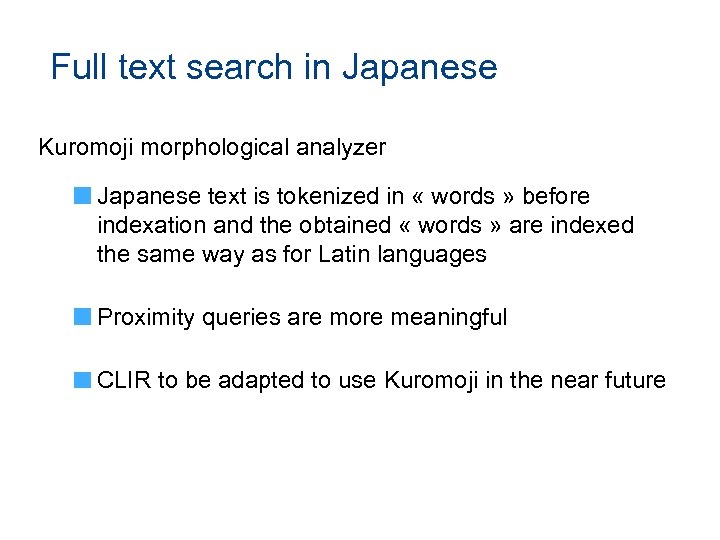

Full text search in Japanese Kuromoji morphological analyzer Japanese text is tokenized in « words » before indexation and the obtained « words » are indexed the same way as for Latin languages Proximity queries are more meaningful CLIR to be adapted to use Kuromoji in the near future

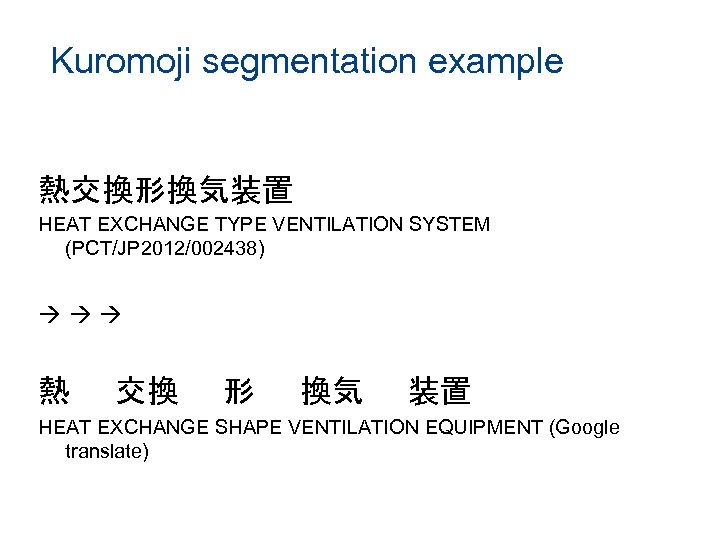

Kuromoji segmentation example 熱交換形換気装置 HEAT EXCHANGE TYPE VENTILATION SYSTEM (PCT/JP 2012/002438) 熱 交換 形 換気 装置 HEAT EXCHANGE SHAPE VENTILATION EQUIPMENT (Google translate)

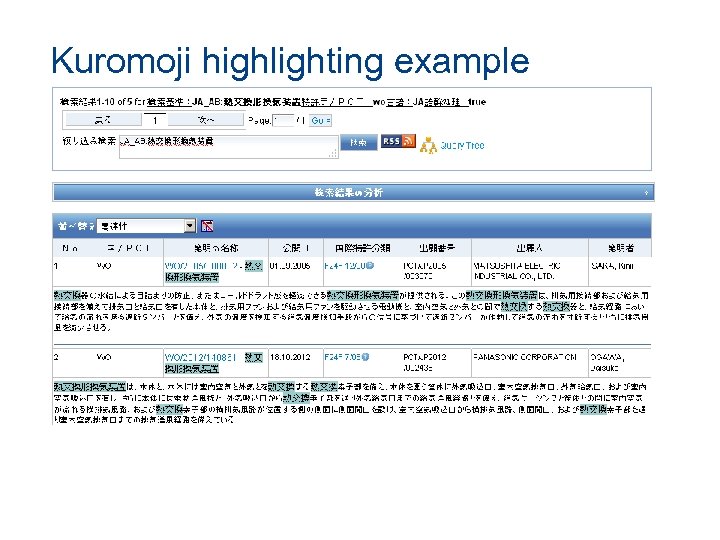

Kuromoji highlighting example
Agenda Retrospective 2012 in 6 points Future plans Unveiling ceremony Q & A
Global coverage: currently… 30 national/regional collections 18 million biblio records 8. 2 million full text records

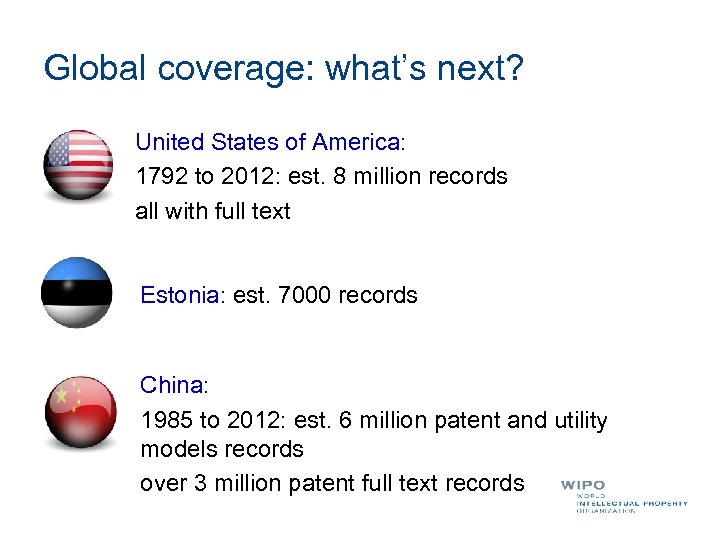

Global coverage: what’s next? United States of America: 1792 to 2012: est. 8 million records all with full text Estonia: est. 7000 records China: 1985 to 2012: est. 6 million patent and utility models records over 3 million patent full text records
Questionnaire -survey
Agenda Retrospective 2012 in 6 points Future plans Unveiling ceremony Q & A
Simple search

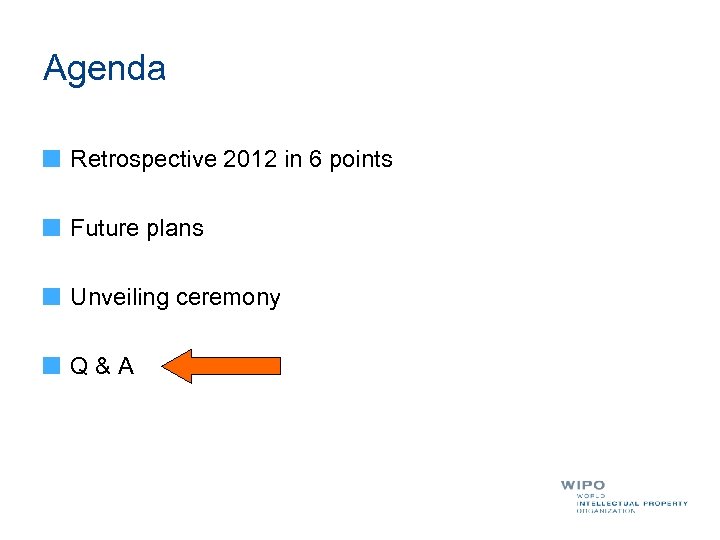

Agenda Retrospective 2012 in 6 points Future plans Unveiling ceremony Q & A
Slides and recording + www. wipo. int/patentscope/en/webinar/index. html

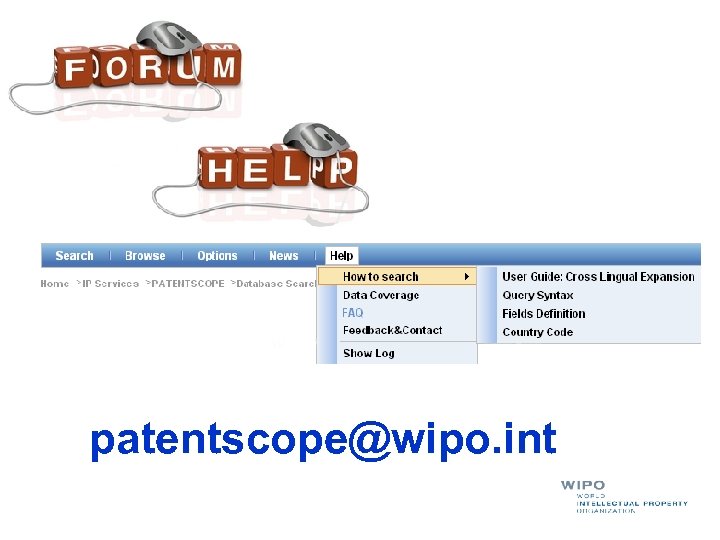

patentscope@wipo. int
