THE NITROGEN CYCLE Nitrates are essential for

THE NITROGEN CYCLE

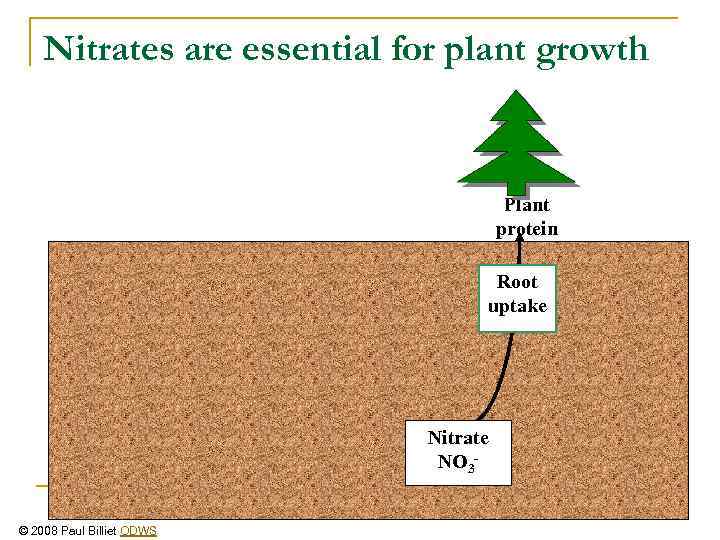

Nitrates are essential for plant growth Plant protein Root uptake Nitrate NO 3© 2008 Paul Billiet ODWS

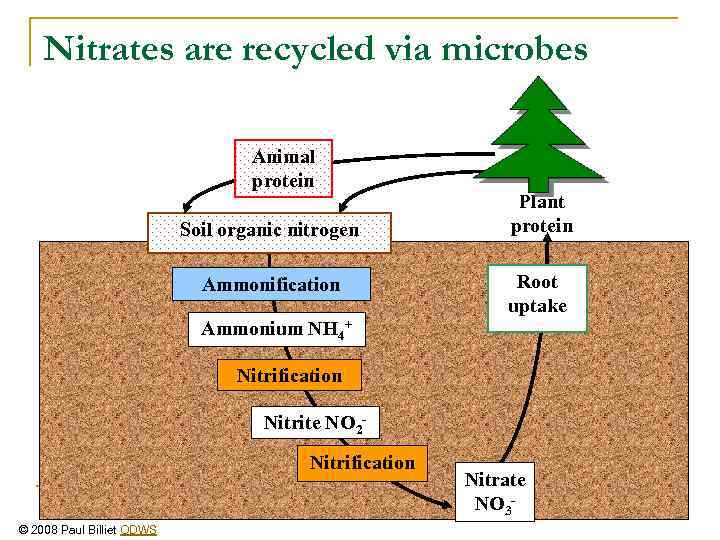

Nitrates are recycled via microbes Animal protein Soil organic nitrogen Ammonification Plant protein Root uptake Ammonium NH 4+ Nitrification Nitrite NO 2 Nitrification © 2008 Paul Billiet ODWS Nitrate NO 3 -

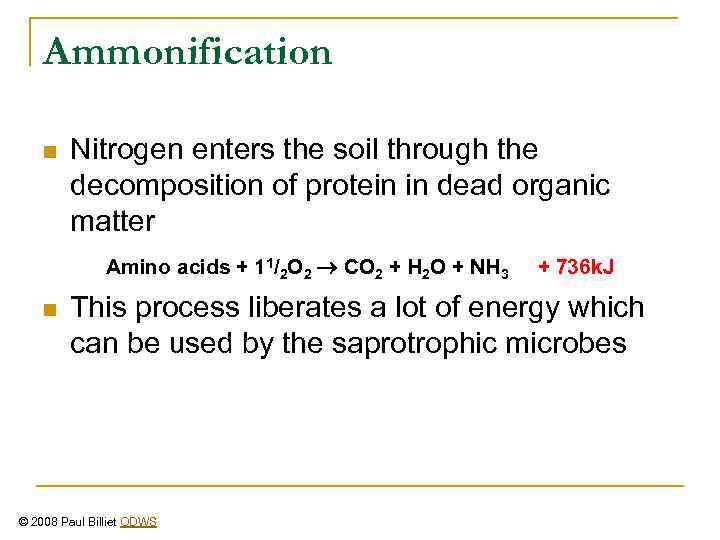

Ammonification n Nitrogen enters the soil through the decomposition of protein in dead organic matter Amino acids + 11/2 O 2 CO 2 + H 2 O + NH 3 n + 736 k. J This process liberates a lot of energy which can be used by the saprotrophic microbes © 2008 Paul Billiet ODWS

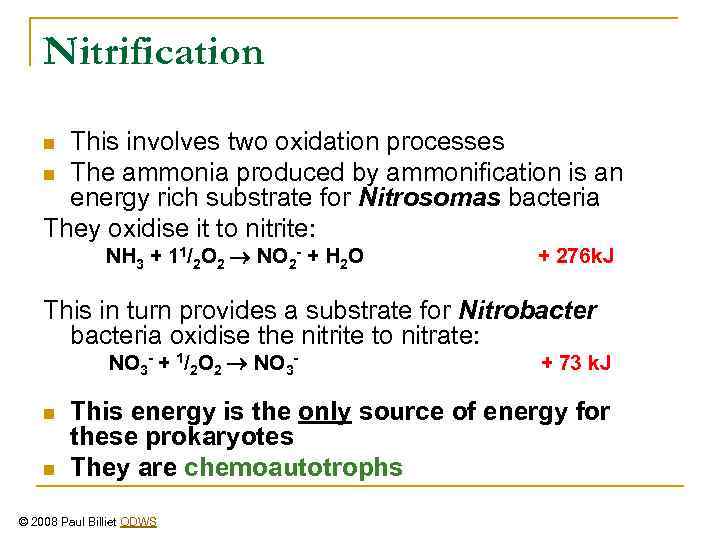

Nitrification This involves two oxidation processes n The ammonia produced by ammonification is an energy rich substrate for Nitrosomas bacteria They oxidise it to nitrite: n NH 3 + 11/2 O 2 NO 2 - + H 2 O + 276 k. J This in turn provides a substrate for Nitrobacteria oxidise the nitrite to nitrate: NO 3 - + 1/2 O 2 NO 3 - n n + 73 k. J This energy is the only source of energy for these prokaryotes They are chemoautotrophs © 2008 Paul Billiet ODWS

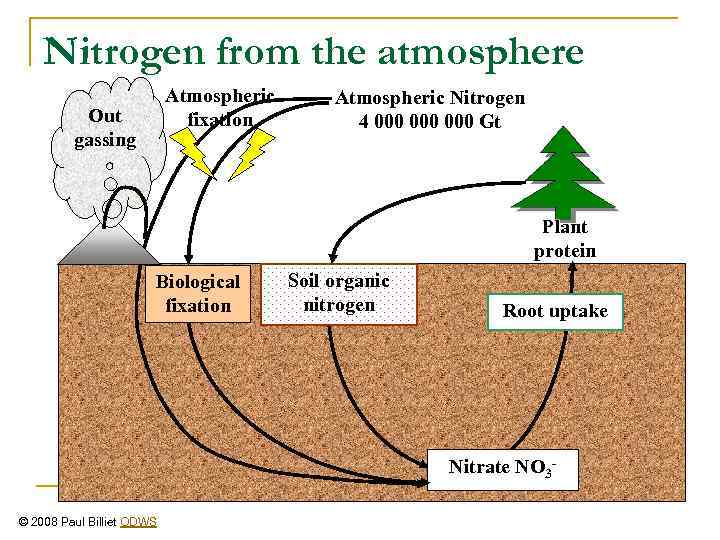

Nitrogen from the atmosphere Atmospheric fixation Out gassing Atmospheric Nitrogen 4 000 000 Gt Plant protein Biological fixation Soil organic nitrogen Root uptake Nitrate NO 3© 2008 Paul Billiet ODWS

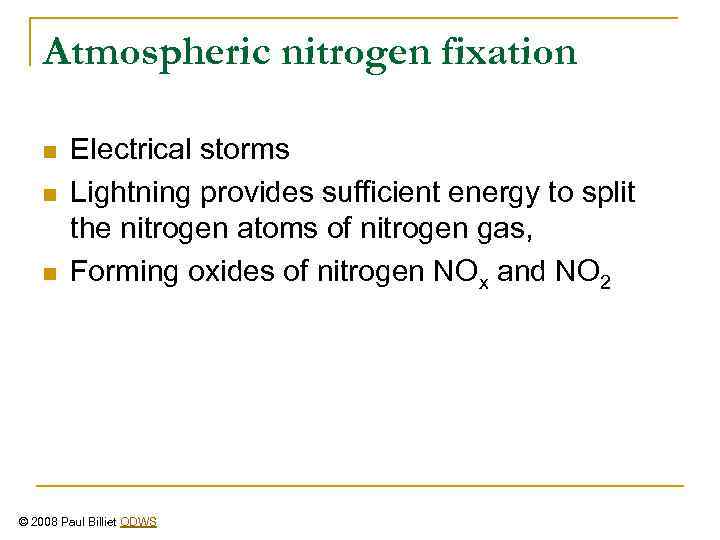

Atmospheric nitrogen fixation n Electrical storms Lightning provides sufficient energy to split the nitrogen atoms of nitrogen gas, Forming oxides of nitrogen NOx and NO 2 © 2008 Paul Billiet ODWS

Atmospheric Pollution n n n This also happens inside the internal combustion engines of cars The exhaust emissions of cars contribute a lot to atmospheric pollution in the form of NOx These compounds form photochemical smogs They are green house gases They dissolve in rain to contribute to acid rain in the form of nitric acid The rain falling on soil and running into rivers They contribute to the eutrophication of water bodies © 2008 Paul Billiet ODWS

Root nodules Alafalfa (Medicago sativa) USDA - ARS University of Sydney

Only prokaryotes show nitrogen fixation n These organisms possess the nif gene complex which make the proteins, such as nitrogenase enzyme, used in nitrogen fixation Nitrogenase is a metalloprotein, protein subunits being combined with an iron, sulphur and molybdenum complex The reaction involves splitting nitrogen gas molecules and adding hydrogen to make ammonia N 2 2 N 2 N + 8 H+ NH 3 + H 2 n n - 669 k. J + 54 k. J This is extremely energy expensive requiring 16 ATP molecules for each nitrogen molecule fixed The microbes that can fix nitrogen need a good supply of energy © 2008 Paul Billiet ODWS

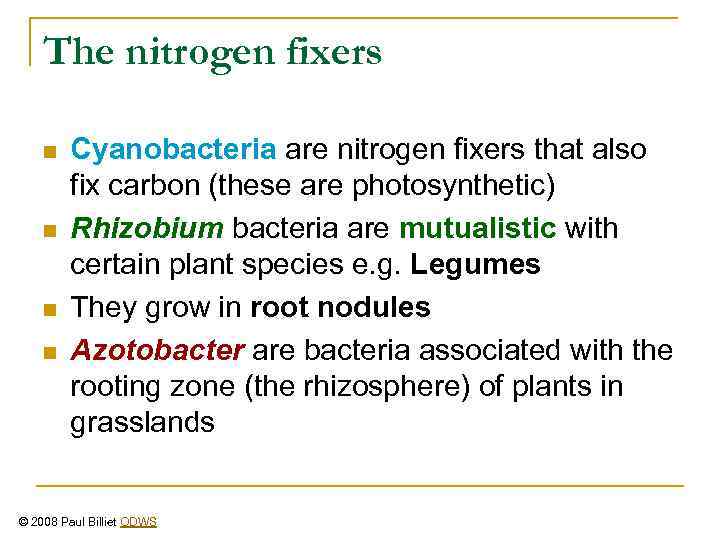

The nitrogen fixers n n Cyanobacteria are nitrogen fixers that also fix carbon (these are photosynthetic) Rhizobium bacteria are mutualistic with certain plant species e. g. Legumes They grow in root nodules Azotobacter are bacteria associated with the rooting zone (the rhizosphere) of plants in grasslands © 2008 Paul Billiet ODWS

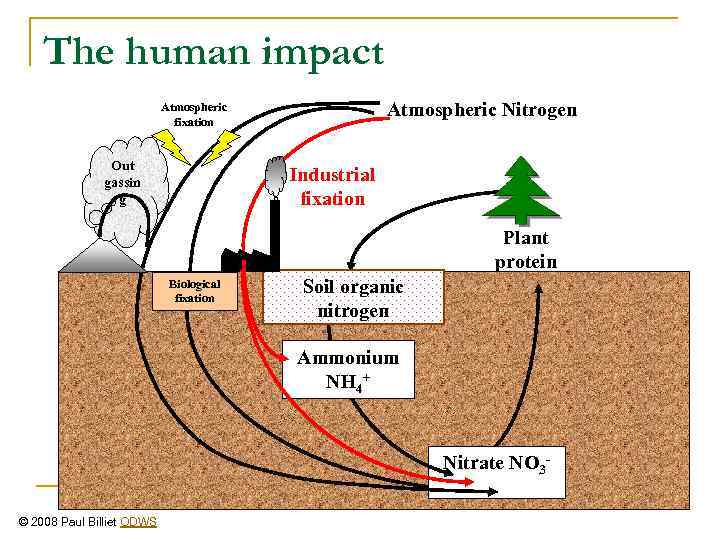

The human impact Atmospheric Nitrogen Atmospheric fixation Out gassin g Industrial fixation Plant protein Biological fixation Soil organic nitrogen Ammonium NH 4+ Nitrate NO 3© 2008 Paul Billiet ODWS

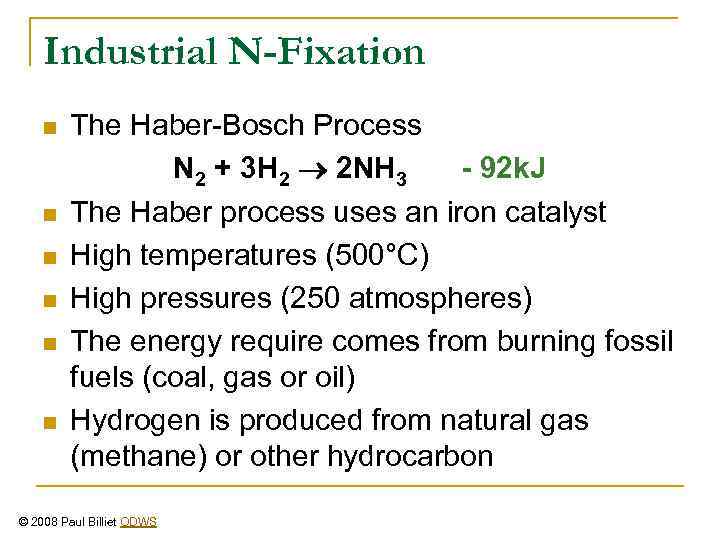

Industrial N-Fixation n n n The Haber-Bosch Process N 2 + 3 H 2 2 NH 3 - 92 k. J The Haber process uses an iron catalyst High temperatures (500°C) High pressures (250 atmospheres) The energy require comes from burning fossil fuels (coal, gas or oil) Hydrogen is produced from natural gas (methane) or other hydrocarbon © 2008 Paul Billiet ODWS

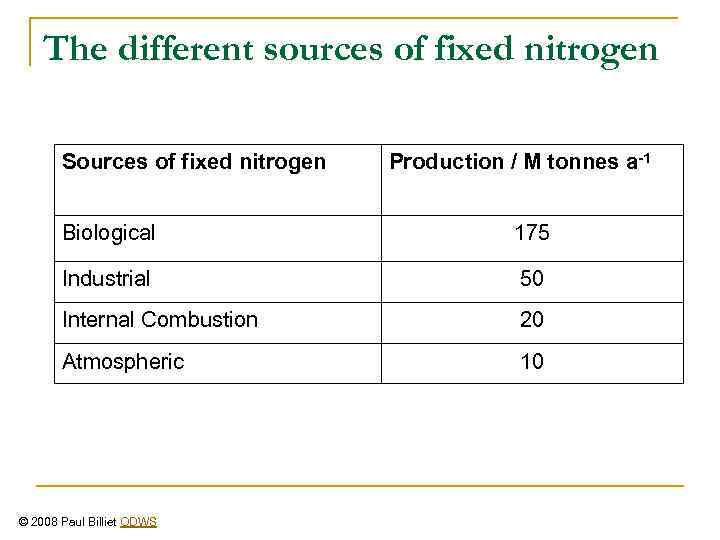

The different sources of fixed nitrogen Sources of fixed nitrogen Production / M tonnes a-1 Biological 175 Industrial 50 Internal Combustion 20 Atmospheric 10 © 2008 Paul Billiet ODWS

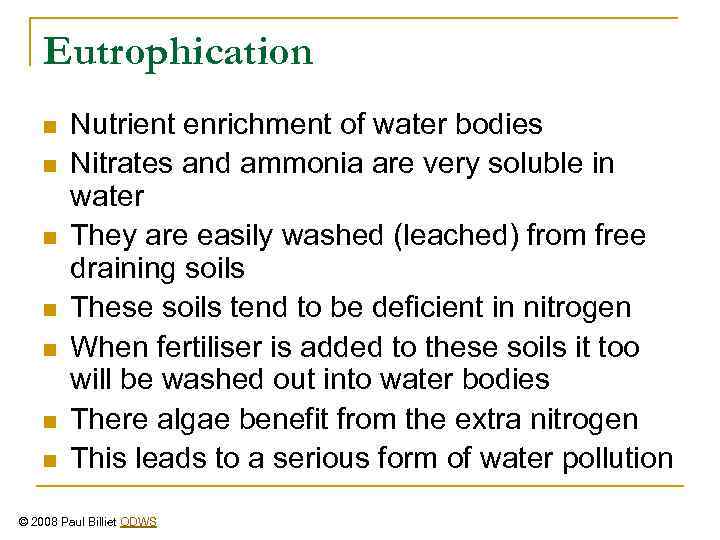

Eutrophication n n n Nutrient enrichment of water bodies Nitrates and ammonia are very soluble in water They are easily washed (leached) from free draining soils These soils tend to be deficient in nitrogen When fertiliser is added to these soils it too will be washed out into water bodies There algae benefit from the extra nitrogen This leads to a serious form of water pollution © 2008 Paul Billiet ODWS

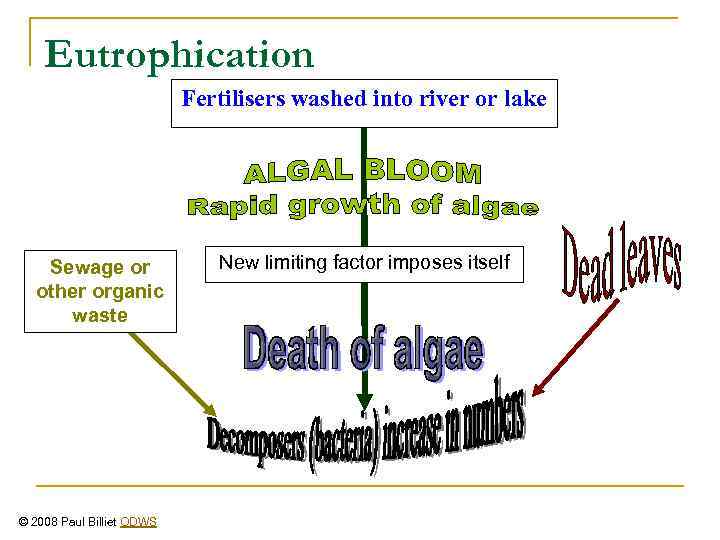

Eutrophication Fertilisers washed into river or lake Sewage or other organic waste © 2008 Paul Billiet ODWS New limiting factor imposes itself

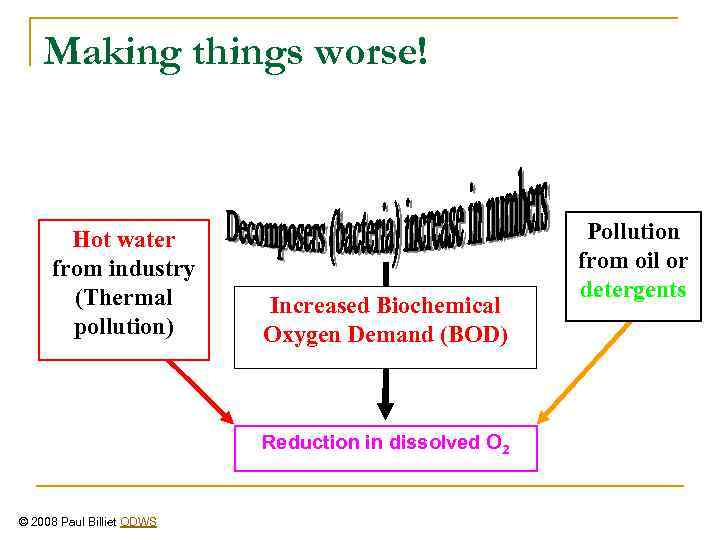

Making things worse! Hot water from industry (Thermal pollution) Increased Biochemical Oxygen Demand (BOD) Reduction in dissolved O 2 © 2008 Paul Billiet ODWS Pollution from oil or detergents

The death of a lake Reduction in dissolved O 2 Increased nitrite levels NO 3 - NO 2 - Death/emigration of freshwater fauna © 2008 Paul Billiet ODWS Methaemoglobinaemia in infants Stomach cancer link (WHO limit for nitrates 10 mg dm-3)

The future of industrial nitrogen fixation n n Food production relies heavily upon synthetic fertilisers made by consuming a lot of fossil energy Food will become more expensive to produce Nitrogen fixing microbes, using an enzyme system, do the same process at standard temperatures and pressures essentially using solar energy Answer: Genetically engineered biological nitrogen fixation? © 2008 Paul Billiet ODWS

Making things better n n n The need for synthetic fertilisers can be reduced by cultural practices Avoiding the use of soluble fertilisers in sandy (free draining soil) prevents leaching Rotating crops permits the soil to recover from nitrogen hungry crops (e. g. wheat) Adding a nitrogen fixing crop into the rotation cycle Ploughing aerates the soil and reduces denitrification Draining water logged soil also helps reduce denitrification © 2008 Paul Billiet ODWS

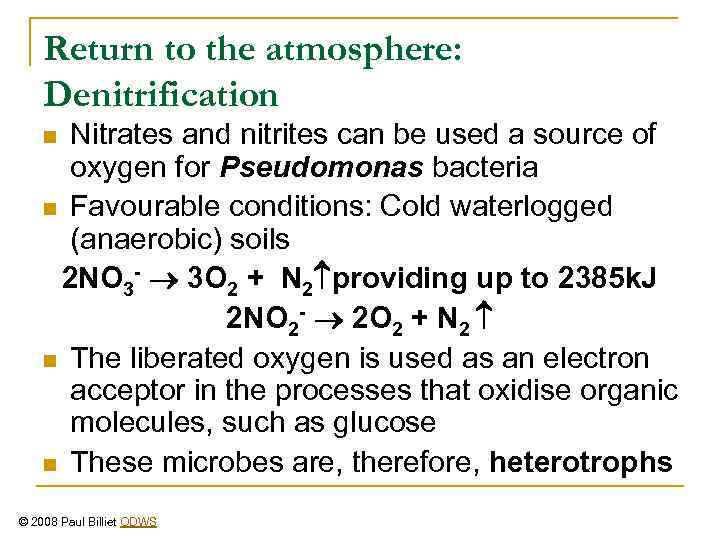

Return to the atmosphere: Denitrification Nitrates and nitrites can be used a source of oxygen for Pseudomonas bacteria n Favourable conditions: Cold waterlogged (anaerobic) soils 2 NO 3 - 3 O 2 + N 2 providing up to 2385 k. J 2 NO 2 - 2 O 2 + N 2 n The liberated oxygen is used as an electron acceptor in the processes that oxidise organic molecules, such as glucose n These microbes are, therefore, heterotrophs n © 2008 Paul Billiet ODWS

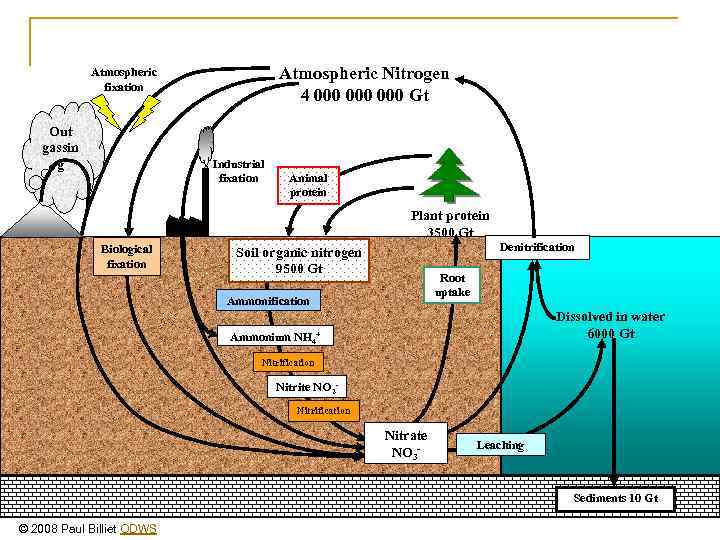

Atmospheric Nitrogen 4 000 000 Gt Atmospheric fixation Out gassin g Industrial fixation Animal protein Plant protein 3500 Gt Biological fixation Denitrification Soil organic nitrogen 9500 Gt Root uptake Ammonification Dissolved in water 6000 Gt Ammonium NH 4+ Nitrification Nitrite NO 2 Nitrification Nitrate NO 3 - Leaching Sediments 10 Gt © 2008 Paul Billiet ODWS
