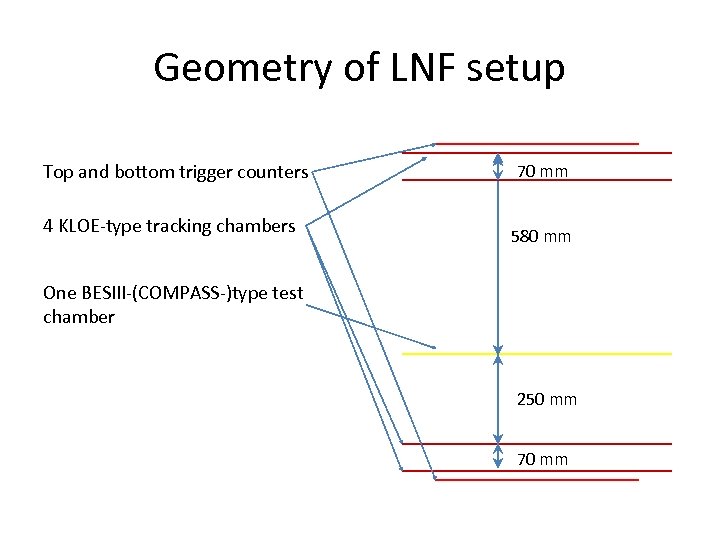

Geometry of LNF setup Top and bottom trigger counters 4 KLOE-type tracking chambers 70 mm 580 mm One BESIII-(COMPASS-)type test chamber 250 mm 70 mm

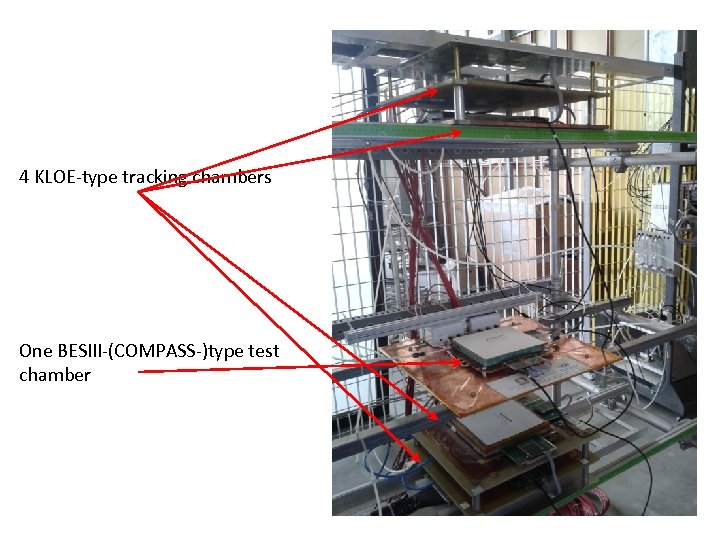

4 KLOE-type tracking chambers One BESIII-(COMPASS-)type test chamber

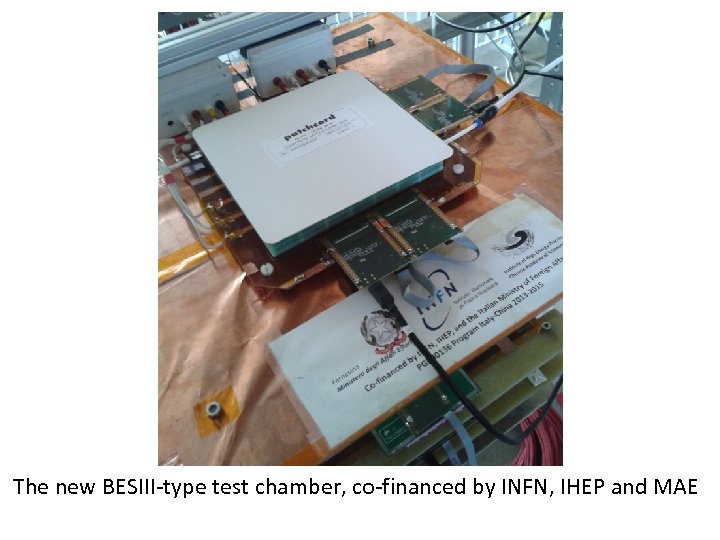

The new BESIII-type test chamber, co-financed by INFN, IHEP and MAE

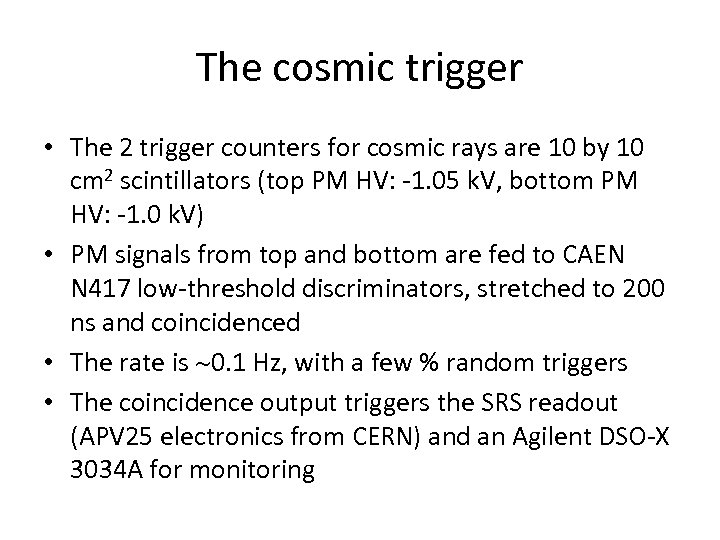

The cosmic trigger • The 2 trigger counters for cosmic rays are 10 by 10 cm 2 scintillators (top PM HV: -1. 05 k. V, bottom PM HV: -1. 0 k. V) • PM signals from top and bottom are fed to CAEN N 417 low-threshold discriminators, stretched to 200 ns and coincidenced • The rate is 0. 1 Hz, with a few % random triggers • The coincidence output triggers the SRS readout (APV 25 electronics from CERN) and an Agilent DSO-X 3034 A for monitoring

Trigger NIM logic Trigger 27270

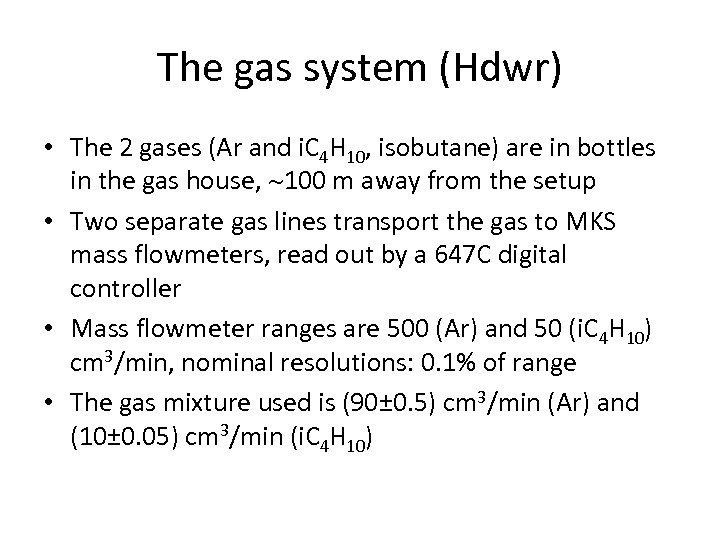

The gas system (Hdwr) • The 2 gases (Ar and i. C 4 H 10, isobutane) are in bottles in the gas house, 100 m away from the setup • Two separate gas lines transport the gas to MKS mass flowmeters, read out by a 647 C digital controller • Mass flowmeter ranges are 500 (Ar) and 50 (i. C 4 H 10) cm 3/min, nominal resolutions: 0. 1% of range • The gas mixture used is (90± 0. 5) cm 3/min (Ar) and (10± 0. 05) cm 3/min (i. C 4 H 10)

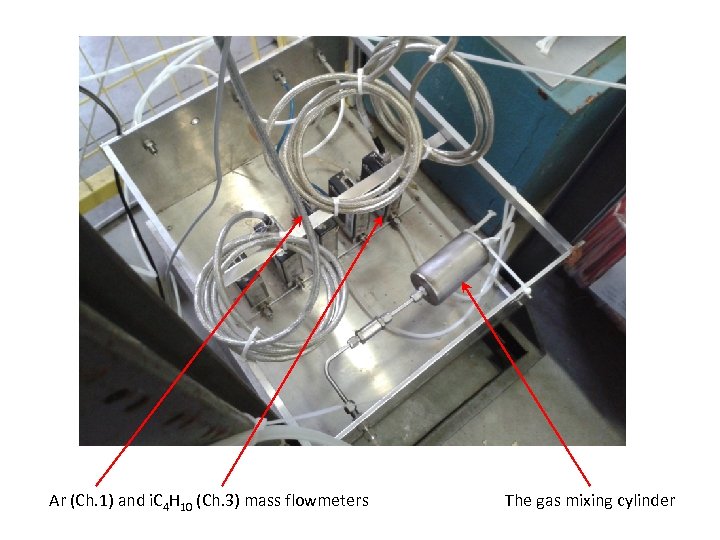

Ar (Ch. 1) and i. C 4 H 10 (Ch. 3) mass flowmeters The gas mixing cylinder

The MKS 647 C readout controller

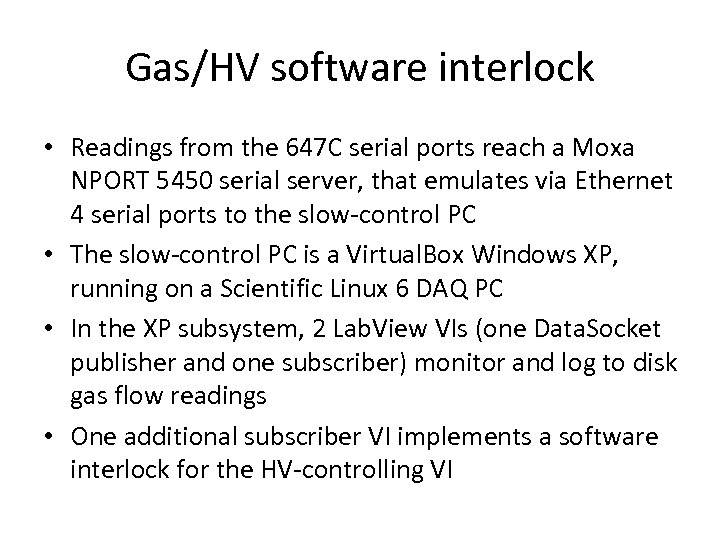

Gas/HV software interlock • Readings from the 647 C serial ports reach a Moxa NPORT 5450 serial server, that emulates via Ethernet 4 serial ports to the slow-control PC • The slow-control PC is a Virtual. Box Windows XP, running on a Scientific Linux 6 DAQ PC • In the XP subsystem, 2 Lab. View VIs (one Data. Socket publisher and one subscriber) monitor and log to disk gas flow readings • One additional subscriber VI implements a software interlock for the HV-controlling VI

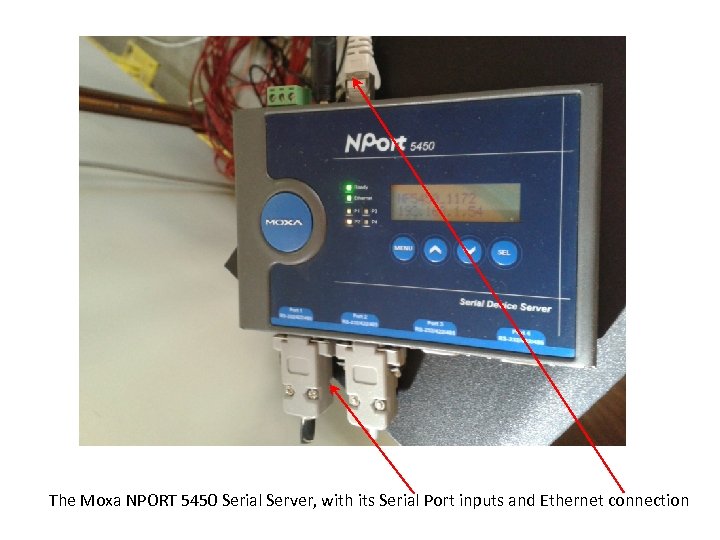

The Moxa NPORT 5450 Serial Server, with its Serial Port inputs and Ethernet connection

The Windows XP Virtual. Box: the monitor VI is a Data. Socket publisher of date-stamped gas flow readings. The slow logger VI is a Data. Socket subscriber that writes gas flows to disk. The Watchdog VI analyzes flow and current readings and publishes the Alarm flag, to which the HV slow control subscribes.

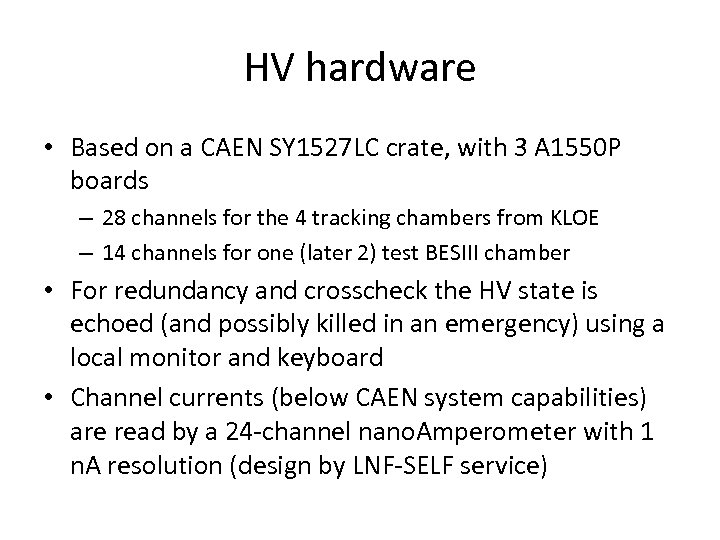

HV hardware • Based on a CAEN SY 1527 LC crate, with 3 A 1550 P boards – 28 channels for the 4 tracking chambers from KLOE – 14 channels for one (later 2) test BESIII chamber • For redundancy and crosscheck the HV state is echoed (and possibly killed in an emergency) using a local monitor and keyboard • Channel currents (below CAEN system capabilities) are read by a 24 -channel nano. Amperometer with 1 n. A resolution (design by LNF-SELF service)

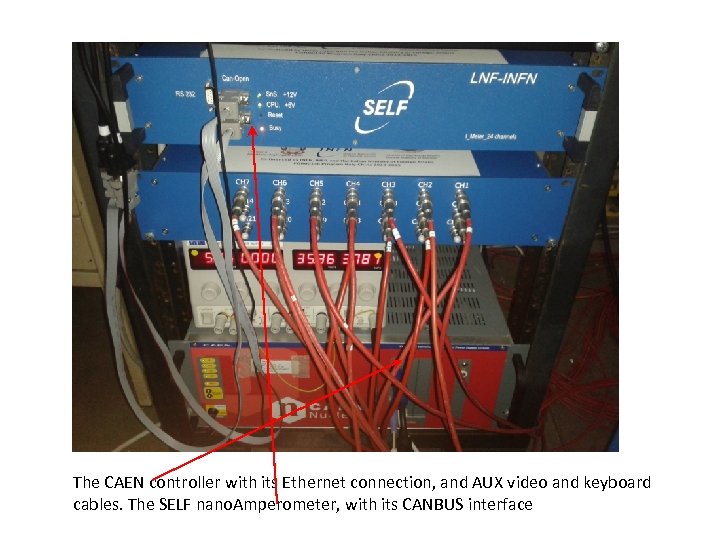

The CAEN controller with its Ethernet connection, and AUX video and keyboard cables. The SELF nano. Amperometer, with its CANBUS interface

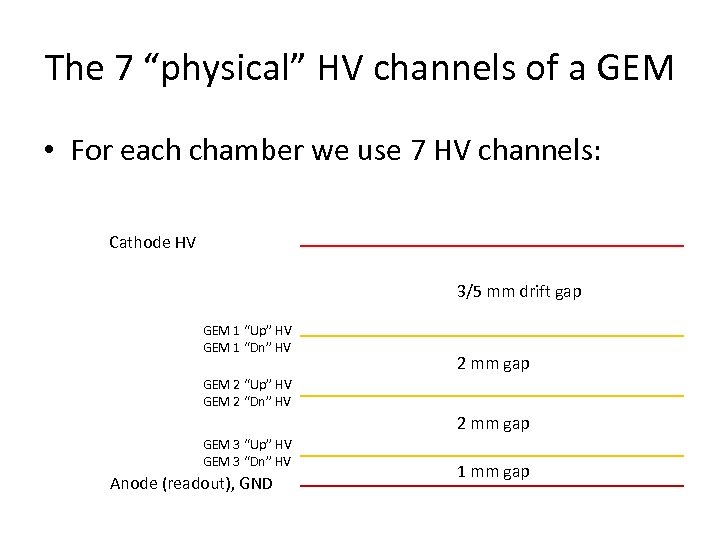

The 7 “physical” HV channels of a GEM • For each chamber we use 7 HV channels: Cathode HV 3/5 mm drift gap GEM 1 “Up” HV GEM 1 “Dn” HV 2 mm gap GEM 2 “Up” HV GEM 2 “Dn” HV 2 mm gap GEM 3 “Up” HV GEM 3 “Dn” HV Anode (readout), GND 1 mm gap

The 7 logical HV channels of a GEM • The 3 “GEM” potentials determine gain: – Gain 1 is (exp) function of (HVG 1 up-HVG 1 dn) – Similarly for gains 2 and 3 – Overall gain = Gain 1*Gain 2*Gain 3 • The 4 “transfer” HV’s only move electrons to the next stage: – (HVcathode-HVG 1 up) moves electrons away from cathode towards GEM 1: this is called the “drift” field – Same for middle gaps – (HVG 3 dn-GND) moves electrons away from GEM 3 to the readout layer: this is called “induction” field

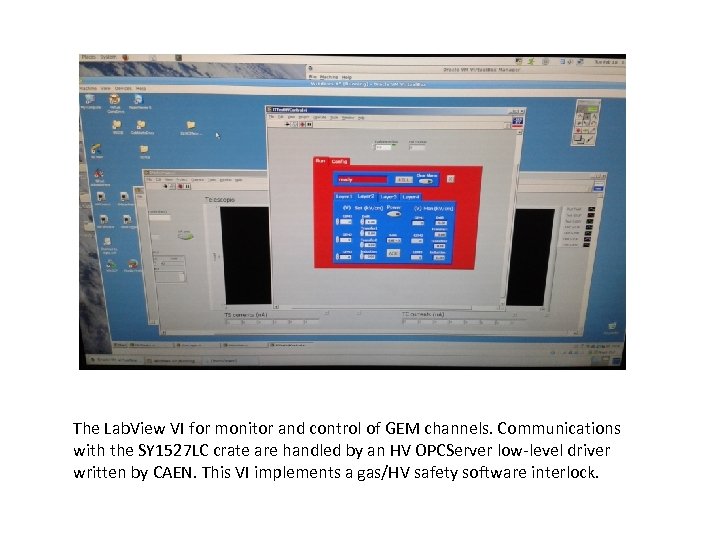

The Lab. View VI for monitor and control of GEM channels. Communications with the SY 1527 LC crate are handled by an HV OPCServer low-level driver written by CAEN. This VI implements a gas/HV safety software interlock.

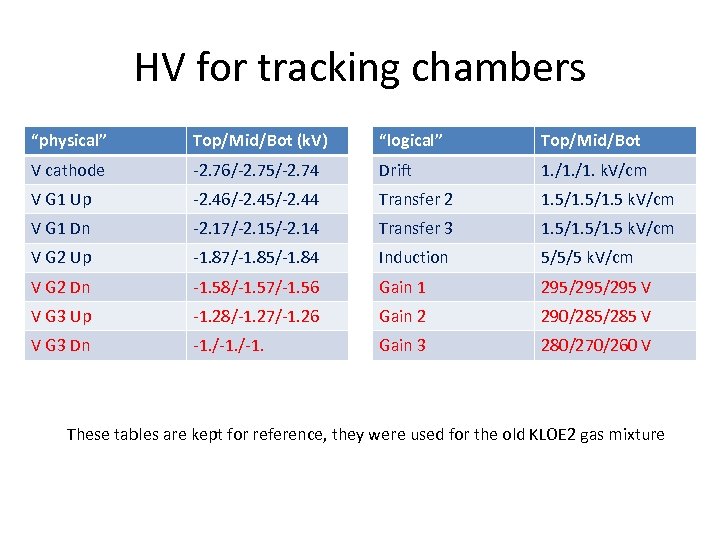

HV for tracking chambers “physical” Top/Mid/Bot (k. V) “logical” Top/Mid/Bot V cathode -2. 76/-2. 75/-2. 74 Drift 1. /1. k. V/cm V G 1 Up -2. 46/-2. 45/-2. 44 Transfer 2 1. 5/1. 5 k. V/cm V G 1 Dn -2. 17/-2. 15/-2. 14 Transfer 3 1. 5/1. 5 k. V/cm V G 2 Up -1. 87/-1. 85/-1. 84 Induction 5/5/5 k. V/cm V G 2 Dn -1. 58/-1. 57/-1. 56 Gain 1 295/295 V V G 3 Up -1. 28/-1. 27/-1. 26 Gain 2 290/285 V V G 3 Dn -1. /-1. Gain 3 280/270/260 V These tables are kept for reference, they were used for the old KLOE 2 gas mixture

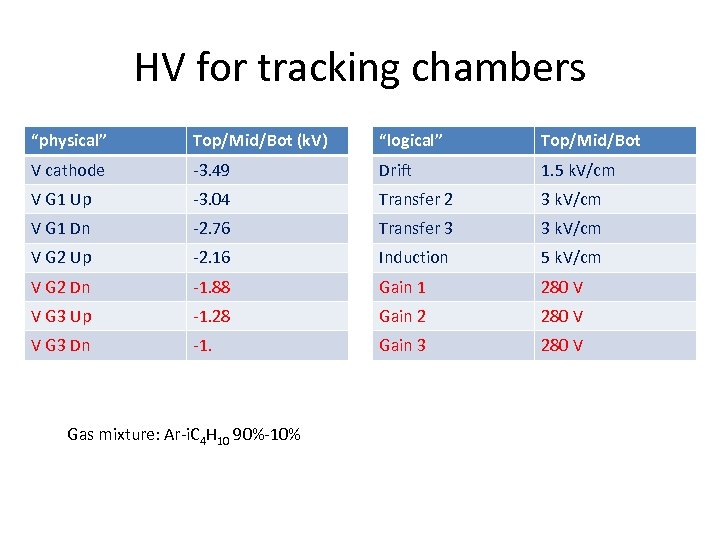

HV for tracking chambers “physical” Top/Mid/Bot (k. V) “logical” Top/Mid/Bot V cathode -3. 49 Drift 1. 5 k. V/cm V G 1 Up -3. 04 Transfer 2 3 k. V/cm V G 1 Dn -2. 76 Transfer 3 3 k. V/cm V G 2 Up -2. 16 Induction 5 k. V/cm V G 2 Dn -1. 88 Gain 1 280 V V G 3 Up -1. 28 Gain 2 280 V V G 3 Dn -1. Gain 3 280 V Gas mixture: Ar-i. C 4 H 10 90%-10%

The nano. Amperometer interface • The LNF-SELF 24 -channels nano. Amperometer, with a CAN-bus interface, is read via a Kvaser USBCan. II by a Lab. View set of VIs • For now, we monitor 15 channels – All 7 channels of the new BESIII test chamber – The 2 most critical channels of each tracking chamber: G 3 Up and G 3 Dn

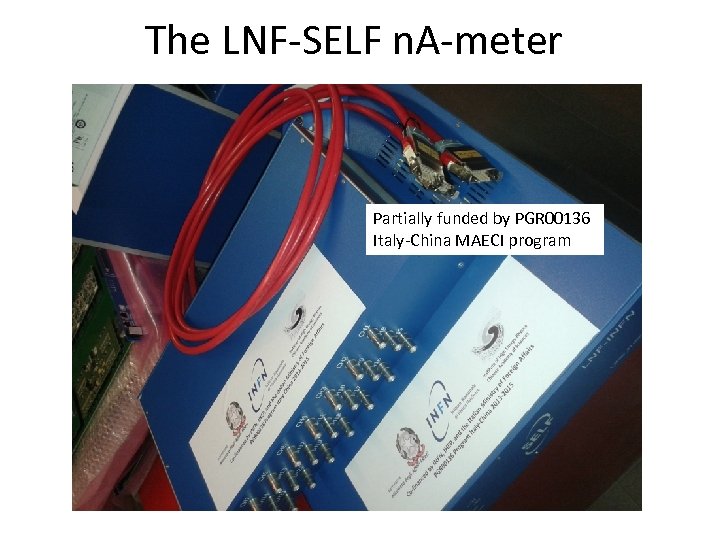

The LNF-SELF n. A-meter Partially funded by PGR 00136 Italy-China MAECI program

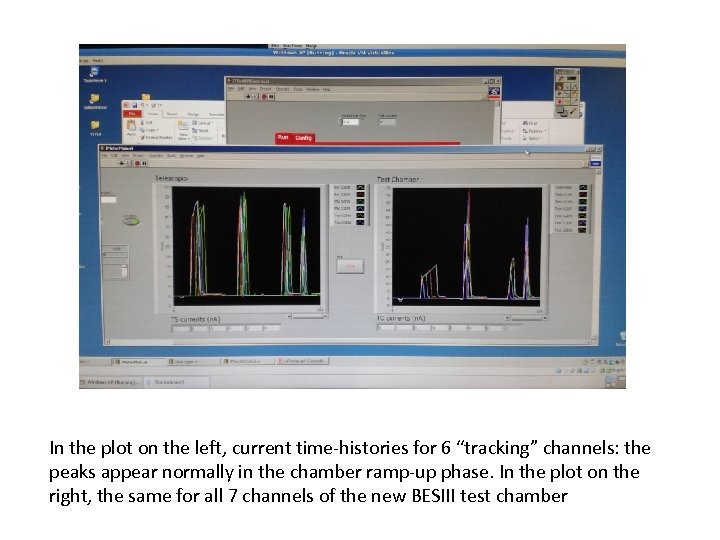

In the plot on the left, current time-histories for 6 “tracking” channels: the peaks appear normally in the chamber ramp-up phase. In the plot on the right, the same for all 7 channels of the new BESIII test chamber

The tracking chambers • The 4 tracking chambers are KLOE 2 -type, designed and made by a LNF-Bari collaboration • Each chamber has X-Y orthogonal views, read by 2 APV 25 chips, a CERN-RD 51 project • The active area is 128 strip wide in X and Y • With 650 mm strip pitch, the active area is 8. 3· 8. 3 cm 2 wide

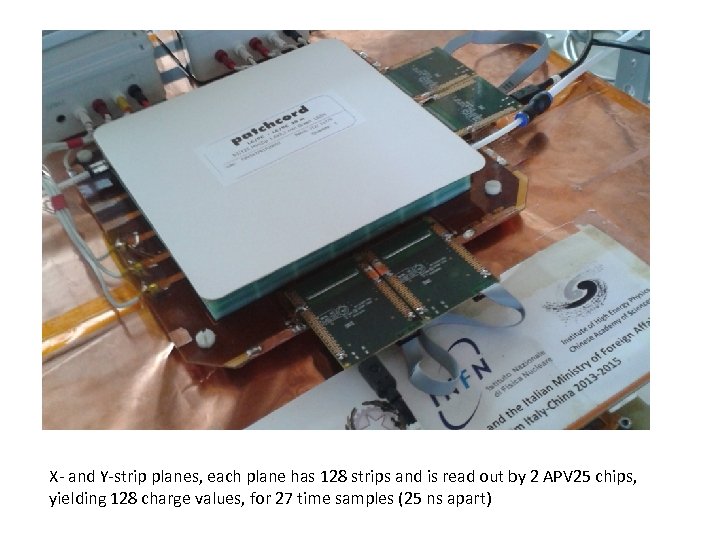

X- and Y-strip planes, each plane has 128 strips and is read out by 2 APV 25 chips, yielding 128 charge values, for 27 time samples (25 ns apart)

The DAQ system • The APV 25 chips are connected to an SRS board via HDMI cables, design by CERN-RD 51 • The SRS board, in a custom crates, is read out by the DAQ PC via a common Ethernet port

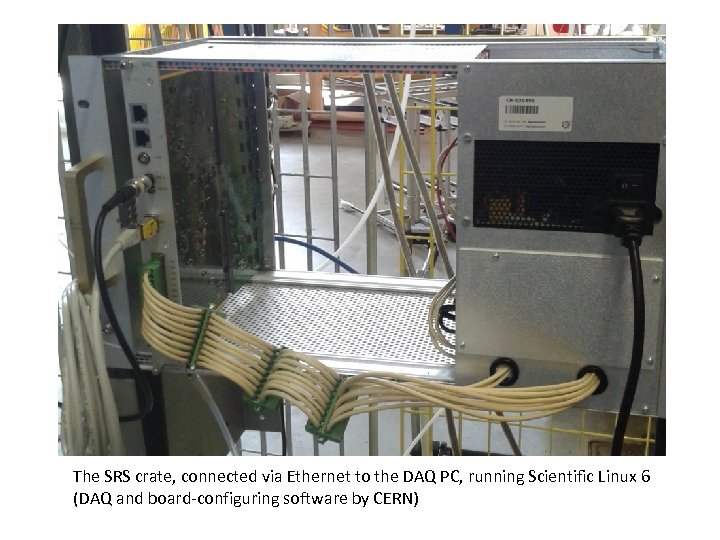

The SRS crate, connected via Ethernet to the DAQ PC, running Scientific Linux 6 (DAQ and board-configuring software by CERN)

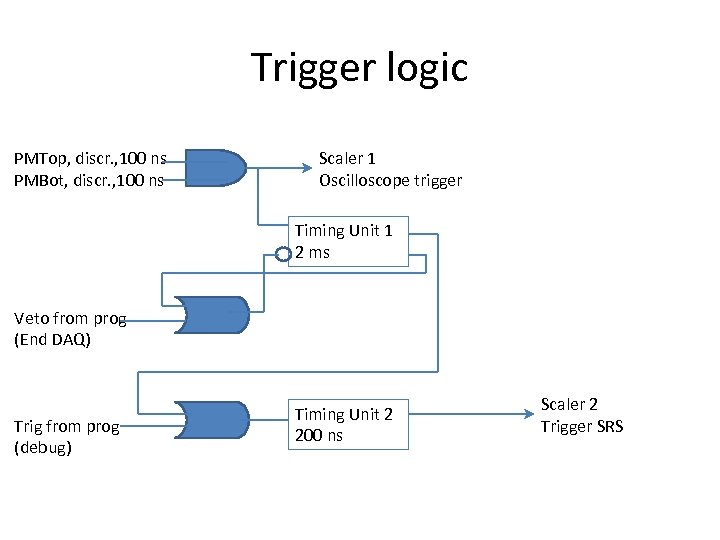

Trigger logic PMTop, discr. , 100 ns PMBot, discr. , 100 ns Scaler 1 Oscilloscope trigger Timing Unit 1 2 ms Veto from prog (End DAQ) Trig from prog (debug) Timing Unit 2 200 ns Scaler 2 Trigger SRS

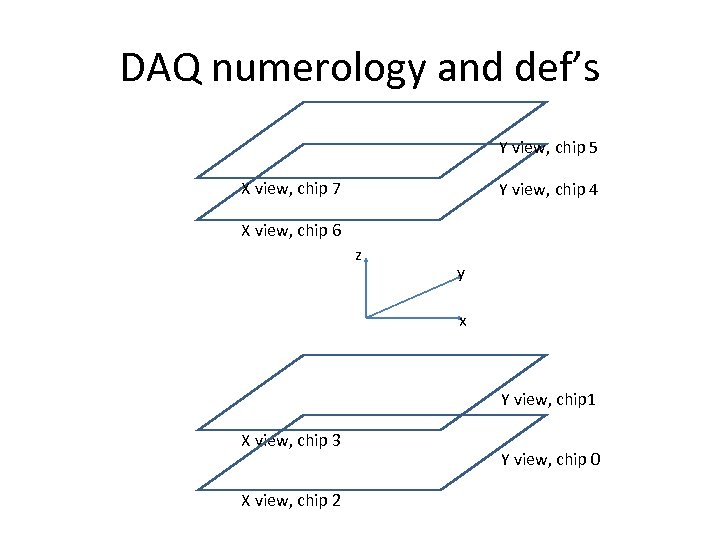

DAQ numerology and def’s Y view, chip 5 X view, chip 7 Y view, chip 4 X view, chip 6 z y x Y view, chip 1 X view, chip 3 X view, chip 2 Y view, chip 0

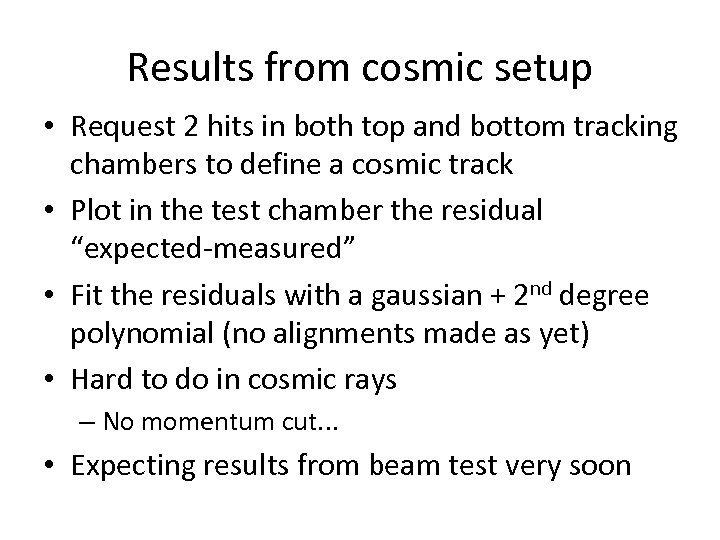

Results from cosmic setup • Request 2 hits in both top and bottom tracking chambers to define a cosmic track • Plot in the test chamber the residual “expected-measured” • Fit the residuals with a gaussian + 2 nd degree polynomial (no alignments made as yet) • Hard to do in cosmic rays – No momentum cut. . . • Expecting results from beam test very soon

Single-view plots sx 180 mm sy ≈ 200 mm
