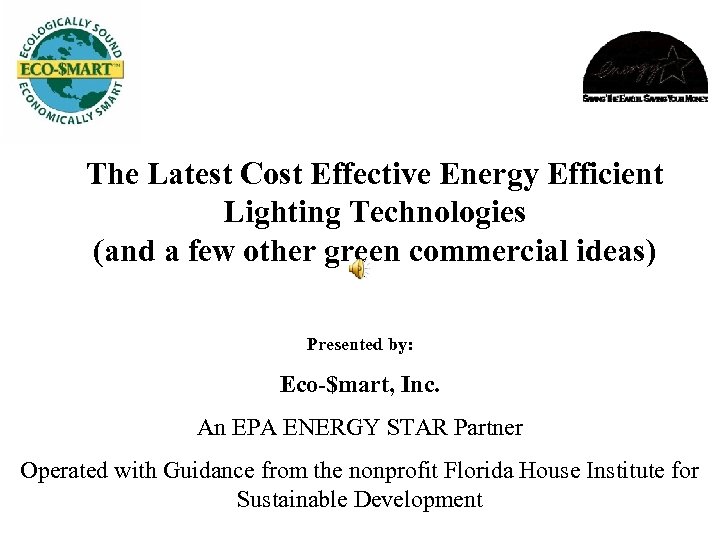

The Latest Cost Effective Energy Efficient Lighting Technologies (and a few other green commercial ideas) Presented by: Eco-$mart, Inc. An EPA ENERGY STAR Partner Operated with Guidance from the nonprofit Florida House Institute for Sustainable Development

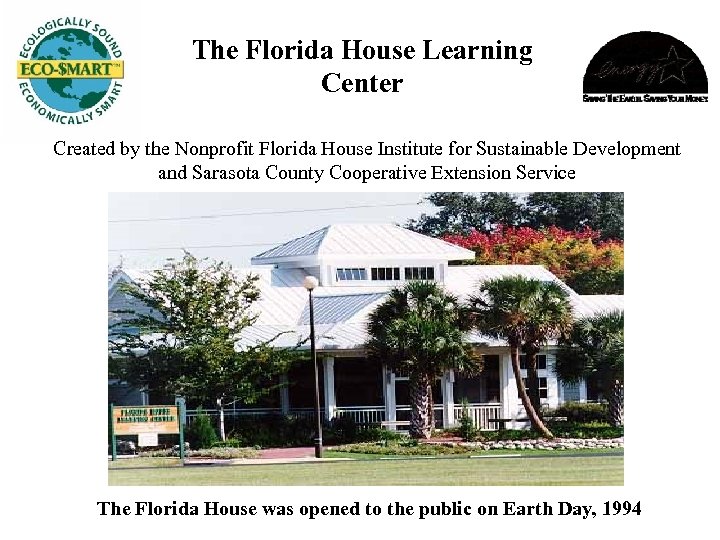

The Florida House Learning Center Created by the Nonprofit Florida House Institute for Sustainable Development and Sarasota County Cooperative Extension Service The Florida House was opened to the public on Earth Day, 1994

About Eco-$mart, Inc. • An EPA ENERGY STAR Partner • A Partnership with the Nonprofit Florida House Institute for Sustainable Development (FHI): – Free Eco-$mart Materials Consultation – Distributes / Installs Approved Systems – Provides Energy Efficiency Ratings – Connects to Energy Efficient Financing – Educational Seminars for Public and Trades • A Portion of Proceeds Benefit Nonprofit (FHI)

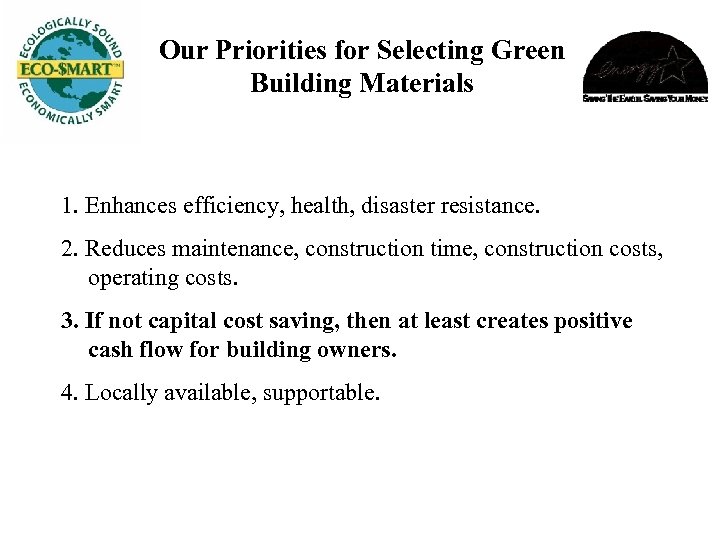

Our Priorities for Selecting Green Building Materials 1. Enhances efficiency, health, disaster resistance. 2. Reduces maintenance, construction time, construction costs, operating costs. 3. If not capital cost saving, then at least creates positive cash flow for building owners. 4. Locally available, supportable.

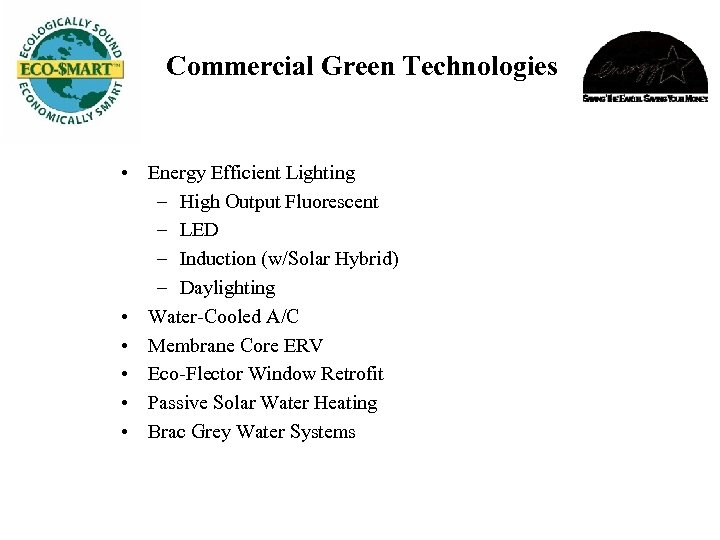

Commercial Green Technologies • Energy Efficient Lighting – High Output Fluorescent – LED – Induction (w/Solar Hybrid) – Daylighting • Water-Cooled A/C • Membrane Core ERV • Eco-Flector Window Retrofit • Passive Solar Water Heating • Brac Grey Water Systems

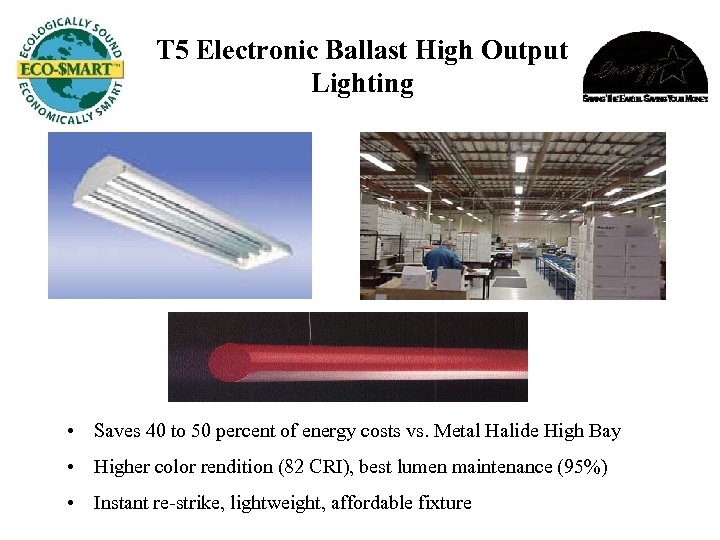

T 5 Electronic Ballast High Output Lighting • Saves 40 to 50 percent of energy costs vs. Metal Halide High Bay • Higher color rendition (82 CRI), best lumen maintenance (95%) • Instant re-strike, lightweight, affordable fixture

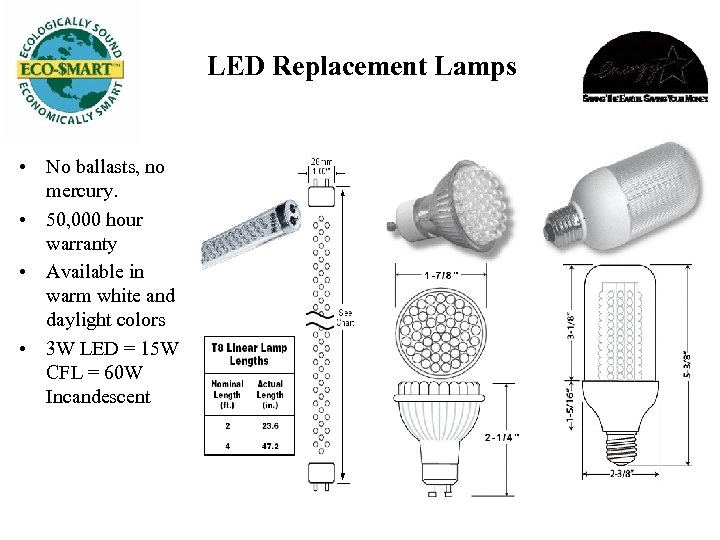

LED Replacement Lamps • No ballasts, no mercury. • 50, 000 hour warranty • Available in warm white and daylight colors • 3 W LED = 15 W CFL = 60 W Incandescent

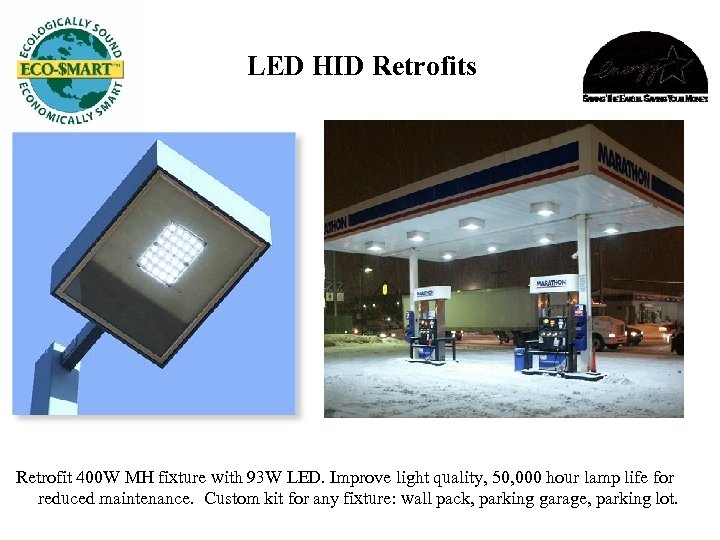

LED HID Retrofits Retrofit 400 W MH fixture with 93 W LED. Improve light quality, 50, 000 hour lamp life for reduced maintenance. Custom kit for any fixture: wall pack, parking garage, parking lot.

LED Photos Left Side 400 W MH Right Side 88 W LED

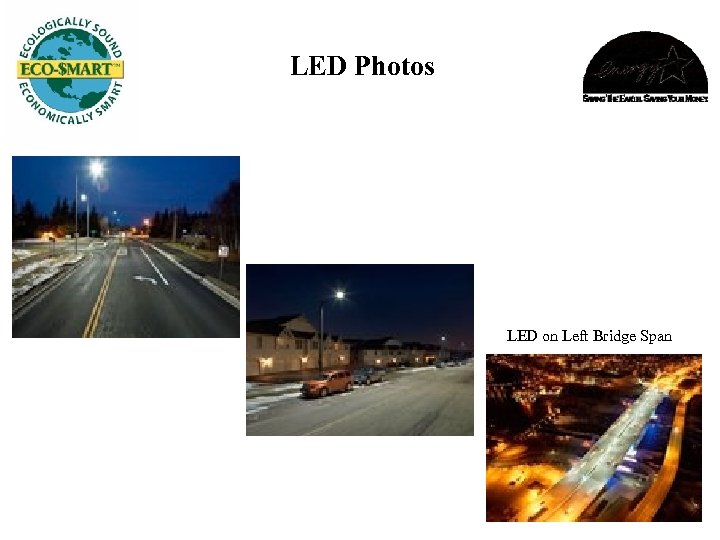

LED Photos LED on Left Bridge Span

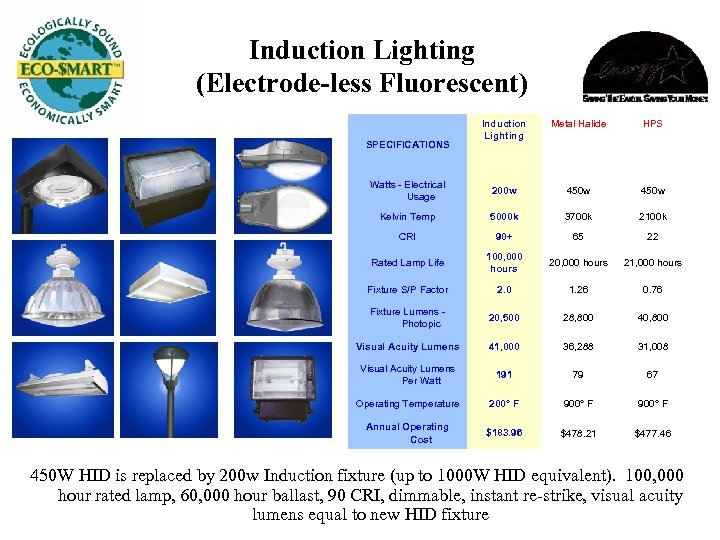

Induction Lighting (Electrode-less Fluorescent) Induction Lighting Metal Halide HPS Watts - Electrical Usage 200 w 450 w Kelvin Temp 5000 k 3700 k 2100 k CRI 90+ 65 22 Rated Lamp Life 100, 000 hours 21, 000 hours Fixture S/P Factor 2. 0 1. 26 0. 76 Fixture Lumens Photopic 20, 500 28, 800 40, 800 Visual Acuity Lumens 41, 000 36, 288 31, 008 Visual Acuity Lumens Per Watt 191 79 67 Operating Temperature 200° F 900° F Annual Operating Cost $183. 96 $478. 21 $477. 46 SPECIFICATIONS 450 W HID is replaced by 200 w Induction fixture (up to 1000 W HID equivalent). 100, 000 hour rated lamp, 60, 000 hour ballast, 90 CRI, dimmable, instant re-strike, visual acuity lumens equal to new HID fixture

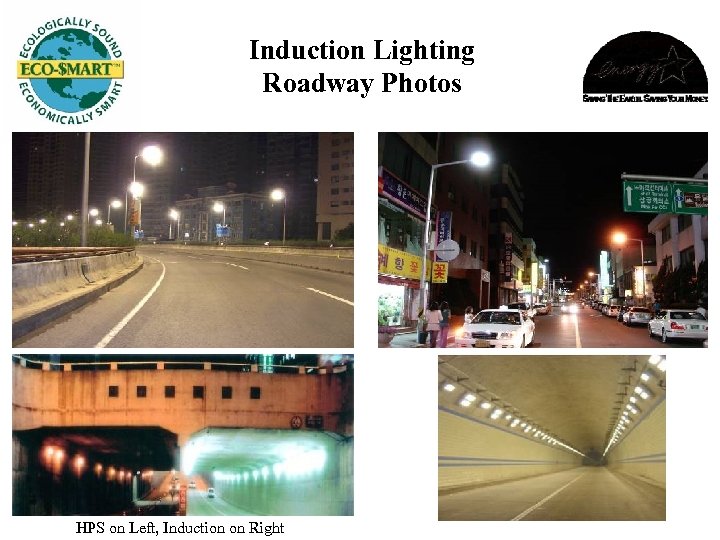

Induction Lighting Roadway Photos HPS on Left, Induction on Right

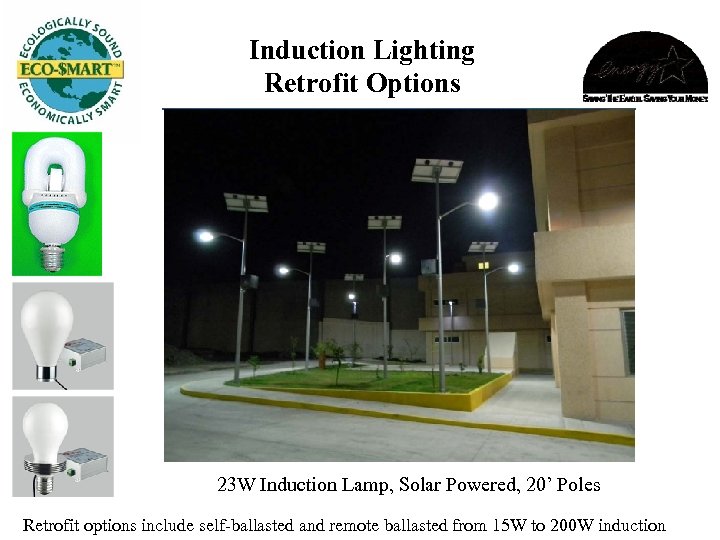

Induction Lighting Retrofit Options 23 W Induction Lamp, Solar Powered, 20’ Poles Retrofit options include self-ballasted and remote ballasted from 15 W to 200 W induction

Commercial Daylighting Systems

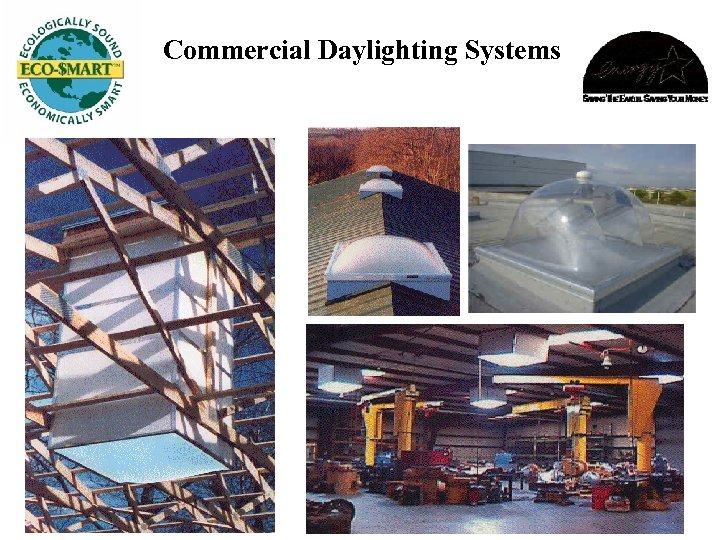

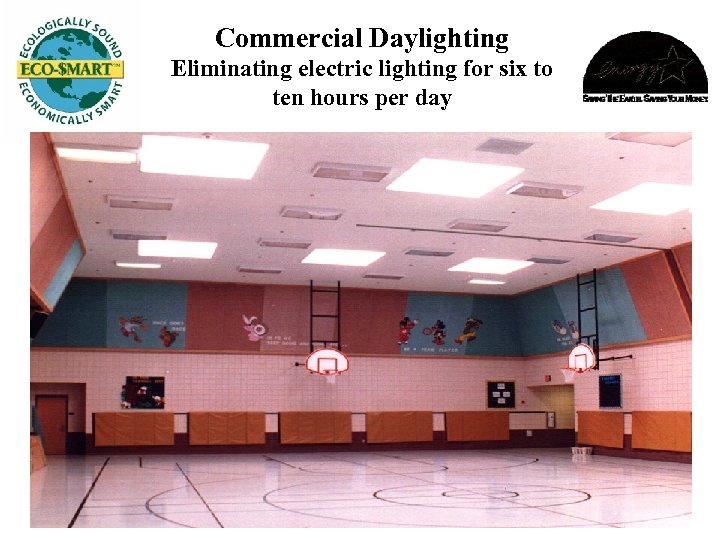

Commercial Daylighting Eliminating electric lighting for six to ten hours per day

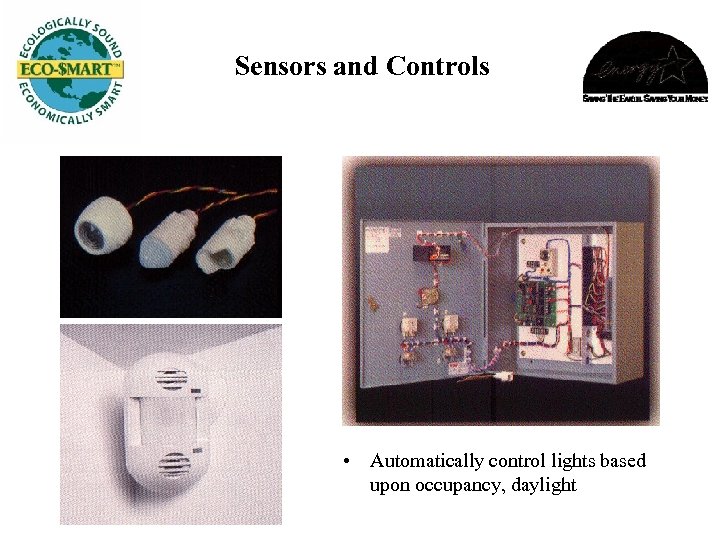

Sensors and Controls • Automatically control lights based upon occupancy, daylight

Thermal Flow Water Cooled Air Conditioning D/X Split Systems Multi. Zone: Demand Buster Retrofit:

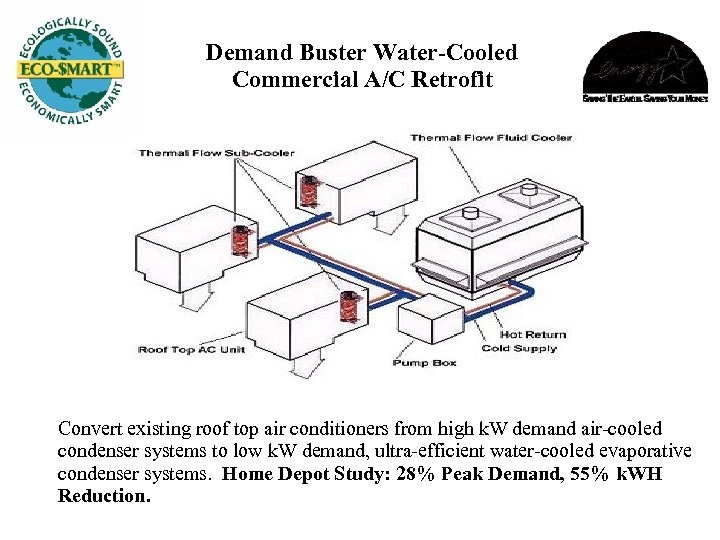

Demand Buster Water-Cooled Commercial A/C Retrofit Convert existing roof top air conditioners from high k. W demand air-cooled condenser systems to low k. W demand, ultra-efficient water-cooled evaporative condenser systems. Home Depot Study: 28% Peak Demand, 55% k. WH Reduction.

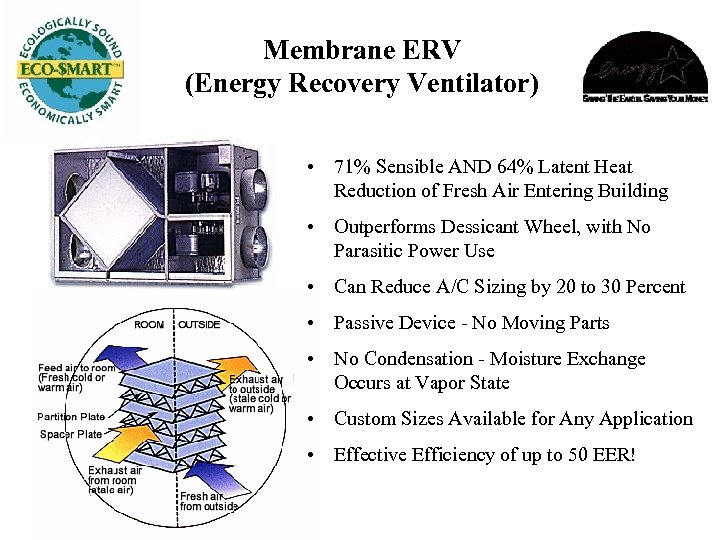

Membrane ERV (Energy Recovery Ventilator) • 71% Sensible AND 64% Latent Heat Reduction of Fresh Air Entering Building • Outperforms Dessicant Wheel, with No Parasitic Power Use • Can Reduce A/C Sizing by 20 to 30 Percent • Passive Device - No Moving Parts • No Condensation - Moisture Exchange Occurs at Vapor State • Custom Sizes Available for Any Application • Effective Efficiency of up to 50 EER!

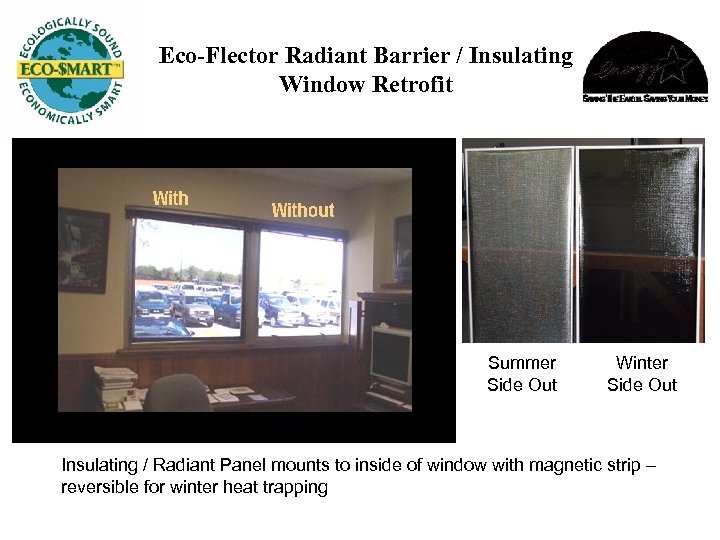

Eco-Flector Radiant Barrier / Insulating Window Retrofit Summer Side Out Winter Side Out Insulating / Radiant Panel mounts to inside of window with magnetic strip – reversible for winter heat trapping

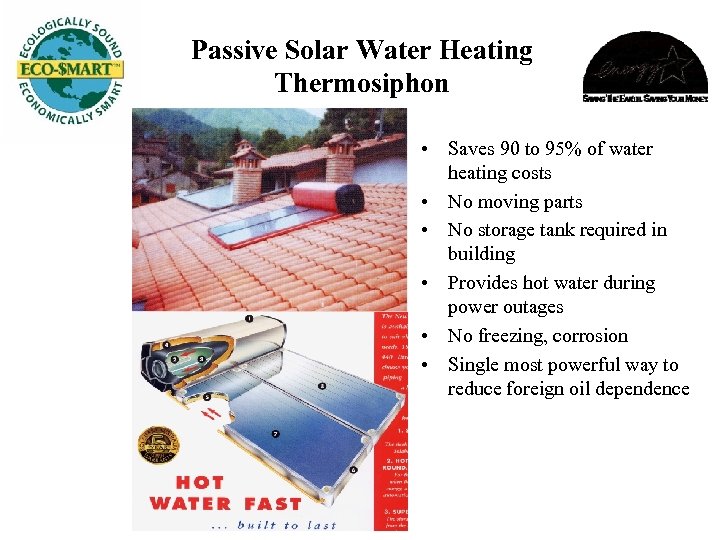

Passive Solar Water Heating Thermosiphon • Saves 90 to 95% of water heating costs • No moving parts • No storage tank required in building • Provides hot water during power outages • No freezing, corrosion • Single most powerful way to reduce foreign oil dependence

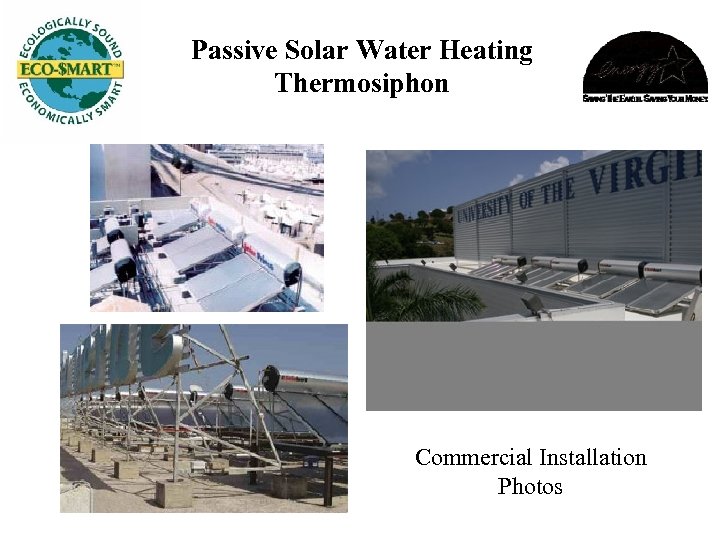

Passive Solar Water Heating Thermosiphon Commercial Installation Photos

Brac Greywater System • Reuses shower and laundry water to flush toilets. • Can save 30% of water and sewer costs / usage.

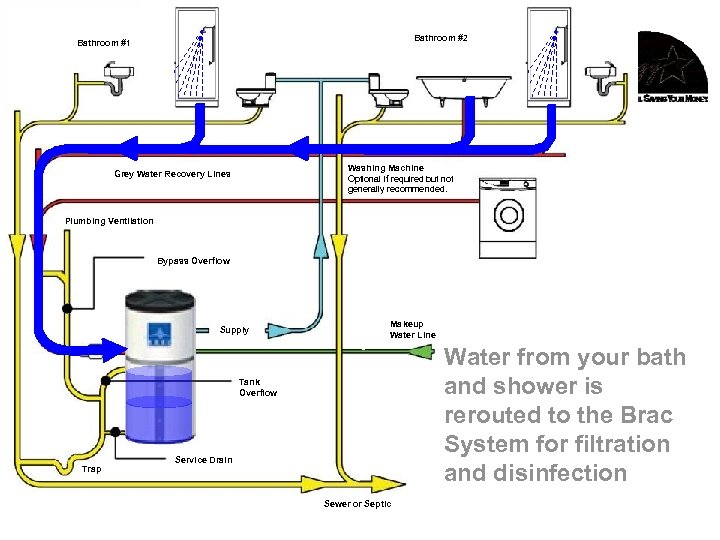

Bathroom #2 Bathroom #1 Washing Machine Optional if required but not generally recommended. Grey Water Recovery Lines Plumbing Ventilation Bypass Overflow Air-ap Supply Makeup Water Line Tank Overflow Trap Service Drain Sewer or Septic Here’s How The System Works In Your Home Water from your bath and shower is rerouted to the Brac System for filtration and disinfection

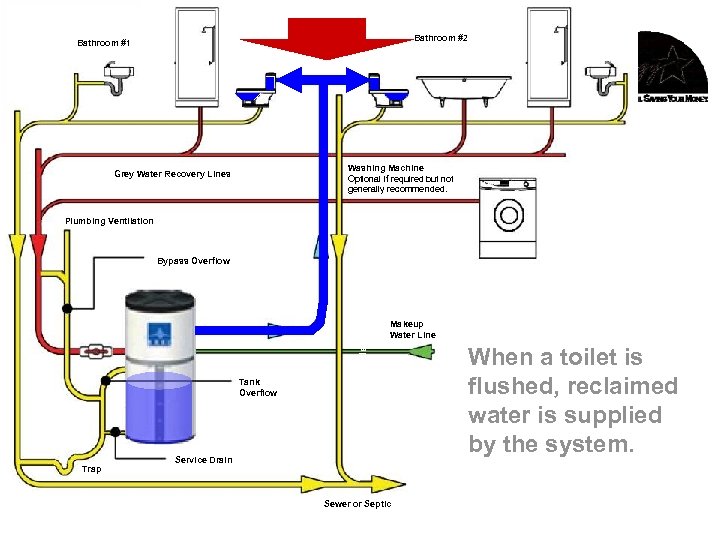

Bathroom #2 Bathroom #1 Washing Machine Optional if required but not generally recommended. Grey Water Recovery Lines Plumbing Ventilation Bypass Overflow Air-Gap Supply Makeup Water Line Tank Overflow Trap Service Drain Sewer or Septic Here’s How The System Works In Your Home When a toilet is flushed, reclaimed water is supplied by the system.

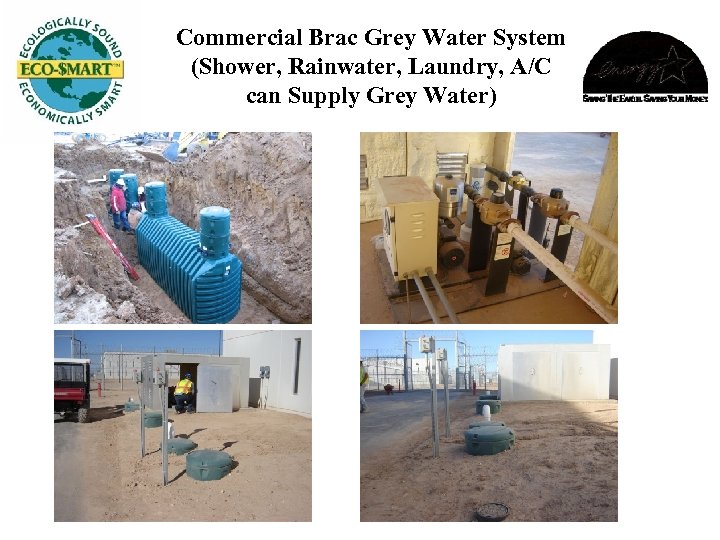

Commercial Brac Grey Water System (Shower, Rainwater, Laundry, A/C can Supply Grey Water)
