The Industrial Network Communication Experts CED Carter Caves

The Industrial Network Communication Experts CED Carter Caves Update June 2005 Jim Ralston

Agenda Company Profile · Product Line Overview · Wireless Technology & Applications · What’s new? · PLR 5000 ¨ PLR 580 ¨ Linc. View OPC ¨ · Linc. View OPC Demo

Company Profile Established in 1988 · Headquarters in Seattle · Design and manufacture industrial data communication solutions · Broadest line of wired and wireless industrial modems ·

Sales Channels More than 300 distributors · Markets products through OEM and private label agreements · Rockwell Alliance Partner since 1990 · Americas ¨ Asia Pacific ¨ Europe (soon!) ¨

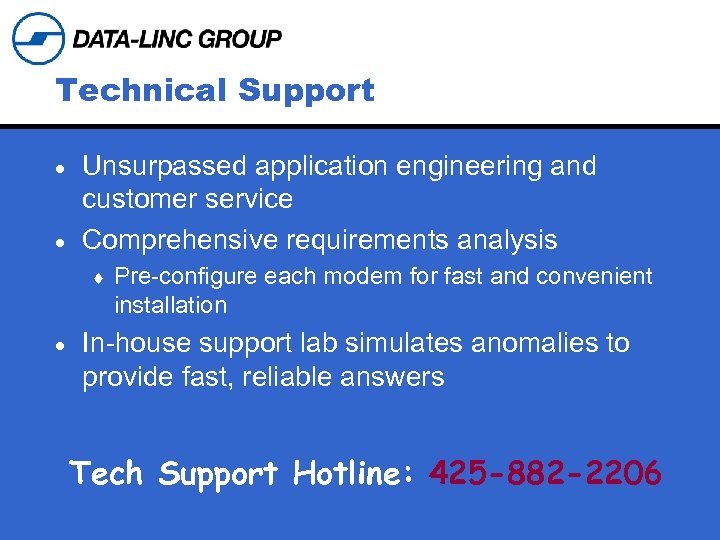

Technical Support Unsurpassed application engineering and customer service · Comprehensive requirements analysis · ¨ · Pre-configure each modem for fast and convenient installation In-house support lab simulates anomalies to provide fast, reliable answers Tech Support Hotline: 425 -882 -2206

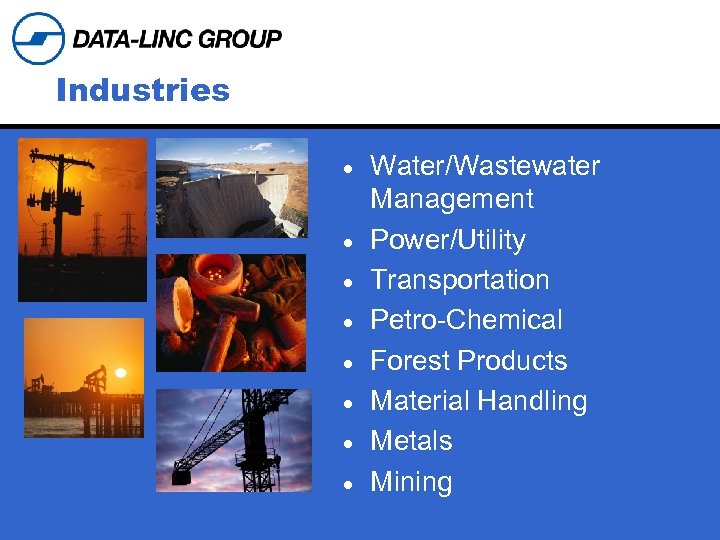

Industries · · · · Water/Wastewater Management Power/Utility Transportation Petro-Chemical Forest Products Material Handling Metals Mining

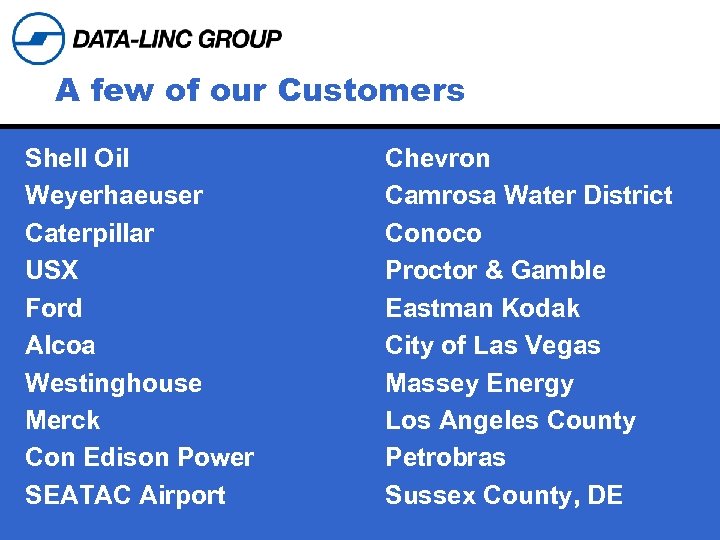

A few of our Customers Shell Oil Weyerhaeuser Caterpillar USX Ford Alcoa Westinghouse Merck Con Edison Power SEATAC Airport Chevron Camrosa Water District Conoco Proctor & Gamble Eastman Kodak City of Las Vegas Massey Energy Los Angeles County Petrobras Sussex County, DE

Technology · High performance, superior quality modems · Robust, reliable data communication in high interference environments · Smart Spectrum. TM frequency hopping technology · Widest range of industrial communication options

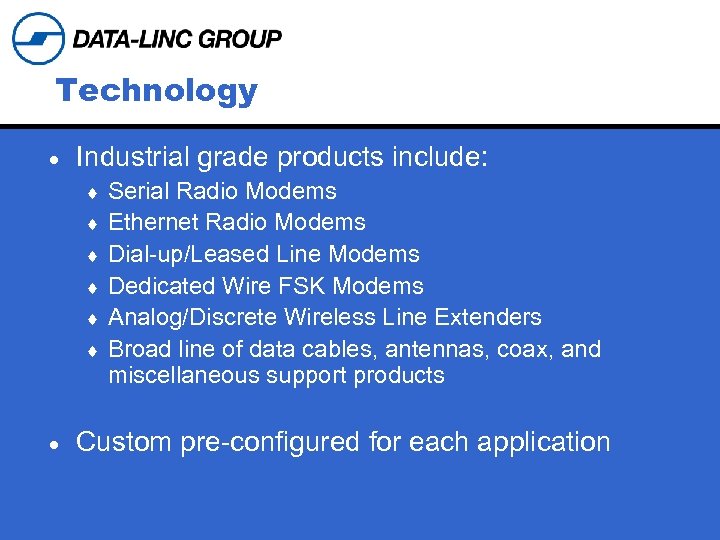

Technology · Industrial grade products include: ¨ ¨ ¨ · Serial Radio Modems Ethernet Radio Modems Dial-up/Leased Line Modems Dedicated Wire FSK Modems Analog/Discrete Wireless Line Extenders Broad line of data cables, antennas, coax, and miscellaneous support products Custom pre-configured for each application

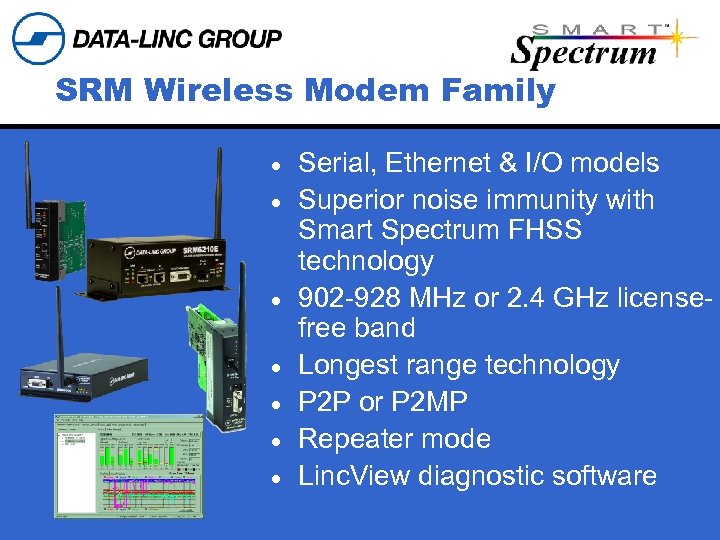

SRM Wireless Modem Family · · · · Serial, Ethernet & I/O models Superior noise immunity with Smart Spectrum FHSS technology 902 -928 MHz or 2. 4 GHz licensefree band Longest range technology P 2 P or P 2 MP Repeater mode Linc. View diagnostic software

Wireless Ethernet Radio Modem · SRM 6210 E 902 -928 MHz licensefree FHSS ¨ Transmits up to 25 miles (40 km) with line-of-sight (farther with repeaters) ¨ 100 Kbps throughput ¨ SLC slot-mount version ¨

Wireless Ethernet Radio Modem · SRM 6310 E 2. 4 – 2. 4835 GHz licensefree FHSS ¨ Transmits up to 10 miles (16 km) with line-of-sight (farther with repeaters) ¨ 100 Kbps ¨ · SRM 6310 E-EU CE/ETSI approved for EU ¨ 5 mile range ¨ 100 Kbps ¨

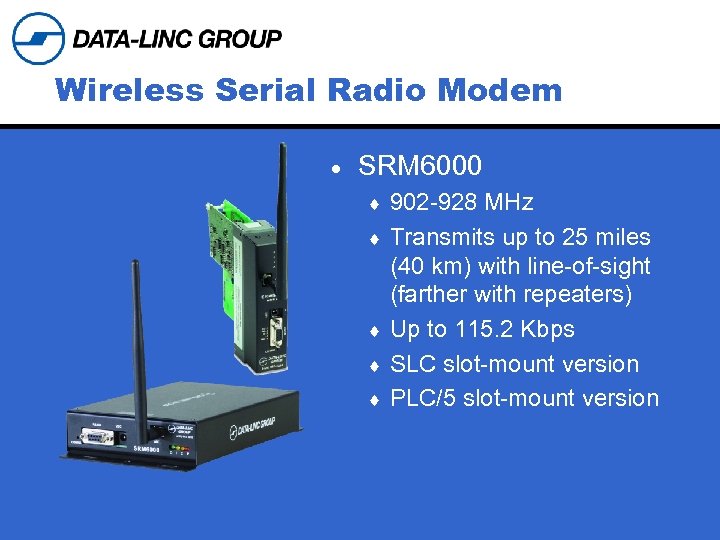

Wireless Serial Radio Modem · SRM 6000 ¨ ¨ ¨ 902 -928 MHz Transmits up to 25 miles (40 km) with line-of-sight (farther with repeaters) Up to 115. 2 Kbps SLC slot-mount version PLC/5 slot-mount version

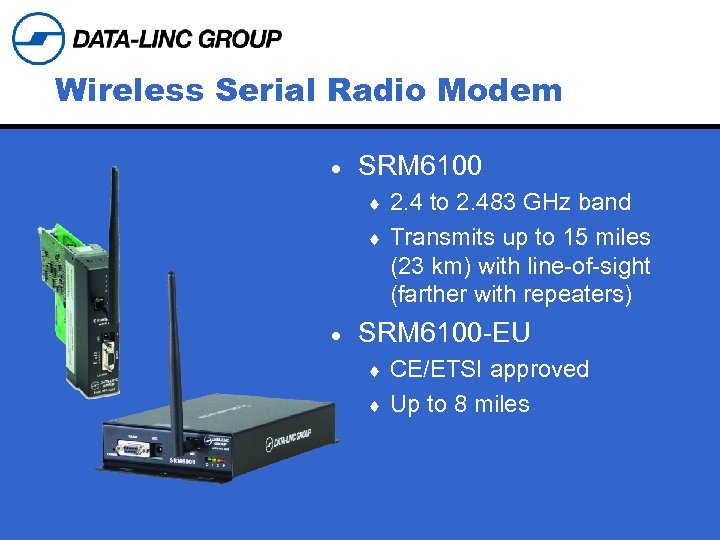

Wireless Serial Radio Modem · SRM 6100 2. 4 to 2. 483 GHz band ¨ Transmits up to 15 miles (23 km) with line-of-sight (farther with repeaters) ¨ · SRM 6100 -EU CE/ETSI approved ¨ Up to 8 miles ¨

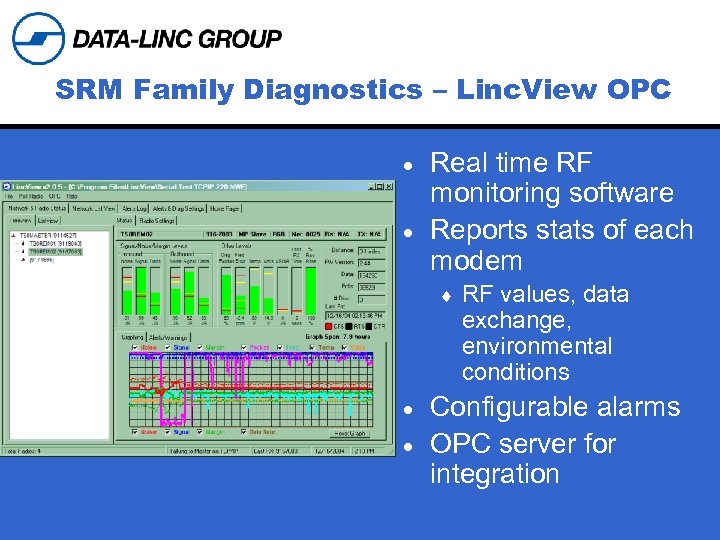

SRM Family Diagnostics – Linc. View OPC Real time RF monitoring software · Reports stats of each modem · ¨ RF values, data exchange, environmental conditions Configurable alarms · OPC server for integration ·

High Speed Ethernet Radio Modem · Fast. Linc 810 E ¨ ¨ ¨ Industrialized 802. 11 b DSSS 200 m. W transmit power for longer distance or more reliable communications Can coexist with the SRM family Access point mode ®Wi-Fi compliant Wireless bridge mode ®Proprietary security 200 m. W PCMCIA card (FLC 800 C)

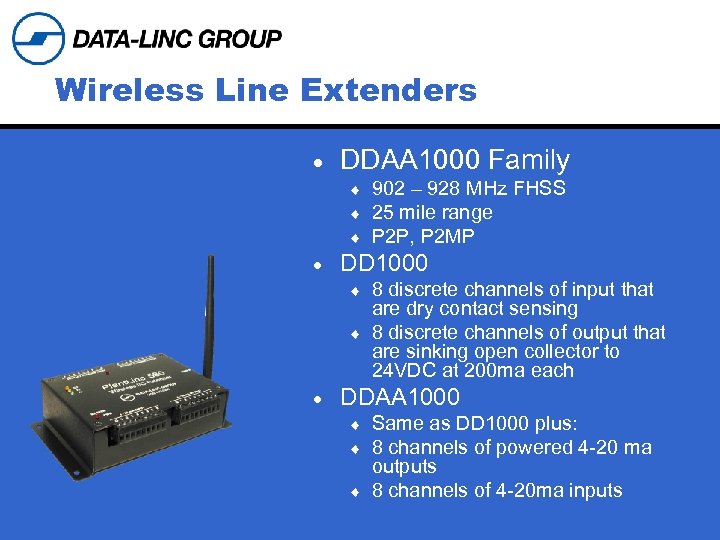

Wireless Line Extenders · DDAA 1000 Family ¨ ¨ ¨ · 902 – 928 MHz FHSS 25 mile range P 2 P, P 2 MP DD 1000 8 discrete channels of input that are dry contact sensing ¨ 8 discrete channels of output that are sinking open collector to 24 VDC at 200 ma each ¨ · DDAA 1000 Same as DD 1000 plus: 8 channels of powered 4 -20 ma outputs ¨ 8 channels of 4 -20 ma inputs ¨ ¨

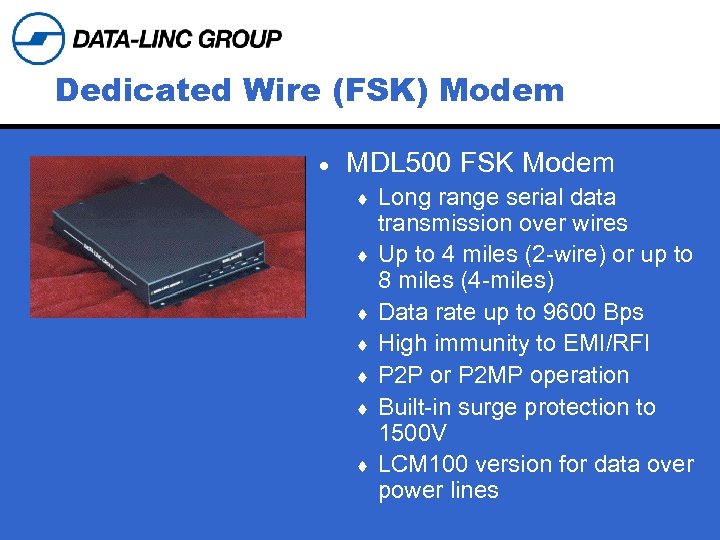

Dedicated Wire (FSK) Modem · MDL 500 FSK Modem ¨ ¨ ¨ ¨ Long range serial data transmission over wires Up to 4 miles (2 -wire) or up to 8 miles (4 -miles) Data rate up to 9600 Bps High immunity to EMI/RFI P 2 P or P 2 MP operation Built-in surge protection to 1500 V LCM 100 version for data over power lines

Lease-Line Modem · LLM 1100 Bell 202 Modem P 2 P or P 2 MP serial data over: ®Leased telco lines ®Dedicated copper (20 miles) ¨ Up to 1200 Bps ¨ RTS control unnecessary ¨ Ideal for multi-point SCADA applications ¨

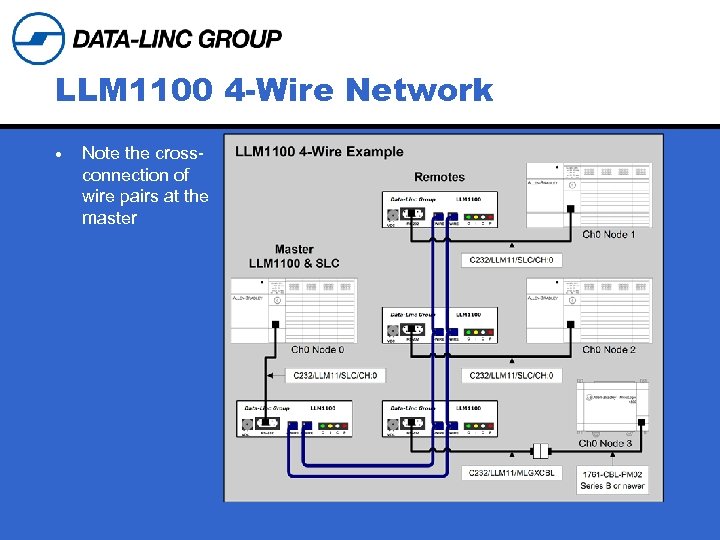

LLM 1100 4 -Wire Network · Note the crossconnection of wire pairs at the master

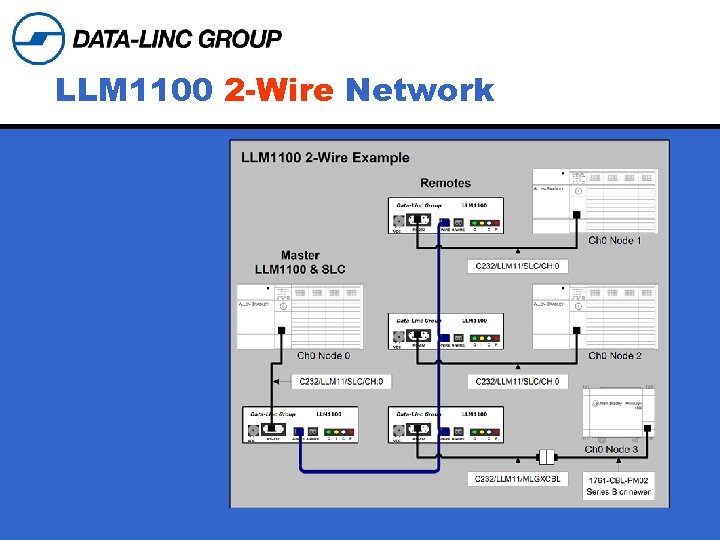

LLM 1100 2 -Wire Network

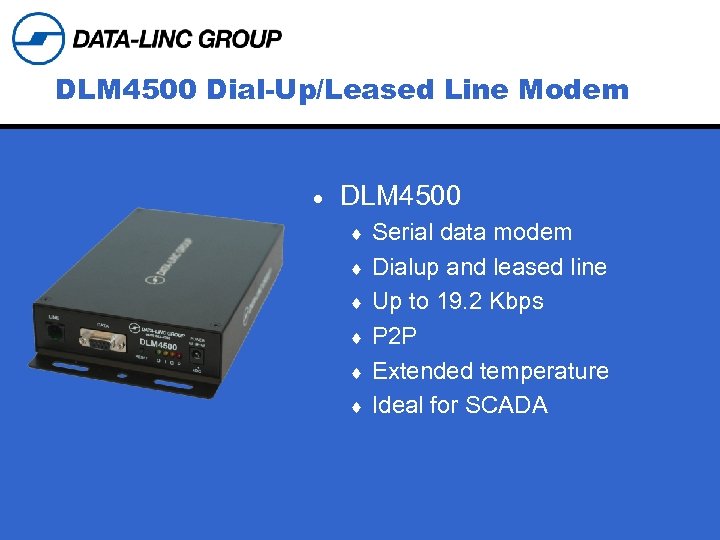

DLM 4500 Dial-Up/Leased Line Modem · DLM 4500 ¨ ¨ ¨ Serial data modem Dialup and leased line Up to 19. 2 Kbps P 2 P Extended temperature Ideal for SCADA

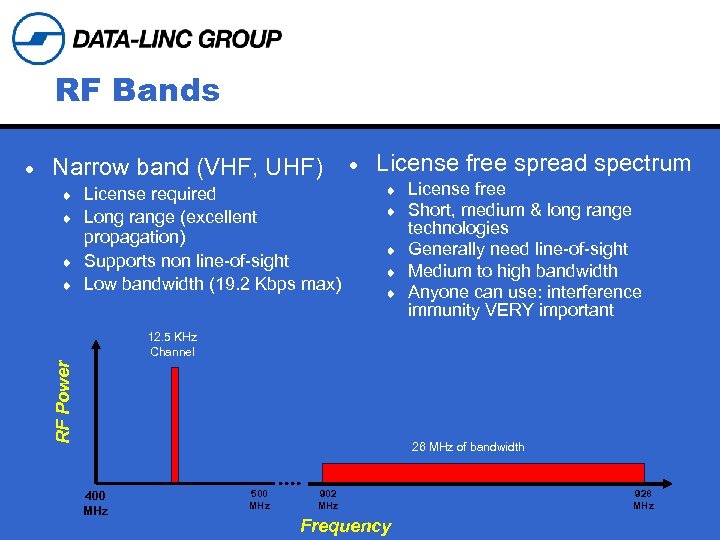

RF Bands Narrow band (VHF, UHF) License required ¨ Long range (excellent propagation) ¨ Supports non line-of-sight ¨ Low bandwidth (19. 2 Kbps max) ¨ · License free spread spectrum License free Short, medium & long range technologies ¨ Generally need line-of-sight ¨ Medium to high bandwidth ¨ Anyone can use: interference immunity VERY important ¨ ¨ 12. 5 KHz Channel RF Power · 26 MHz of bandwidth 400 MHz 500 MHz 902 MHz Frequency 928 MHz

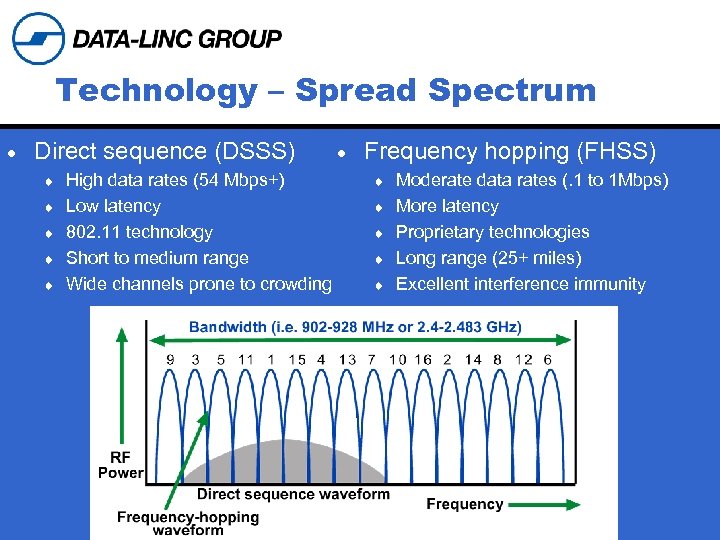

Technology – Spread Spectrum · Direct sequence (DSSS) ¨ ¨ ¨ High data rates (54 Mbps+) Low latency 802. 11 technology Short to medium range Wide channels prone to crowding · Frequency hopping (FHSS) ¨ ¨ ¨ Moderate data rates (. 1 to 1 Mbps) More latency Proprietary technologies Long range (25+ miles) Excellent interference immunity

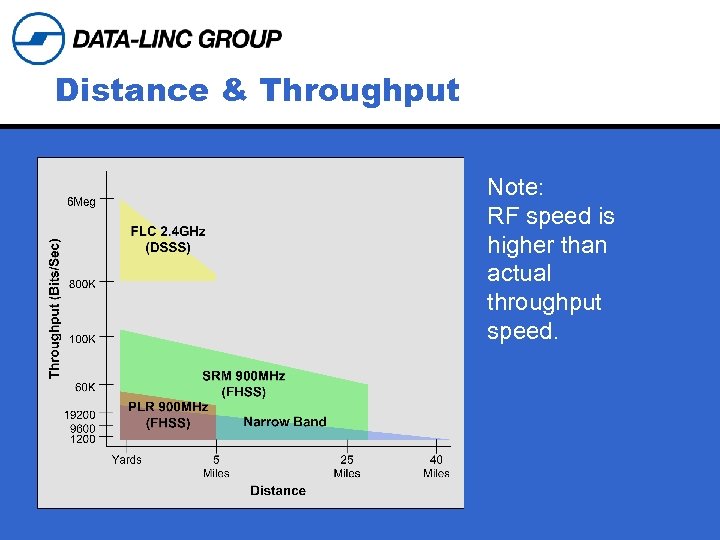

Distance & Throughput Note: RF speed is higher than actual throughput speed.

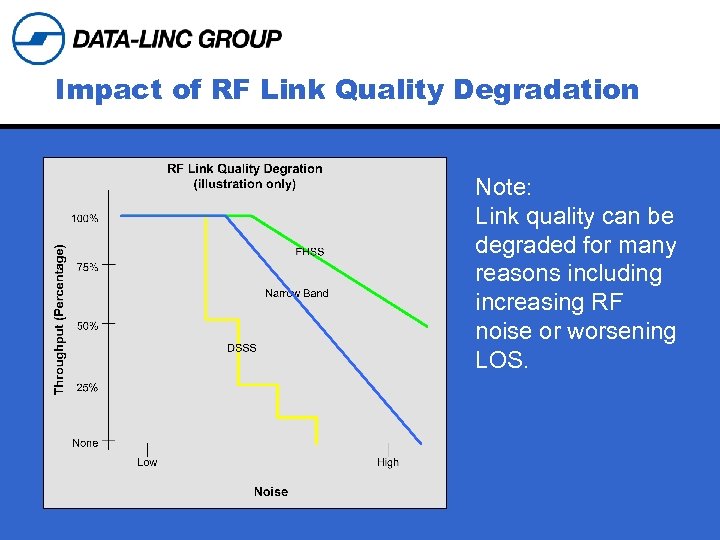

Impact of RF Link Quality Degradation Note: Link quality can be degraded for many reasons including increasing RF noise or worsening LOS.

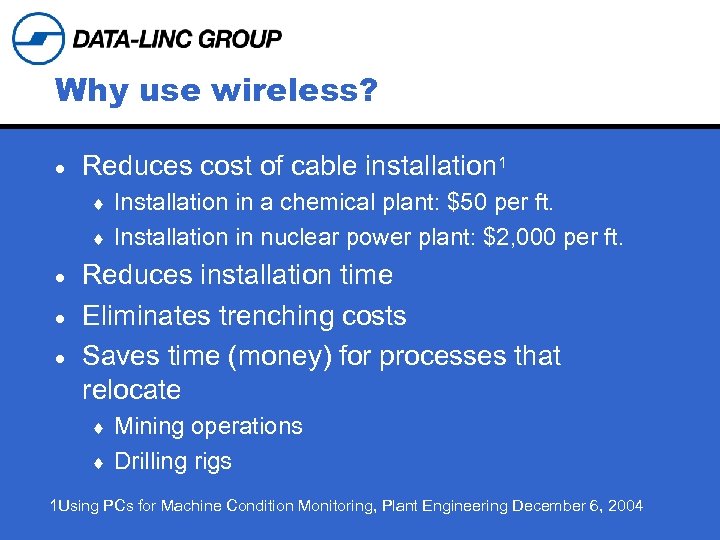

Why use wireless? · Reduces cost of cable installation 1 Installation in a chemical plant: $50 per ft. ¨ Installation in nuclear power plant: $2, 000 per ft. ¨ Reduces installation time · Eliminates trenching costs · Saves time (money) for processes that relocate · Mining operations ¨ Drilling rigs ¨ 1 Using PCs for Machine Condition Monitoring, Plant Engineering December 6, 2004

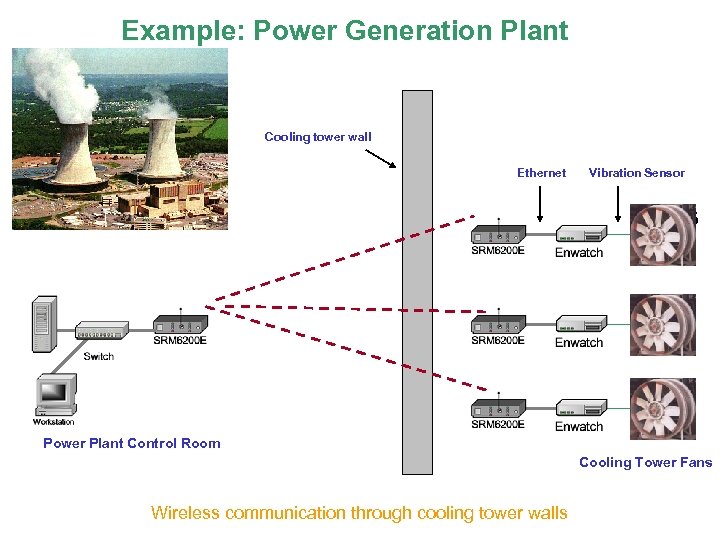

Example: Power Generation Plant Cooling tower wall Ethernet Vibration Sensor PLC 5 Power Plant Control Room Cooling Tower Fans Wireless communication through cooling tower walls

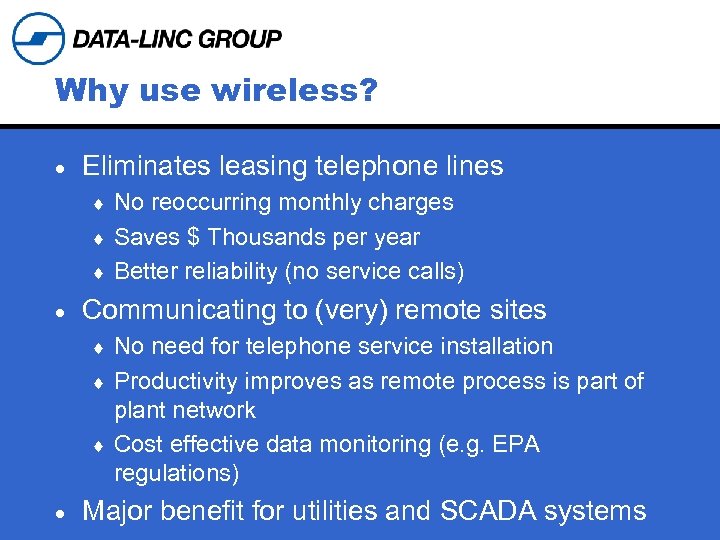

Why use wireless? · Eliminates leasing telephone lines No reoccurring monthly charges ¨ Saves $ Thousands per year ¨ Better reliability (no service calls) ¨ · Communicating to (very) remote sites No need for telephone service installation ¨ Productivity improves as remote process is part of plant network ¨ Cost effective data monitoring (e. g. EPA regulations) ¨ · Major benefit for utilities and SCADA systems

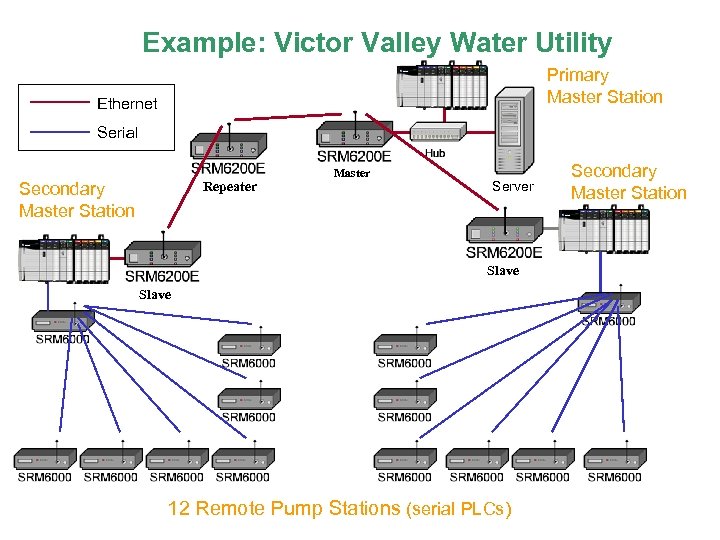

Example: Victor Valley Water Utility Primary Master Station Ethernet Serial Repeater Secondary Master Station Master Server Slave 12 Remote Pump Stations (serial PLCs) Secondary Master Station

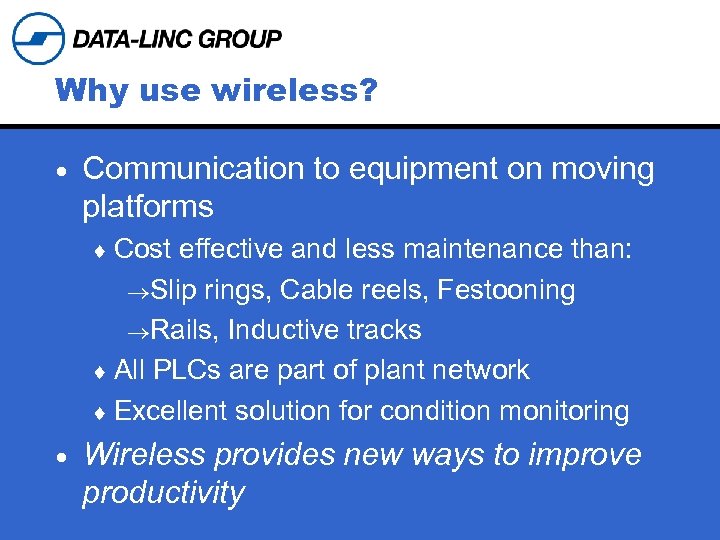

Why use wireless? · Communication to equipment on moving platforms ¨ Cost effective and less maintenance than: ®Slip rings, Cable reels, Festooning ®Rails, Inductive tracks ¨ All PLCs are part of plant network ¨ Excellent solution for condition monitoring · Wireless provides new ways to improve productivity

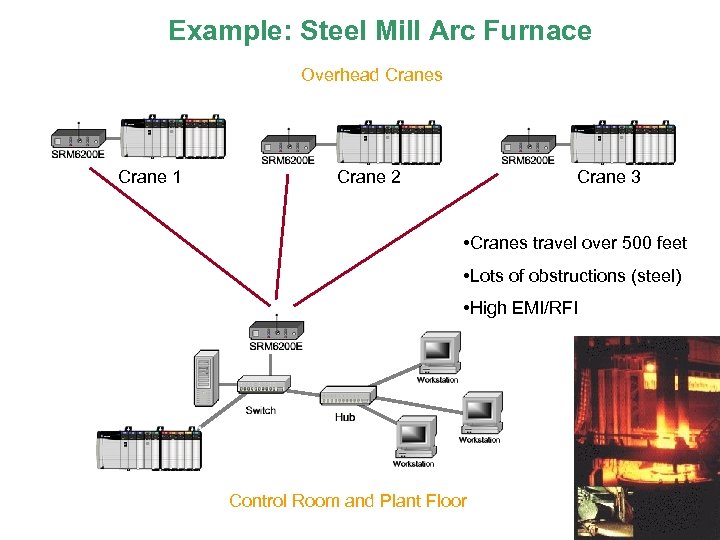

Example: Steel Mill Arc Furnace Overhead Cranes Crane 1 Crane 2 Crane 3 • Cranes travel over 500 feet • Lots of obstructions (steel) • High EMI/RFI Control Room and Plant Floor

Why use wireless? · Portability ¨ Plant network access where needed ¨ Improves maintenance capabilities ¨ Mobile HMI (e. g. Mobile. View) ¨ Ideal for contractors (SIs) during start ups

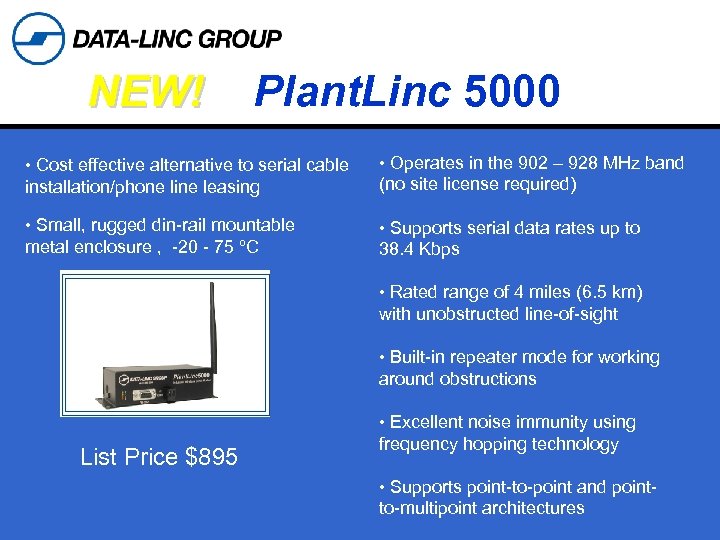

NEW! Plant. Linc 5000 • Cost effective alternative to serial cable installation/phone line leasing • Operates in the 902 – 928 MHz band (no site license required) • Small, rugged din-rail mountable metal enclosure , -20 - 75 ºC • Supports serial data rates up to 38. 4 Kbps • Rated range of 4 miles (6. 5 km) with unobstructed line-of-sight • Built-in repeater mode for working around obstructions List Price $895 • Excellent noise immunity using frequency hopping technology • Supports point-to-point and pointto-multipoint architectures

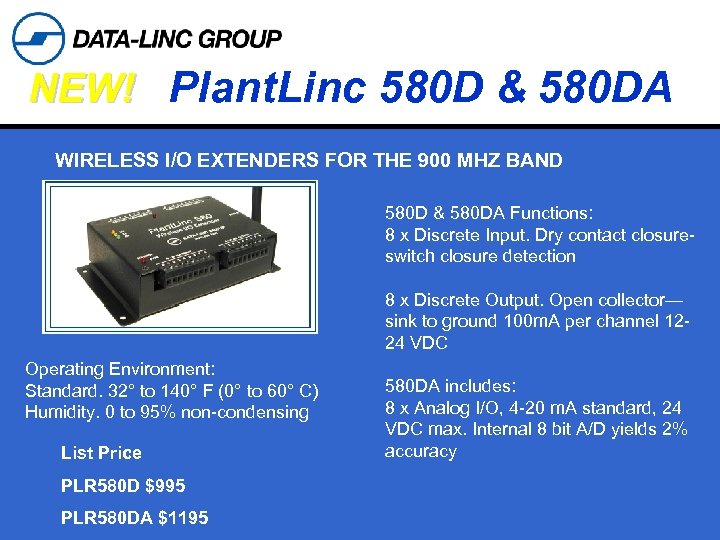

NEW! Plant. Linc 580 D & 580 DA WIRELESS I/O EXTENDERS FOR THE 900 MHZ BAND 580 D & 580 DA Functions: 8 x Discrete Input. Dry contact closureswitch closure detection 8 x Discrete Output. Open collector— sink to ground 100 m. A per channel 1224 VDC Operating Environment: Standard. 32° to 140° F (0° to 60° C) Humidity. 0 to 95% non-condensing List Price PLR 580 D $995 PLR 580 DA $1195 580 DA includes: 8 x Analog I/O, 4 -20 m. A standard, 24 VDC max. Internal 8 bit A/D yields 2% accuracy

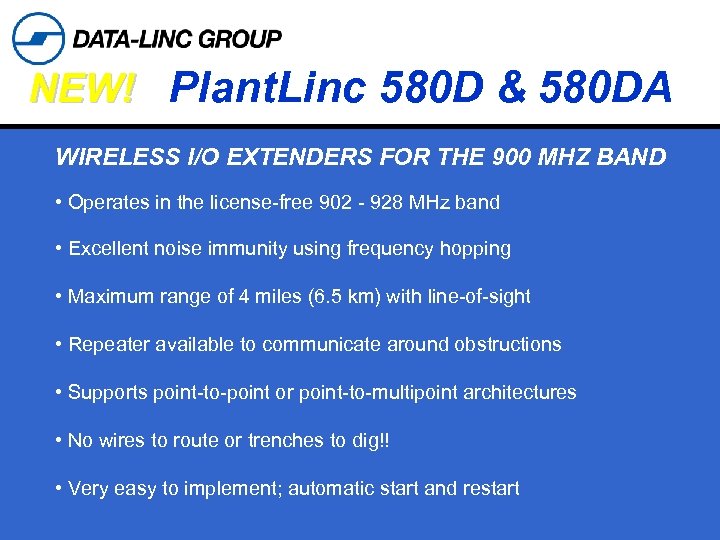

NEW! Plant. Linc 580 D & 580 DA WIRELESS I/O EXTENDERS FOR THE 900 MHZ BAND • Operates in the license-free 902 - 928 MHz band • Excellent noise immunity using frequency hopping • Maximum range of 4 miles (6. 5 km) with line-of-sight • Repeater available to communicate around obstructions • Supports point-to-point or point-to-multipoint architectures • No wires to route or trenches to dig!! • Very easy to implement; automatic start and restart

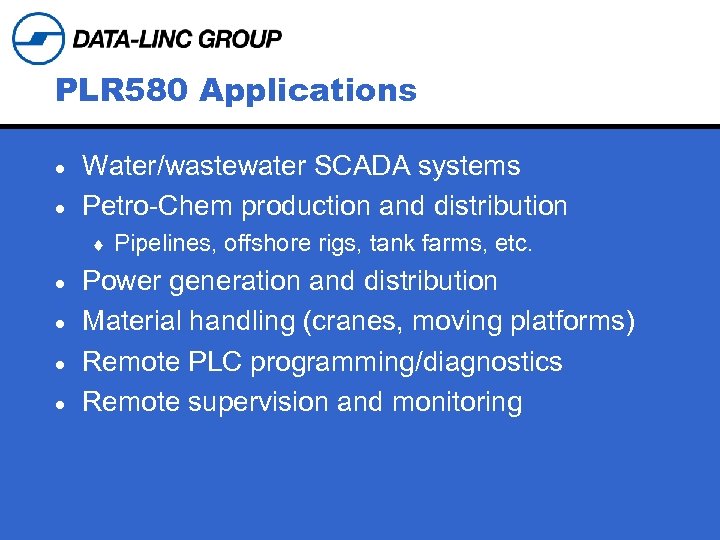

PLR 580 Applications Water/wastewater SCADA systems · Petro-Chem production and distribution · ¨ Pipelines, offshore rigs, tank farms, etc. Power generation and distribution · Material handling (cranes, moving platforms) · Remote PLC programming/diagnostics · Remote supervision and monitoring ·

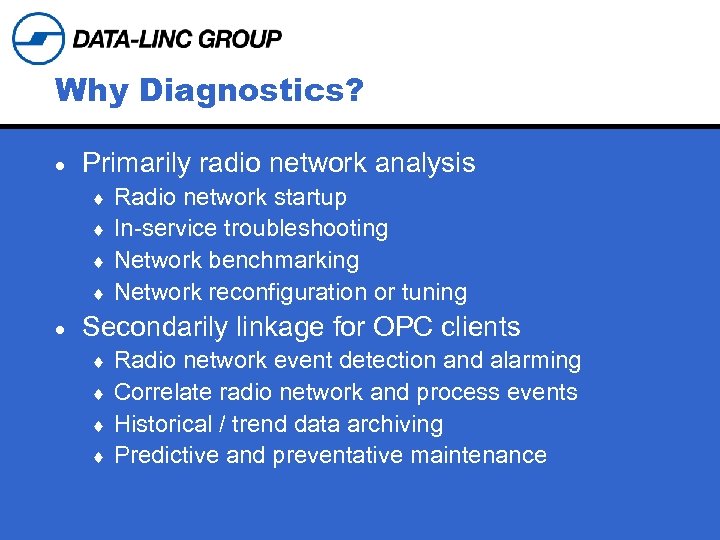

Why Diagnostics? · Primarily radio network analysis Radio network startup ¨ In-service troubleshooting ¨ Network benchmarking ¨ Network reconfiguration or tuning ¨ · Secondarily linkage for OPC clients Radio network event detection and alarming ¨ Correlate radio network and process events ¨ Historical / trend data archiving ¨ Predictive and preventative maintenance ¨

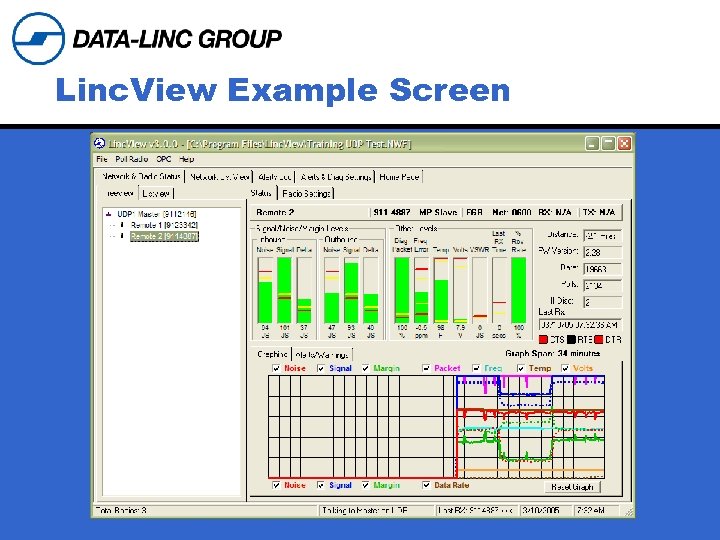

Linc. View Example Screen

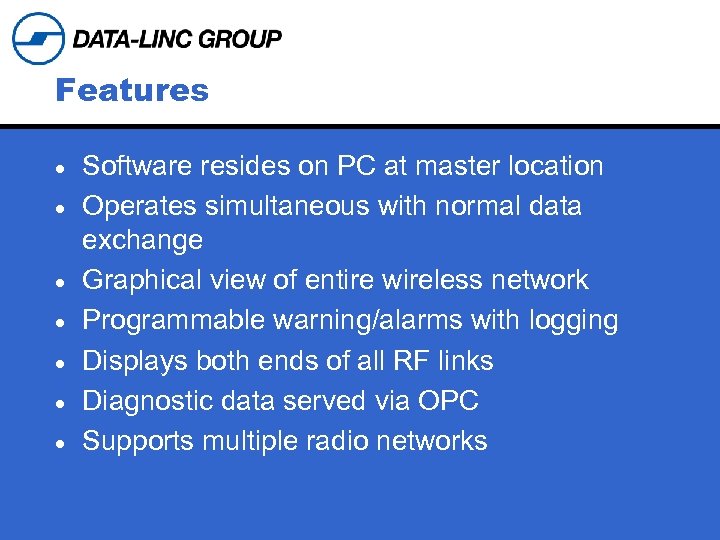

Features · · · · Software resides on PC at master location Operates simultaneous with normal data exchange Graphical view of entire wireless network Programmable warning/alarms with logging Displays both ends of all RF links Diagnostic data served via OPC Supports multiple radio networks

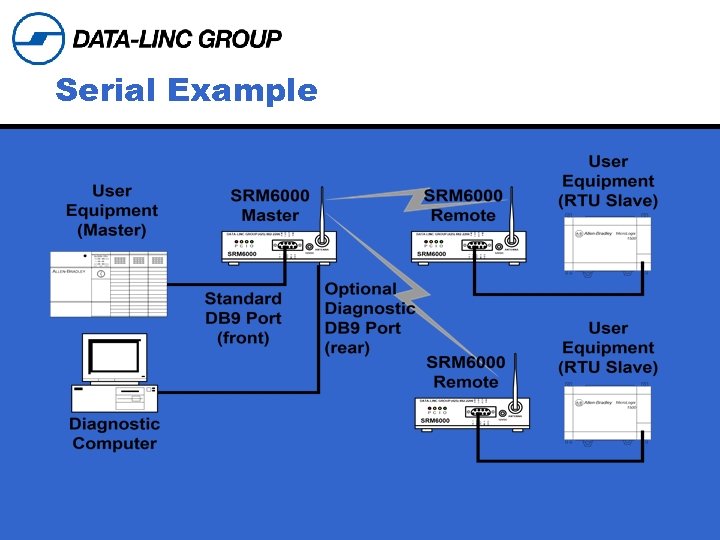

Serial Example

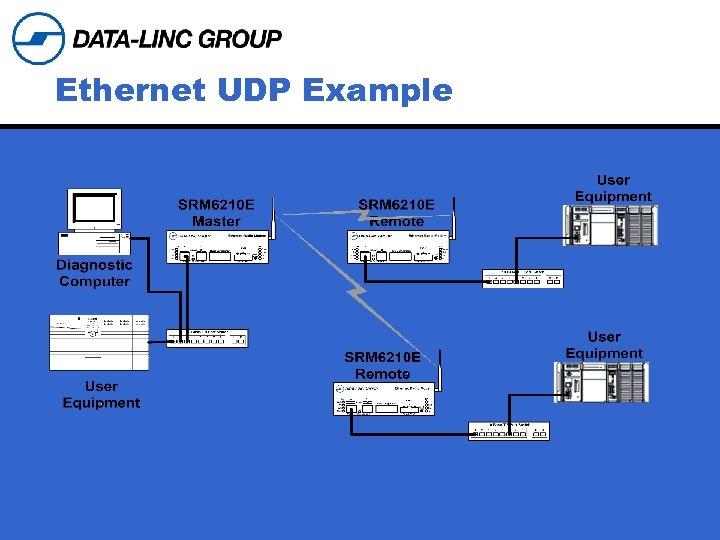

Ethernet UDP Example

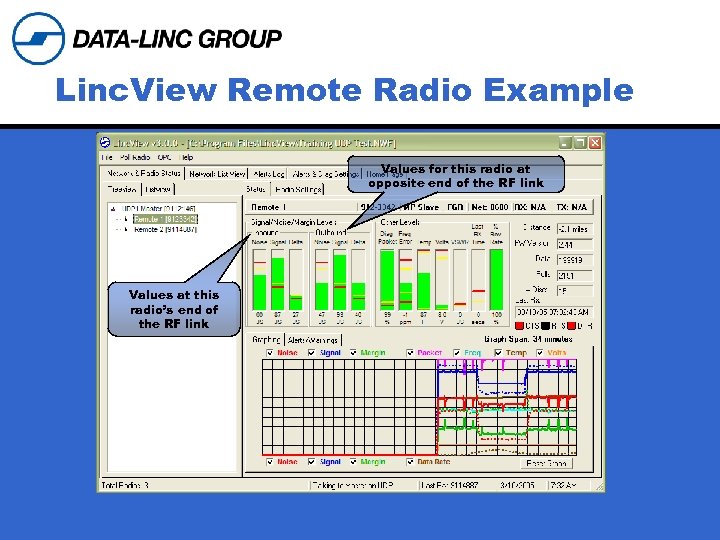

Linc. View Remote Radio Example Values for this radio at opposite end of the RF link Values at this radio’s end of the RF link

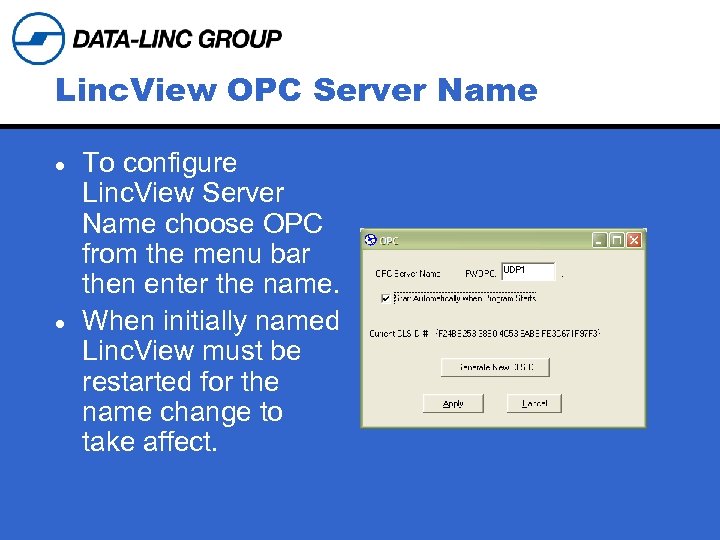

Linc. View OPC Server Name To configure Linc. View Server Name choose OPC from the menu bar then enter the name. · When initially named Linc. View must be restarted for the name change to take affect. ·

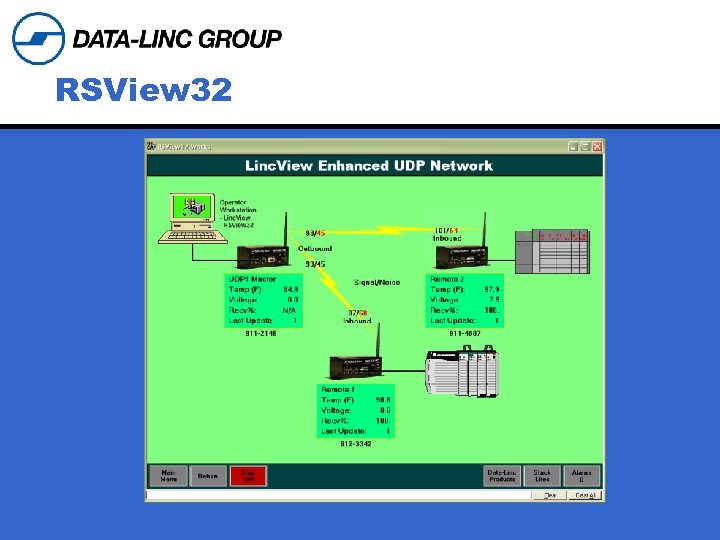

RSView 32

RSView 32 Internal Setup (Cont. ) · Using the node editor create a node and attach to the Linc. View OPC server name.

RSView 32 Internal Setup (Cont. ) · Using the RSView 32 tag database, create a new tag and associate it to a Linc. View radio value.

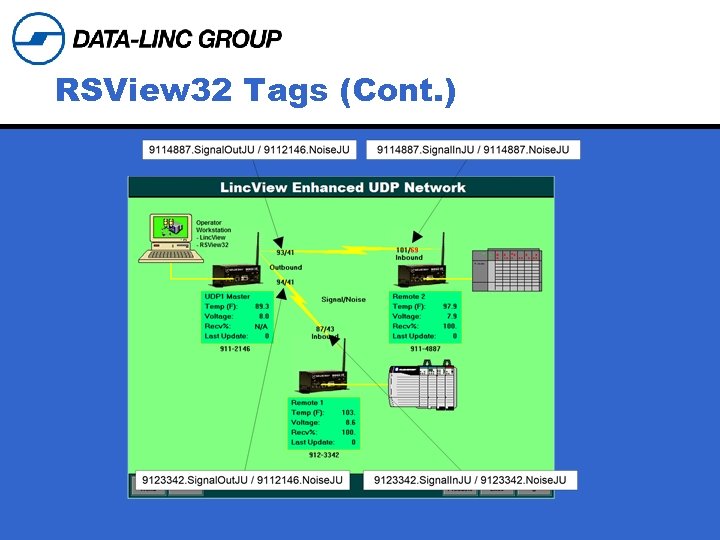

RSView 32 Tags (Cont. )

Thank You! The Leader in Industrial Data Communication Solutions 425 -882 -2206 www. data-linc. com
