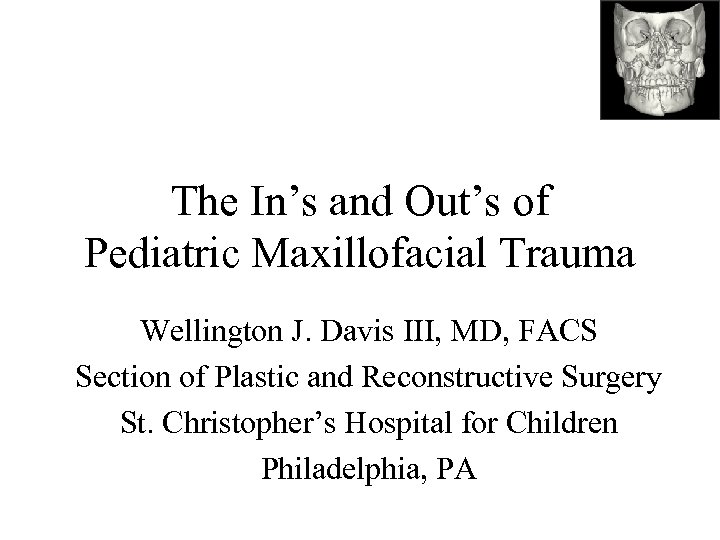

The In’s and Out’s of Pediatric Maxillofacial Trauma Wellington J. Davis III, MD, FACS Section of Plastic and Reconstructive Surgery St. Christopher’s Hospital for Children Philadelphia, PA

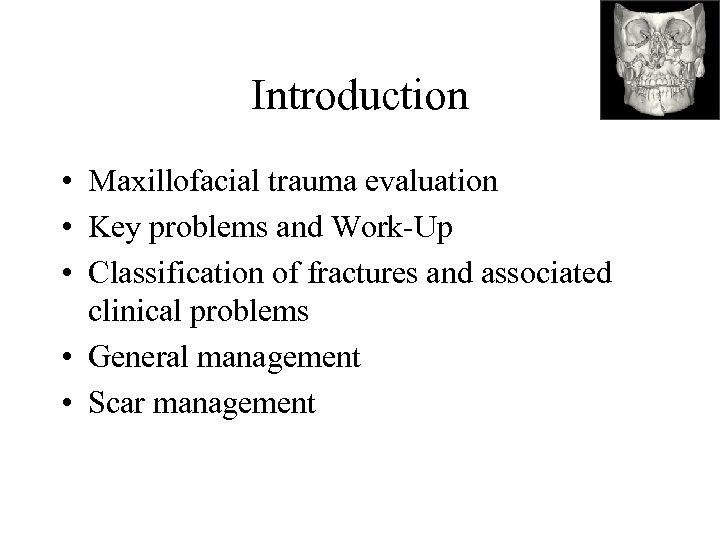

Introduction • Maxillofacial trauma evaluation • Key problems and Work-Up • Classification of fractures and associated clinical problems • General management • Scar management

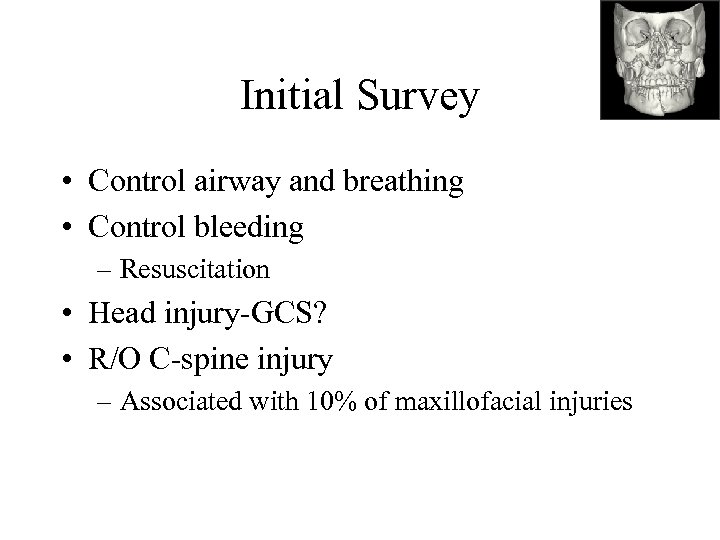

Initial Survey • Control airway and breathing • Control bleeding – Resuscitation • Head injury-GCS? • R/O C-spine injury – Associated with 10% of maxillofacial injuries

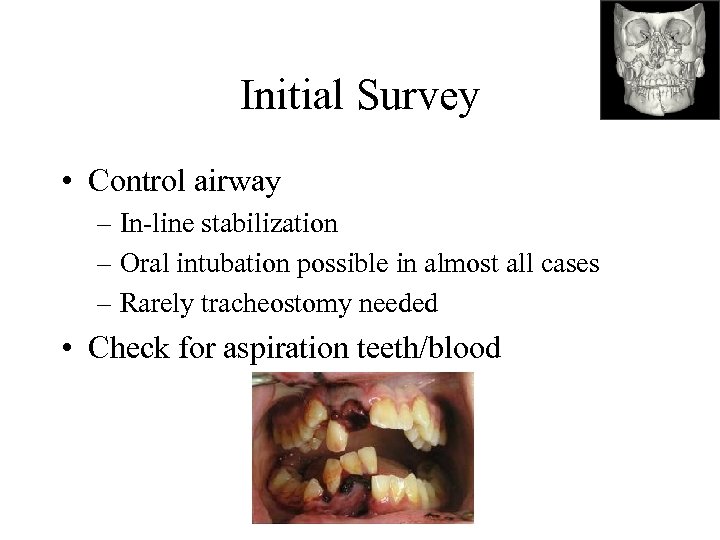

Initial Survey • Control airway – In-line stabilization – Oral intubation possible in almost all cases – Rarely tracheostomy needed • Check for aspiration teeth/blood

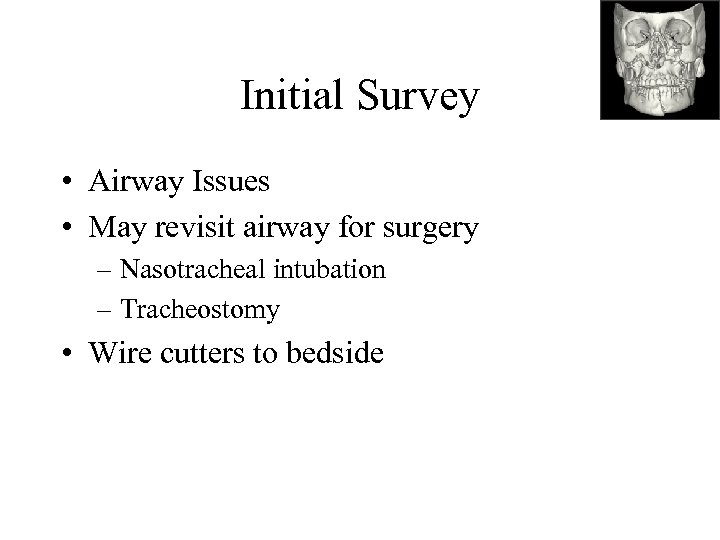

Initial Survey • Airway Issues • May revisit airway for surgery – Nasotracheal intubation – Tracheostomy • Wire cutters to bedside

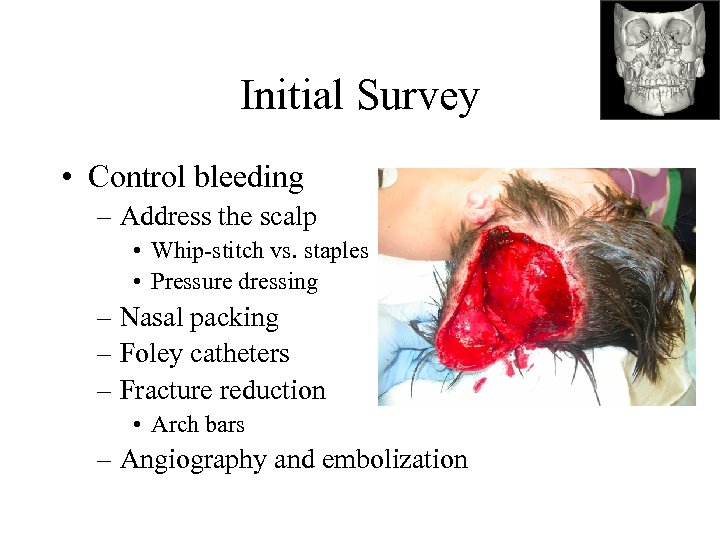

Initial Survey • Control bleeding – Address the scalp • Whip-stitch vs. staples • Pressure dressing – Nasal packing – Foley catheters – Fracture reduction • Arch bars – Angiography and embolization

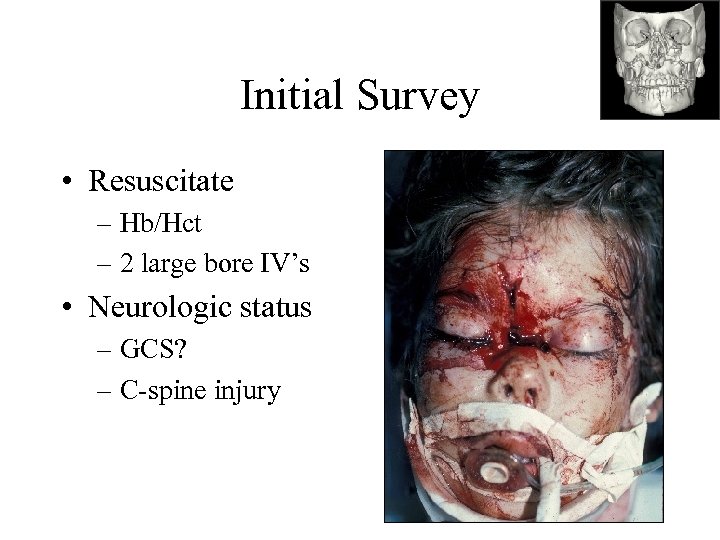

Initial Survey • Resuscitate – Hb/Hct – 2 large bore IV’s • Neurologic status – GCS? – C-spine injury

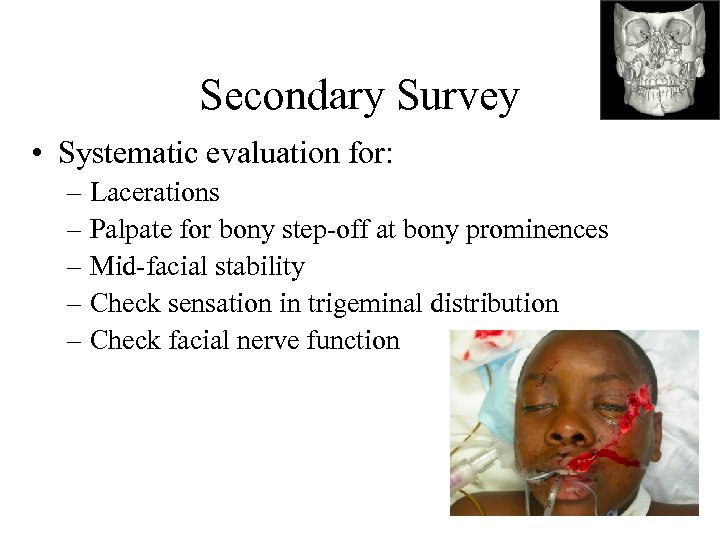

Secondary Survey • Systematic evaluation for: – Lacerations – Palpate for bony step-off at bony prominences – Mid-facial stability – Check sensation in trigeminal distribution – Check facial nerve function

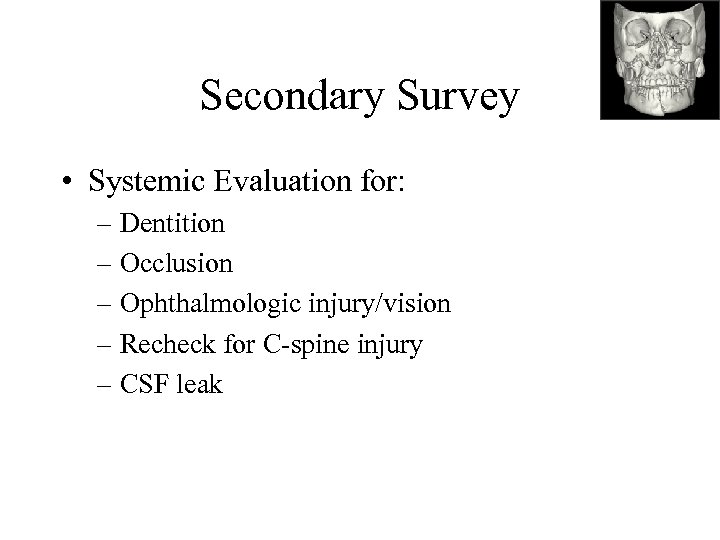

Secondary Survey • Systemic Evaluation for: – Dentition – Occlusion – Ophthalmologic injury/vision – Recheck for C-spine injury – CSF leak

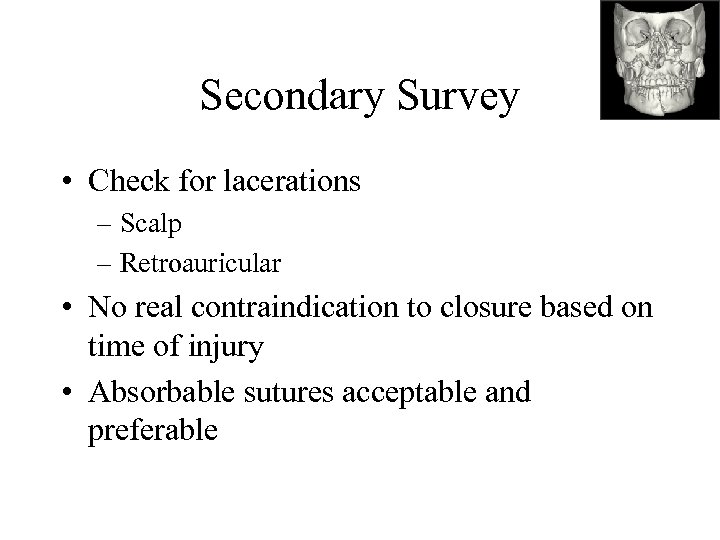

Secondary Survey • Check for lacerations – Scalp – Retroauricular • No real contraindication to closure based on time of injury • Absorbable sutures acceptable and preferable

Secondary Survey • Palpate step-offs – No step-off, CT scan may not be indicated • Bimanual maxillary exam • Critical to document sensation and vision prior to surgery • Facial nerve evaluation – – Raise brows Eye closure Puff cheeks Smile

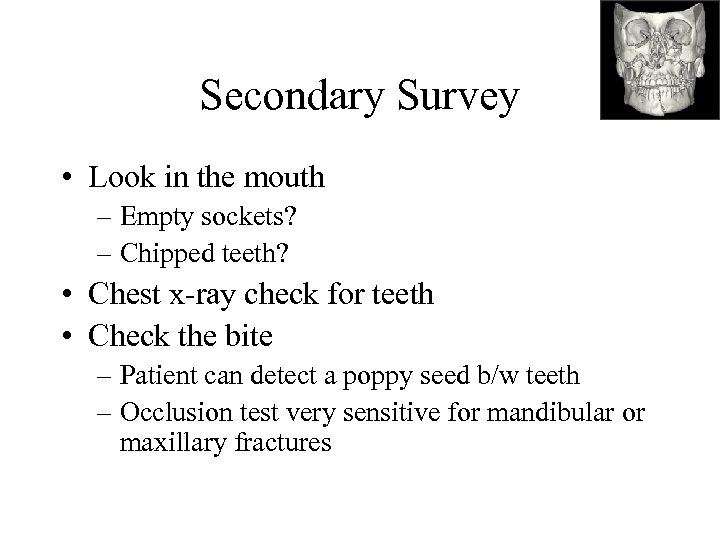

Secondary Survey • Look in the mouth – Empty sockets? – Chipped teeth? • Chest x-ray check for teeth • Check the bite – Patient can detect a poppy seed b/w teeth – Occlusion test very sensitive for mandibular or maxillary fractures

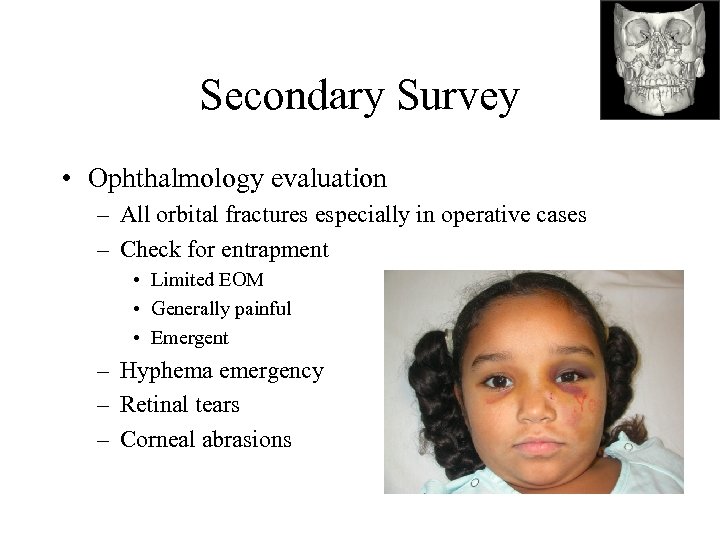

Secondary Survey • Ophthalmology evaluation – All orbital fractures especially in operative cases – Check for entrapment • Limited EOM • Generally painful • Emergent – Hyphema emergency – Retinal tears – Corneal abrasions

Secondary Survey • Re-check the neck • CSF leak, dural tear – Beta-transferrin

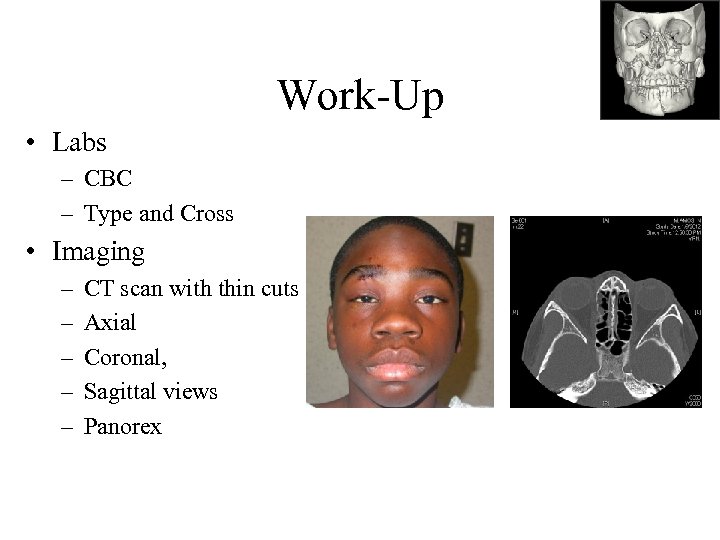

Work-Up • Labs – CBC – Type and Cross • Imaging – – – CT scan with thin cuts Axial Coronal, Sagittal views Panorex

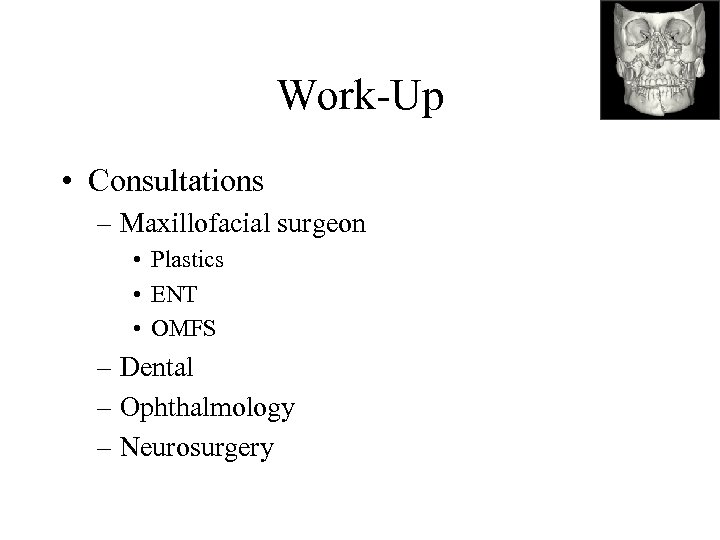

Work-Up • Consultations – Maxillofacial surgeon • Plastics • ENT • OMFS – Dental – Ophthalmology – Neurosurgery

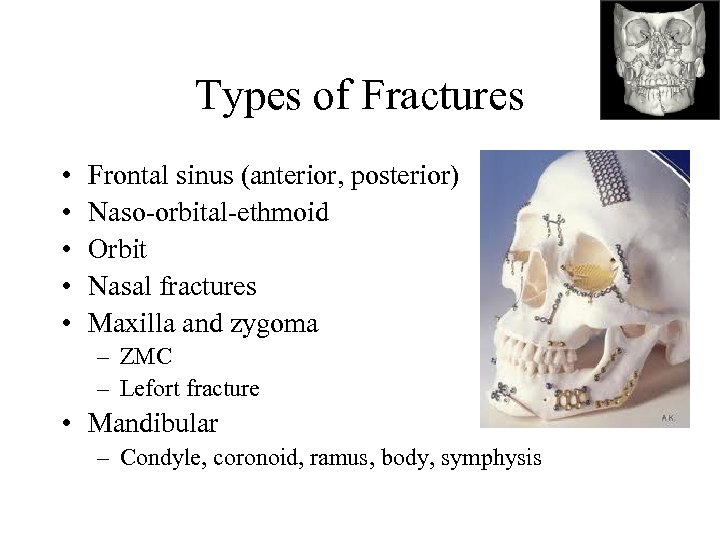

Types of Fractures • • • Frontal sinus (anterior, posterior) Naso-orbital-ethmoid Orbit Nasal fractures Maxilla and zygoma – ZMC – Lefort fracture • Mandibular – Condyle, coronoid, ramus, body, symphysis

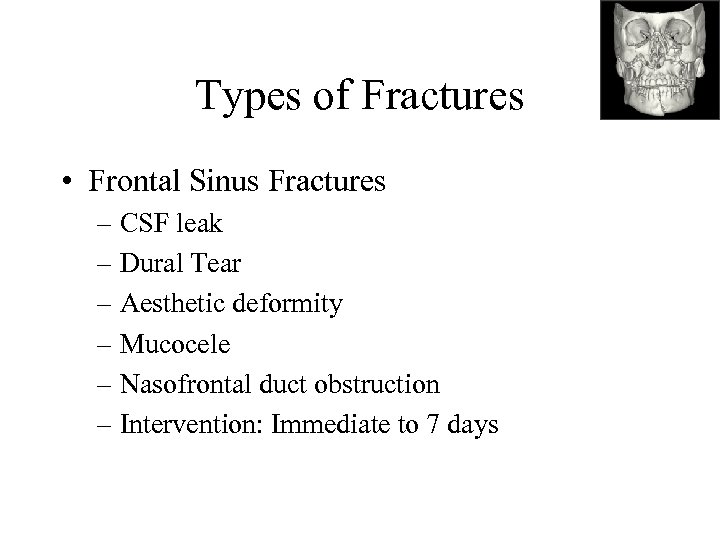

Types of Fractures • Frontal Sinus Fractures – CSF leak – Dural Tear – Aesthetic deformity – Mucocele – Nasofrontal duct obstruction – Intervention: Immediate to 7 days

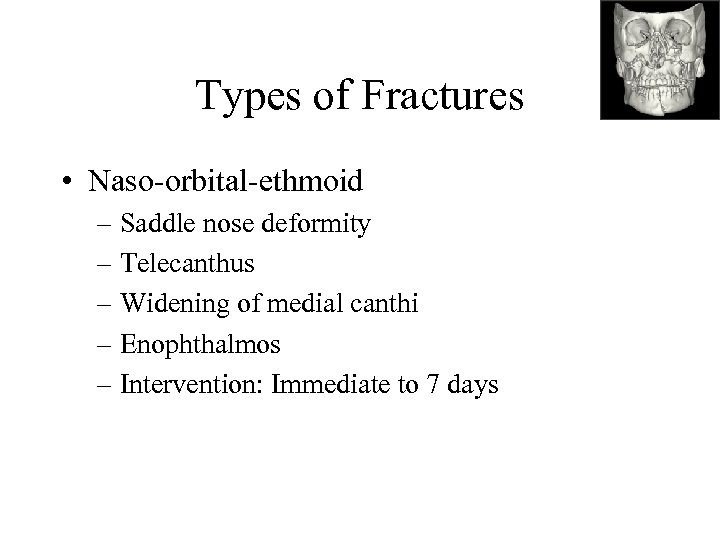

Types of Fractures • Naso-orbital-ethmoid – Saddle nose deformity – Telecanthus – Widening of medial canthi – Enophthalmos – Intervention: Immediate to 7 days

NOE Fracture Osler Archives

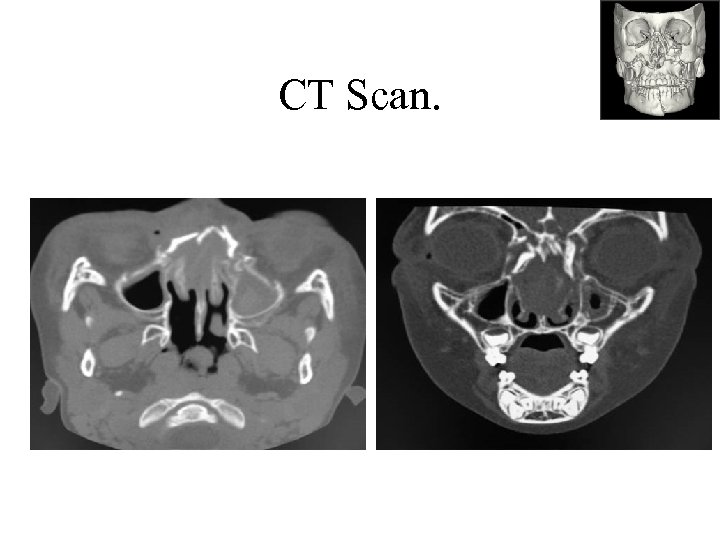

CT Scan.

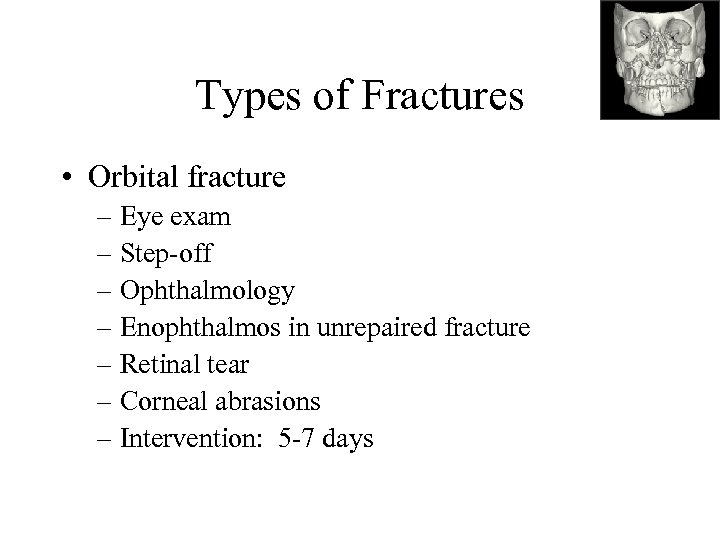

Types of Fractures • Orbital fracture – Eye exam – Step-off – Ophthalmology – Enophthalmos in unrepaired fracture – Retinal tear – Corneal abrasions – Intervention: 5 -7 days

Orbital Floor Fracture

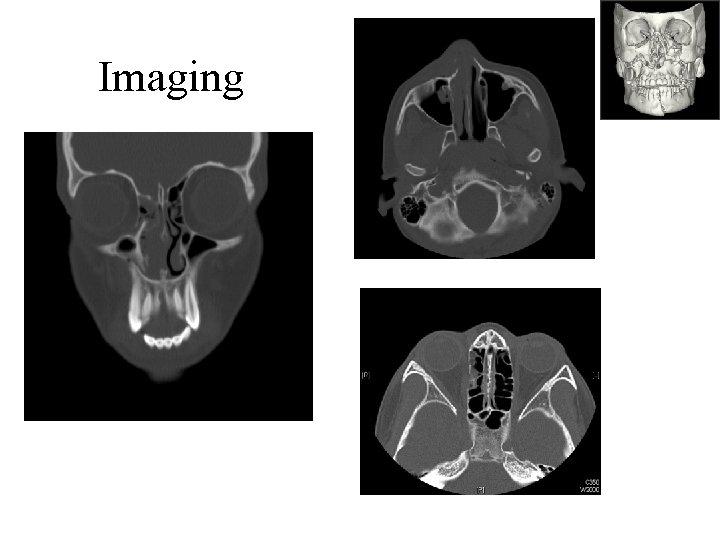

Imaging

Intra-op

Post-op

Medial Wall Fracture With Entrapment

Imaging

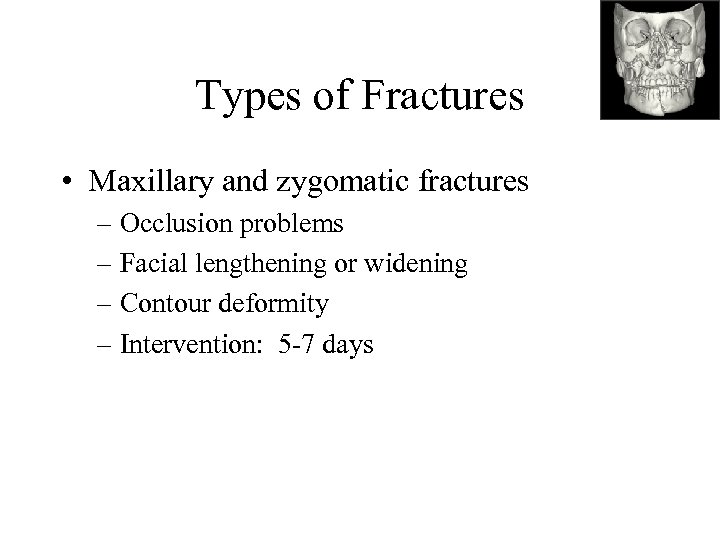

Types of Fractures • Maxillary and zygomatic fractures – Occlusion problems – Facial lengthening or widening – Contour deformity – Intervention: 5 -7 days

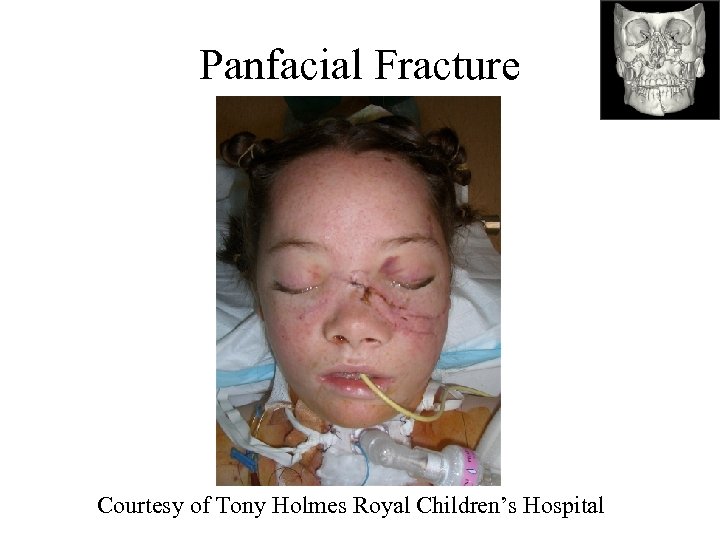

Panfacial Fracture Courtesy of Tony Holmes Royal Children’s Hospital

3 D CT scan

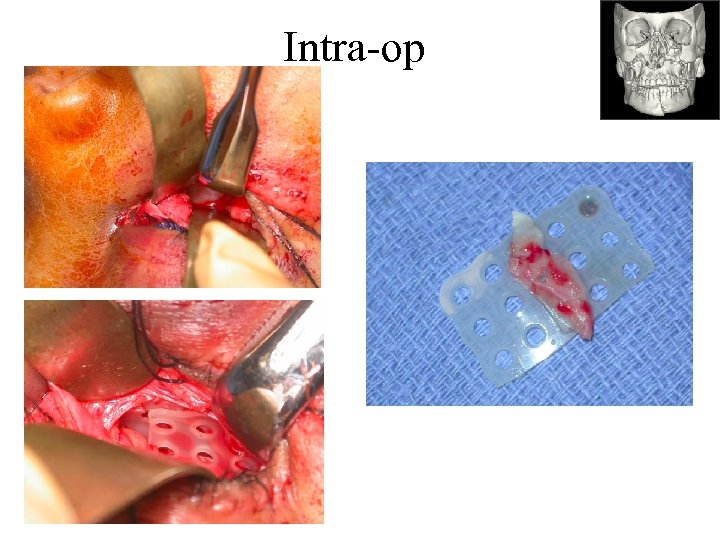

Intra-op

Intra-op

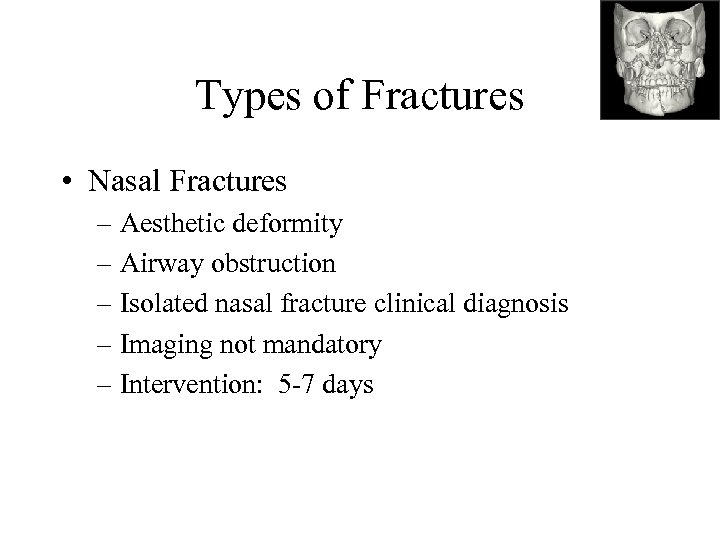

Types of Fractures • Nasal Fractures – Aesthetic deformity – Airway obstruction – Isolated nasal fracture clinical diagnosis – Imaging not mandatory – Intervention: 5 -7 days

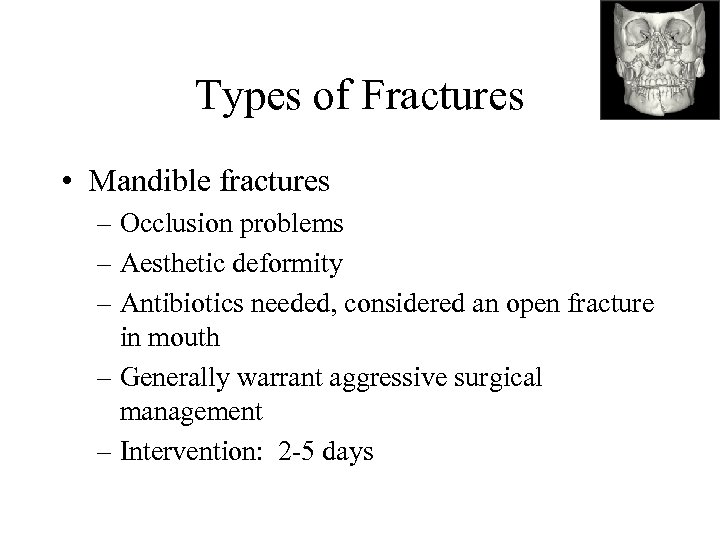

Types of Fractures • Mandible fractures – Occlusion problems – Aesthetic deformity – Antibiotics needed, considered an open fracture in mouth – Generally warrant aggressive surgical management – Intervention: 2 -5 days

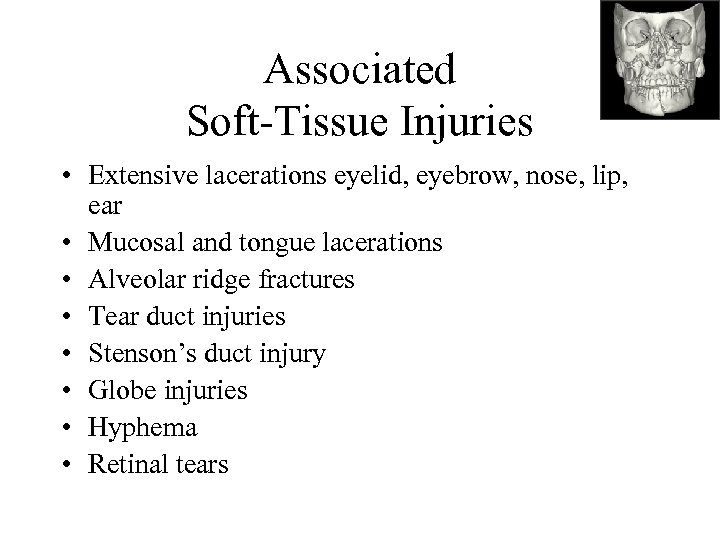

Associated Soft-Tissue Injuries • Extensive lacerations eyelid, eyebrow, nose, lip, ear • Mucosal and tongue lacerations • Alveolar ridge fractures • Tear duct injuries • Stenson’s duct injury • Globe injuries • Hyphema • Retinal tears

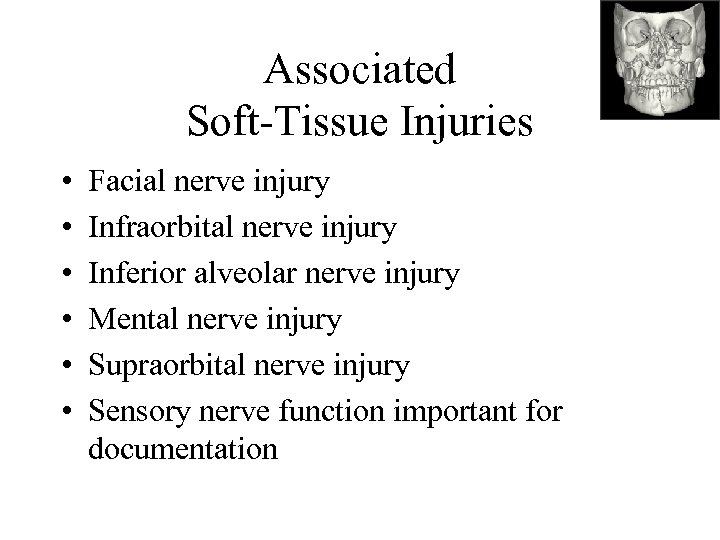

Associated Soft-Tissue Injuries • • • Facial nerve injury Infraorbital nerve injury Inferior alveolar nerve injury Mental nerve injury Supraorbital nerve injury Sensory nerve function important for documentation

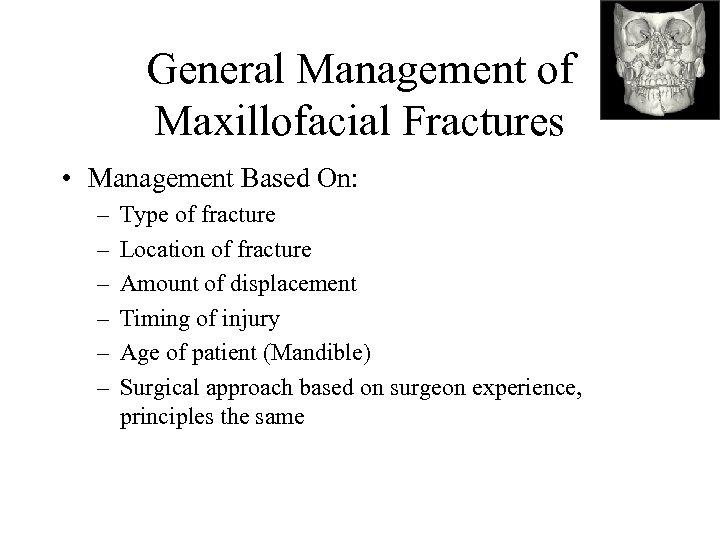

General Management of Maxillofacial Fractures • Management Based On: – – – Type of fracture Location of fracture Amount of displacement Timing of injury Age of patient (Mandible) Surgical approach based on surgeon experience, principles the same

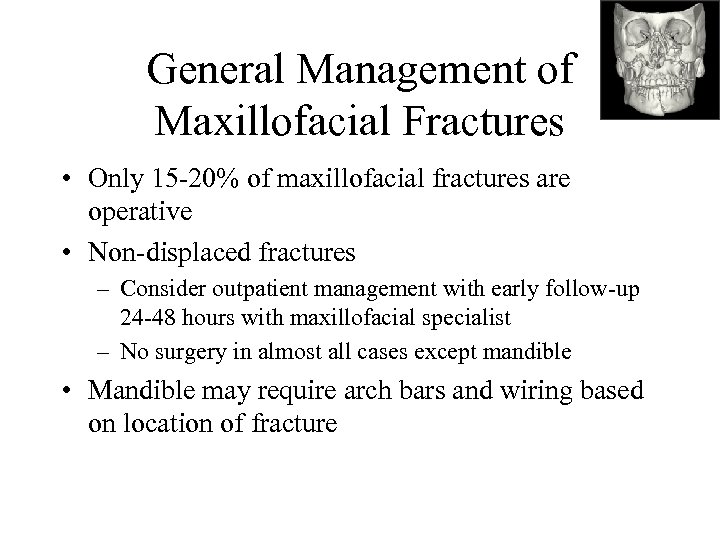

General Management of Maxillofacial Fractures • Only 15 -20% of maxillofacial fractures are operative • Non-displaced fractures – Consider outpatient management with early follow-up 24 -48 hours with maxillofacial specialist – No surgery in almost all cases except mandible • Mandible may require arch bars and wiring based on location of fracture

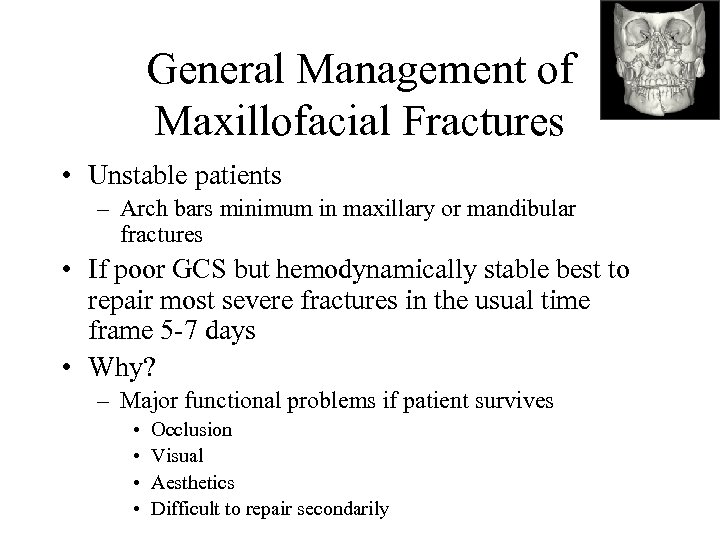

General Management of Maxillofacial Fractures • Unstable patients – Arch bars minimum in maxillary or mandibular fractures • If poor GCS but hemodynamically stable best to repair most severe fractures in the usual time frame 5 -7 days • Why? – Major functional problems if patient survives • • Occlusion Visual Aesthetics Difficult to repair secondarily

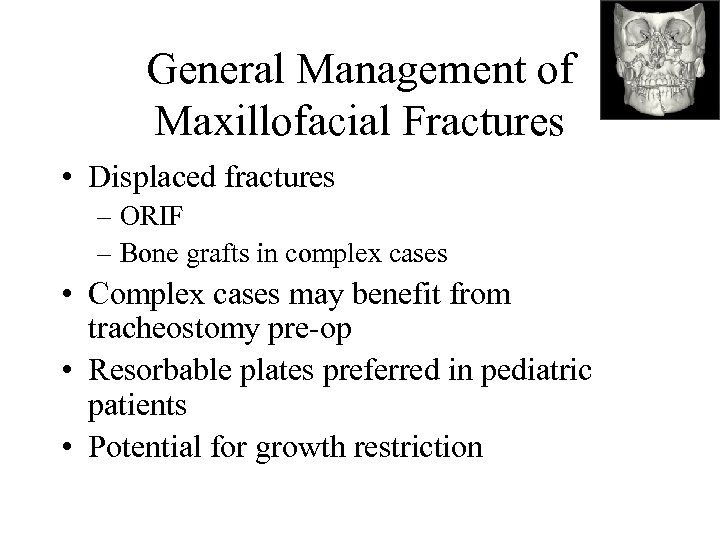

General Management of Maxillofacial Fractures • Displaced fractures – ORIF – Bone grafts in complex cases • Complex cases may benefit from tracheostomy pre-op • Resorbable plates preferred in pediatric patients • Potential for growth restriction

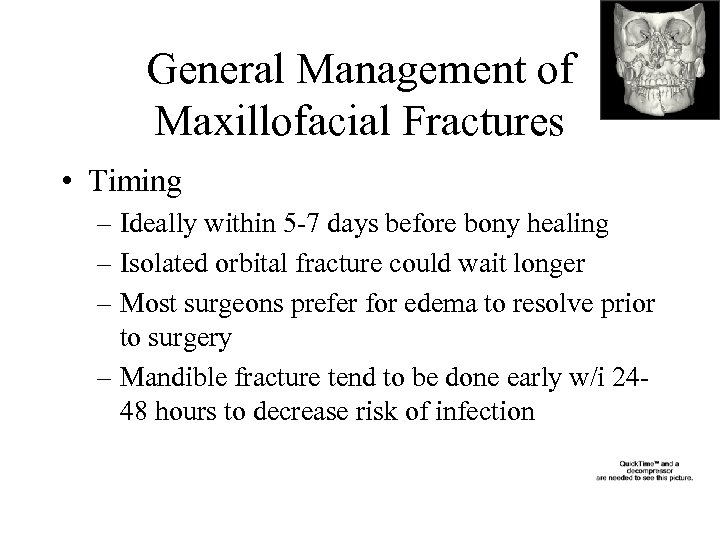

General Management of Maxillofacial Fractures • Timing – Ideally within 5 -7 days before bony healing – Isolated orbital fracture could wait longer – Most surgeons prefer for edema to resolve prior to surgery – Mandible fracture tend to be done early w/i 2448 hours to decrease risk of infection

General Management of Maxillofacial Fractures • Unrepaired fractures may require osteotomies for correction especially if addressed 3 or more weeks after injury. • Surgery is much more complex and accurate reduction more difficult.

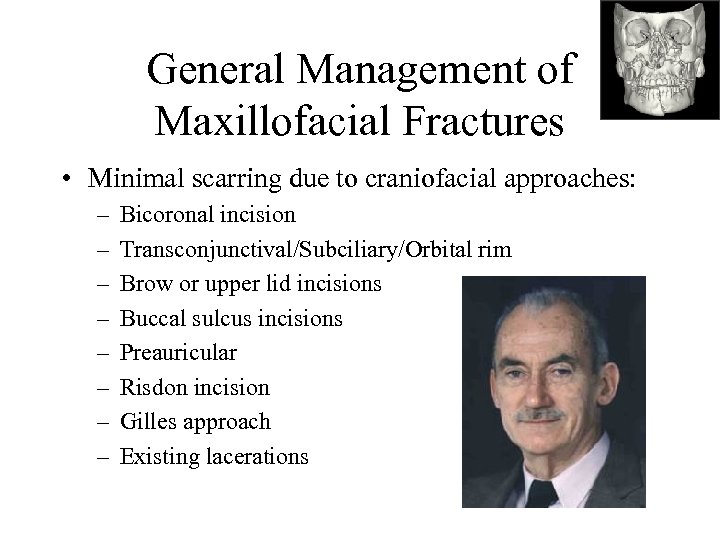

General Management of Maxillofacial Fractures • Minimal scarring due to craniofacial approaches: – – – – Bicoronal incision Transconjunctival/Subciliary/Orbital rim Brow or upper lid incisions Buccal sulcus incisions Preauricular Risdon incision Gilles approach Existing lacerations

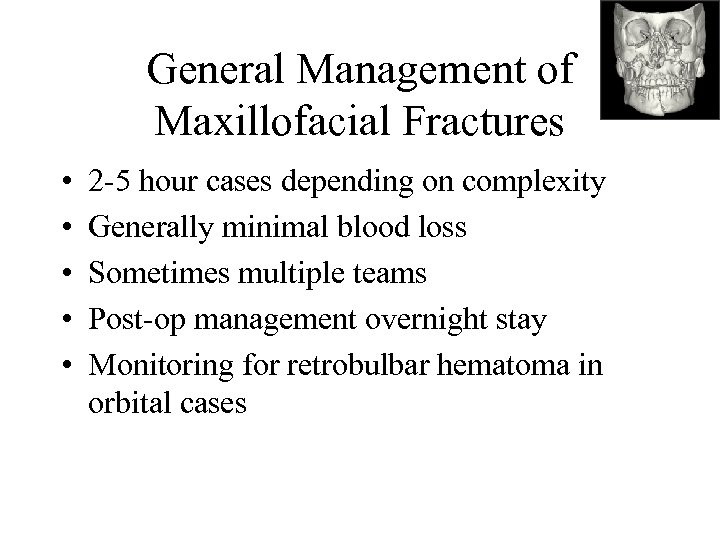

General Management of Maxillofacial Fractures • • • 2 -5 hour cases depending on complexity Generally minimal blood loss Sometimes multiple teams Post-op management overnight stay Monitoring for retrobulbar hematoma in orbital cases

General Management of Maxillofacial Fractures • Surgical goals of ORIF: – Restoration of occlusion and aesthetic appearance – Maintain height and width of face – Management of significant bone loss • Bone grafting

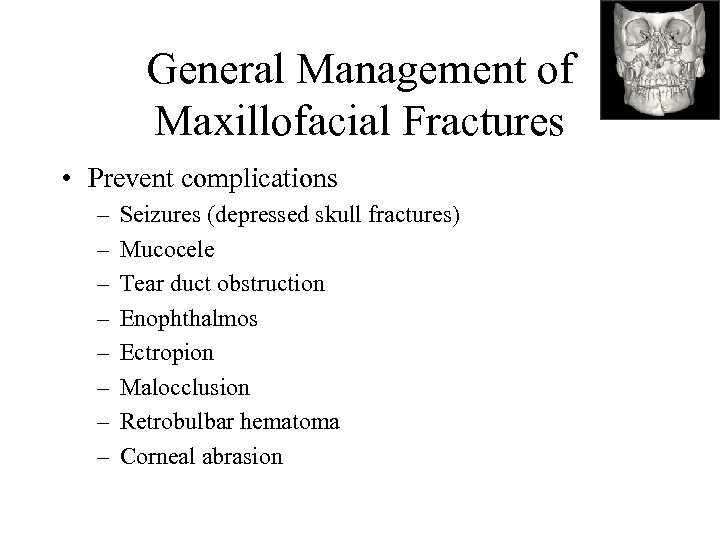

General Management of Maxillofacial Fractures • Prevent complications – – – – Seizures (depressed skull fractures) Mucocele Tear duct obstruction Enophthalmos Ectropion Malocclusion Retrobulbar hematoma Corneal abrasion

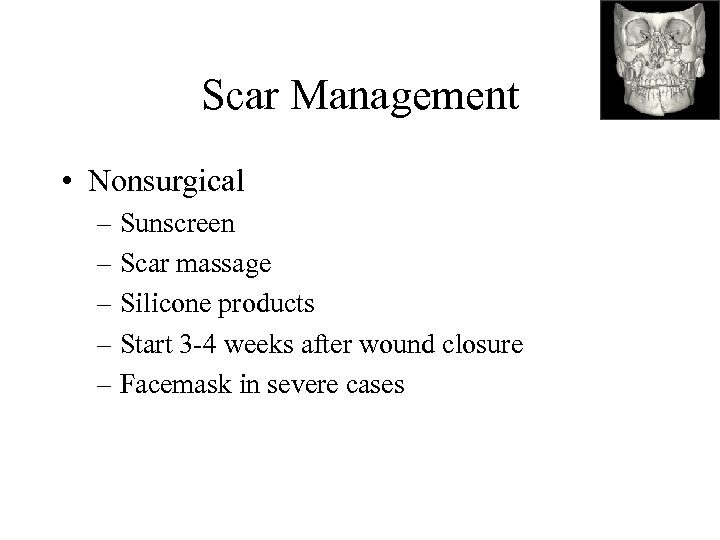

Scar Management • Nonsurgical – Sunscreen – Scar massage – Silicone products – Start 3 -4 weeks after wound closure – Facemask in severe cases

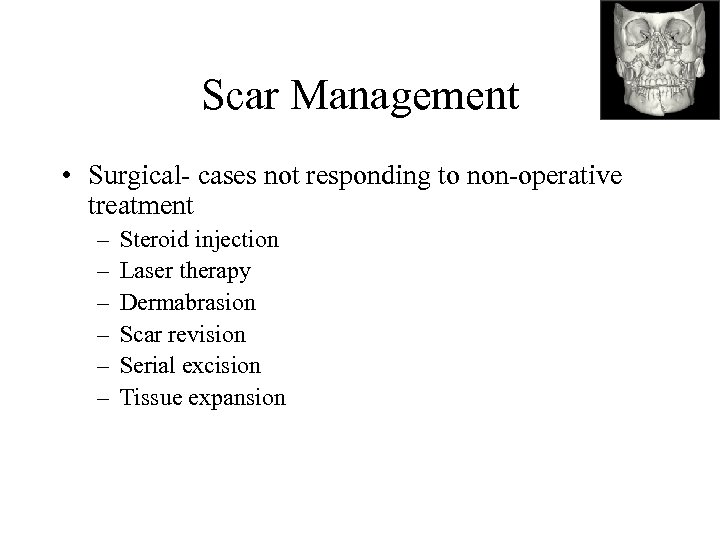

Scar Management • Surgical- cases not responding to non-operative treatment – – – Steroid injection Laser therapy Dermabrasion Scar revision Serial excision Tissue expansion

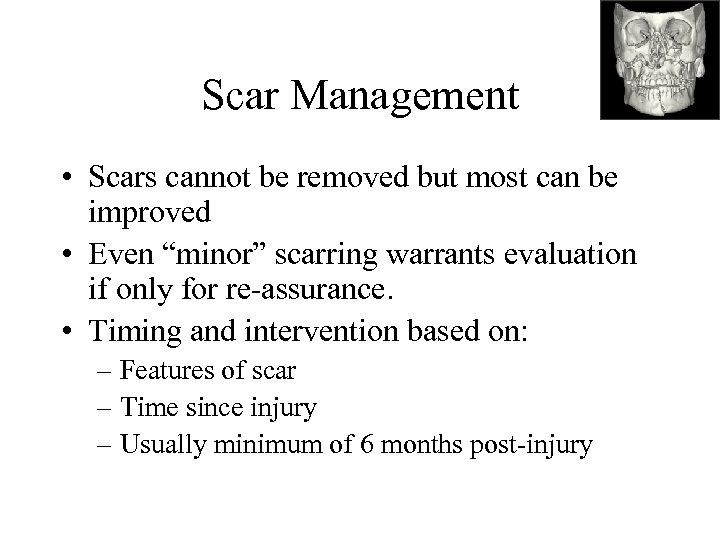

Scar Management • Scars cannot be removed but most can be improved • Even “minor” scarring warrants evaluation if only for re-assurance. • Timing and intervention based on: – Features of scar – Time since injury – Usually minimum of 6 months post-injury

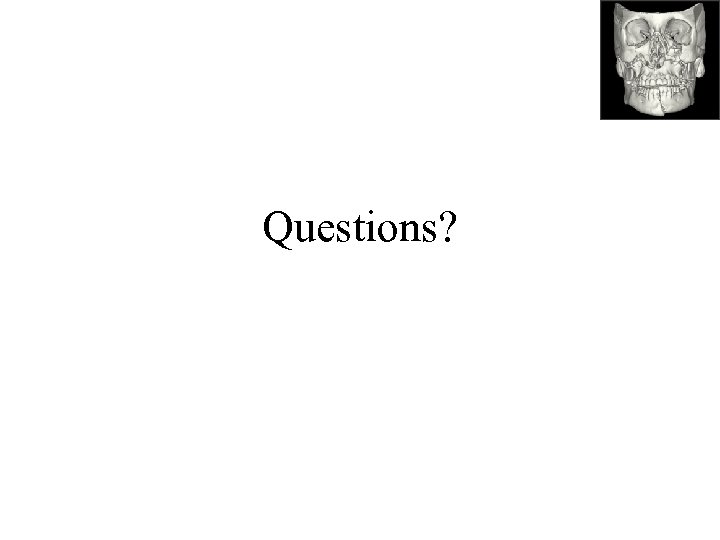

Questions?
