The Hugoton Geomodel: A Hybrid Stochastic-Deterministic Approach Geoffrey C Bohling Martin K Dubois Alan P Byrnes Long Beach, 2 April 2007 Bohling, Dubois, Byrnes

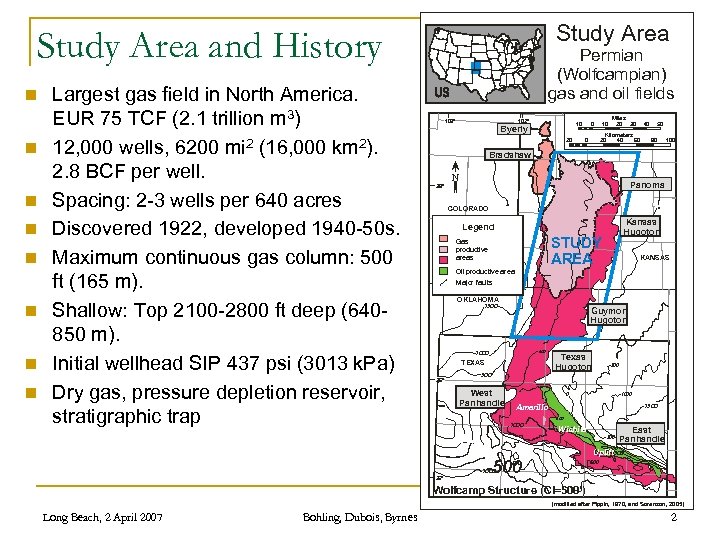

Study Area and History n n n n Largest gas field in North America. EUR 75 TCF (2. 1 trillion m 3) 12, 000 wells, 6200 mi 2 (16, 000 km 2). 2. 8 BCF per well. Spacing: 2 -3 wells per 640 acres Discovered 1922, developed 1940 -50 s. Maximum continuous gas column: 500 ft (165 m). Shallow: Top 2100 -2800 ft deep (640850 m). Initial wellhead SIP 437 psi (3013 k. Pa) Dry gas, pressure depletion reservoir, stratigraphic trap Permian (Wolfcampian) gas and oil fields 103° 102° 10 Byerly 0 20 10 Miles 20 30 Kilometers 0 20 40 60 40 50 80 100 Bradshaw N Panoma 38° COLORADO 1500 0 Kansas Hugoton 500 Legend STUDY AREA Gas productive areas Oil productive area 37° KANSAS 1000 Major faults OKLAHOMA 1500 0 Guymon Hugoton 500 1000 Texas Hugoton TEXAS 500 36° 1000 West Panhandle -500 0 -1000 -1500 Amarillo 500 1000 Wichita - 500 0 East Panhandle 0 Uplift 500 -500 -1000 35° 500 0 Wolfcamp Structure (CI=500’) -500 (modified after Pippin, 1970, and Sorenson, 2005) Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 2

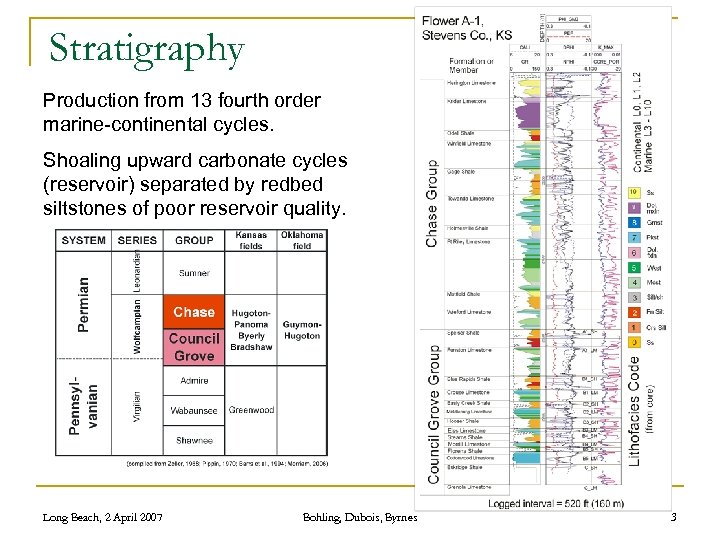

Stratigraphy Production from 13 fourth order marine-continental cycles. Shoaling upward carbonate cycles (reservoir) separated by redbed siltstones of poor reservoir quality. Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 3

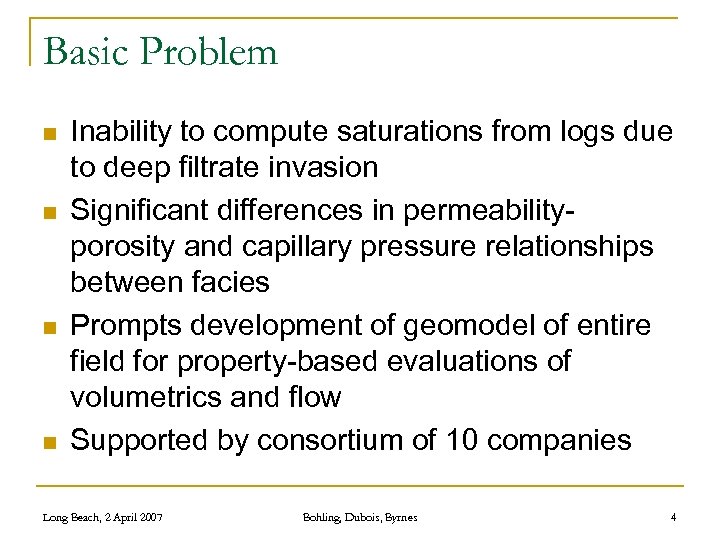

Basic Problem n n Inability to compute saturations from logs due to deep filtrate invasion Significant differences in permeabilityporosity and capillary pressure relationships between facies Prompts development of geomodel of entire field for property-based evaluations of volumetrics and flow Supported by consortium of 10 companies Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 4

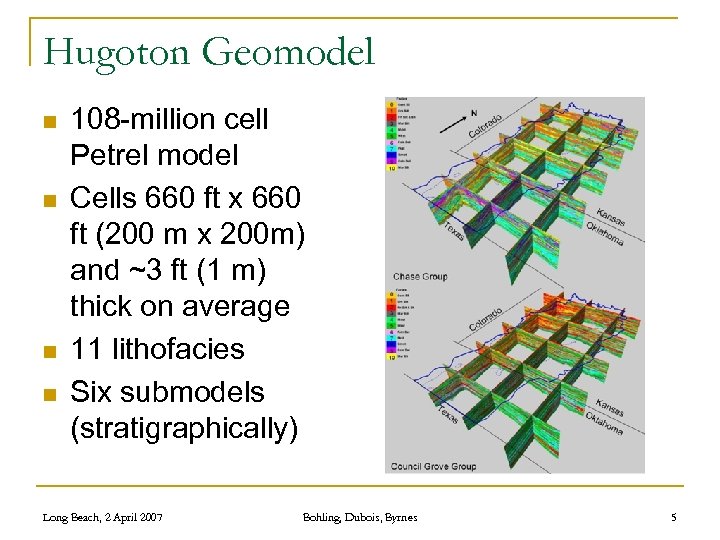

Hugoton Geomodel n n 108 -million cell Petrel model Cells 660 ft x 660 ft (200 m x 200 m) and ~3 ft (1 m) thick on average 11 lithofacies Six submodels (stratigraphically) Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 5

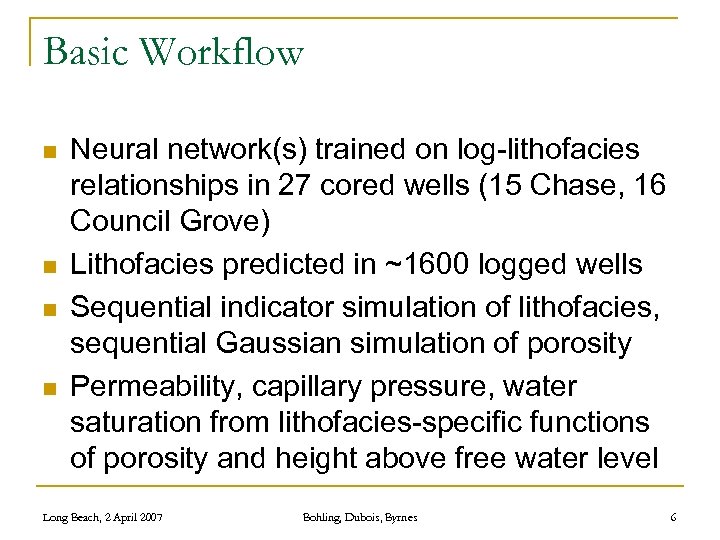

Basic Workflow n n Neural network(s) trained on log-lithofacies relationships in 27 cored wells (15 Chase, 16 Council Grove) Lithofacies predicted in ~1600 logged wells Sequential indicator simulation of lithofacies, sequential Gaussian simulation of porosity Permeability, capillary pressure, water saturation from lithofacies-specific functions of porosity and height above free water level Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 6

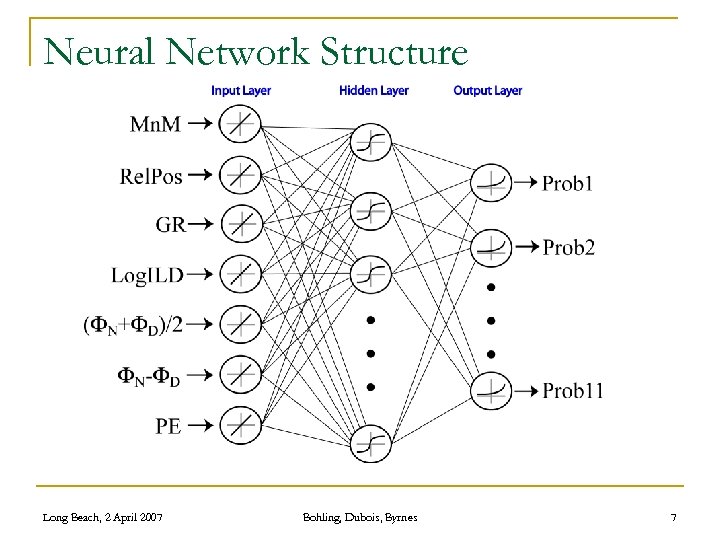

Neural Network Structure Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 7

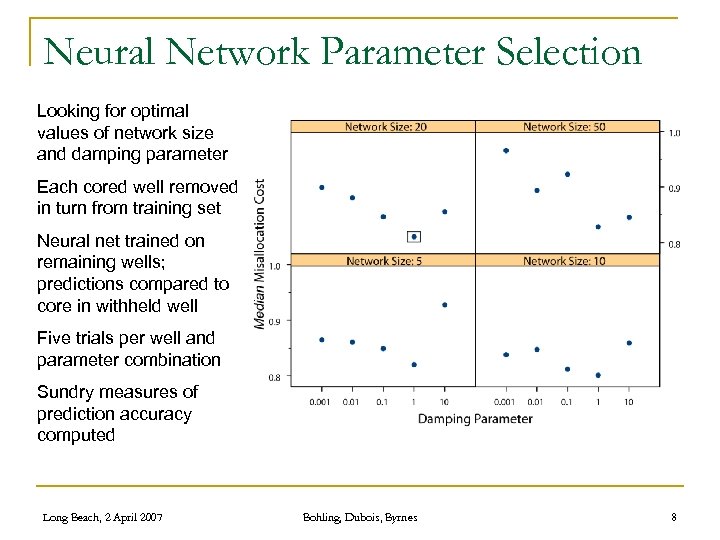

Neural Network Parameter Selection Looking for optimal values of network size and damping parameter Each cored well removed in turn from training set Neural net trained on remaining wells; predictions compared to core in withheld well Five trials per well and parameter combination Sundry measures of prediction accuracy computed Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 8

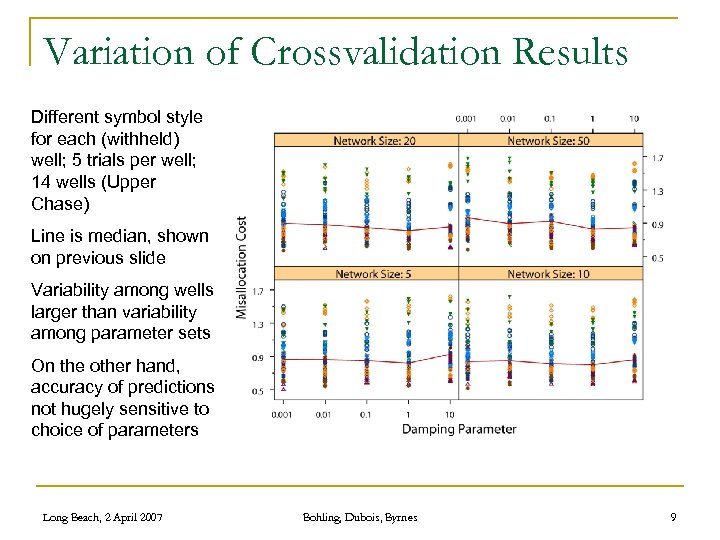

Variation of Crossvalidation Results Different symbol style for each (withheld) well; 5 trials per well; 14 wells (Upper Chase) Line is median, shown on previous slide Variability among wells larger than variability among parameter sets On the other hand, accuracy of predictions not hugely sensitive to choice of parameters Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 9

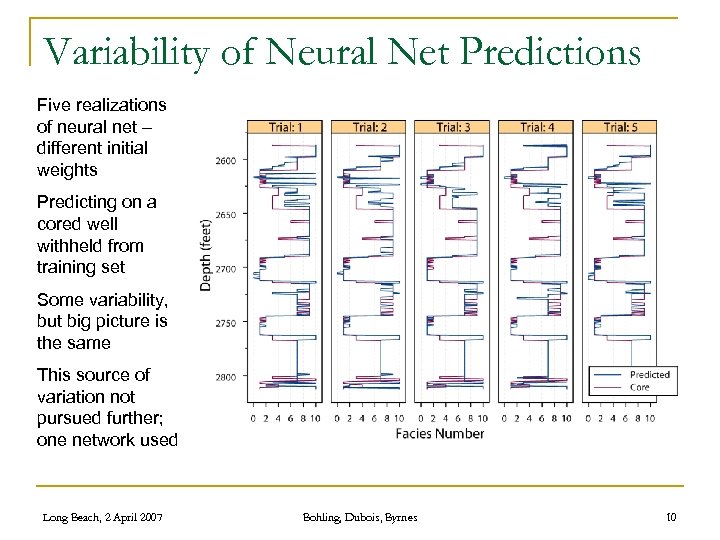

Variability of Neural Net Predictions Five realizations of neural net – different initial weights Predicting on a cored well withheld from training set Some variability, but big picture is the same This source of variation not pursued further; one network used Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 10

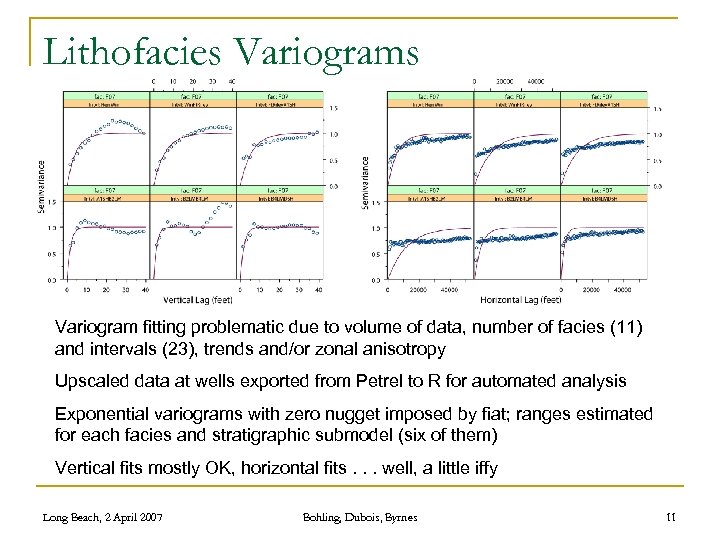

Lithofacies Variogram fitting problematic due to volume of data, number of facies (11) and intervals (23), trends and/or zonal anisotropy Upscaled data at wells exported from Petrel to R for automated analysis Exponential variograms with zero nugget imposed by fiat; ranges estimated for each facies and stratigraphic submodel (six of them) Vertical fits mostly OK, horizontal fits. . . well, a little iffy Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 11

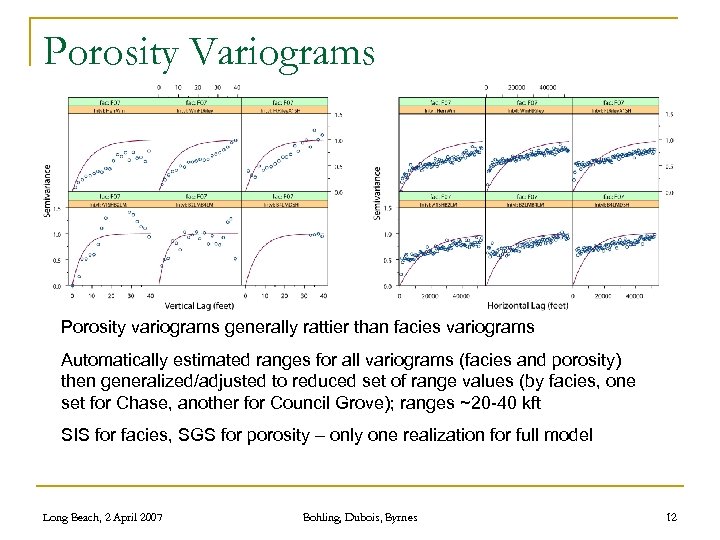

Porosity Variograms Porosity variograms generally rattier than facies variograms Automatically estimated ranges for all variograms (facies and porosity) then generalized/adjusted to reduced set of range values (by facies, one set for Chase, another for Council Grove); ranges ~20 -40 kft SIS for facies, SGS for porosity – only one realization for full model Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 12

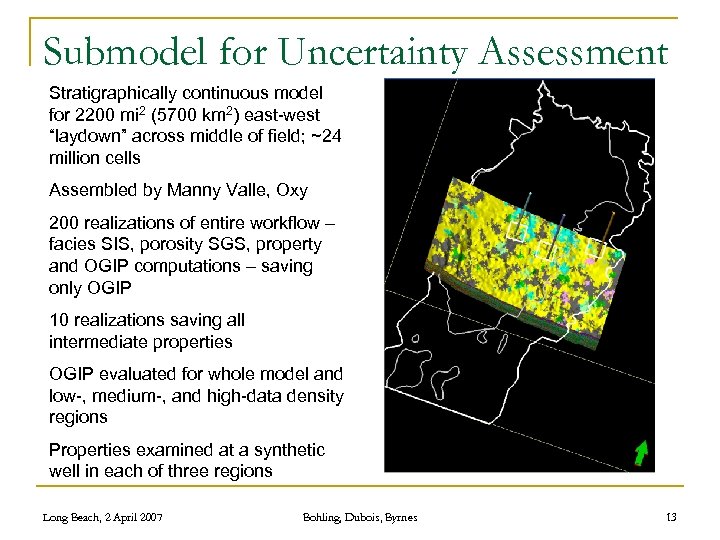

Submodel for Uncertainty Assessment Stratigraphically continuous model for 2200 mi 2 (5700 km 2) east-west “laydown” across middle of field; ~24 million cells Assembled by Manny Valle, Oxy 200 realizations of entire workflow – facies SIS, porosity SGS, property and OGIP computations – saving only OGIP 10 realizations saving all intermediate properties OGIP evaluated for whole model and low-, medium-, and high-data density regions Properties examined at a synthetic well in each of three regions Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 13

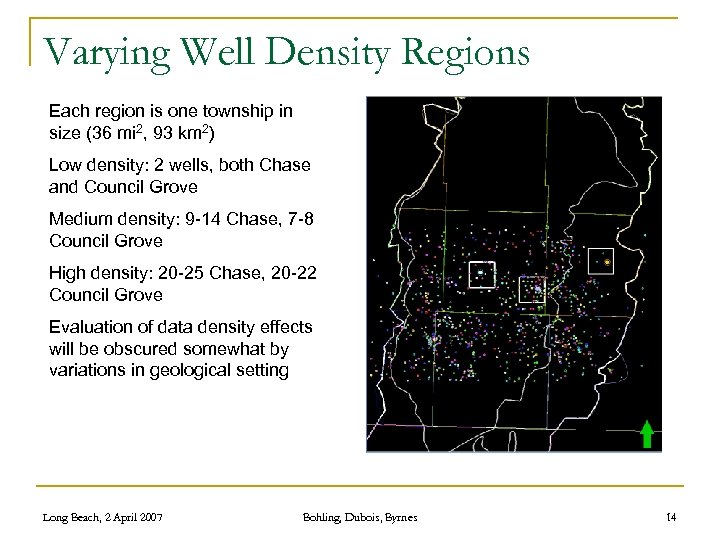

Varying Well Density Regions Each region is one township in size (36 mi 2, 93 km 2) Low density: 2 wells, both Chase and Council Grove Medium density: 9 -14 Chase, 7 -8 Council Grove High density: 20 -25 Chase, 20 -22 Council Grove Evaluation of data density effects will be obscured somewhat by variations in geological setting Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 14

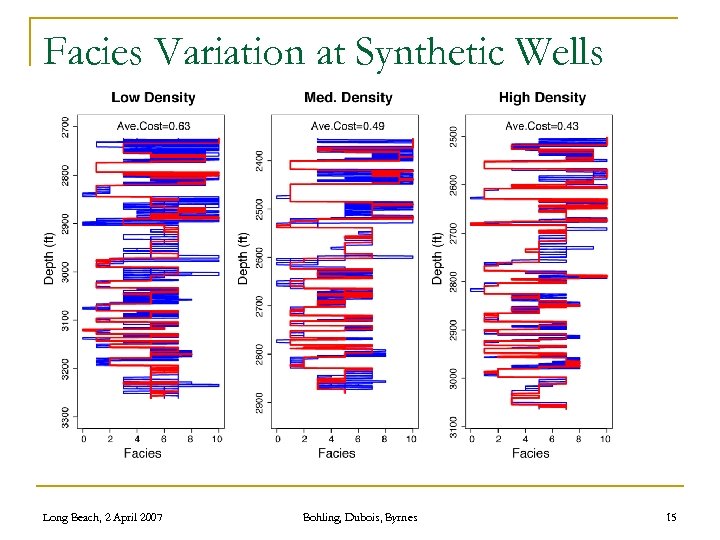

Facies Variation at Synthetic Wells Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 15

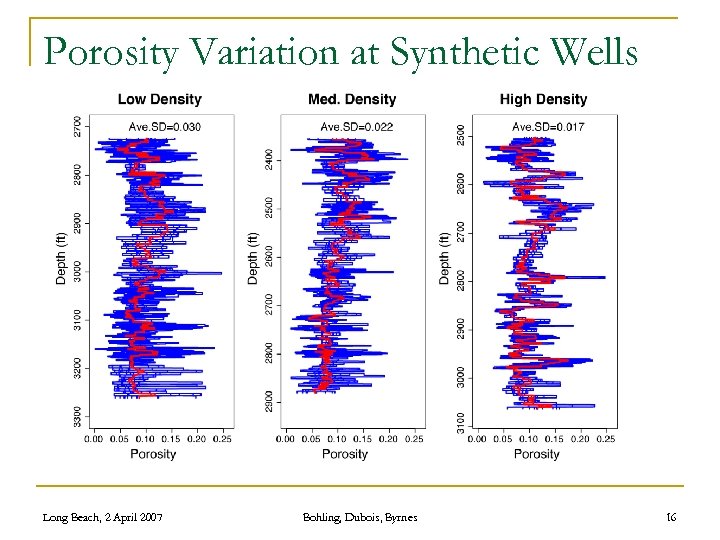

Porosity Variation at Synthetic Wells Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 16
Perm, Sw, OGIP vfn Ss crs sltstn Permeability (k), Sw, and OGIP for each cell computed as functions of lithofacies and porosity (f) fn-med sltstn k – f(Lith, f) Grnst Sw = f(Lith, f, FWL) Pkst Wkst Mdst mxln moldic Dol. k-f relationships Long Beach, 2 April 2007 Bohling, Dubois, Byrnes vfxln Dol 17

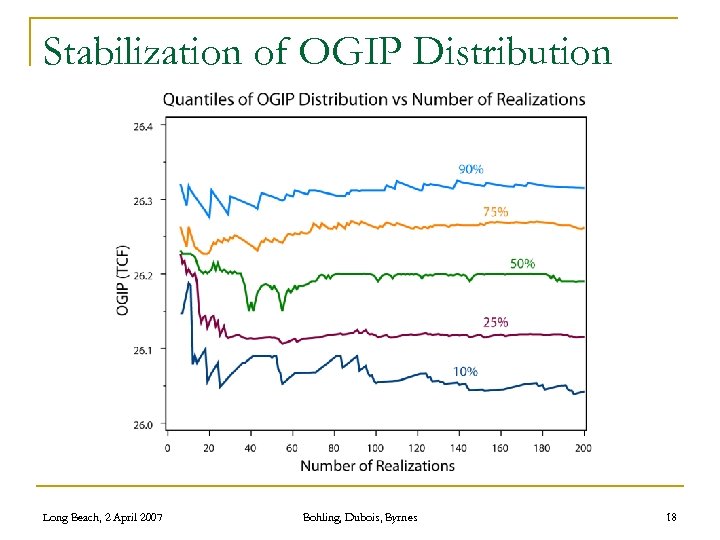

Stabilization of OGIP Distribution Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 18

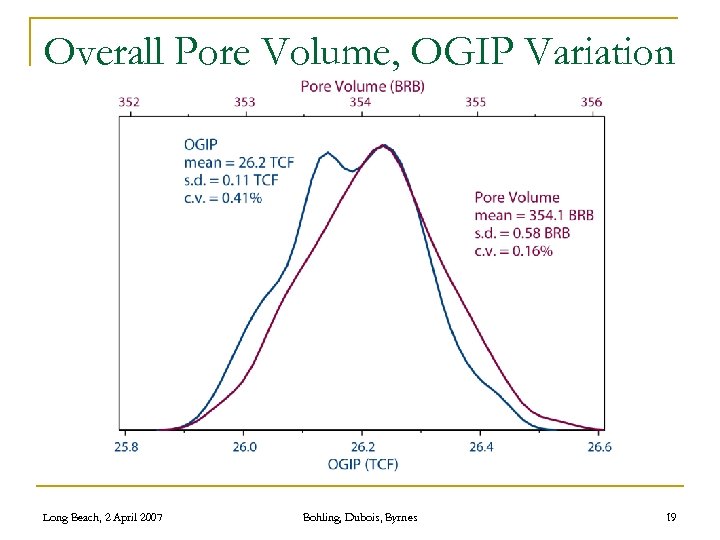

Overall Pore Volume, OGIP Variation Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 19

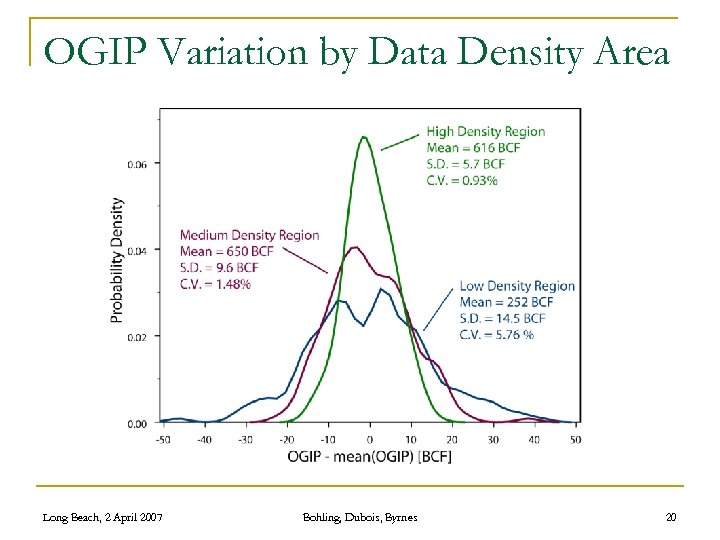

OGIP Variation by Data Density Area Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 20

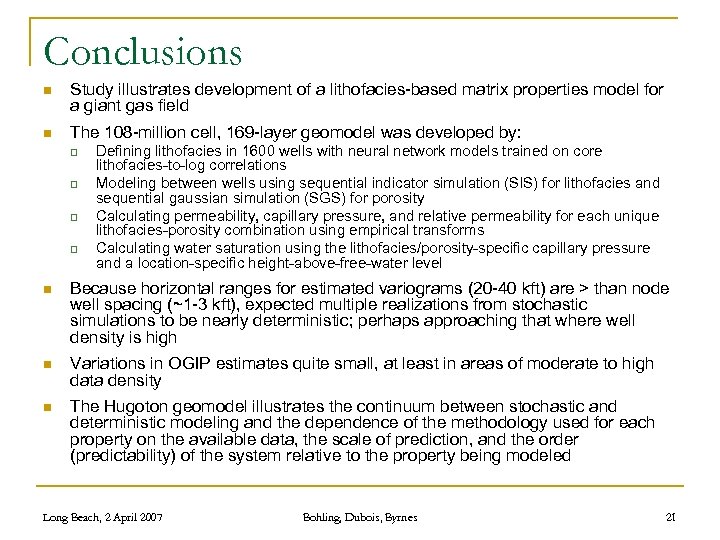

Conclusions n Study illustrates development of a lithofacies-based matrix properties model for a giant gas field n The 108 -million cell, 169 -layer geomodel was developed by: q q Defining lithofacies in 1600 wells with neural network models trained on core lithofacies-to-log correlations Modeling between wells using sequential indicator simulation (SIS) for lithofacies and sequential gaussian simulation (SGS) for porosity Calculating permeability, capillary pressure, and relative permeability for each unique lithofacies-porosity combination using empirical transforms Calculating water saturation using the lithofacies/porosity-specific capillary pressure and a location-specific height-above-free-water level n Because horizontal ranges for estimated variograms (20 -40 kft) are > than node well spacing (~1 -3 kft), expected multiple realizations from stochastic simulations to be nearly deterministic; perhaps approaching that where well density is high n Variations in OGIP estimates quite small, at least in areas of moderate to high data density n The Hugoton geomodel illustrates the continuum between stochastic and deterministic modeling and the dependence of the methodology used for each property on the available data, the scale of prediction, and the order (predictability) of the system relative to the property being modeled Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 21

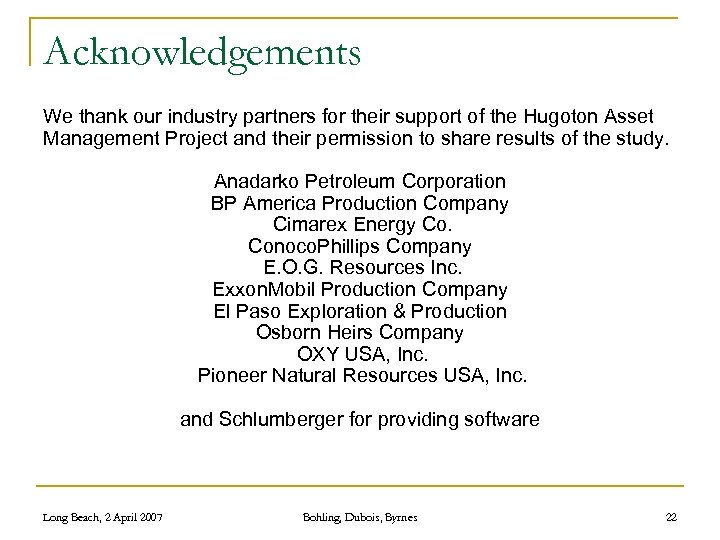

Acknowledgements We thank our industry partners for their support of the Hugoton Asset Management Project and their permission to share results of the study. Anadarko Petroleum Corporation BP America Production Company Cimarex Energy Co. Conoco. Phillips Company E. O. G. Resources Inc. Exxon. Mobil Production Company El Paso Exploration & Production Osborn Heirs Company OXY USA, Inc. Pioneer Natural Resources USA, Inc. and Schlumberger for providing software Long Beach, 2 April 2007 Bohling, Dubois, Byrnes 22
